WINDOW
AIR CONDITIONER
FOR MODEL:
5PMC5000
5PAC5000
5PAC6000
5PAC8000
6PAC10000
6PAC12000
5SAC10000
6SAC12000
4PNC6000
4PNC8000
4PNC10000
4PNC12000
Before using your air conditioner, please
read this manual carefully and keep it for
future reference, along with your receipt.
USER MANUAL
For your own records, please attach a copy of your sales receipt to this manual and complete the following:
Model Number: _____________________________________ Serial Number: _______________________________________
Purchase Date: ____________________________________ Store Purchased: _____________________________________
Installation Date: ___________________________________ Installation Co.: _______________________________________
Installer Name: _____________________________________ Installer Phone No.: ___________________________________
CONSUMER PRODUCT INFORMATION
IMPORTANT SAFETY INSTRUCTIONS ...........................................1-9
INSTALLATION INSTRUCTIONS .....................................................10-22
NORMAL SOUNDS ...........................................................................23
AIR CONDITIONER FEATURES .......................................................24-28
CARE AND CLEANING ....................................................................28-29
TROUBLESHOOTING .......................................................................29-30
CONTENTS
This manual provides the information needed for proper use and maintenance
of this air conditioner. Basic preventative care can help extend the life of
this unit. The “Troubleshooting” section in this manual contains a chart with
solutions to the most common problems. Referring to this section may save
time and prevent the need for a service call in the event of a problem.
IMPORTANT SAFETY INSTRUCTIONS
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
WARNING
Plug in power plug
properly.
Do not modify power cord length or share the
outlet with other appliances.
Always ensure effective
grounding.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Keep firearms away.
Ventilate room before operating air conditioner if there is
a gas leakage from another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or fire due to heat generation.
Incorrect grounding may cause
electric shock.
It may cause fire and electric
shock.
It may cause fire.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It may cause fire and electric
shock.
It may cause fire and electric
shock.
It may cause electric shock or fire.
If the power cord is damaged, it must be replaced by the
manufacturer or an authorised service centre or a similarly
qualified per son in order to avoid a hazard.
This could damage your health.
Incorrect installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord
close to heating appliances.
Do not damage or use an unspecified power
cord.
Do not direct airflow at room occupants only.Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit during operation.
Do not use the power cord near flammable gas
or combustibles, such as gasoline, benzene,
thinner, etc.
Do not disassemble or modify unit.
!!
!
!
!
!
!
!
!
!
!!
!!
!!
READ THIS MANUAL
1
When the air filter is to be
removed, do not touch the metal
parts of the unit.
It may cause an injury.
Do not clean unit when power is on
as it may c ause fi re an d el ectric sh ock,
it may cause an injury.
Operation with windows opened
may cause wetting of indoor and
soaking of household furniture.
When the unit is to be cleaned,
switch off, and turn off the circuit
breaker.
Use caution when unpacking and
installing. Sharp edges could cause injury.
Do not clean the air conditioner
with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or plant.
It may cause electric shock and
damage.
Do not put a pet or house plant
where it will be exposed to direct
air flow.
Ventilate the room well when
used together with a stove, etc.
An oxygen shortage may occur.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.It may
cause deterioration of quality, etc.
It may cause failure of product or
fire.
Do not use for special purposes.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
!!
!!
!!
!!
It may cause failure of appliance
or accident.
Appearance may be deteriorated
due to change of product color or
scratching of its surface.
If bracket is damaged, there is
concern of damage due to falling
of unit.
There is danger of fire or electric
shock.
Operation without filters maycause
failure.
It contains contaminants and
could make you sick.
Stop operation and close the
window in storm or hurricane.
!!
Do not use strong detergent
such as wax or thinner but use
a soft cloth.
Ensure that the installation bracket of the
outdoor appliance is not damaged due
to prolonged exposure.
Hold the plug by the head of the
power plug when taking it out.
!!
Turn off the main power
switch when not using the
unit for a long time.
!!
!!
!!
Always insert the filters securely.
Clean filter once every t wo w eeks.
!!
Do not place heavy object on the power
cord and ensure that the cord is not
compressed.
Do not drink water drained
from air conditioner.
This appliance is not intended for use by persons
(including children) with reduced physical ,sensory
or mental capabilities or lack of experience and
knowledge, unless t hey h aveb eengi vensu pervision
or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
CAUTION
2
CAUTION
Do not place obstacles around
air-inlets or inside of air-outlet.
The appliance shall be installed in accordance
with national wiring regulations.
Do not operate your air conditioner in a wet room
such as a bathroom or laundry room.
The appliance with electric heater shall have at
l east 1 m eter s pace to th eco mbustible materials.
Contact the authorised service technician for
repair or maintenance of this unit.
Contact the authorised installer for installation
of this unit.

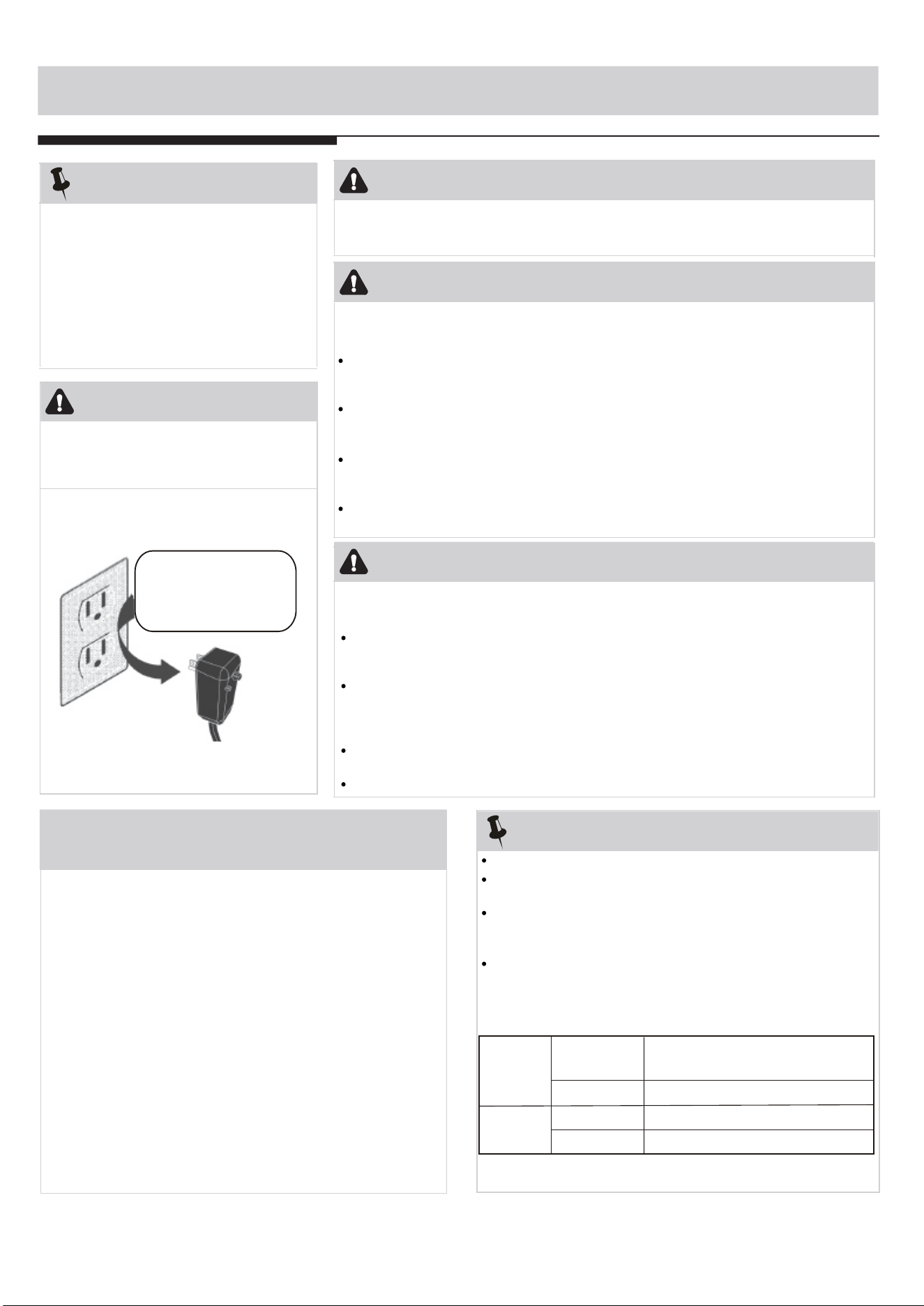

IMPORTANT SAFETY INSTRUCTIONS
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
Power supply cord
with 3-prong grounding plug
and current detection device
Grounding type wall
receptacle
WARNING
NOTE:
The power supply cord with this air
conditioner contains a current detection
device designed to reduce the risk of fire.
Please refer to the section Operation
of Current Device for details.In the event
that the power supply cord is damaged,
it cannot be repaired-it must be replaced
with ac ordf romt heP roductM anufacturer.
Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
WARNING
For Your Safety
WARNING
Prevent Accidents
WARNING
Electrical Information
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
Operation of Current Device
(Applicable to the unit adopts current detection
device only )
The power supply cord contains a current device that senses
damage to the power cord. To test your power supply cord do
the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug
head. Press the TEST button, you will notice a click as the
RESET button pops out.
3. Press the RESET button, again you will notice a click as
the button engages.
4. The power supply cord is now supplying electricity to the
unit. (On some products this it also indicated by a light on
the plug head.)
3
To reduce the risk of fire, electrical shock, or injury to persons when using your
air conditioner, follow basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the
the cabinet and behind the grille.
If the air conditioneri s t o b e in stalled in a w indow, yo u w ill pr obably w ant to cl ean
both sides of the g lass f irst.I f th e w indowis a tri ple-track ty pe w ith a sc reen pa nel
included, remove the screen completely before installation.
Be sure the air c onditionerh as b een s ecurely a nd c orrectly in stalled a ccording to
the installation instructions in this manual. Save this manual for possible future
use in removing or installing this unit.
When handling the air conditioner, be careful to avoid cuts f rom s harp m etal f ins
on front and rear coils.
The complete electical rating of your new room air conditioner is stated on the
serial plate. Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle you intend to use is not adequately grounded or protected by a
time delay fuse or circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.This could
result in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
IMPORTANT SAFETY INSTRUCTIONS
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for
correct operation.
The power supply must be replaced if it fails reset when
either the TEST button is pushed, or it cannot be reset. A
new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It
MUST be replaced by one obtained from the product
manufacturer.
NOTE:
NOTE:This air conditioner is designed to be operated
under condition as follows:
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/-5-24 C
Indoor temp:
O
O
32-80 F/0-27 C
OO OO
64-109 F/18-43 C (64-125 F/18-52 C
for special tropical models)
O
O
62-90 F/17-32 C
Note: Performance may be reduced outside of these
operating temperatures.
4
IMPORTANT SAFETY INSTRUCTIONS
-Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
-The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance) and ignition sourcesor
(for example:an operating electric heater) close to the appliance. The appliance shall
be stored in a room without continuously operating ignition sources (for example: open
flames, an operating gas appliance or an operating electric heater).
-Do not pierce or burn.
-Be aware that the refrigerants may not contain an odour.
-Compliance with national gas regulations shall be observed.
-Keep ventilation openings clear of obstruction.
-The appliance shall be stored so as to prevent mechanical damage from occurring.
-A warning that the appliance shall be stored in a well-ventilated area where the room
size corresponds to the room area as specified for operation.
-Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an
industry recognised assessment specification.
-Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable refrigerants.
-DO NOT modify the length of the power cord or use an extension cord to power the unit.
DO NOT share a single outlet with other electrical appliances. Improper power supply
can cause fire or electrical shock.
-Please follow the instruction carefully to handle, install, clear, service the air
conditioner to avoid any damage or hazard. Flammable Refrigerant R32 is used within
air conditioner. When maintaining or disposing the air conditioner, the refrigerant (R32
or R290) shall be recovered properly, shall not discharge to air directly.
-No any open fire or device like switch which may generate spark/arcing shall be
around air conditioner to avoid causing ignition of the flammable refrigerant used.
Please follow the instruction carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
-Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction
carefully to avoid any hazard.
WARNING: (for using R290/R32 refrigerant only)
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE:Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.
AVERTISSEMENT
Ne pas utiliser de produits permettant d acc l rer le d gel ou de produits de nettoyage
autres que ceux recommand s par le fabricant.
L appareil doit tre entrepos dans un endroit sans source d allumage fonctionnant
en continu (par exemple : flamme nue, appareil au gaz en marche ou radiateur lectrique
en marche).
Ne pas percer ni bruler.
Attention : les frigorig nes peuvent tre inodores.
,
,
,
WARNINGS (for using R290/R32 refrigerant only)
!
5
IMPORTANT SAFETY INSTRUCTIONS
Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):
WARNING
This symbol shows that this appliance used a flammable refrigerant. If the
refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating
manual or installation manual.
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
6.Information on servicing
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system,
the following precautions shall be complied with prior to conducting work on the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
flammable gas or vapour being present while the work is being performed.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out. Work in confined spaces shall be avoided. The area around the
workspace shall be sectioned off. Ensure that the conditions within the area have been made
safe by control of flammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2
fire extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any
6
IMPORTANT SAFETY INSTRUCTIONS
pipe work that contains or has contained flammable refrigerant shall use any sources of ignition
in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources,
including cigarette smoking, should be kept sufficiently far away from the site of installation,
repairing, removing and disposal, during which flammable refrigerant can possibly be released
to the surrounding space. Prior to work taking place, the area around the equipment is to be
surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking
signs shall be displayed.
7)Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the
system or conducting any hot work. A degree of ventilation shall continue during the period that
the work is carried out. The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the
correct specification. At all times the manufacturer's maintenance and service guidelines shall
be followed. If in doubt consult the manufacturer's technical department for assistance.
The following checks shall be applied to installations using flammable refrigerants:
The charge size is in accordance with the room size within which the refrigerant containing
parts are installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the
presence of refrigerant;
Marking to the equipment continues to be visible and legible. Markings and signs that are
illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to be
exposed to any substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being corroded or
are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault
cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so all
parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of
sparking;
That there no live electrical components and wiring are exposed while charging, recovering
or purging the system;
That there is continuity of earth bonding.
7.Repairs to sealed components
1)During repairs to sealed components, all electrical supplies shall be disconnected from the
equipment being worked upon prior to any removal of sealed covers, etc. If it isabsolutely
necessary to have an electrical supply to equipment during servicing, then a permanently
operating form of leak detection shall be located at the most critical point to warn of a
potentially hazardous situation.
2)Particular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is affected.
7
IMPORTANT SAFETY INSTRUCTIONS
This shall include damage to cables, excessive number of connections, terminals not made
to original specification, damage to seals, incorrect fitting
of glands, etc.
Ensure that apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded such that they no longer serve the
purpose of
preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection
equipment. Intrinsically safe components do not have to be isolated prior to working on them.
8.Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that
this will not exceed the permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the
presence of a flammable atmosphere. The test apparatus shall be at the correct rating.
Replace components only with parts specified by the manufacturer. Other parts may result in
the ignition of refrigerant in the atmosphere from a leak.
9.Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp
edges or any other adverse environmental effects. The check shall also take into account the
effects of aging or continual vibration from sources such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall
not be used.
11.Leak detection methods
The following leak detection methods are deemed acceptable for systems containing flammable
refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the
sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be
calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition
and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of
the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate
percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with
most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine
may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all
naked flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut
off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then
be purged through the system both before and during the brazing process.
12.Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose conventional
procedures shall be used. However, it is important that best practice is followed since
flammability is a consideration. Opening of the refrigeration systems shall not be done by brazing.
The following procedure shall be adhered to:
Remove refrigerant;
Purge the circuit with inert gas;
Evacuate;
Purge again with inert gas;
Open the circuit by cutting or brazing.
8
IMPORTANT SAFETY INSTRUCTIONS
The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall
be flushed with OFN to render the unit safe. This process may need to be repeated several
times. Compressed air or oxygen shall not be used for this task.
Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to
fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down
to a vacuum. This process shall be repeated until no refrigerant is within the system. When the
final OFN charge is used, the system shall be vented down to atmospheric pressure to enable
work to take place. This operation is absolutely vital if brazing operations on the pipe-work are
to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is
ventilation available.
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be followed.
Ensure that contamination of different refrigerants does not occur when using charging
equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant
contained in them.
Cylinders shall be kept upright.
Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak
tested on completion of charging but prior to commissioning. A follow up leak test shall be
carried out prior to leaving the site.
14.Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with
the equipment and all its detail. It is recommended good practice that all refrigerants are
recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken
in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:
Mechanical handling equipment is available, if required, for handling refrigerant cylinders;
All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person;
Recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the
cylinders and
9
IMPORTANT SAFETY INSTRUCTIONS
the equipment are removed from site promptly and all isolation valves on the equipment are
closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has
been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment
stating the equipment contains flammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall
be complete with pressure relief valve and associated shut-off valves in good working order.
Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning
the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.
In addition, a set of calibrated weighing scales shall be available and in good working order.
Hoses shall be complete with leak-free disconnect couplings and in good condition. Before
using the recovery machine, check that it is in satisfactory working order, has been properly
maintained and that any associated electrical components are sealed to prevent ignition in the
event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery
units and especially not in cylinders. If compressors or compressor oils are to be removed,
ensure that they have been evacuated to an acceptable level to make certain that flammable
refrigerant does not remain within the lubricant. The evacuation process shall be carried out
prior to returning the compressor to the suppliers. Only electric heating to the compressor
body shall be employed to accelerate this process. When oil is drained from a system, it shall
be carried out safely.
10

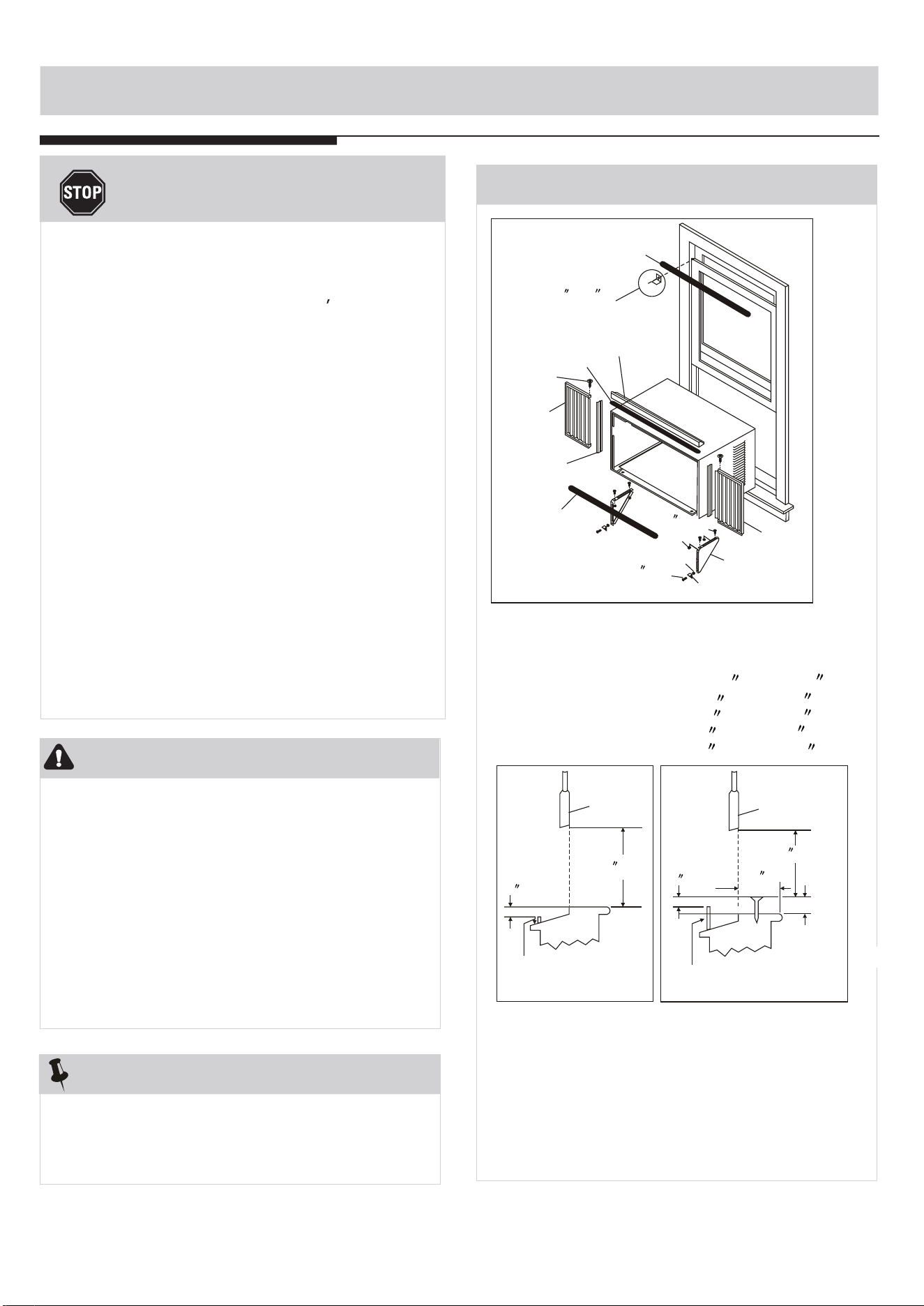

INSTALLATION INSTRUCTIONS(for 5000 to 12000Btu/h)
Read these instructions completely
and carefully.
IMPORTANT- Save these
instructions for local inspector s use.
IMPORTANT- Observe all
governing codes and ordianaces.
Note to Consumer- Keep these
instructions for futrue reference.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Completion time- Approximately 1 hour.
Skill level- Installatio of this appliance
requires basic mechanical skills.
We recommend that two people install
this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.

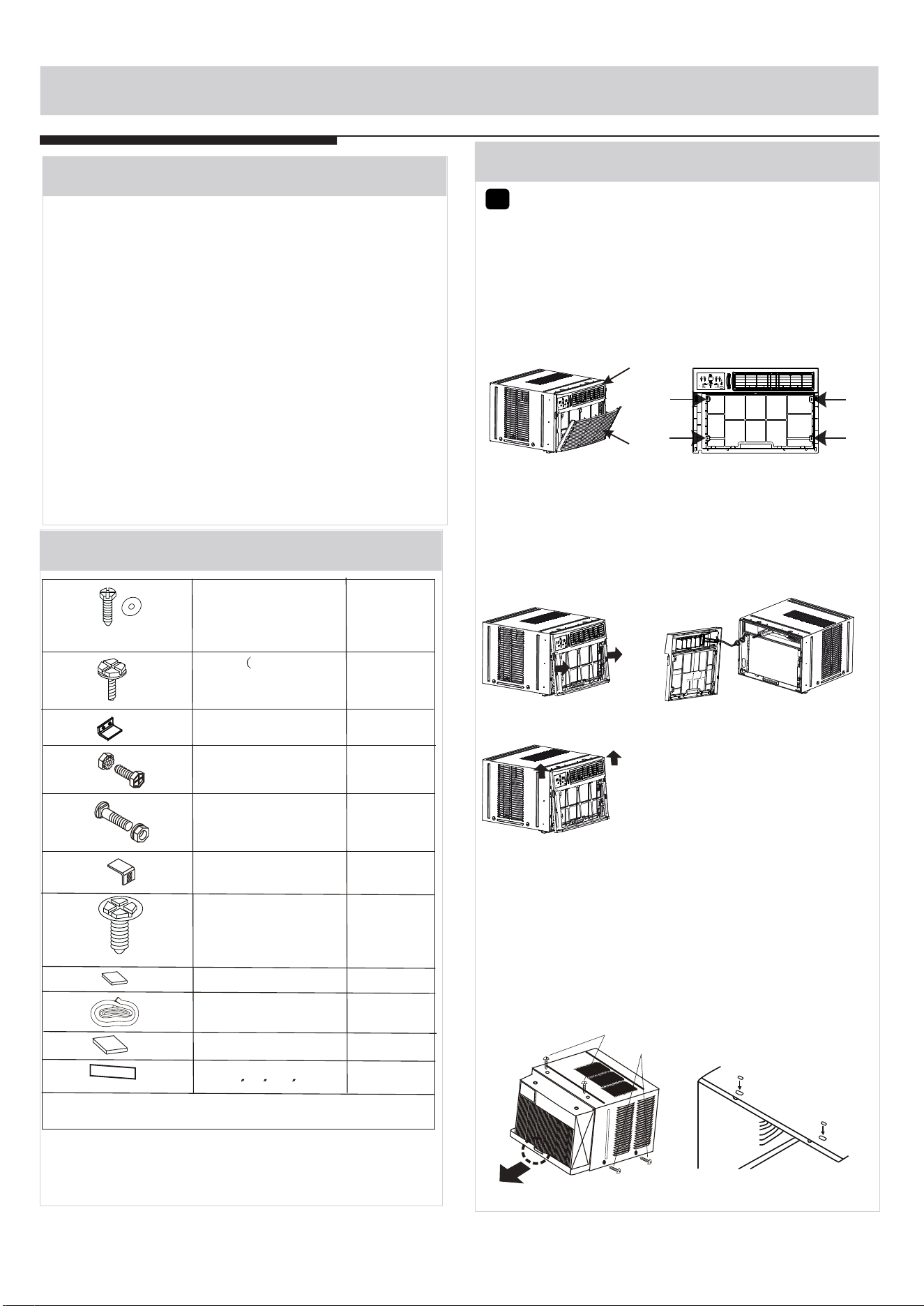

BEFORE YOU BEGIN
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
CAUTION
Do not change the plug on the power cord
of the air conditioner.
Aluminum house wiring may present special
problems- consult a qualified electircian.
When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and
rear coils.
TOOLS YOU WILL NEED
Screwdriver
Level
TOOLS YOU MAY USE
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
Save Carton and these Installation Instructions
for future reference. The carton is the best way
to store unit during winter, or when not in use.
NOTE:

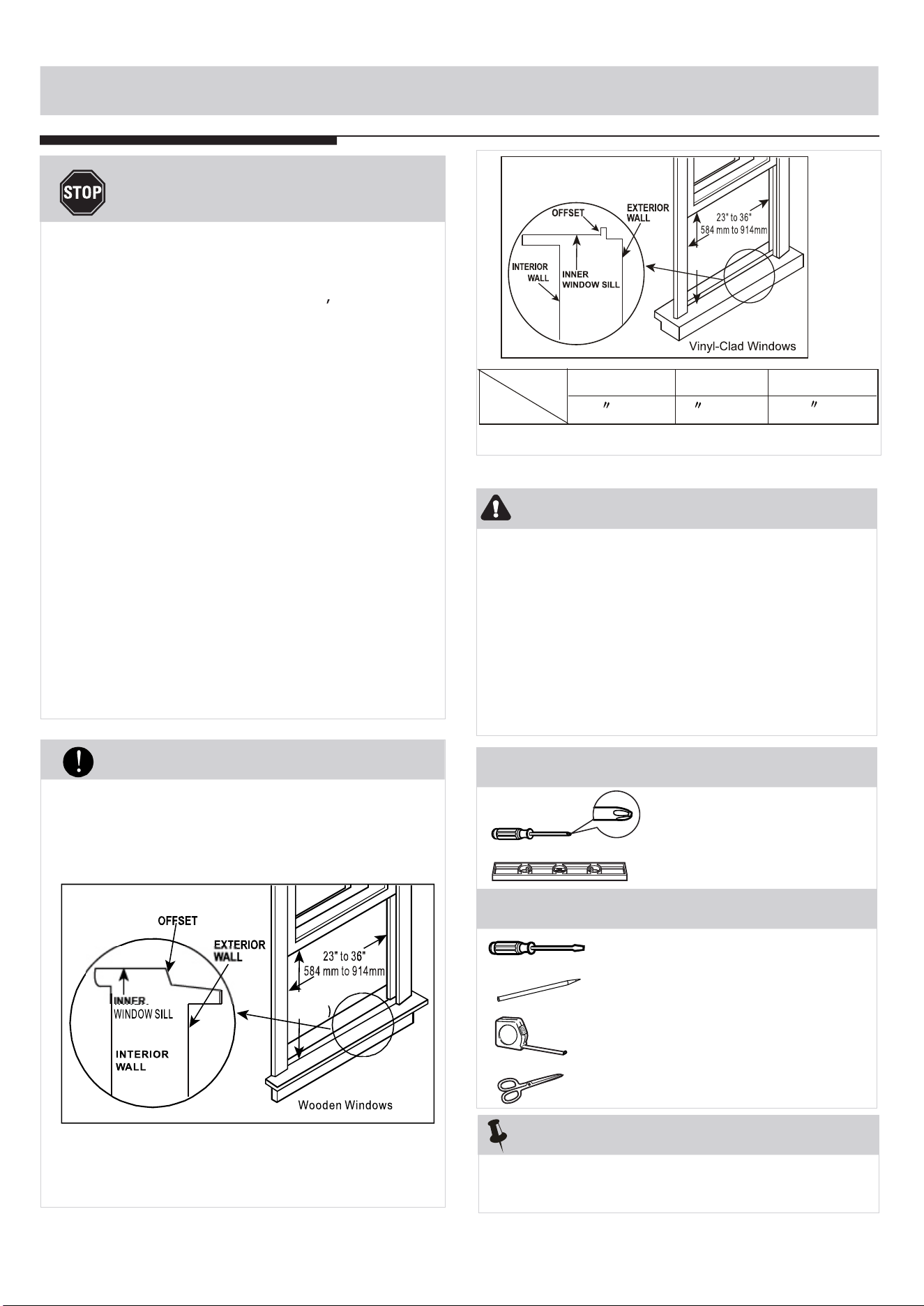

WINDOW REQUIREMENTS
H
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23 to 36 inches(584mm to 914mm) .
Model
H
6000~8000Btu/h
10000~12000Btu/h
14 (356mm)
15-1/2 (394mm)
Table 1
5000~6000Btu/h
13 (330mm)
H
11
INSTALLATION INSTRUCTIONS
PREPARE THE WINDOW
11
1/ Screws
(7)
2
Lock Frame
(2)
Sash Lock
(1)
Mounting Hardware
Window sash
seal foam
(1)

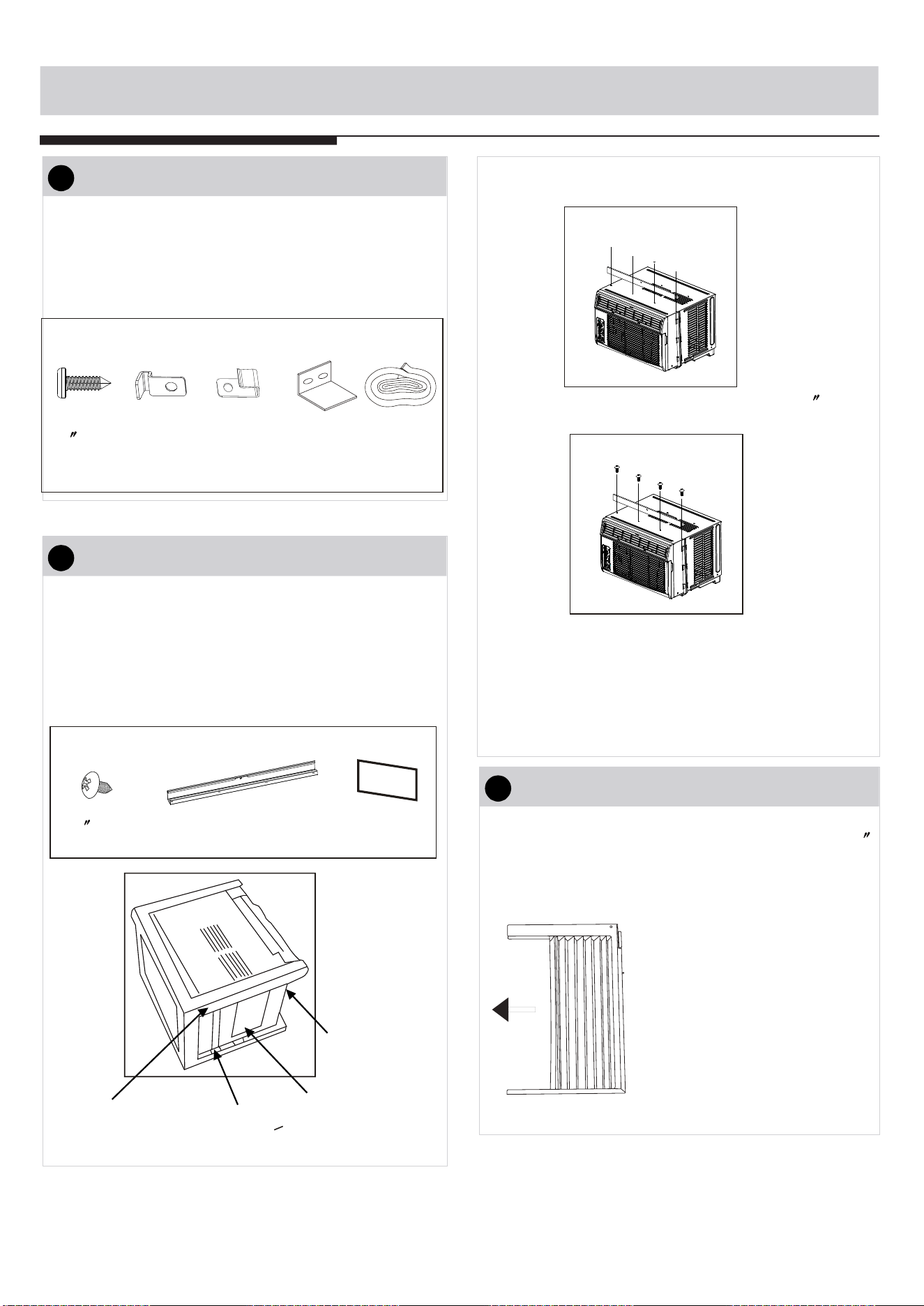

PREPARE AIR CONDITIONER
22
Lower sash must open sufficiently to allow a clear
vertical opening of 13 inches (330mm). Side louvers
and the rear of the AC must have clear air space to
allow enough airflow through the condenser, for heat
removal. The rear of the unit must be outdoors, not
inside a building or garage.
A: Remove the air conditioner from the carton and
place on a flat surface.
B:
Remove top rail and R1 hardware (R1 hardware
only for Energy star models) from the packaging
material as shown in Fig. A.
Top Rail Hardware
3/8 Screws
(4)
Top Rail
(1)
Packaging
Fig.A
Top Rail
R1 hardware
(2)
R1 hardware(for
>
)
10000Btu/h models
only
R1 hardware
(for <
)
10000
Btu/h models
only
Fig.C
NOTE: The top rail hardware and the Fig.A,
Fig.B and Fig.C are not applicable to the units
more than 10000Btu/h. Before installing unit,
the top rail must be assembled on the unit (For
<10000Btu/h models only).
C: Align the hole in the top rail with those in the top
of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8 Screws
as shown in Fig.C.
NOTE: For safety reasons, all four(4) screws MUST
be securely fastened.

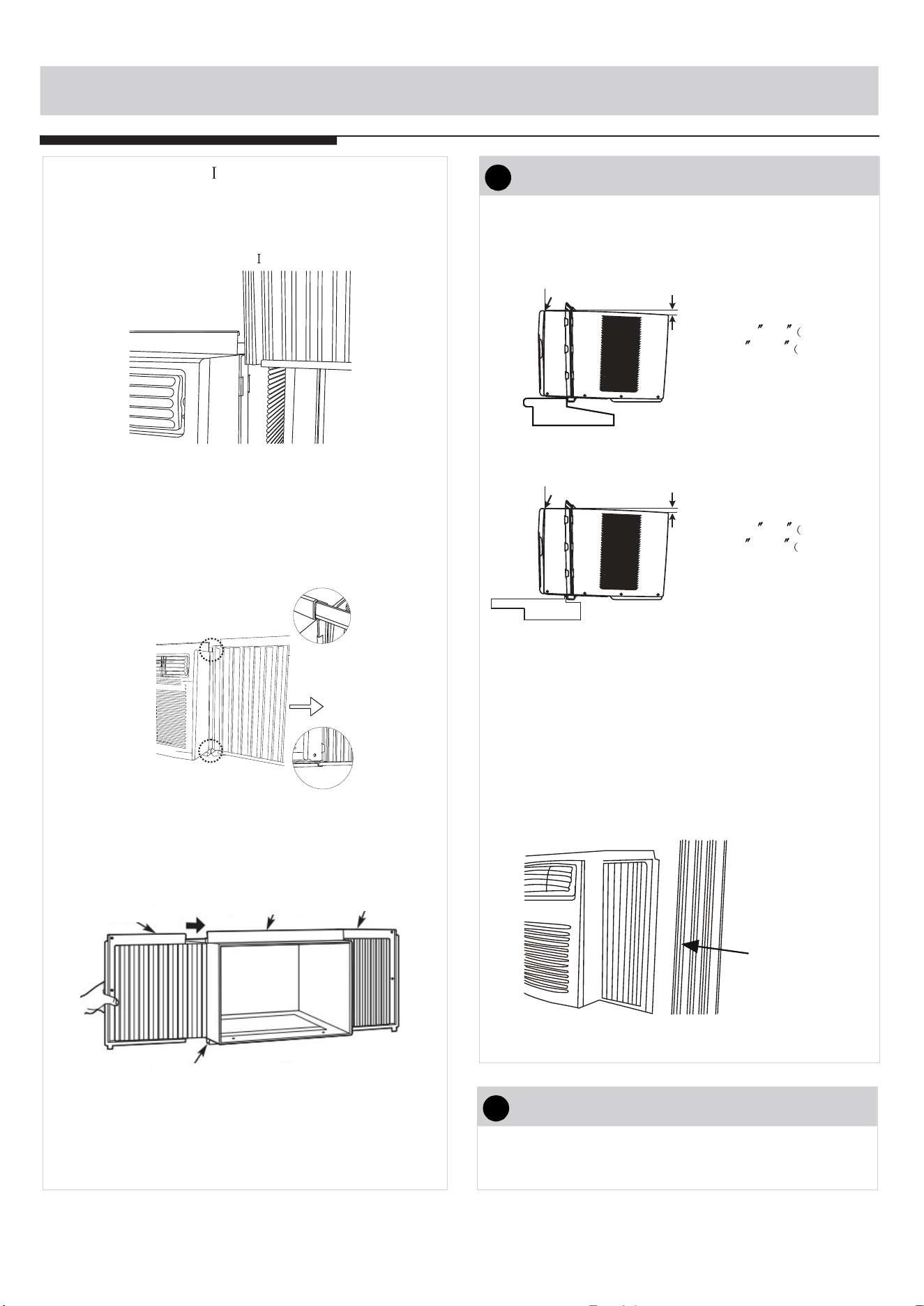

INSTALL THE ACCORDION PANELS
33
NOTE: Top rail and Sliding Panels at each side are
offset to provide the proper pitch to the rear of (5/16 ).
This is
necessary for proper condensed water
utilization and drainage. If you are not using the Side
Panels for any reason, this pitch to the rear must be
maintained.
A.Place unit on floor, a bench or
a table. Hold the Accordion
Panel in one hand and gently
pull back the center to free the
open end. See Fig.1
Fig.1
Fig.B
Lock Frame
(2)
(For Wooden
windows)
(For Vinyl-Clad
windows)
12
INSTALLATION INSTRUCTIONS
SECURE THE ACCORDION PANELS
44
B. Slide the free end " " section of the panel directly
into the cabinet as shown in Fig. 2. Slide the panel
down. Be sure to leave enough space to slip the
top and bottom of the frame into the rails on the
cabinet.
Fig.2
" "section
C. Once the panel has been installed on the side of
the cabinet, make sure it sits securely inside the
frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into the
top and bottom rails of the cabinet. Fig.3.
D. Slide the panel all the way in and repeat on the
other side.
Top Rail
Bottom Rail
Fig.3
A.Keep a firm grip on the air conditioner, carefully
place the unit into the window opening so the bottom
of the air conditioner frame is against the window
sill (Fig.5A and Fig.5B). Carefully close the window
behind the top rail of the unit.
Fig.5A
NOTE: If storm window blocks AC, see Fig. 11.
Top Rail
Bottom Rail
Top left
Top right
Fig.4
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / for 10 to12K);
8
H
Fig.5B
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / for 10 to12K);
8
H
NOTE: Check that air conditioner is tilted back about
O
H (Fig.5A and Fig.5B) (tilted about 3 t o 4 downward t o
th e o utside).
After proper installation, condensate should not drain
from the overflow drainh ole d uringn ormalu se,c orrect
the slope otherwise.
O
B.Extend the side panels out against the window
frame (Fig.6).
window
frame
Fig.6

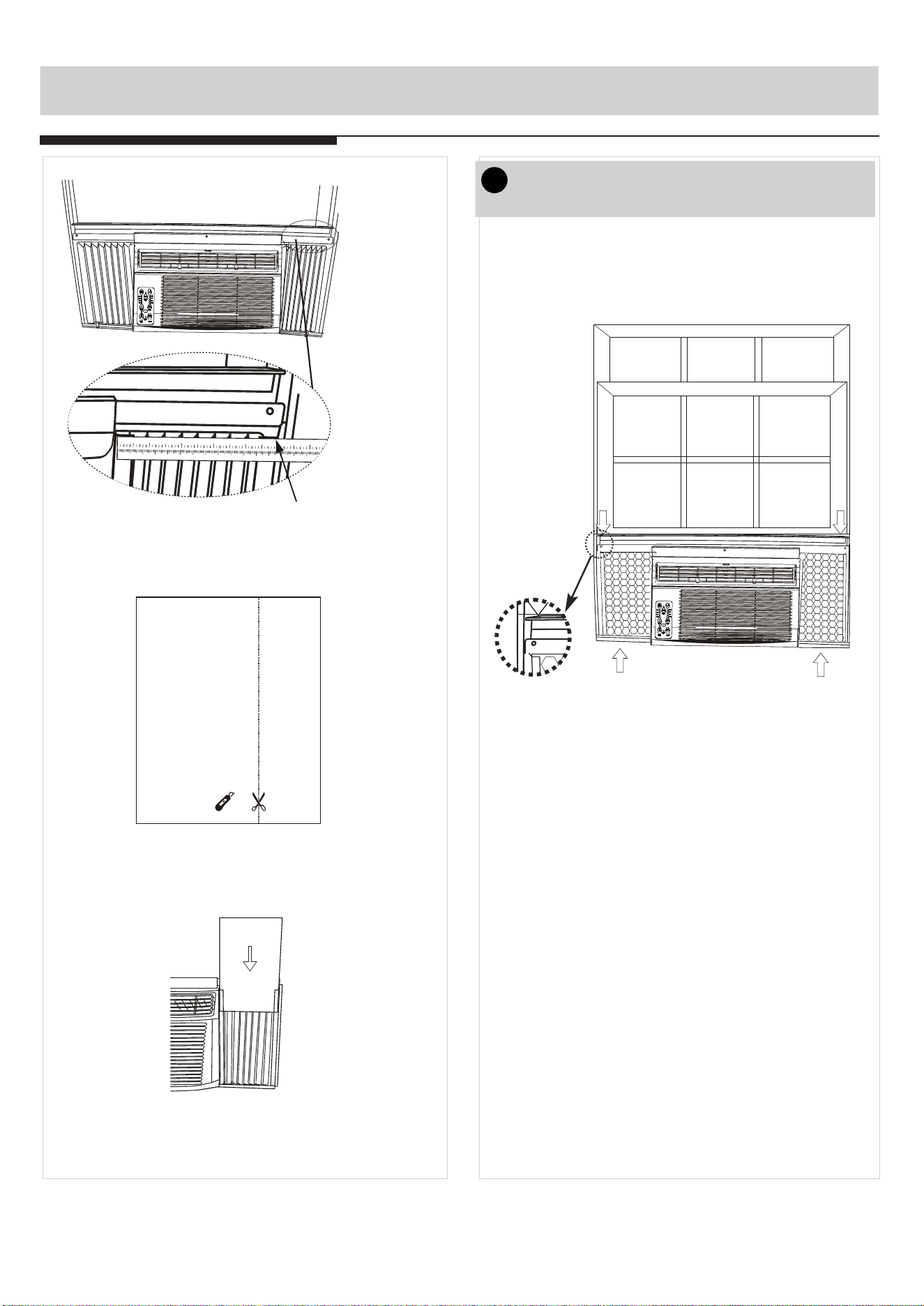

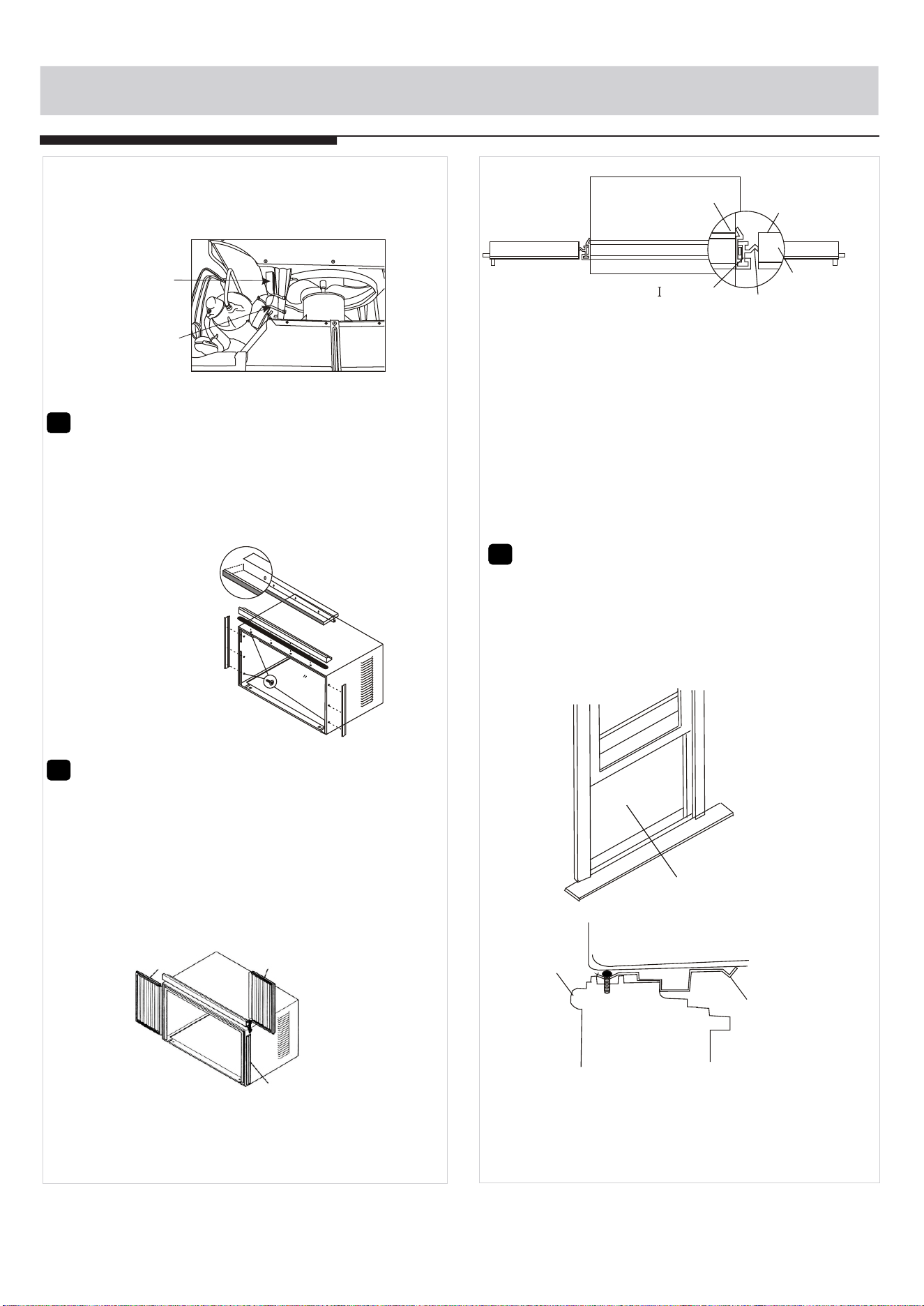

INSTALL SUPPORT BRACKET
55
A.Place the frame lock between the frame
extensions and the window sill as shown(Fig.7A for
Wooden windows), (Fig.7B for Vinyl-Clad windows) .
"
Fig.10
FOAM SEAL
13

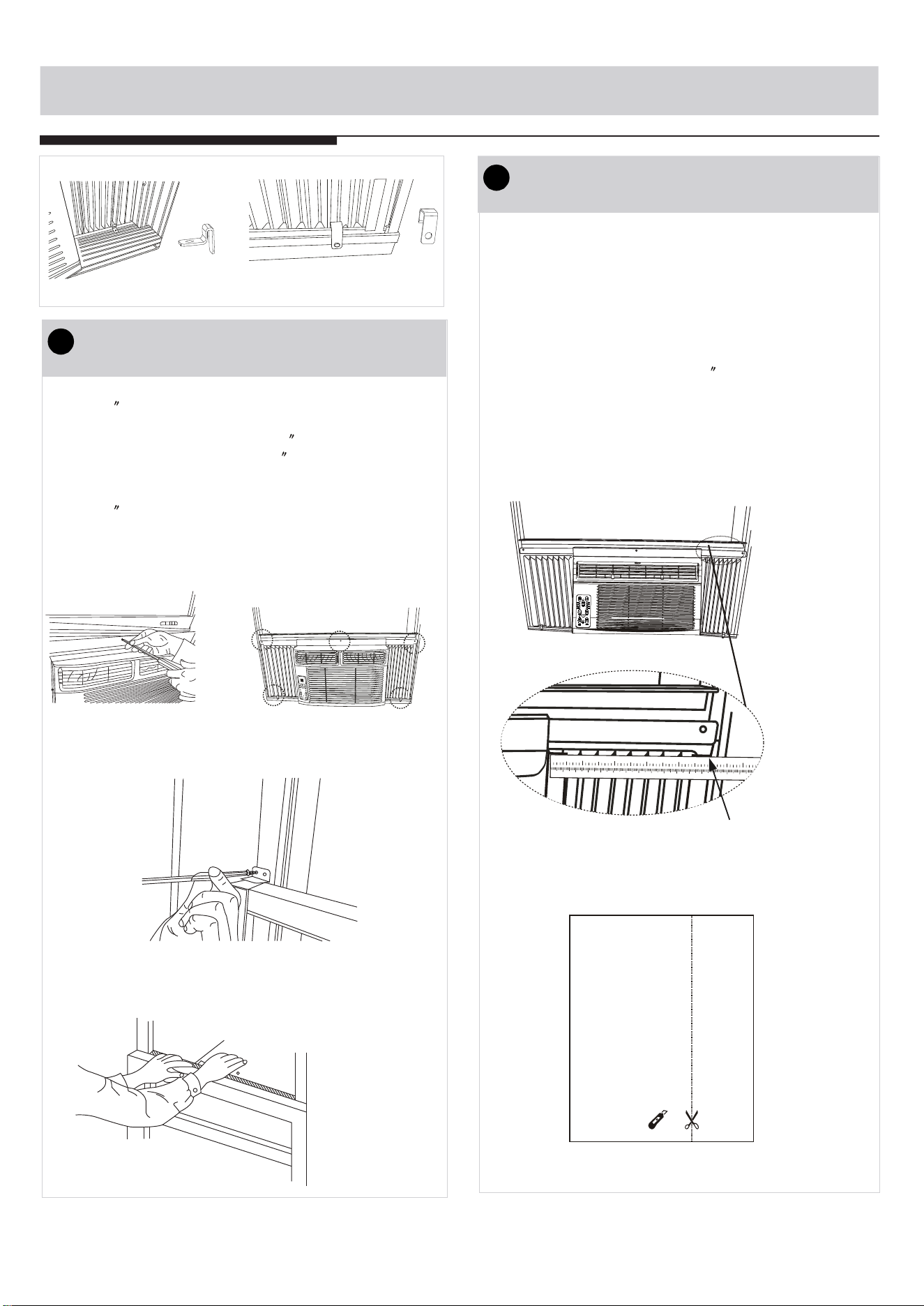

INSTALLATION INSTRUCTIONS
Measure the inner width
of the side curtain
1 2
3
4 5 6 7 8
9 10 11
12 13
14
15 16 17
1
2
3 4
5
6
Fig.11
or
Fig.12
Fig.7A Fig.7B

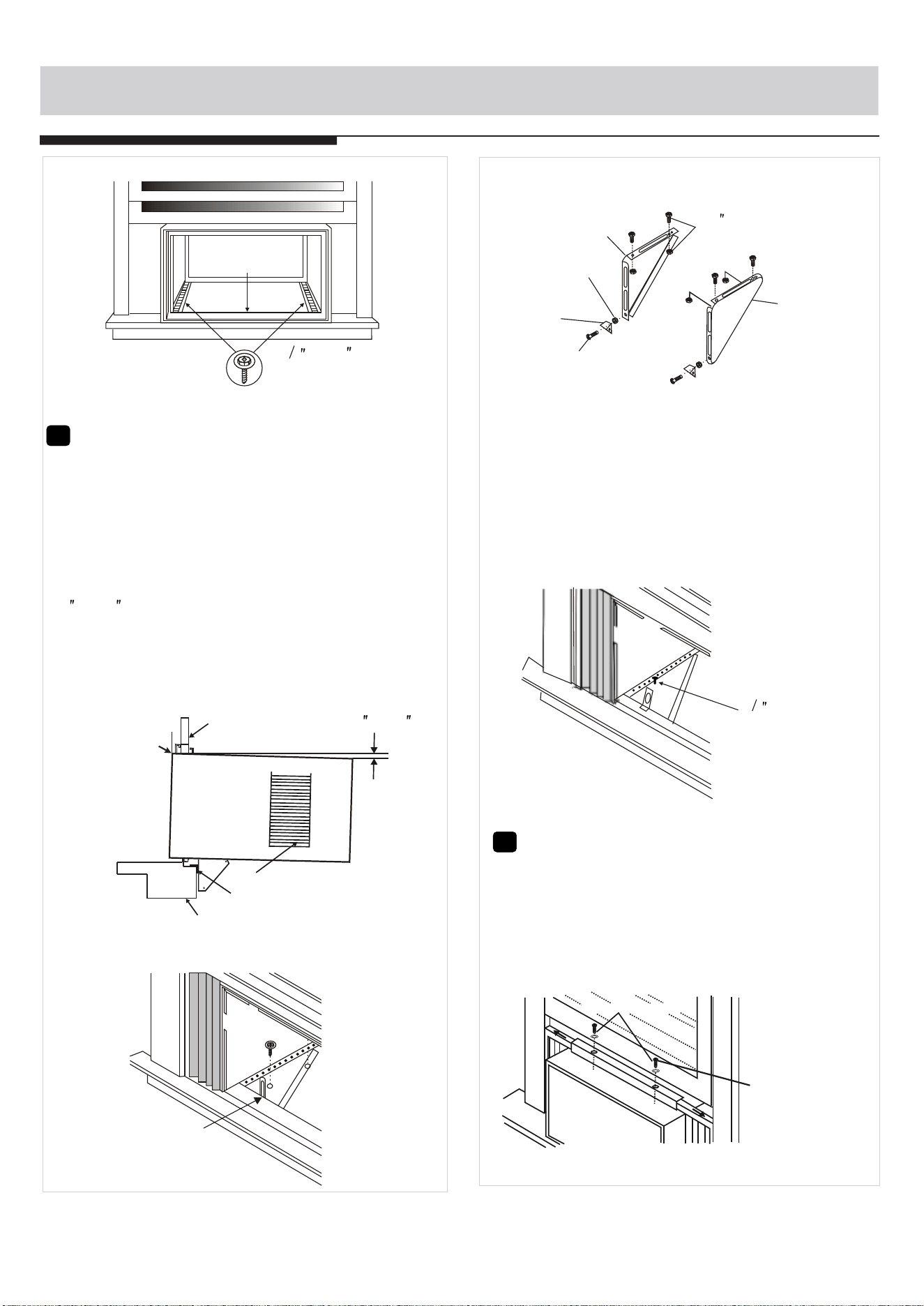

DRIVE LOCKING SCREWS
66
A: For wooden windows:
Drive 1/ 2
(12.7 mm) locking screws through the frame
lock and into the sill (Fig.8A). NOTE: To prevent
window sill from splitting, drill 1/8 (3mm) pilot holes
before driving screws. Drive 1/ 2 (12.7mm) locking
screws through frame holes into window sash (Fig.8B).
B: For Vinyl-Clad windows:
Drive 1/ 2 (12.7 mm) locking screws through the frame
lock and into the window sashl (Fig.8B). NOTE: Before
driving the screws, use a drill to drill 5 holes through
the holes in the frame lock and frame extensions into
the windows sash as shown (Fig. 8B).
Fig.8A Fig.8B

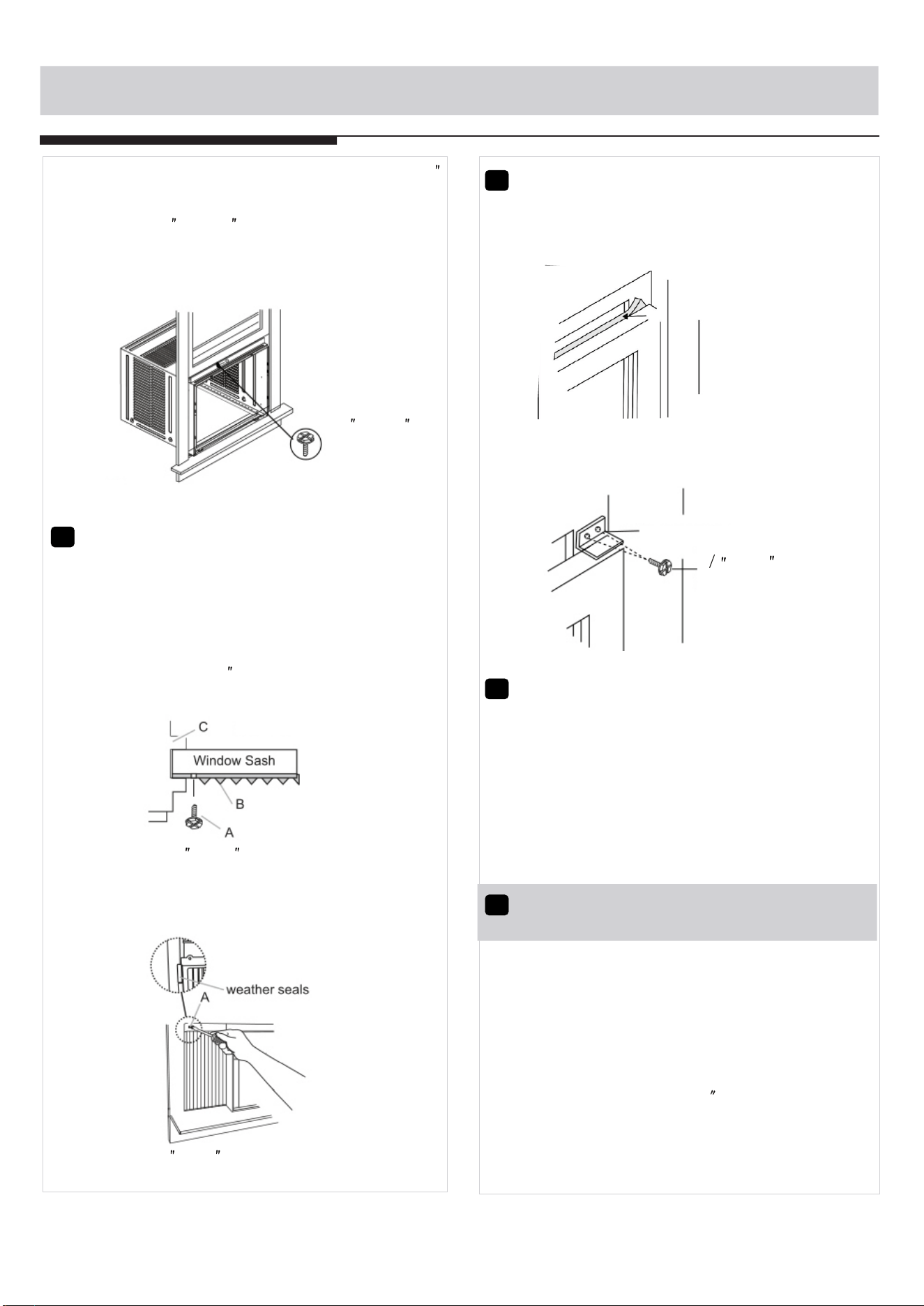

C.To secure lower sash in place, attach right angle
sash lock with 3/4" (19mm) or 1 screw as
shown(Fig.9).
/2" (12.7mm)
Fig.9
D.Cut and insert it in the
space between the upper and lower sashes (Fig.10).
Window sash seal foam
INSTALL R1 HARDWARE (only be
applicable to Energy star models )
77
In order to minimize air leaks and ensure optimal
insulation, it is necessary to install the included R1
hardware to the side curtain. Follow the instructions
below.
Step 1. After the unit is installed to the window,
measure the inner width of the side curtain as shown
(Fig.11).
Step 2. Remark a line on the provide R1 insulation
panel according to a length 1/8 (3mm) less than the
measured width in step 1, then cut the R1 insulation
panel along the line (Fig.12).
14
INSTALLATION INSTRUCTIONS
If AC is Blocked by Storm Window
Add wood as shown in Fig.15, or remove storm
window before air conditioner is installed.
If Storm Window Frame must remain, be sure the
drain holes or slots are not caulked or painted shut.
Accumulated Rain Water or Condensation must be
allowed to drain out.
Removing AC From Window
Turn AC off, and disconnect power cord.
Remove sash seal from between windows, and
unscrew safety sash lock.
Remove screws installed through frame and frame-
lock.
Remove the R1 Panel and close (slide) side panels
into frame.
Keeping a firm grip on air conditioner, raise sash
and carefully remove.
Be carefully not to spill any remaining water while
lifting unit from window. Store parts WITH air
conditioner.
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Fig.15
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
INSTALL WEATHER STRIPPING (only
be applicable to Energy star models )
77
In order to minimize air leaks between the room air
conditoner and the window opening, trim the weather
sttipping with a proper length, peel off the protective
backing and plug any gaps if needed (Fig.14).
Fig.14
Step 4. Repeat on the other side.
Fig.13
Step 3. Slide the R1 insulation panel into the side
curtain, the side with pattern should facing the indoor
side.(Fig.13).
15
INSTALLATION INSTRUCTIONS(for 15000 to 18000Btu/h)
Read these instructions completely
and carefully.
IMPORTANT- Save these
instructions for local inspector s use.
IMPORTANT- Observe all
governing codes and ordianaces.
Note to Consumer- Keep these
instructions for futrue reference.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Completion time- Approximately 1 hour.
Skill level- Installatio of this appliance
requires basic mechanical skills.
We recommend that two people install
this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
BEFORE YOU BEGIN
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
CAUTION
Do not change the plug on the power cord
of the air conditioner.
Aluminum house wiring may present special
problems- consult a qualified electircian.
When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and
rear coils.
Save Carton and these Installation Instructions
for future reference. The carton is the best way
to store unit during winter, or when not in use.
NOTE:
Preliminary Instructions
Do the following before starting to install unit.
See illustrations below.
Check dimensions of your unit to determine
model type:
Unit Height: 18 5/8 17 5/8
Unit Width:
Min. Window Opening:
Min. Window Width:
Max. Window Width:
26 23
1
2
/
5
8
/
19 18
1
2
/
31 28
42 40
1
2
/
1. Check window opening size-- the mounting
parts furnished with this air conditioner are
made to install in a wooden sill double-hung
window. The standard parts are for window
dimensions listed above. Open sash to a mini-
mum of 19 inches(483mm). See Fig.D.
SASH
/2 MIN.
1
19 MIN.
Storm Window Frame or
Other Obstruction
Storm Window
Frame or Other
Obstruction
Board
Thickness
As Required,
Along Entire
Stool. Fasten
With Two Nails
Or Screws.
Fig.D
Fig.E
/2 MIN.
1
/2 MIN.
1
19 MIN.
SASH
Window Sash Seal
Safety Lock and
3 /4 (or1 ) Long
Hex Head Screw
/2
Top Angle
Foam Gasket
Washer Head
Locking screw
Frame
Assembly
(Left)
Side Retainer
Bottom rail
seal to Unit
1 /2 Long
Screw and
Locknuts
Locknut
3 /4 Long
Flat Head
Bolt
Sill Angle
Bracket
Window Support
Bracket
Frame
Assembly
(Right)
1
/
2
2.Check condition of window-- all wood parts of
window must be in good shape and able to firmly
hold the needed screws. If not, make repairs
before installing unit.
16
INSTALLATION INSTRUCTIONS
3. Check your storm windows-- if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood as
shown in Fig.E,or by removing storm window
while room air conditioner is being installed.
4 .Check for anything that could block airflow--
check area outside of window for things such as
shrubs, trees, or awnings. Inside, be sure
furniture, drapes, or blinds will not stop proper
airflow.
5.Check the available electrical service- Power
supply must be the same as that shown on the
unit serial nameplate. Power cord is 48 inches
long. Be sure you have an outlet near.
6.Carefully unpack air conditioner- Remove all
packing material. Protect floor or carpet from
damage. Two people should be used to move
and install unit.
Preliminary Instructions
Tools Required
A large flat blade screwdriver;Tape measure
Adjustable wrench or pliers;Pencil;Level
Socket wrenches;Phillips Screwdriver
Hardware(Packed with the unit)
7/16 inch Locking
screw and Flat
washer for window
panels
3 / 4 or 1/2)inch
Long Hex-head
Screw
Safety Lock
1 / 2 inch Long
screw and Locknut
3 / 4 inch Long
Flat Head Bolt
and Locknut
Sill Angle
Bracket
Long hex-head
locking screw
for top angle,
side retainer
5 /16 inch Long
2 ea.
7
1
4ea.
2ea.
2
10
Foam insert
2
Window sash
seal foam
1
A.Window Mounting
1
Remove Air Conditioner from Cabinet
1. Pull down front grille and remove filter.
(See Fig.1).
2. Lift front grille upwards and place to one side.
3. Locate the four front screws and remove.
These screws will be needed to re-install
the front panel (see Fig.2).
7. Remove shipping screws from top of unit and
also on the side by the base if installed
(see Fig.5).
8. Hold the cabinet while pulling on the base pan
handle, and carefully remove the unit.
9. Add two foam inserts to holes in top of cabinet
where shipping screws were removed from
(see Fig.6).
4. Push metal cabinet side to release plastic tabs
on each side of front panel (see Fig.3).
5. Gently lift front panel off unit(see Fig.3A).
6. Disconnect the connector plug of the display
panel from the unit and place front panel to one
side(see Fig.4).
Front Grille
Fig.1 Fig.2
Fig.3
Fig.3A
Front Panel
Fig.4
shipping
screws
Fig.5 Fig.6
R1 hardware
2
(10 *3/4 *1/12 )
NOET: R1 hardware and Weather stripping is only
for Energy star models.
Weather stripping
5
NOTE: Remove any packaging material from
cabinet exterior.
17
INSTALLATION INSTRUCTIONS
10. Your unit may come with internal packaging.
This packaging must be removed prior to
installing the air conditioner back into the
cabinet.(see Fig.7).
2
Install Top Angle and
Side Bracket
1. Attach foam gasket to top angle
above holes as shown in Fig.6.
2. Install top angle and side retainers
to cabinet as shown in Fig.8 (10 sc-
rews).
3
Assemble Window Filler Panels
1. Place cabinet on floor, a bench, or
a table.
2. Slide I section of window filler panel
into side retainer on the side of the
cabinet (see Fig.9 & Fig.10).
Do both sides.
,,
,,
Plastic
Frame
Window Filler
Panel
Side Retainer
Fig.9
5 16 long
hex-head
/
/
Shipping Packaging
Plastic tie
Fig.7
Fig.8
3. Insert top and bottom legs of window
filler panel frame into channel in the
top angle and bottom rail. Do both
sides.
4. Insert washer head locking 7/16" screws
(2) into holes in top leg of filler panel
frame (see step 6). Do not totally tigh-
ten. Allow leg to slide freely. Screws
will be tightened after section 6.
4
Place Cabinet in window
1.Open window and mark center of window stool as
shown(Fig.11).
2. Place cabinet in window with bottom stool angle
firmly seated over window stool as shown. Bring
window down temporarily behind top angle to
hold cabinet in place(Fig.12).
Stool
Stool
Angle
Top
View
Air Conditioner
Cabinet
Plastic
Frame
" " Section
Window
Filler
Panel
Locking
Screw
Hole
Fig.10
Fig.11
Fig.12
3. Shift cabinet left or right as needed to line up
center of cabinet on center line marked on stool.
4. Fasten cabinet to window stool with 2 screws
into holes(You may wish to pre-drill pilot holes).
5. Add bottom rail seal over screws to window stool.
18
INSTALLATION INSTRUCTIONS
5
Install Support Bracket
1. Hold each support bracket flush against
outside of sill, and tight to bottom of cabinet
as shown in Fig.15A. Mark brackets at top level
of sill, and remove.
2. Assemble sill angle bracket to support
brackets at the marked position(Fig.15B).
Hand tighten, but allow for any changes later.
Bottom
Rail Seal
1 2 Long Screws
And Locknuts
Left
Right
Sill Angle
Bracket
Flat Head
Bolt
2 Each Required For
Each Support Bracket
Locknut
3 4 (or1 )Long
Hex-head Screw
/2
Fig.13
Fig.15A
Mark
Fig.15B
3. Close window behind top angle.
6
Extend Window Filler Panels
1. Carefully raise window to expose filler panel
locking screws. Loosen screws so filler panels
slide easily.
2. Extend panels to fill window opening completely.
Tighten locking screws on top(Fig.17).
3. Install support brackets(with sill angle
brackets attached) to correct hole in
bottom of cabinet as shown in Fig.16.
4. Tighten all 6 bolts securely.
1 2 Long Screws
and Locknuts
Locking Screw
7/16"Locking Screw
and Washer
Fig.16
Fig.17
FIG.14
5
Side Louvers
Window Sash
Window Sill
Sill Angle Bracket
15
About1 / to1 /
4 8
Measure from
the cabinet edge.
NOTE: Check that air conditioner is tilted back about
O
(tilted about 3 t o 4 downward t o th e o utside).
After proper installation, condensate should not drain
from the overflow drainh ole d uringn ormalu se,c orrect
the slope otherwise (Fig.14).
15 O
1/ to 1/
4 8
Fig.17A
19
INSTALLATION INSTRUCTIONS
4. Attach the top angle to window frame: Use a 3/32
drill bit to drill one hole through the hole in the
middle of top angle into the window frame, and
drive one 3/ 4 (or 1/ 2 ) HEX-HEAD locking screw
through hole in the middle of top angle into the
window frame as shown (Fig.17A).
7
Attach Window Filler Panels to
Window Frame
1. Extend the window filler panels out against the
window frame.
2. Use a 1/8" drill bit to drill a starter hole through the
hole in the top leg of each window filler panel and
into the window sash (Fig. 18A and Fig. 18B).
Connect with one 3/ 4 (or 1/ 2") long hex head
screw.
8
1. Trim sash seal to fit window width. Insert into
space between upper and lower sashes(Fig.18).
Window Sash Seal
Fig.18
Install Window Sash Seal and
Safety Lock
9
Install Chassis into Cabinet
and Install Front to Unit
1. Lift air conditioner and carefully slide into
cabinet leaving 6 inches protruding.
2. DO NOT push on controls or finned coils.
3. Be sure chassis is firmly seated towards rear
of cabinet.
4. Installation of front is the reverse of removal
outlined in Section 1.
INSTALL R1 HARDWARE (only be
applicable to Energy star models )
In order to minimize air leaks and ensure optimal
insulation, it is necessary to install the included R1
hardware to the side curtain. Follow the instructions
below.
Step 1. After the unit is installed to the window,
measure the inner width of the side curtain as shown
(Fig.20).
10
Fig.18A
A.3/ 4 (or 1/2 ) long hex head screw
B. Left-hand Window Filler
Panel Top Leg
C. Window channel
Fig.18B
A.3/ 4 (or1/2 ) long hex head screw
3/ 4 (or 1/ 2 ) long
HEX-HEAD
SCREW
Safety Lock
3 4 (or1 )Long
Hex-head Screws
/2
Fig.19
2. Attach right angle safety lock (Fig.19).
Step 2. Remark a line on the provide R1 insulation
panel according to a length 1/8 (3mm) less than the
measured width in step 1, then cut the R1 insulation
panel along the line (Fig.12).
Measure the inner width
of the side curtain
1 2
3
4
5 6 7 8
9 10
11
12 13
14 15 16 17
1
2
3
4
5 6
Fig.20
or
Fig.21

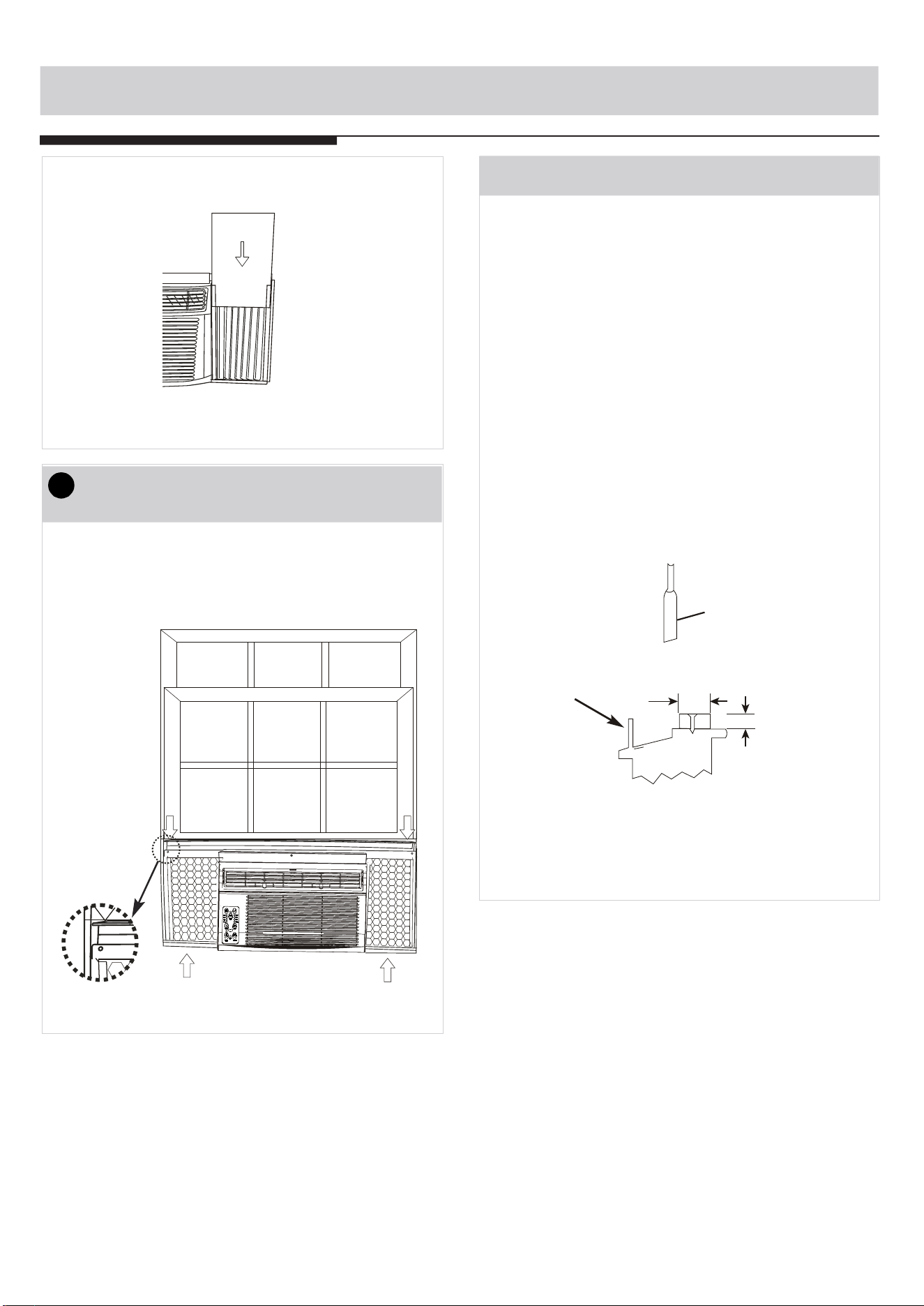

Step 4. Repeat on the other side.
Fig.22
INSTALLATION INSTRUCTIONS
20
Step 3. Slide the R1 insulation panel into the side
curtain, the side with pattern should facing the indoor
side.(Fig.22).
INSTALL WEATHER STRIPPING (only
be applicable to Energy star models )
1111
In order to minimize air leaks between the room air
conditoner and the window opening, trim the weather
sttipping with a proper length, peel off the protective
backing and plug any gaps if needed (Fig.23).
Fig.23
21
INSTALLATION INSTRUCTIONS

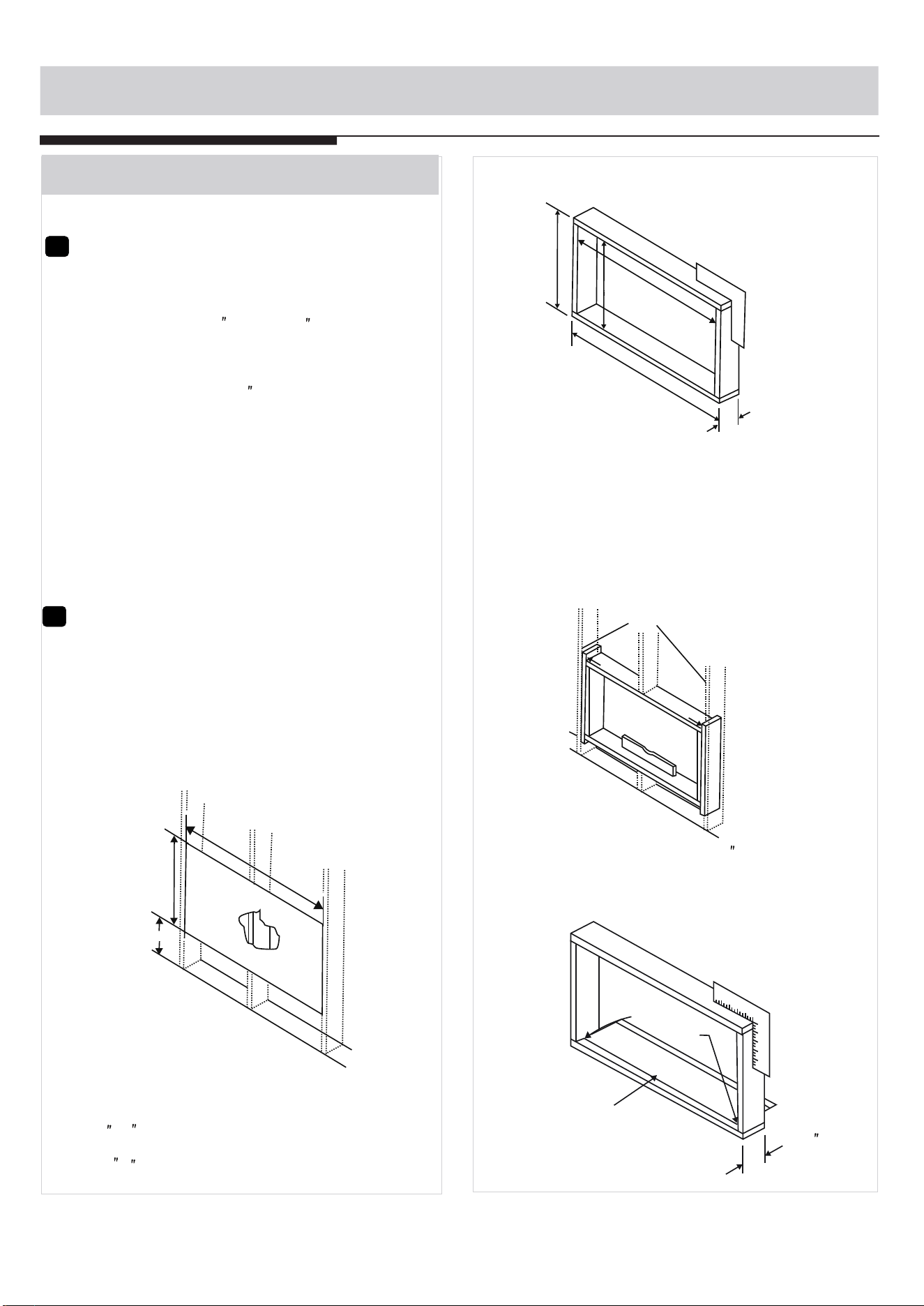

NAIL SPACERS
TO STUDS
LEVEL
Fig.3
NOTE: If wall thickness is 8-1/2 or more, add
aluminum flashing over bottom of frame opening
to assure no water can enter area between inner
and outer wall.
Caulkas
Required
Aluminum Flashing
Over Bottom Of Frame
Over
8-1/2
Fig.4
4. Build a wooden frame with the INSIDE dimen-
sions of your model listed above. (Measure
twice remember). Frame depth should be the
same as wall thickness. Fill in the space from
the opening to the studs with wood spacers,
as shown.
5. Nail frame to spacers to spacers with front
flush with drywall.
Inside Frame Height: 18-7/8"(47.9cm) or18" (45.7cm)
Inside Frame Width: 26-3/4"(67.9cm) or 23-7/8"(60.6cm)
Fg.2
Frame
Height
Inside
Frame
Y
Inside
Width
Up to 8-1/2"
B.Thru-The-Wall Installation
1
Select Wall Location
The air conditioner has a slide-out chassis, so
that it can be installed through an outside wall
as specified below:
Max. Wall thickness: 12 or 10
IMPORTANT: Side louvers must never be blocked.
NOTE: All parts needed for Thru-The-Wall Install-
tion are provided, except a wood frame, shims,
and 10 wood screws(#10-1 long minimum).
Select a wall surface that:
1. does not support major structural loads such
as the frame construction at ends of windows,
and under truss-bearing points, etc.
NOTE: Consult local building codes prior to
installation, or a qualified carpenter.
2
Prepare Wall
1. Prepare wall in frame construction (including
brick and stucco veneer). Working from inside
the room, find wall stud nearest the center of
area where air conditioner will be installed
(by sounding wall, or by magnetically finding
nails).
2. Cut or knock out a hole on each side of center stud.
3. Measure between inside edges of every other
stud as shown in Fig.1.
Fig.1
3-3/8" MIN
(8.6 cm)
Carefully measure and cut an opening with the
following dimensions depending on your model.
See Fig.1 and Fig.2.
WIDTH X = inside model width plus twice the
thickness of framing material used.
HEIGHT Y =inside model height plus twice the
thickness of framing material used.
2. does not have plumbing or wiring inside.
3. is near existing electrical outlets, or where
another outlet can be installed.
4. faces, and is not blocked to the area to be
cooled.
5. allows unblocked airflow from rear sides and
end(outside) of installed air conditioner.
22
INSTALLATION INSTRUCTIONS

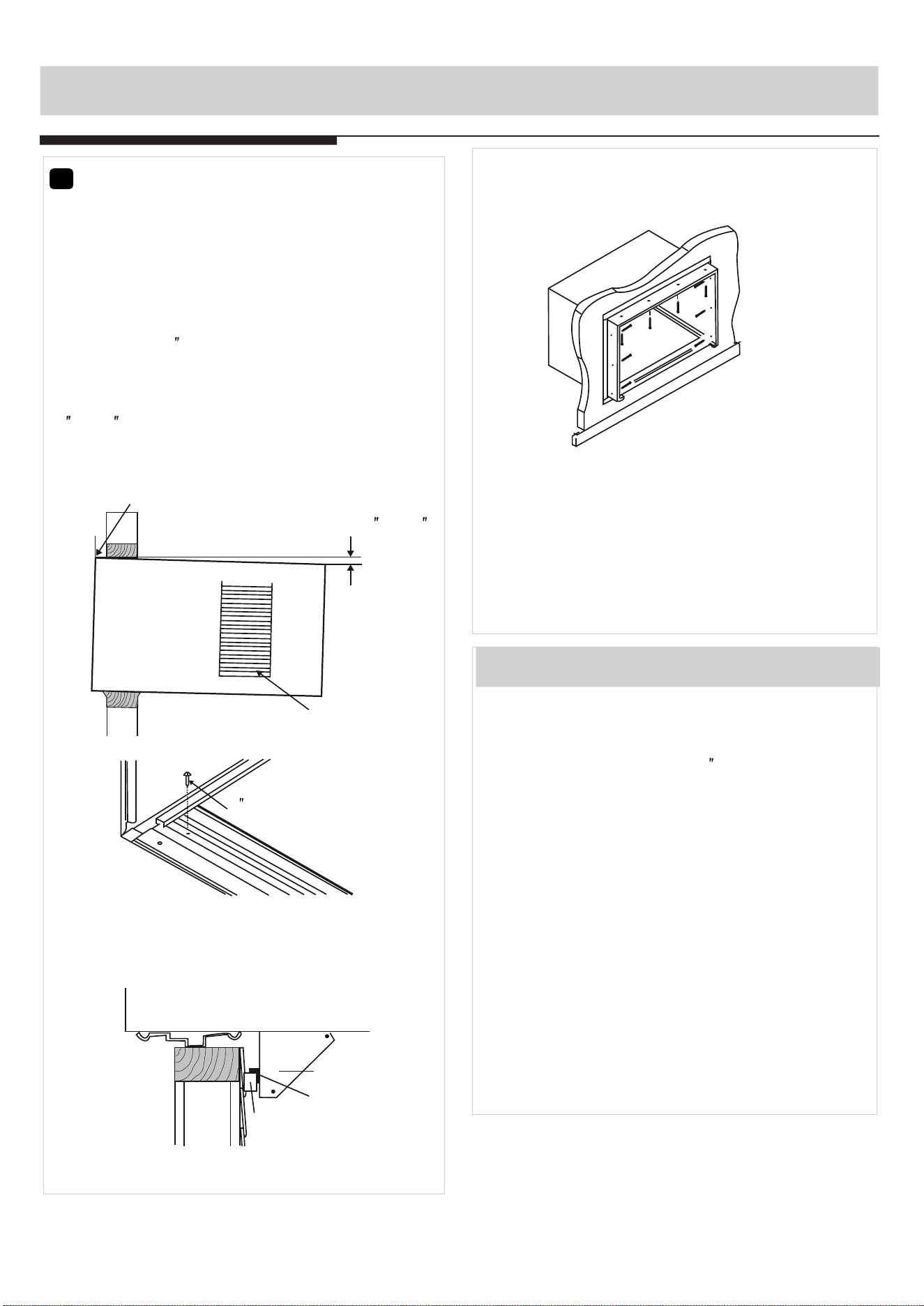

6. Install chassis into cabinet by following all
steps in Step 8 of Window Mounting.
1. Cut or build a wall opening in the masonry wall
similar to the frame construction (refer to Step
2 of Thru-the-wall Installation for a wall
thickness greater than 8-1/2 ).
2.
3.
4. Install exterior cabinet support brackets as
shown in Step 2 of Thru-the-wall installation.
Caulk or flash if needed, to provide a wether-
tight seal around top and sides of cabinet.
5. To complete installation, apply wood trim
molding around room side projection of cabinet.
Secure cabinet in place using masonry nails, or
the right masonry anchor screws. (Another way
to secure cabinet is to build a frame in the masonry
wall such as the one shown in Fig. 3 of Step 2
Prepare Wall. Securely anchor frame to masonry
wall. This way gives very good louver clearance on
either side of cabinet.)
Install a lintel to support masonry wall above
cabinet. Existing holes in cabinet can be used
and/or additions holes can be drilled to fasten
cabinet at various positions. Be sure that side
louver clearance is in accordance with Step 1
Select Wall Location.
C.Masonry Construction
5. Screw or nail cabinet wooden frame using
shims if frame is oversized, to eliminate
distortion. See Fig.8.Remember to maintain
proper slop as described in Step 3.
Fig.8
OPTIONAL: Caulking and installation of trim on
interior wall may be done. You can buy wood from
your local number or hardware supply. On the
outside, caulk openings around top and sides of
cabinet, and all sides of wood sleeve to the opening.
NOTE: See Step 5, Item 3 of Window Mounting
Instructions for bottom rail seal location.
3
Prepare and Install Cabinet
1. Slide chassis from cabinet. Refer back to Step
one of Window Mounting.
2. Place cabinet into opening with bottom rail
resting firmly on bottom board of wooden
frame.
3. Position cabinet to achieve proper slope for
water removal.(See Fig.5 below.)
4. Secure bottom rail to wood frame with two large
wood screws 1 (2.5cm) long using the two holes
in the bottom of the channel resting on frame.
(See Fig.6 ).
Fig.5
Side Louvers
1 Long Wood
Screw
Fig.6
Refer to Step 5 of Window Mounting for assembly
of support brackets. A wooden strip nailed to the
outside wall should be used in conjunction with
sill support angle brackets.
Support bracket
Sill angle bracket
Fig.7
NOTE: Check that air conditioner is tilted back about
O
(tilted about 3 t o 4 downward t o th e o utside).
After proper installation, condensate should not drain
from the overflow drainh ole d uringn ormalu se,c orrect
the slope otherwise (Fig.14).
15 O
1/ to 1/
4 8
15
About1 / to 1 /
4 8
Measure from
the cabinet edge.
Wooden strip

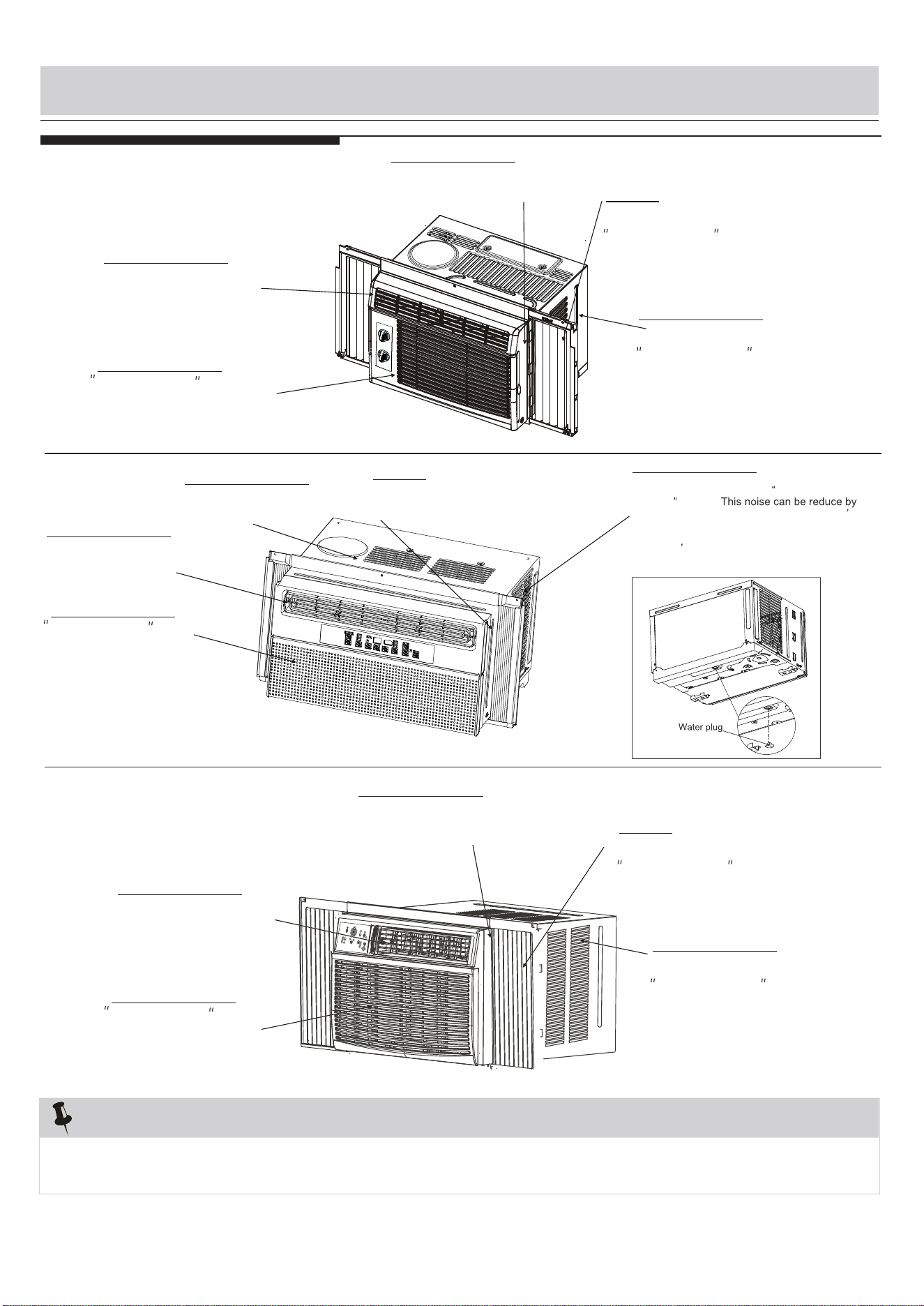

NORMAL SOUNDS
All the illustrations in this manual are for explanation purpose only. Your air
conditioner may be slightly different. The actual shape shall prevail.
NOTE:
23
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
Gurgling or hissing noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
pinging or switching sounds.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
Sleep
Check
Filter
Follow
Me
Auto
On/off
Fan
High
Med
Low
Energy
Saver
on
off
Timer
Auto
Fan
Cool
Dry
Mode
TEMP/TIMER
TEMP/TIMER
Heat
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
Gurgling or hissing noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
pinging or switching sounds.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
Gurgling or hissing noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
Droplets of water hitting condenser during
normal operation may cause pinging or
swishing sounds.
removing the water plug at the bottom of unit s
rear as shown below. Removing this plug will
lower the Energy Efficiency of your unit.
Note: Don t try to drill any holes on the
base pan to eliminate the normal sounds,
otherwise it will void the warranty.
AIR CONDITIONER FEATURES
CAUTION
Please always wait 3 minutes when turning unit off
then on again, and when changing from cool to fan
and back to cool. This prevents compressor from
overheating & possible circuit breaker tripping.
WARNING
!!
To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
To begin operating the air conditioner, follow these steps:
1. Set the thermostat to the highest number (coldest or
cooler setting).
2. Set the selector control to the highest COOL setting.
3. Adjust the louver for comfortable air flow (see Air
Directional Louvers).
4. Once the room has cooled, adjust the thermostat to the
setting you find most comfortable.
5. Make sure that the air flow inside and outside are not
obstructed by anything.

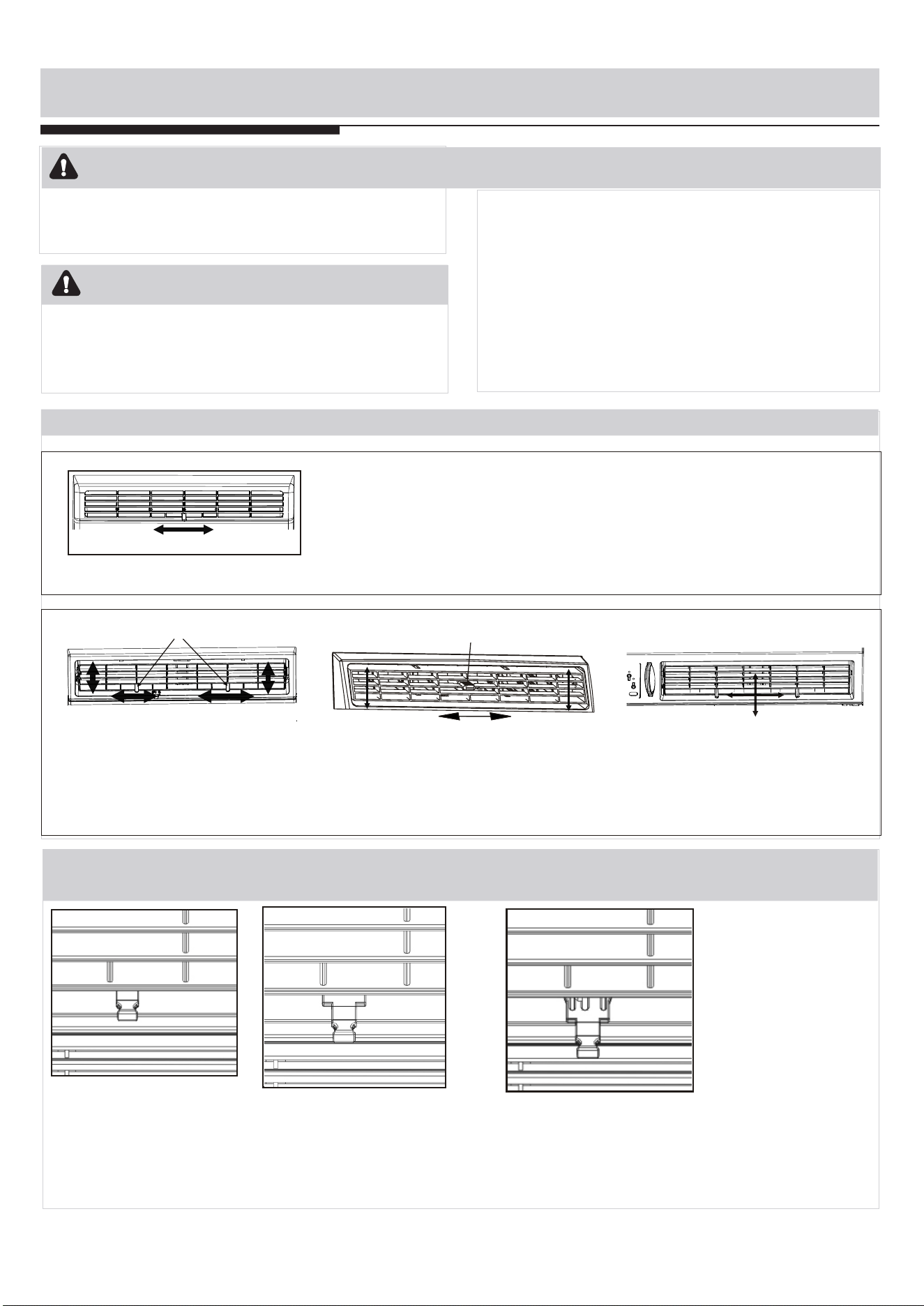

Air Directional Louvers
Lever
Air Direction
The louvers will allow you to direct the air flow Left or
Right throughout the room as needed.
Move the Levers from side to side until the desired
Left/Right direction is obtained.
for 05K, 06K
24
for 06K, 08K, 10K, 12K, 15K, 18K
The louvers will allow you to direct the air flow Up or Down(on some models) and Left or Right throughout
the room as needed. Pivot horizontal louvers until the desired Up/Down direction is obtained.
Move the Lever(s) from side to side until the desired Left/Right direction is obtained.
Do not damage or use an unspecified power
cord.
Fresh Air Vent Control
(on ):10~12K models
Fig. A (VENT CLOSED) Fig. B (VENT OPEN)
Fig. C (VENT & EXHAUST
OPEN)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.A)
2. Draw fresh air into the room- Vent Open (see Fig.B)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust Open (see Fig.C)
Levers
Air Direction
Levers
Air Direction
Air Direction(4- way)
Levers
AIR CONDITIONER FEATURES
25

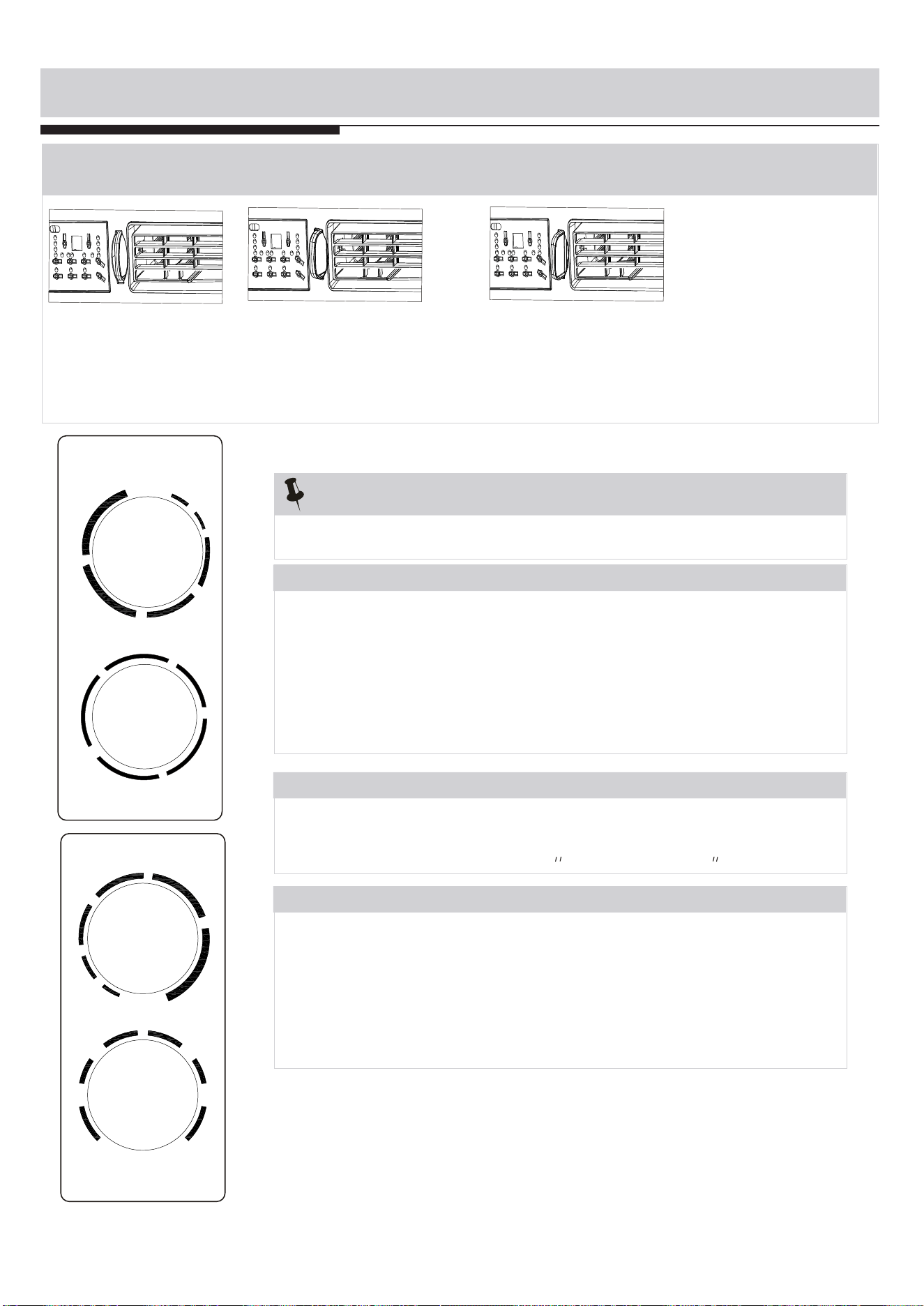

Fresh Air Vent Control
(on ):15~18K models
Fig. A (VENT CLOSED) Fig. B (VENT OPEN)
Fig. C (VENT & EXHAUST
OPEN)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.A)
2. Draw fresh air into the room- Vent Open (see Fig.B)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust Open (see Fig.C)
TEMPERATURE
min
co
ol
max
cool
COOLING
1
4
5
6
7
2
3
lo
fan
lo
cool
hi
cool
hi
fan
OFF
TEMPERATURE
MIN
COOL
MAX
COOL
LO
FAN
MED
FAN
MED
COOL
LO
COOL
HI
COOL
HI
FAN
OFF
COOLING
1
2
3
4
5
6
7
The controls featured in this manual are representative of many available models.
Your model may offer slightly different features.
NOTE:
Thermostat
The thermostat is u sed t o s et t he d esired r oom t emperature when the unit is being
operated in the COOL MODE.
To set the desired room temperature, rotate the thermostat switch to the desired
setting. After the set temperature is achieved the thermostat will automatically start
and stop the compressor in order to maintain the desired set temperature.
Rotate the thermostat selector clockwise for higher cool settings. Higher cool settings
will provide lower room temperature. Rotate the thermostat selector counter clockwise
for lower cool settings. Lower cool settings will provide higher room temperature.
Cool Mode
The desired cool setting is selected by rotating the knob to the right to the
appropriate location.
HI COOL has maximum cooling effect and airflow.
LO COOL has minimum cooling effect and airflow.
MED COOL has the intermediate cooling effect and airflow(on some models).
OFF will completely shut off the unit.
NOTE: If your unit is equipped with a vent handle, keep it closed for
maximum efficiency.
Fan Mode
Rotate the knob to the left to select your choice of fan speeds for air circulation.
NOTE: When selecting a fan speed, the compressor will not run. On models with a
vent control, this mode can be used to remove stale air from the room, or to draw
fresh air into the room.Check the section Fresh Air Vent Control.
MECHANICAL CONTROL OPERATING INSTRUCTIONS
AIR CONDITIONER FEATURES
26

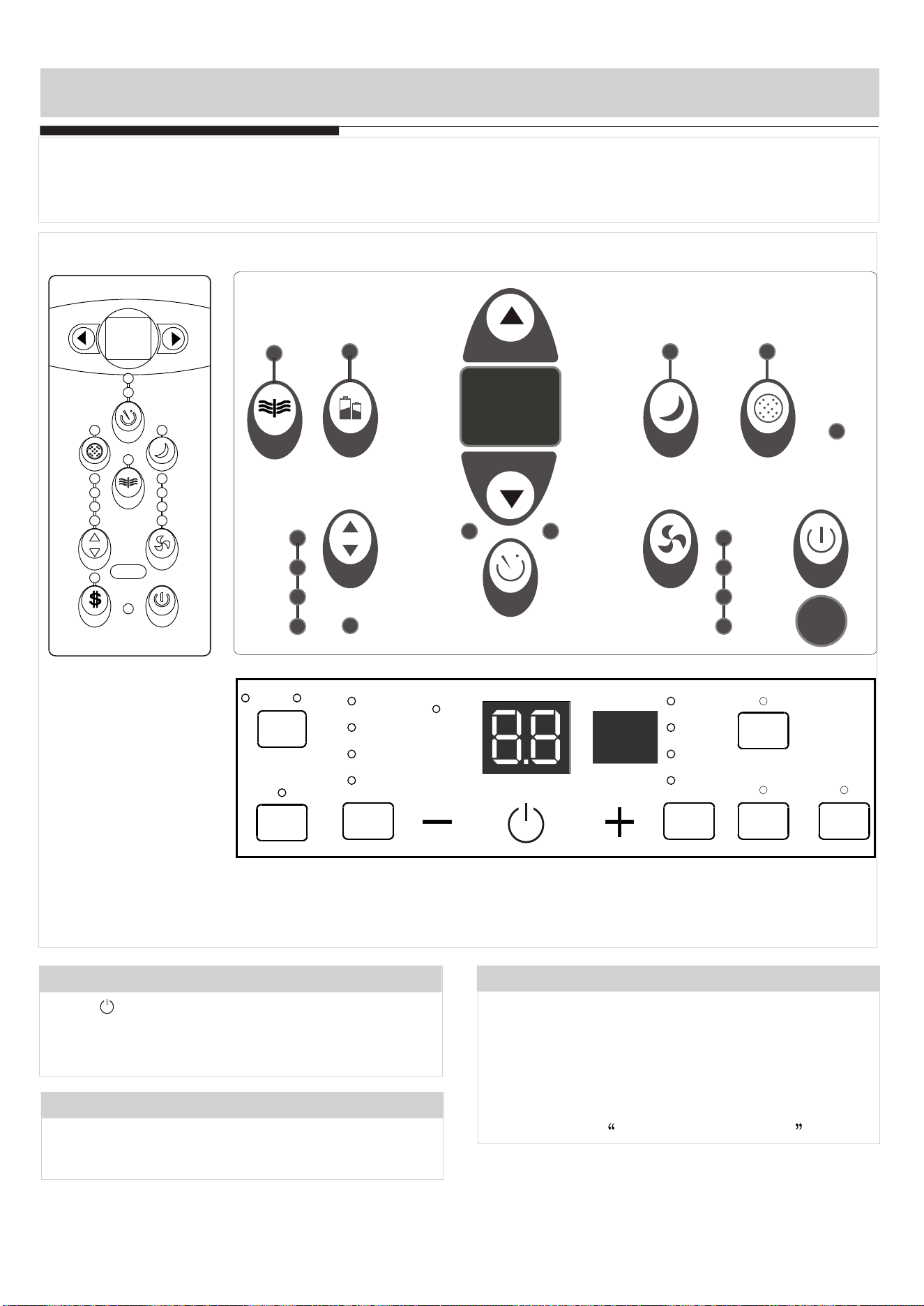

Before you begin, thoroughly familiarize yourself with the control panels as shown below and all its
functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit
control alone or with the remote.
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
TO TURN UNIT ON OR OFF:
Press ON/OFF button tot urn u nito n o r o ff.
TO CHANGE TEMPERATURE SETTING:
Press UP/DOWN button to change
temperature setting.
NOTE:Press or hold either UP or DOWN button
until the desired temperature is seen on the display.
This temperature will be automatically maintained
OO OO
anywhere between 62 F(17 C) and 86 F(30 C). If
you want the display to read the actual room
temperature, see To Operate on Fan Only section.
CLEAN AIR/ION FEATURE: (on some models)
Press Clean Air button,the ion generator is
energized and will help to remove p ollen an dimp urities
from the air, and trap them in the filter.
Sleep
Check
Filter
Auto
On/Off
Fan
High
Med
Low
Energy
Saver
On
Off
Timer
Auto
Fan
Cool
Dry
Mode
TEMP/TIMER
TEMP/TIMER
Heat
Follow
Me
Temp Temp
Timer
Timer
On
Off
Sleep
Check
Filter
Timer
Auto
Cool
Dry
Fan
Low
Auto
Med
High
Clean
Air
Fan
Mode
Follow
Me
Energy
Saver
On/Off
TIMER
ECO
MODE
FILTER
FAN SLEEP ION
On Off
Auto
Cool
Dry
Fan
Follow me
Auto
High
Med
Low
NOTE: Heat, clean air, ion, follow me features are optional.
Clean
Air
NOTE: The outline of the operation panel is based on typical model, the function is the
same with your air conditioner while some difference may exist in appearance.
NOTE:The unit will initiate automatically the Energy
Saver function under Cool, Dry and Auto modes.
27
AIR CONDITIONER FEATURES
TO ADJUST FAN SPEEDS:
Press Fan button to select the Fan Speed in four
steps-Auto, Low, Med or High. Each time the button
is pressed, the fan speed mode is shifted.For some
models, the fan speed can not be adjusted under
HEAT mode. On Dry mode,the fan speed is
controlled at Low automatically.
TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode button.Each
time you press the button, a mode is selected in a
sequence that goes from Auto, Cool, Dry ,heat(cooling
only models without)and Fan. The indicator light beside
will be illuminated and remained on once the mode is
selected.
To operate on Auto feature:
In this mode, the fan speed cannot be adjusted, it starts
automatically at a speed according to the room
temperature.
To operate on Fan Only:
Use this function only when cooling is not desired,such
as for room air circulation or to exhaust stale air(on
some models). (Remember to open the vent during this
function, but keep it closed during cooling for maximum
cooling efficiency.) You can choose any fan speed you
prefer.
During this function, the display will show the actual
room temperature, not the set temperature as in the
cooling mode.
To operate on Dry mode:
In this mode, the air conditioner will generally operate
in the form of a dehumidifier. Since the conditioned
space is a closed or sealed area, some degree of
cooling will continue.
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling only models
without), or fan only operation depending on what
temperature you have selected and the room temperature.
The air conditioner will control room temperature
automatically round the temperature point set by you.
In Fan only mode ,the temperature is not adjusted.
The unit will initiate automatically the Energy Saver
function under Cool, Dry, Auto(only Auto-Cooling and
Auto-Fan) modes.
SLEEP FEATURE:
Press Sleep button to initiate the sleep mode. In
this mode the selected temperature will increase
OO
(cooling) or decrease (heating) by 2 F/1(or 2) C 30
minutes after the mode is selected. The temperature
will then increase (cooling) or decrease (heating) by
OO
another 2 F/1(or 2) C after an additional 30 minutes.
This new temperature will be maintained for 6 or 7
hours before it returns to theoriginally selected
temperature. This ends the Sleep mode and the unit
will continue to operate as originally programmed.
The Sleep mode program can be cancelled at any
time during operation by pressing the Sleep button
again.
Press Check filter button to initiate theis feature.
This feature is a reminder to clean the Air Filter for
more efficient operation. The LED(light) will illumi-
nate after 250 hours of operation. To reset after
cleaning the filter, press the Check Filter button and
the light will go off.
CHECK FILTER FEATURE:
ENERGY SAVER FEATURE:
Press Energy saver button to initiate this function.
This function is available on COOL, DRY, AUTO
(only AUTO-COOLING and AUTO-FAN) modes.The
fan will continue to run for 3 minutes after the
compressor shuts off.The fan then cycles on for 2
minutes at 10 minute intervals until the room
temperature is above the set temperature, at which
time the compressor turns back on and Cooling
Starts.
FOLLOW ME FEATURE:(on some models)
This feature can be activated from the remote
control ONLY. The remote control serves as
a remote thermostat allowing for the precise
temperature control at its location.
To activate the Follow Me feature, point the remote
control towards the unit and press the Follow Me
button. T
If the unit does not
receive the Follow Me signal during any 7 minutes
interval, the unit will beep to indicate the Follow Me
mode has ended.
he remote display is actual temperature at
its location. The remote control will send this signal
to the air conditioner every 3 minutes interval until
press the Follow Me button again.
Press Timer button, the TIMER ON or TIMER OFF indicator
light illuminates. It indicates the Auto Start or Auto Stop
program is initiated. For some units, keep pressing the
Timer button will cancel the timer settings.
Press or hold the UP or DOWN button to change the Auto
time by 0.5 hour increments, up to 10 hours,then at 1 hour
increments up to 24 hours.The control will count down the
time remaining until start.
The selected time will register in 5 seconds, and the system
will automatically revert back to display the previous
temperature setting or room temperature when the unit is
on.(when the unit is off,there is no display.)
Turning the unit ON or OFF at any time or adjusting the
timer setting to 0.0 will cancel the Auto Start/Stop timed
program.
TIMER: AUTO START/STOP FEATURE:
Light flashes or
illuminates
Follow
Me
AIR CONDITIONER FEATURES
OO
Shows the set temperature in C or F and the
Auto-timer settings.While on Fan only mode,it shows
the room temperature. If the room temperature is too
high or low, it will display HI or LO .
DISPLAYS:
-Evaporator temperature sensor error-Unplug the
unit and plug it back in.If error repeats, call for
service.
NOTE: is displayed as shown in the left picture.
HS -Electric heating sensor error-Unplug the unit and
plug it back in.If error repeats, call for service.
E7 -Unit malfunction-Unplug the unit and plug it back in.
If error repeats, call for service(on some models).
Error codes:
AS-Room temperature sensor error-Unplug the unit
and plug it back in.If error repeats, call for service.
If the unit breaks off unexpectedly due to the power
cut, it will restart with the previous function setting
automatically when the power resumes.
DISPLAYS:
NOTE:
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure,
here are more features in your control that you should
become familiar with.
The Cool circuit has an automatic 3 minute time
delayed start if the unit is turned off and on quickly.
This prevents overheating of the compressor and
possible circuit breaker tripping.The fan will
continue to run during this time.
The control is capable of displaying temperature in
degrees Fahrenheit or degrees Celsius. To convert
from one to the other, press and hold the Left and
Right Temp/Timer buttons at the same time, for 3
seconds.

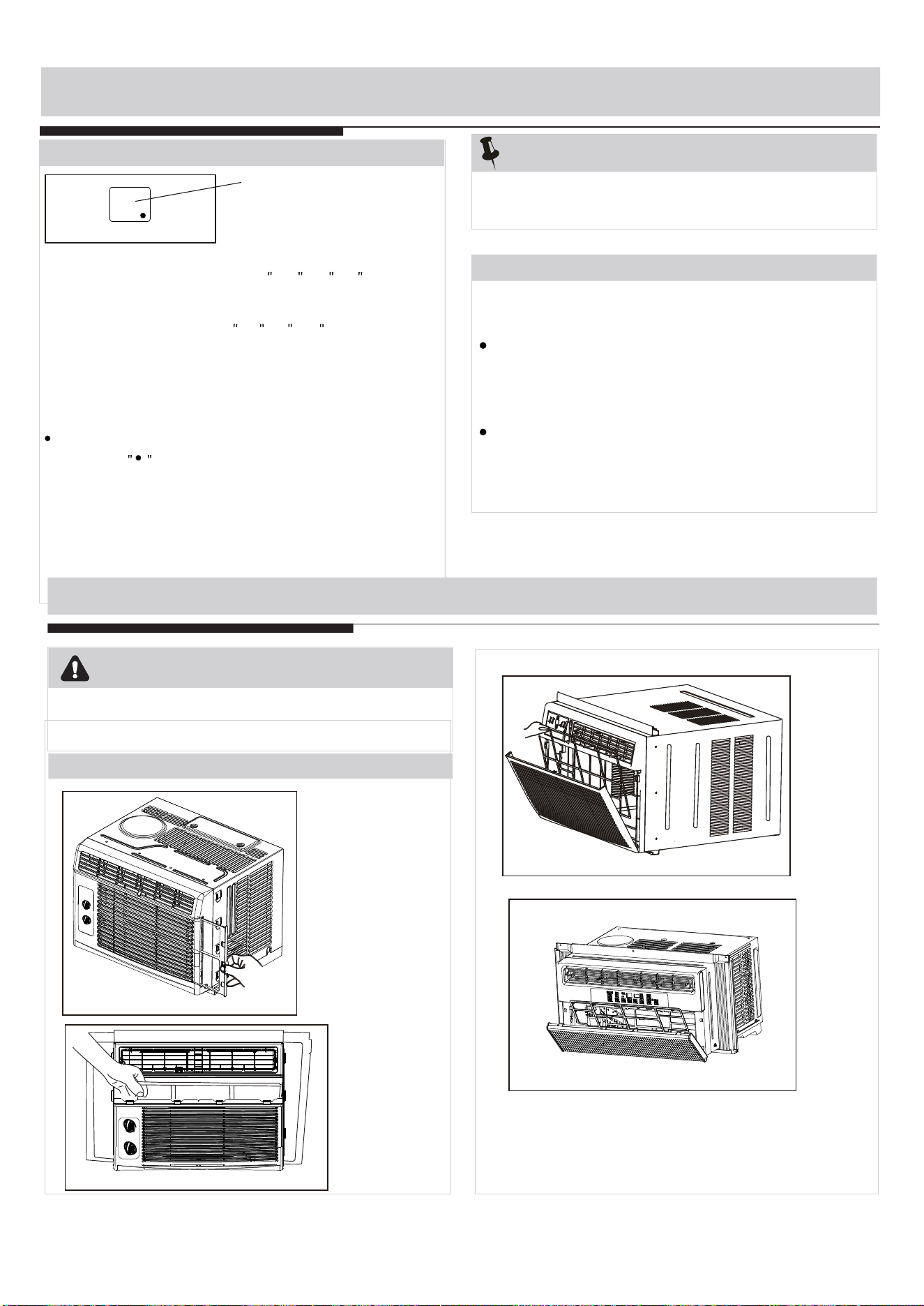

CARE AND CLEANING
CAUTION
Clean your air conditioner occasionally to keep it looking
new. Be sure to unplug the unit before cleaning to
prevent chock or fire hazards.
Air Filter Cleaning
28
Displays
The air filter should be checked at least once a month to see
if cleaning is necessary. Trapped particles in the filter can
build up and cause an accumulation of frost on the cooling
coils.
ES
or
For 5000 to 6000 Btu/h
For 6000 to 12000 Btu/h
For 15000 to 18000 Btu/h
For 6000 to 8000 Btu/h
CARE AND CLEANING
Air Filter Cleaning
Note: Never use hot water over 40 C(104 F) to cl ean th e
a i r fil ter. Never attempt to operate the unit without the air
filter.
Winter Storage
If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the
installation instructions. Cover it with plastic or return it to
the original carton.
Cabinet Cleaning
Be sure to unplug the air conditioner to prevent shock or fire
hazard. The cabinet and front may be dusted with an oil-free
cloth or washed with a cloth dampened in a solution of warm
water and mild liquid dishwashing detergent. Rinse thoroughly
and wipe dry.
Never use harsh cleaners, wax or polish on the cabinet front.
Be sure to wring excess water from the cloth before wiping
around the controls. Excess water in or around the controls
may cause damage to the air conditioner.
Plug in air conditioner.
TROUBLESHOOTING TIPS
Before calling for service, review this list. It may save your time and expense. This list includes common
occurrences that are not the result of defective workman-ship or materials in this appliance.
Solution
Air conditioner
does not start
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or
reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Problem
Air from unit does
not feel cold
enough
Set to a Lower temperature.
OO
Room temperature below 62 F(17 C ). Cooling may not occur until room temperature
OO
rises above 62 F(17 C).
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY
mode. Then, set temperature to a Higher setting.
Temperature sensing behind air filter element touching cold coil. Keep it from the cold
coil.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost,
set to FAN ONLY mode.
Power is OFF. Turn power ON.
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
OO
Outdoor temperature below 64 F(18 C). To defrost the coil, set FAN ONLY mode.
Compressor stopped when changing modes. Wait for 3 minutes after set to the COOL
mode.
29
Push the vent handle to the Vent Closed position
(where applicable). Open the front panel.
Take the filter by the center and pull up and out.
Wash the filteru sing l iquid d ishwashing d etergent a nd w arm
water. Rinse filter thoroughly. Gently shake excess water
from the filter. Be sure the filter is thoroughly dry before
replacing. Or, instead of washing you may vacuum the filter
clean.
TROUBLESHOOTING TIPS
Solution
Problem
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Unit recently turned on in hot room. Allow additional time to remove Stored heat from
walls, ceiling, floor and furniture.
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution.
Clear blockage in front of unit.
Doors, windows, registers, etc. Open- cold air escapes. Close doors, windows, registers.
Air conditioner turns on
and off rapidly
Noise when unit is
cooling
Water dripping
INSIDE when
unit is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.
Refer to installation instructions - check with installer.
Dirty air filter- air restricted. Clean air filter.
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping
OUTSIDE when
unit is cooling.
Remote Sensing
Deactivating
Prematurely
(some models)
Remote control not located within range. Place remote control within 20 feet & 180 ,
radius of the front of the unit.
Remote control signal obstructed. Remove obstruction.
Room too cold
Set temperature too low. Increase set temperature.
Unit removing large quantity of moisture from humid room. This is normal during
excessively humid days.
30
CW064IU-SCFN8
16120300000399
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
Any updates to the manual will be uploaded to the service website, please check
for the latest version.
Perfect Aire, LLC
5151 Belt Line Rd.
Suite 878
Dallas, TX 75254
Distributed by:
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
Specification and performance data is subject to change without notice.
Printed in China
PA/User_WAC/09282018
