PERFORMANCE
2-BURNER GAS GRILL
GRIL À GAZ À 2 BRÛLEURS
2-QUEMADORES PARILLA DE GAS
FOR OUTDOOR USE ONLY
POUR USAGE EN MILIEU EXTÉRIEUR UNIQUEMENT
ESTE JUEGO SÓLO SE PUEDE USAR EXTERIORS
This grill is designed for use with LP gas only.
Ce gril est conçu pour être utilisé avec du gaz pr opane
seulement.
Esta parrilla está diseñada para usarse solo con gas LP.
If you have questions or need assistance during assembly, please call 1-800-241-7548
Si vous avez des questions ou besoin d´aide pendant l’assemblage, S’il vous plaît appelez 1-800-241-7548
Si tiene alguna pregunta o si Necesita ayuda durante el Ensamblado, llámenos Al 1-800-241-7548
PRODUCT GUIDE
GU IDES DES P RODU ITS
GUíA DE L PRODUCTO
©
2020 Char-Broil, LLC. Columbus, GA, 31904. Printed in China. Imprimé en Chine. Impreso en China.09/29/20 • G325-001-020801
MODEL
MODÈLE
MODELO
463660021
S E R IAL N U M B E R
N U M ÉRO D E SÉ R I E
NÚ M E RO D E S E RIE
• See rating Label on grill for serial number.
• Ce numéro se trouve sur l´étiquette
signalétique sur i´appareil.
• El número de serie se encuentra en la etiqueta
deespecificaciones de la parrilla.
DATE PU R CHA S E D
DATE D’CH AT
F EC HA D E C OM P R A
TOOLS REQ U I RED FO R ASSE M B LY:
• Adjustable wrench (not provided)
• Screwdriver (not provided)
• 7/16” Combination wrench (not provided)
• Caster pin (provided)
OUTILS REQUIS POU R L’ASSE M B LAGE:
• Clé réglable (non comprise)
• Tournevis (non comprise)
• Clé mixte de 7/16 po (non comprise)
• Dispositif de blocage pour roulettes (comprise)
HERRAMIENTAS N E CESARIAS PARA EL MONTAJ E:
• Llave ajust abl e (no inclui do)
• Destor nillad or (no inclu ido)
• 7 / 16 ” Comb inació n llav e (no inclu i do)
• Clavij a para la ru eda (i nclui d o)
C H A R B R O I L . C O MPage 2
TABLE OF CONTENTS
SAFETY SYMBOLS
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout the
manual.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
CAUTION
WARNING
WARNING
DANGER
DANGER
CAUTION: Indicates a potentially hazardous situation or unsafe prac-
tice which, if not avoided, may result in minor or moderate injury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
1. Do not store or use gasoline or other ammable liquids or
vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in
the vicinity of this or any other appliance.
DANGER: Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. Open lid.
4. If odor continues, keep away from the appliance and imme-
diately call your gas supplier or your re department.
IMPORTANT SAFETY
INFORMATION
For Your Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Use and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Parts Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Hardware List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-45
Grilling Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-49
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58-59
Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
C H A R B R O I L . C O MPage 3

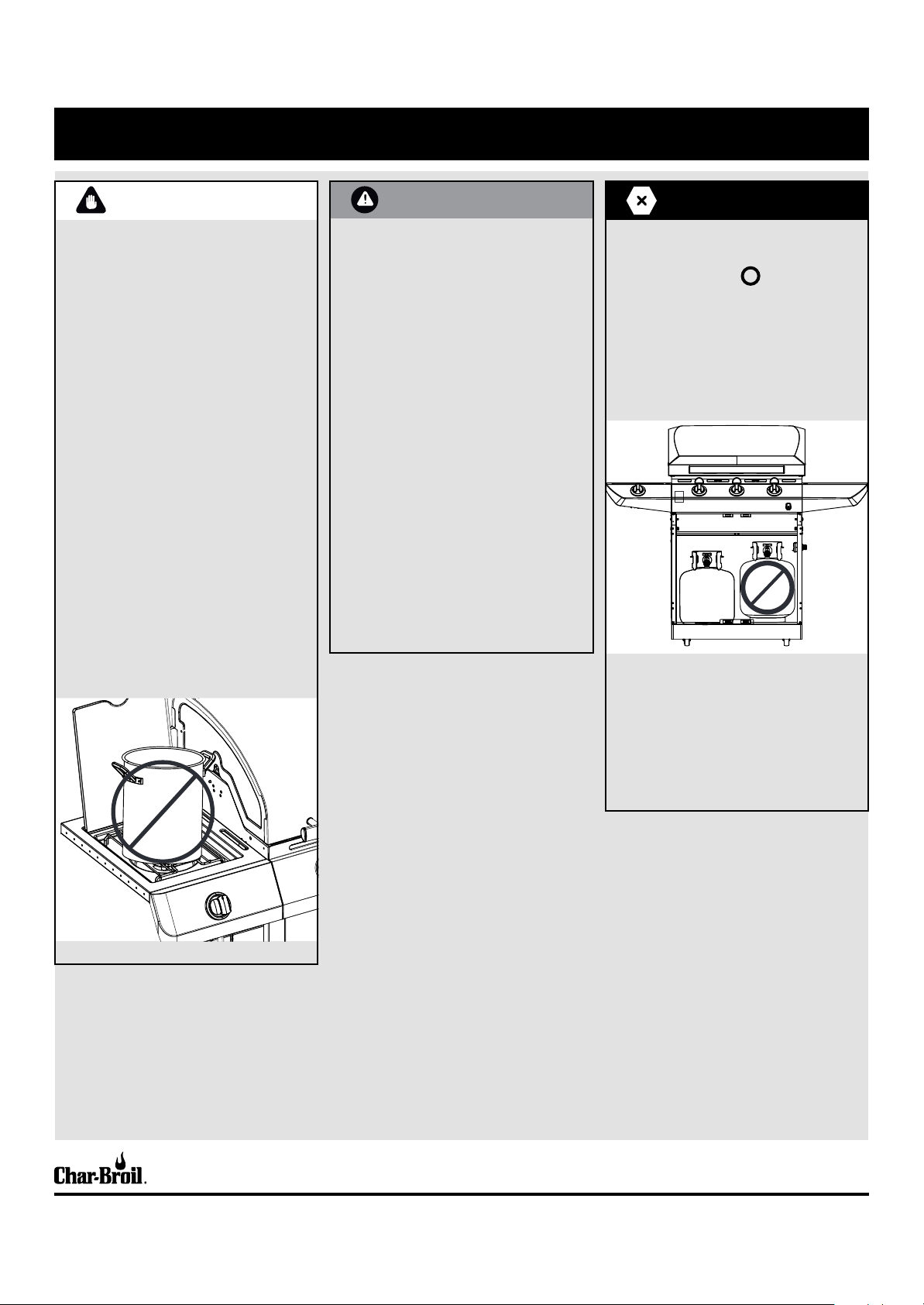

FOR YOUR SAFETY - INSTALLING YOUR GRILL
CAUTION
WARNING
DANGER
For residential use only. Do not use for commercial
cooking.
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
Some parts may contain sharp edges. Wear protective
gloves if necessary.
Grease Fires
• Putting out grease res by closing the lid is not
possible. Grills are well ventilated for safety reasons.
• Do not use water on a grease re. Personal injury
may result. If a grease re develops, turn knobs and
LP tank off.
• If grill has not been regularly cleaned, a grease
re can occur that may damage the product. Pay
close attention while preheating or burning off food
residue to insure that a grease re does not develop.
• The best way to prevent grease res is regular
cleaning of the grill following instructions on General
Grill Cleaning and Cleaning The Burner Assembly.
Using pots larger than 6 quarts in capacity could
exceed weight limit of the side burner shelf or side
shelf, resulting in failure of grill cart components.
Failure to follow all manufacturer’s instructions could
result in serious personal injury and/or property
damage.
Do not attempt to repair or alter the hose/valve/
regulator for any assumed defect. Any modication
to this assembly will void your warranty and create
the risk of a gas leak and re. Use only authorized
replacement parts supplied by manufacturer.
Do not cover grates with aluminum foil or any other
material. This will block burner ventilation and create
a potentially dangerous condition resulting in property
damage and/or personal injury.
CALIFORNIA PROPOSITION 65
1. Combustible by-products produced when using this
product contains chemicals known to the State of
California to cause cancer, birth defects, or other
reproductive harm.
2. This product contains chemicals, including lead and
lead compounds, known to the State of California to
cause cancer, birth defects or other reproductive
harm.
Wash your hands after handling this product.
If during operation the ames go out (You smell
gas or cannot see the ame)
1. Turn the burner controls OFF
2. Open lid.
3. Wait 5 minutes and repeat the lighting procedure.
If the burner goes out, gas will continue to ow
out of the burner and could accidently ignite with
risk of injury.
• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never ll a cylinder beyond 80% full.
• An over lled or improperly stored cylinder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense re with
risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately
get away from the LP cylinder/appliance and call
your re department.
C H A R B R O I L . C O MPage 4
USE AND CARE
Installation Safety Precautions
• Use grill, as purchased, only with LP (propane) gas and the regulator/valve
assembly supplied. If your grill is Dual Fuel ready, a conversion kit must be
purchased for use with natural gas.
• Grill installation must conform with local codes, or in their absence of local codes,
with either the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Natural Gas and
Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code,
B149.2.
• All electrical accessories (such as rotisserie) must be electrically grounded in
accordance with local codes, or National Electrical Code, ANSI / NFPA 70 or
Canadian Electrical Code, CSA C22.1. Keep any electrical cords and/or fuel supply
hoses away from any hot surfaces.
• This grill is safety certied for use in the United States and/or Canada only. Do
not modify for use in any other location. Modication will result in a safety hazard.
LP (Liqueed Petroleum Gas)
• LP gas is nontoxic, odorless and colorless when produced. For Your Safety, LP
gas has been given an odor (similar to rotten cabbage) so that it can be smelled.
• LP gas is highly ammable and may ignite unexpectedly when mixed with air.
LP Cylinder Filling
• Use only licensed and experienced dealers.
• LP dealer must purge new cylinder before lling.
• Dealer should NEVER ll LP cylinder more than 80% of LP cylinder volume.
Volume of propane in cylinder will vary by temperature.
• A frosty regulator indicates gas overll. Immediately close LP cylinder valve and
call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous
practice.
• To remove gas from LP cylinder, contact an LP dealer or call a local re department
for assistance. Check the telephone directory under Gas Companies for nearest
certied LP dealers.
LP Cylinder Removal, Transport and Storage
• Turn OFF all control knobs and LP cylinder valve. Turn coupling nut counterclockwise
by hand only - do not use tools to disconnect. Loosen cylinder screw beneath
bottom shelf or disconnect other retention means, then lift LP cylinder up and
and out of cart. Install safety cap onto LP cylinder valve. Always use cap and
strap supplied with valve. Failure to use safety cap as directed may result in
serious personal injury and/or property damage.
• A disconnected LP cylinder in storage or being transported must have a safety cap
installed (as shown). Do not store an LP cylinder in enclosed spaces such as a
carport, garage, porch, covered patio or other building. Never leave an LP cylinder
inside a vehicle which may become overheated by the sun.
• Do not store an LP cylinder in an area where children play.

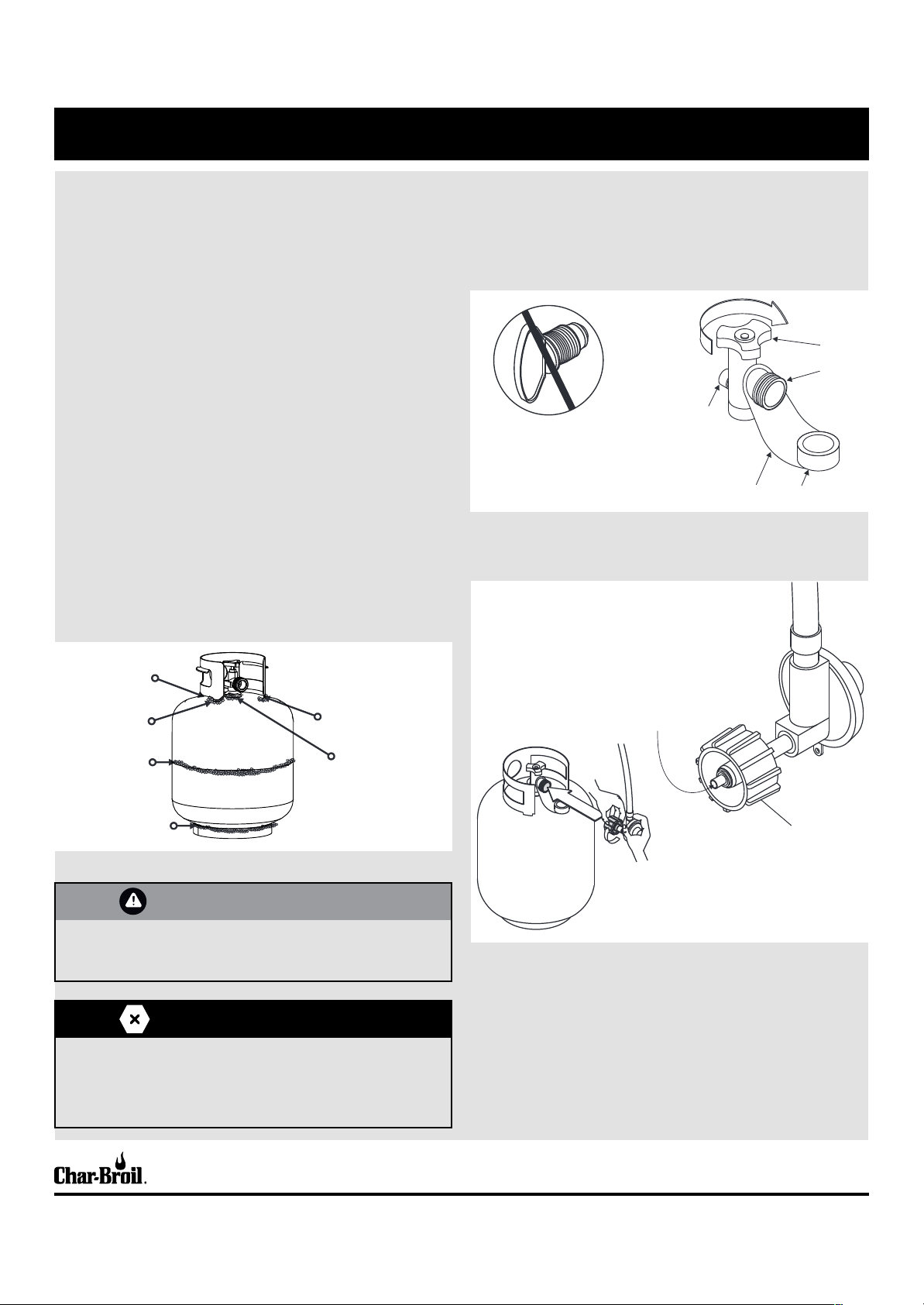

LP Cylinder
• The LP cylinder used with your grill must meet the following requirements:
• Use LP cylinders only with these required measurements: 12 (30.5cm) (diameter)
x 18 (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.
• LP cylinders must be constructed and marked in accordance with specications
for LP cylinders of the U.S. Department of Transportation (DOT) or for Canada,
CAN/CSA-B339, cylinders, spheres and tubes for transportation of dangerous
goods, Transport Canada (TC). See LP cylinder collar for marking.
• LP cylinder valve must have:
• Type 1 outlet compatible with regulator or grill.
• Safety relief valve.
• UL listed Overll Protection Device (OPD). This
OPD safety feature is identied by a unique
triangular hand wheel. Use only LP cylinders
equipped with this type of valve.
• LP cylinder must be upright for vapor withdrawal
and include collar to protect LP cylinder valve.
Always keep LP cylinders in upright position
during use, transit or storage.
LP cylinder in upright position
for vapor withdrawal
LP Cylinder Valve
SAFETY CAP
RETAINER STRAP
OPD Hand Wheel
C H A R B R O I L . C O MPage 5
USE AND CARE
LP Cylinder Exchange
• Many retailers that sell grills offer you the option of replacing your empty LP cylinder
through an exchange service. Use only those reputable exchange companies that
inspect, precision ll, test and certify their cylinders. Exchange your cylinder
only for an OPD safety feature-equipped cylinder as described in the “LP
Cylinder” section of this manual.
• Always keep new and exchanged LP cylinders in upright position during use,
transit or storage.
• Leak test new and exchanged LP cylinders BEFORE connecting to grill.
• Place safety cap on cylinder valve outlet whenever the cylinder is not in use. Only
install the type of safety cap on the cylinder valve outlet that is provided with the
cylinder valve. Other types of caps or plugs may result in leakage of propane.

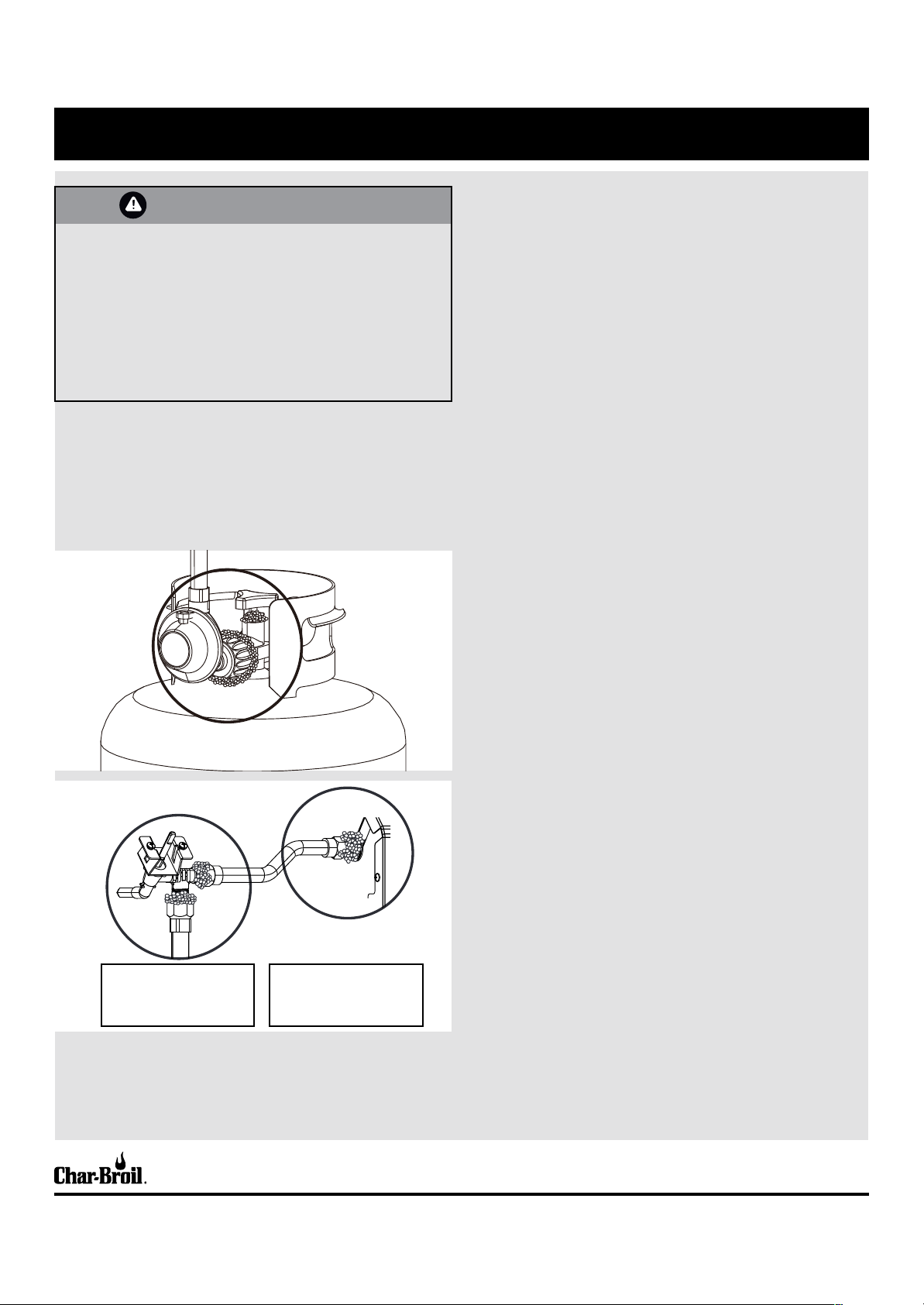

LP Cylinder Leak Test
For your safety
• Leak test must be repeated each time LP cylinder is exchanged or
relled.
• Do not smoke during leak test.
• Do not use an open ame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ventilated area, away
from ignition sources such as gas red or electrical appliances.
During leak test, keep grill away from open ames or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water solution.
Brush soapy solution onto areas indicated by arrows in gure below.
• Do not use household cleaning agents. Damage to gas train
components can result.
Connecting Regulator to the LP Cylinder
1. LP cylinder must be properly secured onto grill. (Refer to assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP cylinder OFF by turning hand-wheel clockwise to a full stop.
4. Remove the safety cap from LP cylinder valve. Always use cap and strap if supplied
with valve.
5. Hold regulator and insert nipple into LP cylinder valve. Hand-tighten the coupling
nut, holding regulator in a straight line with LP cylinder valve so as not to cross-
thread the connection.
6. Turn the coupling nut clockwise and tighten to a full stop. The regulator will seal
on the back-check feature in the LP cylinder valve, resulting in some resistance.
An additional one-half to three-quarters turn is required to complete the
connection. Tighten by hand only – do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and repeat steps 5 and 6.
If you are still unable to complete the connection, do not use this regulator!
If “growing” bubbles appear, do not use or move the LP cylinder. Contact
an LP gas supplier or your re department!
c
k
w
o
l
i
s
C
e
f
f
O
Safety Relief
Valve
Strap and Cap
OPD Hand
Wheel
Type 1 outlet
with thread
on outside
Nipple has to be centered into
the LP cylinder valve.
Coupling nut
Straight
Hold coupling nut and regulator as
shown for proper connection to LP
cylinder valve.
• Do not insert any tool or foreign object into the valve outlet or
safety relief valve. You may damage the valve and cause a leak.
Leaking propane may result in explosion, re, severe personal
injury, or death.
WARNING
Do not use a POL transport
plug (plastic part with external
threads)! It will defeat the
safety feature of the valve.
DANGER
C H A R B R O I L . C O MPage 6
USE AND CARE
• Do not use grill until leak-tested.
• If a leak is detected at any time, STOP! Turn off gas at source and correct leak.
• If you cannot stop a gas leak by closing the LP cylinder valve leave area and call
your re department!
• Outdoor gas appliance is not intended to be installed in or on a boat.
• Outdoor gas appliance is not intended to be installed in or on an RV.
• Never attempt to attach this grill to the self-contained LP gas system of a camper
trailer or motor home.
• CHOKING HAZARD-Small parts. Not for children under 3 years.
Leak Testing Valves, Hose and Regulator
1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP cylinder.
3. Completely open LP cylinder valve by turning hand wheel counterclockwise. If
you hear a rushing sound, turn gas off immediately. There is a major leak at the
connection. Correct before proceeding.
4. Brush soapy solution onto areas circled below, or other similar ttings on your grill.
5. If “growing” bubbles appear, there is a leak. Close LP cylinder valve immediately
and retighten connections. If leaks cannot be stopped do not try to repair.
Call for replacement parts.
6. Always close LP cylinder valve after performing leak test by turning hand wheel
clockwise.
Safety Tips
• Before opening LP cylinder valve, check the coupling nut for tightness.
• When grill is not in use, turn off all control knobs and LP cylinder valve.
• Never move grill while in operation or still hot.
• Some surfaces will be hot during use. Use long-handled barbecue utensils and
oven mitts to avoid burns and splatters.
• Maximum load for sideburner and side shelf is 10 lbs.
• The grease tray or cup must be installed during use and emptied after each use.
Do not remove grease tray or cup until grill has completely cooled.
• Clean grill often, preferably after each cookout. If a bristle brush is used to clean
any of the grill cooking surfaces, ensure no loose bristles remain on cooking
surfaces prior to grilling. It is not recommended to clean cooking surfaces while
grill is hot.
• If you notice grease or other hot material dripping from grill onto valve, hose or
regulator, turn off gas supply at once. Determine the cause, correct it, then clean
and inspect valve, hose and regulator before continuing. Perform a leak test.
• Keep ventilation openings in cylinder enclosure (grill cart) free and clear of debris.
• Do not store objects or materials inside the grill cart enclosure that would block
the ow of combustion air to the underside of either the control panel or the
rebox bowl.
• The regulator may make a humming or whistling noise during operation. This will
not affect safety or use of grill.
• If you have a grill problem see the Troubleshooting Section.
• If the regulator frosts, turn off grill and LP cylinder valve immediately. This
indicates a problem with the cylinder and it should not be used on any product.
Return to supplier!
Battery
a. Size of battery/ type/ designation: AAA
b. Nominal Voltage: 1.5v
c. Number of battery required: 1PC
d. Battery included or not: Yes
Non-rechargeable batteries are not to be recharged. Batteries are to be
inserted with the correct polarity. Exhausted batteries are to be removed
from the product.
Do not dispose of the batteries in re. Batteries may explode or leak.
NOTE: Sideburner shelf fascia
and other parts not shown for
clarity.
NOTE: Your grill may NOT be
equipped with a sideburner.
WARNING
C H A R B R O I L . C O MPage 7
USE AND CARE
WARNING

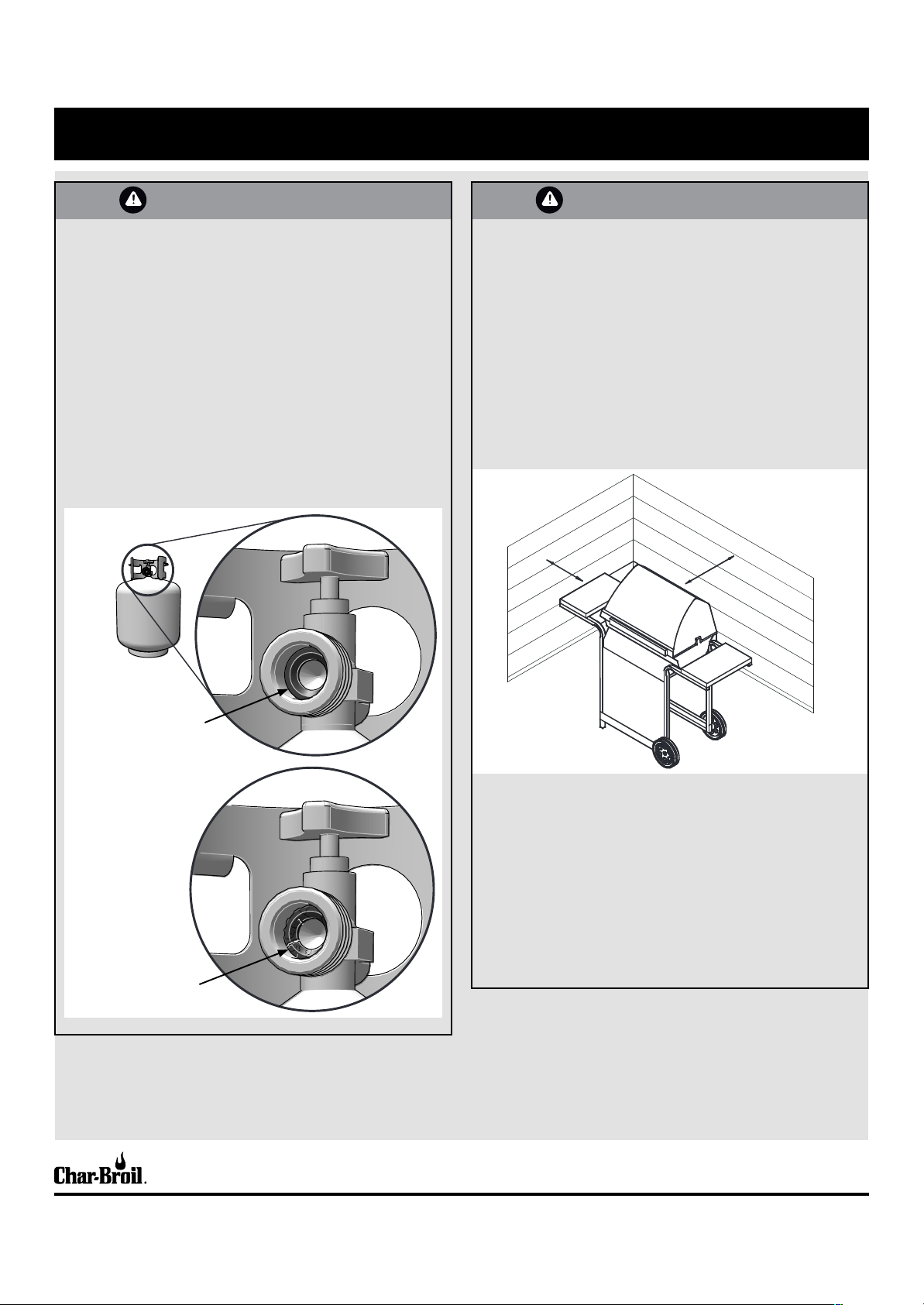

LP GAS CYLINDER RUBBER SEAL INSPECTION.
• Inspect the LP gas cylinder valve rubber seal for cracks, wear or deterioration prior
to each use. A damaged rubber seal can cause a gas leak, possibly resulting in an
explosion, re, or severe bodily harm.
• It is recommended that you inspect the rubber seal each time the LP gas cylinder
is connected to the appliance, each time it has been relled, or if it has not been
used for more than 60 days.
• DO NOT use a LP gas cylinder with a damaged rubber seal. The rubber seal
CANNOT be repaired or replaced. Purchase a new cylinder or exchange the
cylinder. You should inspect the seal before accepting a new or exchanged
cylinder. DO NOT insert tools or foreign objects into the cylinder valve opening as
this could damage the rubber seal.
• The leak check procedure outlined in the product guide/assembly manual MUST
be followed each time the LP gas cylinder is connected to the appliance. Consult
the product guide/assembly manual for the proper procedure and locations for
leak checking.
WARNING
For Safe Use of Your Grill and to Avoid Serious Injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that burn.
• Do not block holes in sides or back of grill.
• Check burner ames regularly.
• Use grill only in well-ventilated space. NEVER use in enclosed space such as
carport, garage, porch, covered patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas grill.
• Do not cover grates with aluminum foil or any other material. This will block
burner ventilation and create a potentially dangerous condition resulting in
property damage and/or personal injury.
• Use grill at least 3 ft. from any wall or surface. Maintain 10 ft. clearance
to objects that can catch re or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
• NEVER attempt to light or re-light burner with lid closed. A buildup of
non-ignited gas inside a closed grill is hazardous.
• Never operate grill with LP cylinder out of correct position specied in
assembly instructions.
• Always close LP cylinder valve and remove coupling nut before moving LP
cylinder from specied operation position.
• Apartment Dwellers:
Check with management to learn the requirements and re codes for using an
LP gas grill in your apartment complex. If allowed, use outside on the ground
oor with a three (3) foot clearance from walls or rails. Do not use on or under
balconies.
3 ft.
3 ft.
Example of good rubber seal.
Example of damaged rubber seal.
C H A R B R O I L . C O MPage 8
USE AND CARE
• Putting out grease res by closing the lid is not possible. Grills are well
ventilated for safety reasons.
• Do not use water on a grease re. Personal injury may result. If a grease re
develops, turn knobs and LP cylinder off.
• Do not leave grill unattended while preheating or burning off food residue on HI.
If grill has not been regularly cleaned, a grease re can occur that may damage
the product.
CAUTION
WARNING

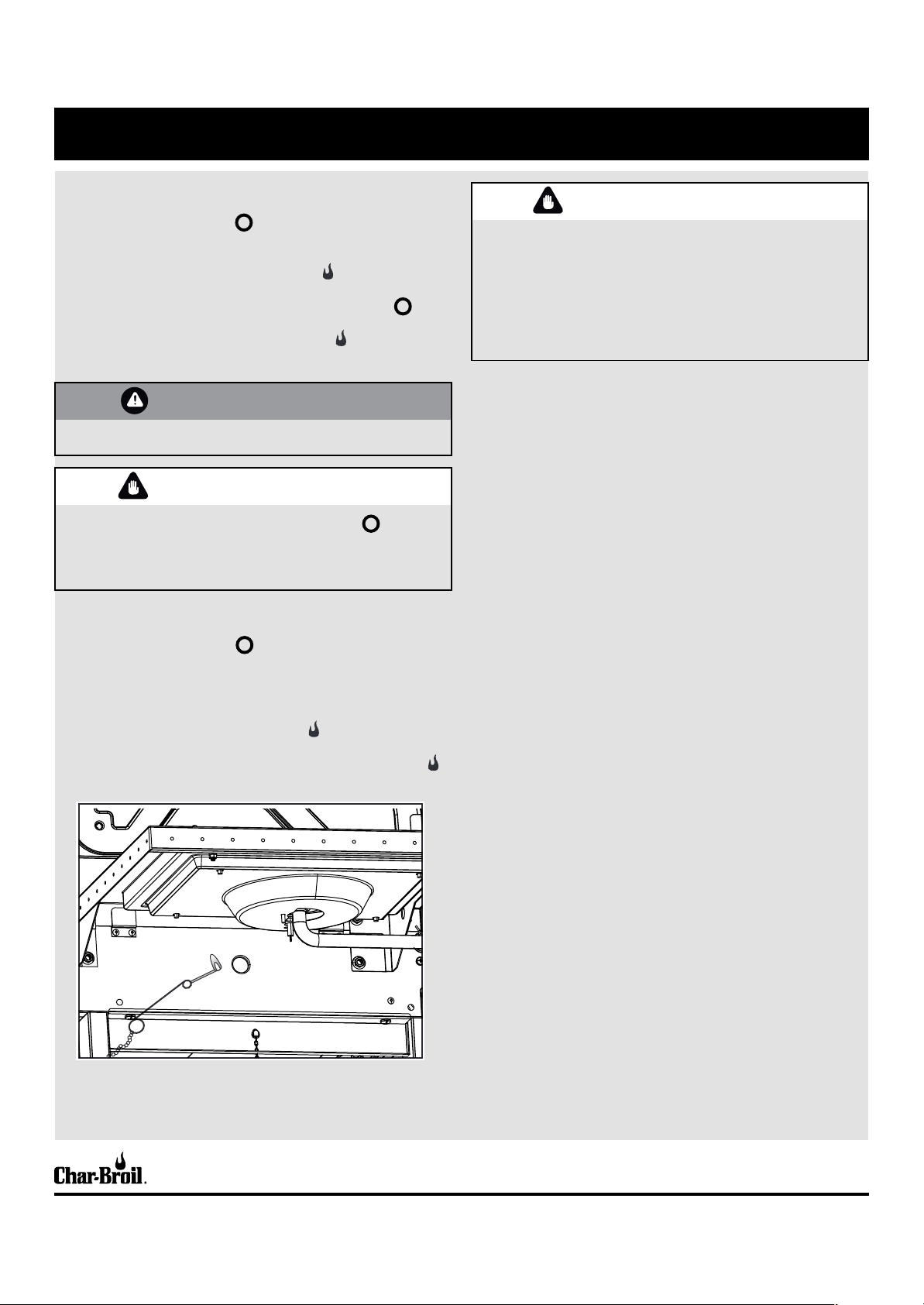

Ignitor Lighting
• Do not lean over grill while lighting.
1. Turn gas burner control valves to (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. To ignite, push and turn IGNITION BURNER knob to HIGH. Immediately,
push and hold ELECTRONIC IGNITOR button until the burner lights.
5. If ignition does NOT occur in 5 seconds, turn the burner controls off , wait
5 minutes and repeat the lighting procedure.
6. To ignite remaining burners, push and turn knob to the HIGH position
starting with the burners closest to the IGNITION BURNER rst.
Match-Lighting
• Do not lean over grill while lighting.
1. Turn gas burner control valves to (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place match into match holder (hanging from side panel of grill). Light match;
then light burner by placing match through the match light hole on side of grill.
Immediately push in and turn burner knob to the HIGH position. Be sure
burner lights and stays lit.
5. Light adjacent burners in sequence by pushing knobs in and turning to the
HIGH position.
Turn controls and gas source or tank OFF when not in use.
If ignition does NOT occur in 5 seconds, turn the burner controls off, wait 5
minutes and repeat the lighting procedure. If the burner does not ignite with the
valve open, gas will continue to ow out of the burner and could accidently ignite
with risk of injury.
CAUTION
C H A R B R O I L . C O MPage 9
USE AND CARE

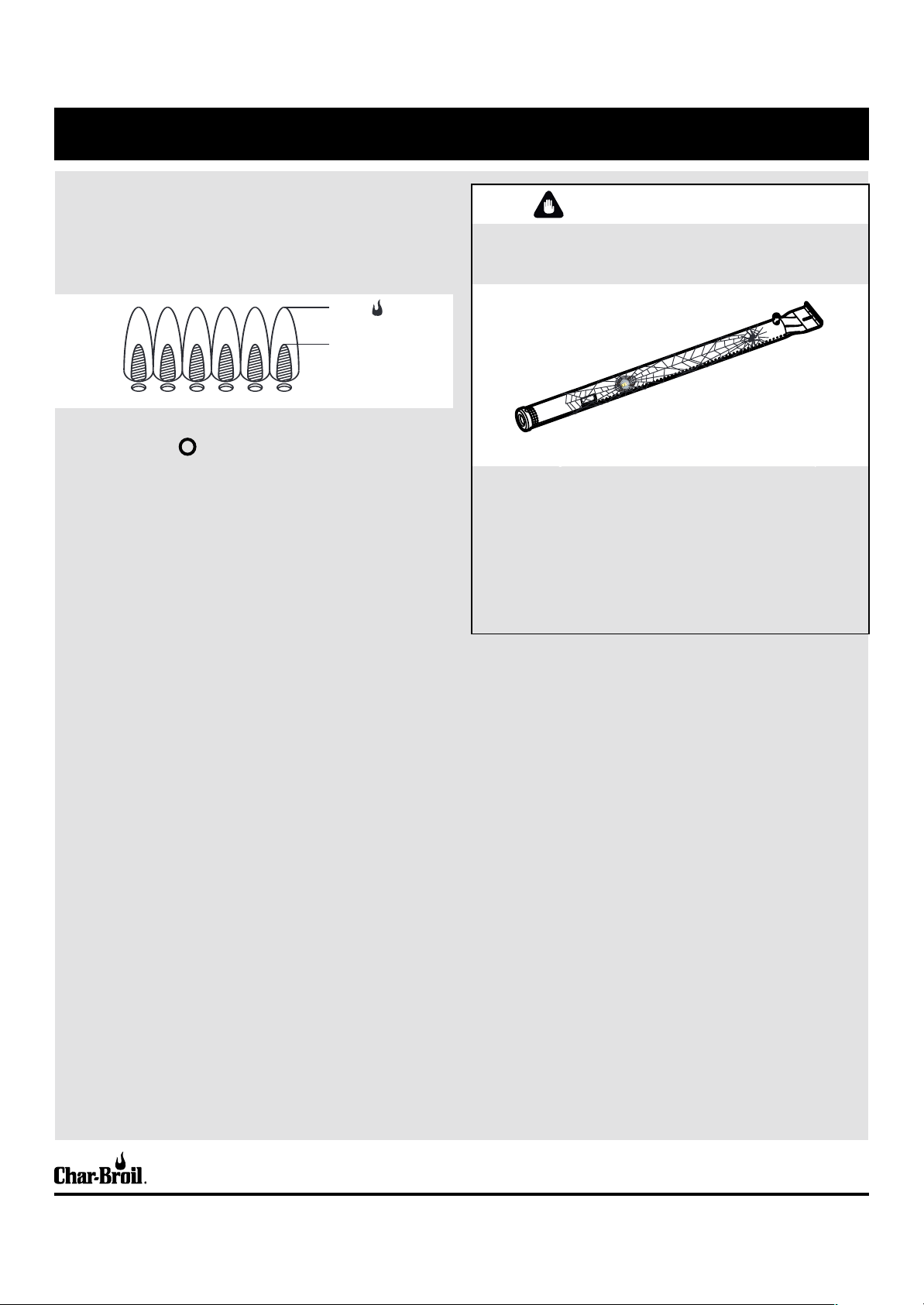

Burner Flame Check
• Remove cooking grates and heat tents. Light burners, rotate knobs from HIGH
to LOW. You should see a smaller ame in LOW position than seen on HIGH.
Perform burner ame check on side burner, also. Always check ame prior to
each use. If only low ame is seen refer to Sudden drop or low ame in the
Troubleshooting Section.
Turning Grill Off
• Turn all knobs to the off position. Turn LP cylinder off by turning hand-
wheel clockwise to a full stop.
Ignitor Check
• Turn gas off at LP cylinder. Press and hold electronic ignitor button. Click
should be heard and spark seen each time in each collector box or between
burner and electrode. See Troubleshooting if no click or spark.
Valve Check
• Important: Make sure gas is off at LP cylinder before checking valves. Knobs
lock in off position. To check valves, rst push in knobs and release, knobs
should spring back. If knobs do not spring back, replace valve assembly before
using grill. Turn knobs to LOW position then turn back to off position. Valves
should turn smoothly.
Hose Check
• Before each use, check to see if hoses are cut or worn or kinked. Replace
damaged hoses before using grill. Use only valve/hose/regulator specied by
manufacturer.
Storing Your Grill
• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a well-ventilated space
and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill covers offered by
Char-Broil at charbroil.com.
• Store grill indoors ONLY if LP cylinder is turned off and disconnected, removed
from grill and stored outdoors.
• When removing grill from storage, follow Cleaning the Burner Assembly
instructions before starting grill.
LOW
HIGH
General Grill Cleaning
• Do not mistake brown or black accumulation of grease and smoke for
paint. Interiors of gas grills are not painted at the factory (and should never
be painted). Apply a strong solution of detergent and water or use a grill
cleaner with scrub brush on insides of grill lid and bottom. Rinse and allow to
completely air dry. Do not apply a caustic grill/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
• Do not use citrisol, abrasive cleaners, degreasers or a concentrated grill
cleaner on plastic parts. Damage to and failure of parts can result.
• Porcelain surfaces: Because of glass-like composition, most residue can be
wiped away with baking soda/water solution or specially formulated cleaner.
Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm
soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your grill’s high quality appearance, wash
with mild detergent and warm soapy water and wipe dry with a soft cloth after
each use. Baked-on grease deposits may require the use of an abrasive plastic
cleaning pad. Use only in direction of brushed nish to avoid damage. Do not
use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the grill cooking
surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It
is NOT recommended to clean cooking surfaces while grill is hot.
SPIDER ALERT!
If your grill is getting hard to light or the ame is weak, check and clean the venturis
and burners.
Spiders or small insects are known to create ashback problems by building nests
and laying eggs in the grill’s venturi or burner, obstructing the ow of gas. The
back-up gas can ignite behind the control panel. This ashback can damage your
grill and cause injury. To prevent ashbacks and ensure good performance the
burner and venturi tube assembly should be removed and cleaned when ever the
grill has been idle for an extended period of time.
SPIDER AND WEBS
INSIDE BURNER
Your burner might be different
CAUTION
C H A R B R O I L . C O MPage 10
USE AND CARE

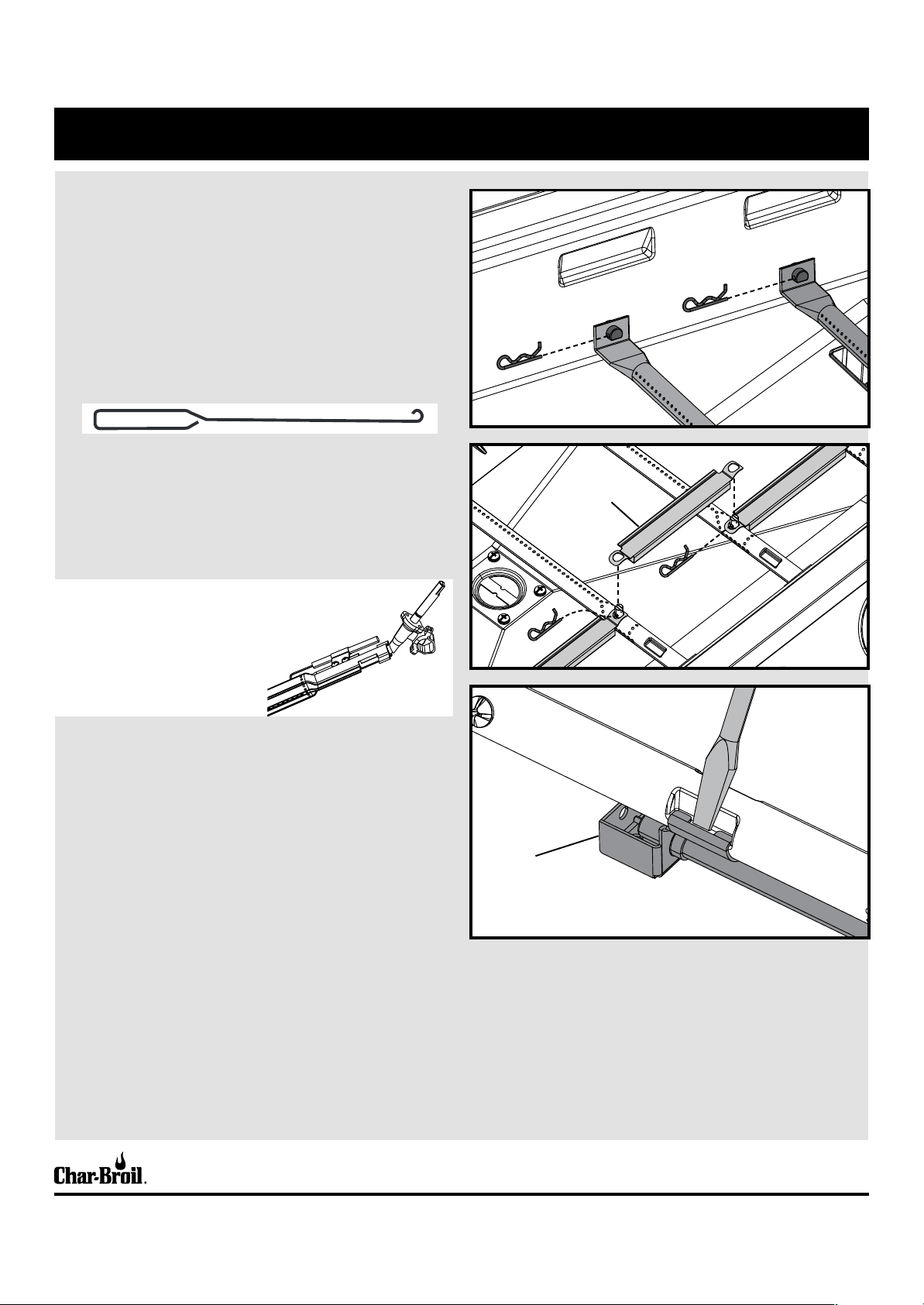

Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner assembly or if you
have trouble igniting grill.
1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat tents.
3. Remove carryover tubes and hardware securing burners.
4. Detach electrode from burner.
NOTE: Removal/Detachment method will depend on the burner conguration.
See different congurations in illustrations below.
5. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well) into a small hook.
Run the hook through each burner tube several times.
(B) Use a narrow bottle brush with a exible handle (do not use a brass wire
brush). Run the brush through each burner tube several times.
(C) Wear eye protection: Use an air hose to force air into the burner tube and
out the burner ports. Check each port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open paper clip.
8. Check burner for damage due to normal wear and corrosion, some holes may
become enlarged. If any large cracks or holes are found, replace burner.
9. Attach electrode to burner.
10. Carefully replace burners.
11. Attach burners to brackets on rebox.
12. Reposition carryover tubes and attach to burners. Replace heat tents and
cooking grates.
13. Before cooking again on grill, perform a Leak Test and Burner Flame Check.
VERY IMPORTANT: Burner tubes must
reengage valve openings. See illustrations
at right.
Correct burner-to-valve
engagement
Firebox
Electrode
Pry off electrode with a ate blade screwdriver
Carryover tube
C H A R B R O I L . C O MPage 11
LIMITED WARRANTY
This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from
defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. The
manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid by the consumer for review and examination.
*Note: A dated sales receipt WILL be required for warranty service.
The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.
This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires
proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a substitute for proof of purchase and the manu-
facturer is not responsible for or required to retain proof of purchase records.
This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and
chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Paint is not warranted and will
require touch up. RUST is not considered a manufacturing or materials defect.
This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.
ITEMS MANUFACTURER WILL NOT PAY FOR:
1. Shipping cost, standard or expedited, for warranty and replacement parts.
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difculties resulting from accident, alteration, careless handling, misuse, abuse, re, ood, acts of God, improper installation or maintenance,
installation not in accordance with electrical or plumbing codes, or use of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difculties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modications made to the product.
9. The removal and/or reinstallation of your product.
DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues, the manufacturer reserves the
right to substitute like or similar parts that are equally functional.
Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for
failure or damage resulting from acts of God, improper care and maintenance, grease re, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse,
transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with
local codes or printed manufacturer instructions.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREV-
ER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING
UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN
DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or
inconsistent with those stated above. Manufacturer’s maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer.
NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This
limited warranty gives you specic legal rights as set foth herein. You may also have other rights which vary from state to state. In the state of California only, if renishing or re-
placement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount
directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the
retail establishment selling this product in order to obtain performance under this limited warranty.
If you wish to obtain performance of any obligation under this limited warranty, you should
write to:
Consumer Relations
P. O. Box 1240
Columbus, GA 31904-1240
Consumer returns will not be accepted unless a valid Return Authorization is rst acquired. Authorized returns are clearly marked on the outside of the package with an RA
number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be refused.
SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
Stainless Burner 5 years from date of purchase* PERFORATION, MANUFACTURING,
AND MATERIAL DEFECTS ONLY
Firebox and Lid 2 years from date of purchase*
All Other Parts 1 year from date of purchase*
