( UIEKSET ®
463645004
ASSEMBLYMANUAL
THISGRILLISFOR
OUTDOORUSEONLY
CAUTION:Readandfollowallsafety
statements,assemblyinstructions,anduse
andcaredirectionsbeforeattemptingto
assembleandcook.
O
J
INSTALLER/ASSEMBLER:Leavethese
instructionswithconsumer.
CONSUMER:Keepthismanualforfuture
reference.
A WARNING
Failuretofollowallmanufacturer's
instructionscouldresultinseriouspersonal
injuryand/orpropertydamage.
46364500410-4165356(10-01-03)
A CAUTION
Somepartsmaycontainsharpedges-
especiallyasnotedinthemanual!Wear
protectiveglovesifnecessary.
Ifyouhaveanyquestionsorneedassistance
duringassembly,pleasecall1-800-241.7548.
Visitusonthe.webat: ..41_
KEEPERS OF THE FLAME
COLUMBUS, GA

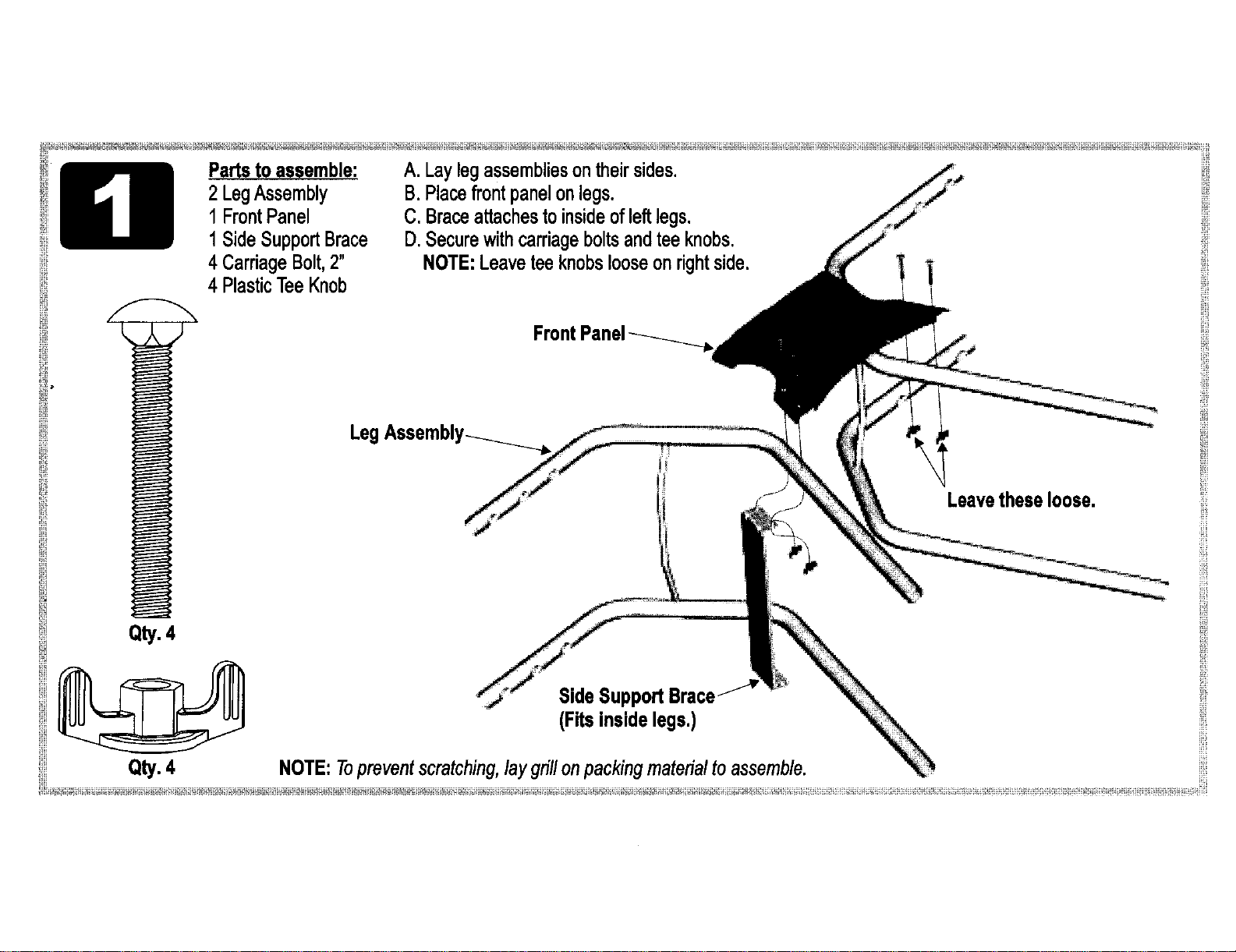

1SideSupportBrace
4CarriageBolt,2"
4PlasticTeeKnob
D.Securewithcarriageboltsandteeknobs.
NOTE:Leaveteeknobslooseonrightside.
Qty.4
iii!
Front
Leg
Leave these loose.
Side i_
(Fits inside legs.)
Qty.4 NOTE:Topreventscratching,laygrillonpackingmaterialtoassemble, iii
Qty.4

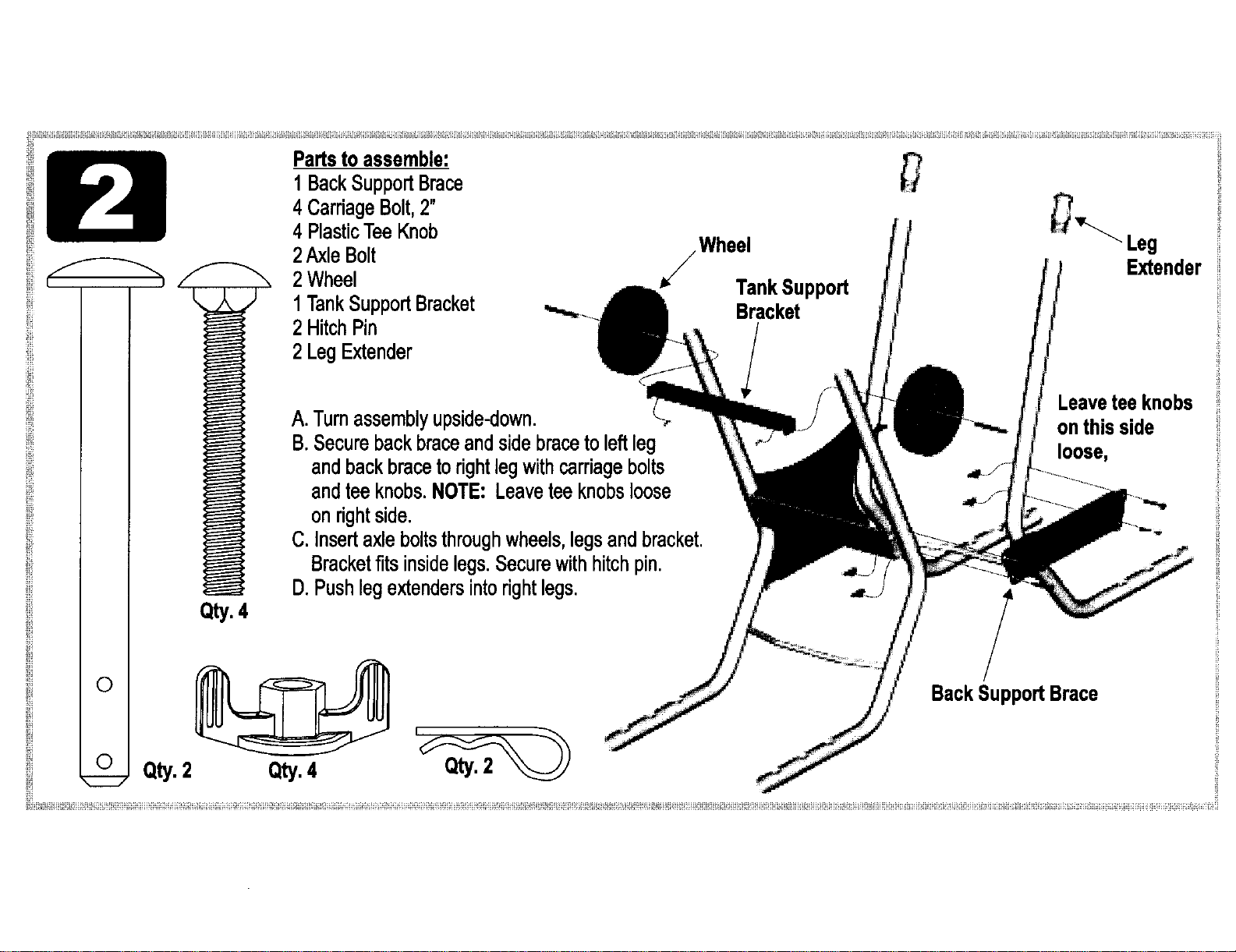

Partsto assemble:
1BackSupportBrace
4 CarriageBolt,2"
4 PlasticTeeKnob
2AxleBolt
2Wheel
1TankSupportBracket
2 HitchPin
2 LegExtender
ii!
i
_2
N
i_!i Qty 2
Wheel
TankSupport
.... Bracket
A.Turnassemblyupside-down.
B. Securebackbraceandsidebraceto leftleg
andbackbraceto rightlegwith carriagebolts
andteeknobs.NOTE: Leaveteeknobsloose
on rightside.
C.Insertaxleboltsthroughwheels,legsandbracket.
Bracketfits insidelegs.Securewith hitchpin.
D.Pushlegextendersinto rightlegs.
Extender i
Leaveteeknobs
onthisside
loose,
BackSupportBrace
Qty.4 _Q_'2__

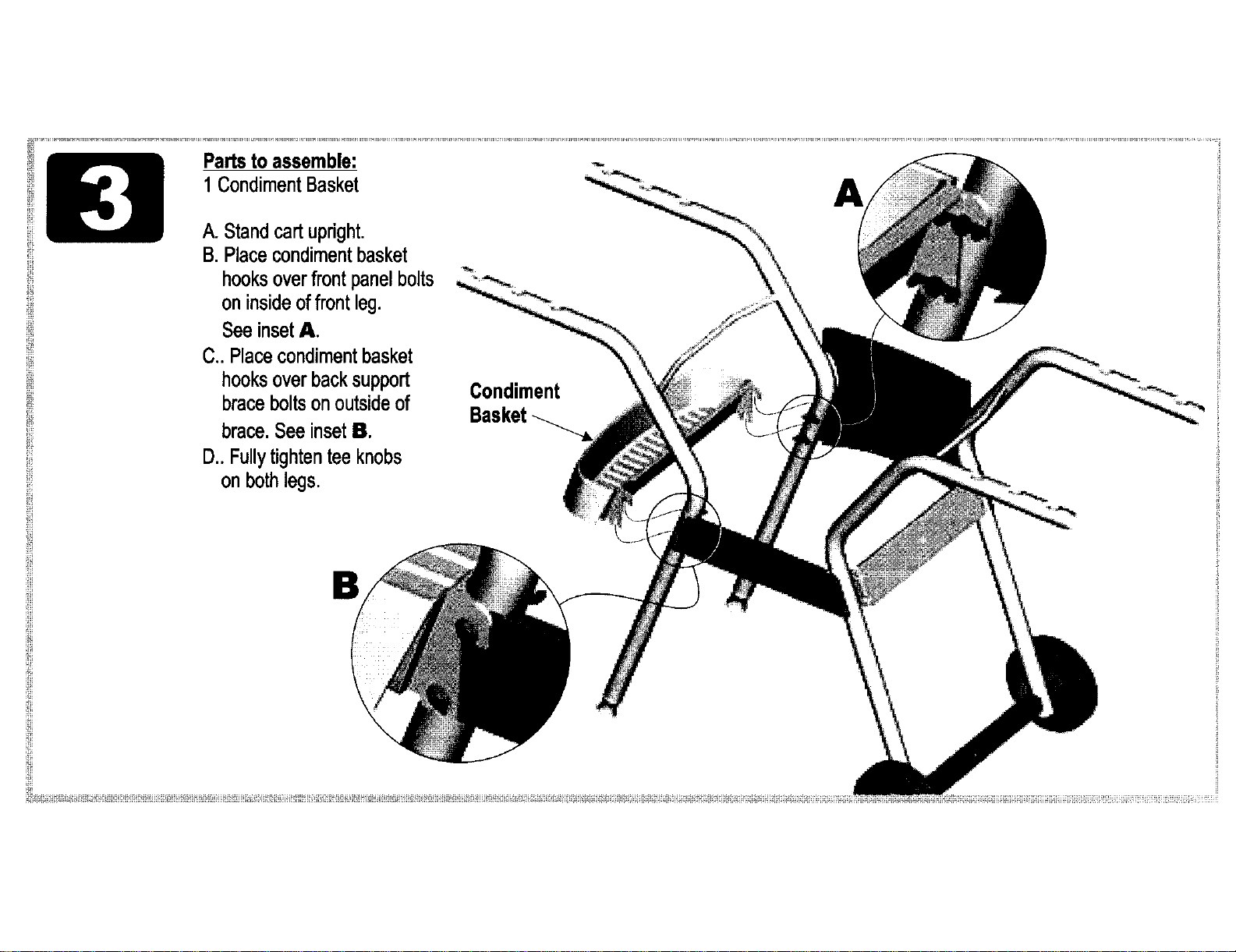

Partsto assemble: --
1CondimentBasket
!iil
A. Standcartupright.
B. Placecondimentbasket
hooksoverfrontpanelbolts
on insideoffrontleg.
SeeinsetA.
C.. Placecondimentbasket
hooksoverbacksupport
braceboltsonoutsideof
brace.SeeinsetlB.
D..Fullytightenteeknobs
onbothlegs.
Condiment
Basket
Partstoassemble:
1GrillBottomAssembly
4 CarriageBolt,1¼" |
4 MetalWingNut
2 ControlKnob
A. Makesureignitorwireisconnected
toignitor.
B.Placegrillbottomontosupports.Control
paneloverlapsfrontpanel.
C. Securewithcarriageboltsandwingnuts.
D.Presscontrolknobsontovalves.
GrillBottom
ControlKnobs
Panel
Qty.4
Qty.4

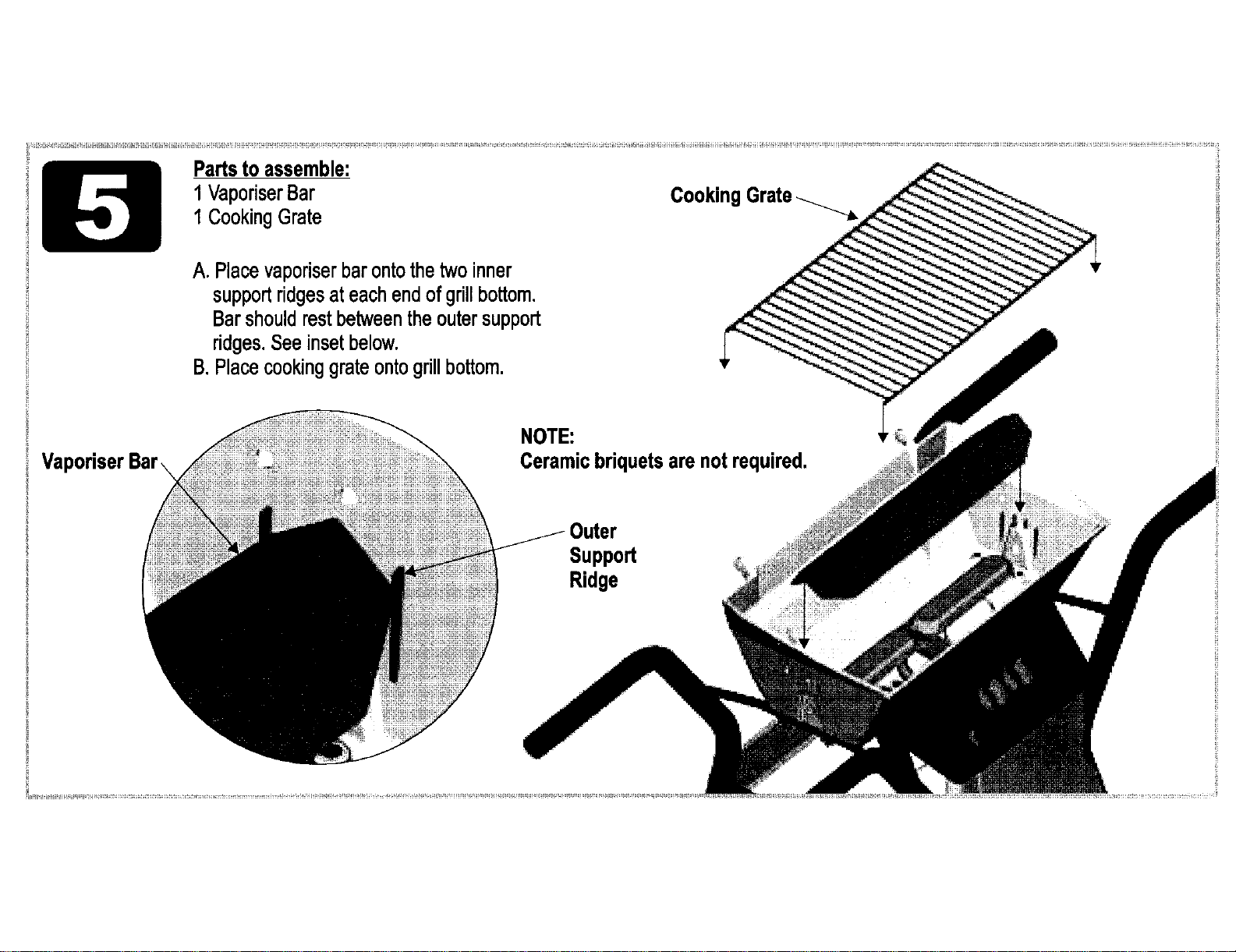

Partsto assemble:
1VaporiserBar CookingGrate
1CookingGrate
A. Placevaporiserbarontothetwo inner
supportridgesat eachendof grillbottom.
Barshouldrestbetweentheoutersupport
ridges.Seeinsetbelow.
B. Placecookinggrate ontogrillbottom.
NOTE:
Ceramicbriquetsarenot required,
Support
Ridge
Qty.8
Partstoassemble:
2SideShelf
8CarriageBolt,2"
8CrownFasteners
or PlasticTKnobs
Qty.8
Qty.8
A. Placeshelvesontolegs(curvededgeinward).
B.Securewithcarriageboltsandcrownfasteners
orT knobs.
CurvedEdge
SideShelf
Partsto assemble:
1GrillLid
1Handle
1MachineScrew,1¾"
1MetalWingNut
2 HingePin
2 HitchPin
1LogoPlate
A.Attachlidtogdllbottomwith
hingeandhitchpins.
B.Attachhandletolidwithmachine
screwandmetalwingnut.
C.Snaplogoplateintogrilllid.
Logo Plate_
GrillLid
NOTE:Grilllid
stylemayvary.
Qty,2
Qty.1
Qty.1

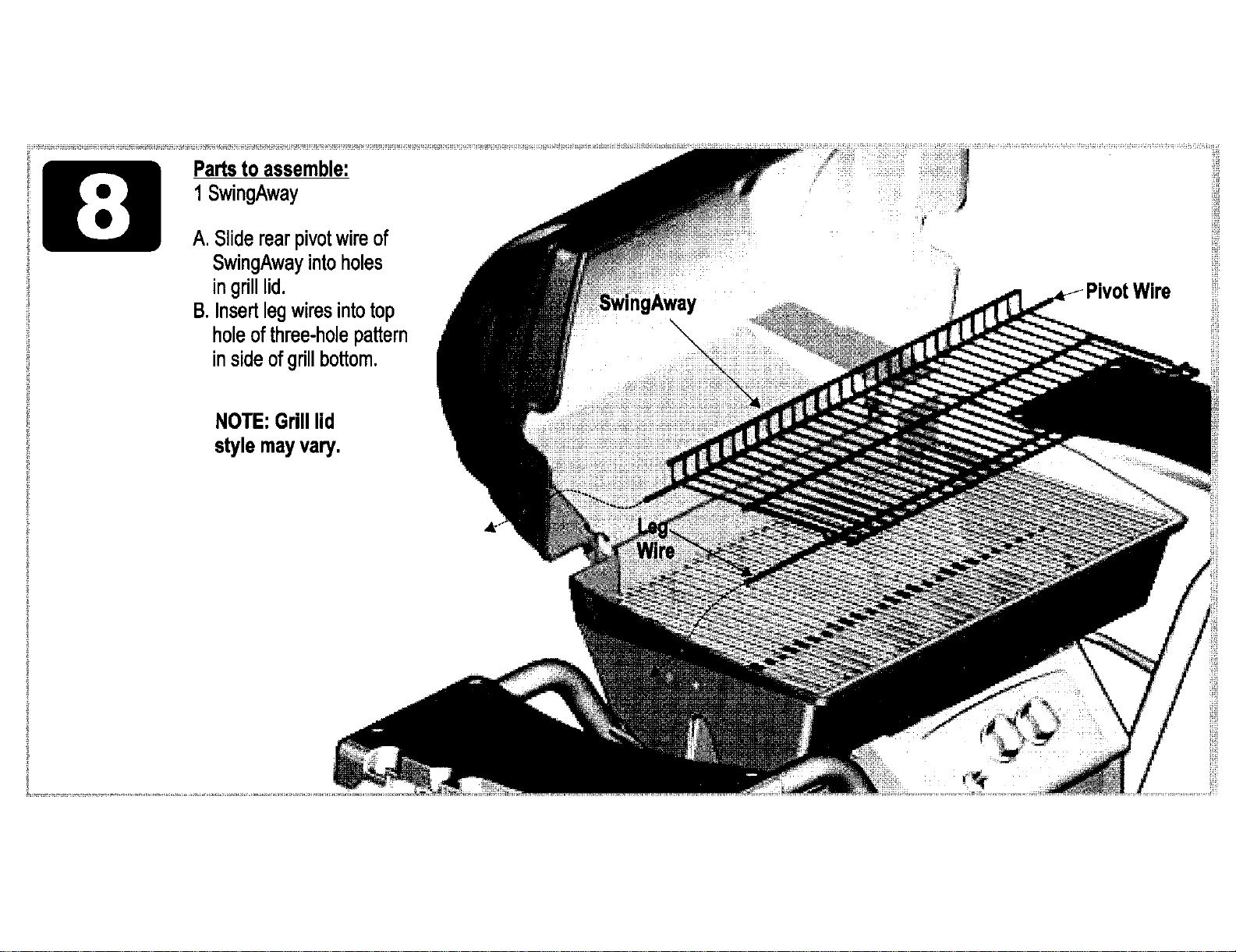

Partsto assemble:
1SwingAway
A.Sliderear pivotwireof
SwingAwayintoholes
ingrilllid.
B. Insertlegwiresintotop
holeof three-holepattern
insideof grillbottom.
Wire
2
NOTE:Grilllid
style mayvary.

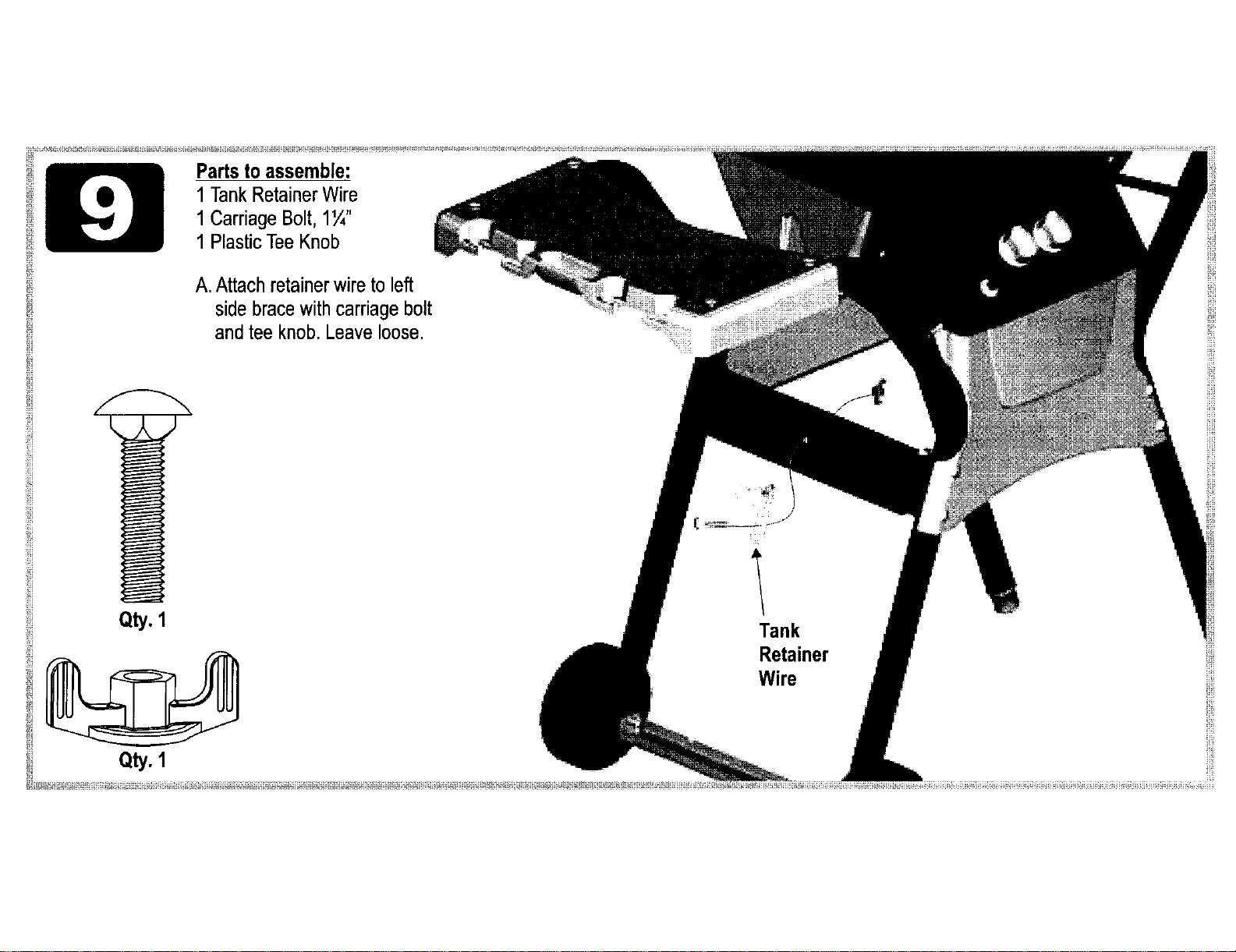

Partsto assemble:
1TankRetainerWire
1CarriageBolt,1¼"
1PlasticTeeKnob
A. Attach retainer wire to left
side bracewith carriage bolt
and tee knob. Leave loose.
Qty.1
Tank
Retainer
Wire
ii!i
Partsto assemble:
1LPGasTank
(notincluded)
LPtank is soldseparately.Filland
leakcheckbeforeattachingtogrill
andregulator.
A. CenterLPtankonsupportbracket
withcollaropeningto front.
B.Slideretainerovertankcollarand
tightenteeknob.
CAUTION
Tankcollaropeningmustfacetofrontof cartonce
tankisattached.
Failureto install tank correctlymayallowgas hoseto
bedamagedinoperation,resultingintheriskoffire.
SeeUse&Caremanualto performthe
"Burner FlameCheck"andfor important
safetyinstructionsbeforeusing.
LPGasTank

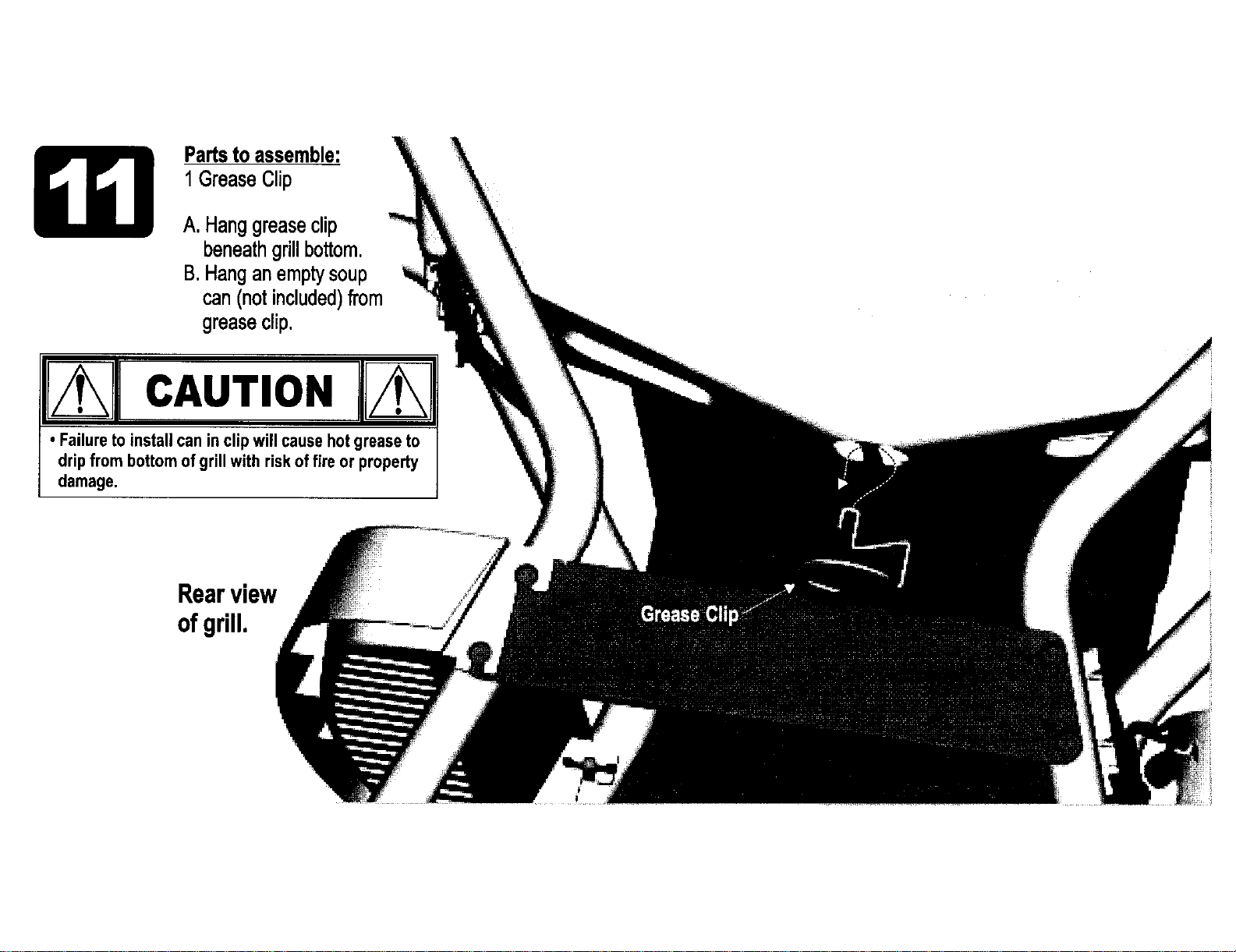

Partsto assemble:
1GreaseClip
A. Hanggreaseclip
beneathgrillbottom.
B.Hanganemptysoup
can (notincluded)from
greaseclip.
CAUTION
• Failureto installcanin clipwillcausehot greaseto
dripfrom bottomofgrillwith risk offire or property
damage.
Rearview
ofgrill.
