SMART STRIDER TREADMILL WITH
20" WIDE LOPRO DECK
SF-T7718 SMART
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using this treadmill.
DANGER– To reduce the risk of electrical shock:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use
and before putting on or taking off parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return this treadmill to a service center for examination or
repair.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of lint, hair,
and alike items.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
9. To disconnect, turn the treadmill off, then remove plug from outlet.

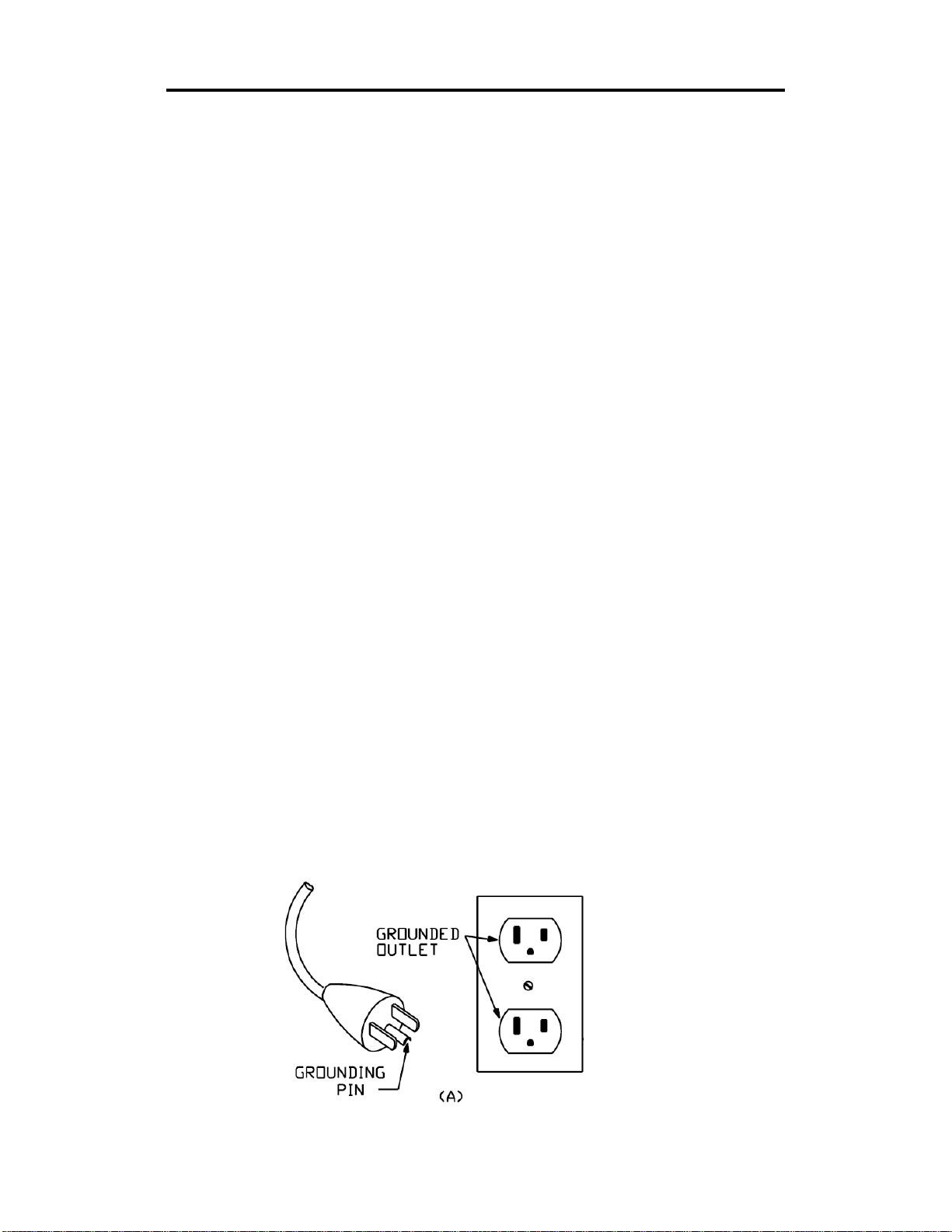

10. Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:
To avoid Injury, use extreme caution when stepping onto or off the running belt. Read instruction
manual before using.
SAVE THESE INSTRUCTIONS
2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this treadmill
correctly. It is important to read this entire manual before assembling and using the treadmill. Safe and
effective use can only be achieved if the treadmill is assembled, maintained, and used properly. It is
your responsibility to ensure that all users of the treadmill are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the treadmill properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the treadmill. The treadmill is designed for adult use only.
4. Use the treadmill on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the treadmill should have at least 8 feet (240CM) of free space behind it and 2 feet
(60CM) on each side. Do not place the treadmill on any surface that blocks air openings. To protect
the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the treadmill. The safety of the
treadmill can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the treadmill, or if you hear any unusual noises coming from the treadmill during exercise,
discontinue use of the treadmill immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the treadmill. Avoid wearing loose clothing that may become
entangled in the treadmill.
8. Do not place fingers or objects into the moving parts of the treadmill.
9. The maximum weight capacity of this unit is 250 pounds (110 KG).
10. The treadmill is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This treadmill is designed for indoor and home use only; it is not intended for commercial use!
3
IMPORTANT OPERATING INSTRUCTION
1. Insert the power plug directly into the socket.
2. Read the manual before operating the treadmill.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the running belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the side
rails while it starts up, then step onto the running belt once it’s in motion.
6. Always hold the handrail when making changes in the settings.
7. A safety key is provided for emergency use. The treadmill will function only if the safety key is
inserted into the console. In case of emergency, remove the safety key to immediately stop the
running belt and shut off the treadmill. The display screen will reset once the safety key is
reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This treadmill is designed for adult use only! Children should not be allowed to use or play near
this treadmill. When present, children should always be supervised by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 8 for instructions
on how to properly apply lubricant.
4
PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed
The model number (found on cover of manual)
The product name (found on cover of manual)

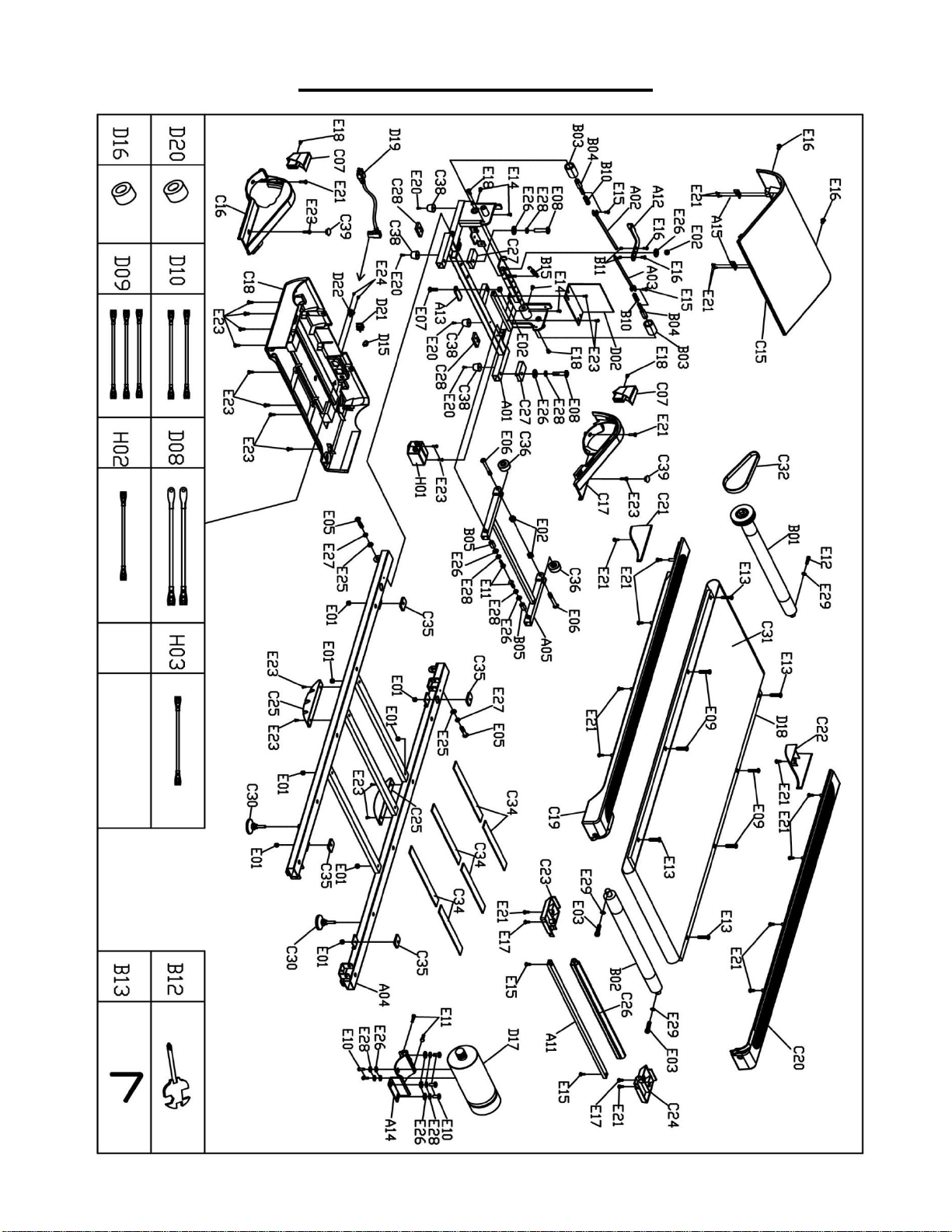

The part number found on the Parts List and Exploded Diagram (found near the front of the
manual)
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
No. Description Spec. Qty.
No. Description Spec. Qty.
A Treadmill
1 D19
Power
Wire 1
B12 Spanner W/ Screw Driver
S=13,14,15
1 F
Lubricant Oil
1
B13 Allen Wrench
5mm
1 C
Manual
1
D07 Safety Key
1 D
Thank You Card
1
5
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

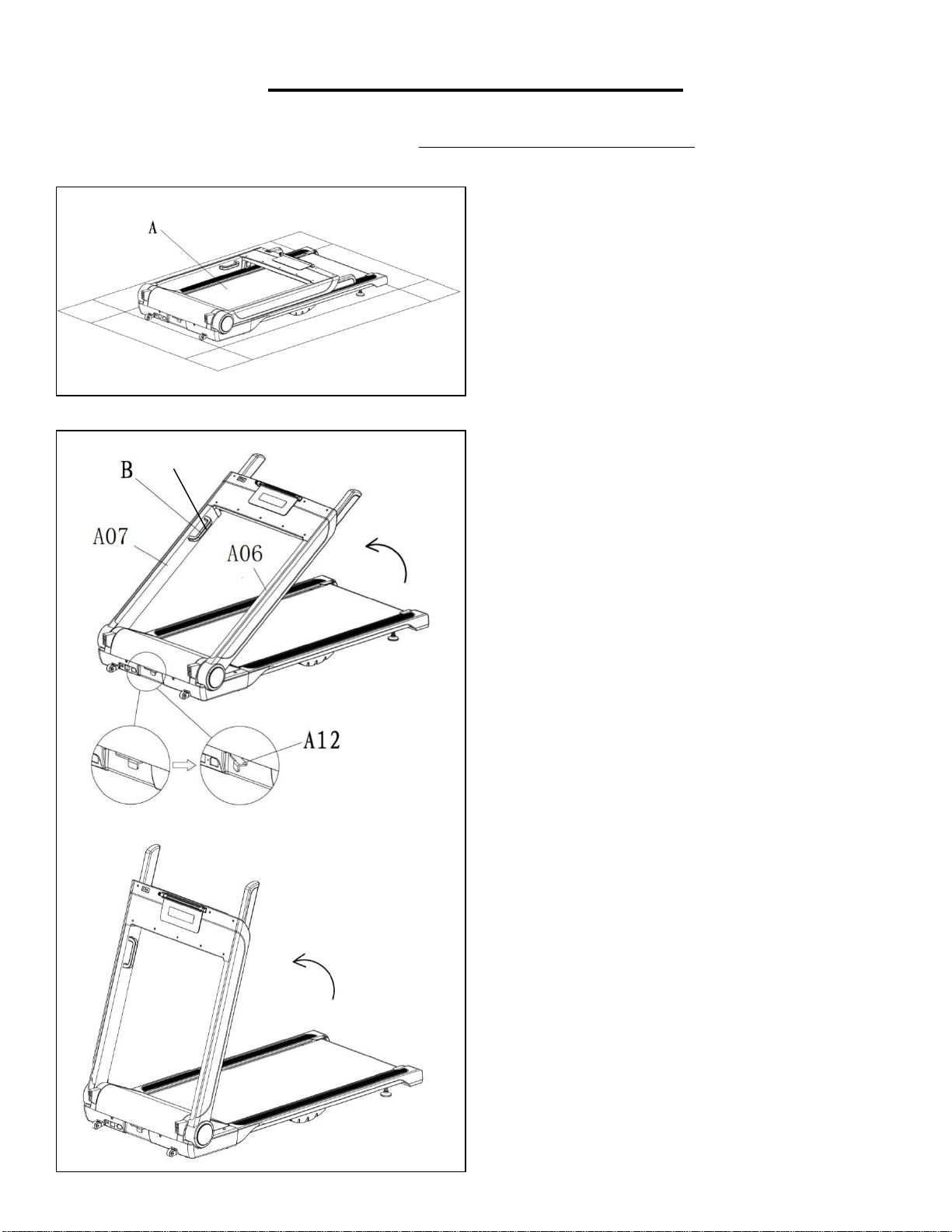

STEP 1:
Open the carton and remove
contents. Place the Treadmill (No. A)
on leveled
ground. Ensure that you
have a work area that is clean and
has adequate space.
STEP 2:
Pull out the Rotating Plate (No. A12)
with your right hand. At the same
time, place your left
hand at the
Handle (No. C42) [Position B], then
pull up the Left & Right Upright
Tubes (No. A06 & No. A07).
When pulling up the Left & Right
Upright Tubes (No. A06 & No. A07)
you can release the Rotating Plate
(No. A12). You will hear a click when
the upright tubes are successfully
locked in.
C42
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

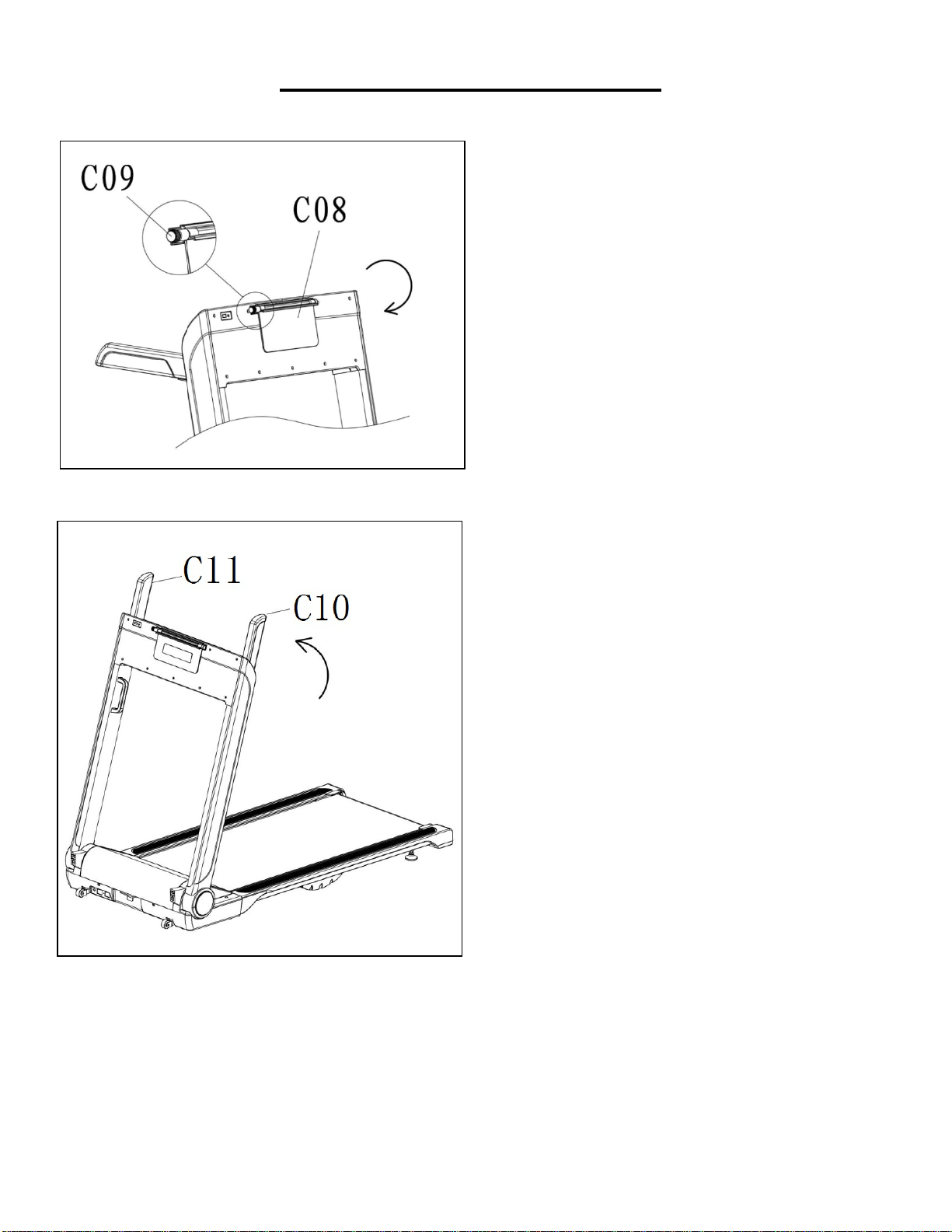

STEP 3:
Turn the Left & Right Handlebars
(No. C10 & No. C11) down to the fixed
position.
STEP 4:
Stand behind the treadmill. Pull out
the Plastic Nut (No. C09) with your
left hand and turn the Holder (No.
C08) up with your right hand. Once
the holder is at a suitable angle, you
can let go of the Plastic Nut (No.
C09).
Insert the Safety Key (No. D07) into
the magnetic area of the Console
(No. D01).
The assembly is now complete!
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 8.
D01
7
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
C31) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from
your shoes do not wear out the Running Board (No. D18) and Running Belt (No. C31). Clean the
surface of the Running Belt (No. C31) with a clean damp cloth. Keep liquids away from electrical
parts and Running Belt (No. C31).
To better maintain and prolong the life of the treadmill, it is recommended that the treadmill be
powered off for 10 minutes every 2 hours and fully powered off whenever not in use.

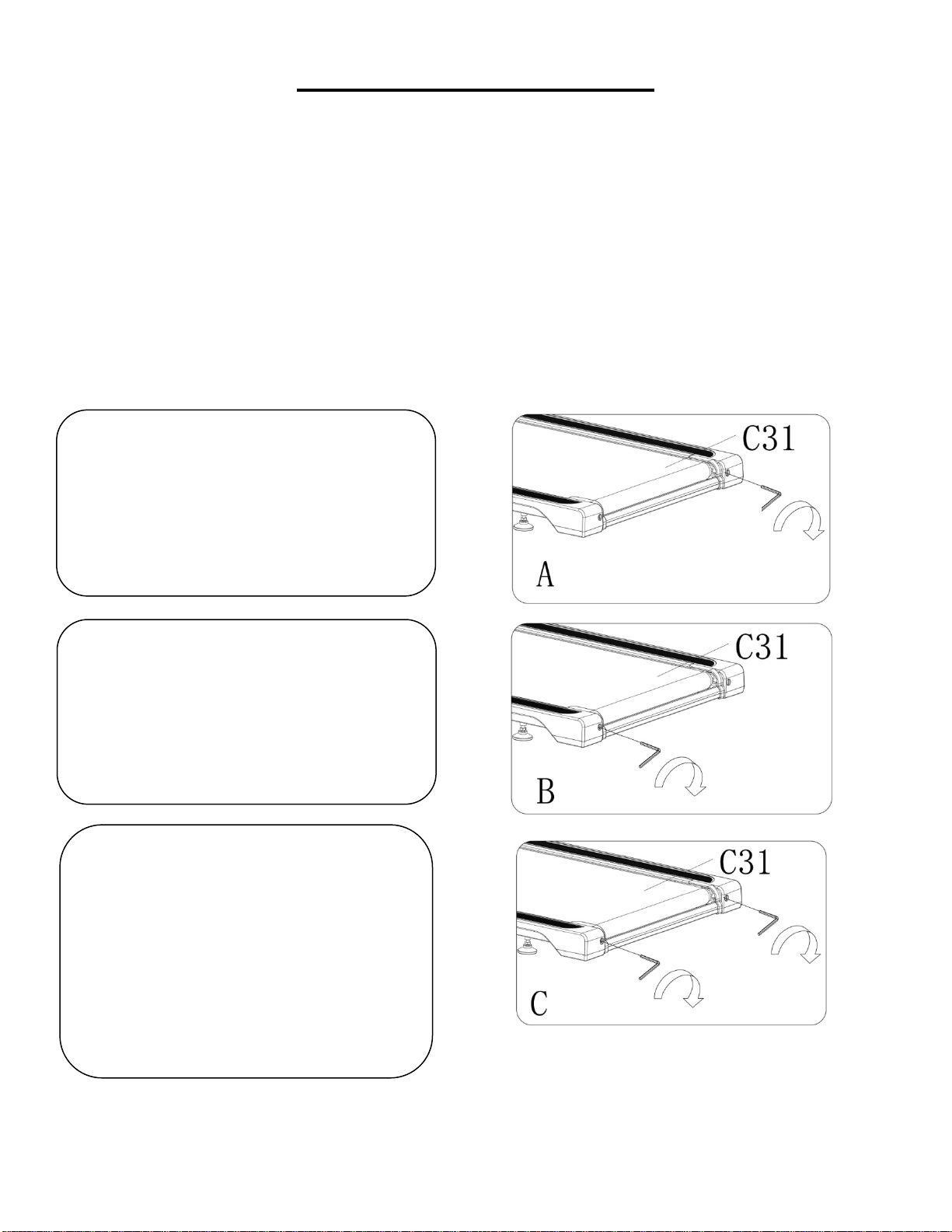

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5 MPH to check if the Running Belt (No. C31) drifts
from the center.
Over time the Running Belt (No. C31)
will loosen. To tighten the Running
Belt (No. C31)
turn the left & right
adjusting bolts one full turn clockwise,
check the tension of the Running Belt
(No. C31). Continue this process until
Running Belt (No. C31)
is at the
correct tension. Make sure to adjust
both sides equally to ensure correct
belt alignment. Refer to Figure C.
If the Running Belt (No. C31) moves
to the right, turn the right adjusting bolt ¼
turn clockwise, then turn the left
adjusting bolt ¼ turn counter-clockwise.
If the Running Belt (No. C31) does not
move,
repeat this step until it centers.
Refer to Figure A.
If the Running Belt (No. C31) moves
to the left, turn the left adjusting bolt ¼
turn clockwise
, then turn the right
adjusting bolt ¼ turn counter-clockwise.
If the Running Belt (No. C31) does not
move, repeat this step until it centers.
Refer to Figure B.
B13
B13
B13
B13
8
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Board (No. D18) and Running Belt (No. C31) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Board (No. D18) and
Running Belt (No. C31) regularly. If you find any wear on the Running Board (No. D18), please
contact us at: support@sunnyhealthfitness.com.
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.

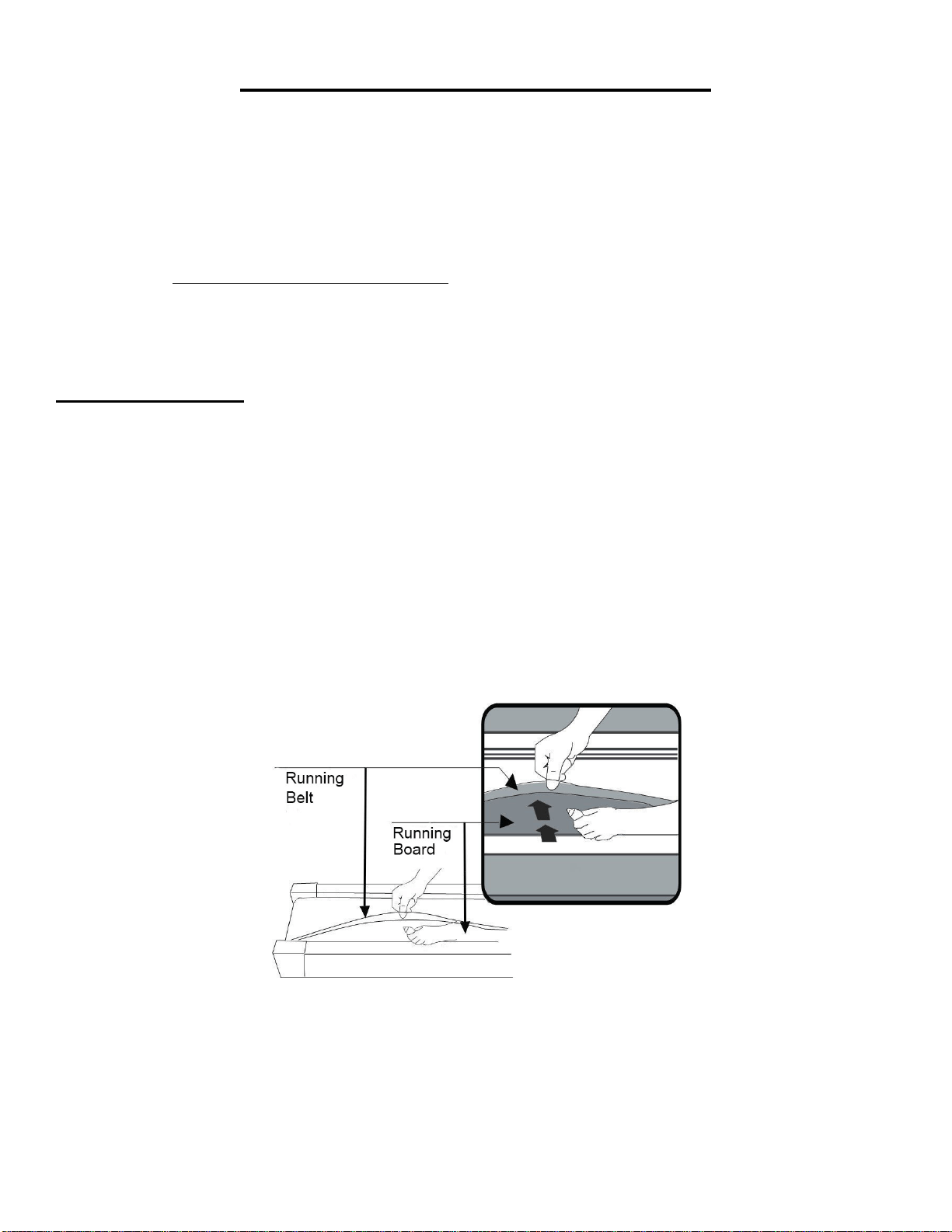

HOW TO LUBRICATE:
1. Raise the Running Belt (No. C31) up on one side and apply lubricant to the Running Board (No.
D18). Use a rag to thoroughly wipe the lubricant over the Running Board (No. D18). Repeat this
process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
treadmill. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. C31) will result in the runner sliding off during use, while
too tight of a Running Belt (No. C31) will negatively affect the motor’s performance and create
more friction between the roller and Running Belt (No. C31). The most suitable tightness for the
Running Belt (No. C31) is when it is pulled out 50-75mm from the Running Board (No. D18).
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
9

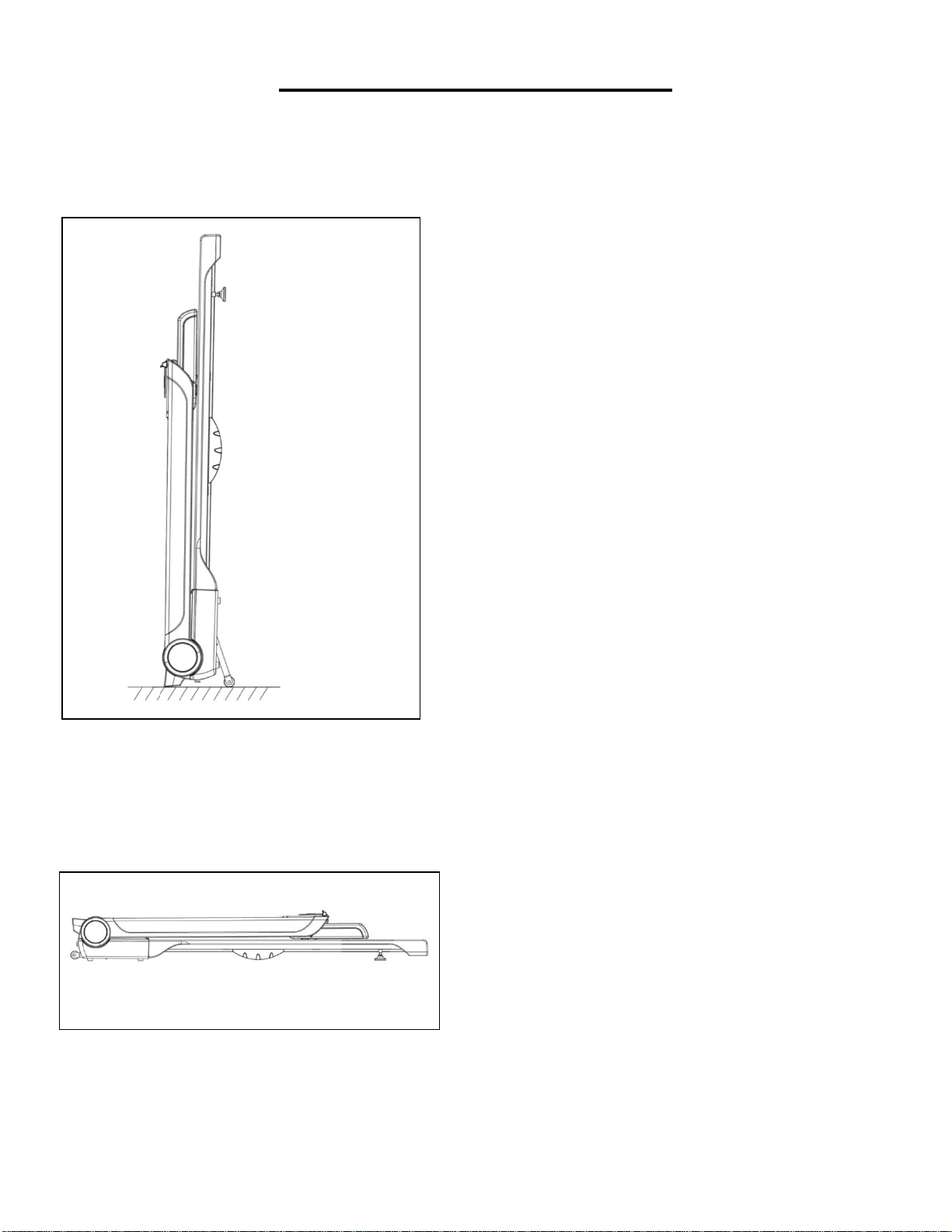

FOLDING INSTRUCTIONS
STEP 2:
Turn up the Left & Right Handlebars
(No. C10 & No. C11) up to the fixed
position.
STEP 1:
NOTE: Always unplug the treadmill from
the electrical outlet before folding.
Pull out the Plastic Nut (No. C09) with
your left hand and turn the Holder (No.
C08) down with your right hand. Once
the holder reaches a suitable angle, let
go of the Plastic Nut (No. C09).
10

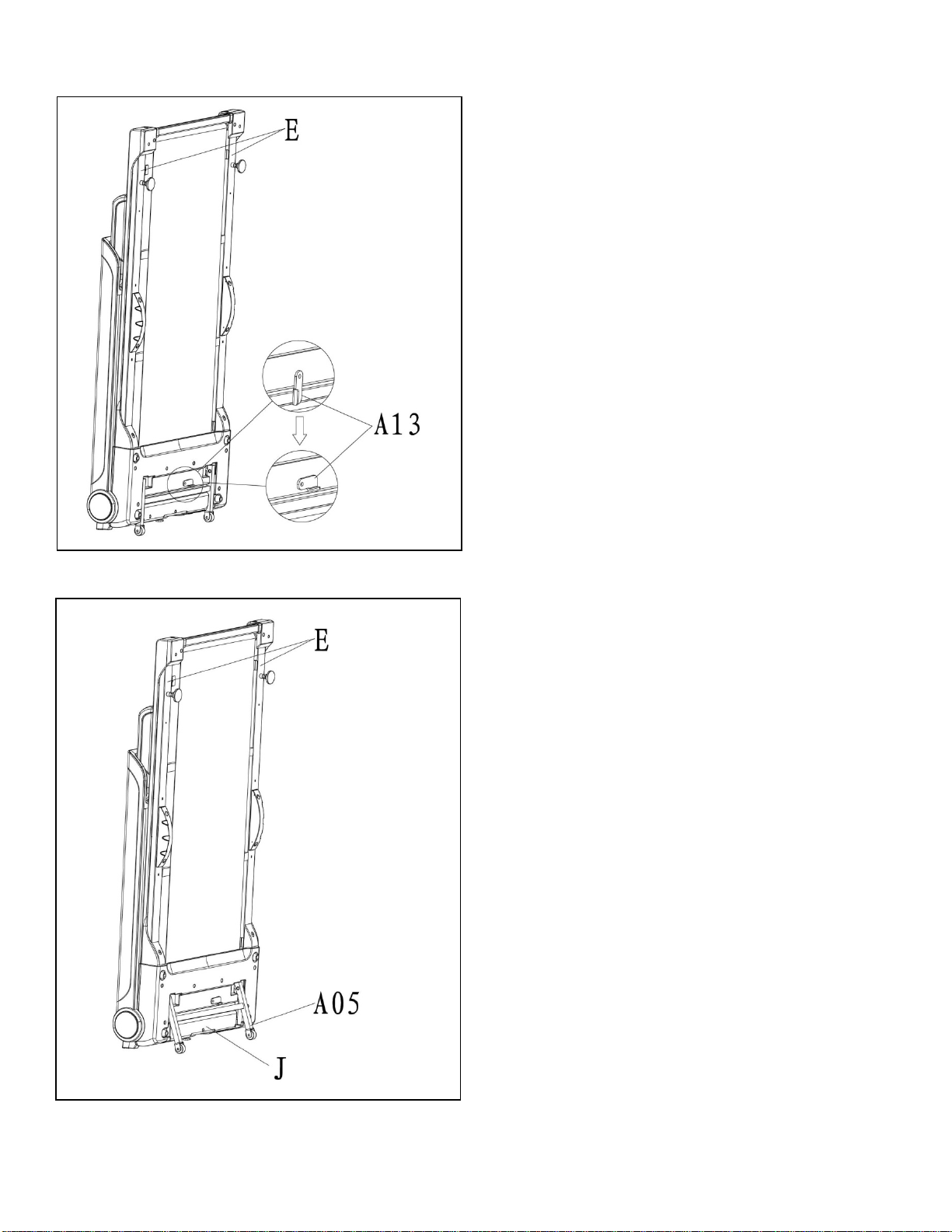

STEP 3:
Pull out the Rotating Plate (No. A12)
with your right hand and place your left
hand at the Handle (No. C42)
[Position B]. Then push down the Left
& Right Upright Tubes (No. A06 & No.
A07) at the same time.
When pushing down the Left & Right
Upright Tubes (No. A06 & No. A07)
you can let go of the Rotating Plate
(No. A12).
NOTE: Always place your left hand at
the Handle (No. C42) [Position B]
when pushing down the upright tubes
to avoid the tubes falling and injuring
your hands.
STEP 4:
Place your hand at Position E, and then
lift the treadmill.
C42
11
STEP 5:
Place your hand on Position E, and using
your foot, turn the Folding Fixed Board
(No. A13) to horizontal position.
STEP 6:
Hold the treadmill at Position E with your
hand. Next, using your foot, firmly push
against treadmill at position J. Carefully
tilt the treadmill forward. Folding Frame
(No. A05) will release automatically.
The folding is now complete!
12
STORAGE OF TREADMILL
This treadmill is designed for saving space. You can choose to store treadmill vertically or horizontally.
A. Vertical Storage
B. Horizontal Storage
After folding, place the treadmill near
the wall to avoid falling. Keep out of
reach of children.
After folding, you can store the treadmill
under table or any other available
space.
13
HOW TO MOVE THE TREADMILL
Place your hands at Position E.
Put the Folding Frame (No. A05)
inside the bottom of the treadmill and
turn the Folding Fixed Board (No.
A13) vertically with your foot to fix the
Folding Frame (No. A05).
To transport, hold the treadmill at
Position E and tilt until the transportation
wheels can move smoothly.
14
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before plugging in the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical current and will
reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. Ensure that the product is
connected to an outlet which contains the same configuration as the plug. Do not use an adapter for
this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A. Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check
with a qualified electrician or serviceman if you are unsure whether the product is properly grounded.
Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed
by qualified electrician..
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
wire away from any moving parts of the treadmill including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any other high humidity environment.
GROUNDING METHOD
15

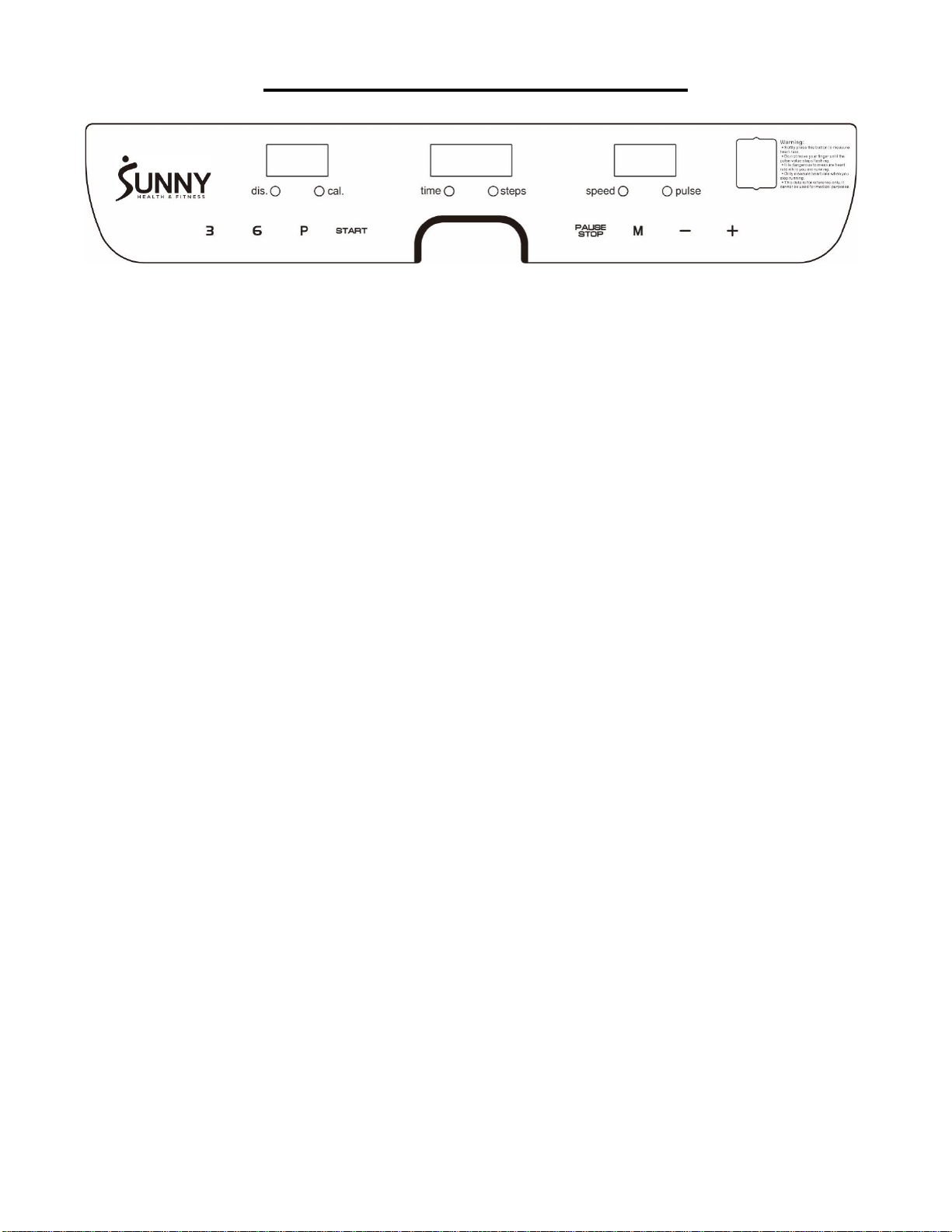

OPERATING INSTRUCTIONS
QUICK START:
1. Insert the magnetic end of the Safety Key (No. D07) into the console. Turn on the power switch.
2. Press the START button, and the system will automatically display a 3 seconds countdown. Once
the countdown reaches zero, the Running Belt (No. C31) will start at the initial default speed of
0.6 MPH.
3. To adjust the speed, you can use the SPEED +/- BUTTONS.
*NOTE: The maximum speed on this treadmill is 9.0 MPH.
CONTROL FUNCTIONS:
1. Press the – Speed Button to reduce the running speed.
2. Press the + Speed Button to increase the running speed.
3. Press the STOP Button will PAUSE the running belt and current workout data during running.
Under pause mode, if you press “START” button again, the treadmill will continue to work. If you
press “STOP” button, the treadmill will terminate current workout session completely.
4. Softly press Infrared Heart Rate Sensor Button (No. G01) to measure heart rate.
WINDOW DISPLAY:
Each window will alternately display each function every few seconds.
SPEED/ PULSE: The speed range is 0.6-9.0 MPH. 0.6 MPH is the default running speed. When the
runner puts their finger on the pulse sensor (located on the console), the system will calculate the
runner’s heartbeat and display it on the window. The pulse rangeis 50-200 beats/min (This data is just
for reference and cannot be used as the medical data).
TIME/STEPS: Displays the time elapsed. Display starts at 0:00 minutes:seconds. After it reaches
59:59 minutes:seconds, the display will change to 01:00 hours:minutes. Maximum display for time
elapsed is 18:00 hours:minutes. When time elapsed reaches the maximum, the treadmill will continue
running. It will start the count again from 0:00. When in Countdown Mode, it will count from the setting
time to 0:00. When the clock reaches 0:00, the treadmill will stop smoothly and display “End”, then
automatically reset itself after 5 seconds. Maximum Countdown time is 99:00 minutes:seconds.
Display steps that the user has walked. When display steps, it will count from 0 to 9999, when up to
9999, it will count again from 0.
CALORIES/DISTANCE: Displays the number of calories burned from 0 to 999 KCAL. When the count
reaches 999, it will reset and start back from 0. When in Countdown Mode, it will count down from the
desired setting to 0. Once it reaches 0, the treadmill will stop smoothly and display “End”, then
automatically reset to the initial setting after 5 seconds. Displays the distance traveled (0.0-99.9
MILES). When the clock reaches 99.9, it will reset to 0.00 and begin counting again from 0.0. When in
Countdown Mode, it will count down from the setting data to 0.00. When it reaches 0.00, the treadmill
will stop smoothly and display “End” and automatically reset to the initial setting after 5 seconds. When
setting PROGRAMS, the speed is programmed in intervals. PROGRAMS are from P1-P9.
16
FUNCTION KEYS:
START: To start the treadmill, insert the magnet end of the safety key into the console and press the
START button. (This treadmill requires a safety key in order to operate)
STOP/PAUSE: This button has functions of STOP and PAUSE. During running, press this button, the
treadmill will pause, and all data will be kept, window will show “PAU”; Under pause mode, if you press
“START” button, the treadmill will continue to work. If you press “STOP” button, the treadmill will stop
and all data recover to initial setting.
MODE: When stopped, press this button to select a MODE. Pressing once will enter “0.0”, the default
operating mode. H1 is the TIME countdown mode starting from 15:00 MINS. H2 is the DISTANCE
Countdown Mode starting from 1 MILE and H3 is the CALORIES Countdown Mode which starting from
50 KCAL. P1-P2……P9 are preset programs. When setting each mode and programs, you can press
SPEED +/- to increase or decrease from the set data. Press START to start the treadmill.
SPEED +/– BUTTONS: Press the +/- buttons to increase or decrease the speed in increments of 0.1
MPH. Pressing and holding either of these buttons for a duration of over ½ a second will increase or
decrease the speed continually.
PROGRAM: Press the PROGRAM button to set your desired interval setting. Programs are displayed
as P1-P9 and the various intervals are shown on the face of the treadmill. P1-P9 are preset programs.
Turn to Page 28 for further details on all programs.
3 & 6 (QUICK SPEED BUTTONS): These buttons are preset to the speeds of 3 or 6 MPH for
convenience.
USB CONNECTION:
You can plug in a device to charge via USB.
APP CONNECTION:
1. Scan below QR code to enter the app store and download the Sunny Health & Fitness app to your
mobile phone.
2. Press the Bluetooth switch to connect. Then you can use the app through your mobile phone.
PROGRAMS Initial Default Value Set Range Display Range
TIME(MIN:SECOND) 0:00 15:00
5:00－99:00 0:00－99:00
SPEED(MPH) 0.6 0.6
0.6－9.0 0.6－9.0
DISTANCE(MILE) 0.00 1.00
0.50－99.9 0.00－99.9
PULSE(BPM) P N/A N/A
50－200
CALORIE(KCAL) 0 50 10-999
0－999
17
LUBRICATION REMINDER:
Your treadmill needs lubrication maintenance every 188 miles. The system will release a beeping
sound every 10 seconds and display an “OIL” icon on your display to remind you when it’s time.
Please read the LUBRICATING THE TREADMILL on Page 8 to learn the proper steps to lubricating
your treadmill. Apply the lubricant to the middle of the running board on both sides. After application,
press and hold the STOP button for 3 seconds to clear the “OIL” reminder.
INTERVAL PROGRAMS (P1-P9):
Press the M button to select an interval setting. Programs are displayed as P1-P9. Select the desired
program, and the console will display a countdown starting from 10:00 MINS, press SPEED +/-
buttons if you wish to increase or decrease the exercise time. Press the START button to start the
interval program. The interval program is divided into 10 sections. Each exercise time equals the
setting time divided by 10. When the speed enters the next interval, the treadmill will beep, and the
speed will be changed according to the set interval. Press SPEED +/- buttons to change the speed.
After finishing one program, the system will beep and display “End”. The treadmill will gradually come
to a stop, then automatically reset to the initial setting after 5 seconds.
TIME
PROG
TIME INTERVAL= setting time/10
1 2 3 4 5 6 7 8 9 10
P1 SPEED 1.2 2.5 1.8 2.5 1.8 3.1 2.5 1.2 3.1 1.8
P2 SPEED 1.2 3.1 2.5 3.7 2.5 3.7 2.5 1.2 2.5 1.2
P3 SPEED 1.2 3.1 2.5 3.1 2.5 3.1 2.5 1.2 1.8 1.2
P4 SPEED 1.8 3.7 4.3 3.1 5 3.1 5.6 3.7 2.5 1.8
P5 SPEED 1.8 3.7 4.3 3.1 5 3.7 4.3 3.7 2.5 1.8
P6 SPEED 1.2 5 3.7 2.5 3.1 5.6 4.3 3.1 2.5 1.8
P7 SPEED 1.2 3.7 4.3 2.5 2.5 4.3 2.5 1.2 2.5 1.2
P8 SPEED 1.2 2.5 3.7 5 4.3 5 3.7 1.2 1.8 1.2
P9 SPEED 1.2 2.5 3.1 3.1 3.7 3.1 3.7 1.8 1.8 1.2
18
TREADMILL FUNCTIONS
SAFETY LOCK FUNCTION:
Removing the Safety Key (No. D07) from the console while the treadmill is running will cause it to stop
immediately. Once the treadmill reaches a full stop, the window display of the console will show “- - -”
and the buzzer will beep 3 times. To start the treadmill again, insert the magnetic end of the Safety
Key (No. D07) into the console and press the START button.
POWER SAVE FUNCTION:
When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode. While the
treadmill is in this mode, the window display of the console will be turned off. To turn it back on, press
any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at anytime. This includes during exercise.
SAFETY NOTE:
1. We recommend that you maintain a slow speed at the beginning of a session and hold the handrails
until you have become familiar with the treadmill.
2. Insert the magnet end of the Safety Key (No. D07) into the console and attach the opposite end
(containing the safety clip on it) to your clothing before starting your workout. To end your workout,
press the STOP button or remove the Safety Key (No. D07) and the treadmill will stop immediately.
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the treadmill properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising immediately if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Once you get on, you can stand with your feet on the side rails and stabilize yourself by holding
onto the handrails.
2. Next, attach the clip end of the Safety Key (No. D07) to your clothes and insert the magnetic end
of the key into the console.
3. Press the START button to start the treadmill.
4. The treadmill will start at the system default setting speed of 0.6 MPH. when you feel comfortable,
you may slowly increase this speed.
5. When you are finished with your exercise, press the STOP button to stop the treadmill or you can
remove the magnetic end of the Safety Key (No. D07) to stop the treadmill.
19

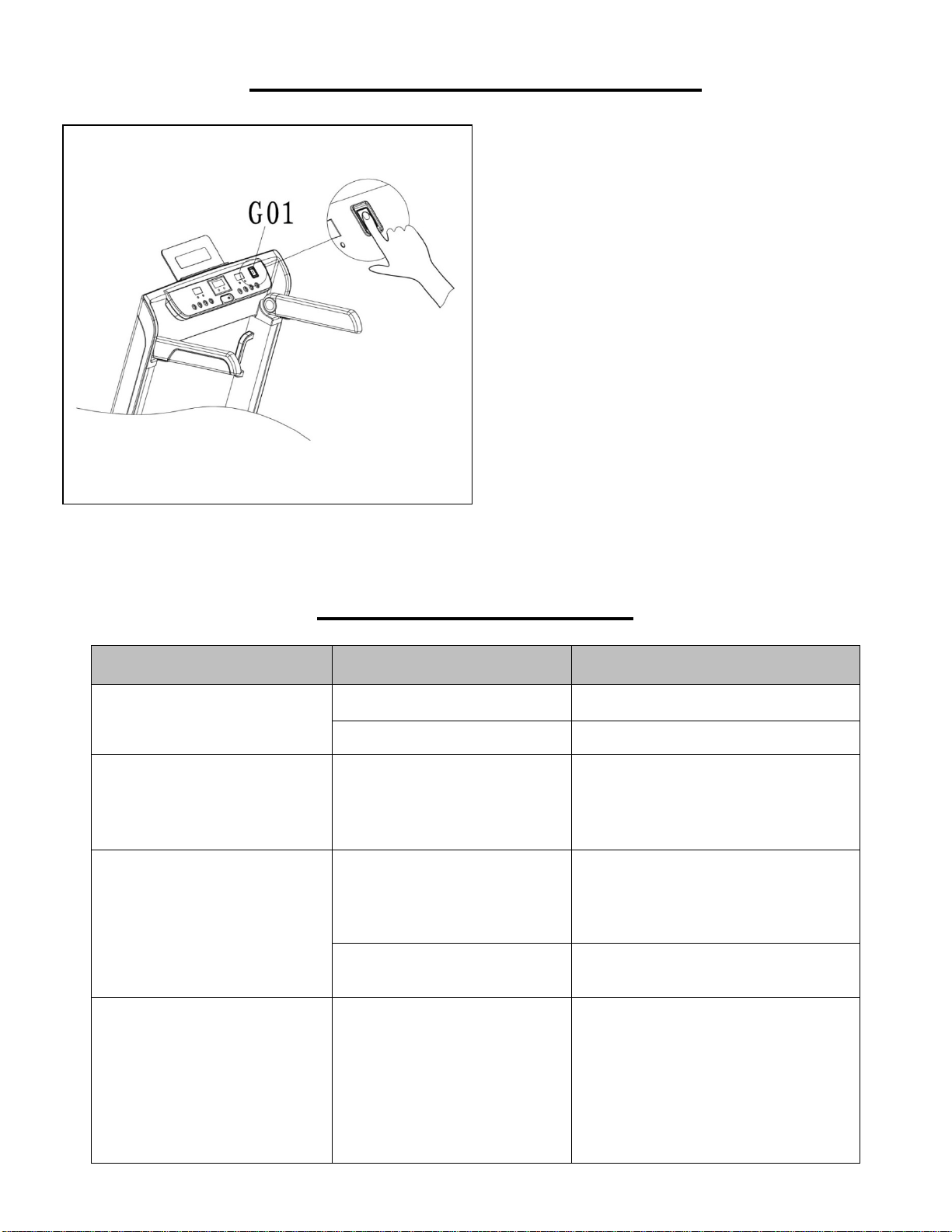

HEART RATE MEASUREMENT
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SUGGESTED ACTION
Treadmill will not start
Not plugged in. Plug cord into outlet.
Safety Key is not inserted. Insert Safety Key.
Running belt not centered
Running belt tension is not
correct on the left or right
sides of the running board.
Tighten the left and right
adjusting bolts of the rear roller.
(See page 7 for instructions)
Computer not working
Wires from the console
and
bottom control board
and not properly
connected.
Check wire connections from the
console to the control board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E01 or E13: Message
failure
Wires from the console
and
bottom control board
are not properly
connected.
Check wire connections from the
console to the control board. If
the wire has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the control board.
It is dangerous to measure heart rate
while you are running. Only measure
heart rate when you stop running.
Softly press Infrared Heart Rate
Sensor (No. G01) to measure your
heart rate.
Do not move your fi
nger until the
pulse value stops flashing.
This
data is for reference only. It
cannot be used for medical purposes.
20
NOTE: If you are unable to resolve an issue using the troubleshooting guide above, please
contact Customer Service at [email protected]om.
E02: Burst clash protection
Incoming voltage is lower
than 50% of the required
voltage.
Check that the incoming power
supply is the correct voltage.
E05: Current overload
protection (Self Protecting
System)
The incoming voltage is
too low or too high. The
control board is damaged.
Restart the treadmill. Check the
incoming voltage to ensure it is
correct.
Check the control board,
replace if damaged.
A moving part of the
treadmill is stuck and
therefore the
motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly. Check the
motor, listen for strange noise
and check for a burning smell.
Replace the motor if necessary.
E06: Motor Abnormality
The
motor wire is not
connected, or the motor is
damaged.
Check motor wires to see if the
motor is connected. If the wire
has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the motor.
E08: Cont
rol Board
Abnormality
The control board is not
connected.
Check the upper and middle
wires to see if the control board
is connected. If the wire has
been punctured or damaged,
you will need to replace it. If the
problem is not rectified, you may
need to re
place the control
board.
E10: Motor Abnormality
The motor is damaged or a
moving part of the treadmill
is stuck and therefore the
motor is unable to rotate
properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly.
Replace the motor if necessary.
21
EXPLODED DIAGRAM 1
EXPLODED DIAGRAM 2
22
23
PARTS LIST
No.
Description
Specification
Qty
No.
Description
Specification
Qty
A01 Base Frame 1
C12 Left Handle Bar Front Cover 1
A02
Guide Rod Connecting
Frame 1
1
C13 Right Handle Bar Front Cover 1
A03
Guide Rod Connecting
Frame 2
1
C14 Handle Bar Side Cover 2
A04 Main Frame 1
C15 Motor Top Cover 1
A05 Folding Frame 1
C16 Motor Left Side Cover 1
A06 Left Upright Tube 1
C17 Motor Right Side Cover 1
A07 Right Upright Tube 1
C18 Motor Bottom Cover 1
A08 Computer Bracket 1
C19 Left Side Rail 1
A09 Left Handle Bar Bracket 1
C20 Right Side Rail 1
A10 Right Handle Bar Bracket 1
C21 Side Rail Left Cover 1
A11
Rear Horizontal Tube
1
C22
Side Rail Right Cover
1
A12 Rotating Plate 1
C23 Left Side Rail Bottom Cover 1
A13 Folding Fixed Board 1
C24 Right Side Rail Bottom Cover 1
A14 Motor Bracket 1
C25 Cushion 2
A15 Motor Cover Thread Board 2
C26 Horizontal Foam 1
B01 Front Roller 1
C27 Square Rubber Pad 2
B02 Rear Roller 1
C28 Folding Base Rubber Cushion 2
B03 Guide Bushing 2
C29 Handle Cover 1
B04 Guide Rod 2
C30 Versatile Foot Pad 2
B05 Folding Turning Bushing 2
C31 Running Belt 1
B06 Tablet Holder Pin 1
C32 Motor Belt 1
B07 Tablet Holder Fixed Base 1 1
C33 Upright Tube Buckle 8
B08
Tablet Holder Fixed Base 2
1
C34
Long Rubber Pad
6
B09 Compressed Spring φ6*18 1
C35 Rubber Cushion 4
B10 Compressed Spring φ10.5*30 2
C36 Transportation Wheel 2
B11 Bushing 2
C37 Handle 1
B12 Spanner W/ Screw Driver S=13,14,15 1
C38 Foot Pad 4
B13 Allen Wrench 5mm 1
C39 End Cap 2
B14 Safety Key Metal Sheets 1
C40 Holder Silicone Pad 1 1
B15 Pull Spring 1
C41 Holder Silicone Pad 2 1
B16 D Shape Sheets 2
D01 Console 1
C01 Panel Top Cover 1
D02 Control Board 1
C02 Panel Bottom Cover 1
D03 Button Board 2
C03 Console Top Cover 1
D04 Upper Signal Wire 1
C04
Console Bottom Cover
1
D05
Lower Signal Wire
1
C05 Left Upright Tube Side Cover 1
D06 Safety Key Connecting Wire 1
C06
Right Upright Tube Side
Cover
1
D07 Safety Key 1
C07 Front Foot Pad 2
D08 Grounding Wire 2
C08 Holder 1
D09 AC Single Line Brown 3
C09 Plastic Nut 1
D10 AC Single Line Blue 2
C10 Left Handlebar 1
D11 USB Power Upper Wire 1
C11 Right Handlebar 1
D12 USB Power Lower Wire 1
24
No. Description Specification Qty
No. Description Specification Qty
D13 Audio Socket Wire
1
E15 Bolt M5*16 4
D14 USB Module
1
E16 Bolt M5*12 4
D15 Overload Protector
1
E17 Bolt M5*8 4
D16 Magnetic Ring 1 E18 Bolt M6*10 4
D17 DC Motor 1 E19 Bolt M4*10 4
D18 Running Board 1 E20 Screw ST4.2*20 4
D19
Power Wire
1
E21
Screw
ST4.2*12
44
D20 Magnetic Core 1 E22 Screw ST4.2*15 14
D21 Square Switch 1 E23 Screw ST4.2*12 20
D22 Power Socket 1 E24 Screw ST2.9*8 21
E01 Nut M6 8 E25 Flat Washer Φ10 2
E02 Nut M8 6 E26 Flat Washer Φ8 12
E03 Bolt M6*55 2 E27 Spring Washer Φ10 2
E04 Bolt M10*60 2 E28 Spring Washer Φ8 11
E05 Bolt M10*25 2 E29 Lock Washer 3
E06 Bolt M8*40 2 E30 Flat Washer φ5*φ13*1.0 4
E07 Bolt M8*35 1 E31 Screw ST2.0*8 2
E08 Bolt M8*25 2 F01 Bluetooth Module 1
E09
Bolt
M6*35
4
F02
Bluetooth Power Line
1
E10 Bolt M8*15 5 G01 Infrared Heart Rate Sensor 1
E11 Bolt M8*30 4 H01 Filter 1
E12 Bolt M6*50 1 H02 AC Single Line Brown 1
E13
Bolt
M6*25
4
H03
AC Single Line
Blue
1
E14 Bolt M6*10 12
Version 1.0
