AF-P NIKKOR 70-300mm f/4.5-5.6E ED VR
Printed in Thailand
7MA0477C-02
English
Before using this product, please carefully read both these instructions and
the camera manual.
Note: This lens does not support D2-series, D1-series, D200, D100, D90, D80,
D70-series, D60, D50, D40-series, D5100, D5000, D3200, D3100 or D3000 digi-
tal SLR cameras or fi lm SLR cameras. When using it with a D5, D750, D610,
D600, D5500, D5300, or D3300, be sure the camera fi rmware has been up-
dated to the latest version.
■ For Your Safety
To prevent damage to property or injury to yourself or to others, read “For
Your Safety” in its entirety before using this product.
Keep these safety instructions where all those who use this product will read them.
A WARNING: Failure to observe the precautions marked with this
icon could result in death or severe injury.
A CAUTION: Failure to observe the precautions marked with this icon
could result in injury or property damage.
A WARNING
• Do not disassemble or modify this product.
Do not touch internal parts that become exposed as the result of
a fall or other accident.
Failure to observe these precautions could result in electric shock or other injury.
• Should you notice any abnormalities such as the product producing smoke,
heat, or unusual odors, immediately disconnect the camera power source.
Continued operation could result in fi re, burns or other injury.
• Keep dry.
Do not handle with wet hands.
Failure to observe these precautions could result in fi re or electric shock.
• Do not use this product in the presence of fl ammable dust or gas
such as propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or fi re.
• Do not directly view the sun or other bright light source through
the lens or camera.
Failure to observe this precaution could result in visual impairment.
• Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product malfunction.
In addition, note that small parts constitute a choking hazard. Should a child
swallow any part of this product, seek immediate medical attention.
• Do not handle with bare hands in locations exposed to extremely
high or low temperatures.
Failure to observe this precaution could result in burns or frostbite.
A CAUTION
• Do not leave the lens pointed at the sun or other strong light sources.
Light focused by the lens is a source of fi re and damage to the product’s internal parts.
• Do not leave the product where it will be exposed to extremely
high temperatures, for an extended period such as in an enclosed
automobile or in direct sunlight.
Failure to observe this precaution could result in fi re or product malfunction.
■ Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B

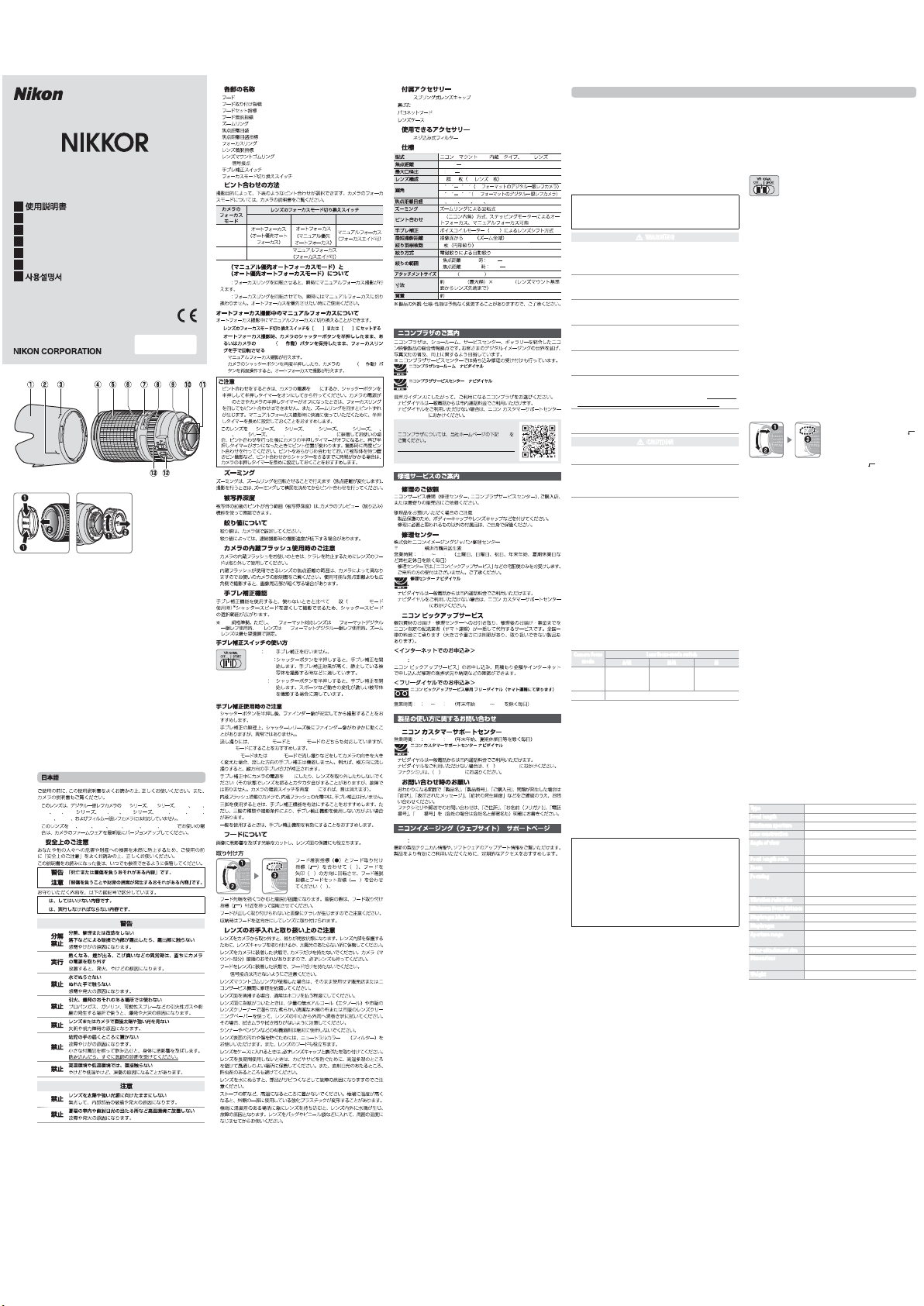

■ Parts of the Lens
q
Lens hood
w
Lens hood alignment mark
e
Lens hood lock mark
r
Lens hood mounting mark
t
Zoom ring
y
Focal length scale
u
Focal length mark
i
Focus ring
o
Lens mounting mark
!0
Rubber lens-mount gasket
!1
CPU contacts
!2
Vibration reduction switch
!3
Focus-mode switch
■ Focus
Supported focus modes are shown in the following table (for information
on camera focus modes, see the camera manual).
Camera focus
mode
Lens focus-mode switch
A/M M/A M
AF
Autofocus with
manual override
(AF priority)
Autofocus with
manual override
(manual priority)
Manual focus
with electronic
rangefi nder
MF Manual focus with electronic rangefi nder
A/M and M/A Modes
• M/A (manual priority): Autofocus can be instantly over-ridden by rotating
the lens focus ring.
• A/M (AF priority): As above, except that the focus ring must be rotated far-
ther before autofocus is over-ridden. Choose this option to place greater
dependence on autofocus.
Autofocus with Manual Override
To use manual focus in autofocus mode:
z
Slide the lens focus-mode switch to A/M or M/A.
x
Focus.
When the camera is in autofocus mode, autofocus can be over-
ridden by rotating the lens focus ring while the shutter-release
button is pressed halfway (or, if the camera is equipped with an
AF-ON button, while the AF-ON button is pressed). To refocus using
autofocus, press the shutter-release button halfway or press the
AF-ON button again.
Before focusing, turn the camera on or restart the standby timer by pressing
the shutter-release button halfway. If the camera is off or the standby timer
has expired, focus cannot be adjusted using the focus ring and rotating the
zoom ring will cause the subject to go out of focus. Choose longer standby
times for optimal results when using manual focus.
Users of D4-series, D3-series, D810-series, D800-series, Df, D700, D300-series,
D7200, D7100, D7000, or D5200 cameras should note that if the standby
timer is allowed to expire, the focus position will change when the timer is
restarted. Refocus before shooting. Longer standby times are recommend-
ed in situations in which you may not release the shutter immediately after
focusing.
■ Zoom
Before focusing, rotate the zoom ring to adjust the focal length and frame
the photograph.
■ Depth of Field
Depth of fi eld can be previewed using the camera’s depth-of-fi eld preview feature.
■ Aperture
Aperture is adjusted using camera controls. The frame rate may drop at some
apertures.
■ Built-in Flash Units
• When using the built-in fl ash on cameras equipped with a built-in fl ash
unit, remove the lens hood to prevent vignetting.
• The focal lengths at which built-in fl ash units can be used vary with the
camera; see the camera manual. Peripheral illumination may drop if built-
in fl ash units are used at shorter focal lengths.
■ Vibration Reduction (VR)
Vibration reduction ( VR) reduces blur caused by camera shake, allowing
shutter speeds up to 4.5 stops slower than would otherwise be the case,
increasing the range of shutter speeds available. The eff ects of VR on shutter
speed are measured in NORMAL mode according to Camera and Imaging
Products Association (CIPA) standards; FX-format lenses are measured us-
ing FX-format digital cameras, DX-format lenses using DX-format cameras.
Zoom lenses are measured at maximum zoom.
Using the Vibration Reduction Switch
• Select OFF to turn vibration reduction off .
• Select NORMAL for enhanced vibration reduction when pho-
tographing stationary subjects. Vibration reduction takes
eff ect when the shutter-release button is pressed halfway.
• Select SPORT for photographing athletes and other subjects that
are moving rapidly and unpredictably. Vibration reduction takes
eff ect when the shutter-release button is pressed halfway.
Using Vibration Reduction: Notes
• When using vibration reduction, press the shutter-release button halfway
and wait for the image in the viewfi nder to stabilize before pressing the
shutter-release button the rest of the way down.
• When vibration reduction is active, the image in the viewfi nder may jiggle
after the shutter is released. This does not indicate a malfunction.
• SPORT is recommended for panning shots, although NORMAL is also supported.
• In NORMAL and SPORT modes, vibration reduction applies only to motion
that is not part of a pan (if the camera is panned horizontally, for example,
vibration reduction will be applied only to vertical shake).
• Do not turn the camera off or remove the lens while vibration reduction is
in eff ect. If power to the lens is cut while vibration reduction is on, the lens
may rattle when shaken. This is not a malfunction, and can be corrected
by reattaching the lens and turning the camera on.
• If the camera is equipped with a built-in fl ash, vibration reduction will be
disabled while the fl ash charges.
• Vibration reduction is generally recommended when the camera is
mounted on a tripod, although you may prefer to turn it off depending on
shooting conditions and the type of tripod.
• We recommend enabling vibration reduction when using a monopod.
■ The Lens Hood
The lens hoods protect the lens and block stray light that would otherwise
cause fl are or ghosting.
Attaching the Hood
Align the lens hood mounting mark (
●
)
with the lens hood alignment mark ( )
and then rotate the hood (
w
) until the
●
mark is aligned with the lens hood
lock mark (—
).
When attaching or removing the hood, hold it near the symbol on its base
and avoid gripping it too tightly. Vignetting may occur if the hood is not correctly
attached. The hood can be reversed and mounted on the lens when not in use.
■ Lens Care
• The lens returns to maximum aperture when removed from the camera.
To protect the interior of the lens, store it out of direct sunlight or replace
the lens caps.
• Always support the lens when holding the camera. Failure to observe this
precaution could damage the lens mount.
• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immedi-
ately and take the lens to a Nikon-authorized service center for repair.
• Removing dust is normally suffi cient to clean the glass surfaces of the
lens.
• To remove smudges and fi ngerprints, apply a small amount of ethanol or
lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean
from the center outwards using a circular motion, taking care not to leave
smears or touch the glass with your fi ngers.
• Never use organic solvents such as paint thinner or benzene to clean the
lens.
• The lens hood or Neutral Color (NC) fi lters can be used to protect the front
lens element.
• Attach the front and rear caps before placing the lens in its case.
• If the lens will not be used for an extended period, store it in a cool, dry
location to prevent mold and rust. Do not store in direct sunlight or with
naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irrepa-
rable damage.
• Leaving the lens in extremely hot locations could damage or warp parts
made from reinforced plastic.
• Rapid changes in temperature may cause damaging condensation inside
and outside the lens. Before taking the lens from a warm to a cold environ-
ment or vice versa, place it in its case or a plastic bag to slow the change
in temperature.
■ Supplied Accessories
• LC-67 67 mm snap-on Front Lens Cap
• LF-4 Rear Lens Cap
• HB-82 Bayonet Hood
• CL-1022 Lens Case
■ Compatible Accessories
• 67 mm screw-on fi lters
■ Specifi cations
Type Type E AF-P lens with built-in CPU and F mount
Focal length 70 – 300 mm
Maximum aperture f/4.5 – 5.6
Lens construction 18 elements in 14 groups (including 1 ED lens element)
Angle of view
• Nikon FX-format D-SLR cameras: 34°20
– 8°10
• Nikon DX-format D-SLR cameras: 22°50
– 5°20
Focal length scale Graduated in millimeters (70, 100, 135, 200, 300)
Zoom Manual zoom using independent zoom ring
Focusing Nikon Internal Focusing (IF) System with autofocus
controlled by stepping motor and separate focus
ring for manual focus
Vibration reduction Lens shift using voice coil motors (VCMs)
Minimum focus distance 1.2 m (3.94 ft) from focal plane at all zoom positions
Diaphragm blades 9 (rounded diaphragm opening)
Diaphragm Automatic electronic aperture control
Aperture range • 70 mm focal length: f/4.5 – 32
• 300 mm focal length: f/5.6 – 40
Filter-attachment size 67 mm (P = 0.75 mm)
Dimensions Approx. 80.5 mm maximum diameter × 146 mm
(distance from camera lens mount ange)
Weight Approx. 680 g (1 lb 8 oz)
Nikon reserves the right to change the appearance, specifi cations, and perfor-
mance of this product at any time and without prior notice.
•
D2 D1 D200 D100
D90 D80 D70 D60 D50 D40 D5100 D5000 D3200
D3100 D3000
•
D5 D750 D610 D600 D5500 D5300 D3300
■
A
A
F
C
A
E
C
F
F
F
F
G
A
F
F
■
q
w
e
r
t
y
u
i
o
!0
!1
CPU
!2
!3
■
A/M M/A M
AF
MF
M/A
A/M
•
M/A
•
A/M
z
A/M M/A
x
AF-ON AF
•
•
AF-ON AF
•
ON
OFF
•
D4 D3 D810 D800 Df
D700 D300 D7200 D7100 D7000 D5200
■
■
■
•
•
■
•
•
■
4.5 NORMAL
CIPA FX FX
DX DX
OFF
NORMAL
SPORT
•
•
•
NORMAL SPORT
SPORT
•
NORMAL SPORT
•
OFF
ON
•
•
•
■
•
q
w
e
•
•
•
■
•
•
•
•
CPU
•
•
•
•
•
NC
•
•
•
•
•
0570-02-8080
0570-02-8060
•
•
(03)6702-0577
URL
http://www.nikon-image.com/support/showroom/
■
•
•
■
230-0052 2-2-26
9 30 18 00
•
•
0570-02-8200
•
•
(03) 6702-0577
■
http //www.nikon-image.com/support/repair/
0120-02-8155
9 00 18 00 12/29 1/4
■
9 30 18 00
0570-02-8000
•
•
03 6702-0577
•
03 5977-7499
■
•
•
FAX
/
http //www.nikon-image.com/support/
■
•
67 mm LC-67
•
LF-4
•
HB-82
•
CL-1022
■
•
67 mm
■
F CPU E AF-P
70 mm 300 mm
1 4.5 5.6
14 18 ED 1
34 20 8 10
FX
22 50 5 20 DX
70 100 135 200 300 mm
IF
VCM
1.2m
9
•
70 mm f/4.5 32
•
300 mm f/5.6 40
67 mm P=0.75 mm
80.5 mm 146 mm
680 g
Loading ...
Loading ...
Loading ...
