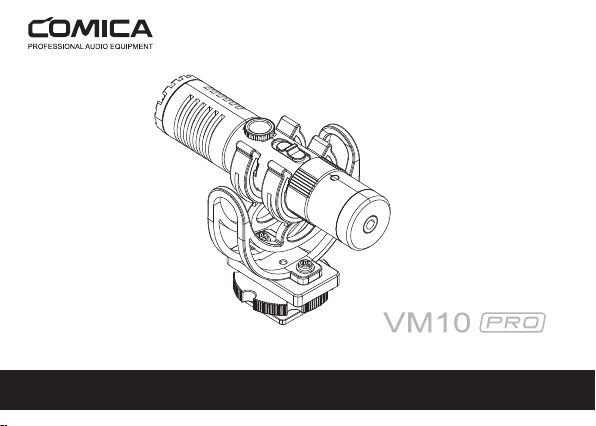

User Manual
Mini Cardioid Digital Shotgun Microphone


Foreword
Main Features
Thanks for purchasing COMICA VM10 PRO
.Cardioid Pattern, Accurate Sound Pickup
.Digital / Analog Output Mode Switch, Universal for Camera and Smartphone
.Stepless Gain Control with Preamp in Digital Mode
.Support Real-time Monitor in Digital Mode
.No Power Driven, Plug and Play
.Professional Shock-mount, Eective Shock Absorption
.Full Metal Material, Super Shielding
Notice
When working with devices with USB-A and Lightning interface in digital mode, it is necessary to
purchase relevant audio output cable or audio adapter cable by yourself
Some smartphones with USB-C interface are incompatible in digital mode, such as ViVO and
OPPO
When working in digital mode, the 3.5mm TRS audio output port is intelligently identified as the
monitoring port
,
the gain control knob and digital mode indicator light are available only in digital
mode
1

Item Check List
User manual
Mini Cardioid Digital&Analog Dual-mode Shotgun Mic
① ②
③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
1. Microphone
2. Shock Mount
3. 3.5mm TRS - TRS Audio Cable
4. 3.5mm TRS - TRRS Audio Cable
5. USB C-USB C Audio Cable
6. Wind Mu
7. Carry Case
8. User Manual
9. Warranty Card
2

Components and Instruction
Gain Control Knob
Digital/Analog Modes Switch Button
Digital Mode Indicator Light
USB-C Audio Output Port
In Digital Mode:
3.5mm TRS/TRRS Monitoring Port
In Analog Mode:
3.5mm TRS Audio Output Port
3

Installation
Digital Mode
:
1. Set the digital/analog switch button to the digital icon;
2. Connect the mic and the phone/computer via the USB C-USB C audio cable and related audio
cables/adapters. The digital working status indicator is on after successful connection(If the indicator
is not on, it may be caused by compatibility/system problems); choose whether to monitor according
to your needs.
4

Analog Mode
:
1. Set the digital/analog switch button to the analog icon;
2. When used with camera, it can be connected via 3.5mm TRS-TRS audio cable; when used with
phone or computer, it can be connected via 3.5mm TRS-TRRS audio cable.
5

Specification
Polar Pattern
Sensitivity
Frequency Response
Maximum SPL
S/N
Equivalent Noise
Dynamic Range
Sampling Rate
Bit Depth
Output Port
Monitoring Port
Dimension
Net Weight
Working Temperature
Storage Temperature
Cardioid Pattern
Analog Mode
:
-35±2dB
Digital Mode
:
-15dB ~ -35dB ±2dB
60Hz ~ 20kHz
120dB
70dB
24dBA
96dB
48kHz
24-bit
3.5mm TRS / USB-C
3.5mm TRS/TRRS
Ф
22mm * L92mm
37g
0
℃
~ 50
℃
-20
℃
~ 60
℃
6

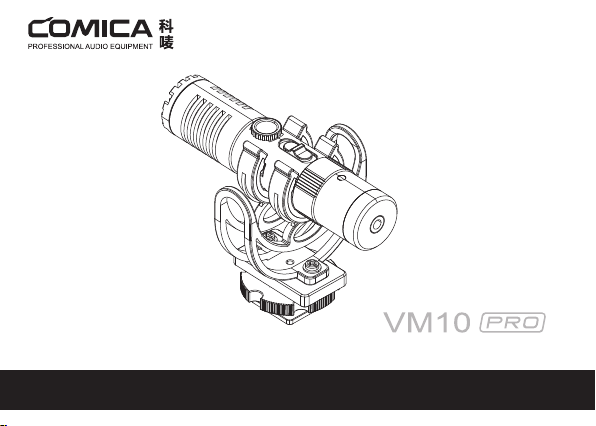

用户使用说明书
迷你心型数字枪式麦克风


前 言
产品主要功能
感谢您购买科唛
VM10 PRO
枪式麦克风
.心型指向,精准拾音
.可切换数字/模拟双输出模式,通用于手机、相机
.数字模式下支持前置放大增益调节
.数字模式下支持实时监听
.无电驱动,即插即用
.专业减震支架,高效减震
.全金属制造,超强屏蔽
注意事项
在数字模式下,对于
USB-A
和
Lightning
接口的设备,需要自行配置相关音频输出线或转换线即可使用
在数字模式下,部分
USB-C
接口的手机会出现不兼容的情况,如
ViVO, OPPO
在数字模式下,
3.5mm TRS
音频输出口被智能识别为耳机监听口
,
增益调节旋钮和数字工作状态指示
灯仅在此模式下可使用
1

包装清单
User manual
Mini Cardioid Digital&Analog Dual-mode Shotgun Mic
1.
麦克风
2.
减震架
3. 3.5mm TRS-TRS
音频连接线
4. 3.5mm TRS-TRRS
音频连接线
5. USB C-USB C
音频连接线
6.
防风毛
7.
便携包
8.
说明书
9.
保修卡
① ②
③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
2

部件介绍及说明
增益调节旋钮
数字/模拟模式切换开关
数字工作状态指示灯
USB-C音频输出口
数字模式:
3.5mm TRS/TRRS耳机监听口
模拟模式:
3.5mm TRS音频输出口
3

安装与使用方法
数字模式:
1.
将数字
/
模拟模式切换开关切换到
“ Digital ”
模式
;
2.
通过
USB C-USB C
音频连接线和相关音频转接线
/
转接头连接麦克风和手机
/
电脑, 连接成功后, 数字工作
状态指示灯常亮
(
如指示灯不亮,可能是兼容问题
/
系统问题导致
);
根据个人需求选择是否进行监听。
4

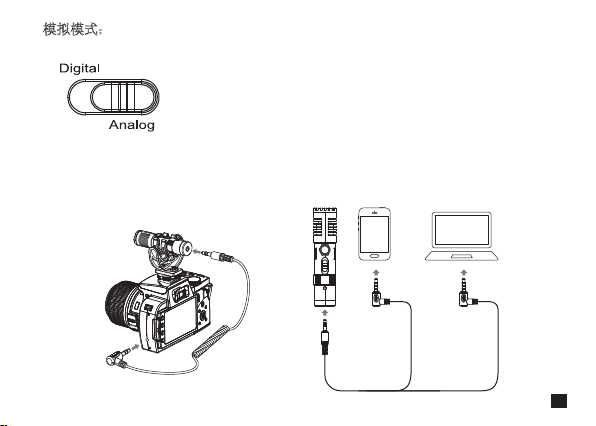

模拟模式:
1.
将数字
/
模拟模式切换开关切换到
“ Analog ”
模式;
2.
搭配相机使用时, 通过
3.5mm TRS-TRS
音频连接线连接即可; 搭配手机或电脑使用时, 通过
3.5mm
TRS-TRRS
音频连接线连接即可。
5

技术规格
指向性
灵敏度
频响
最大声压级
信噪比
等效噪声
动态范围
采样率
位深
输出接口
监听接口
尺寸
净重
工作温度
储存温度
心型指向
模拟输出:
-35±2dB
数字输出:
-15dB ~ -35dB ±2dB
60Hz ~ 20kHz
120dB
70dB
24dBA
96dB
48kHz
24-bit
3.5mm TRS / USB-C
3.5mm TRS/TRRS
Ф
22mm * L92mm
37g
0
℃
~ 50
℃
-20
℃
~ 60
℃
6
