USER MANUAL
Super Cardioid Condenser Lite Microphone
CVM-V30 LITE
Foreword
Thanks for purchasing COMICA CVM-V30 LITE Super-cardioid
condenser lite microphone.
Comica CVM-V30 LITE Super-cardioid condenser lite microphone,
suit for camera, smartphone. Meanwhile the Microphone is
designed with excellent shock mount, no battery drive, super low
noise electronics, super anti-interference, cold-shoe design with
1/4 thread at the bottom, compact and light. which makes
recording more easier.
Please read this manual carefully before using. This product has
been precisely calibrated at the factory, do not assemble and
disassemble parts by yourself.
1
Notice
This product is compatible with both IOS and Android system, and
when used with the iPhone 7 or above version, you need to use the
original adapter cable.
For the IOS system smartphone (iPhone), the Mic works well either
in Audio or Video mode.
For the Android system smartphone, the Mic works well in Audio
Mode. While in video mode , please try to use a 3rd party video
APP if you find your smartphone doesn’t work.
Please do not put the device beside the heat or interference
source.
Please avoid falling, collision or pounding during usage.
Don’t expose the device in rain or moist environment .
2
用户使用手册
心型指向电容式麦克风轻简版
Main Features
.Super-Cardioid Polar Pattern
.Support Smartphone & Camera
.Excellent Shock Mount
.No Battery Drive Design
.Super Low Noise Electronics
.Super Anti-interference
.Cold-shoe Design with 1/4 Thread at the Bottom
.Compact and Light, Easy to Carry
Package Content
Microphone User Manual Warranty Card
Super
Anti-Interference
Support
Camera&Smartphone
Excellent
Shock-absorbing
Super-CardioidLow Self-noise
3
Components Introduction
Microphone
Microphone Interference Tube
Shock Mount
Locking Screw
Cold-shoe Bracket
1/4 Screw Hole
Smartphone/Camera switch
3.5mm Audio Output Line
1
2
3
4
5
6
7
1
2
6
3
4
5
7
4
Installation and Operation
1.Use with Camera

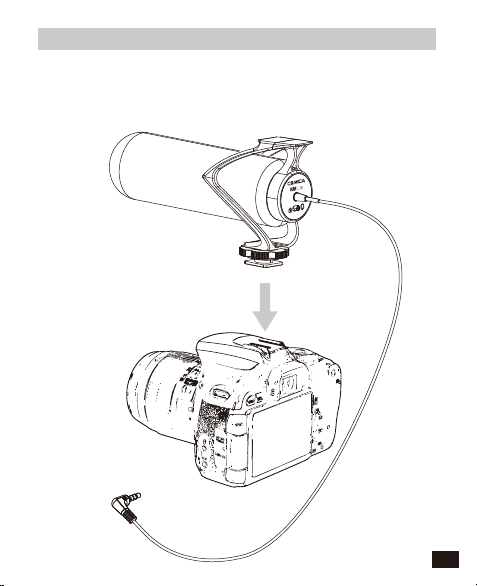

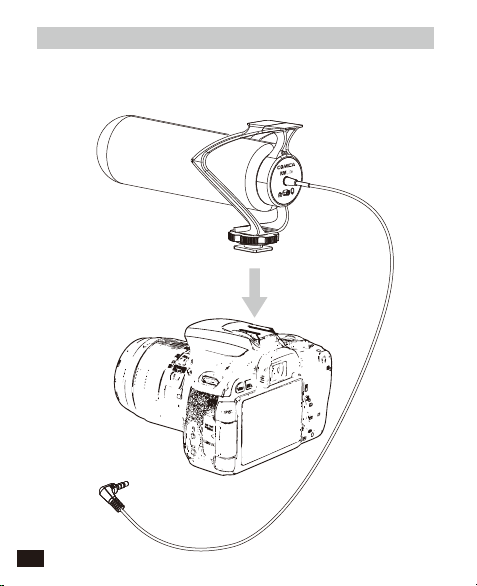

1.1 Attach the microphone cold shoe bracket to the camera, fasten
the Locking Screw .
5

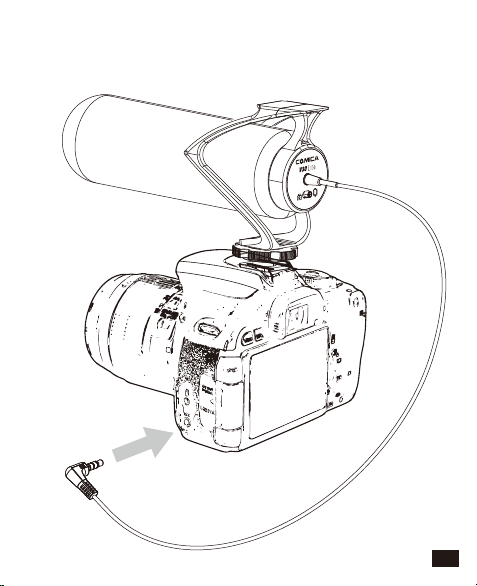

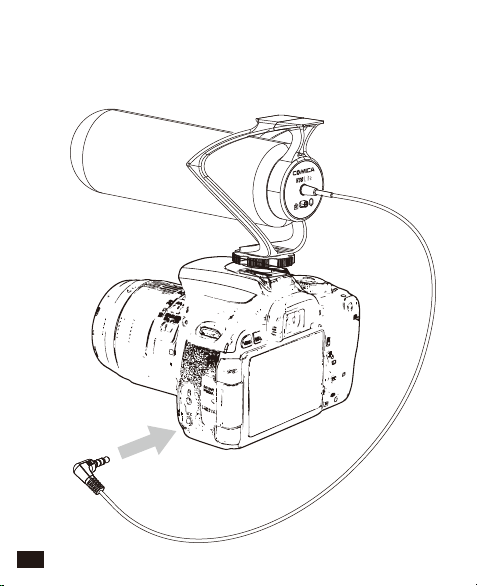

1.2 Connect the microphone’s 3.5mm audio output line and Camera.
6

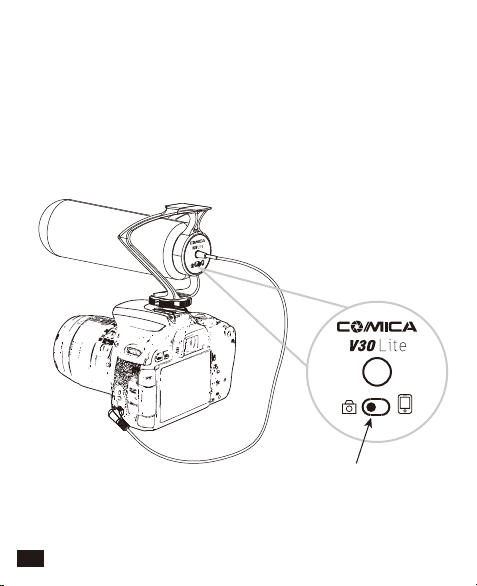

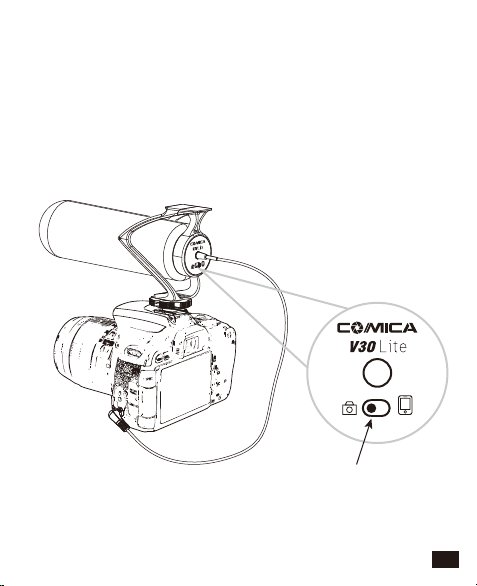

1.3 Set the smartphone/camera switch to the left camera mark.
switch to the left camera mark
7
2. Use with Smartphone

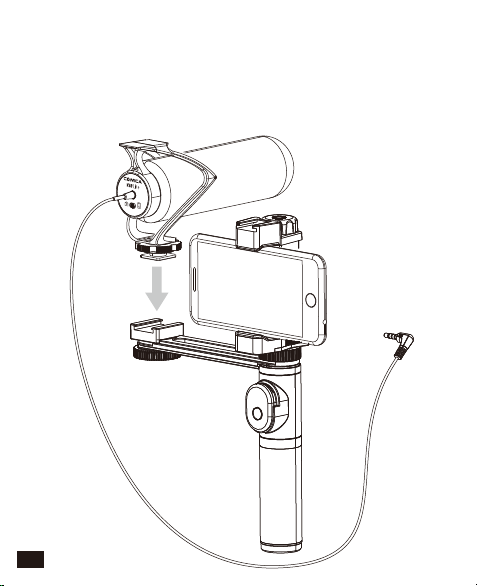

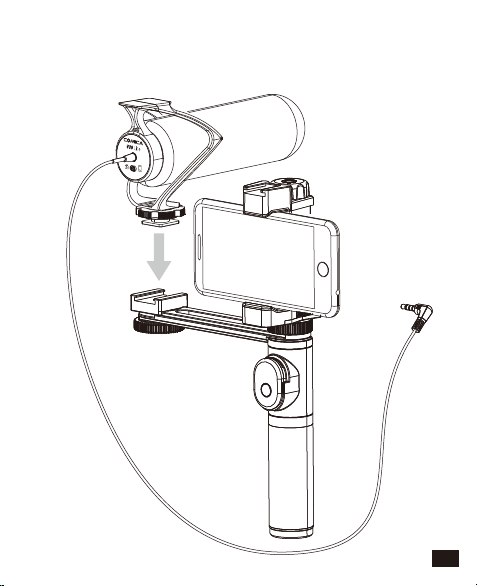

2.1 Mount microphone cold shoe bracket to accessories with cold
shoe interface (recommended VF-H1 ), fasten the Locking
Screw.
8

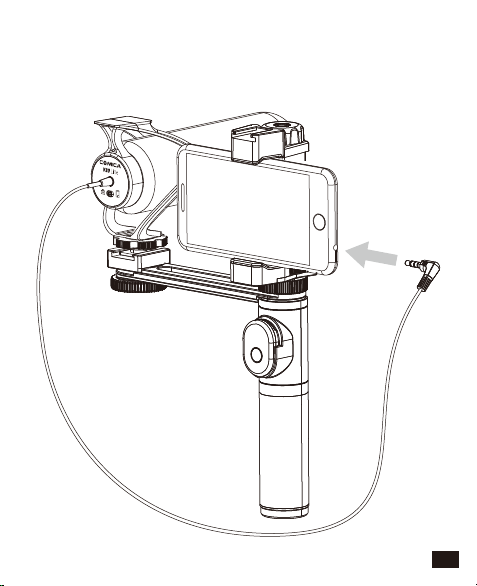

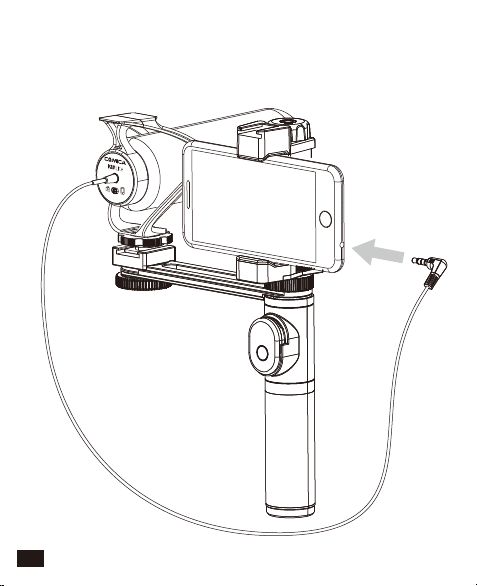

2.2 Connect the microphone’s 3.5mm audio output line and
smartphone.
9

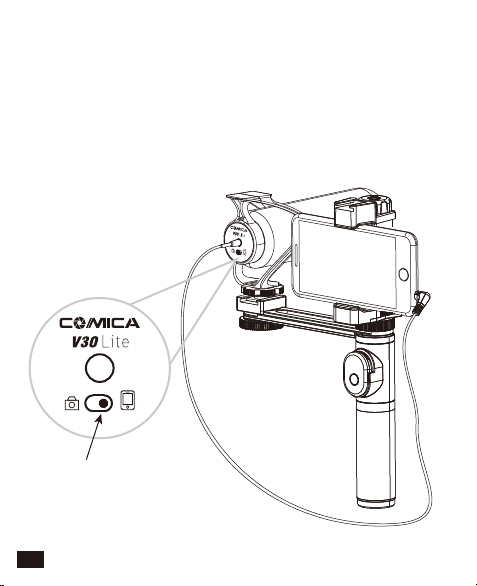

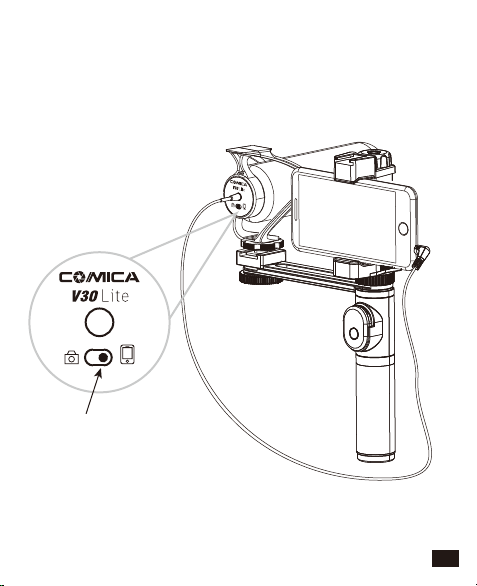

2.3 Set the smartphone/camera switch to the right smartphone mark.
switch to the right smartphone mark
10
Tech Parameters
Polar Pattern
Frequency Range
Output Impedance
Max.SPL
Sensitivity
Signal to Noise Ratio
Weight
Dimension
Super Cardioid
40Hz~20KHz
2.2kΩ
>100dB
-34dB±3dB
>68dB
52g
160*50.8*86mm
0
180
30330
150210
60300
120240
90270
11
用户使用手册
超心型指向电容式麦克风轻简版
CVM-V30 LITE
前 言
感谢您购买科唛COMICA CVM-V30 LITE轻简版超心型指向电容式麦
克风。
此产品采用超心型指向技术，可搭配手机，相机使用。同时该麦
克风拥有独创的减震架设计，无需电池驱动，超低底噪，超强屏
蔽功能，冷靴底座1/4螺孔设计，轻便易携，让录音无所顾虑！
使用前请认真阅读此使用说明书，本产品在出厂时已进行精密校
准，请勿自行组装拆卸零部件，否则不予保修！
注意事项
本产品兼容IOS和Android系统，搭配iPhone7及此型号以上手机使
用时，需使用原厂转接线
该麦克风配合IOS系统（IPHONE）的手机使用时，在录音及视频录
模式下均可正常工作
该麦克风配合ANDROID（安卓）系统的手机使用时，录音模式下可
正常工作；视频模式下，需下载第三方软件配合使用（如：乐秀、
美拍、小影等）
使用时请远离热源或干扰源
使用时请避免掉落，碰撞或重击
请勿在下雨或潮湿环境环境中使用，否则会有短路的危险
1
用户使用手册
心型指向电容式麦克风轻简版
产品主要功能
.超心型指向
.支持相机/手机
.独创的减震架设计
.无电池驱动设计
.超低底噪
.超强屏蔽功能
.冷靴底部1/4螺孔设计
.轻便易携
包装清单
麦克风 说明书 保修卡
支持相机/手机 超低底噪 超强抗干扰 超心型指向 独创减震架
2
部件介绍及说明
麦克风
干涉管
减震支架
转牙锁盘
冷靴底座
底部1/4延展螺孔
手机/相机转换开关
3.5mm音频输出线
1
2
3
4
5
6
7
1
2
6
3
4
5
7
3
安装与使用
1.搭配相机使用
1.1 将麦克风冷靴底座安装至相机，拧紧转牙锁盘至固定
4
1.2 将麦克风3.5mm音频输出线与相机相连
5
1.3 将手机/相机转换开关拨至左侧相机标识处
拨至左侧相机标识
6
2. 搭配手机使用
2.1将麦克风冷靴底座安装至带冷靴接口的配件（推荐VF-H1），
拧紧转牙锁盘至固定
7
２.2 将麦克风3.5mm音频输出线与手机相连
8
２.3 将手机/相机转换开关拨至右侧手机标识处
拨至右侧手机标识处
9
技术参数
指向性
频响范围
输出阻抗
最大SPL
灵敏度
信噪比
产品重量
产品尺寸
超心型
40Hz～20KHz
2.2 kΩ
>100dB
-34dB±3dB
>68dB
52g
160*50.8*86mm
0
180
30330
150210
60300
120240
90270
10
