Carton Contents
............................................ 1
Before You Begin
.......................................... 2
Preparation + Tools Needed
............................ 3
Rail Assembly
.............................................. 4
Rail and Power Head Assembly
........................ 5
Trolley and Pulley Assembly
............................. 6
Installing Chain and Cable
.............................. 7
Installing Belt
.............................................. 9
Attaching Sprocket Cover
.............................. 1 1
Mounting Header Bracket
.............................. 12
Attaching Rail and Mounting Door Bracket
.........13
Mounting Power Head to Ceiling
.....................14
Attaching Door Arms
....................................15
Emergency Release Handle
............................ 16
Connecting Photo Eye Safety System
................17
Connecting Power and Aligning Photo
Eye Safety System
........................................ 18
Connecting Deluxe Door Control
..................... 19
Enabling/Disabling Motion Sensing
Security Lighting
........................................ 20
Connecting Standard Door Control
................. 2 1
Before We Start Programming The Opener
....... 22

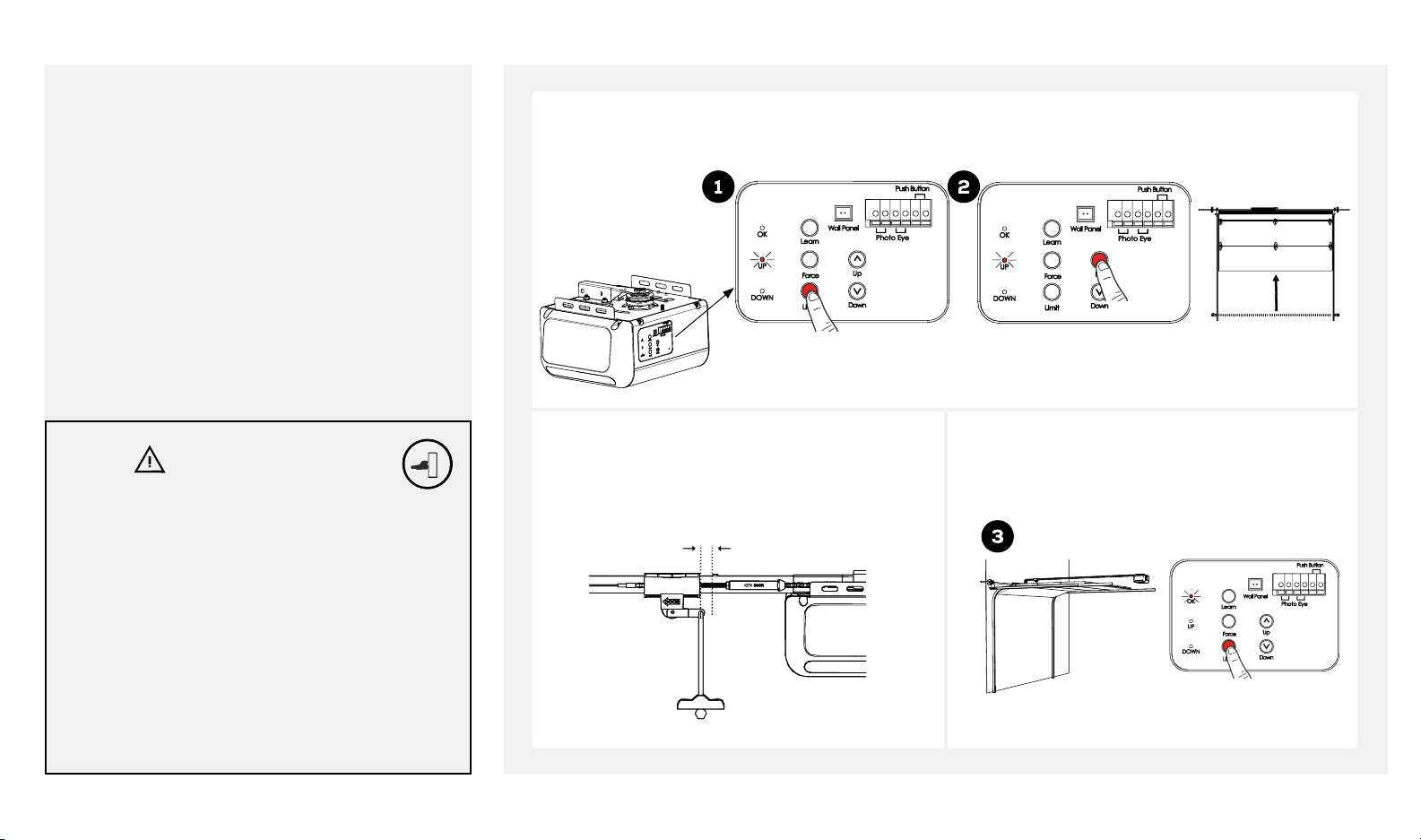

Travel Limit Adjustment – UP Limit
................... 23

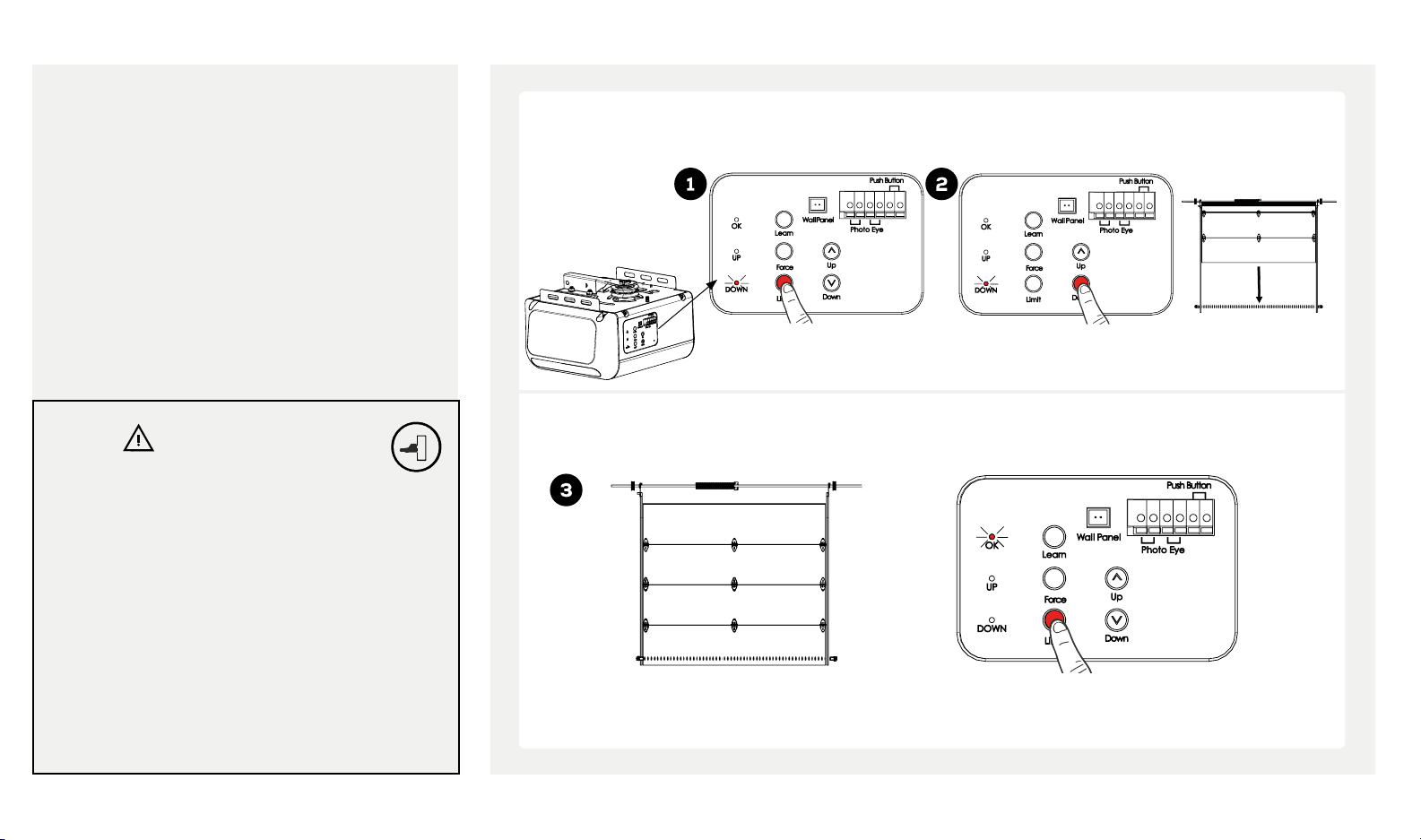

Travel Limit Adjustment – DOWN Limit
.............. 24
Setting the Force
........................................ 25

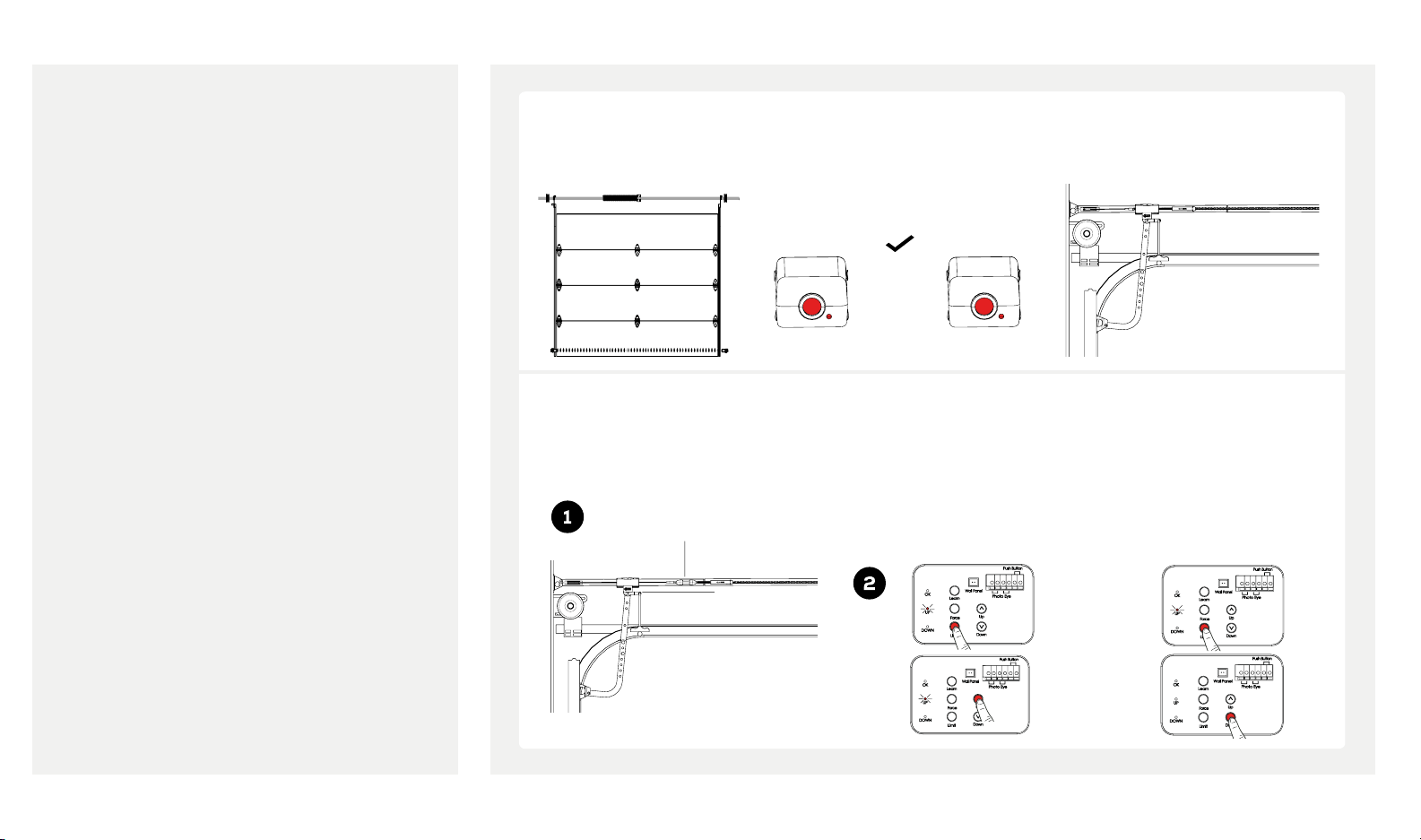

Final Adjustments and Testing
........................ 26
Handheld Remote Control
............................ 27
Wireless Keypad
........................................ 28
beamUP Smart Garage Door Controller
............ 29
Using your Garage Door Opener
.................... 30
Troubleshooting
......................................... 35
Maintenance
............................................. 37
Warranty
.................................................. 38
Spare Parts
............................................... 42
Opener Assembly Parts
................................ 43
beamlabs.io 1-800-436-9186 1

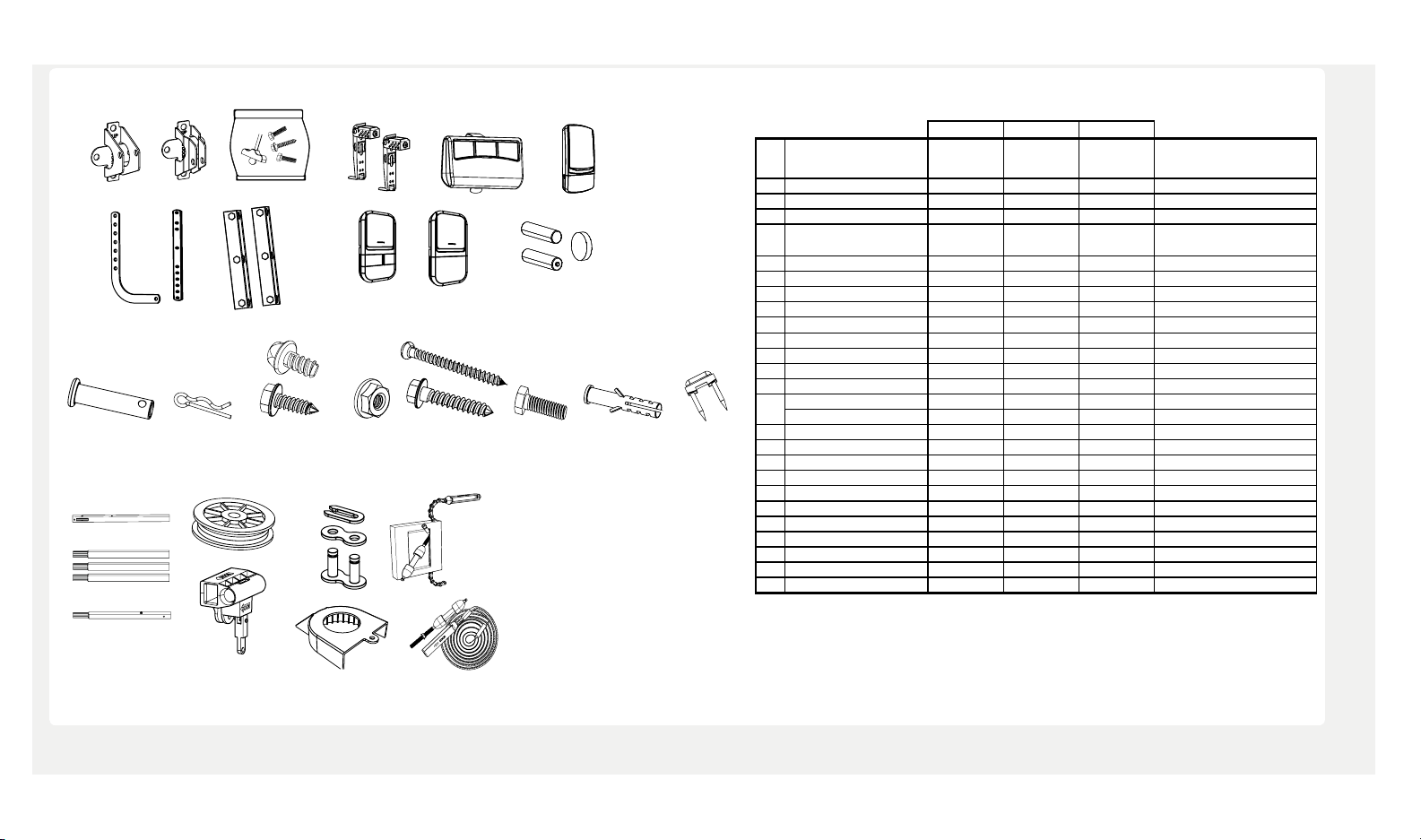

CARTON CONTENTS
Trolley Sha/
Cable Assembly
(BU100 & BU400) Rail Trolley Pulley 1 x Master Link
Emergency
Release Handle
5 x Clevis Pins
2 x 5/16" x 1"
2 x 5/16" x 1-3/8"
1 x 3/8" x 1-3/4" 5 x Hitch Pins
7 x Flange Nut
2 x Self-Threading
Screws
1/4" x 5/8"
Single Button
Remote
(BU100)
Three Button
Remote
(BU400 & BU800)
Standard
Door Control
(BU100)
Deluxe
Door Control
(BU400 & BU800)
Wireless Keypad
(BU800)
6 x Lag Screws
5/16" – 1/1/2"
4 x Screws
#12 x 1-1/4"
1 x Self-Threading
Screw
#8-18 x 5/16
6 x Screws
#6 x 1-3/8"
6 x Bolts
5/16"– 18 x 1" 6 x Anchors
Insulated Staples
Controller
(BU400 & BU800)
Wireless Door
Sensor
(BU400 & BU800)
Power Head
Photo Eye
Safety System
Header Bracket
Door Bracket
Door Arms
Sprocket Cover
Hanging Bracket
Trolley Sha/
Belt Assembly
(BU800)
2 beamlabs.io 1-800-436-9186
BEFORE YOU BEGIN SAFETY INSTRUCTIONS
To reduce the risk of severe injury or death:
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Install only on a properly balanced garage door. An improperly balanced door has the
potential to inflict severe injury. Have a qualified service person make repairs to cables,
spring assemblies, and other hardware before installing the opener.
3. Remove all ropes and remove or make inoperative all locks connected to the garage
door before installing opener.
4. Where possible, install the door opener 7 feet (2.13 m) or more above the floor. For
products having an emergency release, mount the emergency release within reach, but
at least 6 feet above the floor and avoiding contact with vehicles to avoid accidental
release.
5. Do not connect the opener to source of power until instructed to do so.
6. Locate the door control button: (a) within sight of door, (b) at a minimum height of 5 feet
so small children are not able to reach it, and (c) away from all moving parts of the door.
7. Install the Entrapment Warning Label next to the wall-mount control button in a promi-
nent location.
8. Aer installing the opener, the door must reverse when it contacts a
1-1/2 inch (3.8 cm) high object (or a 2x4 board) laid flat on the floor.
9. NEVER try to remove, loosen, move, or adjust garage door, cables, pulleys, brackets,
and door springs. All are under EXTREME tension.
10. To reduce the risk of injuries to persons – use this operator only with residential sectional
garage doors. Only enable the unattended operation feature when installed with a
sectional door. The Smart Door Controller should be used only on sectional doors and
with garage door openers made aer 1993 with a photo eye safety system.
WARNING
Measure door height. Check mounting
locations.
Are additional
reinforcement material
needed?
If over 7.5 feet (2.28 m),
rail extension kit will be
needed.
See page 3
See page 3
Check your toolbox. Do
you have all the tools
needed?
7.5 feet
(2.28 m)
beamlabs.io 1-800-436-9186 3
PREPARE GARAGE DOOR FOR INSTALLATION

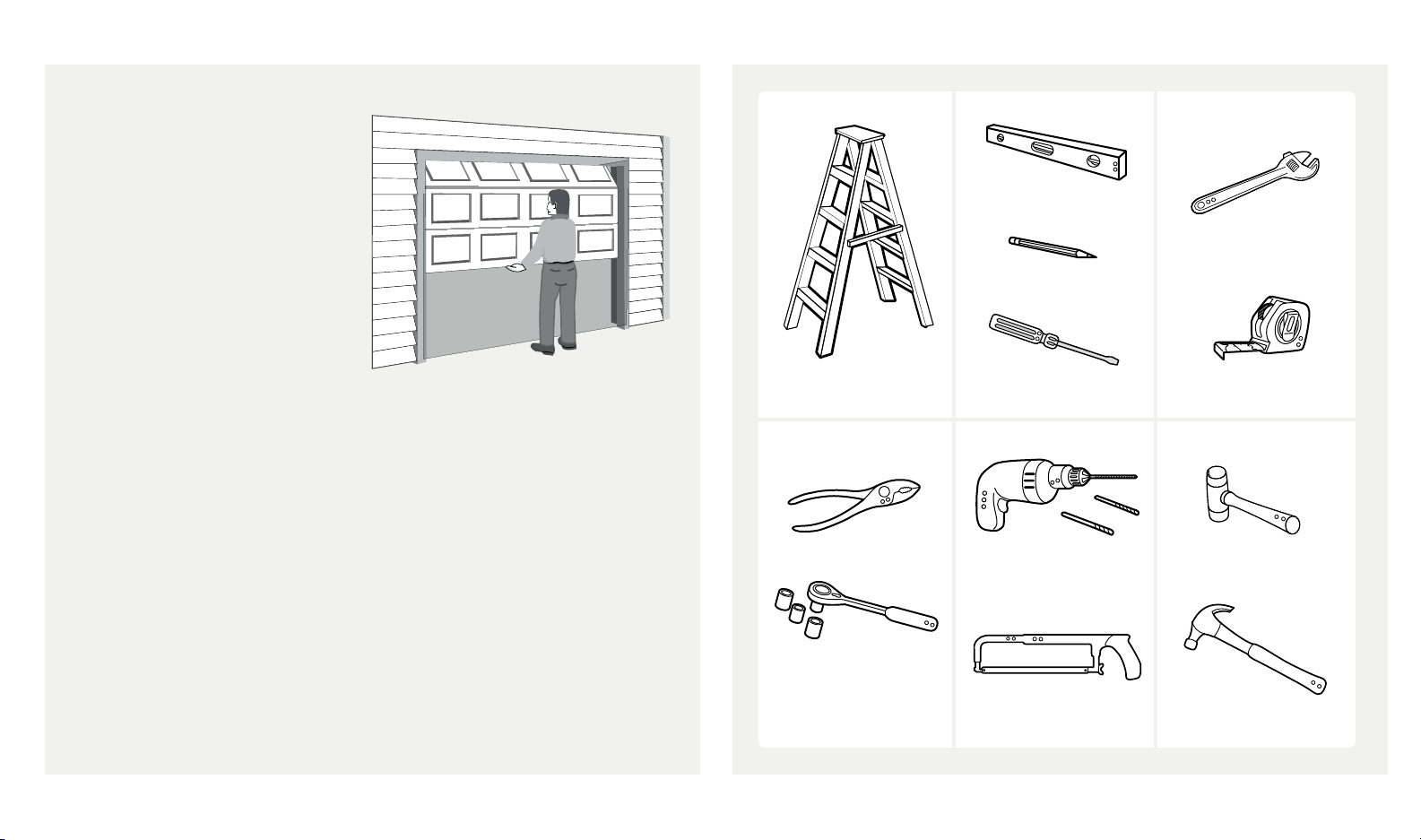

TOOLS NEEDED
Step Ladder
Ratchet with
1/4", 7/16" and
1/2" sockets
Level
Pencil
Screwdriver
Hack Saw
Tape Measure
Adjustable Wrench
Rubber MalletDrill 3/16" and
5/16" Drill Bits
Pliers
Hammer
DO NOT REUSE PARTS AND
WIRING FROM AN OLD
OPENER!!!
BEFORE beginning
installation:
1. Disable locks and disengage
trolley from current opener.
2. Perform the following door
test to ensure your door
is balanced and in good
working condition.
Make sure garage door is fully closed before you start the installation
To test your garage door:
1. Raise and lower the door to check if there is any sticking or binding.
2. Check for loose hinges, damaged rollers, frayed cables and damaged or
broken springs.
3. Li the door approximately halfway and release. The door should stay at
that point under proper spring tension.
Call a qualified garage door service technician if your door binds, sticks or
is unbalanced.
4 beamlabs.io 1-800-436-9186

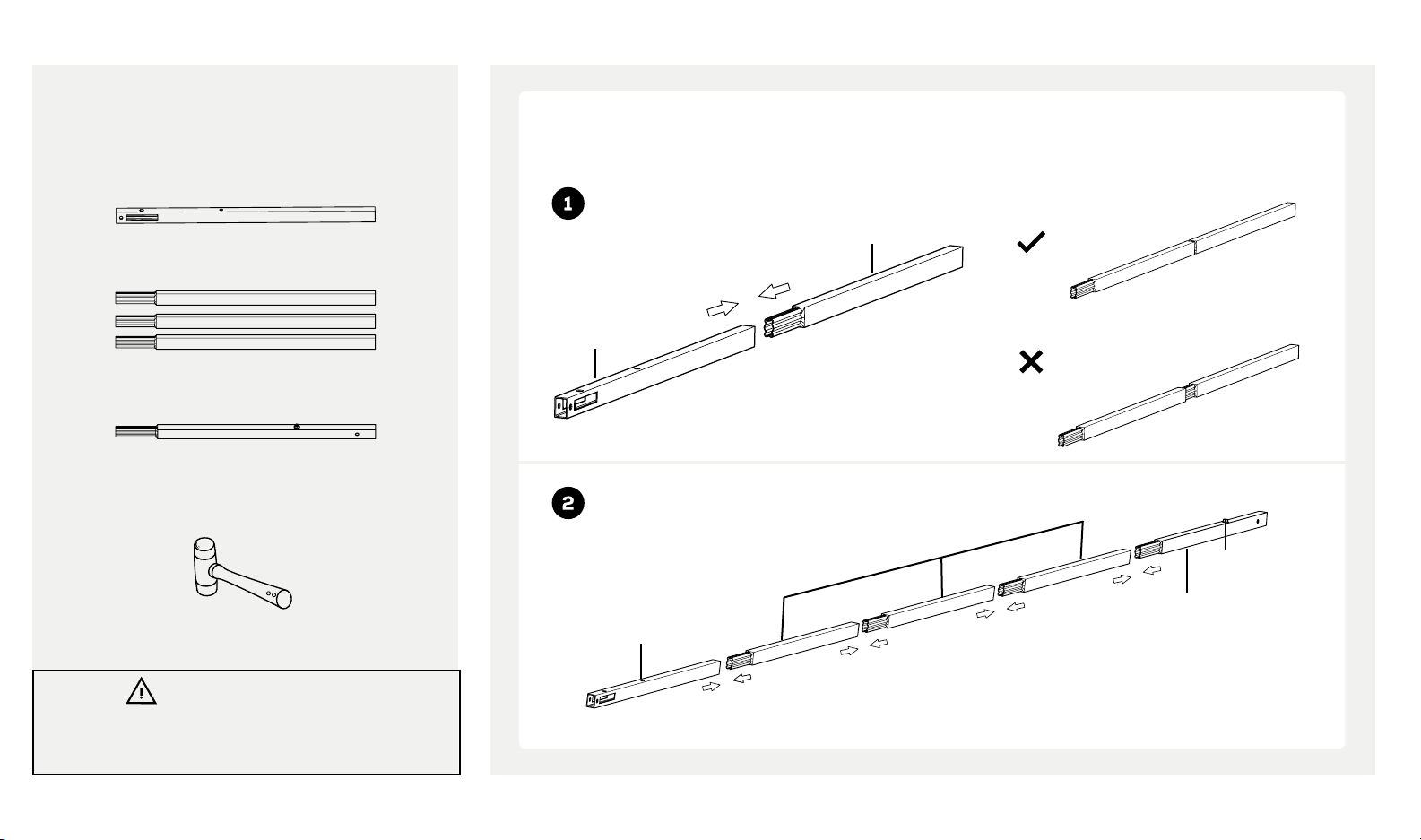

RAIL ASSEMBLY
Look in the box for:
Rubber Mallet
Rail – Middle Segments x3
Rail – End Segment
Tools needed:
Connect rails starting with the rail header segment. To apply additional force tap gently on the end of the
connected rail segments with a rubber mallet or on padded flooring.
Rail – Header Segment
Securely connected by applying force
CAUTION
To prevent INJURY from pinching, keep hands and fingers
away from joints when assembling the rail.
Rail- Header
Segment
Rail- Middle
Segment
Rail- Header
Segment
Rail- Middle Segments x3
Rail- End Segment
Stop Bolt
Loosely connected
Right
Wrong
beamlabs.io 1-800-436-9186 5
RAIL AND POWER HEAD ASSEMBLY

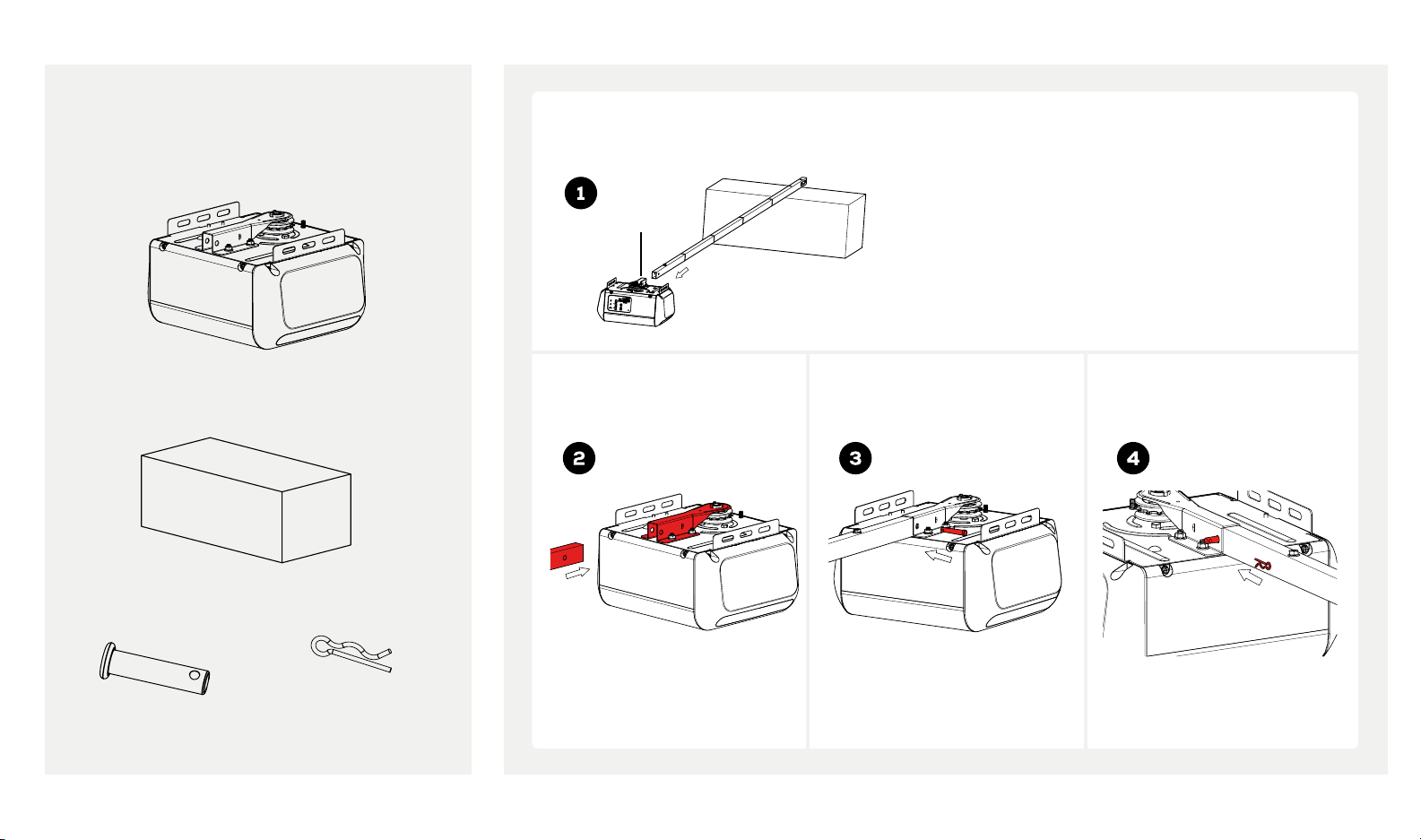

Look in the box for:
Power Head
Opener Carton
Clevis Pin
5/16" x 1-3/8"
Hitch Pin
Insert rail-end segment into
bracket as shown.
Insert clevis pin into rail
bracket as shown.
Insert hitch pin into clevis pin
as shown.

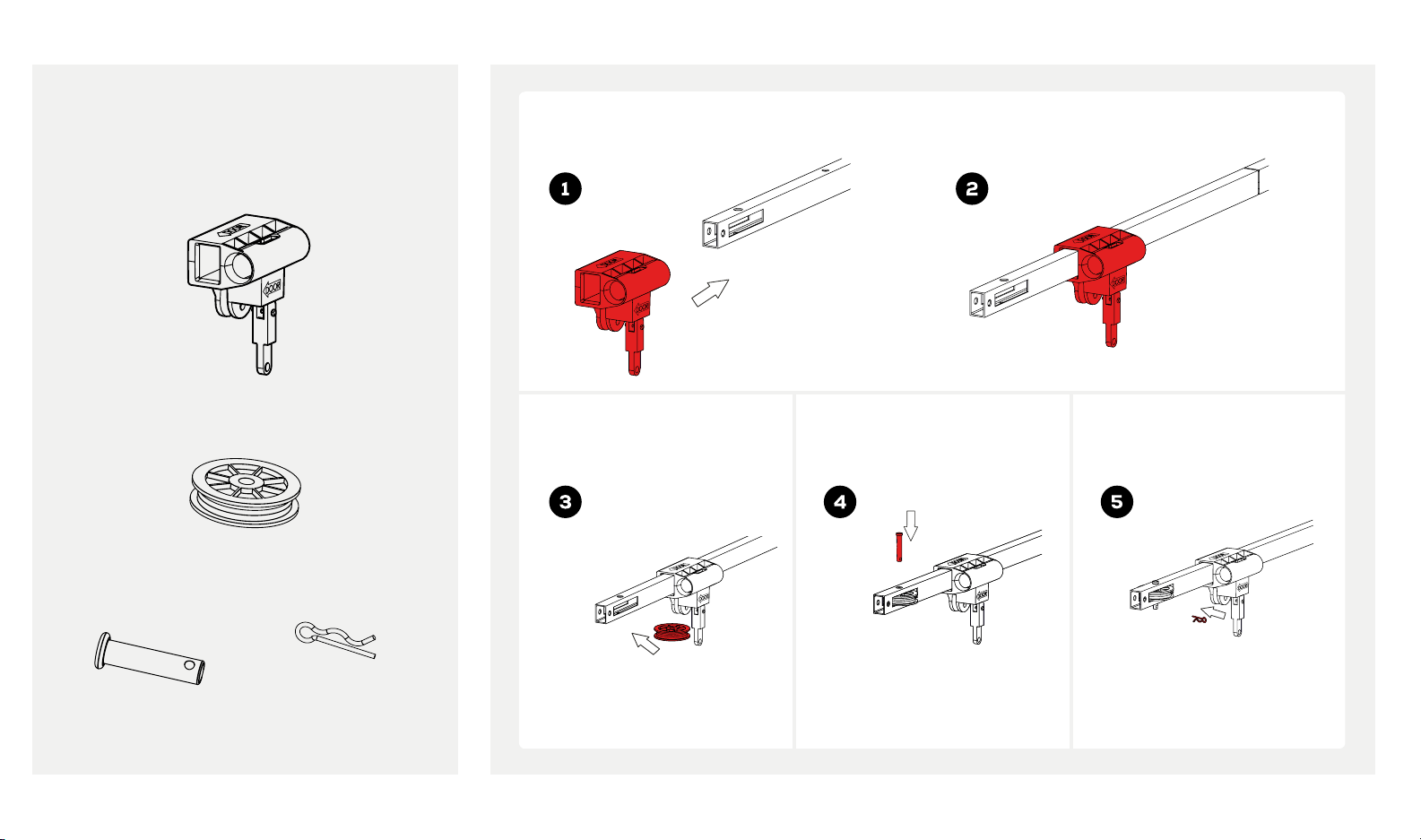

Use garage door opener carton to assemble rail to power head. Use packing material as protective base for
power head.
Rail Bracket
6 beamlabs.io 1-800-436-9186
Clevis Pin
3/8" x 1-3/4"
Hitch Pin
Insert clevis pin through rail
hole and pulley.
Insert hitch pin into clevis pin.
TROLLEY AND PULLEY ASSEMBLY
Look in the box for:
Trolley
Pulley
Slide trolley onto the rail. Make sure the arrow on the trolley points toward the door.
Insert pulley into the pulley
slot.
beamlabs.io 1-800-436-9186 7

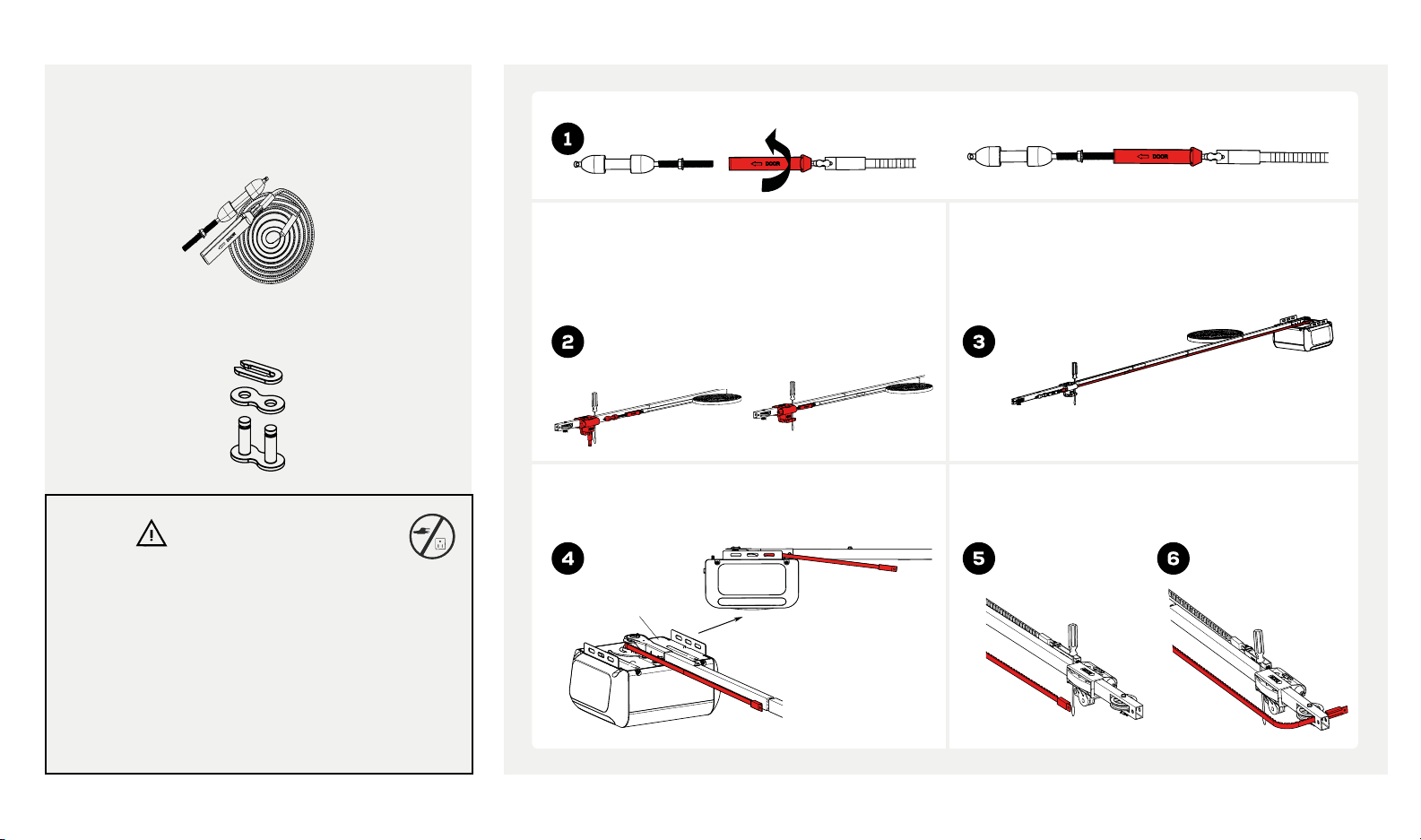

INSTALLING CABLE AND CHAIN (BU100, BU400)
Look in the box for:
Trolley Sha/Chain Assembly
Master Link
Align end of chain around sprocket and extend chain
past chassis, approximately 7" (17.8 cm). Sprocket teeth
must engage the chain.
WARNING
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• Keep hands and fingers clear from sprocket during
operation.
• Wear gloves when installing chain and cable.
• Keep hands and fingers away from joints and
possible sharp edges.
Insert cable through circular hole in trolley. Pull
cable through pulley slot and toward power
head.
Chassis
Pull chain with box along the rail towards trolley and
then remove box.
7"
(17.8 cm)
Loosely attach trolley sha with chain connector. 5 complete turns will be sufficient.
Pull trolley lock lever down to unlock. Insert trolley
sha through the trolley and pull lever back up.
End of
Chain
Trolley in
engaged
position
8 beamlabs.io 1-800-436-9186
INSTALLING CABLE AND CHAIN (BU100, BU400)

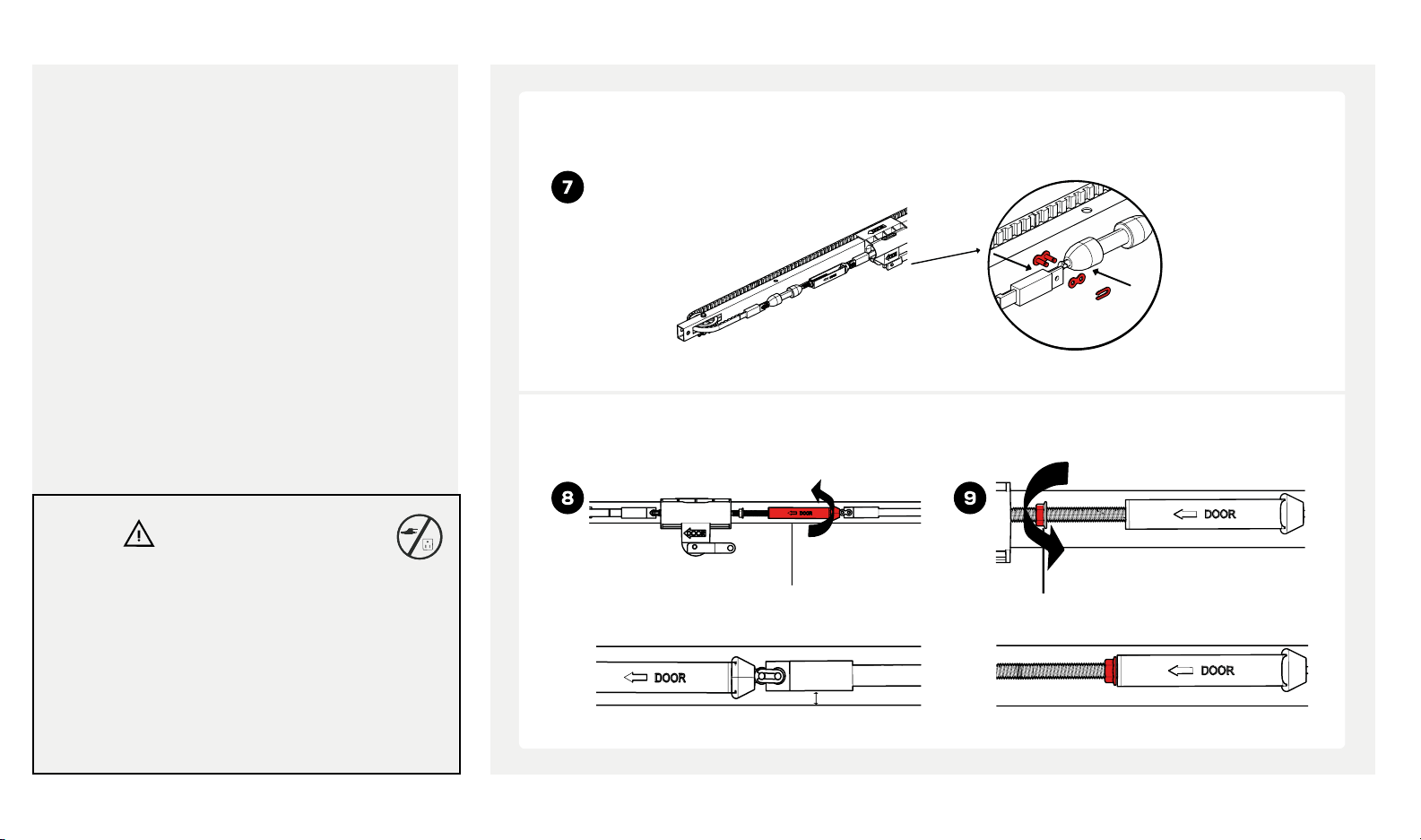

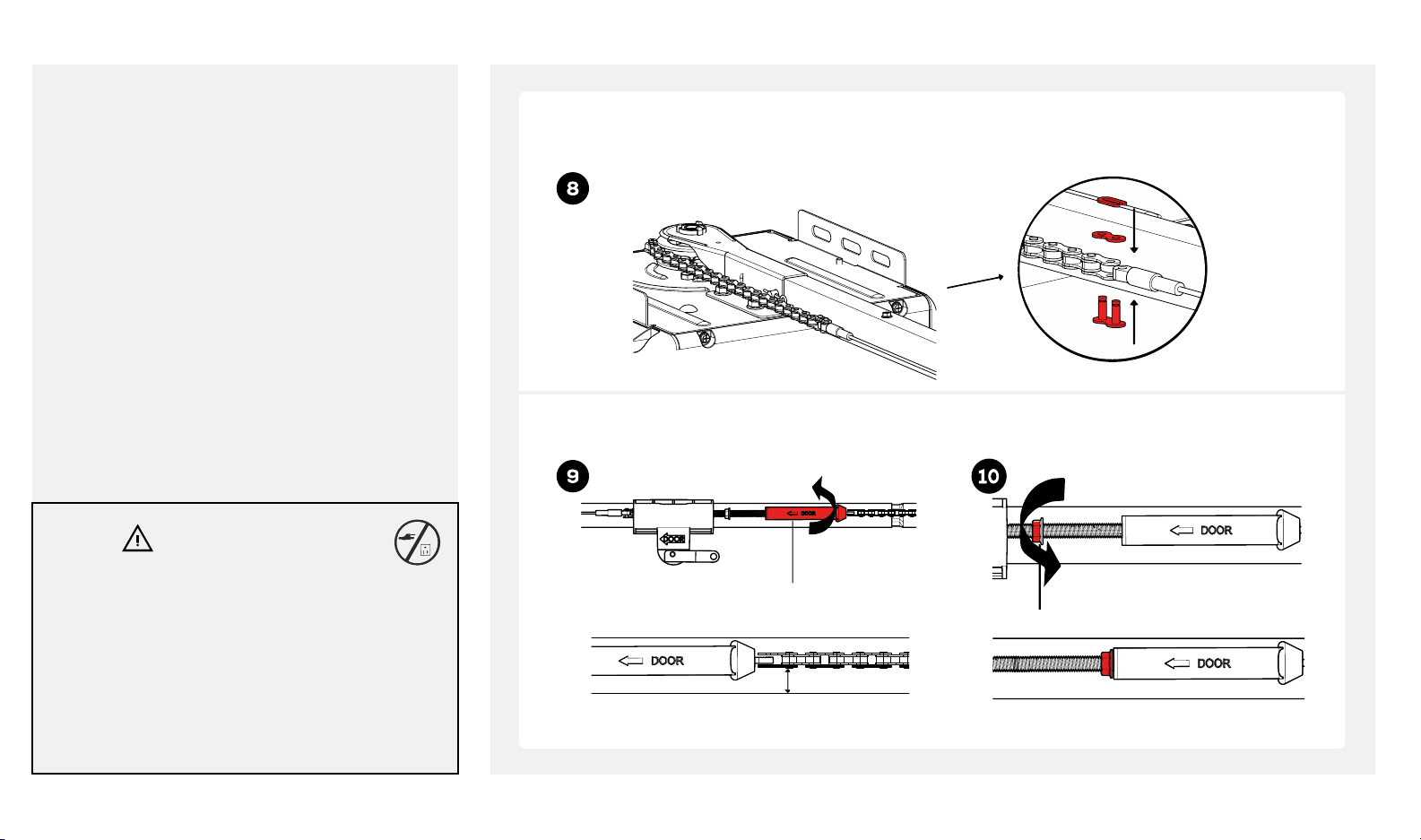

Bring cable and chain together and connect with master link. Check to make sure the chain is not twisted. If
chain and cable are not close enough to connect with master link, loosen chain-to-cable connector to create
more slack.
WARNING
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• Keep hands and fingers clear from sprocket during
operation.
• Wear gloves when installing chain and cable.
• Keep hands and fingers away from joints and
possible sharp edges.
Adjust chain tension by turning chain-to-cable connector until chain is about 1/4 inch (.64cm) above the base of
rail. Once proper tension is achieved tighten lock nut against chain-to-cable connector.
Chain-to-cable connector
Tighten until...
1/4 inch
(.64 cm)
Nut
beamlabs.io 1-800-436-9186 9

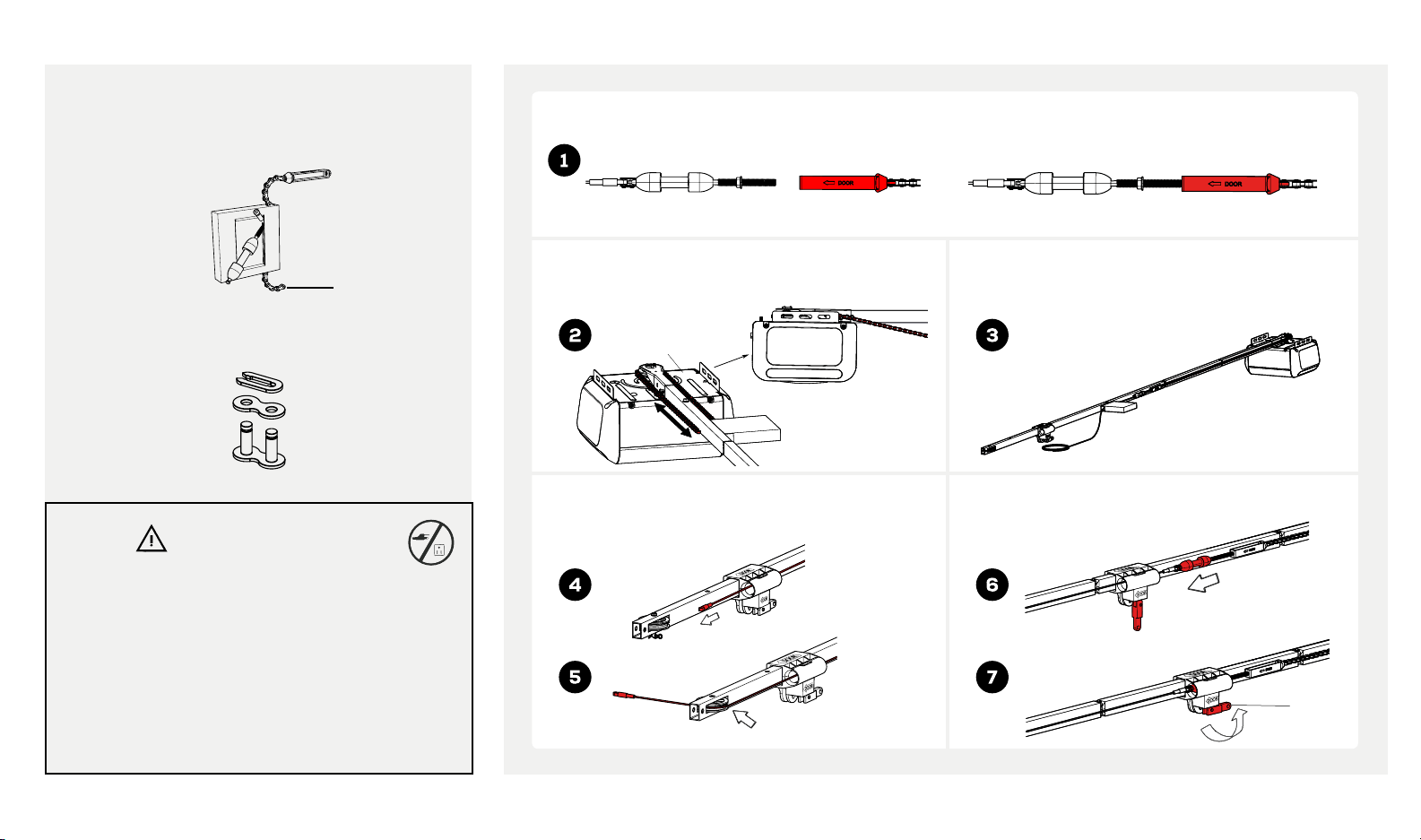

INSTALLING BELT (BU800)
Look in the box for:
Trolley Sha/Belt Assembly
Master Link
Pull trolley lock lever down to unlock. Insert screwdriver
into the hole located on the rail-header segment. Slide
the trolley up to the screwdriver. The trolley must stay in
this position for proper alignment of the belt. Insert the
trolley sha through the trolley and pull lever back up.
Sprocket teeth must engage the belt. Continue
pulling belt towards trolley.
Insert belt through pulley slot and toward power
head. The ribbed side must contact the pulley and
should be facing inwards.
Pull belt along the rail towards power head and
loop belt around the belt sprocket.
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• Keep hands and fingers clear from sprocket during
operation.
• Wear gloves when installing chain/belt and cable.
• Keep hands and fingers away from joints and
possible sharp edges.
WARNING
Chassis
Loosely attach trolley sha with belt connector. 5 complete turns will be sufficient.
10 beamlabs.io 1-800-436-9186
INSTALLING BELT (BU800)
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• Keep hands and fingers clear from sprocket during
operation.
• Wear gloves when installing chain/belt and cable.
• Keep hands and fingers away from joints and
possible sharp edges.
WARNING
Bring belt and trolley sha together, check to make sure the belt is not twisted. Connect belt and trolley sha
with master link. If belt connector and trolley sha are not close enough to connect with master link, loosen belt
connector to create more slack.
Adjust belt tension by turning belt connector until belt is about 1/4 inch (.64cm) above the base of rail. Once
proper tension is achieved tighten lock nut against belt connector.
Tighten until...
Belt connector
1/4 inch
(.64 cm)
Nut
beamlabs.io 1-800-436-9186 11

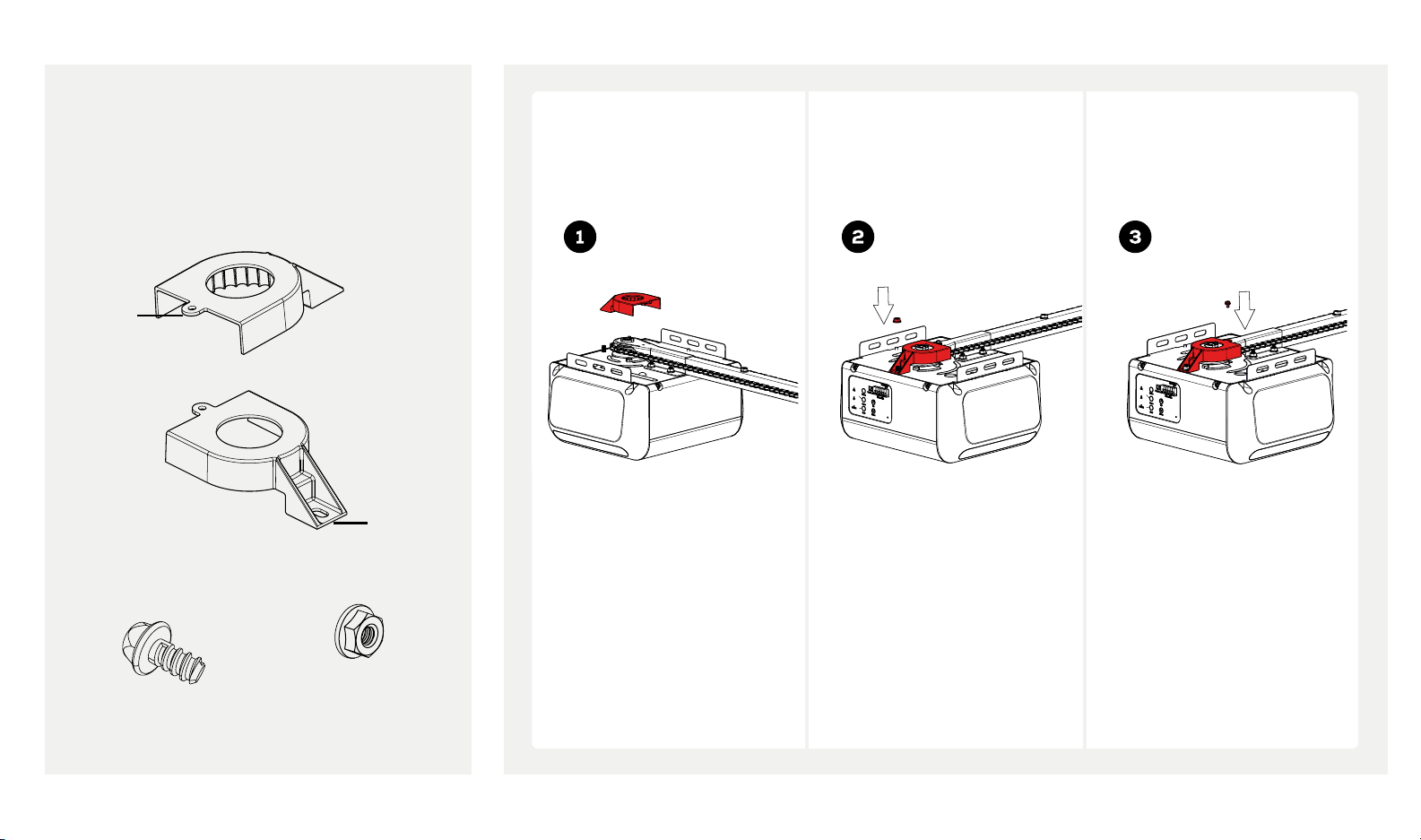

ATTACHING SPROCKET COVER
Look in the box for:
Sprocket Cover
Front
Ta b
Rear Tab
Self-Threading Screw
#8-18 x 5/16
Flange Nut
Attach sprocket cover to
power head.
Fasten rear tab with flange nut
on top of steel chassis.
Fasten front tab with self-
threading screws to hole on
top of rail bracket.
12 beamlabs.io 1-800-436-9186

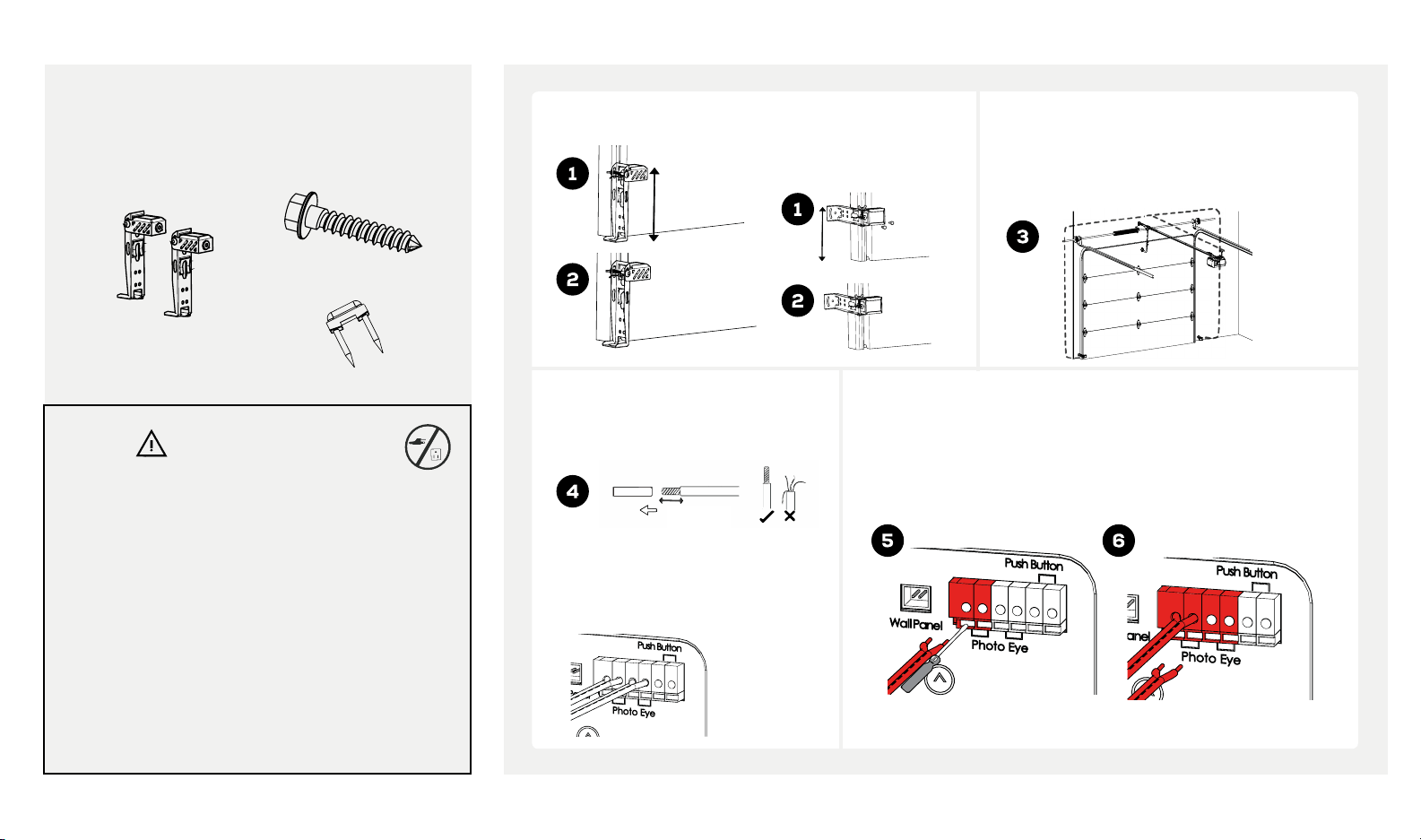

MOUNTING HEADER BRACKET
Look in the box for:
Mark the center line above the door with a pencil. Open door to the highest point of travel.
Header Bracket 2 x Lag Screws
5/16" x 1-1/2"
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• The header bracket MUST be SECURELY fastened
to the structural support on the mounting wall or
ceiling, otherwise other door may not reverse when
required. DO NOT install the header bracket over
drywall.
• Concrete anchors MUST be used when mounting
the header bracket into masonry.
• NEVER try to loosen, move or adjust garage door
springs, cables, pulleys, brackets, or hardware.
• Contact a qualified garage door service technician
if your door binds, sticks or is unbalanced. An
unbalanced door might not reverse when required.
Take a level, measure and mark highest point of the
door on the wall. Raise level to clear torsion bar if
required, then mark highest point.
Measure 2 - 1/4 inch (5.7 cm), mark two holes of
header bracket. Drill two holes and fasten header
bracket using screws.
Center Line
2-1/4 inch
(5.7cm)
WARNING
Highest Point
of Travel
beamlabs.io 1-800-436-9186 13
ATTACHING RAIL AND MOUNTING DOOR BRACKET
Look in the box for:
Use garage door opener carton to support power
head. Rail header segment end should be pointing
to header bracket.
Align header rail hole to header bracket hole.
Connect header rail and header bracket with clevis
pin and secure with hitch pin.
Position door bracket on centerline of the top
garage door panel. Door bracket should be 2-4
inches (5-10 cm) below the top edge of door panel.
Hitch Pin Clevis Pin
5/16" x 1-3/8"
Door Bracket 2 x Self-Threading
Screws - 1/4" x 5/8"
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• REINFORCEMENT is recommended for fiberglass,
aluminum or lightweight steel garage doors
BEFORE installing the door bracket. Contact your
door manufacturer for reinforcement options.
Header
Bracket Hole
Header
Rail Hole
Door Edge
2" - 4" (5 - 10 cm)
CAUTION
14 beamlabs.io 1-800-436-9186

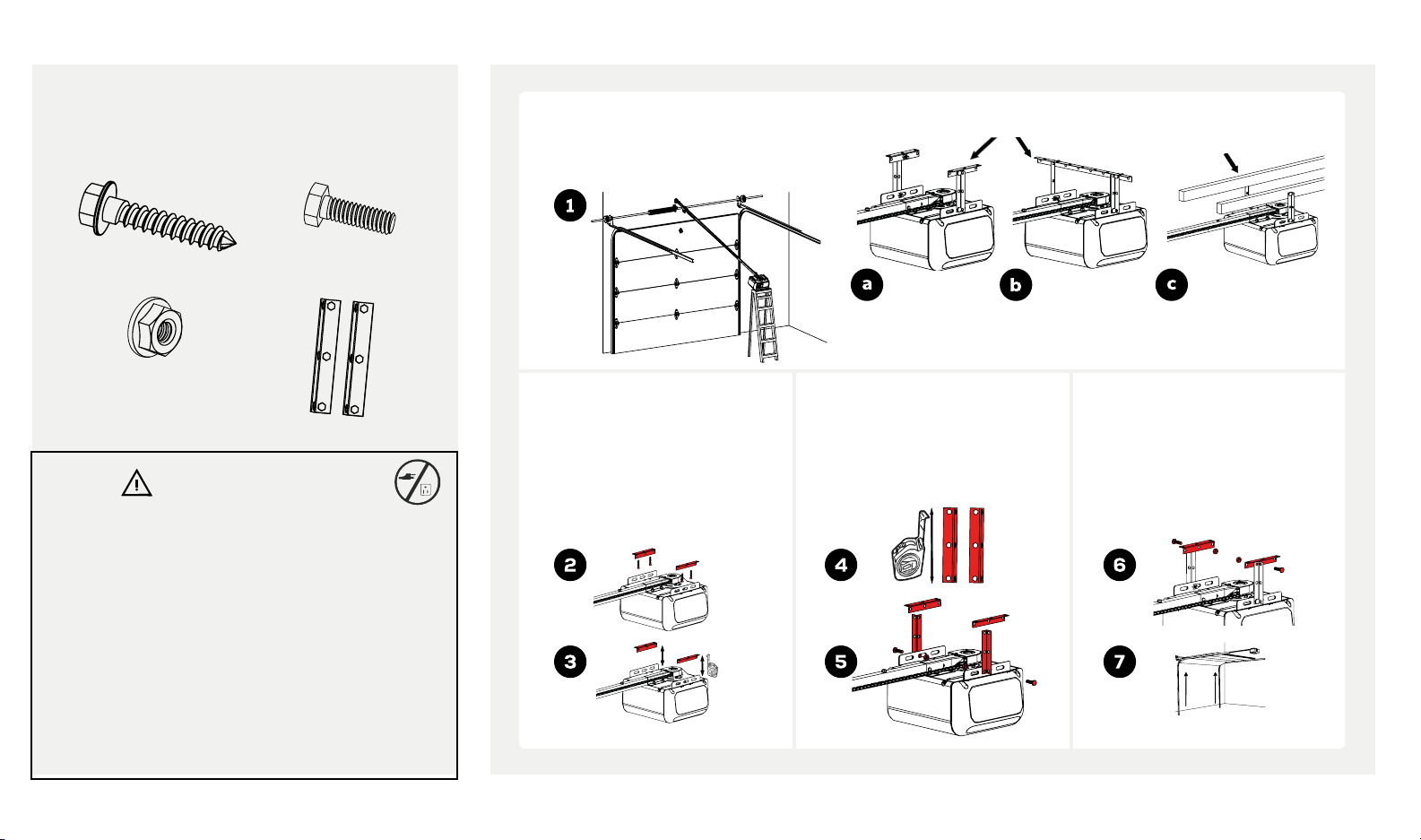

MOUNTING POWER HEAD TO CEILING
Look in the box for:
Li power head onto ladder. Position and
align power head with rail assembly to
centerline. Fully open door manually and
place a 2x4 under the rail.*
Angle Iron
(not included)
Finished Ceiling Finished Ceiling
Unfinished Ceiling
Structural
Support
Open
WARNING
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• Install the opener at least 7 feet (2.13m) above the
floor.
• Fasten the opener SECURELY to STRUCTURAL
SUPPORT of the garage to prevent falling.
• If installing brackets to masonry, concrete anchors
(not provided) MUST be used.
• To prevent damage to garage door surface, rest
garage door opener rail on 2x4 placed on top
section of door.
4 x Lag Screws
5/16"-18 x 1"
4 x Bolts
5/16" - 18 x 1"
4 x Flange Nut Hanging Brackets
Use lag screws to attach angle
iron to the structural supports
before installing the garage
door opener onto a finished
ceiling. Measure the distance
from each side of the power
head to the angel iron.
Cut both hanging brackets to
appropriate length. Attach the
end of each hanging bracket
to the angle iron with 5/16" x
1" bolts and flange nuts.
Attach power head to hanging
brackets with 5/16" x 1" bolts
and flange nuts. Remove 2x4
and manually close the door.
If the door hits the rail, raise
header bracket.
Three most common installation options. Determine the mounting
option that works best for you.
*A 2x4 is ideal for setting the distance between the rail and the door.
beamlabs.io 1-800-436-9186 15

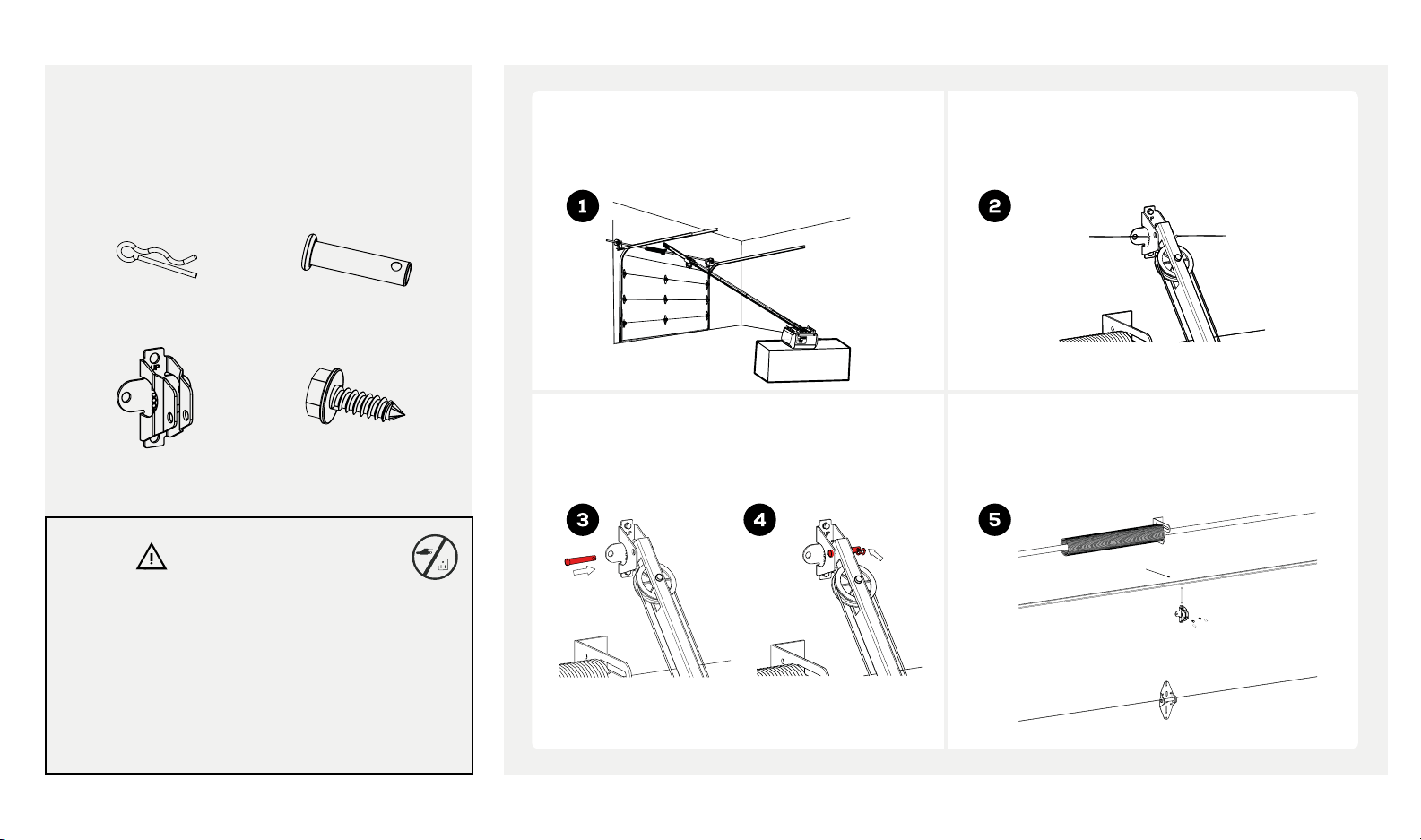

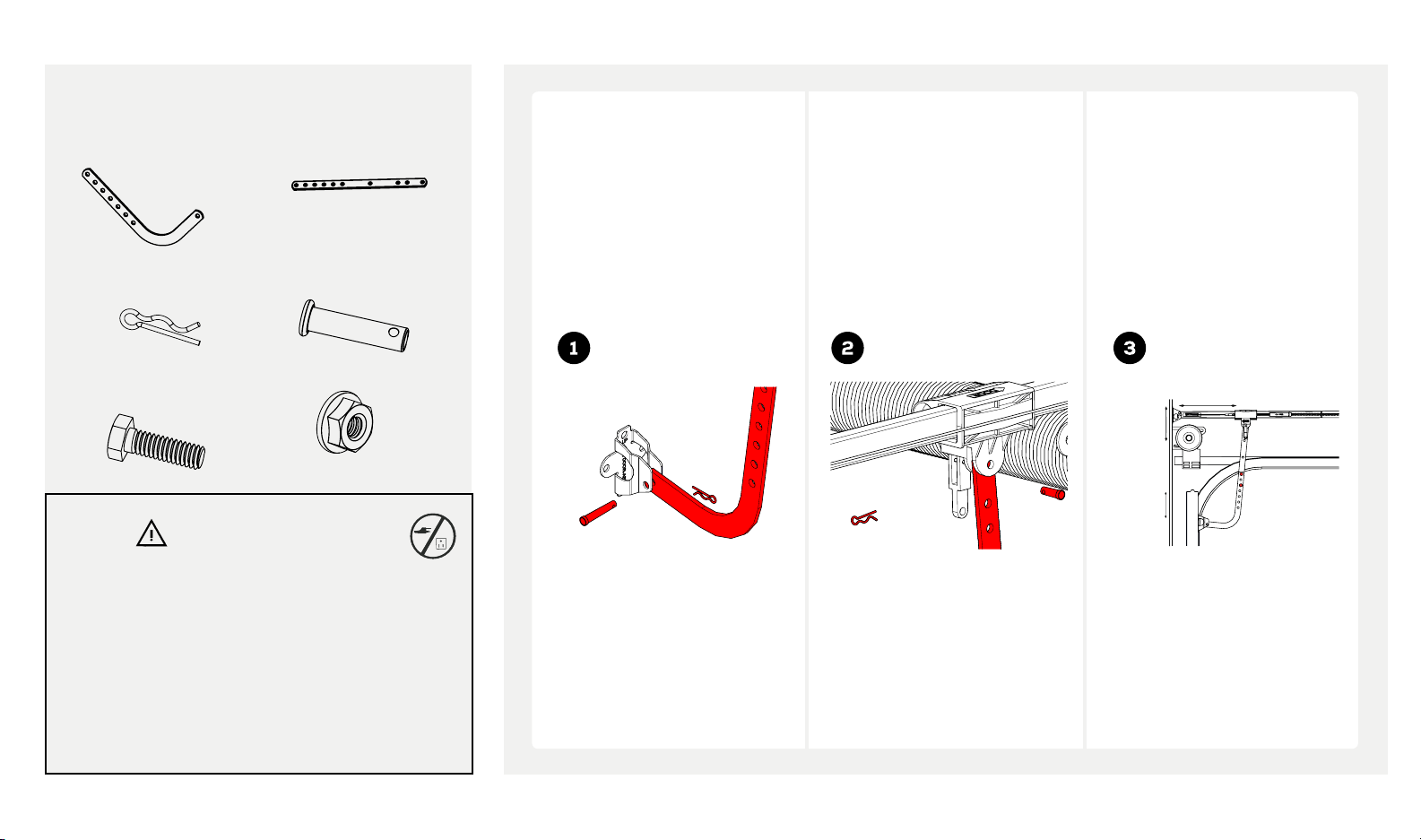

ATTACHING DOOR ARMS
Look in the box for:
3"
(7.6 cm)
8" (20.3 cm)
Curved Door Arm Straight Door Arm
2 x Hitch Pins 2 x Clevis Pins
5/16" x 1"
2 x Bolts
5/16" - 18 x 1"
2 x Flange Nuts
To prevent SERIOUS INJURY:
• DO NOT connect power until instructed.
• Keep hands and fingers away from the sprocket
during operation.
• Wear gloves when installing chain/belt and cable.
• Keep hands and fingers away from joints and
possible sharp edges.
Close your garage door and
disengage trolley. Fasten
curved door arm to the door
bracket with 5/16" x 1" clevis
pin and secure with hitch pin.
Fasten straight door arm to
trolley with a 5/16" x 1" clevis
pin and secure with hitch pin.
Attach door arms with two
5/16" bolts and flange nuts.
Bring straight and curved door
arm together. Find two pairs
of holes that line up and join
sections with two 5/16" bolts
and flange nuts. Select holes as
far apart as possible to increase
door arm rigidity.
WARNING
2"- 4"
16 beamlabs.io 1-800-436-9186

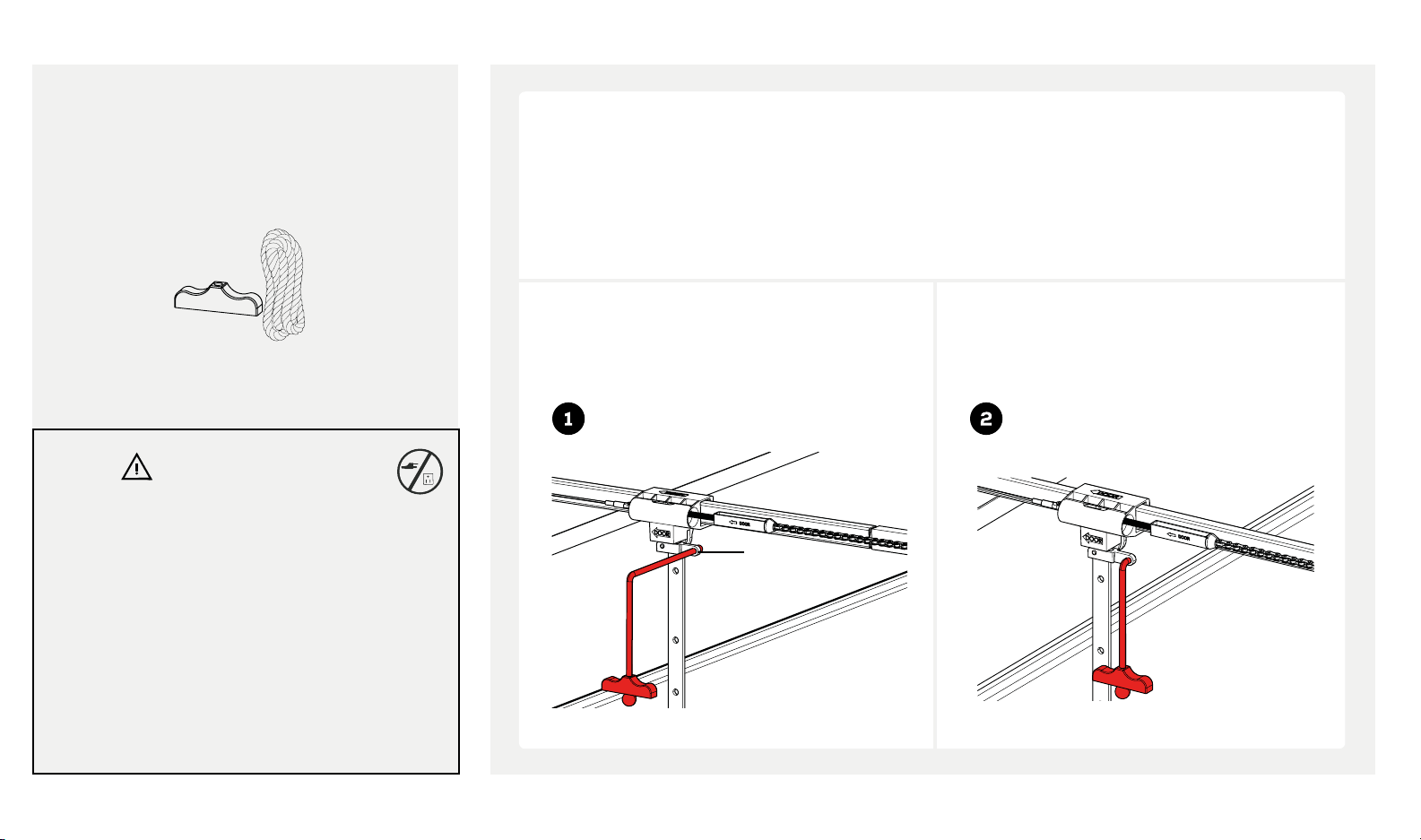

INSTALLING EMERGENCY RELEASE HANDLE
Look in the box for:
Emergency Release Handle
To prevent SERIOUS INJURY:
• In case of power outage or door obstruction, PULL
EMERGENCY HANDLE to release door from opener.
• When trolley is disengaged, (trolley lever pointing
down) door can be operated manually.
• To engage, flip the trolley lever up so it is horizontal.
Trolley will automatically re-engage when garage
door opener is activated.
• DO NOT use emergency handle to pull the door
open or close.
WARNING
* VERY IMPORTANT! *
Emergency release handle must clear all vehicles. An emergency release handle set too low may get caught
by the vehicle and cause damage to the opener. Measure from the floor to the top of your vehicle and set the
emergency release handle above this measurement.
Thread end of rope through handle and secure with
an over hand knot. Thread end of the rope through
hole in trolley lever.
Measure rope length so the handle is 6 feet
(183 cm) above the floor and is clear from the top of
your vehicle. Secure with a overhand knot.
Hole in
Trolley
Lever
beamlabs.io 1-800-436-9186 17
Photos eyes
should be no
more than 6
inches (15.2 cm)
above the floor.
CONNECTING PHOTO EYE SAFETY SYSTEM
Look in the box for:
Mount photo eyes using #12 x 1-1/4" screws provided. Run wire to power head. Use insulated staples
to secure photo eye wires to wall and ceiling.
Take care not to puncture the wires while
securing staples.
Cut and discard excess wire. Use small flat head screwdriver to
push in grey tab on the terminal block located on the rear panel
of the power head. Insert 1/2 inch (1.2 cm) of the wire into the
terminal while pushing in the tab.
* VERY IMPORTANT! *
Strip 7/16 inch (1 cm) of insulation
from the end of the wire.
Each pair of terminals MUST be
connected with one white wire and
one striped wire (non-polarized) from
the SAME photo eye.
Floor mounting
(concrete anchors
not provided)
To prevent SERIOUS INJURY or DEATH from
electrocution:
• Power MUST NOT be connected until instructed.
• The garage door opener will not operate until the
photo eye safety system is properly connected and
aligned.
• Install the photo eye safety system NO higher than
6 inches (15 cm) above the floor.
• No part of garage door or other objects should
obstruct the photo eye safety system during door-
closing.
4 x Screws
#12 x 1-1/4"
7/16 inch
(1 cm)
Alternative mounting location:
Door track mounting
Insulated Staples
Photo Eyes
WARNING
18 beamlabs.io 1-800-436-9186
CONNECTING POWER AND ALIGNING PHOTO EYE SAFETY SYSTEM
* DO NOT OPERATE OPENER AT THIS TIME *
Plug power head into a grounded outlet ONLY. If there
is no grounded outlet present, call a qualified electrician
to replace the outlet. Use of a surge protector is highly
recommended.
Invisible
Light Beam
Aligned
To prevent SERIOUS INJURY or DEATH from
electrocution or fire:
• Power MUST be DISCONNECTED BEFORE
proceeding with permanent wiring procedures.
• Garage door opener installation and wiring MUST
be in compliance with all local electrical and
building codes. Make sure the opener is ALWAYS
grounded.
• NEVER use an extension cord, 2-wire adapter or
modify the power plug in any way to make it fit the
outlet.
To prevent SERIOUS INJURY or DEATH from a closing
garage door:
• The photo eye safety system MUST be installed
BEFORE connecting power.
• The photo eye safety system MUST be properly
connected and aligned BEFORE operating the
opener.
NOTICE:
The garage door opener cannot be programmed
and will not close the door until photo eye safety
system are installed and aligned.
When the photo eye safety system is properly
aligned green LED (emitter) will emit a steady green
light and the red LED (sensor) will emit a steady red
light. The path of the invisible light beam MUST NOT
be obstructed. No part of the garage door or any
hardware should interfere or block either sensor.
The emitter generates the invisible light beam, and
the sensor receives the invisible light beam.
Right
For Permanent Wiring ONLY
Wrong
Steady Red &
Green LED
Conduit with wire
Line (Black)
Neutral (White)
White
Black
(From Transformer)
Ground (Green/Yellow)
Ground Screw (Green)
Brown
Wire nut
Emitter
Green LED ON
Sensor
Red LED ON
WARNING
Green LED (emitter) will flash until it is aligned with
red LED (sensor). Red LED will not illuminate until it
is aligned with green LED.
beamlabs.io 1-800-436-9186 19

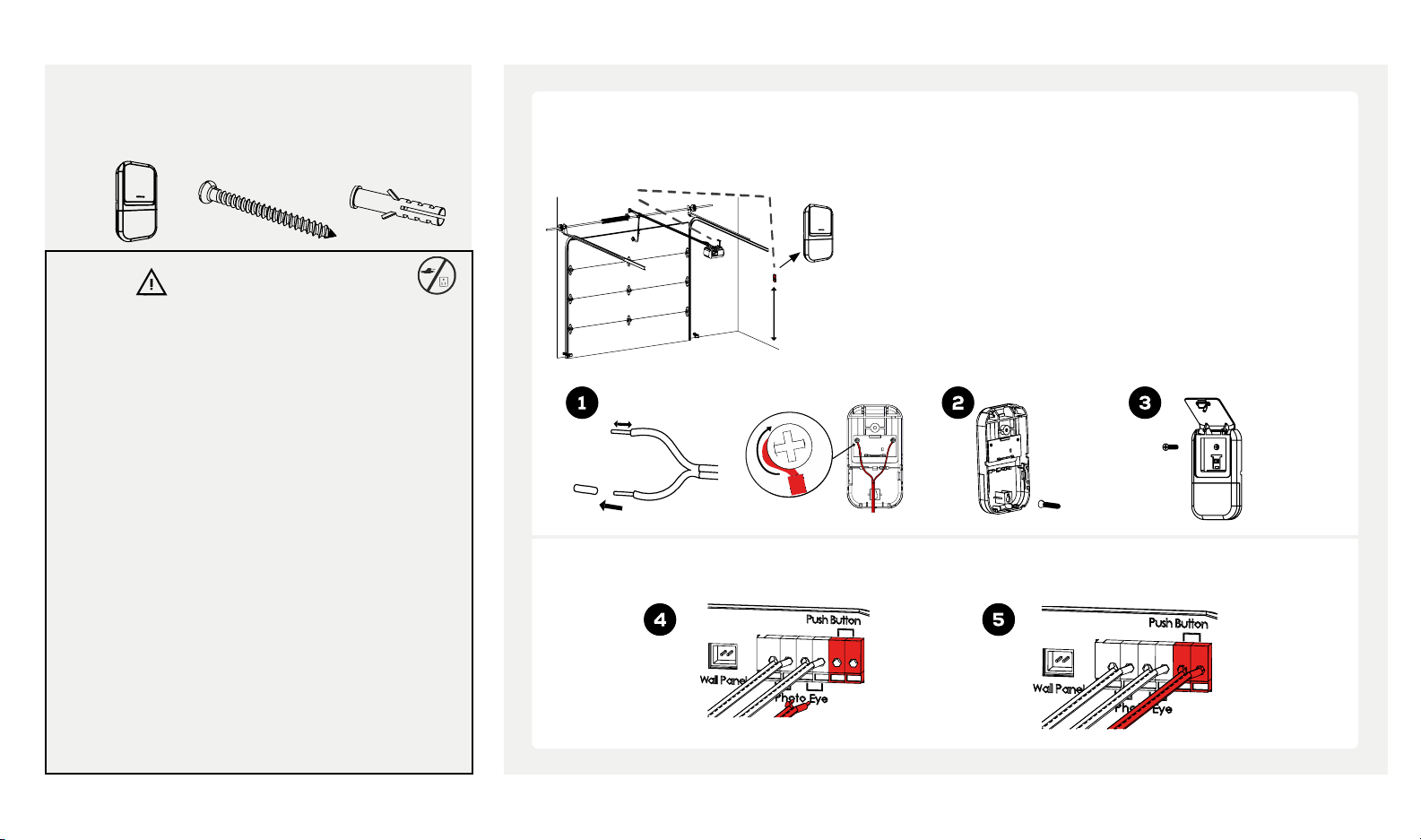

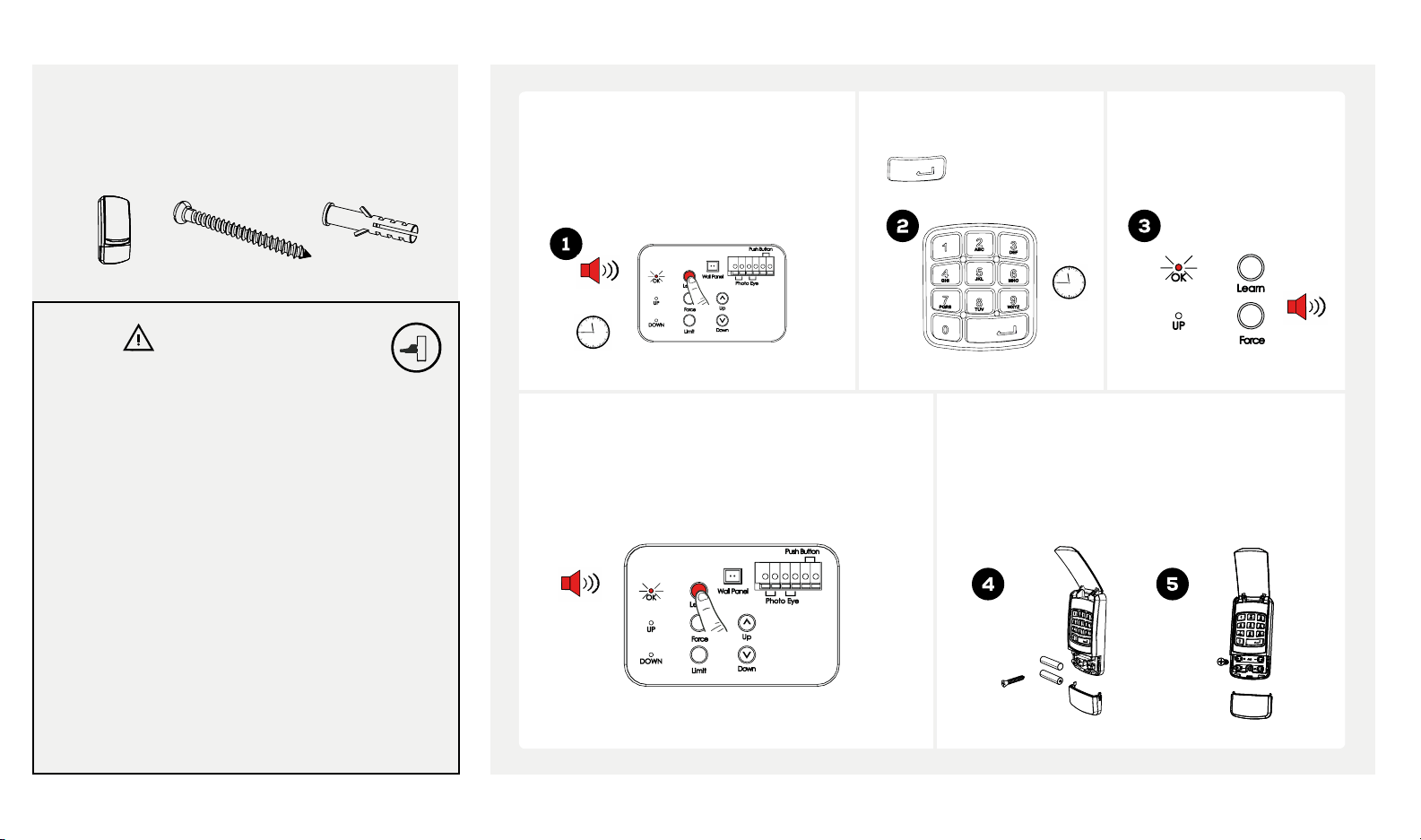

CONNECTING DELUXE DOOR CONTROL (BU400, BU800)
Look in the box for:
*NOTE: Your opener will contain one of two door controls. Follow the instructions corresponding to the control provided.
To prevent SERIOUS INJURY or DEATH from electrocution or fire:
• Be sure power is NOT connected BEFORE installing door
control.
• Connect door control ONLY to 12 VOLT low voltage wires.
To prevent SERIOUS INJURY or DEATH from a closing garage
door:
• Install door control within sight of garage door, at a minimum
height of 5 feet (1.5 m) so small children are not able to reach
it, and away from ALL moving parts of door.
• NEVER permit children to operate or play with door control
or remote controls.
• Activate garage door opener ONLY when door can be seen
clearly, is properly adjusted, and there are no obstructions to
door travel.
• ALWAYS keep a moving garage door in sight until completely
closed. NEVER cross path of moving garage door.
WARNING
Wire deluxe door control to power
head as shown.
1. Strip 7/16 inch (11 mm) of insulation from wire and separate wires.
2. Connect one wire to each of the two screws on the back of the
door control. *DO NOT RECOMMEND USING PRE-EXISTING
WIRE*
3. Mark the location of bottom mounting hole and drill 5/32 inch hole.
4 Install the bottom screw and allow 1/8 inch (3 mm) to protrude
from wall. Note: Use anchors if mounting to drywall.
5. Position bottom hole of door control over the screw and slide
down into place.
6. Li actuation button and mark the top hole. Remove the door
control from wall and drill 5/32 inch hole for top screw
7. Position bottom hole of door control over the screw and slide
down into place. Fasten the top screw
Deluxe Door
Control
Connect plug from deluxe door control to wall panel outlet on the back panel of the power head.
**If using pre-existing wire you may cut off plug and splice to existing wire**
Min. 5 feet
(1.52 m)
above floor
See how to use deluxe door
control on page 20.
Bottom screw
Top screw
Deluxe Door
Control*
2 x Lag Screws
#6 x 1-3/8"
2 x Anchors
1/4" (6mm)
20 beamlabs.io 1-800-436-9186

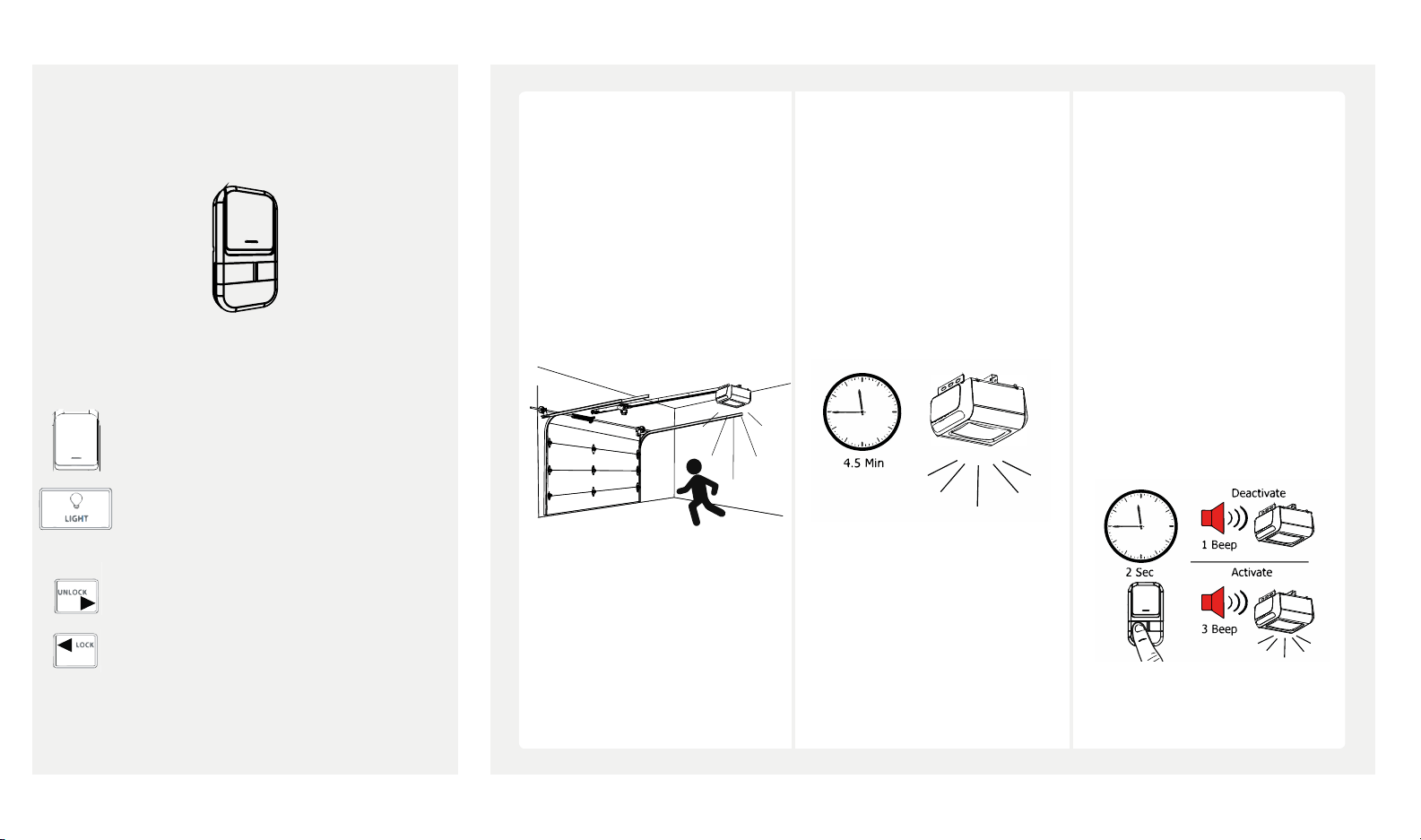

Security lighting is activated
and remains on for 4.5
minutes when garage door
opener is operated.
Motion sensing is turned on
by default and will activate
security lighting when motion
is detected within the garage.
Security lighting will remain
illuminated for 4.5 minutes or
for as long as there is motion in
the garage.
*Note - if you wish to turn off
security lighting when motion
sensing is activated press the
“LIGHT” button and security
lighting will turn off and remain
off for 25 seconds. If motion
is detected aer 25 seconds,
security lighting will turn on.*
To deactivate motion sensing:
Press and hold “LIGHT" button
for 2 seconds. The power head
will beep once to indicate
motion sensing has been
deactivated.
To active motion sensing: Press
and hold “LIGHT” button for 2
seconds. The power head will
beep 3x to indicate motion
sensing has been activated.
MOTION ACTIVATED SECURITY LIGHTING (BU400, BU800)

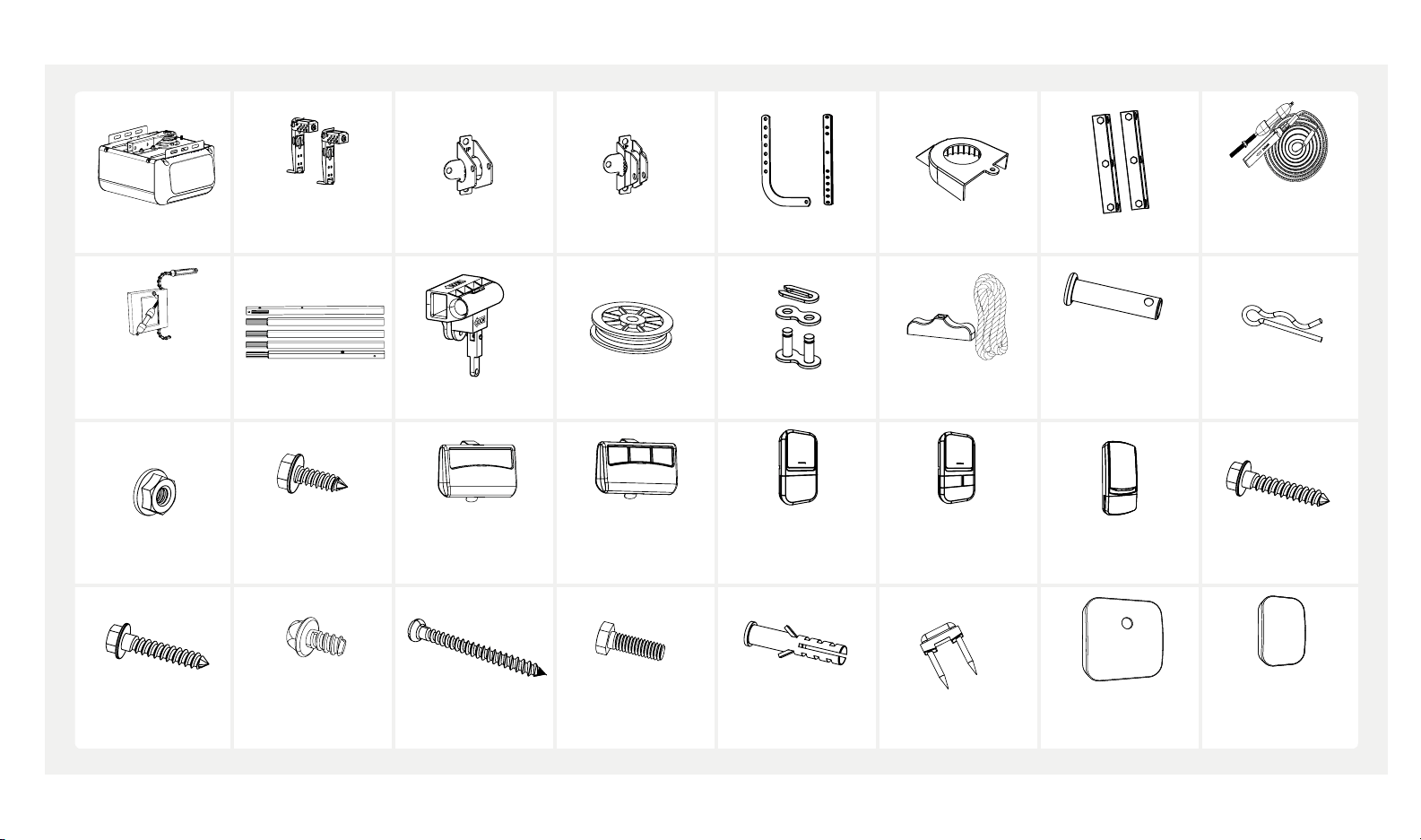

Look in the box for:
Deluxe Door Control
Using the Deluxe Door Control
ONLY aer Installation is completed
Door-Press and release to open/close the door.
Press and hold to activate/deactivate motion sensing
security lighting. Turns the courtesy light on/off.
Vacation Lock
Unlock - Slide lock button to the right to enable all
remotes, door control and accessories.
Lock - Slide lock button to the right to disable all
remotes, door control and accessories.
beamlabs.io 1-800-436-9186 21
CONNECTING STANDARD DOOR CONTROL (BU100)
Look in the box for:
*NOTE: Your opener will contain one of two door controls. Follow the instructions corresponding to the control provided.
WARNING
To prevent SERIOUS INJURY or DEATH from electrocution or
fire:
• Be sure power is NOT connected BEFORE installing door
control.
• Connect door control ONLY to 12 VOLT low voltage wires.
To prevent SERIOUS INJURY or DEATH from a closing garage
door:
• Install door control within sight of garage door, at a
minimum height of 5 feet (1.5 m) so small children are not
able to reach it, and away from ALL moving parts of door.
• NEVER permit children to operate or play with door
control or remote controls.
• Activate garage door opener ONLY when door can
be seen clearly, is properly adjusted, and there are no
obstructions to door travel.
• ALWAYS keep a moving garage door in sight until
completely closed. NEVER cross path of moving garage
door.
Standard Door
Control
2 x Lag Screws
#6 x 1-3/8"
2 x Anchors
1/4" (6mm)
Connect the wire from the standard door control to the push button terminal on the rear panel of the power head.
Wire standard door control to
opener as shown.
Standard Door
Control
Bottom screw
Top screw
1. Strip 7/16 inch (11 mm) of insulation from wire and separate wires.
2. Connect one wire to each of the two screws on the back of the
door control. *DO NOT RECOMMEND USING PRE-EXISTING
WIRE*
3. Mark the location of bottom mounting hole and drill 5/32 inch hole.
4 Install the bottom screw and allow 1/8 inch (3 mm) to protrude
from wall. Note: Use anchors if mounting to drywall.
5. Position bottom hole of door control over the screw and slide
down into place.
6. Li actuation button and mark the top hole. Remove the door
control from wall and drill 5/32 inch hole for top screw.
7. Position bottom hole of door control over the screw and slide
down into place. Fasten the top screw.
Min. 5 feet
(1.52 m)
above floor
BEFORE WE START PROGRAMMING THE OPENER
22 beamlabs.io 1-800-436-9186
Before programming the garage door opener please ensure the following steps are completed:
Door is fully closed. Photo eyes are aligned. Trolley sha is engaged with trolley.
Aligned
Steady Red &
Green LED
Emitter
Green LED ON
Sensor
Red LED ON
To engage trolley sha with trolley.
Flip lever on trolley so it is in engage
position (horizontal and pointing at
the opener)
If trolley sha is closer to the opener
(behind the trolley): press and
release “Limit” button and then
press and hold the red “DOWN”
button to move trolley sha towards
the door. There will be an audible
click once the trolley sha is
engaged with trolley.
If trolley sha is closer to the
door (in front of the trolley): press
and release “Limit” button and
then press and hold the green
“UP” button to move trolley sha
towards the opener. There will be
an audible click once the trolley
sha is engaged with trolley.
Trolley in engaged
position
Trolley Sha
beamlabs.io 1-800-436-9186 23
TRAVEL LIMIT ADJUSTMENT - UP LIMIT

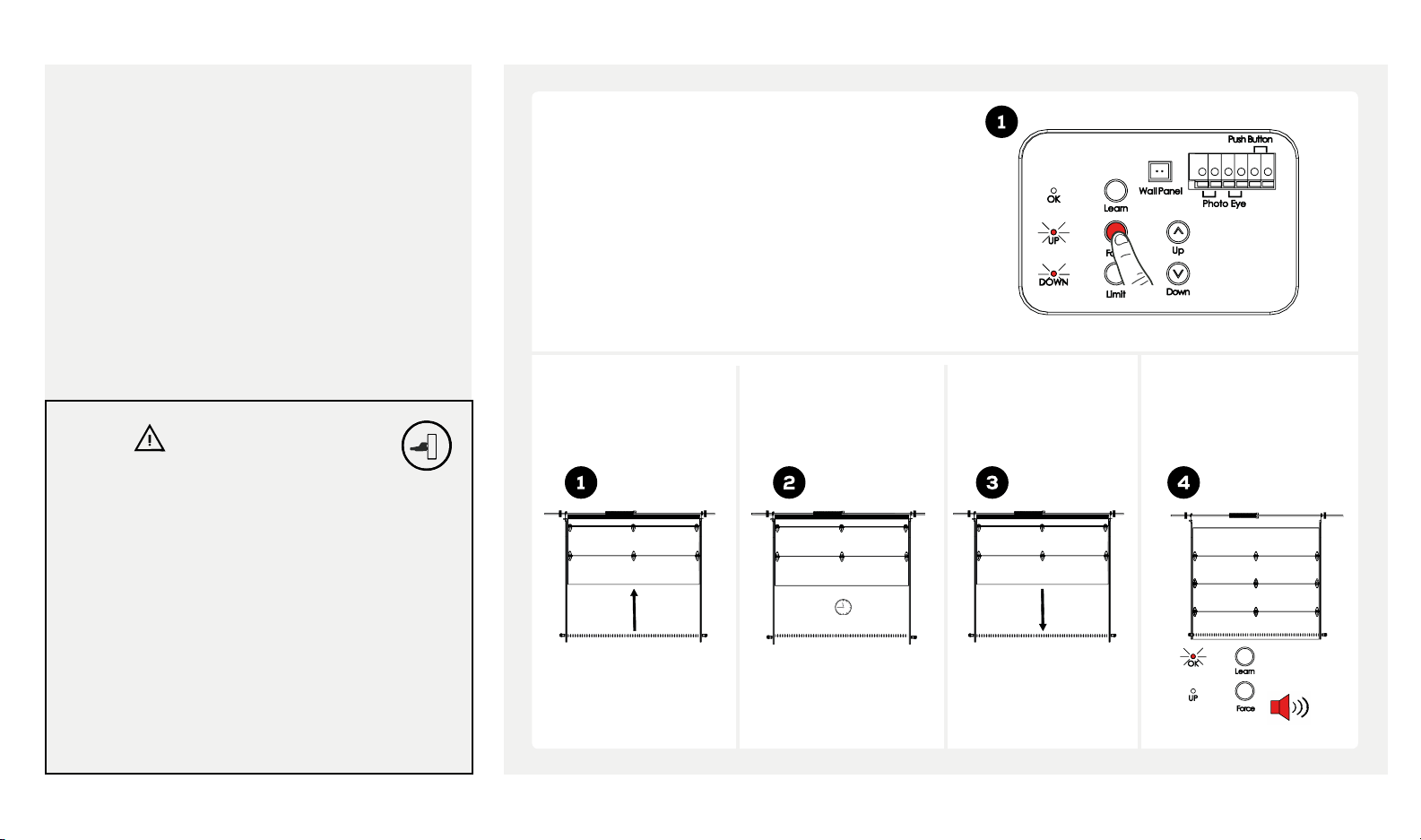

Press and release “Limit” button, the green (UP) LED will illuminate. Press and hold the “Up” button until door
reaches desired open position.
Press and release
LIMIT just once
Press and release LIMIT just once
To prevent SERIOUS INJURY or DEATH from
improper Force Adjustment:
• YOU CANNOT adjust force manually to compensate
for binding or sticking of the garage door. Call
a qualified garage door service person to make
necessary adjustments in case of binding.
• YOU CANNOT manually increase the force required
for closing the door.
• Aer ANY adjustments, Safety Reversal Test MUST
be performed to ensure the door reverses on contact
with a 1-1/2 inch (3.8 cm) high object (2x4 laid flat).
Press and hold UP
* DO NOT HIT STOP BOLT *
There should be a minimum 2 inch (5 cm) gap
between trolley and stop bolt.
Once the door is at the desired open position,
press and release the “Limit” button once. The
“OK” LED flashes and turns off. The UP Limit has
now been set.
Minimum 2 inch (5 cm) gap
Stop Bolt Trolley
NOTICE:
Travel limits and auto force setting must be set for
the opener to work. All steps on pages 23-25 must
be followed.
WARNING
Desired
UP limit
24 beamlabs.io 1-800-436-9186
TRAVEL LIMIT ADJUSTMENT - DOWN LIMIT
Press and release “Limit” button twice, the red (DOWN) LED will illuminate. Press and hold the “Down” button
until door reaches desired close position.
Once the door is at the desired close position, press and release the “Limit” button once. The “OK” LED flashes
and turns off. The DOWN Limit has now been set.
To prevent SERIOUS INJURY or DEATH from
improper Force Adjustment:
• YOU CANNOT adjust force manually to compensate
for binding or sticking of the garage door. Call
a qualified garage door service person to make
necessary adjustments in case of binding.
• YOU CANNOT manually increase the force required
for closing the door.
• Aer ANY adjustments, Safety Reversal Test MUST
be performed to ensure the door reverses on
contact with a 1-1/2 inch (3.8 cm) high object (2x4
laid flat).
Press and release
LIMIT twice
Press and hold DOWN
Desired DOWN limit
Press and release LIMIT just once
NOTICE:
Travel limits and auto force setting must be set for
the opener to work. All steps on pages 23-25 must
be followed.
WARNING
beamlabs.io 1-800-436-9186 25
SETTING THE FORCE
Once UP and DOWN limits are set, ensure both UP and
DOWN LEDs are illuminated. *if necessary toggle “Limit”
button until both LEDs are illuminated*
Press and release the “Force” button once. Door will travel
one complete cycle followed by flashing of the “OK” LED
and 3 beeps. Programming is now complete.
The door will travel
UP automatically.
Door will then
travel DOWN
automatically.
Stop at UP limit for 2
seconds.
OK indicator (orange)
will flash with beeps,
Auto Force Setting is
completed.
Flash and 2
beeps
To prevent SERIOUS INJURY or DEATH from
improper Force Adjustment:
• YOU CANNOT adjust force manually to compensate
for binding or sticking of the garage door. Call
a qualified garage door service person to make
necessary adjustments in case of binding.
• YOU CANNOT manually increase the force required
for closing the door.
• Aer ANY adjustments, Safety Reversal Test MUST
be performed to ensure the door reverses on
contact with a 1-1/2 inch (3.8 cm) high object (2x4
laid flat).
2 sec
NOTICE:
Travel limits and auto force setting must be set for
the opener to work. All steps on pages 23-25 must
be followed.
WARNING
26 beamlabs.io 1-800-436-9186
Open door using
door control.
Test the Safety Reversal System
FINAL ADJUSTMENTS AND TESTING
Test the Photo Eye Safety System
1. Open door by using the door control.
2. Make sure photo eye safety system is aligned with
both the red and green LEDs illuminated. If not,
refer back to pages 17-18.
3. Place the garage door opener carton in the path of
the door.
4. Keeping the door in sight press the door control
or remote control to close the door
Door should NOT move more than 1 inch (2.5 cm) and
the garage door opener will beep and flash 20 times.
1-1/2 inch (3.8 cm) solid object
To prevent SERIOUS INJURY or DEATH from a
closing garage door:
• The Safety Reversal Test MUST be conducted ONCE
A MONTH.
• NO ONE should cross the path of moving door
during operation and/or testing.
• Aer ANY adjustments to the door system, the
Safety Reversal Test MUST be performed to ensure
the door reverses on contact with a 1-1/2 inch
(3.8 cm) thick (2x4 laid flat) object.
• The Photo Eye Safety System MUST be properly
aligned, and tested regularly.
Place a 1-1/2 inch (3.8cm)
flat solid object on the floor,
centered under the garage door.
Use door control or remote to close door.
Door MUST reverse* upon making contact
with the object.
beeps upon
contact
Emitter Sensor
Green LED
Flashes
Red LED
OFF
20 beeps and
reverses upon
obstruction
* If door does not reverse, return to page 21, reprogram the operator, taking care to set the down limit lower than initially.
NOTICE:
Travel limits and auto force setting must be set for
the opener to work. All steps on pages 23-25 must
be followed.
WARNING
beamlabs.io 1-800-436-9186 27
PROGRAMMING HANDHELD REMOTE CONTROL
*
Look in the box for:
Single Button Remote
BU100
Three Button Remote
BU400 & BU800
To prevent SERIOUS INJURY or DEATH:
• Keep remote control and battery out of reach of
children.
• NEVER permit children to access door control or
remote control.
• Operate the door ONLY when it is properly
adjusted, and there are no obstructions present.
• ALWAYS keep a moving door in sight until
completely closed. NEVER cross the path of a
moving door.
To reduce risk of fire, explosion or electric shock:
• DO NOT short circuit, recharge, dissemble or heat
the battery.
• Replace with a CR2032 3 volt battery ONLY.
*NOTE: Your opener will contain one of two different remote controls. Follow the instructions corresponding to the remote control provided.

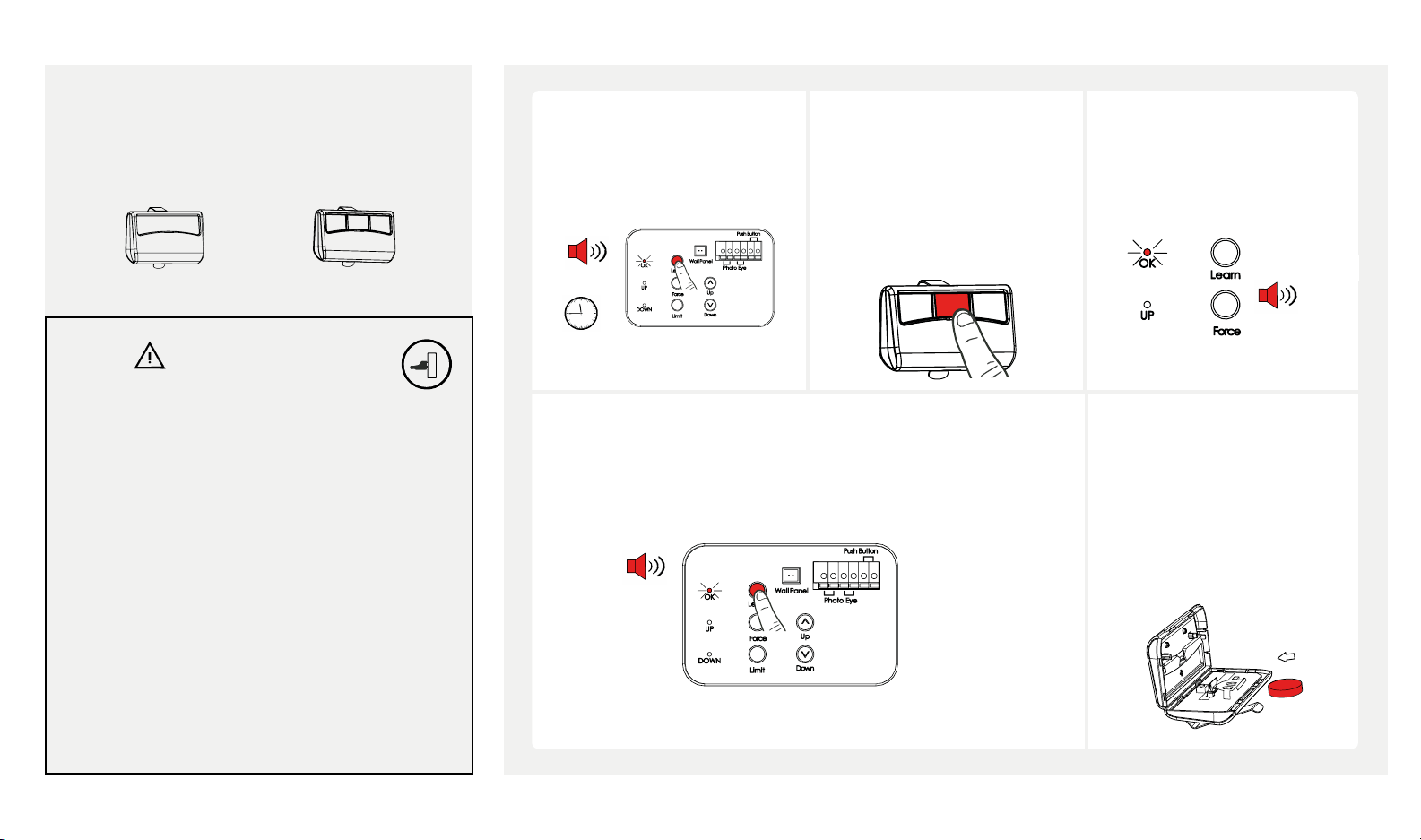

1. Press and release the “Learn”
button.
2. The “OK” LED will illuminate
indicating ready for
programming.
Erasing ALL remote controls from memory:
To erase ALL remote controls from memory, press and hold “Learn”
button for 3 seconds. “OK” LED will flash and beep three times
indicating all remotes have been erased from memory.
When battery of hand held
remote control is low, indicator
LED will become dim and/or
range of remote control will
decrease. To replace battery,
remove battery cover from
remote control. Replace with a
CR2032 3 volt battery.
3. Press desired button on
remote control within 30
seconds to program.
*Additional buttons on remote
can be used to program
multiple beamUP garage door
openers*
Press and release LEARN
Beeps
30 sec
Beeps
Press and hold
LEARN 3 sec
2 x beeps
2 x flashes
WARNING
The “OK” LED flashes twice
followed by two beeps to
confirm remote has been
programmed.
28 beamlabs.io 1-800-436-9186
Enter your 2-6 digit PIN within
30 seconds and press the
ENTER button.
PROGRAMMING WIRELESS KEYPAD (BU800)
Look in the box for:
Wireless
keypad*
2 x Lag Screws
#6 x 1-3/8"
2 x Anchors
*NOTE: If your model is provided with a Wireless Keypad, follow the programming instructions on this page.
To prevent SERIOUS INJURY or DEATH:
• Keep remote control and battery out of reach of
children.
• Never permit children to access the door control or
remote control.
• Operate door ONLY when it is adjusted properly with
no obstructions to door travel and is in clear sight.
• ALWAYS keep a moving door in sight until
completely closed. NO ONE should cross the path
of a moving door.
To reduce risk of fire, explosion or electric shock:
• DO NOT short circuit, recharge, disassemble or
heat battery.
• Replace with 2 x AAA batteries ONLY. Dispose of
batteries properly.
1. Press and release the “Learn” button.
2. The “OK” LED will illuminate
indicating ready for programming.
3. Garage door opener is ready to accept
PIN within the next 30 seconds.
"OK" LED will flash and beep
twice indicating code is set.
30 sec
Press and hold LEARN for 3 seconds
Erasing ALL remote controls from memory:
To erase ALL remote controls from memory, press
and hold “Learn” button for 3 seconds. “OK”
LED will flash and beep three times indicating all
remotes have been erased from memory.
Wireless keypad may be secured on door jamb
outside your garage. Install keypad within sight
of door at minimum height of 5 feet (1.5 m). Test
the range of the keypad before mounting. Find an
alternative mounting location if range is insufficient.
2 x beeps
2 x flashes
2 x beeps
Press and release LEARN
Beeps
30 sec
WARNING
beamlabs.io 1-800-436-9186 29
INSTALLING THE SMART GARAGE DOOR CONTROLLER (BU400, BU800)
Look in the box for:
Controller Wireless Door Sensor
Installation and programming of your beamUP garage door opener is now complete.
• Locate the beam Smart Garage Door Controller
• Follow instructions in the Smart Garage Door Controller installation guide to add smart phone control to your
beamUP garage door opener.
To reduce the risk of injury to persons:
• Use this Smart Control Kit only with residential
sectional garage doors.
• Do not enable this device on a one-piece or
swinging garage door.
• Do not use this device on garage door openers
made before 1993 without a working photo eye
safety system.
WARNING
30 beamlabs.io 1-800-436-9186
USING YOUR GARAGE DOOR OPENER
To prevent SERIOUS INJURY or DEATH:
• READ AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS IN THE OWNER’S MANUAL AND
LABELS
• Keep remote control and batteries out of reach of
children.
• NEVER permit children to access door controls or
remote controls.
• Operate the door ONLY when it is properly
adjusted, and there are no obstructions and is in
clear sight.
• ALWAYS keep a moving door in sight until
completely closed. NEVER cross the path of a
moving door.
• Aer ANY adjustments, the Safety Reversal Test
MUST be performed to ensure the door reverses on
contact with a 1-1/2 inch (3.8 cm) thick object (2x4
laid flat).
• ALWAYS ensure that your door is balanced and in
good working condition.
Activating the Opener
WARNING
Door Control
Wireless Keypad
Handheld Remote
Control
Controls Operation
Momentary press large “ACTUATOR” button on the door control, the door
starts to move, and controls as follows:
• Open or close the door.
• Stops the door while closing
• Stops the door while it is opening.
Remote distance up to 100 feet in open field. For safety concerns, the
handheld remote control WILL NOT work if the photo eye safety system is
not properly installed and aligned or if vacation lock is activated.
Program the wireless keypad accordingly and access the door using the
PIN code.
beamlabs.io 1-800-436-9186 31
USING YOUR GARAGE DOOR OPENER
To prevent SERIOUS INJURY or DEATH:
• Use emergency release to disconnect trolley
ONLY when the door is CLOSED to prevent
unexpected rapid falling in case of a unbalanced /
poor-conditioned door.
• Use emergency release ONLY when doorway is
clear of persons and obstructions.
• DO NOT use emergency release to pull the door
open or closed.
Door Status Activation Using Door Control / Remote Control
Door at fully open / close position Door will move to fully close / open position
Door is closing Door will stop. Upon next activation door will reverse to fully
open position.
Door is opening Door will stop. Upon next activation door will continue to open.
Door is obstructed while closing Door will reverse and beep x 25
Door is obstructed while opening Door will stop and beep x 25
Door is fully opened and photo eye Door will not close and beep x 20
safety system is obstructed
Door Status vs. Activation
WARNING
32 beamlabs.io 1-800-436-9186
USING YOUR GARAGE DOOR OPENER
To prevent SERIOUS INJURY or DEATH:
• Use emergency release to disconnect trolley
ONLY when the door is CLOSED to prevent
unexpected rapid falling in case of a unbalanced /
poor-conditioned door.
• Use emergency release ONLY when doorway is
clear of persons and obstructions.
• DO NOT use emergency release to pull the door
open or closed.
Operation / Condition Courtesy Light / Buzzer Responses
Opener is initially plugged-in (no travel limits stored UP and DOWN indicators blink 5 times
see pages 23-25):
Reconnecting power (with travel limits stored) Light On for 4.5 minutes
“LEARN” button is pressed Beep x 1, OK indicator glows
Upon activation Light on for 4.5 minutes
Upon activation by remote controls Beep x 1, Light on for 4.5 minutes
Remote control / keyless entry PIN Beep x 2
code stored successfully
Photo eye safety system is obstructed during door-closing Beep x 20
The door is obstructed during travel Beep x 25
Door travels with abnormal speed Beep x 12 (1 beep / second)
Courtesy Light / Buzzer Responses
WARNING
beamlabs.io 1-800-436-9186 33
USING YOUR GARAGE DOOR OPENER
Manual Operation
In case of a power failure or door obstruction, PULL EMERGENCY HANDLE to release door from opener.
To Disengage Trolley for Manual Operation
With door closed, pull down emergency handle to disengage position. Door can be raised / lowered manually.
To Engage Trolley
Pull the handle toward opener so that lever will flip up to engage position. Trolley will reconnect itself when
opener is activated or when the door is manually opened /closed.
Lever
Emergency Release Handle
Engage:
Pull to disengage
Disengage:
Flip to engage
34 beamlabs.io 1-800-436-9186
USING YOUR GARAGE DOOR OPENER
Using the Deluxe Door Control
(ONLY aer programming has been completed)
Door – Press and release to open/close the door
Light – Turns the courtesy light on/off
Press and hold to activate/deactivate motion sensing security lighting
Vacation Lock
Unlock – Slide lock button to the right to enable all remotes, door control and accessories.
Lock – Slide lock button to the le to disable all remotes, door control and accessories.
beamlabs.io 1-800-436-9186 35
TROUBLESHOOTING
NOTICE
Opener will not work until you set the travel limits
and the auto force adjustment. You must follow all
steps located on pages 23-25.
So open / So close feature: opener is designed
to start slowly, accelerate to full speed, then slowly
stop. So open/close is designed to reduce strain
on openers components and to improve opener
longevity.
Problem Possible Cause / Solution
Opener does not close and beeps x 20 The photo eye may be obstructed, not properly aligned or
installed, check connection and alignment by referring to
page 17.
Opener does not respond to • Refer to page 27 to reprogram remote control.
remote control
• Check remote control battery and vacation switch if
deluxe door control is installed.
Opener stops before reaching full Travel Limit is not properly set, check adjustment
open / close position referring to pages 23-25. Conduct safety reverse test aer
ANY adjustment.
Door reverses unintentionally • Make sure the photo eye safety system is aligned
and clear of obstructions.
• Refer to page 3
to check the door balance
• Refer to pages 23-25 to reset travel limits and force
adjustment.
Door reverses and courtesy light flashes Refer to pages 23-25 to reset travel limits and force
adjustment.
Opener does not close the door and
The photo eye safety system is misaligned or
LED on one of photo eyes flashes obstructed, refer to page 17-18 for proper alignment.
36 beamlabs.io 1-800-436-9186
TROUBLESHOOTING
Problem Possible Cause / Solution
Opener is working properly but Replace LED cluster.
courtesy light does not turn on
Courtesy light does not turn off Replace logic board.
Opener hums as trolley hits the 1. Disconnect trolley by using the emergency release.
trolley stop
2. Close door manually.
3. Relieve chain-to-cable connector by loosening both,
refer to page 8.
4. Operate opener so trolley sha travels towards door
(trolley should be kept disengaged).
5. Refer to page 23 to reset UP Limit.
6. Refer to page 8 to re-tighten chain-to-cable connector
until it is 1/4 inches (.64 cm) above the base of rail
(reference the figure shown on page 8).
7.
Repeat the above steps if trolley still hits the stop bolt.
beamlabs.io 1-800-436-9186 37
MAINTENANCE
Schedule Maintenance
Once a month Door balance test, refer to page 3.
Twice a year Safety reversal test, refer to page 26.
Once a year Check cable/chain tension (refer to page 8 for
adjustment if necessary).
• Limit and Force adjustment may be necessary due to
weather conditions. Refer to pages 23-25 for adjustment.
Conduct Safety Reversal Test aer ANY adjustments.
• Lubricate door rollers, bearings and hinges. The opener
is permanently lubricated, DO NOT lubricate or grease
the opener, rail or door tracks.
38 beamlabs.io 1-800-436-9186
WARRANTY
Manufacturer hereby warrants to the original purchaser, for initial residence in which it
is installed:
1. Garage Door Operators to be free from defects in material and workmanship for
a period of one (1) year from date of purchase. The model BU100 motor is to be free
from defects in materials and workmanship for 5-years from the date of purchase.
The models BU400 and BU800 motor is to be free from defects in materials and
workmanship for the lifetime of the product.
2. Where the garage door operator has need to be returned to the Manufacturer for
Warranty repairs, all costs incurred in the return will be paid for by the purchaser. Call
1-800-436-9186 prior to dismantling the product. If in the opinion of the Manufacturer
the product is faulty, all defective parts will be replaced at no charge to the purchaser.
3. Proof of purchase must be given to the Manufacturer at time of Warranty claim.
4. The Manufacturer reserves the right to modify any existing or future products
without incurring any obligation to incorporate such modification to products already
manufactured or to which this Warranty may relate.
5. Warranty only applies if this product has been installed to the Manufacturer's
instructions.
6. This Warranty does not apply to any defect, loss or damage arising or caused
directly or indirectly by or as a result of :
(i) Any defect (including detects in component parts or accessories) arising from or
attributable to the failure to carry out normal preventive maintenance or adjustment
itself.
(ii) To any additional damage or deterioration arising from attributable to the operation
of the Operator aer it is known to be defective.
7. Not included in Warranty:
(i) Batteries
(ii) Fuses
(iii) Sensitivity adjustment
(iv) Handheld Remote Controls and receiver range
8. Note : All Warranties will be void subject to:
(i) Water damage and condensation
(ii) Power supply black out or surge
(iii) Act of God
(iv) Modification or adjustment by unauthorized persons
(v) Any interference from radio (including citizen band radios or and other electronic
device)
(vi) Preventative maintenance and regular servicing not undertaken
(vii) Account not paid in full by the purchaser
beamlabs.io 1-800-436-9186 39
WARRANTY
9. Subject only to the provisions of the Trade Practices Act and any legislation of the
State or Territory wherein the operators of the Manufacturer have been sold or installed
(which may confer certain rights on consumers of goods and those rights by such
legislation may be rendered incapable of exclusion) this Warranty supersedes and
excludes all representations, warranties and conditions whether expressed or implied
by law and the Manufacturer shall have no liability or otherwise than herein provided
for any loss and damage (including consequential loss and damage, loss of use or
profits) by reasons of delay, defective or faulty materials or workmanship, negligence
or any act, matter or thing done permitted or omitted to be done by the Manufacturer.
Warranty
THIS WARRANTY FORM SHOULD BE COMPLETED AT TIME OF INSTALLATION
This Warranty Form should be retained by the purchaser at all times and produced
with the purchase docket by the
Purchaser as proof of the purchase date ___________________________________
PURCHASER’S NAME:_______________________________________________
PURCHASER’S ADDRESS:____________________________________________
INSTALLED BY:____________________________________________________
SERIAL NUMBER OF THE OPERATOR: __________________________________
beamUP Service
Owners are encouraged to register their product on www.beamlabs.io
Helpuful product and troubleshooting information may be found online at
www.beamlabs.io
Service number : 1-800-436-9186
Please have the following information when you call:
• Model number of the operator
• Serial number of the operator
40 beamlabs.io 1-800-436-9186
WARRANTY
Por la presente, el fabricante garantiza que al primer comprador (usuario) de este
producto, en uso de la residencia en que fuera originalmente instalado:
1. Los operadores de la puerta de garaje responden por defectos de material y mano
de obra por un periodo de un (1) año de la fecha de compra. El motor del modelo
BU100 responde por defectos de material y mano de obra por un periodo de cinco (5)
años de la fecha de compra. El motor de los modelos BU400 y BU800 responden por
defectos de material y mano de obra por el total de vida del producto.
2. En el momento del reclamo de garantía, se debe entregar al fabricante la prueba de
compra. Llama al 1-800-436-9186 antes de desmontar el producto.
3. El fabricante se reserva el derecho de modificar cualquier producto existente
o futuro, sin incurrir en ninguna obligación de incorporar tal modificación a los
productos que ya están fabricados o a los que pueda referir esta garantía.
4. La garantía sólo aplica si el producto ha sido instalado bajo las instrucciones del
fabricante.
5. Esta garantía no aplica a ningún defecto, pérdida o daño derivados o causados de
manera directa o indirecta por o como resultado de:
(i) Cualquier defecto (incluyendo los defectos en las partes componentes o accesorias)
que surja de, o que sea atribuible a, la falta de la ejecución del mantenimiento
preventivo normal o del ajuste del mismo.
(ii) Cualquier daño adicional o el deterioro que surja atribuible al hecho de que el
operador la hace funcionar después de que se sabe que está defectuosa.
6. No están incluidos en la garantía:
(i) Pilas
(ii) Fusibles
(iii) Ajustes de sensibilidad
(iv) Los controles remotos manuales y el alcance del receptor
7. Tenga en cuenta que: todas las garantías estarán sujetas a:
(i) Los daños por agua y la condensación
(ii) El apagón del suministro de energía o sobretensión
(iii) Los desastres naturales
(iv) Las modificaciones y ajustes realizados por personas no autorizadas
(v) Cualquier interferencia de radio (incluyendo las radios de banda ciudadanas u otro
dispositivo electrónico)
(vi) El no emprendimiento del mantenimiento preventivo y el servicio de
mantenimiento regular
(vii) La cuenta no pagada en su totalidad por parte del comprador.
8. Sujeta únicamente a las disposiciones de la Ley de prácticas comerciales y de
cualquier legislación del estado o territorio en el que los operadores del fabricante
han sido vendidos o instalados (que pueden conferir ciertos derechos para los
consumidores de bienes y esos derechos, por dicha legislación, pueden traducirse
como imposibles de exclusión) esta garantía reemplaza y excluye todas las
representaciones, garantías y condiciones ya sea expresas o implícitas por la ley y el
fabricante no tendrá responsabilidad o de otro tipo distinto al que se ha establecido
aquí por cualquier pérdida o daño (incluyendo pérdidas o daños consecuenciales,
beamlabs.io 1-800-436-9186 41
WARRANTY
pérdidas por el uso o ganancias) por razones de retraso, materiales o mano de obra
defectuosos o en falta, negligencia o cualquier acto, hecho o cosa realizada que el
fabricante permitida u omitida que se haga.
GARANTÍA
ESTE FORMULARIO DE GARANTÍA DEBE LLENARSE EN EL MOMENTO DE LA
INSTALACIÓN.
Este formulario de garantía lo debe conservar el comprador todo el tiempo y producir
con la factura de compra el comprador como prueba de la fecha de compra.
NOMBRE DEL COMPRADOR:___________________________________________
DIRECCIÓN DEL COMPRADOR:_________________________________________
INSTALADO POR:___________________________________________________
NÚMERO DE SERIE DEL OPERADOR: _____________________________________
SERVICIO
Se recomienda a los propietarios que registren su producto en www.beamlabs.io.
Ayuda e información sobre solución de problemas del producto se pueden encontrar
en línea en www.beamlabs.io
Teléfono de Servicio 1-800-436-9186
Debe tener la siguiente información al momento de realizar la llamada:
• Número de modelo del operador
• Número de serie del operador
42 beamlabs.io 1-800-436-9186
SPARE PARTS
Clevis Pin Hitch Pin Self-Threading Flange Lag Screws Bolt Anchor Insulated
Screws Nut Staples
*NOTE: Not Available as individual parts
1
4
2 3
5 6
7
8
9
10
11
b
a
12
13 16 17
20
14
18
19
21
21
15
22
BU100 BU400 BU800
# Name/Description
Part #
No. de parte
Part #
No. de parte
Part #
No. de parte
Nombre/Descripción
INSTALLATION PARTS PARTES DE INSTALACION
1 Header Bracket RP-007 RP-007 RP-007 Soporte Cabecero
2 Door Bracket GUAT-022 GUAT-022 GUAT-022 Soporte de la Puerta
3
Hardware Bag/Emergency Release
Handle
RP-008 RP-008 RP-008
Bolsa de Instalación/Manija de
Desconexión de Emergencia & Cuerda
4 Curved Door Arm GUAT-024 GUAT-024 GUAT-024 Brazo curvo de la Puerta
5 Straight Door Arm GUAT-025 GUAT-025 GUAT-025 Brazo recto de la Puerta
6 Hanging Bracket RP-009 RP-009 RP-009 Soportes Estructurales
ACCESSORIES ACCESORIOS
7 Photo Eye Safety System GUAT-201 GUAT-201 GUAT-201
Sistema de Seguridad de Sensor óptico
8 Handheld Trasmitter R1BU R3BU R3BU Transmisor Manual
9 Wireless Keypad KPDBU Teclado Inalámbrico
10 Deluxe Door Control 3FBU 3FBU Control de Puerta de Lujo
11 Standard Door Control 1FBU Control de Puerta Estándar
a. Wireless Keypad Battery AAA a. Batería Teclado Inalámbrico
b. Remote Control Battery CR2032 3V CR2032 3V CR2032 3V b. Batería del Control Remoto
RAIL ASSEMBLY PARTS ENSAMBLE DEL RIEL
13 Rail-Header Segment RP-001 RP-001 RP-001 Riel-Segmento de Cabecera
14 Rail-Middle Segment RP-002 RP-002 RP-002 Riel-Segmento del Medio
15 Rail-End Segment RP-003 RP-003 RP-003 Riel-Segmento Final
16 Pulley GUT-840 GUT-840 GUT-840 Polea
17 Master Link Set GUT-410 GUT-410 GUT-410 Conjunto de Enlace Principal
18 Trolley RP-004 RP-004 RP-004 Carro
19 Sprocket Cover RP-013 RP-013 RP-013 Cubierta de la Rueda Dentada
20 Chain RP-006 RP-006 Cadena/Conector
21 Trolley Shaft & Cable/Trolley Shaft RP-005 RP-005 RP-021 Eje del Carro & Cable/Eje del Carro
22 Belt RP-014 Correa
12
beamlabs.io 1-800-436-9186 43
OPENER ASSEMBLY PARTS
1
4
2
3
5
6
7
7
9.1
8
10
11
11
12
13
14
9.2
BU100 BU400 BU800
# Name/Description
Part #
No. de parte
Part #
No. de parte
Part #
No. de parte
Nombre/Descripción
INSTALLATION PARTS PARTES DE INSTALACION
1 Sprocket/Belt Pulley Cover RP-013 RP-013 RP-013 Cubierta de la Rueda Dentada
2 Rail Bracket RP-018 RP-018 RP-018 Soporte del Riel
3 Sprocket/Pulley RP-019 RP-019 RP-034 Rueda Dentada
4 Chassis N/A N/A N/A Chasis
5 Power Module LED RP-349 RP-350 RP-350 Módulo de Potencia LED
6 Motor GUDT-313 GUDT-313 GUDT-305 Motor
7 Side Panels RP-346 RP-347 RP-347 Paneles Laterales
8 Position Encoder GUDT-314 GUDT-314 GUDT-314 Codificador de Posición
9 Transformers (9.1/9.2) GUDT-315 GUDT-315 GUDT-302 Transformadores (8.1/8.2)
10 Cover Plate - Front RP-341 RP-341 RP-341 Placa de Cubierta - Frente
11 Cover Plate - Back RP-342 RP-342 RP-342 Placa de Cubierta - Trasero
12 Logic Board RP-343 RP-343 RP-343 Receptor/Tablero Lógico
13 LED Cluster LED
13.1 LED Cluster, Center RP-344 RP-344 RP-344 LED, Central
13.2 LED Cluster, Side (2) RP-348 RP-348 LED, Lateral (2)
14 Lamp Dome RP-345 RP-345 RP-345 Cúpula de Lampara
