TRIMMER RACK
MODEL: 6601
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: 6601
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRIMMER RACK
- 2 -
SAFETY INSTRUCTIONS
1. Always wear safety glasses when using power tools.
2. Check under the trailer and/or fender for locations of brake lines and
electrical wiring etc., before drilling any holes. Any damage to the trailer
during installation is the installer’s sole responsibility.
3. Due to the many different ways trailers are built, the hardware required
to attach the rack is not included and must be supplied by the user.
4. Prepare the tools required for the installation by yourself.
MODEL AND PARAMETERS
Model
6601
Mounting Type
Standing Mounted
Slot
2
Maximum Load Capacity
22 lbs / slot
Total Product Height
770±10mm

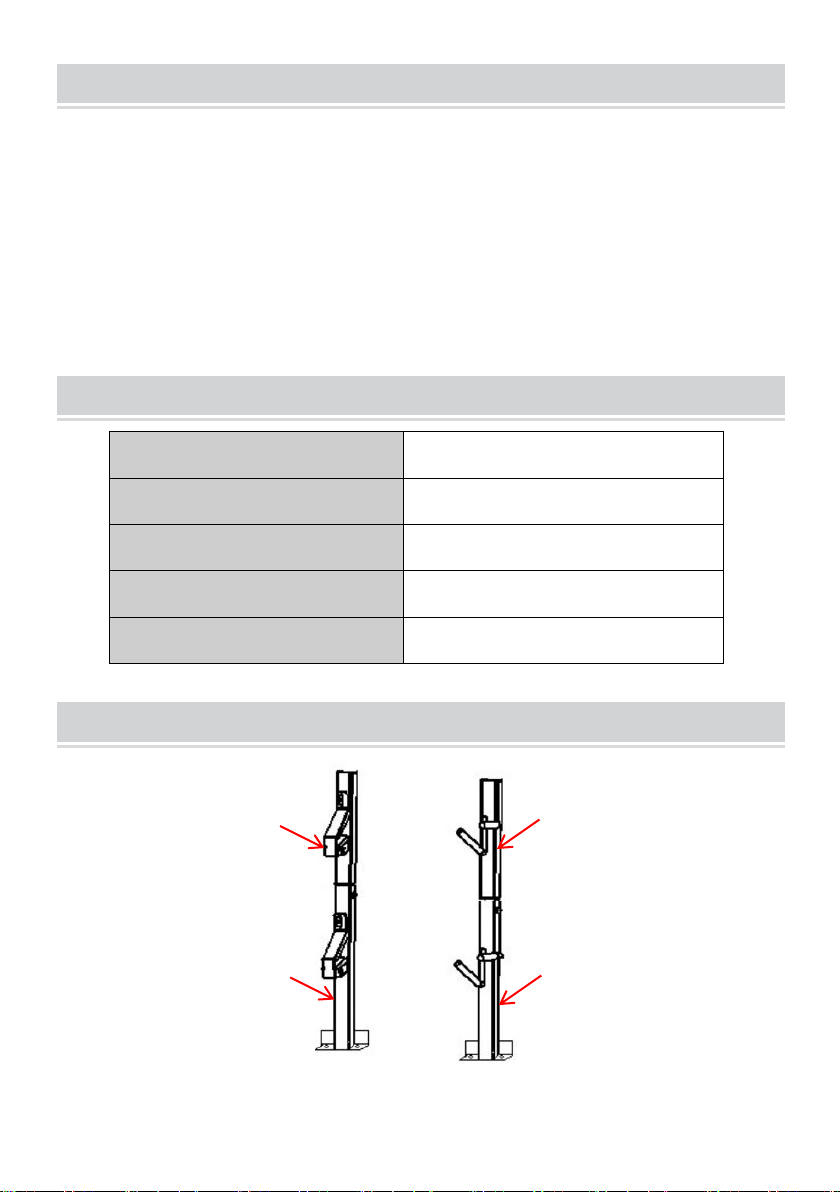

STRUCTURE DIAGRAM
1.
Locking Pole- Up
2.
Locking Pole- Down
3.
Compression Pole- Up
4.
Compression Pole- Down
1
2
3
4
- 3 -

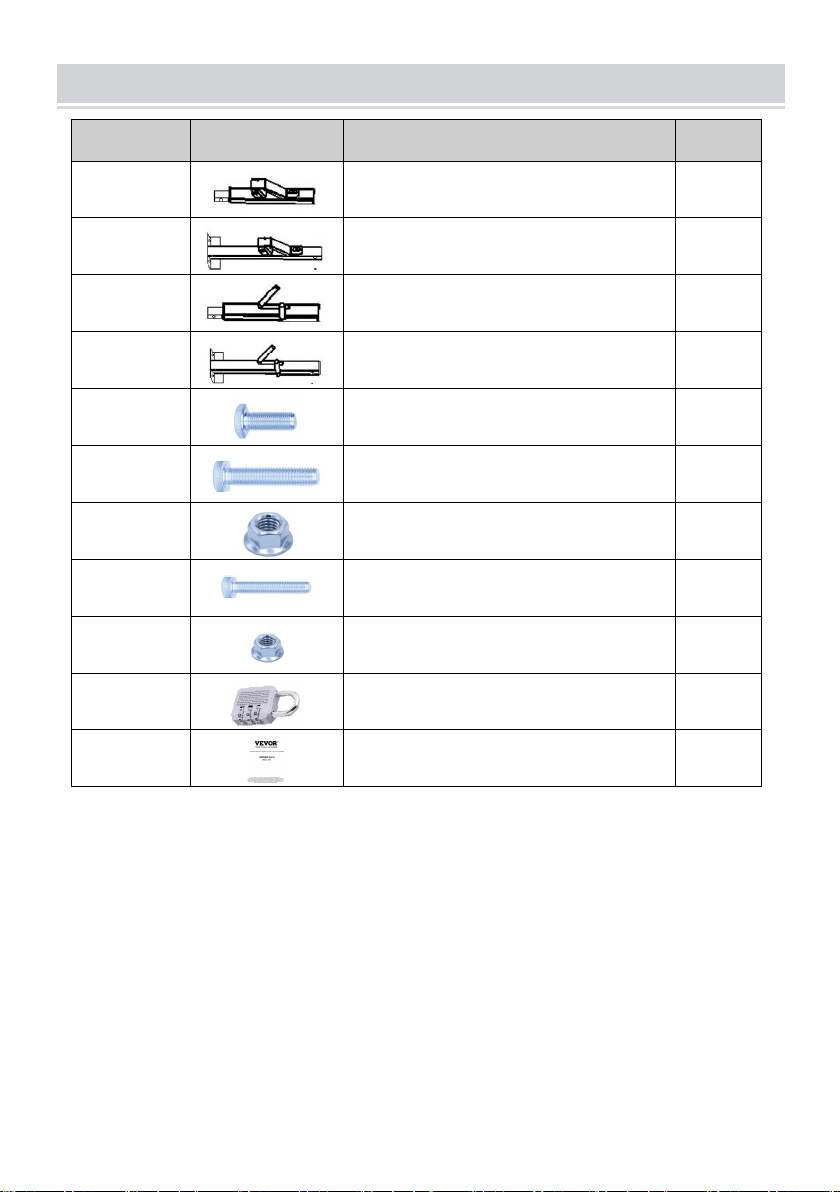

COMPONENTS
No.
Name
Qty
1
Locking Pole- Up
1
2
Locking Pole- Down
1
3
Compression Pole- Up
1
4
Compression Pole- Down
1
5
Bolts(M10*30)
4
6
Bolts(M10*75)
4
7
Nut(M10)
4
8
Bolts(M6*60)
4
9
Nut(M6)
4
10
Coded Lock
2
11
User Manual
1
- 4 -

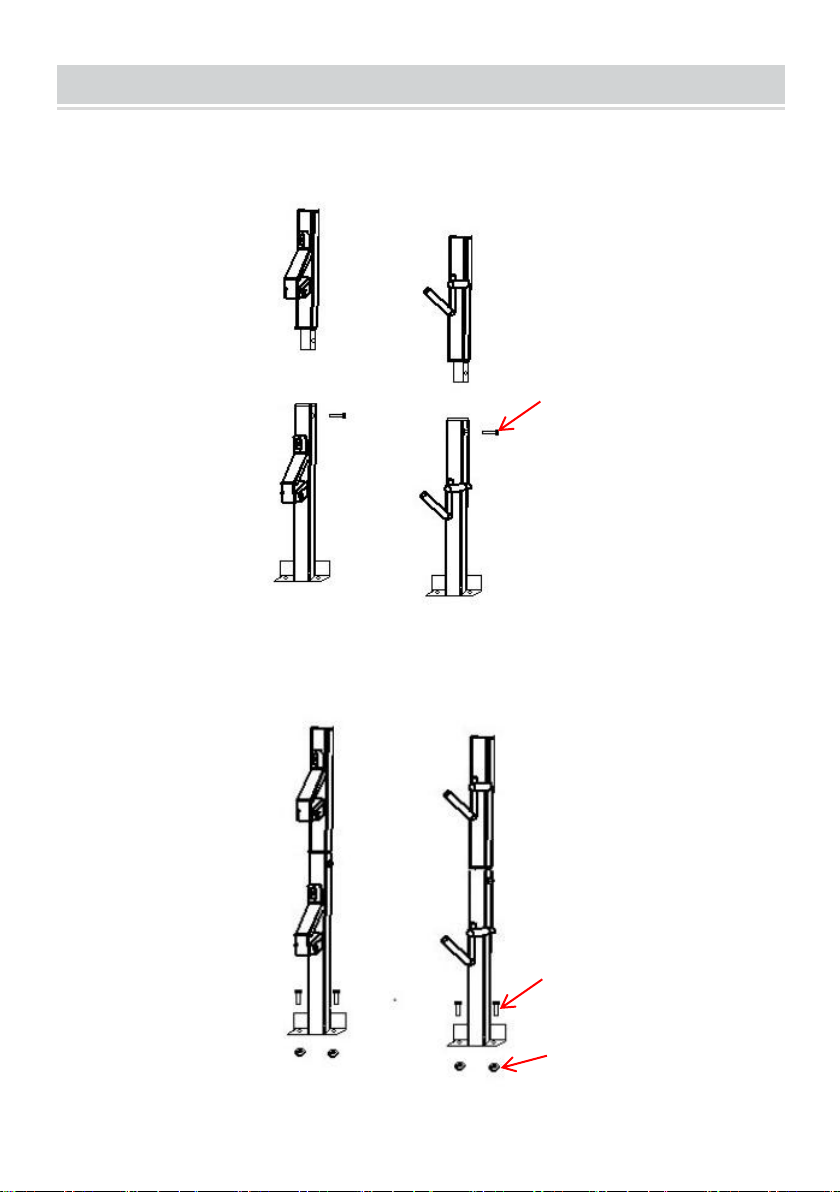

ASSEMBLY AND USE
Step 1: Assembly the Bracket.
Step 2: Mounting to the trailer.
Bolts(M6*60)
Bolts(M10*30) or (M10*75)
Nut
- 5 -

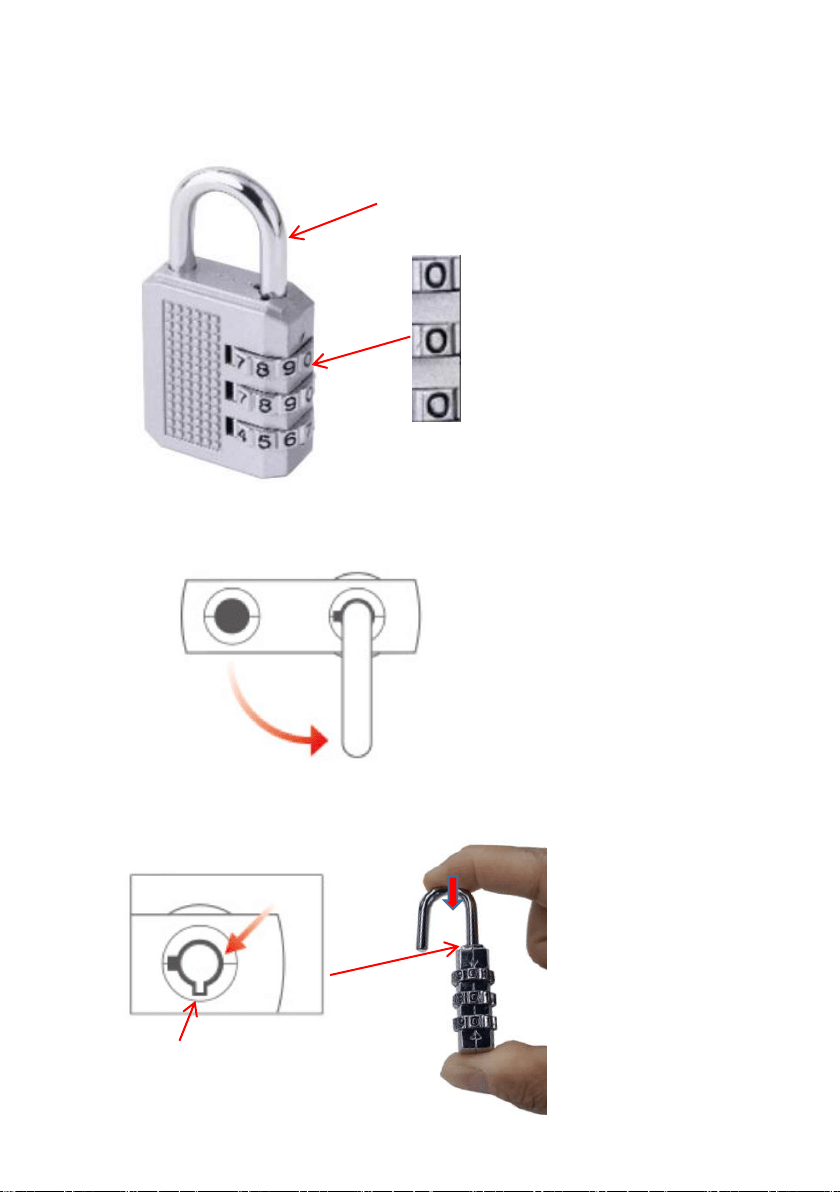

INSTRUCTIONS FOR THE CODED LOCK
The lock is opened at the original number 0-0-0, aligned with the indication
line.(Even though dials may be positioned at different numbers.)
To set your personal combination, follow these steps:
1. Pull up the shackle to open the lock.
2. Rotate the shackle 90°counterclockwise and press all the way down.
(Note: Keep pressing until the password is changed.)
Align the slots and press down.
Shackle
- 6 -

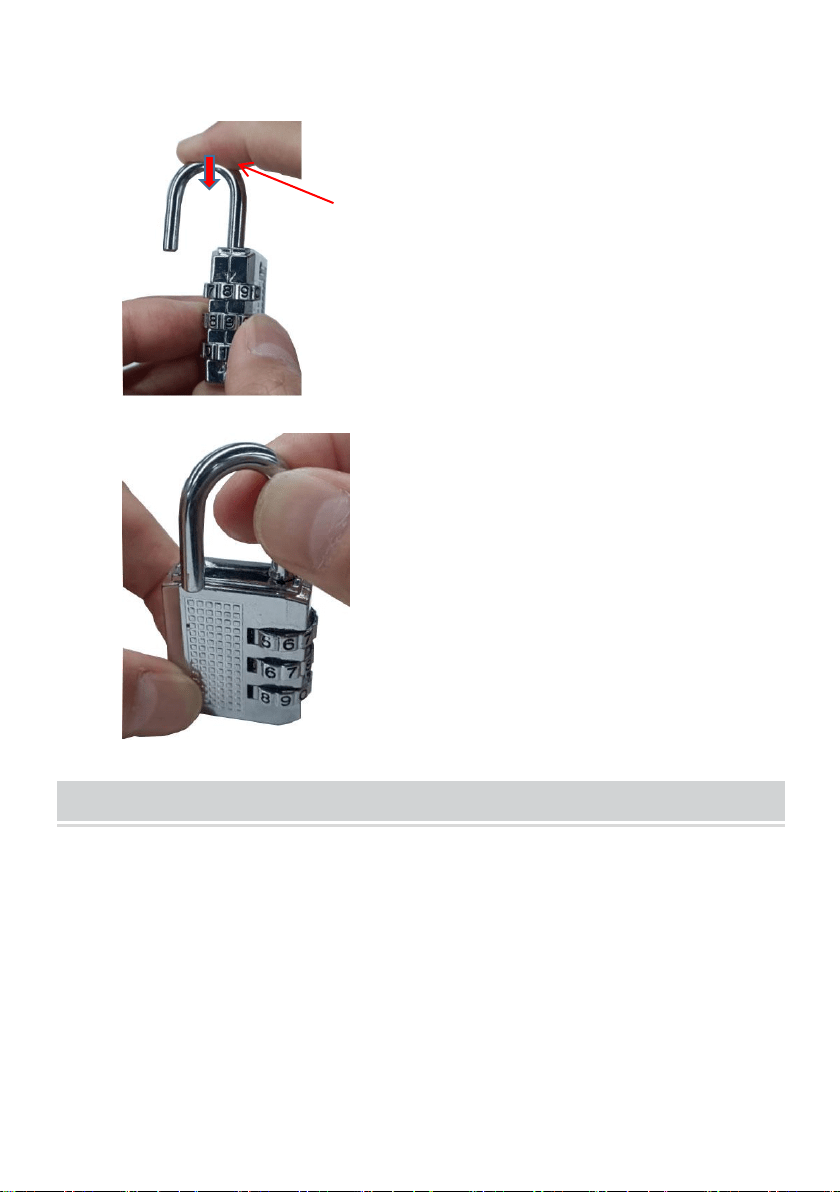

3. Set your own combination by turning dials.
4. Turn the shackle back as normal. Then the setting is completed.
MAINTENANCE
1. Do not overload.
2. Please check and confirm whether the screws are loose every two
months.
3. If any part of the paint is broken, please repair the paint as soon as
possible to prevent rust.
MADE IN CHINA
Keep pressing until the
password is changed.
