USE AND CARE
Andis Blade
Zero Gapper
For Outliner
®
& Styliner
®
Blades
#04521, #04604, #26704, #32859
Congratulations—you just went first class when you bought this
Andis appliance. Careful workmanship and quality design
have been hallmarks of Andis products since 1922.
KEEP THIS FOR YOUR RECORDS
Andis Company
1800 Renaissance Blvd. Sturtevant, WI 53177
1-800-558-9441 Canada: 1-800-335-4093
[email protected] www.andis.com
©2013 Andis Company, U.S.A.Form #04762 Printed in Taiwan
7
9
8
6
Release the blade lock by pressing the button on the
left side of the locking arm. The button should click
into place.
Remove blade assembly by pushing down on the front
of the blade.
Turn screws to the right to tighten. Pull the upper blade adjustment bracket back to release
the blade set. Your blade set is now zero-gapped.
Requires only a screwdriver to adjust blade.
Phillips for Outliner
®
and T-Outliner
®
;
flathead and phillips for Styliner
®
1a
3
5
2 4
FOR USE ON OUTLINER
®
BLADES:
Using a small screwdriver, turn screws 1/4 turn
to left to loosen.
1b
FOR USE ON STYLINER
®
BLADES:
Using a small screwdriver, turn screws 1/4 turn to left
to loosen. Caution: Do not loosen the tension screw
completely, as this will result in a negative gap.
Make sure that the blade is properly seated against
the lip of the blade gapper.
Push the button on the right of the locking arm to lock
into place. The button should click into place.

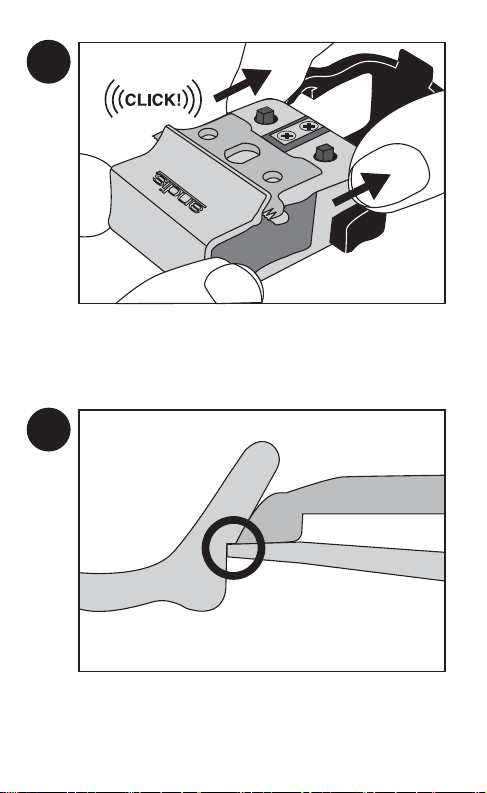

Place front end of blade under lip of blade gapper.
Place holes on the blade assembly onto the pins of the
blade gapper and pull back on the base of the blade.
The front of the blade should lift up and click into place.

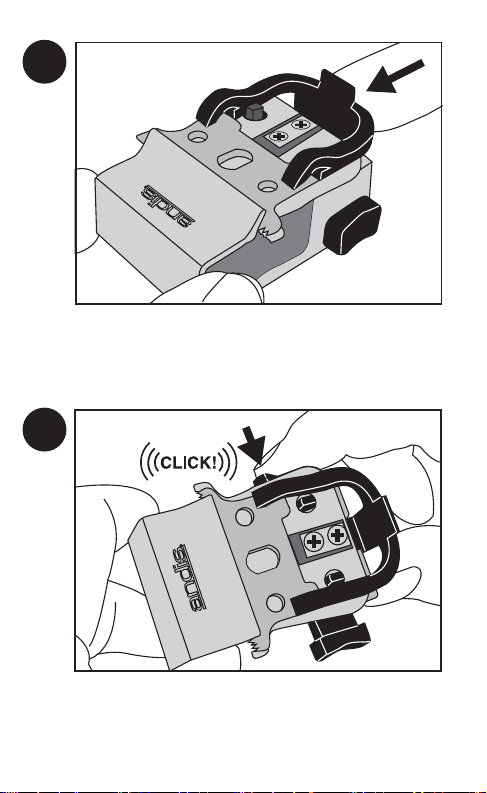

Push the upper blade adjustment bracket forward
as far as it will go until the upper blade is firmly
against the angled metal surface.
1a
3
5
2 4
FOR USE ON OUTLINER
®
BLADES:
Using a small screwdriver, turn screws 1/4 turn
to left to loosen.
1b
FOR USE ON STYLINER
®
BLADES:
Using a small screwdriver, turn screws 1/4 turn to left
to loosen. Caution: Do not loosen the tension screw
completely, as this will result in a negative gap.
Make sure that the blade is properly seated against
the lip of the blade gapper.
Push the button on the right of the locking arm to lock
into place. The button should click into place.
Place front end of blade under lip of blade gapper.
Place holes on the blade assembly onto the pins of the
blade gapper and pull back on the base of the blade.
The front of the blade should lift up and click into place.
Push the upper blade adjustment bracket forward
as far as it will go until the upper blade is firmly
against the angled metal surface.
1a
3
5
2 4
FOR USE ON OUTLINER
®
BLADES:
Using a small screwdriver, turn screws 1/4 turn
to left to loosen.
1b
FOR USE ON STYLINER
®
BLADES:
Using a small screwdriver, turn screws 1/4 turn to left
to loosen. Caution: Do not loosen the tension screw
completely, as this will result in a negative gap.
Make sure that the blade is properly seated against
the lip of the blade gapper.
Push the button on the right of the locking arm to lock
into place. The button should click into place.
Place front end of blade under lip of blade gapper.
Place holes on the blade assembly onto the pins of the
blade gapper and pull back on the base of the blade.
The front of the blade should lift up and click into place.
Push the upper blade adjustment bracket forward
as far as it will go until the upper blade is firmly
against the angled metal surface.
