350LBS MOTORCYCLE LIFT
USER'S MANUAL
MODEL: ZX0901-7B
- 1 -
ZX0901-7B
<Picture Only For Reference >
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
350LBS
MOTORCYCLE LIFT
- 2 -
1. Main specifications
Model
Capacity
(lbs)
MIN
height(mm)
MAX
height(mm)
G.W.(kg)
N.W.(kg)
Packing
size(mm)
ZX0901-7B
350
340
905
31.7
29.7
485×480×405
2. Caution
a. The maximum load is 350LBS.DO NOT exceed this rated capacity.
b. Use this lift for lifting purpose only. DO NOT use it for any other
purpose it is not designed to perform.
c. Keep children and unauthorized persons away from the work area.
d. Only use this lift on a surface that is stable, level, dry and not slippery,
and capable of sustaining the load .Keep the surface clean, tidy and
free from unrelated materials and ensure that there is adequate
lighting.
e. Before lifting ensure the motorcycle is adequately secured to the lifting
platform with thread knobs, big washers, J-hooks and U-bolts.
f. When the platform has been used to the working height, ensure the
locking bar is engaged to prevent accidental lowering.
g. Always keep your hands and feet away from moving parts.
h. When work is done, check under lift and motorcycle to ensure that
there are no obstructions and that it is safe to lower the unit.Remove
the locking bar and then SLOWLY turn the release valve to GENTLY
lower the lift.
i. DO NOT allow untrained persons to operate the lift.
j. DO NOT make any modifications to this motorcycle lift.
k. DO NOT expose the lift to rain or snow.
l. Ensure that you read, understand and apply the safety instructions
and warnings before use. Failure to heed these instructions may
result in property damage and/or personal injury.
3. MAINTENANCE
a. When not in use, the lift must be stored in the lowest position in a dry
- 3 -
location to minimize ram and piston corrosion.
b. Keep the lift clean and wipe off any oil or grease . Lubricate all moving
parts.
c. Periodically check the ram and piston for signs of corrosion. Clean
exposed areas with a clean oiled cloth.
d. Before each use check all parts. If any part of the lift is damaged or
suspected, remove the lift from service and take necessary action to
repair.
e. When lift efficiency drops, open the release valve and pump the lift
foot pedal rapidly 15 to 20 times to purge away air from the hydraulic
system

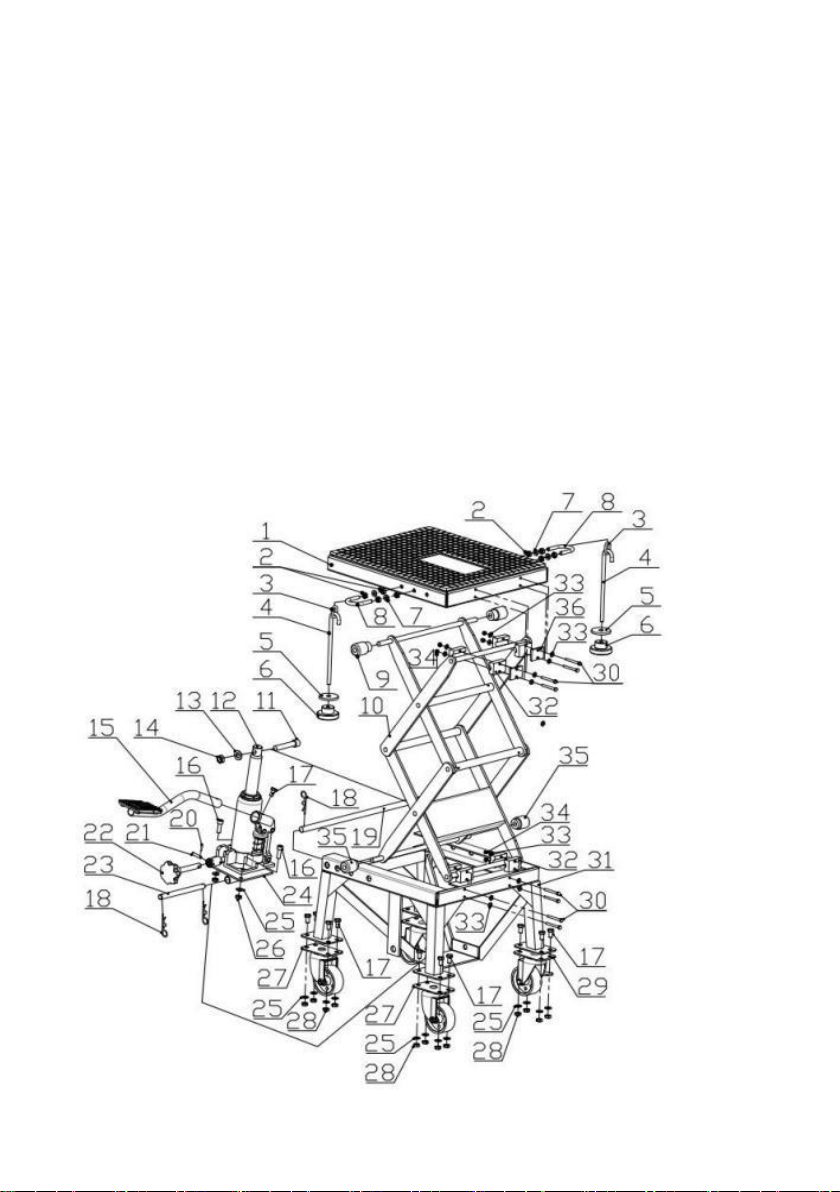

4. Main construction
- 4 -
PART
NO
DESCRIPTION
QTY
PART
NO
DESCRIPTION
QTY
1
Panel
1
19
safety pin components
1
2
M6 Hex Nut
8
20
Wire pin
1
3
Chain
2
21
Pin roll
1
4
Hook
2
22
Oil return hand wheel components
1
5
Washer
2
23
Pin roll
1
6
Iron hand wheel
2
24
Pump mounting plate
1
7
φ6 Washer
4
25
Φ8 Washer
18
8
M6 U- Bolt
2
26
M8 lock nut
2
9
Large Roller
2
27
3" universal caster
2
10
supporting frame
1
28
M8 Hex Nut
16
11
M12*65 Hex Nut
1
29
3" caster wheel with brake
2
12
Pump parts
1
30
M5*50 Hex Bolt
8
13
φ12 Washer
1
31
Base
1
14
M12 lock nut
1
32
block
8
15
Pedal components
1
33
Φ5 Washer
16
16
M8*25 Hex Bolt
2
34
M5 Hex Nut
8
17
M8*25 Hex Bolt
17
35
Small Roller
2
18
B-shaped pin
3
36
pad
2
