English
Krystal Clear™ Sand Filter Pump
Certified Model Number SF40110
Don’t forget to try these other fine Intex products: pools, pool
accessories, inflatable pools and in-home toys, airbeds and
boats available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex
reserves the right to change specifications and appearance,
which may result in updates to the instruction manual without
notice.
OWNER’S MANUAL
IMPORTANT
SAFETY RULES
Read, understand, and follow
all instructions carefully before
installing and using this product.
For illustrative purposes only.
IMPORTANT!
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, Visit
www.intexcorp.com
For technical assistance, missing parts or warranty claims call (for U.S. and Canadian Residents):
1-310-549-8235
Monday through Friday, 8:30am to 5:00pm Pacific Time
354-*PO-R0-2304
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 2
Warnings
..........................................................................
3
Parts References
............................................................
4-5
Setup Instructions
..........................................................
6-10
Product Specifications
...................................................
6
Operating Instructions
....................................................
11-13
Intex Pools Operating Time Table
..................................
14
Non-Intex Pools Operating Time Table
..........................
15
Maintenance
....................................................................
16
Long Term Storage
..........................................................
16
Troubleshooting Guide
...................................................
17
Common Pool Problems
.................................................
18
General Aquatic Safety
...................................................
19
Limited Warranty
.............................................................
20
TABLE OF CONTENTS
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
READ AND FOLLOW ALL INSTRUCTIONS
WARNING
•
To reduce the risk of injury, do not permit children to use this product. Always supervise children
and those with disabilities.
•
Children must stay away from this product and electrical cord(s).
•
Assembly and disassembly by adults only.
•
Risk of electric shock. Connect only to a grounding type receptacle, this product is provided with
a ground-fault circuit interrupter. If replacement of the plug or cord is needed, use only identical
replacement parts.
•
Always unplug this product from the electrical outlet before removing, cleaning, servicing or
making any adjustment to the product.
• The unit is provided with a ground-fault circuit interrupter (GFCI). To test the GFCI, push the test
button. The GFCI should interrupt power. Push the reset button, power should be restored. If the
GFCI fails to operate in this manner. The GFCI is defective. If the GFCI interrupts power to the
pump without the test button being pushed, a ground current is flowing, indicating the possibility of
an electric shock. Do not use this pump. Disconnect the pump and have the problem corrected by
a qualified service representative before using.
•
Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers,
hedge trimmers and other equipment.
•
To reduce the risk of electric shock, replace damaged cord immediately. Use a qualified electrician
to replace the cord.
•
To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or converter
plugs to connect unit to electric supply; provide a properly located outlet.
•
Do not attempt to plug in or unplug this product while standing in water or when your hands are
wet.
•
Do not use an appliance leakage current interrupter (ALCI) in place of a GFCI since the ALCI will
not protect people.
• Position this product away from pool, so as to prevent children from climbing on it and access the
pool.
• Make sure the electrical parameters indicated on the product correspond to the local mains
voltage before you connect the unit.
•
To reduce the risk of entrapment hazard, never enter the pool if suction strainer component is
loose, broken, cracked, damaged or missing. Replace loose, broken, damaged, cracked or
missing suction strainer components immediately.
• Never play or swim near suction fittings. Your body or hair may be trapped causing permanent
injury or drowning.
• To prevent equipment damage and risk of injury, always turn pump off before changing the filter
control valve position.
• Never operate this product above the maximum working pressure stated on the filter tank.
• Hazardous Pressure. Improper tank valve cover assembly could cause the valve cover to blow off
and cause serious injury, property damage or death.
• This product is intended to be used only for the purposes described in the manual!
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY
DAMAGE, ELECTRIC SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY
OR DEATH.
This product is for use with storable pools only. Do not use with permanently-installed pools. A storable
pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its
original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that
it cannot be readily disassembled for storage.
To reduce the risk of electric shock the pool must be installed no closer than 6 feet (1.8 m) from any
electrical outlet. Do not place portable appliances closer than 5 feet (1.5 m) from the pool.
These product warnings, instructions and safety rules provided with the product represent some common risks
of water recreation devices and do not cover all instances of risk and danger. Please use common sense and
good judgement when enjoying any water activity.
CAUTION
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
No tools are required for the assembly.
20 21
20 23
25
24
22
1
9
6
2
13
19
3
16
4
12
7
8
17
10
5
6
6
11
18
14
15
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 5
When ordering parts, be sure to quote the model number and part numbers.
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 PRESSURE GAUGE 1 13078
2 TANK COVER & 4-WAY VALVE SET 1 13079
3 DRAIN OUTLET COVER 1 13080
4 CLAMP ASSEMBLY 1 13081
5 TANK O-RING 1 13083
6 HOSE O-RING 5 12947
7 CENTER PIPE WITH FILTER GRID 1 13084
8 SAND FILTER PUMP TANK 1 13082
9 DRAIN VALVE CAP 1 11456
10 DRAIN VALVE O-RING 1 11385
11 SAND FILTER PUMP TANK BASE 1 13085
12 HOSE 2 10116
13 SAND FILTER INTERCONNECETING HOSE 1 13086
14 AIR RELEASE VALVE 1 10725
15 AIR RELEASE VALVE O-RING 1 10264
16 CLAMP PIN 1 11726
17 CLAMP SCREW 1 11727
18 HOSE CLAMP 6 11489
19 PUMP MOTOR 1 13089EG
20 STRAINER CONNECTOR 2 11070
21 STRAINER GRID 1 12197
22 AIR JET VALVE CAP 1 12373
23 POOL INLET JET NOZZLE 1 13162
24 POOL INLET AIR ADAPTOR 1 12368
25 AIR JET VALVE 1 12363
PARTS REFERENCE (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 6
PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
The sand filter removes suspended particles but does not sanitize your pool. Pool chemistry
is a specialized area and you should consult your local pool service specialist for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• The system must be installed on a solid level and vibration-free base.
• Provide a location protected from the weather, moisture, flooding and freezing
temperature.
• Provide adequate access, space and lighting for routine maintenance.
• Pump motor requires free circulation of air for cooling. Do not install the pump in a
damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
Sand tank installation:
1.
Place the tank support base at the selected location.
2.
Place the tank on the tank support base
(see drawing 1)
.
3.
Vertically insert the center pipe into the filter grid
(see drawing 2.1)
.
4.
Vertically insert the filter grid and center pipe assembly into the tank. Ensure filter grid
assembly is securely fitted to the bottom of the tank, and the center pipe is vertically
centered inside the tank
(see drawing 2.2)
.
Power: 110-120 Volt AC
Amperage: 0.8 A
Maximum working pressure: 1.0 bar (15 psi)
Effective filtering area: 0.03 m
2
(0.35 ft
2
)
Maximum Flow Rate: 2 m
3
/h (550 GPH)
Recommended filtering media: No. 20 silica sand or glass sand. Particle size
(Not included) range 0.45 to 0.85 mm (0.018 to 0.033 inches).
Uniformity Coefficient less than 1.75.
Recommended filtering media quantity: No. 20 silica sand 6.5 Kg (14.5 Lbs) or glass sand
5.0 Kg (11 Lbs).
Limited Warranty: see “Limited Warranty”
2.1
1
2.2
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 7
SETUP INSTRUCTIONS
(
continued
)

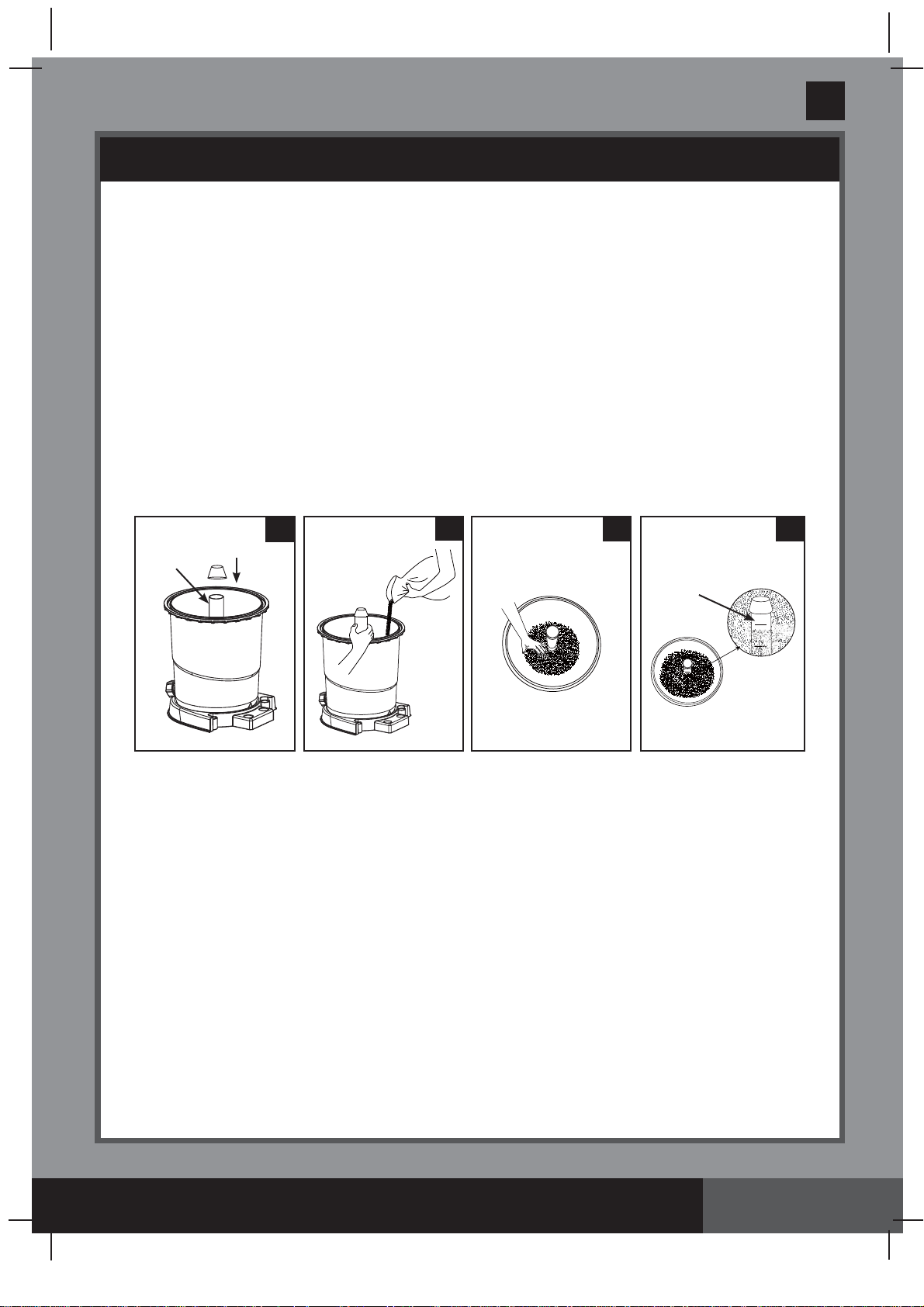

Sand loading:
IMPORTANT: Use No. 20 silica sand or glass sand with particle size range 0.45 to
0.85 mm (0.018 to 0.033 inches) and a Uniformity Coefficient less than 1.75.
NOTE: Before loading the tank with sand, ensure the sand filter grid and center pipe
assembly is securely in place on the tank bottom, and the center pipe (7) is vertically
centered inside the tank.
1.
To prevent sand from falling into the center pipe top opening when pouring the sand,
cover the center pipe top opening with a cup or similar object
(see drawing 3)
.
2.
With one person holding the center pipe to keep it centered, pour the sand into the tank at
a slow rate manually to prevent the filter grid assembly from shifting
(see drawing 4)
.
3.
Fill the tank approximately half way first to evenly distribute the sand inside the tank, then
fill the tank with some water to provide a cushioning effect when the remaining sand is
poured in. This prevents the filter grid from excessive shock
(see drawing 5)
.
4.
Sand shall be filled between the “MAX” and “MIN” marked gauge on the center pipe.
Evenly spread and level out the sand by hand
(see drawings 5 & 6)
.
5.
Remove the protective cup from the center pipe top opening.
6.
Wash away all sand around the top edge of the tank.
IMPORTANT: Ensure the center pipe (7) remains centered after sand loading is
completed before proceeding to the next step.
5
MAX
MIN
MAX
MAX
MIN
MIN
6
7
4
3
7
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 8
SETUP INSTRUCTIONS
(
continued
)
WARNING
Improper tank valve and clamp assembly could cause the valve and clamp to blow off
and cause serious injury, property damage or death.
4-way valve installation:
1.
Make sure the tank o-ring
(5)
is in place
(see drawing 7)
.
NOTE:
Ensure the tank o-ring is
free of sand or debris.
2.
Lower the 4-way valve cover over the tank slowly, and ensure the bypass pipe protruding
underneath the 4-way valve cover fits securely into the center pipe
(7)
top opening
(see
drawing 8)
. Make sure the tank o-ring is securely fitted between the top edge of the tank
groove and the 4-way valve cover edge.
IMPORTANT:
Ensure the 4-way valve cover ridge
is aligned with the groove on the tank rim.
IMPORTANT: There are three hose connection ports on the 4-way valve, ensure the
outlet connection (from filter to the pool) on the valve is facing towards the pool
(see drawing 9).
3.
Remove the screw, and install the clamp around the tank and 4-way valve flanges,
then replace the screw and use a phillips screwdriver (not included) to tighten it
(see
drawings 9 & 10)
.
7
5
8
WATER INLET
WATER OUTLET
TO DRAIN
DRAIN VALVE
CAP
10
17
9
WATER
OUTLET
WATER
INLET
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 9
SETUP INSTRUCTIONS
(
continued
)

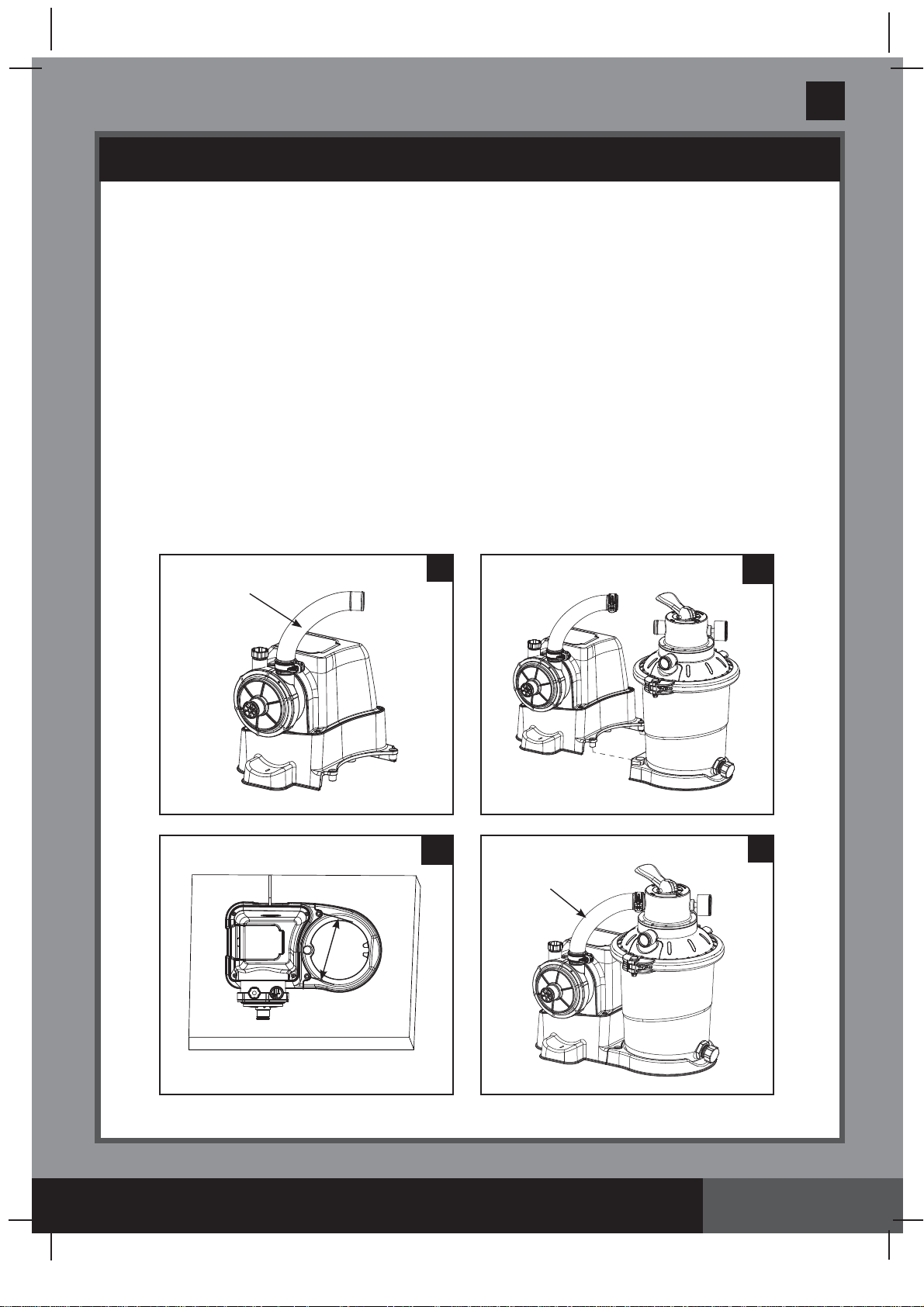

Motor installation:
1.
Make sure a hose o-ring
(6)
is on the pump motor outlet. Connect the sand filter
interconnecting hose
(13)
to the pump motor outlet with a hose clamp
(see drawing 11)
.
2.
Connect the pump motor unit to the tank support base
(see drawing 12.1)
.
IMPORTANT: Some countries, especially in the European community, require the
product to be secured to the ground or to a base in a permanent upright position.
Check your local authorities to determine if there is a regulation in your area regarding
above-the-ground swimming pool filter-pumps. If yes, then the product can be
mounted to a platform using the two holes located in the base. See drawing 12.2.
The product can be mounted on a cement base or onto a wooden platform to prevent
accidental falling over.
• The mounting holes are 6.4 mm in diameter and spaced 163 mm apart.
• Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
3.
Make sure a hose o-ring
(6)
is on the 4-way valve inlet connection. Connect the sand
filter interconnecting hose
(13)
to the 4-way valve inlet connection with a hose clamp
(see
drawing 13)
.
12.1
13
13
11
13
12.2
163 mm
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 10
SAND FILTER PUMP HOSE CONNECTION SETUP
The 4-way valve has three hose connection ports.
1.
Connect one hose
(12)
end to the pump motor inlet and the other end of the hose to the
lower connector with the strainer. Ensure the hoses are securely tightened.
2.
Connect the second hose
(12)
between the 4-way valve water outlet and the upper
connector with the inlet-nozzle. Ensure the hoses are securely tighten.
3.
The third hose connection port (drain/waste outlet) on the 4-way valve shall be directed to
a proper draining receptacle using a hose or pipe (not provided). Make sure the drain outlet
cover is removed before attaching the drain/waste hose or pipe.
4.
The sand filter pump is now ready to filter the pool.
WARNING
• Position this product away from the pool, so as to prevent children from climbing
on it and accessing the pool.
(ILLUSTRATION NOT TO SCALE)
Long hose
Short hose
For Pools with Dual Suction Outlets Configuration:
In order to comply with the requirement of the Virginia Grahame Baker Act (for USA and
Canada), your pool is designed with dual suction outlets and one inlet fittings. Parts in grey
highlight on this page are supplied with the pool set package and are shown here for assembly
purposes only. If this pump was purchased as part of a pool set, refer to the pool owner’s
manual for more details.
WATER INLET
WATER LEVEL
OUTSIDE
LINER WALL
HOSE
O-RING
WATER
OUTLET
TO
DRAIN
AIR RELEASE
VALVE
AIR JET VALVE
POOL INLET AIR
ADAPTOR
HOSE
CLAMP
20 23
20 21
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 11

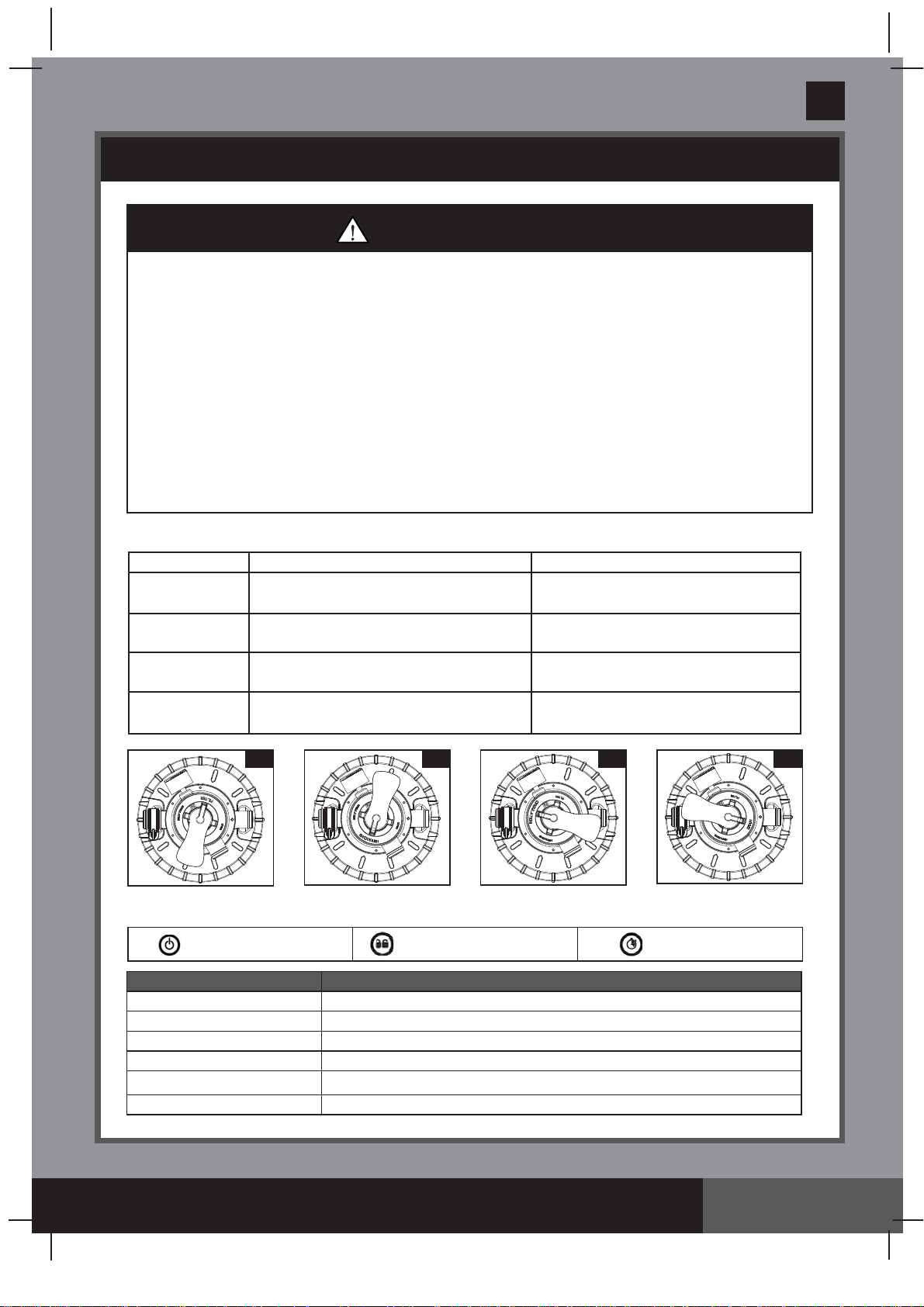

OPERATING INSTRUCTIONS
• Risk of electric shock. Connect this product only to a grounding type receptacle protected
by a ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a
qualified electrician if you cannot verify that the receptacle is protected by a GFCI/RCD.
Use a qualified electrician to install the GFCI/RCD, which has a maximum rate of 30 mA.
Do not use a portable residual current device (PRCD).
•
To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or
converter plugs to connect unit to electric supply; provide a properly located outlet.
•
Do not attempt to plug in or unplug this product while standing in water or when your
hands are wet.
• Never operate this product above the maximum working pressure stated on the filter tank.
• Always switch off pump before changing the 4-way valve position.
• Operating this product without water flowing through the system can cause a build up of
hazardous pressure which can result in an explosive situation, serious injury, property
damage or death.
• Never test this pump with compressed air. Never operate the system with water
temperature above 35°C (95°F).
WARNING
Valve Position Function Water Flow Direction
FILTER
(see drawing 14)
Normal filtration and regular vacuuming
of pool
From pump through filter media to
pool
BACKWASH
(see drawing 15)
Reverses water flow to clean filter
media
From pump through filter media to
valve waste/drain outlet
RECIRCULATE
(see drawing 16)
For circulating water back to pool
without going through the filter media
From pump through valve to
pool bypassing the filter media
DRAIN
(see drawing 17)
For vacuuming directly to waste,
lowering pool level or to drain the pool
From pump to valve waste/drain
outlet bypassing the filter media
4-way valve positions and function:
Control panel description:
ON / OFF button LOCK / UNLOCK button TIMER button
LED Reading Definition
00 Stand-by mode (start-up / operating cycle finished)
01 Minimum operating hour (1 hour remaining)
02-11 Operating hours (2 – 11 hours remaining)
12 Maximum operating hours (12 hours remaining)
FP
Timer OFF (pump operating continuously)
•
Power saving mode
14
17
15 16
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 12
OPERATING INSTRUCTIONS (continued)
Initial startup and operation:
Before operating, be sure that:
• All the hoses have been connected and tightened securely, and correct amount of filter sand have been
loaded.
• The entire system is connected to a grounding type receptacle protected by a ground-fault circuit
interrupter (GFCI) or residual current device (RCD).
Note:
If the End of Life (EOL) indicator on the GFCI plug is fl ashing, do not use the product. Disconnect
the product and have the GFCI plug replaced by a qualifi ed electrician before using.
1. Release air from the system -
Ensure the drain/waste outlet on
the 4-way valve is not covered and directed to a proper draining
receptacle, and the pump is off. Turn the 4-way valve to the “N”
position and unscrew the air release valve
(14)
from the motor
housing
(see drawing 18)
. When water starts flowing out of the
air release valve hole, close the air release valve back.
2. BACKWASH
- Ensure the pump is off, depress the 4-way valve
and turn it to the “
BACKWASH
” position
(see drawings 15 & 19)
.
IMPORTANT: To prevent damage to the 4-way valve, always
depress the valve handle before turning. Always switch off
pump before changing the 4-way valve position.
3.
Press
to switch on the system, and then press to set
the operating TIMER hours (see “Operating the system under
TIMER mode or manually” section for details). Water is circulating
backward through the sand media and to waste/drain outlet.
Backwash until a clear flow of water is observed in the waste/drain
outlet.
NOTE:
If the LED display flashes “00”, the device is in stand-by mode and the pump will not operate.
The initial backwash of the filter is recommended to remove any impurities or fine sand particles in the
sand media.
4.
Switch off the pump, change the 4-way valve to “FILTER” position
(see drawing 14)
.
5.
Switch on the pump. The system is now operating in the normal filtering mode. Run the pump until the
desired pool water clearance is obtained and no more than 12 hours per day. For the initial startup, it is
recommended setting the system to a longer TIMER operating hours or “FP” for the pump to operate
continuously without the TIMER.
6.
Record the initial pressure gauge reading when the filter media is clean.
NOTE:
During initial setup of the system, it may be necessary to backwash frequently due to unusual
heavy dirt present in the water and sand. After that, as the filter removes dirt and impurities from the pool
water, the accumulated dirt in the sand media will cause the pressure to rise and the flow to diminish. If
there is no vacuuming device attached to the system and the pressure gauge reading is in the yellow
zone it is time to backwash the sand media, see “BACKWASH” under “initial startup and operation”
section.
Vacuuming device (i.e. Intex auto pool cleaner) attached to the system may also cause the flow to
diminish and the pressure to rise. Remove any vacuuming device from the system and check if the
pressure gauge reading has dropped from the yellow zone to the green zone.
7.
Monitor the pressure gauge reading, and check that the inlet and outlet openings are not obstructed on a
weekly basis. If the pressure gauge indicates yellow it is time to backwash the filter media.
19
1
2
3
N
18
14
3
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 13
OPERATING INSTRUCTIONS (continued)
Operating the system under “TIMER” mode or manually:
To operate the sand filter pump in “FILTER” mode under “TIMER” control:
1. Activate the unit:
Press
button. Flashing code “00” appears on the LED display, indicating
that the unit is ready to be programmed.
2. Set operating hours:
With code “00” flashing, press button to set the desired operating
hours. See the “Operating Time Table” for the required operating
hours related to each pool size. Pressing
will increase the time
from 01 to 12 hours maximum. If you have selected too many hours
keep pressing
to repeat the cycle. The built-in timer will now
activate the Sand filter pump, at the same time each day, for the
number of hours you have set.
3. Lock keypad controls:
With the desired hour value showing, press button until you hear a “beep”. Locking the
control buttons into this setting prevents unauthorized changing of the operating cycle.
NOTE: If you forget to lock the keypad controls, the system will automatically lock it
and start working 10 seconds later
.
The sand filter pump is now filtering the water and will stop after the operating hours are
completed.
4. Readjust operating time if necessary:
The operating hours can be re-adjusted if necessary. Press
button until you hear a “beep”
to unlock the keypad and the current programmed time will flash. Repeat steps 2 to 3.
5. Stand-by/power saving mode:
•
When the cycle ends, the LED display shows “00”. The system is now
in Stand-By mode. After 5 minutes the system goes into Power
Saving mode and the LED display shows “.”. The system will
automatically turn itself back on in 24 hours.
• While the system is in Power Saving mode, press any button and the
system will briefly display the programmed time and then “00”.
To view the TIMER preset hours:
While the pump is operating, press “
” button, the display will briefly flash the preset
hours for 10 seconds and then display back the remaining operating hours.
To operate the sand filter pump manually (without the “TIMER” mode):
1.
To run the pump alone without the “Timer”, press
button to turn
on the pump, then press button until the LED displays “FP”, this
indicates that the TIMER is off and the pump is now operating continuously.
2.
To stop the pump, press button again.
(1 to 12 hours max per cycle)
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 14
INTEX POOLS OPERATING TIME TABLE (WITHOUT INTEX SALTWATER SYSTEM)
NOTE: The timer setting has an additional 10 minutes over the actual setting.
This table shows the required operating time for average use of the sand filter pump with
above ground pools.
If the system is attached to an “Intex Saltwater System” unit, the filter pump running time
should be longer than the required operating time of the Intex Saltwater System unit.
Pool Size
Water Capacity (Calculated at
90% for Frame Pool and 80%
for Easy Set & Oval Pool)
Sand filter pump
operating time
(For one cycle) /
(Hours)
(Gals) (Liters)
INTEX ABOVE GROUND POOLS (AGP’s)
EASY SET
®
POOL
183cm x 51cm (6' x 20")
232 880 1
244cm x 61cm (8' x 24")
513 1942 1
244cm x 76cm (8' x 30")
639 2419 2
305cm x 61cm (10' x 24")
813 3077 2
305cm x 76cm (10' x 30")
1018 3853 2
366cm x 76cm (12' x 30")
1485 5621 3
396cm x 84cm (13' x 33")
1926 7290 4
457cm x 84cm (15' x 33")
2587 9792 5
457cm x 107cm (15' x 42")
3284 12430 6
457cm x 122cm (15' x 48")
3736 14141 7
ROUND
METAL
FRAME POOL
244cm x 51cm (8' x 20")
483 1828 1
305cm x 76cm (10' x 30")
1185 4485 3
366cm x 76cm (12' x 30")
1718 6503 4
457cm x 122cm (15' x 48")
4440 16805 8
ULTRA FRAME
POOL
305cm x 76cm (10' x 30")
1185 4485 3
366cm x 76cm (12' x 30")
1718 6503 4
366cm x 99cm (12' x 39")
2270 8592 5
427cm x 107cm (14' x 42")
3357 12706 7
457cm x 107cm (15' x 42")
3861 14614 7
457cm x 122cm (15' x 48")
4440 16805 8
PRISM FRAME
TM
RECT. POOL
300cm x 175cm x 80cm (9'10" x 5'9" x 31½")
935 3539 2
400cm x 200cm x 100cm (13'1½" x 6'6¾" x 39½")
1806 6836 4
400cm x 200cm x 122cm (13'1½" x 6'6¾" x 48")
2224 8418 4
488cm x 244cm x 107cm (16' x 8' x 42")
2873 10874 6
SMALL RECT.
FRAME POOL
220cm x 150cm x 60cm (7'2⅝” x 4'11" x 23⅝”)
439 1662 1
260cm x 160cm x 65cm (8'6½" x 5'3" x 25⅝”)
603 2282 2
300cm x 200cm x 75cm (9'10" x 6'6¾" x 29½")
1013 3834 2
450cm x 220cm x 84cm (14'9¼" x 7'2⅝” x 33")
1883 7127 4
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 15
NON-INTEX POOLS OPERATING TIME TABLE
This table shows the required operating time for average use of the sand filter pump with
above ground pools.
Water Capacity
Sand filter pump operating time
(For one cycle)
(Gals) (Liters) (Hours)
1000 3785 2
1500 5678 3
2000 7570 4
2500 9463 5
3000 11355 6
3500 13248 7
4000 15140 8
4500 17033 8
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 16
POOL CARE & CHEMICALS
• All pools require care to keep the water clear and hygienically clean. With proper chemical
control, your filter will help attain this objective. Consult your pool supply dealer for
instructions regarding the proper use of chlorine, algaecide and other chemical agents
required for sparkling clear water.
• Keep pool chemicals away from children.
• Do not replenish chemicals in pool while pool is occupied. Skin or eye irritations could occur.
• Daily pH checking and chemical treatment of the water is very important and cannot be
overemphasized. Chlorine, algaecide and maintenance of proper pH levels are required when
filling the pool as well as during the season. Consult your local swimming pool supply store
for instructions.
• The season's first filling of the pool may have brackish water requiring extra water additives
and extra filtering time. Do not allow swimming in pool until the pH level is balanced. Consult
your local swimming pool supply store for instructions.
• Chlorinated water may damage lawns, gardens or shrubbery as children play in the pool and
splash water outside the pool. Lawn areas underneath the pool liner will be destroyed. Note
that some types of grass may grow through the liner.
• Filter run time depends on pool size, weather and usage level. Experiment with various run
times so as to produce clean clear water.
LONG TERM STORAGE & WINTERIZATION
CAUTION
Concentrated chlorine solutions may damage the pool liner. Always follow the chemical
manufacturer’s directions, and the health and hazard warnings.
1.
Before emptying your pool for long term storage, or relocation, be sure the water is directed
towards an acceptable drain water receptacle away from the house. Check local regulations
for specific directions regarding disposal of swimming pool water.
2.
Switch off the unit, and disconnect power cord from electrical outlet.
3.
When the pool is empty, disconnect all hoses from pump and remove the strainers from the
pool wall.
4.
In a counter clockwise motion unscrew the drain valve cap
(9)
from the drain valve
to
thoroughly drain the tank. The drain valve is located at the bottom of the filter tank.
5.
Disassemble the pump motor from the tank base.
6.
Leave sand filter pump pieces and hoses outside to thoroughly air dry.
7.
Coat the following o-rings with petroleum jelly for long term storage:
• Hose o-rings
(6)
.
• Air release valve o-ring
(15)
.
8.
Depress the 4-way valve handle and rotate so as to set the pointer on the valve top “N”
position. This allows the water to drain from the valve. Leave the 4-way valve in this inactive
position.
9.
It is best to place all dry pieces and pump motor in the original packaging for storage. To
avoid condensation or corrosion problem, do not cover or wrap pump motor with plastic bags.
10.
Store the pump motor and accessories in a dry place. The storage's temperature should be
controlled, between 0 degrees Celsius (32 degrees Fahrenheit) and 40 degrees Celsius
(104 degrees Fahrenheit).
11.
Cover the tank with a tarpaulin or plastic sheet to protect it from the weather.
CAUTION
Allowing the water to freeze will damage the sand filter and void the warranty.
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 17
TROUBLESHOOTING GUIDE
• Line cord must be plugged into a 3 wire outlet that is
protected by a Class A Ground Fault Circuit Interrupter,
or RCD.
• Reset circuit breaker. If circuit breaker trips repeatedly,
your electrical system may have a defect. Turn off circuit
breaker and call an electrician to correct the problem.
• Let the motor cool down and restart again.
• Adjust the chlorine and pH level. Consult your local
swimming pool supply stores.
• Load with filter sand, see “sand loading instructions”.
• Set valve to “FILTER” position.
• Operate the filter for longer periods.
• Clean the strainer screen at the inlet.
• Release the air, see operating instructions section.
• Clear any obstructions in the intake hose by
discharging it inside pool wall.
• Tighten hose clamps, check hoses for damage, check
pool water level.
• Backwash filter.
• Install the nozzle at the upper position of the pool inlet,
and the strainer at the lower position of the pool outlet.
• Remove about 1” of sand if necessary.
• Remove any pool vacuuming device attached to the
system line.
• Make sure the inlet threaded air connector is
connected to the pool inlet upper hole.
• Fill pool to correct water level.
• Clean strainer screens at pool inlet.
• Tighten hose clamps, check hose for damage.
• Contact Intex service center.
• Remove 4-way valve cover and ensure the o-ring is in place.
• Clean sand tank o-ring with garden hose water.
• Tighten securely.
• Contact Intex service center.
• Tighten or reinstall hose clamps.
• Put the o-ring back into the groove.
• Replace a new hose.
• Turn off the pump and restart 5 minutes later.
• Re-set the timer.
• Contact Intex service center.
• Clear any obstructions in the intake by unscrewing it
from the 4-way valve.
• Contact Intex service center.
• Use only No. 20 silica sand with particle size range
0.45 to 0.85 mm (0.018 to 0.033 inches) and a
Uniformity Coefficient less than 1.75.
• Change sand.
• Tighten air jet valve and make sure it’s facing up.
• Turn pump ON and run for few seconds, then turn
OFF, repeat 3 times.
• Remove air jet valve, flush dirt out with water and
replace valve back.
• Replace a new air jet valve.
•
Remove all the accessories (such as solar mat, auto pool
cleaner, LED light) from the water circulation line and place
the air jet valve cap
(22)
over the air jet valve
(25)
. Do not
cover the air jet valve
(25)
with the valve cap
(22)
under
normal situation or when the pump is operating.
FILTER MOTOR FAILS
TO START
FILTER DOESN’T
CLEAN POOL
FILTER DOESN’T
PUMP WATER OR
FLOW IS VERY SLOW
PUMP DOESN’T
WORK
4-WAY VALVE/
COVER LEAKING
HOSE LEAKING
TIMER IS
INACCURATE OR
TIMER CAN'T BE SET
PRESSURE GAUGE
DOESN’T WORK
SAND IS FLOWING
BACK INTO THE
POOL
AIR JET VALVE
LEAKING
SMALL LEAK FROM
AIR JET VALVE
WHEN PUMP IS ON
• The motor is not plugged in.
• The GFCI/RCD circuit breaker is
tripped.
• Motor too hot and overload protection
is shut off.
• Improper chlorine or pH levels.
• No filtering media in tank.
• Wrong 4-way valve setting position.
• Excessively dirty pool.
• The strainer screen is restricting the
water flow.
• Trapped air in the system.
• Clogged inlet or discharge.
• An air leak on the intake line.
• Excessively dirty pool.
• Sand media clogged with dirt.
• Nozzle and strainer connections are
reversed.
• Crusting or caking on the filtering sand
surface.
• Pool vacuuming device attached to the
system.
• Inlet threaded air connector connected
to the wrong hole on the liner.
• Low water level.
• Strainer screen clogged up.
• An air leak on the intake hose.
• Faulty motor or the impeller is jammed.
• Sand tank o-ring missing.
• Sand tank o-ring dirty.
• Flange clamp not tight.
• 4-way valve damage.
• Hose clamps are not well-fitted.
• Hose o-ring dislodged when connecting the hose.
• Hose broken.
• Possible inner timer defective.
• Clogged inlet of the pressure gauge.
• Pressure gauge damage.
• Sand is too small.
• Sand bed is calcified.
• Air jet valve is not tight and facing up.
• Air jet valve internal seal blocked.
• Air jet valve internal seal dirty.
• Air jet valve broken.
• Accessories attached to the water
circulation line.
TROUBLE CAUSE SOLUTION
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 18
COMMON POOL PROBLEMS
PROBLEM DESCRIPTION CAUSE SOLUTION
ALGAE
COLORED
WATER
FLOATING
MATTER IN
WATER
CHRONIC
LOW WATER
LEVEL
SEDIMENT
ON POOL
BOTTOM
SURFACE
DEBRIS
• Chlorine and pH levels need
adjustment.
• Copper, iron or maganese
in water being oxidized by
the added chlorine.
• "Hard water" caused by
a too high pH level.
• Chlorine content is low.
• Foreign matter in water.
• Rip or hole in pool liner or
hoses.
• The drain valves are loose.
• Heavy use, getting in and
out of pool.
• Pool too close to trees.
• Super chlorinate with shock
treatment. Correct pH to your
pool store's recommended
level.
• Vacuum pool bottom.
• Maintain proper chlorine
level.
• Adjust pH level to the
recommended level.
• Run filter until water is clear.
• Correct the pH level. Check
with your pool dealer for
advice.
• Adjust the chlorine level.
• Repair with a patch kit.
• Finger tighten all caps.
• Use Intex pool vacuum to
clean bottom of pool.
• Use Intex pool skimmer.
• Greenish water.
• Green or black spots
on pool liner.
• Pool liner is slippery
and/or has a bad odor.
• Water turns blue, brown,
or black when first
treated with chlorine.
• Water is cloudy or milky.
• Level is lower than on
previous day.
• Dirt or sand on pool floor.
• Leaves, insects etc.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT
If you continue to experience difficulty, please contact our Consumer Service Department
for assistance. See separate “Authorized Service Centers” sheet.
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 19
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks
of injury and death. To reduce your risk of injury, read and follow all product,
package and package insert warnings and instructions. Remember, however, that
product warnings, instructions and safety guidelines cover some common risks
of water recreation, but do not cover all risks and dangers.
For additional safeguards, also familiarize yourself with the following general
guidelines as well as guidelines provided by nationally recognized Safety
Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard”
or water watcher, especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about
the use of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.
For additional information on safety, please visit
• The Association of Pool and Spa Professionals: The Sensible Way to Enjoy
Your Aboveground/Onground Swimming Pool www.nspi.org
• American Academy of Pediatrics: Pool Safety for Children www.aap.org
• Red Cross www.redcross.org
• Safe Kids www.safekids.org
• Home Safety Council: Safety Guide www.homesafetycouncil.org
• Toy Industry Association: Toy Safety www.toy-tia.org
354
PO
SAVE THESE INSTRUCTIONS
(354PO) SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 20
LIMITED WARRANTY
Your Sand Filter Pump has been manufactured using the highest quality materials and
workmanship. All Intex products have been inspected and found free of defects prior to
leaving the factory. This Limited Warranty applies only to the Sand Filter Pump and
accessories listed below.
The provisions of this Limited Warranty apply only to the original purchaser and is not
transferable. This Limited Warranty is valid for the period noted below from the date of the
initial retail purchase. Keep your original sales receipt with this manual, as proof of purchase
will be required and must accompany warranty claims or the Limited Warranty is invalid.
Sand Filter Pump Warranty – 2 Years
Hoses & Fittings Warranty – 180 days
If a manufacturing defect is found within the periods noted above, please contact the
appropriate Intex Service Center listed in the separate “Authorized Service Centers” sheet.
The Service Center will determine the validity of the claim. If the Service Center directs you
to return the product, please carefully package the product and send with shipping and
insurance prepaid to the Service Center. Upon receipt of the returned product, the Intex
Service Center will inspect the item and determine the validity of the claim. If the provisions
of this warranty cover the item, the item will be repaired or replaced at no charge.
Any and all disputes regarding the provisions of this Limited Warranty shall be brought before
an informal dispute settlement board and unless and until the provisions of these paragraphs
are carried forth, no civil action may be instituted. The methods and procedures of this
settlement board shall be subject to the rules and regulations set forth by the Federal Trade
Commission (F.T.C.). IMPLIED WARRANTIES ARE LIMITED TO THE TERMS OF THIS
WARRANTY AND IN NO EVENT SHALL INTEX, THEIR AUTHORIZED AGENTS OR
EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR
CONSEQUENTIAL DAMAGES OR LIABILITIES. Some states, or jurisdictions do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This Limited Warranty does not apply if the products are subject to negligence, abnormal use
or operation, accident, improper operation, improper voltage or current contrary to operating
instructions, or to damage by circumstances beyond Intex’s control, including but not limited
to, ordinary wear and tear and damage caused by exposure to fire, flood, freezing, rain, or
other external environmental forces. This Limited Warranty applies only to those parts and
components sold by Intex. The Limited Warranty does not cover unauthorized alterations,
repairs or disassembly by anyone other than Intex Service Center personnel.
DO NOT GO BACK TO THE PLACE OF PURCHASE FOR RETURN
OR REPLACEMENT. IF YOU ARE MISSING PARTS OR NEED
ASSISTANCE, PLEASE CALL US (FOR U.S. AND CANADIAN
RESIDENTS): 1-310-549-8235 OR VISIT OUR WEBSITE:
WWW.INTEXCORP.COM.
Proof of Purchase must accompany all returns or the warranty claim will be invalid.
