1. Safety regulations
The corresponding safety information can be
found in the enclosed booklet.
Warning!
Read all the safety information, instructions,
illustrations and technical data provided on
or with this power tool. Failure to adhere to the
following instructions may result in electric shock,
fi re and/or serious injury.
Keep all the safety information and instruc-
tions in a safe place for future use.
2. Layout and items supplied

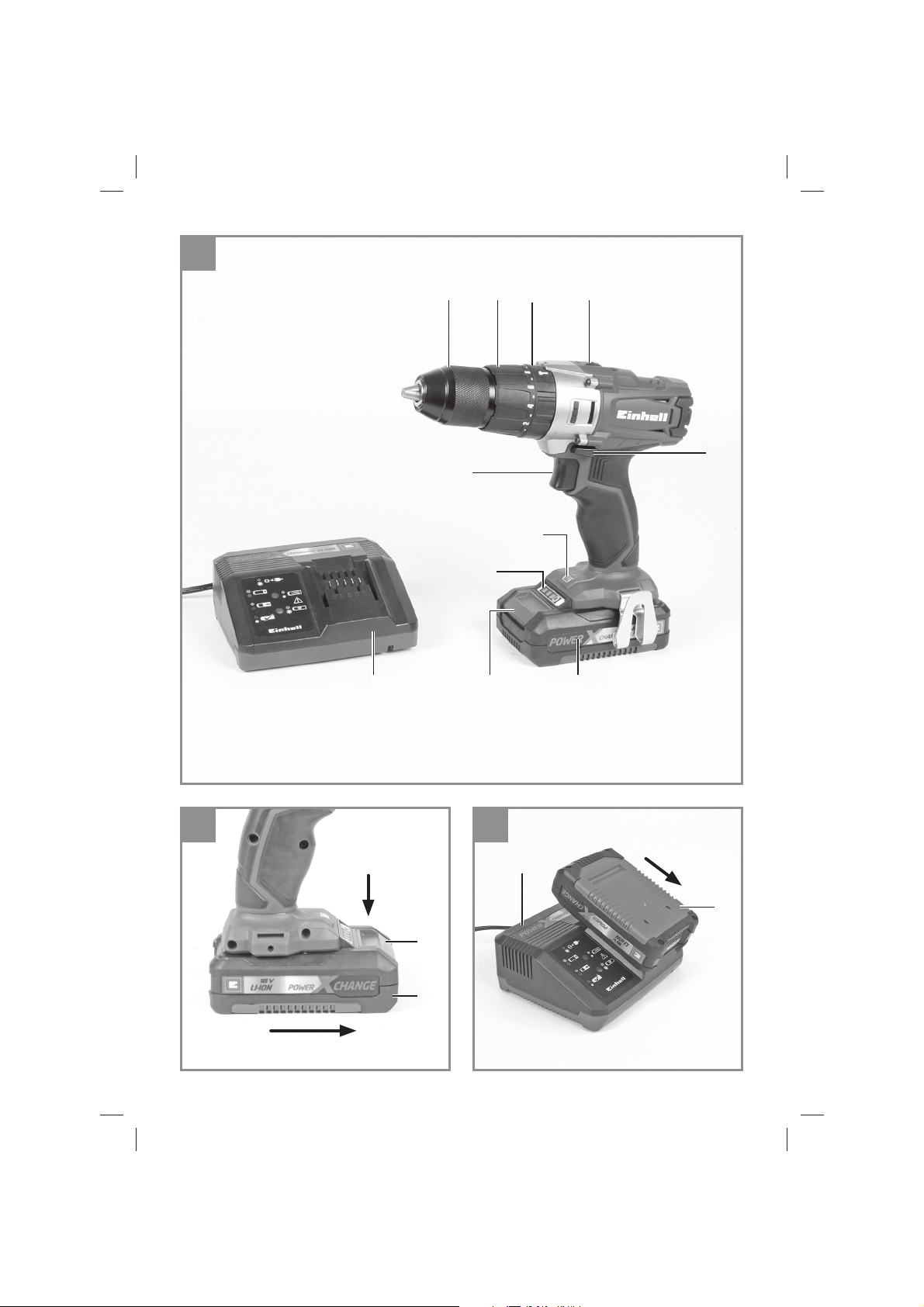

2.1 Layout (Fig. 1)
1. Torque selector
2. Battery capacity indicator
3. Changeover switch
4. ON/OFF switch
5. Battery pack
6. Battery charger
7. Selector switch for 1st/2nd gear
8. Pushlock button
9. Quick-change drill chuck
10. LED lamp
11. Selector switch for driving/drilling/impact dril-
ling
2.2 Items supplied
Please check that the article is complete as
specifi ed in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
•
Open the packaging and take out the equip-
ment with care.
•
Remove the packaging material and any
packaging and/or transportation braces (if
available).
•
Check to see if all items are supplied.
•
Inspect the equipment and accessories for
transport damage.
•
If possible, please keep the packaging until
the end of the guarantee period.
Important!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suff ocating!
•
Cordless drill/screwdriver
•
Battery charger
•
Battery
•
Original operating instructions
•
Safety instructions
3. Proper use
The cordless impact drill/driver is designed for
tightening and undoing screws, for drilling in
wood, metal and plastic, and for impact drilling in
stone, in each case when using the appropriate
bits.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 7Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 7 09.06.2020 12:55:4509.06.2020 12:55:45
GB
- 8 -
4. Technical data
Voltage supply ........................................18 V d.c.
Idling speed: ............................0-350/0-1250 rpm
Torque settings: .......................................18+1+1
Forward and reverse rotation ..........................yes
Chuck clamping width .......................max. 13 mm
Battery charger output voltage: .............21 V d. c.
Battery charger output current: .......................3 A
Mains voltage for charger: ..200-250 V~ 50-60 Hz
Battery type: .......................................Lithium-ion
Number of battery cells: .................................... 5
Battery capacitance: ................................. 1.5 Ah
Weight.........................................................1.6 kg
Max. screw diameter: .................................. 6 mm
The maximum screw diameter indicates the ma-
ximum diameter of the screw that can be screwed
into wood. The screw diameter can vary depen-
ding on the type of wood.
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 62841.
L
pA
sound pressure level ................... 86.72 dB(A)
K
pA
uncertainty .............................................3 dB
L
WA
sound power level ....................... 97.72 dB(A)
K
WA
uncertainty .............................................3 dB
Wear ear-muff s.
The impact of noise can cause damage to hea-
ring.
Total vibration values (vector sum of three direc-
tions) determined in accordance with EN 62841.
Drilling in metal
Vibration emission value a
h,D
≤ 2.5 m/s
2
K uncertainty = 1.5 m/s
2
Impact drilling in concrete
Vibration emission value a
h,ID
= 15.233 m/s
2
Uncertainty K = 1.5 m/s
2
The stated vibration emission levels and stated
noise emission values were measured in ac-
cordance with a set of standardized criteria and
can be used to compare one power tool with
another.
The stated vibration emission levels and stated
noise emission values can also be used to make
an initial assessment of exposure.
Warning:
The vibration and noise emission levels may vary
from the level specifi ed during actual use, depen-
ding on the way in which the power tool is used,
especially the type of workpiece it is used for.
Keep the noise emissions and vibrations to a
minimum.
•
Only use appliances which are in perfect wor-
king order.
•
Service and clean the appliance regularly.
•
Adapt your working style to suit the appliance.
•
Do not overload the appliance.
•
Have the appliance serviced whenever ne-
cessary.
•
Switch the appliance off when it is not in use.
•
Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in
accordance with instructions, certain resi-
dual risks cannot be rules out. The following
hazards may arise in connection with the
equipment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protec-
tion is used.
3. Health damage caused by hand-arm vib-
rations if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
Limit the operating time.
All stages of the operating cycle must be conside-
red (for example, times in which the electric tools
are switched off and times in which the tool is
switched on but operates without load).
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 8Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 8 09.06.2020 12:55:4509.06.2020 12:55:45
GB
- 9 -
5. Before starting the equipment
Be sure to read the following information before
you use your cordless screwdriver for the fi rst
time:
1. Charge the battery pack with the charger
supplied. An empty battery pack requires a
charging period of approximately 0.5-1 hour.
2. Only ever use sharp drill bits and screwdriver
bits which are suitable for the purpose and in
faultless condition.
3. Always check for concealed electric cables
and gas and water pipes when drilling and
screwing in walls.
6. Operation
6.1 Charging the LI battery pack (Fig. 2-3)
1. Remove the battery pack (5) from the handle,
pressing the pushlock buttons (8) downwards
to do so.
2. Check that your mains voltage is the same as
that marked on the rating plate of the battery
charger. Insert the power plug of the charger
(6) into the mains socket outlet. The green
LED will then begin to fl ash.
3. Push the battery pack onto the battery char-
ger.
In section 10 “Charger indicator” you will fi nd a
table with an explanation of the LED indicator on
the charger.
If the battery pack fails to become charged, ple-
ase check
•
whether there is voltage at the socket-outlet
•
whether there is proper contact at the char-
ging contacts on the charger.
If the battery still fails to become charged, please
return
•
the charger
•
the battery pack
to our Customer Service Department.
To ensure that the LI battery pack provides
long service you should take care to recharge
it promptly. You must recharge the battery pack
when you notice that the power of the cordless
screwdriver drops.
6.2 Torque setting (Fig. 4 / Item 1)
Important! The tool must be at a standstill
when you set the torque with the setting ring.
The cordless screwdriver is fi tted with a mechani-
cal torque selector.
The torque for a specifi c size of screw is selected
with the set-collar (1). The correct torque depends
on several factors:
•
on the type and hardness of material in ques-
tion
•
on the type and length screws used
•
on the requirements needing to be met by the
screwed joint.
The clutch disengages with a grating sound to
indicate when the set torque is reached.
6.3 Selector switch for driving/drilling/impact
drilling (Fig. 4/Item 11)
•
For driving purposes, set the selector switch
(11) to the „Screw“ position. The torque is
adjusted via the torque setting (1) (see point
6.2).
•
For drilling purposes, set the selector switch
(11) to the „Bit“ position. The slip coupling is
now off and the maximum torque is available
regardless of the torque setting (1).
•
For impact drilling purposes, set the selector
switch (11) to the „Hammer“ position. The slip
coupling is now off and the maximum torque
is available regardless of the torque setting
(1).
Important! Change the torque setting (1) and
the selector switch for driving/drilling/impact
drilling (11) only when the equipment is at a
standstill.
6.4 Forward/Reverse switch (Fig. 5 / Item 3)
With the slide switch above the On/Off switch you
can select the direction of rotation of the battery-
powered drill/screwdriver and secure it against
being switched on accidentally. You can choose
between clockwise and anticlockwise rotation. To
avoid causing damage to the gearing it is advisa-
ble to change the direction of rotation only when
the tool is at a standstill. The On/Off switch is blo-
cked when the slide switch is in centre position.
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 9Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 9 09.06.2020 12:55:4509.06.2020 12:55:45
GB
- 10 -
6.5 On/Off switch (Fig. 5 / Item 4)
Infi nitely variable speed control is possible with
the On/Off switch. The further you press the
switch, the higher the speed of the battery-powe-
red drill/screwdriver.
6.6 Changing over from 1st gear to 2nd gear
(Fig. 4 / Item 7)
You can work at a higher or lower speed depen-
ding on the position of the selector switch. To avo-
id damaging the gear unit you should only change
over gears when the tool has stopped.
6.7 Battery capacity indicator (Fig. 6 – Item 2)
Press the battery capacity indicator switch (a).
The battery capacity indicator (2) shows the char-
ge status of the battery using 3 LEDs.
All 3 LEDs are lit:
The battery is fully charged.
2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.
1 LED blinks:
The battery is empty, recharge the battery.
All LEDs blink:
The battery pack has undergone exhaustive di-
scharge and is defective. Do not use or charge a
defective battery pack.
6.8 LED lamp (Fig. 6 / Item 10)
The LED lamp (10) can be used in poor lighting
conditions to illuminate the area where you want
to drill or screw. The LED lamp (10) will be lit
automatically as soon as you press the ON/OFF
switch (4).
6.9 Changing the tool (Fig. 7)
Important. Set the changeover switch (3) to its
centre position whenever you carry out any work
(for example changing the tool, maintenance
work, etc.) on the cordless screwdriver.
•
The cordless screwdriver is fitted with a
quick-action chuck (9) with an automatic
spindle stop.
•
Open the chuck (9). The chuck opening (a)
must be large enough to hold the tool (drill bit
or screwdriver bit).
•
Select the suitable tool. Push the tool as far
as possible into the chuck opening (a).
•
Tighten the chuck (9) and then check that the
tool is secure.
6.10 Screwdriving
We recommend using self-centering screws (e.g.
Torx screws, recessed head screws) designed for
reliable working. Be sure to use a bit that matches
the screw in shape and size. Set the torque, as
described elsewhere in these operating instruc-
tions, to suit the size of screw.
7. Cleaning, maintenance and
ordering of spare parts
Danger!
Always pull out the mains power plug before star-
ting any cleaning work.
7.1 Cleaning
•
Keep all safety devices, air vents and the
motor housing free of dirt and dust as far as
possible. Wipe the equipment with a clean
cloth or blow it with compressed air at low
pressure.
•
We recommend that you clean the device
immediately each time you have finished
using it.
•
Clean the equipment regularly with a moist
cloth and some soft soap. Do not use
cleaning agents or solvents; these could at-
tack the plastic parts of the equipment. Ensu-
re that no water can seep into the device. The
ingress of water into an electric tool increases
the risk of an electric shock.
7.2 Maintenance
There are no parts inside the equipment which
require additional maintenance.
7.3 Ordering spare parts and accessories
Please provide the following information when
ordering spare parts:
•
Type of unit
•
Article number of the unit
•
ID number of the unit
•
Spare part number of the required spare part
For our latest prices and information please go to
www.isc-gmbh.info
Tip! For good results we
recommend high-quality ac-
cessories from !
www.kwb.eu
welcome@kwb.eu
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 10Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 10 09.06.2020 12:55:4509.06.2020 12:55:45
GB
- 11 -
8. Disposal and recycling
The equipment is supplied in packaging to pre-
vent it from being damaged in transit. The raw
materials in this packaging can be reused or
recycled. The equipment and its accessories are
made of various types of material, such as metal
and plastic. Never place defective equipment in
your household refuse. The equipment should
be taken to a suitable collection center for proper
disposal. If you do not know the whereabouts of
such a collection point, you should ask in your
local council offi ces.
9. Storage
Store the equipment and accessories out of
children’s reach in a dark and dry place at above
freezing temperature. The ideal storage tempe-
rature is between 5 and 30 °C. Store the electric
tool in its original packaging.
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 11Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 11 09.06.2020 12:55:4609.06.2020 12:55:46
GB
- 12 -
10. Charger indicator
Indicator status Explanations and actions
Red LED Green LED
Off Flashing Ready for use
The charger is connected to the mains and is ready for use; there is no
battery pack in the charger
On Off Charging
The charger is charging the battery pack in quick charge mode. The char-
ging times are shown directly on the charger.
Important! The actual charging times may vary slightly from the stated
charging times depending on the existing battery charge.
Off On The battery is charged and ready for use.
The unit then changes over to gentle charging mode until the battery is
fully charged.
To do this, leave the rechargeable battery on the charger for approx. 15
minutes longer.
Action:
Take the battery pack out of the charger. Disconnect the charger from the
mains supply.
Flashing Off Adapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes more
time. The reasons can be:
- The rechargeable battery has not been used for a very long time.
- The battery temperature is outside the ideal range.
Action:
Wait for the charging to be completed; you can still continue to charge the
battery pack.
Flashing Flashing Fault
Charging is no longer possible. The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold
(below 0° C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20° C)
for one day .
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 12Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 12 09.06.2020 12:55:4609.06.2020 12:55:46
GB
- 13 -
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EU concerning old electric and electronic equipment and
its implementation in national laws, old electric power tools have to be separated from other waste and
disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment
must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.
The old equipment can be returned to a suitable collection point that will dispose of the equipment in
accordance with the national recycling and waste disposal regulations. This does not apply to any ac-
cessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers
accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes.
This consignment contains lithium-ion batteries.
In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle
with care. Danger of ignition in case of damage to the consignment package. If the consignment packa-
ge is damaged: Check and if necessary repackage.
For further information contact: 0049 9951 95920-66. Outside Germany charges will apply instead for a
regular call to a landline number in Germany.
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 13Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 13 09.06.2020 12:55:4609.06.2020 12:55:46
GB
- 14 -
Service information
We have competent service partners in all countries named on the guarantee certifi cate whose contact
details can also be found on the guarantee certifi cate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Drill chuck, Battery
Consumables* Bit inserts/drill bits
Missing parts
* Not necessarily included in the scope of delivery!
In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple-
ase ensure that you provide a precise description of the problem and answer the following questions in
all cases:
•
Did the equipment work at all or was it defective from the beginning?
•
Did you notice anything (symptom or defect) prior to the failure?
•
What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 14Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 14 09.06.2020 12:55:4609.06.2020 12:55:46
Yang/Product-ManagementAndreas Weichselgartner/General-Manager
- 15 -
D erklärt folgende Konformität gemäß EU-Richtlinie und
Normen für Artikel
GB explains the following conformity according to EU directi-
ves and norms for the following product
F déclare la conformité suivante selon la directive CE et les
normes concernant l’article
I dichiara la seguente conformità secondo la direttiva UE e
le norme per l’articolo
NL verklaart de volgende overeenstemming conform EU
richtlijn en normen voor het product
E declara la siguiente conformidad a tenor de la directiva y
normas de la UE para el artículo
P declara a seguinte conformidade, de acordo com as
diretiva CE e normas para o artigo
DK attesterer følgende overensstemmelse i medfør af
EU-direktiv samt standarder for artikel
S förklarar följande överensstämmelse enl. EU-direktiv och
standarder för artikeln
FIN vakuuttaa, että tuote täyttää EU-direktiivin ja standardien
vaatimukset
EE tõendab toote vastavust EL direktiivile ja standarditele
CZ vydává následující prohlášení o shodě podle směrnice EU
a norem pro výrobek
SLO potrjuje sledečo skladnost s smernico EU in standardi za
izdelek
SK vydáva nasledujúce prehlásenie o zhode podľa smernice
EÚ a noriem pre výrobok
H a cikkekhez az EU-irányvonal és Normák szerint a
következő konformitást jelenti ki
PL deklaruje zgodność wymienionego poniżej artykułu z
następującymi normami na podstawie dyrektywy WE.
BG декларира съответното съответствие съгласно
Директива на ЕС и норми за артикул
LV paskaidro šādu atbilstību ES direktīvai un standartiem
LT apibūdina šį atitikimą EU reikalavimams ir prekės normoms
RO declară următoarea conformitate conform directivei UE şi
normelor pentru articolul
GR δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την
Οδηγία ΕΚ και τα πρότυπα για το προϊόν
HR potvrđuje sljedeću usklađenost prema smjernicama EU i
normama za artikl
BIH potvrđuje sljedeću usklađenost prema smjernicama EU i
normama za artikl
RS potvrđuje sledeću usklađenost prema smernicama EZ i
normama za artikal
RUS следующим удостоверяется, что следующие продукты
соответствуют директивам и нормам ЕС
UKR проголошує про зазначену нижче відповідність виробу
директивам та стандартам ЄС на виріб
MK ја изјавува следната сообрзност согласно
ЕУ-директивата и нормите за артикли
TR Ürünü ile ilgili AB direktifl eri ve normları gereğince aşağıda
açıklanan uygunluğu belirtir
N erklærer følgende samsvar i henhold til EU-direktivet og
standarder for artikkel
IS Lýsir uppfyllingu EU-reglna og annarra staðla vöru
Cordless Hammer Drill/Screwdriver / Power X-Charger (Einhell)
2014/29/EU
2005/32/EC_2009/125/EC
(EU)2015/1188
2014/35/EU
2006/28/EC
X
2014/30/EU
2014/32/EU
2014/53/EU
2014/68/EU
(EU)2016/426
Notifi ed Body:
(EU)2016/425
X
2011/65/EU_(EU)2015/863
X
2006/42/EC
Annex IV
Notifi ed Body:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L
WA
= dB (A); guaranteed L
WA
= dB (A)
P = KW; L/Ø = cm
Notifi ed Body:
2012/46/EU_(EU)2016/1628
Emission No.:
Standard references: EN 2841-1; EN 62841-2-1; EN 55014-1; EN 55014-2;
EN 61000-3-2; EN 61000-3-3; EN 60335-1; EN 60335-2-29; EN 62233
Landau/Isar, den 20.05.2020
First CE: 20 Archive-File/Record: NAPR023557
Art.-No.: 45.137.96 I.-No.: 21010 Documents registrar: Alex Kurz
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 15Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 15 09.06.2020 12:55:4609.06.2020 12:55:46
- 16 -
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 16Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 16 09.06.2020 12:55:4609.06.2020 12:55:46
- 17 -
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 17Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 17 09.06.2020 12:55:4609.06.2020 12:55:46
EH 06/2020 (01)
Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 18Anl_TE_CD_18_44_Li_i_Kit_SPK7.indb 18 09.06.2020 12:55:4609.06.2020 12:55:46
