TILE CUTTER
MODEL:8103E-2/17”
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
8103E-2/17”
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before
operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Tile Cutter
8103E-2/17”
- 2 -
SPECIFICATIONS
Maximum Cutting Length
430mm
Maximum Cutting Thickness
12mm
Cutting Wheel Size
Φ15*Φ6*1.5mm
SAFETY INFORMATION
Symbol
Symbol Description
Warning - To reduce the risk of injury, user must read instructions
manual carefully.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to
an accident. To reduce the risk of injury, fire, or electrocution,
please follow the recommendation below.
Warning- Be sure to wear eye protectors when using this product.
Warning- Be sure to wear gloves when using this product.
Warning
Read and understand all instructions before using this tile cutter. The
operator must follow basic precautions to reduce the risk of personal injury and/or
damage to the equipment.
Please familiarize yourself with the hazard notices found in this manual. A notice
- 3 -
is an alert that there is a possibility of property damage, injury or death if certain
instructions are not followed.
WORK AREA
1.Operate in a safe work environment. Keep your work area clean, well-lit and free
of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the work
area.
3. Store new tools properly in a safe and dry location to prevent rust or damage.
Lock tile cutter away and keep out of the reach of children.
4. Always place the tile cutting machine on a level and firm surface.
PERSONAL SAFETY
WARNING!
Wear personal protective equipment approved by the Canadian Standards
Association (CSA) or American National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection for the
eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI Z87.1
standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to reduce
the effects of tool vibration.
3. Caution! The edges of cut tiles are sharp.
PERSONAL PRECAUTIONS
Control the tile cutter, personal movement and the work environment to avoid
personal injury or damage to tile cutter.
1. Do not operate any tile cutter when tired or under the influence of drugs, alcohol
or medications.
2. Avoid wearing clothes or jewelry that can become entangled with a tool's
moving parts. Keep long hair covered or bound.
- 4 -
SPECIFIC SAFETY PRECAUTIONS
1. The tile cutting machine is fitted with replaceable circular blade. Keep the tile
cutter and blade away from children.
2. Use the correct tile cutter for the job. This tile cutter was designed for a specific
function. Do not modify or alter this tile cutter or use it for an unintended purpose.
3.After use, the machine must be stored in a safe and dry place.
4.This machine has been designed for cutting and breaking ceramic, glazed,
porcelain, and polished tile , and which surface must be flat. Shall not be used
for any other purpose.
WARNING!
DO NOT let comfort or familiarity with product (gained from repeated use) replace
strict adherence to the tile cutter safety rules. If you use this tool unsafely or
incorrectly, you can suffer serious personal injury.
WARNING!
Direct exposure of pressurized air or fluids to skin could result in severe bodily
injury.
SAVE THESE INSTRUCTIONS

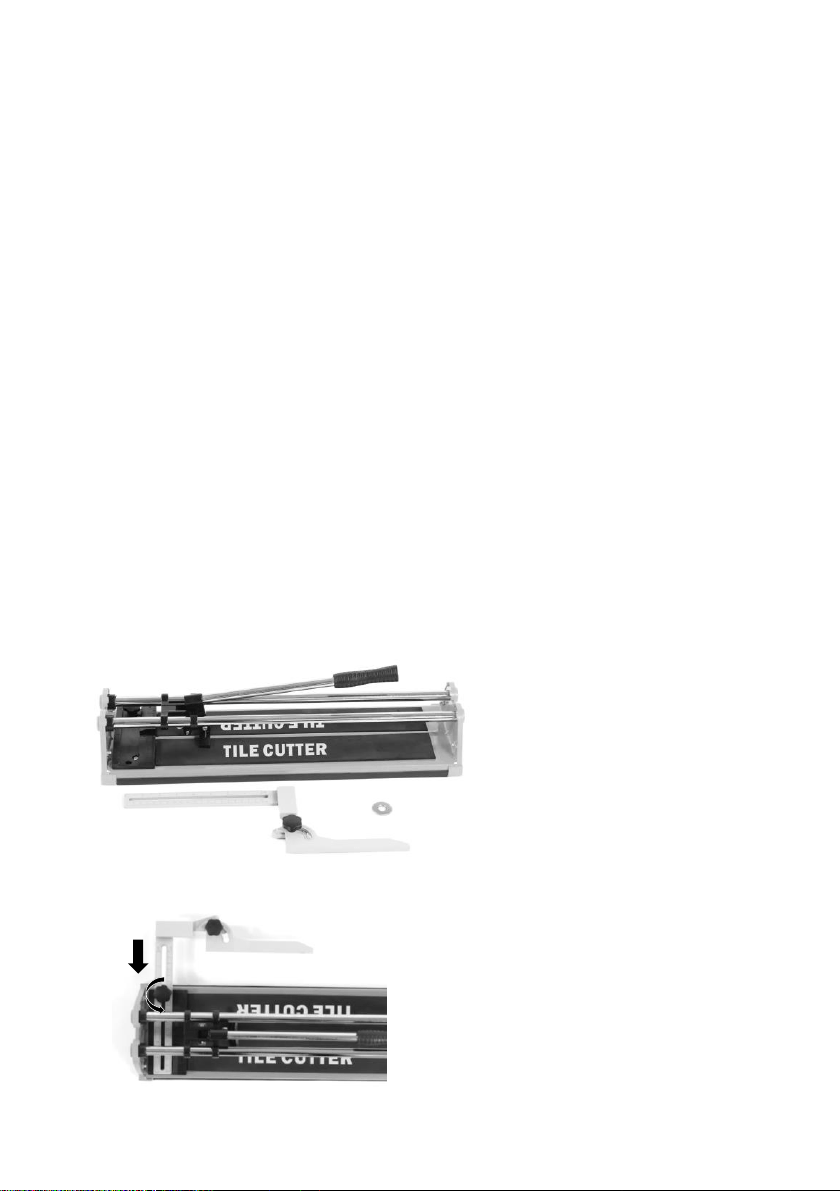

① Machine *1PCS
② Ruler *1PCS
③ Spare Cutting Wheel
Φ15xΦ6x1.5mm
*1PCS
Insert
Fix
①
③
② ②
- 5 -
Operation

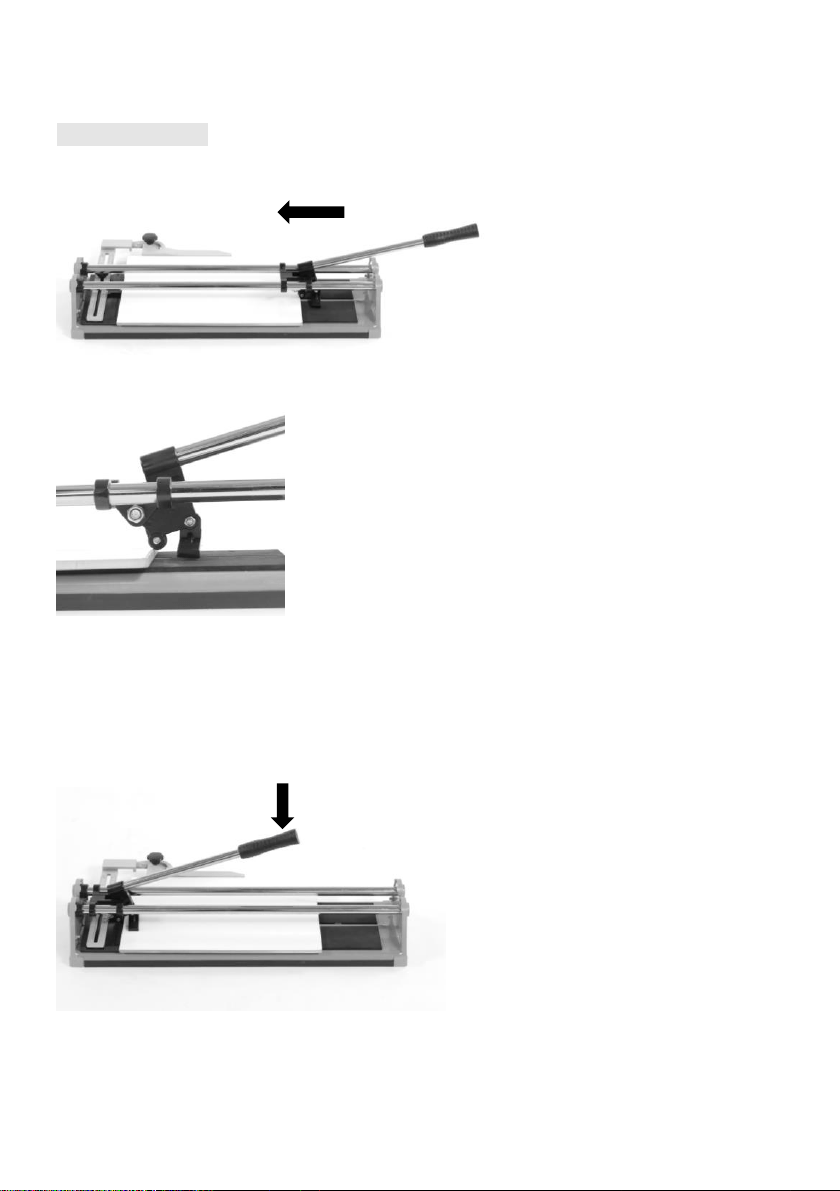

Straight Cutting
□
1
Place the cutting wheel on the rear edge of the tile.
Slide the wheel forward by pushing the handle down with medium pressure.
Scoring the tile surface glaze as the handle is pushed forward.
It is important to make one continuous motion, scoring the surface only once per
time.
□
2
After scoring and without moving the tile position, the breaker is slightly in the front
edge of the tile and front stop.
- 6 -
Apply increasing pressure on the handle until the tile snaps along the score line.
Tips: After scoring, it is better to pull back the handle to let the breaker slightly
backtrack 5-10mm,it's the best position to break the tile.
Tips: Do not press in the middle or the end.

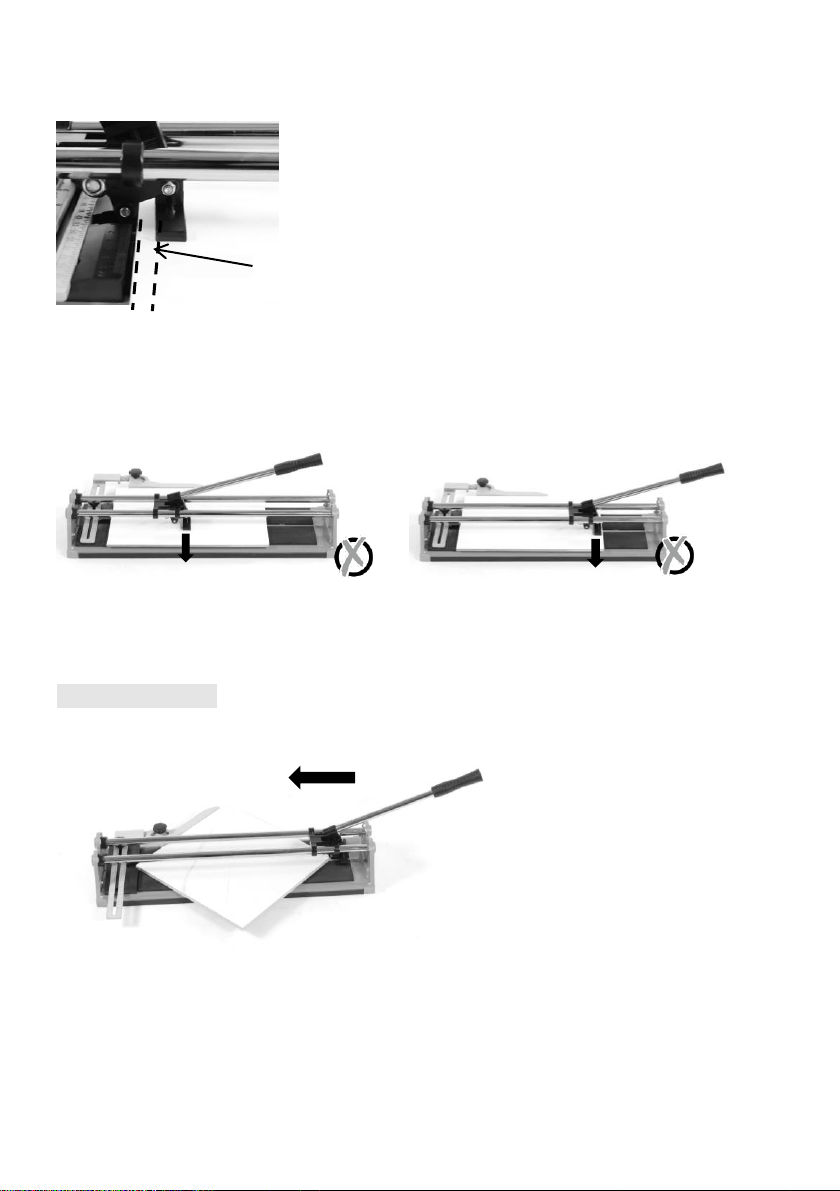

Diagonal Cutting
□
1
Put tile on the machine against the adjusted angle ruler.
Place the cutting wheel on the rear edge of the tile.
5-10mm
- 7 -
Slide the wheel forward by pushing the handle down with medium pressure.
Scoring the tile surface glaze as the handle is pushed forward.
It is important to make one continuous motion, scoring the surface only once per
time.
□
2
After scoring and without moving the tile position, so that the breaker is slightly in
the front edge of the tile and front stop.
Raise the handle a little and release the breaker so that the breaker is flat on the
tile.
Apply increasing pressure on the handle until the tile snaps along the score line.
- 8 -
Tips: After scoring, it is better to pull back the handle to let the breaker slightly
backtrack 5-10mm,it's the best position to break the tile.

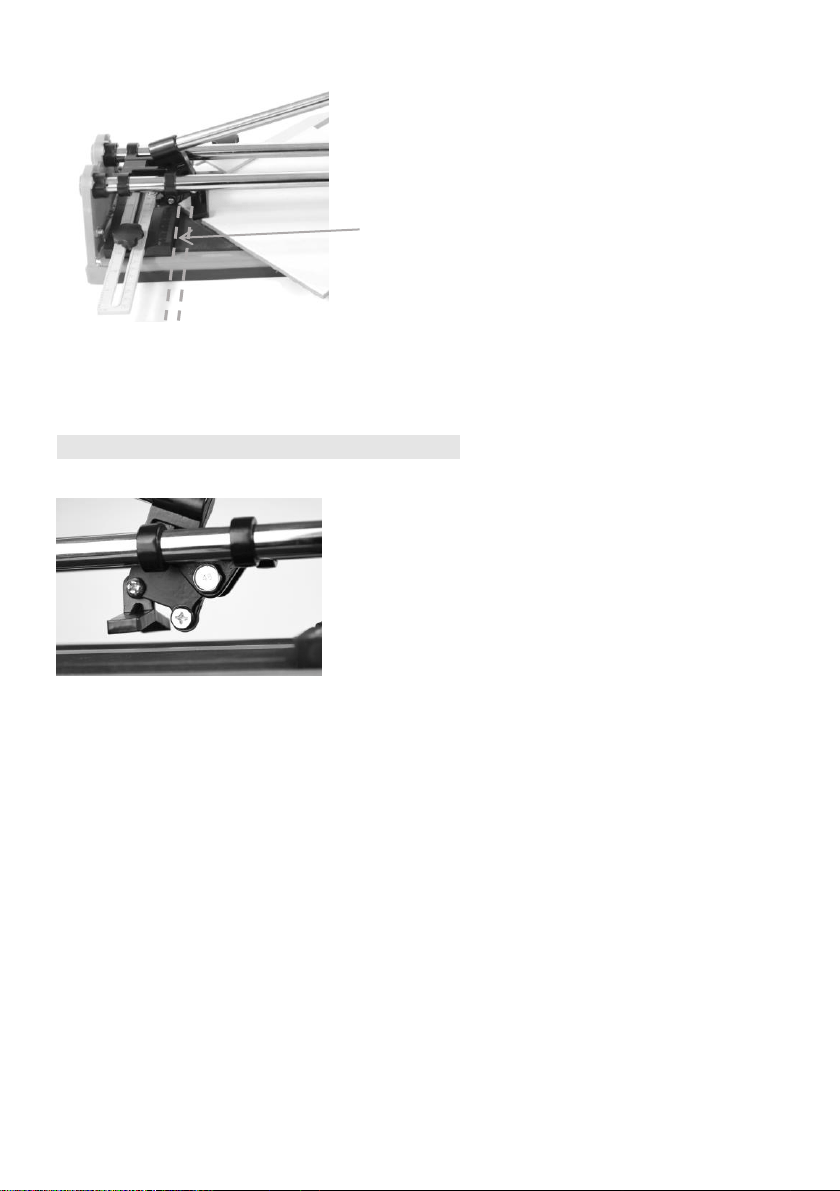

Use Screwdriver to replacement the blade.
5-10MM
- 9 -
