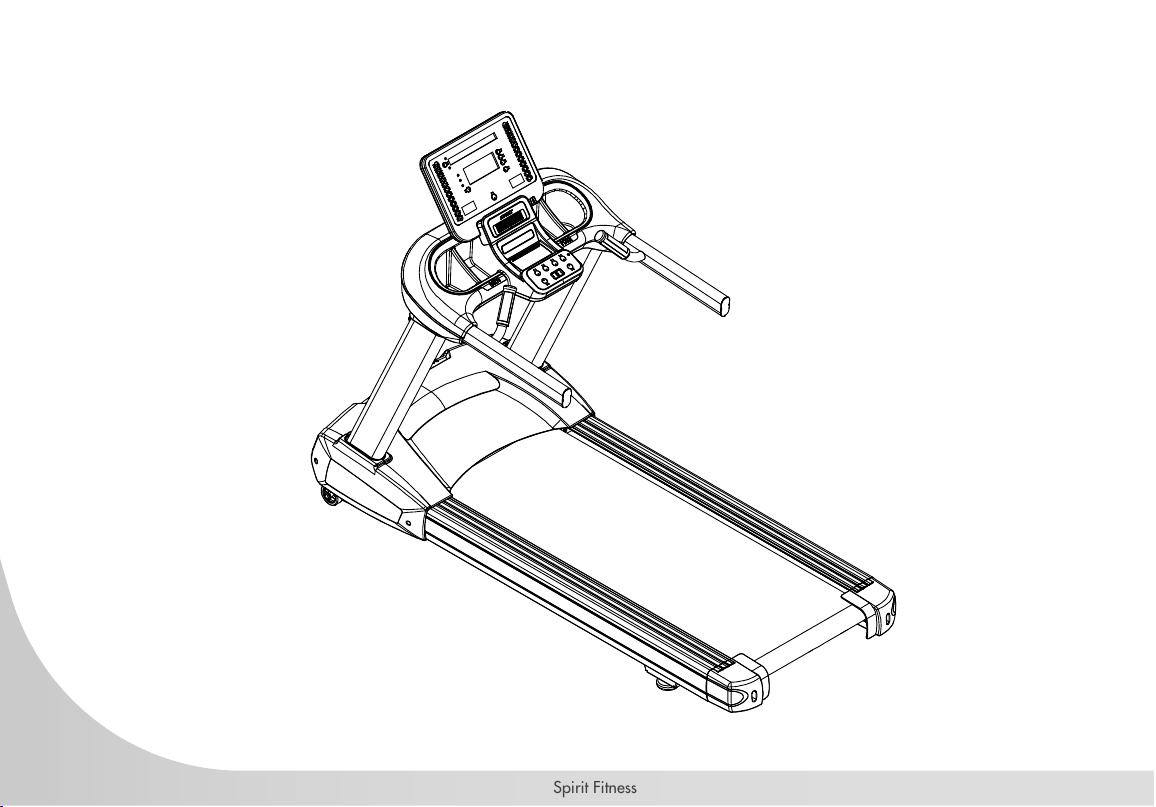

CT850 Treadmill
OWNER’S MANUAL
CT850_850840_OM_20230810
Spirit Fitness
1
www.spirittness.com

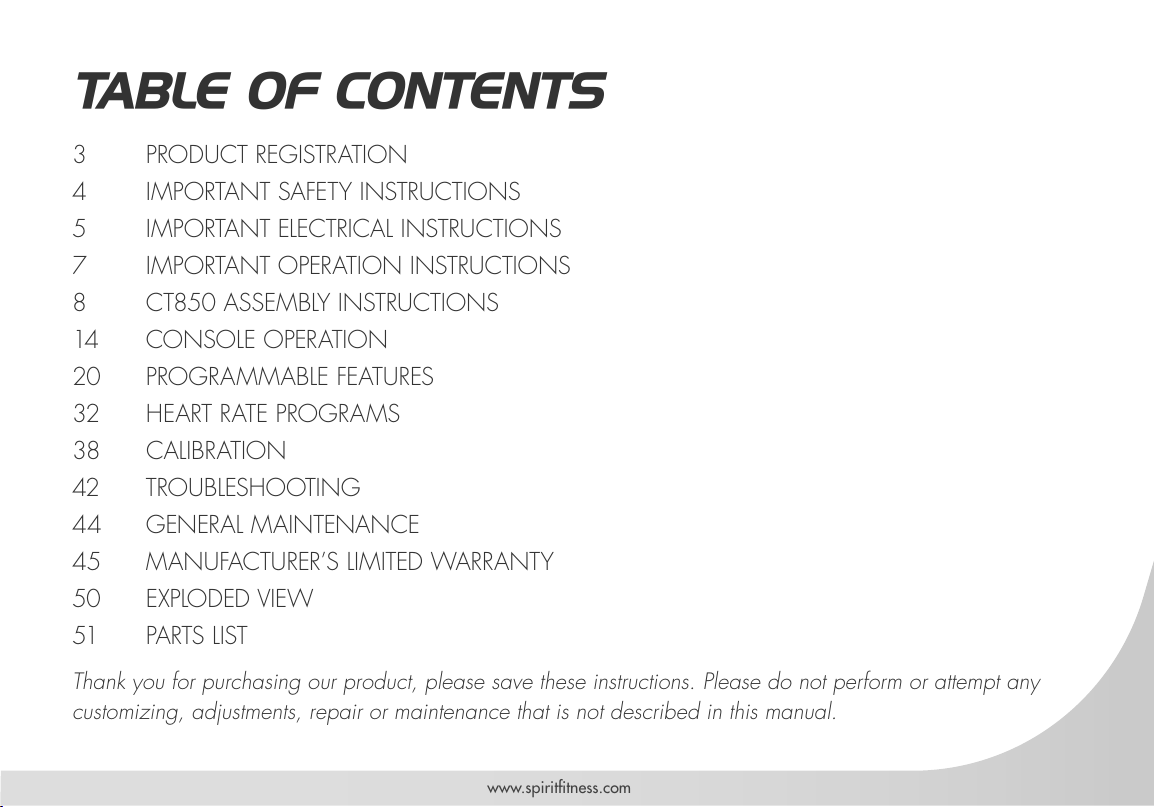

TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
5 IMPORTANT ELECTRICAL INSTRUCTIONS
7 IMPORTANT OPERATION INSTRUCTIONS
8 CT850 ASSEMBLY INSTRUCTIONS
14 CONSOLE OPERATION
20 PROGRAMMABLE FEATURES
32 HEART RATE PROGRAMS
38 CALIBRATION
42 TROUBLESHOOTING
44 GENERAL MAINTENANCE
45 MANUFACTURER’S LIMITED WARRANTY
50 EXPLODED VIEW
51 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
2
Spirit Fitness

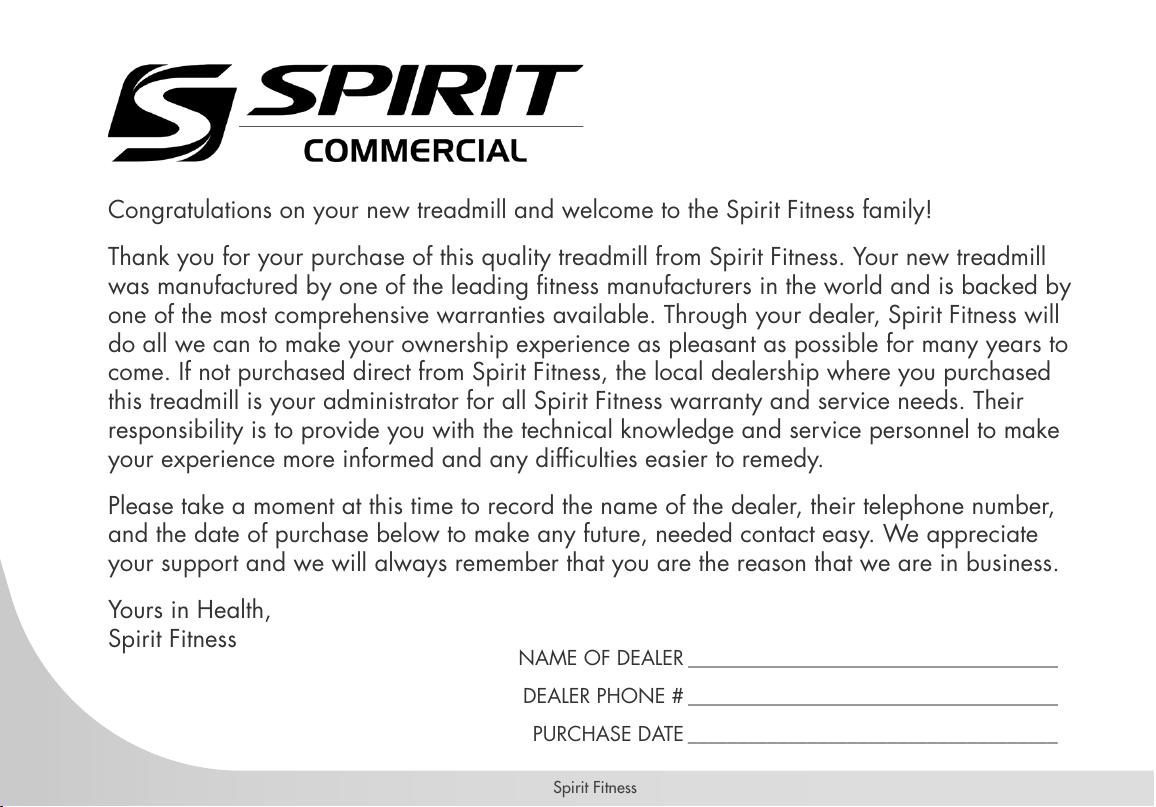

Congratulations on your new treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality treadmill from Spirit Fitness. Your new treadmill
was manufactured by one of the leading tness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will
do all we can to make your ownership experience as pleasant as possible for many years to
come. If not purchased direct from Spirit Fitness, the local dealership where you purchased
this treadmill is your administrator for all Spirit Fitness warranty and service needs. Their
responsibility is to provide you with the technical knowledge and service personnel to make
your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate
your support and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below. The serial number is
located at the front of the treadmill by the Power switch.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/warranty under the Support tab to register online.
4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
When using an electrical appliance, basic
precautions should always be followed, including
the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical
outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re electric
shock, or injury to persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged
cord or plug, if it is not working properly, if it as
been dropped or damaged, or dropped into
water. Return the appliance to a service center for
examination and repair.
• Do not carry this appliance by supply cord or use
cord as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and
the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only. See Grounding Instructions.
• The appliance is intended for household use.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons
with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
5
www.spirittness.com
unless they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Keep children under the age of 13 away from this
machine.
• ASTM F2115-05 Specications
6.1.2.11 The recommended minimum clearance
required around each treadmill for access to,
passage around, and emergency dismount shall be
stated. The minimum dimensions are to be: 0.5 m
(19.7 in.) on each side of the treadmill, and 1 m
(39 in.) behind the machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER use a ground fault circuit interrupt (GFCI)
wall outlet with this treadmill. As with any appliance
with a large motor, the GFCI will trip often. Route
the power cord away from any moving part of the
treadmill including the elevation mechanism and
transport wheels. NEVER remove any cover without
rst disconnecting AC power. If voltage varies by
ten percent (10%) or more, the performance of your
treadmill may be affected. Such conditions are not
covered under your warranty. If you suspect the
voltage is low, contact your local power company
or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture.
This product is NOT designed for use outdoors,
near a pool or spa, or in any other high
humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and
humidity is 95% non-condensing (no water drops
forming on surfaces).
Circuit Breakers: Some circuit breakers used in
homes are not rated for high inrush currents that
can occur when a treadmill is rst turned on or
even during use. If your treadmill is tripping the
house circuit breaker (even though it is the proper
current rating) but the circuit breaker on the treadmill
itself does not trip, you will need to replace the
home breaker with a high inrush type. This is not
a warranty defect. This is a condition we as a
manufacture have no ability to control. This part is
6
Spirit Fitness
available through most electrical supply stores. Examples: Grainger part # 1D237, or available online at
www.squared.com part #QO120HM. The electrical outlet used should have a dedicated 20 amp circuit
breaker.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill should malfunction or breakdown, grounding provides a
path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with
a cord having an equipment-grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product if it will not t the outlet; have a proper outlet
installed by a qualied electrician.

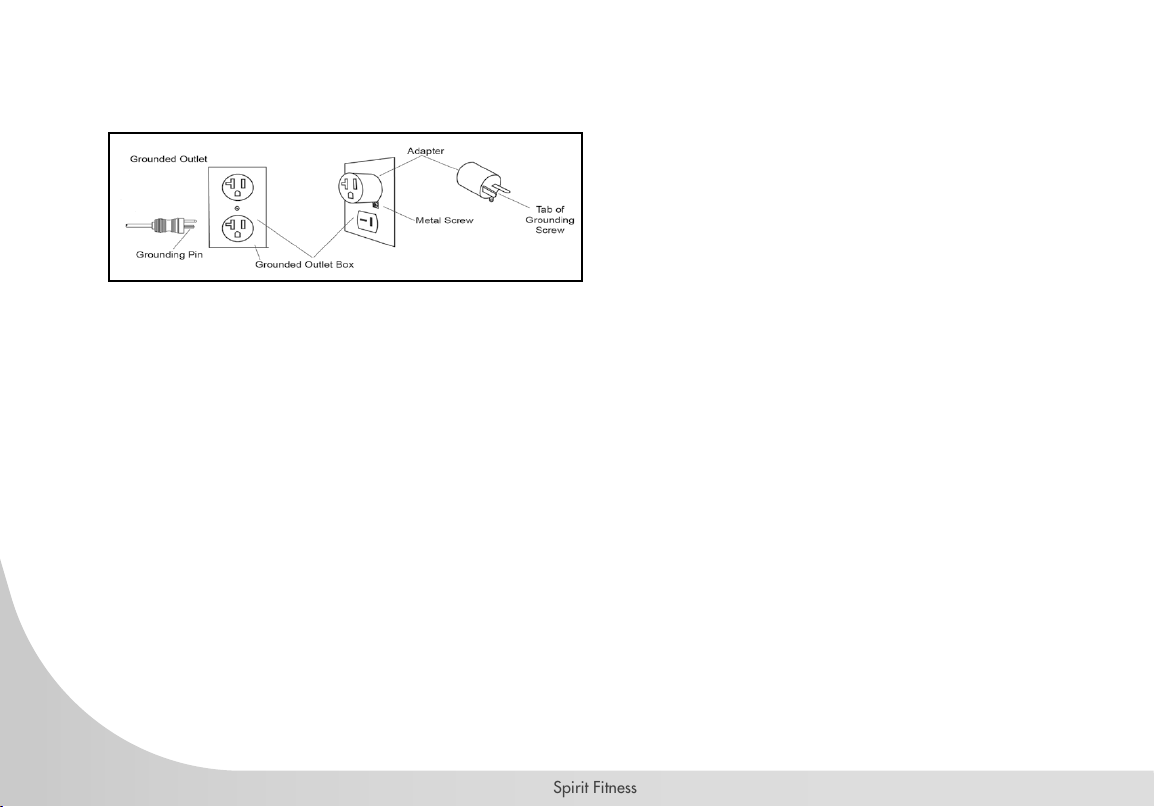

This product is for use on a nominal 120-volt/20 amp dedicated circuit, and has a grounding plug that
looks like the plug illustrated below. A temporary adapter that looks like the adapter illustrated below may
be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is not
available. The temporary adapter should be used only until a properly grounded outlet, (shown below)
can be installed by a qualied electrician. The green colored rigid ear-lug, or the like, extending from the
7
www.spirittness.com
adapter, must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever
the adapter is used, it must be held in place by a metal screw.
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this treadmill without reading and completely understanding the results of any operational change
you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment button. The computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your treadmill; such as watching television,
reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control buttons. They are precision set to function properly with little
nger pressure.
WARNING
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State of California
to cause Cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
8
Spirit Fitness
CT850 PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box;
lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are
in parenthesis (#) are the item number from the assembly drawing
for reference.
TOOLS INCLUDED:
3/8”Allen Wrench
10mm Allen Wrench
Phillips Screwdriver
PARTS INCLUDED:
2 Console Masts
2 Side Covers
1 Base Frame
1 Console Support
1 Console
1 Safety Button
1 Power Cord
1 Hardware Kit
9
www.spirittness.com

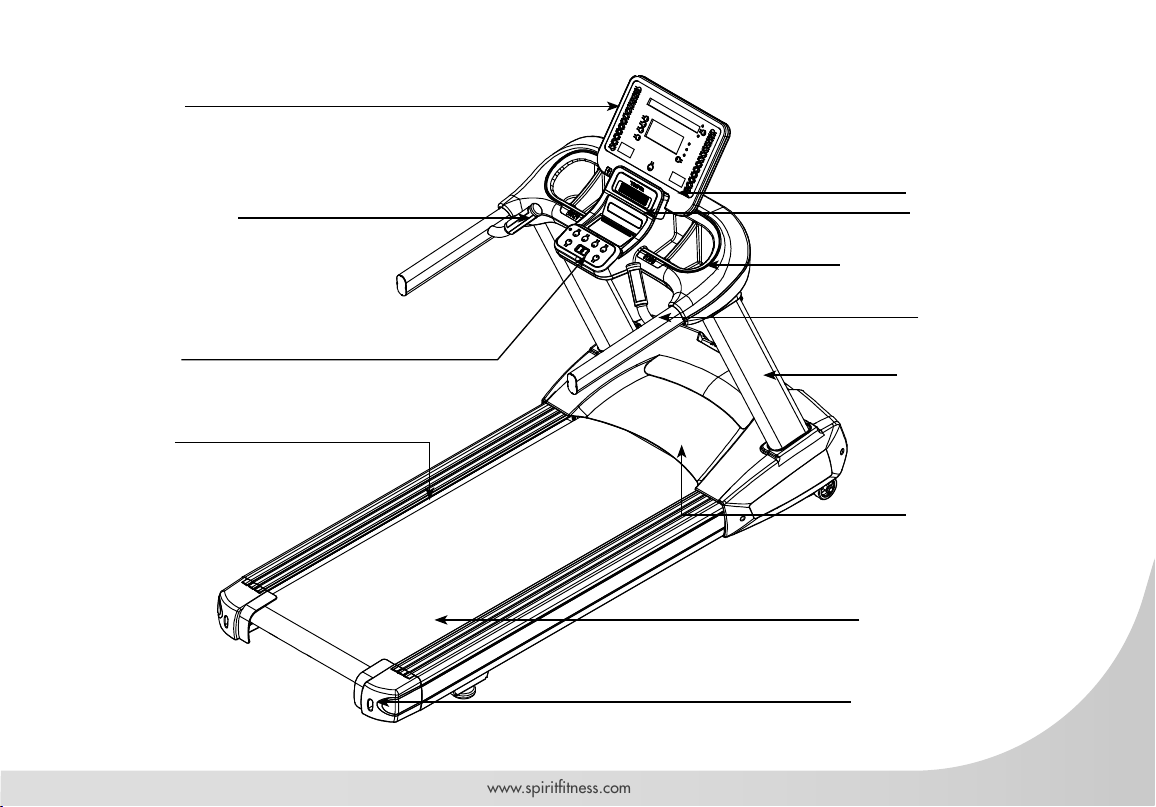

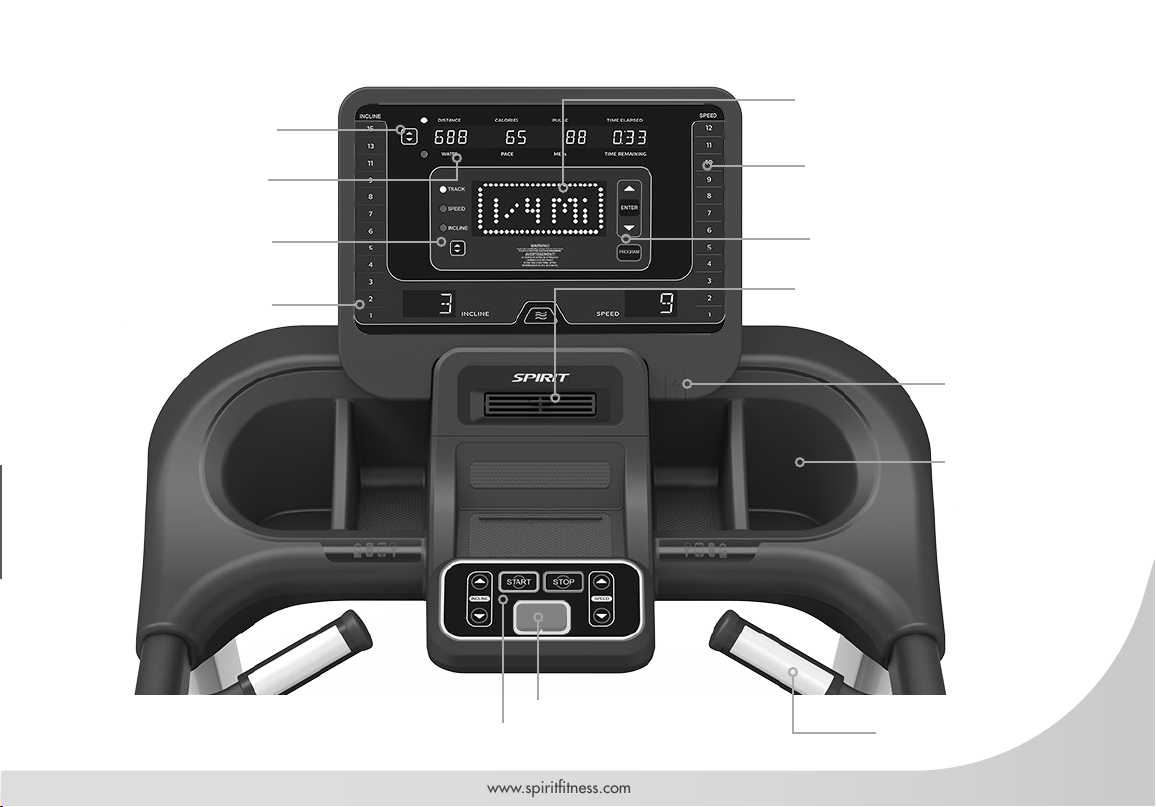

CONSOLE
HEART RATE GRIPS
SAFETY KEY
SIDE RAILS
RUNNING BELT/DECK
TREAD-BELT TRACKING
CONSOLE MAST
HANDLEBARS
MOTOR COVER
CONSOLE FAN
BOTTLE HOLDER
READING RACK
10
Spirit Fitness

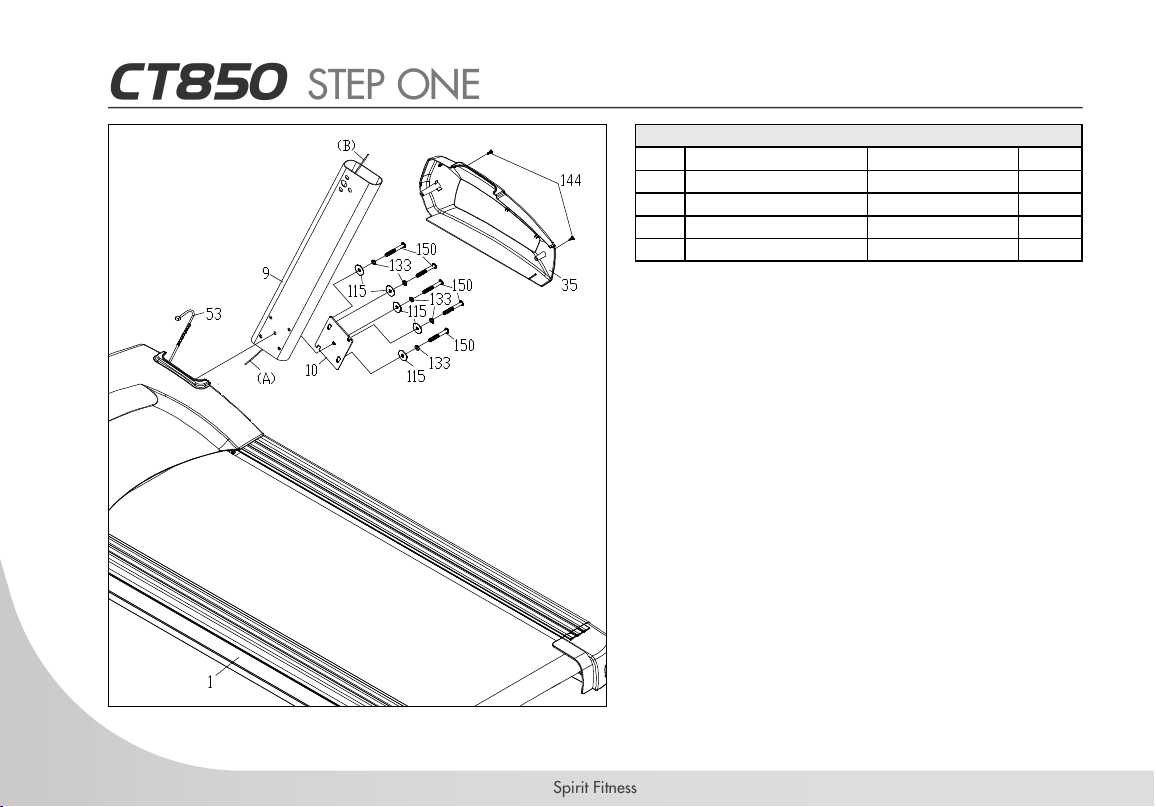

CT850 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
150 BUTTON HEAD SOCKET BOLT
3/8” x 3”
10
133 SPLIT WASHER
Ø10 x 2T
10
115 FLAT WASHER
Ø3/8” x 35 x 2.0T
10
144 PHILLIPS HEAD SCREWS
M5 x 12mm
4
1. Gather Hardware for Step 1.
2. Thread the Computer Cable (No.53) up through the
center of the Right Upright Column (No.9).
3. Use four sets of Button Head Socket Bolt (No.150),
Split Washer (No.133) against a Flat Washer
(No.115) to secure the Upright Fixing Plate (No.10)
to the Right Uprights (No.9) to the Main Frame
(No.1) using the Allen Wrench (No.160).
4. Use two Phillips Head Screws (No.144) to secure
the Motor Base Cap Right (No.35) to Main Frame
(No.1) using the Screw Driver (No.158).
5. Repeat the previous two steps on the left side.
11
www.spirittness.com

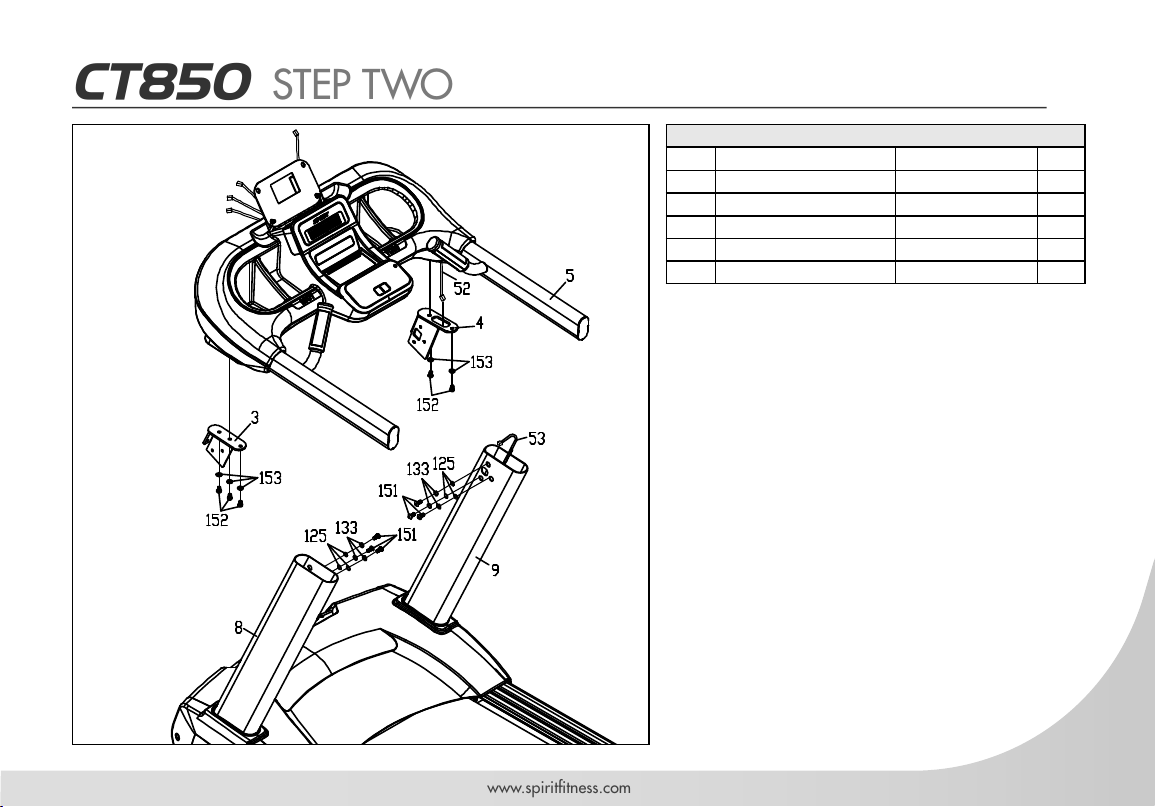

CT850 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
152 SOCKET HEAD CAP BOLT
M8 x 12mm
5
153 FLAT WASHER
Ø8 x Ø16 x 2T
5
151 BUTTON HEAD SOCKET BOLT
3/8” x 3/4”
6
133 SPLIT WASHER
Ø10 x 2T
6
125 FLAT WASHER
Ø3/8” x Ø25 x 2.0T
6
1. Gather Hardware for Step 2.
2. On the underside of the Console Support
(No.5) is where the Locking Plate Assembly
(No. 3 & 4) can be attached. Use 2 Socket
Head Cap Bolts (No.152) and 2 Flat
Washers(No.153) on each side to secure.
3. Connect the Computer Cable (No. 53) with
the Upper Computer Cable (No.52). Be
careful not to pinch the wires and slide them
into the Right Upright (No.9).
4. Gently slot the Console Support (No.5) into
the Left/Right Uprights (No.8 & 9) and
secure with 3 Button Head Socket Bolts
(No.151), 3 Split Washers (No.133), and
3 Flat Washers (No.125) on both sides
using the Allen Wrench (No.160).
12
Spirit Fitness

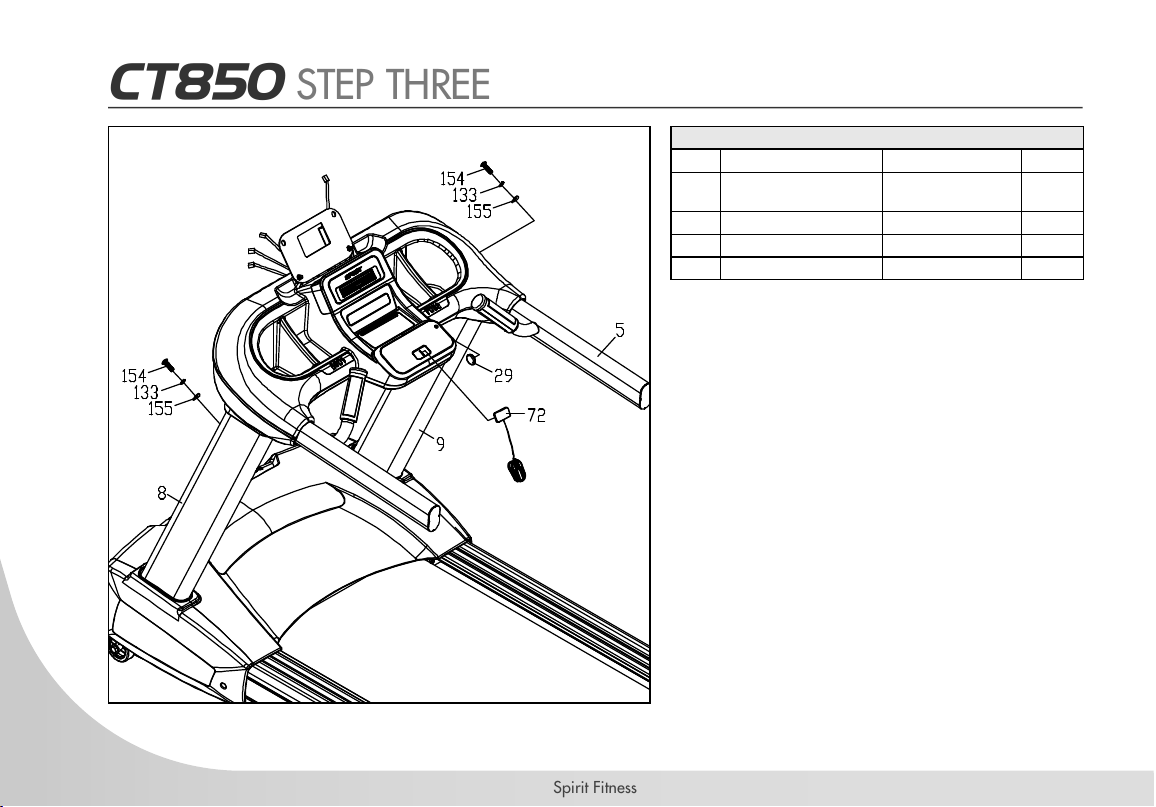

CT850 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
154 BUTTON HEAD SOCKET
BOLT
3/8” x UNC16
x1-1/4
2
133 SPLIT WASHER
Ø10 x 2T
2
155 CURVED WASHER
Ø10 x Ø23 x 1.5T
2
29 ROUND CAP 1
1. Gather Hardware For Step 3.
2. Further secure the uprights by inserting a Button
Head Socket Bolt (No.154) through a Split
Washer (No.133), and a Curved Washer
(No.155) onto the backside of both Left/Right
Uprights (No. 8 & 9) using the Allen Wrench
(No.160).
3. Plug the Round Cap (No.29) into the Right
Upright (No.9).
4. Plug the Safety Key (No.72) into the Safety
Key base on the Console Support (No.5).
13
www.spirittness.com

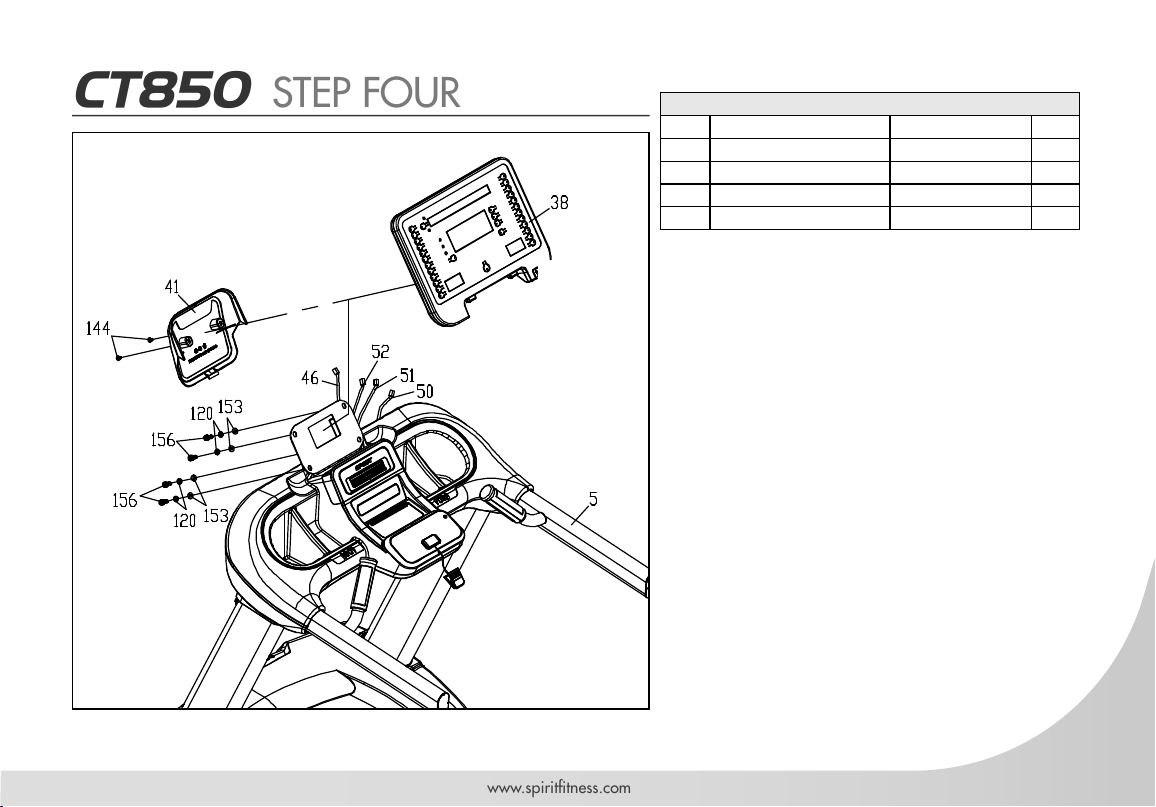

CT850 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
156 SOCKET HEAD CAP BOLT
M8 x P1.25 x 20L
4
120 SPLIT WASHER
Ø8 x 1.5T
4
153 FLAT WASHER
Ø8 x Ø16 x 2T
4
144 PHILLIPS HEAD SCREW
M5 x 12mm
2
1. Gather Hardware for Step 4.
2. Place the Console Assembly (No.38) onto the
Console Support (No.5). Secure with 4 Socket
Head Cap Bolts (No.156), 4 Split Washer
(No.120), and 4 Flat Washers (No.153) using
the Allen Wrench (No.159).
3. Connect the Upper Handpulse Wires (No.50
& 51) and Upper Computer Cable (No.52) to
Console Assembly (No.38).
4. Fasten the Console Cover (No.41) with 1 Phillips
Head Screw (No.144) to the Console Support
(No.5) using the Screw Driver (No.158).
14
Spirit Fitness
CT850 CONSOLE OPERATION
15
www.spirittness.com
Fan
Contact Heart
Rate Grips
Dot Matrix
Message Center
Water bottle
holder and cargo
compartment for
buttons, phone,
or MP3 player
USB
Charger
Scan Button for
LED Windows
Scan Button for
Dot Matrix
Direct Access
Incline Buttons
Direct Access
Speed Buttons
Start, Stop, Speed, and
Incline controls
Safety Key
Up, Down,
Program Controls
LED Data Display
Windows
16
Spirit Fitness
POWER
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located
at the front of the treadmill below the motor hood. Ensure that the safety button is installed, as the treadmill
will not power on without it.
When the power is turned on, all the lights on the display will light for a short time. Then the Time and
Distance windows will display odometer readings for a short time. The Time window will show how many
hours the treadmill has been in use and the Distance window will show how many miles (or Kilometers if
the treadmill is set to metric readings; see maintenance for changing settings) the treadmill has gone. A
message will be displayed showing the current software version. The treadmill will then enter idle mode,
which is the starting point for operation.

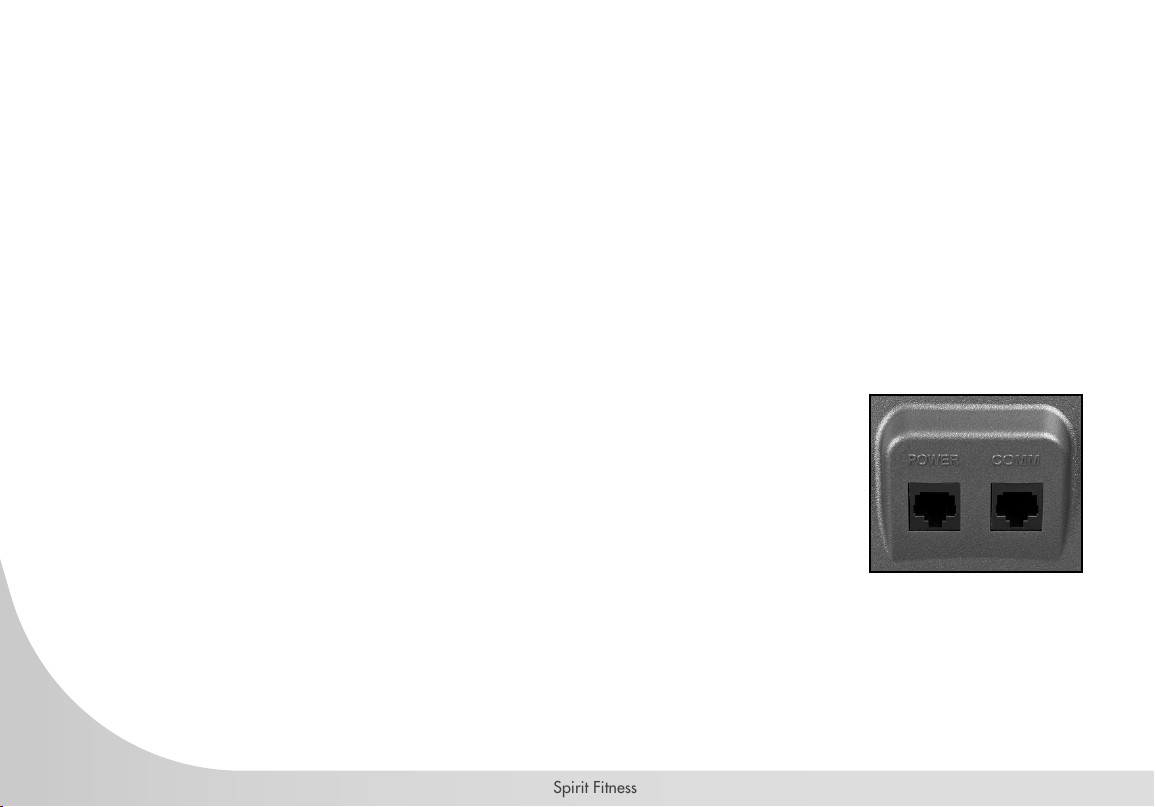

CSAFE FEATURE
Your console is equipped with a CSAFE feature. The Power (POWER) port can
be used for powering a remote controlled audio-visual system by connecting
a cable from the remote to the Power port at the back of the console. The
Communication port (COMM) can be used to interact with tness software
applications.
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all
times. It is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether
cord will stop tread-belt movement. To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
17
www.spirittness.com
QUICK START
• Press and release any button to wake display up if not already on.
• Press and release the Start button to begin belt movement at 0.5mph, then adjust to the desired speed using the
Up/Down Speed buttons. You may also use the Direct Access Speed Buttons 1 through 15 to set to a specic
speed directly.
• To slow the treadmill belt press and hold the Speed Down button (console or hand rail) to the desired speed. You
may also press the Direct Access Speed Buttons, 1 through 15.
• To stop the treadmill belt press and release the red Stop button.
PAUSE/STOP/PRESET
• When the treadmill is running the pause feature may be utilized by pressing the red Stop button once. This will
slowly decelerate the treadmill belt to a stop. The incline will go to zero percent. The Time, Distance and Calorie
readings will hold while the unit is in the pause mode. After 5 minutes the display will reset and return to the start
up screen.
• To resume your exercise when in Pause mode, press the Start button. The speed and incline will return to their
previous settings.
• Pressing the Stop button twice will end the program and a workout summary will be displayed. If the Stop button
is pressed a third time, the console will return to the idle mode (start up) screen.
• If the Stop button is held down for more than 3 seconds the console will reset.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The magnet has strong
enough power to minimize accidental, unexpected stopping. The clip should be attached securely to make
certain it does not come off. Be familiar with its function and limitations. The treadmill will stop, depending on
speed, with a one to two step coast anytime the magnet is pulled off the console. Use the Stop / Pause switch in
normal operation.
18
Spirit Fitness
• When you are setting data, such as age and time, for a program pressing the Stop button will allow you to go
back one step for each button press.
INCLINE
• Incline may be adjusted anytime after the belt starts moving.
• Press and hold the adjust Incline Up/Down buttons to achieve desired level of effort. You may also choose a
more rapid increase / decrease by selecting a rapid incline button, 1 through 15, on left hand side of console
(incline).
• The display will indicate incline numbers as percent of grade (the same as grade of a road) as adjustments are
made.
DOT MATRIX MESSAGE CENTER
Ten rows of dots indicate each level of a workout in manual mode. Displays messages that help guide you
through the programming process. During a program the message window displays your workout data.
The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate
a specic value - only an approximate percent to compare levels of intensity. In Manual Operation the
Speed / Incline Dot Matrix Message Center will build a prole “picture” as values are changed during a
workout. There are twenty-four columns, indicating time. The 24 columns are divided into 1/24th of the
total time of the program. When the time is counting up from zero (as in quick start) each column represents
1 minute.
Next to the Dot Matrix Message Center are three LED lights labeled: Track, Speed and Incline, along with
a Up/Down Scan button. When the Track LED is lit the Dot Matrix Message Center displays the Track
prole, when the Speed LED is lit the Dot Matrix Message Center displays the Speed prole and when the
Incline LED is lit it displays the Incline prole. You may change the prole view by pressing the Up/Down
19
www.spirittness.com
Scan button. After scrolling through the three proles the Dot Matrix Message Center will automatically
scroll through the three displays showing each one for four seconds. The LED associated with each prole
will blink while that view is displayed. One more press of the Up/Down Scan button will return you to the
Track prole.
1/4 MILE TRACK
The 1/4-mile track (0.4 km) will be displayed around the dot matrix window. The ashing dot indicates
your progress. In the center of the track there is a lap counter for reference.
HEART RATE WINDOW
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the workout.
You must use both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed
anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse feature while in Heart

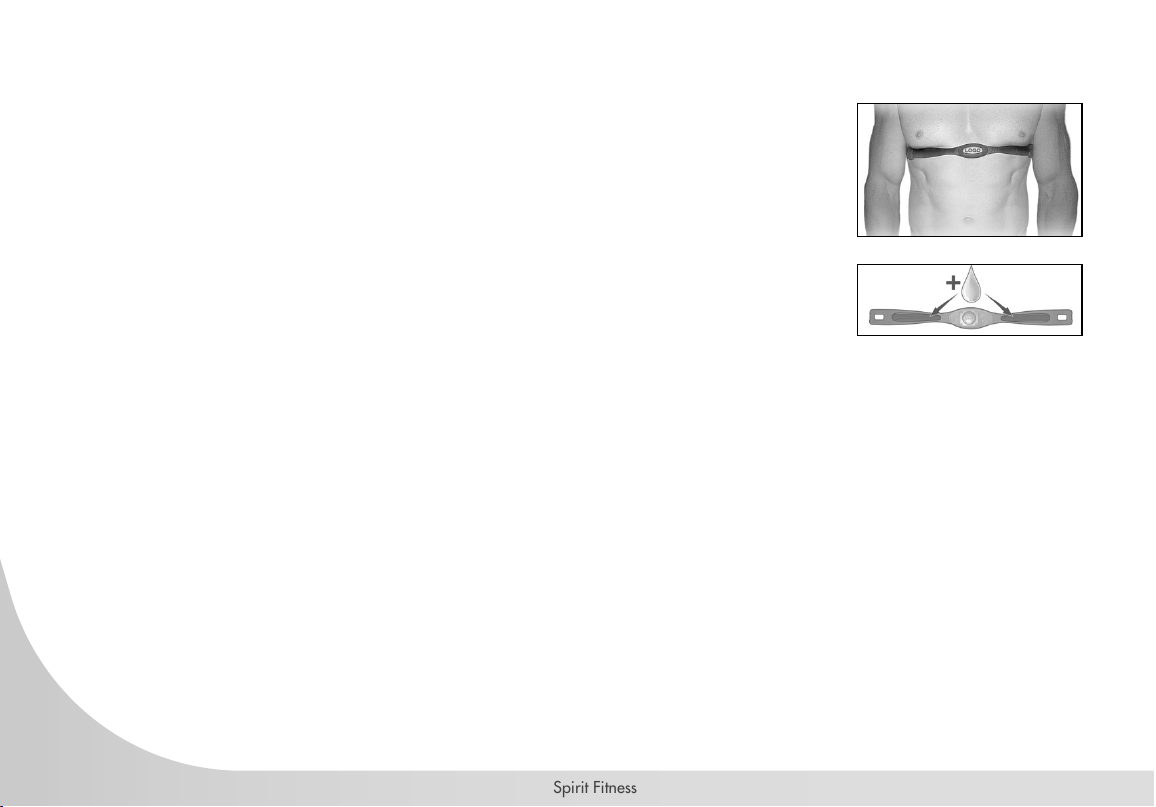

Rate Control. The CT850 will also pick up wireless heart rate transmitters that are Polar compatible,
including coded transmissions.
20
Spirit Fitness
PROGRAMMABLE FEATURES
TO SELECT AND START A PRESET PROGRAM
The Spirit Fitness CT850 offers twelve preset programs, Hill, Fat Burn, Cardio, Interval, HIIT (High Intensity
Interval Training), 5k Run, 10k Run, a Custom User dened program, two heart rate control programs, a
Fitness Test (Gerkin, Army, Navy, Airforce, Marine Corps, Coast Guard, PEB), and one Manual program.
1. Press the Program button to select a program, then press the Enter button to begin customizing the program with
your personal data, or just press the Start button to begin the program with the default settings.
2. After selecting a program and pressing Enter to set your personal data, the Time window will blink with the
default value of 20 minutes. You may use any of the Up/Down buttons to adjust the time. After adjusting the time,
press Enter. (Note: You may press Start at any time during the programming to begin with only settings you have
modied at that point).
3. The Incline window will now be blinking a value indicating your Age. Use the Up/Down buttons to adjust, and
then press enter.
4. The Distance window will now be blinking a value indicating your Bodyweight. Entering your correct bodyweight
affects the Kcal readout accuracy. Use the Up/Down buttons to adjust, and then press Enter.
5. The Speed window will now be blinking, showing the preset top speed of the selected program. Use the
Up/Down buttons to adjust, and then press Enter. Each program has various speed changes throughout; this
allows you to limit the highest speed the program will attain during your workout.
6. Now press the Start button to begin your workout, or the Stop button to return to the previous screen.
7. There will be a 3 minute warm-up to begin. You can press the Start button to bypass this and go straight to the
workout. During the warm-up the clock will count down from 3 minutes. (5k Run, 10k Run, HR 1& 2, Custom,
and Manual do not have warm-up)
21
www.spirittness.com
PRESET PROGRAMS SPEED/INCLINE SETTINGS
The preset program Speed and Incline levels are shown in the chart below. The Speed numbers shown in
the chart indicate a percentage of the top speed of the program. For instance, the rst Speed setting for
P1 (Program 1, HILL) shows the number 20. This means that this segment of the program will have a speed
that is 20% of the top speed for the program (The user sets the top speed in the procedure above). If the
user sets the top speed to 10 mph, then the rst segment will be 2 mph. You will notice that segment 12
shows 100 which means, the speed will be set to 100% of 10 mph or simply 10 mph.
P1= Hill; P2= Fatburn; P3= Cardio; P4= Interval
Prog SEG Warmup 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Cooldown
P1
Speed 20 30 40 50 60 60 70 70 70 80 80 70 80 80 100 100 70 80 80 70 70 80 80 70 60 60 50 40 30 20
Incline 0 0 0 0 1 2 3 3 4 3 3 4 4 5 3 3 4 3 3 4 4 5 4 3 1 1 0 0 0 0
P2
Speed 20 30 40 50 60 60 70 80 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 80 70 60 50 40 30 20
Incline 0 0 0 0 1 2 3 3 3 4 5 3 3 4 4 3 3 2 2 3 4 5 6 4 2 1 0 0 0 0
P3
Speed 20 30 40 50 60 60 70 70 70 80 70 70 80 80 60 70 80 80 70 70 70 100 70 80 60 60 50 40 30 20
Incline 0 0 0 0 1 1 1 2 2 3 2 2 3 3 1 2 3 3 2 2 4 4 2 3 1 1 0 0 0 0
P4
Speed 20 30 40 50 60 60 70 80 100 60 60 70 80 100 60 70 100 60 70 100 60 70 80 70 60 60 50 40 30 20
Incline 0 0 0 0 1 2 3 5 6 2 3 5 6 7 2 3 7 2 3 8 2 3 5 4 3 1 0 0 0 0
22
Spirit Fitness
HILL
This program follows a triangle or pyramid type of gradual
progression from approximately 10% of maximum effort (the level
that you chose before starting this program) up to a maximum
effort which lasts for 10% of the total workout time, then a gradual
regression of resistance back to approximately 10% of maximum
effort
FAT BURN
This program follows a quick progression up to the maximum
resistance level (default or user input level) that is sustained for
2/3 of the workout. This program will challenge your ability to
sustain your energy output for an extended period of time.
CARDIO
This program presents a quick progression up to near maximum
resistance level (default or user input level). It has slight uctuations
up and down to allow your heart rate to elevate, and then
recover repeatedly, before beginning a quick cool down. This
will build up your heart muscle and increase blood ow and lung
capacity
23
www.spirittness.com
INTERVAL
This program takes you through high levels of intensity followed by
recovery periods of low intensity. This program utilizes and develops
your “Fast Twitch” muscle bers which are used when performing tasks
that are intense and short in duration. These deplete your oxygen
level and spike your heart rate, followed by periods of recovery and
heart rate drop to replenish oxygen. Your cardiovascular system gets
programmed to use oxygen more efciently.
HIIT
The HIIT, or High Intensity Interval Training, program takes advantage of
the latest trend in tness. During the program you will perform short bursts
of high intensity sprinting followed by short rest periods. HIIT is a fully
customizable interval training program. You can enter the number of inter-
vals, time of each interval Sprint and Rest periods and the work intensity
of the levels.
1. Using the Program button select the HIIT program then press Enter. The Dot Matrix Message Center will ask you
to enter your Age. You may enter your Age, using the Up and Down keys, then press the Enter key to accept the
new number and proceed on to the next screen.
2. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys then
press Enter to continue.
3. Next you are asked for the number of intervals you want to do. The default is 10 and the range available is 3 to
15. One interval equals 1 Sprint and 1 Rest segment.
4. Next you will enter the Interval time. The Dot Matrix Message Center shows: Sprint Time:30 and Rest Time:30.
The Sprint time will be blinking. You may use the Up/Down keys to adjust the Sprint time from 30 to 60 seconds
24
Spirit Fitness
then press Enter. The time for the Rest period will blink and you can adjust the time using the Up/Down keys and
press Enter.
5. The Dot Matrix Message Center now displays SPRINT SPD 6.0 MPH. Use the Up/Down buttons to adjust the
sprint speed you desire and press Enter.
6. The Dot Matrix Message Center now displays REST SPEED 3.0 MPH. Use the Up/Down buttons to adjust the res
speed you desire and press Enter.
7. You may now press Start to begin the HIIT program. The program starts with a 3-minute warm-up period with the
speed set to 50% of the sprint speed selected previously. You can manually adjust the speed during warm-up if
you wish.
25
www.spirittness.com
CUSTOM PROGRAM
1. Select the Custom program using the Program button then press Enter. Note that the Dot Matrix Message Center
will light a single row of dots at the bottom (Unless there is a previously saved program).
2. The clock (Time) window will be ashing. Use the Up/Down buttons to set the program for the desired time. Press
the Enter button. This is a must to continue even if the time is not adjusted.
3. The Incline window will now be blinking a value indicating your Age.Use the Up/Down buttons to adjust and
then press Enter.
4. The Distance window will now be blinking a value indicating your Bodyweight. Entering your correct bodyweight
affects the Calorie readout accuracy. Use the Up/Down buttons to adjust, and then press Enter.
5. The rst speed setting column (segment) will now be blinking. Using the Up/Down buttons, adjust the speed to
your desired effort level for the rst segment then press Enter. The second column will now be blinking. Note
that the previous segment value has been carried over to the new segment. Repeat the above process until all
segments have been programmed.
6. The rst column will be blinking again. The console is now ready for the incline settings. Repeat the same process
used to set the speed values for programming the segments for incline.
7. Press the Start button to begin the workout and also save the program to memory.
5K RUN 10K RUN
This program automatically sets a 5k or 10k (5 or 10 kilometer) distance as your goal. The track display
will show one loop that is the equivalent of 5 or 10 kilometers and the Distance window will also show 5k
or 10k to start. When the program begins the Distance will count down; once it reaches zero the program
ends.
*Please note that the Speed readout is in MPH if the console is not set to Metric.
26
Spirit Fitness
FITNESS TEST
When the Fit-Test button is pressed the dot matrix displays the 5 different tests available: Gerkin, Army,
Navy, Air Force, Marines, PEB, Coast Guard. To select your desired tness test use the arrow button and
press enter.
FITNESS TEST OPERATION
1. The Dot Matrix Message Window will ask you to enter your Weight. You may adjust the weight setting, shown in
the Distance window, using the Up and Down buttons then press the Enter button to accept the new number and
proceed on to the next screen.
2. You are now asked to enter your Age. You may adjust the age setting, shown in the Incline window, using the Up
and Down buttons then press Enter to continue.
3. You are now asked to enter your Gender. You may adjust the gender setting, shown in the Incline window, using
the Up and Down buttons then press Enter to continue.
4. Now press Start to begin the test.
27
www.spirittness.com
GERKIN TEST
The Gerkin protocol, also known as the reman’s protocol, and is a submax Vo2 (volume of oxygen) test.
The test will increase speed and elevation alternately until you reach 85% of your Max heart rate. The time
it takes for you to reach 85% determines the test score (Vo2 max) as shown in the chart below.
Stage Time Speed Grade VO2 Max
1 0 to 1:00 4.5mph 0% 31.15
2.1 1:15 4.5mph 2% 32.55
2.2 1:30 4.5mph 2% 33.6
2.3 1:45 4.5mph 2% 34.65
2.4 2:00 4.5mph 2% 35.35
3.1 2:15 5.0mph 2% 37.45
3.2 2:30 5.0mph 2% 39.55
3.3 2:45 5.0mph 2% 41.3
3.4 3:00 5.0mph 2% 43.4
4.1 3:15 5.0mph 4% 44.1
4.2 3:30 5.0mph 4% 45.15
4.3 3:45 5.0mph 4% 46.2
4.4 4:00 5.0mph 4% 46.5
5.1 4:15 5.5mph 4% 48.6
5.2 4:30 5.5mph 4% 50
5.3 4:45 5.5mph 4% 51.4
5.4 5:00 5.5mph 4% 52.8
6.1 5:15 5.5mph 6% 53.9
6.2 5:30 5.5mph 6% 54.9
6.3 5:45 5.5mph 6% 56
6.4 6:00 5.5mph 6% 57
7.1 6:15 6.0mph 6% 57.7
7.2 6:30 6.0mph 6% 58.8
7.3 6:45 6.0mph 6% 60.2
7.4 7:00 6.0mph 6% 61.2
8.1 7:15 6.0mph 8% 62.3
8.2 7:30 6.0mph 8% 63.3
8.3 7:45 6.0mph 8% 64
8.4 8:00 6.0mph 8% 65
9.1 8:15 6.5mph 8% 66.5
9.2 8:30 6.5mph 8% 68.2
9.3 8:45 6.5mph 8% 69
9.4 9:00 6.5mph 8% 70.7
10.1 9:15 6.5mph 10% 72.1
10.2 9:30 6.5mph 10% 73.1
10.3 9:45 6.5mph 10% 73.8
10.4 10:00 6.5mph 10% 74.9
11.1 10:15 7.0mph 10% 76.3
11.2 10:30 7.0mph 10% 77.7
11.3 10:45 7.0mph 10% 79.1
11.4 11:00 7.0mph 10% 80
Stage Time Speed Grade VO2 Max
1 0 to 1:00 4.5mph 0% 31.15
2.1 1:15 4.5mph 2% 32.55
2.2 1:30 4.5mph 2% 33.6
2.3 1:45 4.5mph 2% 34.65
2.4 2:00 4.5mph 2% 35.35
3.1 2:15 5.0mph 2% 37.45
3.2 2:30 5.0mph 2% 39.55
3.3 2:45 5.0mph 2% 41.3
3.4 3:00 5.0mph 2% 43.4
4.1 3:15 5.0mph 4% 44.1
4.2 3:30 5.0mph 4% 45.15
4.3 3:45 5.0mph 4% 46.2
4.4 4:00 5.0mph 4% 46.5
5.1 4:15 5.5mph 4% 48.6
5.2 4:30 5.5mph 4% 50
5.3 4:45 5.5mph 4% 51.4
5.4 5:00 5.5mph 4% 52.8
6.1 5:15 5.5mph 6% 53.9
6.2 5:30 5.5mph 6% 54.9
6.3 5:45 5.5mph 6% 56
6.4 6:00 5.5mph 6% 57
7.1 6:15 6.0mph 6% 57.7
7.2 6:30 6.0mph 6% 58.8
7.3 6:45 6.0mph 6% 60.2
7.4 7:00 6.0mph 6% 61.2
8.1 7:15 6.0mph 8% 62.3
8.2 7:30 6.0mph 8% 63.3
8.3 7:45 6.0mph 8% 64
8.4 8:00 6.0mph 8% 65
9.1 8:15 6.5mph 8% 66.5
9.2 8:30 6.5mph 8% 68.2
9.3 8:45 6.5mph 8% 69
9.4 9:00 6.5mph 8% 70.7
10.1 9:15 6.5mph 10% 72.1
10.2 9:30 6.5mph 10% 73.1
10.3 9:45 6.5mph 10% 73.8
10.4 10:00 6.5mph 10% 74.9
11.1 10:15 7.0mph 10% 76.3
11.2 10:30 7.0mph 10% 77.7
11.3 10:45 7.0mph 10% 79.1
11.4 11:00 7.0mph 10% 80
28
Spirit Fitness
ARMY
A timed 2 mile run. You control the speed manually.
Maximum time allowed to pass the test:
Age Male Female
17-21 16:36 19:42
22-26 17:30 20:36
27-31 17:54 21:42
32-36 18:48 23:06
37-41 19:30 24:06
NAVY
A timed 1.5 mile run. You control the speed
manually. Maximum time allowed to pass the test:
Age Male Female
17-21 16:36 19:42
22-26 17:30 20:36
27-31 17:54 21:42
32-36 18:48 23:06
37-41 19:30 24:06
AIR FORCE
A timed 1.5 mile run. You control the speed manually.
Maximum time allowed to pass the test:
Age Male Female
<20 12:36 16:22
20-30 14:00 16:57
40-49 14:52 18:14
50-59 16:22 19:42
60+ 18:14 22:28
MARINES
A timed 3 mile run. You control the speed manually.
Maximum time allowed to pass the test:
Age Male Female
17-26 28:00 31:00
27-39 29:00 32:00
40-45 30:00 33:00
46+ 33:00 36:00
Age Male Female
45-49 16:09 17:02
50-54 16:46 17:27
55-59 17:10 18:35
60-64 18:53 19:44
65+ 20:36 20:53
For more information visit: http://bit.ly/SF-Army
For more information visit: http://bit.ly/SF-Navy
For more information visit: http://bit.ly/SF-AirForce
For more information visit: http://bit.ly/SF-Marines
29
www.spirittness.com
PEB
A timed 1.5 mile run. You control the speed manu-
ally. Maximum time allowed to pass the test:
Age Male Female
20-24 10:43 13:36
25-29 11:05 13:43
30-34 11:26 13:43
35-39 11:47 14:37
40-44 12:28 15:12
COAST GUARD
A timed 1.5 mile run. You control the speed manu-
ally. Maximum time allowed to pass the test:
Age Male Female
<30 12:52 15:27
30-39 13:37 15:58
40-49 14:30 16:59
50-59 15:27 17:56
60+ 16:41 18:46
Age Male Female
45-49 13:07 16:02
50-54 13:49 17:02
55-59 14:48 17:37
60+ 15:07 17:37
For more information visit: http://bit.ly/SF-Peb
For more information visit: http://bit.ly/SF-CoastGuard
30
Spirit Fitness
Before The Test:
• Make sure you are in good health; check with your physician before performing any exercise if you are over the
age of 35 or persons with pre-existing health conditions.
• Make sure you have warmed up and stretched before taking the test.
• Do not take in caffeine before the test.
• Hold the hand grips gently, do not tense up.
During The Test:
• The console must be receiving a steady heart rate for the test to begin. You may use the hand pulse sensors or
wear a heart rate chest strap transmitter.
• The test will start with a 3 minute warm-up at 3 MPH before the actual test begins.
• The data shown during the test is:
a. Time indicates total elapsed time
b. Incline in percent grade
c. Distance in Miles or Kilometers depending on preset parameter.
d. Speed in MPH or KPH depending on preset parameter.
e. Target Heart Rate and Actual Heart Rate are shown in the Dot Matrix Message Center.
After The Test:
• Cool down for about one to three minutes.
• Take note of your score because the console will automatically return to the start-up mode after a few minutes.
31
www.spirittness.com
WHAT YOUR SCORE MEANS
Vo2max Chart For Females And De-Conditioned Males
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent >60 >56 >51 >45 >41 >37
good 52-60 49-56 43-51 39-45 36-41 33-37
above
average 47-51 43-48 39-42 35-38 32-35 29-32
average 42-46 40-42 35-38 32-35 30-31 26-28
below
average 37-41 35-39 31-34 29-31 26-29 22-25
poor 30-36 30-34 26-30 25-28 22-25 20-21
very poor <30 <30 <26 <25 <22 <20
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent 56 52 45 40 37 32
good 47-56 45-52 38-45 34-40 32-37 28-32
above
average 42-46 39-44 34-37 31-33 28-31 25-27
average 38-41 35-38 31-33 28-30 25-27 22-24
below
average 33-37 31-34 27-30 25-27 22-24 19-22
poor 28-32 26-30 22-26 20-24 18-21 17-18
very poor <28 <26 <22 <20 <18 <17
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent >60 >56 >51 >45 >41 >37
good 52-60 49-56 43-51 39-45 36-41 33-37
above
average 47-51 43-48 39-42 35-38 32-35 29-32
average 42-46 40-42 35-38 32-35 30-31 26-28
below
average 37-41 35-39 31-34 29-31 26-29 22-25
poor 30-36 30-34 26-30 25-28 22-25 20-21
very poor <30 <30 <26 <25 <22 <20
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent 56 52 45 40 37 32
good 47-56 45-52 38-45 34-40 32-37 28-32
above
average 42-46 39-44 34-37 31-33 28-31 25-27
average 38-41 35-38 31-33 28-30 25-27 22-24
below
average 33-37 31-34 27-30 25-27 22-24 19-22
poor 28-32 26-30 22-26 20-24 18-21 17-18
very poor <28 <26 <22 <20 <18 <17
Vo2max Chart For Males And Very Fit Females
32
Spirit Fitness
HEART RATE PROGRAMS
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of exercising
comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper
use of a heart rate monitor, many people nd that their usual choice of exercise intensity was either too high or
too low and exercise is much more enjoyable by maintaining their heart rate in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your Maximum Heart Rate.
This can be accomplished by using the following formula: 220 minus your age. This will give you the Maximum
Heart Rate (MHR)for someone of your age. To determine the effective heart rate range for specic goals you
simply calculate a percentage of your MHR. Your Heart rate training zone is 50% to 90% of your maximum
heart rate. 65% of your MHR is the recommended for burning fat while 85% is recommended for strengthening
the cardio vascular system. This 65% to 85% is the zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .65 = 117 beats per minute (65% of maximum)
180 X .85 = 153 beats per minute (85% of maximum)
So for a 40 year old the training zone would
be 117 to 153 beats per minute.
33
www.spirittness.com
If you enter your age during programming the console will perform this calculation automatically. Entering
your age is used for the Heart Rate programs. After calculating your MHR you can decide upon which
goal you would like to pursue.

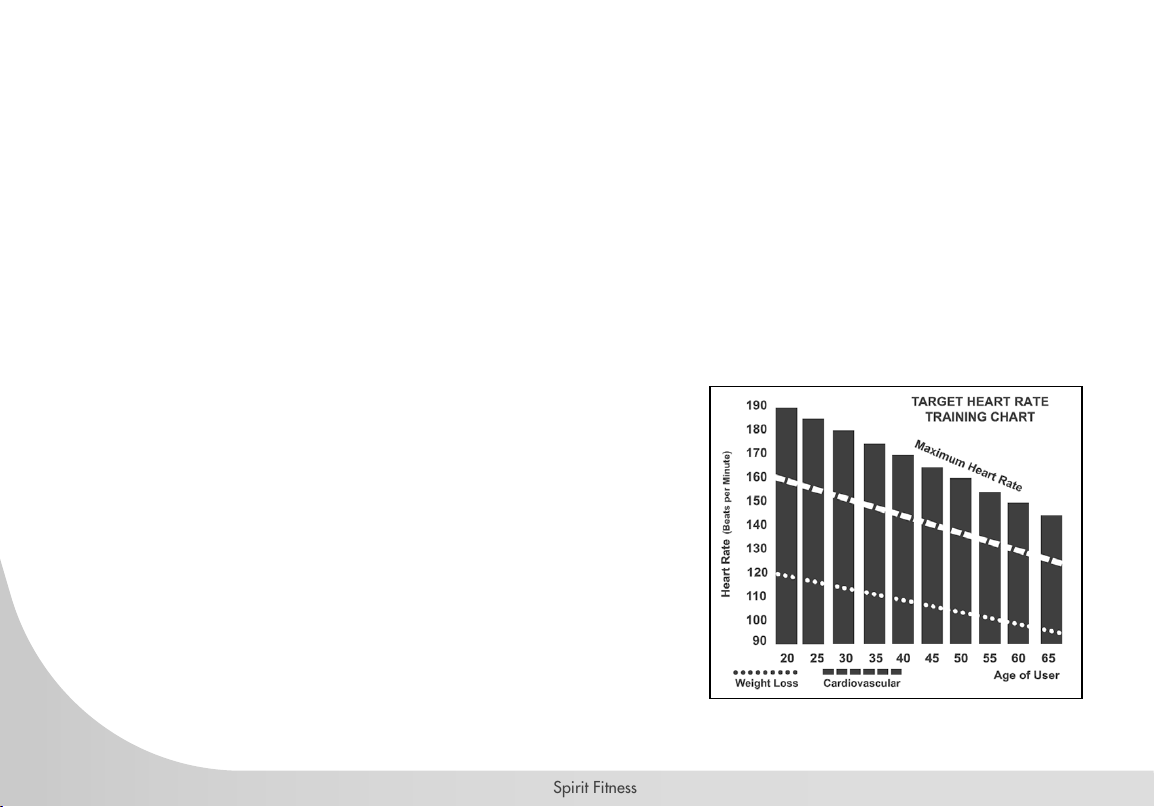

The two most popular reasons for, or goals, of exercise are cardiovascular tness (training for the heart and
lungs) and weight control. The black columns on the chart represent the MHR for a person whose age is
listed at the bottom of each column. The training heart rate, for either cardiovascular tness or weight loss,
is represented by two different lines that cut diagonally through the chart. A denition of the lines’ goal
is in the bottom left-hand corner of the chart. If your goal is cardiovascular tness or if it is weight loss, it
can be achieved by training at 85% or 65%, respectively, of your MHR on a schedule approved by your
physician. Consult your physician before participating in any exercise program.
With all Spirit Fitness treadmills you may use the heart rate monitor feature without using the Heart Rate
program. However, when using the heart rate monitor feature in conjunction with the Heart Rate programs,
the machine will automatically adjust speed or incline to maintain the desired heart rate.
HEART RATE CONTROL
Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate. Increases and
decreases in elevation affect heart rate much more efciently than changes in speed alone. The HRC
program automatically changes elevation gradually to achieve the programmed target heart rate.
Selecting a Heart Rate Control Program:
You have the option, during the setup mode, to choose either the Weight Control (HR-1) program or the
Cardiovascular (HR-2) program. The Weight Control program will attempt to maintain your heart rate at
60% of your Maximum Heart Rate. The Cardiovascular program will attempt to maintain your heart rate at
34
Spirit Fitness
85% of your Maximum Heart Rate. Your Maximum Heart Rate is based upon a formula that subtracts your
age from a constant of 220. Your HR setting is automatically calculated during the setup mode when you
enter your age.
HEART RATE CONTROL PROGRAMMING
1. You must receive a strong / steady value in heart rate window or the program will not start. Dot Matrix Message
Center will show “Check Pulse” if there is no pulse signal.
2. Use the Program button to select the HR program to begin.
3. The Dot Matrix Message Center will show “Press Enter to modify or Start to begin workout”. You can either press
the Enter button for settings or press the Start button to execute the default program.
4. When Enter is pressed, the Dot Matrix Message Center will read, “Press 1 or 2 to select then press Enter”. At the
same time, the Dot Matrix Message Center will show “1”.
5. The Dot Matrix Message Center will show “Adjust Time then press Enter” with the Time window blinking. Use the
Up/Down & Fast/Slow buttons to adjust. After setting a time, press Enter.
6. The Dot Matrix Message Center will prompt you to enter Age. Press Enter once adjusted.
7. The Dot Matrix Message Center will prompt you to enter Body Weight. Press Enter once adjusted.
8. The Dot Matrix Message Center will prompt you to enter Heart Rate. Press Enter once adjusted.
9. Press Start to begin your workout or Enter to modify. Press Stop to return to the previous screen.
35
www.spirittness.com
RATE OF PERCEIVED EXERTION
There are more variables involved in how hard you should workout than just heart rate. Your stress level,
physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what
you ate, all contribute to the intensity at which you should workout.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish physiologist
G.A.V. Borg. The scale helps users determine an approximate heart rate level when a heart rate monitor
was not in use. Using the scale below, rate the level of intensity of your workout, or the perception of your
effort during your workout. Once the rating has been determined, simply add a “0” to the rating to get
your approximate heart rate. For example, if your workout felt comfortable, you would rate it a “12”. Then
add a “0” to get an approximate heart rate during your workout of 120 beats per minute. The scale is as
follows:
Rating Perception of Effort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
36
Spirit Fitness
WEARING THE CHEST STRAP (SOLD SEPARATELY)
1. Attach the transmitter to the elastic strap using the interlocking button.
2. Adjust the strap as tightly as possible while ensuring it is still comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing away
from your chest (some people must position the transmitter slightly left of center). Attach
the nal end of the elastic strap by inserting the round end and, using the locking
parts, secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval
areas on the reverse side of the belt and both sides of the transmitter). It’s also recommended that you wear
the transmitter strap a few minutes before your work out. Some users, because of body chemistry, have a more
difcult time in achieving a strong, steady signal at the beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady signal.
The length of range may vary somewhat but generally stay close enough to the console to maintain good, strong,
reliable readings. Wearing the transmitter directly on bare skin assures you of proper operation. If you wish, you
may wear the transmitter over a shirt. To do so, wet the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the effect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement
battery is CR2032. The chest strap is sold separately. Chest straps that operate using Bluetooth or ANT+
should also work with this machine.
37
www.spirittness.com
ERRATIC OPERATION
Caution! Do not use this treadmill for Heart Rate programs unless a steady, solid Actual Heart Rate
value is being displayed. High, wild, random numbers being displayed indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV’s, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Electric fence for a pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try
wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right
side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole
machine 90 degrees may de-tune the interference.
7. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
38
Spirit Fitness
CALIBRATION PROCEDURE
1. Remove the safety key.
2. Press and hold down the Start and Speed Up buttons and replace the safety button. Continue to hold the Start and
Speed Up button until the window displays “Factory settings”, then press the Enter button.
3. You will now be able to set the display to show Metric or Imperial settings (Meters vs. Miles). To do this, press the
Up or Down button to show which you want, then press Enter.
4. Make sure the wheel size diameter is 2.98 then press Enter.
5. Adjust the minimum speed (if needed) to 0.3 and then press Enter.
6. Adjust the maximum speed (if needed) to 15.0 and then press Enter.
7. Adjust the maximum elevation (if needed) to 15 and then press Enter.
8. Press Start to begin calibration. The process is automatic; the speed will start up without warning, so do not stand
on the belt.
39
www.spirittness.com
BELT ADJUSTMENTS
Tread-belt Tension Adjustment - Belt tension is not critical for
most users. It is very important though for joggers and runners
in order to provide a smooth, steady running surface.

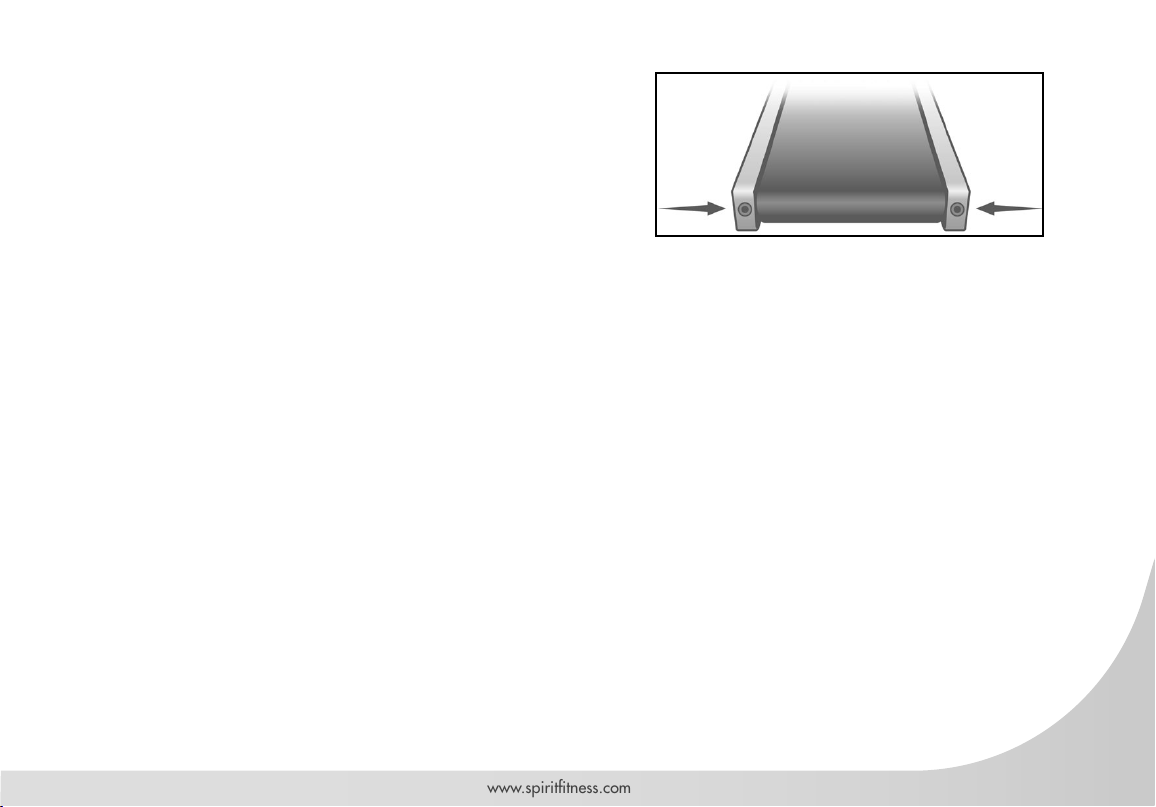

Adjustment must be made from the rear roller with the 8mm
Allen wrench provided in the parts package. The adjustment
bolts are located at the end of the step rails as shown in the
diagram to the right.
Tighten the rear roller only enough to prevent slippage at the front roller. Turn the tread-belt tension adjusting
bolts 1/4 turn each and inspect for proper tension by walking on the belt and making sure it is not slipping or
hesitating with each step. When an adjustment is made to the belt tension, you must be sure to turn the bolts
on both sides evenly or the belt could start tracking to one side instead of running in the middle of the deck.
DO NOT OVER TIGHTEN – Over tightening will cause belt damage and premature bearing failure. If you tighten the belt
a lot and it still slips, the problem could actually be the drive belt - located under the motor
cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose.
Tightening the motor belt should be done by a trained service person.
BELT/DECK
Your treadmill uses a very high-efcient and proprietary belt/deck combination. Performance is maximized
when the deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt
and the area between the belt edge and the frame. Also reach as far as practical directly under the belt edge.
This should be done once a month to extend belt and deck life. A mild soap and water solution along with a
nylon scrub brush will clean the top of the textured belt. Allow to dry before using. The low maintenance (routine
monthly cleaning), dual sided deck is designed to withstand up to 4,000 hrs on each side. If the original side
of the deck use is over 4000 hrs, then it needs to be ipped. Contact your service technician for assistance. Do
not apply any type of lubricant or wax to the surface.
40
Spirit Fitness
TREADBELT TRACKING ADJUSTMENT
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for
some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if
during use the belt continues to move toward one side, adjustments are necessary.

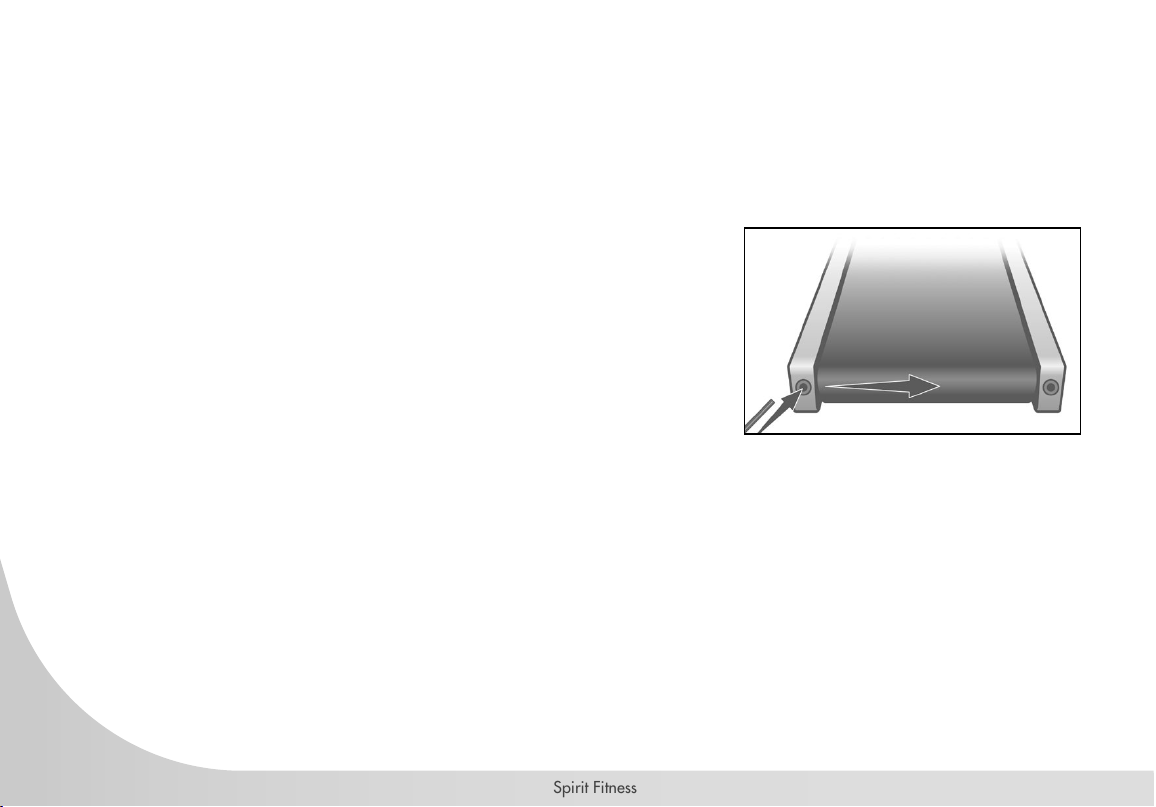

SETTING TREAD-BELT TRACKING
An 8mm Allen wrench is provided for this adjustment. Make
tracking adjustments on the left side bolt. Set belt speed at 3 mph.
Be aware that a small adjustment can make a dramatic difference
which may not be apparent right away. If the belt is too close to the
left side, then turn the bolt only a 1/4 turn to the right (clockwise)
and wait a few minutes for the belt to adjust itself. Continue to make
1/4 turns until the belt stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the bolt counter-clockwise. The belt may require periodic
tracking adjustment depending on use and walking/running characteristics. Some users may affect tracking
differently. Expect to make adjustments as required to center the tread-belt. Adjustments will become less of a
maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with
all treadmills.
ATTENTION: Damage to the running belt resulting from improper tracking / tension adjustments is not
covered under the Spirit Fitness warranty.
41
www.spirittness.com
ENGINEERING MODE MENU
The console has built in maintenance/diagnostic software. The software will allow you to change the
console settings from English to Metric and turn off the beeping of the speaker when a button is pressed
for example. To enter the Engineering Mode Menu press and hold down the Start, Stop and Enter buttons,
then insert the safety button. Keep holding the buttons down for about 5 seconds until the Message Center
displays Engineering Mode Menu. Press the Enter button to access the menu below:
1. Key Test (Will allow you to test all the buttons to make sure they are functioning)
2. Display Test ( Tests all the display functions)
3. Security (Allows the keypad to be locked to prevent unauthorized use)
4. Functions (Press Enter to access settings and Up arrow to scroll)
a. Sleep Mode -Turn on to have the console power down automatically after 30 minutes of inactivity
b. Pause Mode -Turn on allow 5 minutes of pause, turn off to have the console pause indenitely
c. Maintenance - Reset maintenance reminder message and odometer readings
d. GS Mode - Returns the elevation to lowest setting when pause is pressed
e. Beep Mode- Turns the speaker (beep sound) on or off.
5. Security - Sets the Child Lock function. This function locks out the keypad until a pre-determined key sequence is
pressed. Key sequence = Incline UP held down together until unlocked.
42
Spirit Fitness
TROUBLESHOOTING - DIAGNOSIS GUIDE
1. Tether cord not in position.
2. Circuit breaker on front grill tripped. Push circuit breaker
in until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed
into 110 - 120 VAC wall outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact your Spirit Fitness dealer.
Display does not light
Tread-belt does not stay centered Treadmill belt
hesitates when walked/run on
The user may be walking while favoring or putting more
weight on either the left or right foot. If this walking pattern is
natural, track the belt slightly off-center to the side opposite
from the belt movement. See General Maintenance section
on Tread-belt Tension. Adjust as necessary.
1. If the belt moves, but stops after a short time and
thedisplay shows “LS”, run calibration.
2. If you press start and the belt never moves, then the
display shows LS, contact service.
Motor is not responsive after pressing start
Need to replace the breaker with a “High In-rush current”
type breaker (see page 3 for details)
Circuit breaker trips, but not the treadmill circuit
breaker
PROBLEM SOLUTION/CAUSE
43
www.spirittness.com
Treadmill will only achieve approximately 7 mph but
shows higher speed on display
This indicates motor should be receiving power to oper-
ate. Low AC voltage to treadmill. Do not use an extension
cord. If an extension cord is required it should be as short
as possible and heavy duty 16 gauge minimum. Low volt-
age. Contact an electrician or your Spirit Fitness dealer.
A minimum of 120 volt AC current is required.
High belt/deck friction. See General Maintenance section
on cleaning the deck. If cleaning doesn’t prevent this from
reoccurring, check to see if there is signicant wear of the
deck. If so, the deck may need to be ipped if it is on its
original side.
Tread-belt stops quickly/suddenly when tether cord
is pulled
High belt/deck friction. See General Maintenance. If
cleaning doesn’t prevent this from reoccurring, check the
amp draw of the motor. If this is high and there are signs
of signicant wear of the deck, it may need to be ipped
if it is on its original side.
Treadmill trips on board 20 amp circuit
Treadmill may not be grounded. Static electricity is
“crashing” the computer. Refer to Grounding Instructions
on page 6.
Tighten all bolts. Check that machine is leveled. Adjust
levelers if needed using a wrench.
Computer shuts off when console is touched (on
a cold day) while walking/running
Noises while in uses (squeaks, bumps, clicking, etc.)
44
Spirit Fitness
GENERAL MAINTENANCE
1. After each workout, wipe down all areas exposed to sweat with a damp cloth.
2. Ensure all bolts are properly tightened after assembly and before each use.
3. Ensure that the unit is properly leveled after assembly and before each use. Use leveling pads
on the bottom of the feet to adjust height.
SANITIZING YOUR SPIRIT FITNESS EQUIPMENT
• Unupholstered high-contact surfaces (hard plastics) can be sanitized using a 75% isopropyl alcohol solution and a
clean, dry cloth.Spray surfaces to be sanitized, and use the dry cloth to wipe clean. Allow surfaces to dry before
using.
• For upholstered or soft-plastic surfaces, use a conditioner after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the conditioner.
• Alternatively, you can make your own spray by mixing the proper ratio of isopropyl alcohol and distilled water to
reach a 75% solution.
• For more details on sanitization, or to learn how to make your own spray solution, please visit https://support.
spirittness.com/hc/en-us/articles/4406787148564 .
45
www.spirittness.com
TREADMILL WARRANTY EFFECTIVE AUGUST 10, 2023
Spirit Fitness warrants all its Treadmill parts for a period of time listed below from the date of retail sale,
as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original
factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at
Spirit Fitness’ option, and technical support to our independent dealers and servicing organizations. In the
absence of a dealer or service organization, these warranties will be administered by Spirit Fitness directly
to a consumer. The warranty period applies to the following components:
NORMAL RESPONSIBILITIES OF THE CONSUMER
The consumer or non-dues paying facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the
original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the tness equipment and with all local electric codes.
4. Proper connection to a grounded power supply of sufcient voltage, replacement of blown fuses, repair of loose
connections or defects in house or facility wiring.
5. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the tness
equipment at the time it was shipped from the factory.
6. Damages to the tness equipment nish during shipping, installation or following installation.
7. Routine maintenance of this unit as specied in this manual.
Warranty
Commercial (Non-Dues Paying Facilities)
Residential
Frame
Lifetime
Lifetime
Motor/Deck
5 Years
Lifetime
Parts
5 Years
10 Years
Labor
2 Year
2 Year
*Prisons and correctional facilities are excluded from warranty coverage.
46
Spirit Fitness
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve
malfunction or defects in workmanship or material, for units that are beyond the warranty period, for units that are
beyond the service call reimbursement period, for tness equipment not requiring component replacement, or tness
equipment not in non-dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of
parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic,
alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to
request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in a dues paying facility (YMCA, Health Club, Etc.)
9. Product used in prisons and correctional facilities
10. Warranties outside of the United States may vary. Please contact your local dealer for details.
47
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the
date of factory shipping as determined by the serial number establishes the labor warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written
warranty gives you specic legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is
shipped to a service center freight charges to and from the service center will be the customer’s responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for shipping and
handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an additional
trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT
TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization
number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
48
Spirit Fitness
NOTES
49
www.spirittness.com
NOTES
50
Spirit Fitness
51
www.spirittness.com

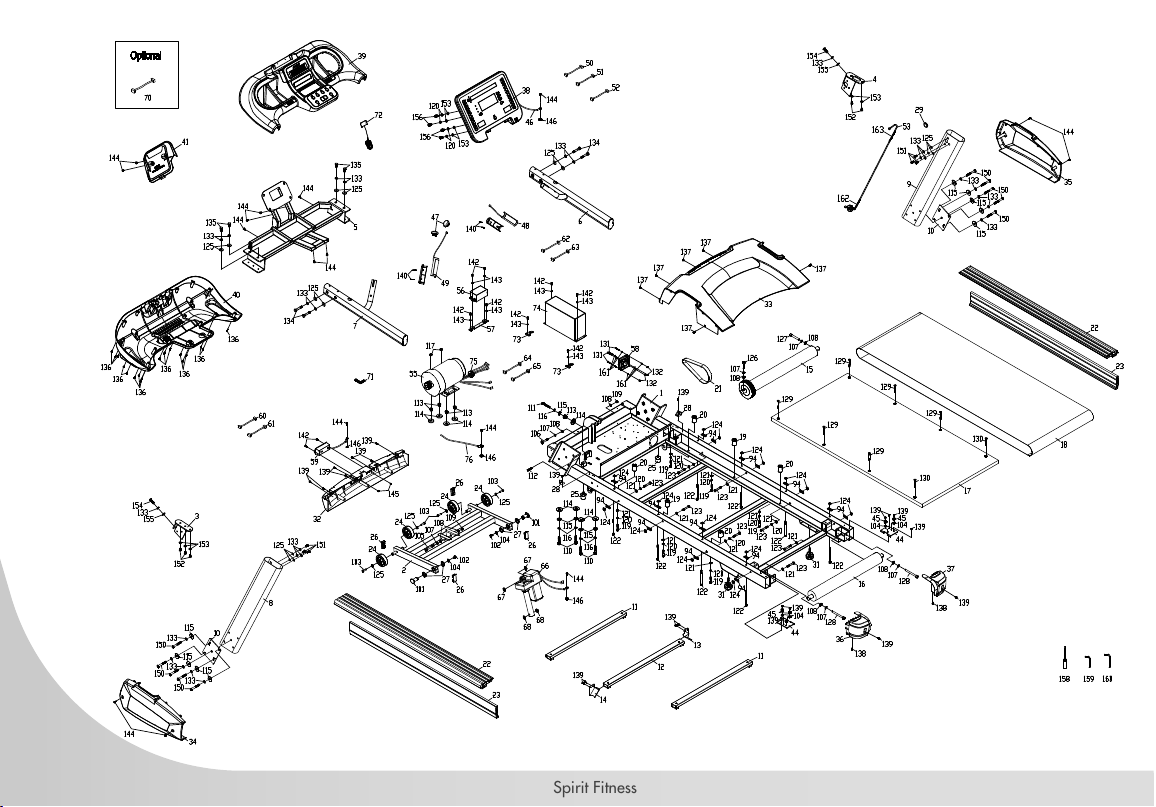

CT850 - ST8600 - YT058 - 01 Part List SPIRIT (LED, 120V
# Part Name Q'TY
1 Main Frame 1
2 Incline Bracket 1
3 Locking Plate Assembly ( L ) 1
4 Locking Plate Assembly ( R ) 1
5 Console Support 1
6 Handle Bar (R) 1
7 Handle Bar (L) 1
8 Left Upright 1
9 Right Upright 1
10 Upright Fixing Plate 2
11 Running Deck Stabilizer Assembly(A) 2
12 Running Deck Stabilizer Assembly(B) 1
13 Belt Guide(R) 1
14 Belt Guide(L) 1
15 Front Roller W/Pulley 1
16 Rear Roller 1
17 Running Deck 1
18 Running Belt 1
19 Cushion A 2
20 Cushion B 4
21 Drive Belt 1
22 Foot Rail(Upper) 2
23 Foot Rail 2
24 Transportation Wheel 4
25 Incline Rubber Foot 2
26 Square End Cap 4
27 Stable Wheel Spacer 4
28 Motor Cover Anchor(D) 2
29 Round Cap 1
31 Foot Pad 2
32 Front Motor Cover 1
33 Motor Top Cover 1
34 Motor Base Cap (L) 1
35 Motor Base Cap (R) 1
36 Rear Adjustment Base (L) 1
37 Rear Adjustment Base (R) 1
38 Console Assembly 1
39 Rack Top Cover 1
40 Rack Bottom Cover 1
41 Console Cover 1
44 Adjustment Rail Pad 2
45 Rubber Foot Pad 4
46 300m/m_Ground Wire 1
47 Handpulse End Cap 2
48 900m/m_Handpulse W/Cable Assembly(SMP-03) 1
49 900m/m_Handpulse W/Cable Assembly(SMR-03) 1
50 400m/m_Handpulse Wire (Upper) 1
51 400m/m_Handpulse Wire (Upper) 1
52 1100m/m_Computer Cable(Upper) 1
53 2000m/m_Computer Cable 1
55 Drive Motor 1
56 Filter 1
57 Filter Plate 1
58 Fan 1
59 AC Electronic Module 1
60 450m/m_Connecting Wire (White) 1
61 450m/m_Connecting Wire (Black) 1
62 350m/m_Connecting Wire(White) 1
63 350m/m_Connecting Wire (Black) 1
64 400m/m_Motor Fan Connecting Cable(Black) 1
65 400m/m_Motor Fan Connecting Cable(White) 1
66 Incline Motor 1
67 Ø10 × Ø25 × 0.8T_Nylon Washer 2
68 Ø10 × Ø25 × 2.5T_Nylon Washer 2
70 Power Cord 1
71 TV Adapter (5C2V) 1
72 Square Safety Key 1
73 Inverter Plate 2
74 Inverter 1
75 Ø35×21×13L_Ferrite Core 1
76 300m/m_Ground Wire 1
94 Ø30×14×1.5Tx3.5H_Concave Washer 16
Spirit Fitness
101 Ø18 × Ø19 × 41L_Carriage Bolt 2
102 M8 × 12m/m_Hex Head Bolt 2
103 3/8" × 25m/m_Hex Head Bolt 4
104 Ø8.5 × Ø26 × 2.0T_Flat Washer 6
105 M10 × P1.5 × 65m/m_Hex Head Bolt 1
106 M10 × P1.5 × 50m/m_Hex Head Bolt 1
107 Ø10 × 1.5T_Split Washer 6
108 Ø3/8" × Ø19 × 1.5T_Flat Washer 8
109 M10 × P1.5 × 8T_Nylon Nut 2
110 3/8" × UNC16 × 2"_Socket Head Cap Bolt 4
111 3/8" × 2-1/2"_Hex Head Bolt 1
112 3/8" × UCN16 × 2"_Socket Head Cap Bolt 1
113 Ø10 × Ø14 × 14L_Bushing 5
114 Ø13 × Ø35 × 5T_Nylon Washer 9
115 Ø3/8" × 35 × 2.0T_Flat Washer 15
116 Ø10 × 2.0T_Split Washer 5
117 3/8" × 7T_Nylon Nut 2
119 M8 × 1.25 × 40m/m_Socket Head Cap Bolt 6
120 Ø8 × 1.5T_Split Washer 14
121 Ø5/16" × 16 × 1.0T_Flat Washer 14
122 M8 × 1.25 × 95m/m_Socket Head Cap Bolt 8
123 M8 × 55m/m_Hex Head Bolt 8
124 M8 × 1.25 × 6.5T_Square Nut 16
125 Ø3/8" × Ø25 × 2.0T_Flat Washer 18
126 M10 × 40m/m_Socket Head Cap Bolt 1
127 M10 × 80m/m_Socket Head Cap Bolt 1
128 M10 × 100m/m_Socket Head Cap Bolt 2
129 M8 × P1.25 × 55L_Flat Head Countersink Bolt 6
130 M8 × 35m/m_Flat Head Countersink Bolt 2
131 M3 × 50m/m_Phillips Head Screw 4
132 M3 × 5T_Nylon Nut 4
133 Ø10 × 2T_Split Washer 26
134 3/8" × 2-1/4"_Hex Head Bolt 4
135 3/8" × 3/4"_Hex Head Bolt 4
136 3.5 × 12m/m_Sheet Metal Screw 18
137 5 × 12m/m_Sheet Metal Screw 6
138 5 × 25m/m_Tapping Screw 2
139 5 × 20m/m_Tapping Screw 23
140 3 × 25m/m_Tapping Screw 4
142 M5 × 12m/m_Phillips Head Screw 10
143 Ø5 × 1.5T_Split Washer 8
144 M5 × 12m/m_Phillips Head Screw 16
145 M5 × 5T_Nylon Nut 2
146 M5_Star Washer 4
150 3/8" × 3"_Button Head Socket Bolt 10
151 3/8" × 3/4"_Button Head Socket Bolt 6
152 M8 × 12m/m_Socket Head Cap Bolt 5
153 Ø8 × Ø16 × 2T_Flat Washer 9
154 3/8" × UNC16 × 1-1/4"_Button Head Socket Bolt 2
155 Ø10 × Ø23 × 1.5T_Curved Washer 2
156 M8 × P1.25 × 20L_Socket Head Cap Bolt 4
158 Phillips Head Screw Driver 1
159 L Allen Wrench 1
160 Allen Wrench 1
161 Isolation Pad 8
162 Ending Tape(400m/m) 1
163 Ending Tape(200m/m) 1
230809
www.spirittness.com
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
CT850 Owners Manual
© 2023 All Rights Reserved
Revision 7: 08.10.2023
