CT800 TREADMILL
OWNER’S MANUAL
Spirit Fitness
www.spirittness.com

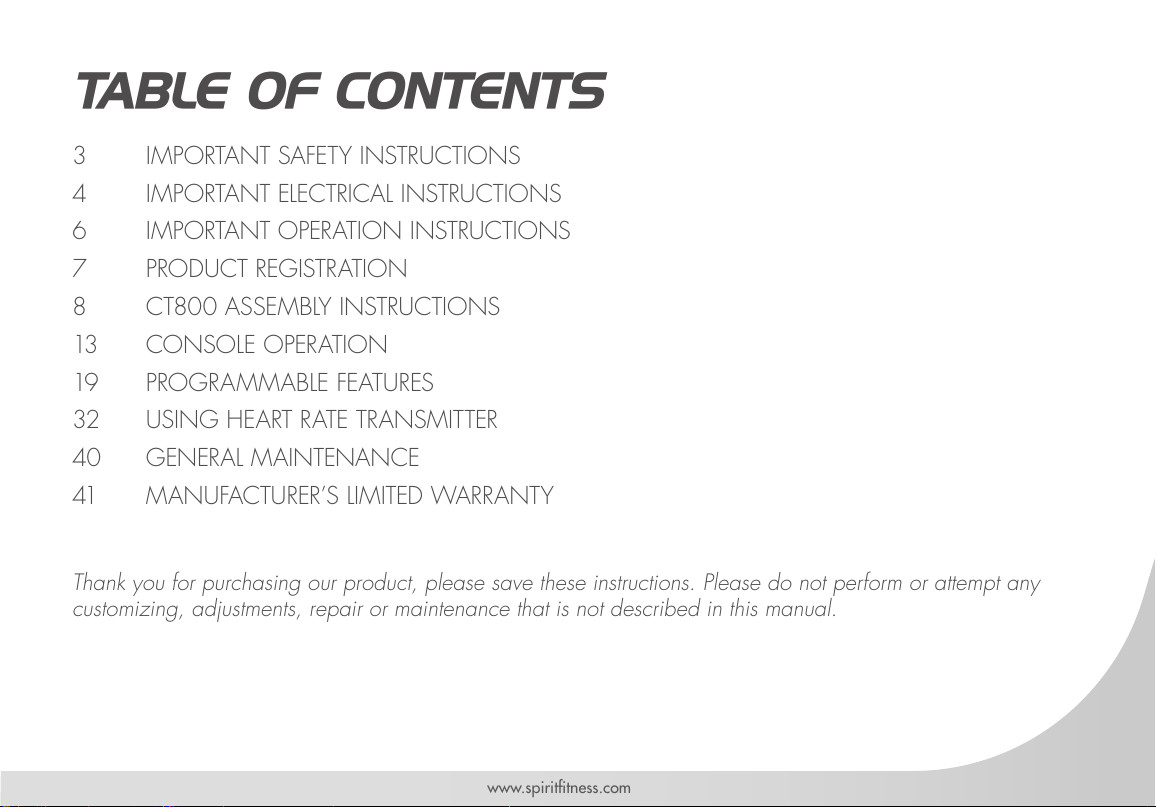

TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
4 IMPORTANT ELECTRICAL INSTRUCTIONS
6 IMPORTANT OPERATION INSTRUCTIONS
7 PRODUCT REGISTRATION
8 CT800 ASSEMBLY INSTRUCTIONS
13 CONSOLE OPERATION
19 PROGRAMMABLE FEATURES
32 USING HEART RATE TRANSMITTER
40 GENERAL MAINTENANCE
41 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
2
Spirit Fitness

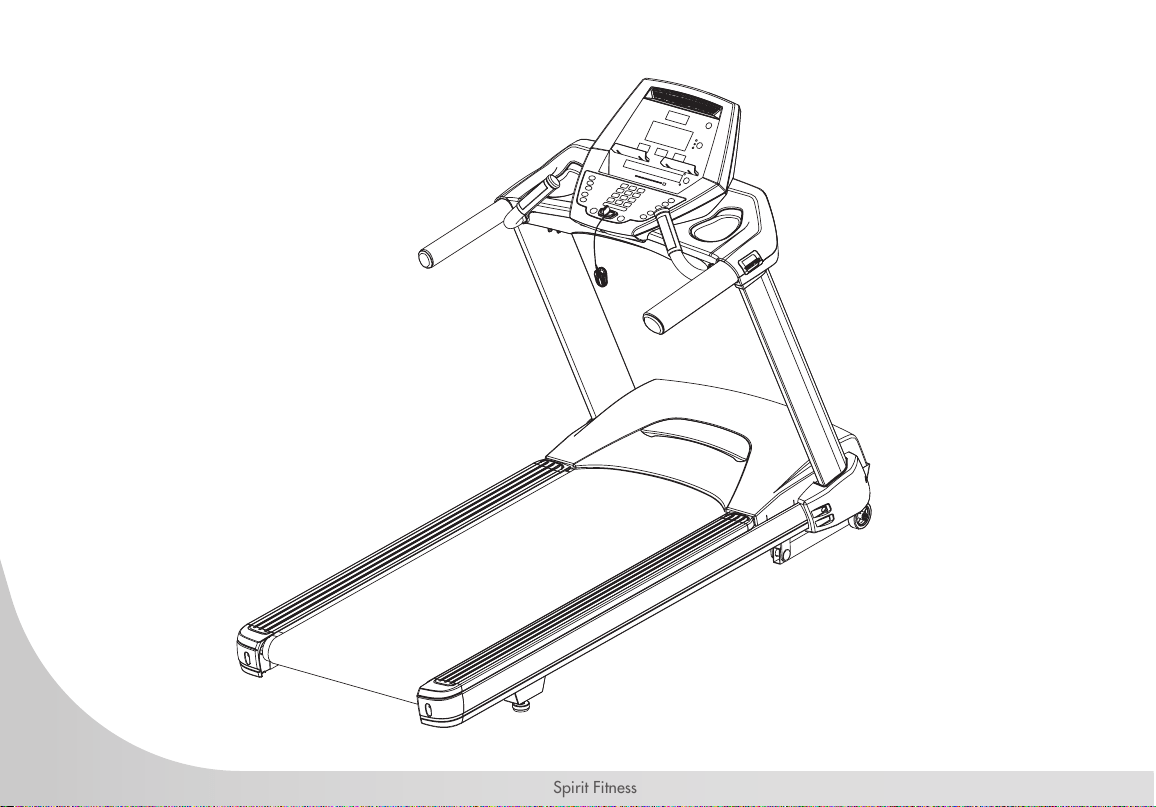

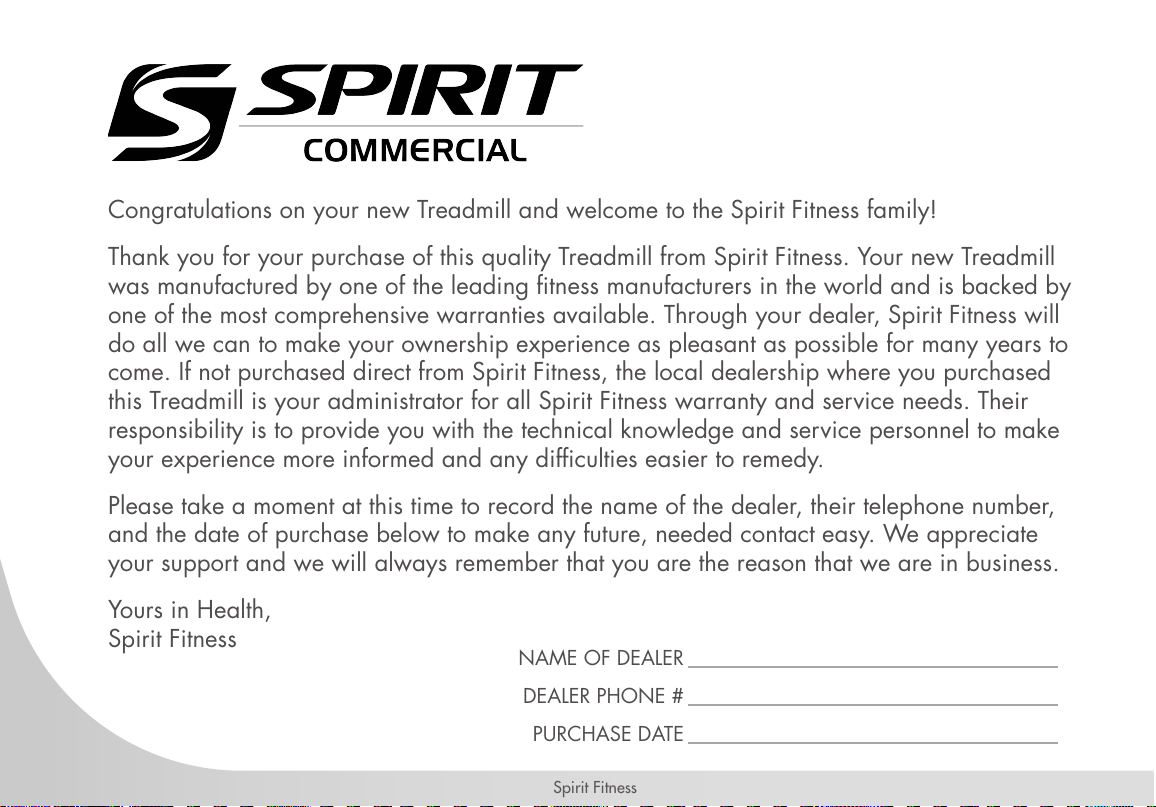

Congratulations on your new Treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality Treadmill from Spirit Fitness. Your new Treadmill
was manufactured by one of the leading tness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will
do all we can to make your ownership experience as pleasant as possible for many years to
come. If not purchased direct from Spirit Fitness, the local dealership where you purchased
this Treadmill is your administrator for all Spirit Fitness warranty and service needs. Their
responsibility is to provide you with the technical knowledge and service personnel to make
your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate
your support and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
When using an electrical appliance, basic
precautions should always be followed, including
the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical
outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re electric
shock, or injury to persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged
cord or plug, if it is not working properly, if it as
been dropped or damaged, or dropped into
water. Return the appliance to a service center for
examination and repair.
• Do not carry this appliance by supply cord or use
cord as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and
the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only. See Grounding Instructions.
• The appliance is intended for household use.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons
with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
4
Spirit Fitness
unless they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Keep children under the age of 13 away from this
machine.
• ASTM F2115-05 Specications
6.1.2.11 The recommended minimum clearance
required around each treadmill for access to,
passage around, and emergency dismount shall be
stated. The minimum dimensions are to be: 0.5 m
(19.7 in.) on each side of the treadmill, and 1 m
(39 in.) behind the machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER use a ground fault circuit interrupt (GFCI)
wall outlet with this treadmill. As with any appliance
with a large motor, the GFCI will trip often. Route
the power cord away from any moving part of the
treadmill including the elevation mechanism and
transport wheels. NEVER remove any cover without
rst disconnecting AC power. If voltage varies by
ten percent (10%) or more, the performance of your
treadmill may be affected. Such conditions are not
covered under your warranty. If you suspect the
voltage is low, contact your local power company
or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture.
This product is NOT designed for use outdoors,
near a pool or spa, or in any other high
humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and
humidity is 95% non-condensing (no water drops
forming on surfaces).
Circuit Breakers: Some circuit breakers used in
homes are not rated for high inrush currents that
can occur when a treadmill is rst turned on or
even during use. If your treadmill is tripping the
house circuit breaker (even though it is the proper
current rating) but the circuit breaker on the treadmill
itself does not trip, you will need to replace the
home breaker with a high inrush type. This is not
a warranty defect. This is a condition we as a
5
www.spirittness.com
outlet; have a proper outlet installed by a qualied
electrician.

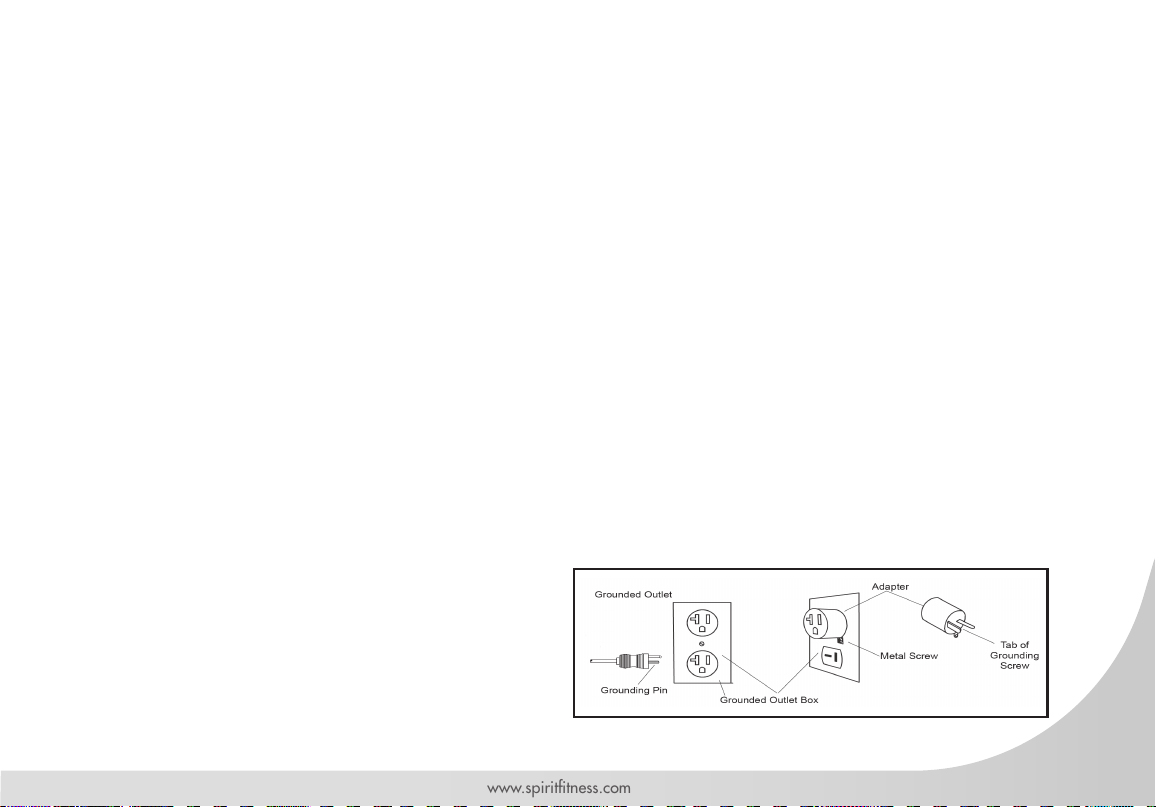

This product is for use on a nominal 110-volt/15
amp dedicated circuit, and has a grounding
plug that looks like the plug illustrated below. A
temporary adapter that looks like the adapter
illustrated below may be used to connect this plug
to a 2-pole receptacle as shown below if a properly
grounded outlet is not available. The temporary
adapter should be used only until a properly
grounded outlet, (shown below) can be installed
by a qualied electrician. The green colored rigid
ear-lug, or the like, extending from the adapter, must
be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the
adapter is used, it must be held in place by a metal
screw.
manufacture have no ability to control. This part
is available through most electrical supply stores.
Examples: Grainger part # 1D237, or available
online at www.squared.com part #QO120HM.
The electrical outlet used should have a dedicated
15 amp circuit breaker.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill
should malfunction or breakdown, grounding
provides a path of least resistance for electric
current, reducing the risk of electric shock. This
product is equipped with a cord having an
equipment-grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
DANGER - Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualied electrician or
serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the
plug provided with the product if it will not t the
6
Spirit Fitness
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this Treadmill without reading
and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in resistance do not occur
immediately. Set your desired resistance level on the
computer console and release the adjustment button.
The computer will obey the command gradually.
• Use caution while participating in other activities
while pedaling on your Treadmill; such as watching
television, reading, etc. These distractions may cause
you to lose balance which may result in serious
injury.
• Do not use excessive pressure on console control
buttons. They are precision set to function properly
with little nger pressure.
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the
State of California to cause Cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness
product in the space provided below. The serial
number is located at the front of the treadmill by the
Power switch.
Serial Number:
7
www.spirittness.com
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/commercialwarrantyregistration.html under the Support tab to
register online.
8
Spirit Fitness
CT800 PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box;
lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are
in parenthesis (#) are the item number from the assembly drawing
for reference.
TOOLS INCLUDED:
3/8”Allen Wrench
10mm Allen Wrench
Phillips Screwdriver
PARTS INCLUDED:
2 Console Masts
2 Side Covers
1 Base Frame
1 Console Support
1 Console
1 Safety Button
1 Power Cord
1 Tube of Lubricant (1 application)
1 Hardware Kit
9
www.spirittness.com

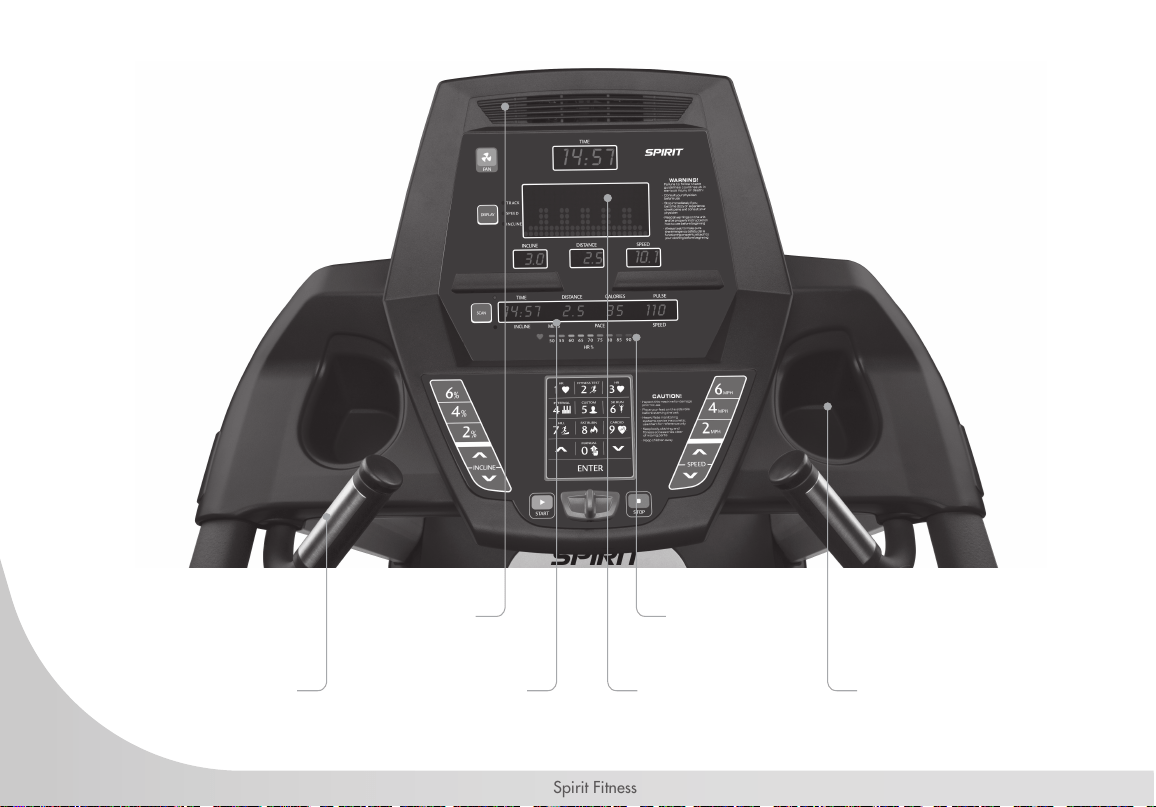

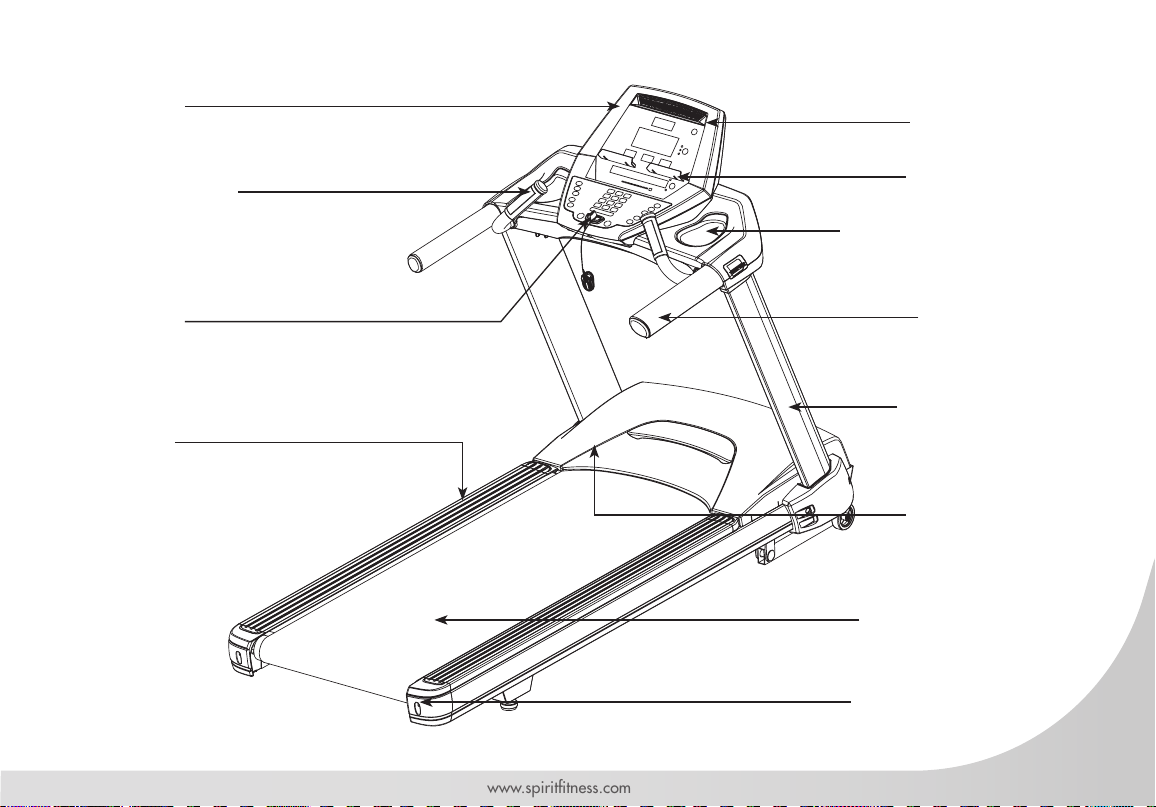

CONSOLE
HEART RATE GRIPS
SAFETY Button
SIDE RAILS
RUNNING BELT/DECK
TREAD-BELT TRACKING
CONSOLE MAST
HANDLEBARS
MOTOR COVER
CONSOLE FAN
DRINK BOTTLE HOLDER
READING RACK
10
Spirit Fitness

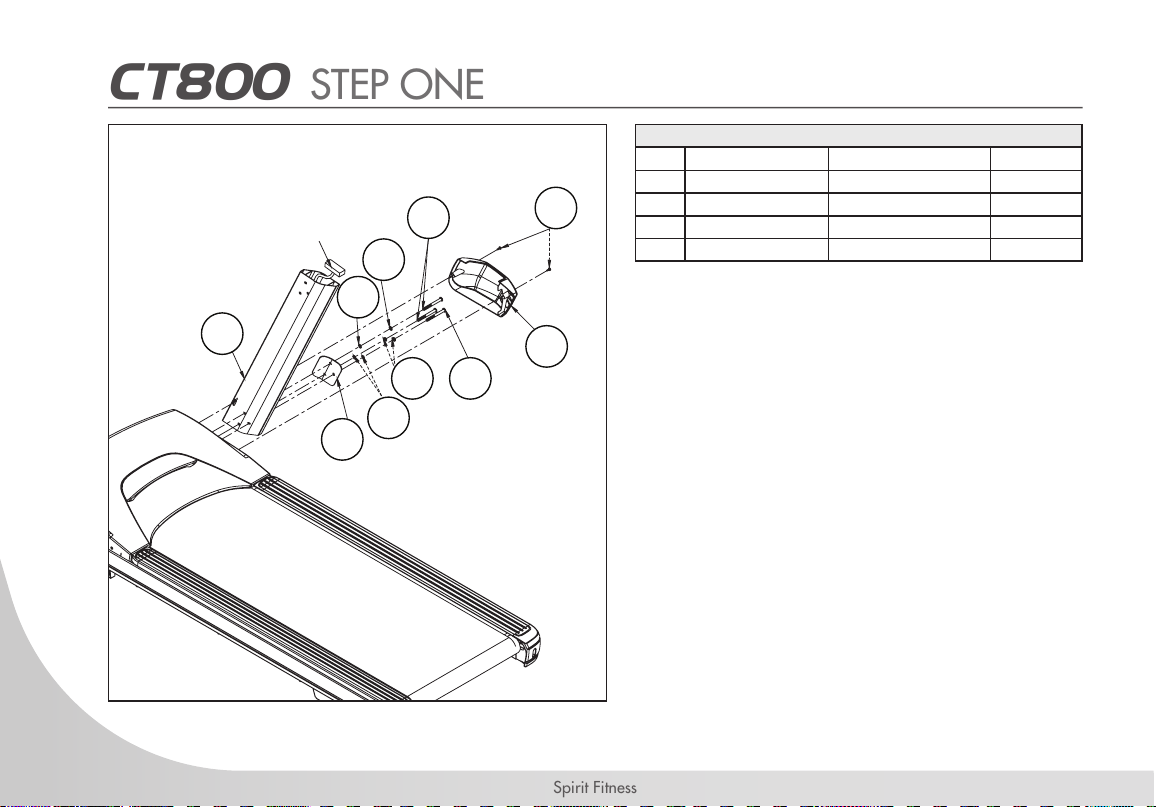

CT800 STEP ONE
104
104
73
58
59
20
18
33
19
21
51
58
58
59
32
73
104
104
A
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
58 SPLIT WASHER
3/8”
6
59 FLAT WASHER
3/8”
6
73 TAPPING SCREW
M5X12MM
4
104 BOLT
3/8”X3-3/4”
6
1. Gather HARDWARE FOR STEP 1.
2. The right side CONSOLE MAST TUBE (19) has
COMPUTER CABLE A (87) pre-installed. Lift the tube
off the walking surface and attach it to the base
frame. You need to gently pull on the computer cable
as you line up the upright tube, taking the slack
out, so the cable does not get pinched between
the tube and the base frame. Assemble 1 BOLT
(104), SPLIT WASHER (58) and FLAT WASHER (59)
through the top hole in the RETAINING PLATE (21),
and corresponding top hole in the upright tube, and
screw into the base frame. Now install the other 2
BOLTS (104) and WASHERS (58 & 59) and tighten
all 3 securely.
3. Install the left CONSOLE MAST TUBE (18) in the
same manner.
4. Install the LOWER SIDE CAPS (32 & 33) with 4
screws (73).
11
www.spirittness.com

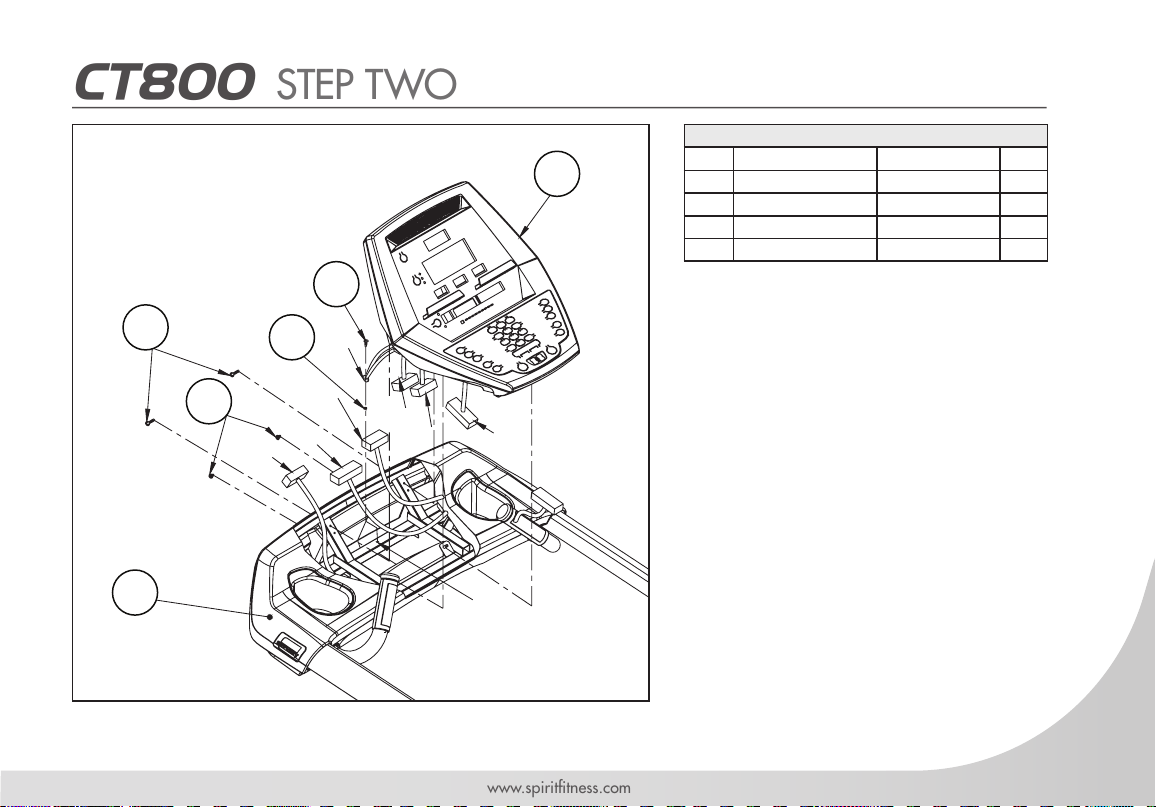

CT800 STEP TWO
73
36
110
112
5
125
B
H
I
G
F
E
D
C
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
73 SCREW
M5X12
1
110 SCREW
M5X10
2
112 SCREW
M5X30
2
125 STAR WASHER
M5
1
1. Gather HARDWARE FOR STEP 2.
2. Connect COMPUTER CABLES G (86)
& C (120), HAND PULSE CABLES D
(122) & F (88), on the right and B (28)
& E (88) on the left, and attach the
GROUND CABLE H (121) to the hole
I in the steel frame with a SCREW (73)
and a STAR WASHER (125) .
3. Mount the CONSOLE (36) to the
HANDLE BAR FRAME (5) with 2
SCREWS (112) in the upper set of holes
and 2 SCREWS (110) in the lower set
of holes.
12
Spirit Fitness

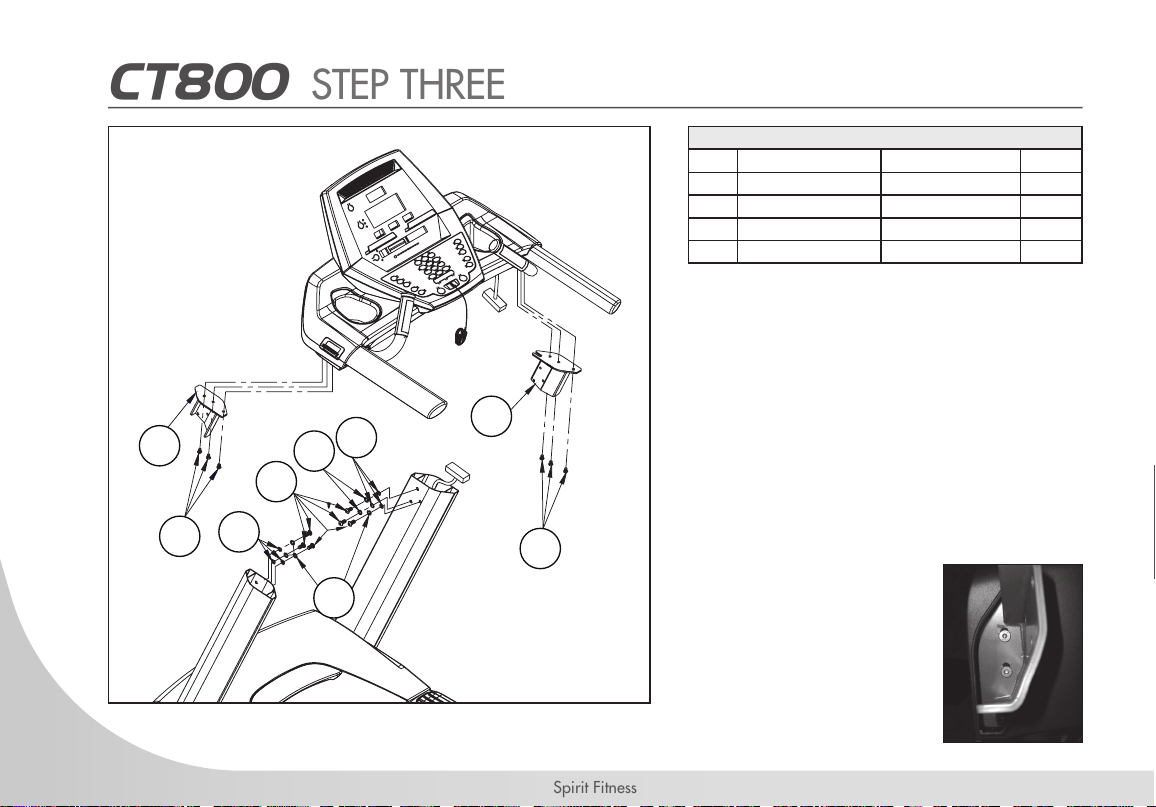

CT800 STEP THREE
3
59
59
58
58
105
4
108
108
A
C
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
58 SPLIT WASHER
3/8”
6
59 FLAT WASHER
3/8”
6
105 BOLT
3/8”X3/4”
6
108 BOLT
M8X12
6
1. Gather HARDWARE FOR STEP 3.
2. Attach the 2 INTERFACE MOUNTS (3 LEFT &
4 RIGHT) to the console assembly frame with
six bolts (108).
3. Connect console COMPUTER CABLE C (120)
to CABLE A (87) from the console mast tube.
4. Attach the CONSOLE ASSEMBLY to the top
of the CONSOLE MAST TUBES with BOLTS
(105), SPLIT WASHERS (58) and FLAT
WASHERS (59). Be careful not to pinch the
computer cable.
1. When assembling the
CONSOLE MOUNTING
INTERFACE BRACKETS
(3 & 4) please be sure to
slide the brackets all the
way toward the back of the
console before tightening
the bolts.
13
www.spirittness.com
CT800 CONSOLE OPERATION
14
Spirit Fitness
Fan to keep you cool
Large Blue-LED
Matrix Window
Contact Heart
Rate Grips
20-Character
Message Center
Convenient water bottle
holder and cargo compartment
for buttons, phone, or MP3
player
Heart Rate % Prole
15
www.spirittness.com
POWER
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located
at the front of the treadmill below the motor hood. Ensure that the safety button is installed, as the treadmill
will not power on without it.
When the power is turned on, all the lights on the display will light for a short time. Then the Time and
Distance windows will display odometer readings for a short time. The Time window will show how many
hours the treadmill has been in use and the Distance window will show how many miles (or Kilometers if
the treadmill is set to metric readings; see maintenance for changing settings) the treadmill has gone. A
message will be displayed showing the current software version. The treadmill will then enter idle mode,
which is the starting point for operation.
CSAFE FEATURE

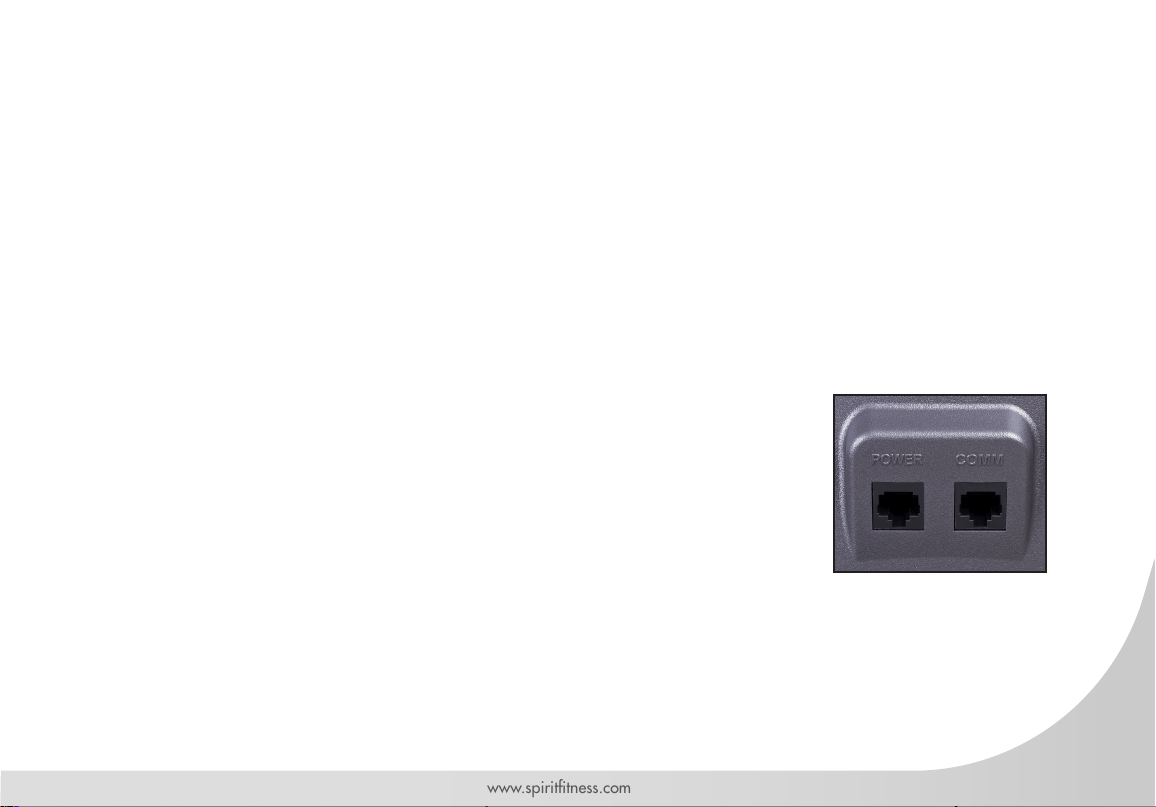

Your console is equipped with a CSAFE feature. The Power (POWER) port can
be used for powering a remote controlled audio-visual system by connecting
a cable from the remote to the Power port at the back of the console. The
Communication port (COMM) can be used to interact with tness software
applications. See your Spirit Fitness dealer for more information on how your
members can race against a computer controlled gure or real life exercisers.
16
Spirit Fitness
QUICK START
• Press and release any button to wake display up if not already on.
• Press and release the Start button to begin belt movement at 0.5 mph, then adjust to the desired speed using the
Up/Down buttons. You may also use the rapid speed buttons 2 through6 to set to a specic speed directly.
• To slow tread-belt press and hold the Down button (console or hand rail) to the desired speed. You may also
press the rapid speed adjust buttons, 2 through 6.
• To stop the tread-belt press and release red Stop button.
PAUSE/STOP/PRESET
• When the treadmill is running the pause feature may be utilized by pressing the red Stop button once. This will
slowly decelerate the tread-belt to a stop. The incline will go to zero percent. The Time, Distance and Calorie
readings will hold while the unit is in the pause mode. After 5 minutes the display will reset and return to the start
up screen.
• To resume your exercise when in Pause mode, press the Start button. The speed and incline will return to their
previous settings.
• Pressing the Stop button twice will end the program and a workout summary will be displayed. If the Stop button
is pressed a third time, the console will return to the idle mode (start up) screen.
• If the Stop button is held down for more than 3 seconds the console will reset.
• When you are setting data, such as age and time, for a program pressing the Stop button will allow you to go
back one step for each button press.
17
www.spirittness.com
INCLINE
• Incline may be adjusted anytime after the belt starts moving.
• Press and hold the adjust ^ / v buttons to achieve desired level of effort. You may also choose a more rapid
increase / decrease by selecting a quick button, 2 through 6, on left hand side of console (incline).
• The display will indicate incline numbers as percent of grade (the same as grade of a road) as adjustments are made.
DOT MATRIX CENTER DISPLAY
Ten rows of dots indicate each level of a workout in manual mode. The dots are only to show an approximate
level (speed/incline) of effort. They do not necessarily indicate a specic value - only an approximate percent
to compare levels of intensity. In Manual Operation the Speed / Incline dot matrix window will build a prole
“picture” as values are changed during a workout. There are twenty-four columns, indicating time. The 24
columns are divided into 1/24th of the total time of the program. When the time is counting up from zero (as
in quick start) each column represents 1 minute.
Next to the Dot Matrix window are three LED lights labeled: Track, Speed and Incline, along with a display
button. When the Track LED is lit the dot matrix displays the Track prole, when the Speed LED is lit the Dot
matrix displays the Speed prole and when the Incline LED is lit the Dot Matrix displays the Incline prole. You
may change the Dot Matrix prole view by pressing the Display button. After scrolling through the three proles
the Dot matrix will automatically scroll through the three displays showing each one for four seconds. The LED
associated with each prole will blink while that view is displayed. One more press of the Display button will
return you to the Track prole.
18
Spirit Fitness
1/4 MILE TRACK
The 1/4-mile track (0.4 km) will be displayed around the dot matrix window. The ashing dot indicates
your progress. In the center of the track there is a lap counter for reference.
HEART RATE FEATURE
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the workout.
You must use both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed
anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse feature while in Heart
Rate Control. The CT800 will also pick up wireless heart rate transmitters that are Polar compatible,
including coded transmissions.
HEART RATE BAR GRAPH
Displays a graphical representation of your heart rate as a percentage of your estimated
maximum heart rate. When you enter your age during programming, the console will calculate your
maximum heart rate then light up the graph to show the percent of estimated maximum heart rate you are
currently achieving.
MESSAGE WINDOW DISPLAY
Displays messages that help guide you through the programming process. During a program the message
window displays your workout data.
TO TURN TREADMILL OFF
The display will automatically turn off (go to sleep) after 30 minutes of inactivity. This function is called
19
www.spirittness.com
sleep mode. In sleep mode, the treadmill will power down most everything except for a minimum of
circuitry for detecting button presses and the safety button so it will start up again if these are activated.
There is only a tiny amount of current used in sleep mode (about the same as your TV when it is turned off)
and it is perfectly ne to leave the main power switch on in sleep mode. Of course you may also remove
the safety button or turn off the main power switch to power down the treadmill.
PROGRAMMABLE FEATURES
TO SELECT AND START A PRESET PROGRAM
The Spirit Fitness CT800 offers ve preset programs, a Custom User dened program, two heart rate
control programs, a Gerkin protocol based Fitness Test and one Manual program.
1. Select a program then press the Enter button to begin customizing the program with your personal data, or just
press the Start button to begin the program with the default settings.
2. After selecting a program and pressing enter to set your personal data, the Time window will blink with the
default value of 20 minutes. You may use any of the Up/Down buttons to adjust the time. After adjusting the time,
press Enter. (Note: You may press Start at any time during the programming to begin with only settings you have
modied at that point).
3. The Incline window will now be blinking a value indicating your Age. Entering the correct age will affect the
Heart Rate Bar Graph accuracy and also needed for the HR programs. Use the Up/Down buttons to adjust, and
then press enter.
4. The Distance window will now be blinking a value indicating your Bodyweight. Entering your correct bodyweight
affects the Kcal readout accuracy. Use the Up/Down buttons to adjust, and then press Enter.
5. The Speed window will now be blinking, showing the preset top speed of the selected program. Use the
20
Spirit Fitness
Up/Down buttons to adjust, and then press Enter. Each program has various speed changes throughout; this
allows you to limit the highest speed the program will attain during your workout.
6. Now press the Start button to begin your workout.
7. There will be a 3 minute warm-up to begin. You can press the Start button to bypass this and go straight to the
workout. During the warm-up the clock will count down from 3 minutes.
PRESET PROGRAMS SPEED/INCLINE SETTINGS
The preset program Speed and Incline levels are shown in the chart below. The Speed numbers shown in
the chart indicate a percentage of the top speed of the program. For instance, the rst Speed setting for
P1 (Program 1, HILL) shows the number 20. This means that this segment of the program will have a speed
that is 20% of the top speed for the program (The user sets the top speed in the procedure above). If the
user sets the top speed to 10 mph, then the rst segment will be 2 mph. You will notice that segment 12
shows 100 which means, the speed will be set to 100% of 10 mph or simply 10 mph.
Prog
SEG Warm up 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Cool down
Speed 20 30 40 50 60 60 70 70 70 80 80 70 80 80 100 100 70 80 80 70 70 80 80 70 60 60 50 40 30 20
P1
Incline 0 0 0 0 1 2 3 3 4 3 3 4 4 5 3 3 4 3 3 4 4 5 4 3 1 1 0 0 0 0
Speed 20 30 40 50 60 60 70 80 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 80 70 60 50 40 30 20
P2
Incline 0 0 0 0 1 2 3 3 3 4 5 3 3 4 4 3 3 2 2 3 4 5 6 4 2 1 0 0 0 0
Speed 20 30 40 50 60 60 70 70 70 80 70 70 80 80 60 70 80 80 70 70 70 100 70 80 60 60 50 40 30 20
P3
Incline 0 0 0 0 1 1 1 2 2 3 2 2 3 3 1 2 3 3 2 2 4 4 2 3 1 1 0 0 0 0
Speed 20 30 40 50 60 60 70 80 100 60 60 70 80 100 60 70 100 60 70 100 60 70 80 70 60 60 50 40 30 20
P5
Incline 0 0 0 0 1 2 3 5 6 2 3 5 6 7 2 3 7 2 3 8 2 3 5 4 3 1 0 0 0 0
P1= Hill; P2= Fatburn; P3= Cardio; P5= Interval
21
www.spirittness.com
CUSTOM PROGRAM
1. Select the Custom program then press Enter. Note that the dot matrix display portion will light a single row of
dots at the bottom (Unless there is a previously saved program).
2. The clock (Time) window will be ashing. Use the up and down adjustment buttons to set the program for the
desired time. Press the Enter button. This is a must to continue even if the time is not adjusted.
3. The Incline window will now be blinking a value indicating your Age. Entering the correct age will affect the
Heart Rate Bar Graph accuracy. Use the Up/Down buttons to adjust and then press Enter.
4. The Distance window will now be blinking a value indicating your Bodyweight. Entering your correct bodyweight
affects the Calorie readout accuracy. Use the Up/Down buttons to adjust, and then press Enter.
5. The rst speed setting column (segment) will now be blinking. Using the Up/Down buttons, adjust the speed to
your desired effort level for the rst segment then press Enter. The second column will now be blinking. Note
that the previous segment value has been carried over to the new segment. Repeat the above process until all
segments have been programmed.
6. The rst column will be blinking again. The console is now ready for the incline settings. Repeat the same process
used to set the speed values for programming the segments for incline.
7. Press the Start button to begin the workout and also save the program to memory.
5K RUN
This program automatically sets a 5k (5 kilometer) distance as your goal. The track display will show one
loop that is the equivalent of 5 kilometers and the Distance window will also show 5k to start. When the
program begins the Distance will count down; once it reaches zero the program ends.
*Please note that the Speed readout is in MPH if the console is not set to Metric.
22
Spirit Fitness
FITNESS TEST
When the Fit-Test button is pressed the DM displays the 5 different tests available: Army (PFT), Navy (PRT),
Air Force (PRT), Marines (PFT), and Gerkin. To select your desired tness test use the arrow button and press
enter.
FITNESS TEST OPERATION
1. The Message Window will ask you to enter your Weight. You may adjust the weight setting, shown in the
Distance window, using the Up and Down buttons then press the Enter button to accept the new number and
proceed on to the next screen.
2. You are now asked to enter your Age. You may adjust the age setting, shown in the Incline window, using the Up
and Down buttons then press Enter to continue.
3. You are now asked to enter your Gender. You may adjust the gender setting, shown in the Incline window, using
the Up and Down buttons then press Enter to continue.
4. Now press Start to begin the test.
23
www.spirittness.com
ARMY
A timed 2 mile run. You control the speed manually.
Maximum time allowed to pass the test:
Age Male Female
17-21 16:36 19:42
22-26 17:30 20:36
27-31 17:54 21:42
32-36 18:48 23:06
37-41 19:30 24:06
NAVY
A timed 1.5 mile run. You control the speed
manually. Maximum time allowed to pass the test:
Age Male Female
17-21 16:36 19:42
22-26 17:30 20:36
27-31 17:54 21:42
32-36 18:48 23:06
37-41 19:30 24:06
AIR FORCE
A timed 1.5 mile run. You control the speed manually.
Maximum time allowed to pass the test:
Age Male Female
<20 12:36 16:22
20-30 14:00 16:57
40-49 14:52 18:14
50-59 16:22 19:42
60+ 18:14 22:28
MARINES
A timed 3 mile run. You control the speed manually.
Maximum time allowed to pass the test:
Age Male Female
17-26 28:00 31:00
27-39 29:00 32:00
40-45 30:00 33:00
46+ 33:00 36:00
Age Male Female
45-49 16:09 17:02
50-54 16:46 17:27
55-59 17:10 18:35
60-64 18:53 19:44
65+ 20:36 20:53
24
Spirit Fitness
GERKIN TEST
The Gerkin protocol, also known as the reman’s protocol, and is a submax Vo2 (volume of oxygen) test.
The test will increase speed and elevation alternately until you reach 85% of your Max heart rate. The time
it takes for you to reach 85% determines the test score (Vo2 max) as shown in the chart below.
Stage Time Speed Grade VO2 Max
1 0 to 1:00 4.5mph 0% 31.15
2.1 1:15 4.5mph 2% 32.55
2.2 1:30 4.5mph 2% 33.6
2.3 1:45 4.5mph 2% 34.65
2.4 2:00 4.5mph 2% 35.35
3.1 2:15 5.0mph 2% 37.45
3.2 2:30 5.0mph 2% 39.55
3.3 2:45 5.0mph 2% 41.3
3.4 3:00 5.0mph 2% 43.4
4.1 3:15 5.0mph 4% 44.1
4.2 3:30 5.0mph 4% 45.15
4.3 3:45 5.0mph 4% 46.2
4.4 4:00 5.0mph 4% 46.5
5.1 4:15 5.5mph 4% 48.6
5.2 4:30 5.5mph 4% 50
5.3 4:45 5.5mph 4% 51.4
5.4 5:00 5.5mph 4% 52.8
6.1 5:15 5.5mph 6% 53.9
6.2 5:30 5.5mph 6% 54.9
6.3 5:45 5.5mph 6% 56
6.4 6:00 5.5mph 6% 57
7.1 6:15 6.0mph 6% 57.7
7.2 6:30 6.0mph 6% 58.8
7.3 6:45 6.0mph 6% 60.2
7.4 7:00 6.0mph 6% 61.2
8.1 7:15 6.0mph 8% 62.3
8.2 7:30 6.0mph 8% 63.3
8.3 7:45 6.0mph 8% 64
8.4 8:00 6.0mph 8% 65
9.1 8:15 6.5mph 8% 66.5
9.2 8:30 6.5mph 8% 68.2
9.3 8:45 6.5mph 8% 69
9.4 9:00 6.5mph 8% 70.7
10.1 9:15 6.5mph 10% 72.1
10.2 9:30 6.5mph 10% 73.1
10.3 9:45 6.5mph 10% 73.8
10.4 10:00 6.5mph 10% 74.9
11.1 10:15 7.0mph 10% 76.3
11.2 10:30 7.0mph 10% 77.7
11.3 10:45 7.0mph 10% 79.1
11.4 11:00 7.0mph 10% 80
Stage Time Speed Grade VO2 Max
1 0 to 1:00 4.5mph 0% 31.15
2.1 1:15 4.5mph 2% 32.55
2.2 1:30 4.5mph 2% 33.6
2.3 1:45 4.5mph 2% 34.65
2.4 2:00 4.5mph 2% 35.35
3.1 2:15 5.0mph 2% 37.45
3.2 2:30 5.0mph 2% 39.55
3.3 2:45 5.0mph 2% 41.3
3.4 3:00 5.0mph 2% 43.4
4.1 3:15 5.0mph 4% 44.1
4.2 3:30 5.0mph 4% 45.15
4.3 3:45 5.0mph 4% 46.2
4.4 4:00 5.0mph 4% 46.5
5.1 4:15 5.5mph 4% 48.6
5.2 4:30 5.5mph 4% 50
5.3 4:45 5.5mph 4% 51.4
5.4 5:00 5.5mph 4% 52.8
6.1 5:15 5.5mph 6% 53.9
6.2 5:30 5.5mph 6% 54.9
6.3 5:45 5.5mph 6% 56
6.4 6:00 5.5mph 6% 57
7.1 6:15 6.0mph 6% 57.7
7.2 6:30 6.0mph 6% 58.8
7.3 6:45 6.0mph 6% 60.2
7.4 7:00 6.0mph 6% 61.2
8.1 7:15 6.0mph 8% 62.3
8.2 7:30 6.0mph 8% 63.3
8.3 7:45 6.0mph 8% 64
8.4 8:00 6.0mph 8% 65
9.1 8:15 6.5mph 8% 66.5
9.2 8:30 6.5mph 8% 68.2
9.3 8:45 6.5mph 8% 69
9.4 9:00 6.5mph 8% 70.7
10.1 9:15 6.5mph 10% 72.1
10.2 9:30 6.5mph 10% 73.1
10.3 9:45 6.5mph 10% 73.8
10.4 10:00 6.5mph 10% 74.9
11.1 10:15 7.0mph 10% 76.3
11.2 10:30 7.0mph 10% 77.7
11.3 10:45 7.0mph 10% 79.1
11.4 11:00 7.0mph 10% 80
25
www.spirittness.com
Before The Test:
• Make sure you are in good health; check with your physician before performing any exercise if you are over the
age of 35 or persons with pre-existing health conditions.
• Make sure you have warmed up and stretched before taking the test.
• Do not take in caffeine before the test.
• Hold the hand grips gently, do not tense up.
During The Test:
• The console must be receiving a steady heart rate for the test to begin. You may use the hand pulse sensors or
wear a heart rate chest strap transmitter.
• The test will start with a 3 minute warm-up at 3 MPH before the actual test begins.
• The data shown during the test is:
a. Time indicates total elapsed time
b. Incline in percent grade
c. Distance in Miles or Kilometers depending on preset parameter.
d. Speed in MPH or KPH depending on preset parameter.
e. Target Heart Rate and Actual Heart Rate are shown in the Message Window.
After The Test:
• Cool down for about one to three minutes.
• Take note of your score because the console will automatically return to the start-up mode after a few minutes.
26
Spirit Fitness
WHAT YOUR SCORE MEANS
Vo2max Chart For Females And De-Conditioned Males
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent >60 >56 >51 >45 >41 >37
good 52-60 49-56 43-51 39-45 36-41 33-37
above
average 47-51 43-48 39-42 35-38 32-35 29-32
average 42-46 40-42 35-38 32-35 30-31 26-28
below
average 37-41 35-39 31-34 29-31 26-29 22-25
poor 30-36 30-34 26-30 25-28 22-25 20-21
very poor <30 <30 <26 <25 <22 <20
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent 56 52 45 40 37 32
good 47-56 45-52 38-45 34-40 32-37 28-32
above
average 42-46 39-44 34-37 31-33 28-31 25-27
average 38-41 35-38 31-33 28-30 25-27 22-24
below
average 33-37 31-34 27-30 25-27 22-24 19-22
poor 28-32 26-30 22-26 20-24 18-21 17-18
very poor <28 <26 <22 <20 <18 <17
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent >60 >56 >51 >45 >41 >37
good 52-60 49-56 43-51 39-45 36-41 33-37
above
average 47-51 43-48 39-42 35-38 32-35 29-32
average 42-46 40-42 35-38 32-35 30-31 26-28
below
average 37-41 35-39 31-34 29-31 26-29 22-25
poor 30-36 30-34 26-30 25-28 22-25 20-21
very poor <30 <30 <26 <25 <22 <20
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent 56 52 45 40 37 32
good 47-56 45-52 38-45 34-40 32-37 28-32
above
average 42-46 39-44 34-37 31-33 28-31 25-27
average 38-41 35-38 31-33 28-30 25-27 22-24
below
average 33-37 31-34 27-30 25-27 22-24 19-22
poor 28-32 26-30 22-26 20-24 18-21 17-18
very poor <28 <26 <22 <20 <18 <17
Vo2max Chart For Males And Very Fit Females
27
www.spirittness.com
HEART RATE PROGRAMS
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of exercising
comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper
use of a heart rate monitor, many people nd that their usual choice of exercise intensity was either too high or
too low and exercise is much more enjoyable by maintaining their heart rate in the desired benet range.

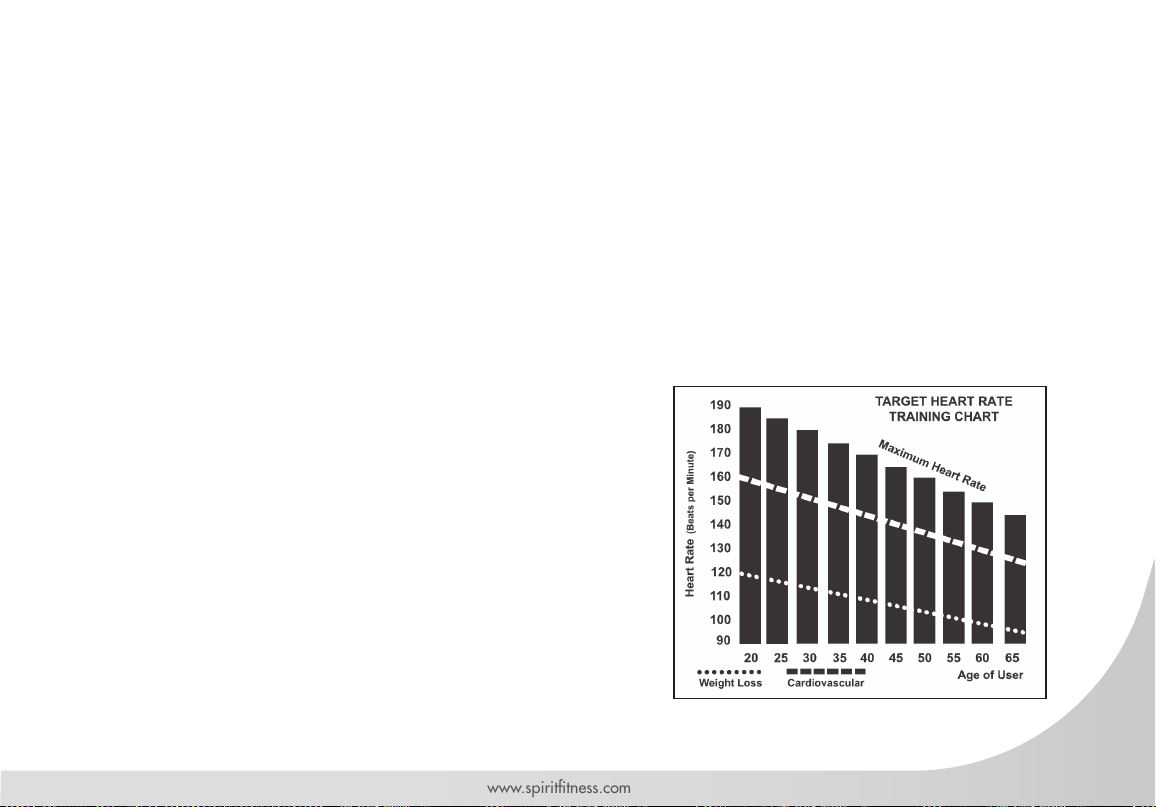

To determine the benet range in which you wish to train, you must rst determine your Maximum Heart Rate.
This can be accomplished by using the following formula: 220 minus your age. This will give you the Maximum
Heart Rate (MHR)for someone of your age. To determine the effective heart rate range for specic goals you
simply calculate a percentage of your MHR. Your Heart rate training zone is 50% to 90% of your maximum
heart rate. 60% of your MHR is the recommended for burning fat while 80% is recommended for strengthening
the cardio vascular system. This 60% to 80% is the zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute (60% of maximum)
180 X .8 = 144 beats per minute (80% of maximum)
So for a 40 year old the training zone would
be 108 to 144 beats per minute.
28
Spirit Fitness
If you enter your age during programming the console will perform this calculation automatically. Entering
your age is used for the Heart Rate programs. After calculating your MHR you can decide upon which
goal you would like to pursue.
The two most popular reasons for, or goals, of exercise are cardiovascular tness (training for the heart
and lungs) and weight control. The black columns on the chart above represent the MHR for a person
whose age is listed at the bottom of each column. The training heart rate, for either cardiovascular tness
or weight loss, is represented by two different lines that cut diagonally through the chart. A denition of
the lines’ goal is in the bottom left-hand corner of the chart. If your goal is cardiovascular tness or if it
is weight loss, it can be achieved by training at 80% or 60%, respectively, of your MHR on a schedule
approved by your physician. Consult your physician before participating in any exercise program.
With all Spirit Fitness Heart Rate programs you may use the heart rate monitor feature without using the
Heart Rate program. This function can be used during manual mode or during any of the nine different
programs. The Heart Rate program automatically controls resistance at the pedals.
29
www.spirittness.com
RATE OF PERCEIVED EXERTION
Heart rate is important but listening to your body also has a lot of advantages. There are more variables
involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional
health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the
intensity at which you should workout. If you listen to your body, it will tell you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish physiologist
G.A.V. Borg. This scale rates exercise intensity from 6 to 20 depending upon how you feel or the
perception of your effort. The scale is as follows:
Rating Perception of Effort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each rating. For
example a rating of 12 will result in an approximate heart rate of 120 beats per minute. Your RPE will vary
depending up the factors discussed earlier. That is the major benet of this type of training. If your body is
strong and rested, you will feel strong and your pace will feel easier. When your body is in this condition,
you are able to train harder and the RPE will support this. If you are feeling tired and sluggish, it is because
your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE
and you will train at the proper level for that day.
30
Spirit Fitness

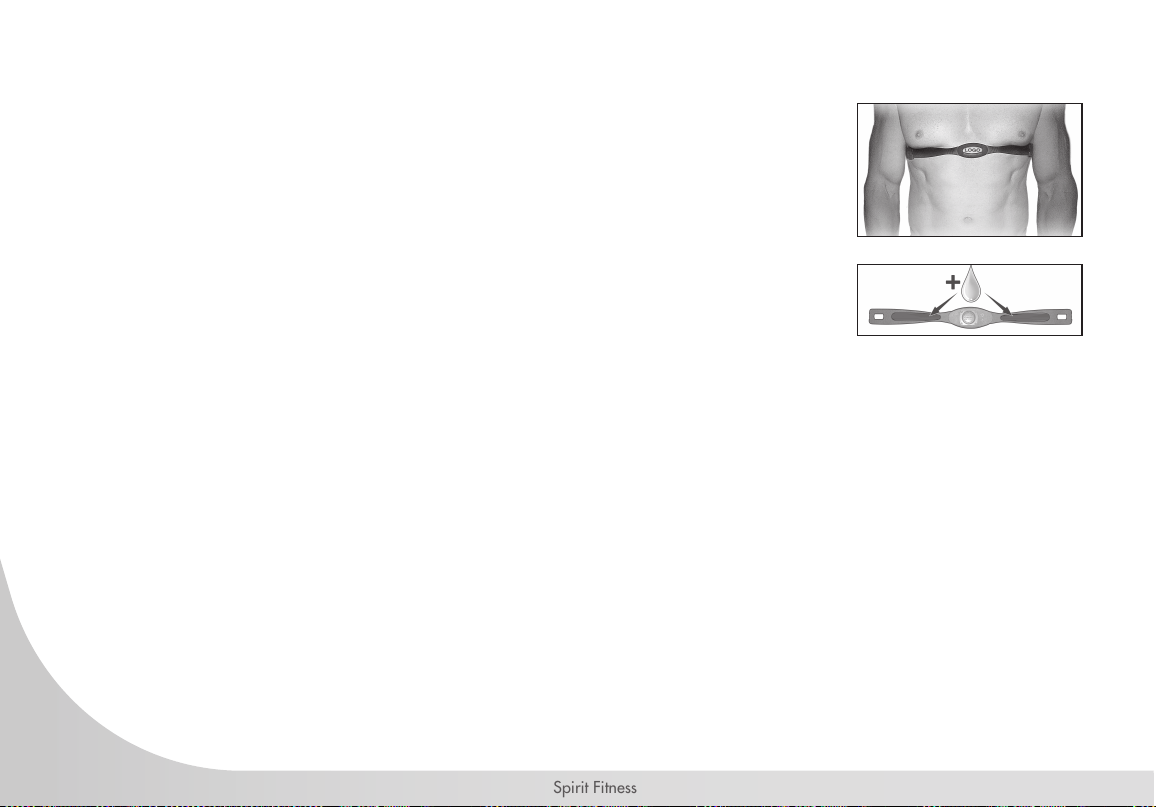

WEARING THE CHEST STRAP
1. Attach the transmitter to the elastic strap using the interlocking button.
2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain
comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing away
from your chest (some people must position the transmitter slightly left of center). Attach
the nal end of the elastic strap by inserting the round end and, using the locking
parts, secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on the reverse side of the
belt and both sides of the transmitter). It’s also recommended that you wear the transmitter strap a few minutes
before your work out. Some users, because of body chemistry, have a more difcult time in achieving a strong,
steady signal at the beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady signal.
The length of range may vary somewhat but generally stay close enough to the console to maintain good, strong,
reliable readings. Wearing the transmitter directly on bare skin assures you of proper operation. If you wish, you
may wear the transmitter over a shirt. To do so, wet the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the effect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement
battery is Panasonic CR2032.
31
www.spirittness.com
ERRATIC OPERATION
Caution! Do not use this Treadmill for Heart Rate programs unless a steady, solid Actual Heart
Rate value is being displayed. High, wild, random numbers being displayed indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV’s, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Perimeter fence for a pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try
wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right
side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole
machine 90 degrees may de-tune the interference.
7. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
32
Spirit Fitness
HEART RATE CONTROL
Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate. Increases and
decreases in elevation affect heart rate much more efciently than changes in speed alone. The HRC
program automatically changes elevation gradually to achieve the programmed target heart rate.
Selecting a Heart Rate Control Program:
You have the option, during the setup mode, to choose either the Weight Control (HR-1) program or the
Cardiovascular (HR-2) program. The Weight Control program will attempt to maintain your heart rate at
60% of your Maximum Heart Rate. The Cardiovascular program will attempt to maintain your heart rate at
85% of your Maximum Heart Rate. Your Maximum Heart Rate is based upon a formula that subtracts your
age from a constant of 220. Your HR setting is automatically calculated during the setup mode when you
enter your age.
HEART RATE CONTROL PROGRAMMING
1. You must receive a strong / steady value in heart rate window or the program will not start.
2. Press HR1 or HR 2 button.
3. The Pulse window will be blinking, showing the default HR for this program. You may adjust it and press Enter if
you want or just press enter to accept the default value.
4. The Calorie will now be blinking showing bodyweight. Adjust and press Enter or press Enter to accept default.
5. The Pulse window will now be blinking showing age. Adjust and press Enter or press Enter to accept default.
Adjusting Age will change the Target HR value.
6. The Time window will now be blinking. Adjust the time and press enter.
7. Press Start to begin program.
8. During the program you may increase or decrease the target heart rate by pressing the Incline Up/Down buttons.
33
www.spirittness.com
BELT/DECK
Your treadmill uses a very high-efcient low-friction hard waxed deck. Performance is maximized when the
deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and
the area between the belt edge and the frame. Also reach as far as practical directly under the belt edge.
This should be done once a month to extend belt and deck life. A mild soap and water solution along with
a nylon scrub brush will clean the top of the textured belt. Allow to dry before using.
The low maintenance (routine monthly cleaning), dual sided hard wax deck is designed to withstand up to
20,000 miles on each side. If the original side of the deck shows signicant wear, it needs to be ipped.
Contact your service technician for assistance. Do not apply any type of lubricant or wax to the surface.
Task How To DailyWeekly Monthly
Semi-
Annually
Annually
Wipe Down Unit
Damp cloth w/
water
Clean Under Belt Towel or vacuum
Check Belt Tension/Tr acking Feel/Visual
Clean Under Motor CoverVacuum carefully
Check Hardware Wrench
Inspect for Deck Wear Visual
Inspect Drive Belt Visual
34
Spirit Fitness
BELT ADJUSTMENTS
Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important though for
joggers and runners in order to provide a smooth, steady running surface.
Adjustment must be made from the rear roller with the 8mm Allen wrench provided in the parts package.

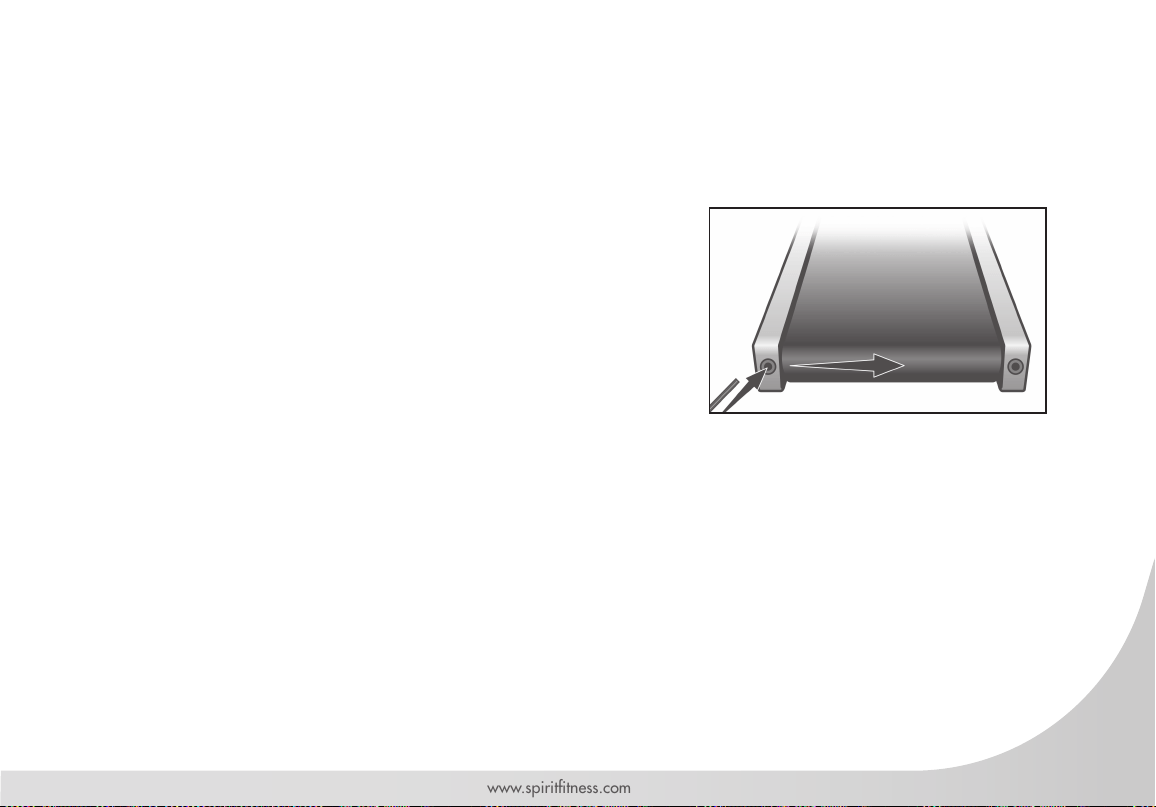

The adjustment bolts are located at the end of the step rails as shown in the diagram below.
Tighten the rear roller only enough to prevent slippage at the
front roller. Turn the tread-belt tension adjusting bolts 1/4 turn
each and inspect for proper tension by walking on the belt
and making sure it is not slipping or hesitating with each step.
When an adjustment is made to the belt tension, you must be
sure to turn the bolts on both sides evenly or the belt could
start tracking to one side instead of running in the middle of
the deck.
DO NOT OVER TIGHTEN – Over tightening will cause belt
damage and premature bearing failure. If you tighten the belt a lot and it still slips, the problem could
actually be the drive belt - located under the motor cover - that connects the motor to the front roller. If that
belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a
trained service person.
35
www.spirittness.com
TREADBELT TRACKING ADJUSTMENT
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some
belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during
use the belt continues to move toward one side, adjustments are necessary.
SETTING TREAD-BELT TRACKING
An 8mm Allen wrench is provided for this adjustment. Make
tracking adjustments on the left side bolt. Set belt speed at 3 mph.
Be aware that a small adjustment can make a dramatic difference
which may not be apparent right away. If the belt is too close to the
left side, then turn the bolt only a 1/4 turn to the right (clockwise)
and wait a few minutes for the belt to adjust itself. Continue to make
1/4 turns until the belt stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the bolt counter-clockwise. The belt may require periodic
tracking adjustment depending on use and walking/running characteristics. Some users may affect tracking
differently. Expect to make adjustments as required to center the tread-belt. Adjustments will become less of a
maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with
all treadmills.
ATTENTION: Damage to the running belt resulting from improper tracking / tension adjustments is not
covered under the Spirit Fitness warranty.
36
Spirit Fitness
CALIBRATION PROCEDURE
1. Remove the safety button
2. Press and hold down the Start and Fast + buttons and replace the safety button. Continue to hold the Start and Fast
button until the window displays “Factory settings”, then press the Enter button.
3. You will now be able to set the display to show Metric or English settings (Miles vs. Kilometers). To do this, press the
Up or Down button to show which you want, then press Enter.
4. Make sure the wheel size diameter is 2.98 then press Enter.
5. Adjust the minimum speed (if needed) to 0.5 and then press Enter.
6. Adjust the maximum speed (if needed) to 12.0 and then press Enter.
7. Adjust the maximum elevation (if needed) to 15 and then press Enter.
8. Grade return – On (This allows the incline to return to zero when Stop is pressed. For sale in Europe, EU standards
require this to be off)
9. Press Start to begin calibration. The process is automatic; the speed will start up without warning, so do not stand
on the belt.

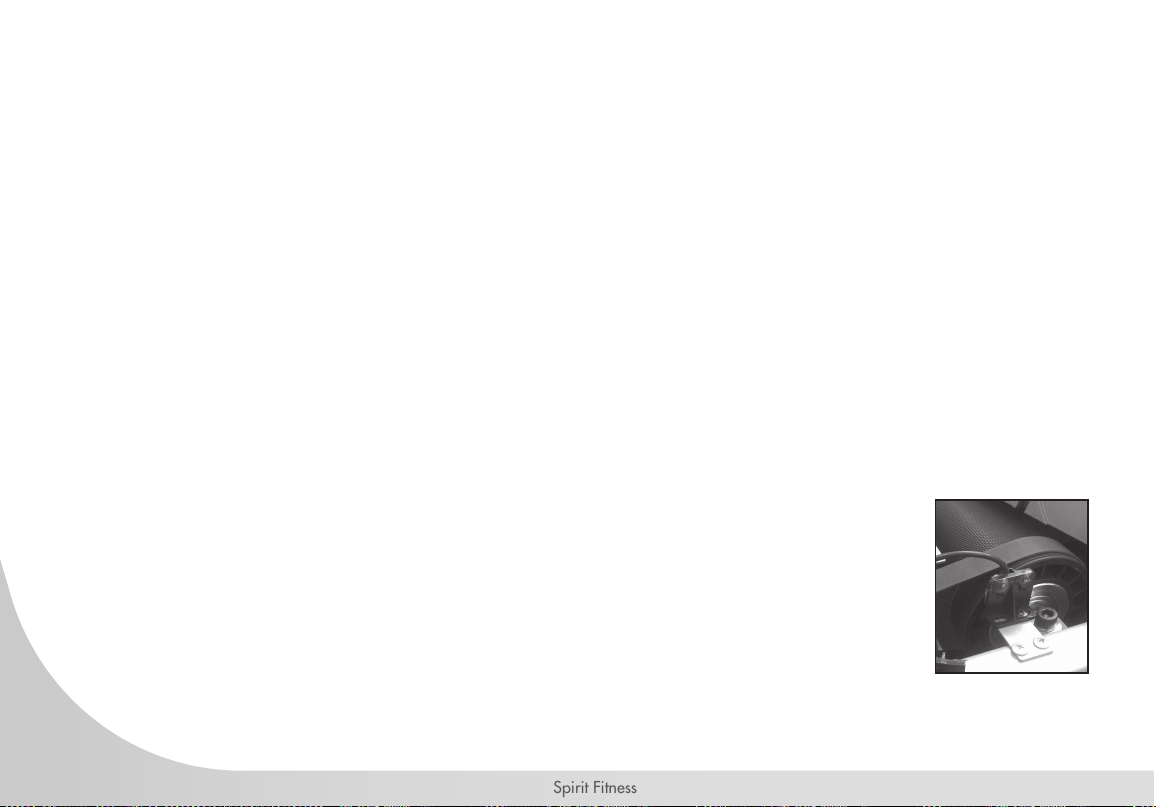

ADJUSTING THE SPEED SENSOR
If the calibration does not pass you may need to check the speed sensor alignment.
1. Remove the motor cover hood by loosening the 8 screws that hold it in place. Set it aside.
2. The speed sensor is located on the left side of the frame, right next to the front roller pulley
(the pulley will have a belt around it that also goes to the motor). The speed sensor is a small
rectangular shaped black box with a wire connected to it.
3. You will see a magnet on the outside edge of the pulley; make sure the speed sensor is
aligned with the center of the magnet when it passes by. There are two a screws that hold the
sensor in place that need to be loosened to adjust the sensor. Re-tighten the screws when nished.
37
www.spirittness.com
ENGINEERING MODE MENU
The console has built in maintenance/diagnostic software. The software will allow you to change the
console settings from English to Metric and turn off the beeping of the speaker when a button is pressed
for example. To enter the Engineering Mode Menu press and hold down the Start, Stop and Enter buttons,
then insert the safety button. Keep holding the buttons down until the Message Center displays Engineering
Mode Menu. Press the Enter button to access the menu below:
1. Button Test (Will allow you to test all the buttons to make sure they are functioning)
2. Security (Allows the keypad to be locked to prevent unauthorized use)
3. Functions (Press Enter to access settings and Up arrow to scroll)
a. Sleep Mode (Turn on to have the console power down automatically after 20 minutes of inactivity)
b. Beep (Turns off the speaker so no beeping sound is heard)
c. Grade Return - Returns the elevation to lowest setting when pause is pressed.
d. Units (Set to English or Metric display readings)
e. Maintenance (Resets the lube reset message and odometer)
f. Pause Mode (Turn on allow 5 minutes of pause, turn off to have the console pause indenitely)
4. Display Test (Tests all the display functions)
38
Spirit Fitness
SERVICE CHECKLIST - DIAGNOSIS GUIDE
1. Tether cord not in position.
2. Circuit breaker on front grill tripped. Push circuit breaker in
until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed into
115 VAC wall outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact your Spirit Fitness dealer.
Display does not light
Tread-belt does not stay centered Treadmill belt
hesitates when walked/run on
The user may be walking while favoring or putting more
weight on either the left or right foot. If this walking pattern is
natural, track the belt slightly off-center to the side opposite
from the belt movement. See General Maintenance section
on Tread-belt Tension. Adjust as necessary.
1. If the belt moves, but stops after a short time and
thedisplay shows “LS”, run calibration.
2. If you press start and the belt never moves, then the
display shows LS, contact service.
Motor is not responsive after pressing start
Need to replace the breaker with a “High In-rush current”
type breaker (see page 3 for details)
Circuit breaker trips, but not the treadmill circuit
breaker
PROBLEM SOLUTION/CAUSE
39
www.spirittness.com
Treadmill will only achieve approximately 7 mph but
shows higher speed on display
This indicates motor should be receiving power to oper-
ate. Low AC voltage to treadmill. Do not use an extension
cord. If an extension cord is required it should be as short
as possible and heavy duty 16 gauge minimum. Low volt-
age. Contact an electrician or your Spirit Fitness dealer.
A minimum of 110 volt AC current is required.
High belt/deck friction. See General Maintenance section
on cleaning the deck. If cleaning doesn’t prevent this from
reoccurring, check to see if there is signicant wear of the
deck. If so, the deck may need to be ipped if it is on its
original side.
Tread-belt stops quickly/suddenly when tether cord
is pulled
High belt/deck friction. See General Maintenance. If
cleaning doesn’t prevent this from reoccurring, check the
amp draw of the motor. If this is high and there are signs
of signicant wear of the deck, it may need to be ipped
if it is on its original side.
Treadmill trips on board 15 amp circuit
Treadmill may not be grounded. Static electricity is
“crashing” the computer. Refer to Grounding Instructions
on page 3.
Computer shuts off when console is touched (on
a cold day) while walking/running
40
Spirit Fitness
GENERAL MAINTENANCE
1. Wipe down all areas in the sweat path with a damp cloth after each workout.
2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons:
a. The hardware was not sufciently tightened during assembly. All bolts that were installed during assembly
need to be tightened as much as possible. It may be necessary to use a larger wrench than the one provided
if you cannot tighten the bolts sufciently. I cannot stress this point enough; 90% of calls to the service depart-
ment for noise issues can be traced to loose hardware.
b. The crank arm nut needs to be retightened
c. If squeaks or other noises persist, check that the unit is properly leveled. There are 2 leveling pads on the
bottom of the rear stabilizer, use a 14mm wrench (or adjustable wrench) to adjust the levelers.
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all
times. It is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether
cord will stop tread-belt movement. To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The magnet has strong
enough power to minimize accidental, unexpected stopping. The clip should be attached securely to make
certain it does not come off. Be familiar with its function and limitations. The treadmill will stop, depending on
speed, with a one to two step coast anytime the magnet is pulled off the console. Use the Stop / Pause switch in
normal operation.
41
www.spirittness.com
TREADMILL WARRANTY EFFECTIVE DECEMBER 23, 2015
Spirit Fitness warrants all its Treadmill parts for a period of time listed below from the date of retail sale,
as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original
factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at
Spirit Fitness’ option, and technical support to our independent dealers and servicing organizations. In the
absence of a dealer or service organization, these warranties will be administered by Spirit Fitness directly
to a consumer. The warranty period applies to the following components:
NORMAL RESPONSIBILITIES OF THE CONSUMER
The consumer or non-dues paying facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the
original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the tness equipment and with all local electric codes.
4. Proper connection to a grounded power supply of sufcient voltage, replacement of blown fuses, repair of loose
connections or defects in house or facility wiring.
5. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the tness
equipment at the time it was shipped from the factory.
6. Damages to the tness equipment nish during shipping, installation or following installation.
7. Routine maintenance of this unit as specied in this manual.
Warranty
Commercial
Residential
Frame
Lifetime
Lifetime
Motor/Deck
5 Years
Lifetime
Parts
5 Years
10 Years
Labor
2 Year
2 Year
42
Spirit Fitness
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve
malfunction or defects in workmanship or material, for units that are beyond the warranty period, for units that are
beyond the service call reimbursement period, for tness equipment not requiring component replacement, or tness
equipment not in non-dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of
parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic,
alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to
request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in a dues paying facility (YMCA, Health Club, Etc.)
9. Product used in prisons and correctional facilities
10. Warranties outside of the United States may vary. Please contact your local dealer for details.
43
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the
date of factory shipping as determined by the serial number establishes the labor warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written
warranty gives you specic legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is
shipped to a service center freight charges to and from the service center will be the customer’s responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for shipping and
handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an additional
trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT
TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization
number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
44
Spirit Fitness
NOTES
45
www.spirittness.com
NOTES
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
CT800 Owners Manual
© 2018 All Rights Reserved
Revision: 08.22.2018
