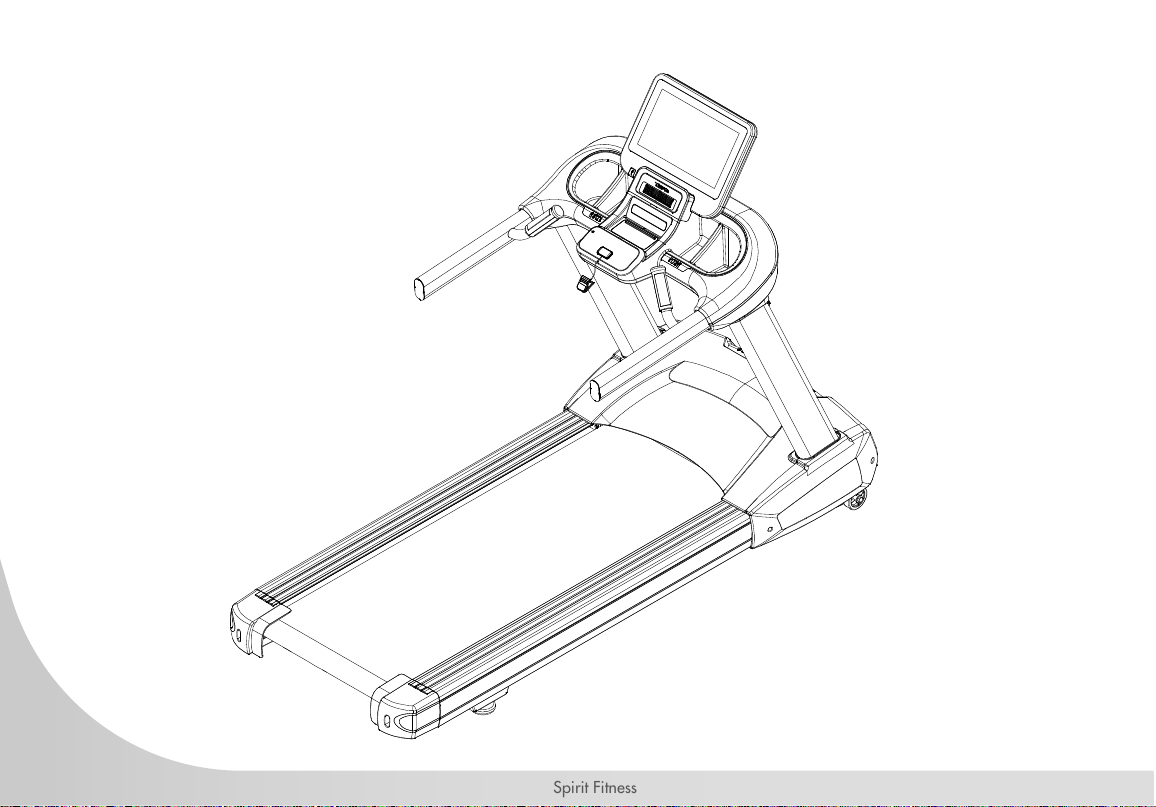

CT800ENT TREADMILL
OWNER’S MANUAL
Spirit Fitness
www.spirittness.com

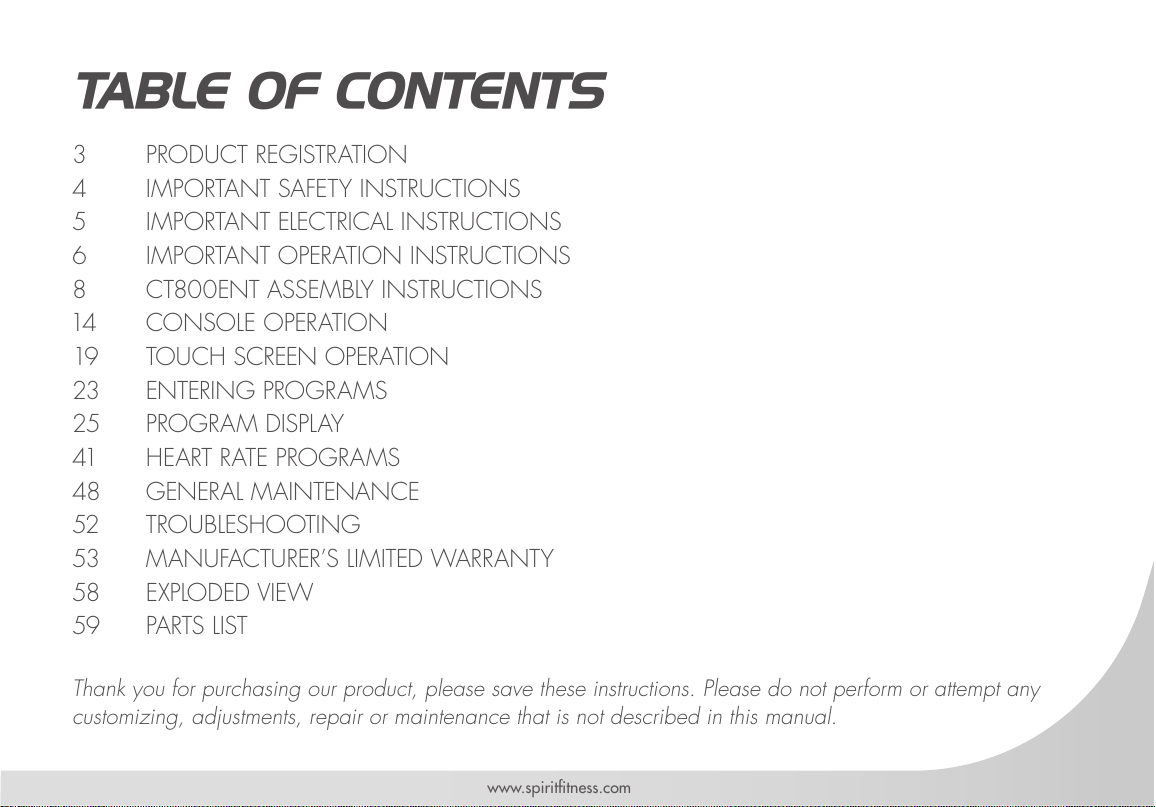

TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
5 IMPORTANT ELECTRICAL INSTRUCTIONS
6 IMPORTANT OPERATION INSTRUCTIONS
8 CT800ENT ASSEMBLY INSTRUCTIONS
14 CONSOLE OPERATION
19 TOUCH SCREEN OPERATION
23 ENTERING PROGRAMS
25 PROGRAM DISPLAY
41 HEART RATE PROGRAMS
48 GENERAL MAINTENANCE
52 TROUBLESHOOTING
53 MANUFACTURER’S LIMITED WARRANTY

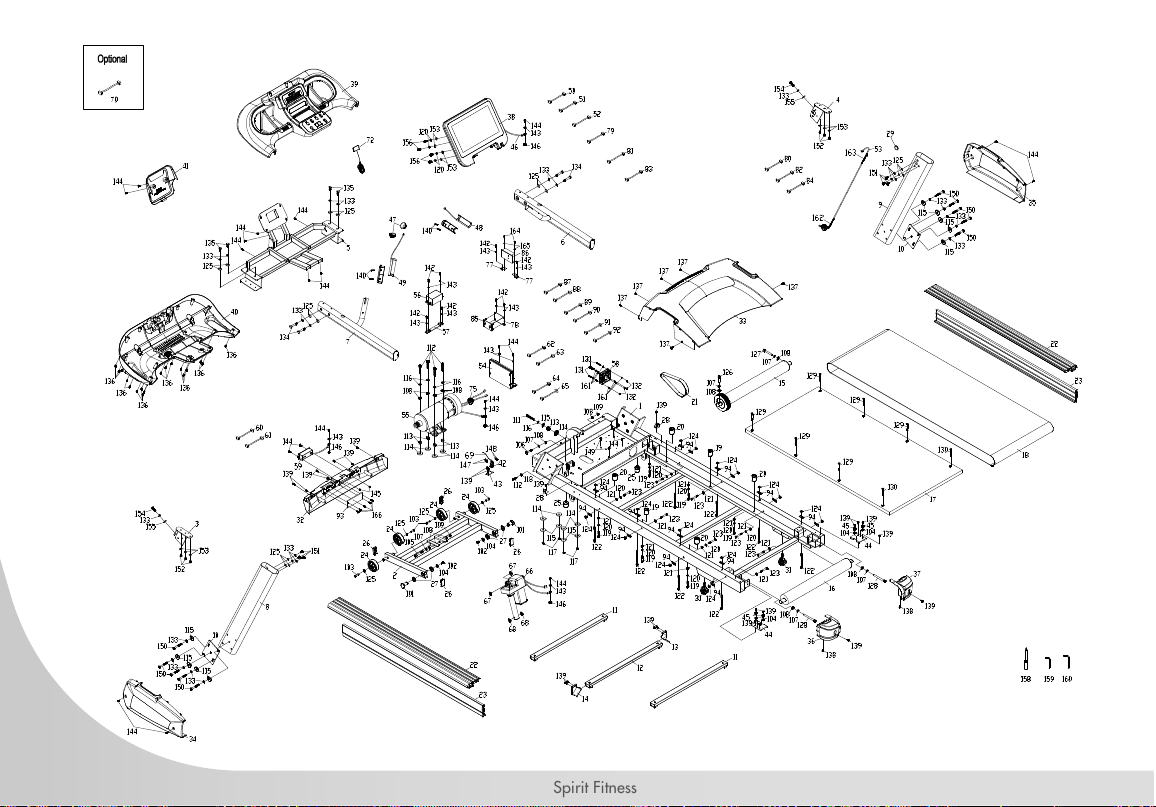

58 EXPLODED VIEW
59 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
2
Spirit Fitness

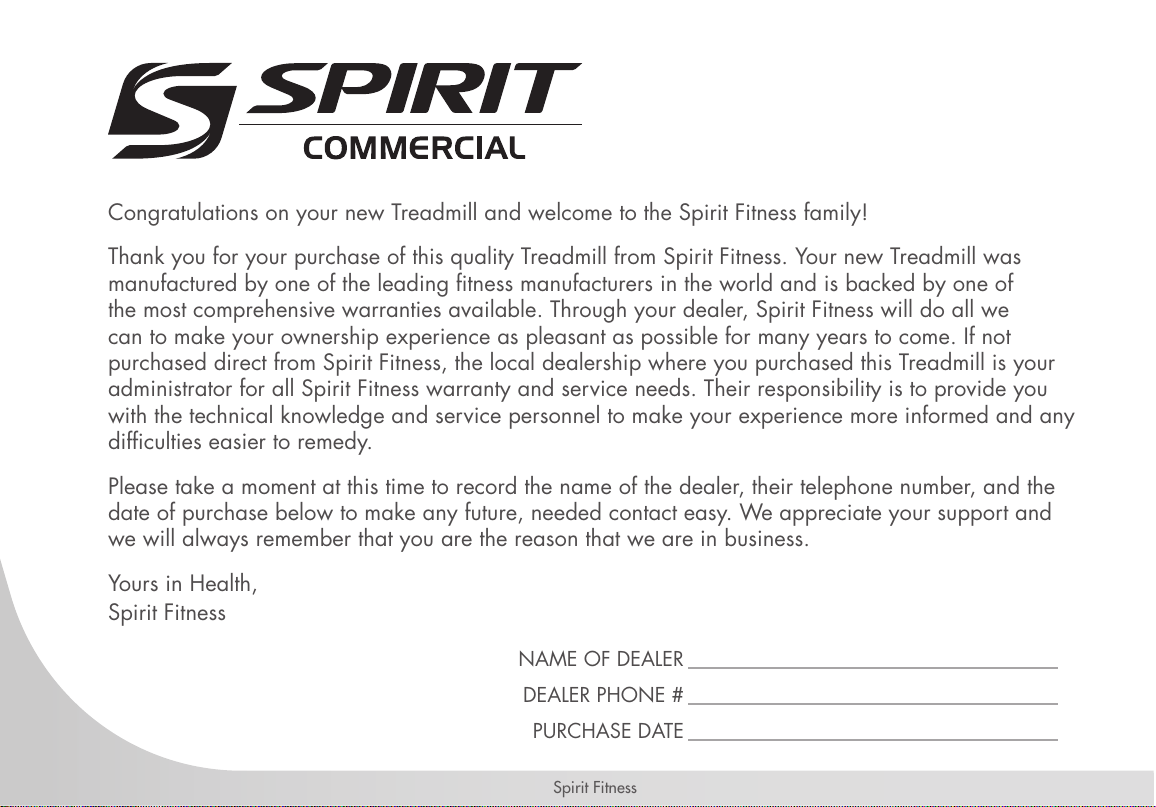

Congratulations on your new Treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality Treadmill from Spirit Fitness. Your new Treadmill was
manufactured by one of the leading tness manufacturers in the world and is backed by one of
the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we
can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this Treadmill is your
administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you
with the technical knowledge and service personnel to make your experience more informed and any
difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and
we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space
provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to http://www.spirittness.com/commercialwarrantyregistration.html
under the Support tab to register online.

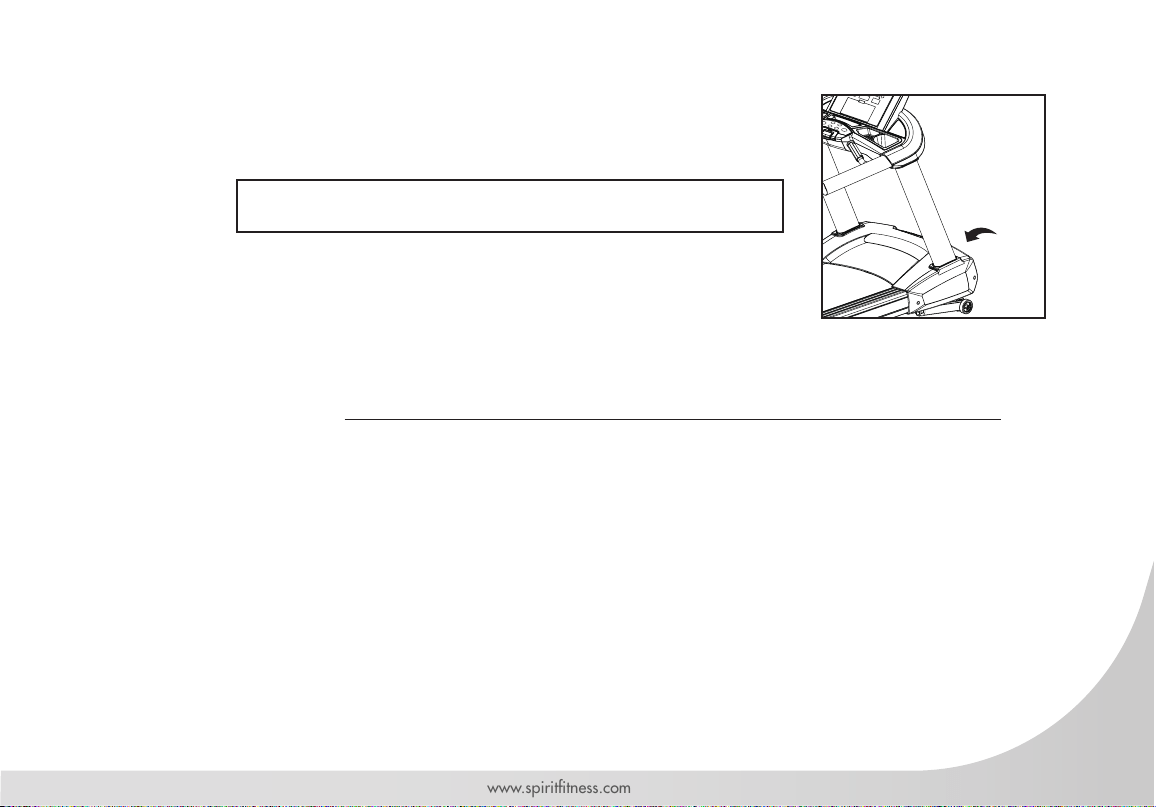

Serial Number Location
4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock disconnect your
SPIRIT treadmill from the electrical outlet prior to cleaning and/
or service work.
WARNING - To reduce the risk of burns, re, electric shock, or
injury to persons, install the treadmill on a at level surface with
access to a 120-volt AC, 15-Amp. grounded outlet. With only
the treadmill plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS 14
AWG OR LARGER, WITH ONLY ONE OUTLET ON THE END.
The treadmill should be the only appliance in the electrical
circuit.
DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY
USING IMPROPER ADAPTERS, OR IN ANY WAY MODIFY
THE CORD SET. A serious shock or re hazard may result
along with computer malfunctions.
• Do not operate treadmill on deeply padded, plush or shag
carpet. Damage to both carpet and treadmill may result.
• Do not block the rear of the treadmill. Provide a minimum
of 1 meter clearance between the rear of the treadmill and
any xed object.
• Keep children away from the treadmill. There are obvious
pinch points and other caution areas that can cause harm.
• Keep hands away from all moving parts.
• Never operate the treadmill if it has a damaged cord or plug.
If the treadmill is not working properly, call your dealer.
• Keep the mains cord away from heated surfaces.
• Do not operate where aerosol spray products are being used
or where oxygen is being administered. Sparks from the motor
may ignite a highly gaseous environment.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• To disconnect, turn all controls to the off position, remove tether
cord, then remove the plug from the outlet.
• Do not attempt to use your treadmill for any purpose other than
for the purpose it is intended.
• The pulse sensors are not medical devices. Various factors,
including the user’s movement, may affect the accuracy of
heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
• Use handrails provided; they are for your safety.
• Wear proper shoes. High heels, dress shoes, sandals or bare
feet are not suitable for use on your treadmill. Quality athletic
shoes are recommended to avoid leg fatigue.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
5
www.spirittness.com
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Do not modify the plug provided with the product if it
will not t the outlet; have a proper outlet installed by a
qualied electrician.
• Remove tether cord after use to prevent unauthorized
treadmill operation.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER use a RCD - Residual Current Device (U.S.
ver.= GFCI) - wall outlet with this treadmill. As with
any appliance with a large motor, the RCD/GFCI
will trip often. Route the main power cord away
from any moving part of the treadmill including the
elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting
AC power. If voltage varies by ten percent (10%)
or more, the performance of your treadmill may be
affected. Such conditions are not covered
under your warranty. If you suspect the voltage
is low, contact your local power company or a
licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture.
This product is NOT designed for use outdoors,
near a pool or spa, or in any other high
humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and
humidity is 95% non-condensing (no water drops
forming on surfaces).
Circuit Breakers: Some circuit breakers used in
homes are not rated for high inrush currents that
can occur when a treadmill is rst turned on or
even during use. If your treadmill is tripping the
house circuit breaker (even though it is the proper
current rating) but the circuit breaker on the treadmill
itself does not trip, you will need to replace the
home breaker with a high inrush type. This is not
a warranty defect. This is a condition we as a
manufacturer have no ability to control. This part is
available through most electrical supply stores.
6
Spirit Fitness
grounded outlet is not available. The temporary
adapter should be used only until a properly
grounded outlet, (shown below) can be installed
by a qualied electrician. The green colored rigid
ear-lug, or the like, extending from the adapter, must
be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the
adapter is used, it must be held in place by a metal
screw.
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this Treadmill without reading
and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in speed or incline do
not occur immediately. Set your desired speed or
incline level on the computer console and release the
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill
should malfunction or breakdown, grounding
provides a path of least resistance for electric
current, reducing the risk of electric shock. This
product is equipped with a cord having an
equipment-grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
DANGER - Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualied electrician or
serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the
plug provided with the product if it will not t the
outlet; have a proper outlet installed by a qualied
electrician.

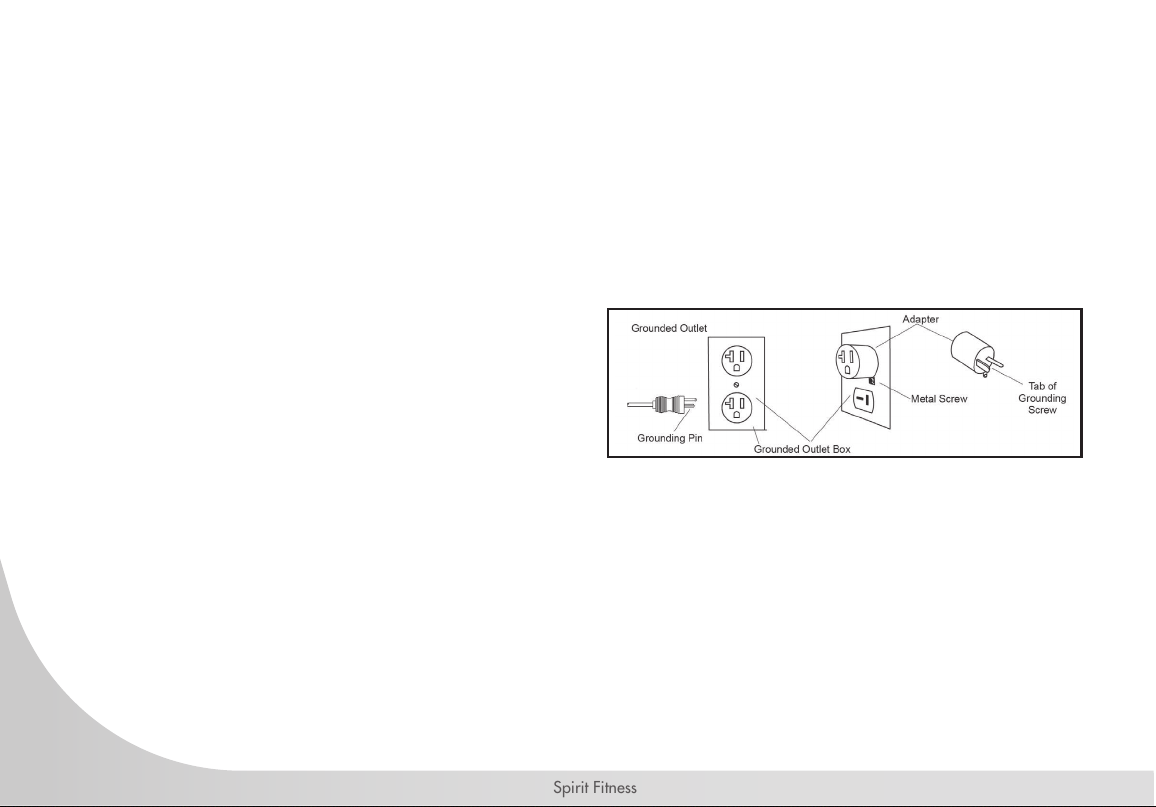

This product is for use on a nominal 120-volt/15
amp dedicated circuit, and has a grounding
plug that looks like the plug illustrated below. A
temporary adapter that looks like the adapter
illustrated below may be used to connect this plug
to a 2-pole receptacle as shown below if a properly
7
www.spirittness.com
adjustment button. The computer will obey the command
gradually.
• Use caution while participating in other activities while
on your Treadmill; such as watching television, reading,
etc. These distractions may cause you to lose balance
which may result in serious injury.
• Do not use excessive pressure on console control
buttons. They are precision set to function properly with
little nger pressure.
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the State
of California to cause Cancer and birth defects or
other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
8
Spirit Fitness
CT800ENT PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
TOOLS INCLUDED:
3/8”Allen Wrench
10mm Allen Wrench
Phillips Screwdriver
PARTS INCLUDED:
2 Console Masts
2 Side Covers
1 Base Frame
1 Console Support
1 Console
1 Safety Button
1 Power Cord
1 Hardware Kit
9
www.spirittness.com

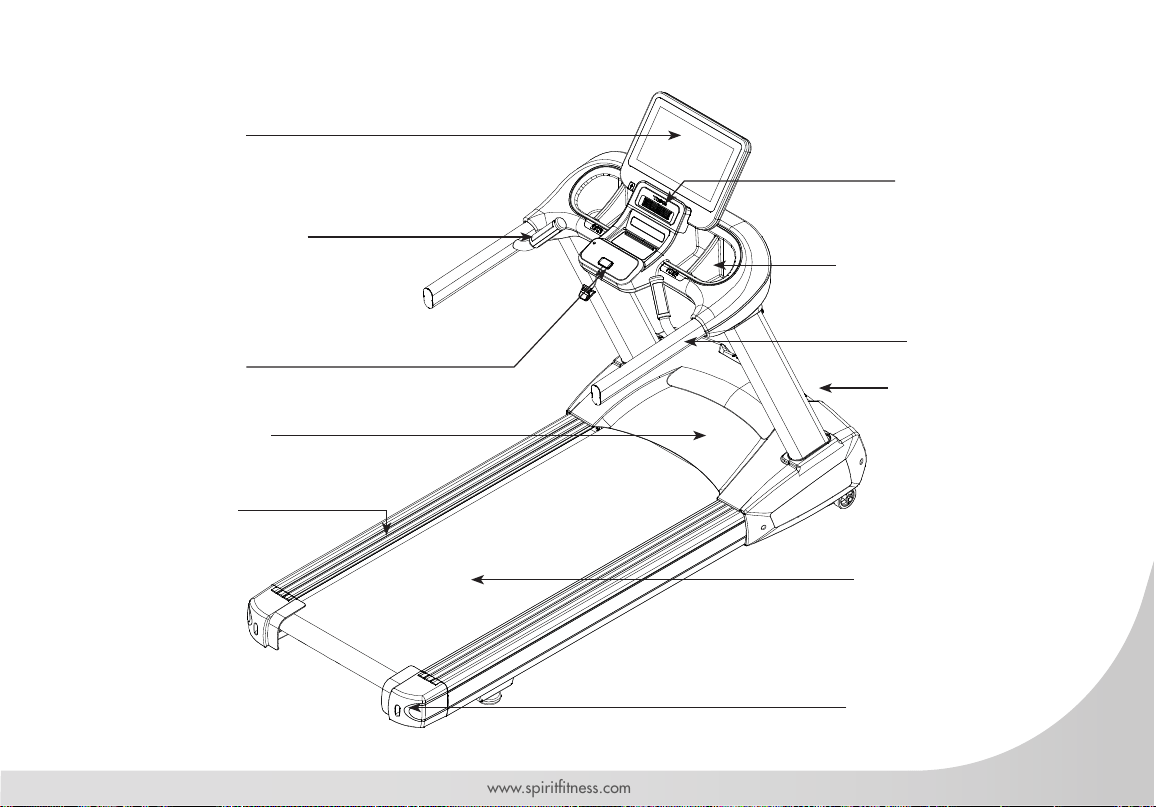

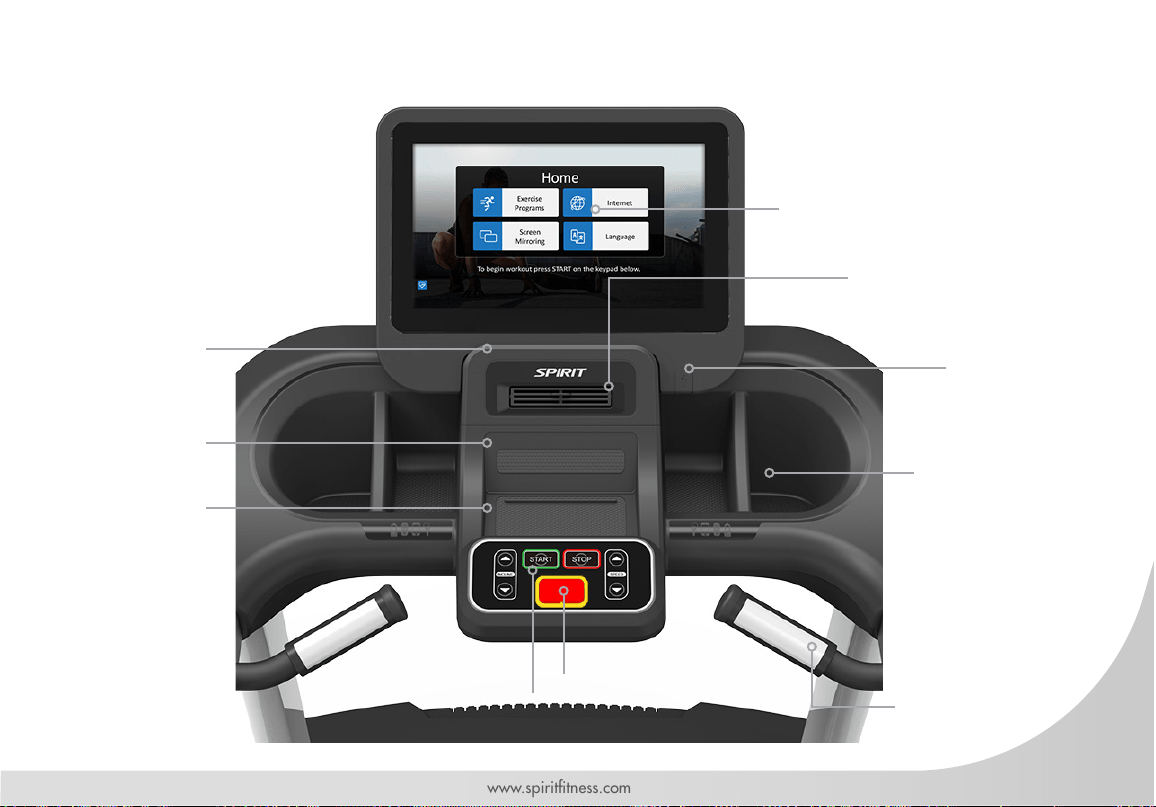

CONSOLE
HAND PULSE SENSORS
SAFETY KEY
MOTOR COVER
SIDE RAILS
RUNNING BELT/DECK

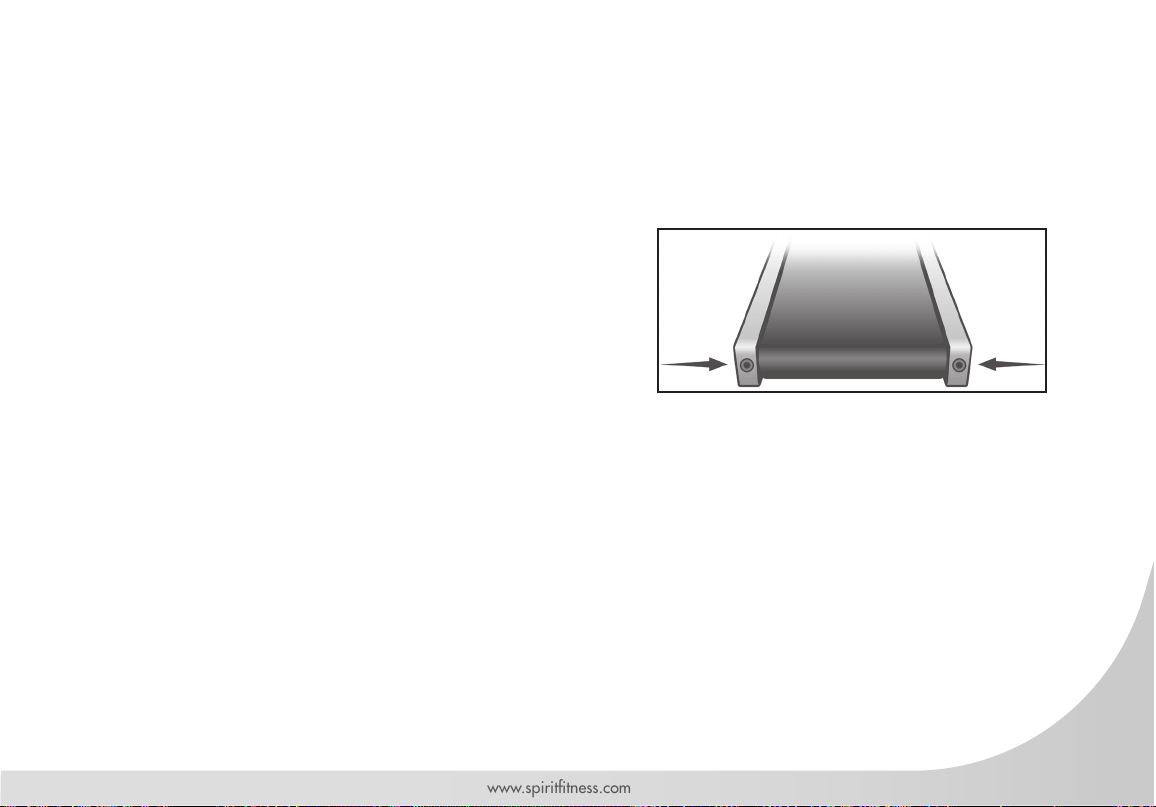

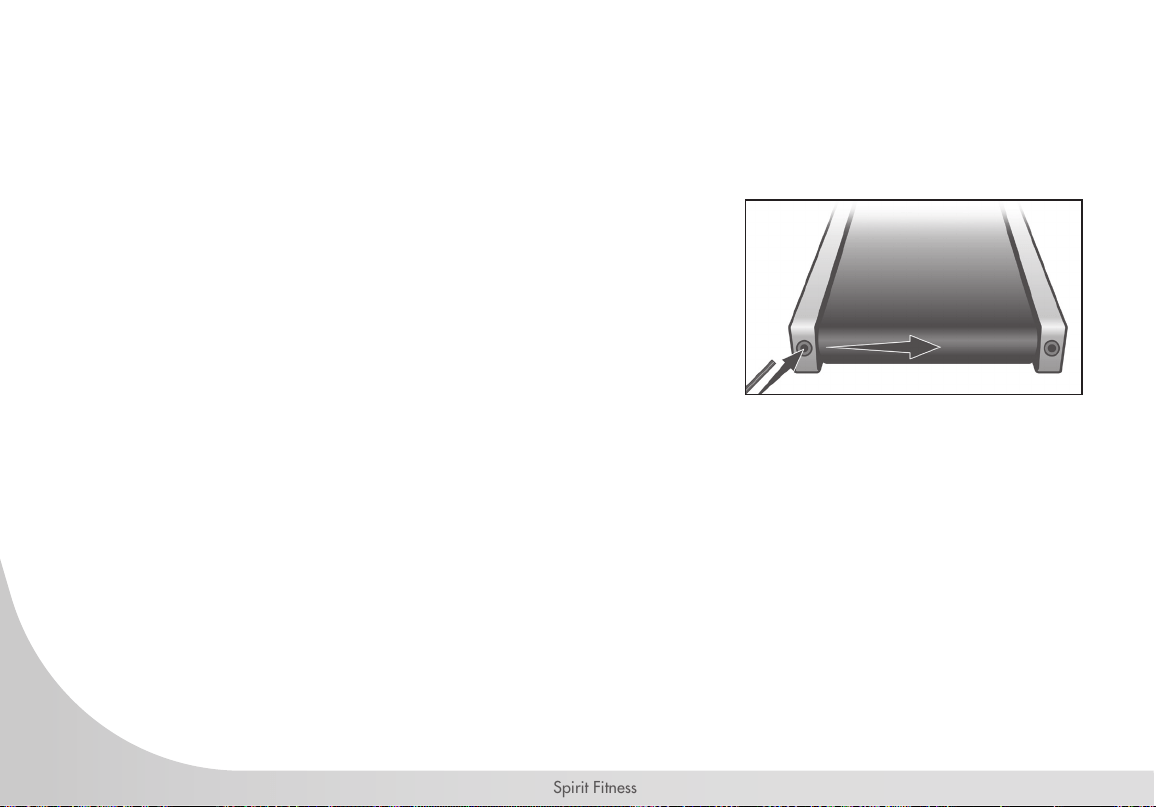

TREAD-BELT TRACKING
CONSOLE MAST
HANDRAILS
CONSOLE FAN
CUP HOLDER
10
Spirit Fitness

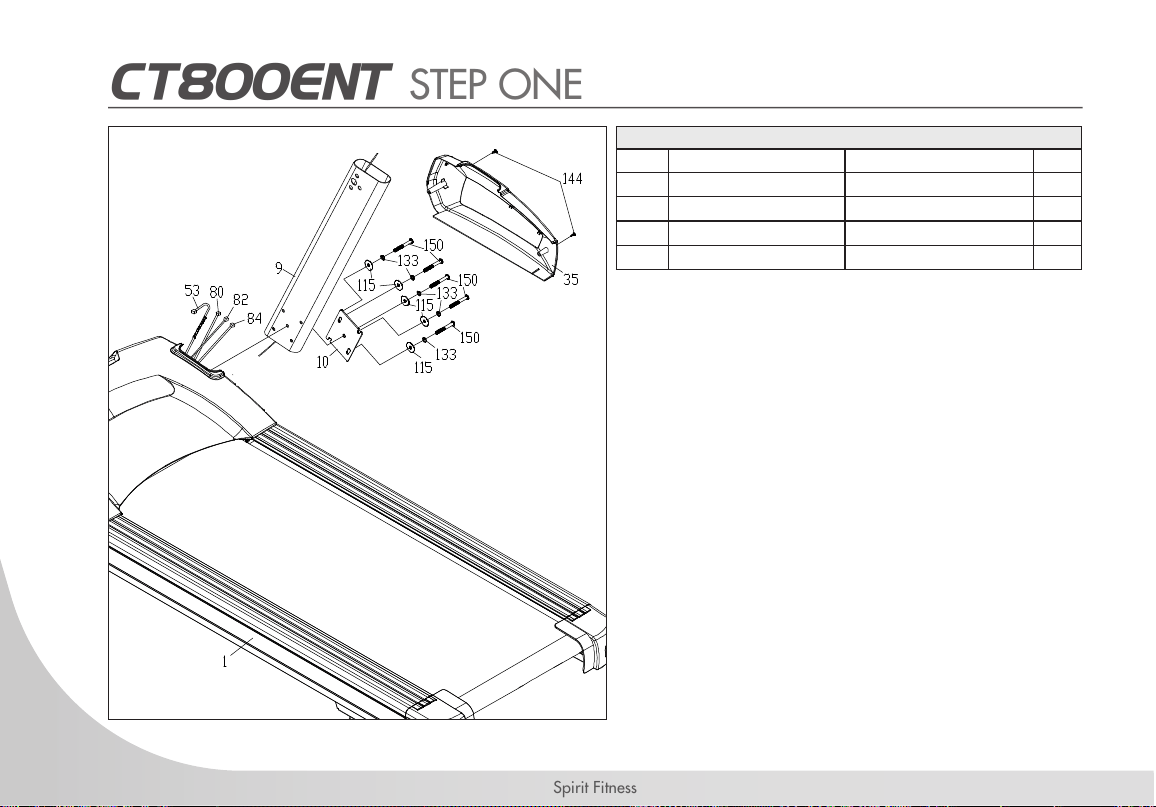

CT800ENT STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
115 Flat Washer Ø3/8” × 35 × 2.0T 10
133 Split Washer Ø10 × 2T 10
144 Philips Head Screw
M5 × 12m/m
4
150 Button Head Socket Bolt 3/8” × 3” 10
1. Thread the all Cables (No.53/80/82/84) up
through the center of the Right Upright Column
(No.9).
2. Use ve sets of Button Head Socket Bolt (No.150),
Split Washer (No.133) against a Flat Washer
(No.115) to secure the Upright Fixing Plate
(No.10) to the Right Uprights (No.9) to the Main
Frame (No.1) using the Allen Wrench (No.160).
3. Use two Phillips Head Screws (No.144) to secure
the Motor Base Cap Right (No.35) to Main Frame
(No.1) using the Screw Driver (No.158).
4. Repeat the previous two steps on the left side.
11
www.spirittness.com
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
125 Flat Washer
Ø3/8” × Ø25 × 2.0T
6
133 Split Washer
Ø10 × 2T
6
151 Button Head Socket Bolt
3/8” × 3/4”
6
152 Socket Head Cap Bolt
M8 × 12m/m
6
153 Flat Washer
Ø8 × Ø16 × 2T
6

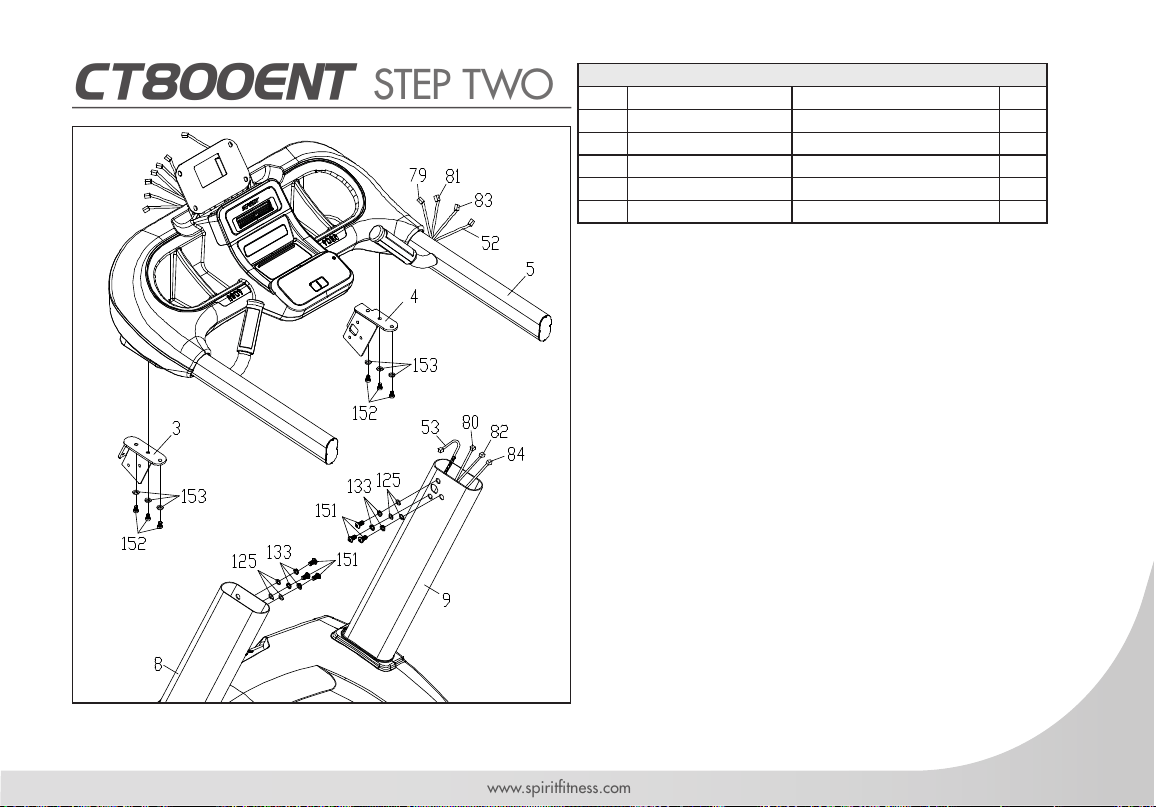

CT800ENT STEP TWO
1. On the underside of the Console Support (No.5) is where
the Locking Plate Assembly (No. 3 & 4) can be attached.
Use 3 Socket Head Cap Bolts (No.152) and 3 Flat
Washers (No.153) on each side to secure.
2. Connect all cables with the correct pairing:
a. The Computer Cable (No. 53) with the Upper
Computer Cable (No.52).
b. The Ethernet Cable (No. 80) with the Upper Ethernet
Cable (No.79).
c. The C-safe Cable (No. 82) with the Upper C-safe
Cable (No.81).
d. The HDMI Cable (No. 84) with the Upper HDMI
Cable (No.83).
Note: Be careful not to pinch the wires and slide
them into the Right Upright (No.9).
3. Gently slot the Console Support (No.5) into the Left/
Right Uprights (No.8 & 9) and secure with 3 Button Head
Socket Bolts (No.151), 3 Split Washers (No.133), and
3 Flat Washers (No.125) on both sides using the Allen
Wrench (No.160).
12
Spirit Fitness
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
133 Split Washer Ø10 × 2T 2
154 Button Head Socket Bolt 3/8” × UNC16 × 1-1/4” 2
155 Curved Washer Ø10 × Ø23 × 1.5T 2
29 Round Cap 1

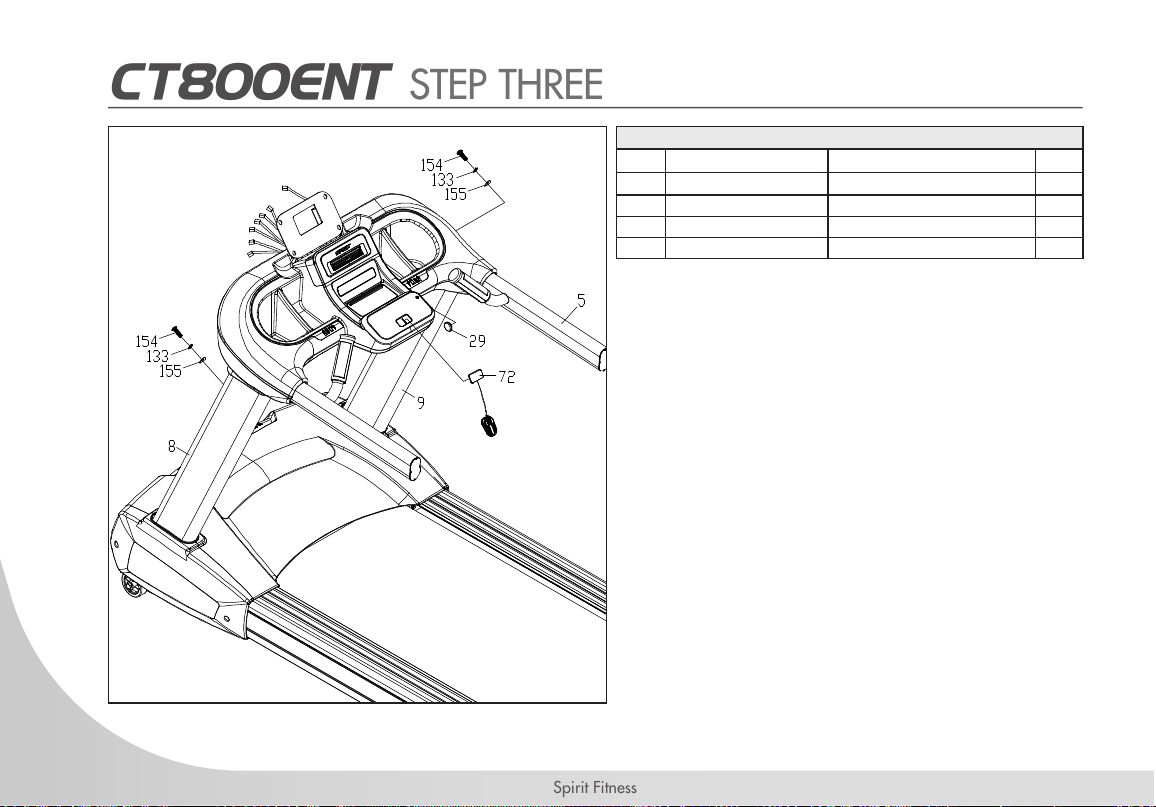

CT800ENT STEP THREE
1. Further secure the uprights by inserting a Button
Head Socket Bolt (No.154) through a Split Washer
(No.133), and a Curved Washer (No.155) onto the
backside of both Left/Right Uprights (No. 8 & 9)
using the Allen Wrench (No.160).
2. Plug the Round Cap (No.29) into the Right Upright
(No.9).
3. Plug the Safety Key (No.72) into the Safety Key
base on the Console Support (No.5).
13
www.spirittness.com
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
120 Split Washer
5/16” × 1.5T
4
144 Phillips Head Screw
M5 × 12m/m
2
153 Flash Washer
Ø8 × Ø16 × 2T
4
156 Socket Head Cap Bolt
M8 × P1.25 × 20L
4

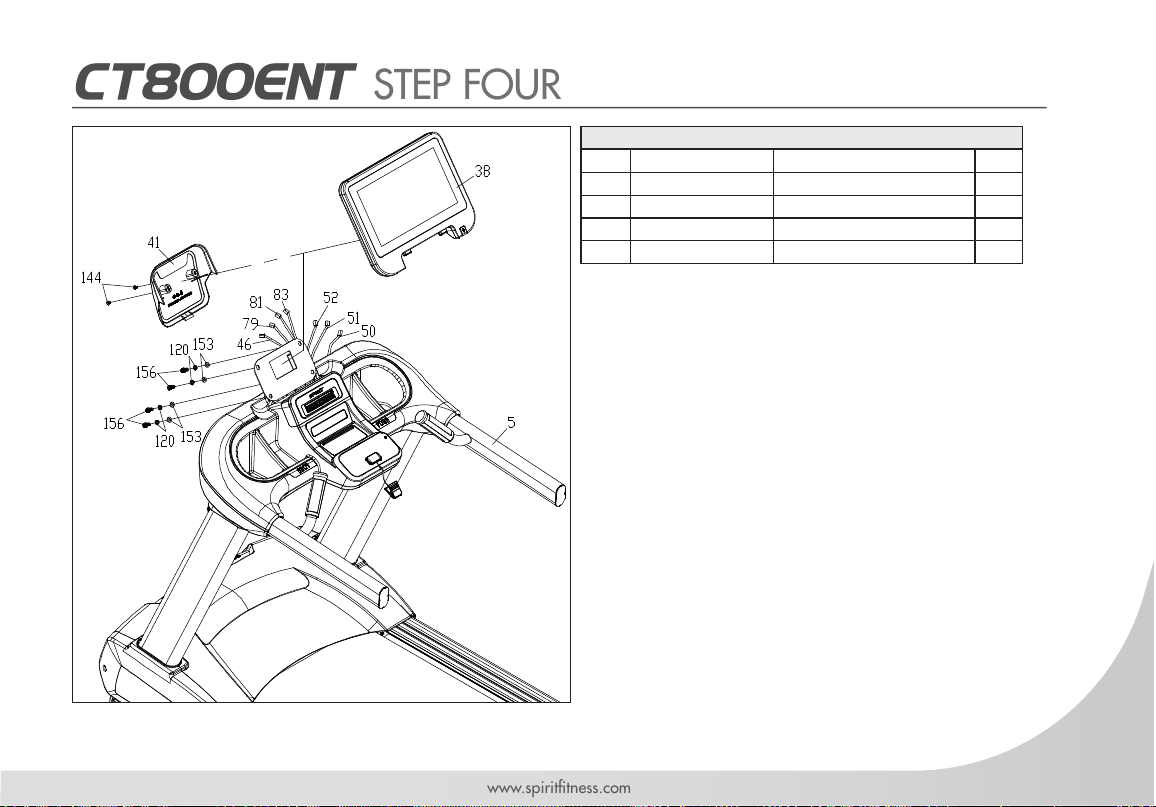

CT800ENT STEP FOUR
1. Place the Console Assembly (No.38) onto the
Console Support (No.5). Secure with 4 Socket Head
Cap Bolts (No.156), 4 Split Washers (No.120), and
4 Flat Washers (No.153) using the Allen Wrench
(No.159).
2. Connect all cables to Console Assembly (No.38):
a. The Upper Handpulse Wires (No.50 & 51).
b. The Upper Computer Cable (No.52).
c. The Grounding wire (No.46).
d. The Upper Ethernet Cable (No.79).
e. The Upper C-safe Cable (No.81).
f. The Upper HDMI Cable (No.83).
3. Fasten the Console Cover (No.41) with 2 Phillips
Head Screws (No.144) to the Console Support
(No.5) using the Screw Driver (No.158).
14
Spirit Fitness
CT800ENT CONSOLE OPERATION
15
www.spirittness.com
Adjustable fan angle
Contact Heart
Rate Grips
Convenient
accessory trays
Cell Phone
Ledge
Tablet-friendly
reading rack
Small Tray
Storage
USB Charging
port
Start, Stop, Speed, and
Incline controls
Safety Key
Touchscreen
16
Spirit Fitness

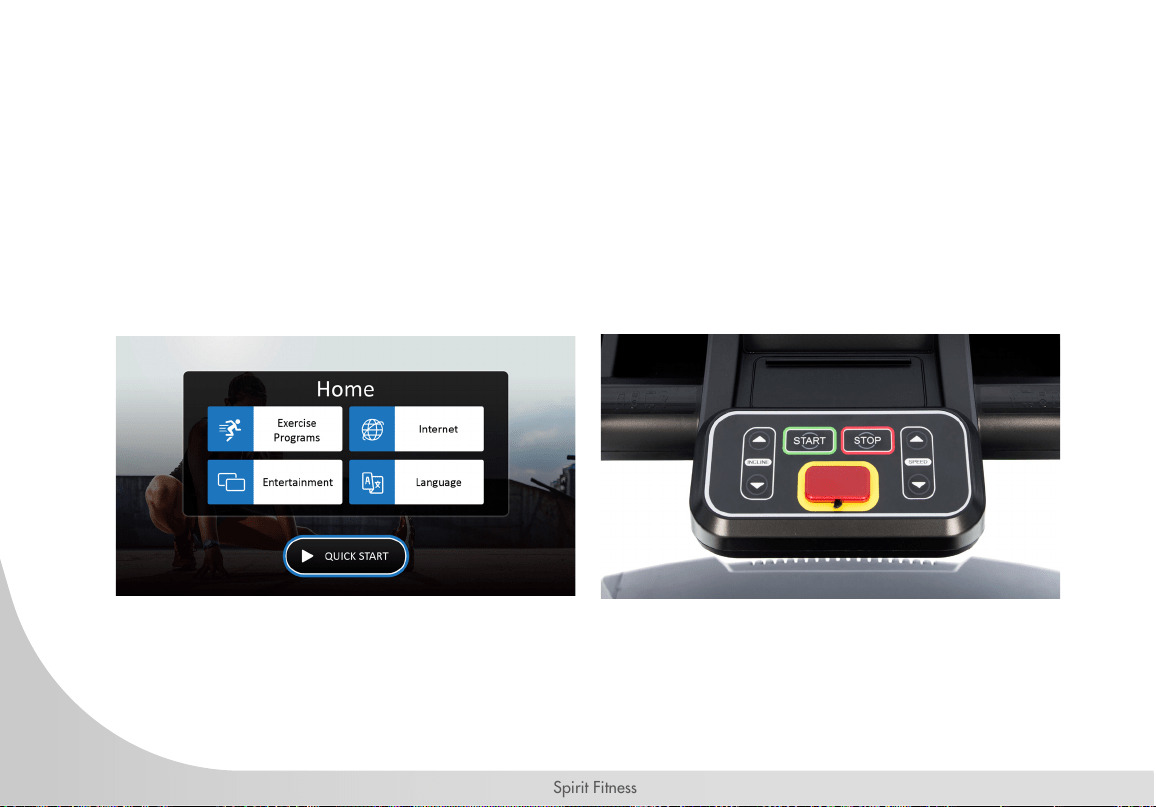

STARTING OPERATION
• Plug in the power cord and switch on the main power switch located at the front of the treadmill.
Make sure the safety key is inserted (machine will not operate without the presence of the safety
key.)
• When the power is turned ON, the screen will show a brief loading screen and then display the
Home Screen which indicates that the machine is ready to operate.
Quick operating buttons are conveniently located
for basic treadmill functions.
Home Screen: Begin operation by touching the icons.
17
www.spirittness.com
FUNCTIONS OF THIS TREADMILL
The touchscreen is used for operating most functions of the treadmill. You can directly touch any button
on the screen, or use the Quick Operating Buttons to control the treadmill’s various functions. The Speed
▲/▼ buttons control the speed, the Start button begins the workout, the Stop button will pause or stop the
workout, and Incline ▲/▼ buttons control the degree of incline of the treadmill.
QUICK START
Press the Start button to begin belt movement at 0.5 mph then adjust to the desired speed using the Speed ▲/▼
button.
• To slow the treadmill belt, press the Speed ▼key until the desired speed is reached.
• To stop the treadbelt press and release Stop button.
18
Spirit Fitness
PAUSE/STOP
When the treadmill is running, the PAUSE feature may be utilized by pressing the red Stop button once. This will
slowly decelerate the treadbelt to a stop. The incline will go to zero percent. The Time, Distance and Calorie
readings will hold while the unit is in the pause mode. After 5 minutes the display will reset and return to the start-up
screen.
• To resume your exercise when in PAUSE mode, press the Start button.
• Pressing the Stop button twice will end the program and a workout summary will be displayed. If the Stop button
is pressed a third time, the console will return to the idle mode (start-up screen).
INCLINE
Incline may be adjusted any time after the belt starts moving.
• Press and hold the adjustment Incline ▲/▼ buttons to achieve desired level of incline.

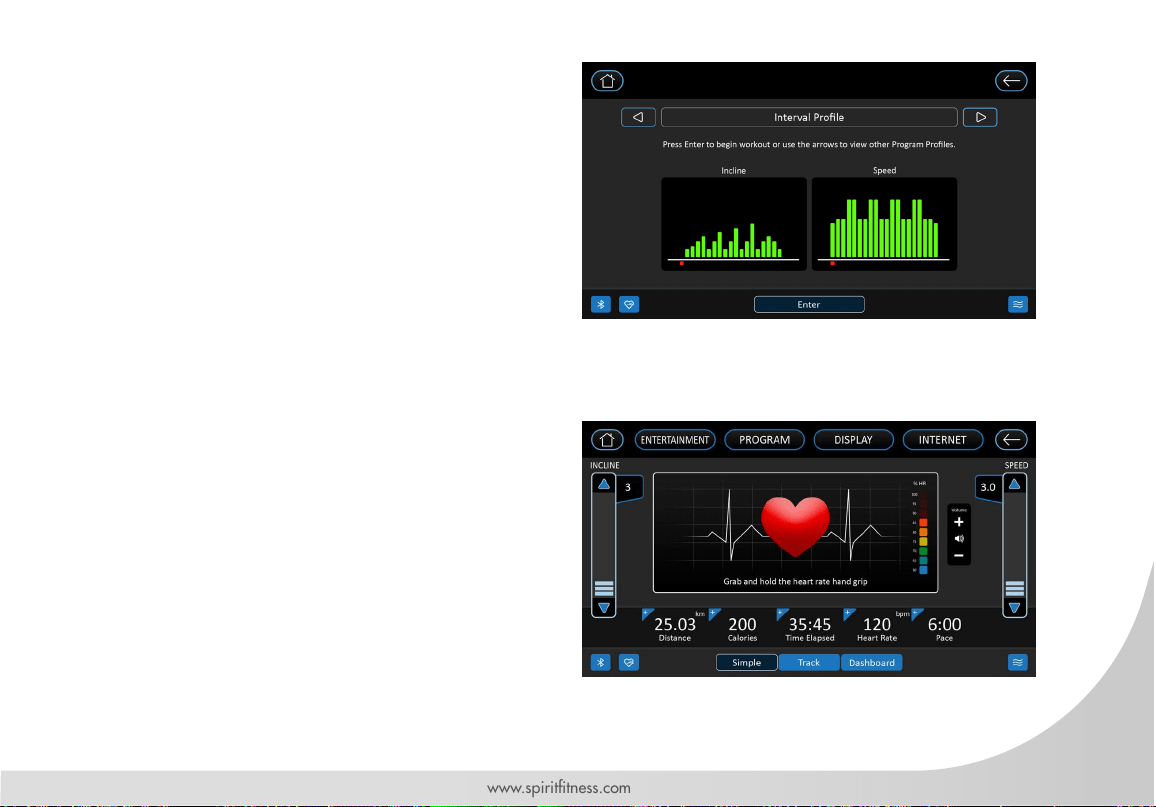

HEART RATE FEATURE
The Pulse (Heart Rate) on the screen shows the current value of the heart beats per minute. You must use
both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed anytime the
computer is receiving a signal from the hand pulse sensors. You may use the hand pulse sensors while in

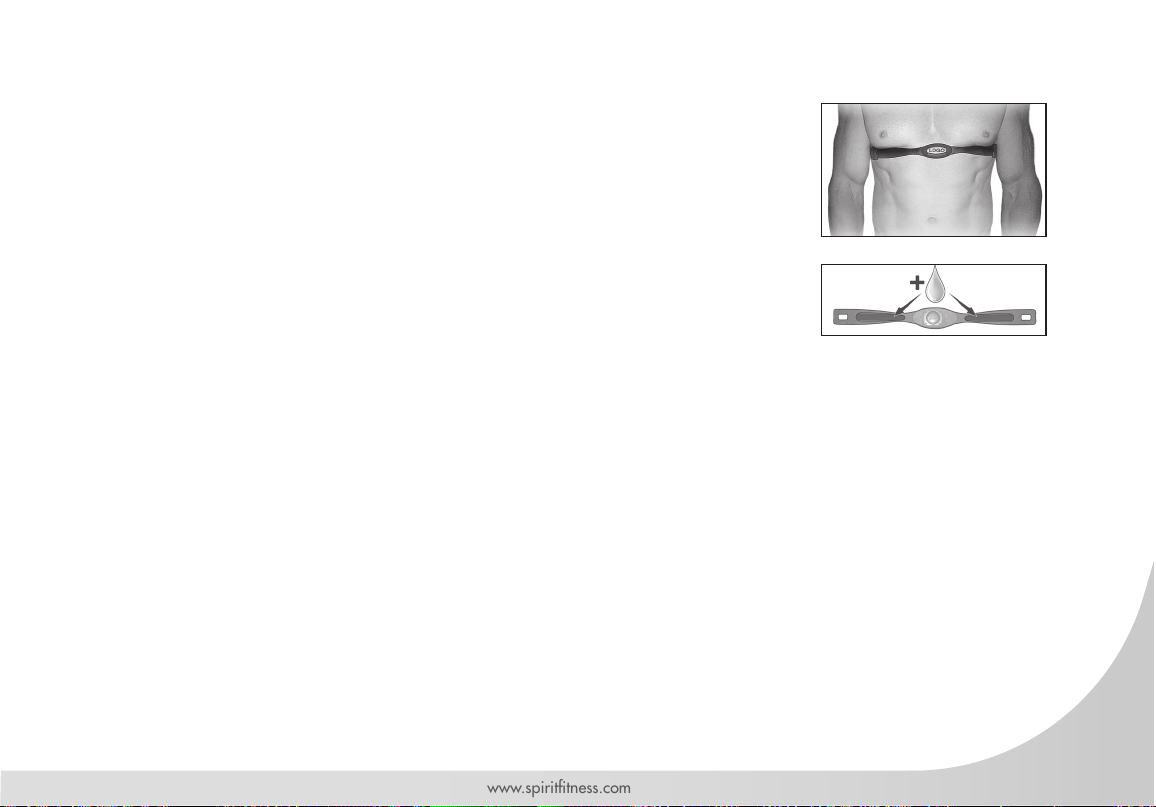

Heart Rate Control. The CT800ENT will also pick up wireless heart rate transmitters that are Polar and
Bluetooth compatible.
19
www.spirittness.com
TOUCHSCREEN OPERATION

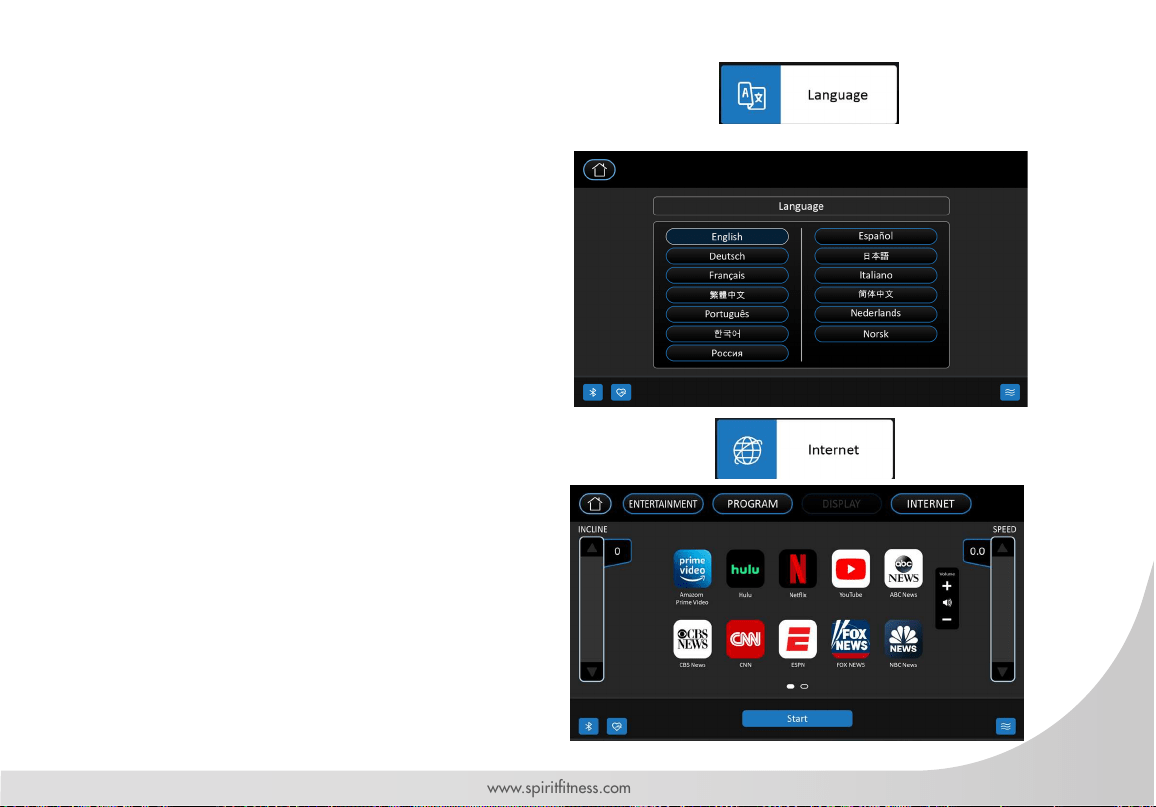

LANGUAGE
There are 13 languages to choose from. Select
your desired language by tapping it on the
screen. Once selected, the system will return
to the Home Screen with your new language
being used. To return to the Home Screen with-
out selecting a new language, press the Home
button in the upper left corner of the screen.
INTERNET
The Internet section offers various streaming, news,
and social media options. The machine must be
connected to the internet in order for the apps to
work. Simply click on the app of your choice to
connect. Follow any on-screen prompts to continue
login or other authorizations as needed.
20
Spirit Fitness

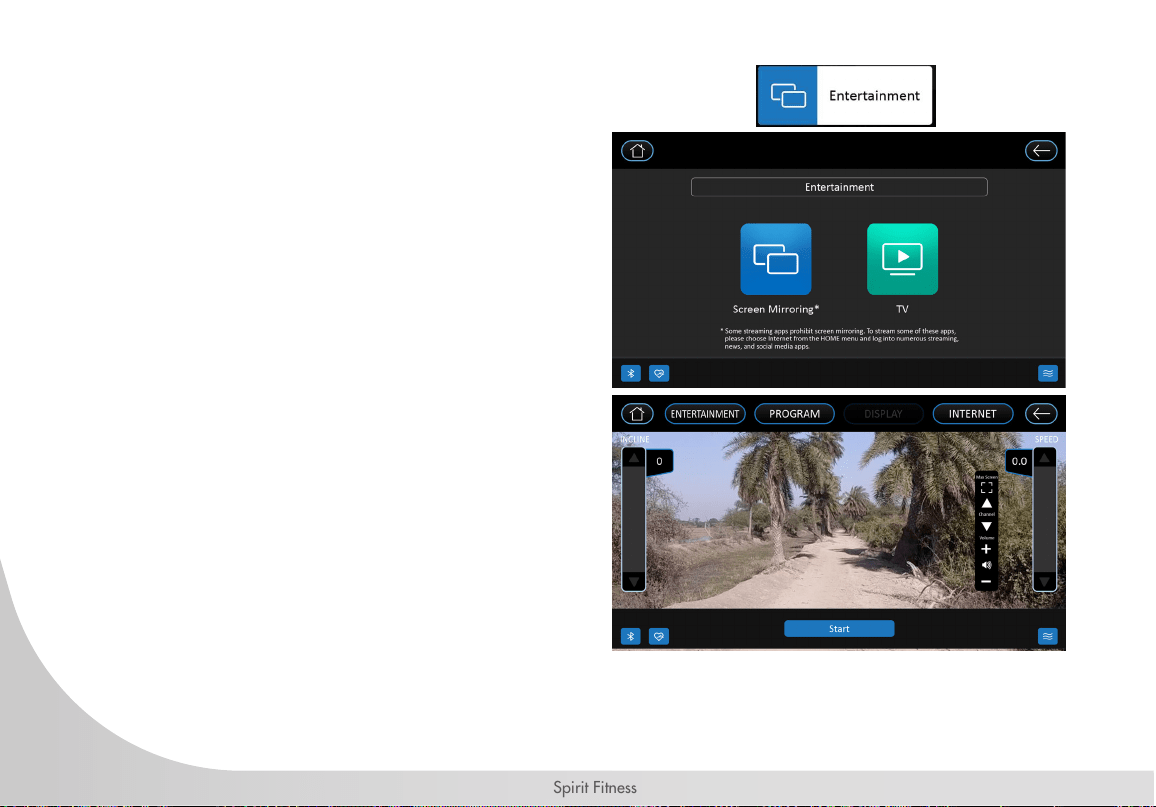

ENTERTAINMENT OPTIONS
TV Mode
From the Home Screen, tap Entertainment to go to the
entertainment menu. You will be given the options of
Screen Mirroring and TV mode interface.
When properly connected to the Set-Top Box (STP) via
the HDMI port and TV mode selected, you can enjoy TV
programs after selecting TV mode from the Entertainment
screen on your treadmill.
Once TV mode has begun:
• Use the ▲/▼ buttons on the right hand side of the
touchscreen to switch between channels.
• Use the +/- volume buttons on the right hand side of
the touchscreen to control the sound volume level.
• Tap the “⛶” button to display the media in full screen
mode. To resume to normal screen size, simply tap
the “⛶“ button again to minimize the screen view
back to normal size.
• Use the on-screen or physical Speed and Incline
controls to make updates to your workout while in
TV mode.
• To Pause, press the Stop button once.
• To end your workout, press the Stop button twice to
show the workout summary. Pressing the Stop button
a third time will return you to the Home Screen.
21
www.spirittness.com

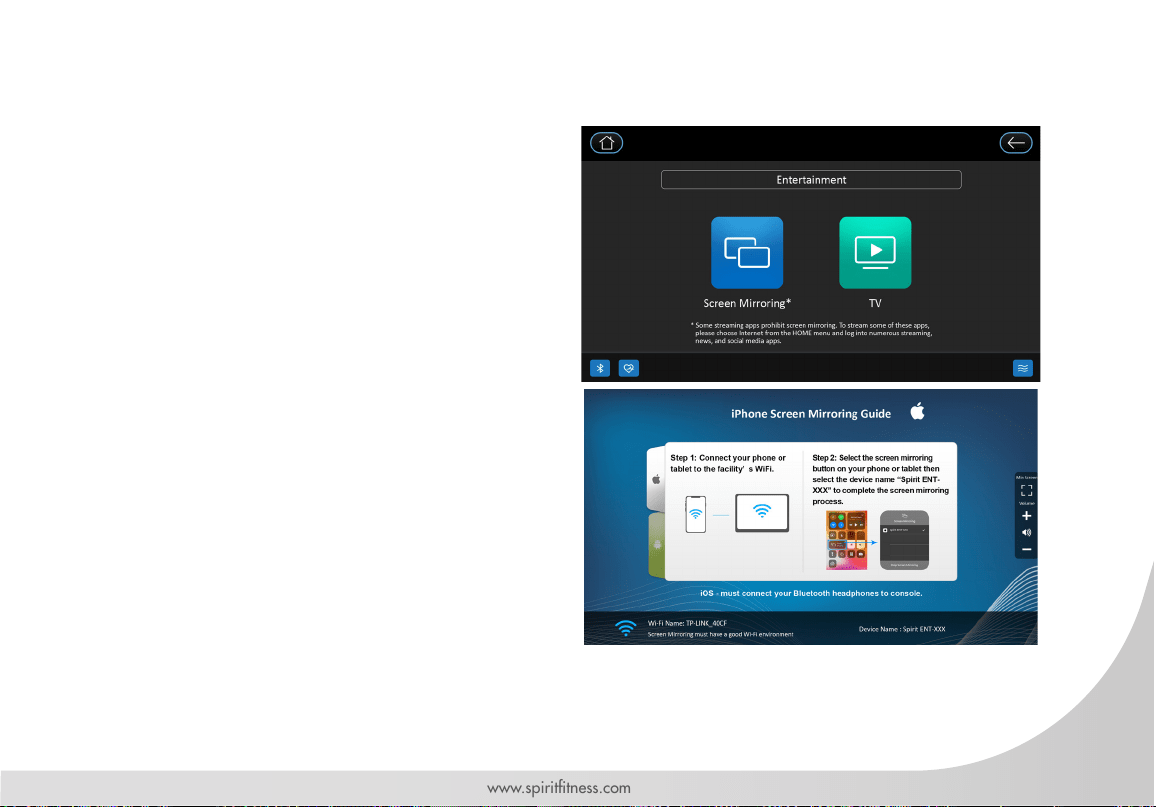

SCREEN MIRRORING
iOS
When Screen Mirroring is selected from the
Entertainment screen, you may begin pairing your
device.
1. Connect your phone or tablet to the facility’s
WiFi.
2. Find and select the Screen Mirroring button on
your phone or tablet by swiping up from your
phone’s main screen or by swiping down from
the top left corner of the screen if you have a
newer iOS installed.
Note: When using an iOS device for Screen Mirroring,
your Bluetooth headphones must be connected to the
console.
Screen Mirroring displays your phone's screen on the
touchscreen of the treadmill. Please note that your device
must be running iOS 8 or higher.
22
Spirit Fitness

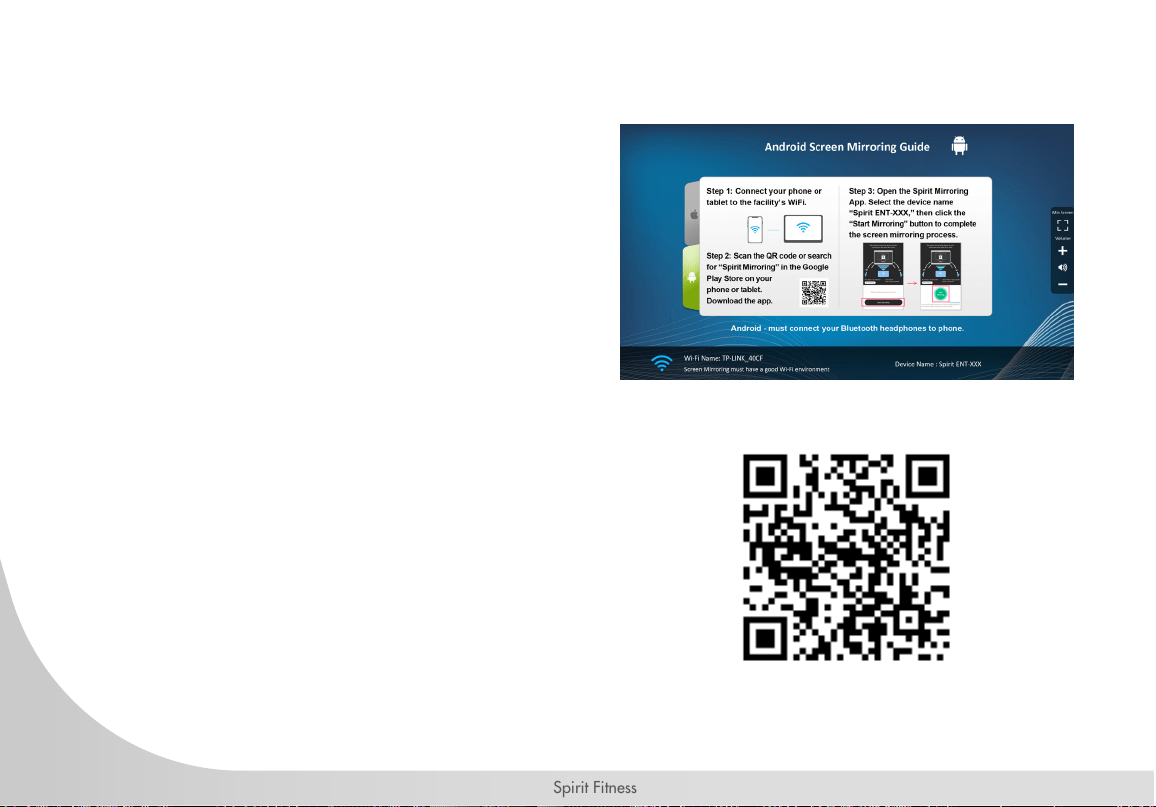

SCREEN MIRRORING
Android
1. Connect your phone or tablet to the facility’s
WiFi.
2. Scan the QR code or search for “Spirit
Mirroring” in the Google Play store on your
phone or tablet.
3. Download the app.
4. Open the Spirit Mirroring App and select the
device name. Then, click Start Mirroring to
complete the screen mirroring process.
Note: When using an Android device for Screen Mirroring, your
Bluetooth headphones must be connected to the your device.
Screen Mirroring displays your phone's screen on the
touchscreen of the treadmill.
23
www.spirittness.com

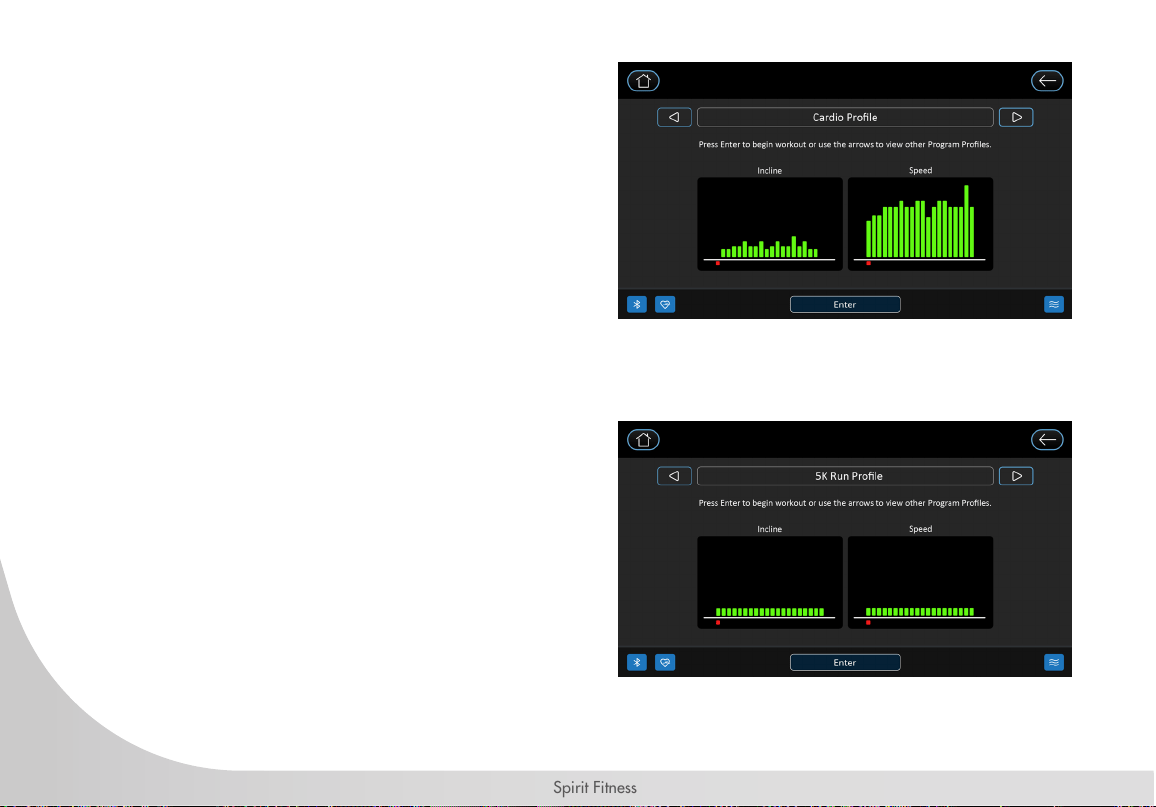

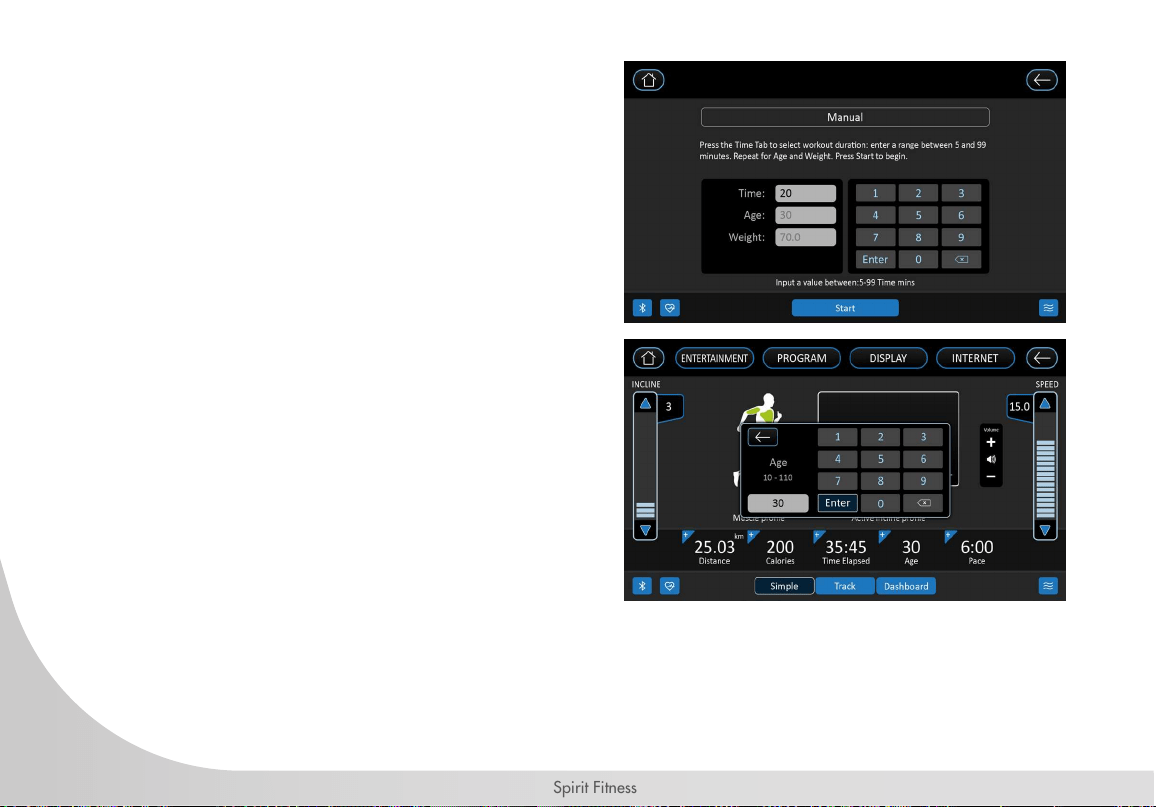

ENTERING A PROGRAM &
CHANGING SETTINGS

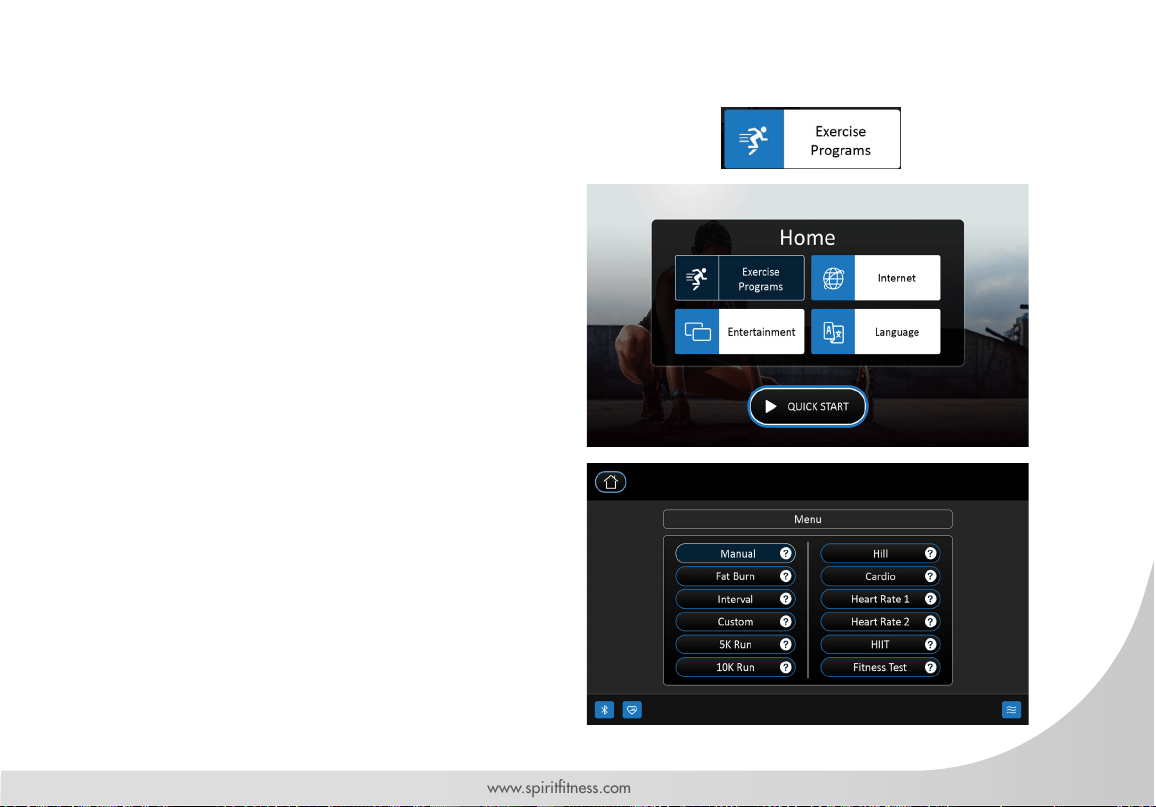

When the Exercise Programs button is selected from
the Home Screen, the screen displays a menu of
the different programs available: Manual, Hill, Fat
Burn, Cardio, Interval, Heart Rate 1, Heart Rate 2,
Custom, 5k Run, 10k Run, HIIT, and Fitness Test. To
select and start a preset program:
1. Select a program by tapping it on the screen, then
press Enter to begin. Customize the program on the
following screens by entering your data, or press the
Start button to begin the program using the default
settings.
3. Press the Start button to begin your workout, or press
the Stop button to return to the previous screen.
4. Once the workout begins, a 3- minute warm-up will
commence. You can press the Start button to bypass
this and go straight to the workout. During the warm-up
the clock will count down from three minutes. Note:
5K Run, 10K Run, HR, Custom, Fitness Tests and the
manual programs do not have a warm-up.
24
Spirit Fitness
25
www.spirittness.com
EXERCISE PROGRAM

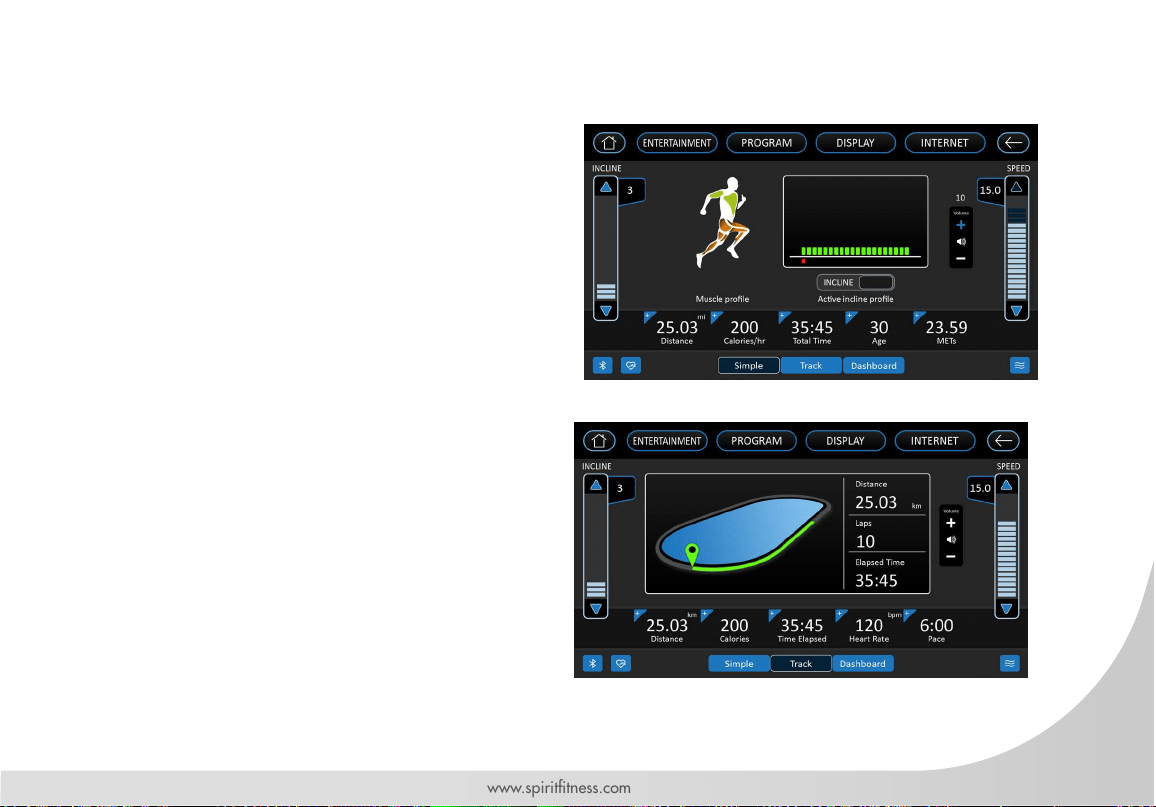

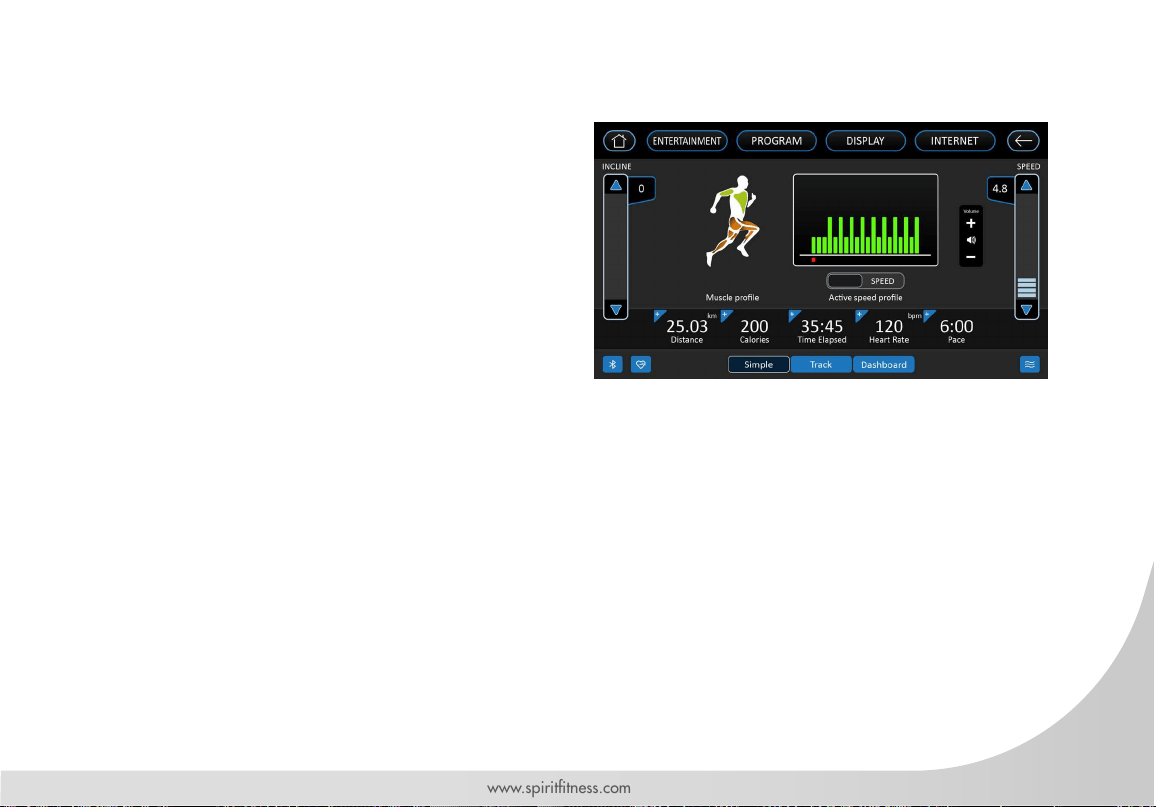

CHANGING THE WORKOUT DISPLAY
SIMPLE
TRACK
During your workout, you may change the display
based on the view that works best for your needs.
Once your workout begins, you will see 3 preset
views available at the bottom of the screen: Simple,
Track, and Dashboard.
To switch the display to Simple view, simply tap the
Simple button at the bottom of the screen. This view
shows a muscle activation prole for the current
workout, an overview of the Incline and Speed
prole, as well as the elapsed Distance, Calories/
Hr, Total Time, Age, and METs as well as other
exercise data.
To switch the display to Track view, simply tap the
Track button at the bottom of the screen. This view
shows a virtual track that corresponds with the
current workout, as well as the elapsed Distance,
number of Laps, Calories, Total Time, Heart Rate,
and Pace as well as other exercise data.
26
Spirit Fitness

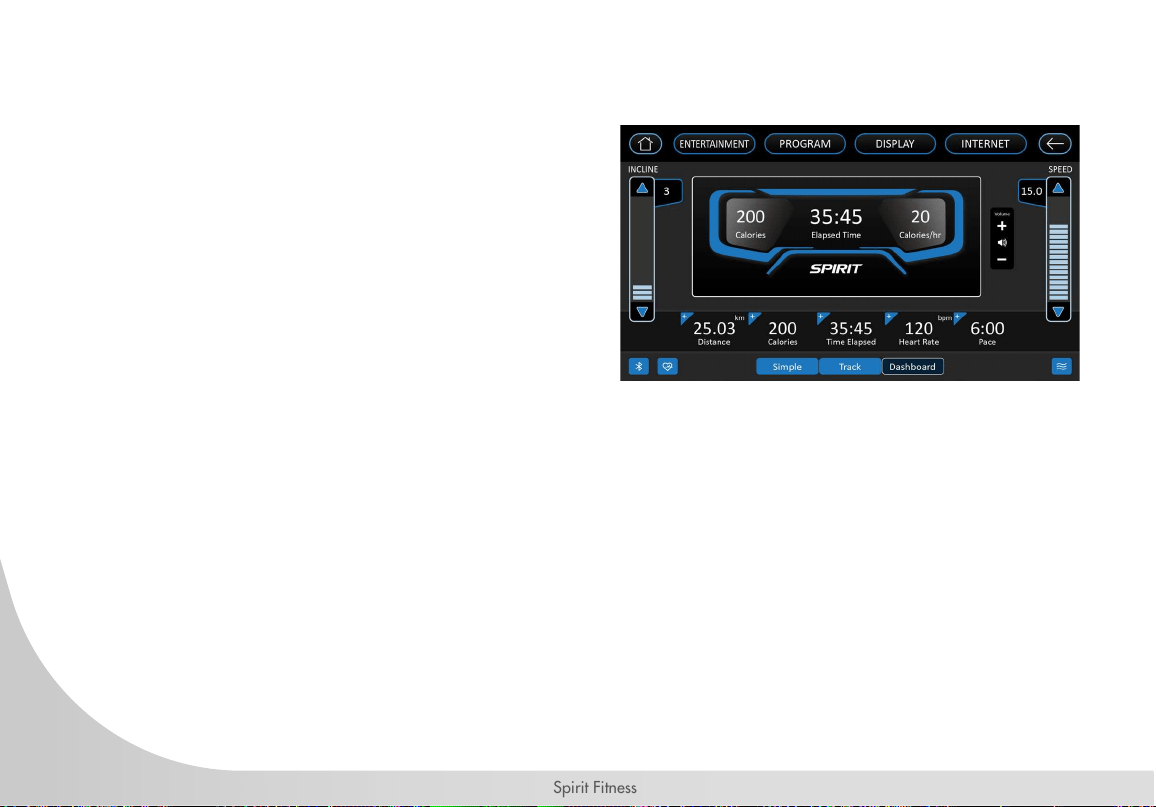

DASHBOARD
To switch the display to Dashboard view, simply
tap the Dashboard button at the bottom of the
screen. This view shows a virtual dashboard mimics
a typical treadmill display with information that
corresponds with the current workout. Metrics such
as elapsed Distance, Calories/Hr, Calories, Total
Time, Heart Rate, and Pace are displayed as well
as other exercise data.
EXERCISE PROGRAM
27
www.spirittness.com

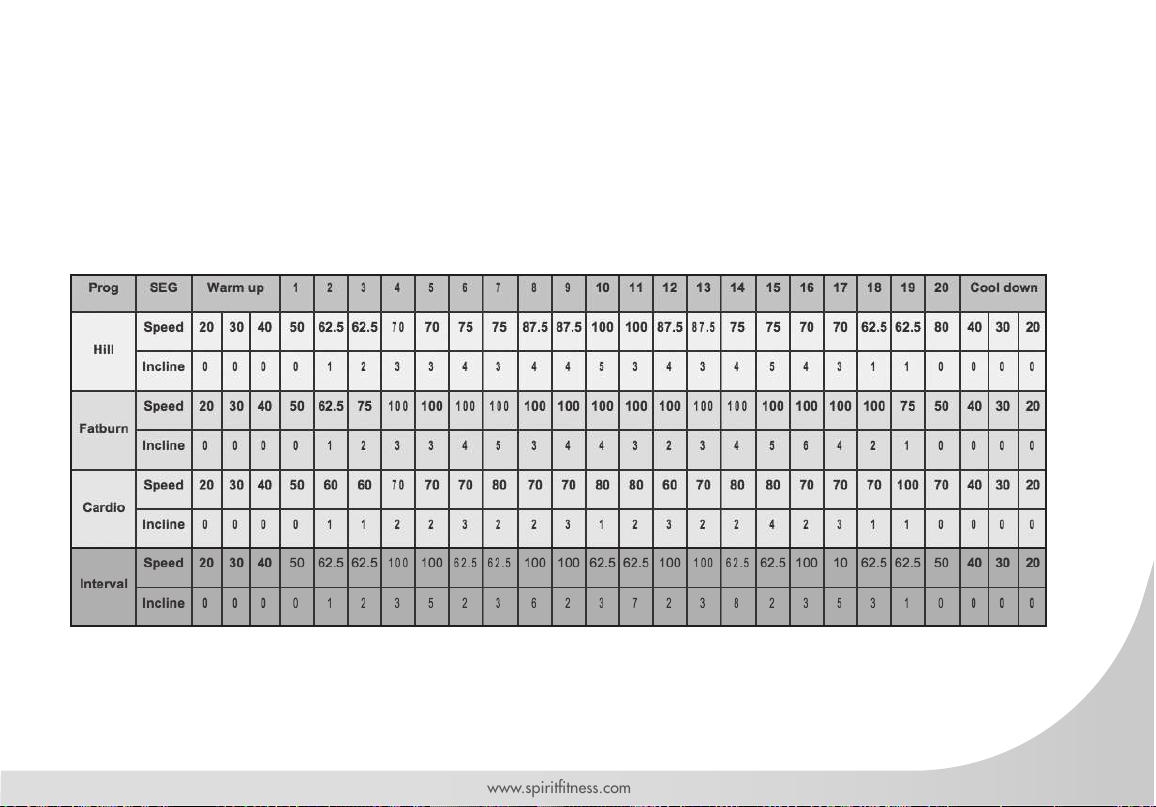

P1= HILL; P2= FAT BURN; P3= CARDIO; P4= INTERVAL
PRESET PROGRAMS SPEED/INCLINE SETTINGS
The preset program Speed and Incline levels are shown in the chart below. The Speed numbers shown in
the chart indicate a percentage of the top speed of the program. For instance, the rst Speed setting for
HILL (Program 1, HILL) shows the number 20.This means that this segment of the program will have a speed
that is 20% of the top speed for the program (The user sets the top speed in the procedure above). If the
user sets the top speed to 10 mph, then the rst segment will be 2 mph. You will notice that segment 12
shows 100 which means the speed will be set to 100% of 10 mph or simply 10 mph.
28
Spirit Fitness

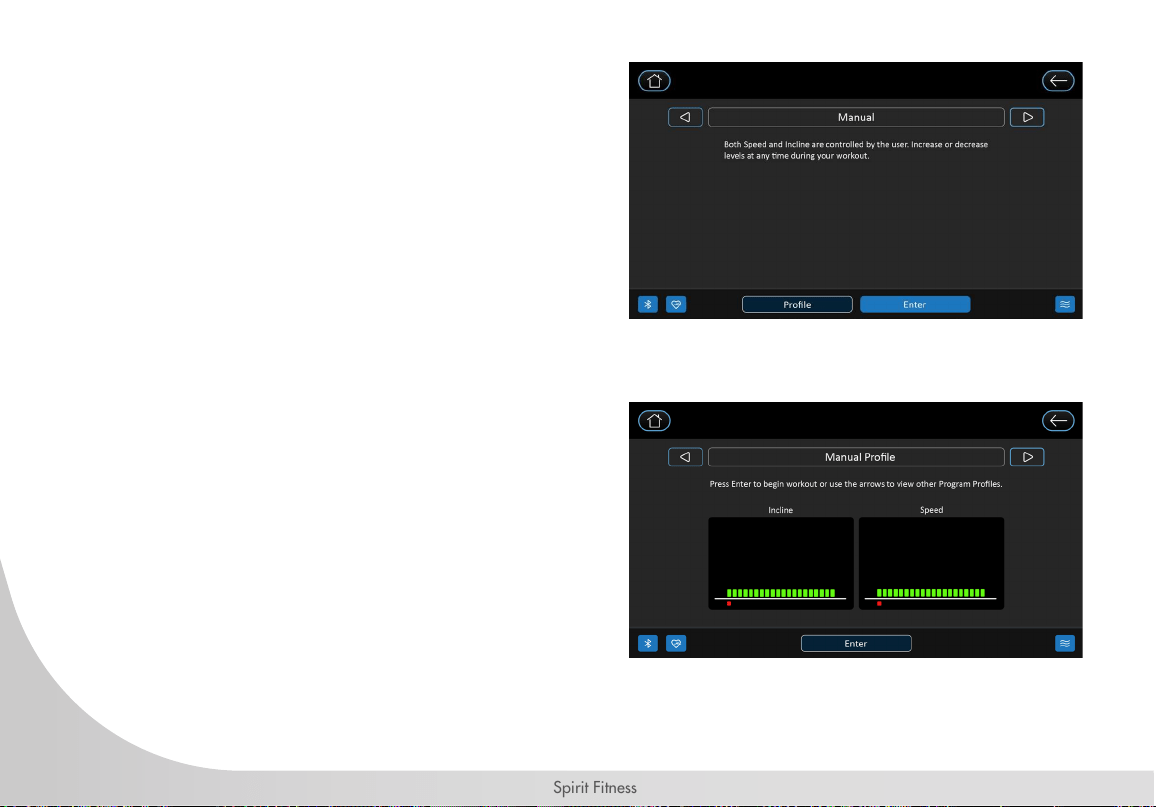

MANUAL
Both Speed and Incline are controlled by the user.
Increase or decrease levels at any time during your
workout.
29
www.spirittness.com

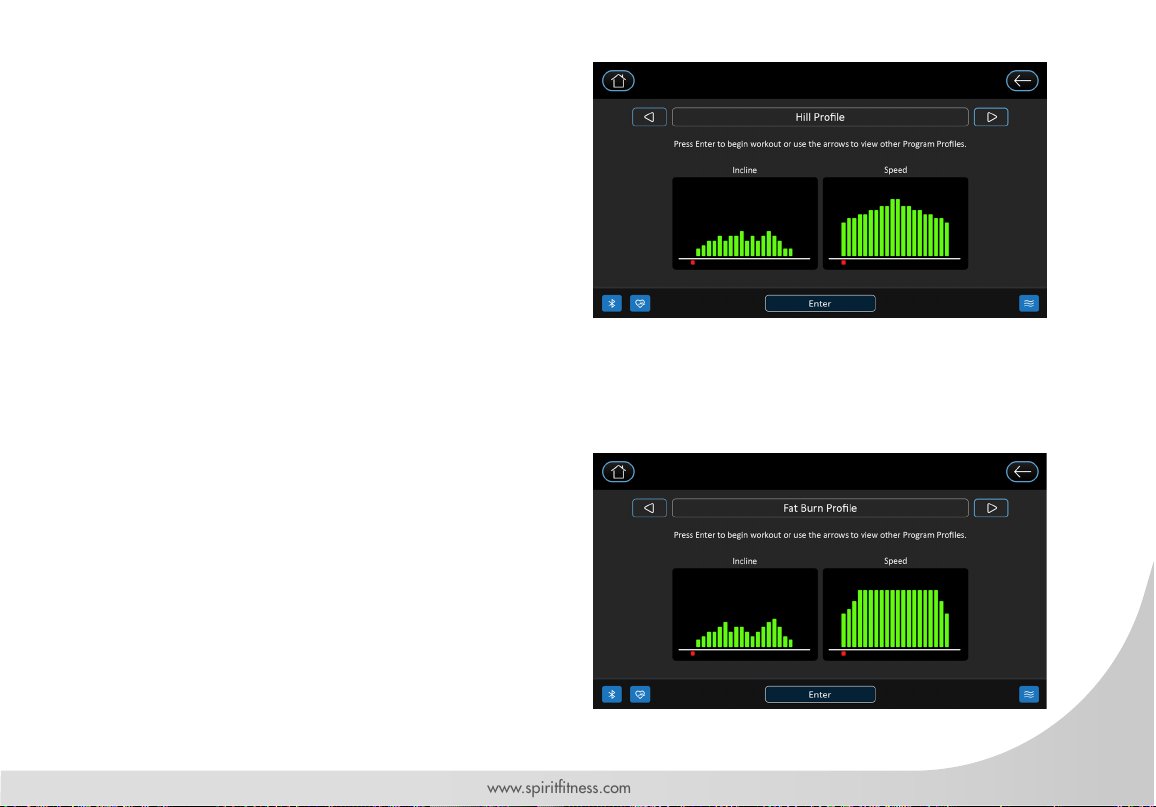

HILL
Speed: This program follows a triangle or pyramid
type of gradual progression from approximately 10%
of maximum effort (the level that you choose before
starting this program) up to a maximum effort which
lasts for 10% of the total workout time, then a gradual
regression of Speed back to approximately 10% of
maximum effort
Incline: The deck elevation is a more gradual and
sustained progression. Maximum elevation is in
the middle of the workout and lasts for 10% of the
duration.
FAT BURN
Speed: This program follows a quick progression up
to the maximum speed level (default or user input level)
that is sustained for 2/3 of the workout. This program
will challenge your ability to sustain your energy output
for an extended period of time.
Incline: The deck elevation is a quick and sustained
progression up to the maximum value (default or user
input) for 90% of the workout duration.
30
Spirit Fitness
CARDIO
Speed: This program presents a quick progression up
to near maximum speed level (default or user input
level). It has slight uctuations up and down to allow
heart rate to elevate, and then recover repeatedly,
before beginning a quick cool down. This will build
up your heart muscle and increase blood ow and
lung capacity.
Incline: The elevation in this program is moderate.
There are several elevation spikes at different points
of the workout. Segments 4, 9, and 14 are maximum
elevation for this program.
5K RUN / 10K RUN
Both speed and incline are controlled by the user.
Increase or decrease levels at any time during your
workout. When the program begins, the distance
will begin to count down; once it reaches zero the
program ends.
*Please note that the Speed readout is in MPH if the
console is not set to display Metric measurements.
31
www.spirittness.com
INTERVAL
Speed: This program takes you through high levels
of intensity followed by recovery periods of low
intensity. This program utilizes and develops your
“Fast Twitch” muscle bers which are used when
performing tasks that are intense and short in
duration. These deplete your oxygen level and spike
your heart rate, followed by periods of recovery and
heart rate drop to replenish oxygen.
Incline: All of your lower extremity muscles will
be equally challenged throughout this program.
The incline alternates between 25% and 65% of
maximum elevation.
HR 1 / HR 2
The default value is 65% or 80% of your projected
rate maximum. You have the option of changing your
target heart rate. The machine will attempt to keep
you within ve beats of your target heart rate.
(See more HR information on page 43-46)
32
Spirit Fitness
TO BEGIN A CUSTOM PROGRAM:
1. Select the Custom program then press the
Enter key to begin customizing the program
with your personal data, or just press the
Start key to begin the program with the
default settings.
2. To adjust the Speed and Incline proles, use the on-screen interface to achieve desired
workout proles. Once complete, press Next to save and continue.
3. The following screens will ask you to enter the desired Time, the user Age, and Weight. You
may use the default values, or adjust as needed. Press Start once complete to begin your new
custom workout program!

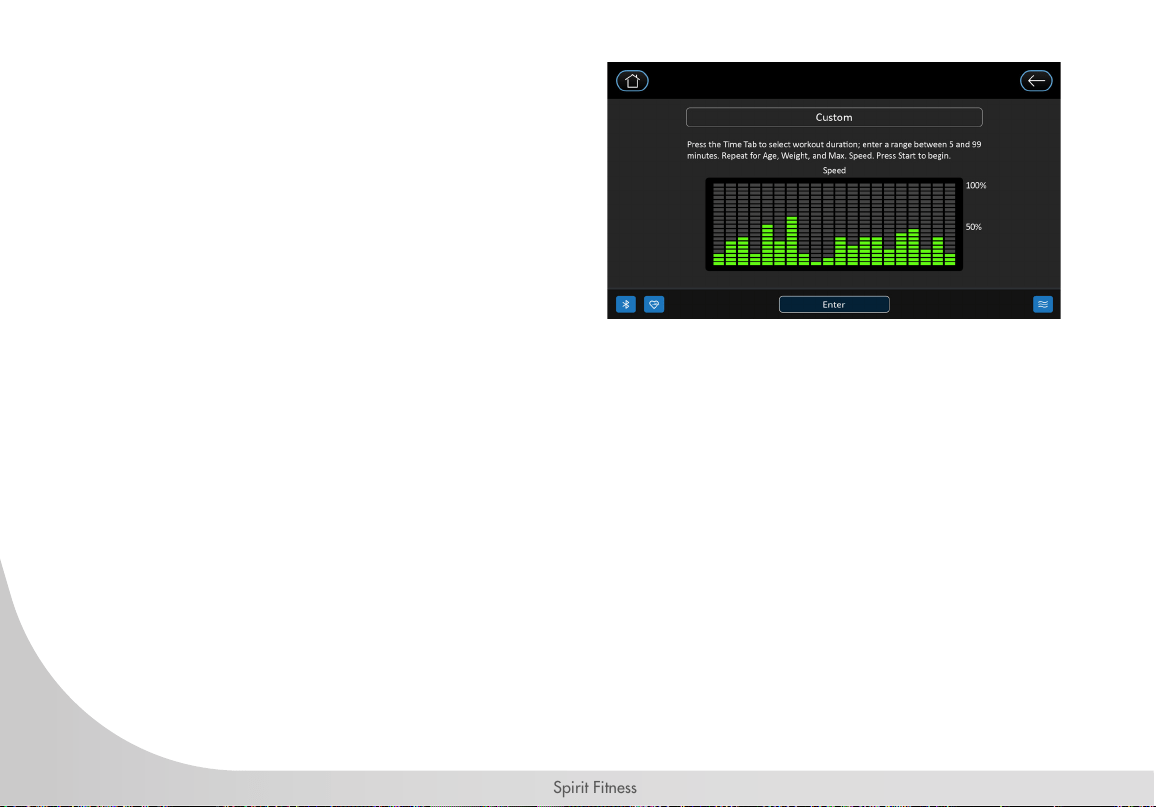

CUSTOM
You will create the desired speed and incline levels
for each of the 20 segments of the program using the
keyboard on the screen. You may change these levels
at any time during the workout.
33
www.spirittness.com
HIIT PROGRAM
The HIIT, or High Intensity Interval Training, program
takes advantage of the latest trend in tness. During
the program you will perform short bursts of high
intensity sprinting followed by short rest periods. HIIT
is a fully customizable interval training program.
You can enter the number of intervals, time of each
interval Sprint and Rest periods and the work intensity
of the levels.
1. Select a program then press the Enter key
to begin customizing the program with your
personal data, and you are asked for and the number of intervals you want to do. The default is 8 and
the range available is 3 to 15. One interval equals 1 Sprint and 1 Rest segment.
2. Next is entering the Interval time, Sprint time and Rest time. You may to select the Sprint time or Rest
time from 20 to 90 seconds. After the interval time is set, set the intensity training to Sprint speed and
Rest Speed. This is the resistance level you will experience during HIIT program workout.
3. You may now press Start to begin the HIIT program after to adjust the speed. The program starts with
a 3-minute warm-up period with the speed set to 50% of the sprint speed selected previously. You can
manually adjust the speed during warm-up if you wish.
34
Spirit Fitness
FITNESS TEST
When the Fitness Test button is selected from the Exercise Programs Menu screen, the screen displays the
different preset tests available: Coast Guard, Navy, Air Force, Army, Gerkin, Marine Corps, and Physical
Efciency Battery (PEB). Tap the test you would like to begin.
Before the Test:
• Make sure you are in good health; check with your
physician before performing any exercise if you are
over the age of 35 or persons with pre-existing health
conditions.
• Make sure you have warmed up and stretched before
taking the test.
• Do not take in caffeine before the test.
• If using the hand pulse sensors hold the hand grips
gently, do not tense up.
Starting the Test:
1. At the beginning of each program you will be
prompted to enter your Age, Weight, Height, and
Gender. Adjust the settings as necessary and press the
Enter button to accept and continue.
2. Once data is entered, press Start to begin the test.
During the GERKIN Test:
• The console must be receiving a steady heart rate for
the test to begin. You may use the hand pulse sensors
or wear a heart rate chest strap transmitter (sold
separately).
• The test will start with a 3-minute warm-up at 3 MPH
before the actual test begins (GERKIN only).
After the GERKIN Test:
• Cool down for about one to three minutes.
• Take note of your score because the console will
automatically return to the start-up mode after a few
minutes.
35
www.spirittness.com

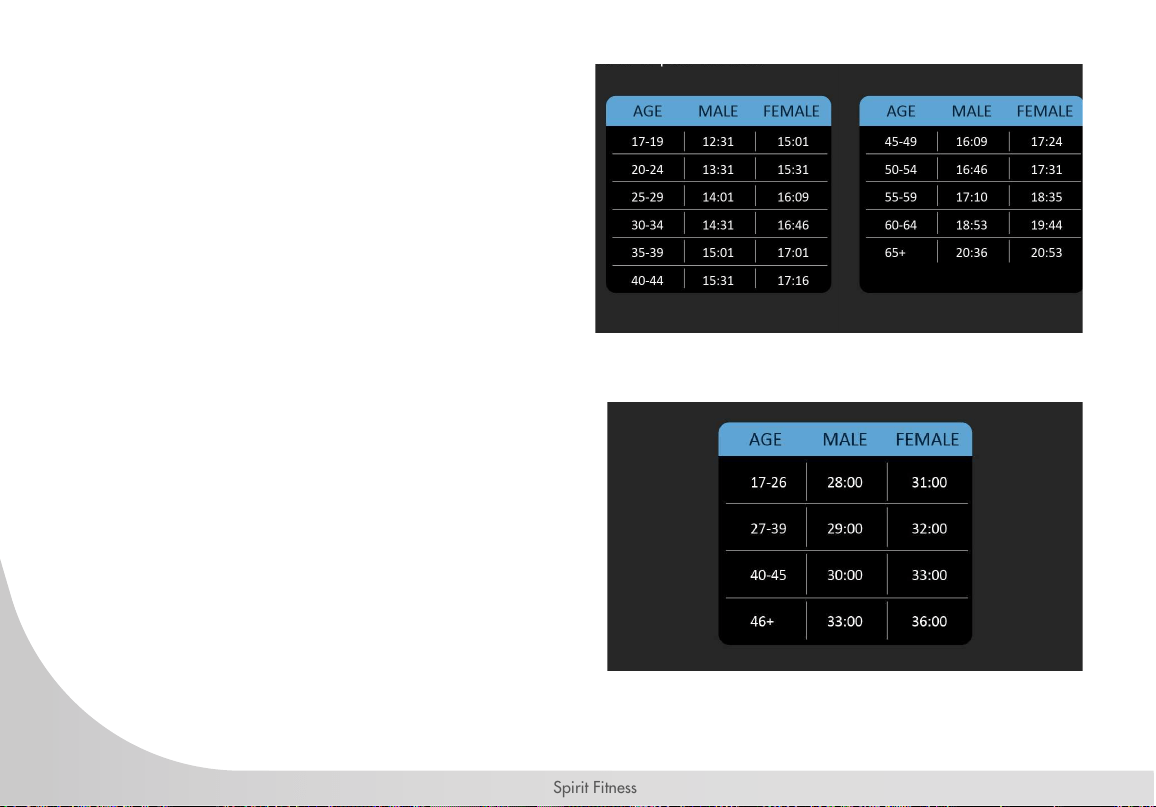

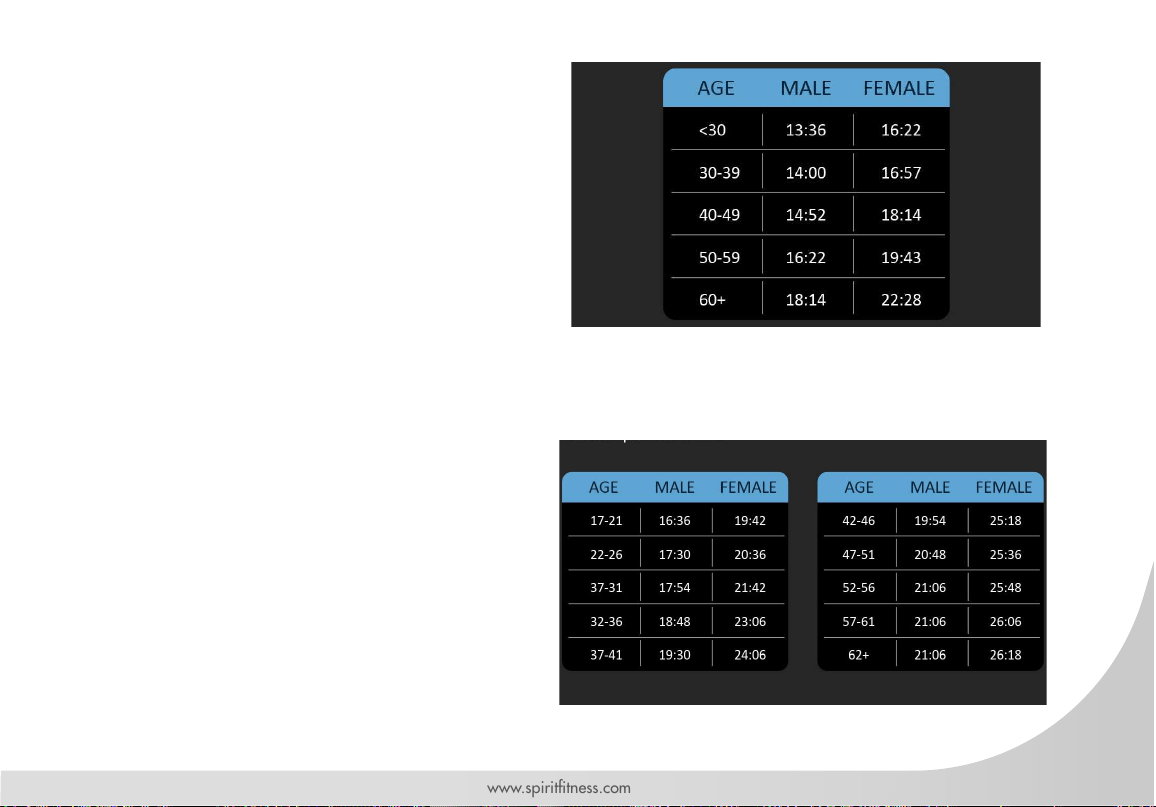

AIR FORCE
A timed 1.5 mile run. You control the speed
manually. Maximum time allowed to pass the test is
shown on the table:
For more detailed information, visit:
http://bit.ly/SF-AirForce
ARMY
A timed 2 mile run. You control the speed manually.
Maximum time allowed to pass the test is shown on
the table.
For more detailed information, visit:
http://bit.ly/SF-Army
36
Spirit Fitness
NAVY
A timed 1.5 mile run. You control the speed
manually. Maximum time allowed to pass the test is
shown on the table:
For more detailed information, visit: http://bit.ly/SF-Navy
MARINES
A timed 3 mile run. You control the speed manually.
Maximum time allowed to pass the test is shown on
the table:
For more detailed information, visit: http://bit.ly/SF-Marines
37
www.spirittness.com
GERKIN
The Gerkin protocol, also known as the reman’s
protocol, is a sub-max VO2 (volume of oxygen) test.
The test will increase speed and elevation alternately
until you reach 85% of your Max heart rate. The time
it takes for you to reach 85% determines the test score
(VO2max) as shown in the chart below.
Note: Use a heart rate strap for best results
38
Spirit Fitness

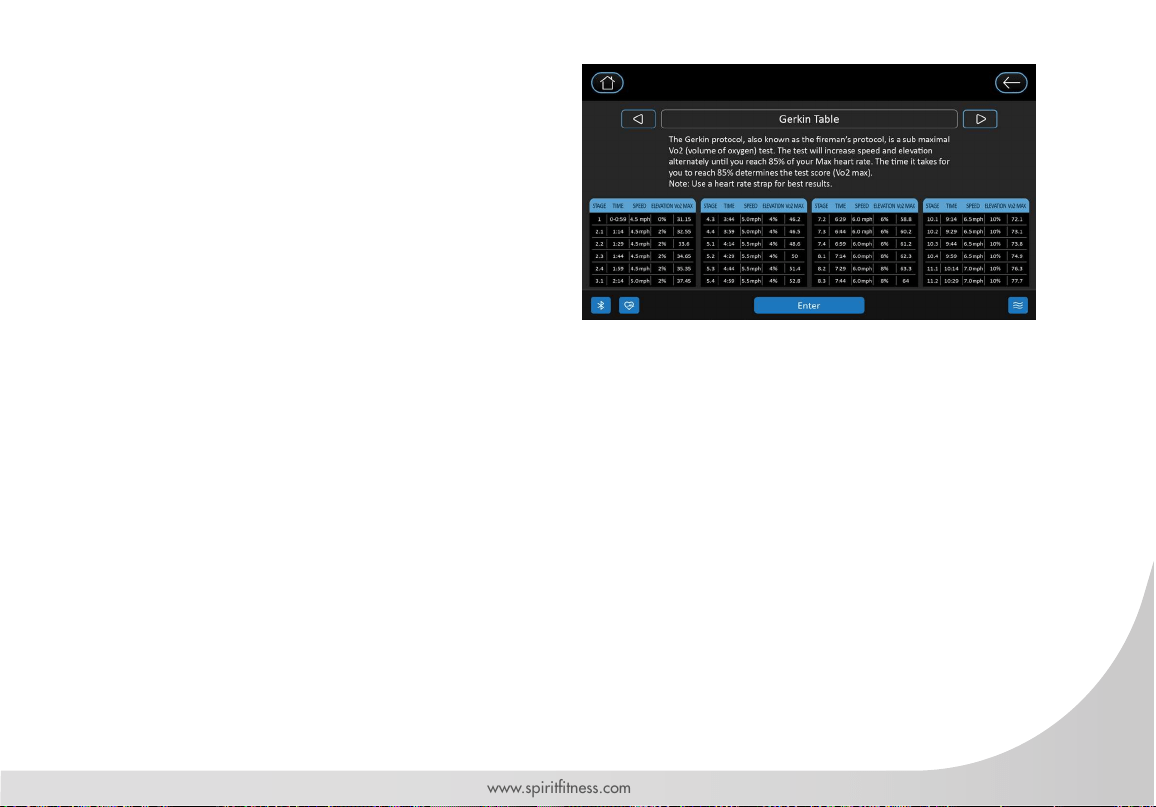

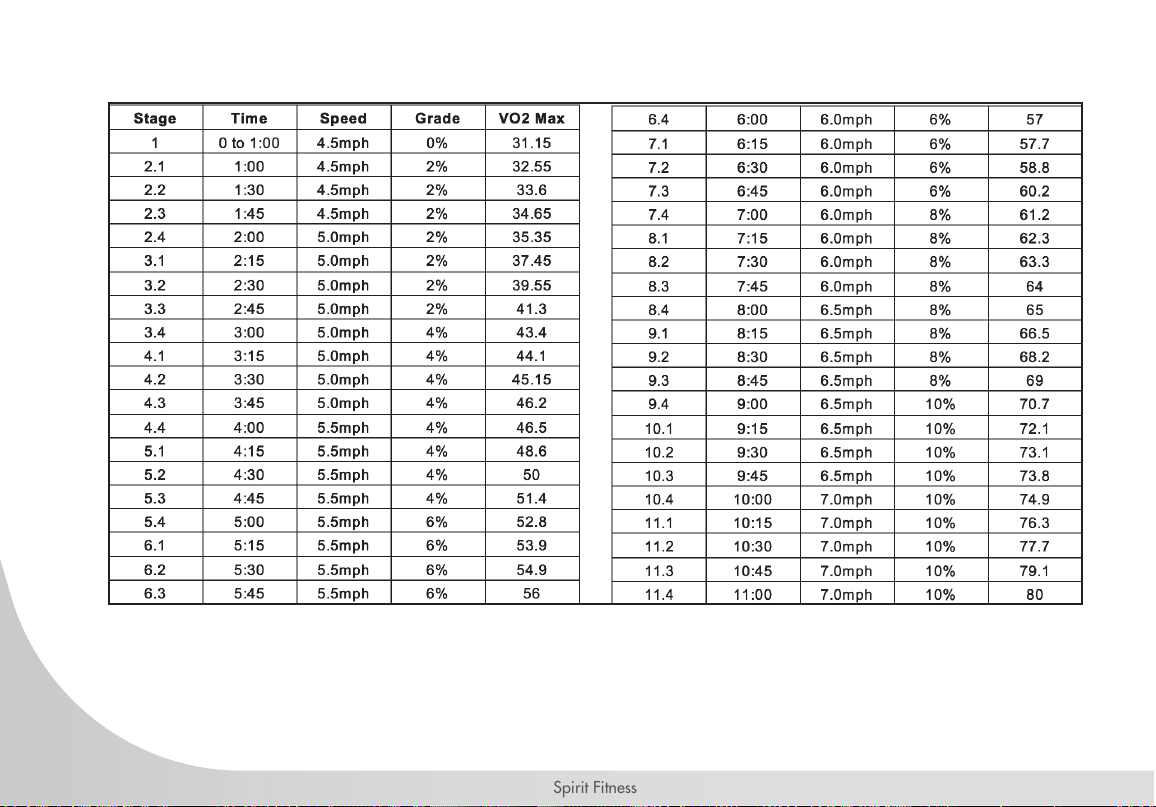

GERKIN VALUE TABLE
39
www.spirittness.com

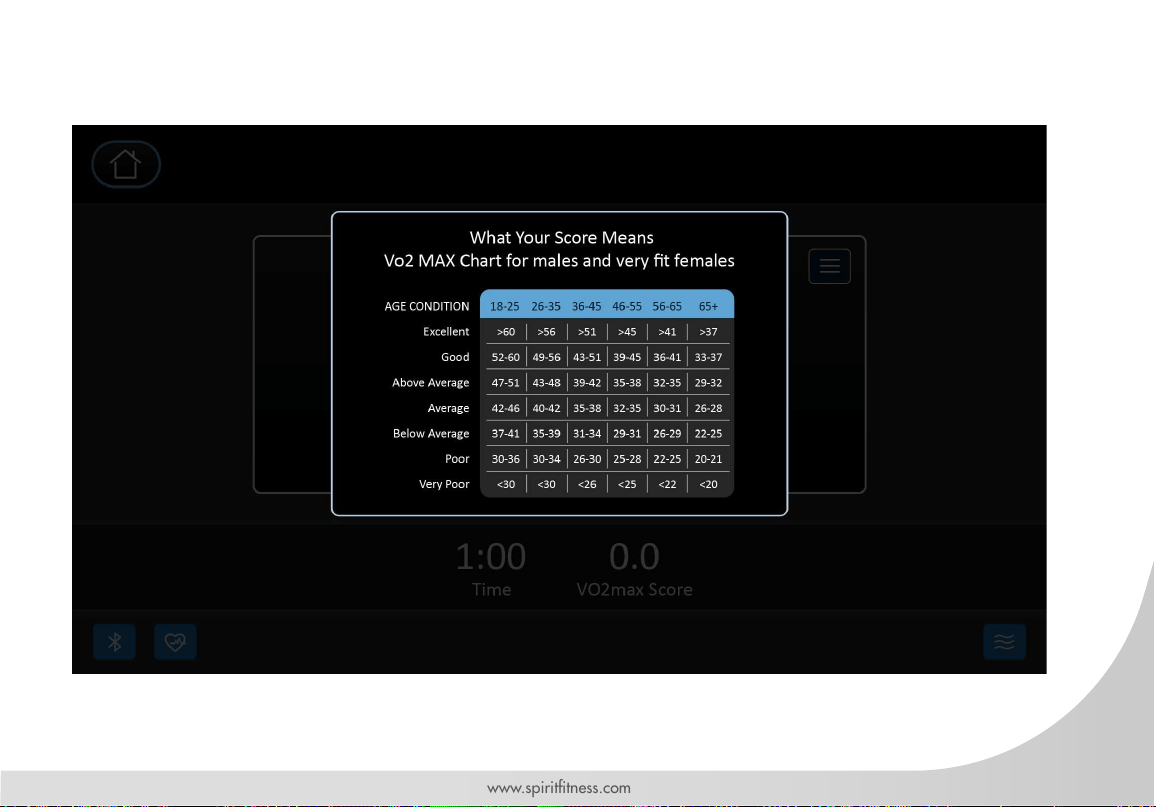

What Your Score Means:
VO2MAX CHART FOR MALES AND VERY FIT FEMALES
40
Spirit Fitness

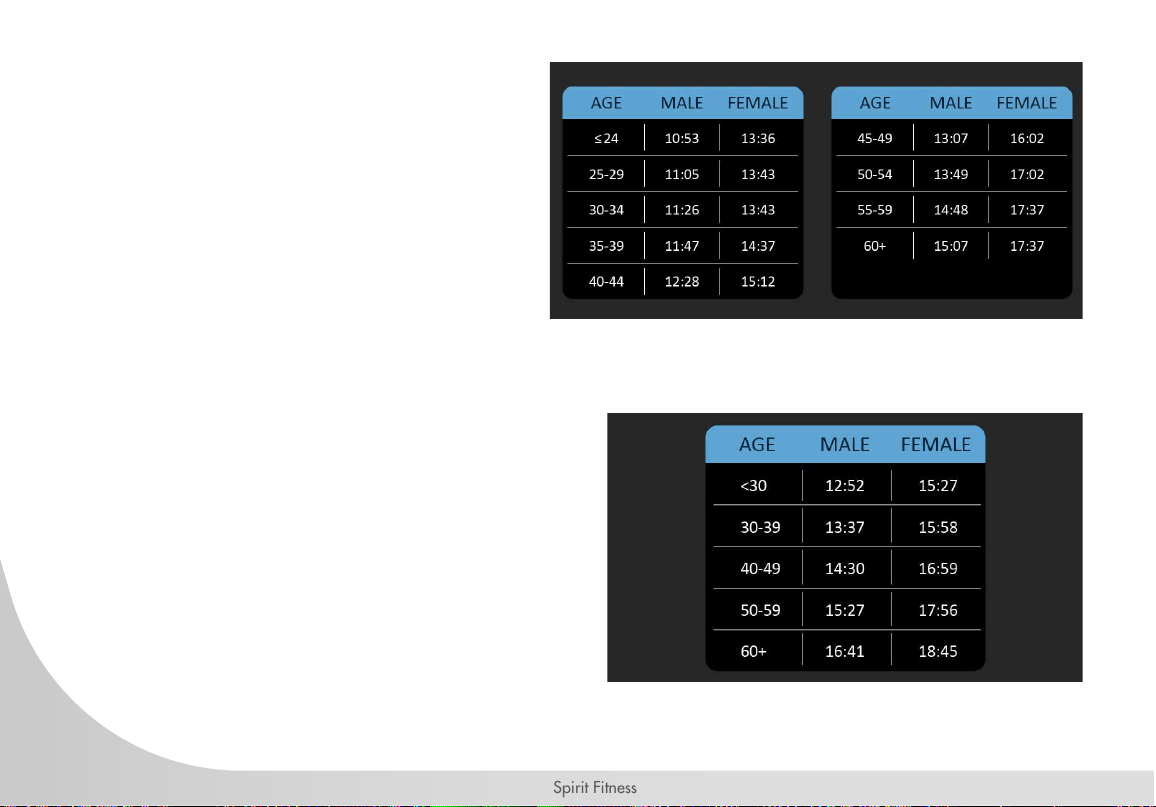

COAST GUARD
A timed 1.5 mile run. You control the speed manually.
Maximum time allowed to pass the test is shown on
the table:
PEB (PHYSICAL EFFICIENCY
BATTERY)
FOR U.S. FEDERAL LAW
ENFORCEMENT
A timed 1.5 mile run. You control the speed
manually. Maximum time allowed to pass the
test is shown on the table:
For more detailed information, visit: https://www.etc.
gov/peb-scores-age-and-gender
41
www.spirittness.com
HEART RATE PROGRAMS
Heart Rate Control (HRC) uses your treadmill’s incline
system to control your heart rate via information from
pulse grips or wireless chest strap (sold separately).
Increases and decreases in elevation affect heart rate
much more efciently than changes in speed alone.
The HRC program automatically changes elevation
gradually to achieve the programmed target heart
rate.
Select and begin either the Heart Rate 1 program
(HR1), or the Heart Rate 2 program (HR2) by
following the directions on page 24.
The Heart Rate program (HR1) will attempt to maintain your heart rate at 65%. The Heart Rate 2 program
(HR2) will attempt to maintain your heart rate at 80% of your maximum heart rate (as calculated based on
user data entered previously).
Note: When “No Heart Rate Detected” is displayed, no pulse signal is being detected. Please check and make
sure that the sensors or heart rate strap is being used as instructed, or check for possible interference.
42
Spirit Fitness
RATE OF PERCEIVED EXERTION
There are more variables involved in how hard you should workout than just heart rate. Your stress level,
physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what
you ate, all contribute to the intensity at which you should workout.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish physiologist
G.A.V. Borg. The scale helps users determine an approximate heart rate level when a heart rate monitor
was not in use. Using the scale below, rate the level of intensity of your workout, or the perception of your
effort during your workout. Once the rating has been determined, simply add a “0” to the rating to get
your approximate heart rate. For example, if your workout felt comfortable, you would rate it a “12”. Then
add a “0” to get an approximate heart rate during your workout of 120 beats per minute. The scale is as
follows:
Rating Perception of Effort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
43
www.spirittness.com
TARGET HEART RATE
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of exercising
comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper
use of a heart rate monitor, many people nd that their usual choice of exercise intensity was either too high or
too low and exercise is much more enjoyable by maintaining their heart rate in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your Maximum Heart Rate.
This can be accomplished by using the following formula: 220 minus your age. This will give you the Maximum
Heart Rate (MHR)for someone of your age. To determine the effective heart rate range for specic goals you
simply calculate a percentage of your MHR. Your Heart rate training zone is 50% to 90% of your maximum
heart rate. 65% of your MHR is the recommended for burning fat while 85% is recommended for strengthening
the cardio vascular system. This 65% to 85% is the zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .65 = 117 beats per minute (65% of maximum)
180 X .85 = 153 beats per minute (85% of maximum)
So for a 40 year old the training zone would
be 117 to 153 beats per minute.
44
Spirit Fitness
If you enter your age during programming the console will perform this calculation automatically. Entering
your age is used for the Heart Rate programs. After calculating your MHR you can decide upon which
goal you would like to pursue.

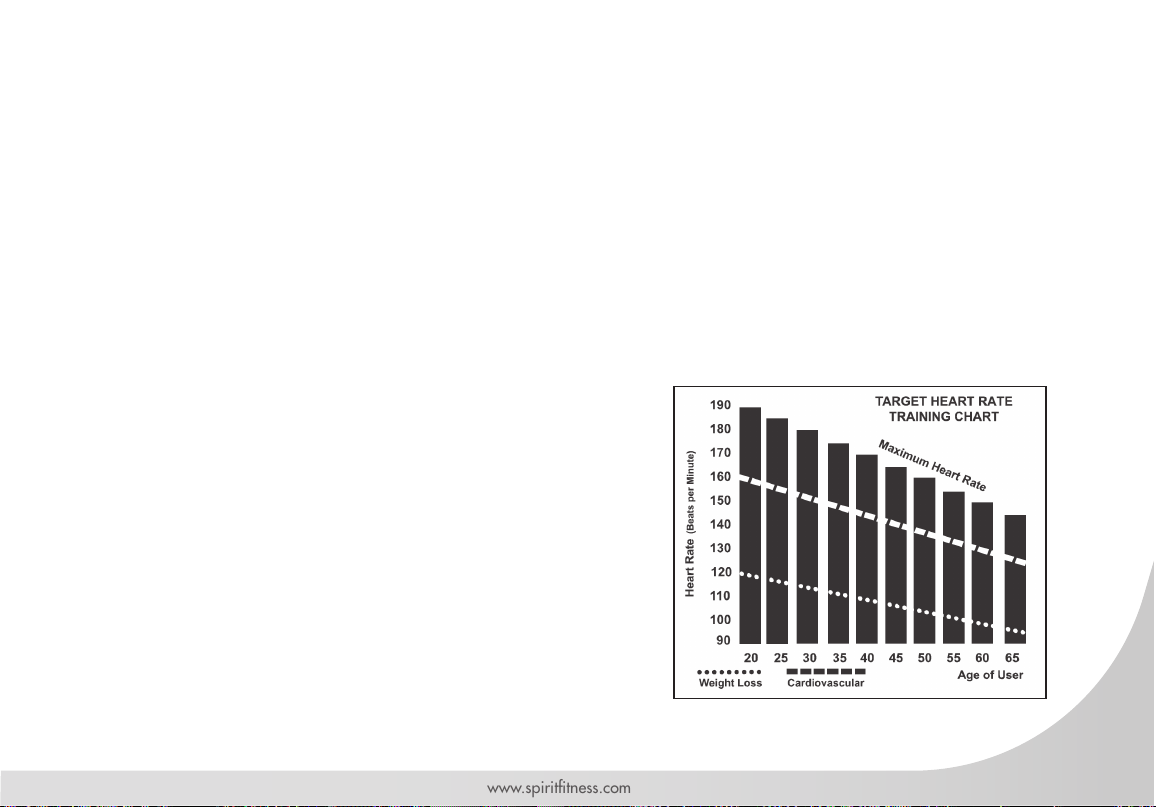

The two most popular reasons for, or goals, of exercise are cardiovascular tness (training for the heart and
lungs) and weight control. The black columns on the chart represent the MHR for a person whose age is
listed at the bottom of each column. The training heart rate, for either cardiovascular tness or weight loss,
is represented by two different lines that cut diagonally through the chart. A denition of the lines’ goal
is in the bottom left-hand corner of the chart. If your goal is cardiovascular tness or if it is weight loss, it
can be achieved by training at 85% or 65%, respectively, of your MHR on a schedule approved by your
physician. Consult your physician before participating in any exercise program.
With all Spirit Fitness treadmills you may use the heart rate monitor feature without using the Heart Rate
program. However, when using the heart rate monitor feature in conjunction with the Heart Rate programs,
the machine will automatically adjust speed or incline to maintain the desired heart rate.
45
www.spirittness.com
WEARING THE CHEST STRAP (SOLD SEPARATELY)
1. Attach the transmitter to the elastic strap using the interlocking button.
2. Adjust the strap as tightly as possible while ensuring it is still comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing away
from your chest (some people must position the transmitter slightly left of center). Attach
the nal end of the elastic strap by inserting the round end and, using the locking
parts, secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval
areas on the reverse side of the belt and both sides of the transmitter). It’s also recommended that you wear
the transmitter strap a few minutes before your work out. Some users, because of body chemistry, have a more
difcult time in achieving a strong, steady signal at the beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady signal.
The length of range may vary somewhat but generally stay close enough to the console to maintain good, strong,
reliable readings. Wearing the transmitter directly on bare skin assures you of proper operation. If you wish, you
may wear the transmitter over a shirt. To do so, wet the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the effect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement
battery is CR2032. The chest strap is sold separately. Chest straps that operate using Bluetooth should also
work with this machine.
46
Spirit Fitness
ERRATIC OPERATION
Caution! Do not use this treadmill for Heart Rate programs unless a steady, solid Actual Heart Rate
value is being displayed. High, wild, random numbers being displayed indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Treadmill is not properly grounded.
2. Microwave ovens, TV’s, small appliances, etc.
3. Fluorescent lights.
4. Some household security systems.
5. Electric fence for a pet.
6. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try
wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right
side up.
7. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole
machine 90 degrees may de-tune the interference.
8. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
47
www.spirittness.com
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all
times. It is for your safety should you fall or move too far back on the treadbelt. Pulling this safety tether
cord will stop treadbelt movement. To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. NOTE: The magnet has strong
enough power to minimize accidental, unexpected stopping. The clip should be attached securely to make certain
it does not come off. Be familiar with its function and limitations. The treadmill will stop, depending on speed,
with a one to two step coast anytime the magnet is pulled off the console. Use the Stop/Pause button in
normal operation.
CSAFE FEATURE
Your console is equipped with a CSAFE feature. The Power (POWER) port can be used for powering
a remote controlled audio-visual system by connecting a cable from the remote to the Power port at the
back of the console. The Communication port (COMM) can be used to interact with tness software
applications.
48
Spirit Fitness
BELT/DECK
Your treadmill uses a very high-efcient and propriety belt/deck combination. Performance is maximized when
the deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edges of the belt and
the area between the belt edge and the frame. Also reach as far as practical directly under the belt edge. This
should be done onces a moth to extend the bend and deck life. A mild soap and water solution along with
a nylon scrub brush will clean the top of the textured belt. Allow to dry before using. The low maintenance
( routine monthly cleaning), dual sided deck is designed to withstand up to 4,000 hrs on each side. If the
original side of the deck use is over 4,000 hrs, then it will need to be ipped. Contact your service technician
for assistance. Do not apply any type of lubricant or wax to the surface.
Task How To DailyWeekly Monthly
Semi-
Annually
Wipe Down Unit
Damp cloth w/
water
Clean Under Belt Towel or vacuum
Check Belt Tension/Tr acking Feel/Visual
Clean Under Motor CoverVacuum carefully
Check Hardware Wrench
Inspect for Deck Wear Visual
Inspect Drive Belt Visual
GENERAL MAINTENANCE
Unplug treadmill before performing any maintenance.
49
www.spirittness.com
BELT ADJUSTMENTS
Belt tension is not critical for most users. It is very important though for joggers and runners in order to
provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 8mm
Allen wrench provided in the parts package. The adjustment bolts are located at the end of the step rails
as shown in the diagram below.
Tighten the rear roller only enough to prevent slippage at the
front roller. Turn the tread-belt tension adjusting bolts 1/4 turn
each and inspect for proper tension by walking on the belt
and making sure it is not slipping or hesitating with each step.
When an adjustment is made to the belt tension, you must be
sure to turn the bolts on both sides evenly or the belt could
start tracking to one side instead of running in the middle of
the deck.
DO NOT OVER TIGHTEN – Over tightening will cause belt damage and premature bearing failure. If you
tighten the belt a lot and it still slips, the problem could actually be the drive belt - located under the motor
cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being
loose. Tightening the motor belt should be done by a trained service person.
50
Spirit Fitness
TREADBELT TRACKING ADJUSTMENT
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for
some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if
during use the belt continues to move toward one side, adjustments are necessary.
Setting Tread-Belt Tracking:

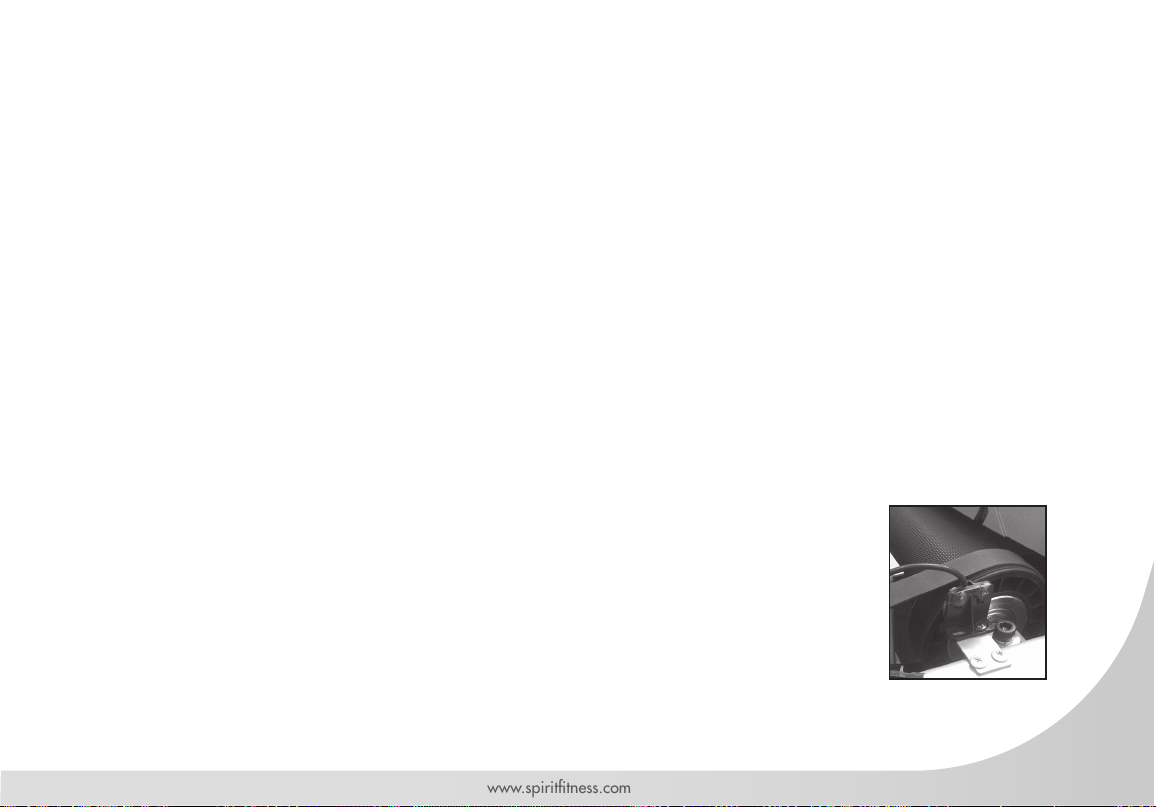

An 8mm Allen wrench is provided for this adjustment. Make
tracking adjustments on the left side bolt. Set belt speed at 3 mph.
Be aware that a small adjustment can make a dramatic difference
which may not be apparent right away. If the belt is too close to the
left side, then turn the bolt only a 1/4 turn to the right (clockwise)
and wait a few minutes for the belt to adjust itself. Continue to make
1/4 turns until the belt stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the bolt counter-clockwise. The belt may require periodic
tracking adjustment depending on use and walking/running characteristics. Some users may affect tracking
differently. Expect to make adjustments as required to center the tread-belt. Adjustments will become less of
a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all
treadmills.
ATTENTION: Damage to the running belt resulting from improper tracking / tension adjustments is not
covered under the Spirit Fitness warranty.
51
www.spirittness.com
CALIBRATION PROCEDURE
1. Remove the safety button.
2. Press and hold down the Start and Fast + buttons and replace the safety button. Continue to hold the Start and
Fast button until the window displays “Factory settings”, then press the Enter button.
3. You will now be able to set the display to show Metric or English settings (Miles vs. Kilometers). To do this, press
the up or down button to show which you want, then press Enter.
4. Make sure the wheel size diameter is 2.98 then press Enter.
5. Adjust the minimum speed (if needed) to 0.5 and then press Enter.
6. Adjust the maximum speed (if needed) to 12.0 and then press Enter.
7. Adjust the maximum elevation (if needed) to 15 and then press Enter.
8. Grade return – On (This allows the incline to return to zero when Stop is pressed. For sale in Europe, EU standards
require this to be off).
9. Press Start to begin calibration. The process is automatic; the speed will start up without warning, so do not stand
on the belt.
ADJUSTING THE SPEED SENSOR
If the calibration does not pass you may need to check the speed sensor alignment.
1. Remove the motor cover hood by loosening the 8 screws that hold it in place. Set it aside.
2. The speed sensor is located on the left side of the frame, right next to the front roller pulley
(the pulley will have a belt around it that also goes to the motor). The speed sensor is a
small rectangular shaped black box with a wire connected to it.
3. You will see a magnet on the outside edge of the pulley; make sure the speed sensor is
aligned with the center of the magnet when it passes by. There are two a screws that hold
the sensor in place that need to be loosened to adjust the sensor. Re-tighten the screws
when nished.
52
Spirit Fitness
TROUBLESHOOTING
PROBLEM CAUSE
Display does not light 1. Tether cord not in position.
2. Circuit breaker on front grill tripped. Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed into115 VAC wall outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact your Spirit Fitness dealer.
Treadbelt does not stay centered Treadmill belt
hesitates when walked/run on
The user may be walking while favoring or putting more weight on either the left or right foot. If this walking pattern
is natural, track the belt slightly off-center to the side opposite from the belt movement. See General Maintenance
section on Treadbelt Tension. Adjust as necessary.
Motor is not responsive after pressing start 1. If the belt moves, but stops after a short time and the display shows “LS”, run calibration.
2. If you press start and the belt never moves, then the display shows LS, contact service.
Circuit breaker trips, but not the treadmill circuit
breaker
Need to replace the breaker with a “High In-rush current” type breaker (see page 4 for details)
Treadmill will only achieve approximately 12 mph
but shows higher speed on display
This indicates motor should be receiving power to operate. Do not use an extension cord. If an extension cord is
required, it should be as short as possible and heavy duty, 16-gauge minimum, low voltage. Contact an electrician
or your Spirit Fitness dealer. A minimum of 110-volt AC current is required.
Treadbelt stops quickly/suddenly when tether
cord is pulled
High belt/deck friction. If cleaning doesn’t prevent this from reoccurring, check to see if there is signicant wear of
the deck. If so, the deck may need to be ipped if it is on its original side.
Treadmill trips on board 20 amp circuit High belt/deck friction. If cleaning doesn’t prevent this from reoccurring, check the amp draw of the motor. If this is
high and there are signs of signicant wear of the deck, it may need to be ipped on its original side.
Computer shuts off when console is touched
(on a cold day) while walking/running
Treadmill may not be grounded. Static electricity is crashing the computer. Refer to Grounding Instructions.
53
www.spirittness.com
TREADMILL WARRANTY EFFECTIVE SEPTEMBER 1, 2020
Spirit Fitness warrants all its treadmill parts for a period of time listed below from the date of retail sale,
as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original
factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at
Spirit Fitness’ option, and technical support to our independent dealers and servicing organizations. In the
absence of a dealer or service organization, these warranties will be administered by Spirit Fitness directly
to a facility. The warranty period applies to the following components:
NORMAL RESPONSIBILITIES OF THE FACILITY
The non-dues paying facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the
original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the tness equipment and with all local electric codes.
4. Proper connection to a grounded power supply of sufcient voltage, replacement of blown fuses, repair of loose
connections or defects in house or facility wiring.
5. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the tness
equipment at the time it was shipped from the factory.
6. Damages to the tness equipment nish during shipping, installation or following installation.
7. Routine maintenance of this unit as specied in this manual.
WARRANTY
Commercial (Non-Dues Paying Facilities)
FRAME
Lifetime
MOTOR & DECK
5 Years
PARTS
5 Years
LABOR
2 Years
CONSOLE PARTS:
3 Years
CONSOLE LABOR:
1 Year
54
Spirit Fitness
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve
malfunction or defects in workmanship or material, for units that are beyond the warranty period, for units that
are beyond the service call reimbursement period, for tness equipment not requiring component replacement, or
tness equipment not in non-dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use
of parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or
plastic, alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or
acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to
request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in a dues paying facility (YMCA, Health Club, Etc.)
9. Product used in prisons and correctional facilities
10. Warranties outside of the United States may vary. Please contact your local dealer for details.
55
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date
of factory shipping as determined by the serial number establishes the labor warranty period should service be
required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty
gives you specic legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is
shipped to a service center freight charges to and from the service center will be the customer’s responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for shipping and
handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an additional
trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT
TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization
number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
56
Spirit Fitness
NOTES
57
www.spirittness.com
NOTES
58
Spirit Fitness
59
www.spirittness.com
CT800ENT Part List_SPIRIT
1 Main Frame 1
2 Incline Bracket 1
3 Locking Plate Assembly ( R ) 1
4 Locking Plate Assembly ( L) 1
5 Console Support 1
6 Handle Bar (R) 1
7 Handle Bar (L) 1
8 Left Upright 1
9 Right Upright 1
10 Upright Fixing Plate 2
11 Running Deck Stabilizer Assembly(A) 2
12 Running Deck Stabilizer Assembly(B) 1
13 Belt Guide(R) 1
14 Belt Guide(L) 1
15 Front Roller W/Pulley 1
16 Rear Roller 1
17 Running Deck 1
18 Running Belt 1
19 Cushion A 2
20 Cushion B 4
21 Drive Belt 1
22 Foot Rail(Upper) 2
23 Foot Rail 2
24 Transportation Wheel 4
25 Incline Rubber Foot 2
26 25m/m × 50m/m_Square End Cap 4
27 Stable Wheel Spacer 4
28 Motor Cover Anchor(D) 2
29 Round Cap 1
31 Foot Pad 2
32 Front Motor Cover 1
33 Motor Top Cover 1
34 Motor Base Cap (L) 1
35 Motor Base Cap (R) 1
36 Rear Adjustment Base (L) 1
37 Rear Adjustment Base (R) 1
38 Console Assembly 1
39 Rack Top Cover 1
40 Rack Bottom Cover 1
41 Console Cover 1
42 Hall Sensor Rack 1
43 Hall Sensor 1
44 Adjustment Rail Pad 2
45 Rubber Foot Pad 4
46 300m/m_Ground Wire 1
47 Handpulse End Cap 2
48 900m/m_Handpulse W/Cable Assembly(SMP-03) 1
49 900m/m_Handpulse W/Cable Assembly 1
50 400m/m_Handpulse Wire (Upper)(XHB-4) 1
51 400m/m_Handpulse Wire (Upper)(XHB-3) 1
52 1100m/m_Computer Cable 1
53 1800m/m_Computer Cable 1
54 DC digital control 1
55 Drive Motor 1
56 Filter 1
57 Filter Plate 1
58 Fan 1
59 AC Electronic Module 1
60 450m/m_Connecting Wire (White) 1
61 450m/m_Connecting Wire (Black) 1
62 250m/m_Connecting Wire (White) 1
63 250m/m_Connecting Wire (Black) 1
64 400m/m_Motor Fan Connecting Cable-Black 1
65 400m/m_Motor Fan Connecting Cable-White 1
66 Incline Motor 1
67 Ø10 × Ø25 × 0.8T_Nylon Washer 2
68 Ø10 × Ø25 × 2.5T_Nylon Washer 2
69 1300m/m_Sensor W/Cable 1
70 Power Cord 1
72 Square Safety Key 1
75 Ø35 × 21 × 13L_Ferrite Core 1
77 Plate 2
78 L-Plate 1
79 900m/m_Network Connecting Cable(Upper) 1
80 2400m/m_Network Connecting Cable(Lower) 1
81 900m/m_Connecting Wire(Upper) 1
60
Spirit Fitness
82 2400m/m_Connecting Wire(Lower) 1
83 900m/m_Connecting Wire(Upper) 1
84 2400m/m_Connecting Wire(Lower) 1
85 Board 1
86 Power Adaptor 1
87 200m/m_Connecting Wire (White) 1
88 200m/m_Connecting Wire (Black) 1
89 200m/m_Connecting Wire 1
90 250m/m_Connecting Wire(Red) 1
91 250m/m_Connecting Wire (White) 1
92 250m/m_Connecting Wire (Black) 1
93 Interface Board 1
94 Ø30 × 14 × 1.5T × 3.5H_Concave Washe 16
101 Ø18 × Ø19 × 41L_Carriage Bolt 2
102 M8 × 12m/m_Hex Head Bolt 2
103 3/8" × 25m/m_Hex Head Bolt 4
104 Ø8.5 × Ø26 × 2.0T_Flat Washer 6
105 M10 × 65m/m_Hex Head Bolt 1
106 M10 × 50m/m_Hex Head Bolt 1
107 Ø10 × 1.5T_Split Washer 6
108 Ø3/8" × Ø19 × 1.5T_Flat Washer 12
109 M10 × P1.5 × 8T_Nylon Nut 2
111 3/8" × 2-1/2"_Hex Head Bolt 1
112 3/8" × UCN16 × 2"_Socket Head Cap Bolt 5
113 Bushing(Ø10×Ø14×14L) 5
114 Ø13 × Ø35 × 5T_Nylon Washer 9
115 Ø3/8" × 35 × 2.0T_Flat Washer 15
116 Ø10 × 2.0T_Split Washer 5
117 3/8" × 7T_Nylon Nut 4
118 Ø4 × Ø10 × 1.0T_Flat Washer 1
119 M8 × P1.25 × 40m/m_Socket Head Cap Bolt 6
120 5/16" × 1.5T_Split Washer 14
121 Ø5/16" × 16 × 1.0T_Flat Washer 14
122 M8 × 1.25 × 95m/m_Button Head Socket Bolt 8
123 M8 × 55m/m_Hex Head Bolt 8
124 M8 × 1.25 × 6.5T_Square Nut 16
125 Ø3/8" × Ø25 × 2.0T_Flat Washer 18
126 M10 × 40m/m_Socket Head Cap Bolt 1
127 M10 × 80m/m_Socket Head Cap Bolt 1
128 M10 × 100m/m_Socket Head Cap Bolt 2
129 M8 × P1.25 × 55L_Flat Head Countersink Bolt 6
130 M8 × 35m/m_Flat Head Countersink Bolt 2
131 M3 × 50m/m_Phillips Head Screw 4
132 M3 × 5T_Nylon Nut 4
133 Ø10 × 2T_Split Washer 26
134 3/8" × 2-1/4"_Hex Head Bolt 4
135 3/8" × 3/4"_Hex Head Bolt 4
136 3.5 × 12m/m_Sheet Metal Screw 18
137 5 × 12m/m_Sheet Metal Screw 6
138 5 × 25m/m_Tapping Screw 2
139 5 × 20m/m_Tapping Screw 25
140 3 × 25m/m_Tapping Screw 4
142 M5 × 12m/m_Phillips Head Screw 8
143 Ø5 × 1.5T_Split Washer 14
144 M5 × 12m/m_Phillips Head Screw 22
145 M5 × 5T_Nylon Nut 2
146 M5_Star Washer 4
147 3.5 × 12m/m_Tapping Screw 2
148 M3 × 12m/m_Tapping Screw 2
149 3.5 × 16m/m_Tapping Screw 2
150 3/8" × 3"_Button Head Socket Bolt 10
151 3/8" × 3/4"_Button Head Socket Bolt 6
152 M8 × 12m/m_Socket Head Cap Bolt 6
153 Ø8 × Ø16 × 2T_Flat Washer 10
154 3/8" × UNC16 × 1-1/4"_Button Head Socket Bolt 2
155 Ø10 × Ø23 × 1.5T_Curved Washer 2
156 M8 × P1.25 × 20L_Socket Head Cap Bolt 4
158 Phillips Head Screw Driver 1
159 L Allen Wrench(6×25×67L) 1
160 L Allen Wrench(6×26L×76L) 1
161 Isolation Pad 8
162 Ending Tape(400m/m) 1
163 Ending Tape(200m/m) 1
164 M3 × 10m/m_Phillips Head Screw 2
165 M3_Split Washer 2
166 3 × 10m/m_Sheet Metal Screw 5
200508
61
www.spirittness.com
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
CT800ENT Owners Manual
© 2020 All Rights Reserved
Revision: 08.31.2020
