CT850ENT TREADMILL
OWNER’S MANUAL
Spirit Fitness
www.spirittness.com

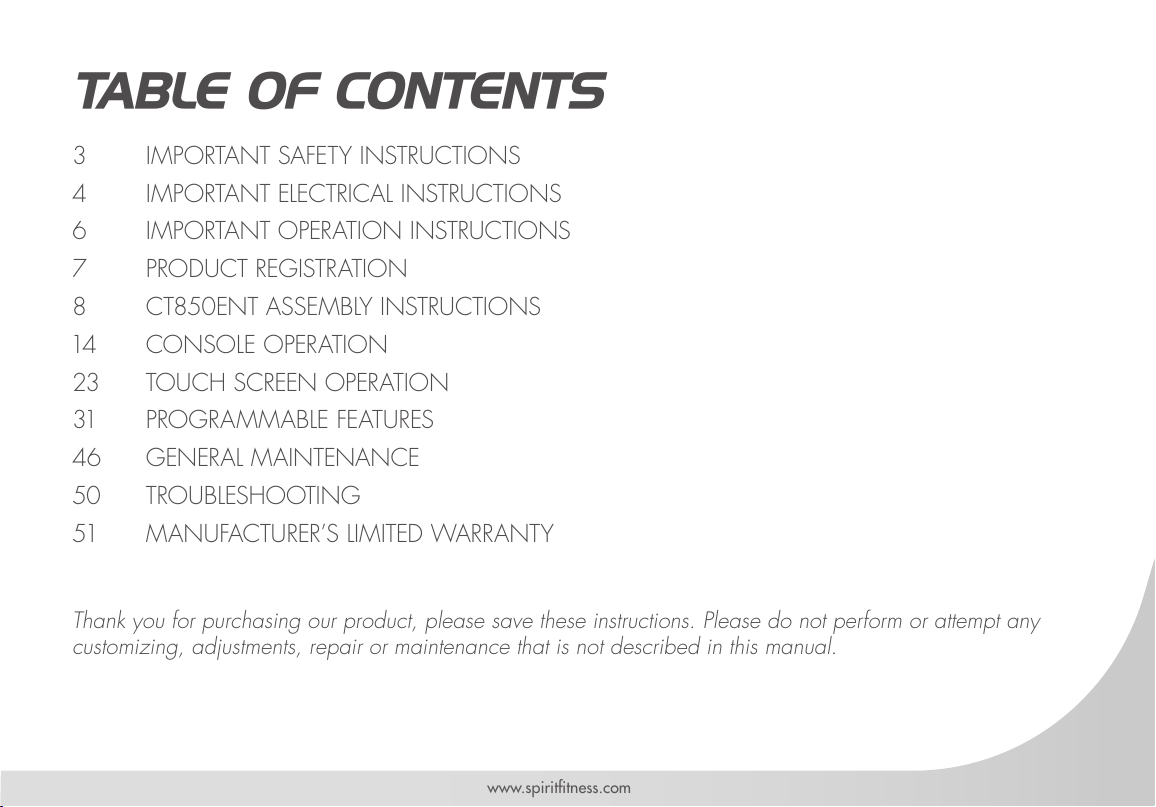

TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
4 IMPORTANT ELECTRICAL INSTRUCTIONS
6 IMPORTANT OPERATION INSTRUCTIONS
7 PRODUCT REGISTRATION
8 CT850ENT ASSEMBLY INSTRUCTIONS
14 CONSOLE OPERATION
23 TOUCH SCREEN OPERATION
31 PROGRAMMABLE FEATURES
46 GENERAL MAINTENANCE
50 TROUBLESHOOTING
51 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
2
Spirit Fitness

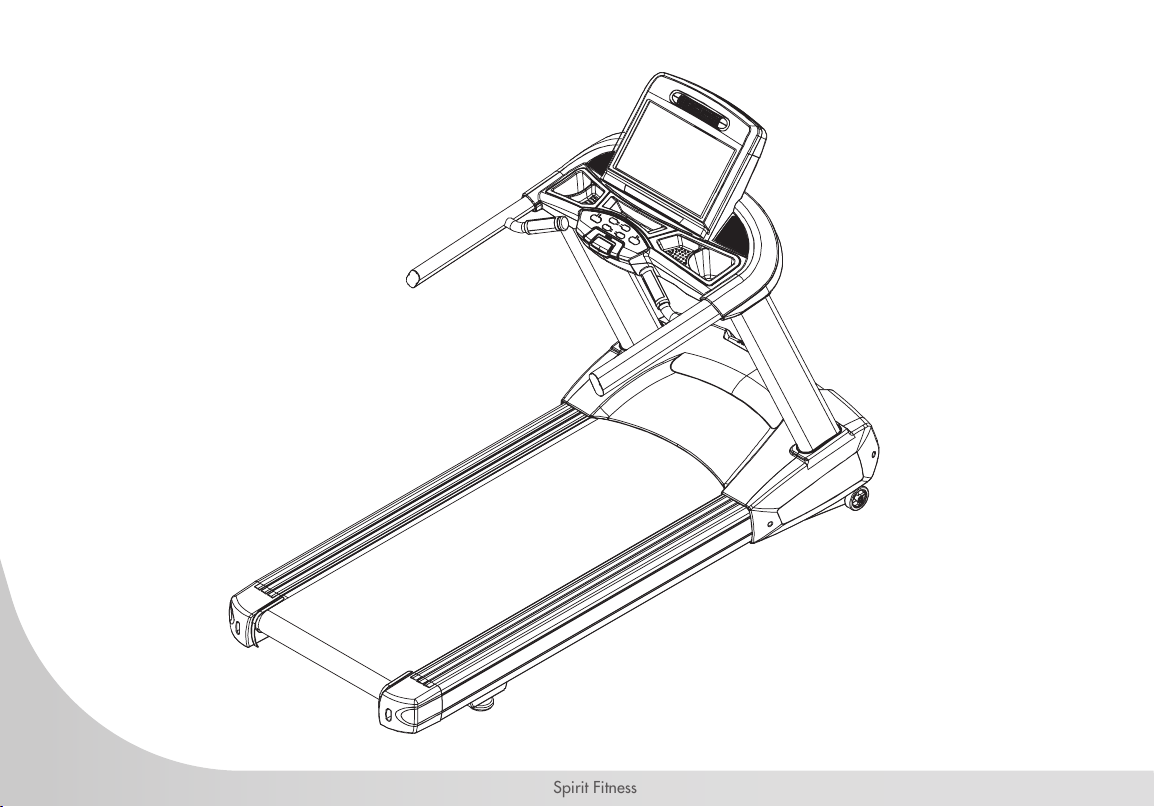

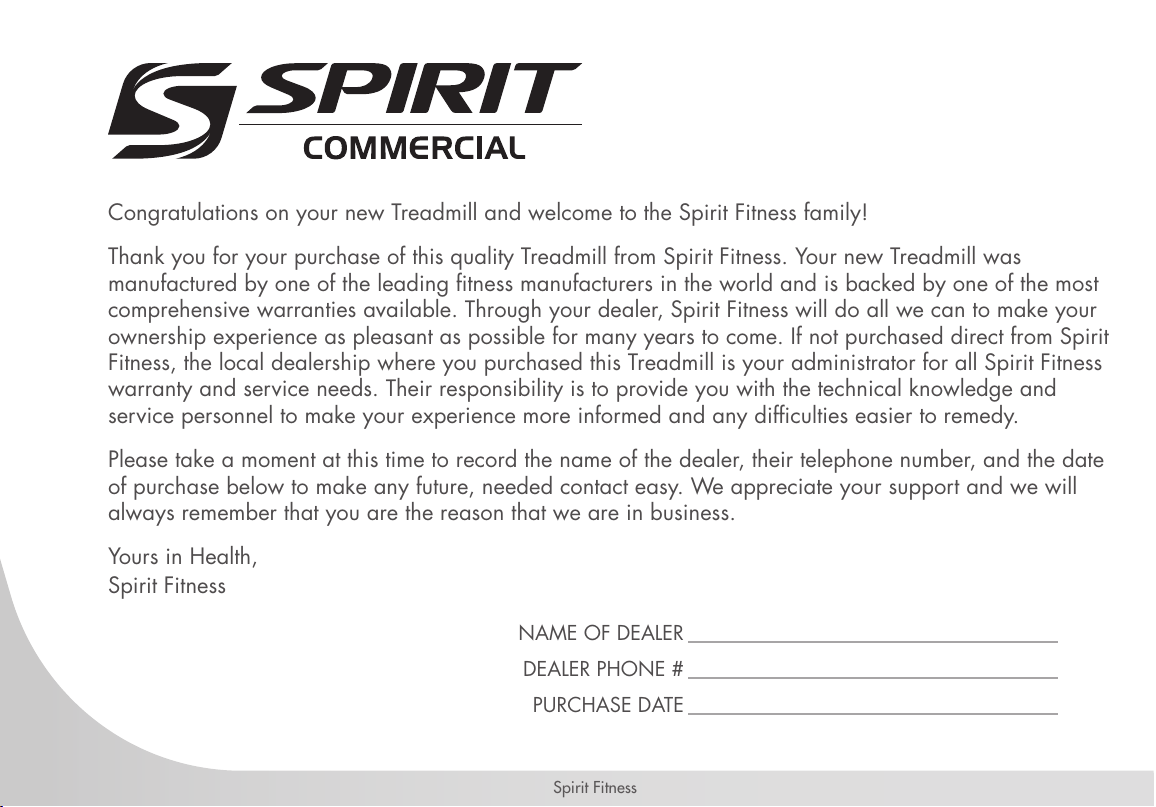

Congratulations on your new Treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality Treadmill from Spirit Fitness. Your new Treadmill was
manufactured by one of the leading tness manufacturers in the world and is backed by one of the most
comprehensive warranties available. Through your dealer, Spirit Fitness will do all we can to make your
ownership experience as pleasant as possible for many years to come. If not purchased direct from Spirit
Fitness, the local dealership where you purchased this Treadmill is your administrator for all Spirit Fitness
warranty and service needs. Their responsibility is to provide you with the technical knowledge and
service personnel to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date
of purchase below to make any future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
When using an electrical appliance, basic
precautions should always be followed, including
the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical
outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re electric
shock, or injury to persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged
cord or plug, if it is not working properly, if it as been
dropped or damaged, or dropped into water. Return
the appliance to a service center for examination and
repair.
• Do not carry this appliance by supply cord or use cord
as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and
the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only. See Grounding Instructions.
• The appliance is intended for household use.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
4
Spirit Fitness
• Keep children under the age of 13 away from this
machine.
• ASTM F2115-05 Specications 6.1.2.11 The
recommended minimum clearance required around
each treadmill for access to, passage around, and
emergency dismount shall be stated. The minimum
dimensions are to be: 0.5 m (19.7 in.) on each
side of the treadmill, and 1 m (39 in.) behind the
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER use a ground fault circuit interrupt (GFCI)
wall outlet with this treadmill. As with any appliance
with a large motor, the GFCI will trip often. Route
the power cord away from any moving part of the
treadmill including the elevation mechanism and
transport wheels.
NEVER remove any cover without rst disconnecting
AC power. If voltage varies by ten percent (10%)
or more, the performance of your treadmill may be
affected. Such conditions are not covered under
your warranty. If you suspect the voltage is low,
contact your local power company or a licensed
electrician for proper testing.
NEVER expose this treadmill to rain or moisture.
This product is NOT designed for use outdoors,
near a pool or spa, or in any other high
humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and
humidity is 95% non-condensing (no water drops
forming on surfaces).
Circuit Breakers: Some circuit breakers used in
homes are not rated for high inrush currents that
can occur when a treadmill is rst turned on or
even during use. If your treadmill is tripping the
house circuit breaker (even though it is the proper
current rating) but the circuit breaker on the treadmill
itself does not trip, you will need to replace the
home breaker with a high inrush type. This is not
a warranty defect. This is a condition we as a
manufacturer have no ability to control. This part is
available through most electrical supply stores.
5
www.spirittness.com
This product is for use on a nominal 110-volt/15
amp dedicated circuit, and has a grounding plug
that looks like the plug illustrated below. A
temporary adapter that looks like the adapter
illustrated below may be used to connect this
plug to a 2-pole receptacle as shown below
if a properly grounded outlet is not available.
The temporary adapter should be used only
until a properly grounded outlet, (shown below)
can be installed by a qualied electrician.
The green colored rigid ear-lug, or the like,
extending from the adapter, must be connected
to a permanent ground such as a properly
grounded outlet box cover. Whenever the
adapter is used, it must be held in place by a
metal screw.
Examples: Grainger part # 1D237, or available
online at www.squared.com part #QO120HM.
The electrical outlet used should have a dedicated
15 amp circuit breaker.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill
should malfunction or breakdown, grounding
provides a path of least resistance for electric
current, reducing the risk of electric shock. This
product is equipped with a cord having an
equipment-grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
DANGER - Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualied electrician or
serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the
plug provided with the product if it will not t the
outlet; have a proper outlet installed by a qualied
electrician.
6
Spirit Fitness
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this Treadmill without reading and
completely understanding the results of any operational
change you request from the computer.
• Understand that changes in speed or incline do
not occur immediately. Set your desired speed or
incline level on the computer console and release the
adjustment button. The computer will obey the command
gradually.
• Use caution while participating in other activities while
on your Treadmill; such as watching television, reading,
etc. These distractions may cause you to lose balance
which may result in serious injury.
• Do not use excessive pressure on console control
buttons. They are precision set to function properly with
little nger pressure.
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to theState
of California to cause Cancer and birth defects or
other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
7
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space
provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to http://www.spirittness.com/commercialwarrantyregistration.html
under the Support tab to register online.

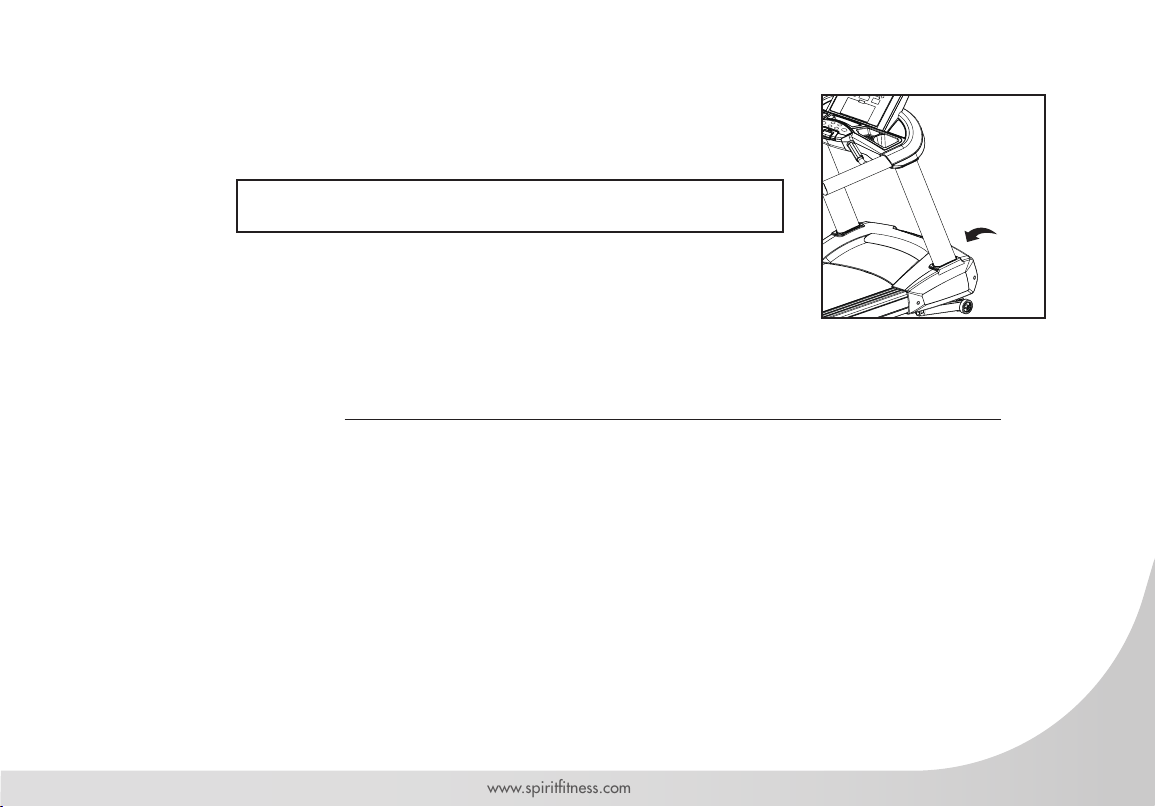

Serial Number Location
8
Spirit Fitness
CT850ENT PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
TOOLS INCLUDED:
3/8”Allen Wrench
10mm Allen Wrench
Phillips Screwdriver
PARTS INCLUDED:
2 Console Masts
2 Side Covers
1 Base Frame
1 Console Support
1 Console
1 Safety Button
1 Power Cord
1 Tube of Lubricant
(1 application)
1 Hardware Kit
9
www.spirittness.com
TOOLS INCLUDED:
3/8”Allen Wrench
10mm Allen Wrench
Phillips Screwdriver
PARTS INCLUDED:
2 Console Masts
2 Side Covers
1 Base Frame
1 Console Support
1 Console
1 Safety Button
1 Power Cord
1 Tube of Lubricant
(1 application)
1 Hardware Kit

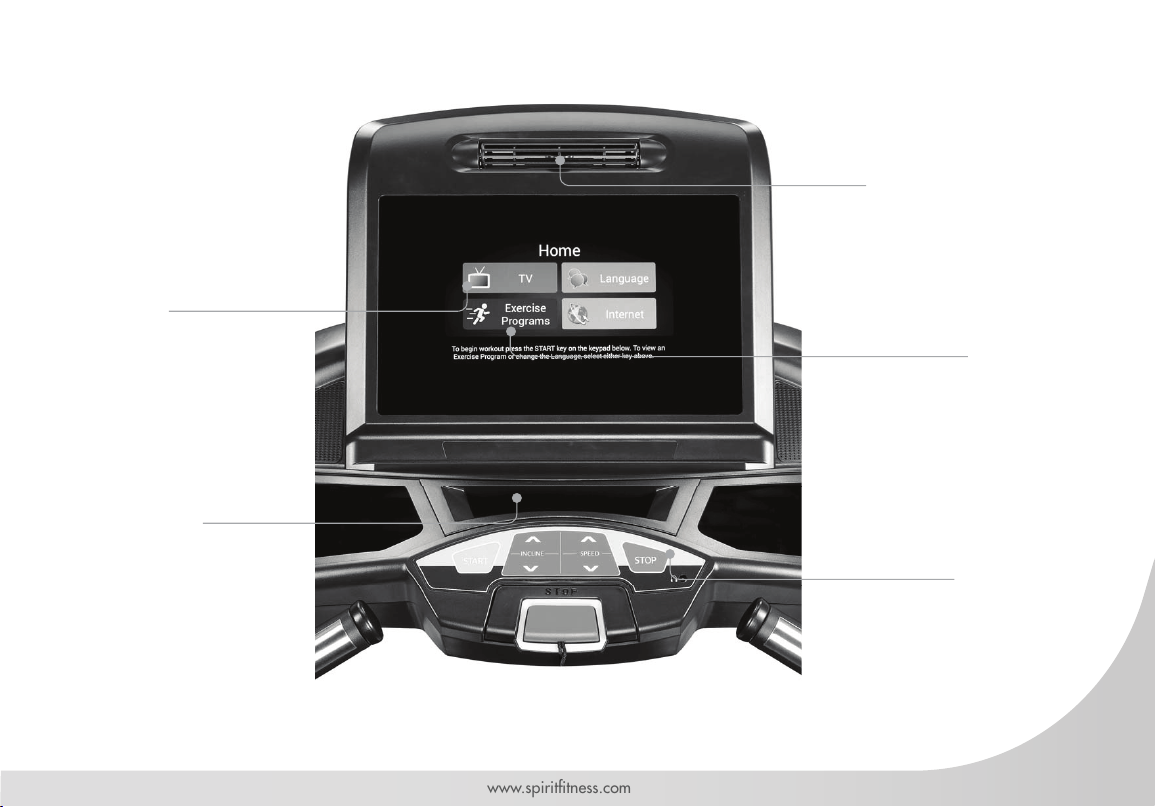

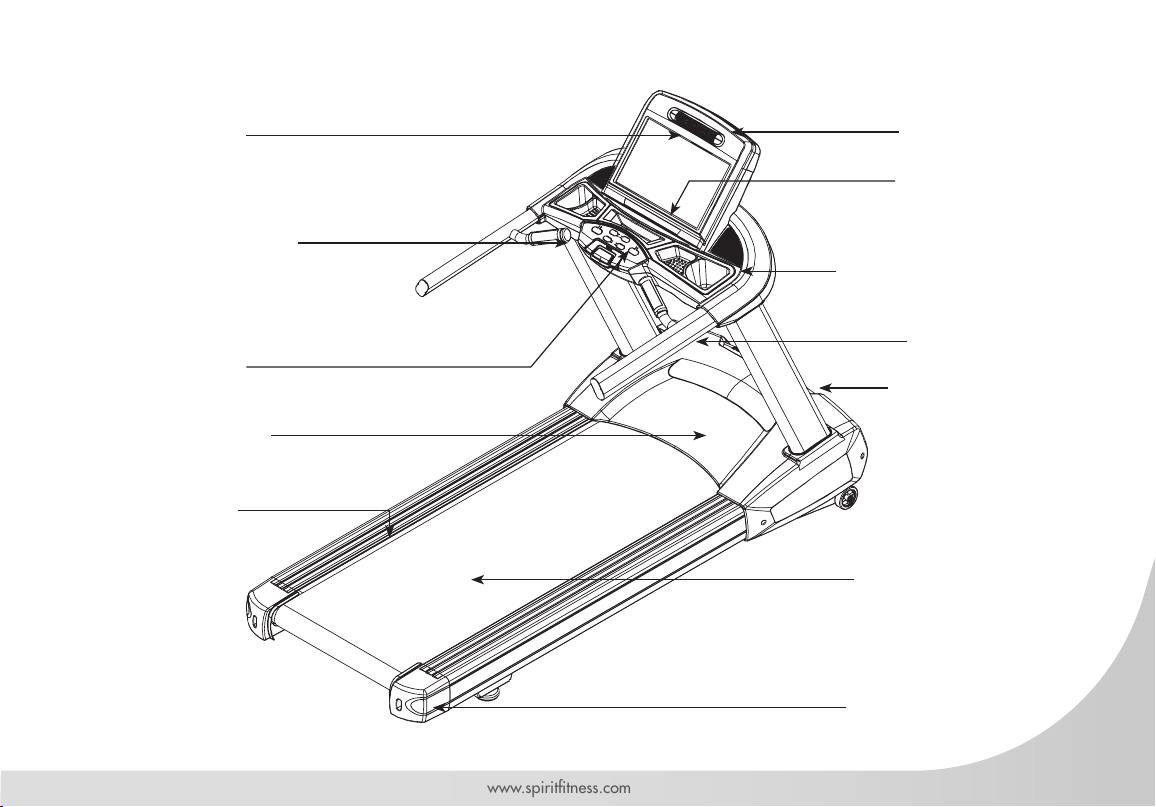

CONSOLE
HEART RATE GRIPS
SAFETY BUTTON
MOTOR COVER
SIDE RAILS
RUNNING BELT/DECK
TREAD-BELT TRACKING
CONSOLE MAST
HANDRAILS
CONSOLE FAN
DRINK BOTTLE HOLDER
READING RACK
10
Spirit Fitness

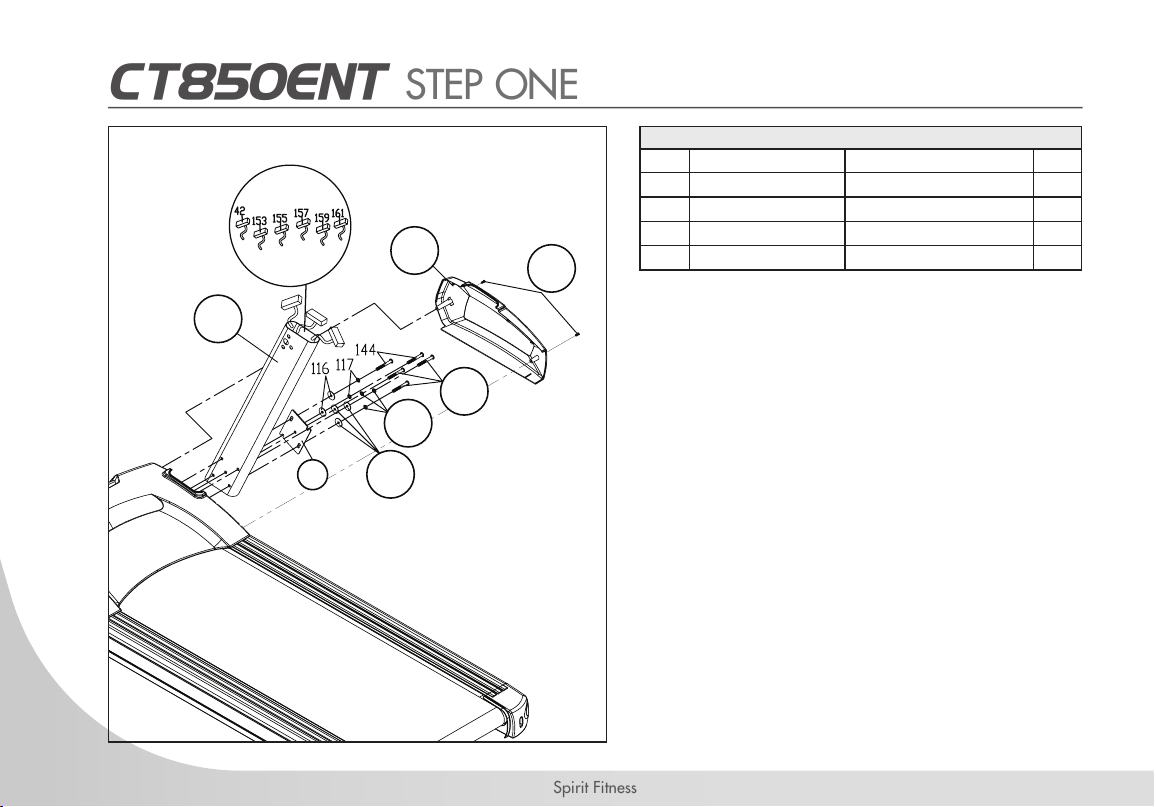

CT850ENT STEP ONE
34
27
134
116
117
144
98
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
116 FLAT WASHER 3/8”X35X2T 10
117 SPLIT WASHER 3/8”X16.5X2.0T 10
134 SCREW M5X12MM 4
144 BOLT 3/8”X3” 10
1. The RIGHT UPRIGHT (34) has a preinstalled
Lower COMPUTER CABLE (42) TV SIGNAL (153),
CONSOLE POWER (155), NETWORK (157),
CSAFE (159), and HDMI CABLE (161). To install the
uprights on the base frame, special care must be
taken not to pinch the computer cable between the
upright and frame base. Slide the SPLIT WASHER
(117) and FLAT WASHER (116) on the BUTTON
HEAD SOCKET BOLT (144). Slide the BOLT through
the top hole in the RETAINING PLATE (98), and
corresponding top hole in the upright tube, and
screw into the base frame. Now install the other 4
BUTTON HEAD SOCKET BOLTS (144) together with
SPLIT WASHERS (117), and FLAT WASHERS (116)
and tighten all 5 bolts up.
2. Repeat this step to install the LEFT UPRIGHT (33).
3. Attach the LEFT and RIGHT PLASTIC COVERS (26-L,
27-R) with 4 PHILLIPS HEAD SCREWS (134).
11
www.spirittness.com
28
133
5

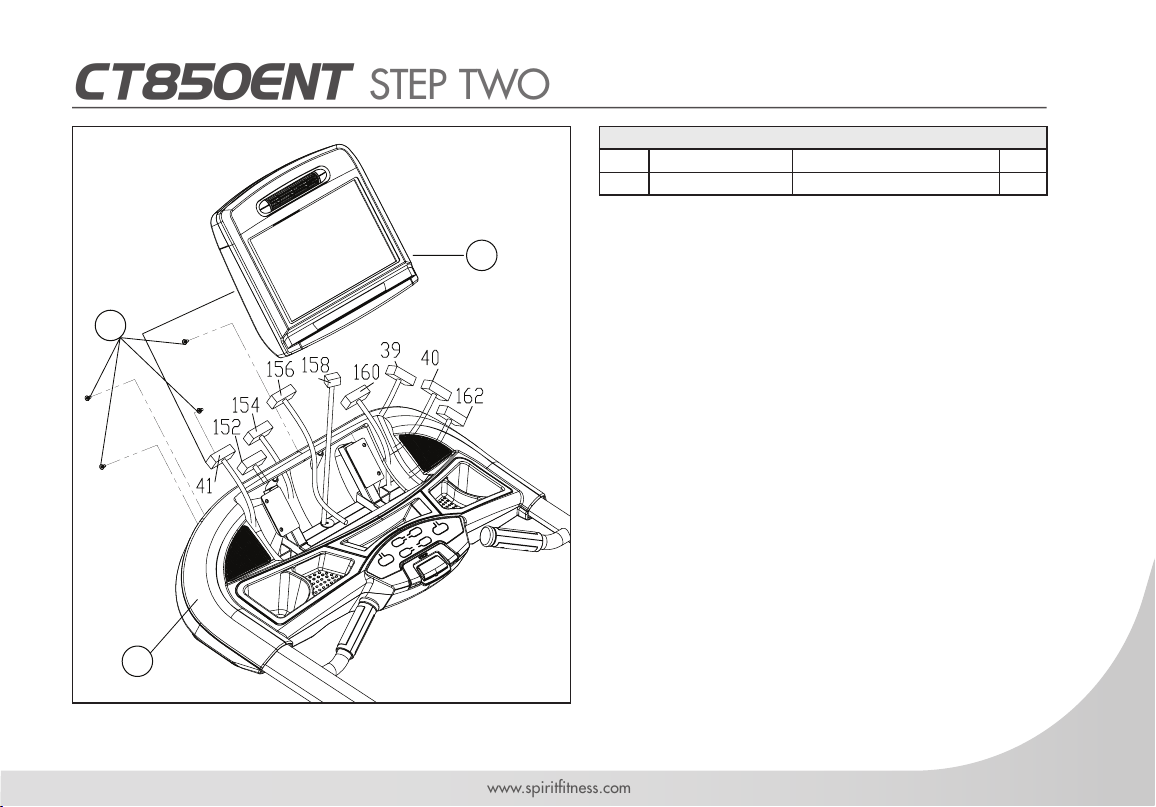

HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
133 SCREW
M5X20
4
1. Connect the Upper COMPUTER CABLE (41),
TV SIGNAL (152), CONSOLE POWER (154),
NETWORK (156), CSAFE (158), and HDMI
CABLE (160). HAND PULSE WIRE (39)(40) and
GROUND WIRE (162) to the BOARD on the back
of the CONSOLE (28).
2. Use 4 PHILLIPS HEAD SCREWS (133) to secure
console assembly to the CONSOLE SUPPORT (5).
CT850ENT STEP TWO
12
Spirit Fitness
125
125
117
117
145
4
3
146
146
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
117 SPLIT WASHER
3/8”X16.5X2.0T
6
125 FLAT WASHER
3/8”X25X2T
6
145 BOLT
3/8”X3/4”
6
146 BOLT
M8X12
6

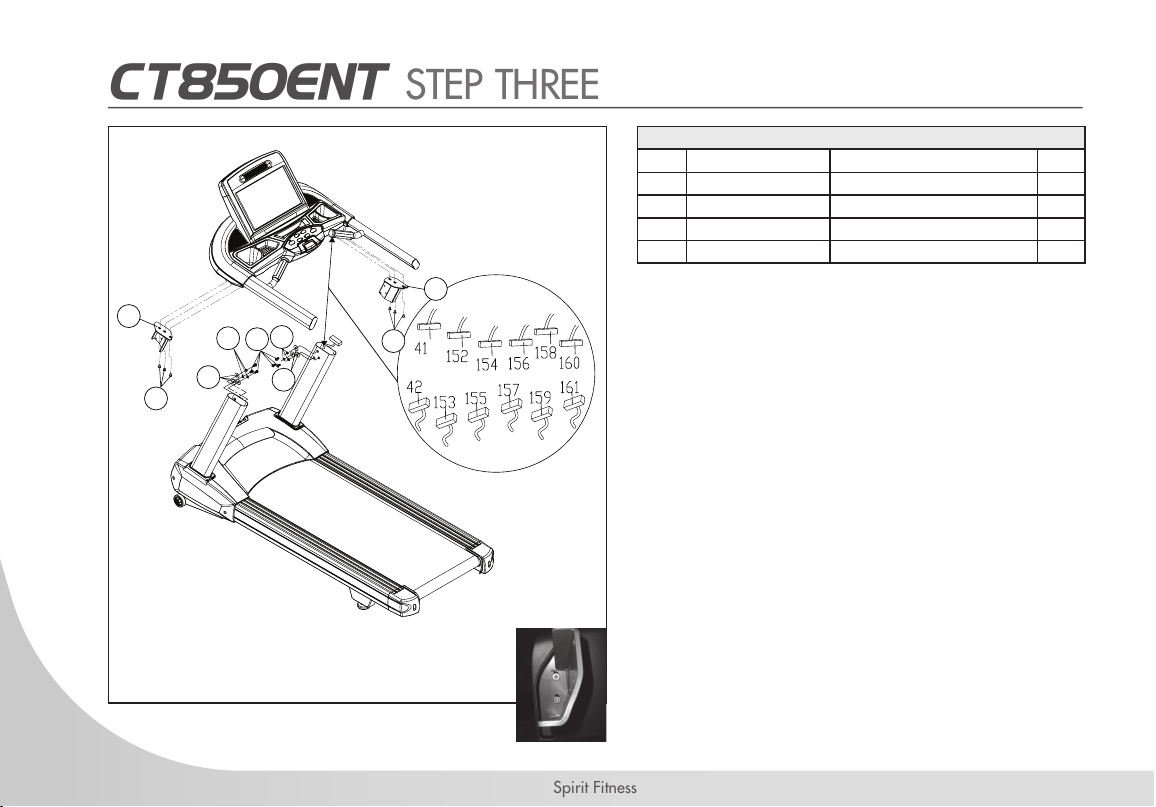

*When assembling the CONSOLE MOUNTING INTERFACE
BRACKETS (3 & 4) please be sure to slide the brackets all the way
toward the back of the console before tightening the bolts.
1. Use 6 SOCKET HEAD CAP BOLTS (146) to secure
the console onto the LEFT AND RIGHT MOUNTING
BRACKETS (3-L, 4-R). See photo below.*
2. Connect upper computer cable (41) and lower
computer cable (42), upper TV Signal Cable (152)
and lower TV Signal Cable (153), upper Console
Power Cord(154) and lower Console Power Cord
(155)upper network W/Cable (156)and lower
network W/Cable (157)upper CSAFE W/Cable
(158)and lower CSAFE W/Cable (159)upper HDMI
Cable (160) and lower HDMI Cable (161)Slide the
assembly into the left and right uprights.
3. Slide six SPLIT WASHERS (117) and 6 FLAT
WASHERS (125) onto 6 BUTTON HEAD SOCKET
BOLTS (145) on top of uprights. Be careful not to
pinch the cable.
CT850ENT STEP THREE
13
www.spirittness.com
162
163
117
162
163
117
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
117 SPLIT WASHER
3/8”X16.5X2.0T
2
162 BOLT
3/8”X16X1
-
¾”
2
163 CURVED WASHER
10X23X1.5T
2

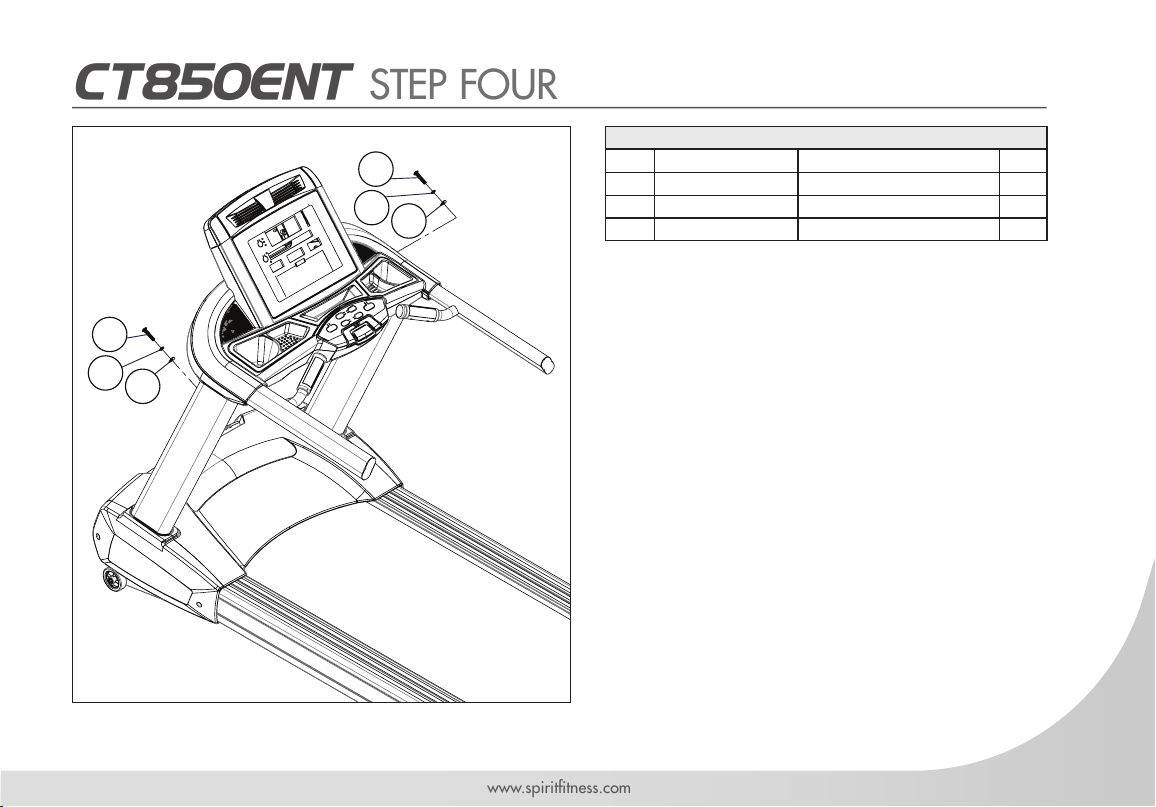

1. Slide 2 CURVED WASHERS (163) and 2
SPLIT WASHERS (117) onto 2 BUTTON HEAD
SOCKET BOLTS (162). Slide the BOLTS through
the holes on the console masts an tighten.
CT850ENT STEP FOUR
14
Spirit Fitness
CT850ENT CONSOLE OPERATION
15
www.spirittness.com
Large touch-screen LCD
Twelve innovative
programs offer a
variety of workouts
Fan to keep
you cool
Easy-touch
control buttons
Convenient cargo
compartment for
buttons, phone, or
MP3 player
b
16
Spirit Fitness

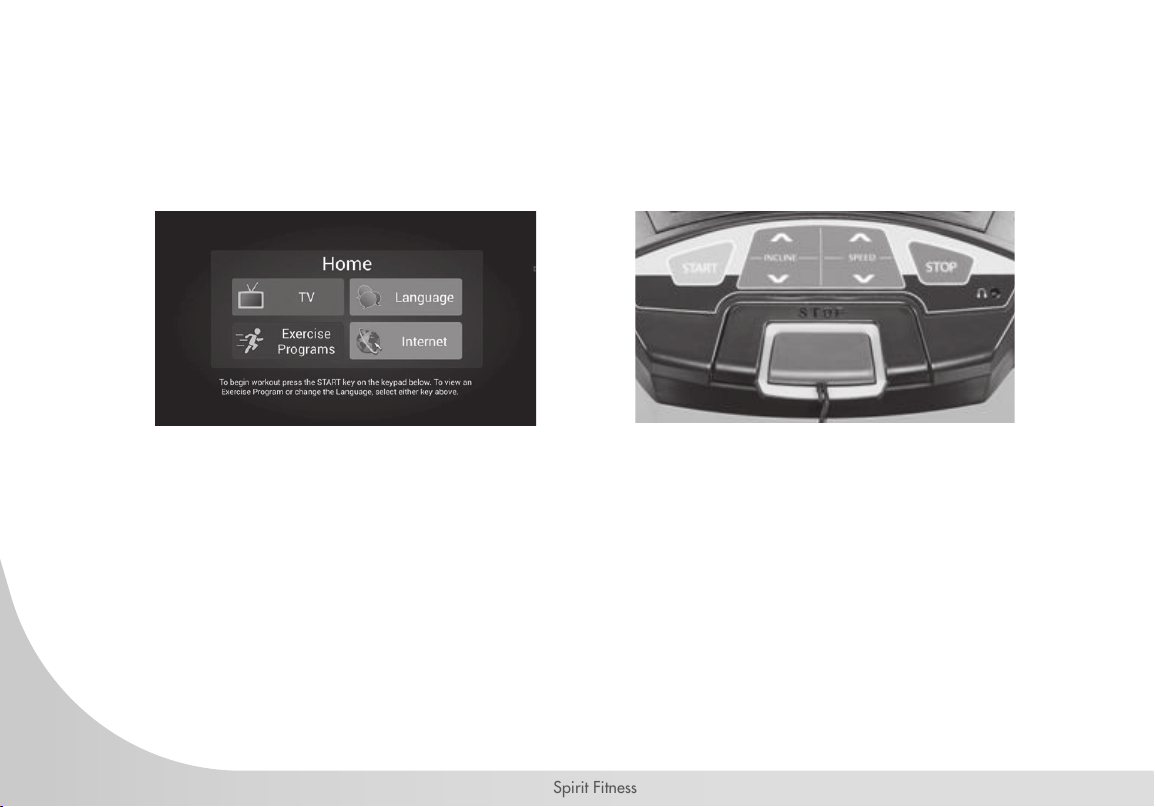

STARTING OPERATION
Plug in the power cord located at the front base of the unit. When the power is turned on, the screen
will show the initial image and then enter the Home screen.
Quick operating buttons are conveniently located
for basic treadmill functions.

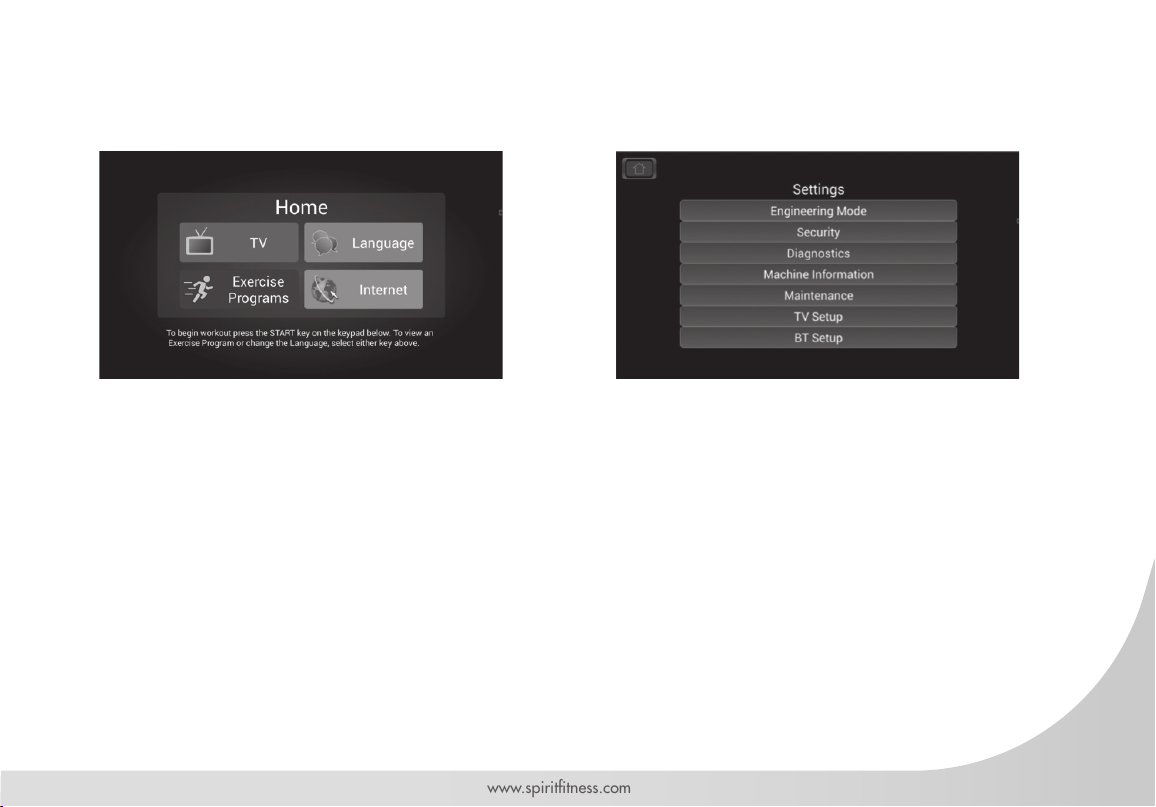

Home Screen: Begin operation by touching the icons.
17
www.spirittness.com
SETTINGS
Press the “Home” icon ten consecutive repetitions to enter the Maintenance suite.
The two most commonly used menus for setting up the exercise machine are described below; the TV
Setup and Maintenance menus. For information on other sections of the Maintenance suite refer to the
technical service manual or call Spirit service.
18
Spirit Fitness

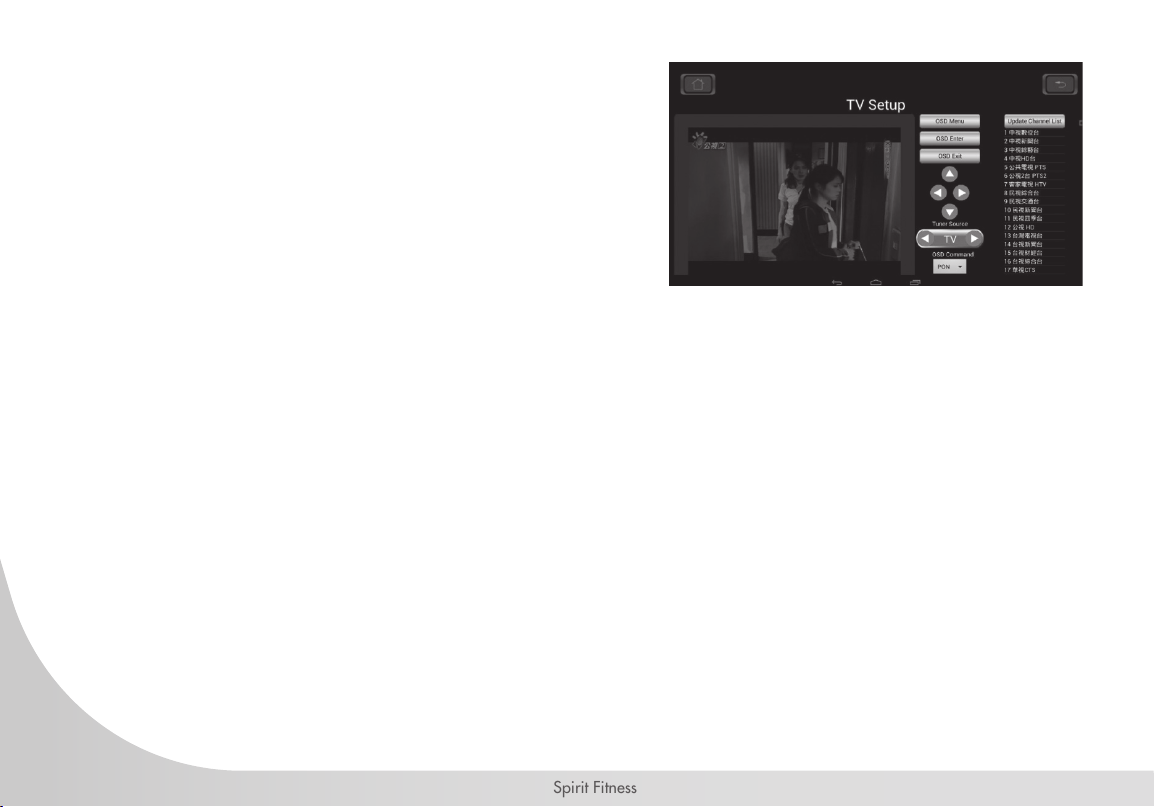

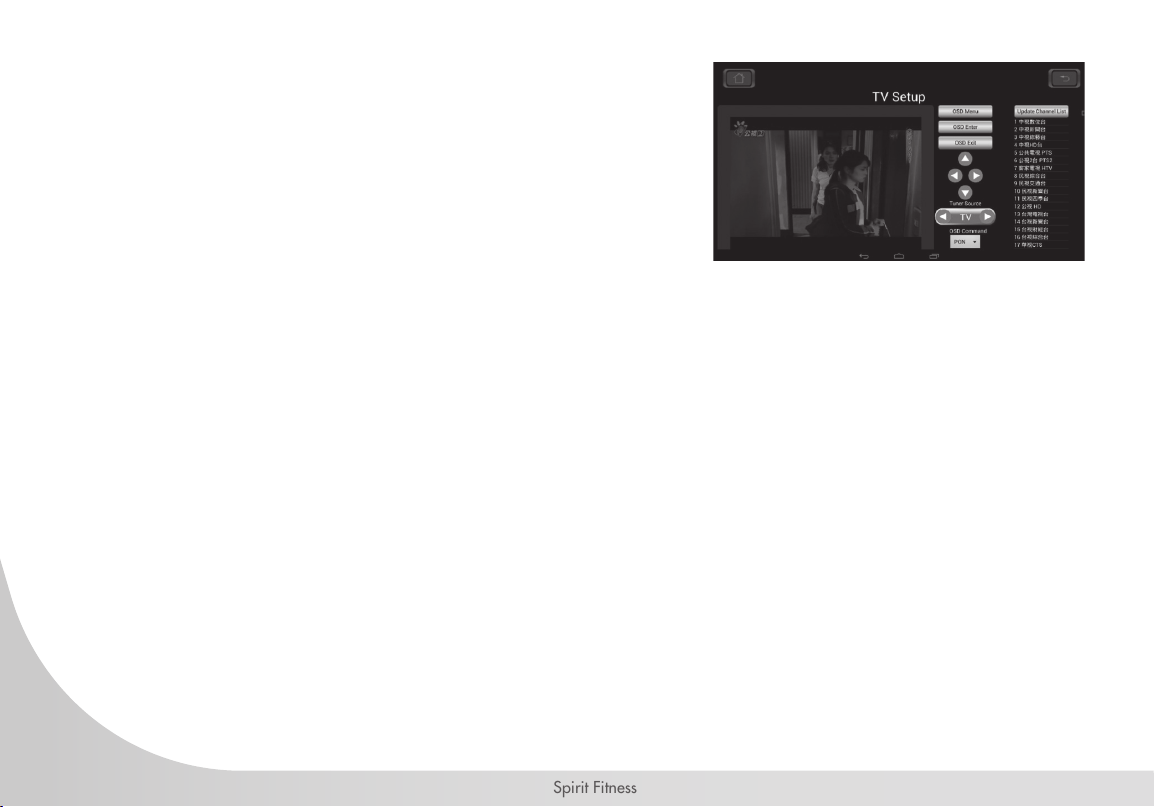

TV SETUP
1. Begin by selecting either TV or HDMI as the tuner source.
2. Press OSD Menu. The rst highlighted item on the menu is
Air/Cable and then Cable or Air afterward. Press the
OSD Enter to change the selection between Cable and Air
Signal source (usually Cable).
3. After selecting Cable or Air use the arrows located below
the OSD Exit button to navigate down to Auto Scan
then press OSD Enter. The tuner will now scan for all
available channels. Press OSD Exit when done. You can
modify the channels by pressing the Update Channel List.
4. The OSD Command button is for engineering use only.
19
www.spirittness.com

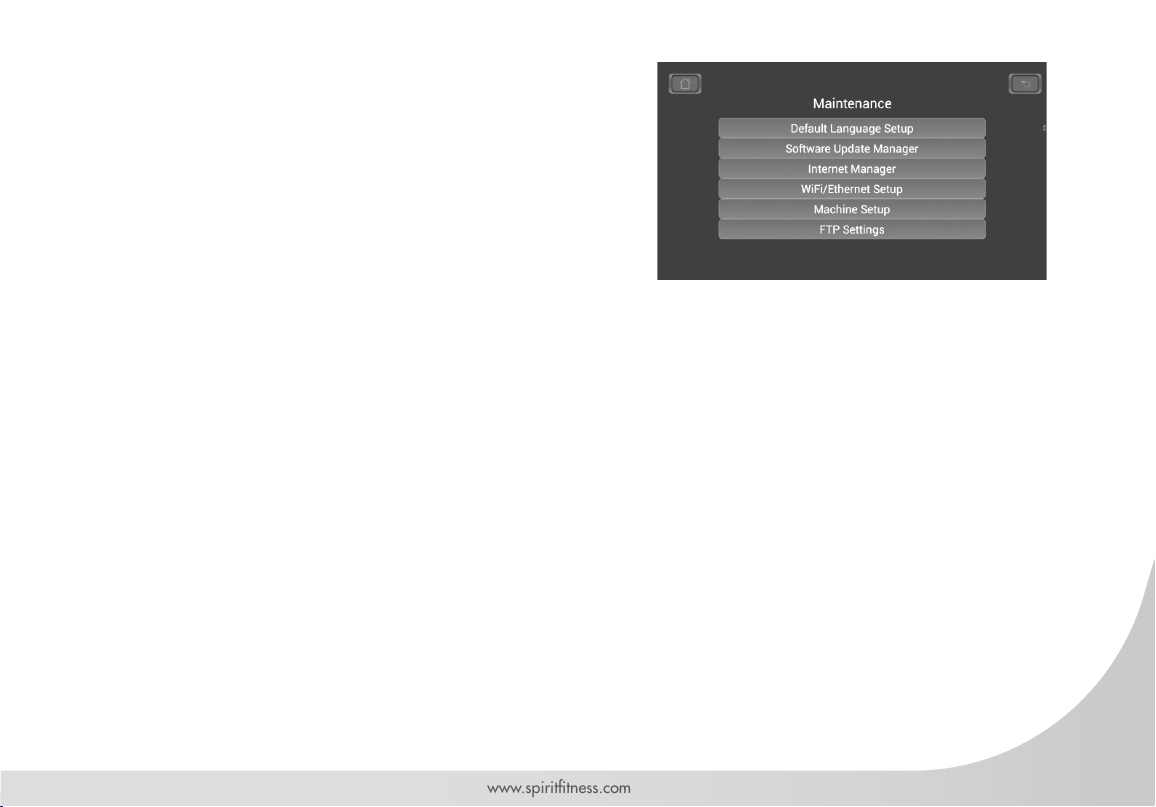

MAINTENANCE MENU

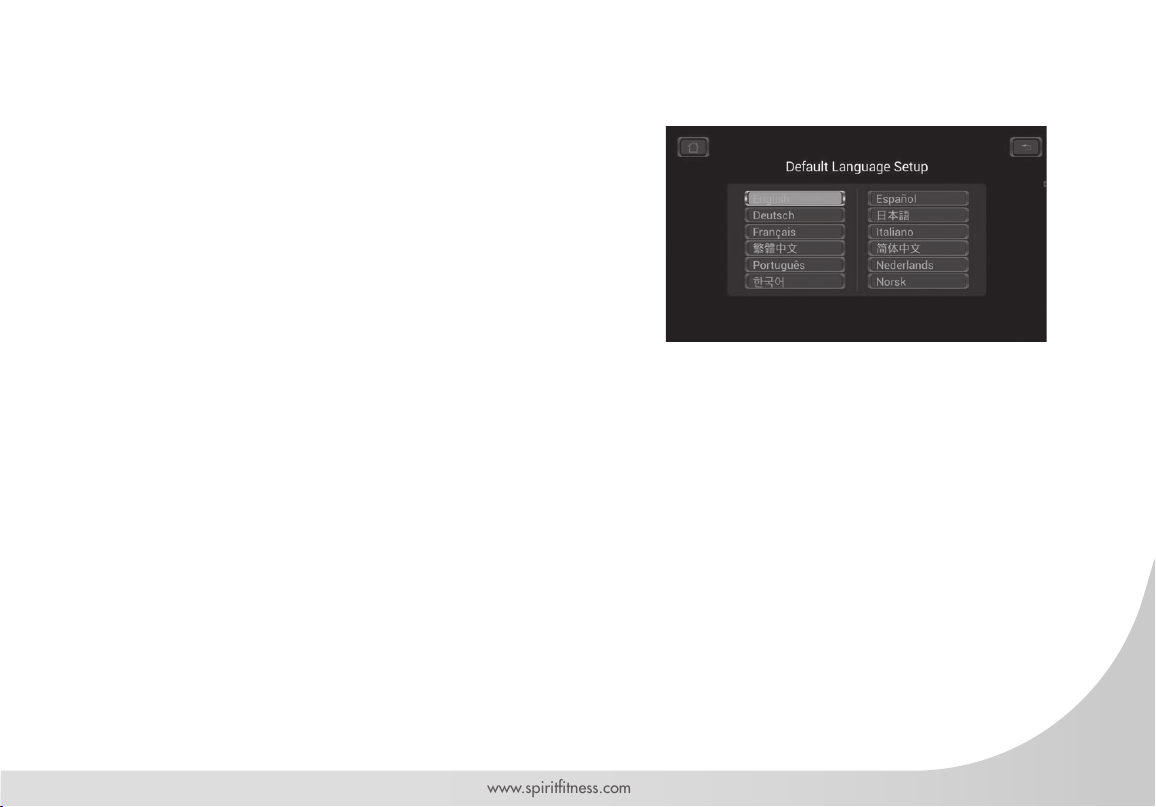

• The Default language setup allows you to select the main
language that will be shown when the console is turned on.
You are able to select the language in the Home menu, but
once the user nishes using the machine the console will return
to this default language.
• Software Update Manager is used to install new versions of
the application software.
• Internet Manager allows you to modify the internet sites that are
shown in the Internet menu.
• Wi/Ethernet Setup is for selecting a Wi signal or
Ethernet addresses.
• Machine Setup allows you to select whether the Csafe port is
used for Csafe or CAB TV Tuner. This menu also allows you to
set the screen brightness.
• FTP Settings is the Spirit FTP site address where error logs and
remote troubleshooting can be managed.
20
Spirit Fitness

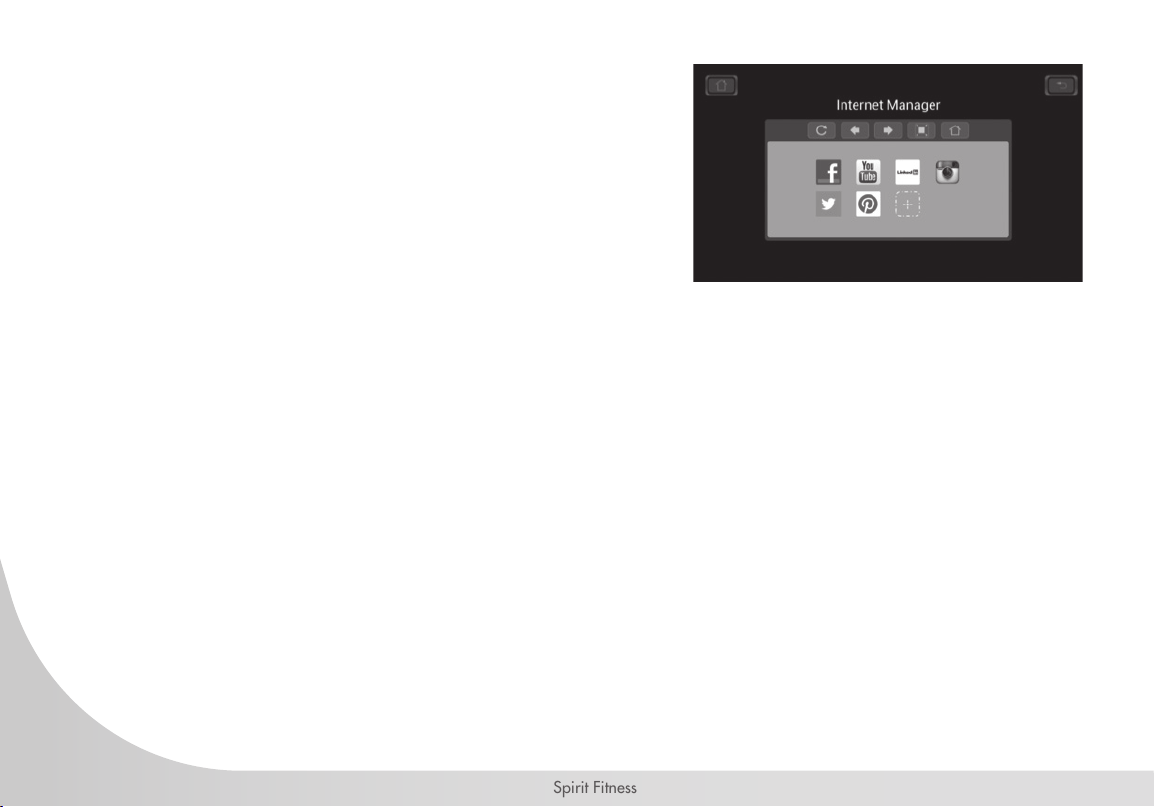

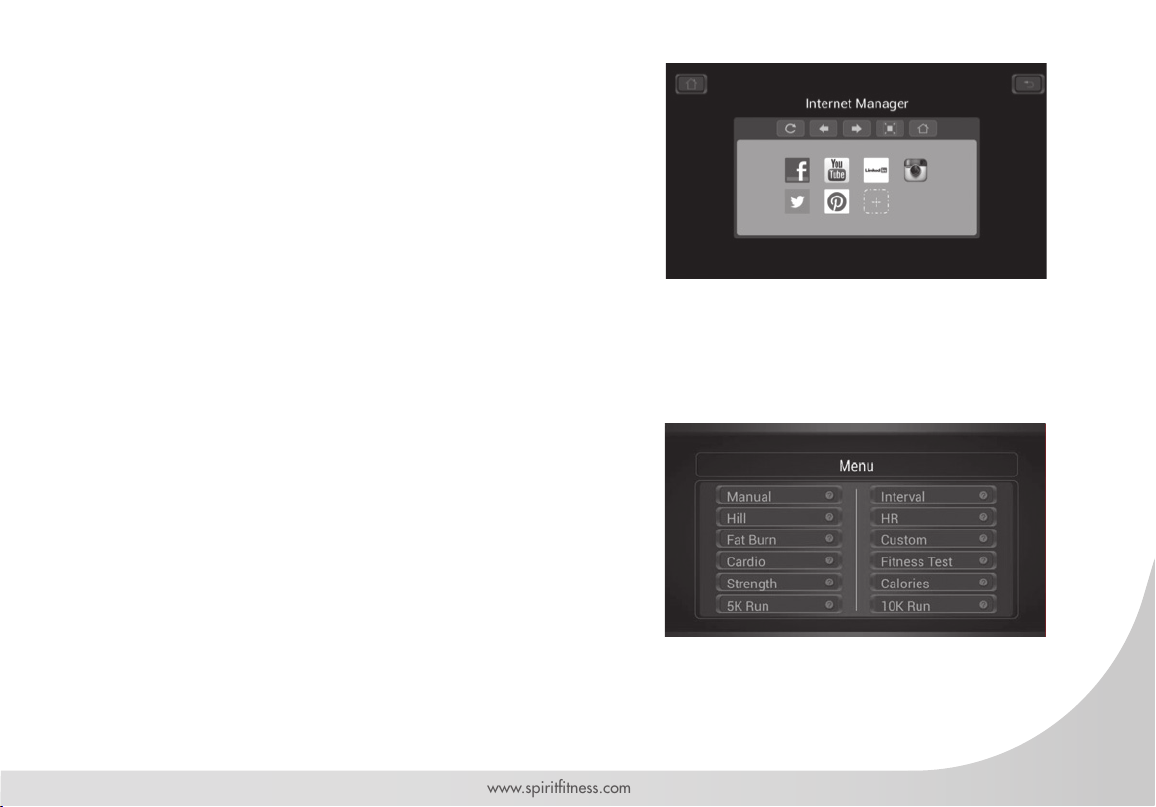

INTERNET MANAGER
1. Remove a link by pressing the icon of the site you want to
remove for two seconds. A pop-up window will ask you to
conrm the removal.
2. To add a website press the dotted outline box. A pop-up
window will ask you to enter the web address and upload a
picture for the nal button if you wish. You could also just use a
default-look button and type in the name of the site, which will
then be the button icon.
21
www.spirittness.com

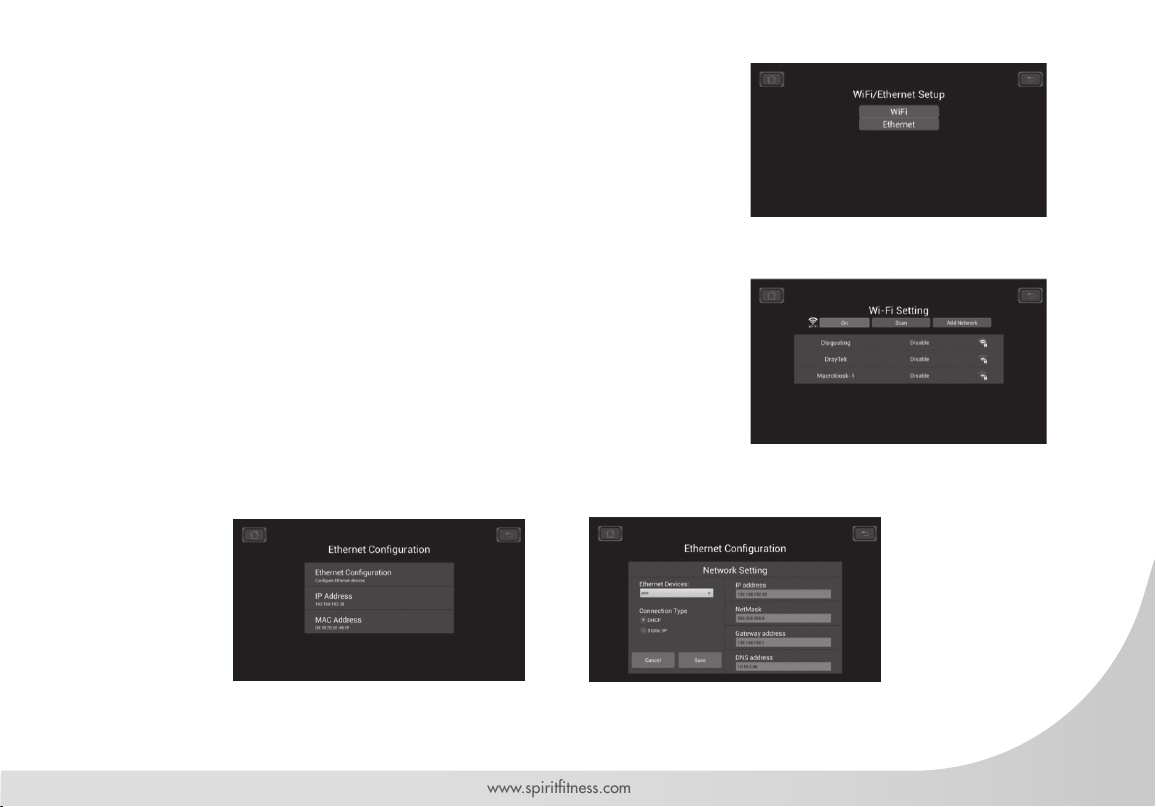

WIFI/ETHERNET SETUP
Press the desired button for setting up Wi or Ethernet.
WIFI SETUP
Turn Wi on and press scan for available Wi connections. Press
desired connection and follow the on-screen directions.
ETHERNET SETUP
Select DHCP to search for connection
or Static IP to enter manually
Press Ethernet Conguration to set
up a new connection.
22
Spirit Fitness

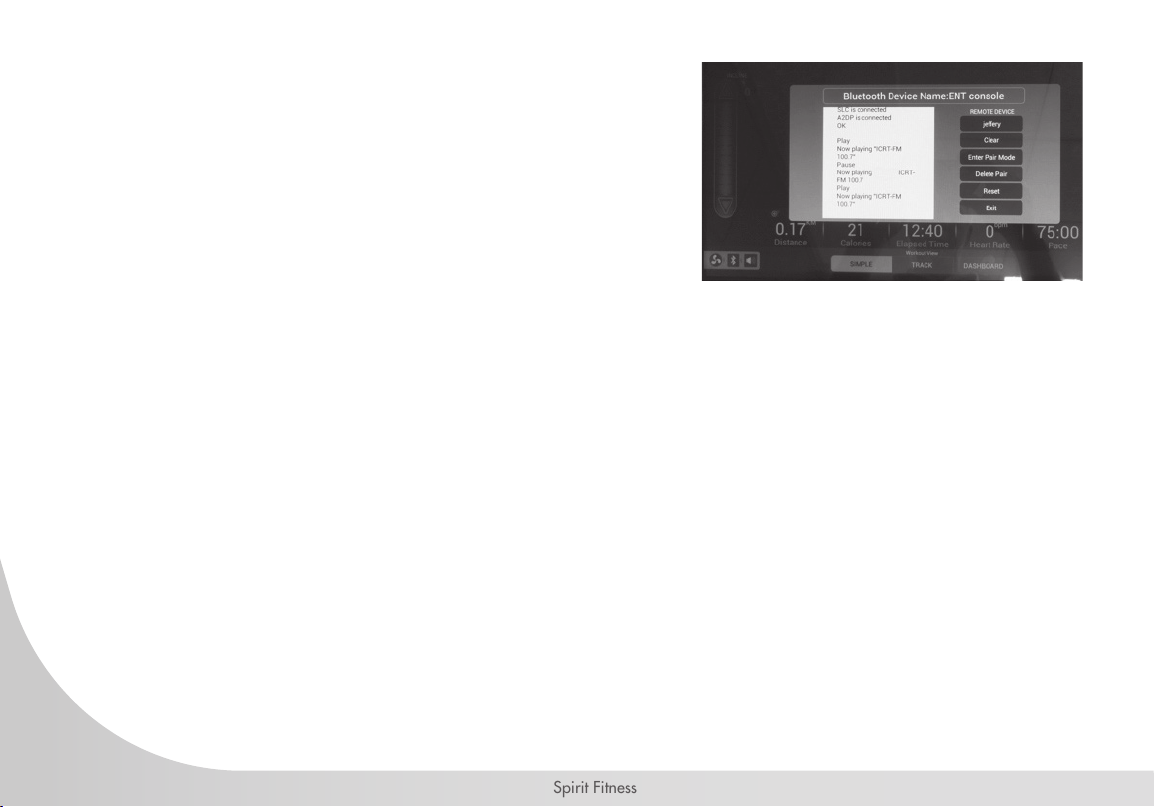

BLUETOOTH PAIRING PROCEDURE
1. Press the Blue Tooth (BT) icon on the bottom left of the screen.
2. The BT pop-up screen will appear. Turn on Phone/tablet BT and
then press Pair Mode on ENT Menu.
3. The menu with show Entering Pairing mode and the phone will
show A2DP as an available device.
4. The A2DP console and phone will ask you to conrm pairing,
press OK.
5. Pairing complete.
6. Open audio APP on phone and the audio will be played
through the headphone port on the ENT console.
23
www.spirittness.com
TOUCH SCREEN OPERATION
LANGUAGE
When you press the Language button on Home screen, it
enters the menu with all language options.
There are 12 languages to choose from. Touch the desired
language and the system will return to the Home screen which
will now be in the chosen language.
24
Spirit Fitness
TV
When the TV button on the Home screen is pressed, it directly
enters TV interface.
Now you can enjoy TV programs. If you want to enjoy TV
while exercising, press Start button at front of the treadmill to
initiate Quick Start or press Programs to select a workout.
You can change the TV channels by pressing the channel up/
down buttons on the right side of the screen. You can also use
the Volume Up/Down buttons to change the sound levels. If
you want to silence the audio touch Mute button. Touch the Max
Screen to switch to full screen viewing. Touching anywhere on
the screen will return it to the original screen size.
25
www.spirittness.com
INTERNET
When the Internet button on the Home page is pressed, you
are directed to Internet interface.
There are 6 basic internet sites to choose from. You may
change or add other sites through the Maintenance program
(more on this later in the manual in the System Maintenance
Suite section).
NOTE: An internet cable connection or WIFI connection is
required.
EXERCISE PROGRAMS
When the Exercise Program button on the Home page is
pressed, the tness program menu appears.
There are 12 programs to choose from. Press the desired
program button and follow the on-screen directions. For
Manual Program as an example, just touch Manual button
on the screen to enter the programming for Manual.
26
Spirit Fitness
FUNCTIONS OF THIS TREADMILL
The Touch-control screen is used for operating all functions of the treadmill. You can directly touch any
button on the screen or through quick buttons on the forward pod to control functions. On the forward pod,
there are Fast/Slow buttons to control the speed, Start button to begin the workout, Stop button to pause/
stop running, Incline Up/Down buttons to control the incline of the treadmill.
QUICK START
Press any button to wake display up if not already on.
• Press the Start button to begin belt movement at 0.5 mph then adjust to the desired speed using the Speed +/–
button, or by typing the desired speed on the numeric keypad. Once setting desired is selected press Enter.
• To stop the treadbelt press and release Stop button.
27
www.spirittness.com
PAUSE/STOP/RESET
When the treadmill is running the pause feature may be utilized by pressing the red Stop button once. This will
slowly decelerate the treadbelt to a stop. The incline will go to zero percent. The Time, Distance and Calorie
readings will hold while the unit is in the pause mode. After 5 minutes the display will reset and return to the
start-up screen.
• To resume your exercise when in Pause mode, press the Start button. The speed and incline will return to their
previous settings.
• Pressing the Stop button twice will end the program and a workout summary will be displayed. If the Stop button is
pressed a third time, the console will return to the idle mode (start-up screen).
• If the Stop button is held down for more than three seconds the console will reset.
• When you are setting data, such as age and time, for a program pressing the Stop button will allow you to go
back one step for each button press.
INCLINE
• Incline may be adjusted any time after the belt starts moving.
• Press and hold the adjustment Incline +/– buttons to achieve desired level of incline.
• The display will indicate incline numbers as percent of grade (the same as grade of a road) as adjustments are made.
28
Spirit Fitness

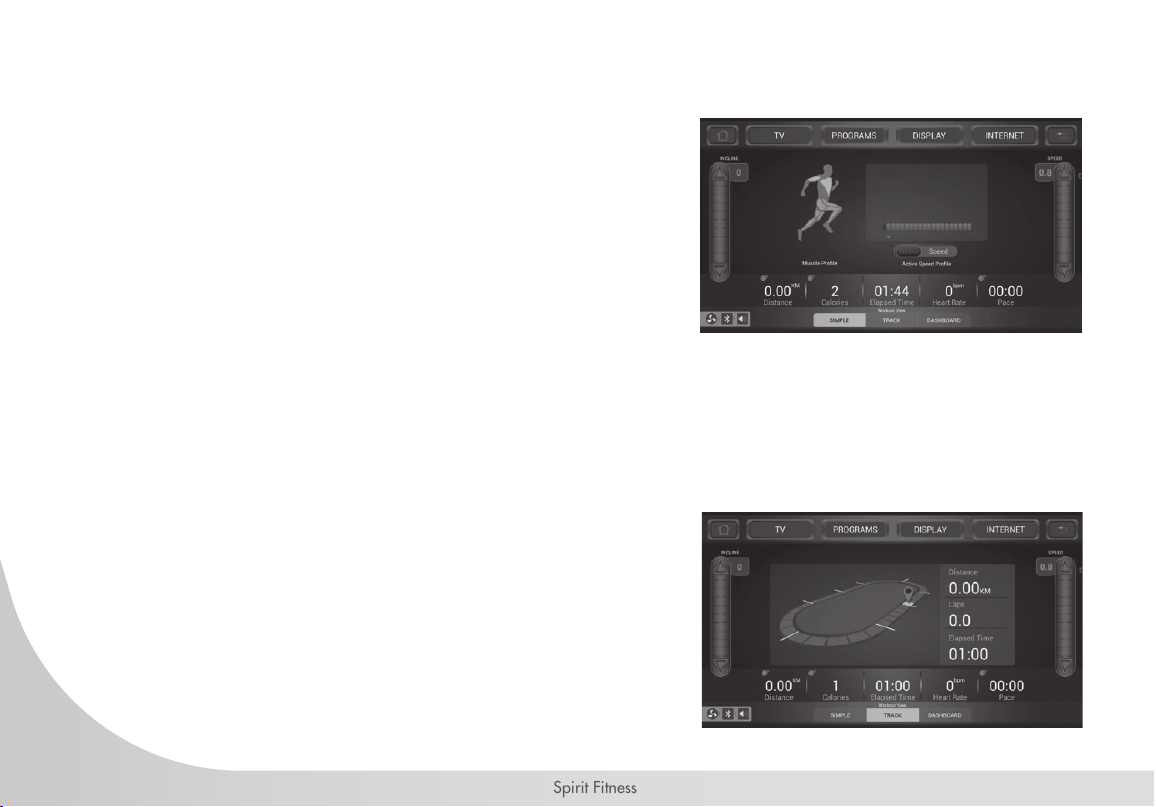

DISPLAY OPTIONS
SIMPLE
The default display at the start of a program is a Simple
display. The prole window shows the work level graphically.
All your workout values are displayed on the bottom of the
screen. Some of the data windows have a + sign at the top
indication more data available. Press the data window to see
other information available.
Below the prole window are buttons that allow you to switch
the display between the speed and incline proles. Below the
data displays are Track and Dashboard buttons for selecting
other display options. A muscle prole displays active muscle
groups as workloads change.
TRACK
The Track display gives a graphical representation of your
position on a virtual track. The image shows the track with
a lap counter and other values.
29
www.spirittness.com

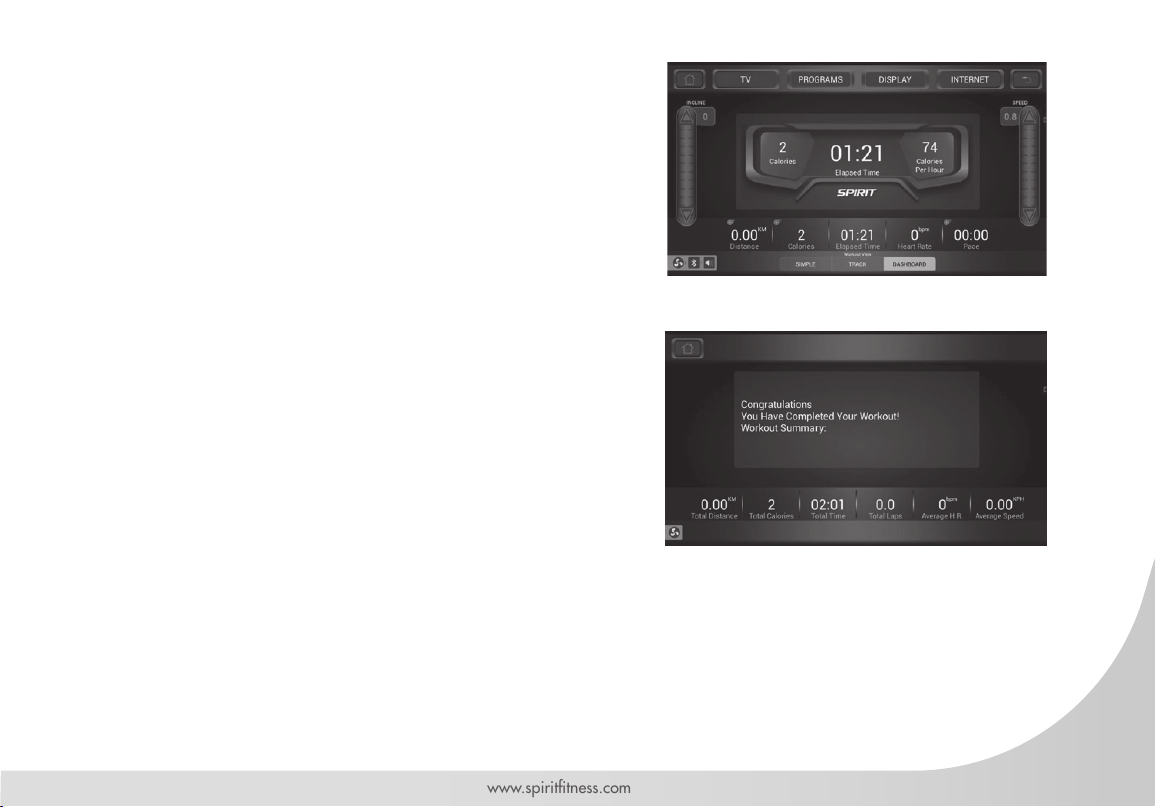

DASHBOARD
The Dashboard display shows a larger display area of
key information.
STOP BUTTON
When using the Stop button to end the program, it enters the
summary screen.
On the summary screen, all accumulated values concerning
the workout are displayed. You can touch the Home button at
left top or press Stop button to return to the home screen.
30
Spirit Fitness
HEART RATE FEATURE
The Pulse (Heart Rate) on the screen shows the current value of the heart beats per minute. You must use
both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed anytime the
computer is receiving a Grip pulse signal. You may use the Grip pulse feature while in Heart Rate Control.
The CT850ENT will also pick up wireless heart rate transmitters that are Polar compatible.
TO TURN TREADMILL OFF:
The screen will automatically turn off (go to sleep) after 30 minutes of inactivity. This function is called sleep
mode. In sleep mode, the treadmill will power down most everything except for a minimum of circuitry
for detecting button presses and the safety key so it will start up again if these are activated. There is only
a tiny amount of current used in sleep mode (about the same as your TV when it is turned off) and it is
perfectly ne to leave the main power switch on in sleep mode. Of course you may also remove the safety
key or turn off the main power switch to power down the treadmill.
31
www.spirittness.com
PROGRAMMABLE FEATURES
Each of the programs can be customized with your personal information and changed to suit your needs.
Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for
your Age and Weight. Entering your Age ensures that the Heart Rate bar graph shows the correct number.
Your Age is also necessary during the Heart Rate control program to ensure the correct settings are in the
program for your Age. Otherwise the work settings could be too high or low for you; entering your Weight
aides in calculating a more correct Calorie reading. Although we cannot provide an exact calorie count
we do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at
home, are not accurate and tend to vary widely. They are meant only as a guide to monitor your progress
from workout to workout. The only way to measure your calorie burn accurately is in a clinical setting
connected to a host of machines. This is because every person is different and burns calories at a different
rate. Some good news is that you will continue to burn calories at an accelerated rate for at least an hour
after you have nished exercising!
32
Spirit Fitness
ENTERING A PROGRAM & CHANGING SETTINGS
The Spirit Fitness CT850ENT offers a variety of exercise program options to choose from: Manual, Hill, Fat
Burn, Cardio, Strength, 5k Run, Interval, HR, Custom, Fitness Test (Air Force, Army, Coast Guard, Gerkin,
PEB, Marine Corps, Navy, WFI), Calories, and 10k Run. To select and start a preset program:
1. Select a preset program button then press Enter to begin customizing the program with your personal data, or just
press the Start button to begin the program with the default settings.
2. After selecting a program and pressing enter to set your personal data, the Message window will prompt you
through the settings starting with time. The default value of 20 minutes will be displayed and you may press Enter to
accept or change it using the keypad and just press Enter to move to the next step
3. The Age window will now be displaying a value indicating your Age. (Entering the correct Age will affect the
Heart rate bar graph accuracy and also needed for the HR programs. Use numeric key pads to make adjustments,
and then press Enter conrm. Default age is 30 years old. Range=10 to 110).
4. The Weight window will now be showing a value indicating your Bodyweight. (Entering your correct bodyweight
affects the Kcal readout accuracy. Use the numeric key pad to make adjustments, and press the Enter button to
conrm. Default weight is 70KG. Range=10 to 150).
5. The Message Window will now be showing the preset top speed of the selected program. Use the keypad to adjust
and then press Enter. Each program has various speed changes throughout; this allows you to limit the highest speed
the program will attain during your workout.
6. Now press the Start button to begin your workout, or the Stop button to return to the previous screen.
7. There will be a 3-minute warm-up to begin. You can press the Start button to bypass this and go straight
to the workout. During the warm-up the clock will count down from three minutes.
33
www.spirittness.com
P1= HILL; P2= FAT BURN; P3= CARDIO; P4= INTERVAL

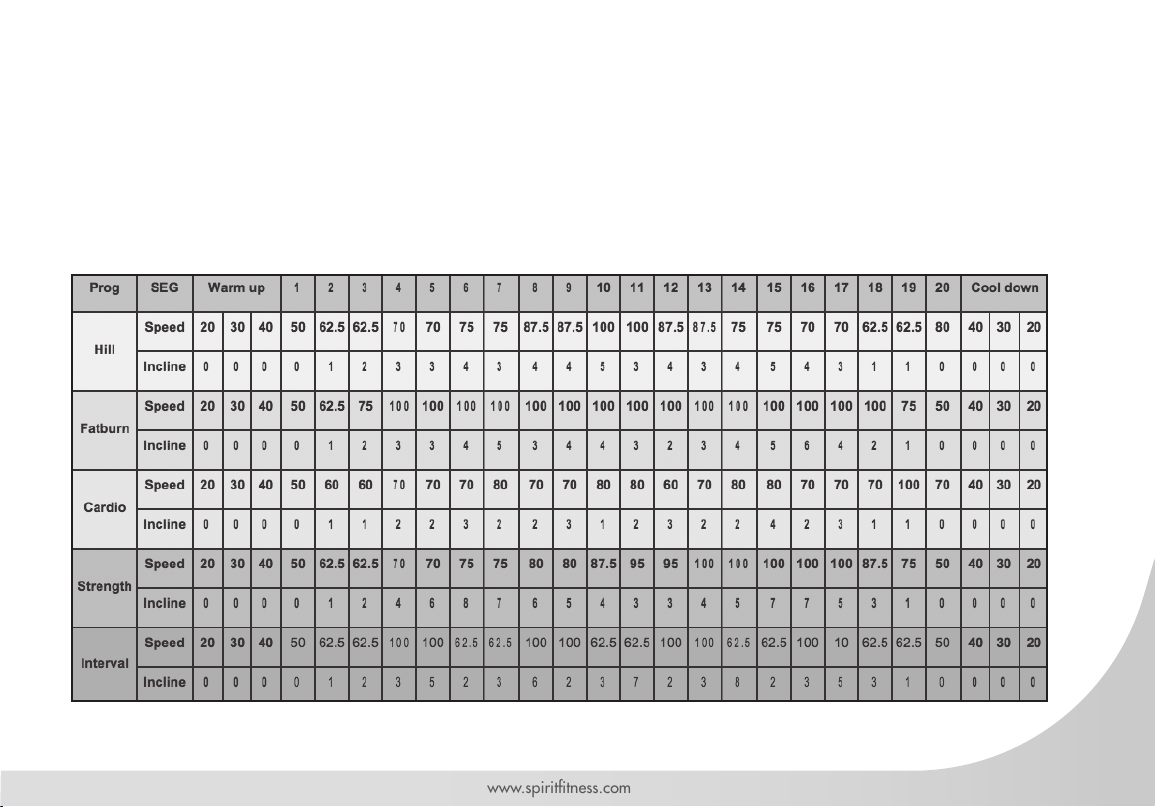

PRESET PROGRAMS SPEED/INCLINE SETTINGS
The preset program Speed and Incline levels are shown in the chart below. The Speed numbers shown in
the chart indicate a percentage of the top speed of the program. For instance, the rst Speed setting for P1
(Program 1, HILL) shows the number 20.This means that this segment of the program will have a speed that
is 20% of the top speed for the program (The user sets the top speed in the procedure above). If the user
sets the top speed to 10 mph, then the rst segment will be 2 mph. You will notice that segment 12 shows
100 which means the speed will be set to 100% of 10 mph or simply 10 mph.
34
Spirit Fitness
MANUAL
Both Speed and Incline are controlled by the user. Increase
or decrease levels at any time during your workout.
HILL
Speed: This program follows a triangle or pyramid type of gradual
progression from approximately 10% of maximum effort (the level
that you choose before starting this program) up to a maximum
effort which lasts for 10% of the total workout time, then a gradual
regression of Speed back to approximately 10% of maximum effort
Incline: The deck elevation is a more gradual and sustained
progression. Maximum elevation is in the middle of the workout
and lasts for 10% of the duration.
FAT BURN
Speed: This program follows a quick progression up to the
maximum speed level (default or user input level) that is sustained
for 2/3 of the workout. This program will challenge your ability to
sustain your energy output for an extended period of time.
Incline: The deck elevation is a quick and sustained progression up
to the maximum value (default or user input) for 90% of the workout
duration.
35
www.spirittness.com
CARDIO
Speed: This program presents a quick progression up to near maximum
speed level (default or user input level). It has slight uctuations up and
down to allow heart rate to elevate, and then recover repeatedly,
before beginning a quick cool down. This will build up your heart
muscle and increase blood ow and lung capacity.
Incline: The elevation in this program is moderate. There are several
elevation spikes at different points of the workout. Segments 4, 9,
and 14 are maximum elevation for this program.
STRENGTH
Speed: This program has a gradual progression of speed up to
100% of maximum effort that is sustained from 25% of workout
duration. This will help build strength and muscular endurance in
the lower body and gluten. A brief cool down follows.
Incline: There is a quick climb to a moderate, sustained elevation
that lats the majority of the workout length.
5K RUN
Both speed and incline are controlled by the user. Increase or
decrease levels at any time during your workout. The track display
will set the distance of 1 lap to 5 kilometers (metric) or 3.1 miles
(standard measurement).
36
Spirit Fitness
INTERVAL
Speed: This program takes you through high levels of intensity
followed by recovery periods of low intensity. This program utilizes
and develops your “Fast Twitch” muscle bers which are used
when performing tasks that are intense and short in duration. These
deplete your oxygen level and spike your heart rate, followed by
periods of recovery and heart rate drop to replenish oxygen.
Incline: All of your lower extremity muscles will be equally
challenged throughout this program. The incline alternates
between 25% and 65% of maximum elevation.
HR
The default value is 65% of your projected rate maximum. You
have the option of changing your target heart rate. The machine
will attempt to keep you within ve beats of your target heart rate.
CUSTOM
You will create the desired speed and incline levels for each of the
20 segments of the program using the pop out keyboard on the
screen. After the program has started, you still have the ability of
changing these levels whenever you desire.
37
www.spirittness.com
FITNESS TEST
When the Fit test button is pressed the DM displays: GERKIN. This is the rst of 8 different tests available:
Air Force, Army, Coast Guard, Gerkin, PEB, Marine Corps, Navy, and WFI. The initial test is GERKIN; to
select a different test press the Fitness Test button again and the next test will be shown. Continue to press the
Fitness test button until the test you want is shown in the message window. To select your desired tness test,
press Enter.
Fit Test Operation:
1. For each program the Message Window will prompt you to enter your personal data such as Age, Weight,
Height, Gender. You may adjust the settings using the keypad or Up and Down buttons then press the Enter
button to accept the new number and proceed on to the next screen.
2. After all required data is entered you may now press Start to begin the test.
AIR FORCE
A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test:
For more detailed information, visit: http://bit.ly/SF-AirForce
38
Spirit Fitness

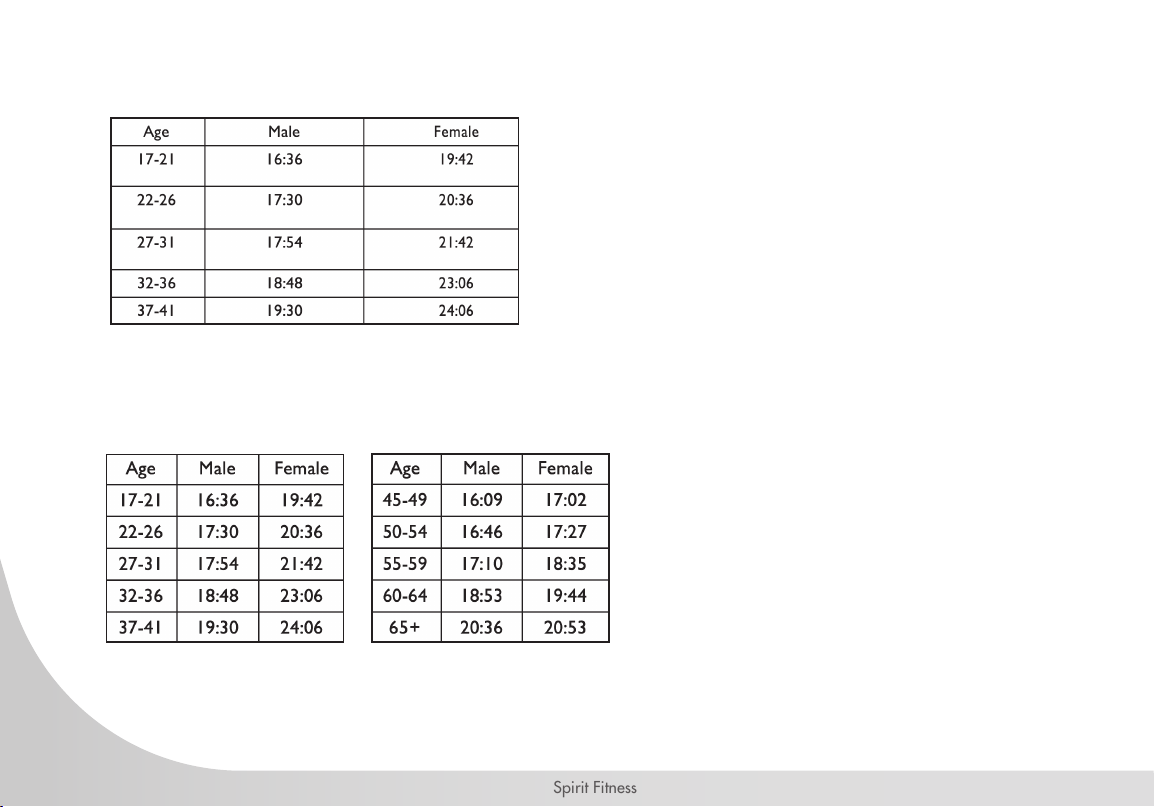

ARMY
A timed 2 mile run. You control the speed manually. Maximum time allowed to pass the test.
For more detailed information, visit: http://bit.ly/SF-Army
NAVY
A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test:
For more detailed information, visit: http://bit.ly/SF-Navy
39
www.spirittness.com
MARINES
A timed 3 mile run. You control the speed manually. Maximum time allowed to pass the test:
For more detailed information, visit: http://bit.ly/SF-Marines
40
Spirit Fitness

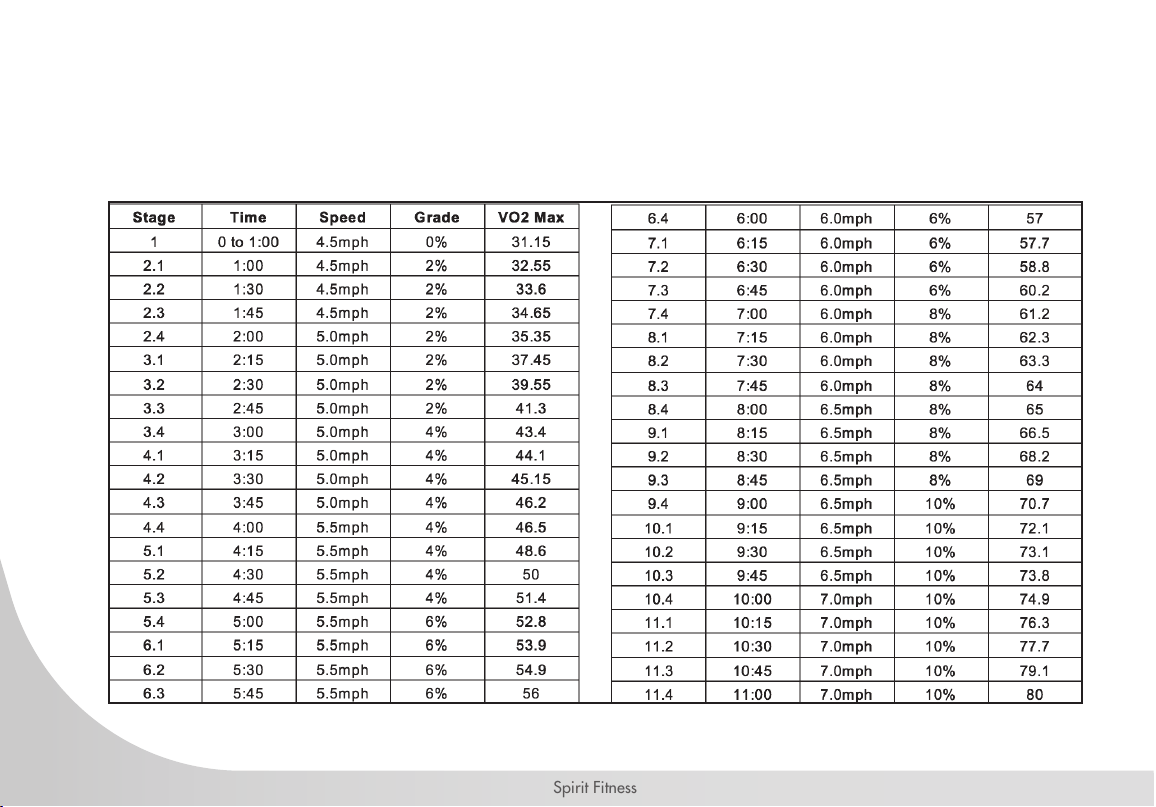

GERKIN
The Gerkin protocol, also known as the reman’s protocol, is a sub-max VO2 (volume of oxygen) test. The
test will increase speed and elevation alternately until you reach 85% of your Max heart rate. The time it
takes for you to reach 85% determines the test score (VO2max) as shown in the chart below.
41
www.spirittness.com
Before The Test:
• Make sure you are in good health; check with your physician before performing any exercise if you are over the
age of 35 or persons with pre-existing health conditions.
• Make sure you have warmed up and stretched before taking the test.
• Do not take in caffeine before the test.
• Hold the hand grips gently, do not tense up.
During the Test:
• The console must be receiving a steady heart rate for the test to begin. You may use the hand pulse sensors or
wear a heart rate chest strap transmitter.
• The test will start with a 3-minute warm-up at 3 MPH before the actual test begins.
• The data shown during the test is:
1. Time indicates total elapsed time
2. Incline in percent grade
3. Distance in miles or kilometers depending on preset parameter.
4. Speed in mph or kph depending on preset parameter.
5. Target heart rate and Actual heart rate are shown in the Message window.
After the Test:
• Cool down for about one to three minutes.
• Take note of your score because the console will automatically return to the start-up mode after a few minutes.
42
Spirit Fitness

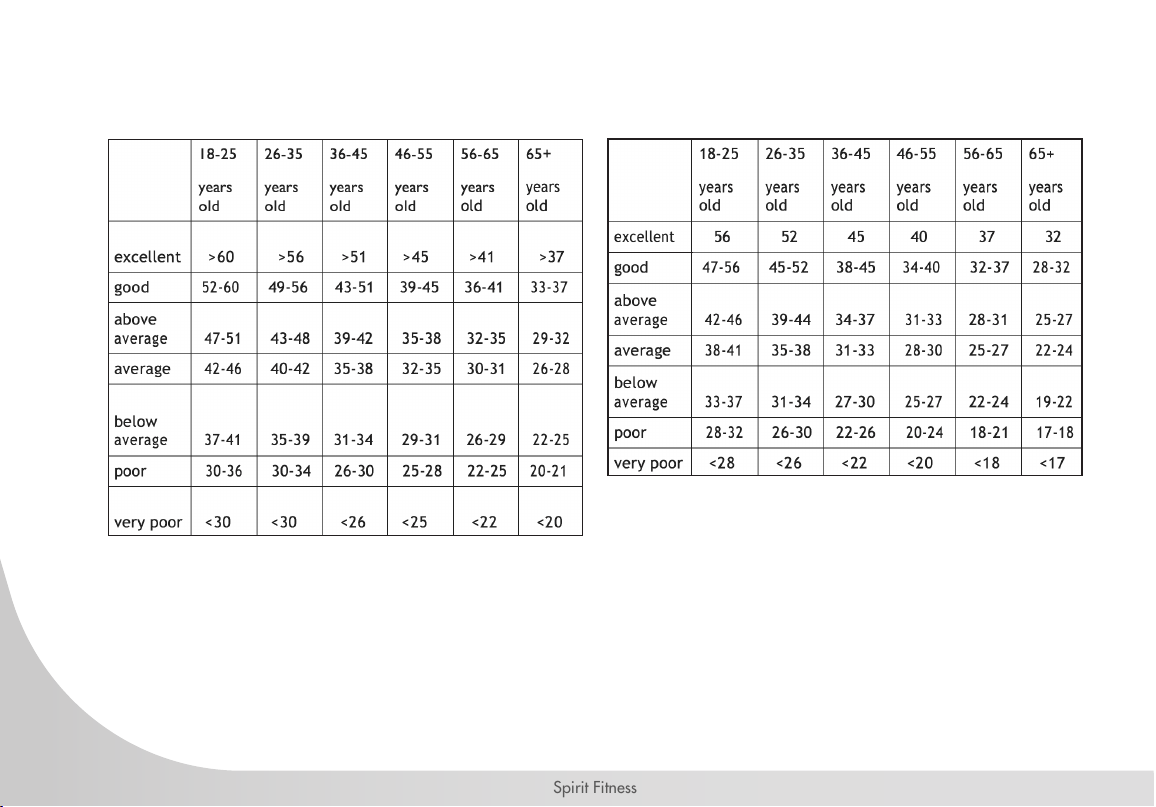

What Your Score Means:
VO2MAX CHART FOR FEMALES AND DECONDITIONED MALESVO2MAX CHART FOR MALES AND VERY FIT FEMALES
43
www.spirittness.com
CALORIE PROGRAM
Speed: This program follows a progression up to the maximum speed level (default or user inout level) that is
sustained for 2/3 of the workout. This program will challenge your ability to sustain your energy output for an
extended period of time.
Incline: The treadmill elevation is a quick and sustained progression yup to the maximum value (default or user
input) for 90% of the workout duration.
10K RUN
Both speed and Incline are controlled by the user. Increase or decrease levels at any time during your workout. The
track Display will set the distance of 1 Lap to 10 kilometers (metric) or 6.2 miles (standard measurement).
44
Spirit Fitness
HEART RATE PROGRAM
Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate via information from pulse grips or
wireless chest strap. Increases and decreases in elevation affect heart rate much more efciently than changes in speed
alone. The HRC program automatically changes elevation gradually to achieve the programmed target heart rate.
Selecting a Heart Rate Control Program:
You have the option, during the set up mode, to choose either the Weight control (HR 1) program or the Cardiovascular
(HR 2) program. The Weight control program will attempt to maintain your heart rate at 60% of your Maximum Heart
Rate. The Cardiovascular program will attempt to maintain your heart rate at 85% of your Maximum Heart Rate.
Your Maximum Heart Rate is based upon a formula that subtracts your age from a constant of 220.Your HR setting is
automatically calculated during the setup mode when you enter your age.
Heart Rate Control programming:
1. Press HR button to enter heart rate program.
2. Now the window will show PRESS ENTER TO MODIFY OR START TO BEGIN WORKOUT. You can either press
the Enter button for settings or press the Start button to execute the program.
3. When the Enter button is pressed, the Message window shows PRESS 1 OR 2 TO SELECT THEN PRESS ENTER.
At the same time, the dot matrix window is showing “1” and you can press numeric keypad 1 or 2 and then the
Enter button.
4. Now Message Window is showing ADJUST TIME THEN PRESS ENTER with Time Window blinking. Use
Up/Down buttons or numeric keys to adjust. After setting time, press the Enter button again.
5. Now Message window is showing ADJUST AGE THEN PRESS ENTER with Incline Window blinking. Use
Up/Down/ Fast/Slow buttons or numeric keys to adjust. Adjusting age will change HR value (as the HR formula
described previously). After age is set, press the Enter button again.
45
www.spirittness.com
6. Now Message window is showing ADJUST BODY WEIGHT THEN PRESS ENTER with Incline Window blinking.
Use Up/Down buttons or numeric keys to adjust. After the weight is set, press Enter button again.
7. Now Message window is showing ADJUST HEART RATE THEN PRESS ENTER with Speed Window blinking.
Use Up/Down buttons or Numeric keys to adjust. After the target heart rate value is set, press the Enter button again.
8. The Message window is then showing PRESS START TO BEGIN WORKOUT OR ENTER TO MODIFY. Press Start
button to begin the workout or Stop button to return to the previous screen.
Note: When the Message Window is showing CHECK PULSE, there is no pulse signal received and the program cannot
be performed. Please check and make sure that heart rate strap functions normally.
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It
is for your safety should you fall or move too far back on the treadbelt. Pulling this safety tether cord will stop
treadbelt movement. To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. NOTE: The magnet has strong
enough power to minimize accidental, unexpected stopping. The clip should be attached securely to make certain
it does not come off. Be familiar with its function and limitations. The treadmill will stop, depending on speed,
with a one to two step coast anytime the magnet is pulled off the console. Use the Stop/Pause button in
normal operation.
46
Spirit Fitness

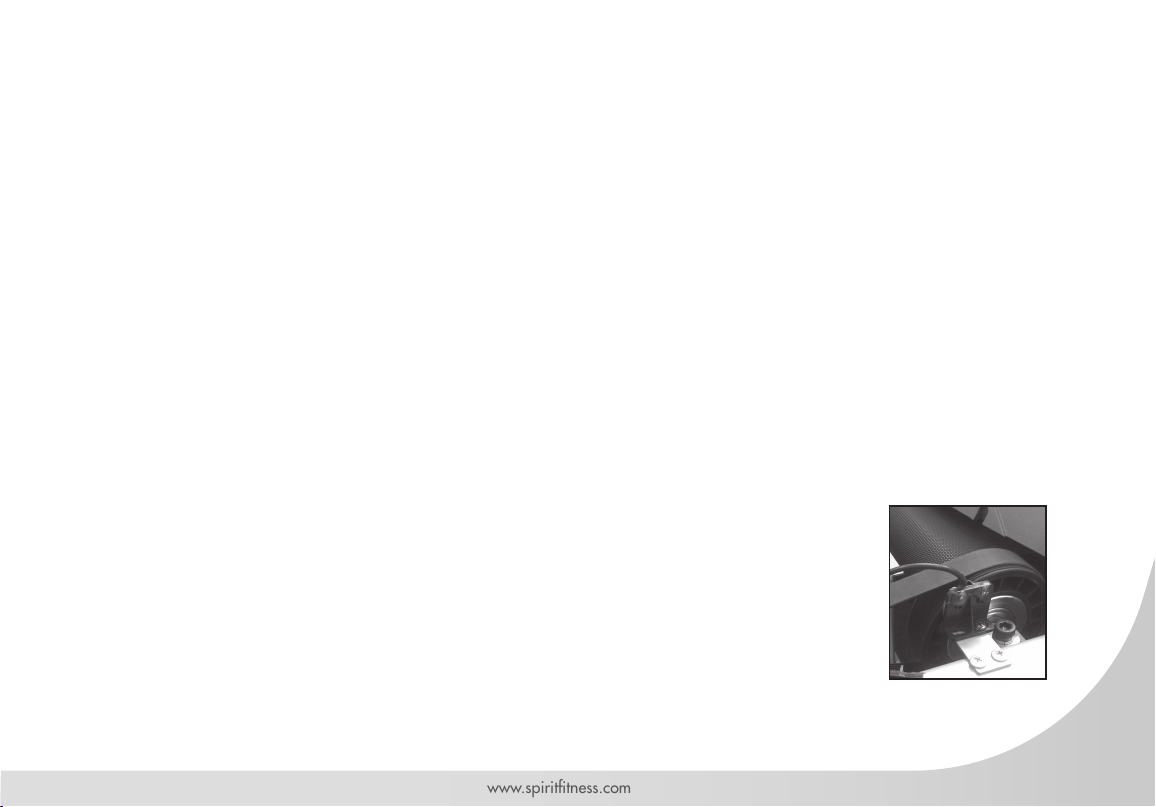

BELT/DECK
Your treadmill uses a very high-efcient low-friction hard waxed deck. Performance is maximized when the deck
is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area
between the belt edge and the frame. Also reach as far as practical directly under the belt edge. This should be
done once a month to extend belt and deck life. A mild soap and water solution along with a nylon scrub brush
will clean the top of the textured belt. Allow to dry before using.
The low maintenance (routine monthly cleaning), dual sided hard wax deck is designed to withstand up to
20,000 miles on each side. If the original side of the deck shows signicant wear, it needs to be ipped.
Contact your service technician for assistance. Do not apply any type of lubricant or wax to the surface.
Task How To DailyWeekly Monthly
Semi-
Annually
Annually
Wipe Down Unit
Damp cloth w/
water
Clean Under Belt Towel or vacuum
Check Belt Tension/Tr acking Feel/Visual
Clean Under Motor CoverVacuum carefully
Check Hardware Wrench
Inspect for Deck Wear Visual
Inspect Drive Belt Visual
GENERAL MAINTENANCE
Unplug treadmill before performing any maintenance.
47
www.spirittness.com
BELT ADJUSTMENTS
Belt tension is not critical for most users. It is very important though for joggers and runners in order to
provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 8mm
Allen wrench provided in the parts package. The adjustment bolts are located at the end of the step rails
as shown in the diagram below.
Tighten the rear roller only enough to prevent slippage at the
front roller. Turn the tread-belt tension adjusting bolts 1/4 turn
each and inspect for proper tension by walking on the belt
and making sure it is not slipping or hesitating with each step.
When an adjustment is made to the belt tension, you must be
sure to turn the bolts on both sides evenly or the belt could
start tracking to one side instead of running in the middle of
the deck.
DO NOT OVER TIGHTEN – Over tightening will cause belt damage and premature bearing failure. If you
tighten the belt a lot and it still slips, the problem could actually be the drive belt - located under the motor
cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being
loose. Tightening the motor belt should be done by a trained service person.
48
Spirit Fitness
TREADBELT TRACKING ADJUSTMENT
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for
some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if
during use the belt continues to move toward one side, adjustments are necessary.
Setting Tread-Belt Tracking:
An 8mm Allen wrench is provided for this adjustment. Make
tracking adjustments on the left side bolt. Set belt speed at 3 mph.
Be aware that a small adjustment can make a dramatic difference
which may not be apparent right away. If the belt is too close to the
left side, then turn the bolt only a 1/4 turn to the right (clockwise)
and wait a few minutes for the belt to adjust itself. Continue to make
1/4 turns until the belt stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the bolt counter-clockwise. The belt may require periodic
tracking adjustment depending on use and walking/running characteristics. Some users may affect tracking
differently. Expect to make adjustments as required to center the tread-belt. Adjustments will become less of
a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all
treadmills.
ATTENTION: Damage to the running belt resulting from improper tracking / tension adjustments is not
covered under the Spirit Fitness warranty.
49
www.spirittness.com
CALIBRATION PROCEDURE
1. Remove the safety button.
2. Press and hold down the Start and Fast + buttons and replace the safety button. Continue to hold the Start and
Fast button until the window displays “Factory settings”, then press the Enter button.
3. You will now be able to set the display to show Metric or English settings (Miles vs. Kilometers). To do this, press
the up or down button to show which you want, then press Enter.
4. Make sure the wheel size diameter is 2.98 then press Enter.
5. Adjust the minimum speed (if needed) to 0.5 and then press Enter.
6. Adjust the maximum speed (if needed) to 12.0 and then press Enter.
7. Adjust the maximum elevation (if needed) to 15 and then press Enter.
8. Grade return – On (This allows the incline to return to zero when Stop is pressed. For sale in Europe, EU standards
require this to be off).
9. Press Start to begin calibration. The process is automatic; the speed will start up without warning, so do not stand
on the belt.
ADJUSTING THE SPEED SENSOR
If the calibration does not pass you may need to check the speed sensor alignment.
1. Remove the motor cover hood by loosening the 8 screws that hold it in place. Set it aside.
2. The speed sensor is located on the left side of the frame, right next to the front roller pulley
(the pulley will have a belt around it that also goes to the motor). The speed sensor is a
small rectangular shaped black box with a wire connected to it.
3. You will see a magnet on the outside edge of the pulley; make sure the speed sensor is
aligned with the center of the magnet when it passes by. There are two a screws that hold
the sensor in place that need to be loosened to adjust the sensor. Re-tighten the screws
when nished.
50
Spirit Fitness
TROUBLESHOOTING
PROBLEM CAUSE
Display does not light 1. Tether cord not in position.
2. Circuit breaker on front grill tripped. Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed into115 VAC wall outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact your Spirit Fitness dealer.
Treadbelt does not stay centered Treadmill belt
hesitates when walked/run on
The user may be walking while favoring or putting more weight on either the left or right foot. If this walking pattern
is natural, track the belt slightly off-center to the side opposite from the belt movement. See General Maintenance
section on Treadbelt Tension. Adjust as necessary.
Motor is not responsive after pressing start 1. If the belt moves, but stops after a short time and the display shows “LS”, run calibration.
2. If you press start and the belt never moves, then the display shows LS, contact service.
Circuit breaker trips, but not the treadmill circuit
breaker
Need to replace the breaker with a “High In-rush current” type breaker (see page 4 for details)
Treadmill will only achieve approximately 12 mph
but shows higher speed on display
This indicates motor should be receiving power to operate. Do not use an extension cord. If an extension cord is
required, it should be as short as possible and heavy duty, 16-gauge minimum, low voltage. Contact an electrician
or your Spirit Fitness dealer. A minimum of 110-volt AC current is required.
Treadbelt stops quickly/suddenly when tether
cord is pulled
High belt/deck friction. If cleaning doesn’t prevent this from reoccurring, check to see if there is signicant wear of
the deck. If so, the deck may need to be ipped if it is on its original side.
Treadmill trips on board 20 amp circuit High belt/deck friction. If cleaning doesn’t prevent this from reoccurring, check the amp draw of the motor. If this is
high and there are signs of signicant wear of the deck, it may need to be ipped on its original side.
Computer shuts off when console is touched
(on a cold day) while walking/running
Treadmill may not be grounded. Static electricity is crashing the computer. Refer to Grounding Instructions.
51
www.spirittness.com
TREADMILL WARRANTY EFFECTIVE JANUARY 1, 2017
Spirit Fitness warrants all its treadmill parts for a period of time listed below from the date of retail sale, as
determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory
shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’ op-
tion, and technical support to our independent dealers and servicing organizations. In the absence of a dealer
or service organization, these warranties will be administered by Spirit Fitness directly to a facility. The warranty
period applies to the following components:
NORMAL RESPONSIBILITIES OF THE FACILITY
The non-dues paying facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the
original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the tness equipment and with all local electric codes.
4. Proper connection to a grounded power supply of sufcient voltage, replacement of blown fuses, repair of loose
connections or defects in house or facility wiring.
5. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the tness
equipment at the time it was shipped from the factory.
6. Damages to the tness equipment nish during shipping, installation or following installation.
7. Routine maintenance of this unit as specied in this manual.
WARRANTY
Commercial (Non-Dues Paying Facilities)
FRAME
Lifetime
MOTOR & DECK
5 Years
PARTS
5 Years
LABOR
2 Years
CONSOLE PARTS:
3 Years
CONSOLE LABOR:
1 Year
52
Spirit Fitness
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve
malfunction or defects in workmanship or material, for units that are beyond the warranty period, for units that
are beyond the service call reimbursement period, for tness equipment not requiring component replacement, or
tness equipment not in non-dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use
of parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or
plastic, alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or
acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to
request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in a dues paying facility (YMCA, Health Club, Etc.)
9. Product used in prisons and correctional facilities
10. Warranties outside of the United States may vary. Please contact your local dealer for details.
53
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date
of factory shipping as determined by the serial number establishes the labor warranty period should service be
required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty
gives you specic legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is
shipped to a service center freight charges to and from the service center will be the customer’s responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for shipping and
handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an additional
trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT
TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization
number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
CT850ENT Owners Manual
© 2018 All Rights Reserved
Revision: 08.22.2018
