Version: V1.00.000
Revised date: 03-29-2023
LAUNCH
i
Trademarks
LAUNCH is a registered trademark of LAUNCH TECH CO., LTD. in China and
other countries. All other marks are trademarks or registered trademarks of their
respective holders.
Copyright Information
Copyright © 2023 by LAUNCH TECH CO., LTD. (also called LAUNCH for short).
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying and recording or otherwise, without the prior written
permission.
Statement: LAUNCH owns the complete intellectual property rights for the
software used by this product. For any reverse engineering or cracking actions
against the software, LAUNCH will block the use of this product and reserve the
right to pursue their legal liabilities.
Disclaimer of Warranties and Limitation of Liabilities
All information, illustrations, and specifications in this manual are based on the
latest information available at the time of publication.
The right is reserved to make changes at any time without notice. We shall not
be liable for any direct, special, incidental, indirect damages or any economic
consequential damages (including the loss of profits) due to the use of the
document.
LAUNCH
ii
Using This Manual
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and optional
equipment that are not included in your system.
The following conventions are used.
Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Tap OK.
Notes and Important Messages
Notes
A NOTE provides helpful information such as additional explanations, tips, and
comments.
Example:
Note: If the battery remains unused for a long period of time or the battery is
completely discharged, it is normal that the tool will not power on while being charged.
Please charge it for a period of 5 minutes and then turn it on.
Warning
Warning indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury to the operator or to bystanders.
Example:
Warning: Retrieving and using DTCs for troubleshooting vehicle operation is only
one part of an overall diagnostic strategy. Never replace a part based only on the DTC
definition. Each DTC has a set of testing procedures, instructions and flow charts that
must be followed to confirm the location of the problem. This information can be found
in the vehicle’s service manual.
Danger
Danger indicates an imminently or potentially hazardous situation which, if not
avoided, could result in death or serious injury to the operator or to bystanders.
Example:
Danger: If you must drive the vehicle in order to perform a troubleshooting
LAUNCH
iii
procedure, always have a second person help you. Trying to drive and operate the
diagnostic tool at the same time is dangerous, and could cause a serious traffic accident.
Illustrations
Illustrations used in this manual are samples, the actual testing screen may vary
for each vehicle being tested. Observe the menu titles and on-screen
instructions to make correct option selection.
Important Safety Precautions
To avoid personal injury, property damage, or accidental damage to the product,
read all of the information in this section before using the tool.
DANGER
• When an engine is operating, keep the service area well-ventilated or attach
a building exhaust removal system to the engine exhaust system. Engines
produce various poisonous compounds (hydrocarbon, carbon monoxide,
nitrogen oxides, etc.) that cause slower reaction time and result in death or
serious personal injury.
• Please use the included battery and power adaptor. Risk of explosion if the
battery is replaced with an incorrect type.
• DO NOT attempt to operate the tool while driving the vehicle. Have second
personal operate the tool. Any distraction may cause an accident.
WARNING
Always perform automotive testing in a safe environment.
Do not connect or disconnect any test equipment while the ignition is on or
the engine is running.
Before starting the engine, put the gear lever in the Neutral position (for
manual transmission) or in the Park (for automatic transmission) position to
avoid injury.
NEVER smoke or allow a spark or flame in vicinity of battery or engine. Do
not operate the tool in explosive atmospheres, such as in the presence of
flammable liquids, gases, or heavy dust.
Keep a fire extinguisher suitable for gasoline/chemical/electrical fires nearby.
Wear an ANSI-approved eye shield when testing or repairing vehicles.
Put blocks in front of the drive wheels and never leave the vehicle unattended
LAUNCH
iv
while testing.
Use extreme caution when working around the ignition coil, distributor cap,
ignition wires and spark plugs. These components create hazardous voltage
when the engine is running.
To avoid damaging the tool or generating false data, please make sure the
vehicle battery is fully charged and the connection to the vehicle DLC (Data
Link Connector) is clear and secure.
Automotive batteries contain sulfuric acid that is harmful to skin. In operation,
direct contact with the automotive batteries should be avoided. Keep the
ignition sources away from the battery at all times.
Keep the tool dry, clean, free from oil, water or grease. Use a mild detergent
on a clean cloth to clear the outside of the equipment when necessary.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or
hot engine parts.
Store the tool and accessories in a locked area out of the reach of children.
Do not use the tool while standing in water.
Do not expose the tool or power adaptor to rain or wet conditions. Water
entering the tool or power adaptor increases the risk of electric shock.
This tool is a sealed unit. There are no end-user serviceable parts inside. All
internal repairs must be done by an authorized repair facility or qualified
technician. If there is any inquiry, please contact the dealer.
Keep the tool far away from magnetic devices because its radiations can
damage the screen and erase the data stored on the tool.
Do not attempt to replace the internal rechargeable lithium battery. Contact
the dealer for factory replacement.
Do not disconnect battery or any wiring cables in the vehicle when the ignition
switch is on, as this could avoid damage to the sensors or the ECU.
Do not place any magnetic objects near the ECU. Disconnect the power
supply to the ECU before performing any welding operations on the vehicle.
Use extreme caution when performing any operations near the ECU or
sensors. Ground yourself when you disassemble PROM, otherwise ECU and
sensors can be damaged by static electricity.
When reconnecting the ECU harness connector, be sure it is attached firmly,
otherwise electronic elements, such as ICs inside the ECU, can be damaged.
LAUNCH
v
FCC Statement
FCC ID: XUJWO0805A
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy, and if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
LAUNCH
vi
TABLE OF CONTENTS
1 Introduction ..................................................................................................1
1.1 Product Profile ........................................................................................ 1
1.2 Components & Controls ......................................................................... 1
1.3 Technical Parameters ............................................................................. 3
1.4 Package List ........................................................................................... 3
2 Initial Use ......................................................................................................5
2.1 Charging & Turning On ........................................................................... 5
2.2 Screen Layout ........................................................................................ 5
2.3 Basic Gestures ....................................................................................... 5
2.4 Change System Language ..................................................................... 6
2.5 Adjust Brightness ................................................................................... 6
2.6 Set Standby Time ................................................................................... 6
2.7 Network Setup ........................................................................................ 7
3 Getting Started ..............................................................................................8
3.1 Register & Update .................................................................................. 8
3.2 Job Menu ............................................................................................. 10
4 Connections ................................................................................................ 12
5 Diagnosis .................................................................................................... 14
5.1 Intelligent Diagnose .............................................................................. 14
5.2 Local Diagnose ..................................................................................... 17
5.2.1 Health Report (Quick Test) ............................................................ 23
5.2.2 System Scan ................................................................................. 26
5.2.3 System Selection .......................................................................... 26
5.3 Remote Diagnose ................................................................................. 37
5.3.1 Add Friends ................................................................................... 37
5.3.2 Start Instant Messaging ................................................................. 39
5.3.3 Launch Remote Diagnosis (Device-To-Device) ............................. 40
5.3.4 Launch Remote Diagnosis (Device-To-PC) ................................... 43
LAUNCH
vii
5.4 Feedback ............................................................................................. 45
5.5 Diagnostic History................................................................................. 46
6 Service (Reset) Function............................................................................ 47
6.1 Maintenance Light Reset (Oil Reset) .................................................... 47
6.2 Electronic Parking Brake Reset (BRAKE RESET) ................................ 47
6.3 Steering Angle Reset (SAS Reset) ....................................................... 47
6.4 ABS Bleeding ....................................................................................... 48
6.5 Crank Position Sensor Adaptive Learning (GEAR LEARN) .................. 48
6.6 Anti-theft Matching (IMMO)................................................................... 48
6.7 Injector Coding (INJECTOR) ................................................................ 48
6.8 Battery Matching (BAT. RESET) .......................................................... 49
6.9 DPF Regeneration (DPF REG.) ............................................................ 49
6.10 Throttle Matching (ELEC. THROTTLE RLRN) .................................... 49
6.11 Gearbox Matching (GEARBOX) ......................................................... 49
6.12 Headlight Matching (AFS RESET) ...................................................... 50
6.13 Sunroof Initialization (SUNROOF) ...................................................... 50
6.14 Suspension Level Calibration (SUS RESET) ...................................... 50
6.15 EGR Adaption .................................................................................... 50
6.16 Seats Calibration ................................................................................ 50
6.17 Tyre Reset .......................................................................................... 50
6.18 Coolant Bleed ..................................................................................... 50
6.19 AdBlue Reset ..................................................................................... 51
6.20 NOx Sensor Reset.............................................................................. 51
6.21 AC System Relearn/Initialization ........................................................ 51
6.22 High Voltage Battery Detection (HIGH VOLTAGE BATTERY) ........... 51
6.23 Windows Calibration ........................................................................... 51
6.24 Language Change .............................................................................. 51
6.25 A/F Reset ........................................................................................... 51
6.26 Transport Mode .................................................................................. 51
6.27 Stop/Start Reset ................................................................................. 52
LAUNCH
viii
6.28 Intelligent Cruise Control System Reset ............................................. 52
6.29 Engine Power Balance Monitoring ...................................................... 52
6.30 Gas Particulate Filter (GPF) Regeneration ......................................... 52
6.31 Motor Angle Calibration ...................................................................... 52
7 Software Update ......................................................................................... 53
7.1 Update Diagnostic Software & APP ...................................................... 53
7.2 Update Frequently Used software ........................................................ 54
7.3 Renew Subscription.............................................................................. 54
8 Other Modules ............................................................................................ 57
8.1 Toolbox ................................................................................................ 57
8.1.1 ADAS (Calibration) ........................................................................ 57
8.1.2 TPMS ............................................................................................ 57
8.1.3 Oscilloscope .................................................................................. 57
8.1.4 BST360 (Battery Tester) ................................................................ 57
8.1.5 S2-2 Sensorbox ............................................................................ 57
8.1.6 S2-2 Multimeter ............................................................................. 58
8.1.7 Immobilizer Programmer ............................................................... 58
8.1.8 Videoscope ................................................................................... 58
8.2 Vehicle Coverage ................................................................................. 58
8.3 System (Android) Apps ......................................................................... 58
8.3.1 Recording Master .......................................................................... 58
8.3.2 Browser ......................................................................................... 58
8.3.3 Camera ......................................................................................... 59
8.3.4 Gallery .......................................................................................... 59
8.3.5 Calculator ...................................................................................... 59
8.3.6 Files .............................................................................................. 59
8.3.7 Tablet Setting ................................................................................ 59
9 User Info ...................................................................................................... 60
9.1 My Report ............................................................................................. 60
9.2 VCI ....................................................................................................... 60
LAUNCH
ix
9.3 Activate VCI.......................................................................................... 60
9.4 Firmware Fix......................................................................................... 61
9.5 Sample ................................................................................................. 61
9.6 My Order .............................................................................................. 61
9.7 Subscription Renewal Card .................................................................. 61
9.8 Profile ................................................................................................... 61
9.9 Change password................................................................................. 62
9.10 Settings .............................................................................................. 62
9.10.1 Units ............................................................................................ 62
9.10.2 Shop Information ......................................................................... 62
9.10.3 Printer Set ................................................................................... 62
9.10.4 Clear Cache ................................................................................ 64
9.10.5 About ........................................................................................... 64
9.10.6 Diagnostic Software Auto Update ................................................ 64
9.10.7 Device Account Management ...................................................... 64
9.10.8 Login/Logout ............................................................................... 66
9.11 Diagnostic Software Clear .................................................................. 66
10 FAQ ............................................................................................................ 67
LAUNCH
1
1 Introduction
1.1 Product Profile
It inherits from LAUNCH’s advanced diagnosing technology and is characterized
by covering a wide range of vehicles, featuring powerful functions, and providing
precise test result.
Through the simple wired communication between the tablet and vehicle, it
achieves full car model and full system vehicle trouble diagnosis, which include
Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test and
Special Functions.
It has the following features: Intelligent Diagnose, Local Diagnose, Remote
Diagnose, Service Function, One-click Update, ADAS calibration, TPMS, Mall,
Diagnostic History, Feedback, Vehicle Coverage and Add-on modules.
1.2 Components & Controls
1. Type-C USB port
• Connects to AC outlet for charging.
LAUNCH
2
• Connects to PC for data exchange.
2. Type-A USB port
Connects to compatible add-on modules or USB storage devices.
3. DB-15 Diagnostic connector
Connects the diagnostic cable.
4. POWER key
In Off mode, press it for 3 seconds to turn the tablet on.
In On mode:
• Press it once to activate the LCD if the LCD is off. Press it once to turn off the
LCD if the LCD lights up.
• Press and hold it for 3 seconds to turn it off.
• Press and hold it for 8 seconds to perform forced shutdown.
5. Charging LED
Red means Charging; Green means Fully Charged.
6. LCD screen
Indicates the test result.
7. Camera flash
8. Adjustable stand
Flip it out to any angle and work comfortable at your desk, or hang it on steering
wheel.
9. Rear camera
10. Speakers
LAUNCH
3
1.3 Technical Parameters
Operating system: Android
CPU: 2.0GHz Quad-core
Memory: 4GB
Storage: 64GB
Screen: 8 inch capacitive touch screen with a resolution of 1280 x 800 pixels
Camera: Rear-facing 8.0MP camera
Connectivity: Type-A USB port x 1 + Type-C USB port x 1
Working temperature: 0℃ ~ 50℃
Storage temperature: -20 ~ ℃ 70℃
1.4 Package List
The following packing list is for reference purpose only. For different destinations,
the accessories may vary. For details, please consult from the seller or check the
packing list supplied with this tool together.
Display tablet x 1
Indicates the test result.
Diagnostic cable x 1
Connects the diagnostic tablet to
vehicle’s OBD II diagnostic socket.
LAUNCH
4
Password envelope x 1
A piece of paper bearing the product
Serial Number and Activation Code for
product registration.
Power adaptor x 1 + Switching
adaptor x 2
Charges the tablet via AC outlet.
Type-A to Type-C USB cable x 1
Connects the diagnostic tool to AC
outlet / PC for charging / data
exchange.
Quick start guide x 1
A brief multilingual quick start
reference.
User manual x 1
LAUNCH
5
2 Initial Use
2.1 Charging & Turning On
1. Use the included power adaptor to charge the tablet.
2. After charging is complete, press the POWER button to turn the tablet on.
The system starts initializing and then enters the home screen.
Note: If the battery remains unused for a long period of time or the battery is
completely discharged, it is normal that the tool will not power on while being charged.
Please charge it for a period of 5 minutes and then turn it on.
Warning: Please use the included power adaptor to charge your tool. No
responsibility can be assumed for any damage or loss caused as a result of using power
adaptors other than the one supplied.
Press [POWER] for 3 seconds, an option menu will pop up on the screen. Tap
Power off to turn the tool off.
2.2 Screen Layout
There are five on-screen buttons available on the bottom of the screen.
Home: Navigates to the Android’s home screen.
Recent App: Views the running applications.
VCI Connection: Shows whether the VCI device is properly connected or
not.
Screenshot: Captures the current screen.
Back: Returns to the previous screen.
2.3 Basic Gestures
Single-tap: To select an item or launch a program.
Double-tap: To zoom in so that the text on a webpage appears in a
column that fits your device’s screen.
LAUNCH
6
Long press: Tap and hold on the current interface or area until a
contextual menu pops up on the screen, and then release it.
Slide: To jump to different pages.
Drag: Tap the application icon and drop it to other location.
Spread apart/pinch together: To zoom in manually, place two
fingers on the screen and then spread them apart. To zoom out,
place two fingers apart on the screen and then pinch them together.
2.4 Change System Language
The tool supports multiple system languages. To change the language of the
tool, please do the following:
1. On the home screen, tap Settings -> System -> Language & input ->
Languages.
2. Tap Add a language, and then choose the desired language from the list.
3. Tap and hold the desired language and drag it to the top of the screen and
then release it, the system will change into the target language.
2.5 Adjust Brightness
Note: Reducing the brightness of the screen is helpful to conserve the battery
power.
1. On the home screen, tap Settings -> Display -> Brightness level.
2. Drag the slider to adjust it.
2.6 Set Standby Time
If no activities are made within the defined standby period, the screen will be
locked automatically and the system enters sleep mode to save power.
1. On the home screen, tap Settings -> Display -> Advanced -> Sleep.
2. Choose the desired sleep time.
LAUNCH
7
2.7 Network Setup
The tablet has built-in Wi-Fi that can be used to get online. Once you’re online,
you can register your tool, surf the Internet and check for software updates etc.
1. On the home screen, tap Settings -> Network & Internet -> WLAN.
2. Slide the Wi-Fi switch to ON, the tablet starts searching for available wireless
networks.
3. Select a wireless network,
If the chosen network is open, the tablet will connect automatically.
If the selected network is encrypted, a network password will need to be
entered.
4. When Connected appears, it indicates the Wi-Fi connection is complete.
Note: When Wi-Fi is not required, this should be disabled to conserve battery
power.
LAUNCH
8
3 Getting Started
For new users, you will need to experience a user registration process before
getting started.
3.1 Register & Update
Follow the steps below to proceed registration and update:
Tap the application icon on the home screen to launch it, and then tap Login to
enter the login interface of diagnosis software.
(If you are a new user, follow
A to proceed.)
(If you have registered to be a member, go to
B to login the system directly.)

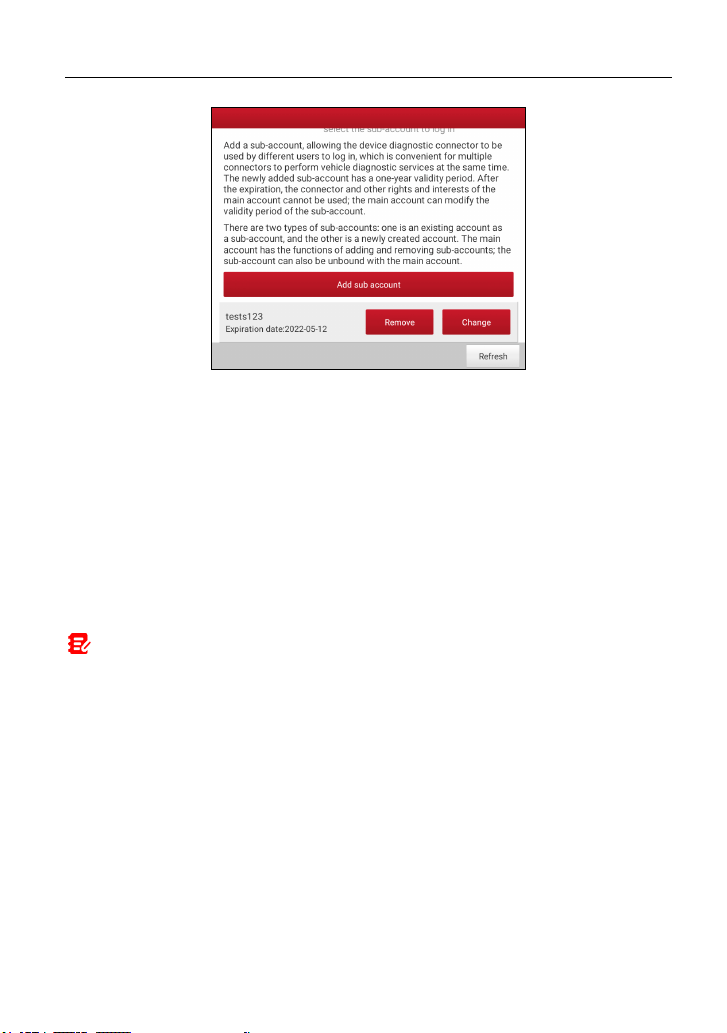

(If you have bound a sub-account to this tool, go to C to login the system.)
(In case you forgot password, refer to
D to reset a new password.)
A. If you are a new user, tap New Registration to enter the sign-up page.
Fill in the information in each field (Items with * must be filled). After inputting,
tap Register, the following screen will appear:
LAUNCH
9
Input the 12-digit Product Serial Number and 8-digit Activation Code (can be
obtained from the password envelope), and then tap Activate.
Tap OK to navigate to the update center to update all available software. Refer
to Chapter 7 for detailed operations.
After the registration is successfully complete, the wireless communication
between the tablet and the VCI device is automatically established and user has
no need to configure it again.
B. If you have registered to be a member, input your name and password, and
LAUNCH
10
then tap Login to enter the main menu screen directly.
Note: The tablet has an auto-save function. Once the username and password are
correctly entered, the system will automatically store it. Next time you login the system,
you will not be asked to input the account manually.
C. If you have created a sub-account or bound an existing account to the tool,
tap Technician login to login. For more details on technician accounts, refer
to Chapter 9.11.7.
D. If you forgot the password, tap Retrieve password and then follow
on-screen instructions to set a new password.
3.2 Job Menu
It mainly includes the following items:
Name
Description
Intelligent
Diagnose
• Obtain vehicle data from the cloud server to perform
quick test via reading VIN, to avoid various defects
resulting from step-by-step menu selection.
•
Check the historical repair records online.
Local
Diagno
s
e
Diagnose a vehicle manually.
Service Function
It offers coding, reset, relearn and more service
functions, to help vehicles get back to functional status
after repair or replacement.
Remote Diagnose
This option aims to help repair shops or technicians
launch instant messages and remote diagnosis, making
the repair job getting fixed faster.
TPMS
Configure this tool as a professional TPMS (Tire
Pressure Monitoring System) service tool. It needs to
work with the TSGUN device (sold separately) to
perform all kinds of various TPMS functions. Refer to
Chapter 8.1.2.
Software U
pdate
Update vehicle diagnostic software and APK.
LAUNCH
11
Diagnostic History
• Access the diagnostic reports from the previously
tested vehicles.
• Resume the previous operation without starting from
scratch.
Feedback
Feedback the recent 20 diagnostic logs for issue
analysis.
ADAS
Perform ADAS (Advanced Driver Assistance System)
calibration operations. It needs to work with the specific
ADAS calibration tool (sold separately). Refer to
Chapter 8.1.1.
Mall
Subscribe some extra software or service functions that
are not included in the diagnostic tool online.
Vehicle Coverage
View all the vehicle models that the tool covers.
Maintenance
Abundant maintenance data are available, which helps
repair professionals diagnose and repair vehicles
efficiently, accurately and profitably.
User Info
To manage my VCI, my reports, change password,
configure Wi-Fi printer, system settings and logout etc.
Other Modules
Includes some add-on modules, product manual, FAQ
and some Android system apps etc.
LAUNCH
12
4 Connections
1. Turn off the vehicle ignition.
2. Make sure that the vehicle battery voltage range is 11-14 volts.
3. Find DLC location.
The DLC(Data Link Connector) is usually located 12 inches from the center of the
instrument panel, under or around the driver’s side for most vehicles. For some
vehicles with special designs, the DLC location may vary. Refer to the following
figure for location.
A. Opel, Volkswagen, Audi
B. Honda
C. Volkswagen
D. Opel, Volkswagen, Citroen
E. Changan
F. Hyundai, Daewoo, Kia, Honda, Toyota, Nissan, Mitsubishi, Renault, Opel, BMW,
Mercedes-Benz, Mazda, Volkswagen, Audi, GM, Chrysler, Peugeot, Regal, Beijing
Jeep, Citroen and other most popular models
If the DLC cannot be found, refer to the vehicle’s service manual for the location.
4. Connect one end of the included diagnostic cable to the DB-15 diagnostic
connector, and the other end to the vehicle’s DLC port.
LAUNCH
13
LAUNCH
14
5 Diagnosis
5.1 Intelligent Diagnose
After the display tablet is properly connected to the vehicle, the system will
automatically decode the VIN (Vehicle Identification Number) information of the
currently identified vehicle. Once the VIN is successfully identified, the system
will retrieve it from the remote server and then guide you to vehicle information
page without the necessity of step-by-step manual menu selection.
The vehicle information page lists all historical diagnostic records of the vehicle,
which lets the technician have a total command of the vehicle faults. In addition,
a quick dial to local diagnose and diagnostic function are also available on this
page for reducing the roundabout time and increasing productivity.
Notes:
• Before using this function, please make sure the tablet is properly connected to the
vehicle’s DLC. For detailed connection, see Chapter 4.2 “Vehicle Connection”.
• A stable network connection is required for this function.
1. Tap Intelligent Diagnose on the Job menu screen to start pairing.
2. After pairing is complete, the tablet starts reading the vehicle VIN.
A. If the VIN can be found from the remote server database, the following
screen will appear:
• Tap Diagnostic to start a new diagnostic session.

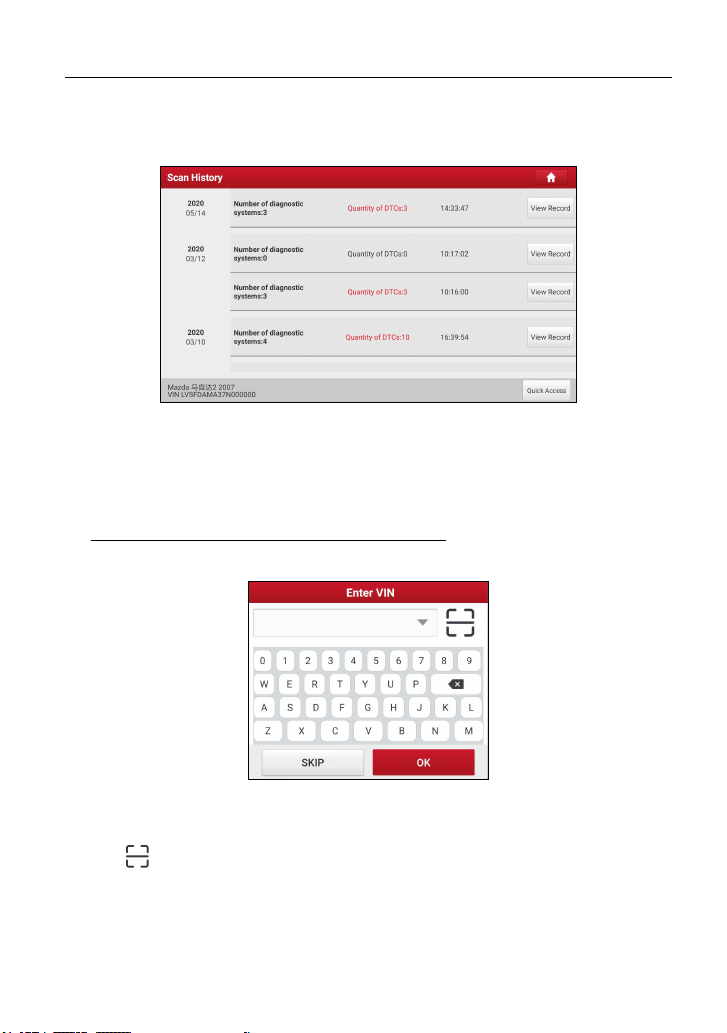

• Tap Scan History to view its historical repair record. If there are records
LAUNCH
15
available, it will be listed on the screen in sequence of date. If no records
exist, the screen will show “No Record”.
• Tap View Record to view the details of the current diagnostic report.
• To perform other functions, tap Quick access to directly go to the function
selection screen. Choose the desired one to start a new diagnostic
session.
B. If the tablet failed to access the VIN information, the following screen will
appear:
• Tap the input field to directly, tap OK. If the VIN exists on the remote server,
the system will enter the diagnostic function selection screen.
• Tap
to launch the VIN recognition module.
LAUNCH
16
Place the VIN inside the viewfinder rectangle to scan it. The most recognizable
location for this number is in the top left corner on the vehicle’s dashboard. Other
locations include the driver’s door or post, and the firewall under the hood.
• Tap
to switch the display mode of the screen.
• Tap
to turn the camera flash on.
• Tap to choose it from the record list if the VIN of the vehicle has been
scanned before.
• Tap to input the VIN manually if the tablet has failed to identify the VIN
of the vehicle.
• Tap
to scan the VIN barcode. If the VIN barcode cannot be recognized,
please manually input the VIN.
• Tap to scan the VIN character. If the VIN character cannot be
recognized, please manually input the VIN.
After scanning, the screen will automatically display the result.
LAUNCH
17
• If the VIN scanned is incorrect, tap the result field to modify it and then tap
OK.
• To scan it again, tap REPEAT.
If the VIN exists on the remote server, the system will enter the diagnostic
function selection screen.
5.2 Local Diagnose
In this mode, you need to execute the menu-driven command and then follow
the on-screen instruction to proceed.
Tap Local Diagnose to enter the vehicle selection page.
Function Buttons:
VIN Scan: Automatically decode the vehicle VIN and start diagnostics.
All: Tap to view all vehicle models that the tablet covers.
Common: Tap to create a commonly used diagnostic software list or delete
certain software from the list.
American/European/Asian/Chinese: Display all American/European/Asian/
Chinese vehicle brands only.
Purchase: Quick access to online Mall to purchase other software and renew
subscription.
DEMO: A simulation program for training purpose only.
EOBD/OBDII: A simple and quick diagnostic program checking I/M Readiness
and OBDII information.
AUDI and other brands: Enhanced diagnostic program with manufacturer
LAUNCH
18
proprietary information.
2 approaches are provided for you to access the vehicle diagnostic software.
Choose any one of the following ways:
1. VIN SCAN enables you to access it more quickly.
Tap VIN Scan, the following screen will appear:
In this case, camera scan and enter VIN are available.
A. Camera Scan: In this mode, the VCI should be connected to the vehicle’s
DLC first, and then a Bluetooth communication should be established
between the tablet and the VCI.
Tap Camera Scan, a screen similar to the following will appear:
Place the VIN inside the viewfinder rectangle to scan it. The most
recognizable location for this number is in the top left corner on the vehicle’s
dashboard. Other locations include the driver’s door or post, and the firewall
under the hood.
• Tap
to switch the display mode of the screen.
• Tap to turn the camera flash on.
LAUNCH
19
• Tap
to choose it from the record list if the VIN of the vehicle has been
scanned before.
• Tap
to input the VIN manually if the tablet has failed to identify the
VIN of the vehicle.
• Tap
to scan the VIN barcode. If the VIN barcode cannot be
recognized, please manually input the VIN.
• Tap to scan the VIN character. If the VIN character cannot be
recognized, please manually input the VIN.
After scanning, the following screen will appear.
If the VIN scanned is incorrect, tap the result field to modify it and then tap OK.
If the VIN exists on the remote server, the system will navigate to the
diagnostic function selection screen directly.
Tap the desired option to perform the corresponding diagnostic function.
B. INPUT VIN: In this mode, you can input the vehicle VIN manually.
Tap Enter VIN, the following screen will appear.
LAUNCH
20
Input the VIN, and tap OK, the tablet will automatically identify the vehicle
model and directly navigate to the diagnostic function selection menu.
2. Tap a corresponding diagnostic software logo, and then follow the on-screen
instruction to access the diagnostic software.
Take Demo (Version 15.32) as an example to demonstrate how to diagnose a
vehicle.
1). Select diagnostic software version: Tap the DEMO to go to Step 2.
On-screen Buttons:
Vehicle Coverage: Tap to view the vehicle models that the current diagnostic
software covers.
What’s new: Tap to view the optimized items and enhancements.
Introduction: Tap to check the software function list.
Note: Tap to read some precautions on using the current diagnostic software.
LAUNCH
21
Search Bluetooth: Tap to search for the available VCI. After the VCI is
successfully activated, it will be bound to the user account and paired with the
tablet automatically.
Note: No Bluetooth connection is required for DEMO program.
OK: Tap it to go to next step.
The diagnostics toolbar contains a number of buttons that allow you to print the
displayed data or make other controls. It is displayed on the upper right corner of
the screen and goes through the whole diagnostic session. Below provides a
brief description for the operations of the diagnostics toolbar buttons:
Home
:
Returns to Home screen.
Print: Tap to print the current screen. Before printing, you need to configure
the wireless printer. Refer to Chapter 9.11.3.
Exit: Exits the diagnostic application.
2). Select vehicle model (varies with different versions): Select the desired
vehicle model. Here we take Ford for example to demonstrate how to
diagnose a vehicle.

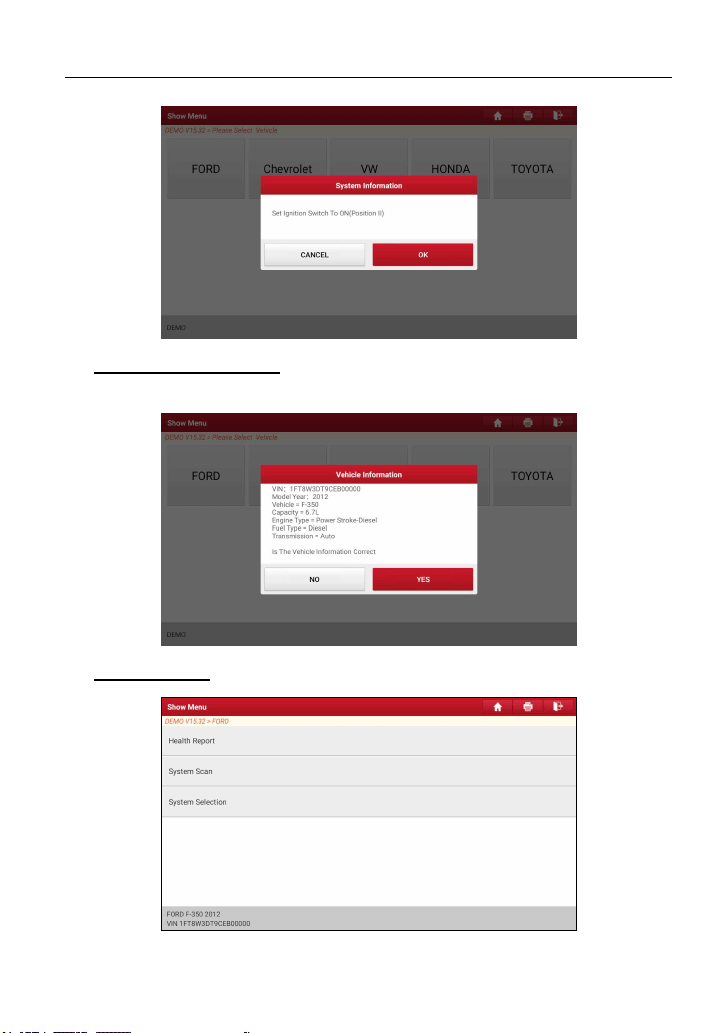

3). Turn the ignition key to ON: Set the ignition switch to on.
LAUNCH
22
4). Read vehicle information: After reading the vehicle information, double check
if the vehicle information is correct or not. If yes, tap Yes to continue.
5). Select test item: Select the desired test item to proceed.
LAUNCH
23
5.2.1 Health Report (Quick Test)
This function varies from vehicle to vehicle. It enables you to quickly access all
the electronic control units of the vehicle and generate a detailed report about
vehicle health.
On the test item selection screen, tap Health Report and turn on the ignition
switch, the system will start scanning the ECUs. Once the scanning process is
complete, the following screen will appear:
The tested system with fault code appears in red and the system functioning
properly displays in black (normally).
Warning: Diagnostic Trouble Codes or Fault Codes can be used to identify which
engine systems or components that are malfunctioning. Never replace a part based only
on the DTC definition. Retrieving and using DTCs for troubleshooting vehicle
operation is only one part of an overall diagnostic strategy. Follow testing procedures
(in vehicle’s service manual), instructions and flowcharts to confirm the locations of the
problem.
On-screen Buttons:
Enter: Tap to enter the diagnostic function selection screen.
(Search): Highlight certain diagnostic trouble code and tap it to retrieve it in
the search engine.
Report: Tap to save the diagnostic result as a health report.
LAUNCH
24
Note: Diagnostic report is classified into three categories: Pre-Repair report,
Post-Repair report and Diagnostic Scan. No matter which type you saved the report as,
the report type will be appended as a tag on the upper right corner of the diagnostic
report for easier identification.
Tap to select the report type from the option list and input the required
information, and then tap OK.
Note: To facilitate the comparison of the pre-repair and post-repair reports and get
accurate test result, please make sure you saved the right type of the diagnostic report.
To save the report as a common diagnostic report, select Diagnostic Scan.
Note: For workshop information, tap the input box to enter it. Alternatively you can
also set it in User Info -> Settings -> Shop Information.
Once you configured the information, it will be automatically generated every time you
saved the diagnostic report. All vehicle and workshop information will be appended as
LAUNCH
25
tags on the diagnostic report.
To ignore the workshop information, tap Skip to go to the report details screen.
On the report details screen, tap Save to save it. All diagnostic reports are saved
in User Info -> My Report -> Health Report.
Help: Tap to view the help information of the selected DTC item.
Compare Results: Tap to select the pre-repair report to compare. By
comparison of the pre- and post- repair reports, you can easily identify which
DTCs are cleared and which remain unfixed.
• Post indicates DTC status of post-repair.
• Pre indicates DTC status of pre-repair.
Note: Before performing this function, please make sure that:
• You have saved a pre-repair report of the currently tested vehicle, and
• You have already made some repairs and service and cleared the DTCs after the
LAUNCH
26
pre-repair reported is generated. Otherwise, no differences exist between the pre-
and post- repair reports.
Clear DTCs: Tap to clear the existing diagnostic trouble codes.
Note: Clearing DTCs does not fix the problem(s) that caused the code(s) to be set.
If proper repairs to correct the problem that caused the code(s) to be set are not made,
the code(s) will appear again and the check engine light will illuminate as soon as the
problem that cause the DTC to set manifests itself.
5.2.2 System Scan
This option allows you to quickly scan which systems are installed on the
vehicle.
On the test item selection screen, tap System Scan, the system start scanning
the systems. Once the scanning process is complete, the following screen will
appear.
Tap the desired system to go to the diagnostic function selection screen. For
detailed operations on diagnostic function, please refer to Chapter 5.2.3.
5.2.3 System Selection
This option allows you to manually select the test system and function step by
step.
On the test item selection screen, tap System Selection, the screen displays as
follows:
LAUNCH
27
Swipe the screen from the bottom to view the vehicle system on the next page.
Tap the target system (take ECM for example) to navigate to the diagnostic
function selection screen.
Note: Different vehicle has different diagnostic menus.
A. Version Information
This function is used to read the version information of system mode, vehicle
VIN, software and ECU.
B. Read Fault Code
This function displays the detailed information of DTC records retrieved from the
vehicle’s control system.
Caution: Retrieving and using DTCs for troubleshooting vehicle operation is only
one part of an overall diagnostic strategy. Never replace a part based only on the DTC
LAUNCH
28
definition. Each DTC has a set of testing procedures, instructions and flow charts that
must be followed to confirm the location of the problem. This information can be found
in the vehicle’s service manual.
On the diagnostic function selection screen, tap Read Fault Code, the screen
will display the diagnostic result.
On-screen Buttons:
Freeze Frame: When an emission-related fault occurs, certain vehicle
conditions are recorded by the on-board computer. This information is referred
to as freeze frame data. Freeze frame data includes a snapshot of critical
parameter values at the time the DTC is set.
Help: Tap to view the help information.
Code Search: Tap to search for more information about the current DTC online.
Report: Tap to save the current data in text format. All reports are saved in User
Info -> My Report -> Health Reports.
C. Clear Fault Code
This function enables you to erase the codes from the vehicle after reading the
retrieved codes from the vehicle and certain repairs have been carried out.
Before performing this function, make sure the vehicle’s ignition key is in the ON
position with the engine off.
Clearing DTCs does not fix the problem(s) that caused the code(s) to be set. If
proper repairs to correct the problem that caused the code(s) to be set are not
made, the code(s) will appear again and the check engine light will illuminate as
soon as the problem that cause the DTC to set manifests itself.
LAUNCH
29
On the diagnostic function selection screen, tap Clear Fault Code, the following
screen will appear.
Tap YES, the system will automatically delete the currently existing trouble
code.
Note: After clearing, you should retrieve trouble codes once more or turn ignition
on and retrieve codes again. If there are still some trouble codes in the system, please
troubleshoot the code using a factory diagnosis guide, then clear the code and recheck.
D. Read Data Stream
This option lets you view and capture (record) real-time Live Data. This data
including current operating status for parameters and/or sensor information can
provide insight on overall vehicle performance. It can also be used to guide
vehicle repair.
Caution: If you must drive the vehicle in order to perform a troubleshooting
procedure, ALWAYS have a second person help you. Trying to drive and operate the
diagnostic tool at the same time is dangerous, and could cause a serious traffic accident.
Note: The real time (Live Data) vehicle operating information (values/status) that
the on-board computer supplies to the tool for each sensor, actuator, switch, etc. is
called Parameter Identification Data (PID).
On the diagnostic function selection screen, tap Read Data Stream, the
following screen will appear.
LAUNCH
30
On-screen Buttons:
Select Page: Tap to select all items of the current page.
Select All: Tap to select all items. To select certain data stream item, just check
the box before the item name.
Unselect: Tap to deselect all data stream items.
OK: Tap to confirm and jump to the next step.
After selecting the desired items, tap OK to enter the data stream reading page.
Notes:
1. Tap
, the following popup will appear.
LAUNCH
31
Here the user can set different display style for each selected item.
indicates sticky top. If it is tapped, it will change into . On the data stream
display screen, the data stream item with
will be shown on the top of the selected
data stream list. To remove it from the top of the list, just tap it again.
B indicates this item will be displayed in Bold.
A indicates this item will be displayed in
Red.
2. Tap English or Metric to switch the measurement unit.
3. If the value of the data stream item is out of the range of the standard (reference)
value, the whole line will display in red. If it complies with the reference value, it
displays in blue (normal mode).
4. The indicator 1/X shown on the bottom of the screen stands for the current
page/total page number. Swipe the screen from the right/left to advance/return to the
next/previous page.
There are 3 types of display modes available for data viewing, allowing you to
view various types of parameters in the most suitable way.
Value – This is the default mode which displays the parameters in texts and
shows in list format.
Graph – Displays the parameters in waveform graphs.
Combine – This option is mostly used in graph merge status for data
comparison. In this case, different items are marked in different colors.
On-screen Buttons:
Graph(Single): Tap to view the parameter in waveform graph.
LAUNCH
32
• Min/Max: Tap to define the maximum / minimum value. Once the value
goes beyond the specified value, the system will alarm.
Graph: Tap to view the parameters in waveform graphs.
• Combine: This option is mostly used in graph merge status for data
comparison. In this case, different items are marked in different colors
(maximum 4 items can be displayed on the same screen simultaneously).
If the graph is more than one page, swipe the screen from the left to jump
to the next page.
LAUNCH
33
• Value: Switches the current graph display mode to the Value display
mode.
• Customize: Tap
, a pull-down list of the data stream items appears on
the screen. Select / deselect the desired items, and then screen will
display / remove the waveforms corresponding to these items immediately.

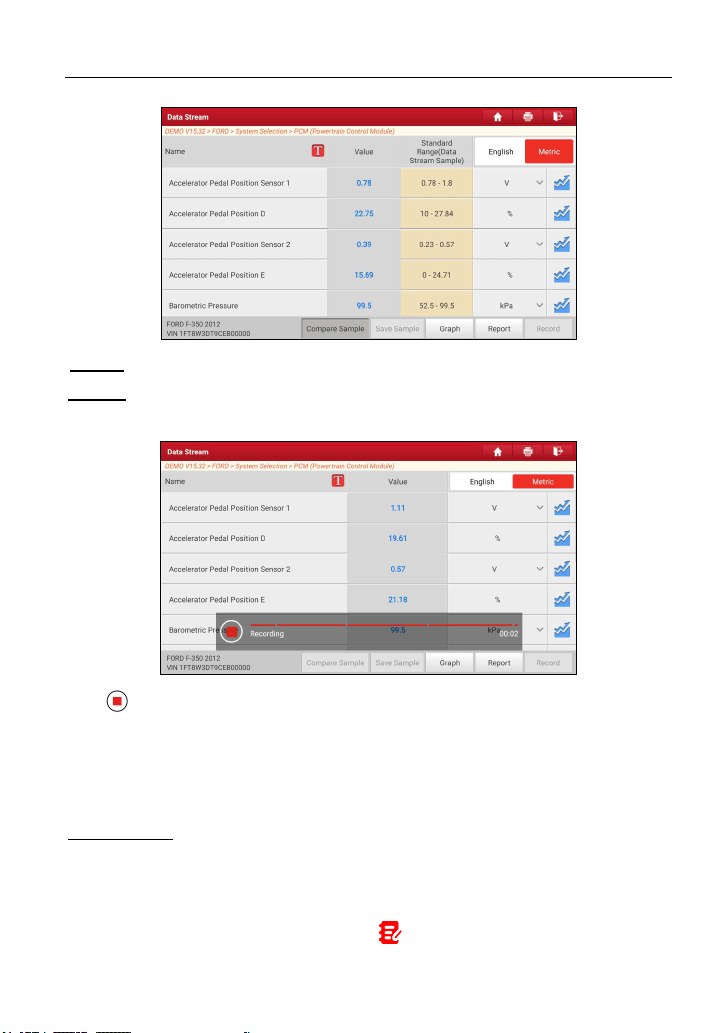

Compare Sample: Tap to select the sample DS file.
All the values you customized and saved in process of DS sampling will be
imported into the Standard Range (See below) column for your comparison.
Note: Before executing this function, you have to sample the values of data stream
items and save it as a sample Data Stream file.
LAUNCH
34
Report: Tap to save the current data in text format.
Record: Tap to start recording diagnostic data. Recorded live data can serve as
valuable information to help you in troubleshooting of vehicle problems.
Tap
to end recording and save it. The saved file follows the naming rule: It
begins with vehicle type, and then the product S/N and ends with record starting
time (To differentiate between files, please configure the accurate system time).
All diagnostic records can be replayed from User Info -> My Report ->
Recorded Data.
Save Sample: This item enables you to customize the standard range of live
data stream items and save it as DS sample file. Each time you run the data
stream items, you can call out the corresponding sample data to overwrite the
current standard range.

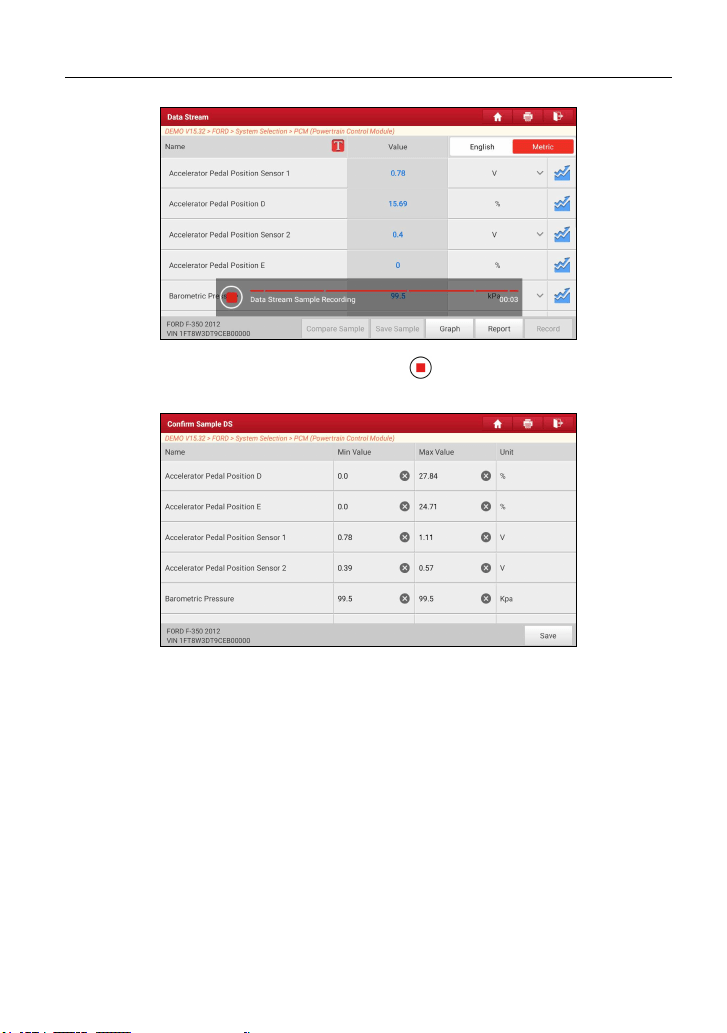

Tap it to start recording the sample data ( Note: Only data stream items with
measurement units will be recorded), the following screen will appear:
LAUNCH
35
Once the recording process is complete, tap to stop it and navigate to the
data revision screen.
Tap the Min./Max. value to change it. After modifying all desired items, tap Save
to save it as a sample DS file. All DS files are stored in User Info -> Data
Stream Sample.
E. Actuation Test
This option is used to access vehicle-specific subsystem and component tests.
Available test vary by vehicle manufacturer, year, and model.
During the actuation test, the display tablet outputs commands to the ECU in
order to drive the actuators, and then determines the integrity of the system or
parts by reading the ECU data, or by monitoring the operation of the actuators,
such as switching an injector between two operating states.
On the diagnostic function selection screen, tap Actuation Test, the following
LAUNCH
36
screen will appear:
Simply follow the on-screen instructions and make appropriate selections to
complete the test.
Each time when an operation is successfully executed, Completed displays.
LAUNCH
37
5.3 Remote Diagnose
This module helps repair shops or mechanics to diagnose a remote vehicle, and
launch instant messages, allowing for improved efficiency and faster repairs.
Tap Remote Diagnose on the Job menu, the screen appears blank by default.
1 Home Button Navigate to the Job menu screen.
2 Search Bar
Directly input the username of the tool for
searching,
and then tap the desired one to add it into Contacts
list.
3 Messages Tab A red dot will appear indicating a received message.
4 Contacts Tab Enter the friend list.
5 Remote Switch
Your technician can control your tool remotely once
the switch is ON.
5.3.1 Add Friends
Tap Contacts. By default it appears blank.
In the search bar, input the partner’s username and tap Search to start
searching.
The partner must be the users who have registered specific diagnostic tools.
They may be the following:
Workshop
Technician
LAUNCH
38
golo users
Once the result matches the keyword, the following screen will appear:
Here you can tap Remote Diagnose to launch remote diagnostics directly or
choose to add the partner into the Contacts list.
Tap the desired name from the list, the following screen will appear:
Tap Add friend to send your request.
Once the partner receives the request, a beep will sound. Tap Messages:
• Once the partner agreed your request, he/she will automatically be listed in
the Contacts tab.
• If a technician sent you a friend request, tap Agree and his/her name will
appear in the Contacts list. Or tap Ignore to ignore this request.
LAUNCH
39
5.3.2 Start Instant Messaging
The I/M (Instant Messaging) function is open to all users who had the diagnostic
tool equipped with this module.
After adding your friends, tap the desired one’s photo to enter the following
screen:
Tap the input field and use the on-screen keyboard to send the text message.
Tap
to send the voice message.
Tap
to send the emoj.
Tap
to call out more function options.
LAUNCH
40
File: Choose diagnostic reports or local files to send.
Picture: Choose screenshots or pictures to send.
Remote Diagnose: To start a remote diagnostic session. For details, refer to
Chapter 5.3.4.
Camera: Open camera to take pictures.
5.3.3 Launch Remote Diagnosis (Device-To-Device)
The tool is allowed to initiate remote diagnosis with other diagnostic tools, which
are equipped with this module.
On the function option selection screen, tap Remote Diagnostic, the following
pull-down menu will appear:
These options are defined as follows:
Actions
Results
Request control
remote device
Request to control the partner’
s device remotely to
help him diagnose the vehicle.
Notes:
In process of remote diagnosis, tap the button to
send a voice message.
Once vehicle diagnosis is complete, a report will be
created. Input your comments on this report, and then
tap Send Report to send it to the partner.
LAUNCH
41
Tap “Request control remote device”
Wait for partner’s confirmation
Start connecting after request confirmed
Start Diagnosis
Generate diagnostic report
Invite remote
diagnostic assistant
Use this option to invite a technician to perform a
remote control on your tool.
Notes:
In process of remote diagnosis, tap the button to
send a voice message.
Once you received the report from the partner, tap
View Report to view details. All diagnostic reports are
saved under User Info -> My Report -> Remote
Reports.
LAUNCH
42
Cancel To cancel this operation.
LAUNCH
43
5.3.4 Launch Remote Diagnosis (Device-To-PC)
User also can ask for remote control from a PC client technician.
Tap Remote, the following screen will appear:
LAUNCH
44
1. Slide the switch to ON so that the partner can find and connect to this device
while using the PC.
2. Notify the partner of the PC client website http://remote.x431.com. When the
partner accesses the link, the PC displays as below:
Note: Before processing remote diagnosis, please make sure the tool is properly
connected to the vehicle.
3. Tell the partner to input his own official technician account and password, and
then tap Login to navigate to the following figure.
LAUNCH
45
4. Tell the partner to enter the Serial Number provided by you, and then tap
Start remote diagnosis to control your device remotely.
In process of remote diagnosis, please note the following things:
1) You are not suggested to execute any actions.
2) The partner is not allowed to save any diagnostic reports or records on
your tablet.
Once the session is complete, a remote diagnostic report will be automatically
generated.
5.4 Feedback
This function enables you to feedback the diagnostic issues to us for analysis
and troubleshooting.
Tap Feedback, and tap OK to enter into the vehicle diagnostic record page.
A. Feedback
Tap the target vehicle to enter the feedback page.
B. History
LAUNCH
46
Tap it to view the diagnostic feedback logs which are marked with different color
indicating the process status of the diagnostic feedback.
C. Offline list
Tap it to enter the diagnostic feedback offline list page. Once the tablet gets a
stable network signal, it will be uploaded to the remote server automatically.
5.5 Diagnostic History
This function enables users to directly get access to the previously tested
vehicle’s diagnostic records in details, so users can resume from the last
operation, without starting from scratch.
Tap Diagnostic History on the Job menu screen, all diagnostic records will be
listed on the screen in date sequence.
• Tap certain vehicle model to view the details of the last diagnostic report.
• To delete certain diagnostic history, select it and then tap Delete. To
delete all historical records, tap Select All and then tap Delete.
• Tap Quick access to directly navigate to the function selection page of
last diagnostic operation. Choose the desired option to proceed.
LAUNCH
47
6 Service (Reset) Function
It offers coding, reset, relearn and more service functions, to help vehicles get
back to functional status after repair or replacement. Available tests vary by
vehicle manufacturer, year, and model.
Due to continuing improvements, the available service functions are subject to
change at any time. To enjoy more service functions, you are suggested to
check for updates on a regular basis.
6.1 Maintenance Light Reset (Oil Reset)
This function enables you to reset the oil service for the engine oil life system,
which calculates an optimal oil life change interval depending on the vehicle
driving conditions and weather events.
It needs to be performed in the following cases:
1. If the service lamp is on, run car diagnostics first for troubleshooting. After
that, reset the driving mileage or driving time, so as to turn off the service
lamp and enable a new driving cycle.
2. If the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.
6.2 Electronic Parking Brake Reset (BRAKE RESET)
This function enables you to reset the brake pad after replacing the brake pad.
It needs to be performed in the following cases:
1. The brake pad and brake pad wear sensor are replaced.
2. The brake pad indicator lamp is on.
3. The brake pad sensor circuit is short, which is recovered.
4. The servo motor is replaced.
6.3 Steering Angle Reset (SAS Reset)
This function enables you to reset the steering angle, after replacing the steering
angle position sensor, replacing steering mechanical parts (such as steering
gearbox, steering column, end tie rod, steering knuckle), performing four-wheel
alignment, or recovering car body.
LAUNCH
48
To reset the steering angle, first find the relative zero point position for the car to
drive in straight line. Taking this position as reference, the ECU can calculate the
accurate angle for left and right steering.
6.4 ABS Bleeding
This function allows you to perform various bi-directional tests to check the
operating conditions of Anti-lock Braking System (ABS).
It needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,
brake line, or brake fluid is replaced.
6.5 Crank Position Sensor Adaptive Learning (GEAR LEARN)
This function can perform gear learning for the car, to turn off the related
Malfunction Indicator Light (MIL).
It needs to be performed in the following cases:
1. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is
replaced.
2. The DTC “tooth not learned” is present.
6.6 Anti-theft Matching (IMMO)
This function can match the anti-theft key after replacing the ignition key, ignition
switch, instrument cluster, engine control unit (ECU), body control module
(BCM), and remote control battery.
6.7 Injector Coding (INJECTOR)
This function enables you to write injector actual code or rewrite code in the ECU
to the injector code of the corresponding cylinder, so as to more accurately
control or correct cylinder injection quantity.
It needs to be performed in the following cases:
After the ECU or injector is replaced.
LAUNCH
49
6.8 Battery Matching (BAT. RESET)
This function enables you to perform a resetting operation on the monitoring unit
of vehicle battery, in which the original low battery fault information will be
cleared and battery matching will be done.
It needs to be performed in the following cases:
1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
6.9 DPF Regeneration (DPF REG.)
This function enables you to clear PM (Particulate Matter) from the DPF filter
through continuous combustion oxidation mode (such as high temperature
heating combustion, fuel additive or catalyst reduce PM ignition combustion) to
stabilize the filter performance.
It needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MIL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.
6.10 Throttle Matching (ELEC. THROTTLE RLRN)
This function enables you to make initial settings to throttle actuators and returns
the learned values stored on ECU to the default state. Doing so can accurately
control the actions of regulating throttle (or idle engine) to adjust the amount of
air intake.
6.11 Gearbox Matching (GEARBOX)
This function enables you to complete the gearbox self-learning to improve gear
shifting quality.
It needs to be performed in the following cases:
LAUNCH
50
When the gearbox is disassembled or repaired.
6.12 Headlight Matching (AFS RESET)
This function enables you to initialize the adaptive headlamp system.
6.13 Sunroof Initialization (SUNROOF)
This function enables you to set the sunroof lock off, closed when it rains, sliding
/ tilting sunroof memory function, temperature threshold outside the car etc.
6.14 Suspension Level Calibration (SUS RESET)
This function enables you to adjust the height of the body.
It needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air
suspension system.
2. When the vehicle height is incorrect.
6.15 EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it
is cleaned or replaced.
6.16 Seats Calibration
This function is applied to match the seats with memory function that are
replaced and repaired.
6.17 Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.
6.18 Coolant Bleed
Use this function to activate the electronic water pump before venting the cooling
system.
LAUNCH
51
6.19 AdBlue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea
reset operation is required.
6.20 NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in
engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter
is replaced, it is necessary to reset the catalytic converter learned value stored
in the engine ECU.
6.21 AC System Relearn/Initialization
AC system relearn/initialization must be performed when the vehicle AC ECU or
actuator is replaced or the ECU memory is lost.
6.22 High Voltage Battery Detection (HIGH VOLTAGE
BATTERY)
This function is used for high voltage battery diagnosis and status information
detection.
6.23 Windows Calibration
This function is used to perform door window matching to recover the ECU initial
memory, and recover the automatic ascending and descending function of
power window.
6.24 Language Change
This function is used to change system language of vehicle center console.
6.25 A/F Reset
This function is applied to set or learn air/fuel rate parameters.
6.26 Transport Mode
To lower vehicle power consumption, user may perform the following operations:
LAUNCH
52
limit vehicle speed, not wake up the network for door open and disable remote
key etc. In this case, deactivating transport mode is needed to recover vehicle
being normal.
6.27 Stop/Start Reset
This function is used to open or close the automatic Start/Stop function via
setting the hidden function in ECU (The precondition is vehicle equipped with
hidden function and hardware support).
6.28 Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it is
replaced or repaired.
6.29 Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke of
each cylinder, to determine the relative power provided by each cylinder.
6.30 Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the
fuel consumption is increased and engine output power is reduced resulting
from a long time service of the GPF.
6.31 Motor Angle Calibration
This function is used to perform the motor angle calibration when the rotor
position detected by the motor angle position sensor is different from the actual
rotor field position.
LAUNCH
53
7 Software Update
This module enables you to update the diagnostic software & App and frequently
used software.
7.1 Update Diagnostic Software & APP
Go to Software Update on the Job Menu and tap the Downloaded tab.
The Available tab displays a list of software that can be updated. Under it, all
software is categorized into three kinds:
• Common software: mainly includes some common apps that are associated
with the diagnostic app. The software of this kind always stays at the top of
the list, which can be deselected manually (excluding the system app, such
as firmware and ECU aid).
• Frequently used vehicle software: refers to the diagnostic software that is
frequently used, including the vehicle diagnostic software and Reset software.
It is generally displayed following the Common software list.
• Other vehicle software: refers to the diagnostic software that is rarely used
or never used. It is generally displayed following the Frequently used
software list.
1). If the user does not download any diagnostic software during the sign-up
process, all diagnostic software is selected by default. Tap Update to start
downloading.
2). If the user downloaded all/some vehicle software during the sign-up process
and had it serviced for a long period of time, only the frequently used
software is selected. Tap Update to start downloading. Other vehicle
software that is rarely used will also be listed under the Available tab, but it
is not selected at default.
LAUNCH
54
To download certain software that is not frequently used, check the box before
the vehicle model. Tap Update to start downloading.
Once download is finished, the software packages will be installed automatically.
7.2 Update Frequently Used software
If the user only intends to update the frequently used software, go to Software
Update and tap the Downloaded tab.
Tap Update to start downloading. Once download is finished, the software
packages will be installed automatically.
7.3 Renew Subscription
If the software subscription is due or expires, the system will prompt you to
renew your subscription.
LAUNCH
55
Tap Renewal on the bottom of the screen to enter the payment screen.
There are three ways available for you to make payment: PayPal, Subscription
Renewal Card (*need to buy it from the local dealer where you purchased the tool)
and Credit Card.
1. Using PayPal
1. Select PayPal, and then follow the on-screen instructions to finish the
transaction.
2. After payment, go to update center to update the diagnostic software.
2. Using Subscription Renewal Card
1. Select Subscription Renewal Card.
2. Input the 24-digit pin code of Subscription Renewal Card and then tap Submit
to finish the renewal.
3. Go to update center to update the diagnostic software.
LAUNCH
56
3. Using Credit Card
1. Select Credit Card, and then follow the on-screen instructions to finish the
transaction.
2. After payment, go to update center to update the diagnostic software.
LAUNCH
57
8 Other Modules
8.1 Toolbox
Each module consists of two parts: hardware and app. These modules cannot
work properly on the tablet alone, which need to work with the specific
compatible hardware.
8.1.1 ADAS (Calibration)
This module enables you to effectively and accurately calibrate a wide range of
camera-based & radar-based driver assistance systems, e.g. the front camera
for the lane departure warning system, the radar sensor for the ACC (Adaptive
Cruise Control) or the camera for adaptive headlights. It needs to work with the
specific ADAS calibration tool (sold separately).
For more details, please refer to the User Manual included with the module.
8.1.2 TPMS
This module allows you to configure the tablet as TPMS activation & diagnostic
tool, which provides the ability to trigger TPMS sensor, program TPMS sensor,
perform the relearning procedure. It needs to work with the compatible TSGUN
device (sold separately).
For more details, please refer to the User Manual included with the module.
8.1.3 Oscilloscope
This module can make the auto repair technician quickly judge the faults on
automotive electronic equipment and wiring.
For more details, please refer to the User Manual included with the module.
8.1.4 BST360 (Battery Tester)
This module allows you to fix battery detection faster and easier. It needs to
work with the specific Bluetooth battery tester (sold separately).
For more details, please refer to the User Manual included with the module.
8.1.5 S2-2 Sensorbox
This module is specially designed to diagnose and simulator vehicle sensor
faults quickly and conveniently. It needs to work with the compatible S2-2
LAUNCH
58
Sensorbox (sold separately).
For more details, please refer to the User Manual included with the module.
8.1.6 S2-2 Multimeter
This module allows you to measure the physical parameters such as voltage,
resistance, frequency etc. It utilizes the same hardware as the S2-2 Sensorbox.
For more details, please refer to the User Manual included with the S2-2
Sensorbox.
8.1.7 Immobilizer Programmer
This module allows you to perform the read-write function for vehicle keys,
EEPROM, MCU, and EEPROM/FLASH of vehicle engine and gearbox ECU. It
needs to work with the specific immobilizer programmer (sold separately).
For more details, please refer to the User Manual included with the module.
8.1.8 Videoscope
This module allows you to check those unseen parts of engine, fuel tank,
braking system. It needs to work with the compatible Videoscope device (sold
separately).
For more details, please refer to the User Manual included with the module.
8.2 Vehicle Coverage
This module allows you to check which vehicle models that the tool covers.
8.3 System (Android) Apps
8.3.1 Recording Master
This module is a free and convenient application that allows you to take tablet
screen video capture of high quality, with or without sound.
8.3.2 Browser
This browser is a free cross-platform web browser. It has gained popularity
worldwide, featuring tools such as file downloads, password settings, and
bookmarks. Users can load several web pages or use a search engine to find
any topic on the internet.
LAUNCH
59
8.3.3 Camera
This application allows you to take pictures or record videos with the device
camera.
8.3.4 Gallery
This function allows you to take new pictures and manage the picture library
(including screenshots).
8.3.5 Calculator
It is a simple-to-use and responsive app. All calculations are made on-the-fly as
you input new data.
8.3.6 Files
This module is a very useful file & application manager, task killer and download
manager.
8.3.7 Tablet Setting
This module provides a quick dial to the Android’s system settings.
LAUNCH
60
9 User Info
This function allows users to manage personal information and VCI.
9.1 My Report
This option is used to view, delete or share the saved reports.
Tap Report, there are total 3 options available.
In case the DTC result is saved on Read Trouble Code page, the files will be
listed under Health Reports tab.
If user records the running parameters while reading data stream, the tablet will
save the file which appears under Recorded Data tab.
Remote Reports lists all diagnostic reports generated in process of remote
diagnosis.
9.2 VCI
This option allows you to manage all your activated VCI devices.
If several VCI devices are activated on this tool, a list of VCIs will be displayed
on the screen. Once you choose the VCI that belongs to other account, you
have to log out, and then input the right account to continue.
9.3 Activate VCI
This item lets you activate the VCI device in case you ignore the Activate VCI
step in process of the product sign-up.
Input the Serial Number and Activation Code, and then tap Activate to activate
the VCI.
LAUNCH
61
9.4 Firmware Fix
Use this item to upgrade and fix diagnostic firmware. During fixing, please do not
cut power or switch to other interfaces.
9.5 Sample
This feature allows you to manage the recorded data stream sample files.
9.6 My Order
This item allows you to check the status of all your orders.
9.7 Subscription Renewal Card
This item is used to check the status of the subscription renewal card.
Input the 12-digit subscription renewal card number. Tap Search to get the
search result.
9.8 Profile
Use this item to view and configure personal information.
• Tap the user image to change it.
• Tap > next to Upgrade Period to check the due date of all diagnostic
software.
LAUNCH
62
9.9 Change password
This item allows you to modify your login password.
9.10 Settings
It enables you to make some application settings and view software version
information etc.
9.10.1 Units
It is designed to configure the measurement unit. Metric System and English
System are available.
9.10.2 Shop Information
This option lets you define your shop information. It mainly includes Workshop,
Address, Telephone, Fax and License Plate.
After inputting, tap Save.
Once you saved the shop information, it will be entered automatically in the Add
Information box every time you save the diagnostic report.
9.10.3 Printer Set
This option is designed to establish a wireless connection between the tablet
and the Wi-Fi printer (sold separately) while performing printing operations.
The App is compatible with the LAUNCH Wi-Fi Printer (sold separately) and
System (external printer).
For LAUNCH Wi-Fi printer, refer to the User Manual included with the printer.
For other Wi-Fi printers,
Before printing, make sure the following conditions are met:
• The Wi-Fi printer is powered on and working normally.
• The print service plug-in associated with the printer is already installed on the
tablet (Go to Google Play or use the Browser to download and install it).
Follow the steps below to proceed:
1. Set the default printer as System.
2. Go to Other Modules -> Tablet Settings -> WLAN, set the WLAN switch to
Off.
LAUNCH
63
3. On the report details page, tap
.
4. Touch
next to Select a printer on the upper left corner of the screen.
5. Select All Printers -> Add printer and enable the installed printer service,
the system starts searching for all available Wi-Fi printers of the brand.
LAUNCH
64
6. Select the desired Wi-Fi printer from the list. If the chosen Wi-Fi printer
hotspot is open, the tablet can connect it directly. If it is encrypted, a
password may be required. Refer to the Wi-Fi printer user manual to get the
default password.
7. Now the printer is ready for printing.
8. Alternatively, you can also choose Save as PDF to save the current
diagnostic report as a PDF file for later printing.
9.10.4 Clear Cache
This option allows you to clear the App cache. Clearing the cache will restart the
App.
9.10.5 About
The software version information and disclaimer are included.
9.10.6 Diagnostic Software Auto Update
This option is used to set whether automatic update function is ON.
9.10.7 Device Account Management
This option is used to manage the sub-accounts. The added sub-account allows
the VCI connector to be used by different users to log in the tool, which is
convenient for multiple VCIs to perform diagnostic service at the same time.
The newly added sub-account has a one-year validity period. After the expiration,
the VCI bound to the sub-account cannot be used and the sub-account will no
longer enjoy the rights and interests of the main account. The main account can
modify the validity period of the sub-account.
There are two types of sub-accounts: one is an existing account and the other is
a newly created account. The main account has the functions of adding and
removing sub-accounts, the sub-account can also be unbound from the main
account.
Tap Device account management, the following screen will appear:
LAUNCH
65
Tap Add technician account, the following popup will appear:
• If you already have an account, please enter the user name and password.
After inputting, tap Add Immediately to add it as a sub-account.
• If you have not registered any account, tap Create sub user. Enter the user
name and password, and then tap Add Immediately to add it as a
sub-account.
After adding the sub-account, the following screen will appear:
LAUNCH
66
To unbind it from the main account, tap Remove. To revise the validity period,
tap Change.
9.10.8 Login/Logout
To logout the current user ID, tap Logout.
To login the system again, tap Login.
9.11 Diagnostic Software Clear
This item allows you to hide/clear the diagnostic software that is not frequently
used.
Note: Removing software may completely delete the software from the tablet. If
some software is not used and the tablet runs out of space, you can use this feature to
remove it.
LAUNCH
67
10 FAQ
1. How to save power?
• Please turn off the screen while the tool keeps idle.
• Set a shorter standby time.
• Decrease the brightness of the screen.
• If WLAN connection is not required, please turn it off.
• Disable GPS function if GPS service is not in use.
2. Communication error with vehicle ECU?
Please confirm:
1. Whether diagnostic connector is correctly connected.
2. Whether ignition switch is ON.
3. If all checks are normal, send vehicle year, make, model and VIN number to
us using Feedback feature.
3. Failed to enter into vehicle ECU system?
Please confirm:
1. Whether the vehicle is equipped with this system.
2. Whether the VCI dongle is correctly connected.
3. Whether ignition switch is ON.
4. If all checks are normal, send vehicle year, make, model and VIN number to
us using Feedback feature.
4. How to download the diagnostic App after resetting the tablet?
Note: Before registration, please make sure the network is properly connected.
After the tablet has been successfully reset, follow the steps below to download
the App:
1. Launch the browser and the default official Launch website opens (If a blank
page pops up, just type in
www.x431.com in the input bar).
2. Tap Login, input the username and password and tap Log In.
3. Make sure that the serial number is correct, tap APP application program
LAUNCH
68
and tap the Download icon to start downloading.
4. After the download is complete, follow the on-screen instructions to install it.
5. After installation, use the existing username and password to login and go to
update center to download the diagnostic software.
5. What to do if the language of vehicle diagnostic software does not
match the system language?
English is the default system language of the tool. After the system language is
set to the preference language, please go to the update center to download the
vehicle diagnostic software of the corresponding language.
If the downloaded diagnostic software is still displayed in English, it indicates
that the software of the current language is under development.
6. How to retrieve the login password?
Please follow below steps to proceed in case you forgot the login password:
1. Tap the application icon on the home screen to launch it.
2. Tap Login on the upper right corner of the screen.
3. Tap Retrieve password.
LAUNCH
69
Warranty
This warranty is expressly limited to persons who purchase LAUNCH
®
products
for purposes of resale or use in the ordinary course of the buyer’s business.
LAUNCH
®
electronic product is warranted against defects in materials and
workmanship for one year (12 months) from date of delivery to the user.
This warranty does not cover any part that has been abused, altered, used for a
purpose other than for which it was intended, or used in a manner inconsistent
with instructions regarding use. The exclusive remedy for any automotive meter
found to be defective is repair or replacement, and LAUNCH shall not be liable
for any consequential or incidental damages.
Final determination of defects shall be made by LAUNCH in accordance with
stipulated procedures.
Order Information
Replaceable and optional parts can be ordered directly from your authorized tool
supplier. Your order should include the following information:
Quantity
Part number
Item description
Customer Service
If you have any questions on the operation of the unit, please contact the seller,
or customer service center:
Tel: 86-755-25938674
E-mail: DOD@cnlaunch.com
LAUNCH
70
Statement:
LAUNCH reserves the rights to make any change to product designs and
specifications without notice. The actual object may differ a little from the
descriptions in the manual in physical appearance, color and configuration. We
have tried our best to make the descriptions and illustrations in the manual as
accurate as possible, and defects are inevitable, if you have any question,
please contact local dealer or after-sale service center, LAUNCH does not bear
any responsibility arising from misunderstandings.
