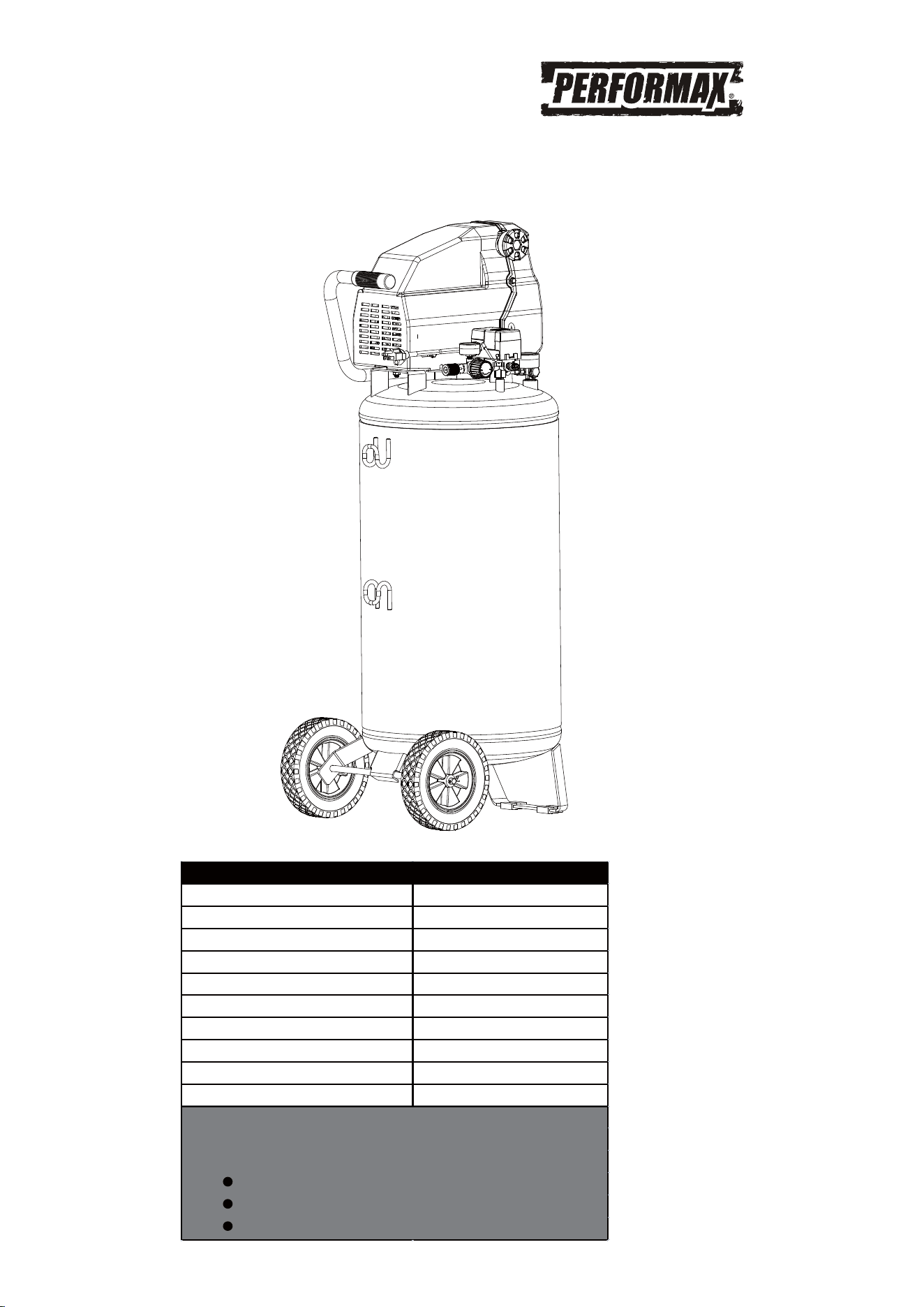

26-GALLON AIR COMPRESSOR
207-1521
Owner’s Manual
Rating: 120 V, 60 Hz, Induction
Amperes: 14.5 A
Tank Size: 26 U.S. gallons
Air Delivery (CFM*)@40 PSI: 6.2
Air Delivery (CFM*)@90 PSI: 5.2
Cut-in Pressure(PSI): 125
Cut-out Pressure(PSI): 155
Pump Design: Oil-free , Direct Drive
Power Cord: SJT14 x 10ft
Weight: 102 lbs (46kg)
PRODUCT SPECIFICATIONS
Need Assistance?
Call us on our toll free customer support line:
1-888-899-0146
Technical questions
Replacement parts
Parts missing from package
3

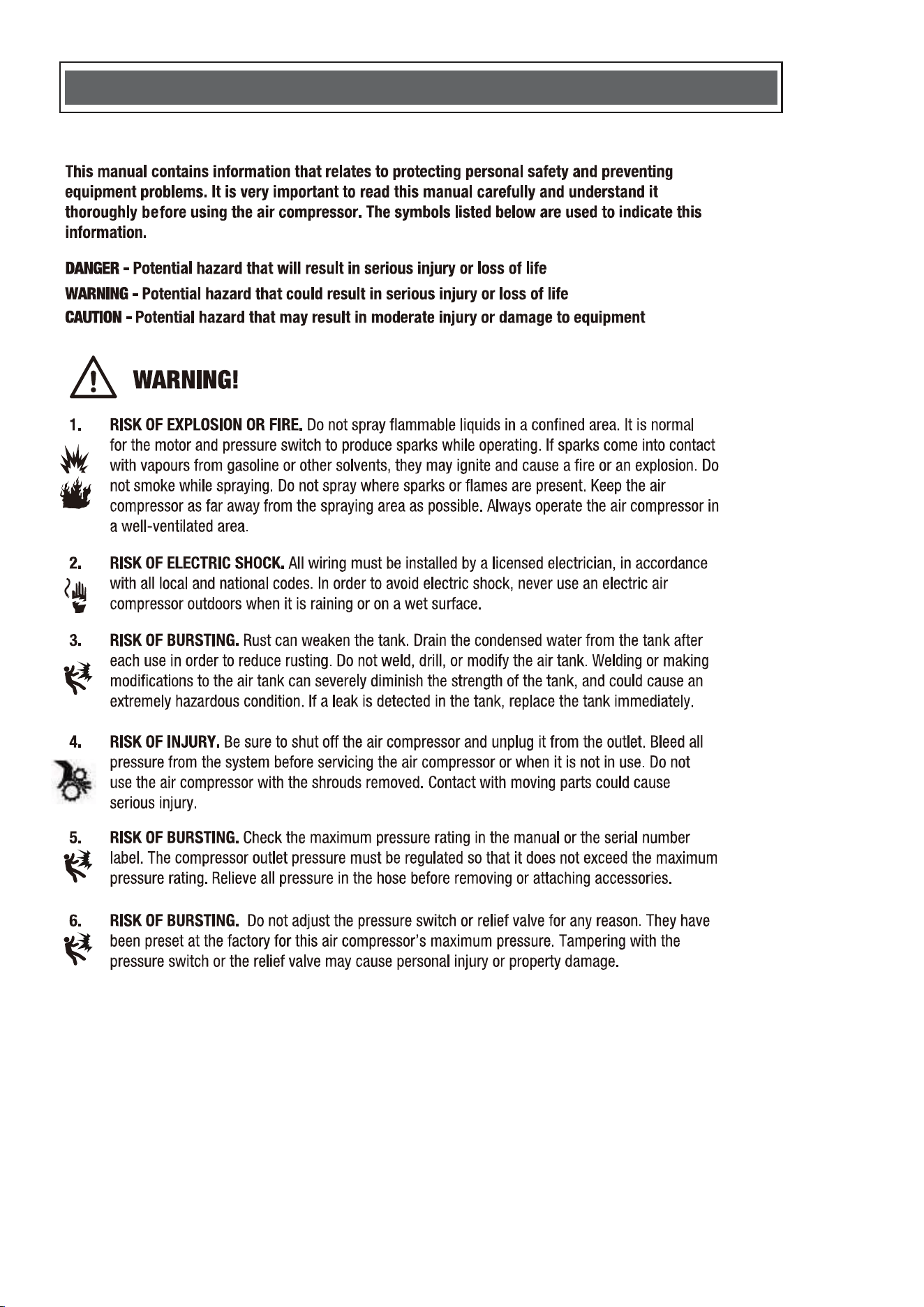

GENERAL SAFETY WARNINGS
2
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
GENERAL SAFETY
WARNINGS
KNOW YOUR AIR COMPRESSOR
BEFORE YOU START
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
MAINTENANCE
TROUBLESHOOTING
WARRANTY
EXPLODED VIEW & PARTS LIST
1
3
5
7
8
9
10
11
12
14
5

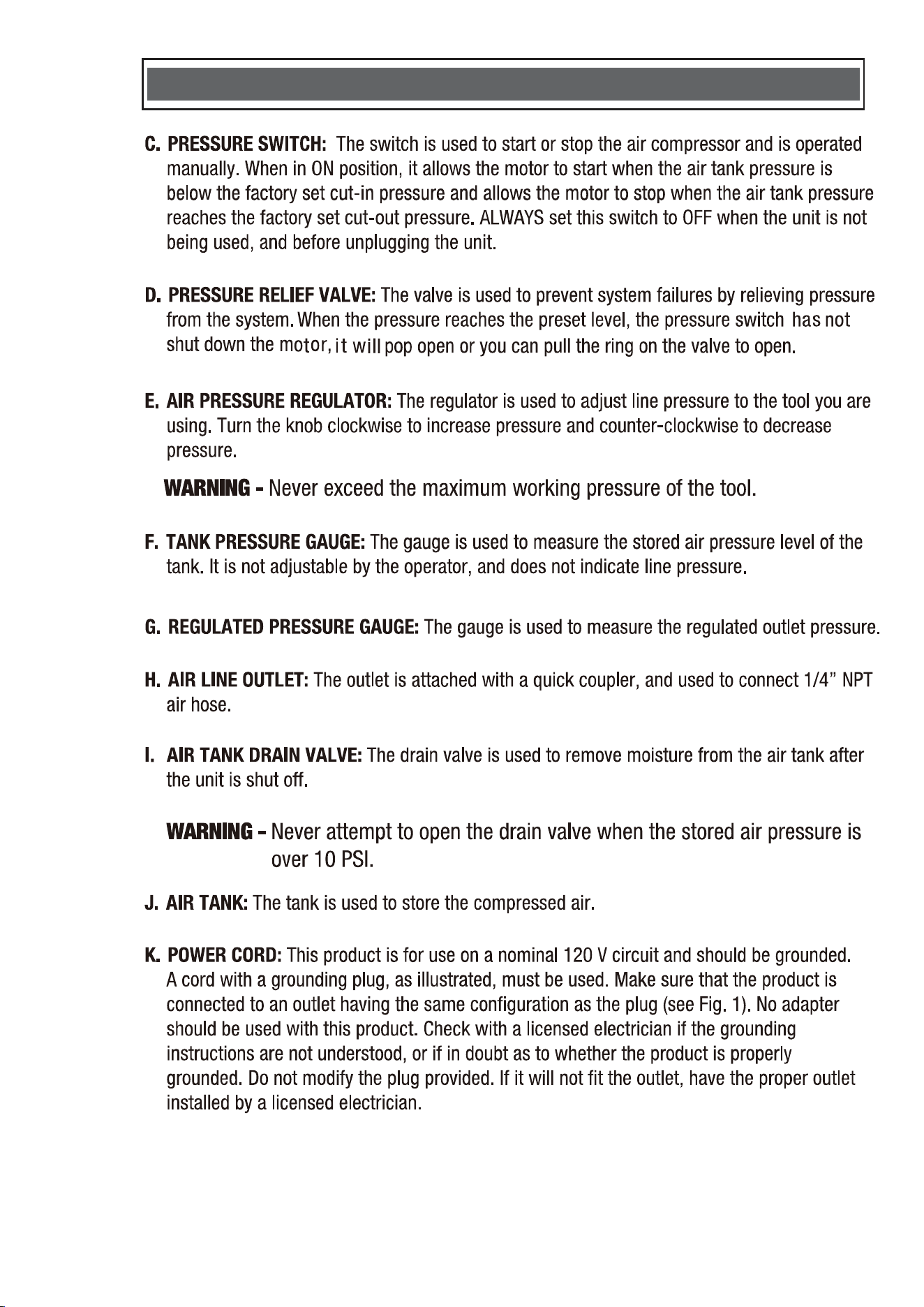

KNOW YOUR AIR COMPRESSOR
4

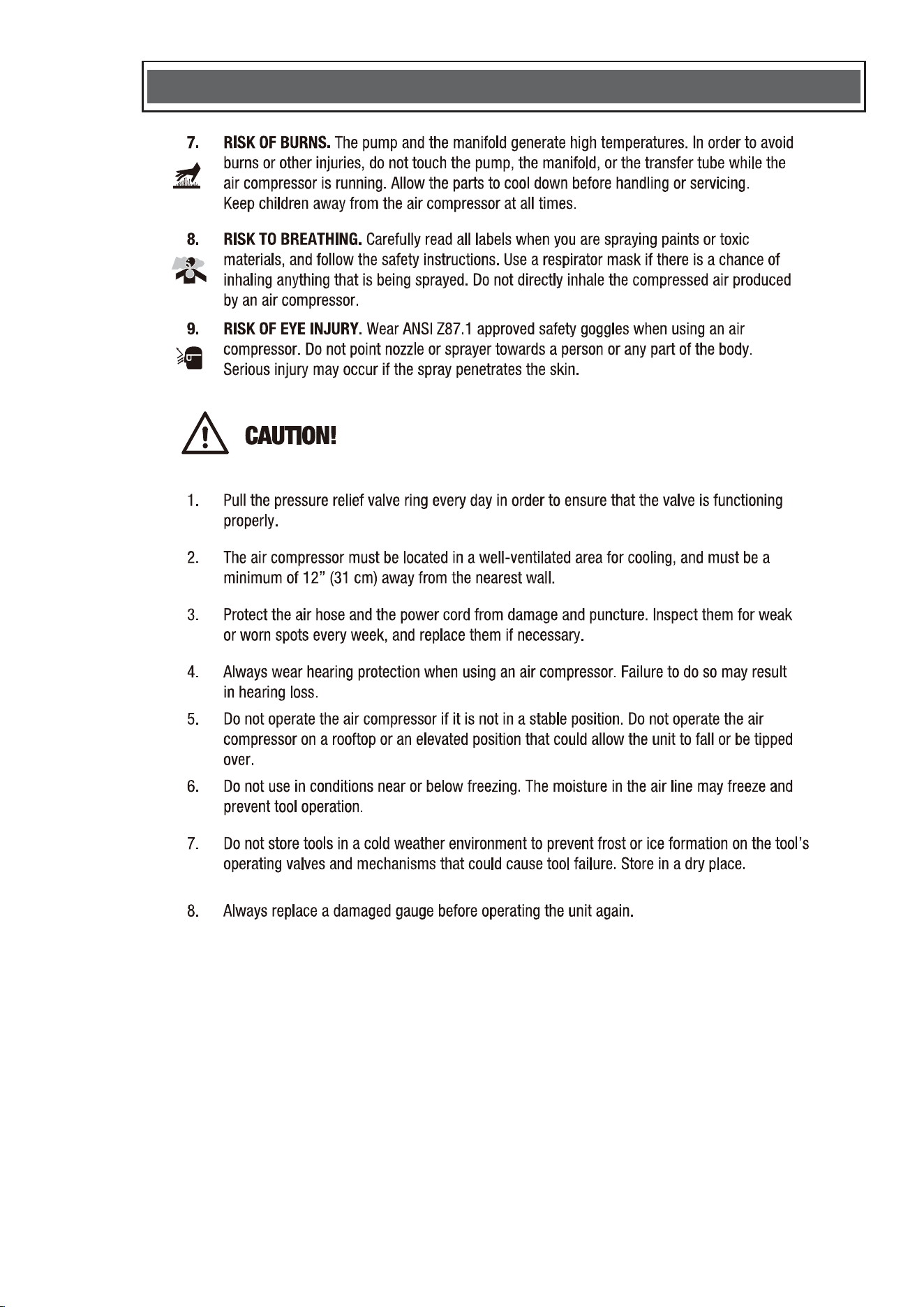

GENERAL SAFETY WARNINGS
SAVE THESE INSTRUCTIONS FOR REFERENCE
7

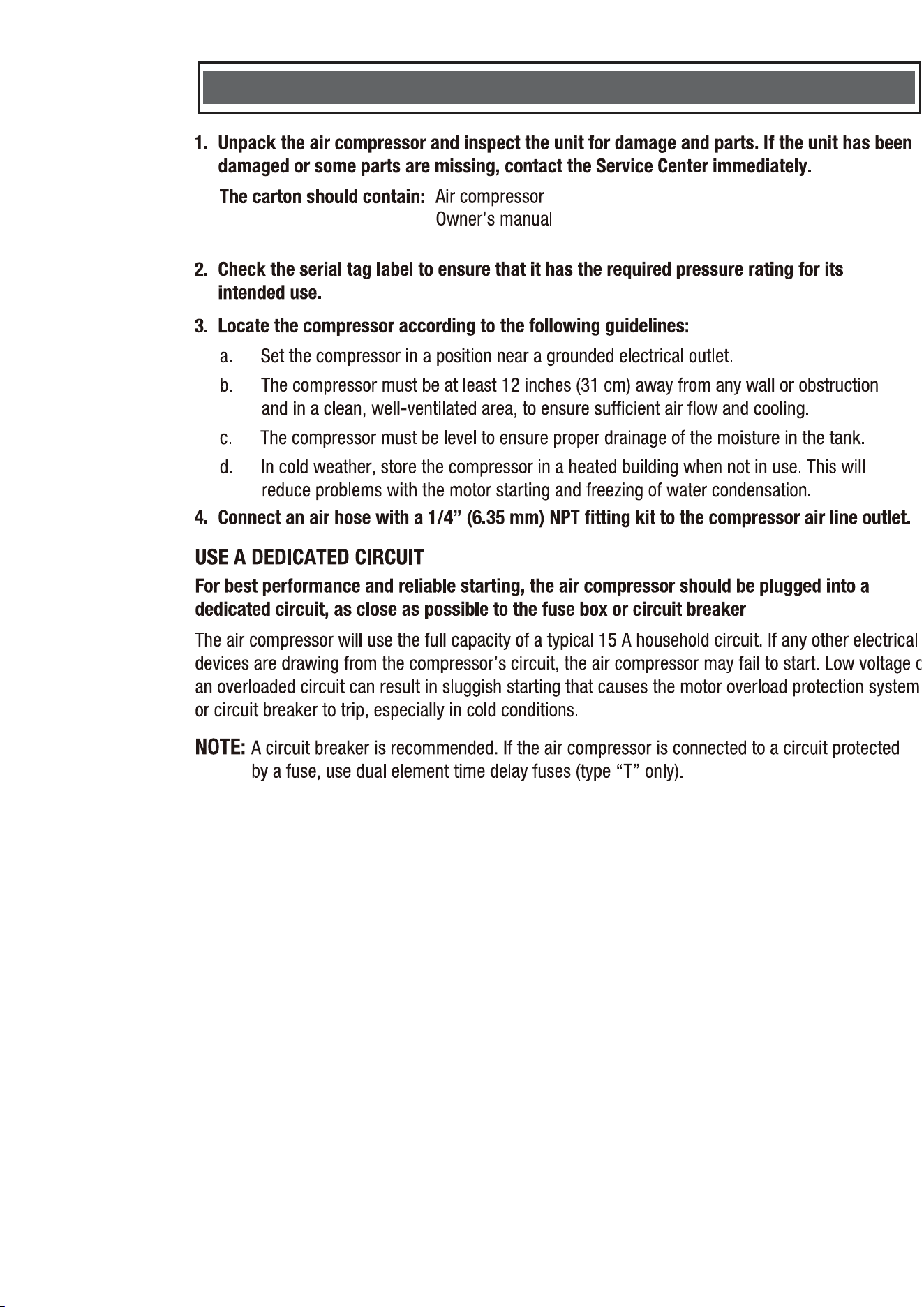

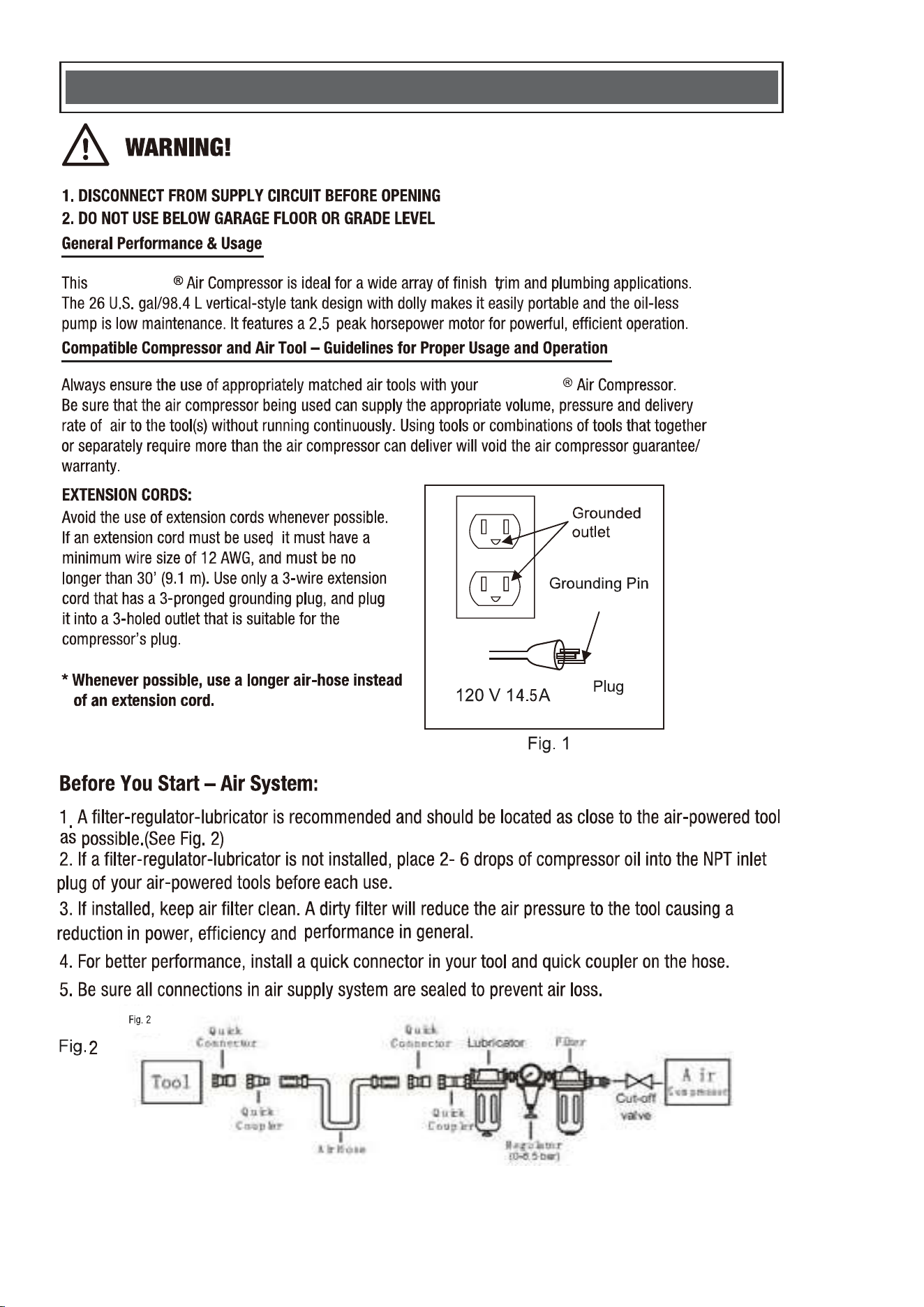

BEFORE YOU START
Performax
Performax

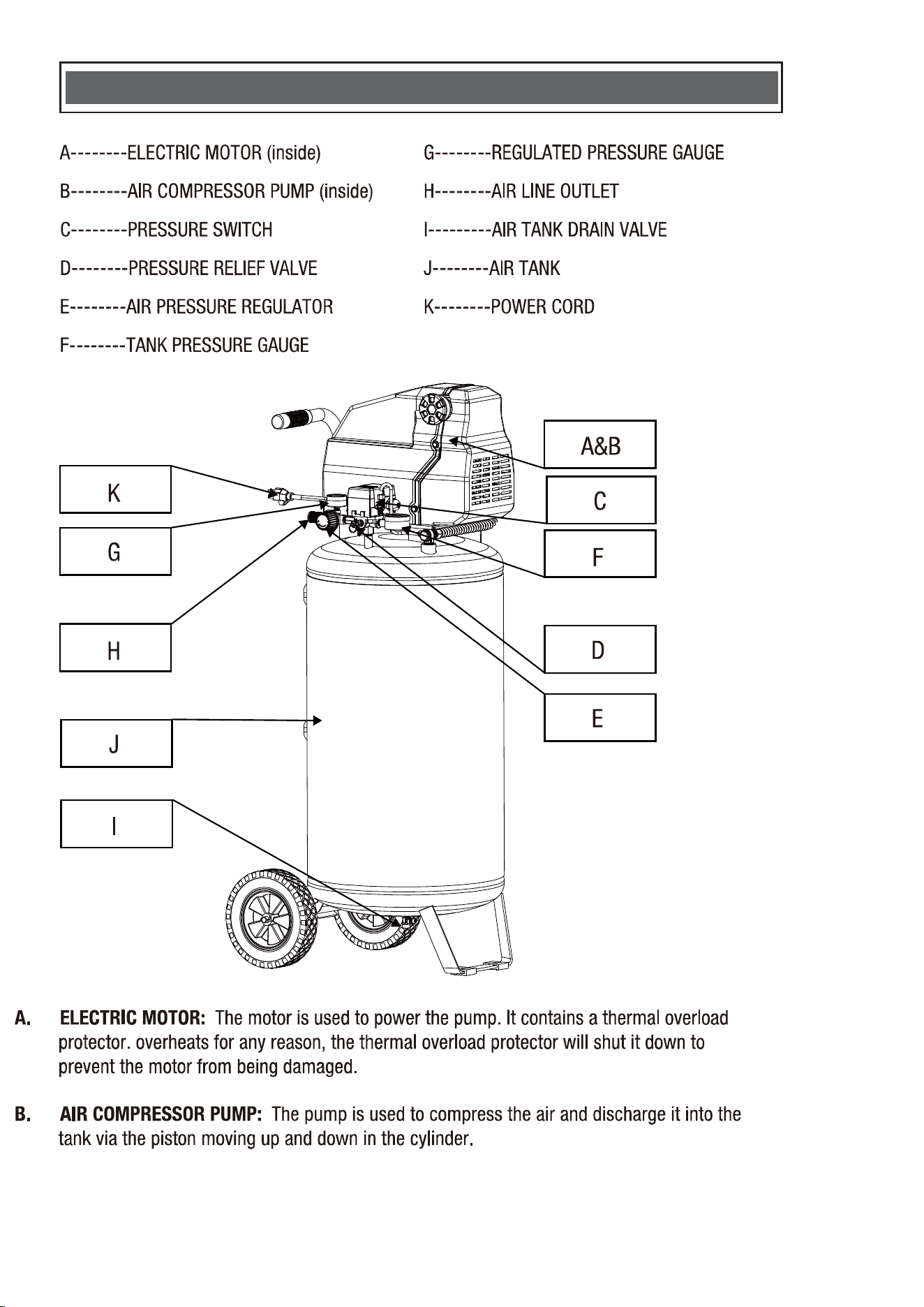

KNOW YOUR AIR COMPRESSOR
6
9

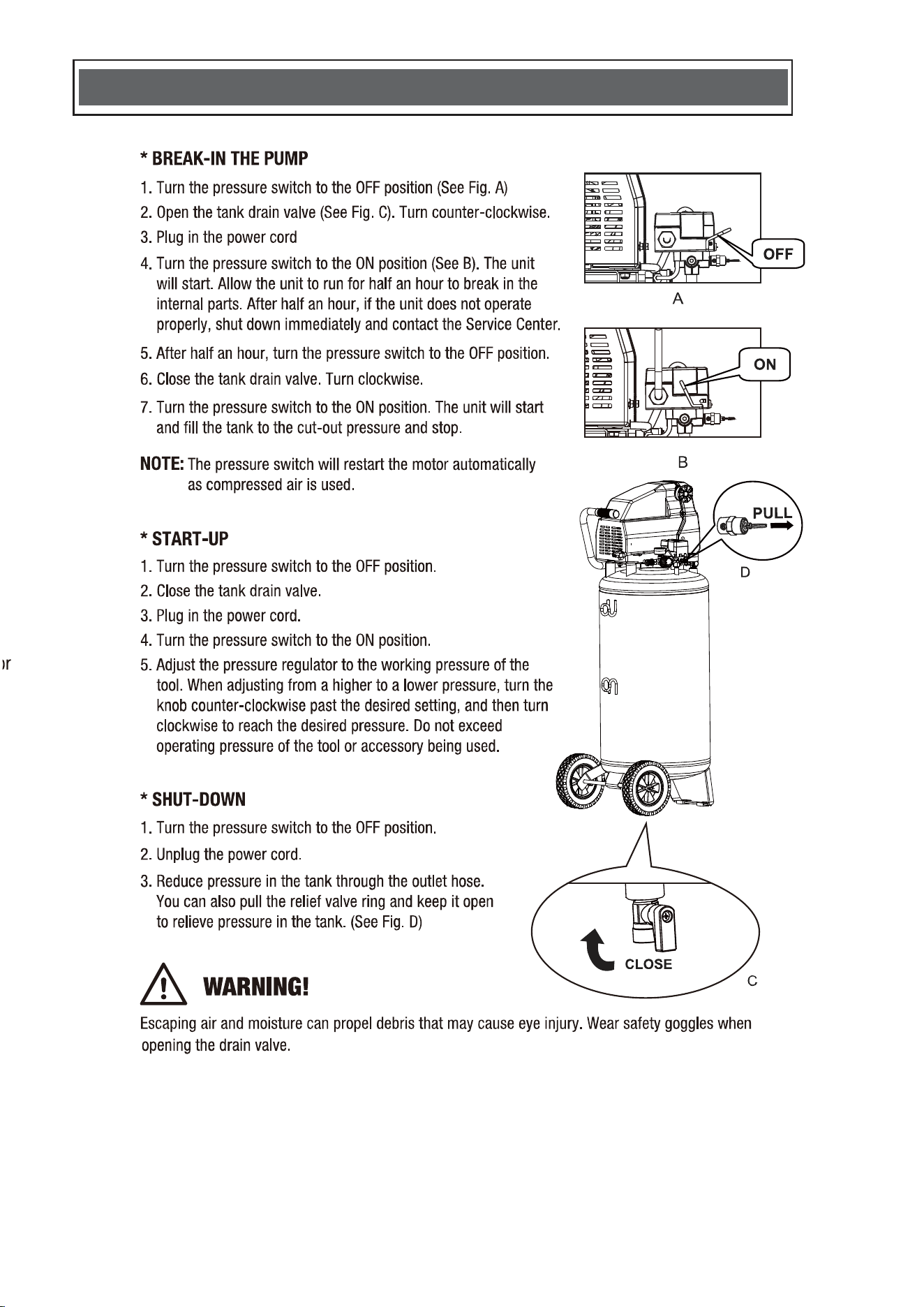

OPERATING INSTRUCTIONS
8
ASSEMBLY INSTRUCTIONS
11

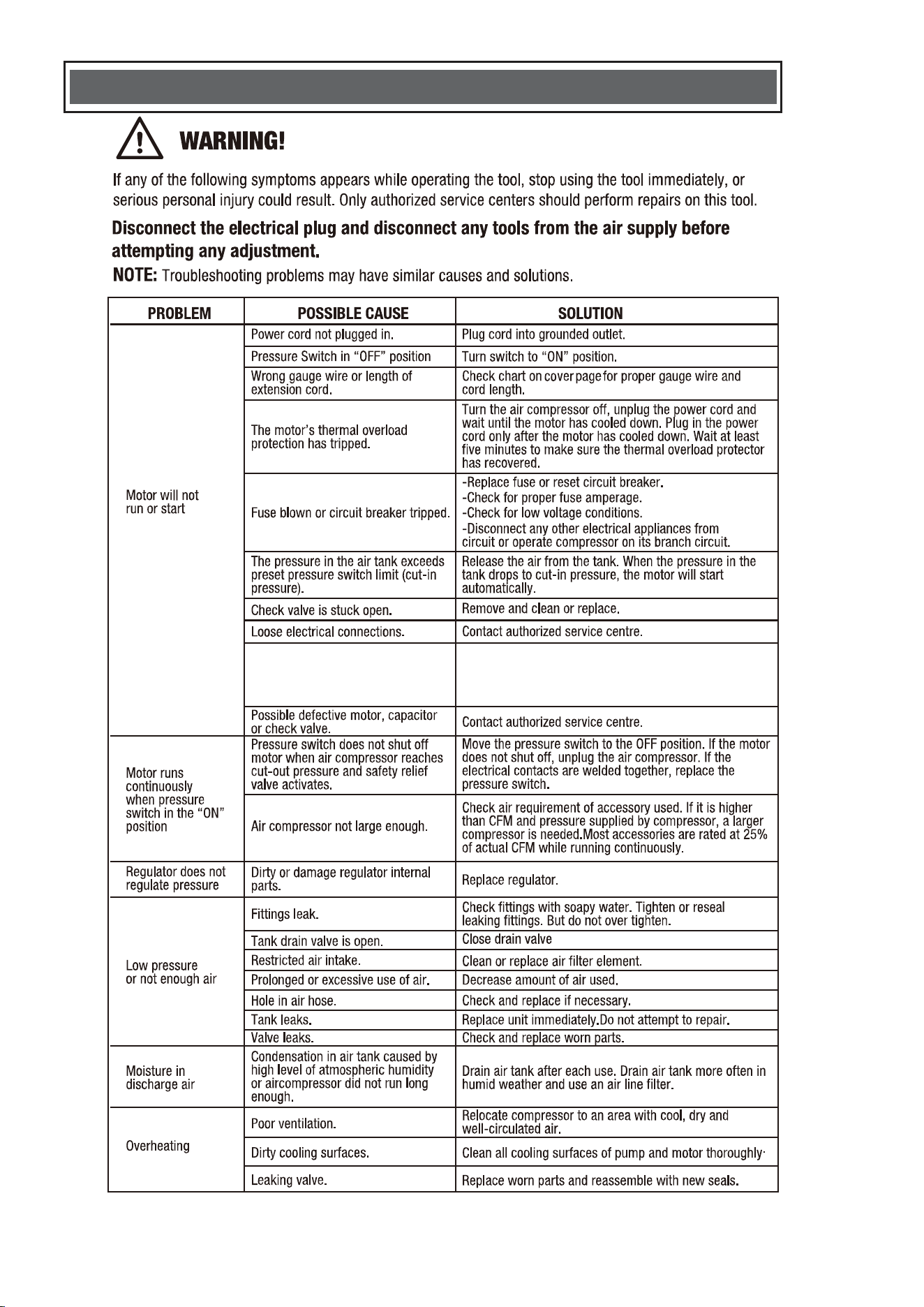

TROUBLE SHOOTING
The motor’s thermal overload
protection has tripped.
Turn the air compressor off, unplug the power cord
and wait until the motor has cooled down. Plug in the
power cord only after the motor has cooled down,
waiting at least five minutes to make sure the thermal
overload protector has recovered.
10

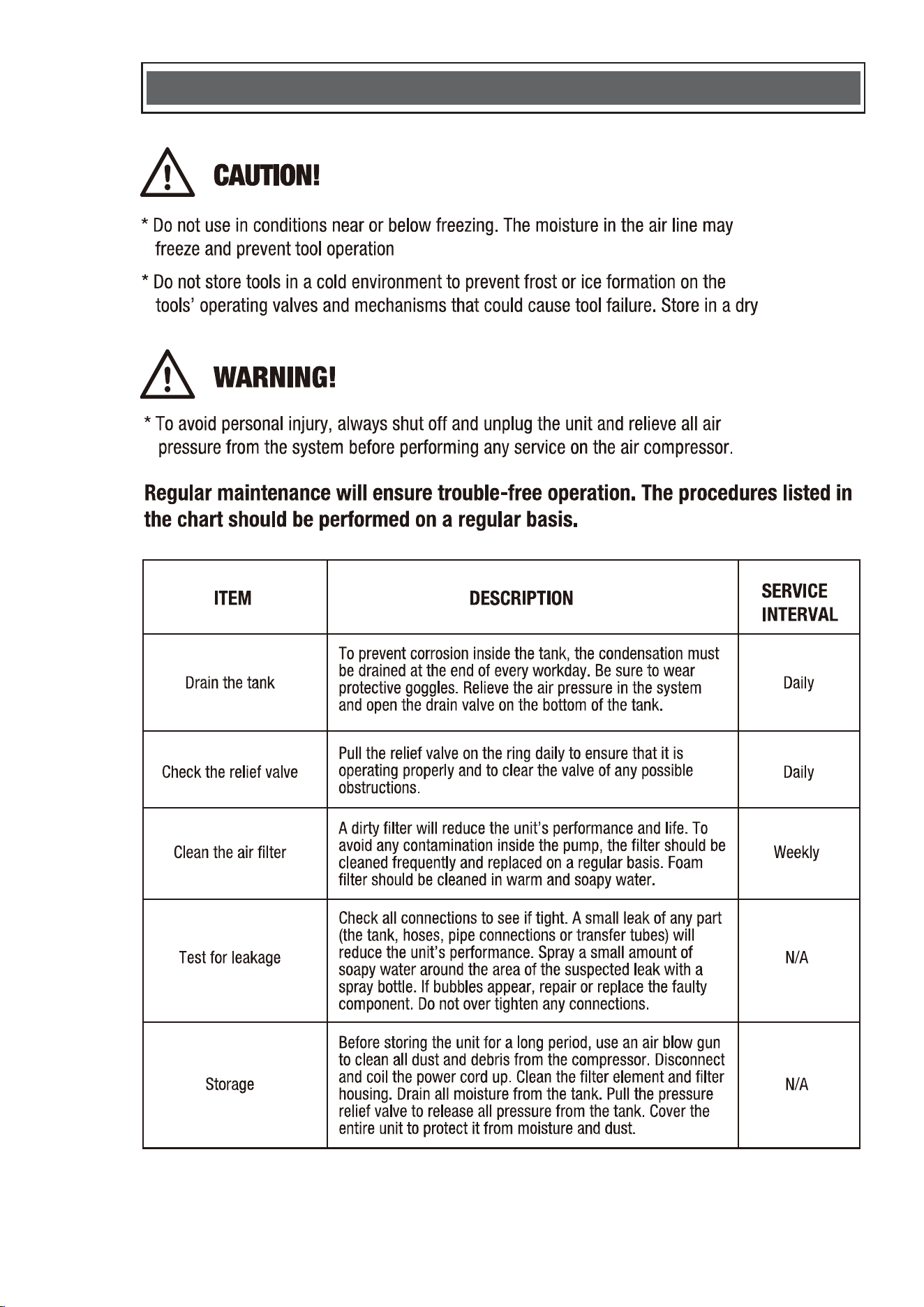

MAINTENANCE
environment.
13
WARNING:
When servicing, use only original equipment replacement parts. The
use of any other parts may create a safety hazard or cause damage to the air
compressor
Any attempt to repair or replace electrical parts on this air compressor may create a
hazard unless repairs are performed by a qualified technician. For more
information, call the Toll-free Helpline, at 1-888-899-0146.

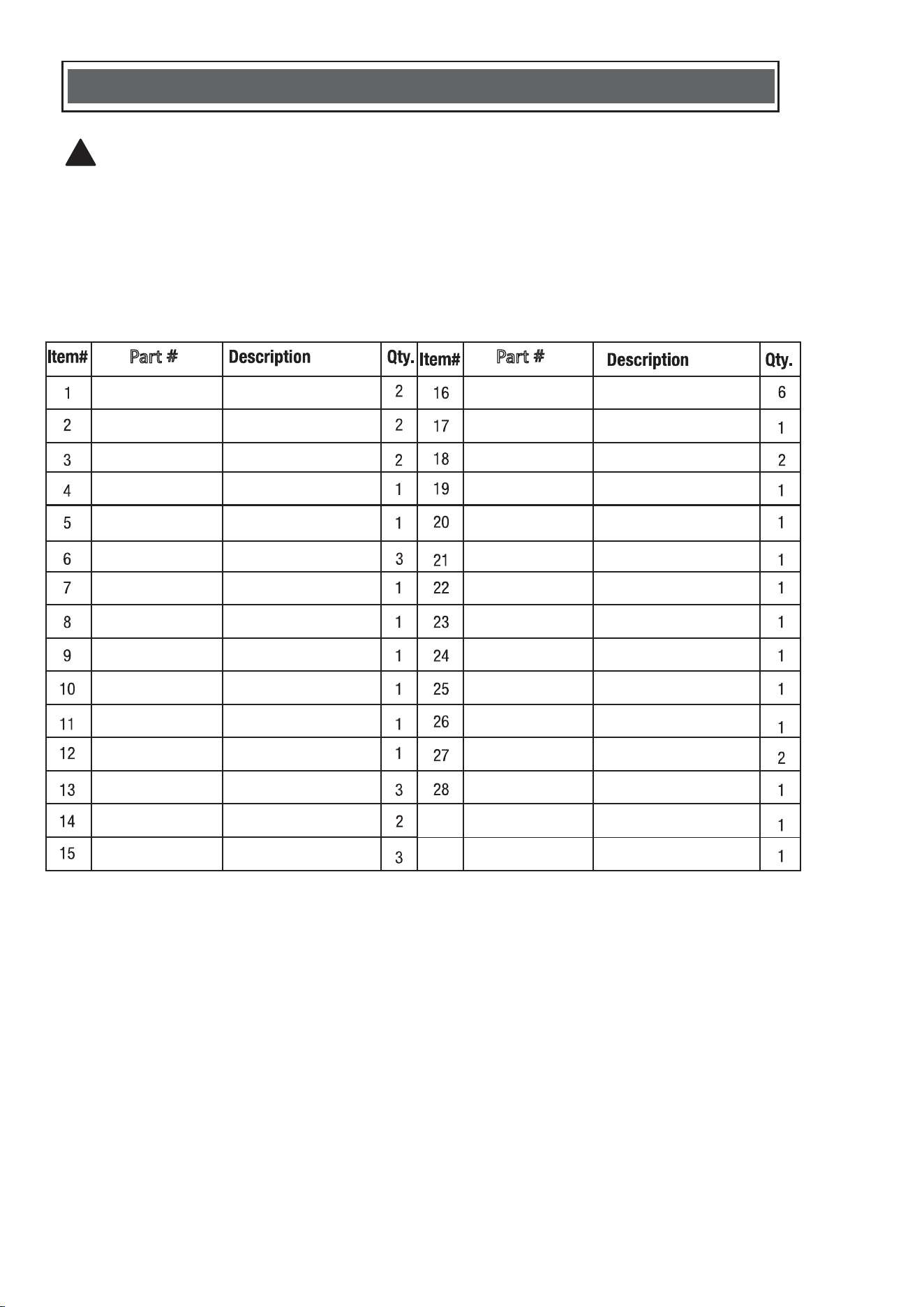

PARTS LIST
!
Hex-Bolt
Cotter Pin
Drain Valve
Air Tank
Hex-Nut
Rubber Pad
Shroud Pad
Handle Grip
Pressure Gauge
Power Cord
Quick Coupler
Regulator
Adaptor Fitting
Always order by PART NUMBER, not by item number.
Rubber FootX3630590101
WheelF4813700313
J2842480040
J0902530037
F1513700566
J2022870040
J2462020037
J0309710164
J2991790047
D1003065128
F5013700526
X3191020052
X0060590091
X0005570171
J0807290040
29
30
Motor and Pump
Metal Cover
Right Elbow
Air Filter
Rear Shroud
Bleed Tube
Transfer Tube
Pressure Switch
Anchor Nut
Pressure Gauge
Check Valve
Relief Valve
Hex-BoltJ0802600033
Front ShroudQ9004986001
Cross-head ScrewJ0789780032
A4690260507
J6009640163
J3165900034
J3090980171
Q9004976001
J3139730154
J3149720048
D3005000063
Q3113177001
F5013700567
J0188590083
J0029680083
safety
12

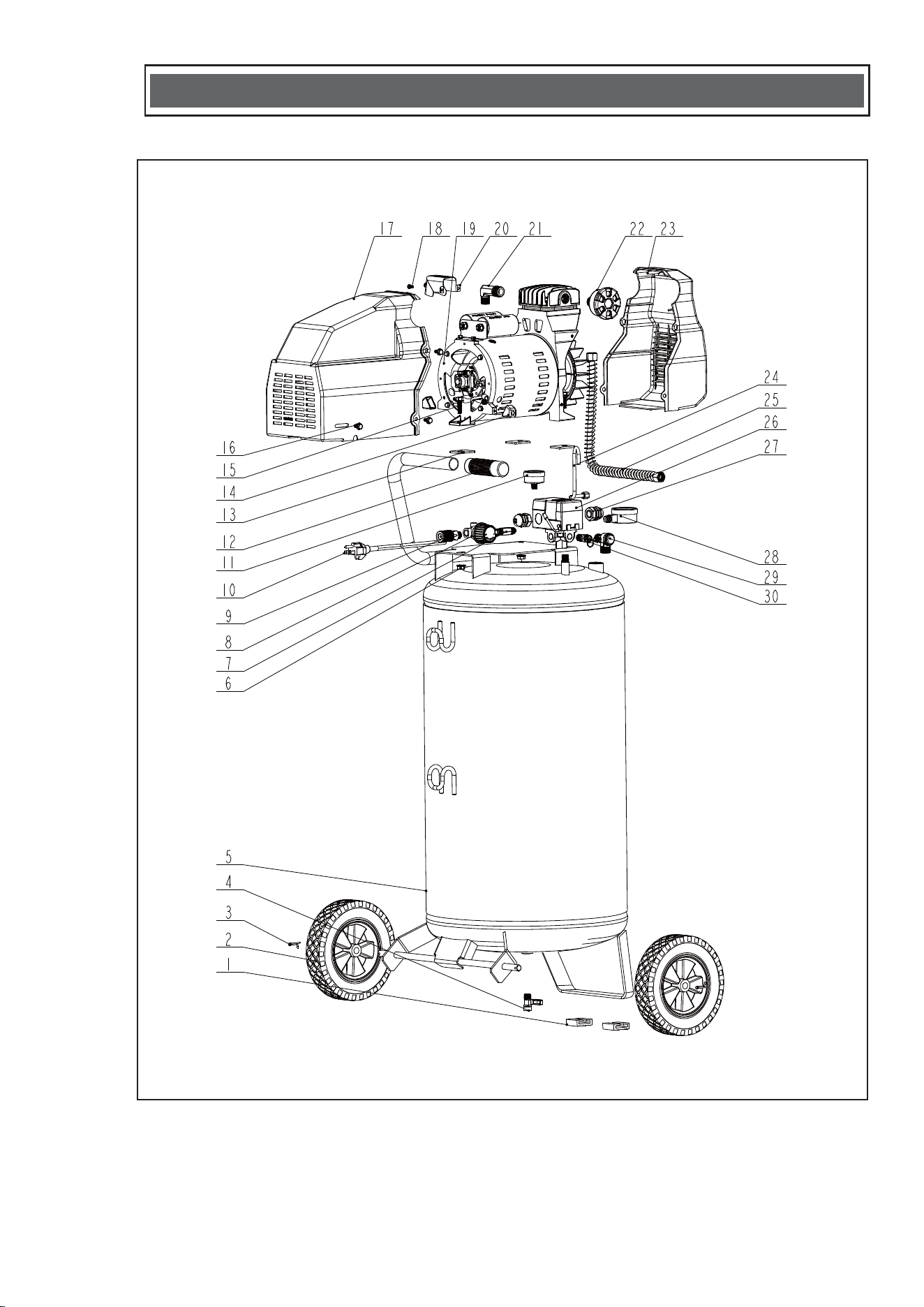

EXPLODED VIEW
stated warranty period, when returned by the original purchaser with original sales
NOTES
14
PERFORMAX
®
AIR COMPRESSOR WARRANTY
compressor c
2-YEAR
LIMITED WARRANTY:
This PERFORMAX
®
brand arries a 2-Year Limited Warranty to the
original purchaser. If, during normal use, this PERFORMAX
®
compressor breaks
or fails due to a defect in material or workmanship within two (2) years from the
date of original purchase, simply bring this compressor with the original sales
receipt back to your nearest MENARDS® retail store. At its discretion,PERFOR
MAX agrees to have the compressor or any defective part(s) repaired or replaced
with the same or similar PERFORMAX product or part free of charge, within the
stated warranty period, when returned by the original purchaser with original sales
®
receipt. Not withstanding the foregoing, this limited warranty does not cover any
damage that has resulted from abuse or misuse of the Merchandise. This
warranty: (1) excludes expendable parts including but not limited to blades,
brushes, belts, bits, light bulbs, and/or batteries; (2) shall be void if this tool is
used for commercial and/or rental purposes; and (3) does not cover any losses,
injuries to persons/property or costs. This warranty does give you specific legal
rights and you may have other rights, which vary from state to state. Be careful,
air compressors are dangerous if improperly used or maintained. Seller’s employees
are not qualified to advise you on the use of this Merchandise. Any oral
representation(s) made will not be binding on seller or its employees. The rights
under this limited warranty are to the original purchaser of the Merchandise and
may not be transferred to any subsequent owner. This limited warranty is in lieu
of all warranties, expressed or implied including warranties or merchantability
and fitness for a particular purpose. Seller shall not be liable for any special,air
compressor incidental, or consequential damages. The sole exclusive remedy
against the seller will be for the replacement of any defects as provided herein,
as long as the seller is willing or able to replace this product or is willing to refund
the purchase price as provided above. For insurance purposes, seller is not
allowed to demonstrate any of these air compressors for you.
For questions / comments, technical assistance or repair parts
–
Please Call Toll Free at: 1-888-899-0146 (M-F 8am
–
6pm)
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
Distributed by: Menard, Inc., Eau Claire, WI 54703
®
© 2015 Menard, Inc., Eau Claire, WI 54703 01/2016
