IA
Miter Saw Stand
240-1678
OPERATOR’S MANUAL
CAUTION:
To Reduce The Risk Of Injury, User Must Read And
Understand Operator’s Manual. Save These Instructions For Future Reference.
© 2015 Menard, Inc., Eau Claire, WI 54703 07/18/2017
For questions/comments, technical assistance or repair parts-
Please call toll free at 1-800-255-7011 (M-F 8am - 6pm CST)
IA
Miter Saw Stand
240-1678
OPERATOR’S MANUAL
CAUTION:
To Reduce The Risk Of Injury, User Must Read And
Understand Operator’s Manual. Save These Instructions For Future Reference.
© 2015 Menard, Inc., Eau Claire, WI 54703 07/18/2017
For questions/comments, technical assistance or repair parts-
Please call toll free at 1-800-255-7011 (M-F 8am - 6pm CST)
SAVE YOUR RECEIPTS
THIS WARRANTY IS VOID WITHOUT THEM
Page 13
TABLE OF CONTENTS
Save this Manual.............................................................................
Safety Instructions...........................................................................
Overview..........................................................................................
Parts List..........................................................................................
Assembly Instructions.....................................................................
Maintenance....................................................................................
Notes...............................................................................................
Warranty..........................................................................................
Page 1
Page 1
Page 1
Page 3
Page 4-6
Page 10
Page11-12
Page 13
Miter Saw Stand
WARRANTY
90-DAY MONEY BACK GUARANTEE
This PERFORMAX
®
brand tool carries our 90-Day Money Back Guarantee.
If you are not completely satisfied with your PERFORMAX
®
brand power tool for
any reason within ninety (90) days from the date of purchase, return the tool with your
original receipt to any MENARDS
®
retail store, and we will provide you a refund - no
questions asked.
TWO-YEAR LIMITED WARRANTY
If during normal use, this PERFORMAX
®
power tool breaks or fails due to defect in
material or workmanship within two years from the dat of original purchase, simply bring
this tool with the original sales receipt back to your nearest MENARDS® retail store. At
its discretion, PERFORMAX® agrees to have the tool or any defective part(s) repaired
or replaced with the same or similar PERFORMAX® product or part free of charge,
within the stated warranty period, when returned by the original purchaser with the
original receipt. This warranty; (1) excludes expendable parts; (2) shall be void if this tool
is used for commercial and/or rental purposes; and (3) does not cover any losses,
injuries to persons/property or costs. This warranty does give you specific legal rights
and you have other rights, which vary from state to state.
For questions / comments, technical assistance or repair parts -
Please call toll free at: 1-800-255-7011 (M-F 8am - 6pm CST)
SAVE YOUR RECEIPTS
THIS WARRANTY IS VOID WITHOUT THEM
Page 13
TABLE OF CONTENTS
Save this Manual.............................................................................
Safety Instructions...........................................................................
Overview..........................................................................................
Parts List..........................................................................................
Assembly Instructions.....................................................................
Maintenance....................................................................................
Notes...............................................................................................
Warranty..........................................................................................
Page 1
Page 1
Page 1
Page 3
Page 4-6
Page 10
Page11-12
Page 13
Miter Saw Stand
WARRANTY
90-DAY MONEY BACK GUARANTEE
This PERFORMAX
®
brand tool carries our 90-Day Money Back Guarantee.
If you are not completely satisfied with your PERFORMAX
®
brand power tool for
any reason within ninety (90) days from the date of purchase, return the tool with your
original receipt to any MENARDS
®
retail store, and we will provide you a refund - no
questions asked.
TWO-YEAR LIMITED WARRANTY
If during normal use, this PERFORMAX
®
power tool breaks or fails due to defect in
material or workmanship within two years from the dat of original purchase, simply bring
this tool with the original sales receipt back to your nearest MENARDS® retail store. At
its discretion, PERFORMAX® agrees to have the tool or any defective part(s) repaired
or replaced with the same or similar PERFORMAX® product or part free of charge,
within the stated warranty period, when returned by the original purchaser with the
original receipt. This warranty; (1) excludes expendable parts; (2) shall be void if this tool
is used for commercial and/or rental purposes; and (3) does not cover any losses,
injuries to persons/property or costs. This warranty does give you specific legal rights
and you have other rights, which vary from state to state.
For questions / comments, technical assistance or repair parts -
Please call toll free at: 1-800-255-7011 (M-F 8am - 6pm CST)
IA
NOTES
SAVE THIS MANUAL
Reference this manual for all safety warnings and precautions, operating and maintenance
procedures, parts list and diagrams. Keep your invoice with this manual and write your invoice
number on the inside of the front cover. Keep the manual and invoice in a safe, dry place for
future reference.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as "danger'', "warning", and "caution" before using
this tool. Failure to follow all instructions may result in serious personal injury.
OVERVIEW
You have just purchased the PERFORM Miter Saw Stand. This product has been specifically
designed to assist you in the use of your miter saw, as well as increasing efficiency with other
bench top tools such as table saws, band saws, scroll saws, planers, etc.
GENERAL SAFETY INSTRUCTIONS
CAUTION: To reduce the risk of injury, users must read and understand this Operator’s Manual.
Using power tools of any kind can be dangerous if safe operating procedures are not followed.
Recognizing the hazards of each tool and using them with the respect and caution considerably
limit the possibility of personal injury. However, if safety precautions are ignored, personal injury
will likely result. Always use common sense – your personal safety is your responsibility.
1. Know your power tool. Read and understand the Operator’s Manual and observe the
warning and instruction labels affixed to the tool.
2. Keep work area clean and dry.
3. Keep children away.
4. Never leave tools unatteneded.
5. Use correct tools for the job.
6. Never force a tool.
7. Wear safety glasses/goggles if required.
8. Never stand or sit on workstation.
9. Replace damaged components immediately.
10. Make sure your work platform is sturdy.
11. Think safety. Safety is a combination of operator awareness, common sense, and alertness
at all times.
Page 12 Page 1
IA
NOTES
SAVE THIS MANUAL
Reference this manual for all safety warnings and precautions, operating and maintenance
procedures, parts list and diagrams. Keep your invoice with this manual and write your invoice
number on the inside of the front cover. Keep the manual and invoice in a safe, dry place for
future reference.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as "danger'', "warning", and "caution" before using
this tool. Failure to follow all instructions may result in serious personal injury.
OVERVIEW
You have just purchased the PERFORM Miter Saw Stand. This product has been specifically
designed to assist you in the use of your miter saw, as well as increasing efficiency with other
bench top tools such as table saws, band saws, scroll saws, planers, etc.
GENERAL SAFETY INSTRUCTIONS
CAUTION: To reduce the risk of injury, users must read and understand this Operator’s Manual.
Using power tools of any kind can be dangerous if safe operating procedures are not followed.
Recognizing the hazards of each tool and using them with the respect and caution considerably
limit the possibility of personal injury. However, if safety precautions are ignored, personal injury
will likely result. Always use common sense – your personal safety is your responsibility.
1. Know your power tool. Read and understand the Operator’s Manual and observe the
warning and instruction labels affixed to the tool.
2. Keep work area clean and dry.
3. Keep children away.
4. Never leave tools unatteneded.
5. Use correct tools for the job.
6. Never force a tool.
7. Wear safety glasses/goggles if required.
8. Never stand or sit on workstation.
9. Replace damaged components immediately.
10. Make sure your work platform is sturdy.
11. Think safety. Safety is a combination of operator awareness, common sense, and alertness
at all times.
Page 12 Page 1
NOTES
SAFETY INSTRUCTIONS FOR MITER SAW STANDS
1. Use caution when folding or unfolding legs to limit any finger pinch points.
2. Place stand on a flat level surface to keep from rocking or tipping.
3. Make sure that Rapid Clamp Tool Mounts are properly locked into place before using your
tool. Do not exceed the rated capacity on the Miter Saw Stand (400 lb).
4. Test the setup for stability before proceeding with any work.
5. Be sure the power tool is tightly secured at al Rapid Clamp Tool Mounts.
Page 2 Page 11
NOTES
SAFETY INSTRUCTIONS FOR MITER SAW STANDS
1. Use caution when folding or unfolding legs to limit any finger pinch points.
2. Place stand on a flat level surface to keep from rocking or tipping.
3. Make sure that Rapid Clamp Tool Mounts are properly locked into place before using your
tool. Do not exceed the rated capacity on the Miter Saw Stand (400 lb).
4. Test the setup for stability before proceeding with any work.
5. Be sure the power tool is tightly secured at al Rapid Clamp Tool Mounts.
Page 2 Page 11
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage
from various types of commercial solvents and may be damaged by their use. Use clean cloths
to remove dirt, dust, oil, grease, etc.
~
0
©

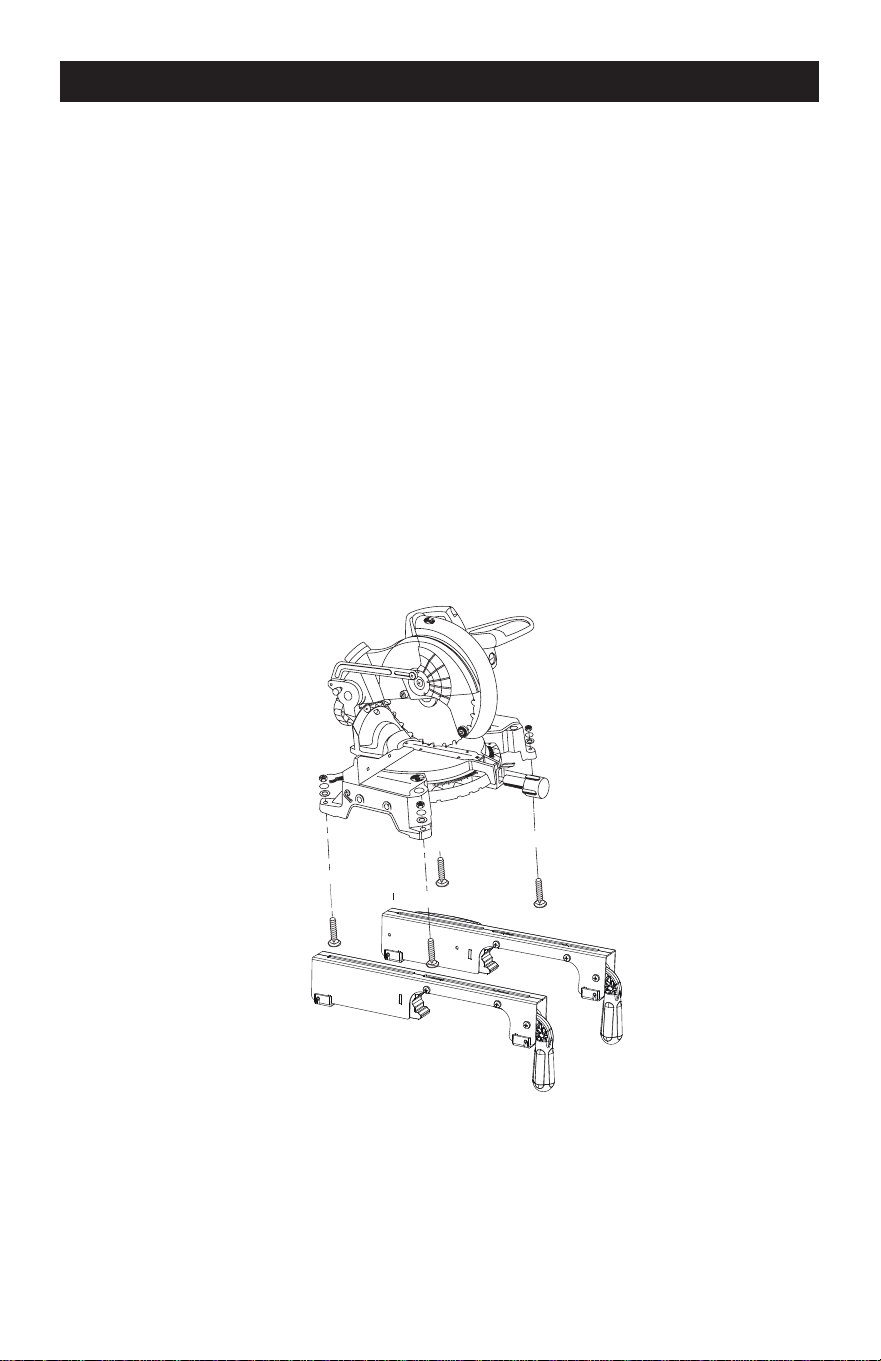

REMOVING SAW FROM STAND
1. Raise the locking levers to unlock the saw and mounts.
2. Lift away from the rear rail of the stand to disengage.
3. With the assembly tilted slightly towards you, lift the assembly to disengage from the
front rail of the workstation.
TRANSPORTING AND STORING
1. Before storing or transporting, make sure all attachments are secure and bench tool
is removed.
2. Fold the legs, making sure they are locked by snapping the Leg Lock to the Mounting
Beams of the Miter Saw Stand.
3. Lift from the center of the unit where the handle is located.
Part #
1
2
3
4
5
6
7
8
9
10
11
Page 10

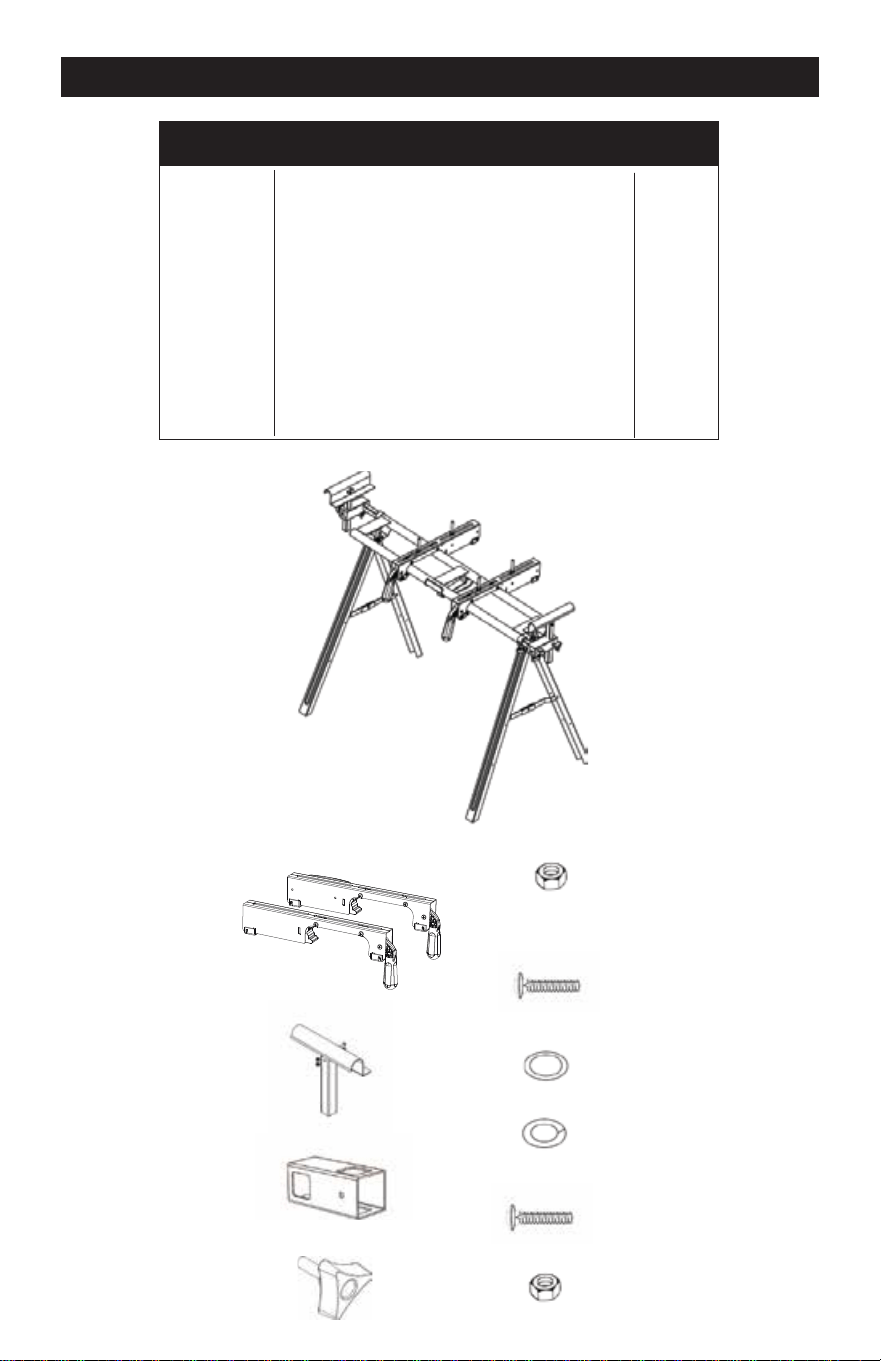

PARTS LIST
Description Qty
Miter Saw Stand 1
Rapid Clamp Tool Mount 2

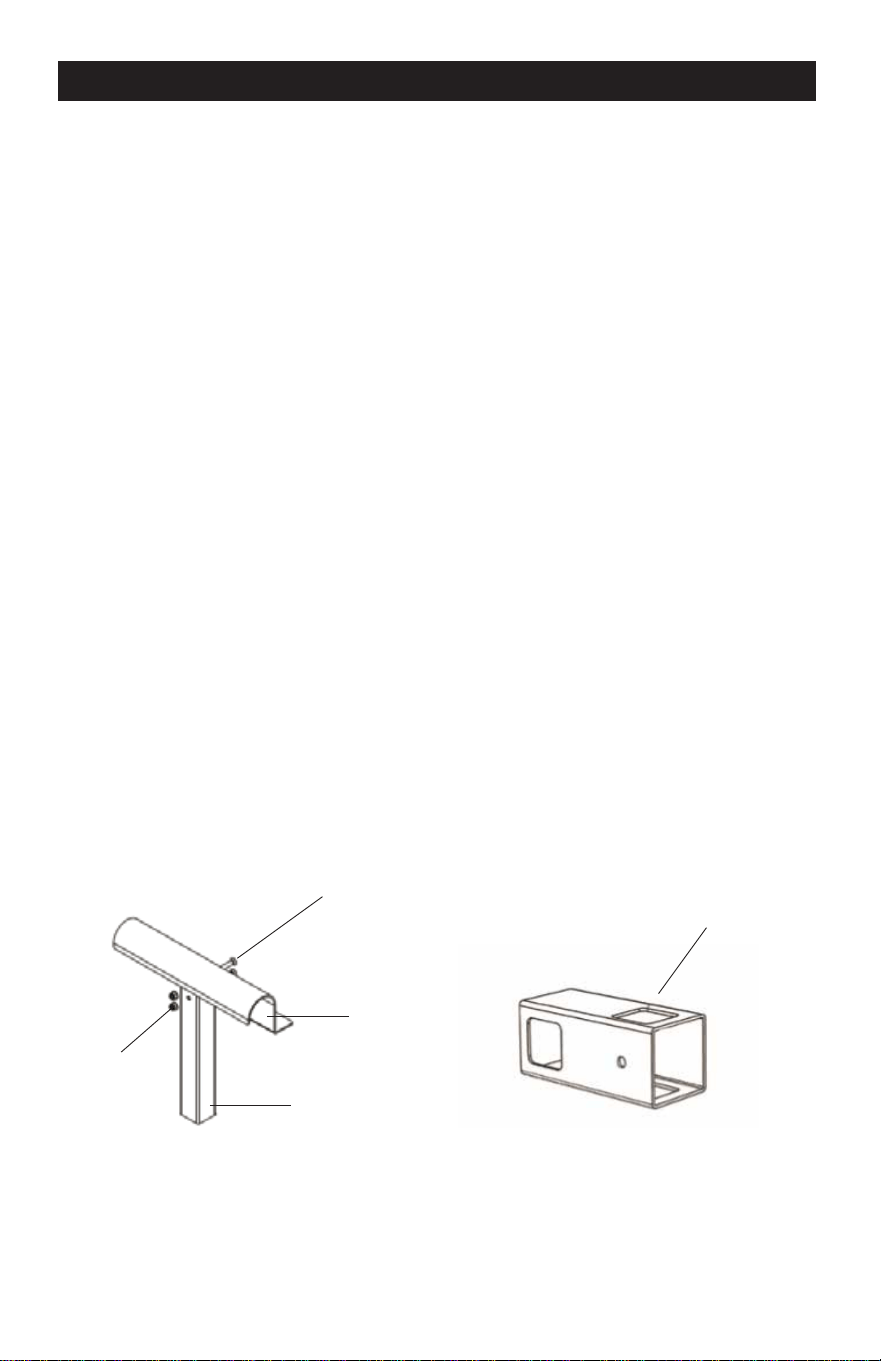

Material Support and Stop 2
Material Support Receiver 2
M8*20 Knob 6
M8 Nut
4
M8*60 Carriage Bolt
4
#8 Washer
4
Spring Washer
4
M5*28 Bolt
4
M5 Nut
4
1
2
6
7
3
8
9
4
10
5
11
Page 3
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage
from various types of commercial solvents and may be damaged by their use. Use clean cloths
to remove dirt, dust, oil, grease, etc.
~
0
©
REMOVING SAW FROM STAND
1. Raise the locking levers to unlock the saw and mounts.
2. Lift away from the rear rail of the stand to disengage.
3. With the assembly tilted slightly towards you, lift the assembly to disengage from the
front rail of the workstation.
TRANSPORTING AND STORING
1. Before storing or transporting, make sure all attachments are secure and bench tool
is removed.
2. Fold the legs, making sure they are locked by snapping the Leg Lock to the Mounting
Beams of the Miter Saw Stand.
3. Lift from the center of the unit where the handle is located.
Part #
1
2
3
4
5
6
7
8
9
10
11
Page 10
PARTS LIST
Description Qty
Miter Saw Stand 1
Rapid Clamp Tool Mount 2
Material Support and Stop 2
Material Support Receiver 2
M8*20 Knob 6
M8 Nut
4
M8*60 Carriage Bolt
4
#8 Washer
4
Spring Washer
4
M5*28 Bolt
4
M5 Nut
4
1
2
6
7
3
8
9
4
10
5
11
Page 3

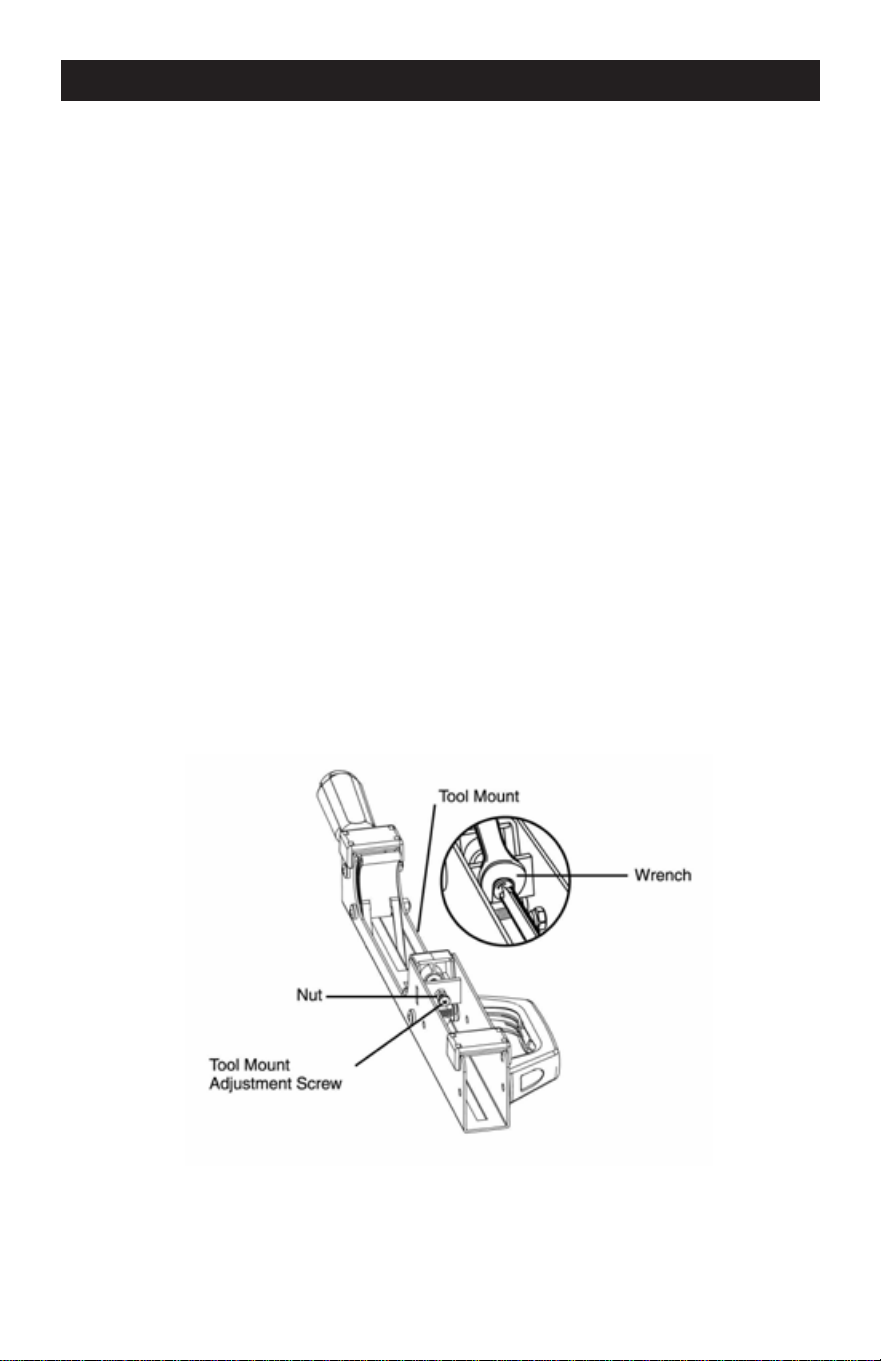

Mount
A(lju-stmerit SCl'ew
ASSEMBLY INSTRUCTIONS
TOOL MOUNT ADJUSTMENT SCREW
MAKE SURE YOU READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE ATTEMPTING TO
ASSEMBLE, SAVE AND KEEP FOR FUTURE REFERENCE.

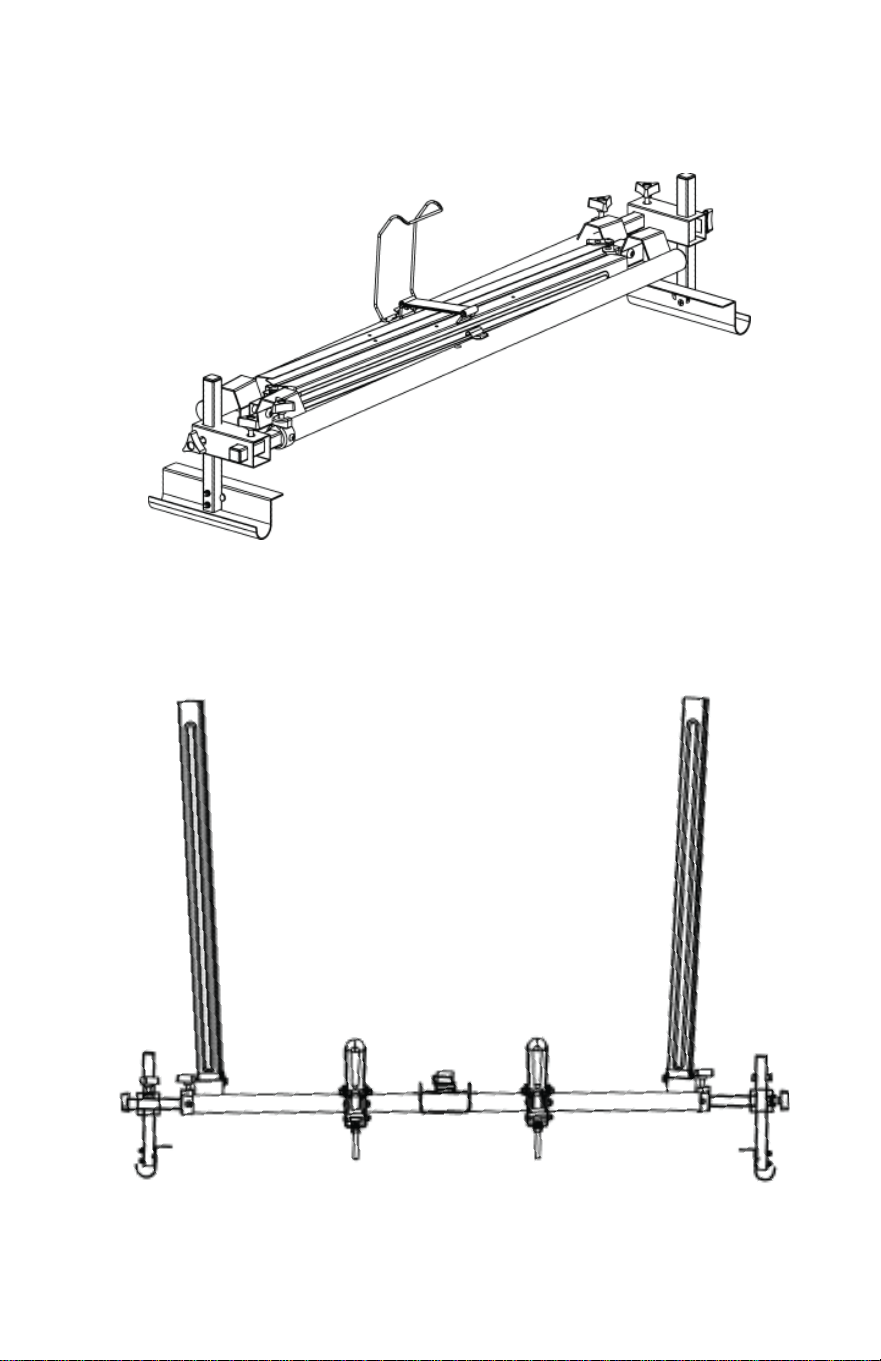

PREPARING THE STAND
1. Lay the stand’s surface down on the floor with the folded legs facing upward.
2. Unfasten the leg lock from the main body.
3. Unlatch the carry handle.
4. Rotate the Folding Leg Assembly into position, making sure to lock the leg brackset strut
into position.
5. Repeat Step 3 for opposite Folding Leg Assembly.
6. Lift the stand and place it in a upright position.
7. Ensure the stand is stable and that the legs are fully engaged before proceeding.
Page 4
Most tool mounts are desinged to fit snugly over the Miter Saw Stand rails. With the locking
levers in the lowered (locked) position, you should not be able to remove the saw from the
Mounting Beams of your Miter Saw Stand. If your power tool can be removed when the levers
are locked, the tool mount adjustment screws on the Rapid Clamp Tool Mounts need to be
tightened. Also, if your tool will not fit over both rails, the bracket adjustment screws need to be
loosened.
CAUTION: THE SAW SHOULD BE REMOVED AND UNPLUGGED FROM THE TOOL
MOUNTS BEFORE ATTEMPTING TO TIGHTEN OR LOOSEN THE TOOL MOUNT
ADJUSTMENT SCREWS.
ADJUSTING THE RAPID CLAMP TOOL MOUNTS
1. Use a wrench to slightly loosen the nut.
2. Turn the screw with a Phillips screwdriver. Rotate clockwise if the tool mount assembly
needs to be tightened or counter-clockwise if the assembly needs to be loosened.
3. Install the tool mounts on the PERFORMAX
™
Miter Saw Stand rails and lower the
locking lever to check the adjustment.
4. When the correct position is achieved, tighten the nut with a 10 mm open-ended wrench
to secure.
5. Repeat Steps 1-4 to attach the second tool mount.
Page 9
Mount
A(lju-stmerit SCl'ew
ASSEMBLY INSTRUCTIONS
TOOL MOUNT ADJUSTMENT SCREW
MAKE SURE YOU READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE ATTEMPTING TO
ASSEMBLE, SAVE AND KEEP FOR FUTURE REFERENCE.
PREPARING THE STAND
1. Lay the stand’s surface down on the floor with the folded legs facing upward.
2. Unfasten the leg lock from the main body.
3. Unlatch the carry handle.
4. Rotate the Folding Leg Assembly into position, making sure to lock the leg brackset strut
into position.
5. Repeat Step 3 for opposite Folding Leg Assembly.
6. Lift the stand and place it in a upright position.
7. Ensure the stand is stable and that the legs are fully engaged before proceeding.
Page 4
Most tool mounts are desinged to fit snugly over the Miter Saw Stand rails. With the locking
levers in the lowered (locked) position, you should not be able to remove the saw from the
Mounting Beams of your Miter Saw Stand. If your power tool can be removed when the levers
are locked, the tool mount adjustment screws on the Rapid Clamp Tool Mounts need to be
tightened. Also, if your tool will not fit over both rails, the bracket adjustment screws need to be
loosened.
CAUTION: THE SAW SHOULD BE REMOVED AND UNPLUGGED FROM THE TOOL
MOUNTS BEFORE ATTEMPTING TO TIGHTEN OR LOOSEN THE TOOL MOUNT
ADJUSTMENT SCREWS.
ADJUSTING THE RAPID CLAMP TOOL MOUNTS
1. Use a wrench to slightly loosen the nut.
2. Turn the screw with a Phillips screwdriver. Rotate clockwise if the tool mount assembly
needs to be tightened or counter-clockwise if the assembly needs to be loosened.
3. Install the tool mounts on the PERFORMAX
™
Miter Saw Stand rails and lower the
locking lever to check the adjustment.
4. When the correct position is achieved, tighten the nut with a 10 mm open-ended wrench
to secure.
5. Repeat Steps 1-4 to attach the second tool mount.
Page 9
MOUTING THE MITER SAW TO THE STAND
1. Lift the saw and tool mount assembly, allowing the assembly to tilt slightly towards your body.
FOLDED
2. While still tilted towards you, ho
rail of the stand.
ok the front edge of the tool mount assembly onto the front
to allow the rear edge of the tool mount to seat fully over
by lowering the locking levers.
cessary to make sure the weight of the saw is evenly
cked into position, then securely tighten the four nuts
nts.
3. Lower the tool mount assembly
the rear rail.
4. Lock the tool mounts in position
5. Check position and adjust if ne
balanced over the rails.
6. Ensure the saw is seated and lo
holding the saw to the tool mou
Page 5
UNFOLDED
Page 8
MOUTING THE MITER SAW TO THE STAND
1. Lift the saw and tool mount assembly, allowing the assembly to tilt slightly towards your body.
FOLDED
2. While still tilted towards you, ho
rail of the stand.
ok the front edge of the tool mount assembly onto the front
to allow the rear edge of the tool mount to seat fully over
by lowering the locking levers.
cessary to make sure the weight of the saw is evenly
cked into position, then securely tighten the four nuts
nts.
3. Lower the tool mount assembly
the rear rail.
4. Lock the tool mounts in position
5. Check position and adjust if ne
balanced over the rails.
6. Ensure the saw is seated and lo
holding the saw to the tool mou
Page 5
UNFOLDED
Page 8
ASSEMBLY INSTRUCTIONS
I
ASSEMBLING AND INSTALLING MATERIAL WORK SUPPORTS AND STOPS
1. Place Material Work Support and Stop (Part #3) over the end of the support shaft until the
pre-drilled holes are aligned.
2. Slide M5*28 Bolt (Part #10) through the holes in the Material Work Support and Stop until
they extend through the other side.
3. Thread an M5 Nut (Part #11) over the end of the bolt, and tighten to secure.
4. Insert the lower portion of the Material Work Support and Stop through the hole in the top
of the Material Support Receiver (Part #4). When properly oriented, the threaded hole in
the top of the Material Support Receiver will face away from the workstation.
5. Thread an M8*20 Knob (Part #5) into the hole on the back of the Material Support
Receiver to secure the assembly.
6. Now slide the Material Support Receiver over the extension rail (stored inside the
mounting beams of the Miter Saw Workstation) so that the extension rail extends through
the opening in the receiver. Position the Material Work Support and Stop at the desired
location on the extension rail.
7. Thread a second M8*20 Knob into the other hole in the bottom of the Material Support
Receiver to tighten and secure the Material Work Support and Stop.
8. Adjust the desired length of the extension rail, and thread an M8*20 Knob (Part #5) into
the frame of the workstation to secure the rail.
9. Repeat Steps 1-8 for the opposite side.
M5*40 Bolt
M5*28 Bolt
Material Support
Receiver
Material Work
Support
M5 Nut
and Stop
Support Shaft
Page 6
ATTACHING YOUR MITER SAW OR OTHER BENCH TOP POWER TOOL
Various bench top tools can be used with your PERFORMAX™ Miter Saw Stand by attaching
them to the Rapid Tool Clamp Mounts. Always position the saw to achieve maximum balance
and stability. All four corners of the saw must be bolted to the Tool Mounts before use. Make
sure bolts DO NOT extend above the table of the miter saw.
1. Lock the saw arm in the down position, ensuring that your power tool is NOT plugged in.
2. Place the saw on top of the Rapid Clamp Tool Mount (Part #2), aligning the mounting
holes on the miter saw base with the slot on the top of the Tool Mount.
3. Feed an M8*60 Carriage Bolt (Part #7) up through the Tool Mount slot and a mounting
hole in the saw. Secure in place using a #8 Washer (Part #8), Spring Washer (Part #9),
and an M8 Nut (Part #6). Repeat for the other end of the Tool Mount.
4. Place the other side of the saw on top of the second Rapid Clamp Tool Mount, aligning
the mouting holes on the miter saw base with the slot on the Tool Mount.
5. Repeat Steps 2-4.
Page 7
ASSEMBLY INSTRUCTIONS
I
ASSEMBLING AND INSTALLING MATERIAL WORK SUPPORTS AND STOPS
1. Place Material Work Support and Stop (Part #3) over the end of the support shaft until the
pre-drilled holes are aligned.
2. Slide M5*28 Bolt (Part #10) through the holes in the Material Work Support and Stop until
they extend through the other side.
3. Thread an M5 Nut (Part #11) over the end of the bolt, and tighten to secure.
4. Insert the lower portion of the Material Work Support and Stop through the hole in the top
of the Material Support Receiver (Part #4). When properly oriented, the threaded hole in
the top of the Material Support Receiver will face away from the workstation.
5. Thread an M8*20 Knob (Part #5) into the hole on the back of the Material Support
Receiver to secure the assembly.
6. Now slide the Material Support Receiver over the extension rail (stored inside the
mounting beams of the Miter Saw Workstation) so that the extension rail extends through
the opening in the receiver. Position the Material Work Support and Stop at the desired
location on the extension rail.
7. Thread a second M8*20 Knob into the other hole in the bottom of the Material Support
Receiver to tighten and secure the Material Work Support and Stop.
8. Adjust the desired length of the extension rail, and thread an M8*20 Knob (Part #5) into
the frame of the workstation to secure the rail.
9. Repeat Steps 1-8 for the opposite side.
M5*40 Bolt
M5*28 Bolt
Material Support
Receiver
Material Work
Support
M5 Nut
and Stop
Support Shaft
Page 6
ATTACHING YOUR MITER SAW OR OTHER BENCH TOP POWER TOOL
Various bench top tools can be used with your PERFORMAX™ Miter Saw Stand by attaching
them to the Rapid Tool Clamp Mounts. Always position the saw to achieve maximum balance
and stability. All four corners of the saw must be bolted to the Tool Mounts before use. Make
sure bolts DO NOT extend above the table of the miter saw.
1. Lock the saw arm in the down position, ensuring that your power tool is NOT plugged in.
2. Place the saw on top of the Rapid Clamp Tool Mount (Part #2), aligning the mounting
holes on the miter saw base with the slot on the top of the Tool Mount.
3. Feed an M8*60 Carriage Bolt (Part #7) up through the Tool Mount slot and a mounting
hole in the saw. Secure in place using a #8 Washer (Part #8), Spring Washer (Part #9),
and an M8 Nut (Part #6). Repeat for the other end of the Tool Mount.
4. Place the other side of the saw on top of the second Rapid Clamp Tool Mount, aligning
the mouting holes on the miter saw base with the slot on the Tool Mount.
5. Repeat Steps 2-4.
Page 7
