OPERATOR’S MANUAL
10 in. PORTABLE CONTRACTOR TABLE SAW
R4550
Your saw has been engineered and manufactured to our high standard for dependability, ease of operation, and operator
safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
TABLE OF CONTENTS
FUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTION...............................................2
SPECIFICATIONS ................................................................2
FEATURES .......................................................................... 3
IMPORTANT SAFETY INSTRUCTIONS.................................4
SAFETY-SYMBOLS-DEFINITIONS ...................................... 4
GENERAL POWER TOOL SAFETY WARNINGS .................... 5
TABLE SAW SAFETY RULES.................................................6
TERMINOLOGY ...................................................................6
TABLE SAW SPECIFIC SAFETY RULES ...................................6
SAW BLADE GUARD, ANTI-KICKBACK PAWLS AND
RIVING KNIFE.....................................................................8
KICKBACKS
.........................................................................9
PROPOSITION 65 WARNING
............................................ 9
POWER CONNECTIONS
................................................... 10
POWER SOURCE ...............................................................10
EXTENSION CORDS
...........................................................10
UNPACKING ..................................................................... 10

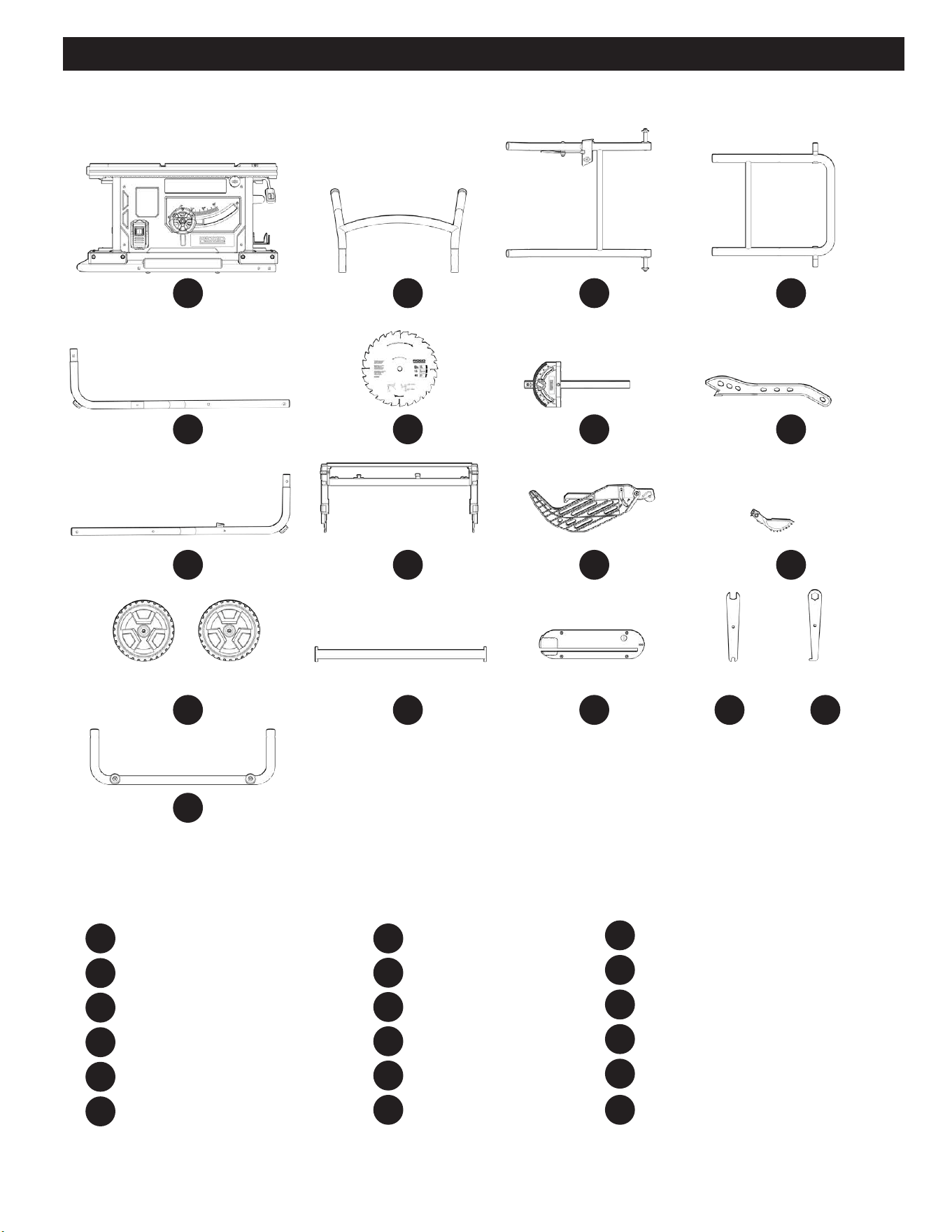

PACKAGE CONTENTS DESCRIPTION ...................................11
CONTENTS OF HARDWARE BAGS ....................................... 12
ASSEMBLY.........................................................13
TOOLS NEEDED FOR ASSEMBLY OF ADJUSTMENTS .............13
UNPACKING ......................................................................13

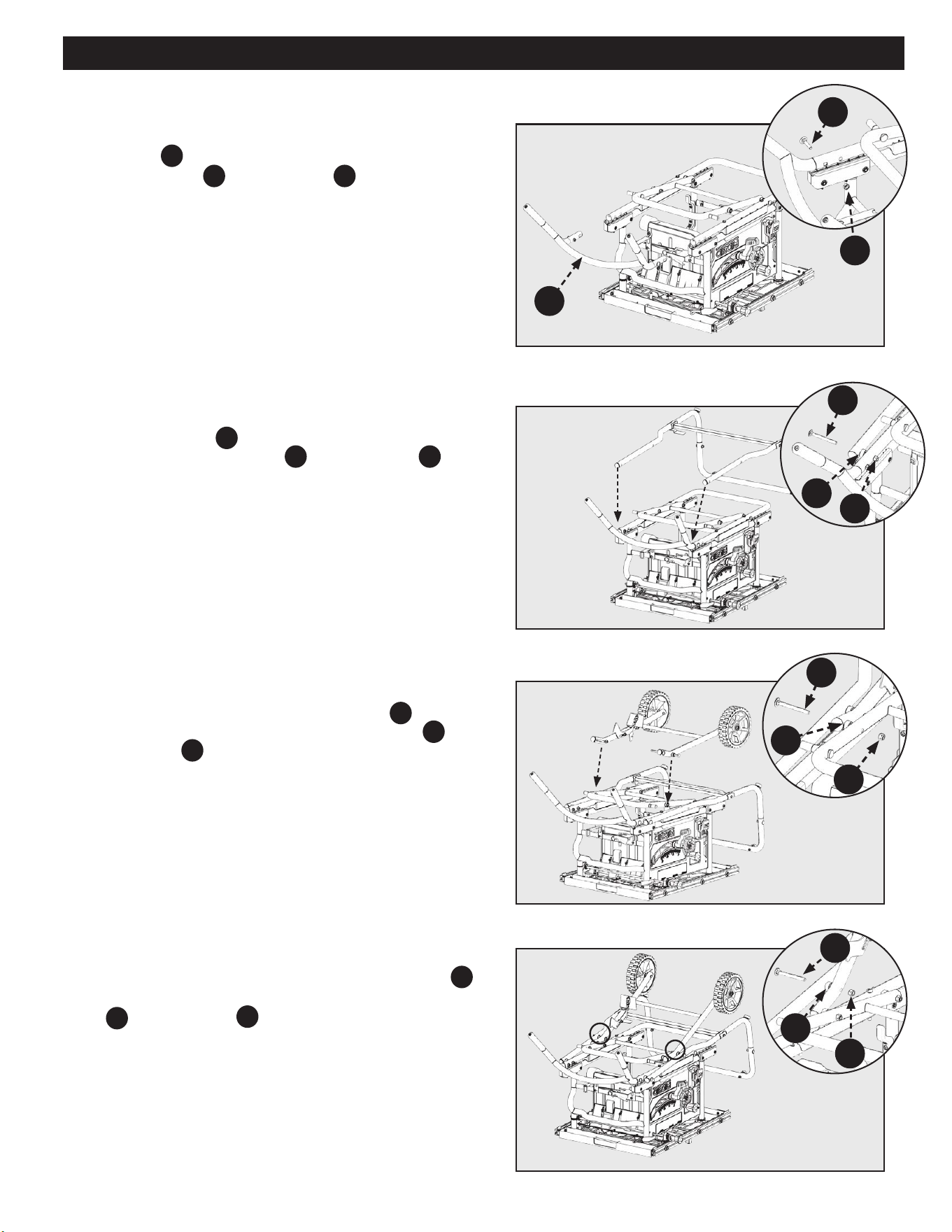

ASSEMBLING THE STAND ..................................................15
HEIGHT ADJUSTMENT KNOB INSTALLATION ......................16
FENCE ADJUSTMENT KNOB INSTALLATION ........................16
INSTALLING THE BLADE ............................... .....................17
THROAT PLATE .................................................................18
ANTI-KICKBACKS PAWLS ................................................ 19
BLADE GUARD ................................................................19
INSTALLING THE FENCE ..................................... ...............20
REMOVING THE FENCE .....................................................20
ON-BOARD STORAGE ........................................................21
MAKING ADJUSTMENTS .................................................. 22
LEVELING THE THROAT PLATE ..........................................22
ADJUSTING BLADE PARALLEL TO MITER GAUGE GROOVE
(HEEL) .............................................................................22
SQUARING THE BLADE VERTICALLY TO THE TABLE ............25
ADJUSTING THE BEVEL STOPS ..........................................24
ADJUSTING THE BLADE HEIGHT ..................................... ...25
CHANGING THE BEVEL ................................................. .....25
SPECIFICATIONS
The RIDGID® #R4550 10 inch Portable Contractor Table Saw is
designed for portability and high quality performance. It includes:
basic machine, sturdy tubular steel stand, integral 2 1/2 inch dust
port, a fence system, T-slot miter gauge, 15 amp motor, on/o
switch, cast aluminum table, extension wing, see-through blade
guard with anti-kickback pawls, and 10 inch carbide blade.
NOTICE: The manual cover illustrates the current production
model. All other illustrations contained in the manual are
representative only and may not be exact depictions of the actual
labeling or accessories included. They are intended for illustrative
purposes only.
Max depth of cut at 90°: 3 ½ inch
Max depth of cut at 45°: 2 ½ inch
Max rip to right of blade: 32.5 inch
Max rip to left of blade: 22 inch
MOTOR SPECIFICATIONS:
Amps 15 inch
Voltage 120 volts
Blade Diameter 10 inch
No Load RPM 5,000
USING THE MITER GAUGE
.................................................25
ADJUSTING THE RAIL SYSTEM ..........................................25
USING COLOR CODED SCALES...........................................26
ENGAGING THE FLIP DOWN FENCE ...................................27
RIVING KNIFE HEIGHT SETTINGS ...................................... 28
RIVING KNIFE POSITION AND ALIGNMENT.................28
PARALLEL ALIGNMENT ......................................................29
HORIZONTAL ALIGNMENT .................................................29
VERTICAL ALIGNMENT ......................................................29
OPERATION......................................................................30
DUST COLLECTION ...........................................................30
TURNING THE SAW ON AND OFF ........................... ............31
TRANSPORTING THE SAW .................................................31
MAKING CUTS...................................................................32
RIP CUTS .........................................................................33
BEVEL RIPPING.................................................................33
CROSSCUTTING ................................................................34
BEVEL CROSSCUTTING ......................................................34
MITER CUTS .....................................................................34
COMPOUND MITER CUTS ..................................................35
LARGE PANEL CUTS ..........................................................35
NON-THROUGH CUTS ........................................................35
MAKING A NON-THROUGH CUT .........................................35
CUTTING AIDS AND ACCESSORIES..................................36
PUSH STICK .....................................................................36
AUXILIARY MITER GAUGE FACING .....................................36
AUXILIARY FENCE (FLIP DOWN) ........................................37
PUSH BLOCK ....................................................................37
GROOVING AND RABBETING .............................................37
FEATHERBOARD ...............................................................38
CUT OFF GAUGE ...............................................................38
JIGS ........................................................................... ......38
MAINTENANCE.......................................................39
KEEP MACHINE CLEAN ......................................................39
MAINTENANCE REMINDERS...............................................39
ACCESSORIES..................................................40
TROUBLESHOOTING.............................................40
PARTS, SERVICE OR WARRANTY ASSISTANCE ............... 41
This tool can ONLY be used with woodworking saw blades.
2 3
Back View
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F9
F10
F11
F12
F13
F14
F15
F16

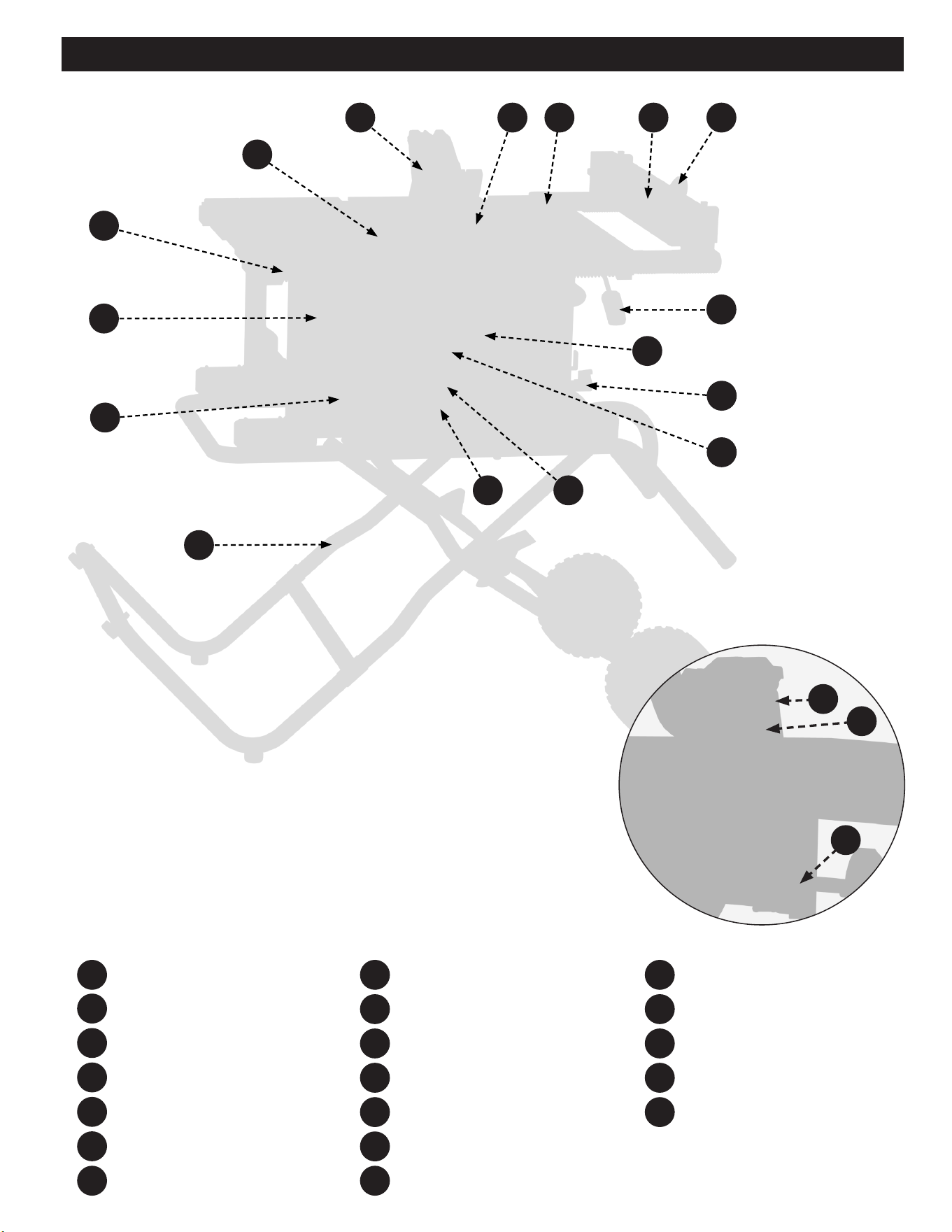

On Board Storage
Height Adjustment Wheel Knob
Height Adjustment Handwheel
Bevel Lock Lever
Stand
On/O Switch
Saw Body
F17
F18
F19
Rails
Miter Gauge
Riving Knife
Anti-Kickback Pawls
Dust Chute
F1
F2
F3
F4
F5
F6
F7
F8
F1
F2
F3
F4
Blade Guard
Throat Plate
Extension Wing
Rip Fence
Push Stick
Extension Lock
Bevel Scale
FEATURES
3
Some of the following symbols may be used on the tool. Please study them and learn their meaning. Proper interpretation on these
symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator's Manual
To reduce the risk of injury, user must read and understand operator's manual before
using this product.
Eye Protection Always wear eye protection with side shields marked to comply with ANSI Z87.1.
No Hands Symbol Failure to keep your hands away from the blade will result in serious personal injury.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Pinch Warning
Always watch for movement paying extra attention to potential areas where pinching
could occur.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
min Minutes Time
~/AC Alternating Current Type of current
ⁿ
₀
No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits, etc., per minute
Lbs Pounds Unit of weight
Kg Kilograms Unit of weight
RPM Revolutions Per Minute Speed of rotation of machine
PH:1 Phase 1 This is a 1 phase motor
Double Insulation
To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the
other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet,
reverse the plug. If it still does not t, contact a qualied electrician to install the proper outlet. DO
NOT change the plug in any way.
IMPORTANT SAFETY INSTRUCTIONS
If you have any questions or concerns regarding the use of your tool or the contents of this manual, please stop using the tool and contact
Customer Service, at RIDGID
® Portable and Fixed Power Tool Technical Service at (toll free) 1-888-359-4778.
SAFETY SYMBOLS - DEFINITIONS
This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY
and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual
and pay attention to these sections.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in
property damage.
CAREFULLY READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS ON YOUR PRODUCT
AND IN THIS MANUAL. SAVE THIS MANUAL. MAKE SURE ALL USERS ARE FAMILIAR WITH ITS
WARNINGS AND INSTRUCTIONS WHEN USING THE TOOL. Improper operation, maintenance or modification of tools
or equipment could result in serious injury and/or property damage.
4 5
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or BATTERY-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well-lit. Cluttered or dark areas invite accidents
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter with earthed
(grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI)protected supply.
Use of an GFCI reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while
you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the o-position before connection to power source, picking up, or
carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected
situations
f. Dress properly. Do not wear loose clothing or jewelery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewelery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for you application. The correct power tool will do the job better and
safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools and accessories. Check for misalignment or binding of moving parts , breakage of parts and any
other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to
control.
g. Use the power tool, accessories and tools bits etc. in accordance with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a
hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the
safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings, instructions, illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
5
Failure to follow these rules may result in serious personal injury.
TABLE SAW SPECIFIC SAFETY RULES
WARNING READ ALL SAFETY WARNINGS DESIGNATED BY THE SYMBOL AND ALL INSTRUCTIONS.
1. GUARDING RELATED WARNINGS (FOR TABLE SAW, UL 62841-3-1)
a. Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose,
damaged, or is not functioning correctly must be repaired or replaced.
b. Always use saw blade guard, riving knife and anti-kickback device for every through-cutting operation. For
through-cutting operations where the saw blade cuts completely through the thickness of the workpiece, the guard and
other safety devices help reduce the risk of injury.
c. Immediately reattach the guarding system after completing an operation (such as rabbeting or resawing
cuts) which requires removal of the guard, riving knife and/or anti-kickback device. The guard, riving knife,
and anti-kickback device help to reduce the risk of injury.
d. Make sure the saw blade is not contacting the guard, riving knife or the workpiece before the switch is
turned on. Inadvertent contact of these items with the saw blade could cause a hazardous condition.
e. Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can
make the riving knife ineective in reducing the likelihood of kickback.
f. For the riving knife and anti-kickback device to work, they must be engaged in the workpiece. The riving
knife and anti-kickback device are ineective when cutting workpieces that are too short to be engaged with the riving
knife and anti-kickback device. Under these conditions a kickback cannot be prevented by the riving knife and antikickback
device.
g. Use the appropriate saw blade for the riving knife. For the riving knife to function properly, the saw blade diameter
must match the appropriate riving knife and the body of the saw blade must be thinner than the thickness of the riving
knife and kerf of the saw blade must be wider than the thickness of the riving knife.
2. CUTTING PROCEDURES WARNINGS
a. DANGER: Never place your ngers or hands in the vicinity or in line with the saw blade. A moment of
inattention or a slip could direct your hand towards the saw blade and result in serious personal injury.
b. Feed the workpiece into the saw blade or cutter only against the direction of rotation. Feeding the workpiece
in the same direction that the saw blade is rotating above the table may result in the workpiece, and your hand, being
pulled into the saw blade.
TABLE SAW SAFETY RULES
Failure to follow these rules may result in serious personal injury.
SEE GENERAL POWER TOOL SAFETY SECTION OF THIS MANUAL. Read entire instruction manual before operating saw. Learning
the saw’s proper applications, limitations, and specic potential hazards will greatly minimize the possibility of accidents and injury. Make
sure all users are familiar with its warnings and instructions before using saw.
SEE POWER CONNECTION SECTION OF THIS MANUAL for instructions and warnings regarding power cords and connections.
• Through-cut – Any cut that completely cuts through the
workpiece.
• Non-through cut – Any cut that does not completely cut
through the workpiece.

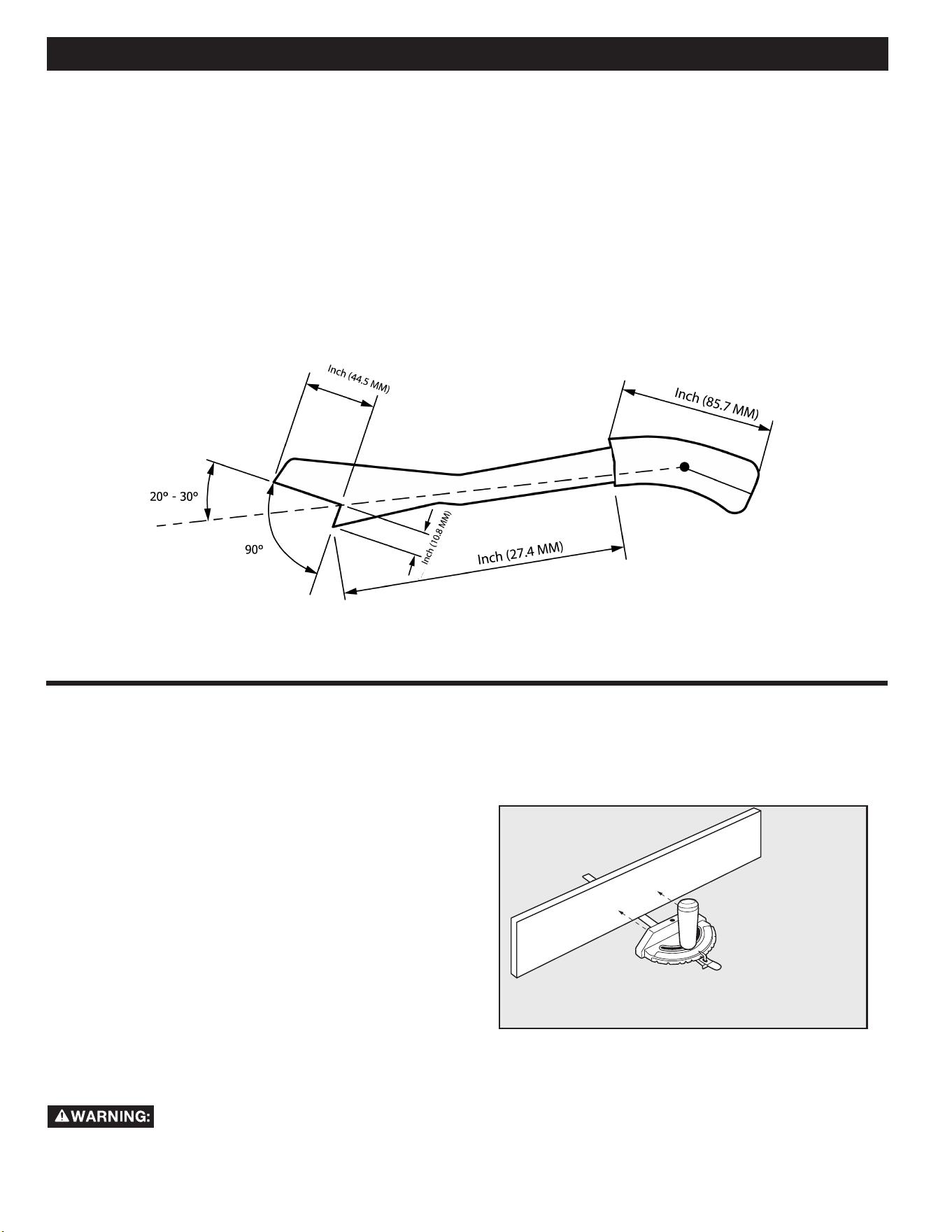

• Push stick – A wooden or plastic stick, usually homemade,
that is used to push a small workpiece through the saw and
keeps the operator’s hands clear of the blade.
• Kickback – Occurs when the saw blade binds in the cut or
between the blade and the fence and thrusts the workpiece
back toward the operator or lowering the workpiece down to
the blade.
• Re-sawing – Flipping material to make a cut the saw is not
capable of making in one pass.
• Cove cutting – Also known as coving, cove cutting is an
operation where the work is fed at an angle across the
blade. NOTE: This can be a dangerous operation and is not
recommended.
• Freehand – Cutting without the use of a miter gauge or
rip fence or any other means of guiding or holding the
workpiece other than the operator’s hand. NOTE: This can be
a dangerous operation and is not recommended.
• Plunge cutting – Blind cuts in the workpiece made by either
raising the blade through the workpiece. NOTE: This can be a
dangerous operation and is not recommended.
• Rabbet Cut - A cut on the end or face (edge) of a board -
the extruding piece is the tongue.
• Kerf - A cut or incision made by a saw.
TERMINOLOGY
The following terms will be used throughout the manual and you should become familiar with them.
6 7
TABLE SAW SAFETY RULES
c. Never use the mitre gauge to feed the workpiece when ripping and do not use the rip fence as a length stop
when cross cutting with the miter gauge. Guiding the workpiece with the rip fence and the mitre gauge at the same
time increases the likelihood of saw blade binding and kickback.
d. When ripping, always apply the workpiece feeding force between the fence and the saw blade. Use a push
stick when the distance between the fence and the saw blade is less than 150mm, and use a push block when this
distance is less than 50mm. "Work helping" devices will keep your hand at a safe distance from the saw blade.
e. Use only the push stick provided by the manufacturer or constructed in accordance with the instructions.
This push stick provides sucient distance of the hand from the saw blade.
f. Never use a damaged or cut push stick. A damaged push stick may break causing your hand to slip into the saw
blade.
g. Do not perform any operation "freehand". Always use either the rip fence or the mitre gauge to position and guide
the workpiece. "Freehand" means using your hands to support or guide the workpiece, in lieu of a rip fence or mitre
gauge. Freehand sawing leads to misalignment, binding and kickback.
h. Never reach around or over a rotating saw blade. Reaching for a workpiece may lead to accidental contact with the
moving saw blade.
i. Provide auxiliary workpiece support to the rear and/or sides of the saw table for long and/or wide
workpieces to keep them level. A long and/or wide workpiece has a tendency to pivot on the table’s edge, causing
loss of control, saw blade binding and kickback.
j. Feed workpiece at an even pace. Do not bend or twist the workpiece. If jamming occurs, turn the tool o
immediately, unplug the tool then clear the jam. Jamming the saw blade by the workpiece can cause kickback or stall the
motor.
k. Do not remove pieces of cut-o material while the saw is running. The material may become trapped between
the fence or inside the saw blade guard and the saw blade pulling your ngers into the saw blade. Turn the saw o and
wait until the saw blade stops before removing material.
l. Use an auxiliary fence in contact with the table top when ripping workpieces less than 2mm thick. A thin
workpiece may wedge under the rip fence and create a kickback.
m. Never Cut Metals, Cement Board or Masonry. Certain man-made materials have special instructions for cutting on
table saws. Follow the manufacturer’s recommendations at all times too avoid overheating the saw blade tips as well as
melting the plastic. Avoid overheating blade tips by pushing material through blade evenly. Forcing material to fast can
cause heating and damage to blade or workpiece. If cutting plastics is permitted, cut at a slower pace to avoid melting the
plastic.
3. Kickback causes and related warnings
Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw blade or misaligned line of cut in the workpiece
with respect to the saw blade or when a part of the workpiece binds between the saw blade and the rip fence or other xed
object.
a. Most frequently during kickback, the workpiece is lifted from the table by the rear portion of the saw blade and
is propelled towards the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions
and can be avoided by taking proper precautions as given below.
b. Never stand directly in line with the saw blade. Always position your body on the same side of the saw blade as
the fence. Kickback may propel the workpiece at high velocity towards anyone standing in front and in line with the saw
blade.
c. Never reach over or in back of the saw blade to pull or to support the workpiece. Accidental contact with the
saw blade may occur or kickback may drag your ngers into the saw blade.
d. Never hold and press the workpiece that is being cut o against the rotating saw blade. Pressing the
workpiece being cut o against the saw blade will create a binding condition and kickback.
e. Align the fence to be parallel with the saw blade. A misaligned fence will pinch the workpiece against the saw blade
and create kickback.
f. Use a featherboard to guide the workpiece against the table and fence when making non-through cuts such
as rabbeting, or resawing cuts. A featherboard helps to control the workpiece in the event of a kickback.
g. Use extra caution when making a cut into blind areas of assembled workpieces. The protruding saw blade may
cut objects that can cause kickback.
h. Support large panels to minimise the risk of saw blade pinching and kickback. Large panels tend to sag under
their own weight. Support(s) must be placed under all portions of the panel overhanging the table top.
i. Use extra caution when cutting a workpiece that is twisted, knotted, warped or does not have a straight
edge to guide it with a mitre gauge or along the fence. A warped, knotted, or twisted workpiece is unstable and
causes misalignment of the kerf with the saw blade, binding and kickback.
j. Never cut more than one workpiece, stacked vertically or horizontally. The saw blade could pick up one or more
pieces and cause kickback.
7
SAW BLADE GUARD, ANTI-KICKBACK PAWLS AND RIVING KNIFE
ASSEMBLY
Your table saw is equipped with a blade guard, anti-kickback
pawls and riving knife assembly that covers the blade and reduces
the possibility of accidental blade contact.
The riving knife is a flat plate that fits into the cut made by
the saw blade and effectively fights kickback by lessening the
tendency of the blade to bind in the cut.
Two anti-kickback pawls are located on the sides of the riving
knife that allow the wood to pass through the blade in the cutting
direction but reduce the possibility of the material being thrown
backwards toward the operator.
The blade guard and anti-kickback pawls can ONLY be used
when making through cuts that sever the wood. When making
rabbets and other non-through cuts, the blade guard and anti-
kickback pawls MUST be removed and riving knife lowered to the
non-through cut position marked on the riving knife.
Use all components of the guarding system (blade guard
assembly, riving knife and anti-kickback pawls) for every
operation for which they can be used including all through-
cutting. If you elect not to use any of these components for
a particular application, exercise additional caution regarding
control of the workpiece, the use of push sticks, the position of
your hands relative to the blade, the use of safety glasses, the
means to avoid kickback and all other warnings contained in this
manual and on the saw itself. Replace the guarding systems as
soon as you return to through-cutting operations. Keep the guard
assembly in working order.
TABLE SAW SAFETY RULES
k. When restarting the saw with the saw blade in the workpiece, centre the saw blade in the kerf so that the
saw teeth are not engaged in the material. If the saw blade binds, it may lift up the workpiece and cause kickback
when the saw is restarted.
l. Keep saw blades clean, sharp, and with sucient set. Never use warped saw blades or saw blades with cracked or
broken teeth. Sharp and properly set saw blades minimize binding, stalling and kickback.
4. Table saw operating procedure warnings
a. Turn o the table saw and disconnect the power cord when removing the table insert, changing the saw
blade or making adjustments to the riving knife, any kickback device or saw blade guard, and when the
machine is left unattended. Precautionary measures will avoid accidents.
b. Never leave the table saw running unattended. Turn it o and don’t leave the tool until it comes to a complete stop.
An unattended running saw is an uncontrolled hazard.
c. Locate the table saw in a well-lit and level area where you can maintain good footing and balance. It should
be installed in an area that provides enough room to easily handle the size of your workpiece. Cramped, dark areas, and
uneven slippery oors invite accidents.
d. Frequently clean and remove sawdust from under the saw table and/or the dust collection device.
Accumulated sawdust is combustible and may self-ignite.
e. The table saw must be secured. A table saw that is not properly secured may move or tip over.
f. Remove tools, wood scraps, etc. from the table before the table saw is turned on. Distraction or a potential jam
can be dangerous.
g. Always use saw blades with correct size and shape (diamond versus round) of arbor holes. Saw blades that
do not match the mounting hardware of the saw will run o-center, causing loss of control.
h. Never use damaged or incorrect saw blade mounting means such as anges, saw blade washers, bolts or
nuts. These mounting means were specially designed for your saw, for safe operation and optimum performance.
i. Never stand on the table saw, do not use it as a stepping stool. Serious injury could occur if the tool is tipped or if
the cutting tool is accidentally contacted.
j. Make sure that the saw blade is installed to rotate in the proper direction. Do not use grinding wheels, wire
brushes, or abrasive wheels on a table saw. Improper saw blade installation or use of accessories not recommended may
cause serious injury.
k. DO NOT REMOVE A WORKPIECE that is damaged or jammed without rst turning o the saw and unplugging it from
the power source.
8 9
KICKBACKS
Kickbacks can cause serious injury. A kickback occurs when a part
of the workpiece binds between the saw blade and the rip fence,
or other fixed object, and rises from the table and is thrown
toward the operator. Kickbacks can be avoided by attention to the
following conditions.
HOW TO REDUCE THE RISK OF KICKBACKS AND PROTECT
YOURSELF FROM POSSIBLE INJURY:
Be certain that the rip fence is parallel to the saw blade.
DO NOT rip by applying the feed force to the section of the
workpiece that will become the cut-off (free) piece. Feed force
when ripping should ALWAYS be applied between the saw
blade and the fence; use a push stick for narrow work, 6 inches
(150mm) wide or less.
Keep saw blade guard, riving knife and anti-kickback assembly
in place and operating properly. The riving knife MUST be in
alignment with the saw blade and the anti-kickback assembly
MUST stop a kickback once it has started. Check their action
before ripping by pushing the wood under the anti-kickback
assembly. The teeth MUST prevent the wood from being pulled
toward the front of the saw. If any part of assembly is not
operational, return to the nearest authorized service center for
repair.
Plastic and composite materials (like hardboard) may be cut
on your saw. However, since these are usually quite hard and
slippery, the anti-kickback pawls may not stop a kickback.
Therefore, be especially attentive to following proper set up and
cutting procedures for ripping.
Use saw blade guard, anti-kickback pawls, and riving knife
assembly for every possible operation, including all through-cut
sawing.
Push the workpiece past the saw blade prior to releasing control.
NEVER rip a workpiece that is twisted or warped, or does not
have a straight edge to guide along the fence.
NEVER saw a large workpiece that cannot be controlled.
NEVER use the fence as a guide or length stop when
crosscutting.
NEVER saw a workpiece with loose knots, flaws, nails or other
foreign objects.
NEVER rip a workpiece shorter than 10 inches (254mm).
NEVER use a dull blade. A dull blade should be replaced or
re-sharpened.
PROPOSITION 65 WARNING:
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others. • If tool is loaned to someone, also loan
them these instructions.
Dust created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals
known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Asbestos dust
• Arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure to these chemicals:
work in a well-ventilated area and work with approved safety equipment, such as dust masks that are specically designed to lter out
microscopic particles.
Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities.
Wear protective clothing and wash exposed areas with soap and water.
TABLE SAW SAFETY RULES
9
** Ampere rating (on tool data label)
12A- 16A
Cord Length Wire Size
25' 14 AWG
50' 12 AWG
** Used on 12 gauge - 20 amp circuit
NOTE: AWG = American Wire Gauge
POWER CONNECTIONS
POWER SOURCE
This saw is equipped with a 15-amp motor for use with a 120-
volt, 60-HZ alternating current.
For voltage, the wiring in a shop is as important as the motor’s
rating. A line intended only for lights may not be able to properly
carry the current needed for a power tool motor; wire that is
heavy enough for a short distance may be too light for a greater
distance; and a line that can support one power tool may not be
able to support two or three. A separate electrical circuit should
be used for your machines. This circuit should not be less than
#12 wire and should be protected with a 20-amp time lag fuse
and/or circuit breaker. If an extension cord is used, use ONLY
3-wire extension cords which have 3-prong grounding-type plugs
and matching receptacle which will accept the machine’s plug.
Before connecting the machine to the power line, make sure
the switch is in the “OFF” position and be sure that the electric
current is of the same characteristics as indicated on the machine.
A substantial voltage drop will cause a loss of power and overheat
the motor. It may also damage the machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
KEEP the extension cord clear of the work area. Position the cord so it will not get caught on lumber, tools or other
obstructions
• Use proper extension cords. Make sure your extension cord is a 3-wire extension cord which has a 3-prong grounding type plug and
matching receptacle which will accept the machine’s plug. When using an extension cord, be sure to use one heavy enough to carry
the current of the machine. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The
table below shows the maximum gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord. ONLY round, jacketed cords listed by Underwriter’s Laboratories (UL) should be used.
NEVER use a damaged extension cord. Check extension cords before each use. If damaged, replace immediately.
Touching the damaged area could cause electrical shock resulting in serious injury.
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED. IF YOU ARE
NOT SURE, HAVE A QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
EXTENSION CORDS
UNPACKING
• Use a safety strap to avoid tip over when lifting machine.
• Prior to tool assembly and use, read this manual thoroughly
to familiarize yourself with proper assembly, maintenance and
safety procedures.
Check shipping carton and machine for damage before unpacking.
Carefully remove components in top foam layer and then
remove the top layer of foam. Lay out all parts on a piece of
cardboard or other clean, flat surface. THE SAW STAND WILL
BE ASSEMBLED TO THE SAW BODY AS IT IS IN THE
BOX. THE SAW BODY WILL NOT NEED TO BE REMOVED
UNTIL THE STAND IS COMPLETED AND ATTACHED TO THE
UNDERSIDE OF THE SAW. ALWAYS check for and remove
protective shipping materials around motors and moving parts.
DO NOT discard shipping carton and packing materials until you
have carefully inspected the contents, assembled the machine
and are satisfied that it operates correctly.
Compare package contents to Component Parts List and
Hardware Package List prior to assembly to make sure all items
are present. Carefully inspect parts to make sure no damage
occurred during shipping. If any parts are missing, damaged
or pre-assembled, DO NOT assemble. Instead, call RIDGID
®
Customer Service at (toll free) 1-888-359-4778.
After assembly remove any protective materials and coatings from
all of the parts and the table saw. The protective coatings can be
removed by spraying WD-40
®
on them and wiping them off with a
soft cloth. This may need to be redone several times before all of
the protective coatings are removed completely.
10 11
PACKAGE CONTENTS DESCRIPTION
Saw Body
Stand Handle
Pedal Assembly
Upper Stand Assembly
Right Support Tube
10 inch Carbide Tipped Blade
Miter Gauge
Push Stick
Left Support Tube
Fence
Blade Guard Assembly
Anti-Kickback Pawls
Wheels (2)
Support Spreader Bar
Throat Plate
Open End Blade Wrench
Closed End Blade Wrench
Support Rod Connection Base
UNPACKING
PC1
PC2
PC3
PC17
PC18
PC4
PC5
PC6
PC7
PC8
PC9
PC10
PC11
PC12
PC13
PC14
PC16
PC15
PC1
PC5
PC9
PC13
PC18
PC17
PC3
PC7
PC11
PC15
PC4
PC8
PC12
PC16
PC2
PC6
PC10
PC14
11
UNPACKING

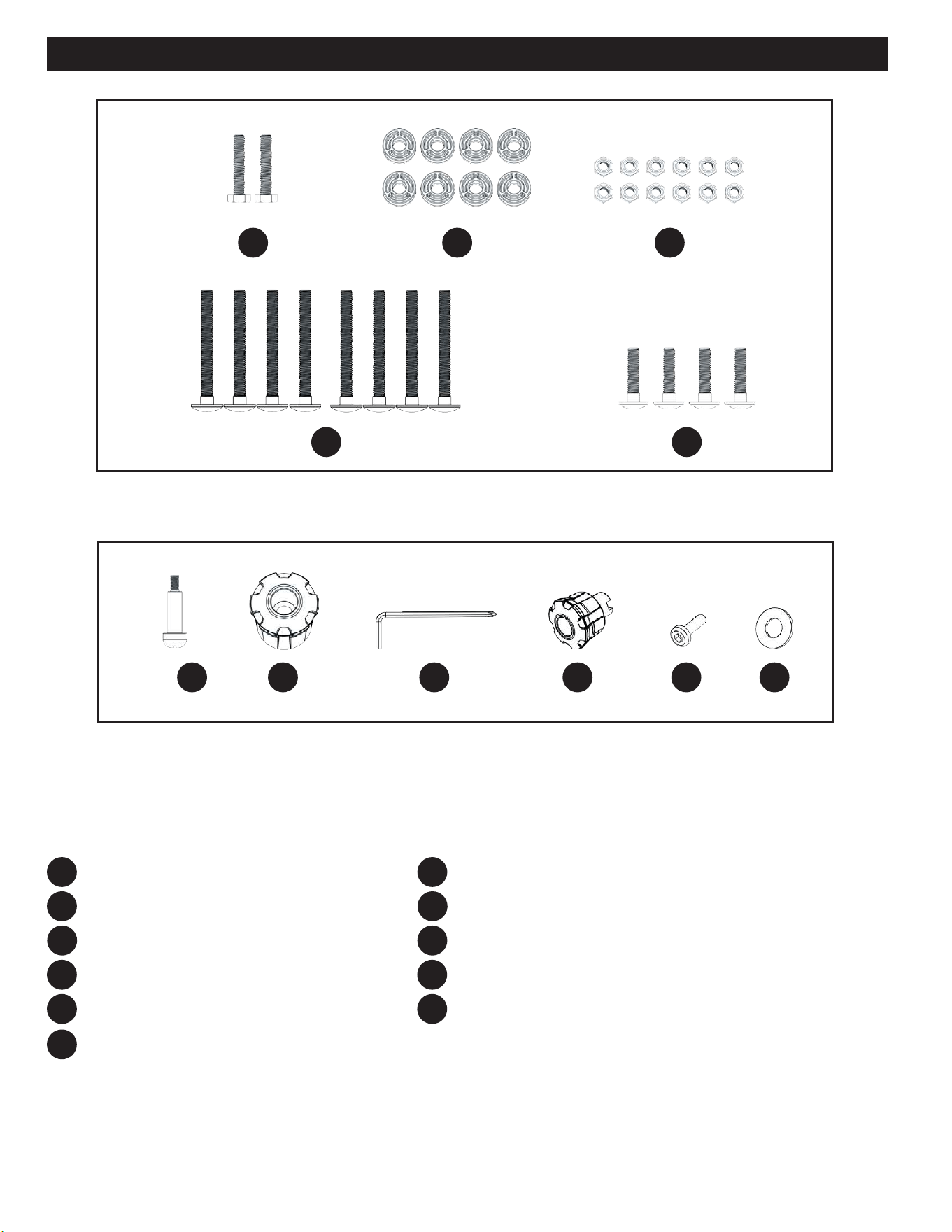

CONTENTS OF HARDWARE BAGS
HP1
HP1
HP6
HP5
HP2
HP2
HP7
HP4
HP9
HP4
HP3
HP3
HP8
HP5
HP10
HP11
HP6 HP7 HP8 HP9
HP10 HP11
M6 x 50mm (1 15/16 inch) Hex Bolt (2)
Plastic Spacer (8)
M8 Locknut (12)
M8 x 75mm (2 15/16 inch) Carriage Screw (4)
M8 x 37mm (1 15/32 inch) Carriage Screw (4)
Wheel Handle Shoulder Screw
005890
003578
003380
003570
003640
006459
004306
006462
005929
004374
003579
Height Adjustment Wheel Knob
Combination 4mm Allen Wrench /Phillips Screwdriver
Fence Adjustments Knob
M6 X 25L Hex Socket Round Head Screw
Flat Washer 6mm x 14mm x 1T
12
13
ASSEMBLY
• Assemble stand with saw upside down in box, then stand for
nal assembly.
• Stand assembly is an integral and necessary part of the
Support Structure for this Saw.
• DO NOT modify Saw, use or create Accessories not
recommended for use with this Saw.
• Make sure Power Switch is in “OFF” position before
connecting to Power Supply. DO NOT connect to power
supply until assembly is complete.
• Avoid contact with Blade Teeth. Keep Blade stored or
lowered when possible.
UNPACKING
1. Remove upper Packing Tray and its components.
2. Cut sides of Box at all four corners. See Figure 1. Leave the
saw body upside down in packaging and proceed to next
page with assembling the sub-components.
Figure 1

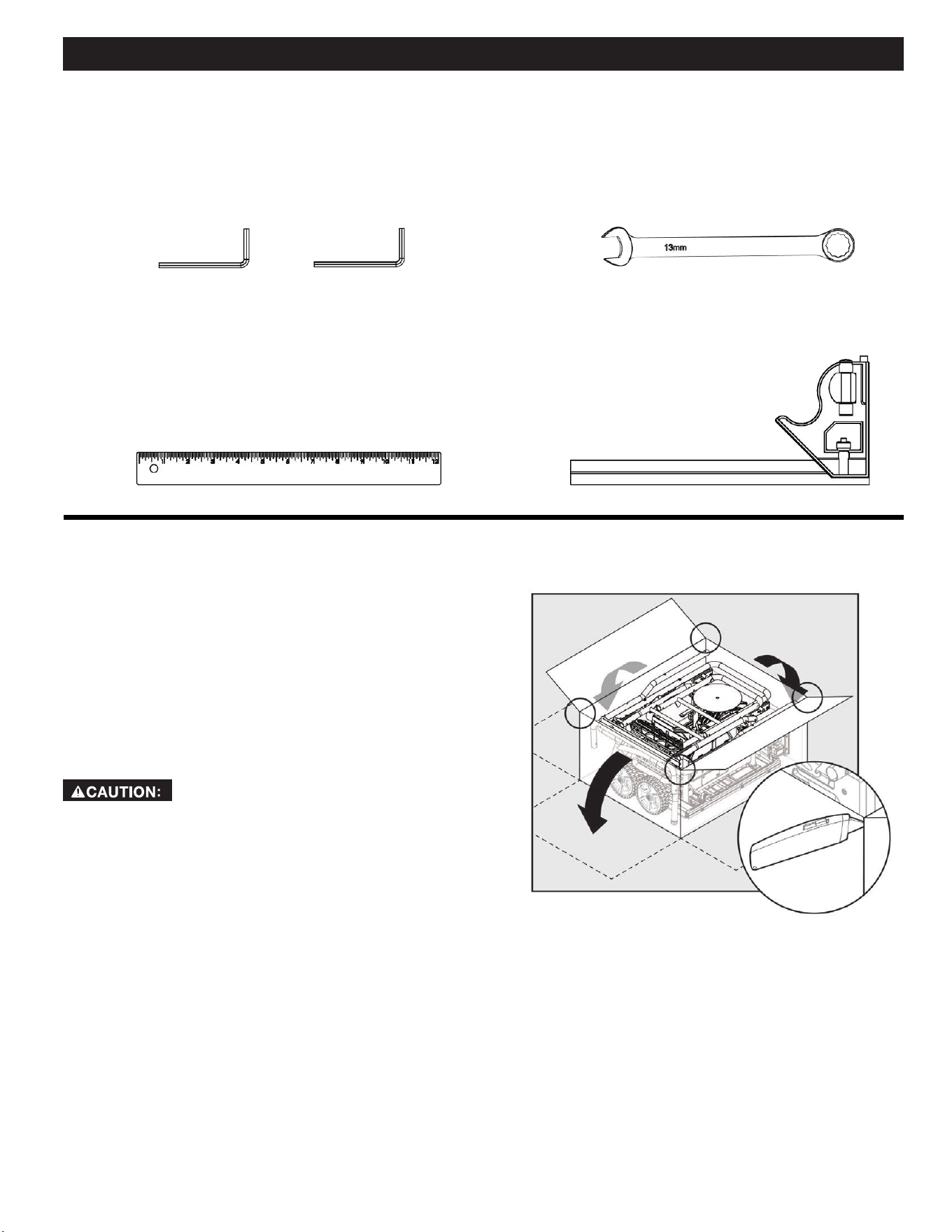

TOOLS NEEDED FOR ASSEMBLY OR ADJUSTMENTS.
Straight Edge
Combination Square
3mm Hex Key 5mm Hex Key
13mm Combination Wrench
13
ASSEMBLY

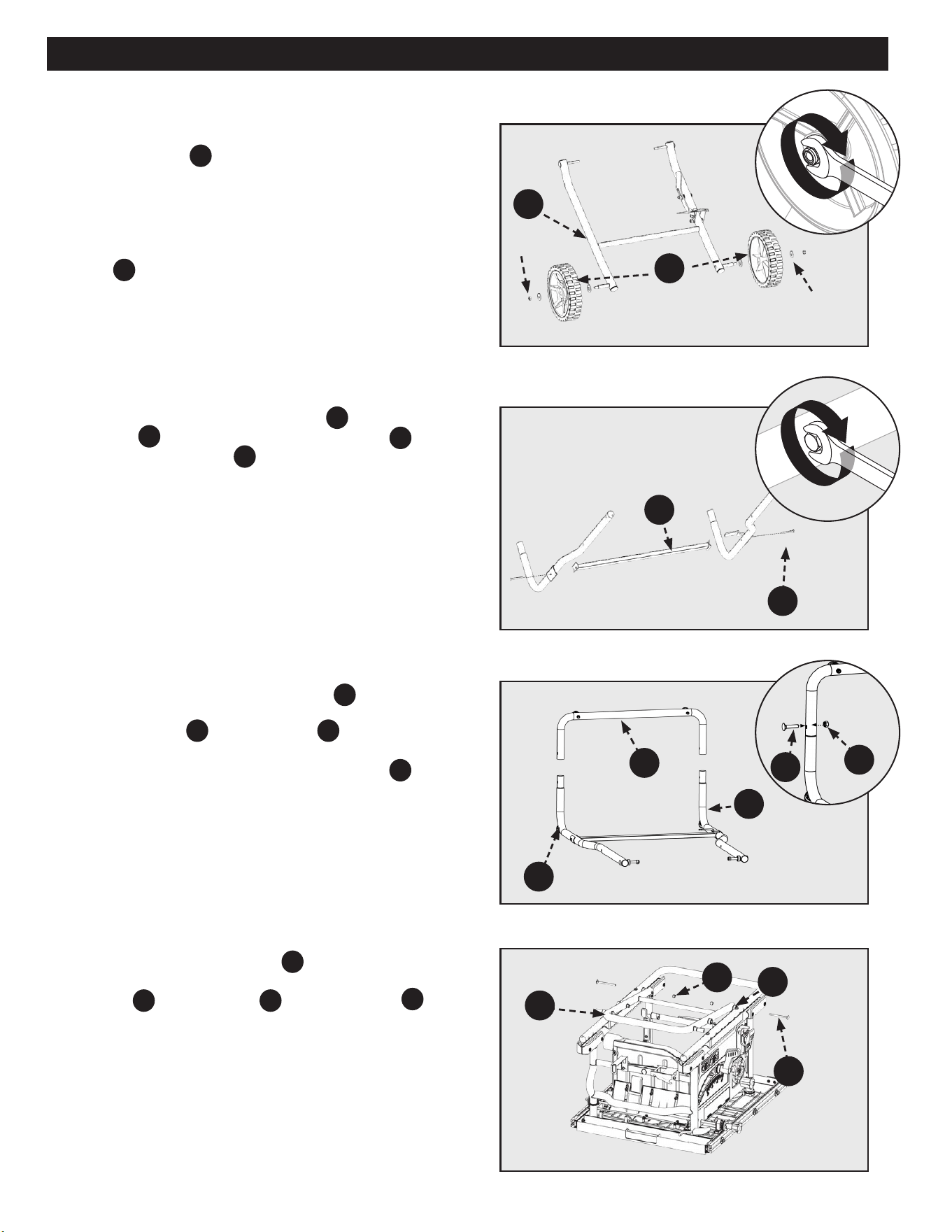

ASSEMBLING THE STAND
1. First remove Nut and outer Washer on each side of the
Pedal Assembly
PC3
. Then attach the Wheels and place the
Washer and Nut back on each side, as shown in Figure 2 .
Be sure not to over-tighten the Nut.
NOTE: The hardware to attach the Wheels will NOT be found with
additional Hardware. Hardware for this is attached to the Pedal
Assembly
PC3
. Check orientation of Wheels and if Wheels rub
against Frame, reverse orientation. Set Wheel Assembly aside for
later use.
Figure 2
Figure 3
Figure 4
Figure 5
PC3
HP1
PC14
NUT
PC13
WASHER
1/2 inch or
13mm wrench
3. Attach Support Rod Connection Base
PC18
into the Upper
Stand Assembly from Figure 3 Secure with M8 x 35mm.
Carriage Screw
HP5
and M8 Locknut
HP3
. See Figure 4.
NOTE: The Feet on the Support Rod Connection Base
PC18
should
face to the outside (left).
4. Secure Upper Stand Assembly
PC4
to Upper Stand Support
(pre-attached to Saw) with M8 x 75mm Carriage
Screw
HP4
, Plastic Spacer
HP2
, and M8 Locknut
HP3
. See
Figure 5.
PC9
PC4
HP2
PC18
PC5
HP3
HP5
HP3
HP4
2. Connect the Support Spreader Bar
PC14
to Left Support
Tube
PC9
and Right Support Tube
PC5
with
M6 x 50mm Hex Bolts
HP1
. See in Figure 3.
14
15
ASSEMBLY
5. With Table saw still in Lower Packing Tray, attach Stand
Handle
PC2
to Tubular Base of Saw with M8x35mm
Carriage Screw
HP5
and M8 Locknut
HP3
. See Figure 6.
NOTE: Square and round holes can be aligned together.
Figure 6
Figure 7
Figure 8
PC2
6. Attach Leg Assembly to the Upper Leg Assembly. Insert
Plastic Spacer
HP2
between Legs and secure with
M8 x 75mm Carriage Screw
HP4
and M8 Locknut
HP3
. See
Figure 7.
7. Install the Wheel Assembly from Figure 2 to Leg Assembly
installed in Figure 7. Insert Plastic Spacer
HP2
between
Legs and secure with M8 x 75mm Carriage Screw
HP4
and
M8 Locknut
HP3
. See Figure 8.
HP3
HP3
HP2
HP2
HP3
HP5
HP4
HP4
8. Raise the Wheel Assembly part of the Stand to help align
the holes with the Leg Assembly. Insert Plastic Spacer
HP5
between Legs and secure with M8 x 75mm Carriage Screw
HP4
and M8 Locknut
HP3
.
NOTE: DO NOT over-tighten. Cut zip tie securing Pedal. See
Figure 9.
Figure 9
HP3
HP5
HP4
15
ASSEMBLY
2
1
Figure 10
Figure 11
9. Unlock the Bevel Lock and rotate the Motor Assembly
enough to remove the Shipping Foam protecting the Saw
Motor as shown in Figure 10.
10. Once the saw is upright disengage the pedal, push down
on the handles until the catch is engaged, and then
continue the remaining assembly steps.
HEIGHT ADJUSTMENT KNOB
INSTALLATION
1. Insert Wheel Handle Shoulder Screw
HP6
into Height
Adjustment Wheel Knob
HP7
as shown in Figure 12.
2. Tighten Shoulder Screw with Combination 4mm Allen
Wrench/Phillips Screwdriver
HP8
or Phillips Screw Driver
into the Hand Wheel. Height Adjustment Wheel Knob
should rotate freely around Shoulder Screw when raising or
lowering the blade with the Height Adjustment Hand
Wheel.
FENCE ADJUSTMENT KNOB
INSTALLATION
1. Insert and tighten Hex Socket screw
HP10
through Flat
Washer
HP11
, into Fence Adjustments Knob
HP9
as shown in
Figure 13. Make sure the groove in the knob aligns with the
rib on the pinion.
Figure 12
Figure 13
HP6
HP7
HP10
HP9
HP11
16 17
ASSEMBLY

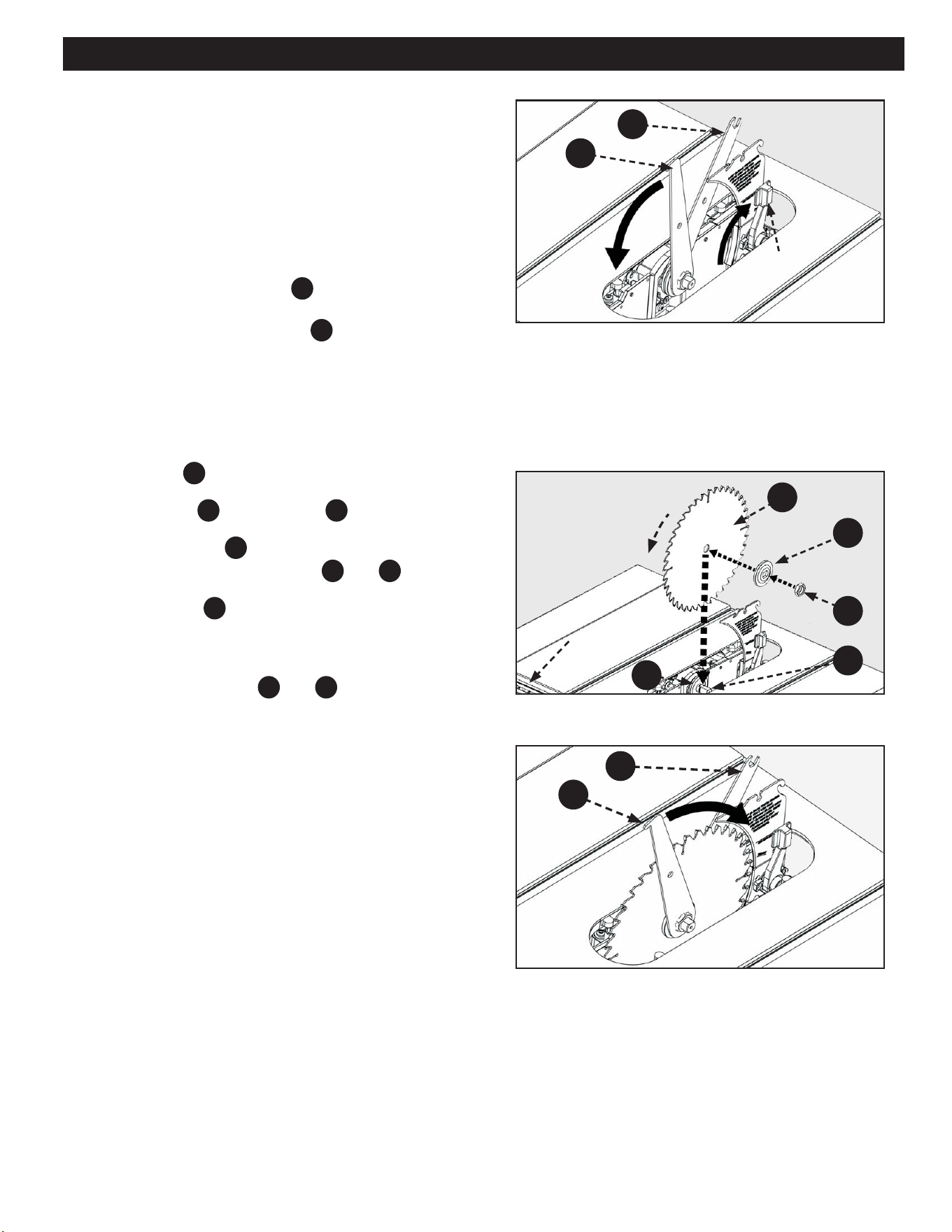

INSTALLING THE BLADE
1. Raise the Motor/Arbor Assembly to the upper most position
to provide easy access to Riving Knife Lock Lever and
Arbor Assembly.
2. Ensure Riving Knife Lock Lever is in unlock position. See
Figure 14.
3. Detach the on-board Wrenches located on the right side of
the Saw by loosening and removing M8 Wing Nut.
4. Place the Open End Wrench
PC16
on the Spindle Shoulder
between the Arbor Flange and Inner Flange.
5. Place the Closed End Wrench
PC17
over the Arbor Nut.
Holding the Spindle Shaft in place, loosen and remove the
Arbor Nut and Arbor Flange. See Figure 14.
NOTE: Use ONLY 10 inch (254mm) diameter Blades with 5/8
inch (16mm) Arbor Holes, rated at 5,000 rpm or higher, 0.10 inch
(2.6mm) min. kerf width and 0.073 inch (1.85mm) max body
thickness. ONLY use 10 inch Blades designed for woodcutting.
6. Place Blade
PC6
on the Arbor Shaft with the Teeth on the
Blade pointing toward the front of the Saw. Place Outer
Blade Washer
A
on Arbor Shaft
B
with the large side
of the Washer against the Blade, then secure Blade
Assembly with Nut
C
. See Figure 15.
7. Tighten Nut with Blade Wrenches
PC16
and
PC17
. Open End
Wrench will fit on the Arbor Shaft between the Inner
Flange Washer
D
and the Motor Assembly (if necessary,
turn Arbor Shaft to align ats on the Arbor Shaft to the
Wrench). Closed End Wrench will t on the Nut. See Figure
16.
8. Return Blade Wrenches
PC16
and
PC17
to On-Board Storage
location and secure the M8 Wing Nut. Raise the Riving
Knife in the through cut position prior to installation of
Throat Plate.
Details for positioning the Riving Knife are on page 28 RIVING
KNIFE POSITION AND ALIGNMENT Section. See Figure 16.
Figure 14
UNLOCK UNLOCK
POSITION POSITION
Figure 15
Figure 16
TOOTH
DIRECTION
FRONT
OF SAW
PC17
PC16
PC6
A
C
B
PC17
PC16
D
17

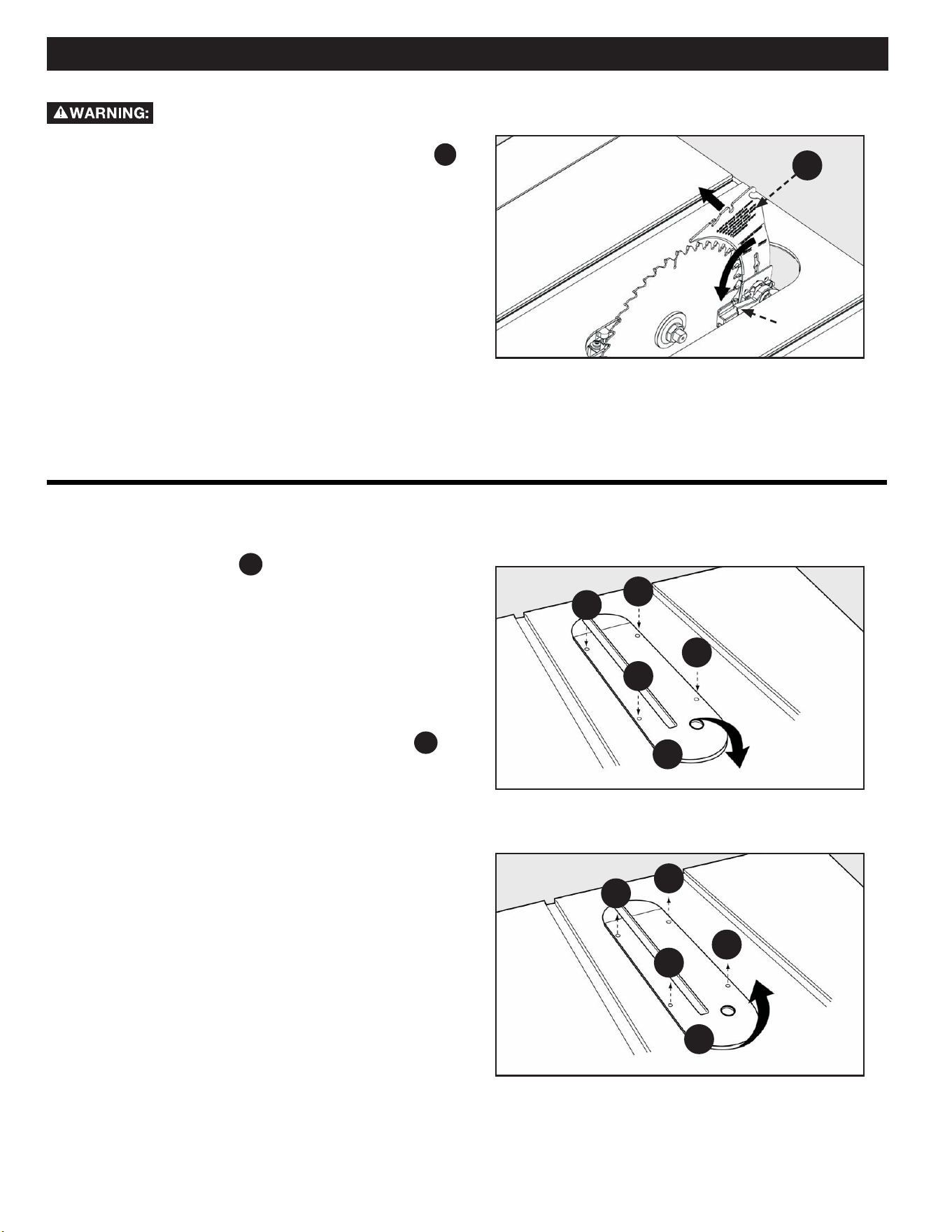

ASSEMBLY
1. The Riving Knife MUST be installed for every through cut
and for every non-through cut unless the Riving Knife
A
would interfere with the cut.
2. The Riving Knife provided with the table saw shall be
thicker than the body of the matching Saw Blades provided
with the Table Saw but thinner than the kerf width of that
Saw Blade.
3. ALWAYS use a Blade with the correct thickness to match
the Riving Knife. (0.10 inches (2.6mm) min. kerf width and
0.073 inches (1.85mm) max body thickness).
4. The Riving Knife MUST be securely positioned in the up or
through cut position when using the Anti-Kickback Pawls
and Blade Guard.
5. Make sure the Riving Knife is properly aligned to the
Blade. (See page 28 RIVING KNIFE POSITION AND
ALIGNMENT Section).
Figure 17
THROUGH CUT THROUGH CUT
POSITION POSITION
LOCK LOCK
POSITION POSITION
Figure 18
Figure 19
PC15
PC15
A
THROAT PLATE
1. To install Throat Plate
PC15
, lower Blade below Tabletop,
then carefully feed the Throat Plate, slotted end rst, from
the rear of the Table to the front, keeping the Blade
centered within the slot on the Throat Plate. See Figure 18.
The Throat Plate should rest within the cavity in the
Tabletop.
2. Ensure that the Throat Plate is ush with the top of the
Table.
3. If the Throat Plate is not ush with the Tabletop, adjust the
height of the Throat Plate using the four Set Screws
A
.
NOTE: For leveling the throat plate see page 22.
4. To remove Throat Plate, lower Blade below Tabletop, then
carefully slide the throat plate out from the front of the
table to the rear, using the cutout on Figure 19.
NOTE: If Throat Plate is not ush with the Table Top the Anti-
Kickback Pawls can interfere with the Blade adjustment.
A
A
A
A
A
A
A
A
To reduce the risk of serious injury,
18 19

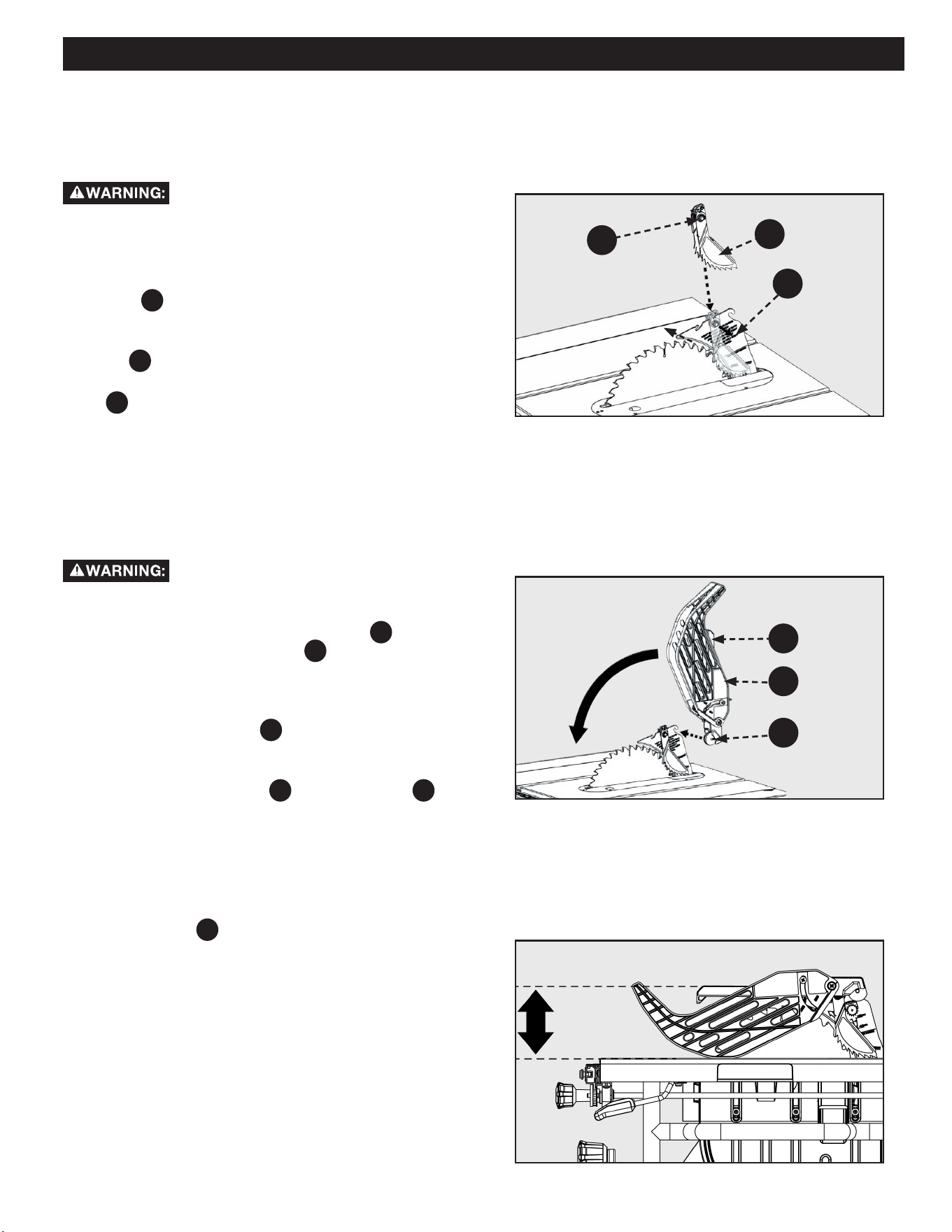

ASSEMBLY
Figure 20
ANTI-KICKBACK PAWLS AND
BLADE GUARD
ANTI-KICKBACK PAWLS
To reduce the risk of serious personal injury,
Anti-Kickback Pawls MUST be in place when making a through
cut.
1. Refer to Figure 20 and locate the Anti-Kickback Pawls
mounting slot in the middle of the top edge of the Riving
Knife
A
.
2. Slide slot in the middle of the Anti-Kickback Pawls
Assembly along the top of the Riving Knife until the Press
Pin
B
locates the center slot on the Riving Knife.
3. Depress the Press Pin on the Anti-Kickback Pawls Assembly
PC12
to allow the Assembly to drop into the slot. Push down
on the Anti-Kickback Pawls Assembly until it snaps into
place and locks. Release Press Pin. NOTE: Pull up on the
Anti-Kickback Pawls to make sure it is locked in place.
To remove the Anti-Kickback Pawls, depress the Press Pin and pull
the Anti-Kickback Assembly off the Riving Knife.
PC12
B
A
BLADE GUARD
1. While holding the Blade Guard Assembly
PC11
in a vertical
position, hook the Locating Pin
C
at the back end of the
Blade Guard Assembly into the slot at the back edge of the
Riving Knife.
2. Rotate the Blade Guard Assembly toward the front of the
saw until Support Arms
D
of the Blade Guard Assembly
are parallel to the Table as shown in Figure 21.
3. See Figure 23 (next page). While holding down on the
front of the Support Arms
C
press the Lock Tab
E
down
until it snaps into the locked position. Check to make sure
the Guard is locked onto the Riving Knife by pulling on the
guard. If the Guard is not locked, the Lock Tab will ip up
to the unlocked position.
To reduce the risk of serious personal injury,
the Blade Guard MUST be in place when making a through cut.
If the Support Arms
D
are not parallel to the table, the Riving
Knife is not in the raised (through-cut) position. Remove Blade
Guard Assembly and Anti-Kickback Pawls and raise Riving Knife,
then re-install the Anti-Kickback Pawls and the Blade Guard
Assembly.
C
A
B
Figure 21
1. If Blade Guard is not parallel to Table, Riving Knife is not
in raised (through cut) position. Raise and lower each side
of the Blade Guard to verify free movement of the Guard
System. Be sure the Guard System can be raised enough
to clear your workpiece.
Figure 22
D
PC11
C
19

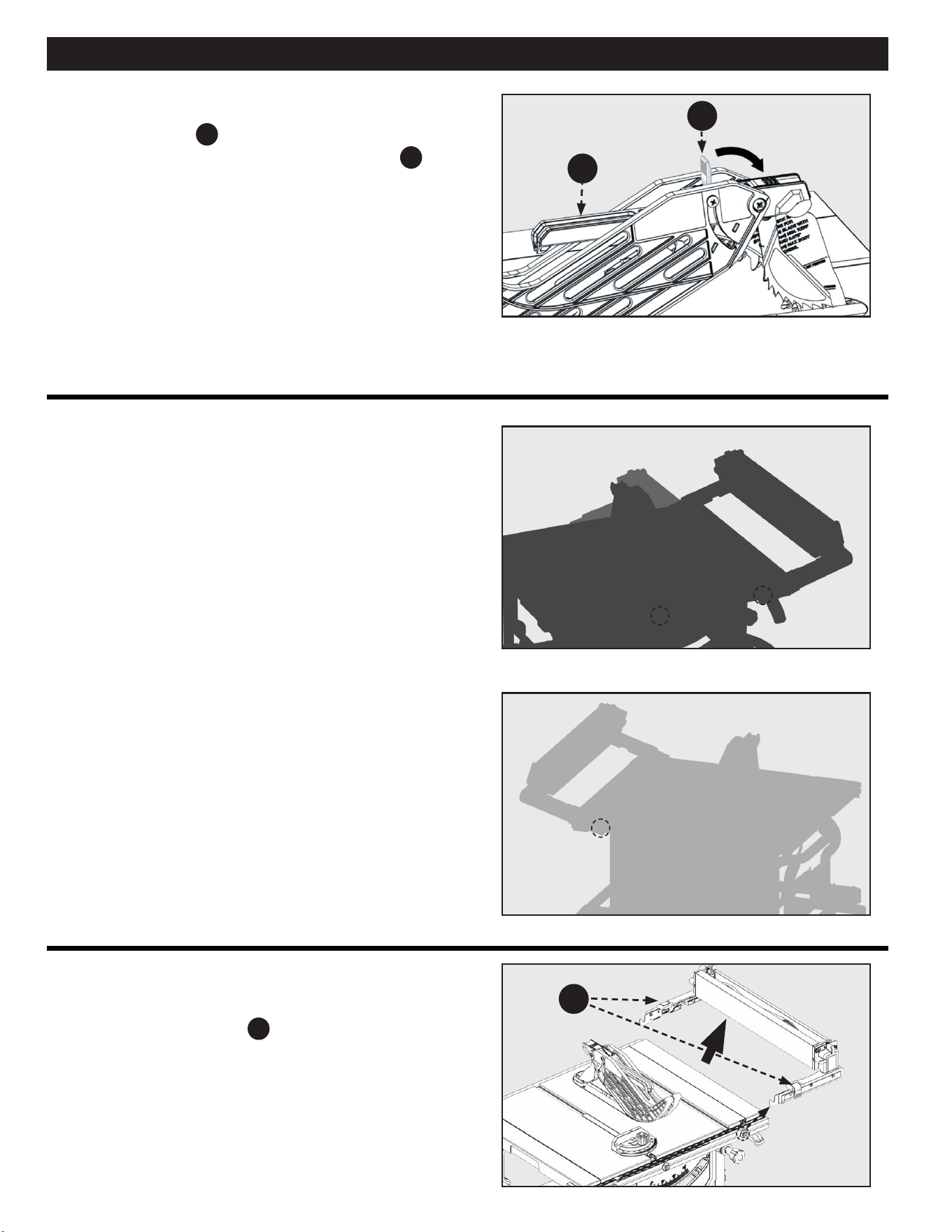

ASSEMBLY
Figure 24
Figure 25
INSTALLING THE FENCE
The fence can be positioned on one of the three pairs of tabs.
Two on the right side of the blade and one on the left side.
1. To engage the fence, hold it at an upward angle while
engaging the desired tab pair into the front and rear fence
notches.
2. Lower the fence until the two latches engage the fence
rails.
See Figure 24 and 25.
REMOVING THE FENCE
1. Lift the orange latches
F
on the on the sides of the
Fence.
2. Tilt the Fence up at a slight angle.
3. Disengage notches on Fence System from tabs on rail.
See Figure 26. To see Fence installed refer to page 3.
Figure 26
To remove the Blade Guard Assembly:
1. Lift the Lock Tab
E
to the unlocked position.
2. Rotate the Guard back and slide the Locating Pin
C
from
the Riving Knife slot.
See Figure 23.
Figure 23
E
C
F
20 21
ASSEMBLY

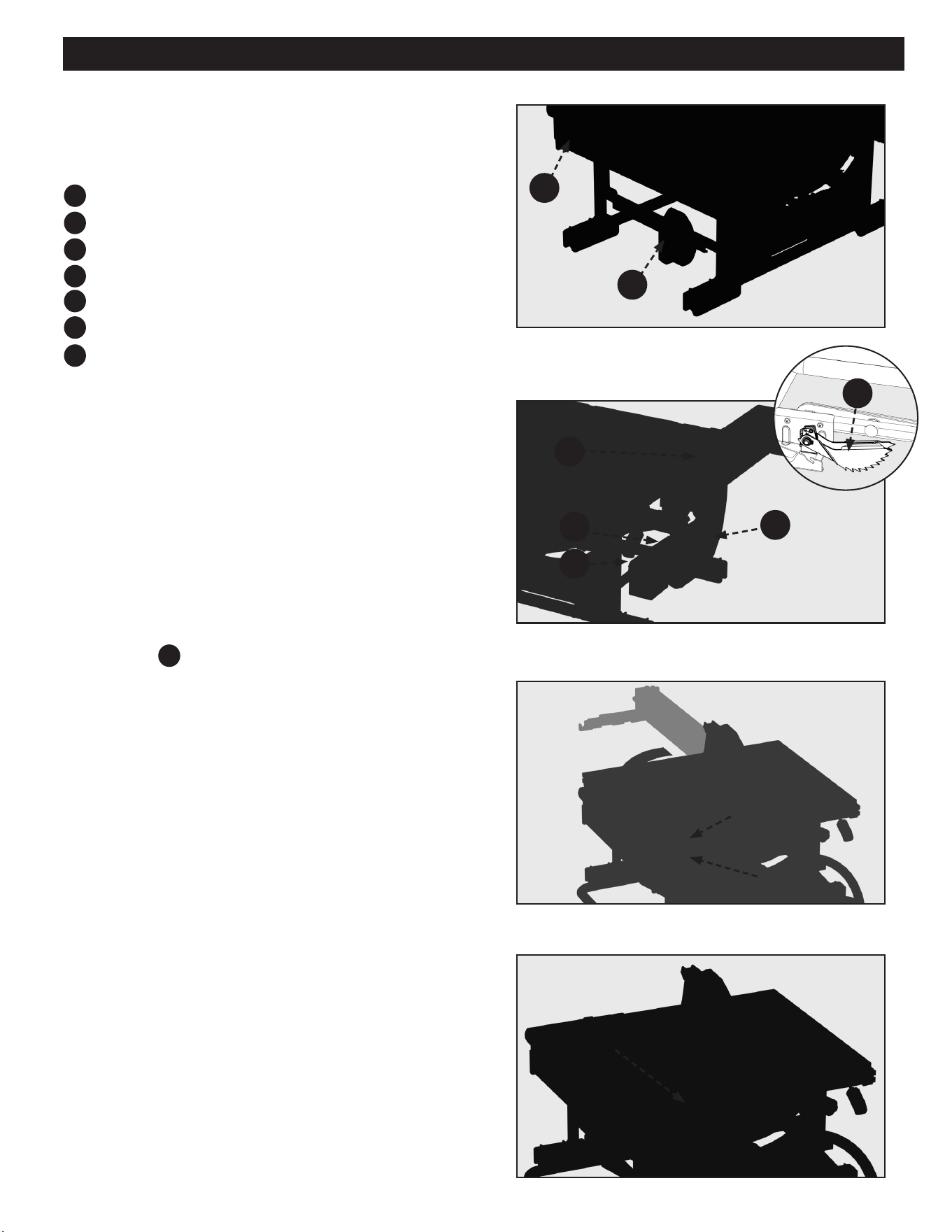

ON-BOARD STORAGE
Storage is located on the Left side, Right side of the machine as
shown in Figures 27 & 28.
PC8
Push Stick
PC12
Anti-kickback Pawls (Stored behind Blade Guard Assembly)
PC16
Open End Wrench
PC17
Closed End Wrench
PC11
Blade guard assembly
PC10
Fence
PC7
Miter gauge
Figure 27
Figure 28
PC10
PC7
PC8
PC11
PC17
PC16
To store Fence
PC10
,
1. remove the Fence from the machine. The Storage
orientation will require the Fence to be flipped upside
down and re-attached under the Left Side of the machine.
The Mounting Tabs on the Table should t into the slotted
openings on the bottom of the Fence Arms. Please see
Figures 29 and 30 for proper orientation.
Figure 29
Figure 30
TABTAB
SLOTTED SLOTTED
OPENINGOPENING
LATCHLATCH
PC12
21
Leveling screws Leveling screws
(4)(4)

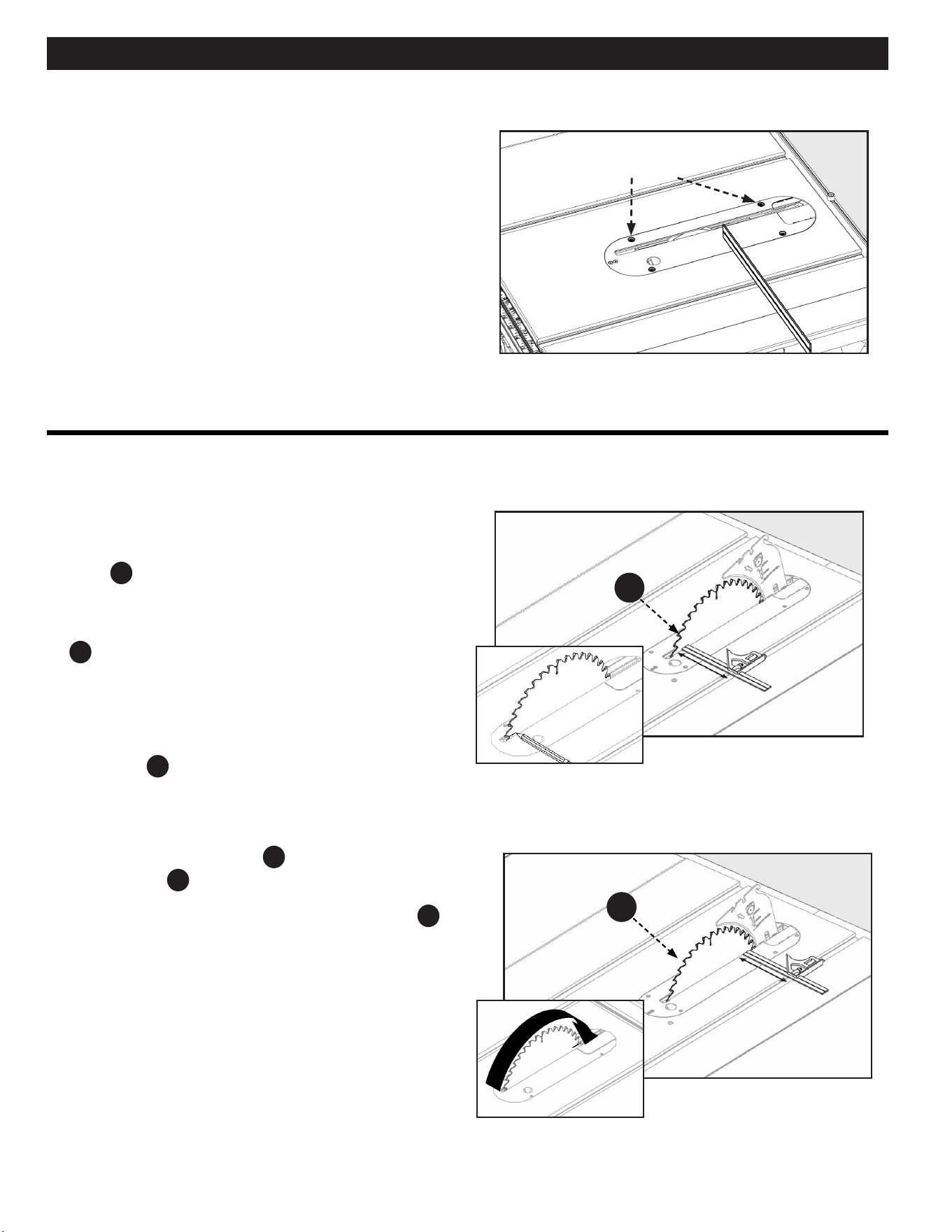

MAKING ADJUSTMENTS
LEVELING THE THROAT PLATE
To install throat plate, slip tab into slot at back of saw and push
down to secure in place.
See Figures 31.
NOTE: There are four screws pre-assembled to the throat plate
that are used for leveling the throat plate if necessary. Turn
screws clockwise to raise the throat plate, counter clockwise to
lower. Plate should be even or slightly below table surface. Plate
should not be above or more than 1/4 inch (0.7mm) below the
table on in-feed side. On out-feed side plate should be below or
no more than 1/4 inch (0.7mm) above the table.
ADJUSTING BLADE PARALLEL TO
MITER GAUGE GROOVE (HEEL)
• Blade
A
MUST be parallel to miter gauge groove so that
wood does not bind, resulting in kickback. Failure to do so
could result in serious personal injury.
• To reduce risk of injury from kickback, align rip fence to blade
A
following any blade adjustments.
DO NOT loosen any screws for this adjustment until alignment has
been checked with a square to be sure adjustments are necessary.
Once screws are loosened, items MUST be reset.
NOTE: Unplug saw. Remove blade guard and anti-kickback pawls.
Raise the blade
A
by turning height adjusting wheel.
1. Mark beside one of blade teeth at front of blade (Figure
32-1). Place a combination square even with front of saw
table and side of saw blade
A
as shown.
2. Turn blade
A
so that marked tooth is at back. Move
combination square to the rear and again measure the
distance. If the distances are the same, blade
A
is
square. See Figure 33.
Figure 32
Figure 33
Figure 31
1
11
2
2
A
A
22 23

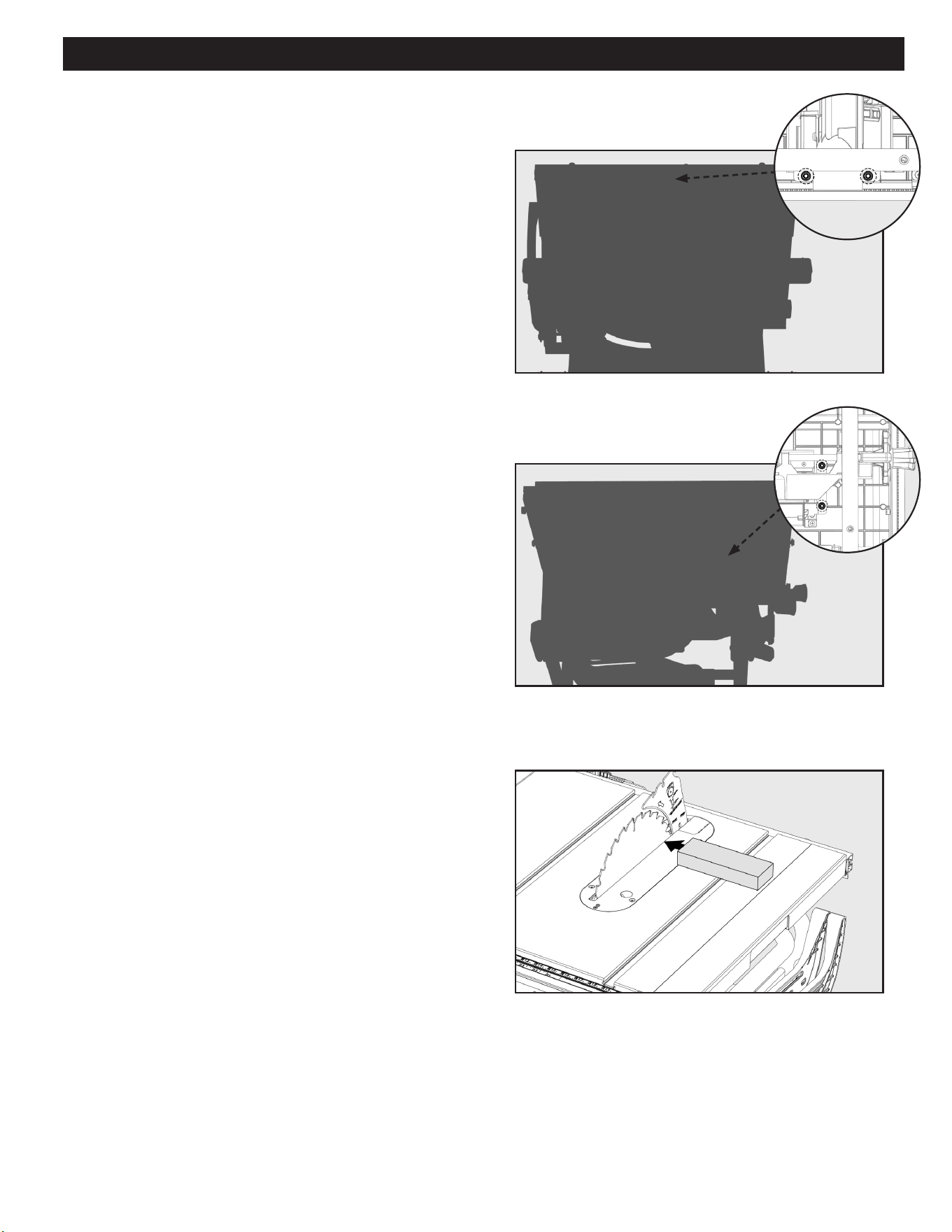

MAKING ADJUSTMENTS
Figure 34
Figure 35
Figure 36
If the distances are dierent:
3. Loosen the front trunnion bolts using a 5mm Hex Wrench,
found below the table top. See Figure 34.
4. Loosen the rear trunnion bolts using a 5mm Hex Wrench,
found below the table top. See Figure 35.
5. If the rear of the blade was too close to combination
square, place a block of wood on the right side of the
blade. Lightly tap with a small hammer or rubber mallet to
achieve the correct parallelism adjustment . See Figure 36.
6. Re-tighten the trunnion bolts using the 5mm Hex Wrench.
Recheck alignment after bolts are re-tightened.
23

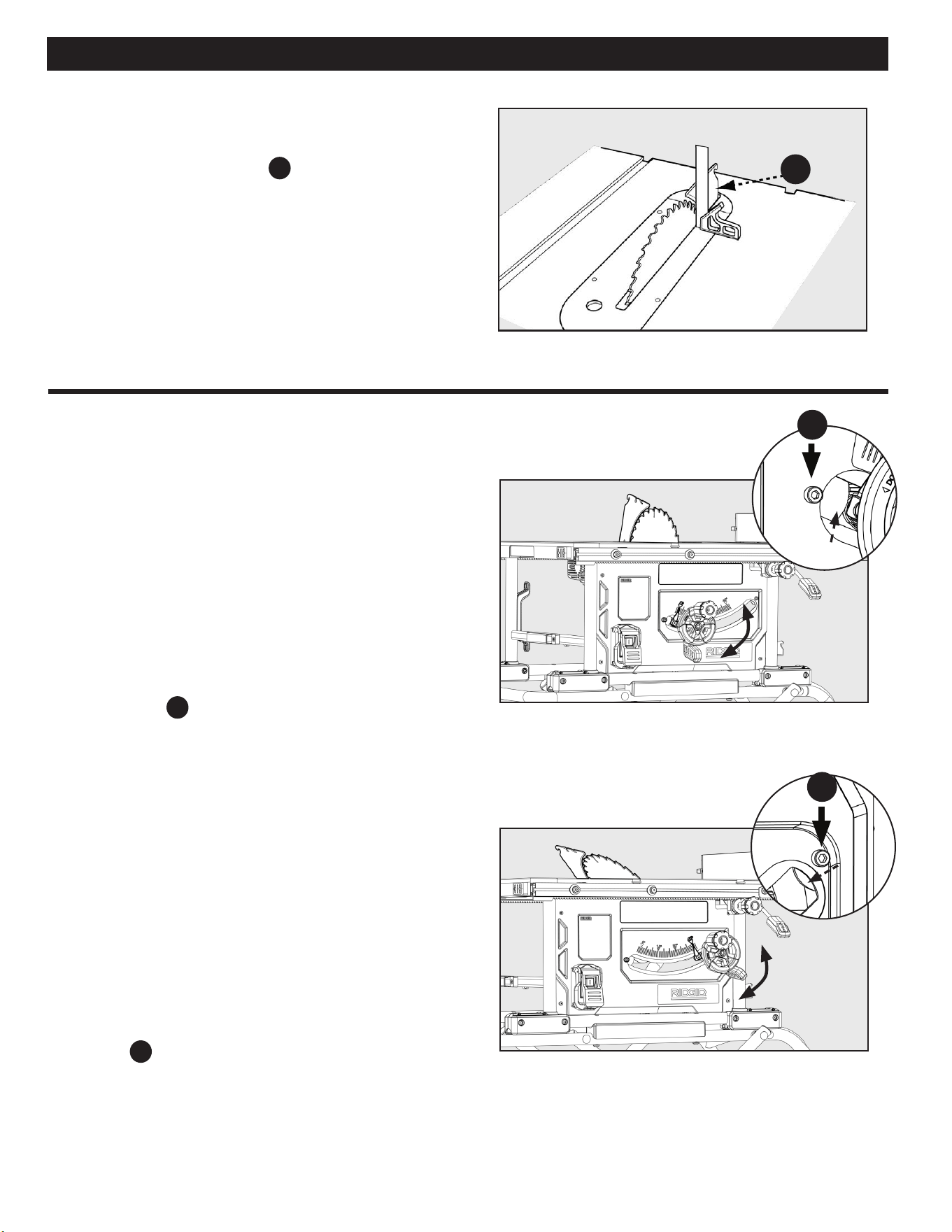

MAKING ADJUSTMENTS
Figure 39
45°
CAMCAM
ADJUSTING THE BEVEL STOPS
If the blade is not vertically square to the table, you MUST adjust
the 0° positive stop, located on the far left end of the bevel track
as shown in Figures 38 and 38a.
1. Make sure your saw is “OFF” and unplug.
2. Secure the bevel lock and raise the blade to its uppermost
position.
3. Unlock the bevel locking lever and slide the elevation
handwheel to the 0° positive stop position.
4. Place a combination square next to the blade and check for
90° alignment. Reference Figure 37.
5. If the blade is not squared 90° to the table, loosen the hex
head screw
A
using the supplied 4mm Hex Wrench and
adjust the cam so that the indicator arrow shows the
correct 0° value.
6. Re-tighten the screw, and check for 90° alignment.
C
A
B
Figure 38
UNLOCK UNLOCK
UNLOCK UNLOCK
LOCK LOCK
LOCK LOCK
a
0°
CAMCAM
Adjusting 45 Degree Positive Stop
If the blade is not showing an accurate 45-degree to the table, you
MUST adjust the 45° positive stop, located on the far right end of
the bevel track (maximum 45°) as shown in Figures 39 and 39a.
1. Make sure your saw is “OFF” and unplug.
2. Secure the bevel lock and raise the blade to its uppermost
position.
3. Unlock the bevel locking lever and slide the elevation
handwheel to the 45° positive stop position.
4. Place the 45° face of a combination square next to the
blade and check for 45° alignment.
5. If the blade is not 45° to the table, loosen the hex head
screw
A
using the supplied 4mm Hex Wrench and adjust
the cam so that the indicator arrow shows the correct 45°
value.
6. Re-tighten the screw, and check for 45° alignment.
a
A
A
SQUARING THE BLADE
VERTICALLY TO THE TABLE
1. Place a combination square
B
against the table and the
side of the blade, avoiding contact with the teeth. See
Figure 37.
2. If it is not square, adjust the 0° stop as shown in
ADJUSTING THE BEVEL STOPS. See Figures 38 and 39.
Figure 37
B
24 25

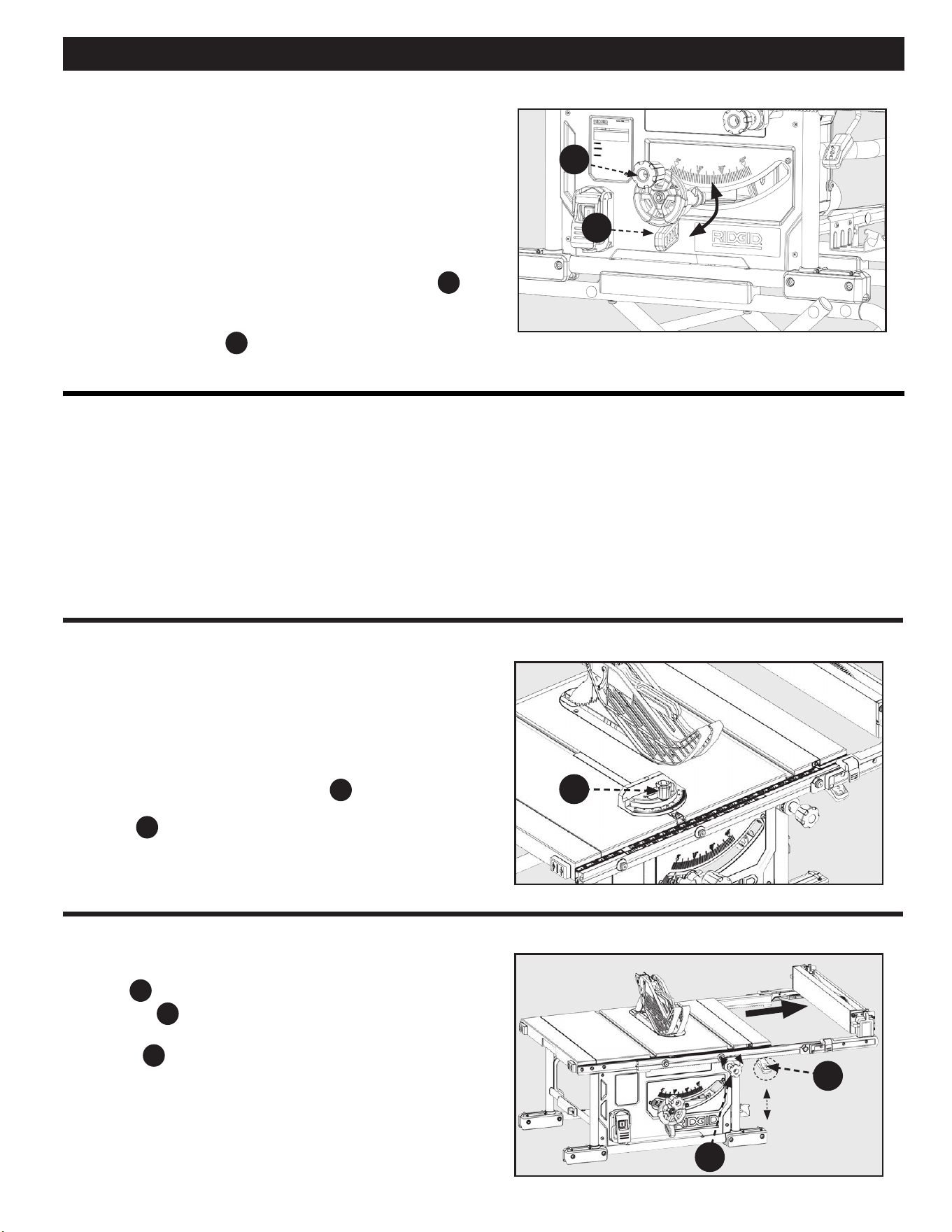

MAKING ADJUSTMENTS
ADJUSTING THE BLADE HEIGHT
1. For all through cuts, the top of the blade teeth should be
above the workpiece and the bottom of the blade gullets
are below the top surface of workpiece.
2. For non-through cuts, the top of the blade points should be
set to the depth of the cut.
3. To adjust the height of the blade, refer to Figure 40 and do
the following:
4. Make sure the bevel/height adjustment locking lever
C
is
in the locked position.
5. Adjust the blade height by turning the bevel/height
adjustment wheel
B
. Clockwise will raise the blade and
counterclockwise lowers it.
CHANGING THE BEVEL
See Figure 40.
1. Unlock the bevel locking lever by pulling it into the unlock
position.
2. Holding knob/wheel, slide the bevel indicator to the desired
angle.
3. When the blade is at desired angle, lock the bevel locking
lever by pushing it down to the lock position.
Figure 40
B
C
USING THE MITER GAUGE
1. There are two miter gauge grooves, one on each side
of the blade. Miter gauge is adjustable from 90º to 30º.
When making a 90º cross cut, use either groove. For
beveled cross cut use the groove on right so that the blade
is tilted away from miter gauge and hands.
2. Loosen the miter gauge lock knob
A
. Rotate the gauge
until desired angle on scale is reached. Re-tighten lock
knob
A
. The miter gauge has index points at 90º, 75º,
60º, 45º, & 30º both left and right.
See Figure 41.
A
Figure 41
ADJUSTING RAIL SYSTEM
1. Lift
C
extension lock lever to unlock position.
2. Rotate
HP9
fence adjustments knob until the desired
cutting dimension is achieved.
3. Push
C
extension lock lever lock down to engage the
lock.
See Figure 42.
Figure 42
LockLock
UnlockUnlock
C
HP9
UNLOCK UNLOCK
LOCK LOCK
25
Figure 44
Figure 45

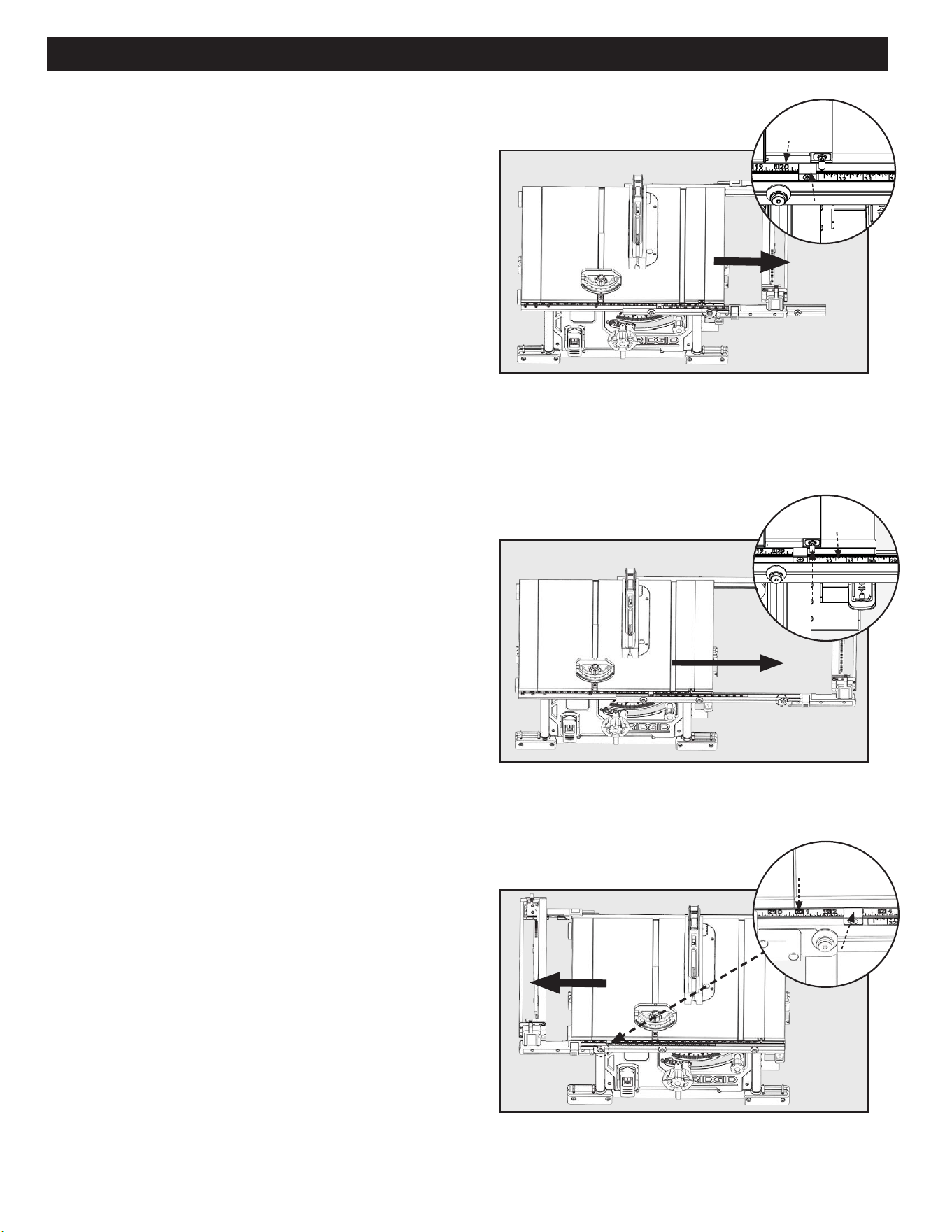

MAKING ADJUSTMENTS
USING COLOR CODED SCALES
Each corresponding scale should be used to measure the distance
between the inside face of the blade to the inside face of the
fence.
BLACK TAB
The black tabs correspond to the black scale with white numbers.
1. The black tabs in the middle of the rail can be used for
right rip cut 0 inches to 21 inches.
2. To use the black scale with white numbers, insert the fence
notches into the black tabs on the rail.
See Figure 43.
Figure 43
RIGHT ORANGE EXTENSION TAB
The right orange extension tabs correspond to the orange scale
with black numbers.
1. The orange tabs on the right of the rail can be used for
right rip cut 21 inches to 32.5 inches.
2. To use the orange scale with black numbers, insert the
fence notches into the right orange extension tabs on the
rail.
See Figure 44.
LEFT ORANGE EXTENSION TAB
The left orange extension tabs correspond to the black scale with
orange numbers.
1. The orange tabs on the left of the rail can be used for left
rip cut 0 inches to 22 inches.
2. To use the black scale with orange numbers, insert the
fence notches into the left orange extension tabs on the
rail.
See Figure 45.
CLEARCLEAR
INDICATORINDICATOR
BLACK SCALE W/ BLACK SCALE W/
WHITE NUMBERSWHITE NUMBERS
ORANGEORANGE
INDICATORINDICATOR
ORANGE SCALE ORANGE SCALE
W/ BLACK NUMBERSW/ BLACK NUMBERS
CLEARCLEAR
INDICATORINDICATOR
BLACK SCALE BLACK SCALE
W/ ORANGE NUMBERSW/ ORANGE NUMBERS
26 27

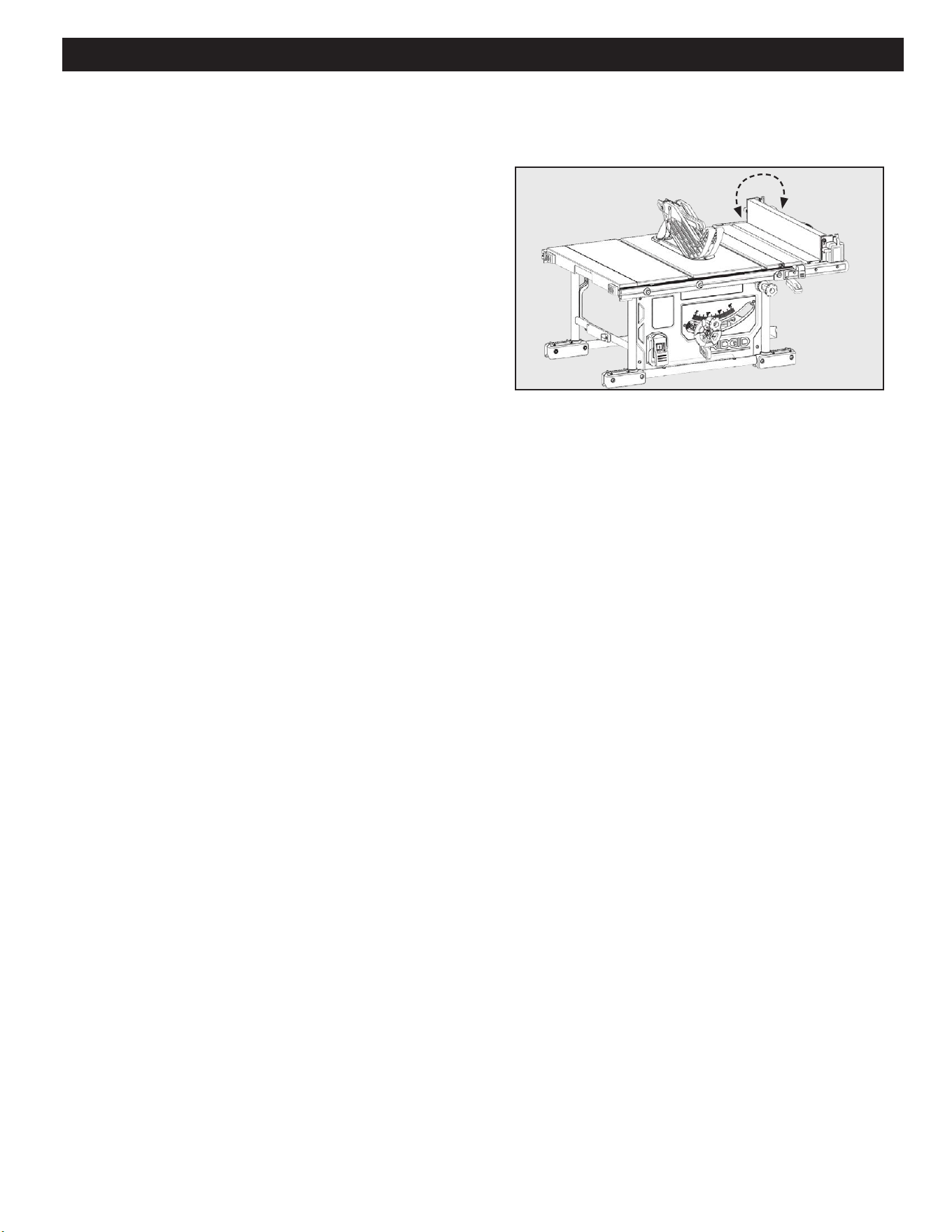

MAKING ADJUSTMENTS
ENGAGING THE FLIP DOWN
FENCE
When working with large pieces of material that extend beyond
the table surface flip the work piece support towards the blade
side of the table to provide proper support.
1. Locate work piece support on right side of fence.
2. Push up on Flip Fence and flip over top of Fence and
toward the blade side of Fence.
3. Slide workpiece support into place on left side of fence
until it is in line with the table.
See Figure 46 also Figure 63.
Figure 46
27

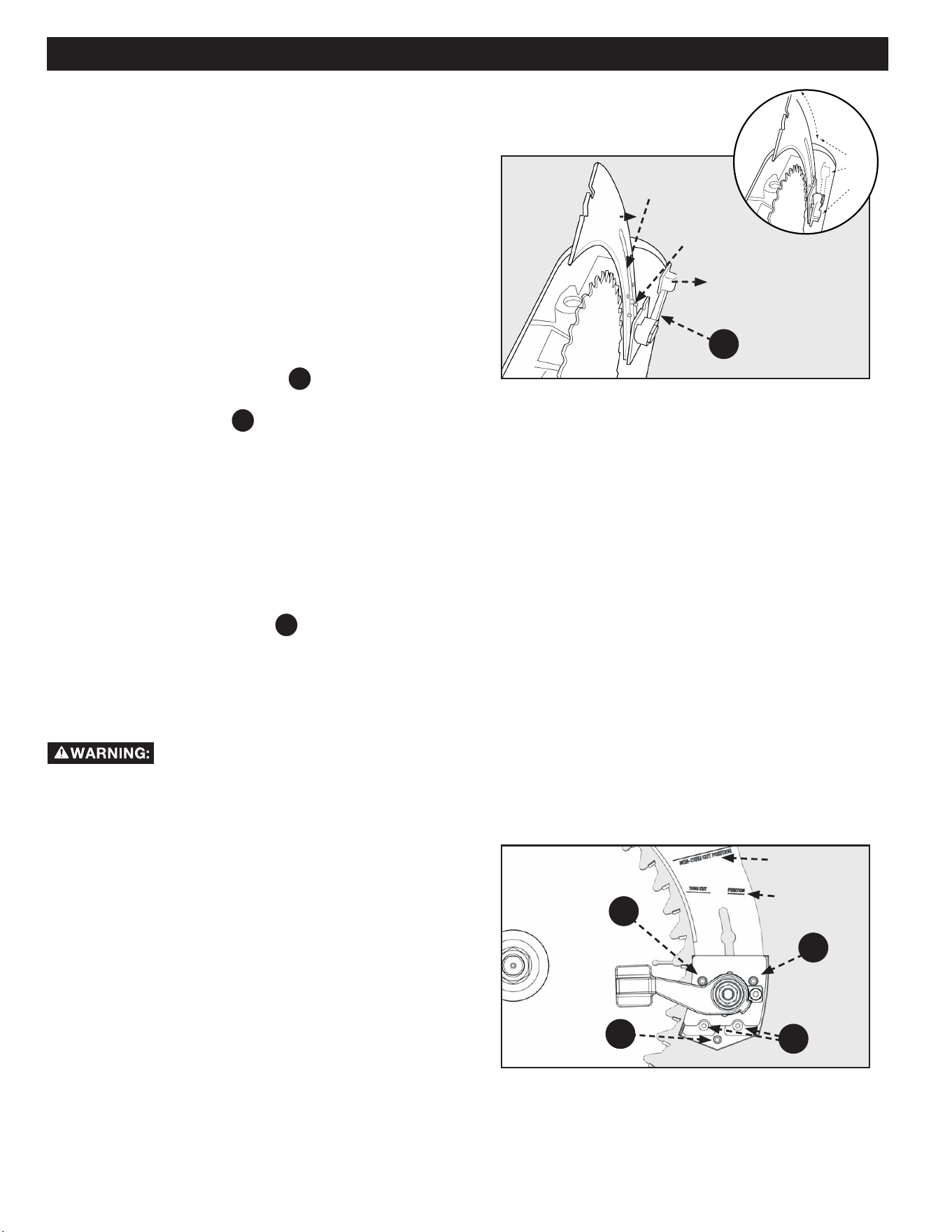

DO NOT operate saw unless riving knife is
securely clamped in the raised position for
through-cutting or the lowered position for non-through cutting.
RIVING KNIFE HEIGHT SETTINGS
See Figure 47.
The height of the riving knife should be adjusted based on the
type of cut being made. For all through cuts (when the wood is
completely severed), it should be in the raised position, with anti-
kickback pawls and guard installed. For non-through cuts (when
the blade does not penetrate the top of the workpiece), the riving
knife should be in the lowered position and anti-kickback pawls
and guard removed.
TO RAISE OR LOWER THE RIVING KNIFE:
1. Remove the throat plate and raise blade to the full height
above the table.
2. Locate the locking cam lever
A
near the base of the
riving knife.
3. Rotate the cam lever
A
by turning clockwise to unlock
and release the riving knife from its locked position.
4. Using your hand positioned near the top of the knife, lean
the knife outward away fro the two locking pins beside
its middle slot. This now frees the knife to slide into the
upward/cut-through position.
5. Lift the knife upward along the sliding slot until you feel the
new locking pins position.
6. Release the knife and it should snap into its new position;
wiggle if necessary.
7. Return the locking cam lever
A
to the locked position. If
you have done this properly the riving knife will be aligned
with the blade. If it is not retrace your steps until it does.
NOTE: When adjusting the riving knife up or down, be sure
to pull in a radial motion, as shown.
Location point for NON-THROUGH CUT POSITION.
NOTE: Riving knife is located in this position for non-through cuts
and is also in this position when packaged for shipment.
Location point for THROUGH CUT POSITION as shown in Figure
48. (Operator should adjust the riving knife to this position when
making through cuts.)
(NOTE: You MUST locate the riving in through cut position prior
to making any alignment adjustments to the riving knife alignment
to the blade).
Figure 47
Figure 48
LOWER
POSITION
DETENTS
UPPER POSITION
DETENTS ON
PINS
PULL AWAY
TO RELEASE
RIVING
KNIFE
NON-THROUGH
CUT
THROUGH
CUT
3mm Hex
3mm Hex
3mm Hex
4mm Hex
A
BB3
BB2
BB1
AA
RIVING KNIFE POSITION AND ALIGNMENT
ADJUST
LOCKED
28 29

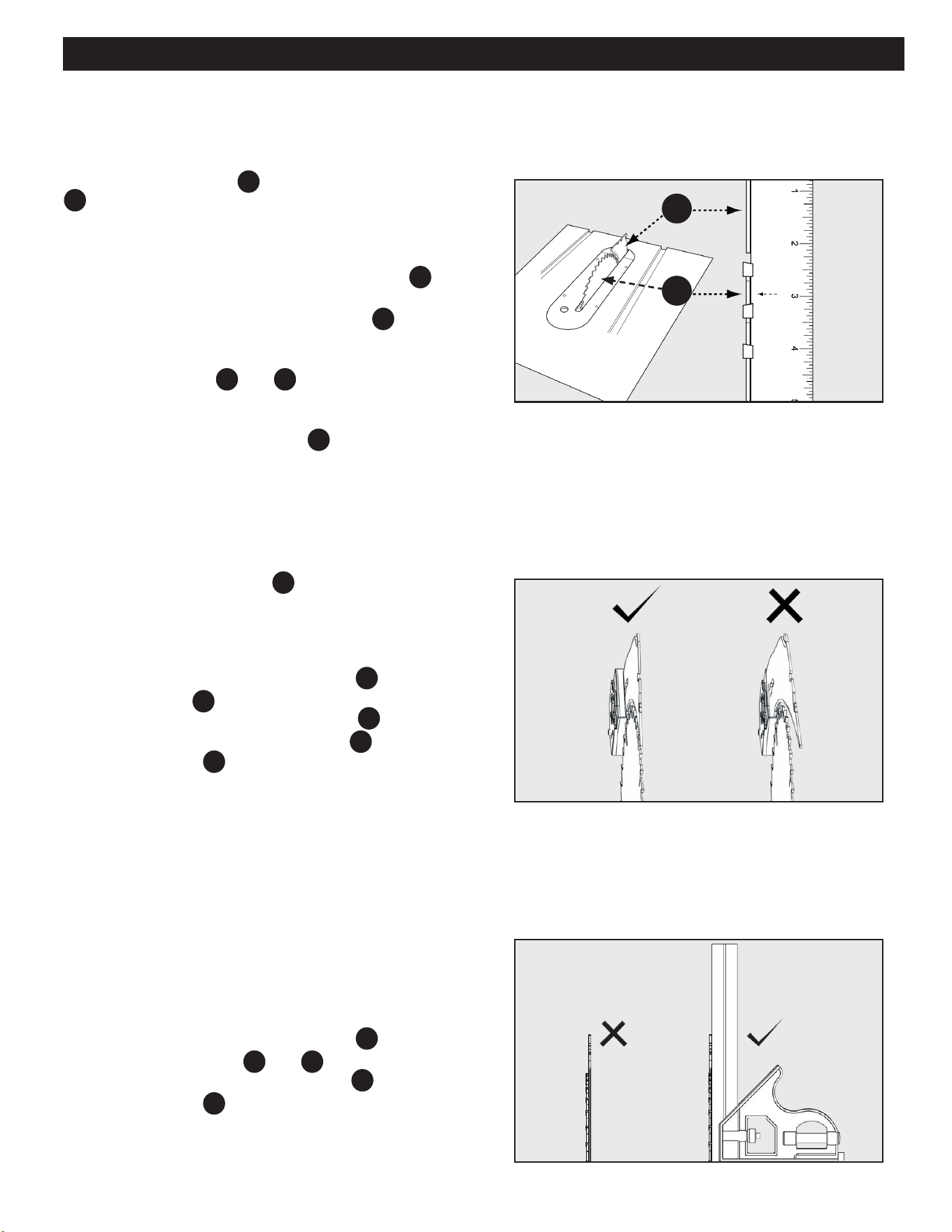

RIVING KNIFE POSITION AND ALIGNMENT
The plane of the riving knife
A
appears to be twisted in
comparison to the plane of the blade. (Can be seen looking straight
down on the blade and riving knife.)
If the riving knife has horizontal misalignment, adjust as follows
using Figure 48 and Figure 51.
1. Loosen the two hex socket head screws
AA
.
2. Adjust screw
BB2
to align the riving knife to the blade, if
still out of alignment then adjust
BB3
until proper
alignment is achieved. DO NOT adjust
BB1
.
3. Tighten screws
AA
.
The plane of the riving knife appears to be twisted in comparison
to the plane of the blade from the bottom of the riving knife to top
of the riving knife. (Can be seen looking from the front of the saw.)
If the riving knife has vertical misalignment, adjust as follows using
Figure 48 and Figure 51.
1. Loosen the two hex socket head screws
AA
.
2. Make adjustments to
BB2
and
BB3
, to align riving knife to
the blade. No adjustment is needed for
BB1
.
3. Tighten screws
AA
.
Horizontal Alignment
Vertical Alignment
Figure 50
Figure 51
Figure 49
RIVING KNIFE ALIGNMENT
Parallel Alignment
The plane of the riving knife
B
is parallel to the plane of the blade
A
but the riving knife and the blade are not in line with each
other.
If a parallel adjustment is required use Figure 48 and Figure 49 to
make the following adjustments:
1. Loosen the two hex socket head set screws
AA
using
4mm hex wrench.
2. Tighten or loosen the adjustment screw
BB1
using 3mm
hex wrench to adjust the datum line of the riving knife to
be aligned with the blade.
3. Adjust set screw
BB2
and
BB3
using 3mm hex wrench, to
assist with the alignment of the riving knife to be parallel
to the blade.
4. Tighten hex socket head screws
AA
.
B
A
29
DUST COLLECTION
Connect a shop vacuum or dust collection hose to dust port on
back of saw for best dust collection. See Figure 52. Dust port is
designed for a 2 1/2 inch vac hose.
Failure to comply with the following warnings may result in serious personal injury.
READ ENTIRE MANUAL. In addition to reading these operating instructions, it is important to read and understand the entire manual
before operating this saw. Follow all applicable instructions regarding assembly, preparation, and adjustment prior to making any cuts
and comply with all safety rules and warnings in this section and elsewhere throughout this manual.
1. Each time you use the saw, run through the following
checklist:
• Are the power source and power connections adequate for
the saw?
• Are the saw and work area free of clutter and by-standers?
• Is the blade tight and properly aligned?
• Does the riving knife thickness match the blade?
• Are the blade and riving knife properly aligned?
• Is the operator qualied to make the cut and familiar with
all of the relevant safety rules, warnings and instructions
included in this manual?
• Is the operator and everyone in proximity to the saw
wearing appropriate eye, hearing and respiratory
equipment?
• Are the bevel angle and height adjustment knobs locked in
the proper position?
• Make sure the blade is the proper height for your cutting
operation.
• If ripping, is the rip fence parallel to the blade and securely
locked in position?
• If crosscutting, is the miter gauge knob tight?
• If making through cuts with a standard blade, are the
blade guard, riving knife and anti-kickback pawls properly
attached and properly functioning with both guards
contacting the table surface?
• Is there proper clearance and support for the workpiece as
it leaves the blade?
• Are any cutting aids needed? If so, are they in place, or
within reach for proper use?
2. The use of attachments and accessories not recommended
by Ridgid
® may result in injury.
3. Replace or sharpen the anti-kick pawls when the points
become dull.
4. Make sure saw is stable and cutting can be accomplished
without tipping the saw. Do not attempt to cut large
workpieces without securing saw to a stable surface.
5. Never use the fence and miter gauge together without using
a cuto block as as described in the manual.
6. The proper throat plate must be in place at all times.
7. If your saw makes an unfamiliar noise or if it vibrates
excessively, cease operating immediately until the source has
been located and the problem corrected.
Use saw blade guard, anti-kickback pawls, and riving knife
assembly for every possible operation, including all through-cut
sawing.
Push the workpiece past the saw blade prior to releasing control.
NEVER rip a workpiece that is twisted or warped, or does not
have a straight edge to guide along the fence.
NEVER saw a large workpiece that cannot be controlled.
NEVER use the fence as a guide or length stop when
crosscutting.
NEVER saw a workpiece with loose knots, flaws, nails or other
foreign objects.
NEVER rip a workpiece shorter than 10 inches (254mm).
NEVER use a dull blade. A dull blade should be replaced or
re-sharpened.
Never perform freehand cutting, plunge cutting, re-sawing or
cove cutting.
Figure 52
OPERATION
30 31

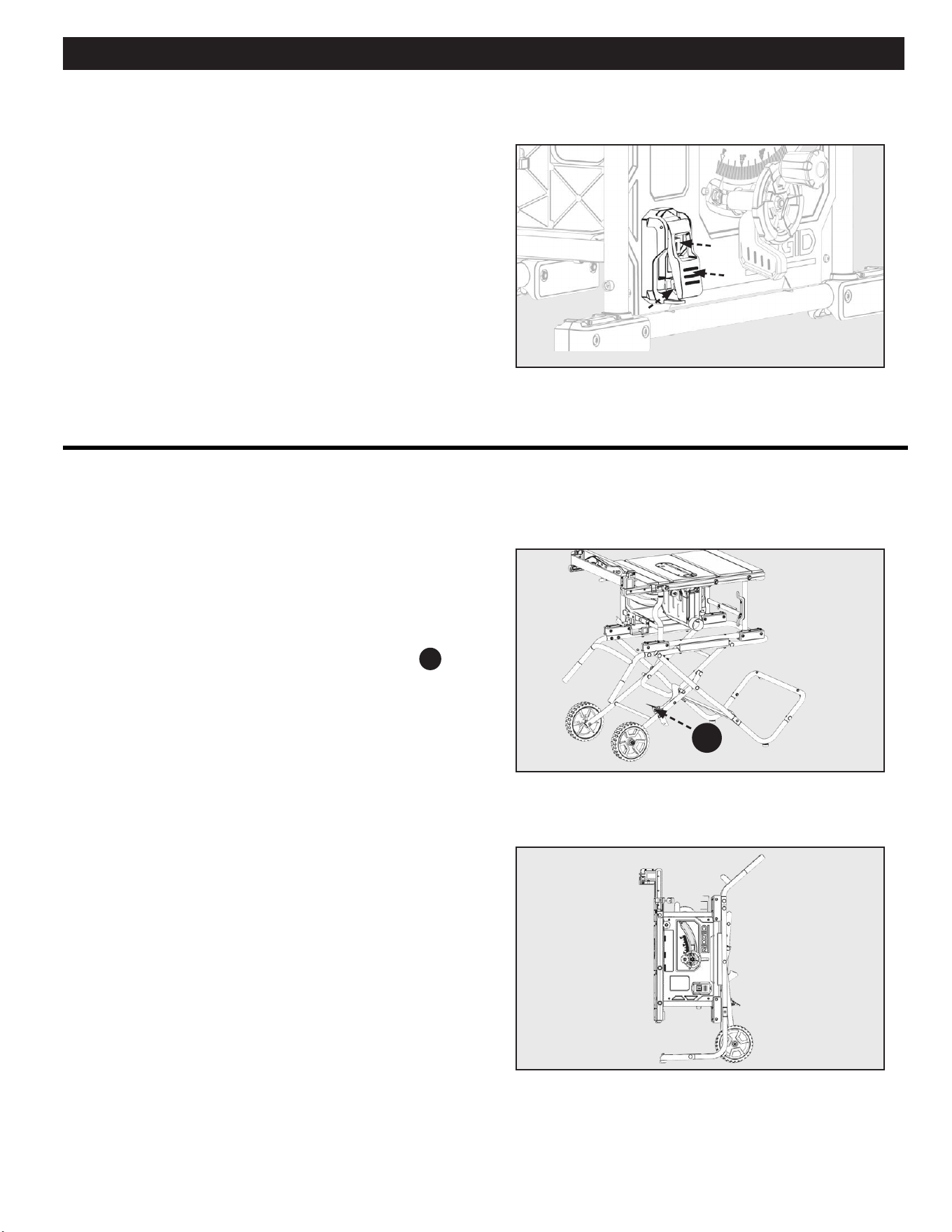

OPERATION
TRANSPORTING THE SAW
To fold stand for moving:
1. Return side extension tables to inner position lock side
extension into place.
2. Stow Miter Gauge, Blade Guard, and Kickback Pawls.
3. Lower riving knife to the non-through cut position. Then
lower the blade below the table.
4. Grasping handle bar, push the stand release pedal
A
with
foot and tilt up and forward until the saw rests on the
wheels and stand feet.
See Figures 54 & 55.
TURNING THE SAW ON AND OFF
1. The ON/OFF paddle switch is located on the left side of the
front panel of the saw.
2. Press the green ON button. Press the switch down to turn
the saw OFF.
3. When not in use, the saw should be turned o and the
power switch locked out to prevent unauthorized use.
To lock out power switch, use a standard long shackle
lock, with a shackle post no larger than 9/32 inch (7mm)
diameter.
See Figure 53.
Figure 53
Figure 54
Figure 55
LOCK LOCK
OUT OUT
OFFOFF
ONON
A
31

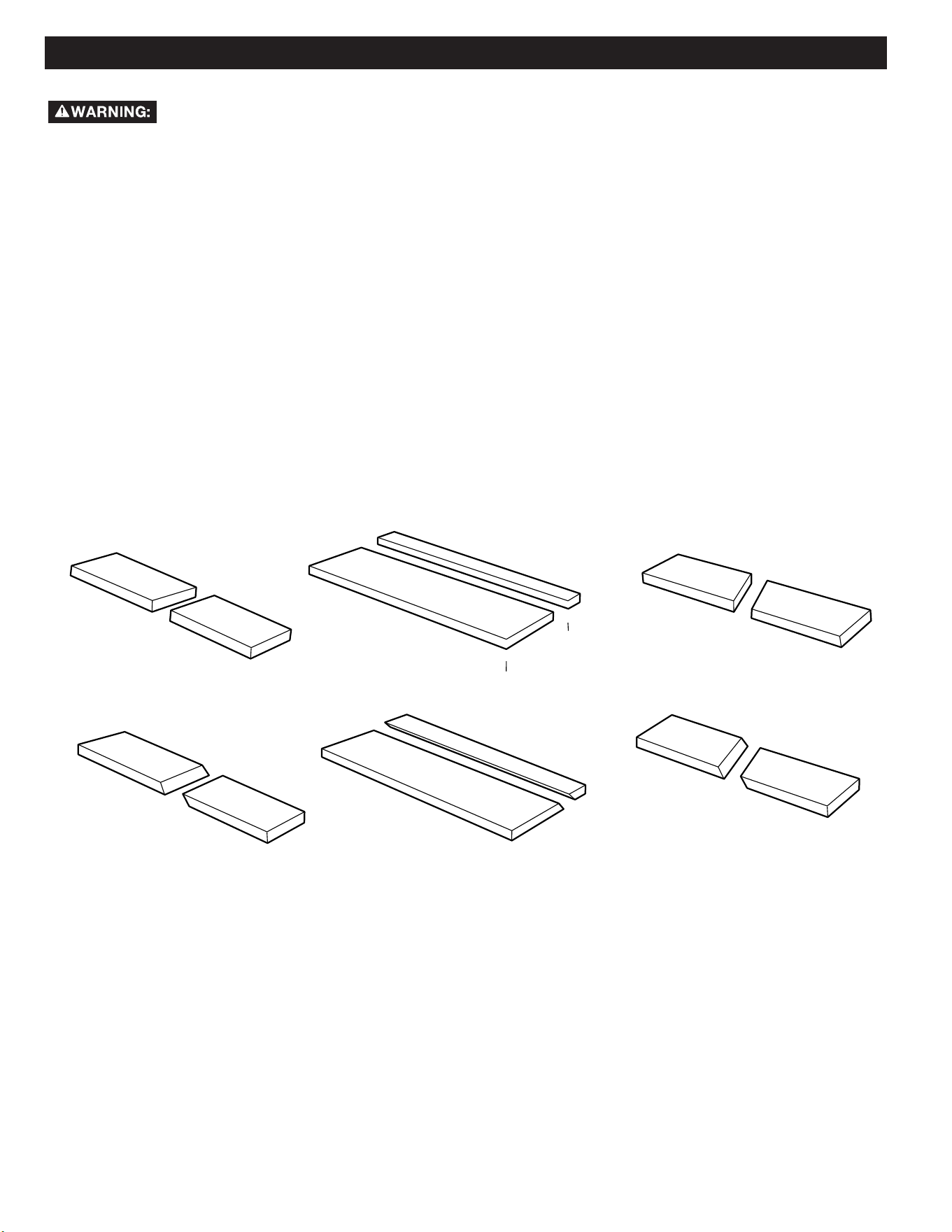

Failure to comply with the following warnings may result in serious personal injury.
• NEVER touch the free end of the workpiece or a free piece
that is cut o, while the power is on and/or the saw blade is
rotating. Blade contact or binding may occur, resulting in a
thrown workpiece.
• When sawing a long workpiece or a panel, use a work
support, such as a sawhorse, rollers or out-feed table at the
same height as the table surface of the saw.
• NEVER try to pull the workpiece back or lift it o the table,
turn the switch o, allow the blade to stop, raise the anti-
kickback teeth on each side of the riving knife if necessary,
and slide the workpiece out.
• Before connecting the table saw to the power source or
operating the saw, ALWAYS inspect the blade guard
assembly and riving knife for proper alignment and clearance
with the saw blade. Check alignment after each change of
beveling angle.
• A rip fence should ALWAYS be used for ripping operations
to prevent loss of control and personal injury. ALWAYS lock
the fence to the rail. NEVER perform a ripping operation
freehand.
• When making bevel cuts, place the fence on the right side of
the blade so that the blade is tilted away from the fence and
hands. Keep hands clear of the blade and use a push stick to
feed the workpiece unless the workpiece is large enough to
allow you to hold it more than 6 inches (152mm) from the
table.
• Before leaving the saw unattended, lock out power switch, or
take other appropriate measures to prevent unauthorized use
of the saw.
Cross Cut Mitered Crosscut Rip Cut
Beveled Cross Cut Beveled Rip Cut Compound Miter Cut
MAKING CUTS
32 33

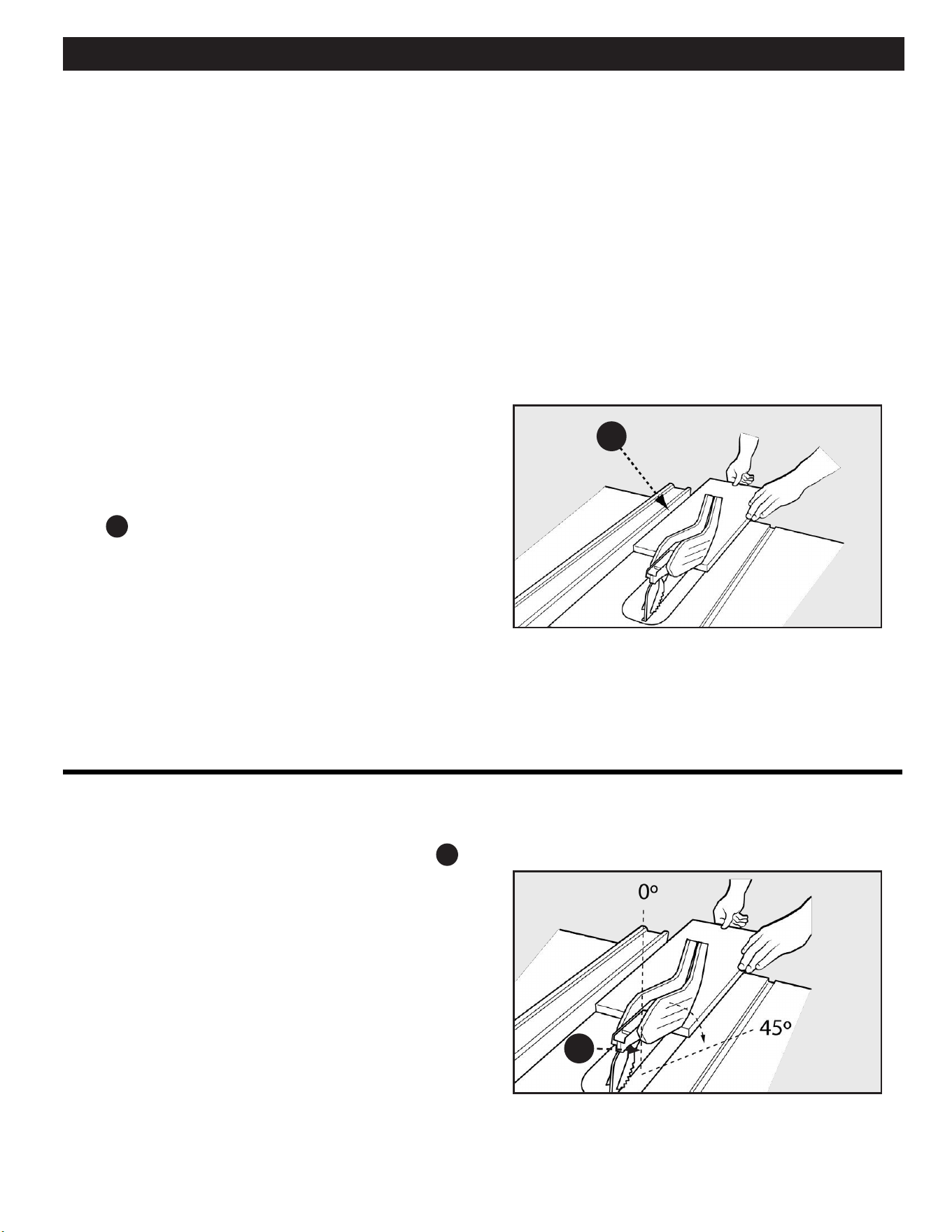

MAKING CUTS
Bevel ripping is the same as ripping except the bevel angle
A
is
set to an angle other than 0°. When making a bevel rip cut, place
the fence on the right side of the blade so that the blade is tilted
away from the fence and hands.
See Figure 57.
RIP CUTS
1. Remove miter gauge.
2. Make sure bevel angle is set to 0º.
3. Set blade to correct height for workpiece.
4. Install rip fence and lock it down parallel with and at
desired distance from blade.
5. Keep ngers at least 6 inches from the blade at all times.
When hands and ngers cannot be a safe distance from
the blade, select a larger workpiece, or use a push
stick and other cutting aids, as needed, to control the
workpiece.
6. Make sure the workpiece is clear of the blade (at least 1
inch or 25mm away) before starting the saw.
7. Turn saw on.
8. Hold the workpiece at on the table and against the fence
A
. The workpiece MUST have a straight edge against
the fence and MUST not be warped, twisted or bowed.
See proper hand position in Figure 56.
9. Let blade build up to full speed before moving workpiece
into the blade.
10. Both hands can be used while starting the cut as long as
hands remain 6 inches from the blade.
11. Keep the workpiece against the table and fence and slowly
feed the workpiece rearward all the way through the
saw blade. DO NOT overload the motor by forcing the
workpiece into the blade.
12. Use the push stick and any other cutting aids, as needed,
to hold the workpiece against the table and fence, and
push the workpiece past the blade. A push stick is included
with this saw, and instructions are included to make
additional push sticks and other cutting aids.
13. DO NOT push or hold onto the free or cut-o side of the
workpiece.
14. Continue pushing the workpiece until it is clear of the
blade. DO NOT overload the motor by forcing the
workpiece into the blade.
15. When cut is complete, turn saw o. Wait for blade to come
to a complete stop before removing workpiece from table.
BEVEL RIPPING
• Rip cutting is performed predominantly in a parallel direction
with the grain of the wood.
• Make sure blade is parallel to miter gauge slot prior to cutting.
Instructions for adjustment on page 22.
NOTE:
• DO NOT attempt compound miter cuts, with blade beveled
and miter fence angled, until you are thoroughly familiar with
the basic cuts and understand how to avoid kickback.
• Avoid bevel rip cuts with majority of material on left side of
blade.
Figure 56
Figure 57
A
A
33

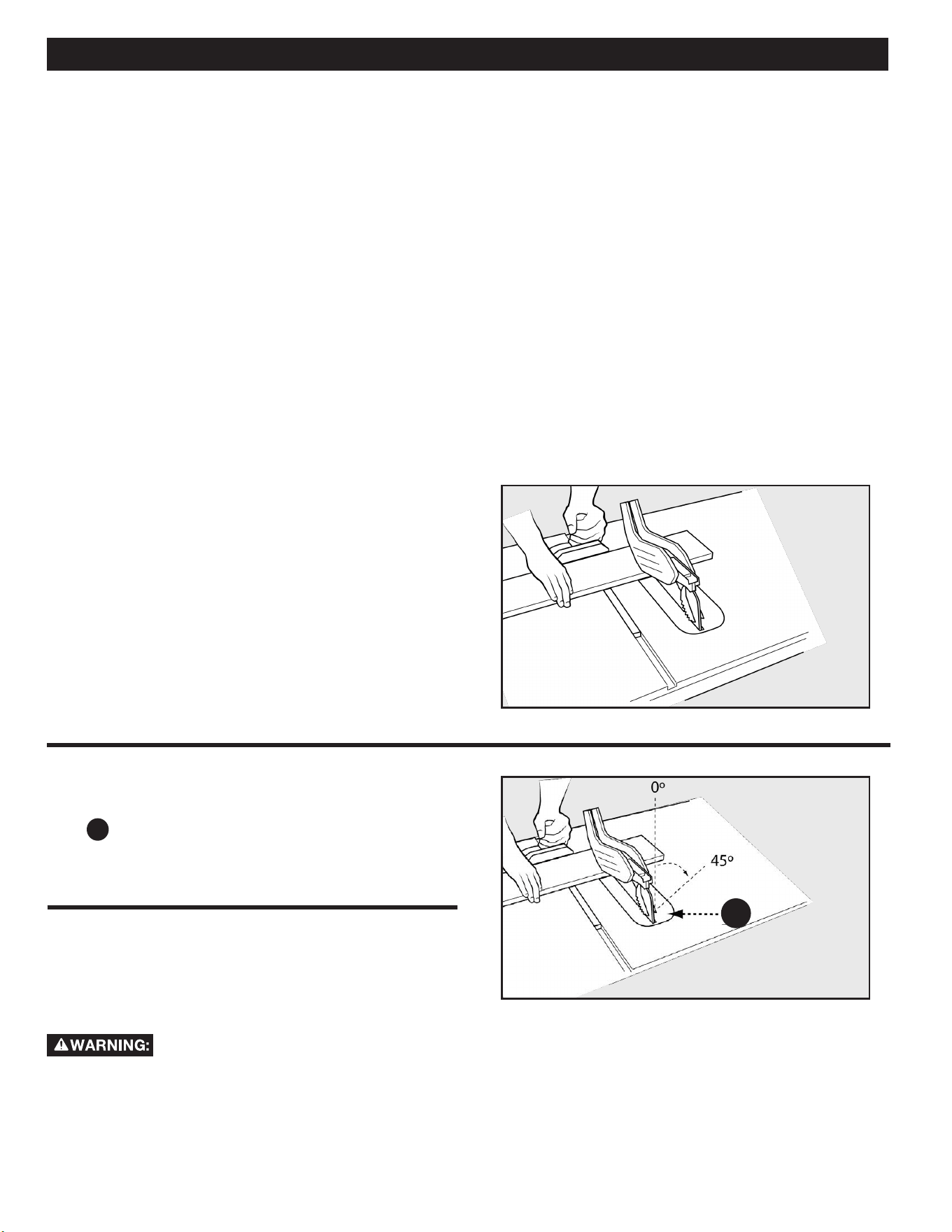

CROSSCUTTING
a larger workpiece, or attach an auxiliary face to the
miter gauge and attach workpiece to auxiliary face, For
instructions about making auxiliary faces, see Cutting Aids
section on page 36 of this manual.
7. Make sure the workpiece is clear of the blade - at least 1
inch or 25mm away - before starting the saw.
8. Turn saw on.
9. Let blade build up to full speed before moving workpiece
into the blade.
10. Hand closest to blade should be placed on miter gauge lock
knob and hand farthest from blade should hold workpiece
rmly against the miter gauge face. DO NOT push or hold
onto the free or cut-o side of the workpiece.
11. Slowly feed the workpiece rearward all the way through
the saw blade. DO NOT overload the motor by forcing the
workpiece into the blade.
12. When cut is complete, turn saw o. Wait for blade to come
to a complete stop before removing cut o piece from
table.
Figure 58
Figure 59
BEVEL CROSSCUTTING
Bevel crosscutting is the same as crosscutting except the bevel
angle
C
is set to an angle other than 0°. When making a bevel
crosscut, place the miter gauge in the right miter slot so that the
blade is tilted away from the miter gauge and hands. See Figure
59.

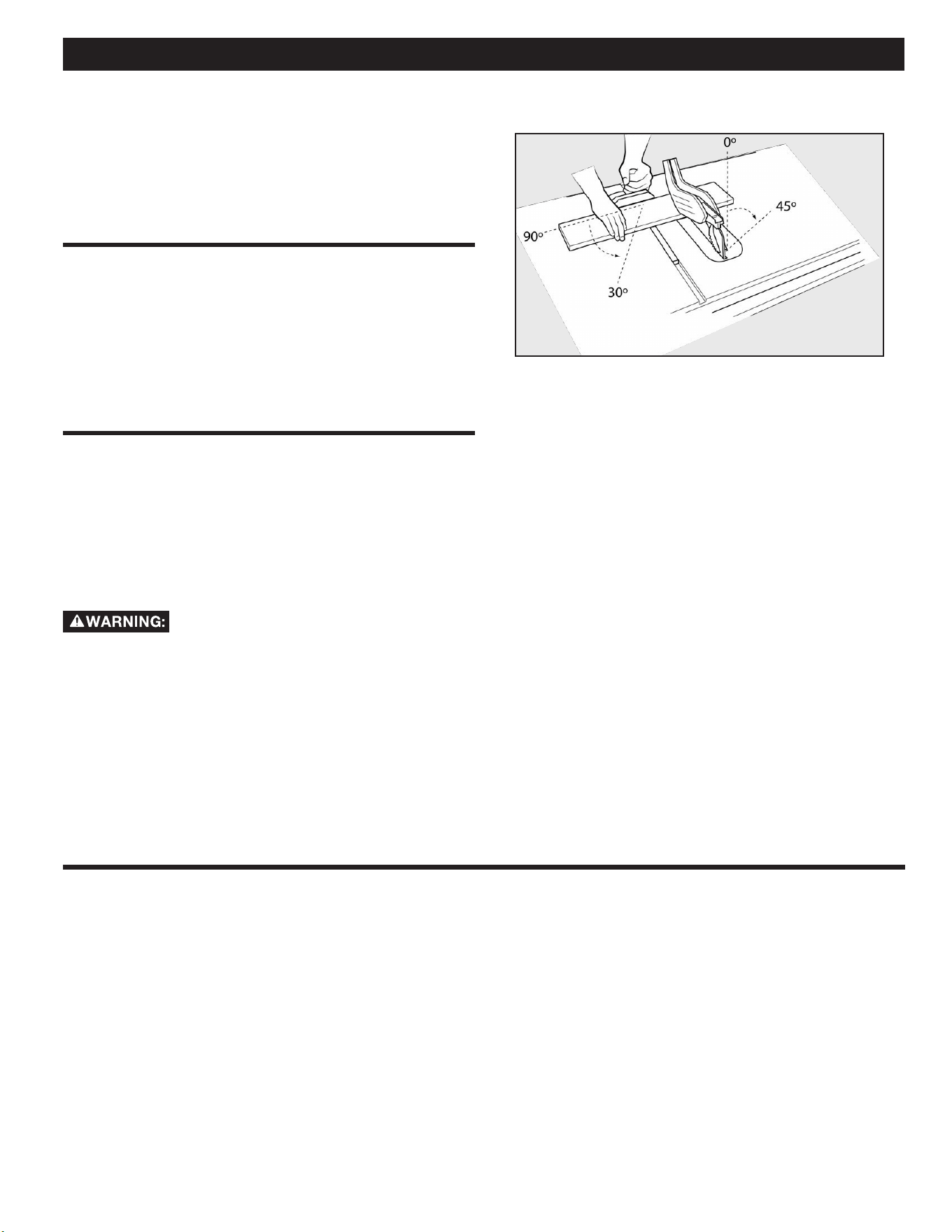

MITER CUTS
Miter cuts are cross cuts with the miter gauge set at an angle other
than 90°. Miter gauge can be adjusted to one of the 8 positive stop
angles or as desired to an specic angle increment.
• Miter angles more than 45° may force the blade guard
assembly into the saw blade causing damage to the blade
guard assembly and personal injury. Before starting the motor,
test the operation by feeding the workpiece into the blade
guard assembly. If the blade guard assembly contacts the
blade, place the workpiece under the blade guard assembly -
but not touching the blade - before starting the motor.
• Certain workpiece shapes, such as molding may not lift the
blade guard assembly properly. With the power off, feed
the workpiece slowly into the blade guard area and until the
workpiece touches the blade. If the blade guard assembly
contacts the blade, place the workpiece under the blade guard
assembly - but not touching the blade - before starting the
motor.
• Cross cutting is performed predominantly in a perpendicular
direction with the grain of the wood.
• Make sure blade is parallel to miter gauge slot prior to cutting.
Instructions for adjustment on page 22.
• NEVER use the fence as a guide or length stop when
crosscutting, unless you are using the fence as described on
page 37 Figure 66 of this manual.
• The cut-off piece MUST NEVER be confined in any
through-sawing (cutting completely through the workpiece)
operation—to prevent pinching blade which may result in a
thrown workpiece and possibly injury.
• When using a block as a cut-o gauge, the block MUST be at
least 3/4 inch (19mm) thick. It is very important that the rear
end of the block be secured in a position where the workpiece
is clear of the block before it enters the blade to prevent
binding of the workpiece.
You can use the miter gauge in either table slot on non-bevel cuts.
To increase surface area of miter gauge face, add an auxiliary face
(See Cutting Aids section on page 36 of this manual.)
To make a crosscut, refer to Figure 58 and follow this
process:
1. Remove rip fence.
2. Make sure bevel angle is set to 0°.
3. Set blade to correct height for workpiece.
4. Place miter gauge in either miter slot.
5. Set miter gauge to 90° and tighten miter gauge lock knob
6. Hands MUST remain at least 6 inches from blade
throughout entire cut. If workpiece is too small to keep
hands at least 6 inches away from the blade, select
C
MAKING CUTS
34 35
MAKING CUTS
This is a combination of bevel crosscutting and mitering.
Refer to Figure 60 and follow the instructions for both bevel
crosscutting and mitering. Remember to use the right miter slot on
the right side of the blade for all bevel cuts.
COMPOUND MITER CUTS
LARGE PANEL CUTS
Place workpiece supports at the same height as the saw table
behind saw to support the cut workpiece, and alongside of saw, as
needed. Depending on shape of panel, use rip fence or miter gauge
to control workpiece. If a workpiece is too large to use either a rip
fence or a miter gauge, it is too large for this saw.
NON-THROUGH CUTS
The use of a non-through cut is essential to cutting grooves, and
rabbets. Non-through cuts can be made using a standard blade
having a diameter of 10 inches. Non-through cuts are the ONLY
type of cuts that should be made without the blade guard assembly
installed. Make sure the blade guard assembly is reinstalled upon
completion of this type of cut.
• When making non-through cuts, follow all applicable warnings
and instructions listed below in addition to those listed above
for the relevant through cut.
• When making a non-through cut, blade is covered by
workpiece during most of cut. Be alert to exposed blade at
start and nish of every cut.
• NEVER feed wood with hands when making any non-
through cuts such as rabbets or grooves. ALWAYS use miter
gauge, push blocks or push sticks, and featherboards where
appropriate.
• In addition to this section, read the appropriate section which
describes the type of through or cut. For example, if your non-
through cut is a straight cross cut, read and understand the
section on straight cross cuts before proceeding.
• Once all non-through cuts are completed, unplug saw and
return riving knife to through cut position. Install anti-kickback
pawls and blade guard.
• Carefully follow the instructions accompanying any specialized
blades for proper installation, set up and operation.
MAKING A NON-THROUGH CUT
1. Unplug saw.
2. Unlock bevel lock.
3. Adjust bevel angle to 0°.
4. Lock bevel lock.
5. Remove blade guard and anti-kickback pawls.
6. Place riving knife in “lowered” position. See RIVING
KNIFE POSITION AND ALIGNMENT Section on page
28.
7. Set blade to correct depth for workpiece.
Once all non-through cuts are completed, unplug saw and
reinstall riving knife in raised position. Install anti-kickback pawls
and blade guard.
8. Depending on shape and size of wood, use either rip fence
or miter gauge.
9. Plug saw into power source and turn saw on.
10. Let blade build up to full speed before moving workpiece
into blade.
11. ALWAYS use push blocks, push sticks, and/or
featherboards when making non-through cuts to reduce
the risk of serious injury.
12. When cut is made, turn saw o. Wait for blade to come to
a complete stop before removing workpiece.
13. When cut is complete re-adjust riving knife to position as
detailed on page 28.
Figure 60
35
PUSH STICK
In order to operate your table saw safely, you MUST use a push
stick whenever the size or shape of the workpiece would otherwise
cause your hands to be within 6 inches (152mm) of the saw blade
or other cutter. A push stick is included with this saw.
No special wood is needed to make additional pushsticks as long
as it is sturdy and long enough with no knots, checks or cracks.
A length of approximately 15.7 inches (400mm) is recommended
with a notch that ts against the edge of the workpiece to prevent
slipping. It’s a good idea to have several push sticks of the same
Figure 61
1 3/4
3 3/8
10 3/4
17/16
minimum length, 15.7 inches (400mm), with dierent size notches
for dierent workpiece thicknesses.
The shape can vary to suit your own needs as long as it performs
its intended function of keeping your hands away from the blade.
Angling the notch so the push stick can be held at a 20° to 30°
angle from the saw’s table will help you to hold down the workplace
while also moving the saw.
To construct a push stick, refer to the layout shown in Figure 61.
AUXILIARY MITER GAUGE FACING
An auxiliary miter gauge facing is used to increase the surface
area of the miter gauge face.
The use of miter gauge with auxiliary facing is the same as
original miter gauge (without auxiliary facing). See Page 25 for
the use of miter gauge.
If desired, you can fit the miter gauge with an auxiliary wood
facing that should be at least 1 inch (25mm) higher than the
maximum depth of cut, and at least as wide as the miter gauge.
This auxiliary wood facing can be fastened to the front of the
miter gauge by using (2) M6 or 1/4-20 flat head screws and nuts,
placing the nuts into the slots provided in the face of the miter
gauge body.
See Figure 62.
Make sure the screws are long enough to secure the facing.
Flat head screws MUST be recessed into face
of board.
Figure 62
CUTTING AIDS AND ACCESSORIES
36 37

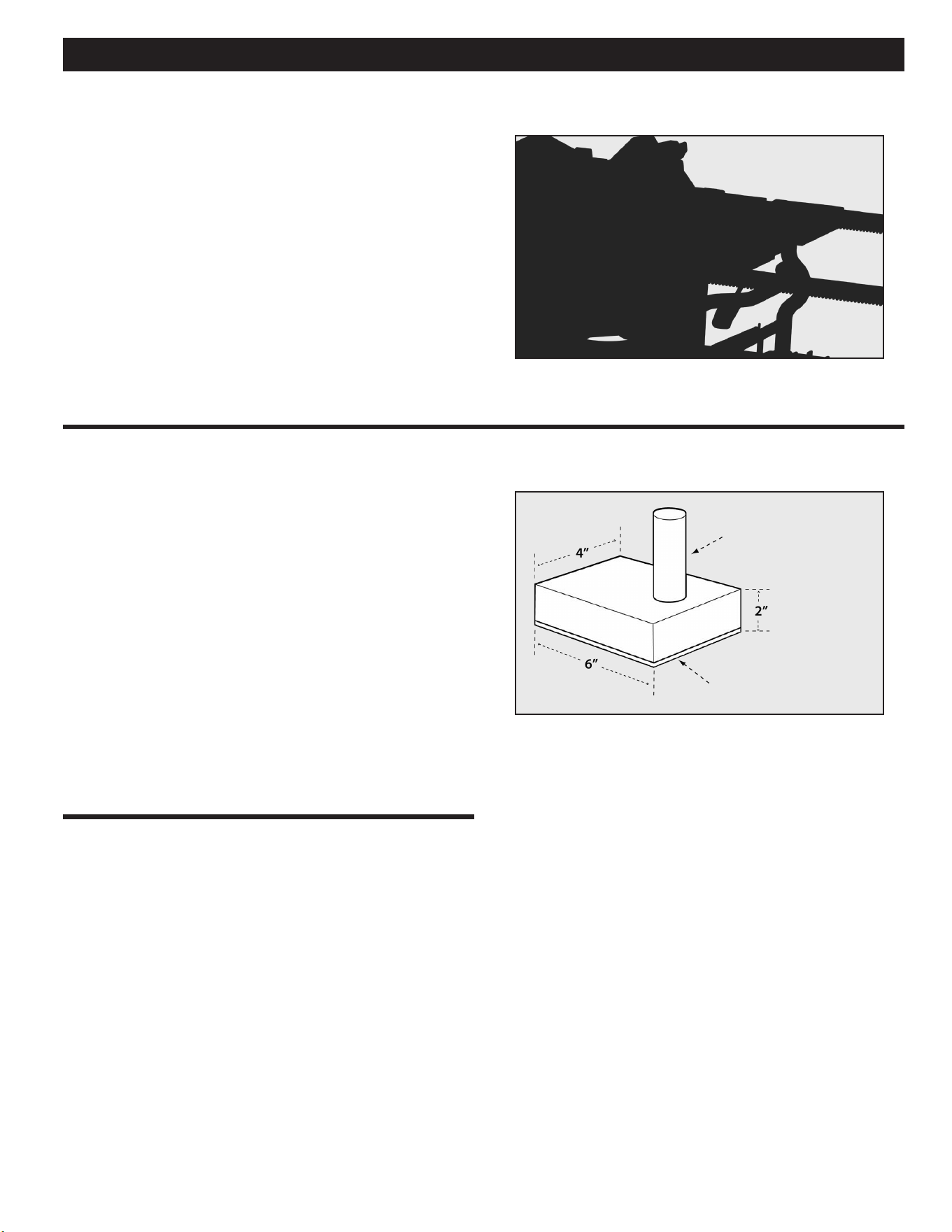

CUTTING AIDS AND ACCESSORIES
PUSH BLOCK
1. Select a piece of wood about 4 inches wide, 6 inches long
and 1 to 2 inches thick (a cuto from a 2 by 4 makes a
good blank for a push block).
2. Drill a hole in the block and glue in a dowel to use as
a handle (you can angle the hole to provide a more
comfortable grip on the handle).
3. Glue a piece of rough or soft material such as sandpaper
or rubber to the bottom of the block to grip the workpiece
(old mouse pads work well).
See Figure 64.
Figure 64
WOODEN
DOWEL
SANDPAPER OR OLD
MOUSE PAD MATERIAL
Push blocks are blocks used to securely hold down the workpiece
against the table. They include some gripping surface or handle to
hold the block. Any screws running through the underside of the
block to fasten the handle MUST be recessed in order to avoid
contact with the workpiece.
GROOVING AND RABBETING
Clamping a featherboard in front of the blade can increase safety
during non-through cuts, like grooving and rabbeting, and through
cuts. Use a featherboard to guide the workpiece against the table
and fence when making non-through cuts such as rabbeting. A
featherboard helps to control the kickback.
FLIP DOWN FENCE
Use the flip down fence when cutting thin stock in which the
blade guard would normally interfere with the fence to make the
desired cut.
To utilize this flip down feature for small, narrow cuts, you must
slide the flip down part of the fence underneath the blade guard,
so that the blade is still covered safely by the blade guard. Please
see Figure 63.
For thin materials use the fence on the left of the blade. Fold
down the thin fence to allow use of blade guard. Subtract 2
inches (50.8mm) from the scale for accurate measurement.
Figure 63
37

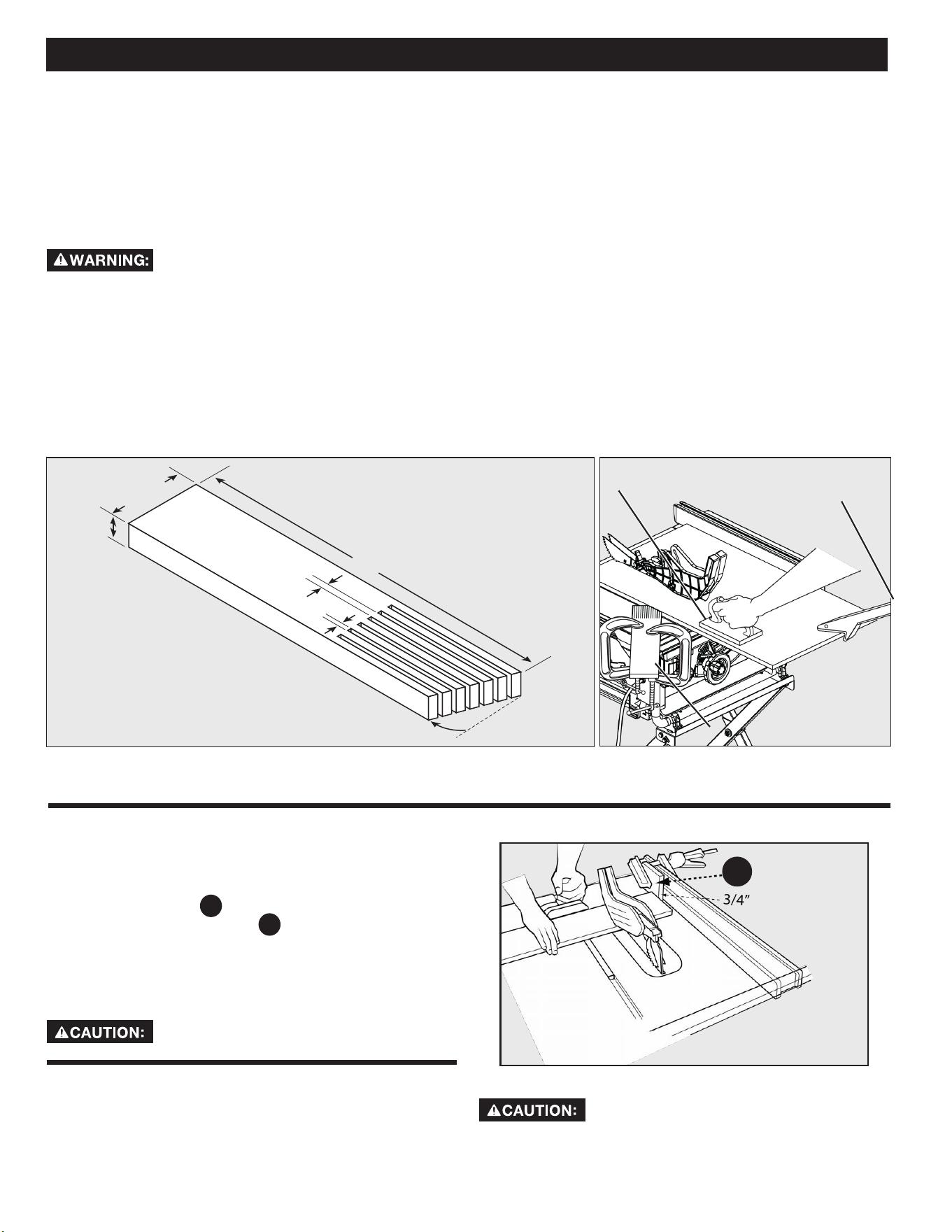

Figure 65 Figure 66
Figure 67
FEATHERBOARD
Featherboards are used to keep the workpiece in contact
with the fence and table Figure 66, and help prevent kickback.
Featherboards are especially useful when ripping small workpieces
and for completing non-through cuts. The end is angled with a
series of narrow slots to give a friction hold on the workpiece. It is
locked in place on the table or fence with a c-clamp.
1. Select a solid piece of lumber approximately 3/4 inch thick,
2 1/2 inches wide and 12 inches long.
2. Mark the center width on one end of stock. Miter width to
70° (see miter cut section for information on miter cuts).
3. Set rip fence to allow approximately a 1/4 inch “nger” to
be cut in the stock.
4. Feed stock ONLY to mark previously made at 6 inches.
5. Turn saw o and allow blade to completely stop rotating
before removing stock.
6. Reset rip fence and cut spaced rips into workpiece to
allow approximately 1/4 inch ngers and 1/8 inch spaces
between ngers.
To avoid binding between the workpiece
and the blade, make sure a horizontal
feather board presses ONLY on the uncut portion of the
workpiece in front of the blade.
Dimensions for making a typical featherboard are shown in Figure
65. Make your featherboard from a straight piece of wood that is
free of knots and cracks. Clamp featherboards to the fence and/or
table so that the featherboard will hold the workpiece against the
fence or table. Clamping a featherboard in front of the blade can
increase safety during non-through cuts and through cuts.
CUT OFF GAUGE
When crosscutting a number of pieces to the same length, you can
clamp a block of wood
A
to the fence and use it as a cut-o
gauge. See Figure 67. The block
A
MUST be at least 3/4 inch
(19mm) thick to prevent the cut o piece from binding between the
blade and the fence. Once the cut-o length is determined, lock the
fence and use the miter gauge to feed the workpiece into the blade.
ALWAYS position the cut-o gauge in front
of the saw blade.
JIGS
Jigs may be created with a variety of special set-ups to control
particular workpiece shapes for particular cuts. Guidance on how to
make specialized jigs can be found in woodworking and carpentry
websites and publications.
DO NOT attempt to create or use a jig unless
you are thoroughly familiar with table saw safety. DO NOT use any
jig that could result in pinching a kerf or jamming the workpiece
between the jig and the blade. Incorrect setups may cause kickback
which could result in serious injury.
3/4 in.3/4 in.
12 in.12 in.
20˚20˚
2 1/2 in.2 1/2 in.
1/4 in.1/4 in.
1/8 in.1/8 in.
PUSH BLOCK PUSH BLOCK
FEATHER BOARD FEATHER BOARD
PUSH STICK PUSH STICK
A
CUTTING AIDS AND ACCESSORIES
38 39
MAINTENANCE
To reduce the risk of injury, turn unit o and disconnect it from power source before cleaning or
servicing, before installing and removing accessories, before adjusting and when making repairs. An
accidental start-up can cause injury.
KEEP MACHINE CLEAN
Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth.
NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material.
Wear certied safety equipment for eye, hearing and respiratory protection while using compressed air.
MAINTENANCE REMINDERS
For best performance use a shop vacuum or blower to keep saw blade area, the dust collection system, the guarding system and rails
free of saw dust and other debris.
Wear certified safety equipment for eye, hearing and respiratory protection while using compressed air.
Specific areas which require regular maintenance include:
RIVING KNIFE CLAMP PLATE: Keep this area free of dust and debris buildup. Blow out area regularly with compressed air.
NOTE: If the riving knife clamp can’t move freely, have the saw serviced by authorized
RIDGID® authorized service center
personnel.
WORM GEARS: Keep the bevel gears free of dust and debris buildup. Blow out area regularly with compressed air. Use a lithium-based
multipurpose grease as needed on these gears.
CLEAN SAWDUST BUILDUP OUT OF CABINET PERIODICALLY: NOTE: Debris can also be removed from the saw from below the
throat plate, inside the dust port.
39
TROUBLESHOOTING
For assistance with your machine, visit our website at www.RIDGID.com for a list of service centers or call RIDGID® Customer Service at
(toll free) 1-888-359-4778 or email at RidgidT[email protected].
FAILURE TO START
If your machine fails to start, check to make sure the prongs on the cord plug are making good contact in the receptacle, and check reset
button on power switch housing. Also, check for blown fuses or open circuit breakers in your power line.
A complete line of accessories is available from your RIDGID®
supplier, RIDGID®
Factory Service Centers, and RIDGID® Authorized Service
Centers. Please email us at [email protected] for an online catalog or for the name or your nearest supplier.
Since accessories other than those oered by RIDGID
®
have not been tested with this product, use of
such accessories could be hazardous. For safest operation, only RIDGID
®
recommended accessories
should be used with this product.
ACCESSORIES
Question: Solution:
How do you make the blade parallel to the miter slot?
Reference Page 22, ADJUSTING BLADE PARALLEL TO MITER
GAUGE GROOVE (HEEL).
Can this unit be converted to 220 volt? No.
What do I do if I have a problem with my Fence?
Reference page 20, INSTALLING THE FENCE. If the problem
still exists, contact the Customer Care team by calling
1-888-359-4778 or emailing RidgidTableSaws@ridgidproducts.
com.
What do I do if I have a problem with my Stand?
Reference page 14, ASSEMBLING THE STAND. If the problem
still exists, contact the Customer Care team by calling
1-888-359-4778 or emailing RidgidT[email protected]
What do I do if my unit has no power?
Begin by checking the POWER SOURCE and EXTENSION
CORDS sections on page 10 to ensure you are utilizing the
machines power appropriately. If the problem continues,
contact our Customer Care line at 1-888-359-4778 or emailing
RidgidT[email protected].
How do I nd my local repair center?
Contact our Customer Care team by calling 1-888-359-4778 or
emailing us at RidgidT[email protected]
How do I get Warranty work done on my product?
Keep a copy of your receipt to present to our Service Center if any
issues arise with your machine.
40
41
DPEC
2651 New Cut Road
Spartanburg, SC 29303
PARTS, SERVICE OR WARRANTY ASSISTANCE
Proof of purchase must be presented when requesting warranty
service.
Limited to RIDGID® stationary power tools purchased 2/1/21 and
after. This product is manufactured by DPEC. The trademark is
licensed from RIDGID
®, Inc. All warranty communications should
be directed to Customer Service attn: RIDGID
® Stationary Power
Tool Technical Service at (toll free) 1-888-359-4778.
90-DAY SATISFACTION GUARANTEE POLICY
During the rst 90 days after the date of purchase, if you are
dissatised with the performance of this RIDGID
® Stationary Power
Tool for any reason you may return the tool to the dealer from
which it was purchased for a full refund or exchange. To receive a
replacement tool you must present proof of purchase and return
all original equipment packaged with the original product. The
replacement tool will be covered by the limited warranty for the
balance of the 5 YEAR service warranty period.
WHAT IS COVERED UNDER THE 5 YEAR
LIMITED SERVICE WARRANTY
This warranty on RIDGID® Stationary Power Tools covers all
defects in workmanship or materials in this Ridgid® tool for ve
years following the purchase date of the tool. Warranties for other
RIDGID
® products may vary.
HOW TO OBTAIN SERVICE
To obtain service for this RIDGID® tool you must call RIDGID®
Customer Service at (toll free) 1-888-359-4778 or email us at
RidgidT[email protected]. When requesting warranty
service, you must present the original dated sales receipt. The
authorized service center will repair any faulty workmanship, and
either repair or replace any part covered under the warranty, at our
option, at no charge to you.
WHAT IS NOT COVERED
This warranty applies only to the original purchaser at retail and may
not be transferred. This warranty only covers defects arising under
normal usage and does not cover any malfunction, failure or defect
resulting from misuse, abuse, neglect, alteration, modication or
repair by other than an authorized service center for RIDGID
®
branded stationary power tools. Consumable accessories pro vided
with the tool such as, but not limited to, blades, bits and sand
paper are not covered.
RIDGID®, MAKE NO WARRANTIES, REPRESENTATIONS
OR PROM ISES AS TO THE QUALITY OR PERFORMANCE OF
ITS POWER TOOLS OTHER THAN THOSE SPECIFICALLY
STATED IN THIS WARRANTY.
ADDITIONAL LIMITATIONS
To the extent permitted by applicable law, all implied warranties,
including warranties of MERCHANTABILITY or FIT NESS FOR A
PARTICULAR PURPOSE, are disclaimed. Any implied warranties,
including warranties of merchantability or tness for a particular
purpose, that cannot be disclaimed under state law are limited to ve
years from the date of purchase. RIDGID
®, Inc. is not responsible
for direct, indirect, incidental or consequential damages. Some
states do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations may not apply to
you. This warranty gives you specic legal rights, and you may also
have other rights which vary from state to state.
RIDGID® STATIONARY POWER TOOL
5 YEAR LIMITED SERVICE WARRANTY
41
DPEC006337
04-28-21 (REV7)
OPERATOR’S MANUAL
10 in. PORTABLE CONTRACTOR TABLE SAW
R4550
RIDGID® is a registered trademark and used under license.
Customer Service Information:
For parts or service, do not return this product to the store. Contact your nearest
RIDGID® authorized service center. Be sure to provide all relevant information when
you call or visit. For the location of the authorized service center nearest you, please
call 1-888-359-4778 or email at RidgidT[email protected].
MODEL NO.*_____________________SERIAL NO.___________________________
*Model number on product may have additional letters at the end. These letters designate manufacturing
information and should be provided when calling for service.
DPEC
2651 New Cut Road
Spartanburg, SC 29203
©2021
