Owner’s Manual
Over The Range M crowave Oven
Household Use Only
Model No.
ATTACHED INSTALLATION INSTRUCTION
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT,
AND SAVE THIS MANUAL FOR FUTURE USE.
Inverser le manuel pour lire les instructions en français.
i
For assistance, please contact us via the web at:
http://www.panasonic.ca/english/support
(Canada only)
NN-SG65NB
CONTENTS
F0003BX00CP.indd 2 2017/5/5 10:57:09
Express Cooking........................................................................................................................................................................................13
Safety Information
IMPORTANT SAFETY INSTRUCTIONS ............................................................................................................................................... 1-3
Installation Instructions ....................................................................................................................................
Food Preparation .................................................................................................................................................................................... 7-8
Cookware guide......................................................................................................................................................................................... 9
Oven Components Diagram ................................................................................................................................................................. 10
Operation
Using
the
Microwave
for
the
First
Time
........................................................................................................................................... 12
Setting the Clock ....................................................................................................................................................................................... 12
Setting the Child Safety Lock ............................................................................................................................................................... 12
Setting Light ............................................................................................................................................................................................... 13
Setting Turntable On/O ....................................................................................................................................................................... 13
Setting Fan .................................................................................................................................................................................................. 13
Cooking ........................................................................................................................................................................................................ 14
Setting the Timer ...................................................................................................................................................................................... 14
Popcorn ........................................................................................................................................................................................................ 15
Maintenance
Care and Cleaning of Your Microwave Oven ........................................................................................................................... 25
Shop Accessories ...................................................................................................................................................................................... 29
Before Requesting Service .................................................................................................................................................................... 30
Warranty ...................................................................................................................................................................................................... 31
General Information
Specications ................................................................................................................ ............................................................................. 32
User’s Record .............................................................................................................................................................................................. 32
Quick 30............................... ......................................................................................................................................................................... 15
Beverage....................................................................................................................................................................................................... 15
Sensor Menu.... ...................................................................................................................................................................................... 18-20
Melt/Soften ................................................................................................................................................................................................. 16
Auto Defrost................................................................................................................................................................................................ 17
Control Panel .............................................................................................................................................................................................. 11
Food Characteristics ........................................................................................................................................................................... 23
Placement of the Roller Ring ................................................................................................................................................................ 22
For best cooking Results 1-Level cooking ...................................................................................................................................... 22
-24
-29
.......................................................................................
...
6
UTENSILS
RADIO INTERFERENCE
GROUNDING INSTRUCTIONS
................................................. ..............................................................................................................................
............................................... ...............................................................................................................
................................................. ....................................................................................................................................................... 3
Operation
................................................. ..........................................................................................................................................
.....12- 2
.
4-5
MICROWAVE RECIPES............................................................................................................................................................................... 21
4
4
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
We have provided important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These
words mean:
You can be killed or seriously injured if you don’t immediately follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
You can be exposed to a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen
if the instructions are not followed.
DANGER
WARNING
CAUTION
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) DO NOT attempt to operate this oven with the door open,
since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) DO NOT place any object between the oven front face and
the door, or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) DO NOT operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
Thank you for purchasing a Panasonic Microwave Oven
Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance.
When using this electric appliance, basic safety precautions should be followed, including the following:
To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
1. Read all instructions before using this appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY,” above.
3. This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 4.
4. As with any cooking appliance, DO NOT leave oven unattended while in use.
5. Install or locate this appliance only in accordance with the installation instructions found on page 6.
6. DO NOT cover or block any openings on this appliance.
7. DO NOT store this appliance outdoors. DO NOT use this product near water (for example, near a kitchen sink, in a wet basement, or
near a swimming pool or similar locations).
8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals, vapors or non-food products
in this appliance. This type of oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. The
use of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks.
9. When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive soaps or
detergents applied with a sponge or soft cloth.
WARNING
F0003BX00CP.indd 3F0003BX00CP.indd 3 2017/5/5 10:57:092017/5/5 10:57:09
1
10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that because a child has
mastered one cooking skill he/she can cook everything.
11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. DO NOT let cord hang over edge of a table or counter.
15. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service center for examination,
repair or adjustment.
16. Some products such as whole eggs, with or without shell, narrow neck bottles and sealed containers (for example, closed glass jars)
may explode and should not be heated in this oven.
17. To reduce the risk of fire in the oven cavity:
(a) DO NOT overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside
the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
(c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
(d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in the cavity
when not in use.
18. Superheated Liquids: Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without showing
evidence (or signs) of boiling. Visible bubbling is not always present when the container is removed from the microwave oven. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED
INTO THE LIQUID. To reduce the risk of injury to persons:
(a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING.
(b) DO NOT heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent eruption.
(c) DO NOT use straight-sided containers with narrow necks.
(d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
19. DO NOT cook directly on the turntable. It can crack, and cause injury or damage to the oven.
20. This appliance is suitable for use above both gas and electric cooking equipment 91.4 cm (36 inches) or less wide. To reduce the risk
of fire and electric shock, install at least 34.6 cm (13
5
⁄8 inches), above a cooktop, measured to the bottom of the oven.
21. Clean Ventilating hoods Frequently – Grease should not be allowed to accumulate on hood or filter.
22. Use care when cleaning the Grease filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter. Clean in
hot detergent solution every month.

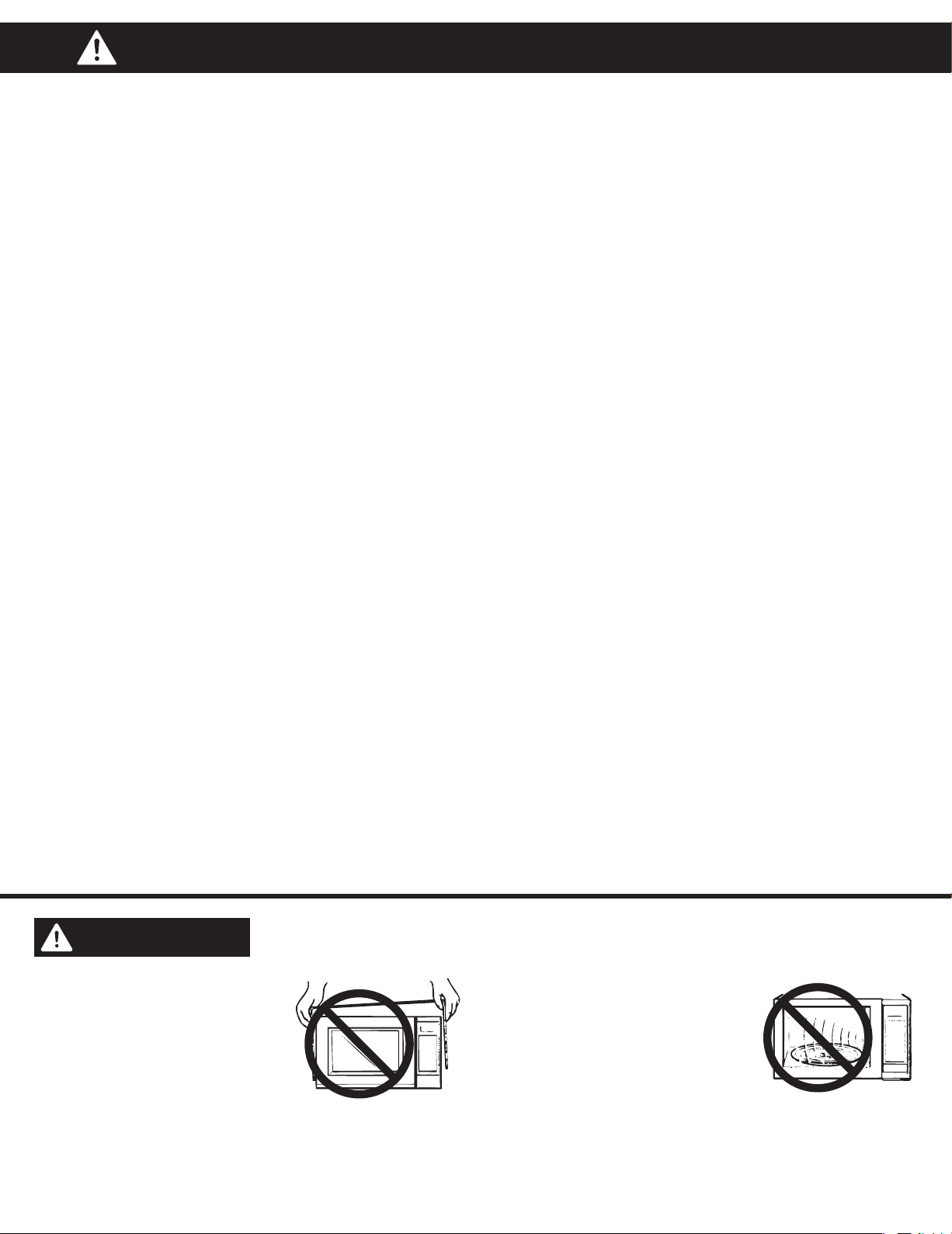

IMPORTANT SAFETY INSTRUCTIONS (continued)
TO AVOID THE RISK OF SHOCK:
DO NOT remove outer panel from
oven. Repairs must be done only by a
qualified service person.
TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY:
DO NOT tamper with, or make any adjustments or repairs to Door,
Control Panel Frame, Safety Interlock Switches, or any other part of
the oven. Microwave leakage may result.
TO AVOID THE RISK OF FIRE:
1. DO NOT operate the microwave
oven empty or use metal containers.
When using the microwave oven
without water or food, microwave
energy cannot be absorbed and will
continuously reflect throughout the
cavity. This will cause arcing and damage the oven cavity, door
or other components, which can lead to a fire hazard.
2. DO NOT store flammable materials next to, on top of, or in the
oven.
Safety Precautions
WARNING
F0003BX00CP.indd 4F0003BX00CP.indd 4 2017/5/5 10:57:092017/5/5 10:57:09
23. Never flame foods under the oven, with the vent fan operating, because it may spread the flames.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY (NOT FOR COMMERCIAL USE)
2

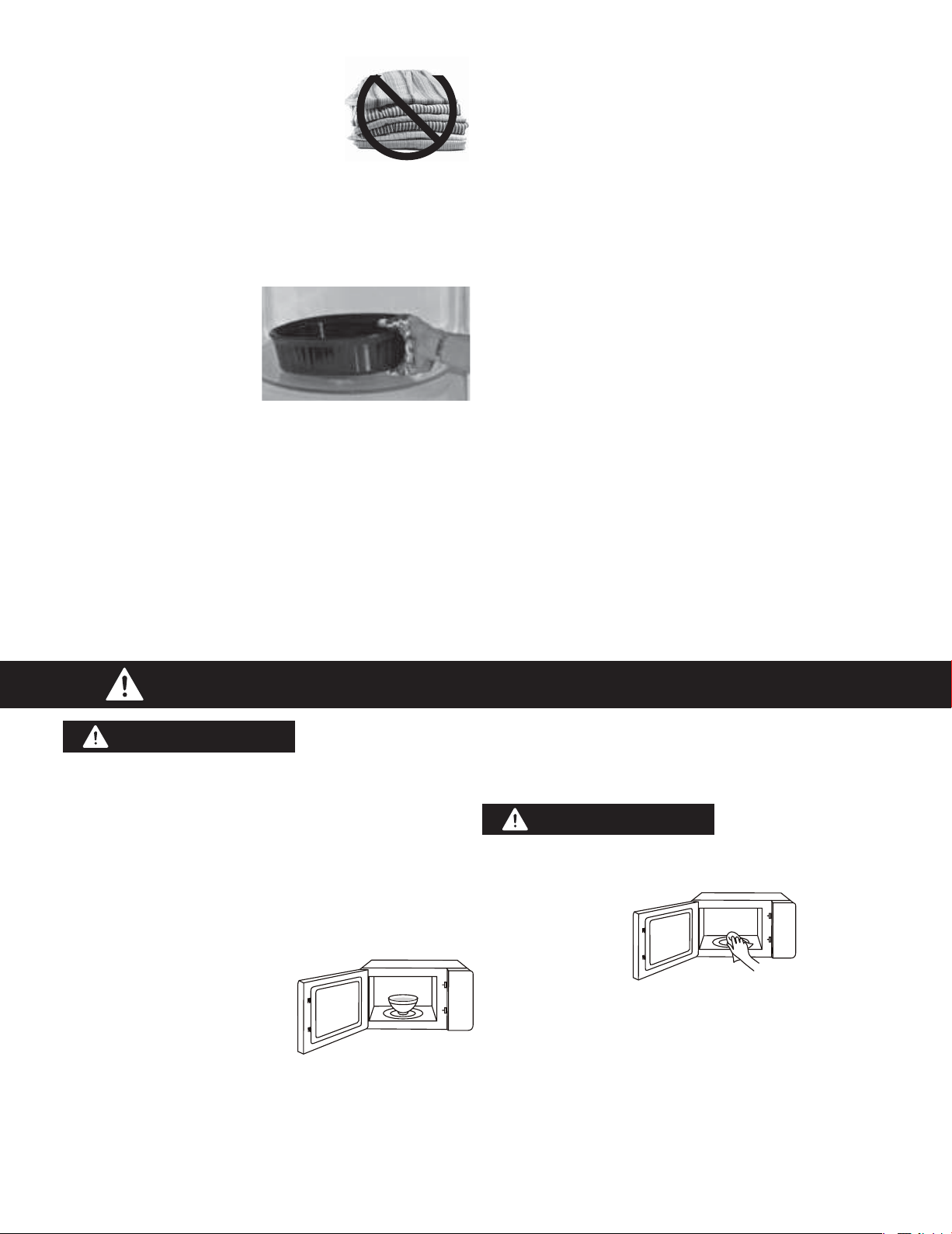

3. DO NOT dry clothes, newspapers or other
materials in the oven, or use newspaper or
paper bags for cooking.
4. DO NOT hit or strike Control Panel. Damage
to controls may occur.
5. DO NOT use recycled paper products
unless the paper product is labeled as safe for microwave oven
use. Recycled paper products may contain impurities, which may
cause sparking.
TO AVOID THE RISK OF SCALDING:
POT HOLDERS should always be used when removing items from
the oven. Heat is transferred from
the HOT food to the cooking
container and from the container
to the Glass Tray. The Glass
Tray can also be very HOT after
removing the cooking container
from the oven.
Glass Tray
1. DO NOT operate the oven without the Roller Ring and the Glass
Tray in place.
2. DO NOT operate the oven without the Glass Tray fully engaged
on the drive hub. Improper cooking or damage to the oven
could result. Verify that the Glass Tray is properly engaged and
rotating by observing its rotation when you press Start.
Note: The Glass Tray can turn in either direction.
3. Use only the Glass Tray specifically designed for this oven.
DO NOT substitute any other Glass Tray.
4. If the Glass Tray is hot, allow to cool before cleaning or placing
in water.
5. DO NOT cook directly on the Glass Tray. Always place food in
a microwave safe dish, or on a rack set in a microwave safe dish.
6. If food or utensil on the Glass Tray touches oven walls, causing
the tray to stop moving, the tray will automatically rotate in the
opposite direction.
Roller Ring
1. The Roller Ring and oven floor should be cleaned frequently to
prevent excessive noise.
2. Always replace the Roller Ring and the Glass Tray in their proper
positions.
3. The Roller Ring must always be used for cooking along with the
Glass Tray.
For proper use of your oven, read remaining safety cautions and operating instructions.
F0003BX00CP.indd 5
F0003BX00CP.indd 5
2017/5/5 10:57:09
2017/5/5 10:57:09
UTENSILS
Personal Injury Hazard:
Tightly-closed utensils could explode. Closed containers should
be opened and plas�c pouches should be pierced before
cooking.
There may be certain non-metallic utensils that are not safe to
use for microwaving. If in doubt, you can test the utensil in
ques�on following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water
(250ml) along with the utensil in ques�on.
CAUTION
2. Cook on maximum power for 1 min.
3. Carefully feel the utensil. If the empty utensil is warm, do not use
it for microwave cooking.
4. DO NOT exceed 1 min cooking �me.
KEEP THE CAVITY CLEAN
CAUTION
3

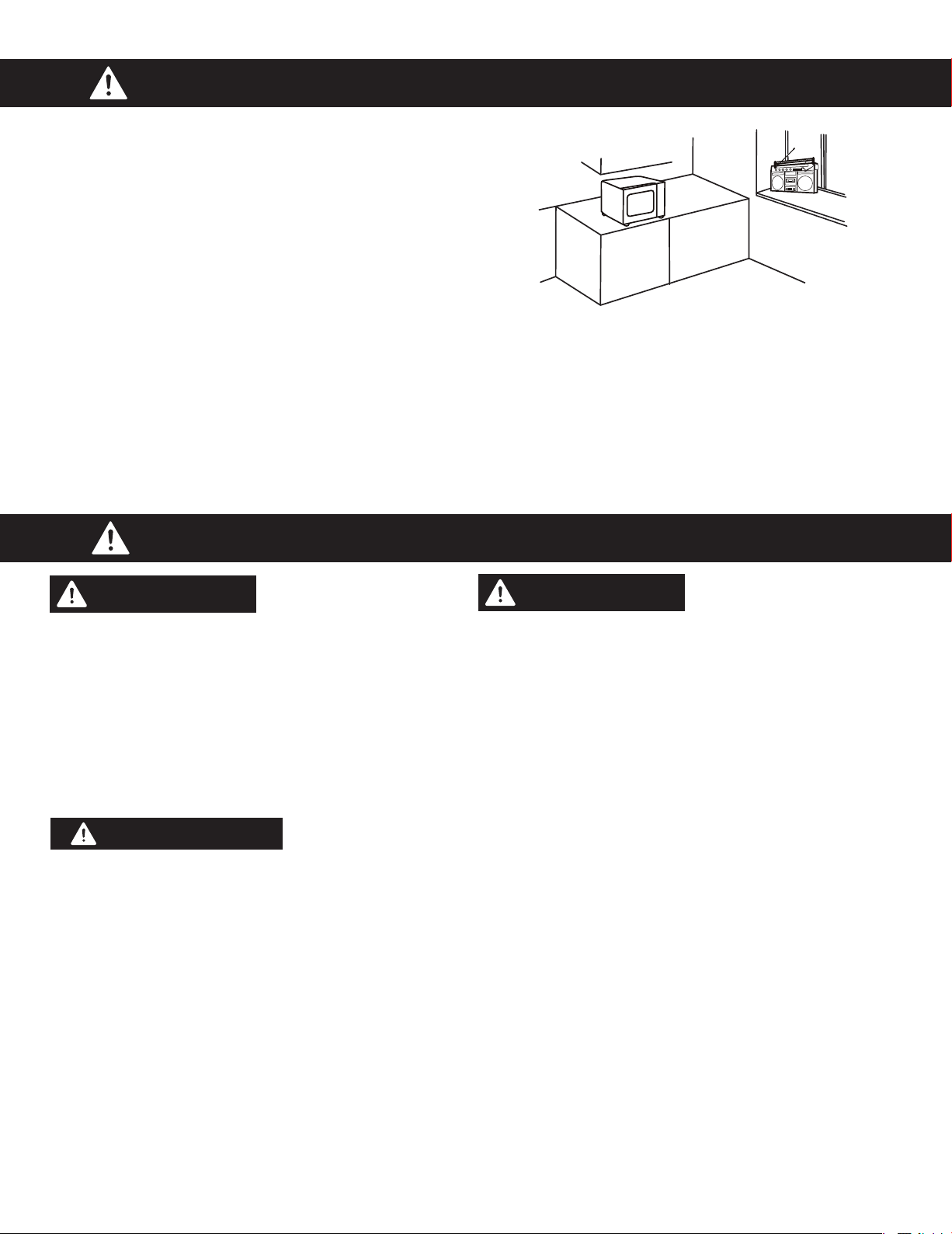

RADIO INTERFERENCE
1. Opera�on of the microwave oven may cause interference to
your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated
by taking the following measures:
(a) Clean door and sealing surface of the oven.
(b) Reorient the receiving antenna of radio or television.
(c) Relocate the microwave oven with respect to the
receiver.
(d) Move the microwave oven away from the receiver.
(e) Plug the microwave oven into a different outlet so that
microwave oven and receiver are on different branch
circuits.
GROUNDING INSTRUCTIONS
WARNING
Improper use of the grounding can result in a risk of electric
shock. Consult a qualified electrician or serviceman if the
grounding instruc�ons are not completely understood, or if
doubt exists as to whether the appliance is properly grounded. If
it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounded plug, and 3-slot
receptacle that will accept the plug on the appliance. The
marked ra�ng of the extension cord shall be equal to or greater
than the electrical ra�ng of the appliance.
DANGER
Electric Shock Hazard:
Touching some of the internal components can cause serious
personal injury or death. Do not disassemble this appliance.
Electric Shock Hazard:
Improper use of the grounding can result in electric shock.
1. A short power-supply cord is provided to reduce the risks
resul�ng from becoming entangled in or tripping over a longer
cord.
2. Longer cord sets, or extension cords, are not recommended.
3. If a long cord or extension cord is used:
(a) The marked electrical ra�ng of the cord set or extension
cord should be at least as great as the electrical ra�ng of the
appliance.
(b) The extension cord must be a grounding-type 3-wire cord.
(c) The longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children or tripped over uninten�onally.
WARNING
4
(c
The plug must be plugged into an outlet that is properly installed
and grounded.
•
Plug into properly installed and grounded three-prong
outlet.
•
DO NOT
remove ground prong.
•
DO NOT
use an adapter.
encountered, it is the personal responsibility and obligation of
the consumer to have it replaced with a properly grounded
three-
prong outlet.
3. The VOLTAGE used must be the same as specified on this
microwave oven (120 V, 60 Hz).
Using a higher voltage is dangerous and may result in a fire or
oven damage. Using a lower voltage will cause slow cooking.
Panasonic is NOT responsible for any damages resulting from the
use of the oven with any voltage other than specified.
TV / RADIO/WIRELESS EQUIPMENT INTERFERENCE
This product has been tested and found to comply with the limits
4
.
or Microwave Oven, pursuant to Part 18 of the FCC Rules. This
product can radiate radio frequency energy, which could cause
interference to such products as radio, TV, baby monitor,
cordless phone, Bluetooth, wireless router, etc., which can be
confirmed by turning this product off and on. If present, the user
is encouraged to try to correct by taking one or more of the
following countermeasures:
(1)
Increase the spacing distance between the microwave oven
and other product receiving the interference.
(2)
If possible, use a properly installed receiver antenna and/or
reorient the receiving antenna of the other product receiving
the interference.
(3)
Plug the microwave oven into a different outlet from the other
product receiving the interference.
(4)
Clean door and sealing surfaces of the oven. (See Care and
Cleaning of Your Microwave Oven)
Grounding Instructions
Grounding Instructions
THIS APPLIANCE MUST BE GROUNDED.
In the event of an electrical
short circuit, grounding
reduces the risk of electric
shock by providing an
escape
wire for the electric current.
This appliance is equipped
with a cord having
a
grounding wire with a
grounding plug.
3-Pronged Plug
Ground Plug
3-Prong Receptacle
Wiring Requirements
1.
The oven must be operated on a DEDICATED CIRCUIT. No other
appliance should share the circuit with the microwave oven.
If it does, the branch circuit fuse may blow or the circuit
breaker
may trip.
2.
The oven must be plugged into at least a A, 120 V, 60 Hz 20
GROUNDED OUTLET. Where a standard two-prong outlet is
WARNING: IMPROPER USE OF THE GROUNDING
PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician or service person if the grounding
instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded.
5
Installation Instructions
Examine Your Oven
Unpack oven, remove all packing material and examine the oven
for any damage such as dents, broken door latches or cracks in the
door. Notify dealer immediately if oven is damaged. DO NOT install
if oven is damaged.
Placement of Oven
1. This oven must be installed in at least a 76cm (30”) inch opening,
it is suitable for use above gas or electric cooking equipment
91.4cm (36 inches) or less wide.
76 cm (30”)
MINIMUM
2. Be sure to install this oven only in accordance with the
additional installation instructions provided.
3. It is recommended that the product be mounted to a flush wall
of 5 x 10 cm (2” x 4”) stud and 1cm (
3
/
8
”) minimum thickness
drywall or plaster/lath construction. For further information,
please consult the additional installation instructions provided.
4. Make sure the kitchen cabinet height is as high as the
specification described in the installation instructions.
5. This oven was manufactured for household use only.
The Hood
1. The vent fan in your oven will operate automatically under
certain cooktop operating conditions. This is normal. Caution
is required to prevent the starting and spreading of accidental
cooking fires while the vent fan is in operation.
2. Never leave surface units unattended at high heat setting. Boil
over causes smoking and greasy spillovers that may ignite
and spread if vent fan is operating. To minimize automatic
fan operation, use adequate sized utensils and use high heat
settings only when necessary.
3. In the event of a grease fire, smother flaming pan on surface unit
by covering pan completely with well-fitting lid, cookie sheet or
flat tray.
4. Keep hood and grease filters clean, according to instructions on
page 27, to maintain adequate venting and avoid grease fires.
5. To protect the automatic fan feature, always keep the filter clean
(see page 27). Should the fan require repair, do not operate
microwave oven until it has been repaired.
6. Charcoal filter should be replaced periodically. It may be
purchased from a local Panasonic dealer.
Indoor Venting
If the air exhaust must be recirculated by this unit inside the
kitchen, a charcoal filter must be used. A charcoal filter has been
installed for your convenience. However, we recommend that
this filter be changed as soon as possible with the replacement
charcoal filter kit (NN-CF158) that can be purchased from your local
Panasonic dealer.
6
Food Preparation
Follow these Safety Precautions when cooking in your oven.
IMPORTANT
Proper cooking depends upon the power, the time setting
and quantity of food. If you use a smaller portion than
recommended but cook at the time for the recommended
portion, fire could result.
1) HOME CANNING / STERILIZING / DRYING FOODS / SMALL
QUANTITIES OF FOODS
• DO NOT use your oven for home canning. Your oven cannot
maintain the food at the proper canning temperature. The food
may be contaminated and then spoil.
• DO NOT use the microwave oven to sterilize objects (baby
bottles, etc.). It is difficult to keep the oven at the high
temperature needed for sterilization.
• DO NOT dry meats, herbs, fruits or vegetables in your oven.
Small quantities of food or foods with low moisture content can
dry out, scorch or catch on fire if overheated.
2) POPCORN
Popcorn may be popped in a microwave oven corn popper.
Microwave popcorn that pops in its own package is also available.
Follow popcorn manufacturers’ directions and use a brand suitable
for the cooking power of your microwave oven.
CAUTION: When using pre-packaged microwave popcorn, you can
follow recommended package instructions or use the Popcorn pad
(refer to page 15). Otherwise, the popcorn may not pop adequately
or may ignite and cause a fire. Never leave the oven unattended
when popping popcorn. Allow the popcorn bag to cool before
opening, and always open the bag facing away from your face and
body to prevent steam burns.
F0003BX00CP.indd 6F0003BX00CP.indd 6 2017/5/5 10:57:092017/5/5 10:57:09
3) DEEP FAT FRYING
• DO NOT deep fat fry in your microwave oven. Cooking oils
may burst into flames and may cause damage to the oven and
may result in burns. Microwave utensils may not withstand the
temperature of the hot oil, and can shatter or melt.

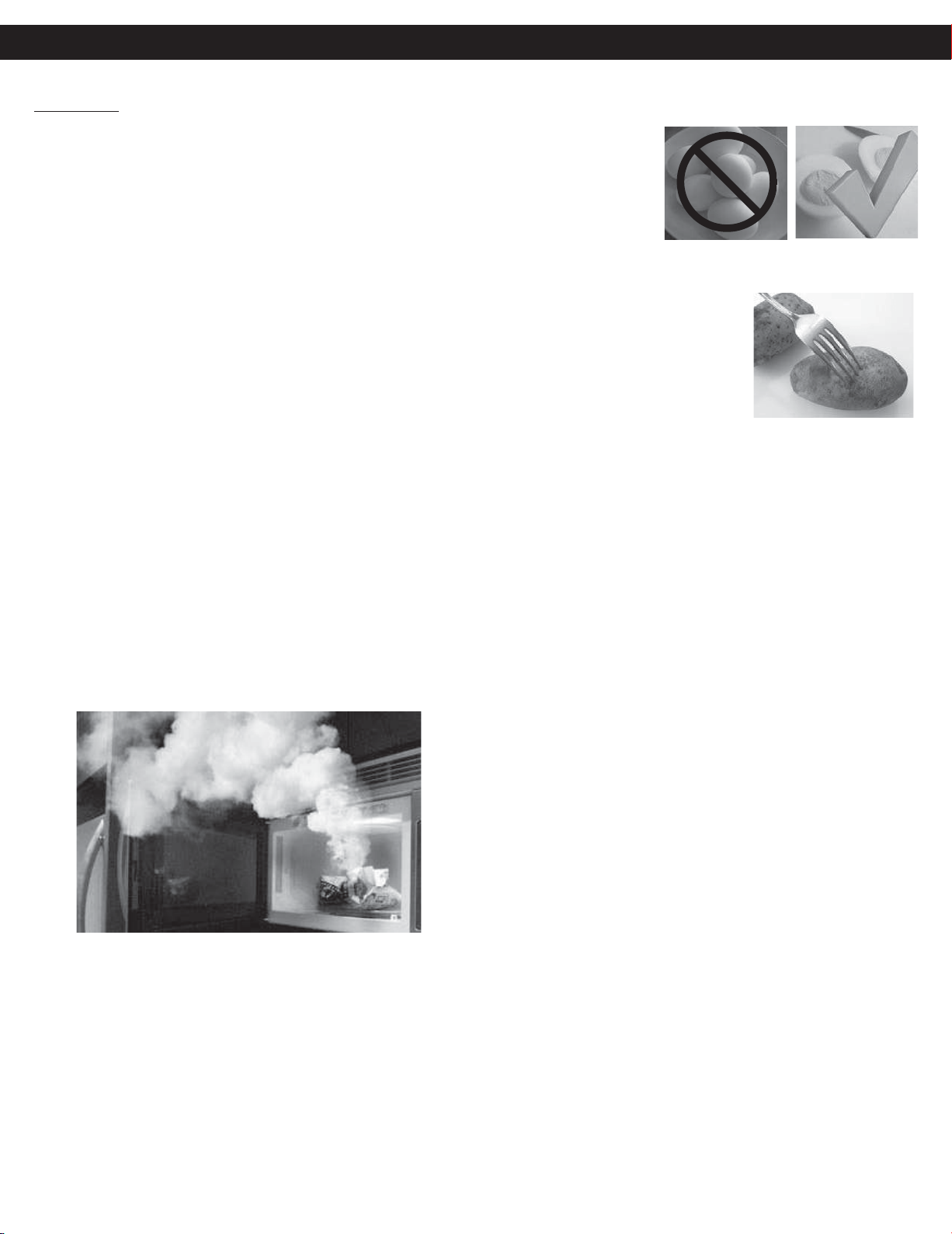

4) FOODS WITH NONPOROUS SKINS
• DO NOT COOK / REHEAT WHOLE EGGS, WITH OR WITHOUT
THE SHELL.
Steam buildup in whole
eggs may cause them
to explode, and possibly
damage the oven or
cause injury. Reheating
SLICED hard-boiled eggs
and cooking SCRAMBLED eggs is safe.
• Potatoes, apples, whole squash
and sausages are examples of
foods with nonporous skins. These
types of foods must be pierced
before microwave cooking to
prevent them from exploding.
CAUTION: Cooking dry or old
potatoes can cause fire.
5) GLASS TRAY / COOKING CONTAINERS / FOIL
• Cooking containers get hot during microwaving. Heat is
transferred from the HOT food to the container and the Glass
Tray. Use pot holders when removing containers from the oven
or when removing lids or plastic wrap covers from cooking
containers, to avoid burns.
• The Glass Tray will get hot during cooking. It should be allowed
to cool before handling or before paper products, such as paper
plates or microwave popcorn bags, are placed in the oven for
microwave cooking.
• When using foil in the oven, allow at least 1-inch (2.5 cm) of
space between foil and interior oven walls or door.
• Dishes with metallic trim should not be used, as arcing
may occur.
7

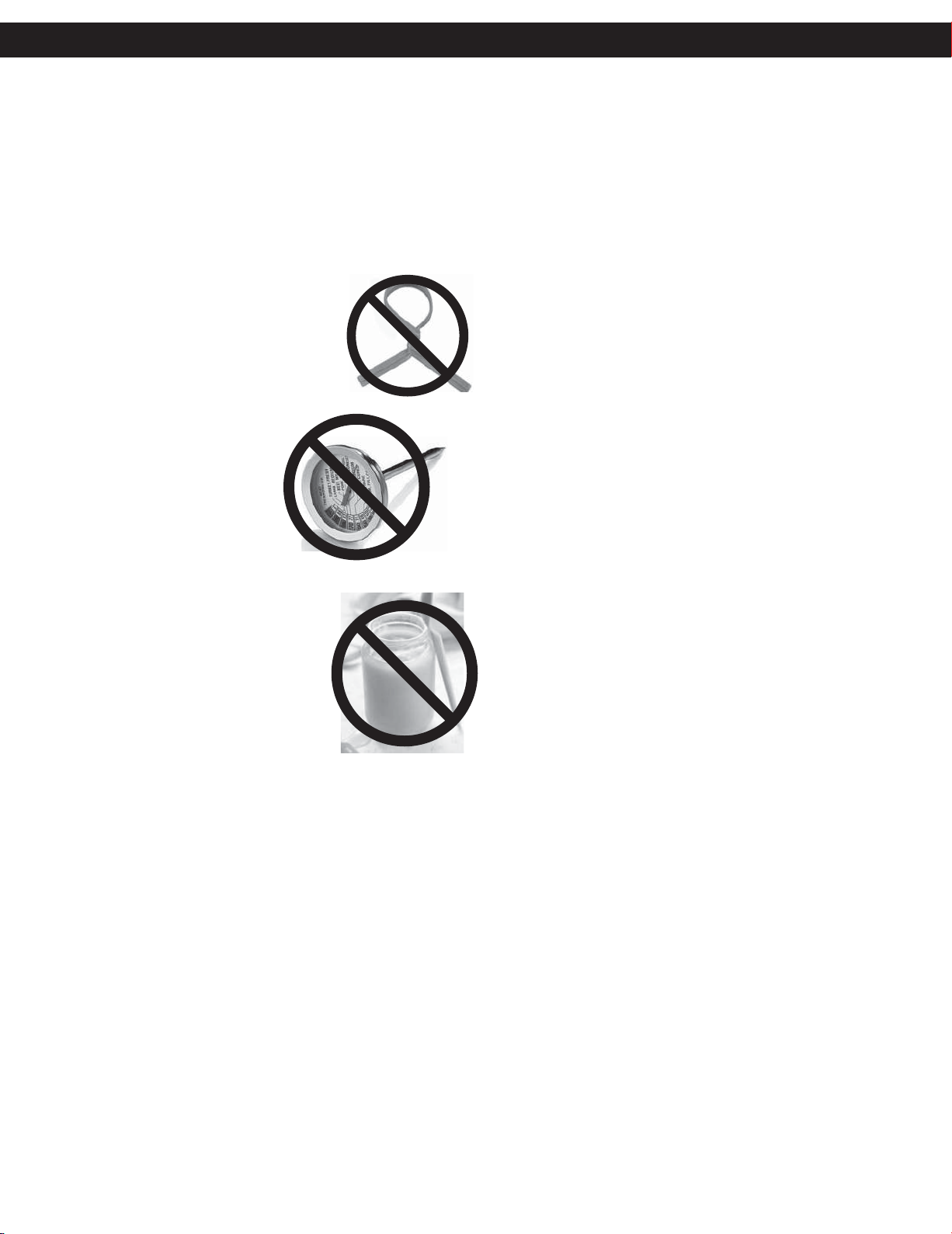

8) THERMOMETERS
• DO NOT use a conventional
meat thermometer in
your oven. Arcing may
occur. Microwave safe
thermometers are available
for both meat and candy.
9) BABY FORMULA / BABY FOOD
• DO NOT heat baby formula or baby
food in the microwave oven. The glass
jar or surface of the food may appear
warm while the interior can be so hot
as to burn the infant’s mouth and
esophagus.
10) REHEATING PASTRY PRODUCTS
• When reheating pastry products, check temperatures of any
fillings before eating. Some foods have fillings, which heat faster
and can be extremely hot, while the surface remains warm to the
touch (for example, jelly donuts).
11) GENERAL OVEN USAGE GUIDELINES
• DO NOT use the oven for any purpose other than the
preparation of food.
Food Preparation (continued)
F0003BX00CP.indd 7F0003BX00CP.indd 7 2017/5/5 10:57:092017/5/5 10:57:09
6) PAPER TOWELS / CLOTHS
• DO NOT use paper towels or cloths that contain a synthetic fiber
woven into them. The synthetic fiber may cause the towel to
ignite. Use paper toweling under supervision.
7) BROWNING DISHES / OVEN COOKING BAGS
• Browning dishes or grills are designed for microwave cooking
only. Always follow instructions provided by the manufacturer.
DO NOT preheat browning dish more than six minutes.
• If an oven cooking bag is used for microwave cooking, prepare
according to package directions. DO NOT
use a wire twist-tie to close bag. Instead
use plastic ties, cotton string or a strip cut
from the open end of the bag.
8

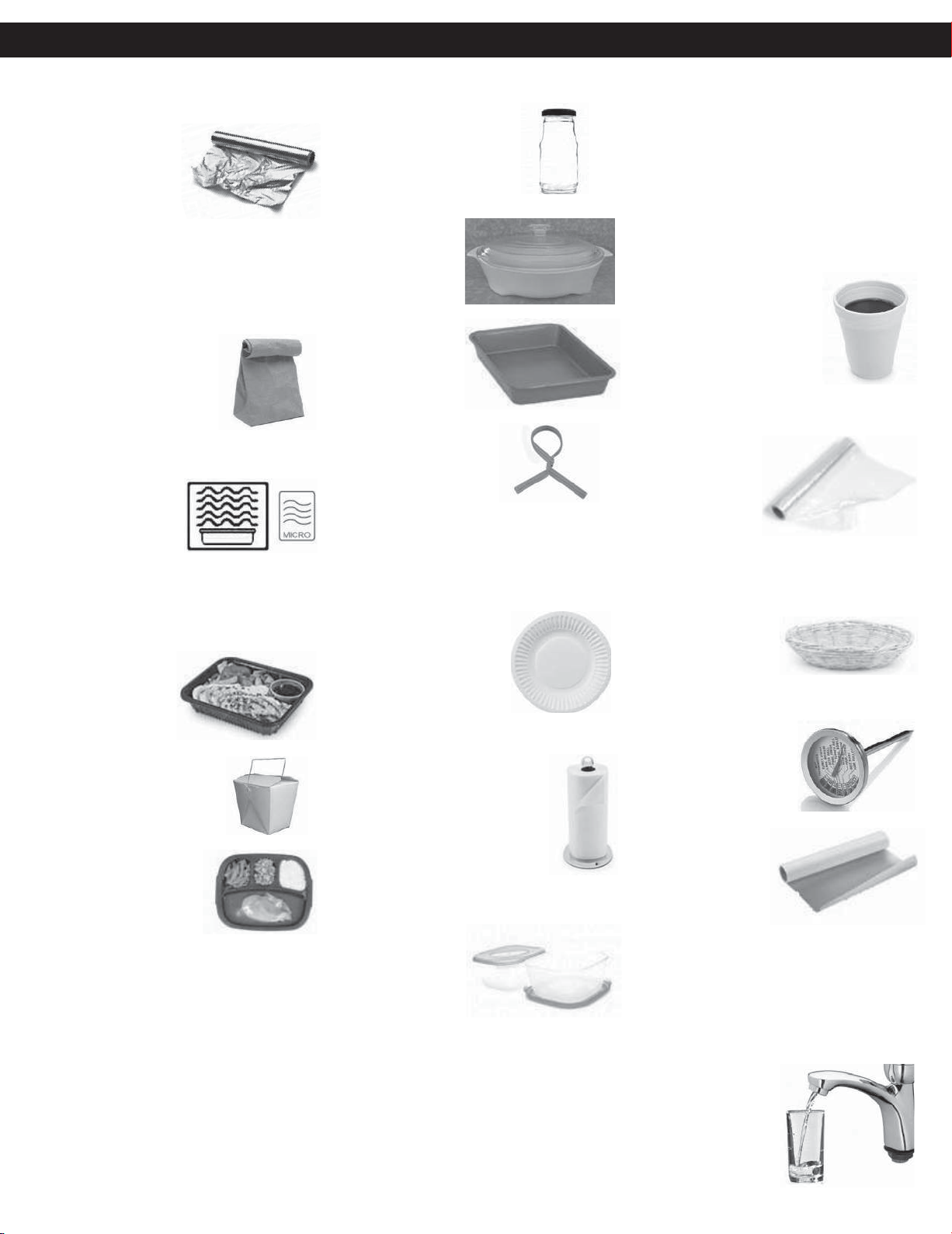

Aluminum Foil
It is not recommended
to use. Arcing can occur
if foil is too close to oven
wall or door and cause
damage to your oven.
Browning Dish
Yes. Only use browning dishes that are designed
for microwave cooking. Check browning dish
information for instructions/heating chart. Do
not preheat for more than six minutes.
Brown Paper Bags
No. They may cause a fire in
the oven.
Microwave Safe
Yes. If labeled Microwave Safe, check
manufacturers’ directions for use in
microwave heating.
Some dinnerware
may state on the back
of the dish, “Oven-
Microwave Safe”.
Dinnerware
If unlabeled, use CONTAINER TEST below.
Disposable Polyester Paperboard Dishes
Yes. Some frozen foods
are packaged in these
dishes. Also can be
purchased in some
grocery stores.
Fast Food Cartons with
Metal Handle
No. Metal handle may cause
arcing.
Frozen Dinner Trays
If made for the microwave,
then yes. If it contains metal,
then no.
Glass Jars
No. Most glass jars are not
heat resistant.
Heat Resistant Oven
Glassware/Ceramic
Yes, but only ones for
microwave cooking
and browning.
(See CONTAINER
TEST below.)
Metal Bakeware
No. Metal can cause
arcing and damage to
your oven.
Metal Twist-Ties
No. May cause arcing
which could cause a fire in
the oven.
Oven Cooking Bag
Yes. Follow manufacturers’ directions. Close bag
with the nylon tie provided, a strip cut from the
end of the bag, or a piece of cotton string. Do
not close with metal twist-tie. Make six
1
⁄2-inch
slits near the closure.
Paper Plates/Cups
Yes. Use to warm cooked
foods, and to cook foods that
require short cooking time,
such as hot dogs. Do not
microwave paper cups; they
may overheat and ignite.
Towels & Napkins
Yes, only paper napkins/towels. Use
to warm rolls and sandwiches, only
if labeled safe for microwave use.
Do NOT use recycled paper towels.
Parchment Paper
Yes. Use as a cover to prevent splattering.
Plastic Cookware
Yes, with caution.
Should be labeled,
“Suitable for
Microwave Heating.”
Check Microwave Safe manufacturers’ directions
for recommended uses. Some microwave safe
plastic containers are not suitable for cooking
foods with high fat or sugar content. The heat
from hot food may cause warping.
Plastic, Melamine
No. This material absorbs microwave energy.
Dishes get HOT!
Plastic Foam Cups
Yes, with caution. Plastic foam
will melt if foods reach a high
temperature. Use short term
only to reheat foods to a low
serving temperature. Do not
microwave paper cups; they
may overheat and ignite.
Plastic Wrap
Yes. Use to cover
food during cooking
to retain moisture
and prevent
splattering.
Should be labeled “Suitable for Microwave
Heating”. Check package directions.
Straw, Wicker, Wood
Yes, short term only.
Use only for short term
reheating and to bring
food to a low serving
temperature. Wood may dry out, split or crack.
Thermometers
Only microwave safe
thermometers can be
used, NOT conventional
thermometers.
Wax Paper
Yes. Use as a cover to
prevent splattering
and to retain moisture.
Cookware Guide
CONTAINER TEST
TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it in
the microwave oven along side the empty container to be tested; heat one (1) minute at PL-HI (HIGH). If the container
is microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and
the water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This
test cannot be used for plastic containers.
This section answers the question, “Can I use in the Microwave?”
F0003BX00CP.indd 8F0003BX00CP.indd 8 2017/5/5 10:57:092017/5/5 10:57:09
9
Oven Components Diagram
Glass Tray
Roller Ring
NOTE:
The illustration is for reference only.
F0003BX00CP.indd 9 2017/5/5 10:57:09
See-through Oven Window
1
Waveguid Cover (do not remove)
2
Oven Light
3
Glass Tray (Turntable)
4
Oven Air Vent
5
Panel
6
Grease Filter
7
Door Safety Lock System
8
Warning Label
9
11
10
Cooking Guide Label
Cook Top Light
1
2
3
4
5
6
7
8
9
10
11 11
10
Control Panel
F0003BX00CP.indd 10F0003BX00CP.indd 10 2017/5/5 10:57:092017/5/5 10:57:09
R314
R315
R316
R324
4
15
16
19
1
2
6
7
8
9
10
11
12
13
14
17
18
20
1.
1. Display Window
2. Number Pads
3. Quick 30 Pad
4. Power Level Pad
5. Popcorn Pad
6. Auto Defrost Pad
7. Melt/Soften Pad
8. Beverage Pad
9. Sensor Cook Pad (1-6)
10. Sensor Cook Pad (7-12)
11. Oatmeal Pad
12. Frozen Entrees Pad
13. Sensor Reheat Pad
14. Potato Pad
15. Light On/Off Pad
16. Vent Fan Pad
17. Clock/Timer Pad
18. Turn Table On/Off Pad
19. START Pad
20. STOP/RESET Pad
After cooking program setting, one
allows oven to begin functioning. If door is
opened or STOP/RESET pad is once
during oven operation, START pad must be
again to restart oven.
Before cooking: one clears all your
instructions. During cooking: one
temporarily stops the cooking process.
Another cancels all your instructions,
and time of day or colon appears in the
display window.
33
5
touch
touch
touched
touch
touched
touch
11
Setting the Clock Setting the Child
Safety Lock
When the time of day appears
in the display,
t
Start
three times; Current time will
appear in the display.
Clock/Timer once, then
ouch
number pad to input
the current time.
Stop/Reset three
times; Current time will
display and Child Lock will
be cancelled.
Start once to conrm.
Current time is displayed.
If no operation in 5 minutes,
the setting will be cancelled.
NOTES:
12
1. This feature prevents the
electronic operation of
the oven until cancelled. It
does not lock the door.
2. You can set Child Lock
feature when the display
shows a colon or time of
day.
F0003BX00CP.indd 11F0003BX00CP.indd 11 2017/5/5 10:57:102017/5/5 10:57:10
1
Display Window
Plug into a properly grounded
electrical outlet. “12:00 PRESS
” message
scrolls across display window.
CLOCK ENTER TIME
Operation
12
Operation (continued)
Cooking
11
3
Setting the Timer
Set desired amount of time
using Number pads (up to
99minutes, 99seconds).
Start. The timer will count
down without cooking and three
2
3
1
This feature allows you to
program the oven as a kitchen
timer.
F0003BX00CP.indd 14F0003BX00CP.indd 14 2017/5/5 10:57:102017/5/5 10:57:10
Clock/Timer twice.
Notes:
finished.
to exit timer setting
Start; the cooking will
start and the time will count
down in the display. At the
end of cooking, three beeps
will sound.
DO NOT OVERCOOK: This
oven requires less time to cook
than older units. Overcooking
will cause food to dry out and
may cause a fire. A microwave
oven’s cooking power tells
you the amount of microwave
power available for cooking.
Stage Cooking:
For more than one stage of
cooking, repeat steps 1 and
2 for each stage of cooking
Start . The
maximum number of stages
for cooking is three. When
operating, two beeps will
sound between each stage.
end of the entire sequence.
Three beeps will sound at the
1. END is displayed when timer
2. During setting, STOP/RESET
Power Level
until the desired power level
appears in the display. PL--HI is the
highest and PL--0 is the lowest.
22
Touch
Power Level
once
twice
3 times
4 times
5 times
6 times
7 times
8 times
9 times
10 times
PL--HI (HIGH)
PL--90
PL--80
PL--70
PL--60
PL--50
PL--40
PL--30
PL--20
PL--10
11 times
PL--0
beeps when done.
Set Cooking time using the Number
pads. PL--HI has max. cooking time of
30 minutes. For other power levels, the
max. time is 99 minutes, 99 seconds.
Touch
Touch
Touch
Touch
touch
before touching
14
Operation (continued)
2
Popcorn
This feature allows you to
pop popcorn without setting
weight and time. The oven
simplifies programming.
1
NOTES:
1. Pop one bag at a time.
2. Place bag in oven according
to manufacturers’
directions.
3. Start with popcorn at room
temperature.
4. Allow popped corn to
sit unopened for a few
minutes.
5. Open bag carefully to
prevent burns, because
steam will escape.
6. Do not reheat unpopped
kernels or reuse bag.
7. If popcorn is of a different
weight than listed, follow
instructions on popcorn
package.
8.
Never leave the oven
unattended.
9.
cause fire.
F0003BX00CP.indd 16F0003BX00CP.indd 16 2017/5/5 10:57:102017/5/5 10:57:10
Touch
Popcorn once for 3.5 Oz(99
g).
Twice for 3.0 Oz(85g).
Three times for 1.75 Oz(50g).
Touch
Start
in the display
window and
begins to count down.
.
Cooking time
appears
Overcooking can burn
popcorn or
2
This feature allows you to
reheat beverage without setting
weight and time. The oven
simplifies programming.
once for 1 cup.
1
Three times for 3 cups.
Twice for 2 cups.
Touch Start
window and
begins to
count down.
.
Cooking time
in the display
appears
Beverage
Touch
Beverage
NOTES:
1. Heated Beverage can erupt if
not mixed with air. Do not heat
Beverage in your microwave
oven without stirring before and
halfway through heating.
2. Care must be exercised not to
overheat Beverage. It is
programmed to give proper
result when heating 1 cup -3
cups of Beverage,
starting from room temperature
for Tea/Coffee and refrigerator
temperature for Milk.
Overheating will cause an
increased risk of scalding, or
water eruption.
3. END is displayed when cooking
finished and beep three times.
Quick 30
(Set or add cooking time in
display. Power Level is pre-set
at PL- HI.
2
1
Touch Start; the cooking
will start and the time will
count down in the display.
At the end of cooking,
three beeps will sound.
NOTES:
30 seconds increments)
Touch
Quick
30
until the
desired cooking time (up to
minutes ) appears in
the
1. If desired, you can use
other power levels. Select
desired power level before
touching Quick
30
.
2. After setting the time by
Quick 30 pad, you cannot
use the Number Pads.
3. Quick 30 pad can also
be used to add more time
during manual cooking.
30
15
Operation (continued)
F0003BX00CP.indd 18F0003BX00CP.indd 18 2017/5/5 10:57:112017/5/5 10:57:11
1. Butter
2. Chocolate
3. Cheese
Melt/Soften
The oven uses low power to melt
and soften items.
1
3
TABLE
DIRECTION
CATEGORY
BUTTER
MELT
CHOCOLATE
AMOUNT
Chocolate chips or
squares of baking chocolate
may be used.
Unwrap squares and place in
microwavable
container. Stir at the
end of cycle
3.5/7.0 Oz
Unwrap and place
in microwavable
container.
CHEESE
room temperature
and ready for use
in recipe.
Remove wrapper, cut butter into 1 inch (3 cm)
cube, and place in a microwave safe dish.
Cover with plastic wrap. Stir at the end of
cooking to complete melting.
to complete melting.
Cream cheese will be at
7.0/10 Oz
1.75/3.5 Oz
Touch Start
to start cooking.
Start
to set the weight.
Enter the desired weight by touching
number pads 1 or 2.
once for butter;
twice for
chocolate; three times
for cheese.
2
Touch
Melt/Soften
Touch
16
( 99/198g )
( 198/283g )
( 50/99g )
Operation (continued)
F0003BX00CP.indd 18F0003BX00CP.indd 18 2017/5/5 10:57:112017/5/5 10:57:11

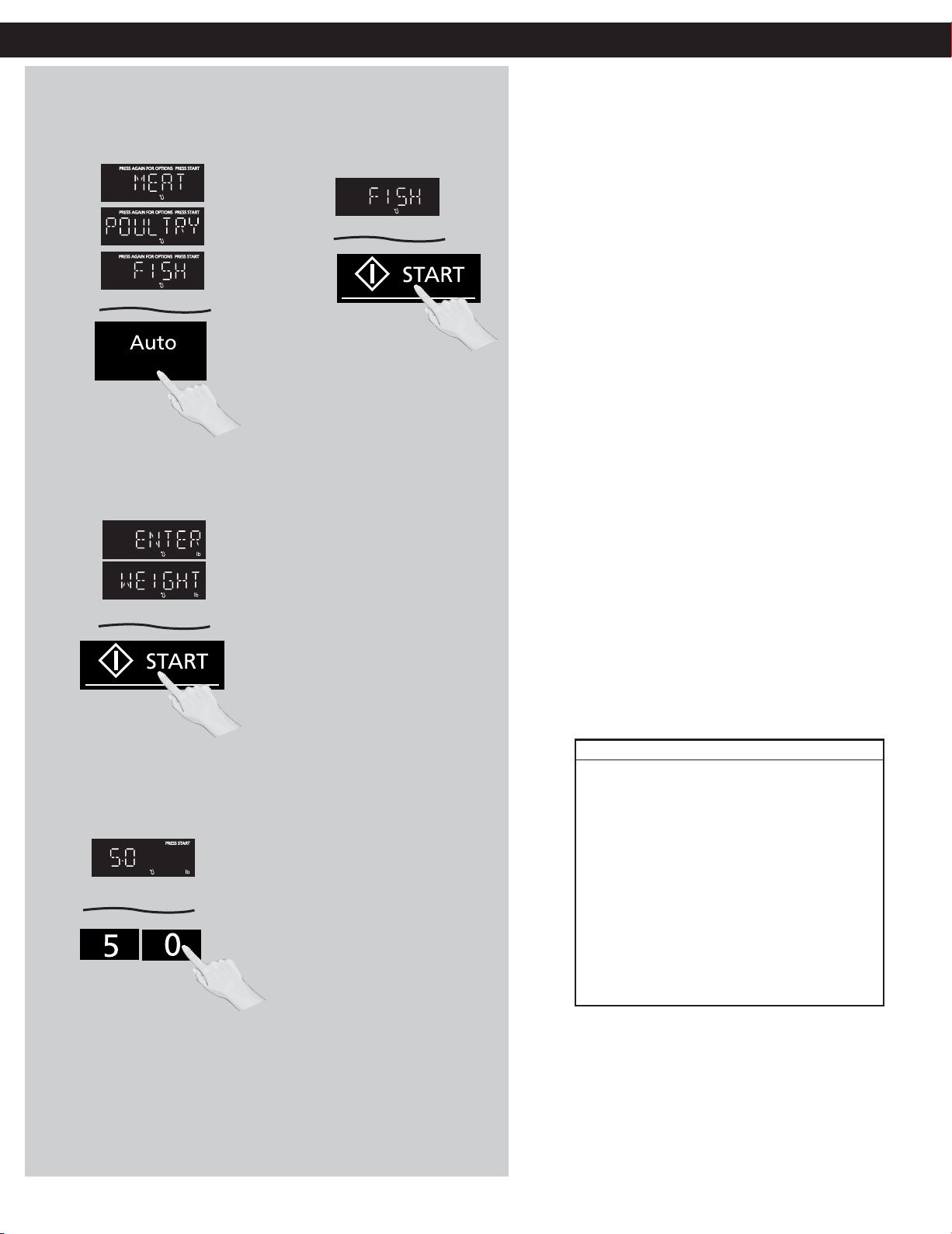

Auto Defrost
1. MEAT
2. POULTRY
3. FISH
Touch Auto Defrost
once for meat;
twice for poultry; three times for
fish.
Touch
Start
to set the weight.
number pads. The weight is 0.1-6.0 Lbs.
vFor best results, remove fish, shell fish, meat and
poultry from its original closed paper or plastic
package (wrapper). Otherwise, the wrap will hold
steam and juice close to the foods, which can
cause the outer surface of the foods to cook.
vFor best results, roll your ground meat into a ball
before freezing. During the DEFROST cycle, the
microwave will signal when it is time to turn the
meat over. Scrape off any excess frost from
the meat and continue defrosting.
microwave roasting rack to catch drippings.
Operating Tips
vPlace foods in a shallow container or on a
Weight conversion table
You are probably used to measuring food in pounds
and ounces that are fractions of a pound (for
example, 4 ounces equals 1/4 pound). However,
in order to enter food weight in Auto Defrost, you
must specify pounds and tenths of a pound.
If the weight on the food package is in fractions of a
pound, you can use the following table to convert
Equivalent Weight
OUNCES DECIMAL WEIGHT
1.6 .10
3.2 .20
4.0 .25 One-Quarter Pound
4.8 .30
6.4 .40
8.0 .50 One-Half Pound
9.6 .60
11.2 .70
12.0 .75 Three-Quarters Pound
12.8 .80
14.4 .90
16.0 1.0 One Pound
the weight to decimals.
2
1
The auto defrost feature provides you
with the best
defrosting method for
frozen foods. The cooking guide
will show you which defrost sequence
is recommended
for the food you are
defrosting.
For added convenience, the Auto
Defrost includes a
built-in beep
mechanism
that reminds you to check,
turn over,
separate, or rearrange
the food
in order to
get the best
defrost results.
3
4
Touch Start
to start
defrosting.
Cooking time
counts down.
Defrost
Enter the desired weight by touching
17

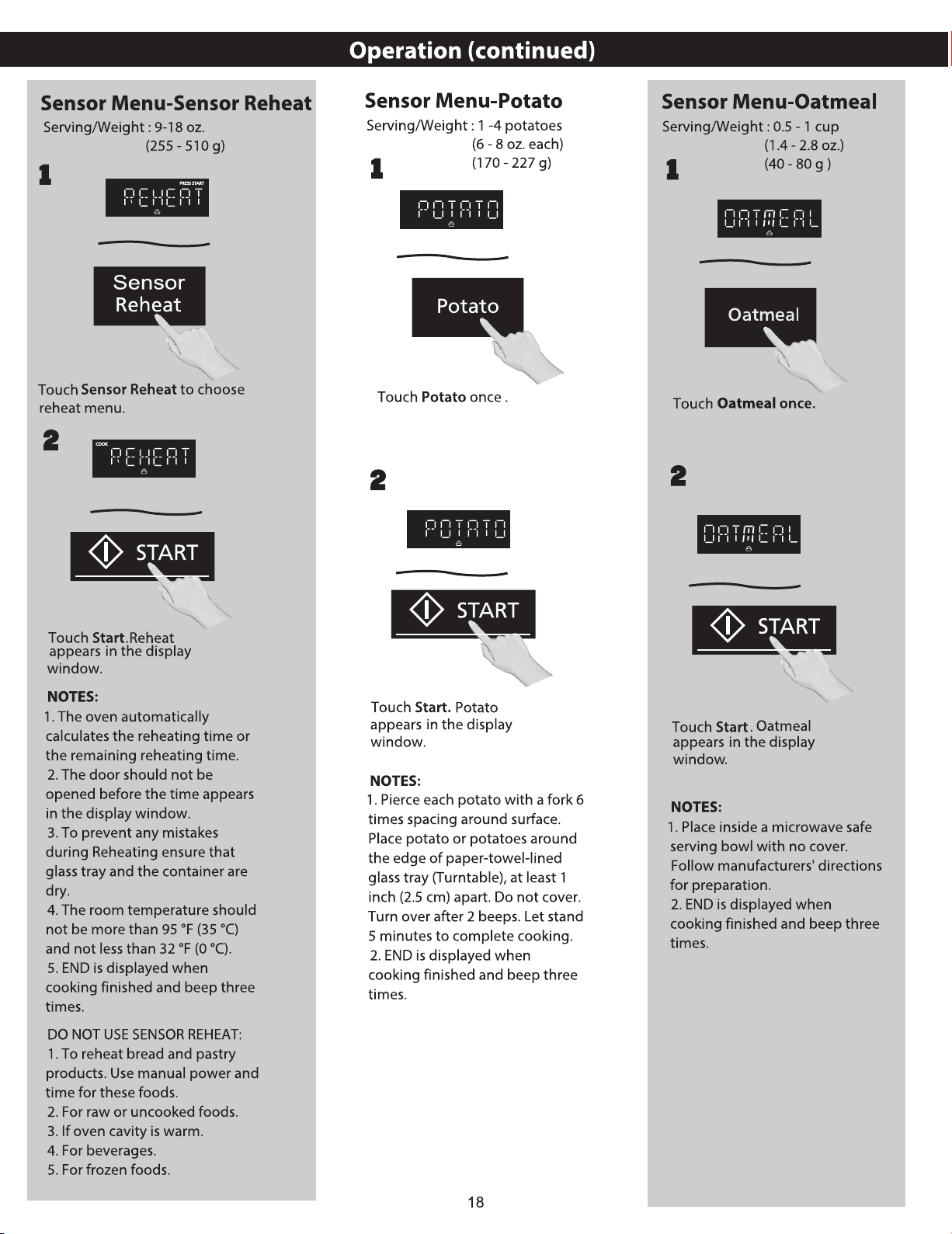

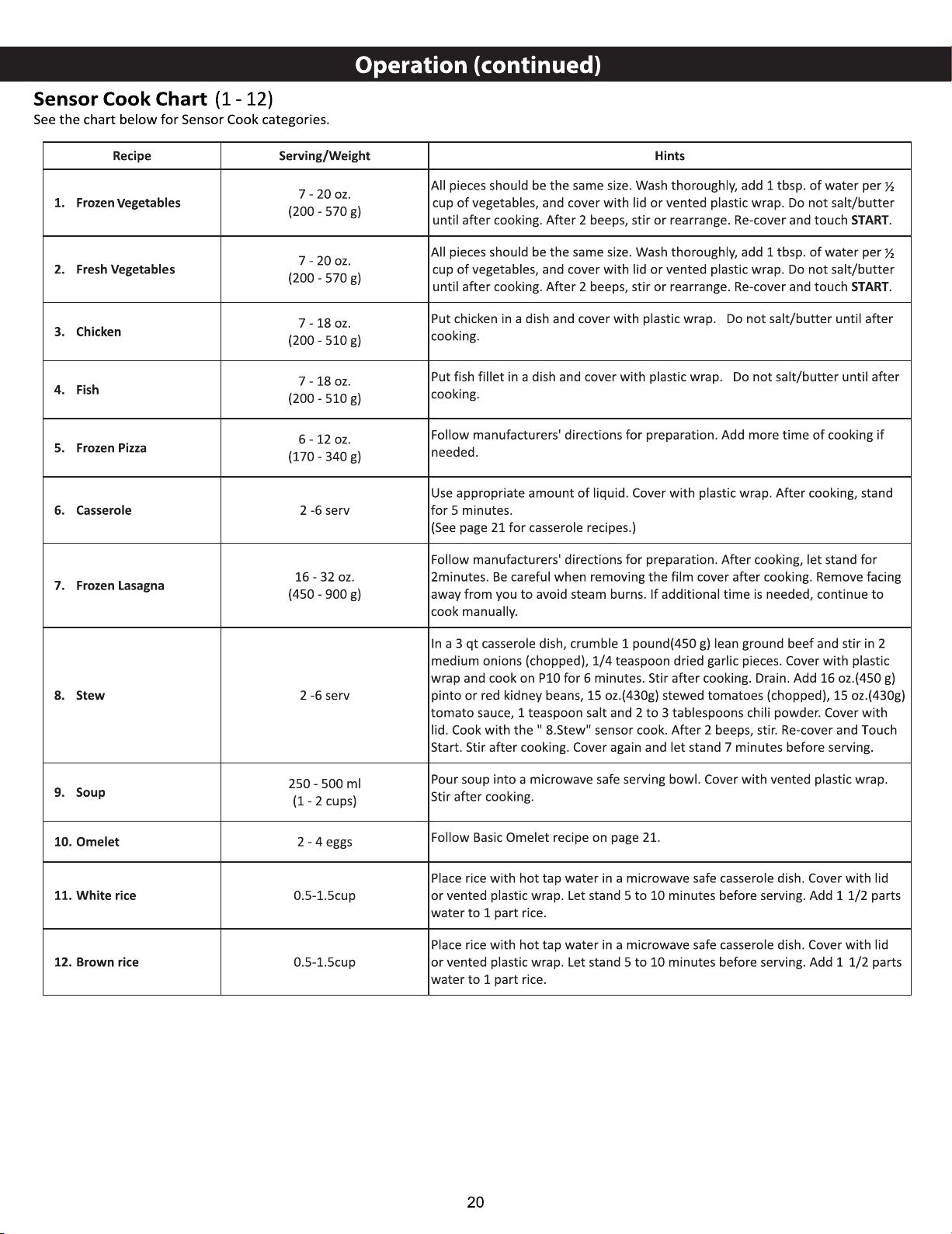

Operation (continued)
MICROWAVE RECIPES
OMELET
Basic Omelet Recipe
Yield: 1 Serving
1 tablespoon buer or margarine
2 eggs
2 ablespoons milk
Salt and ground black pepper, if desired Heat buer in a microwave safe 8-inch round dish, 20 seconds at PL10, or unl melted.
Turn the dish to coat the boom with buer.
Meanwhile, combine the remaining ingredients in a separate bowl, beat together and pour into the dish. Cook, covered with vented
plasc wrap, cook 2 minutes at PL10. Let stand 2 minutes. With a spatula, loosen the edges of the omelet from the dish, fold into thirds to
serve. Always beat the eggs before making the omelet.
NOTE: Double ingredients for a 4-egg Omelet.
Yield: 4 - 6 servings
2 1/2 tablespoons buer
1 1/2 tablespoons chopped onion
1/2 clove minced garlic
4 tablespoons all-purpose flour
2/3 teaspoon dry mustard
2/3 teaspoon salt
1/8 teaspoon ground black pepper
1 1/2 cups milk
1 1/2 cups grated cheddar cheese
140 g (5 oz.) (dry weight) macaroni, cooked and drained
3 tablespoons bread crumbs
2/3 teaspoon paprika
In a casserole dish, melt the buer for 40 seconds at PL10, with cover with lid or vented plasc wrap. Add onion and garlic, cover the
casserole dish with lid or vented plasc wrap, and cook for 1 minute at PL10. Sr in flour, mustard, salt and pepper, and gradually add the
milk. Cover the casserole dish with lid or vented plasc wrap and cook for 3-4 minutes at PL10 unl sauce thickens, srring once.
Add the cheddar cheese and the macaroni into the sauce and sr well.
Sprinkle the bread crumbs and paprika on the top of the dish.
Cover with lid or vented plasc wrap.
Cook with the
Yield: 4 - 6 servings
220 g (1/2 pound) lean ground beef
1/2 small onion, chopped
1/4 green bell pepper, chopped
1/2 cup chopped celery
1 (430 g/15 oz.) can tomato sauce
2/3 cup water
1/2 cup uncooked elbow macaroni
1/2 teaspoon parsley
1/4 teaspoon salt
1/8 teaspoon grounded back pepper
1/4 cup grated cheddar cheese
Crumble the ground beef in a 3 t. casserole dish.
in the remaining ingredients, except cheese. Cover with lid or vented plasc wrap.
Cook with the Sprinkle with
cheese. Cover and let stand 5 minutes.
MACARONI AND CHEESE
BEEF AND MACARONI CASSEROLE
q
3 t.
q
t
PL10 4-5minutes, then cook PL5 5minutes.
PL10 4-5minutes, then cook PL5 5minutes.
21
Operation (Continued)
Helpful Hints
An occasional thorough wiping with a solution of
baking soda and water keeps the inside fresh.
Be sure the power is off before cleaning any part
of this microwave oven.
How to Clean the Inside
Walls, Floor, Inside Window, Metal and Plastic
Parts on the Door
Some spatters can be removed with a paper
towel; others may require a damp cloth. Remove
greasy spatters with a sudsy cloth, then rinse
with a damp cloth. Do not use
abrasive cleaners or sharp utensils on oven walls.
Never use a commercial oven cleaner on any part
of your microwave.
Removable Turntable and Turntable Roller Ring
To prevent breakage, do not place the turntable
into water just after cooking. Wash it carefully
in warm, sudsy water or in the dishwasher. The
turntable and can be broken if dropped.
Remember, do not operate the oven in the
microwave mode without the turntable and
seated and in place.
roller ring
roller ring
25
Care and Cleaning of Your Microwave Oven
How to Clean the Outside
We recommend against the use of spray
cleaners and using cleaners with ammonia or
alcohol, as they can damage the appearance
of the microwave oven. If you choose to use a
common household cleaner, first apply the cleaner
directly to a clean cloth, then wipe the soiled area.
Case
Clean the outside of the microwave with a sudsy
cloth. Rinse and then dry. Wipe the window clean
with a damp cloth.
Door Panel
Before cleaning the front door panel, make sure
you know what type of panel you have. Refer
to the eighth digit of the model number. “S” is
stainless steel “B”, “W” or “C” are plastic colors.
Stainless Steel (on some models)
The stainless steel panel can be cleaned with
Stainless Steel Magic or a similar product using a
clean, soft cloth. Apply stainless cleaner carefully
to avoid the surrounding plastic parts. Do not
use appliance wax, polish, bleach or products
containing chlorine on Stainless Steel finishes.
Plastic Color Panels
Use a clean, soft, lightly dampened cloth, then dry
thoroughly.
Door Seal
It’s important to keep the area clean where the
door seals against the microwave. Use only mild,
non-abrasive detergents applied with a clean
sponge or soft cloth. Rinse well.
Bottom
Clean off the grease and dust on the bottom
often. Use a solution of warm water and
detergent.
26
Care and Cleaning of Your Microwave Oven (continued)
About the exhaust feature
The vent fan has two metal reusable vent filters.
Models that recirculate air back into the room
also use a charcoal filter.
Grease Filters
The metal filters trap grease released by foods
on the cooktop. They also prevent flames from
foods on the cooktop from damaging the inside
of the oven.
For this reason, the filters must always be in
place when the hood is used. The vent filters
should be cleaned once a month, or as needed.
Reusable vent filters
(on all models).
Care and Cleaning of Your Microwave Oven (continued)
Vent FAN
27
Care and Cleaning of Your Microwave Oven (continued)
Removing and Cleaning the Filters
To remove, slide them to the rear using the tabs.
Pull down and out.
To clean the vent filters, soak them and then
swish around in hot water and detergent. Don’t
use ammonia or ammonia products because
they will darken the metal. Light brushing can be
used to remove embedded dirt.
Rinse, shake and let dry before replacing.
To replace, slide the filters into the frame slots
on the back of each opening. Press up and to the
front to lock into place.
Charcoal Filter
The charcoal filter cannot be cleaned. It must
be replaced.
If the model is not vented to the outside, the air
will be recirculated through a disposable charcoal
filter that helps remove smoke and odors.
The charcoal filter should be replaced when it is
noticeably dirty or discolored (usually after 6 to 12
months, depending on usage).
To Remove the Charcoal Filter
To remove the charcoal filter, first disconnect
power at the main fuse or circuit breaker, or
pull the plug. Remove the the two screws that
hold the charcoal filter in place, as shown.
Once the screws are removed the charcoal
filter can be taken out.
Take out the charcoal filter
Remove 2 screws to take the charcoal filter out
28

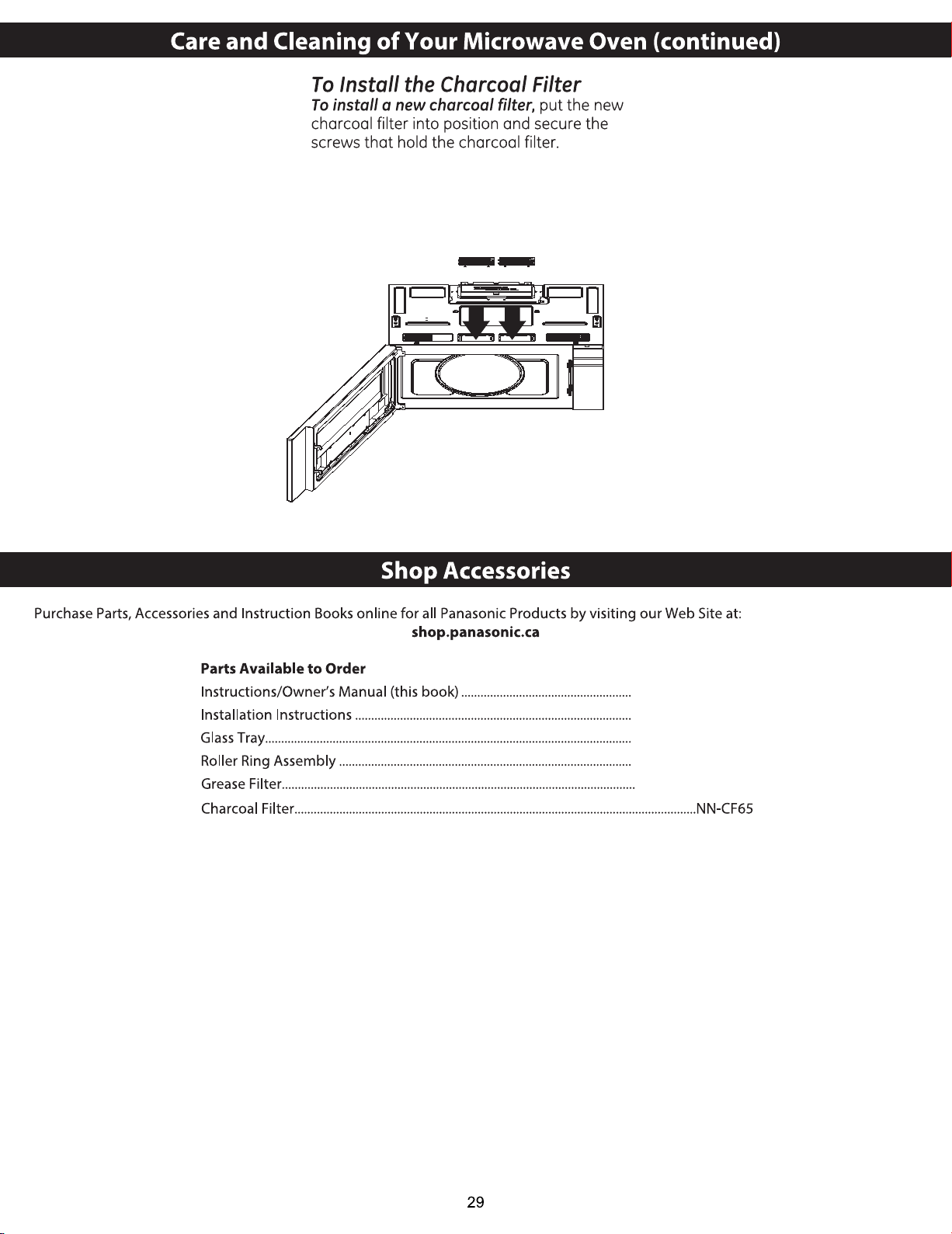

12270000030876
12170000004305
16170000008334
16170000A91407
16170000A91433
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
Panasonic PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated
below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b)
replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or
refund will be made by Panasonic Canada Inc.
Category Service type Parts Labour Magnetron
Counter top microwave oven
(except Prestige models)
Carry-in 1 Year 1 Year
Additional 4
Years (Part only)
Counter top microwave oven – Prestige model
(Genius Prestige, Genius Prestige Plus and Genius
Prestige Grill)
In-home 2 Years 2 Years
Additional 3
Years (Part only)
Microwave Convection oven In-home 2 Years 2 Years
Additional 3
Years (Part only)
Over The Range (OTR) microwave oven In-home 2 Years 2 Years
Additional 3
Years (Part only)
In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product men-
tioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and
which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE
OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by
products not supplied by
Panasonic Canada Inc.
, or failures which result from accidents, misuse, abuse, neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge,
lightning damage, modi cation, introduction of sand, humidity or liquids, commercial use such as hotel, of ce, restaurant, or other business or
rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.
Over-The-Range cooktop light bulbs are excluded from coverage under this warranty.
In the case where the microwave oven is built-in, the warranty will be voided if using a non-Panasonic trim kit.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL Panasonic Canada
Inc. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR
ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time,
travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or
recorded content. This list of items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of im-
plied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you speci c legal rights and you may have
other rights which vary depending on your province or territory.
WARRANTY SERVICE
PRODUCT OPERATION ASSISTANCE
For product information and operation assistance, please visit our Support page: www.panasonic.ca/english/support
PRODUCT REPAIRS
Please locate your nearest Authorized Servicentre: panasonic.ca/english/support/servicentrelocator
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
31
ARRANTY

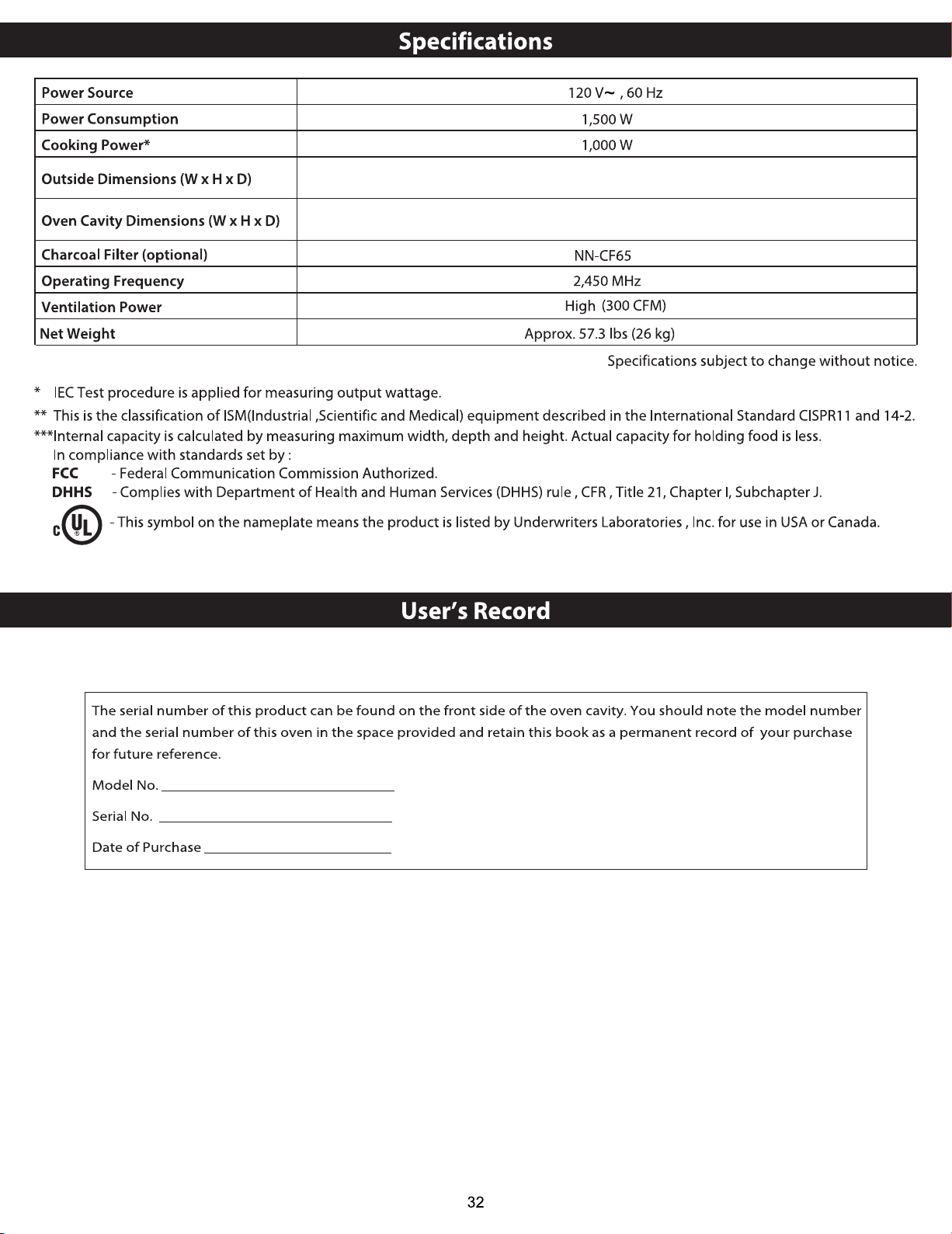

(759 mm x 262 mm x 472 mm)
29
7
⁄8” x 10 ” x 18 ”
⁄
16
9
⁄
16
5
21 ⁄ ” x 7 ⁄
” x 12 ⁄
32
”
(556.7 mm x 189 mm x 310.5 mm)
32
7
7
16
2
9
