Store this manual for future reference
2030-110-01
®
Programmable Thermostats
User Manual
Read all instructions before proceeding.
ECONOMY
SERIES
2030
1 Heat / 1 Cool Conventional
or Heat Pump
Up to 2 Heat / 1 Cool
Conventional or Heat Pump
2230
This manual covers the following thermostat models:
Contents
1 About Your Thermostat
Quick Reference - Thermostat and Display ............... 4
2 User Settings
Accessing User Settings ........................................... 6
Table of User Settings ...............................................7
Resetting Service Reminders ....................................7
Setting the Time and Day ......................................... 7
Service Reminders ................................................... 7
Hold and Override .................................................... 8
Resetting Thermostat ............................................... 8
3 Setting Your Program Schedule
Tips Before Setting Your Program Schedule .............. 9
Programming a 7 Day Schedule ..............................11
Programming a 5-2 Day Schedule ...........................13
4 Operating Your Thermostat
Setting the System Control Mode .........................14
Setting the Fan Control Mode ...............................15
Temperature Adjustment ......................................16
Program Event Indicators .....................................17
System Status and Maintenance Indicators ..........18
5 Additional Operation Features
Adaptive Recovery Mode ..................................... 21
Compressor Protection ........................................ 21
6 Thermostat Maintenance
Battery Replacement ........................................... 22
Thermostat Cleaning ........................................... 22
User Manual 2
Congratulations! You are in control of one of the easiest-to-use thermostats on the market today.
This thermostat has been designed to provide you with years of reliable performance and comfort control.
Features
• Stylish new design with large display and bright blue backlight
• SpeedSet
®
programming gives you the option of programming all 7 days at once
• Convenient HOLD feature lets you override the program schedule
• Extra large display characters make viewing settings even easier
• User selectable filter monitor reminds you of required filter maintenance
• Precise temperature accuracy keeps you in control of your comfort
3 User Manual
1
About Your Thermostat
User Manual 4
1
5
2 3 4
6
7
8
10
12
15
13
14
11
9
5 User Manual

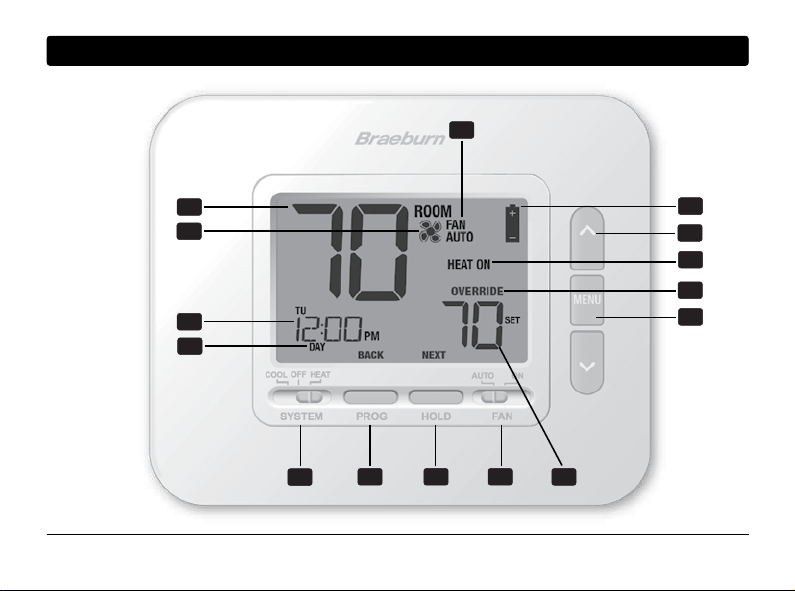

* BACK and NEXT are secondary functions of the PROG and HOLD buttons. When in programming or configuration modes,
BACK and NEXT appear in the display screen indicating that the PROG and HOLD now function as BACK and NEXT.
SYSTEM Switch ..................... Selects the system you want to control
PROG Button.......................... Enters programming mode or hold for 3 seconds to enter SpeedSet
®
mode
BACK Button* ........................ Secondary function of the PROG button - Moves to previous setting
HOLD Button .......................... Enters / Exits the HOLD mode (program bypass mode)
NEXT Button* ........................ Secondary function of the HOLD button - Moves to next setting
FAN Switch ............................ Selects the system fan mode
Up / Down Arrow Buttons ..... Increases or decreases settings (time, temperature, etc.)
MENU Button ......................... Used to access thermostat User setting mode or exit program mode
Room Temperature .............. Displays the current room temperature
Set Temperature .................. Displays the current setpoint temperature
Override Indicator ............... Indicates that the current program schedule has been temporarily overridden
Time of Day ..........................Displays the current time of day
Program Event Indicator ..... Indicates which part of the program is currently active
System Mode ....................... Displays the system mode and current system status
Fan Mode Indicator ..............Indicates the current system fan mode
Fan Status Indicator ............ Indicates that the system fan is running

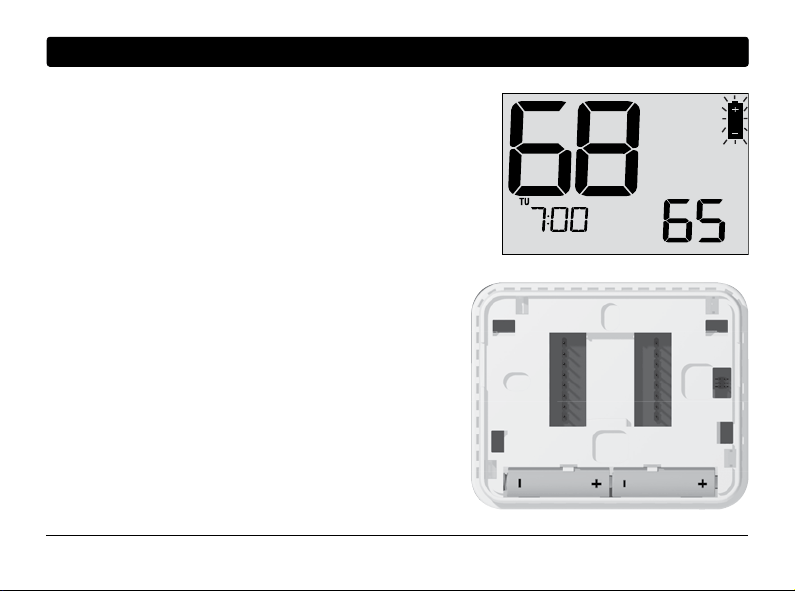

Low Battery Indicator .......... Indicates when the batteries need to be replaced
Battery Compartment ........... Located on the back side of thermostat (if installed)
1
4
5
6
Thermostat and Display
7
8
9
10
11
12
13
14
15
2
3
User Manual 6
2
User Settings
User Settings allow you set the current time of day as
well as customize various thermostat features.

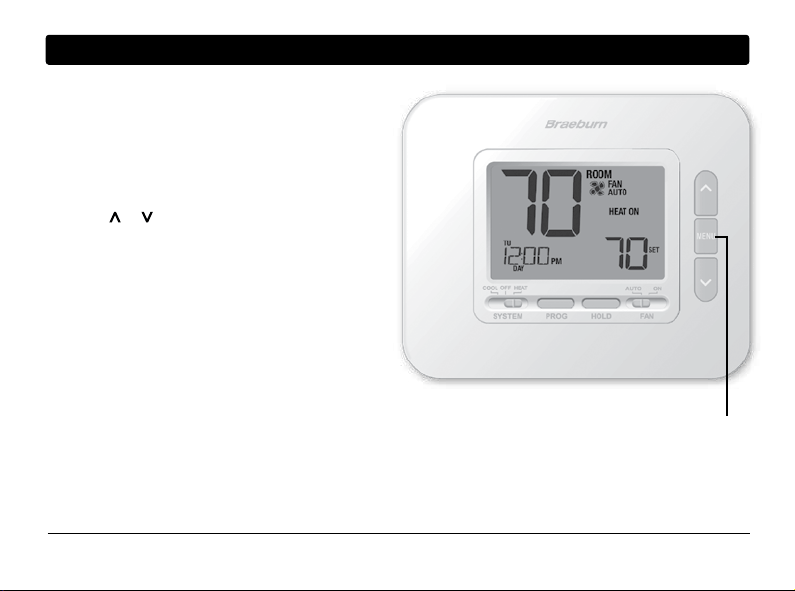

To access the User Settings, press and release the
MENU button to display the first User Setting.
Press the or buttons to change the value for the
displayed User Setting. After your desired setting is
displayed, press NEXT (HOLD) to advance to the next
User Setting. You may also press BACK (PROG) to
move backwards through the User Settings.
You will exit the user settings after the last setting.
MENU
7 User Manual
Table of User Settings
NOTE: Some user settings may not be available, depending on how the thermostat was configured during installation.
No.
User Setting
Displayed
Default
Available
Description of
Setting Settings Available Settings
1 Reset SERVICE CLR N0
FILTER Message
[Only appears if the service filter time interval has expired] If a service filter time interval was selected in setting 6,
the thermostat will display a SERVICE FILTER message once that time interval is reached. Select NO to keep the message
displayed or select Y (YES) to clear the message and reset the timer.
2 Current Time of Day 12:00
(Hour)
Set the current hour of the day.
3 Current Time of Day
12:00
(Minute)
Set the current minute of the hour.
4 Current Day of
M
the Week
Set the current day of the week.
N0 Select to keep message displayed
Y Select to remove message and reset timer
1-12 Select the current hour of day
00-60 Select the current minute of the hour
M-SU Select the current day of the week
(current
time)
(current
time)
(current
day)
User Manual 8
No.
User Setting
Displayed
Default
Available
Description of
Setting Settings Available Settings
5 Service Filter Timer
SERVICE OFF
FILTER
Select the number of days before receiving a reminder to change your system filter (if equipped). When the timer interval has
expired, the thermostat will display the message SERVICE FILTER. To reset this reminder, see setting 1. To disable, select OFF.
6 Temperature Hold Time
HOLD LONG
(HOLD Button)
[Only available if programming is enabled] Temperature Hold Time lets you select the time that your thermostat will hold
the temperature when the HOLD button has been pressed. When LONG is selected, the thermostat will hold your temperature
indefinitely. When 24HR is selected, the thermostat will hold your temperature for 24 hours and then return to the current
program temperature.
7 Program Override
OVERRIDE 4 HR
Time Limit
[Only available if programming is enabled] The Program Override Time Limit allows you to set a maximum time limit
(in hours) that the thermostat will return to the program after a temporary temperature override has been made. You may
select 1, 2, 3 or 4 hours.
8 User Reset CLR NO
Selecting (Y) YES will reset all user settings, program and current time.
LONG Select for long (permanent) HOLD mode
24HR
Select for 24 hour (temporary) HOLD mode
NO Reset disabled - no changes made
Y
Reset enabled - resets thermostat
4HR, 3HR Select a program override time limit
2HR, 1HR
of 1-4 hours.
OFF Service filter timer is disabled
30, 60, 90,
Select number of days for service filter timer
120, 180, 365
9 User Manual
3
Setting Your Program Schedule

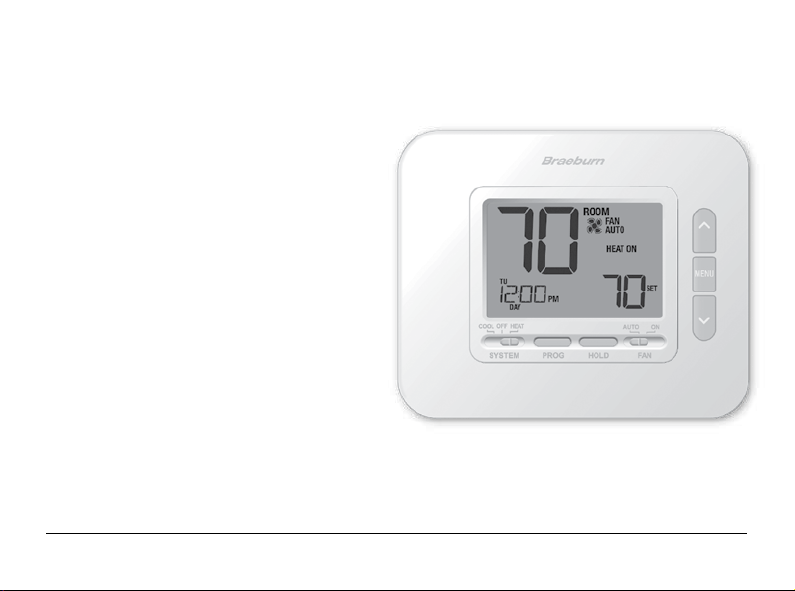

Tips Before Setting Your Program Schedule
• Make sure your current time and day of the week
are set correctly.
• Make sure the AM and PM indicators are correct.
• Your NITE event cannot exceed 11:50 p.m.
• BACK and NEXT are secondary functions of the
PROG and HOLD buttons.
This thermostat has been configured with one
of the following programming options:
• 7-day programming mode with 4 events per day
• 5-2 (weekday/weekend) programming mode with
4 events per day
• Non-Programmable mode
AUTO
FAN
ROOM
SET
HEAT ON
NOTE: If this thermostat was configured to be
non-programmable, then you cannot set a program
schedule. If you press the PROG or HOLD buttons,
the word “NONE” will appear in the display.
User Manual 10
Energy Saving Programs
This thermostat comes pre-programmed with a default energy saving program. The following tables outline the
pre-programmed times and temperatures for heating and cooling in each of your 4 daily events. If you wish to
use these settings, then no further programming is necessary:
MORN
DAY
EVE
NITE
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 85˚ F (29˚ C)
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 82˚ F (28˚ C)
4 Event
All Days
Residential 7 Day Programming
Factory Settings
Weekday Weekend
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 85˚ F (29˚ C)
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 82˚ F (28˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 85˚ F (29˚ C)
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 78˚ F (26˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 82˚ F (28˚ C)
5-2 Day Programming
Weekday/Weekend Factory Settings
11 User Manual
Setting a 7-Day program – All 7 Days at Once (SpeedSet
®
)
(7-day programming mode only)
NOTE: Setting all 7 days at once will copy over any previously programmed individual days.
Available Daily Events:
MORN, DAY, EVE, NITE
1.
Hold the PROG button for 3 seconds until M-SU appears.
2. Use SYSTEM switch to select HEAT or COOL. Press NEXT.
3.
Press or to adjust the hour for the first event. Press NEXT.
4.
Press or to adjust the minute for the first event. Press NEXT.
5.
Press or to adjust the temp for the first event. Press NEXT.
6. Repeat steps 3-5 for the remaining daily events.
7. If needed, repeat steps 2-6 to program the opposite mode.
8. Press MENU to exit.
SET
BACK NEXT
AM
MORN
HEAT
M TU W TH F SA SU
User Manual 12
Setting a 7-Day program – Individual Days
(7-day programming mode only)
Available Daily Events:
MORN, DAY, EVE, NITE
1. Press and release the PROG button.
2. Use SYSTEM switch to select HEAT or COOL.
3. Press or to select the day you want to program. Press NEXT.
4. Press or to adjust the hour for the first event. Press NEXT.
5. Press or to adjust the minute for the first event. Press NEXT.
6. Press or to adjust the temp for the first event. Press NEXT.
7. Repeat steps 4-6 for your remaining daily events.
8. If needed, repeat steps 3-7 to program additional days.
9. If needed, repeat steps 2-8 to program the opposite mode.
10. Press MENU to exit.
SET
BACK NEXT
AM
MORN
HEAT
NEXT
HEAT
NEXT
HEAT
M
13 User Manual
Setting a 5-2 Day Weekday/Weekend Program
(5-2 day programming mode only)
Available Daily Events:
MORN, DAY, EVE, NITE
1. Press and release the PROG button.
2. Use SYSTEM switch to select HEAT or COOL.
3. Press or to select weekdays or weekend. Press NEXT.
4. Press or to adjust the hour for the first event. Press NEXT.
5. Press or to adjust the minute for the first event. Press NEXT.
6. Press or to adjust the temp for the first event. Press NEXT.
7. Repeat steps 4-6 for your remaining daily events.
8. If needed, repeat steps 3-7 to program additional days.
9. If needed, repeat steps 2-8 to program the opposite mode.
10. Press MENU to exit.
M TU W TH F
NEXT
HEAT
NEXT
HEAT
SET
BACK NEXT
AM
MORN
HEAT
4
Operating Your Thermostat
User Manual 14

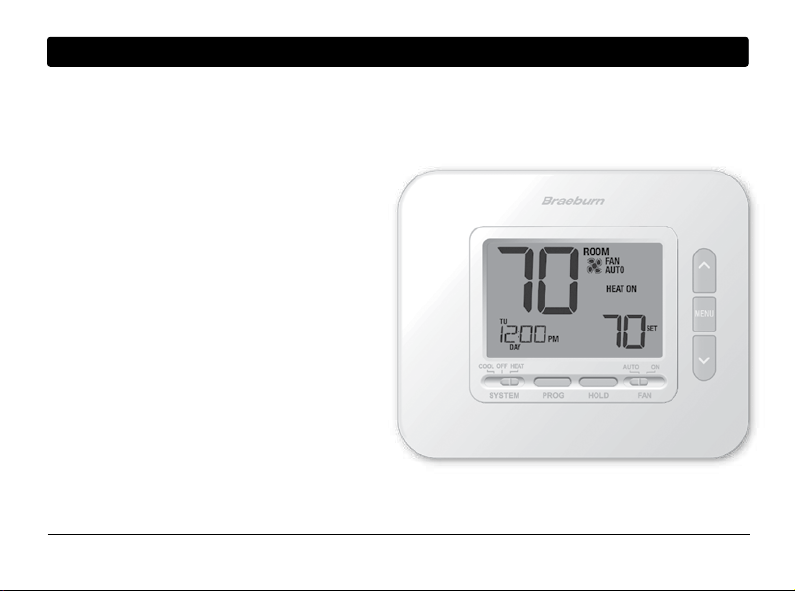

Setting the SYSTEM Control Mode
The System Control has 4 modes of operation – COOL, OFF, HEAT, and EMER (2230 only). The mode can be
selected by moving the SYSTEM switch to the appropriate mode.
COOL Only your cooling system will operate.
OFF Heating and cooling systems are off.
HEAT Only your heating system will operate
EMER Operates a backup heat source
(Emergency Heat) for heat pump
systems only (2230 only).
15 User Manual
Setting the FAN Control Mode
The Fan Control has 2 modes of operation – AUTO and ON. The mode can be selected by moving the FAN switch
to the appropriate mode.
AUTO The system fan will run only when your
heating or cooling system is running.
ON The system fan stays on.
User Manual 16
Temperature Adjustment
Temporary Adjustment (OVERRIDE) – Press or to adjust
the current set temperature. The set temperature will change
back to your programmed temperature a few hours later or
at the start of the next scheduled program event. OVERRIDE
will appear in the display during the entire override period.
Extended Adjustment (HOLD) – Press the HOLD button
to override all programming. HOLD will appear in the display.
You can continue to use the or buttons to adjust the
current set temperature. Press HOLD again to resume the
program schedule. You can limit your hold time to 24-hours
by adjusting User Setting 6 in section 2.
NOTE: If your thermostat was configured to be
non-programmable, HOLD and OVERRIDE are not available.
OVERRIDE
AUTO
FAN
ROOM
SET
PM
HEAT ON
HOLD
AUTO
FAN
ROOM
SET
PM
HEAT ON
Program Event Indicators
Program event indicators appear in the display to let you
know what part of your current program is active.
MORN, DAY, EVE or NITE
When OVERRIDE appears, your program has been temporarily
overridden and will resume in 1-4 hours depending on the
selection for User Setting 7 in section 2. The program will also
resume at the beginning of the next scheduled program event.
NOTE: If your thermostat was configured to be
non-programmable, or is in HOLD mode, you will
not see a Program Event or OVERRIDE indicator.
AUTO
FAN
ROOM
SET
PM
HEAT
OVERRIDE
AUTO
FAN
ROOM
SET
AM
MORN
HEAT ON
17 User Manual
System Status and Maintenance Indicators
Status indicators are messages or symbols that appear in the display to let you know what function your system
is currently performing. They are also used to inform you of various service and maintenance functions.
HEAT ON The heating system is running.
COOL ON The cooling system is running.
HEAT ON AUX The auxiliary stage of heating is running
(2230 only).
EMERGENCY
The emergency heating system is
HEAT ON running (2230 only).
Indicates that the system fan is running.
SERVICE A user selectable filter service reminder for changing
FILTER the filter has been triggered. To set or reset this
reminder, see User Setting 5 in section 2.
AUTO
FAN
ROOM
SET
AM
HEAT ON
AUTO
FAN
ROOM
SET
PM
HEAT
SERVICE
FILTER
User Manual 18
19 User Manual
System Status and Maintenance Indicators (continued)
LIM Setpoint temperature has reached its
upper or lower limit maximum.
HI TEMP Room temperature has risen above the
display range. Cooling will still operate to
help lower temperature.
LO TEMP Room temperature has fallen below the
display range. Heat will still operate to help
raise temperature.
CHECK Indicates that there is a potential problem with
your system. Contact a local service technician.
AUTO
FAN
COOL
ROOM
SET
AUTO
FAN
ROOM
SET
HEAT
AUTO
FAN
ROOM
SET
PM
HEAT
CHECK
System Status and Maintenance Indicators (continued)
If batteries are installed and they become
low, the battery symbol appears in the display.
When the batteries become critically low, the
battery symbol will flash (see “Changing the
Batteries” in section 6).
AUTO
FAN
ROOM
SET
AM
MORN
HEAT
User Manual 20
21 User Manual
5
Additional Operating Features
Adaptive Recovery Mode (ARM
TM
)
If enabled, Adaptive Recovery Mode attempts to achieve your desired heating or cooling temperature at the time
you have set in your current program schedule, after a setback period. For example, if you set your heat down to
62° at night and have a set point of 70° scheduled for 7:00 AM, the thermostat may turn on your heating system
early in order achieve a temperature of 70° by 7:00 AM.
This feature does not operate when the thermostat is in HOLD mode; if the program is temporarily overridden or
if emergency heat is selected on a multistage heat pump system.
Compressor Protection
This thermostat includes an automatic compressor protection delay to avoid potential damage to your system
from short cycling. This feature activates a short delay after turning off the system compressor.
User Manual 22
6
Thermostat Maintenance
Changing the Batteries
Depending on your installation, this thermostat may be
equipped with two (2) “AA” type alkaline batteries.
If batteries are installed and they become low, the battery
symbol appears in the display. When the batteries become
critically low, the battery symbol will flash.
To change your batteries:
1. Remove thermostat body by gently pulling it from base.
2. Remove old batteries and replace with new batteries.
3. Make sure to correctly position the (+) and (-) symbols.
4. Gently push thermostat body back onto base.
NOTE: We recommend replacing the thermostat batteries
annually or if the thermostat will be unattended for
an extended period of time.
Thermostat Cleaning
Never spray any liquid directly on the thermostat. Spray
your
cleaning liquid on a soft cloth and then proceed to
clean the screen
with the damp cloth. Only use water or
household glass cleaner. Never use any abrasive cleansers
to clean your thermostat.
AUTO
FAN
ROOM
SET
AM
MORN
HEAT
For more information, visit www.braeburnonline.com
Limited Warranty
When installed by a professional contractor, this product is backed by a 5 year limited warranty. Limitations apply.
For limitations, terms and conditions, you may obtain a full copy of this warranty.
• Visit us online: www.braeburnonline.com/warranty
• Phone us: 866.268.5599
• Or write us: Braeburn Systems LLC
2215 Cornell Avenue
Montgomery, IL 60538
55
YEAR
WARRANTY
LIMITED
Braeburn Systems LLC
2215 Cornell Avenue • Montgomery, IL 60538
Technical Assistance: www.braeburnonline.com
Call us toll-free: 866-268-5599 (U.S.)
630-844-1968 (Outside the U.S.)
©2022 Braeburn Systems LLC • All Rights Reserved.
2030-110-01
