Installer Manual

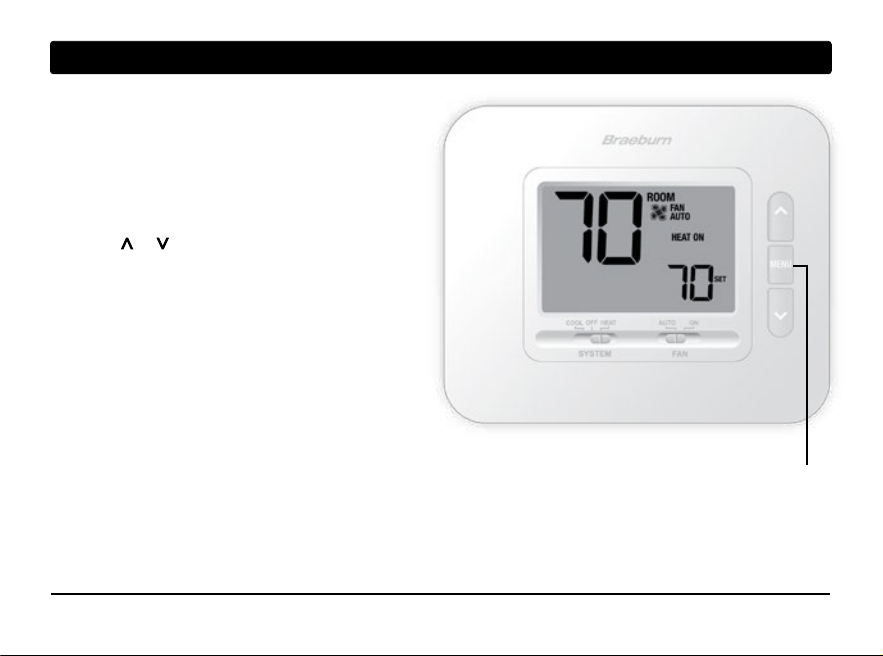

Non-Programmable Thermostats
1
Specifications
2
Installation
3
Wiring
4
Quick Reference
5
Installer Settings
6
System Testing
Possible electric shock or damage to equipment can occur.
Disconnect power before beginning installation.
Caution
1030
1 Heat / 1 Cool Conventional
or Heat Pump
1230
Up to 2 Heat / 1 Cool
Conventional or Heat Pump
Warning
For installation by experienced service technicians only.
This thermostat is compatible with:
• Single stage conventional and heat pump systems
• Single stage heat pumps with auxiliary heat
• 250 – 750 millivolt heating only systems
• 2 wire hydronic zone systems
Electrical and Control Specifications
• Electrical Rating: 24 Volt AC
• 1 amp maximum load per terminal
• AC Power: 18 – 30 Volts AC
• DC Power: 3.0 Volt DC
(2 “AA” Alkaline Batteries Included)
• Control Range: 45° to 90° F (7° to 32° C)
• Temperature Accuracy: +/- 1° F (+/- .5° C)
1
SPECIFICATIONS
1030-100-01
Model number is located on back of thermostat.
ECONOMY
SERIES

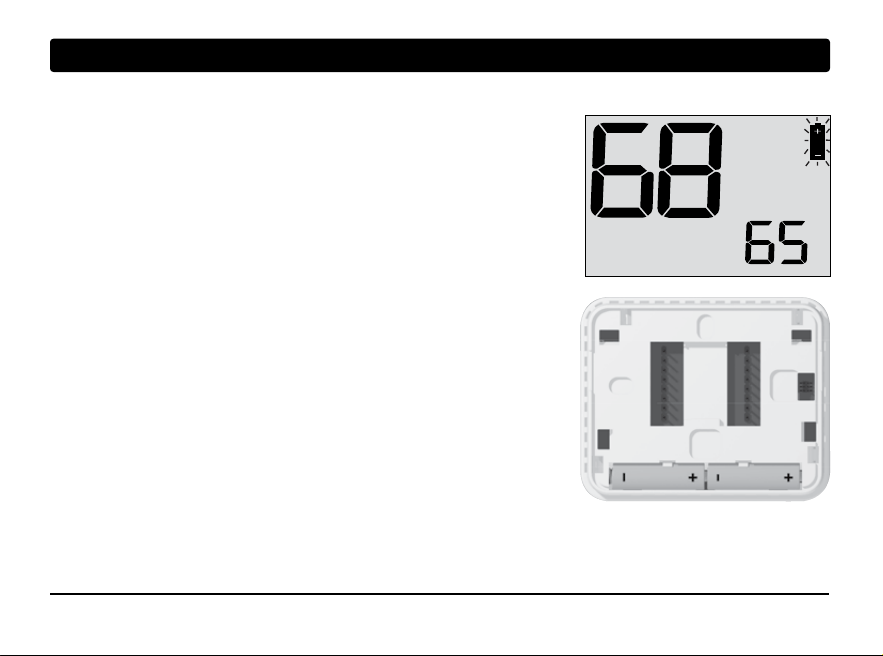

This thermostat requires 24 Volt AC Power or 2 properly installed “AA” Alkaline batteries for
proper operation. When connecting 24 Volt AC Power, the batteries may be installed as a backup.
For use only as described in this manual. Any other use will void warranty.
Terminations
1030: Rc, Rh, W1, Y1, G, O, B, C
1230: Rc, Rh, W1/E, W2, Y1, G, O, B, L, C
This manual is for Installer use only - do not leave with end user.
