2
Thank you for purchasing the
Digital Body Weight Scale by Etekcity.
If you have any questions or concerns, please reach out to our
helpful Customer Support Team at support@etekcity.com. We
hope you enjoy your new scale!
3
Table of Contents
Package Contents
Specications
Safety Information
Function Diagram
Before First Use
Operation
Using the Scale
3
3
4
6
7
8
8
Replacing the Batteries
Cleaning the Scale
Troubleshooting
Warranty Information
Customer Support
10
10
11
13
15
Specications
Package Contents
Weight Capacity 400 lb / 180 kg / 28 st
Increments
100 g≤m<10 kg D=0.02 kg / 0.05 lb
10 kg≤m≤180 kg D=0.05 kg / 0.1 lb
Weight Units lb / kg / st
Minimum weight value 100 g
Platform Tempered Glass
Dimensions 11.8 x 11.8 x 0.96 in / 30.0 x 30.0 x 2.45 cm
Battery 3 x 1.5V AAA Batteries
Auto-Off 5 / 10 / 30 seconds
1 x Digital Body Weight Scale
3 x 1.5V AAA Batteries
1 x Quick Start Guide
4
Safety Information
• Check the scale before using. Do not use the scale if it is damaged
in any way.
• Do not strike or bang on the scale and do not use the scale if
there is a slight crack on the glass. Due to the nature of tempered
glass, the glass will shatter if there is a slight crack. If you see a
crack, contact Customer Support (see page 15).
• The glass platform is slippery when wet. Always make sure the
platform and your feet are dry before stepping onto the scale.
• Place the scale on a hard, flat surface.
• To weigh safely and accurately, stand with your feet shoulder-
width apart while on the scale. Do not stand on the edge of the
scale or jump on the scale.
Please read and follow all instructions and safety guidelines in
this manual.
READ AND SAVE THESE INSTRUCTIONS
General Use
5
• Avoid standing on the scale for a long period of time.
• Do not overload the scale. Maximum weight capacity is
400 lb / 180 kg / 28 st.
• Keep the scale in a cool area with low humidity. Keep the scale
away from heat sources, such as ovens or heaters.
• Store the scale horizontally, not vertically.
• For household use only. This scale is not intended for commercial
use.
• Handle with care.
• Do not mix new and old batteries.
• If the scale is not in use for a long period of time, remove the
batteries to extend the lifetime of the scale.
Batteries
8
Figure 1.4
Using the Scale
Operation
1. Place the scale on a hard, flat surface.
Note: Using the scale on soft surfaces such as carpets and mats will
result in inaccurate measurements.
2. Stand on the scale until the display flashes several times,
showing your nal measurement.
3. Measure Light Items
Measure items as light as 100 g, like packages or fruits, with
pinpoint accuracy. When “ ” is displayed , a minimum of
100 g can be weighed.
[Figure 1.4]
Note:
• Press the unit conversion button on the underside of the scale to switch
units between pounds (lb) , stone(st) and kilograms (kg).
10

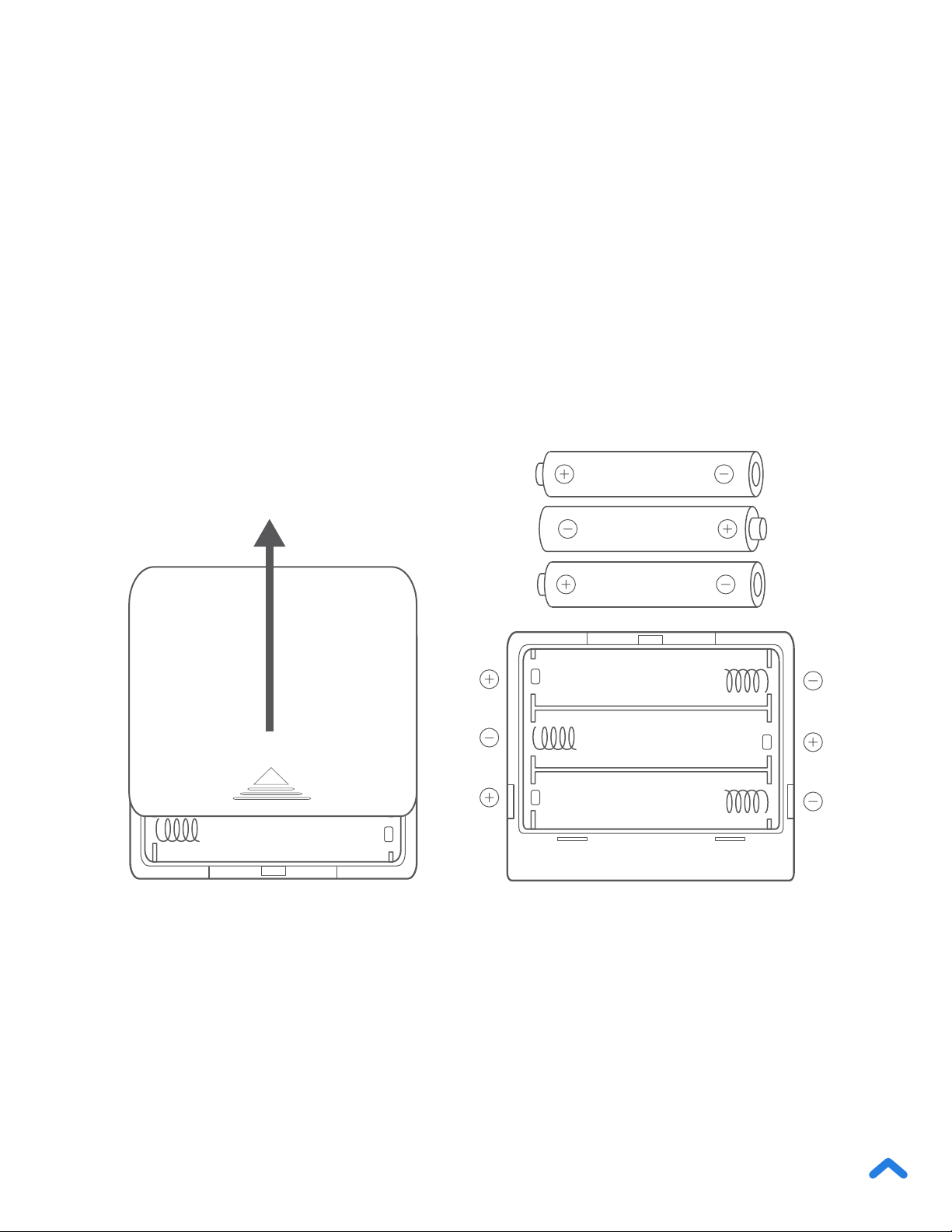

Replacing the Batteries
Cleaning the Scale
1. Open the battery compartment on the underside of the scale.
2. Remove the old batteries and dispose of them properly.
3. Install 3 new 1.5V AAA batteries. Make sure the polarities
match.
4. Close the battery compartment, place the scale on a hard,
flat surface.
1. Use a slightly damp cloth to clean the surface of the scale,
followed by a soft, dry cloth to wipe away the remaining
moisture.
2. Do not use chemical or abrasive cleaning agents to clean the
scale.
11
Troubleshooting
Problem Possible Cause Solution
Scale does not turn on.
Plastic strip is still in the
battery compartment.
Open the battery compartment cover
and remove the plastic strip.
Batteries are dead.
Replace the batteries. See Replacing
the Batteries (page 10).
Batteries are not properly
installed.
Insert batteries under the correct
polarity as marked on battery
compartment.
Display backlight does not
come on when stepping
on scale.
Scale may be malfunction-
ing.
Contact Customer Support
(see page 15).
Display shows “
”.
Weight exceeds 400 lb /
180 kg.
Remove weight from the scale. Use
a different scale with a higher weight
range.
Item being weighed is too
light.
Use a different scale to measure item.
Display shows “
”.
Battery power is low.
Replace the batteries. See Replacing
the Batteries (page 10).
Weight Verication
Display shows “
”.
When you see this icon, initial weight
is under verifying.
Display shows “
”.
When you see this icon, your
weight is veried.
Reading is inaccurate.
Scale is not on a level
surface.
Place scale on a level surface.
Scale was not cleared
properly.
Remove the batteries for 45 seconds
and replace them to reset the scale.
If your problem is not listed, please contact Customer Support (see page 15).
12
Etekcity Corporation hereby declares that this equipment is in compliance with the FCC
Part 15 Subpart B. The declaration of conformity may be consulted in the support section
of our website, accessible from www.etekcity.com
FCC SDOC SUPPLIER’S DECLARATION OF
CONFORMITY
Federal Communication Commission
Interference Statement – Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
13
Warranty Information
Product Digital Body Weight Scale
Model EBS-C121-KUS
For your own reference, we strongly recommend that you record your order ID and
date of purchase.
Order ID
Date of Purchase
TERMS & POLICY
Etekcity Corporation (“Etekcity”) warrants this product to the original purchaser
to be free from defects in material and workmanship, under normal use and
conditions, for a period of 2 years from the date of original purchase.
Etekcity agrees, at our option during the warranty period, to repair any defect
in material or workmanship or furnish an equal product in exchange without
charge, subject to verication of the defect or malfunction and proof of the date
of purchase.
There is no other express warranty. This warranty does not apply:
• If the product has been modied from its original condition;
• If the product has not been used in accordance with directions and
instructions in the user manual;
• To damages or defects caused by accident, abuse, misuse or improper or
inadequate maintenance;
• To damages or defects caused by service or repair of the product performed
by an unauthorized service provider or by anyone other than Etekcity;
• To damages or defects occurring during commercial use, rental use, or any
use for which the product is not intended;
• To damages or defects exceeding the cost of the product.
14
Etekcity will not be liable for indirect, incidental, or consequential damages in
connection with the use of the product covered by this warranty.
This warranty extends only to the original consumer purchaser of the product
and is not transferable to any subsequent owner of the product regardless of
whether the product is transferred during the specied term of the warranty.
This warranty does not extend to products purchased from unauthorized sellers.
Etekcity’s warranty extends only to products purchased from authorized sellers
that are subject to Etekcity’s quality controls and have agreed to follow its quality
controls.
All implied warranties are limited to the period of this limited warranty.
This warranty gives you specic legal rights and you may also have other
rights which vary from state to state. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
If you discover that your product is defective within the specied warranty period,
please contact Customer Support via support@etekcity.com. DO NOT dispose
of your product before contacting us. Once our Customer Support Team has
approved your request, please return the product with a copy of the invoice and
order ID.
Every Etekcity product automatically includes a 2-year warranty. To make the
customer support process quick and easy, register your product online at
www.etekcity.com/warranty.
This warranty is made by:
Etekcity Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
15
Customer Support
If you encounter any issues or have any questions regarding your
new product, please contact our helpful Customer Support Team.
Etekcity Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
Toll-Free: (855) 686-3835
Email: support@etekcity.com
Support Hours
Mon–Fri, 9:00 am–5:00 pm PST/PDT
*Please have your order invoice and order ID ready before contacting
Customer Support.
