Model Number:
RHBM3201 (MB)
Family Built in Digital Microwave
User Guide
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
PLEASE RETAIN
FOR FUTURE REFERENCE
Page(s)
SAFETY INSTRUCTIONS
3-9
ABOUT YOUR MICROWAVE
10-11
PRODUCT INFORMATION
12
UNPACKING THE MICROWAVE
13
PRODUCT OVERVIEW
14
MICROWAVE OVEN INSTALLATION
15-21
TURNTABLE INSTALLATION
22-23
CONTROL PANEL
24
HOW TO USE THE MICROWAVE
25-36
COOKING TIPS
37
CLEANING THE MICROWAVE
38
PROBLEM SOLVING
39-42
GUARANTEE & CUSTOMER SERVICES
43
SPARE PARTS
44
CONNECTION TO THE MAINS SUPPLY
45-46
NOTES
47
DISPOSAL
48
CONTENTS
2
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• This appliance is intended to be used in the household
and general domestic applications. It is not intended to
be used in industrial or commercial applications.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervised.
• If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
• It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to microwave energy.
• Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
4
SAFETY INSTRUCTIONS
WARNING:
• A minimum clearance of 20cm is required between the
oven and the side walls and 0cm between the oven and
the back wall. Leave a minimum clearance of 30cm
above the oven.
• Use only cookware and utensils that are approved for
use in a microwave oven.
• When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
• This microwave is intended for heating food and
beverages only. The drying of food or clothing and
heating of warming pads, wheat bags, slippers, sponges,
damp cloth and similar is extremely dangerous and may
lead to risk of injury, ignition or fire.
• If materials inside the oven smoke or catch fire, keep the
oven door closed to stifle the flames, turn the oven off
at the wall switch, or shut the power off at the fuse or
circuit-breaker panel. If smoke is emitted , switch off or
unplug the appliance and keep the door closed in order
to stifle any flames.
• Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
5
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns. Do not
heat baby bottles with the teat left on. Remove it if
replacing the bottle back into the oven.
• Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
• The oven should be cleaned regularly and any food
deposits removed.
• Failure to maintain the oven in a clean condition,
especially if liquid is left under the turntable, could lead
to deterioration of the surface that will adversely affect
the life of the appliance that may result in a
hazardous condition.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
6
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• To avoid fire, electric shock, or injury, never immerse the
microwave, cord, or plug in water or liquid.
• Do not use attachments not recommended by the
manufacturer. Only use thermometers approved for use
in microwaves.
• The appliance and its accessible parts may become hot
during use. Care should be taken to avoid touching
heating elements.
• Do not leave the microwave oven unattended while you
are using it.
• Do not use the microwave when it is empty. This could
damage the oven.
• Do not use metal pans, dishes with metal handles or
anything with a metal trim inside the microwave. Do not
use paper covered wire twist-ties on plastic bags.
• Never put objects into the openings on the outer case.
• Food containing a mixture of fat and water (for example,
stock) should stand for 30 to 60 seconds in the oven
after it has been turned off. This is to allow the mixture
to settle and to prevent it from bubbling when a spoon is
placed in it, or a stock cube is added.
7
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• When heating or cooking food or liquid, remember
that there are certain foods (such as, jam, Christmas
pudding, and mincemeat) which heat up very quickly.
• Do not cook any food surrounded by a membrane, such
as egg yolks, potatoes, chicken livers, sausages,
ready meals and so on without piercing them several
times with a fork.
• Do not try to deep-fry foods in this microwave oven.
• Do not overcook food.
• Please remember that as food or liquids heat up,
they will release steam or may be spitting. Never cover
any container fully, always leave a gap for steam to
escape.
• Do not use plastic containers when heating or cooking
foods that contain a lot of fat or sugar.
• Always have the glass tray and turntable support in
place when using the microwave oven.
• Do not cook food directly on the glass tray. Put food on
a suitable plate or in a bowl before putting it in the oven.
8
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• When using the grill rack and baking tray, be aware that
these will become HOT during cooking as they aren’t
heatproof. Please use suitable oven gloves when
removing these.
• Do not use melamine dishes as they contain a
material which will absorb microwave energy. This may
cause the dishes to crack or burn, and will slow down
the cooking speed.
• Do not use the microwave oven for heating utensils,
plates or dishes.
• Do not cook using a container with a restricted
opening, such as bottles, as they may explode.
• Before you clean your microwave oven, turn it off and
unplug it.
• Keep the inside of the oven clean. When food or
liquids stick to the oven walls, wipe with a damp
cloth. We recommend that you do not use harsh
detergent or abrasives.
9
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• On the right hand wall of the cavity is the wave
guide cover, microwaves are passed through this to
enable your food to cook. It is important that this
wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
• You should clean the outside of the oven with a
damp cloth. Do not allow water to seep into the
ventilation openings.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
• If steam builds up inside or around the outside of the
oven door, wipe with a soft cloth. This may happen
when the microwave oven is used in humid conditions.
• Regularly remove the glass turntable to clean it, wash
it in warm soapy water or a dishwasher. Regularly
clean the turntable support and oven floor. Simply
wipe the bottom surface of the oven with mild
detergent and water, then dry. You can wash the
turntable support in mild soapy water.
ABOUT YOUR MICROWAVE
10
Thank you for purchasing your Russell Hobbs microwave oven.
The Russell Hobbs RHBM3201 microwave has a sleek and stylish
contemporary design, boasting an attractive mirror finish door. As
well as an appealing look, this appliance also boasts impressive
functionality, with 1000 watts of microwave power providing quick
and convenient cooking in your home.
The RHBM3201 comfortably fits a standard size of dinner plate – up
to 12.5” diameter. It comes with a removable and dishwasher safe
glass turn-table for easy cleaning.
Pre-programmed auto cook menus, such as reheat, fish, and
popcorn, allow you to cook all your favourite foods at the push of a
button. What’s more, there’s automatic defrost settings meaning all
you have to do is input the weight of the food, and the microwave
selects the ideal defrost time, saving you time and effort. 5
microwave power levels enable tailoring of your cooking
experience.
Additional features include a handy digital clock and timer function,
and for added peace of mind, the RHBM3201 features a child safety
lock option.
ABOUT YOUR MICROWAVE
How do microwaves work?
Microwaves are high-frequency electromagnetic waves similar to
radio waves. While radio waves may vary in length from one metre
to many kilometres, microwaves are very short (less than 12.5
centimetres.)
Microwaves do not make any heat themselves but cause water
molecules in food to vibrate.
This vibration produces heat that cooks the food. This is why your
food will come out of the microwave piping hot, when your utensils
inside the oven stay much cooler. The microwaves do not stay in the
air or in the food when you open the microwave oven door.
The microwave oven will work using an ordinary household
electrical socket. Inside the microwave oven is the magnetron,
which turns the electrical energy into microwaves.
Microwaves cannot travel through metal, so the inside of the oven
is lined with metal. The door is lined with a fine metal mesh which
stops microwaves getting through. This means that when the
microwave oven door is shut, there is no possibility that
microwaves can be released.
11
12
PRODUCT INFORMATION
*Internal volume is calculated by measuring maximum width,
depth and height. Actual capacity for holding food is less.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
Imported by
G2S Ltd
Wigan
WN2 4AY
Rated Voltage 230V~/50Hz
Rated Microwave Output Power 1000W
Rated Grill Output Power 1100W
Rated Convection Output Power 2500W
Oven Capacity 32L*
Before you use your microwave oven
1. Remove all the packaging. Do not remove the small piece of card
from the right hand side of the cavity wall. This is called a wave-
guide cover and allows the microwaves to pass through to cook the
food.
Please ensure you keep this cover clean at all times by wiping with
a damp cloth. Do not remove/place in a dishwasher.
2. Check the oven after unpacking for any visual damage such as:
● A misaligned door
● Damage to the door
● Dents or holes in the door window and screen
● Dents in the inside
If you can see any damage do not use the oven, please contact
Product Care at www.productcare.co.uk or call 0345 209
7461.
This microwave oven weighs approximately 21.5Kg so you must put
it on a horizontal surface that is strong enough to support this
weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
UNPACKING THE MICROWAVE
13
14
PRODUCT OVERVIEW
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
1. Safety interlock latches
2. Door assembly and window
3. Glass turntable
4. Oven cavity
5. Microwave top
6. Wave guide cover (do not
remove)
7. Screen display
8. Control panel
9. Turntable coupling
10. Turntable ring
1
2
3
4
5
6
7
8
9
10
15
MICROWAVE OVEN INSTALLATION
• Place the oven as far away from radios and televisions as
possible. Using the oven may cause interference with the
reception.
• Plug the oven into a suitable 13 amp mains socket, make
sure the voltage is the same as on the rating label (do not use
extension cables or mains socket adaptors.)
• The built-in cabinet should not have a rear wall behind the
appliance. Minimum installation height is 85cm.
• Measure the opening for the microwave and remove all loose
items, like the turntable, from the microwave
• Do not cover ventilation slots and air intake points.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
16
MICROWAVE OVEN INSTALLATION
Important note:
This appliance must be correctly installed by a suitably qualified
person, strictly in accordance with the manufacturer’s instructions
Important note:
The manufacturer declines any responsibility for injury or damage,
to a person or property, as a result of improper use of installation
of this appliance.
Important note:
Heat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for a
prolonged period of time, then additional ventilation may be
required.
Important note:
Please consult with a qualified installer if you are in any doubt
about the ventilation that you will require.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
17
MICROWAVE OVEN INSTALLATION
Do not obstruct
the ventilation
from the microwave
Important note:
This appliance must be correctly installed by a suitably qualified
person, strictly in accordance with the manufacturer’s instructions.
Installation components
SCREW
TRIM KIT PLASTIC COVER
Product dimensions (including frame kit)
Height: 388mm
Width: 595mm
Depth: 467mm
Aperture dimensions
Height: 380mm
Width: 560 - 570mm
Depth: 550mm
18
MICROWAVE OVEN INSTALLATION
Aperture and ventilation requirements

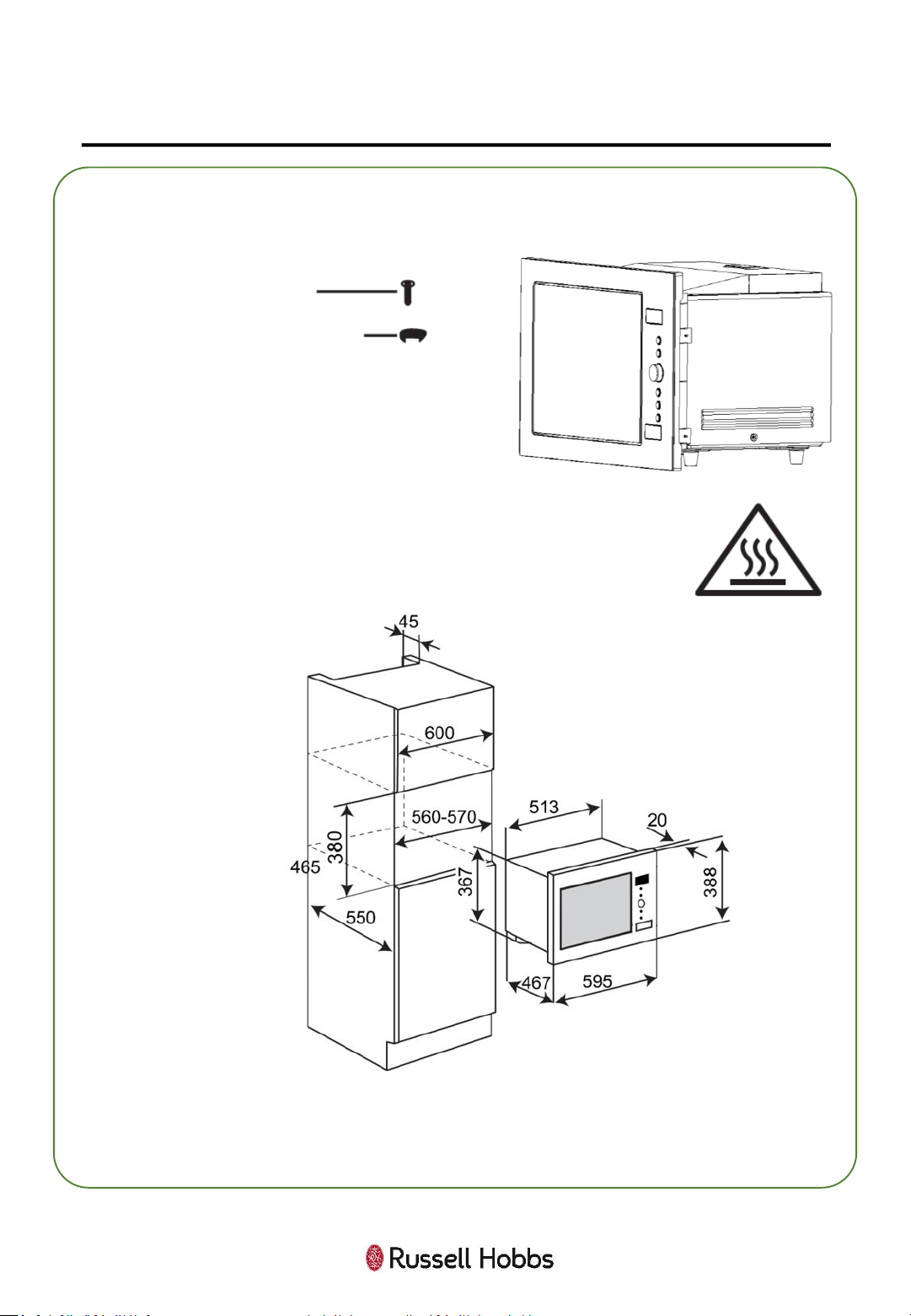

• The diagram below shows the aperture and ventilation
requirements that you require to build the appliance into a
housing unit.
• Ensure that the rear panel of the furniture housing unit has
been removed.
• This oven may be installed without any additional ventilation
cut outs being made in the housing unit. However, the
ventilation cut shown in the diagram MUST be present,
otherwise the microwave oven may not function correctly.
• Do not cover the ventilation slots or air intake points.
All measurements are in millimetres (mm)
19
MICROWAVE OVEN INSTALLATION
Built in under requirements
Important: No other methods of building under the microwave
are sanctioned by the manufacturer
• The rear wall of the housing unit MUST be removed to allow
there to be the correct amount of ventilation
• The ventilation gaps below the support shelf and below the
worktop must be adhered to.
• An induction hob MUST NOT be fitted above the microwave.
• It is not necessary to have a storage drawer fitted underneath
the microwave: this is shown purely as an example in the
drawing above.
Warning: the microwave will get hot during operation: care
should be taken not to accidentally come into contact with the
outer surface.
All measurements are in millimetres (mm)
20
MICROWAVE OVEN INSTALLATION
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
Prepare the cabinet
Step 1

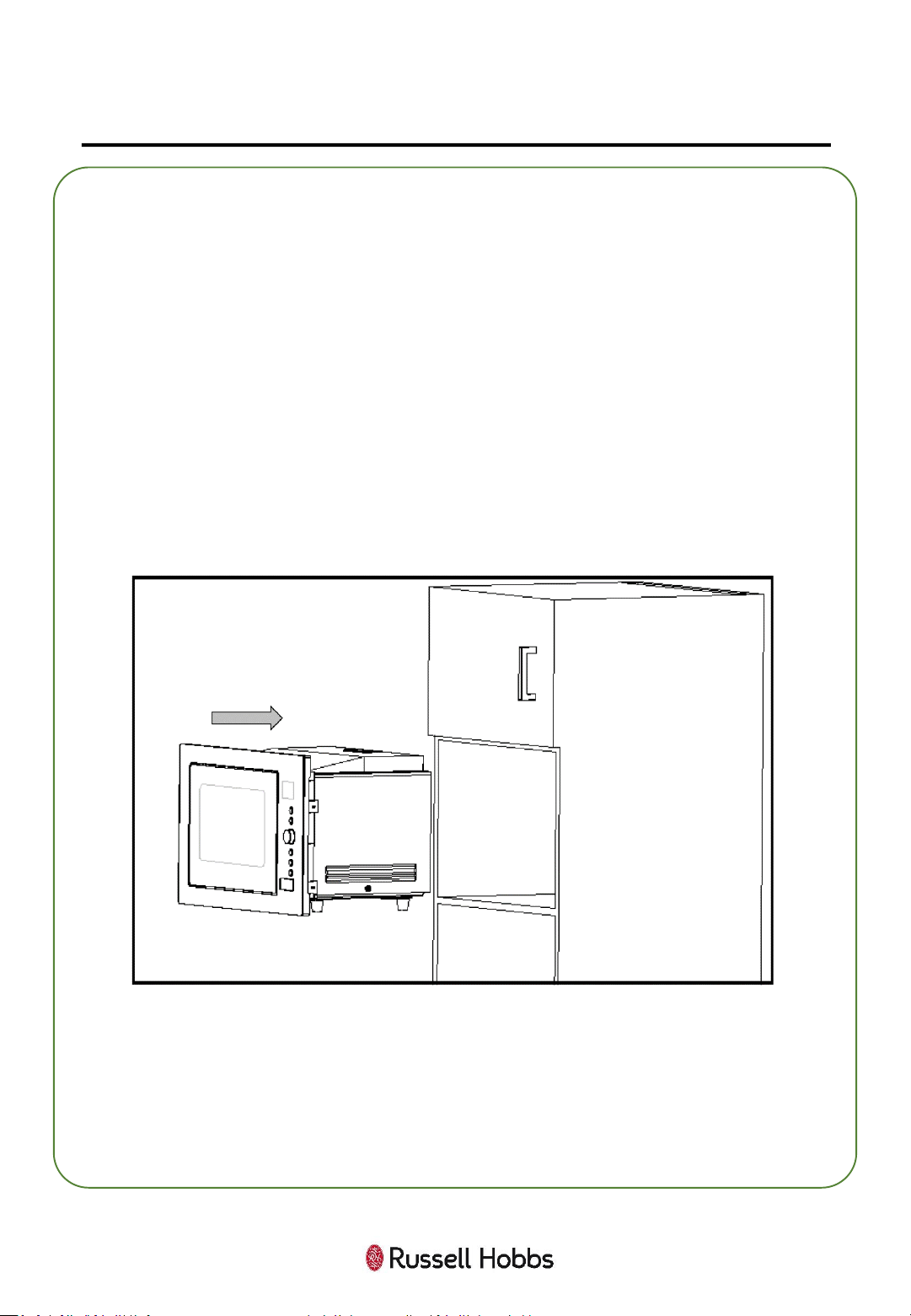

Place the microwave into the housing unit and push the
microwave fully into the housing unit
Push the microwave fully into the housing unit
Important: do not trap or kink the power cord and make sure
that the oven is installed in the centre of the cabinet.
21
MICROWAVE OVEN INSTALLATION
Step 2
Open the door and fit the oven to the housing unit with the
SCREW at the INSTALLATION HOLE of TRIM KIT.
Important: Do not push the microwave fully into the housing
unit, as you still need to be able to access ADJUSTMENT SCREW
A at this stage.
Adjust the height of ADJUSTMENT SCREW A to keep a 1mm gap
between ADJUSTMENT SCREW A and the underneath of the top
surface of the housing unit.
Push the microwave fully into the housing unit
Important: do not trap or kink the power cord and make sure
that the oven is installed in the centre of the cabinet.
Step 3
Fit the TRIM-KIT PLASTIC COVER over the INSTALLATION HOLE.
TRIM KIT PLASTIC COVER
SCREW
HOLE

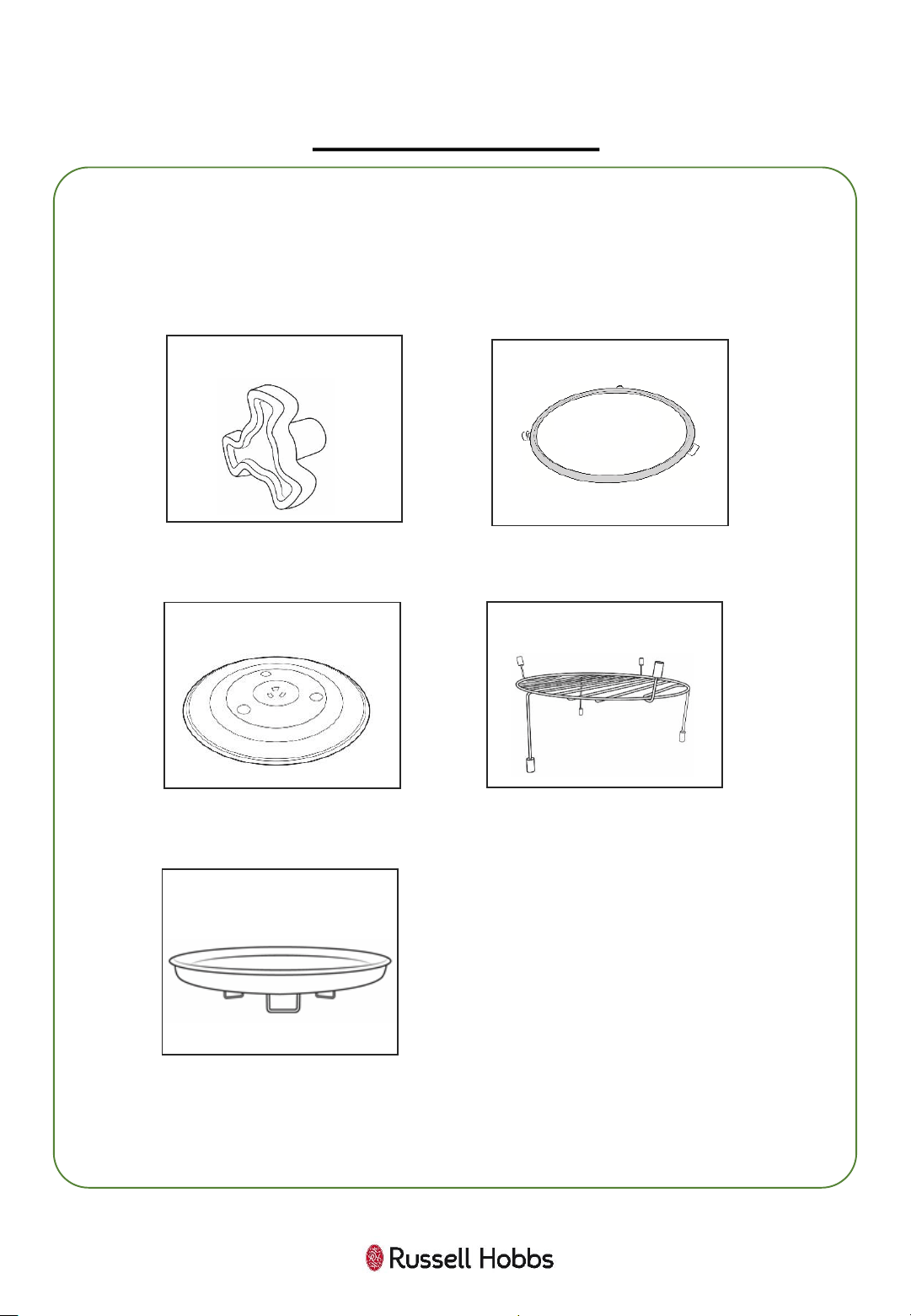

STEP 1 The turntable coupling should slot into the centre of microwave
STEP 2) T he turntable ring slots into the indents in the microwave base
STEP 3 The glass tray should align with the turntable coupling
22
TURNTABLE INSTALLATION
• Before first use, check that any securing tape and all packaging
has been removed from the glass tray and turntable ring
assembly.
• These parts must never be restricted from rotating.
• Never place the glass tray upside down.
• To assemble the turntable, follow the steps below in number
order.
23
TURNTABLE INSTALLATION
The glass tray, turntable ring, and turntable coupling assembly
must always be used during cooking (as shown below).
• Do not place the food directly onto the glass tray, always place
on or in suitable microwaveable cookware.
Please check that crockery is microwave safe before using.
• If the glass tray or turntable ring assembly has been
damaged in any way, contact Product Care using the below:
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
24
CONTROL PANEL
SCREEN DISPLAY
Cooking time, power, action
indicators, and clock time are
displayed.
MICRO./GRILL/COMBI/CONV.
Press this button to use the microwave,
grill, combination and convection
cooking. The grill element is located on
the top of the cavity and an element at
the back of the unit is used for
convection cooking
WEIGHT/TIME DEFROST
Press this button for the defrost
function.
TIMER/WEIGHT/AUTO MENU
This rotational dial is used for a number
of functions. Turn the dial to access the
auto menu
TIMER/CLOCK
Press this button to set the clock and
timer
STOP/CLEAR
Press the Stop/Clear button to clear
everything.
START/+30 SEC./CONFIRM
Press this button to start the cooking
process.
25
HOW TO USE THE MICROWAVE
Clock Setting
When the microwave oven is first turned on, the oven will display "0:00", the
buzzer will ring once.
1. Press “TIMER/CLOCK” twice to choose hours or minutes for alteration. The
hour figures will flash. When altering the hours the ‘’0’’ on the Left Hand
Side will flash.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the hour figures,
the input time should be within 0 - 23(this is a 24-hour clock).
3. Press "TIMER/CLOCK“ button again and the minute figures will flash.
4. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the minute figures,
the input time should be within 0 - 59 (60-minutes).
5. Press "TIMER/CLOCK" to finish the clock setting procedure. The ":" will
then flash.
Note:
1) If the clock is not set, the microwave will not function when powered.
2) During the process of clock setting, if you press " STOP/CLEAR ", the oven
will go back to the previous status.
Important note:
To remove any residue from the oven that may have been left from the
manufacturing process, you should place a cup that is half filled with water
in the microwave.
Set the microwave on its highest power level for 2 minutes, the cup and
water will be hot so care must be taken when removing it from the oven.
afterwards
26
HOW TO USE THE MICROWAVE
Microwave Cooking
1. Press the “MICRO./GRILL/COMBI/CONV.” button once, and “P100” will
display and flash.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to select the microwave
power. "P100", "P80","P50", "P30","P10"will be displayed.
or
Press the “MICRO./GRILL/COMBI/CONV.” button to scroll through the power
levels.
3. Press “START/+30SEC/CONFIRM“ to confirm.
4.Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking
time.(The time setting should be between 0:05- 95:00.)
5. Press "START/+30SEC/CONFIRM" to start the cooking process.
6. If you have set the incorrect power level or time, press the stop/clear
button and the display will return to showing the time of day.
To stop the cooking process simply press the “STOP/CLEAR” button.
Press power button
Cooking power Equivalent power
rating
P100 100% 1000 W
P80 80% 800 W
P50 50% 500 W
P30 30% 300W
P10 10% 100W
27
HOW TO USE THE MICROWAVE
Speedy Cooking
Press the "START/+30SEC/CONFIRM" button to microwave cook at
100% power level for 30 seconds.
The microwave will start cooking immediately.
Each press on the same key will increase the cooking time by 30
seconds. The maximum cooking time is 95 minutes.
Note: this function does not work for defrost, auto menu and multi-
stage cooking.
or
Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the desired
cooking time, then press "START/+30SEC/CONFIRM" . The oven will
start cooking for the selected length of time at 100% power.
Defrosting by Weight
1) Press " WEIGHT DEFROST " button once, the oven will display
"dEF1“.
2) Turn the “TIMER/WEIGHT/AUTO MENU” dial to select the weight
of the food in grams. The weight should be set between 100-2000g.
3) Press "START/+30SEC/CONFIRM" button to start defrosting.
Defrosting by Time
1) Press " TIME DEFROST " button twice, the oven will display
"dEF2“.
2) Turn the “TIMER/WEIGHT/AUTO MENU” dial to select the
defrosting time, the maximum time is 95 minutes.
3) Press "START/+30SEC/CONFIRM" button to start defrosting.
The defrosting power is 30%, and cannot be changed.
28
HOW TO USE THE MICROWAVE
Grill Cooking
1. Press the “MICRO./GRILL/COMBI/CONV.” button 6 times and “G-1” is
displayed on the screen.
or
Press the “MICRO./GRILL/COMBI/CONV.” and turn the
“TIMER/WEIGHT/AUTO MENU” until “G-1” is displayed on the screen.
2. Press the “START/+30 SEC./CONFIRM“.
3. Turn “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time.
(The time setting should be 0:05- 95:00.)
4. Press “START/+30 SEC./CONFIRM“ button to start the cooking process.
5. If you have set the incorrect power level or time, press the stop/clear
button and the display will return to showing the time of day.
6. Half way through the grill time, the unit will sound twice to tell you to
turn the food over. In order to achieve more even grilling , you should turn
the food over, close the door, and then press “START/+30 SEC./CONFIRM“
to continue cooking.
7. At the end of the cooking time, your microwave will beep and the
display will return to showing the time of day.
Important note: The grill element should be preheated to ensure optimum
operation and cooking. The recommended preheat time is 10-15 minutes
Important note: The inside of the microwave and the food that you have
been cooking may be extremely hot. So care should be taken when
removing items from the microwave. We would recommend that you use
an oven glove.
Important note: After the food has been removed from microwave, you
should ensure that the door is closed
29
HOW TO USE THE MICROWAVE
Combination Cooking (Microwave + Convection)
1) Press the “MICRO./GRILL/COMBI/CONV.” button 7 times and “C-1” is
displayed on the screen.
or
Press the “MICRO./GRILL/COMBI/CONV.” and turn the
“TIMER/WEIGHT/AUTO MENU” until “C-1” is displayed on the screen.
2) Press the “START/+30 SEC./CONFIRM“ button to confirm.
3) Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time.
(The time setting should be 0:05- 95:00).
4) Press “START/+30 SEC./CONFIRM” button to start the cooking process.
5) If you have set the incorrect power level or time, press the stop/clear
button and the display will return to showing the time of day.
For the operation of each setting is detailed below:
Important note: The inside of the microwave and the food that you have
been cooking may be extremely hot. So care should be taken when
removing items from the microwave. We would recommend that you use
an oven glove.
Important note: After the food has been removed from microwave, you
should ensure that the door is closed
Display
Microwave time
900W
Grill time
1100W
Convection time
2400W
C
1
● ●
C
2
● ●
C
3
● ●
C
4
● ● ●
30
A-6
Potato
200
100%
HOW TO USE THE MICROWAVE
Convection Cooking (with preheating function)
The convection cooking allows you to cook food using the unit as a
traditional oven, the microwave function is not used. It is recommended
that you preheat the oven to the appropriate temperature before placing
the food in the oven.
1. Press the “CONVECTION” button once, and “140°C”, the cooking
temperature will flash.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to select the desired
convection function temperature. Note: the temperature can be chosen
from 140 degrees to 230 degrees, in 10 degree intervals.
3. Press the “START/+30 SEC./CONFIRM“ button to confirm the chosen
temperature.
4. Press the “START/+30 SEC./CONFIRM“ button to start the preheating.
When the preheating temperature is reached, the buzzer will sound twice to
remind you to place the food in the oven. The preheated temperature will
display and flash. Open the door and place the food in the microwave oven,
then close the door.
5. Turn “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time. (The
maximum time available is 95 minutes.)
6. Press the “START/+30 SEC./CONFIRM“ button to start cooking.
7. If you have set the incorrect power level or time, press the stop/clear
button and the display will return to showing the time of day.
Note:
a. The cooking time cannot be put in until the preheating temperature is
achieved, once the temperature is achieved the door must be opened to
input the cooking time.
b. If the time is not put in during 5 minutes of reaching the temperature, the
oven will stop preheating. The buzzer will sound five times and turn back to
the waiting state.
31
HOW TO USE THE MICROWAVE
c. If the time is not put in during 5 minutes of reaching the temperature,
the oven will stop preheating. The buzzer will sound five times and turn
back to the waiting state.
Convection Cooking (without pre-heating function)
1. Press the “MICRO./GRILL/COMBI/CONV.” button 11 times, and “140”,
the cooking temperature will flash.
or
Press the “MICRO./GRILL/COMBI/CONV.” and turn the
“TIMER/WEIGHT/AUTO MENU” until “140” is displayed on the screen.
Note: the temperature can be chosen from 140 degrees to 230 degrees, in
10 degree intervals.
3. Press the “START/+30 SEC./CONFIRM“ button to confirm the chosen
temperature.
4. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time
(the maximum setting time is 95 minutes).
5. Press the "START/+30SEC./CONFIRM" key to start cooking.
6. If you have set the incorrect power level or time, press the stop/clear
button and the display will return to showing the time of day.
Important note: If you wish to change the temperature during the cooking
process, the “STOP/CLEAR” button must be pressed twice to exit the
current convection cooking process. Then the convection process can be
started again and the new required temperature and time entered.
Important note: The inside of the microwave and the food that you have
been cooking may be extremely hot. So care should be taken when
removing items from the microwave. We would recommend that you use
an oven glove.
32
HOW TO USE THE MICROWAVE
Important note: After the food has been removed from microwave, you
should ensure that the door is closed.
Interrupting a cooking cycle
1. If you wish to temporarily interrupt a cooking cycle when it is in progress
(for example to stir what you are heating), you should press the door
button.
2. The door of the microwave will open and it will stop heating
immediately.
3. To restart the cooking cycle, close the microwave door and then press
the start button.
33
HOW TO USE THE MICROWAVE
Multi-Stage Cooking
A maximum of two different stages. To set a maximum of two different
stages. For instance, to defrost an item and the follow it with the cooking
cycle.
Note: The buzzer will ring once after each stage and then the next stage will
proceed.
Note: The Auto menu or the pre-heating functions cannot be set as one of
the multi-stage cooking.
If one of the stages is for defrosting this should be programmed to come on
first .
Example: if you want to defrost 500g of food or by 1 minute, then cook it at
80% microwave power for 7 minutes. The steps are as follows:
1) Press “ WEIGHT/TIME DEFROST “ button once and the screen will display
“dEF1”, press the button once and the screen will display “dEF2”.
2) Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the defrost weight
to 500g or 1:00 minute;
3) Press the “MICRO./GRILL/COMBI/CONV.” button once;
4) Turn the “TIMER/WEIGHT/MENU” dial to choose 80% microwave power
until it displays "P80“.
5) Press "START/+30SEC/CONFIRM“ button to confirm;
6) Turn the “TIMER/WEIGHT/MENU” dial to adjust the cooking time to 7
minutes;
7) Press the "START/+30SEC/CONFIRM“ button to start the cooking process.
34
HOW TO USE THE MICROWAVE
Auto Menu
The microwave can automatically calculate the cooking time based on
the type of food and weight.
1) Turn the "TIMER/WEIGHT/AUTO MENU“ dial in a clockwise direction
and "A-1" will display on the screen. Turn the “TIMER/WEIGHT/AUTO” dial
clockwise to choose the required function, and "A1","A2","A3"...."A10"
will be displayed.
2) Press the "START/+30 SEC./CONFIRM" button to confirm the menu you
need A1-A10.
3) Turn the "TIMER/WEIGHT/AUTO MENU“ dial to choose the food
weight, these are pre-set and listed in the table on the next page.
4) Press the "START/+30SEC/CONFIRM" button to start cooking. Please
see the table below for the various settings.
Note: When you choose A9 cake, please do not put the cake mix in to the
oven immediately. The oven needs to be preheated to 180 degree first.
After several minutes, the buzzer sounds twice to remind you to put the
cake into the oven. After putting the cake in the oven, please press start
again. The timer will count down, and the cake will be cooked perfectly.
35
HOW TO USE THE MICROWAVE
Menu
Weight(g) Display
Power
A1 VEGETABLE
150 150g
100%
350 350g
500 500g
A2 FISH
150 150g
80%
250 250g
350 350g
450 450g
650 650g
A3 MEAT
150 150g
100%
300 300g
450 450g
600 600g
A4 PASTA
50(with cold water 450g) 50g
80%
100(with cold water
800g)
100g
150(with
cold water
1200g)
150g
A5 POTATO
1(approx.230g)
1
100%
2(approx.460g) 2
3(approx.690g) 3
A6 SOUP
200ml 200g
100%
400ml 400g
600ml 600g
A7 ROAST CHICKEN
800 800g
100%Micro/Conve.
to 220
1000 1000g
1200 1200g
A8 TOAST
50 50g
Grill
100 100g
150 150g
A9 CAKE
475 475g
Conve
.to 180 with
preheat
A10 PIZZA
200 200g
100%Micro/Conve.
to 220
300 300g
400 400g
36
HOW TO USE THE MICROWAVE
Checking Functions
1) During the cooking cycle, press the “MICRO./GRILL/COMBI/CONV.”
button and the current power will be displayed for 2-3 seconds.
2) During a combination cycle, press the
“MICRO./GRILL/COMBI/CONV.” button and the current combination
method will be displayed for 2-3 seconds.
3) During the cooking cycle, press the “TIMER/CLOCK“ button to check
the current time. It will be displayed for 2-3 seconds.
Child lock
Lock on: In standby, when nothing is operating, Hold the "STOP/CLEAR“
button for 3 seconds, there will be a long "beep" as the lock activates. A
green rectangle will illuminate in the display.
Lock off: In locked state, hold the "STOP/CLEAR" button for 3 seconds,
there will be a long "beep“ and the door will unlock.
The current time will continue to display.
When the child lock is on, no functions can be activated.
General information
• The buzzer will sound once when turning the knob at the beginning;
• The "START/+30SEC/CONFIRM" button must be pressed again to
continue cooking if the door is opened during a cooking cycle.
• Once the cooking programme has been set, if the
"START/+30SEC/CONFIRM" button is not pressed within 5 minute the
current time will display and the setting will be cancelled.
• The buttons will beep if they are pressed correctly, if not pressed
correctly they will not beep.
• The buzzer will sound five times to remind you when cooking is
finished.
Defrosting tips
Microwaves penetrate around 4cm into most food. To maximize defrosting
effectiveness follow the below guidelines:
1. For thick foods, turn regularly during operation in order to defrost evenly.
2. If food weighs over 500g, it is advised to turn at least 2 times.
3. Defrosted food should be consumed as soon as possible, it is not
advisable to put back into the fridge or freeze again.
Cooking tips - The following may affect cooking results:
Food arrangement
If possible, thicker bits of food should be placed around the outside of the
dish and the thinner parts toward the centre, spread out as evenly as
possible. Do not overlap food if possible as this could result in uneven
cooking results.
Cooking time
If you are unsure of cooking times it is advisable to start with a short
cooking time and monitor cooking progress before adding further time.
Overcooking could lead to a risk of fire. Ensure food is cooked thoroughly
before consuming.
Cooking food evenly
Foods such as meat should be turned frequently to ensure more even
cooking results. If the food is liquid based, stirring during the cooking time is
advisable.
Allow standing time
When the microwave has stopped cooking, leave the food to rest for an
adequate length of time to allow for cooking completion and cooling.
37
COOKING TIPS
38
CLEANING THE MICROWAVE
• Before you clean the oven, turn it off and unplug it.
• Keep the inside of the oven clean. When food or liquids stick to the oven
walls, wipe with a damp cloth. We recommend that you do not use harsh
detergent or abrasives.
• On the right hand side wall of the cavity is the wave guide cover,
microwaves are passed through this to enable your food to cook. It is
important that this wave guide cover is kept clean at all times. To do this
wipe with mild detergent and water, then dry.
• You should clean the outside of the oven with a damp cloth. Do not allow
water to seep into the ventilation openings.
• Do not allow the control panel to become wet. Clean with a soft, damp
cloth. Do not use detergents, abrasives or spray-on cleaners on the control
panel.
• If steam builds up inside or around the outside of the oven door, wipe with
a soft cloth. This may happen when the microwave oven is used in humid
conditions.
• Regularly remove the glass turntable to clean it, and wash it in warm soapy
water. Regularly clean the turntable support and oven floor. Simply wipe the
bottom surface of the oven with mild detergent and water, then dry. You
can wash the turntable support in mild soapy water.
• When removing the turntable support of the oven, make sure you put it
back properly.
• If the inside of the oven smells, put a cup of water with the juice and skin of
one lemon in a deep microwave bowl. Microwave it for three minutes, wipe
thoroughly and then dry with a soft cloth.
• Failure to maintain the oven in a clean condition, especially if liquid is left
under the turntable, could lead to deterioration of the surface that will
adversely affect the life of the appliance that may result in a hazardous
condition.
Problem Potential reason
Potential solution
If the
microwave
doesn’t work
1. Microwave is not
plugged in
Make sure the plug is plugged in securely into the
mains and the plug is switched on. If it is not, remove
the plug from the socket, wait 10 seconds and plug it in
again securely.
2. Plug is not working
The plug socket that the microwave is plugged into
may have become faulty. Plug the microwave into
another known good plug socket, ensure that the
socket is turned on and check if the microwave now
works.
3. The plug has a blown
fuse or the mains circuit
has a blown fuse/tripped
fuse
Check the plug for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be working
properly, test the socket with another appliance.
4. Microwave has
developed a fault
Contact customer services to talk through the problem
to see if any solution for the fault can be found. If not
and the product is within its warranty period, then the
microwave should be returned to the retailer it was
purchased from for a replacement or refund.
If the
microwave
power will not
work
1. Door is not closed
Make sure the door is securely closed. Otherwise, the
microwave will not engage or operate.
2. The power has not
been set/the timer dial
has not been turned
Set the microwave power by pressing the
'MICROWAVE' button. Select the time by turning the
dial and pressing ‘Start’ to confirm.
Not heating
Magnetron not working
The component that produces the microwaves is called
a magnetron, if food is not being heated or is 'luke'
warm then it is likely this component has developed a
fault.
If the microwave is within its warranty period, please
contact customer services for further advice or take
the microwave back to the retailer it was purchased
from for a refund or replacement.
39
PROBLEM SOLVING
The microwave oven may cause interference to your radio, TV or similar equipment. If
this happens, you can stop the interference by moving the radio, TV or equipment as far
away from your microwave oven as possible.
WARNING: To reduce the risk of personal injury, always
unplug the microwave before performing maintenance
or trouble shooting checks.
40
PROBLEM SOLVING
Problem Potential reason Potential solution
Sparking
1. Burnt on food
debris
Spillages or splashes can burn and catch fire, all food that is
put into the microwave should be appropriately covered. All
spillages or splashes must be cleaned, and all areas of
microwave cleaned after each use.
Burnt on food debris in the microwave, on the wave guide
and the behind the wave guide can cause the microwave to
'spark'. This is because burnt on debris can be focused on by
the microwaves and spark.
Microwaves must be thoroughly cleaned after every use to
ensure no food is burnt on to any part of the microwave.
2. Metal or foil
No metal or foil should be put inside a microwave as it can
cause 'sparking' which can damage the microwave.
The only metal accessories that should be used inside the
microwave are the ones supplied by the manufacturer.
3. Pressure build up in
food
Food with none porous skins (potatoes for example), must
be pierced to allow steam to escape. As the build up of
pressure can cause food to burst and create a 'fire hazard‘.
Heat spots
Operated empty or
with no moisture
Microwaves cannot be run empty, microwaves need
moisture to operate correctly.
If microwaves are operated empty or are used to heat up
plates (this is not permitted), the microwaves can focus on a
single point inside the microwave. This can cause a heat
spot, which can cause the area to become deformed,
warped or start to melt.
If microwaves are operated empty or to heat up foreign
objects this will void the warranty.
41
PROBLEM SOLVING
Problem Potential reason Potential solution
Condensation
or excess
water
1. Food that is being
cooked
By the very nature of how a microwave works, it ‘excites’
the water molecules in the food it is heating, causing
them to move about and generate heat from within the
food. Often when the food heats up it reaches the point
where steam is released. Dependent on the food type
being heated (and its water content level), the length of
time being heated for – and so the amount of steam
generated – it is inevitable that some of the steam will
condense and form back into water droplets within the
microwave cavity. This can usually be found on the inner
walls or most commonly on the back of the glass door. If
not cleaned up, these droplets can start to form small
‘pools’ of water.
2. Cooling vents covered
Cooling vents allow the heat and steam to escape from
the microwave. These cannot be covered as it can cause
excessive water to settle inside the microwave or the
microwave to overheat.
The installation instructions in the instruction manual
must be followed or the warranty will be void.
Paint damage/
peeling
Maintenance
If the microwave is within its warranty period, please
contact customer services for further advice or take the
microwave back to the retailer it was purchased from for
a refund or replacement.
Light not
working
Bulb not working
Due to the construction of microwaves and certain
'dangerous' components inside,
t
he light bulb can only be
changed by a qualified service engineer.
If the microwave is within its warranty period, please
contact customer services for further advice or take the
microwave back to the retailer it was purchased from for
a refund or replacement
Over heating
Cooling vents covered
Cooling vents allow the heat and steam to escape from
the microwave. These cannot be covered as it can cause
excessive water to settle inside the microwave or the
microwave to overheat.
The installation instructions in the manual must be
followed or the warranty will be void.
42
PROBLEM SOLVING
Problem Potential reason
Potential solution
Door not
shutting/
locking
1. Glass turntable
fitted incorrectly
Check that the glass turntable has been placed correctly
on the turntable and is not stopping the door from
shutting correctly.
2. Latches have
become deformed
If the microwave is within its warranty period, please
contact customer services for further advice or take the
microwave back to the retailer it was purchased from for a
refund or replacement.
Turntable not
rotating
1. Turntable coupling
not fitted or tape not
removed
Check that the turntable coupling is fitted correctly and
the transportation tape has been removed.
2. Turntable roller ring
not fitted or fitted
incorrectly
Check that the coupling has be placed under the turntable
and that it is position correctly.
3. Glass turntable
fitted incorrectly
Check that the glass turntable has been placed correctly
on the turntable.
4. Turntable has
developed a fault
If the microwave is within its warranty period, please
contact customer services for further advice or take the
microwave back to the retailer it was purchased from for a
refund or replacement.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
Too noisy
1. Glass turntable fitted
incorrectly
Check that the glass turntable has been placed correctly
on the turntable and is not hitting the walls/doors of the
microwave during operation.
2. Dishes/plate are too
large for the microwave
Check that the dishes/plates are the correct size for the
microwave and that they are not hitting the walls/door of
microwave during operation.
43
GUARANTEE & CUSTOMER SERVICES
At Russell Hobbs, we take all our customer feedback seriously.
Feel free to contact our Product Care Team, on 0345 209 7461
Monday – Friday: 8am-8pm & Saturday: 9am – 1pm,
who will be more than happy to assist you.
This product is guaranteed for 24 months from the date of the
original purchase. If any defect arises due to faulty materials or
workmanship, the faulty product must be returned to the place of
purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original
proof of purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended
use.
• This warranty does not cover wear and tear, damage, misuse
or consumable parts.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
44
SPARE PARTS
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
Or visit us at www.productcare.co.uk
To check the availability of the following spare parts, simply contact
our friendly Customer Services team using the details provided at the
bottom of this page.
Glass turntable
Turntable Ring
Grill rack
Baking tray
45
CONNECTION TO THE MAINS SUPPLY
WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of
230-240V~ 50Hz.
Check that the voltage marked on the product corresponds with
your supply voltage.
This product is fitted with a moulded 13A plug complying with
BS1363. If this plug is unsuitable or needs to be replaced, refer to
customer services as it should only be replaced by a qualified
engineer.
To replace the 13amp fuse, remove the plug from the socket,
remove the fuse cover near the pins of the plug, remove the fuse
and replace with 13amp fuse. Refit the fuse cover and plug the unit
back into the power supply.
Important: The wires in the mains lead are coloured in
accordance with the following code:
GREEN/YELLOW – EARTH
BLUE – NEUTRAL
BROWN – LIVE
46
CONNECTION TO THE MAINS SUPPLY
For UK use only – PLUG
• As the colours of the wires in the mains lead of this appliance
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
• The GREEN/YELLOW wire is the EARTH and must be connected
to the terminal which is marked with the letter E or by the earth
symbol or coloured GREEN or GREEN/YELLOW.
• The BLUE wire is the NEUTRAL and must be connected to the
terminal marked with the letter N or coloured BLACK.
• The BROWN wire is the LIVE wire and must be connected to
• the terminal marked with the letter L or coloured RED.
• Always ensure that the plug cord grip is fastened correctly.
• If a 13A (BS1363) fused plug is used it must be fitted with a
13amp fuse conforming to BS1362 and be BSI or ASTA approved.
If the fuse cover is lost the plug must not be used until a
replacement is obtained from an electrical supplier.
If you need to remove the plug, cut it from the mains lead and
dispose of it. NEVER attempt to re-use this plug or insert it into a
socket outlet, as there is a very great risk of electrical shock.
47
NOTES
48
Revision 7
This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is
marked on a product/batteries, it means that the product/batteries should not be
disposed of with your general household waste. Only discard
electrical/electronic/battery items in separate collection schemes, which cater for the
recovery and recycling of materials contained within. Your co-operation is vital to ensure
the success of these schemes and for the protection of the environment. For your
nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.
We reserve the right, due to possible changes to design, to alter the instruction manual
without prior notice.
For Customer Services & Spare
Parts please call
0345 209 7461
Opening times: Monday - Friday
8am – 8pm & Saturday 9am –1pm
Or visit us at
www.productcare.co.uk
