Safety instructions
3-9
About your microwave
10-11
Product information
12
Unpacking the microwave
13
Product overview
14
Microwave
oven installation
15-16
Turntable
installation
17-18
Control
panel
19
How to use the microwave
20-32
Cooking tips
33
Cleaning the microwave
34
Problem solving
35-38
Guarantee &
customer services
39
Spare parts
40
Connection to the mains supply
41-42
Notes
43
Disposal information
44
CONTENTS
2
3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
• It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to microwave energy.
• Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
• The appliance and its accessible parts may become hot
during use. Care should be taken to avoid touching
heating elements.
• Do not leave the microwave oven unattended while you
are using it.
• Do not use the microwave when it is empty. This could
damage the oven.
• This appliance is intended to be used in the household
and general domestic applications. It is not intended to
be used in industrial or commercial applications.
4
SAFETY INSTRUCTIONS
WARNING:
• This microwave is intended for heating food and
beverages only. The drying of food or clothing and
heating of warming pads, wheat bags, slippers, sponges,
damp cloth and similar is extremely dangerous and may
lead to risk of injury, ignition or fire.
• Do not use metal pans, dishes with metal handles or
anything with a metal trim inside the microwave. Do not
use paper covered wire twist-ties on plastic bags.
• Never put objects into the openings on the outer case.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge,
only if they are being supervised or have been given
instruction in the safe use of the appliance and
understand the hazards involved. Children should not
play with the appliance.
• Food containing a mixture of fat and water (for example,
stock) should stand for 30 to 60 seconds in the oven
after it has been turned off. This is to allow the mixture
to settle and to prevent it from bubbling when a spoon is
placed in it, or a stock cube is added.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
5
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• When heating or cooking food or liquid, remember
that there are certain foods (such as, jam, Christmas
pudding, and mincemeat) which heat up very quickly.
• Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
• The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns. Do not
heat baby bottles with the teat left on. Remove it if
replacing the bottle back into the oven.
• Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
• Do not cook any food surrounded by a membrane, such
as egg yolks, potatoes, chicken livers, sausages,
ready meals and so on without piercing them several
times with a fork.
• Do not try to deep-fry foods in this microwave oven.
• Do not overcook food.
• When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
6
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• If materials inside the oven smoke or catch fire, keep the
oven door closed to stifle the flames, turn the oven off
at the wall switch, or shut the power off at the fuse or
circuit-breaker panel. If smoke is emitted , switch off or
unplug the appliance and keep the door closed in order
to stifle any flames.
• Please remember that as food or liquids heat up,
they will release steam or may be spitting. Never cover
any container fully, always leave a gap for steam to
escape.
• Do not use plastic containers when heating or cooking
foods that contain a lot of fat or sugar.
• Always have the glass tray and turntable support in
place when using the microwave oven.
• Do not cook food directly on the glass tray. Put food on
a suitable plate or in a bowl before putting it in the oven.
• When using the grill rack and baking tray, be aware that
these will become HOT during cooking as they aren’t
heatproof. Please use suitable oven gloves when
removing these.
7
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• Do not use melamine dishes as they contain a
material which will absorb microwave energy. This may
cause the dishes to crack or burn, and will slow down
the cooking speed.
• Use only cookware and utensils that are approved for
use in a microwave oven.
• Do not use the microwave oven for heating utensils,
plates or dishes.
• Do not cook using a container with a restricted
opening, such as bottles, as they may explode.
• Before you clean your microwave oven, turn it off and
unplug it.
• Keep the inside of the oven clean. When food or
liquids stick to the oven walls, wipe with a damp
cloth. We recommend that you do not use harsh
detergent or abrasives.
8
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• On the right hand wall of the cavity is the wave
guide cover, microwaves are passed through this to
enable your food to cook. It is important that this
wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
• The oven should be cleaned regularly and any food
deposits removed. Failure to maintain the oven in a
clean condition could lead to deterioration of the
surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation.
• You should clean the outside of the oven with a
damp cloth. Do not allow water to seep into the
ventilation openings.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
• If steam builds up inside or around the outside of the
oven door, wipe with a soft cloth. This may happen
when the microwave oven is used in humid conditions.
9
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
• Regularly remove the glass turntable to clean it, wash
it in warm soapy water or a dishwasher. Regularly
clean the turntable support and oven floor. Simply
wipe the bottom surface of the oven with mild
detergent and water, then dry. You can wash the
turntable support in mild soapy water.
• Failure to maintain the oven in a clean condition,
especially if liquid is left under the turntable, could lead
to deterioration of the surface that will adversely affect
the life of the appliance that may result in a
hazardous condition.
ABOUT YOUR MICROWAVE
10
Thank you for purchasing your Russell Hobbs microwave oven.
This stylish large capacity 25 litre Russell Hobbs Microwave features
a sleek and contemporary design with a mirror finish door. It
combines microwave cooking with grill power and convection oven
enabling you to cook a variety of dishes with just one appliance.
First, all you need to do is pick the perfect spot on your countertop,
then, follow the simple steps for installation, and within minutes
you’re ready to start cooking.
Cooking meals for family and friends or reheating large plates of
food becomes simple and easy with 900 watts of microwave power
and 10 auto cook menus.
The true fan assisted oven acts exactly the same as a conventional
oven which gives you the option of an extra cooking facility, for
large dinner parties and family gatherings.
The combination aspect enables you to combine microwave energy,
a grill, and convection heating (fan assisted) so you can heat, roast,
crisp and brown. Ideal for cooking lasagnes, pizzas, baked potatoes
and cottage pies.
For added peace of mind, the RHM2574 enables a child lock to be
set, meaning cooking cannot be started or interrupted.
Cleaning is straight forward, simply wipe the exterior, interior and
wave guide cover with a damp soft cloth to maintain peak
performance.
In the unlikely event that you experience any issues with your
product, please make our friendly Customer Service team your
first point of call.
ABOUT YOUR MICROWAVE
How do microwaves work?
Microwaves are high-frequency electromagnetic waves similar to
radio waves. While radio waves may vary in length from one metre
to many kilometres, microwaves are very short (less than 12.5
centimetres.)
Microwaves do not make any heat themselves but cause water
molecules in food to vibrate.
This vibration produces heat that cooks the food. This is why your
food will come out of the microwave piping hot, when your utensils
inside the oven stay much cooler. The microwaves do not stay in the
air or in the food when you open the microwave oven door.
The microwave oven will work using an ordinary household
electrical socket. Inside the microwave oven is the magnetron,
which turns the electrical energy into microwaves.
Microwaves cannot travel through metal, so the inside of the oven
is lined with metal. The door is lined with a fine metal mesh which
stops microwaves getting through. This means that when the
microwave oven door is shut, there is no possibility that
microwaves can be released.
11
12
PRODUCT INFORMATION
Model number RHM2574
Rated Voltage 230-240V ~ 50Hz
Rated Output Power (Microwave) 900W
Rated Power (Grill) 1050 - 1100W
Rated Power (Convection) 2300 - 2500W
Oven Capacity 25L
Turntable Diameter 31.5cm
External Dimensions (H x W x D) 30.7 x 51.3 x 49.8 cm
Net Weight; Approx 18.5Kg
Number of Power Levels 5
Accessories Included
Turntable coupling,
Turntable
ring, Glass t
urntable, Grill rack
and Wave guide cover.
Produced for:
G2S Limited
Wigan
WN2 4AY
UNPACKING THE MICROWAVE
Before you use your microwave oven
1. Remove all the packaging. Do not remove the small piece of card
from the right hand side of the cavity wall (Refer to the below
image). This is called a wave-guide cover and allows the microwaves
to pass through to cook the food.
Please ensure you keep this cover clean at all times by wiping with
a damp cloth. Do not remove/place in a dishwasher.
2. Check the oven after unpacking for any visual damage such as:
● A misaligned door
● Damage to the door
● Dents or holes in the door window and screen
● Dents in the inside
If you can see any damage do not use the oven, please contact
Customer Service team on 0345 209 7461.
This microwave oven weighs approximately 18.5Kg so you must put
it on a horizontal surface that is strong enough to support this
weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
13
14
PRODUCT OVERVIEW
1. Safety interlock latches
2. Microwave window
3. Ventilation slots
4. Oven cavity
5. Turntable ring
6. Turntable coupling
7. Glass turntable
8. Waveguide cover
9. Control panel (including door release button)
Grill rack to be used for grilling
& convection cooking only.
1 2
3
4
5 6 7
8
9
15
MICROWAVE OVEN INSTALLATION
• Place the oven as far away from radios and televisions as
possible. Using the oven may cause interference with the
reception.
• Plug the oven into a suitable 13 amp mains socket, make
sure the voltage is the same as on the rating label (do not use
extension cables or mains socket adaptors.)
• The microwave oven should be used freestanding only and must
not be built-in or used in a cabinet.
• Select a level surface that provides enough space for the outlet
vents.
16
MICROWAVE OVEN INSTALLATION

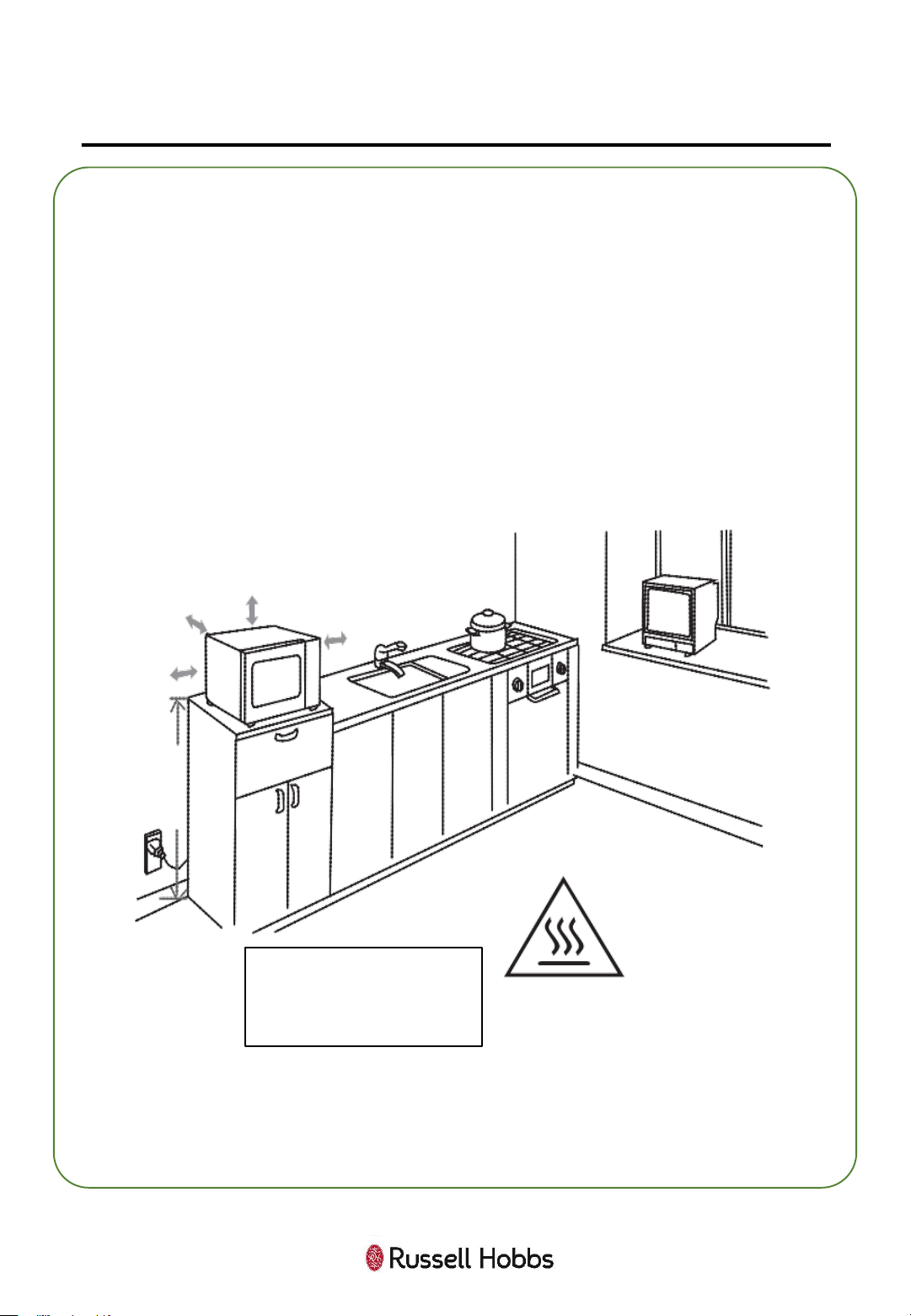

DO NOT obstruct
the ventilation
from the microwave
Min85cm
WARNING:
DO NOT install the oven over a cooker or other heat or steam
producing appliance as this will damage the microwave oven.
The minimum installation height is 85cm.
A minimum clearance of 7.5cm is required between the oven and
any adjacent walls. Leave a minimum clearance of 30cm above the
oven.
30cm
7.5cm
20cm
7.5cm

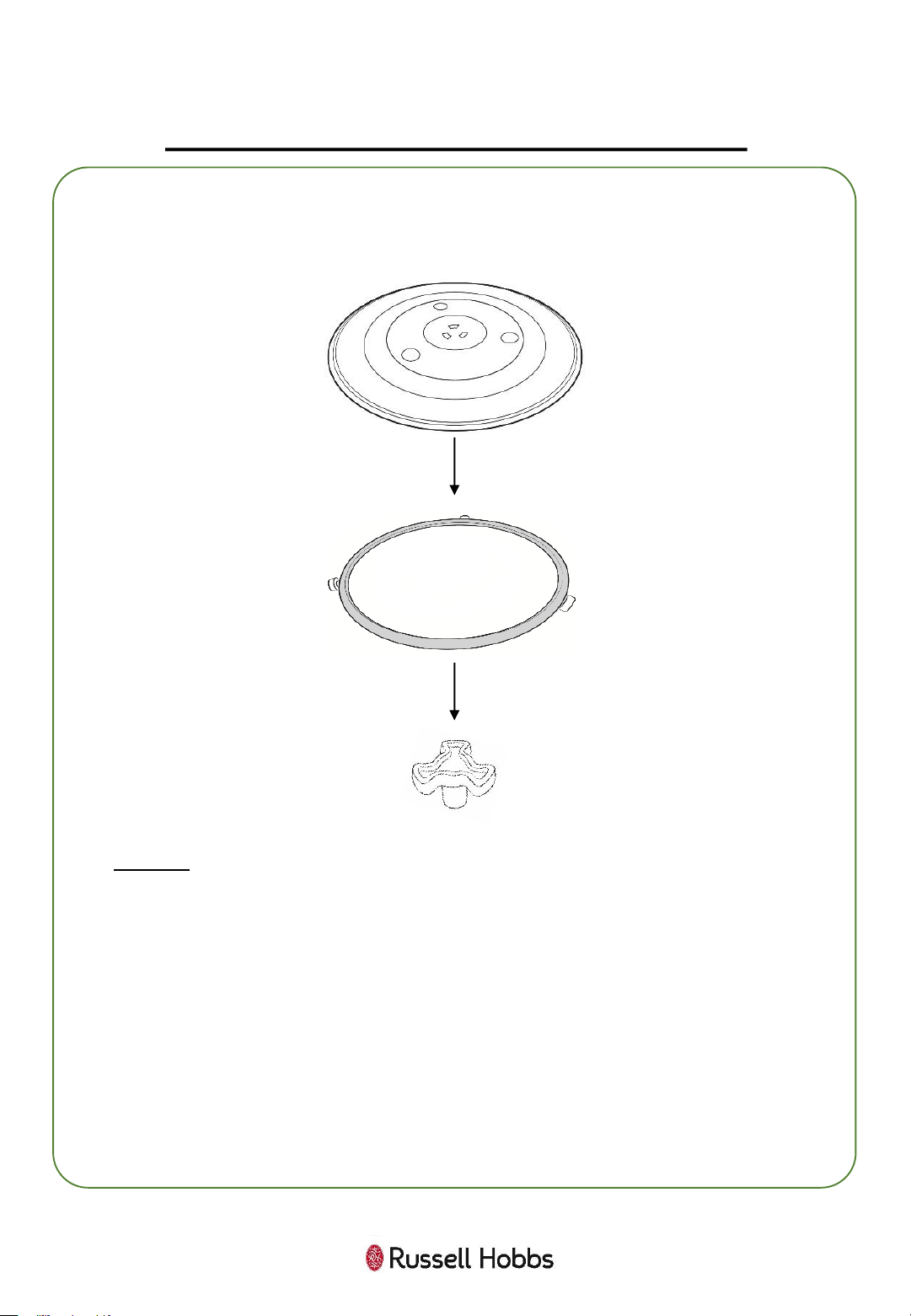

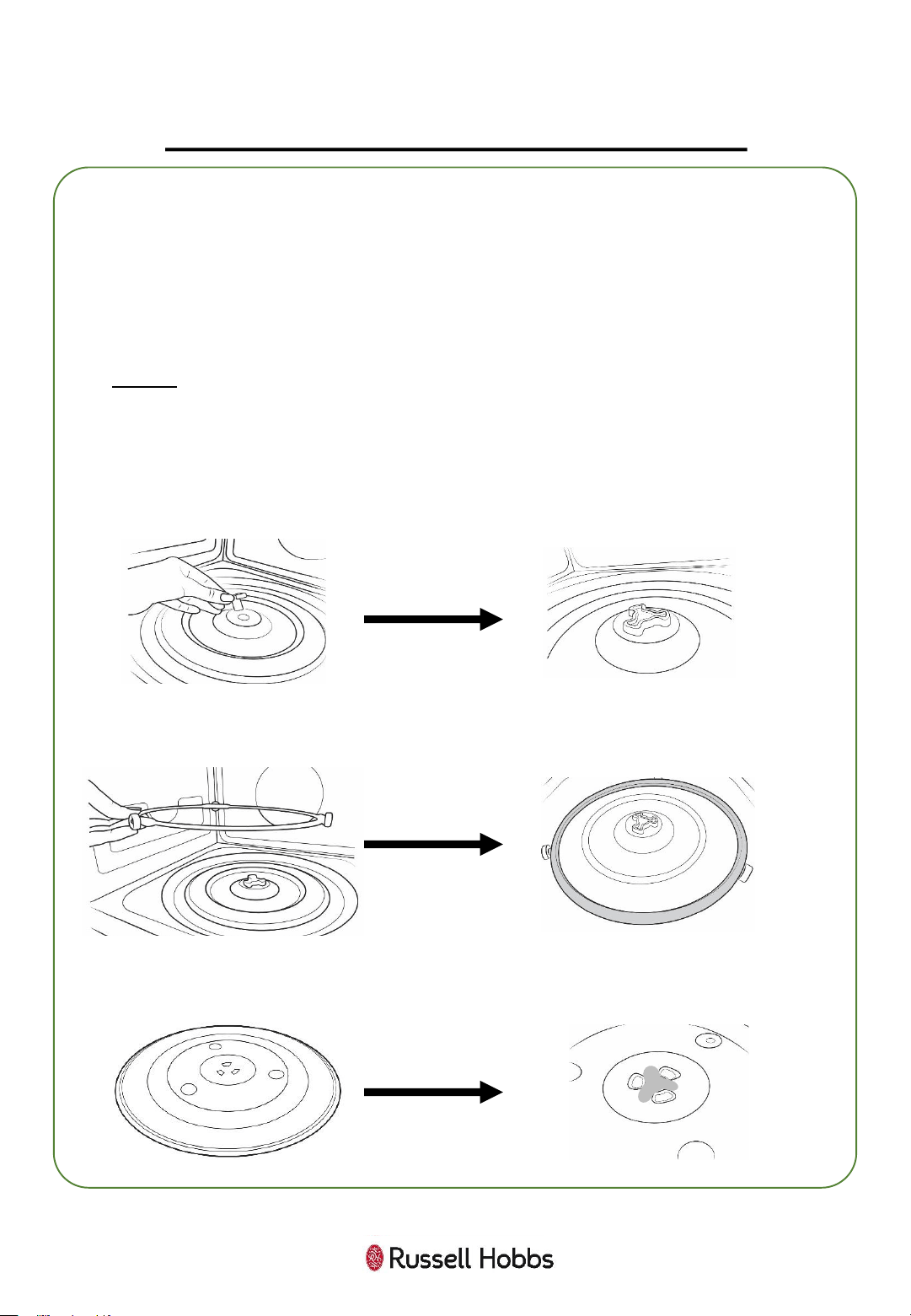

STEP 1) The turntable coupling should slot into the centre of microwave
STEP 2) T he turntable ring slots into the indents in the middle
STEP 3) The glass tray indents fit around the turntable coupling
17
TURNTABLE INSTALLATION
• Before first use, check that any securing tape and all packaging
has been removed from the glass tray and turntable ring
assembly.
• These parts must never be restricted from rotating.
• Never place the glass tray upside down.
• To assemble the turntable, follow the steps below in number
order.
18
TURNTABLE INSTALLATION
The glass tray,turntable ring, and turntable coupling assembly
must always be used during cooking (as shown below).
• Do not place the food directly onto the glass tray, always place
on or in suitable microwaveable cookware.
Please check that crockery is microwave safe before using.
• If the glass tray or turntable ring assembly has been
damaged in any way, please contact our Customer Service team
on 0345 209 7461.
19

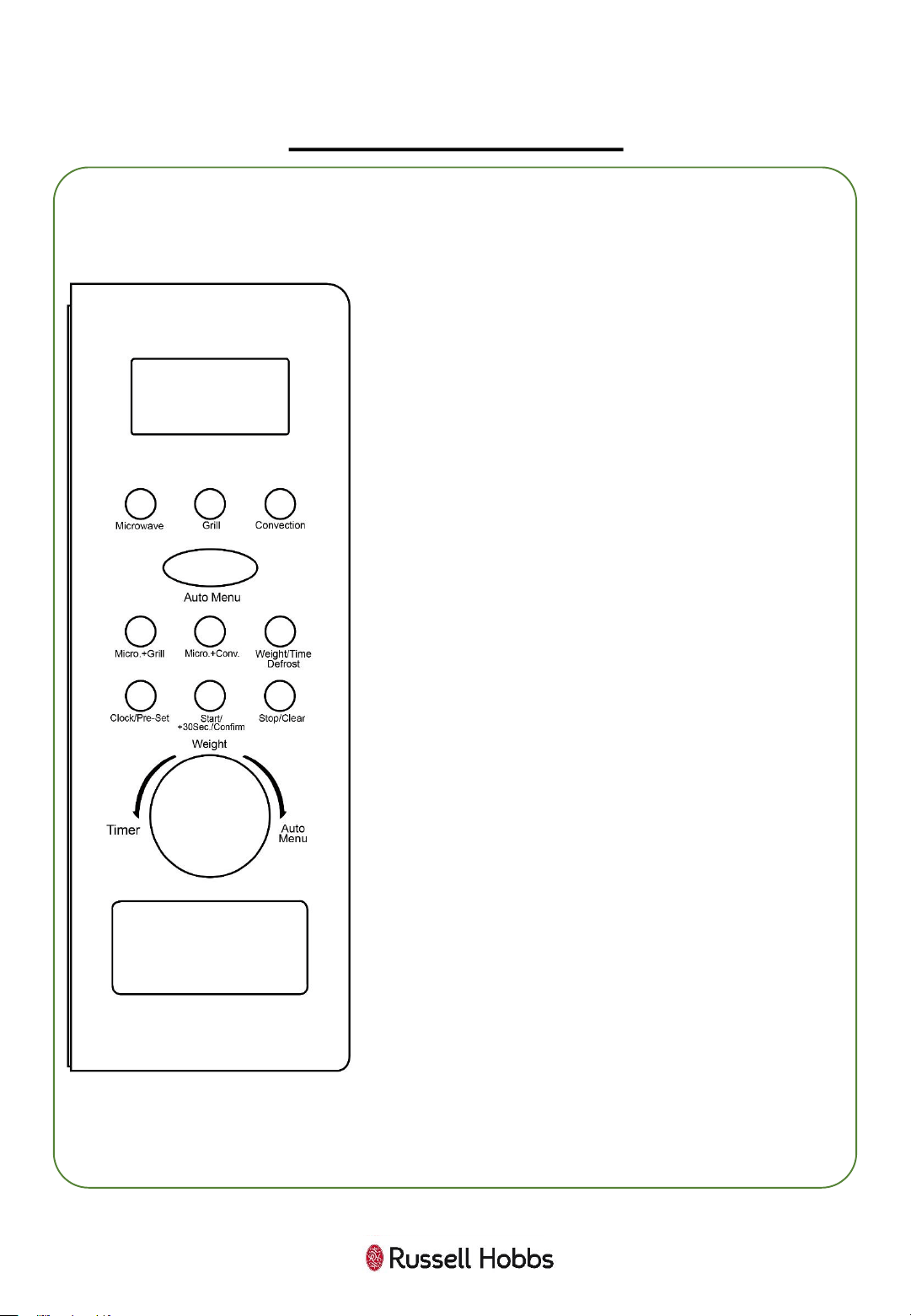

CONTROL PANEL
SCREEN DISPLAY
Cooking time, power, action indicators, and
clock time are displayed.
MICROWAVE
Press this button to use the microwave function.
GRILL
Press this button to use the grill element, located on the
top of the cavity.
CONVECTION
Press this button to use the convection function, an
element at the back of the unit is used for convection
cooking.
AUTO MENU
Press to access the auto cook menu.
MICRO. + GRILL
For combination cooking.
MICRO. + CONV.
For combination cooking.
WEIGHT/TIME DEFROST
Press this button for the defrost function.
CLOCK/PRE-SET
Press this button to set the clock.
START/+30 SEC/CONFIRM
Press this button to start the cooking process.
STOP/CLEAR
Press the Stop/Clear button twice to clear everything.
TIMER/WEIGHT/AUTO MENU
This rotational dial is used for a number of functions.
20
HOW TO USE THE MICROWAVE
Turn on the power
Insert the plug into a suitable 13amp mains socket.
Note: Make sure the voltage is the same as on the rating label located on the
back of the microwave (do not use extension cables or mains socket
adaptors.)
The microwave oven will flash and beep. The oven will display "0:00"
Setting the clock (24 hour & 12 hour)
For example, if you want to set the time to 08:30 (am:)
1. Press the “CLOCK/PRE-SET” button.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial clockwise until the display
shows '8:'.
3. Press the “CLOCK/PRE-SET” dial to confirm.
4. The display will show '8:00'. Set the minutes by turning the
“TIMER/WEIGHT/AUTO MENU” dial clockwise until the display shows '08:30'.
5. Press the “CLOCK/PRE-SET” button to confirm.
The clock is now set and the colon will continue to flash.
Note:
• If the clock is not set, the microwave will not function when powered.
• During the process of clock setting, if you press “STOP/CLEAR”, the
oven will return to the previous setting, such as back to hours, from
the minutes selection.
21
HOW TO USE THE MICROWAVE
Microwave cooking
Once you have correctly installed the unit, turned on the power and set the
clock, you are ready to start cooking.
Your microwave has 5 power levels, the lowest at 10%, then 30%, 50%, 80%,
up to 100% (or full power.)
Most recipes are cooked on full power – this should be indicated on the
packaging of microwavable food.
1. To select a power level, press the “MICROWAVE” button.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to select the microwave
power. "P100", "P80","P50", "P30","P10"will be displayed.
OR
Press the “MICROWAVE” button to scroll through the power levels.
3. Press “START/+30SEC/CONFIRM” to confirm.
4. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time.
The time setting should be set between 0:05- 95:00.
5. Press “START/+30 SEC./CONFIRM” button to start the cooking process.
The maximum cooking time is 95 minutes. To add more time during cooking,
simply press the “START/+30 SEC/CONFIRM” button.
Do not operate the oven empty, this can cause irreparable damage.
Pausing cooking
If you want to pause the cooking to turn over or stir the contents, simply open
the door, then close again and press the “START/+30SEC/CONFIRM” button to
continue the cycle.
If you wish to stop cooking with time left on the display, take out the
contents, close the door and press the “STOP/CLEAR” button twice to clear.
Press power
button
Cooking power
Equivalent
power
rating
P100 100% 900W
P80 80% 720W
P50 50% 450W
P30 30% 270W
P10 10% 90W
22
HOW TO USE THE MICROWAVE
Grill cooking
A grill rack has been provided for use in the microwave when using the grill
function. This can be used on either side for grilling closer to or further
away from the element.
1. Press the “GRILL” button and “G-1” is displayed on the screen.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time.
The time setting should be between 0:05- 95:00.
3. Press “START/+30 SEC./CONFIRM” button to start the cooking process.
Note: Half way through the grill time, the unit will sound twice to tell you to
turn the food over (if possible.) In order to achieve more even grilling, you
should turn the food over, close the door, and then press “START/+30
SEC./CONFIRM” to continue cooking. If the food is not turned, the oven will
continue cooking without interruption.
23
HOW TO USE THE MICROWAVE
Combination cooking (Microwave + Grill)
1. Press the “MICRO.+Grill” button so “G-2” is displayed on the screen.
2. Keep pressing MICRO.+Grill” button or turn “TIMER/WEIGHT/AUTO
MENU” dial to select the combination cooking method that is required: “G-
2” “G-3” and “G-4” will appear on the display. Refer to below table.
3. Press “START/+30 SEC./CONFIRM” button to confirm your choice.
4. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time.
The time setting should be set between 0:05- 95:00.
5. Press “START/+30 SEC./CONFIRM” button to start the cooking process.
For the various settings the cooking time is divided as below:
Display
Microwave time
900W
Grill time
1050 - 1100W
G-2 28% 72%
G-3 38% 62%
G-4 48% 52%
24
HOW TO USE THE MICROWAVE
Combination cooking (Microwave + Convection)
1. Press the “MICRO.+CONV.” button so “C-1” is displayed on the screen.
2. Keep pressing the “MICRO.+CONV.” button or turn “TIMER/WEIGHT/AUTO
MENU” dial to select the combination cooking method that is required: “C-1”
“C-2” “C-3” and “C-4” will appear on the display. Refer to below table.
3. Press “START/+30 SEC./CONFIRM” button to confirm your choice.
4. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time.
The time setting should be set between 0:05- 95:00.
5. Press “START/+30 SEC./CONFIRM” button to start the cooking process.
For the various settings the cooking time is divided as below:
Display
Microwave time
900W
Grill time
1050 - 1100W
Convection time
2300 - 2500W
C-1 28% 72%
C-2 38% 62%
C-3 48% 52%
C-4 28% 72% 72%
25
HOW TO USE THE MICROWAVE
Convection cooking (With preheating function)
The convection cooking allows you to cook food using the unit as a
traditional oven; the microwave function is not used. It is recommended
that you preheat the oven to the appropriate temperature before placing
the food in the oven.
1. Press the “CONVECTION” button once, and “150”, the cooking
temperature will flash.
2. Keep pressing the “CONVECTION” button or turn “TIMER/WEIGHT/AUTO
MENU” dial to select the desired convection function temperature. Note:
The temperature can be set between 150 degrees to 240 degrees, in 10
degree intervals.
3. Press the “START/+30 SEC./CONFIRM” button to confirm the chosen
temperature.
4. Press the “START/+30 SEC./CONFIRM” button to start preheating. When
the preheating temperature is reached, the buzzer will sound twice to
remind you to place the food in the oven. The preheated temperature will
display and flash. Open the door and place the food in the microwave oven,
then close the door.
5. Turn “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time. The
maximum time available is 95 minutes.
6. Press the “START/+30 SEC./CONFIRM” button to commence cooking.
Note:
• The cooking time cannot be entered until the preheating temperature is
reached. Once the temperature is reached, the door must be opened to
input the cooking time.
• If the time is not entered after 5 minutes of reaching the temperature,
the oven will stop preheating. The buzzer will sound five times and turn
back to the waiting state.
26
HOW TO USE THE MICROWAVE
Convection cooking (Without preheating function)
The convection cooking allows you to cook food using the unit as a
traditional oven; the microwave function is not used. It is recommended
that you preheat the oven to the appropriate temperature before placing
the food in the oven. However if you want to start cooking without
preheating the oven please follow the below steps and be aware that the
cooking time of the food will have to be extended:
1. Press the “CONVECTION” button once, and “150”, the cooking
temperature will flash.
2. Turn “TIMER/WEIGHT/AUTO MENU” dial to select the desired
convection function temperature. Note: The temperature can be set
between 150 degrees to 240 degrees, in 10 degree intervals.
3. Press the “START/+30 SEC./CONFIRM” button to confirm the chosen
temperature.
4. Turn “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time. The
maximum time available is 95 minutes.
6. Press the “START/+30 SEC./CONFIRM” button to commence cooking.
Note:
• If the time is not entered after 5 minutes of reaching the temperature,
the oven will stop preheating. The buzzer will sound five times and turn
back to the waiting state.
27
HOW TO USE THE MICROWAVE
Multi-stage cooking
Two cooking stages can be set in sequence.
If one of your required cooking stages is for defrosting, make sure this is
programmed to come on first.
The buzzer will ring once after each stage and then the next stage will
proceed.
Note: The Auto menu or the pre-heating functions cannot be set as part of
the multi-stage cooking sequence.
For example, if you want to defrost the food for five minutes, then cook
with 80% microwave power for 7 minutes:
1. Press the “WEIGHT/TIME DEFROST” button twice and the screen will
display "dEF2“.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the defrost time
to 5 minutes.
3. Press the “MICROWAVE” button once.
4. Turn the “TIMER/WEIGHT/AUTO MENU” dial to choose 80% microwave
power till "P80" is displayed (refer to earlier instructions for power levels.)
5. Press the “START/+30SEC./CONFIRM” button to confirm.
6. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time
to 7 minutes.
7. Press “START/+30SEC./CONFIRM” to commence cooking.
28
HOW TO USE THE MICROWAVE
Pre-set cooking time function
You can set your microwave to start cooking at a pre-set time, without the
need to be present to input the programme at the time of cooking. Make
sure your food is in the microwave and prepared when you programme the
pre-set function.
You will need to set the clock and set the cooking menu and time.
Input the cooking programme.
Note: A maximum of two stages can be set. Do not use the defrost function
in the pre-set function. The auto menu can be set for a single stage only.
For example, if you want to cook with 80% power for 7 minutes at 18:00:
1. Press the “MICROWAVE” button once.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to choose 80% microwave
power till "P80" is displayed.
3. Press “START/+30SEC./CONFIRM” button to confirm.
4. Turn “TIMER/WEIGHT/AUTO MENU” dial to adjust the cooking time to 7
minutes.
5. DO NOT press “START/+30SEC. /CONFIRM” button.
6. Press the “CLOCK/PRE-SET” button, the current time displays and the
hour figures flash.
7. Turn “TIMER/WEIGHT/AUTO MENU” dial to adjust the hours; the input
time should be within 0-23 or 1-12, e.g. 18.
8. Press “CLOCK/PRE-SET“ button and the minute figures will flash.
9. Turn the “TIMER/WEIGHT/AUTO MENU” dial to adjust the minutes; the
input time should be within 0-59, e.g. 00.
10. Press “START/+30SEC./CONFIRM” to finish setting.
The colon ":" will illuminate, the buzzer will ring twice when the set start
time arrives, then the cooking will start automatically.
Note: The clock must be set first, otherwise the pre-set function will not
work.
29
HOW TO USE THE MICROWAVE
Quick Start cooking
One of the quickest ways to start microwave cooking is by using the
“+30SEC.” function.
1. Press the “START/+30SEC./CONFIRM” button to cook with 100% power
level for 30 seconds. Each press on the same button increases the cooking
time by 30 seconds. The maximum cooking time is 95 minutes.
2. During the microwave cooking process, press the
“START/+30SEC./CONFIRM” button to cook with 100% power level for 30
seconds. Each press of the button increases the microwave cooking time by
30 seconds.
Note: This function does not work for defrost, auto menu cooking and multi
stage cooking
Defrosting by Weight
1. Press the “WEIGHT/TIME DEFROST” button once and the oven will
display “dEF 1”.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to select the weight of the
food. At the same time, “g” will illuminate in red.
The weight should be set between 100-2000g.
3. Press the “START/+30SEC./CONFIRM” button to start defrosting.
Defrosting by Time
1. Press “WEIGHT/TIME DEFROST” button twice and the oven will display
“dEF 2”.
2. Turn the “TIMER/WEIGHT/AUTO MENU” dial to select the cooking time.
The maximum time is 95 minutes.
3. Press “START/+30SEC./CONFIRM” button to start the defrosting process.
30
HOW TO USE THE MICROWAVE
Auto Menu
1. Press the “AUTO MENU” button, turn the “TIMER/WEIGHT/AUTO MENU”
dial clockwise to choose the required function, and “A-1” “A-2” “A-3”....”A-10”
will be displayed. An Auto Menu cooking guide is on the following page.
2. Press the “START/ +30 SEC./CONFIRM” button to confirm the menu you
require.
3. Turn the “TIMER/WEIGHT/AUTO MENU” dial to choose the weight of the
food, and the “g” or grams indicator will illuminate.
4. Press “START/ +30 SEC./CONFIRM” to commence the cooking process.
Note: When you select “A-8” for cake, please do not put the cake mix into the
oven immediately. Follow the pre-heating instructions and pre-heat to 180
degrees.
After several minutes, the buzzer sounds twice to remind you to put the cake
into the oven. After putting the cake in the oven, please press “START/ +30
SEC./CONFIRM” again.
31
HOW TO USE THE MICROWAVE
Display Weight (g) Power Setting
A1 – Auto Reheat
150 150
100%
250 250
350 350
450 450
600 600
A2 - Potato
1 1 (approx. 230g)
100%2 2 (approx. 460g)
3 3 (approx. 690g)
A3 - Meat
150 150
100%
300 300
450 450
600 600
A4 - Vegetable
150 150
100%
350 350
500 500
A5 - Fish
150 150
80%
250 250
350 350
450 450
650 650
A6 - Pasta
50 50 (add 450ml of water)
80%100 100 (add 800ml of water)
150 150 (add 1200ml of water)
A7 - Soup
200 200ml
100%400 400ml
600 600ml
A8 - Cake 475 475
Pre-heat to 180
degrees
A9 - Pizza
200 200
C-4300 300
400 400
A10 - Chicken
500 500
C-4
750 750
1000 1000
1200 1200
32
HOW TO USE THE MICROWAVE
Child lock function
The child lock function is ideal to stop children from altering cooking times if
unsupervised. No buttons will function in this mode.
To set the lock, in waiting state, press “STOP/CLEAR” for 3 seconds, there
will be a long ‘beep’ as the lock activates, and a red key will illuminate on
the display.
The lock is now functional.
To cancel the lock, press “STOP/CLEAR” for 3 seconds, there will be a long
‘beep’ signalling that the lock is cancelled, and the lock symbol will
disappear.
Utensil information
• Do not use metal pans or dishes with metal handles.
• Do not use anything with a metal trim.
• Do not use paper-covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will
absorb microwave energy. This may cause the dishes to crack or burn,
and will slow down the cooking speed.
• Use only cookware that is approved to be used in a microwave oven.
• Do not cook using a container with a restricted opening, such as bottles,
as they may explode.
• Do not heat baby bottles with the teat left on. Remove before placing
the bottle back into the oven.
• Only use thermometers that are approved for microwave ovens.
• Do not use the microwave oven for heating utensils.
General information
• The “START/+30SEC/CONFIRM” button must be pressed again to
continue cooking if the door is opened during a cooking cycle.
• Once the cooking programme has been set, if the
“START/+30SEC/CONFIRM” button is not pressed within 5 minutes, the
current time will display and the setting will be cancelled.
• The buzzer will sound five times to remind you when cooking is finished.
Defrosting tips
Microwaves penetrate around 4cm into most food. To maximize defrosting
effectiveness follow the below guidelines.
1. For thick foods, turn regularly during operation in order to defrost evenly.
2. If food weighs over 500g, it is advised to turn at least 2 times.
3. Defrosted food should be consumed as soon as possible, it is not
advisable to put back into the fridge or freeze again.
Cooking tips - The following may affect cooking results:
Food arrangement
If possible, thicker bits of food should be placed around the outside of the
dish and the thinner parts toward the centre, spread out as evenly as
possible. Do not overlap food if possible as this could result in uneven
cooking results.
Cooking length
If you are unsure of cooking times it is advisable to start with a short
cooking time and monitor cooking progress before adding further time.
Overcooking could lead to a risk of fire. Ensure food is cooked thoroughly
before consuming.
Cooking food evenly
Foods such as meat should be turned frequently to ensure more even
cooking results. If the food is liquid based, stir during the cooking time is
advisable.
Allow standing time
When the microwave has stopped cooking, leave the food to rest for an
adequate length of time to allow for cooking completion and cooling.
33
COOKING TIPS
34
CLEANING THE MICROWAVE
• Before you clean the oven, turn it off and unplug it.
• Keep the inside of the oven clean. When food or liquids stick to
the oven walls, wipe with a damp cloth. We recommend that you
do not use harsh detergents or abrasives.
• On the right hand side wall of the cavity is the wave guide cover,
microwaves are passed through this to enable your food to cook.
It is important that this wave guide cover is kept clean at all times.
To do this wipe with mild detergent and water, then dry.
• You should clean the outside of the oven with a damp cloth. Do
not allow water to seep into the ventilation openings.
• Do not allow the control panel to become wet. Clean with a soft,
damp cloth. Do not use detergents, abrasives or spray-on cleaners
on the control panel.
• If steam builds up inside or around the outside of the oven door,
wipe with a soft cloth. This may happen when the microwave oven
is used in humid conditions.
• Regularly remove the glass turntable to clean it, and wash it in
warm soapy water. Regularly clean the turntable support and oven
floor. Simply wipe the bottom surface of the oven with mild
detergent and water, then dry. You can wash the turntable support
in mild soapy water.
• When removing the turntable support of the oven, make sure you
put it back properly.
• If the inside of the oven smells, put a cup of water with the juice
and skin of one lemon in a deep microwave bowl. Microwave it for
three minutes, wipe thoroughly and then dry with a soft cloth.
• Failure to maintain the oven in a clean condition, especially if
liquid is left under the turntable, could lead to deterioration of the
surface that will adversely affect the life of the appliance that may
result in a hazardous condition.
Problem Potential reason
Potential solution
If the
microwave
doesn’t work
1. Microwave is not
plugged in
Make sure the plug is plugged in securely into the mains
and the switch is on. If it is not, remove the plug from
the socket, wait 10 seconds and plug it in again securely.
2. Plug is not working
The plug socket that the microwave is plugged into may
have become faulty. Plug the microwave into another
known good plug socket, ensure that the socket is
turned on and check if the microwave now works.
3. The plug has a blown
fuse or the mains circuit
has a blown fuse/tripped
fuse
Check the plug for a blown circuit fuse or a tripped main
circuit breaker. If these seem to be working properly,
test the socket with another appliance.
4. Microwave has
developed a fault
Contact customer services to talk through the problem
to see if any solution for the fault can be found. If not
and the product is within its warranty period,
then the
microwave should be returned to the retailer it was
purchased from for a replacement or refund.
If the
microwave
power will not
work
1. Door is not closed
Make sure the door is securely closed. Otherwise, the
microwave will not engage or operate.
2. The timer dial has not
been turned.
Start the microwave by turning the dial and pressing the
start button.
Not heating
Magnetron not working
The component that produces the microwaves is called
a magnetron, if food is not being heated or is 'luke'
warm then it is likely this component has developed a
fault.
If the microwave is within its warranty period, please
contact customer services for further advice or take the
microwave back to the retailer it was purchased from for
a refund or replacement.
35
PROBLEM SOLVING
The microwave oven may cause interference to your radio, TV or similar
equipment. If this happens, you can stop the interference by moving the
radio, TV or equipment as far away from your microwave oven as possible.
WARNING: To reduce the risk of personal injury, always
unplug the microwave before performing maintenance
or trouble shooting checks.
36
PROBLEM SOLVING
Problem Potential reason Potential solution
Sparking
1. Burnt on food
debris
Spillages or splashes can burn and catch fire, all food that is
put into the microwave should be appropriately covered. All
spillages or splashes must be cleaned, and all areas of
microwave cleaned after each use.
Burnt on food debris in the microwave, on the wave guide
and the behind the wave guide can cause the microwave to
'spark'. This is because burnt on debris can be focused on by
the microwaves and spark.
Microwaves must be thoroughly cleaned after every use to
ensure no food is burnt on to any part of the microwave.
If the microwave does 'spark' the wave guide must be
disposed, the microwave
must be cleaned thoroughly and
then contact customer services for a replacement wave
guide.
The replacement wave guide should be fitted and the
microwave should operate normally. However, if the
microwave 'sparks' again on first use (after the waveguide has
been replaced and the microwave cleaned,)
please contact
customer services for further advice.
2. Metal or foil
No metal or foil should be put inside a microwave as it can
cause 'sparking' which can damage the microwave.
The only metal accessories that should be used inside the
microwave are the ones supplied by the manufacturer.
3. Pressure build up in
food
Food with none porous skins (potatoes for example), must be
pierced to allow steam to escape. As the build up of pressure
can cause food to burst and create a 'fire hazard‘.
Heat spots
Operated empty or
with no moisture
Microwaves cannot be run empty, microwaves need moisture
to operate correctly.
If microwaves are operated empty or are used to heat up
plates (this is not permitted), the microwaves can focus on a
single point inside the microwave. This can cause a heat spot,
which can cause the area to become deformed, warped or
start to melt.
If microwaves are operated empty or to heat up foreign
objects this will void the warranty.
37
PROBLEM SOLVING
Problem Potential reason
Potential solution
Condensation
or excess
water
1. Food that is being
cooked
By the very nature of how a microwave works, it ‘excites’ the
water molecules in the food it is heating, causing them to
move about and generate heat from within the food. Often
when the food heats up it reaches the point where steam is
released. Dependant on the food type being heated (and its
water content level), the length of time being heated for
–
and so the amount of steam generated
– it is inevitable that
some of the steam will condense and form back into water
droplets within the microwave cavity. This can usually be
found on the inner walls or most commonly on the back of
the glass door. If not cleaned up, these droplets can start to
form small ‘pools’ of water.
2. Cooling vents covered
Cooling vents allow the heat and steam to escape from the
microwave. These cannot be covered as it can cause
excessive water to settle inside the microwave or the
microwave to overheat.
The installation instructions in the instruction manual must be
followed or the warranty will be void.
Paint damage/
peeling
Maintenance
If the microwave is within its warranty period, please contact
customer services for further advice or take the microwave
back to the retailer it was purchased from for a refund or
replacement
Light not
working
Bulb not working
Due to the construction of microwaves and certain
'dangerous' components inside,
the light bulb can only be
changed by a qualified service engineer.
If the microwave is within its warranty period, please contact
customer services for further advice or take the microwave
back to the retailer it was purchased from for a refund or
replacement
Over heating
Cooling vents covered
Cooling vents allow the heat and steam to escape from the
microwave. These cannot be covered as it can cause
excessive water to settle inside the microwave or the
microwave to overheat.
The installation
instructions in the manual must be followed
or the warranty will be void.
Too noisy
1. Glass turntable fitted
incorrectly
Check that the glass turntable has been placed correctly on
the turntable and is not hitting the walls/doors of the
microwave during operation.
2. Dishes/plate are too
large for the microwave
Check that the dishes/plates are the correct size for the
microwave and that they are not hitting the walls/door of
microwave during operation.
38
PROBLEM SOLVING
Problem Potential reason
Potential solution
Door not
shutting/
locking
1. Glass turntable fitted
incorrectly
Check that the glass turntable has been placed correctly on
the turntable and is not stopping the door from shutting
correctly.
2. Latches have become
deformed
If the microwave is within its warranty period, please
contact customer services for further advice or take the
microwave back to the retailer it was purchased from for a
refund or replacement.
Turntable not
rotating
1. Turntable coupling
not fitted or tape not
removed
Check that the turntable coupling is fitted correctly and the
transportation tape has been removed.
2. Turntable roller ring
not fitted or fitted
incorrectly
Check that the coupling has be placed under the turntable
and that it is positioned correctly.
3. Glass turntable fitted
incorrectly
Check that the glass turntable has been placed correctly on
the turntable.
4. Turntable has
developed a fault
If the microwave is within its warranty period, please
contact customer services for further advice or take the
microwave back to the retailer it was purchased from for a
refund or replacement.
39
GUARANTEE & CUSTOMER SERVICES
At Russell Hobbs, we take all our customer feedback seriously.
Feel free to contact our Customer Service Team on
0345 209 7461
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the
original purchase. If any defect arises due to faulty materials or
workmanship, the faulty product must be returned to the place of
purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original
proof of purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended
use.
• This warranty does not cover wear and tear, damage, misuse
or consumable parts.
40
SPARE PARTS
Glass turntable
Turntable ring
Wave Guide cover
Turntable coupling
To check the availability of the following spare parts, simply contact
our friendly Customer Service team on 0345 209 7461.
41
CONNECTION TO THE MAINS SUPPLY
WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of
220-240V~ 50Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.
This product is fitted with a 13A plug complying with BS1363.
If this plug is unsuitable or needs to be replaced, refer to customer
services.

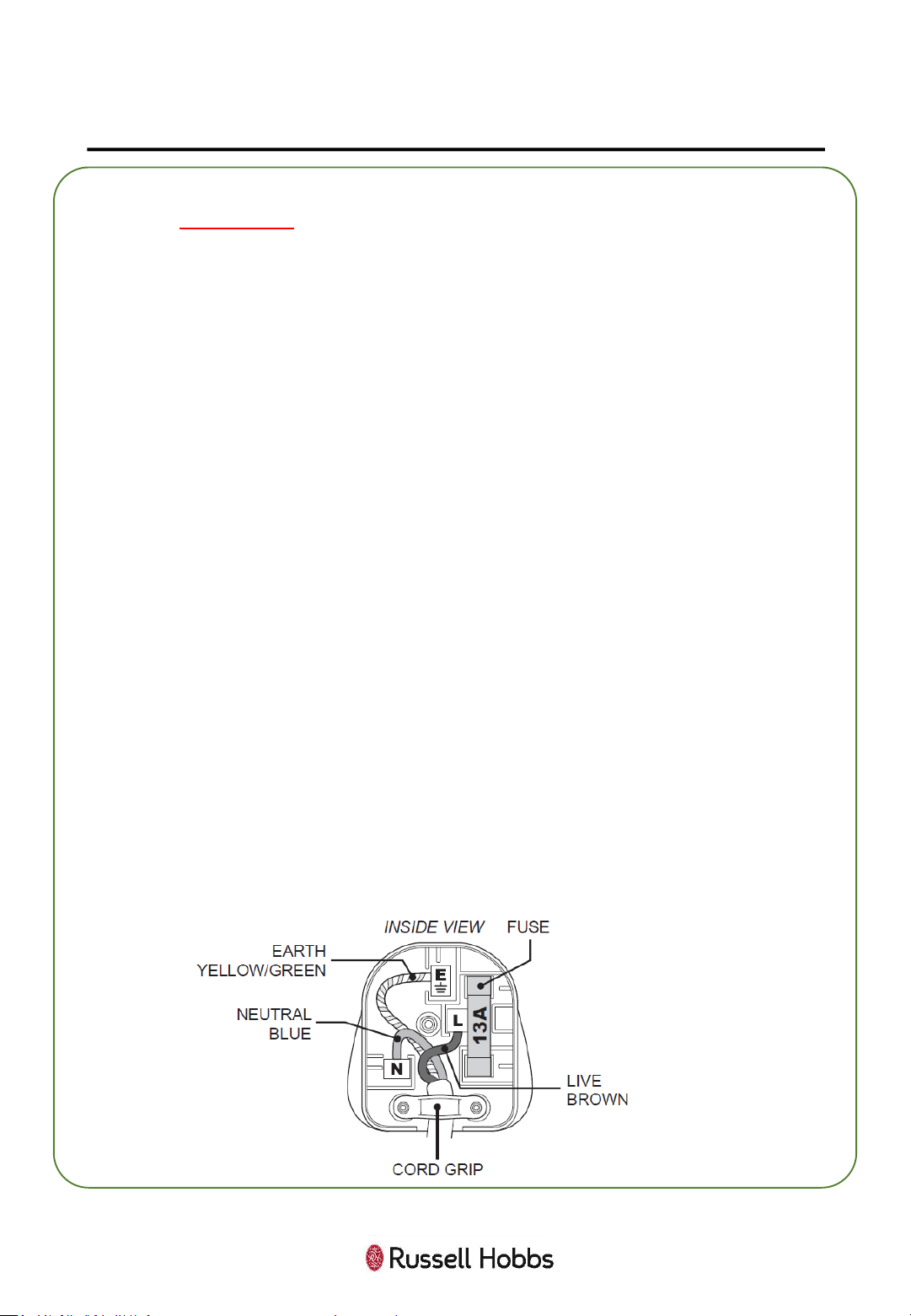

Important: The wires in the mains lead are coloured in
accordance with the following code:
GREEN/YELLOW – EARTH
BLUE - NEUTRAL
BROWN – LIVE
42
CONNECTION TO THE MAINS SUPPLY
For UK use only – PLUG
• As the colours of the wires in the mains lead of this appliance
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
• The GREEN/YELLOW wire is the EARTH and must be connected
to the terminal which is marked with the letter E or by the earth
symbol or coloured GREEN or GREEN/YELLOW.
• The BLUE wire is the NEUTRAL and must be connected to
• the terminal marked with the letter N or coloured BLACK.
• The BROWN wire is the LIVE wire and must be connected to
• the terminal marked with the letter L or coloured RED.
• Always ensure that the plug cord grip is fastened correctly.
• If a 13A (BS1363) fused plug is used it must be fitted with a
• 13amp fuse conforming to BS1362 and be BSI or ASTA approved.
If the fuse cover is lost the plus must not be used until a
replacement is obtained from an electrical supplier.
If you need to remove the plug, cut it from the mains lead and
dispose of it. NEVER attempt to re-use this plug or insert it into a
socket outlet, as there is a very great risk of electrical shock.
43
NOTES
44
Revision 5
This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is
marked on a product/batteries, it means that the product/batteries should not be
disposed of with your general household waste. Only discard
electrical/electronic/battery items in separate collection schemes, which cater for the
recovery and recycling of materials contained within. Your co-operation is vital to ensure
the success of these schemes and for the protection of the environment. For your
nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.
We reserve the right, due to possible changes to design, to alter the instruction manual
without prior notice.
For Customer Services & Spare
Parts please call: 0345 209 7461
Or visit us at
http://mda.russellhobbs.com
