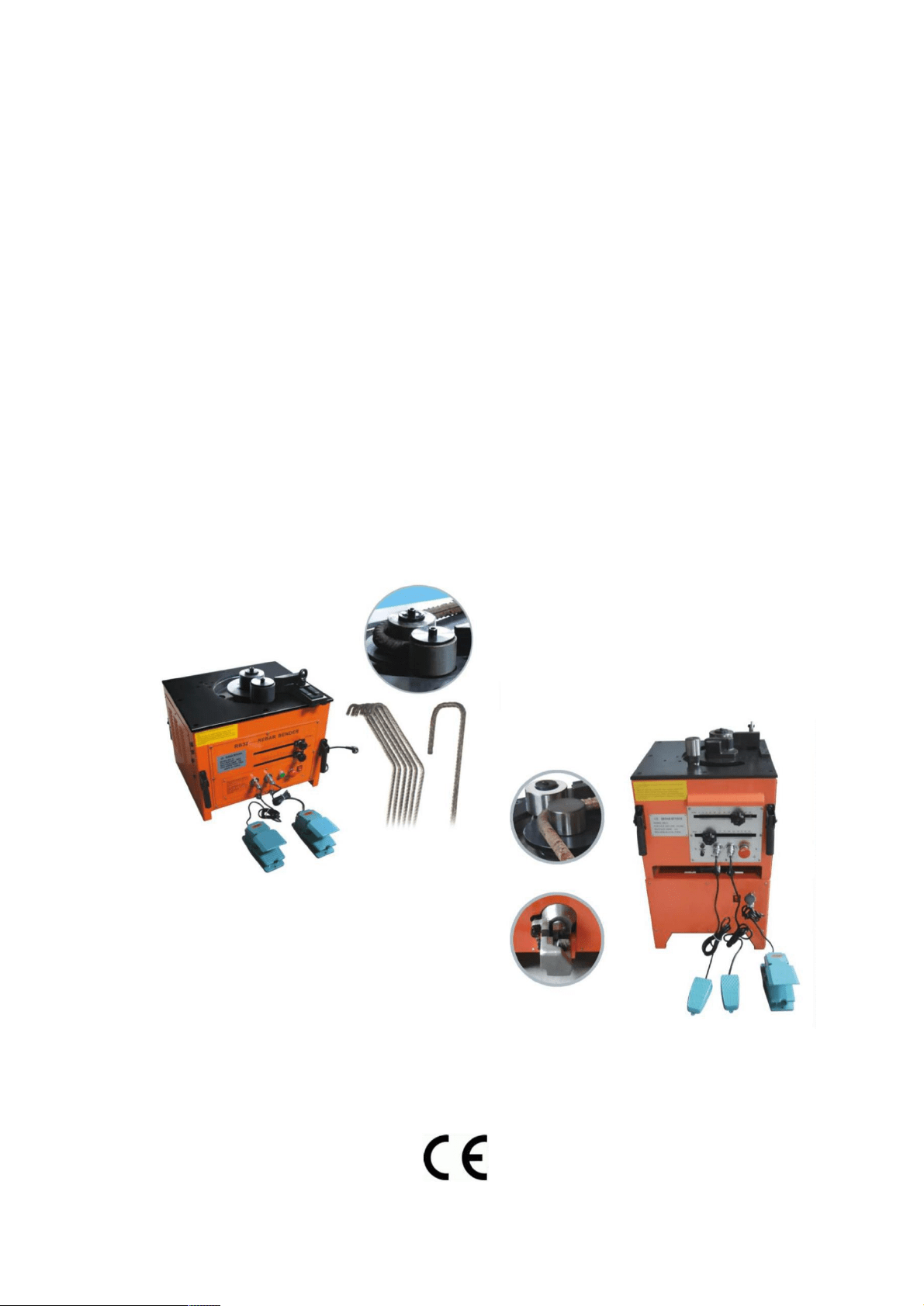

Instruction Manual
ELECTRIC REBAR BENDERS
&
REBAR CUTTERS
MODEL: RB-25
RB-32
RBC-25 RBC-32
Please read the operation manual carefully before
operate the machine and keep it for the reading in
future
1. Safety
1
1
.1SAFETY RULES
.1.1.GENERAL SAFETY RULES
Do not attempt to operate until you have read thoroughly
and understand completely all instructions, rules, etc.
contained in this manual. Failure to comply can result in
accidents involving fire, electric shock, or serious
personal injury. Keep owners' manual and review frequently for continuous safe operation.
1
. KNOW YOUR MACHINE.
For your own safety, read the owner’s manual carefully. Learn its application and
limitations as well as specific potential hazards pertinent to this machine.
. KEEP WORK AREA CLEAN.
Disorder area and working table will cause an accident.
. DO NOT USE IN DANGEROUS ENVIRONMENTS.
2
3
Do not use power tools in damp or wet locations, or expose them to rain. Keeps work area well
illuminated.
4
5
6
. KEEP NON-PROFESSIONAL PEOPLE AWAY.
All visitors should be kept at a safe distance from the work area.
. USE THE SUITABLE TOOLS, DO NOT FORCE THE MACHINE.
It will do the job better and be safer at the rate for which it was designed.
. WEAR PROPER APPAREL.
Avoid loose clothing, gloves, neckties, rings, bracelets, or jewelry, which could be caught
in moving parts. Non-slip footwear is recommended. Wear protective hair covering to
contain long hair.
7
. THE MACHINE SETTING
Bender should be on the flat and steady ground before starting.
Any shaking may cause imprecise work.To avoid a safety accident, please make sure the
machine is not shaking before working.
8
9
. OPERATION IS OFF, MAINTAIN THE MACHINE
Keep the machine clean and safe. After the operation, clean and remove dust and scrap iron
in the main gear and body
. USE RECOMMENDED ACCESSORIES.
Before the service, replaces the fitting, or perhaps the assembly and assembles the motor,
must cut-off machine's power source from the power source place (the note: Carries on the
operation by the specialists).
1
0.POWER SUPPLY
①. For the power source, please connect with the single-phase 110V or 220V (see the parameter
in the machine ) power source to uses
1
②. when connects to the power source RB-25 and RBC-25 must use 3.5 ~ 5.5sq (cv) the power
line, RB-32 and RBC-32 must use 4 ~ 6.5sq (cv) the power line. The power line is must
maintain a can below 30~40m to assure operation normally
※
Reference--------in situation of use extend line
This product is set in the situation of far distance from the power to use the extend line to
connect, according to the thickness of line and the difference of current capacity , so must use
the above provisions. Extension line. Use line is too long or too thin will make the loss of
electric current and overload of the voltage, lead to the edge of the wiring insulation rapid
turn heat, then insulating ability to reduce ,finally to leak electric power or fire. Besides will
weaken the motor output force, the internal electrical circuit easy to fail.
To begin using the Line from the power line connect point must suit to the provisions of
the above extension line, also do not mean operation near the electric power supply is good, in
situation of long distance operation,please refer to the table to using appropriate degree of
power line according to distance.
RB-25 /RBC-25
RB-32/RBC-32
（wire）max.longthDiameterofwire/wireDiameterofwire/wire
size
size
1
2
4
5m
5m
0m
2.0sqX3C
3.5sqX3C
5.5sqX3C
3.5sqX3C
4.5sqX3C
6.5sqX3C
1
.1.2 Additional safety rules
①
．
When the machine is running, don't clean or remove scraps
．Do not remove or modify the warning signs even not replaced or any may cause confusion of
②
marks.
③
④
⑤
⑥
⑦
⑧
⑨
．
Carefully read the manual before operating the machine.
．
The machine on ground correctly, to avoid hazard shock.
．Not away till the machine is off.
．Before replacing the module the machine should stop completely .
．Before starting, confirm. determine the correct, bending Angle.
．
Do not put any tools on the platform before starting work, to avoid accidents .
．
Use appropriate tools to adjust the machine.
1

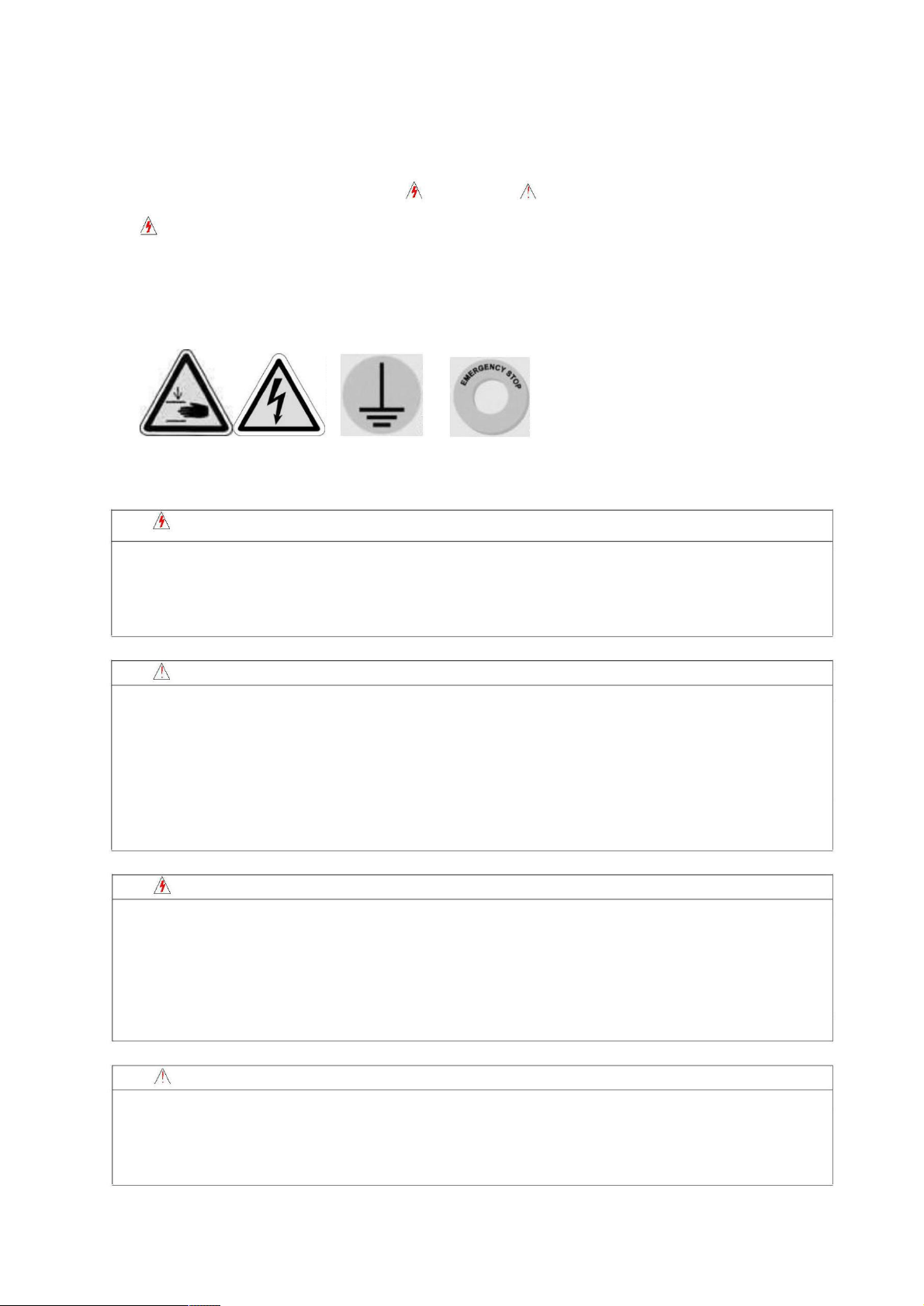

.2.Warning signs:
This machine has warning symbols attached to it as shown below to ensure proper and safe
operation.
2
These symbols are used on the machine to indicate points or instances of specific danger to
operating personnel.
Do not remove safety symbols from the machine.
The safety has two grades that are Danger and
Attention in this manual:
Dangerous
—
Means the danger of the wrong operating and leads to death and GBH.
Attention
—
Means the dangers of the wrong operating and leads to the hard damage of
common or venial harm. Attention can help the user to know the result of ignoring the
warning and recognize the dangers and avoid the dangers.
1
. Avoid the damage
Danger
Don’t put your hand or head inside the guard fence, if not will harm yourself.
Don’t touch the button with a wet hand, if not will get an electric shock.
Every work includes the installation, test and inspection & maintenance needs to be
done by a professional technician.
2
. Transit and Installation
Attention
Please use the proper rise and fall tools to transit the equipment when transiting
the equipment to avoid damage and accident.
Flow the operation manual to install the equipment.
Check and confirm the installation place and the position of the slitting rewinder.
Don’t let the machine get a violent strike or hit when transiting the machine.
Don’t lift or hang the motor when in transit as this will damage the motor.
Don’t test the machine if there is a lack of or damage to any electric element.
3. Setting Line
Danger
Don’t connect the chief power supply to the fan-out of the creepage protection button.
Please cut off the power supply and confirm by checking when setting the line or
inspecting.
Setting the line after installation, if not will lead to an accident.
Don’t press or clamp the cable, not damage or refute arbitrarily, either. Unless will
lead the electric shock.
4. Attempt Running
A
ttention
Check the whole machine and confirm the sudden start-up can not damage the
equipment.
Adjust the three phase relatives between the control tank and each motor to confirm
the turning position of each motor is right.
5. Operation
3
Attention
Don’t touch the running part of the slitting folder with your hand during the period of
early testing to avoid the hurt.
Don’t do any modification to the equipment unless having the technician’s help from
BS. If not BS will not bear any duty for the result.
. Other Attention Item
6
Attention
A complete inspection and attempt running are needed before using after being left
unused for a long time.
It is not allowed to operate or maintain the machine when the operator is not
clear-headed by drinking or tired.
Please use the spare parts from BS for the maintenance and part change. BS will not
guarantee to keep it in good repair if the customer damages the machine by using the
spare parts from other company

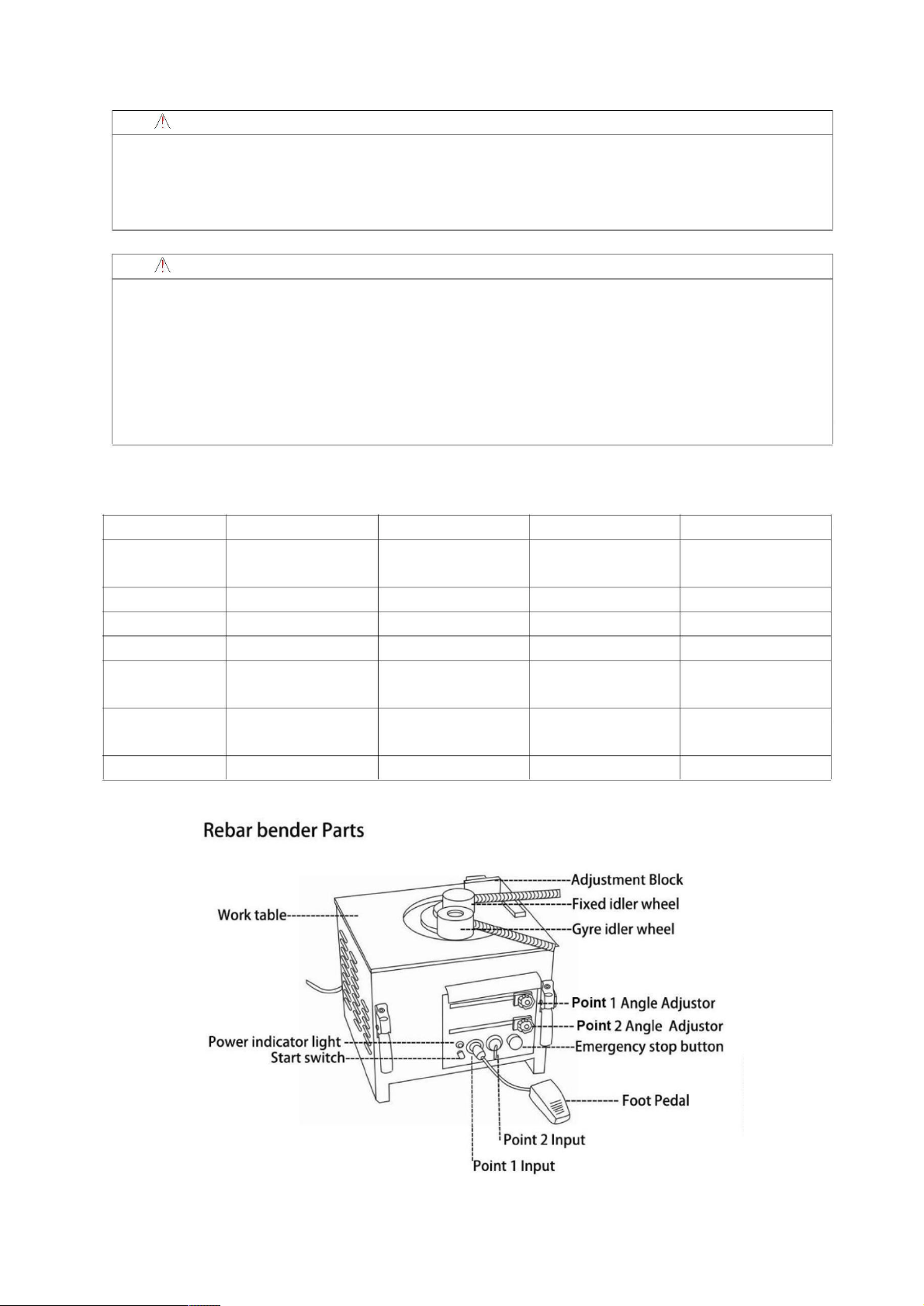

Main Parameters
Model
RB-25
110V/230V AC
only
RBC-25
110V/230V AC
only
RB-32
110V/230V AC
only
RBC-32
110V/230V AC
only
Voltage ± 5%
Wattage
Net Weight
Cutting Speed
Max Rebar
Diameter
1700W/1600W
91 kg
1700W/1600W
136 kg
2800W/3000W
175 kg
6-7 s
2800W/3000W
225 kg
5-6 s
5-6 s
6-7 s
¢25 mm
¢25 mm
¢32 mm
¢32 mm
Min Rebar
Diameter
¢6 mm
¢6 mm
¢6 mm
¢6 mm
Machine Size
450*500*440 mm
500*450*790 mm
600*580*470 mm
600*580*980 mm
4
2.Means of operation
2.1 Using methods
①
When the power line is connected to the 110V/220V power source and the power
indicator light shone on namely mean of the machine operation preparation finishes may go
on the normal work.
②
The fixed idler wheel, the move idler wheel and the steel bar adjustment block's spacing
need to make the corresponding adjustment according to the specification of the steel bar.
③
The foot switch connection to point1,2 will make it more convenient to go to work .
Point 1, connect to work - angle set by is point 1, press the START switch or
point1foot pedal switch control to operate.
Point 2,connect to work, The angle set by is point 2, through the foot switch control
operation, this time the point1 angle set by handle must establish with point 2
in the same level angle or is bigger than the point 1 angle . while also after the
angle handle setting must fix well the handle nut or when the machine
operation will become loose.
④
Adjust the angle that you need by through move Left or right, after angle adjustment is
set accurately, assure that the angle setting handle is fixed.
The operator must stand outside of the rebar bender operation’s direction.
When pressing the starting switch or the foot switch will bend the rebar to the angle
which you have set
When you find some abnormal during the operation you must press down
emergency stops to close down the machine’ operation.
⑦
⑧
Sure to remember, when bending processing, the angle of point 1 must be bigger than
⑨
pleasing through press nearby power light's hand switch test machine whether to revolve
judges the foot switch whether to present the breakdown.
Note:
①
when pressing the emergency switch to run the machine,the move idler wheel
will return to its position.
②
under the work situation of point 2 bending, the point 1 handle’s position must
keep the same level angle as point 2 or to set smaller in the angle 5 degrees than
the point 1 and then fix the angle handle, so that it not to occur the electrical or the
machine misoperation.
5
⑥
⑤
point 2, otherwise, the machine cannot do the normal operation. (This is for RB-25 AND
RBC-25 , RB-32 AND RBC-32 is no problem .)
Under t h e situation of use foot switch beyond control machine’ operation when
※Matching of differentwheel（RB-25 / RBC-25 ） ：
Rebar
Fixed Idler
Wheel
Contemporary
Gyre Idler Wheel
Specification
BendingCapacity
Ø22-Ø25
Ø16-Ø20
Ø10-Ø13
Ø6- Ø13
Special
Ø78
Ø78
Ø94
Ø94
Ø94
Ø94
1
pcs
1-2 pcs
4-5 pcs
3-6 pcs
Ø78
module
Possible
Customize
Possible Customize
Situation
※Matching of differentwheel（RB-32 RBC-32） ：
Rebar
Fixed Idler
Wheel
Contemporary
Bending Capacity
5-6pcs
Gyre Idler Wheel
Specification
Ø10-Ø13
module
Ø78
Ø148
Ø
148
Ø
99
Ø16-Ø22
2-3pcs
Ø25-Ø32
Ø109
1 pcs
2.2.Attention items
①
Must according to Contemporary bending capacity to use this product, surpasses easily
to cause this product breakdown.
②
When going on steel bar bending work, special attention to avoid injure the finger and
so on safety incident.
③
According to the different hardness of reinforced material, special attention should be
paid to avoid the fracture which may lead to safety incidents such as wounding.
④
Please do not operate until you confirm no person or object is in the reinforced
bending radius.
⑤
.The product is electric functional machinery. As encountered rain or water lead to
6
leakage, it must be covered with a waterproof membrane after use.
⑥
Assure the stationary ring bolt is fixed when transiting or moving the machine.
⑦
When operating under point 2,fix angle of point 2 same as or no larger than point 1 of 5
degrees, to ensure that under the condition when exterior shock attacks the machine itself
will not move to the left and right to operate the machine.
⑧
Make sure the stationary ring bolt is fixed when transit or move the bender. Chains must
be inserted into the safety pin to pretend the bender from shaking or waving in
transit.when move the bender by fixing handle ,4bolts can not loose ,then move the
bender together by 4 handles.
⑨
Prohibit to use idler wheel items
If marks according to below (X) the method operation troughing of belt hoop will burst
easily. Records the proper operation sincerely!
3. Environment:
Please use it under these kinds of environmental conditions.
Environment
-
10
℃
～45
℃
（does not ice up）
temperature
Environment
humidity
Below 90%RH (does not congeal dew)
Environment
Storage temperature
Environment
-20
℃
～＋65
℃
In room (non-corrosiveness gas, flammable
gas, oil mist and so on)
Altitude above sea
level
Below elevation 1000m
4
. Operation
4.1 Operation position
After installing the equipment，the operator can operate the equipment stand on about
.5 m before the operation panel
Notice
0
Do not use your hand to touch all the running parts when the equipment is running in
case of an accident to happen.
After adjusting the quantity remember to lock the nut.
If have abnormal during the running should stop working.
When the container is big the diameter of the filling mouth should not be too small in case
to protect the filling mouth from damage when filling the pressure is too big.
.2 Emergency Stop
4
This machine install one emergency stop button so once you press it the machine will
7
stop wholly. When there are emergency things happens please press this button.
4.3 Power
110V OR 220V single phase power supply only. The power line should follow the
demand as mentioned in safety rules.
4.4 Control panel
1
2
indicating light: when connecting the power supply, the light should be on.
manual switch: if the foot switch could not control the machine operation, replace foot
switch 1 with the manual switch near the power light.
foot switch 1: press foot switch 1 to complete the operation of angle 1 settled by the “1
point” angle adjustor.
3
4
foot switch 2: press foot switch 2 to complete the operation of angle 2 settled by the “2
point” angle adjustor.
5
emergency stop switch: during the operation, if there is any trouble, release the button
and stop all actions.
6
. angle 1: adjust the bent angle by the “1 point” adjustor ( corresponding with foot
switch 1)
7
. angle 2: adjust the bent angle by the “2 point” adjustor ( corresponding with foot
switch 2)
8
. Before bending,please note the angle setting of “1 point” must be bigger than the “2 point”,or the
machine can’t work. This is for RB-25 AND RBC-25 , RB-32 AND RBC-32 is no problem .
4.5 Operate process
2
).Please choose the correct size fixed idler wheel and correct size idler wheel according to
the rebar diameter.
3
4
). Please Connect pedal switches with 1 point and 2 point holes tightly.
). The 1 point angle setting adjustor is for setting the foot switch connecting with 1 point
hole. For example, to bend 180 degrees by foot swtich 1,you set the angle 180 degree by
the 1 point adjustor,then you touch the foot swtich 1 to bend the rebar 180 degrees.
).The 2 point angle setting adjustor is for setting the foot switch connecting with 2 point
hole. For example, to bend 90 degrees by foot swtich 2, you set the angle 90 degree by the
2 point adjustor,then you touch the foot swtich 2 to bend the rebar 90 degrees.
).Please note the angle setting of “1 point” must be bigger than the “2 point”,or the
machine can’t work. Please see the below two pictures.
5
6
7
8
9
).Fix the angle adjustor by moving to left and right accordingly.
).Operator should work on the outside of the rebar’s bending direction.
).Rebar will be bent to set angle when pressing the start switch or pedal switch.
Attention: In order to work precisely, Pls set at point 1 when the bending angle is large（90°）,
and set at point 2 when the bending angle is small (135 ° )
4
①
.Note :
Following the processing capacity while using the product is a must, surpassing the product
8
1).
Please connect the power wire to 110V/220V electric and see the indicator light lights
up.It means the bender is ready to work.
easily leads to failure.
Operation gripping bending reinforced material should pay special attention to safety
incidents such as bumping fingers.
According to the different hardness of reinforced material, special attention should be paid
to the fracture which may lead to safety incidents such as wounding.
Please do not operate until you confirm no person and object in the reinforced bending
radius.
②
③
④
⑤
The product is electrical functioning machinery. As encountered by the rain or water
leading to leakage, it must be covered with a waterproof membrane after use.
4.6 Movement
1
2
.
Move the bender after making sure the handle fixing bolt is tight.
.Make sure the stationary ring bolt is fixed when transit or move the bender.
3
. Chains must be inserted into the safety pin to pretend the bender from shaking or waving in
the transit.
.When moving the bender by fixing the handle,4 bolts can not loose or be damaged. Move the
bender together by 4 handles.
4
5
. Maintenance
5
.1 Check and Change
②Means of changing:
5.2. Lubrication：
5.2.1. Cycle：
The lubrication should be done by the personnel regularly and also can be maintained
during the time that not be used.
PLS put the lubrication every week.
5.2.2. Oil
It adopts the common lithium grease; do not use the different lubrication at the same
time, if you choose one because it will influence the life span.
9
①Change the carbon brush --- The power must be cut off. If the machine stops operating
during the process, please confirm the wearing and tearing intensity of the carbon brush. The
carbon brush that electric machinery uses belongs to consumables. If the carbon brush is used
beyond the restraining line of the wearing and tearing, the electric machinery will subside,
even stop running. Then turn off the machine and resume it. If the machine shuts down
automatically after transient running, it proves to be necessary to change the carbon brush.
Please do use the machine after the change of the carbon brush as the continuing use
accelerates the wearing and tearing of the commutator which leads to the damage of the
rotor coil.
Open the upper brush cap with a screwdriver so that the carbon brush can be taken out of the
machine.
Please use the attaching brush while purchasing the machine to clean the internal center axle
and fixed the gyre wheel before changing and using it.
5.2.3. Cleaning the oil mouth
Before putting the lubrication grease should clean the oil mouth and do remember to
wipe off the remaining.
5.3 Check and maintain
Check the bolts and nuts of every position, if they become flexible.
In the moist season or after rainy days, the rain-proof ventilate must be opened to dry.
In the case of heavy power shock when turning the gyre wheel go back to the location,
round it tight after adjusting the unclamp, bludgonned bolt into the very slow state.
Panel indicator lamp on means the machine is turned round and planned.
Check the power and cable if not bright when putting through the power rear board
indicator lamp.
6
. Electrical safety
6.1. Safety rules of electrical system
1.
Only personnel who are properly trained and have adequate knowledge and skill should
undertake all electrical troubleshooting and repair.
2
3
4
.
Do not alter or bypass protective interlocks.
.
Before starting, read and observe all warning labels
.
When troubleshooting makes sure the power source has been cut off and the main switch
has been locked.
5
.
Take extra precautions in damp areas area to protect you from accidental grounding.
. Before applying power to any equipment it must be established, without a doubt, that all
persons are clear.
6
7
.
Do not open the electrical control panel unless it is necessary to check the electrical
equipment.
8
.
Do not alter the electrical circuits unless authorized to do by the manufacturer
.
When replacing electrical components, make sure they conform to the manufacturers’
specifications, including proper color-coding.
9
10. Do not wear metal glasses, metallic necklaces or chains while working on any electrical
equipment.
Also do not wear any ring, watch or bracelet while operating electrical equipment.
1
0
Indicator lamp shows the panel, if it is unable to start the machine when pressing the
START switch --- Please confirm the tearing state of the wearing or carbon brush .
In addition, please consult each branch and after sale service centre of general
headquarters for other items.
Additional instructions for rebar cutter
(Rebar cutter and bender Model )
General Safety Precautions
Usage
Use rebar cutters on concrete re-forcing bars only.
Restrict use to designated materials
There is always a chance that the cut end may shoot out, especially if less than 30cm in
length. Exceeding designated material specifications greatly increases this risk and will also
damage the tool. Do not attempt to cut rebars. Harder, thicker or thinner than those specified.
Use eye protection
Wear safety goggles , safety glasses with side shields or a face shield when using the cutter.
Provide safety barriers
Erect safety screens to protect co-workers from possible flying ends. Place safety screen
under the rebar when working in high places.
Exercise proper control
Hold cutter firmly and maintain proper footing and balance. Do not over-reach when
working in a high place, secure the cutter to scaffolding with a safety rope. Check that the power
cord is not fouled and keep the cord away from sharp edges and heat. Check that all adjusting
wrenches have been removed before using the cutter.
Guard Against electric shock
To avoid possible electric shock, do not handle the cutter with wet hands or use the cutter in the
rain or damp places. Be aware of all power lines, electric circuits and other hazards that
may be contacted, especially those that are below the surface or otherwise hidden from view .
Unplug tool
Disconnect cutter from outlet when not in use and before cleaning, adjusting or servicing. Do
not disconnect the plug from the outlet by pulling the cord. Always check that the switch lock
if OFF before plugging in.
Beware of environment
Do not use t h e cutter in the presence of flammable materials (e.g. Paint,
thinner,petroleum products, adhesives).
Do not use the cutter in a possibly lighted and clear of obstructions. Operator should at all
times have an unobstructed view of the cutter, rebar and surrounding area.
Wear proper apparel
Do not wear loose clothes, dangling objects or jewelry. Restrain long hair. The use of
safety-helmet and rubber soled boots is recommended . If safety gloves are worn, be especially
careful that gloves do not get caught in moving parts.
Keep visitors aways
Keep all visitors at a safe distance from the work area for their own protection and to prevent
the distraction of the operator.
Maintain cutter with care
Inspect cutter before each application. Faulty or loose cutter blocks could result in personal
injury. Keep handle dry, clean and free from oil and/or grease. Keep housing and piston free of
11
dirt and iron filings. Check that no screws or bolts are loose or missing. Following instructions
for maintenance. Inspect the switch, cord, plug and any extension cable at regular intervals.
Store carefully
When not in use, store th e cutter and accessories in a dry place where they can't be
accessed by an unauthorized person.
Operating Instructions
!
Caution : Indicates hazards that could result in minor personal injury and/or product damage.
Care :Indicates hazards that will result in product damage.
Pre-use checks
1
2.
. Check oil level.
Check the condition of cutter blocks and the tightness of cutter block bolts.
!Caution : Using loose or cracked cutter blocks may result in injury to operators as well as damage to the
unit.
3
. Check that the power source is appropriate for the cutter.
Care: If t h e voltage is too high, the motor will burn out. If the voltage is too low,
insufficient power will be generated. Never use DC current.
4
. Check that the power supply is properly earthed.
! Caution : Failure to the earth power supply may result in an electric shock to the operator.
5
. Check that cord is undamaged and that plug is not loose.
! Caution : Cut or abraded covering could result in a short and electric shock to the operator.
Warm-up
In cold weather , warm up the unit for 30-60 seconds so that the hydraulic oil reaches the proper viscosity.
Pull the trigger -switch to extend piston and release when it has reached its full stroke, Repeat 15-20 times.
Stopper adjustment
The adjustable stopper function to maintain the rebar in the correct position during cutting and must be
properly set for each size of rebar before making a cut.
·
·
·
Screw in stopper to provide sufficient clearance for rebar.
Insert rebar fully into U-shaped support. Make sure that rebar is resting on the base of the stopper.
Keeping rebar at right angles (90°) to front cutter block, screw out stopper until it is just touching
the rebar. Once set, the stooper needs no further adjustment while cutting rebar of the same diameter, but
must be re-set for different size rebar.
!
Caution: Failure to correctly set the stopper will result in excessive wear of the cutter block and may cause a
cut end to fly out.
Cutting
1
. Insert rebar between the stopper and front cutter block, making sure that it is properly seated in U-
shaped support.
2. Pull the trigger -switch and keep depressed while the piston advances and the rebar is cut. ( If switch is
released at an intermediate point, piston will stop.)
1
2
3
. When cut is completed, release switch. Piston retracts automatically. (Note that switch can't be
re-activated until piston has fully retracted.)
Points of attention
1
!
. Be especially careful when cutting off short lengths (30cm or less) as the cut end tends to fly out.
Caution : Flying ends are a hazard to all personnel in the vicinity. Erect safety screens.
. Do not cover air vents.
2
Care : If events are covered , motor will overheat and may burn out.
3. If hydraulic oil exceeds 70 ° (158 F) in temperature, power will drop.
Allow until to cool before resuming operation. (Be particularly careful in summer, when the aluminum pump
case heats up quicker.)
4
5
!
. If a drop in power is observed and motor is unusually hot, check carbon brush .
. If piston should ever fail to retract completely, push rear cutter block backward to manually retract the piston.
Caution: Use rebar or flat metal bar for this purpose. Never push cutter block with any part of the hand,
even if gloved.
Once piston has been retracted , pull trigger-switch long enough to partially advance piston. Unplug unit.
And check piston and housing for accumulated dust iron filings that may be jamming the piston. After
cleaning, piston still does not automatically retract when fully extended, the piston itself may be damaged.
Return the unit to an authorized agent for repair.
Maintenance
Cutter blocks
Before using, always check that the two bolts on each cutter block are properly tightened. Using a loose
block will result in damage to block and housing. Also, check condition of cutter blocks. If either cutting
edge is dull or chipped, remove retaining bolts and rotate both blocks so that two new edges come into use.
Replace and tighten bolts (each block has four cutting edges)
When all four cutting edges have been used or if either block is cracked or otherwise damaged, replace both
blocks.
!
Caution : A loose or cracked block may result in injury to operator .
Cleaning
Cleaning cutter after use.
!
Caution : Wear gloves to protect hands from metal splinters. Do not use an air-gun, blasting with air can
cause metal filing and/or dust to get into the eyes and respiratory system.
1
2
. Disconnect unit.
. Wipe or brush away all dirt and metal filings. Pay particular attention to the lower half of the piston,
where dirt is more easily accumulated.
Oil-level check
As the cutters are hydraulically operated, the oil level must be checked at frequent intervals, preferably every
day. Failure to maintain the oil at the proper level results in a drop in pressure and loss of cutting power.
!
!
Caution : Hydraulic oil is highly flammable. Keep away from sparks and naked flame. Do not smoke.
Caution : Hydraulic oil may cause inflammation of the eyes and skin. If ingested, it will cause diarrhoea
and vomiting.
1
3
In case of eye contact, rinse in clean water for at least 15 minutes and consult a physician. In case of skin
contact, wash thoroughly with soap and water.
In case of ingestion, consult a physician immediately. Do not deliberately induce vomiting.
1
2
3
4
. Oil should be warm but not hot. Warm up the unit if cold.
. Adjust stopper and make three or four cuts, noting exactly at what point the rebar is actually breaking.
. Pinch a short piece of rebar, stopping just before it breaks off. Unplug unit from power source.
. With a partially severed rebar in place, turn unit over so that oil-plug is uppermost. (If the unit is hot, allow it
to cool down.)
5
!
. Remove oil-plug and seal-washer (packing)
Caution : Never remove oil-plug when unit is hot or oil will spurt out.
. check that oil is level with bottom of plug hole. (i.e. That pump case is full to the brim). If oil level is too
6
low, top up with 20-weight hydraulic oil with anti-foam and anti-abrasion properties. (ISO viscosity grade
VG46. E.g. Shell oil Tellus 46, Mobil oil DTE-25 OR Esso uni power SQ46.)
7
. After topping up, extract air from system. Gently tilt cutter lengthwise and return it to a level position.
Top up again and tilt in the opposite direction . Repeat this process until all air has been extracted.
Care: Cutter can't function properly if oil contains air bubbles.
8
. Replace seal washer (packing) and plug. Connect cutter to power source and completely serve rebar.
Oil change
The hydraulic oil should be changed at least once a year. Sooner if it appears dirty.
2
.
Unplug unit from power source. Remove oil plug and packing. Turn cutter over and drain oil into a
suitable receptacle. When oil ceases to drain out, tilt unit to rear so that oil trapped in the piston housing can
run out. When housing is empty, tilt unit in the opposite direction to empty the residue in the pump case.
3
.
With drain-hole uppermost, slowly fill the unit with fresh oil. Replace plug and lightly tighten. Connect
unit to power source and advance piston two or three times. Unplug unit and remove oil-plug . Top up oil
level and replace plug.
4
.
Finally follow procedure for oil level check.
Note: Dispose of hydraulic oil in accordance with local regulations. Do not pour into the sea, river, lake or
drains.
Bolt tightness
Once a week or after every 500 cuts, check the tightness of all bolts, especially those securing the housing to
the cylinder. Loose bolts will result in a loss of power.
Carbon brushes
Inspect the two carbon brushes at least once every two months. (normal brush life is 200 hours.)
Care: Worn brushes will result in power loss, cause the motor to run hot and irreparably damage the
armature's commutator.
1
2
3
. Disconnect unit
. Unscrew both brush caps and pull out carbon brushes.
. Replace brushes if less than 6 cm in length.
1
4
1
5

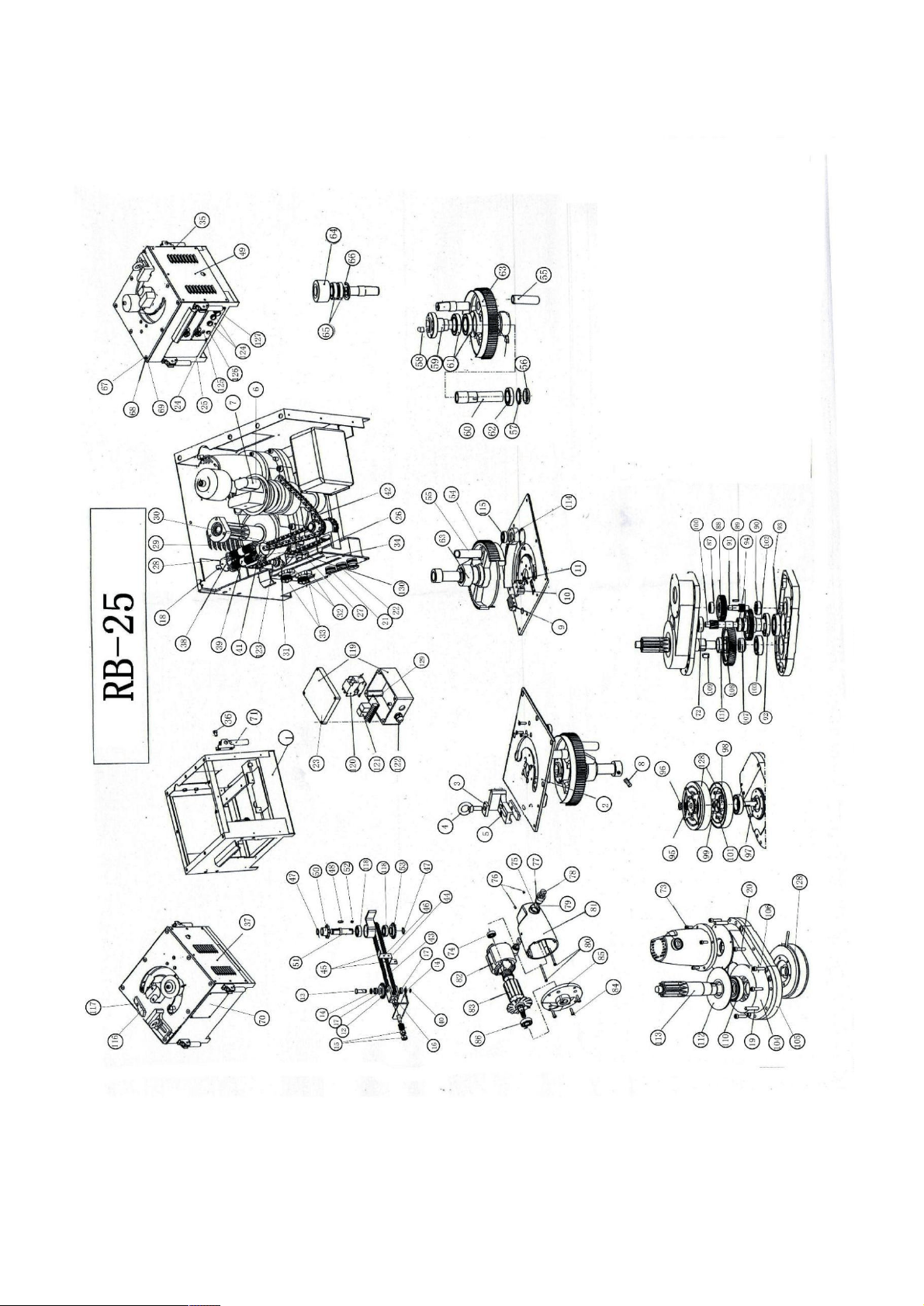

RB-25 PARTS LIST
NO. PARTS NAME
NO. PARTS NAME
NO. PARTS NAME
1
2
3
4
5
6
Foot stand sets
work table sets
fixed gasket
hexagonal screw
adjust block
model
44
45
46
47
48
49
stop film
87
88
89
90
91
92
6202 bearing15×35×11
chain connector
cup head rivetΦ3.5×4
shaft circlip Φ20
round head flat key
right shutter
gear
round head flat key
6302bearing15×42×13
gear shaft
61910 bearing 50×72×12
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
locating shaft
hexagon socket set
buffer block
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
chain wheel
93
94
95
96
97
98
99
10008bearing40×68×9
6004bearing20×42×12
stop washer 16
chain wheel shaft
round head flat key
chain wheel
stop block
round nut M16×1.5
round head flat key
Needle bearing
hexagon socket set
chain wheel
inner hexagon screw
leakage terminal welding
round nut M45×1.5
stop washer Φ45
round head flat
pin roll
bearing gasket
gasket 12
100 gear shaft
101 inner hexagon screw
102 connecting gear
103 6305 bearing25×62×17
104 gear case(up case)
105 gear case(down case)
106 inner hexagon screw
107 washer
nut M12
chain wheel foot stand
61901bearing12×24×6
hexagon headed bolt
round pin 10×35
inner hexagon
cord arma
locating sleeve
connect sleeve
6011 bearing 55×90×18
6009 bearing 45×75×16
big gear component
roll wheel
cord arma
6207 bearing 35×72×17
hole collar Φ72
108 gear
electrical housing
gasket
109 round head flat key
110 6208bearing40×80×18
111 washer
chamfer head screw
spring washerΦ10
nut M10
pan head screw M4×7
Down sensor holder
nut M4
112 housing
air door plate
113 gear shaft
chamfer head screw
nut bolt
handle rivet sets
114 washer
6303 bearing 17×47×14
inner hexagon screw
6200bearing 10×30×9
carbon holder's washer
hexagon socket set
carbon holder sets
carbon holder cap
carbon brush sets
inner hexagon screw
Motor housing
115 6204bearing20×47×14
116 gasket
nut M5
up sensor holder
cord holder
117 inner hexagon screw
118 6004 bearing
119 electric box
hand wheel
panel
120 contactor
pan head screw
inner hexagon screw
left shutter
121 relay
122 water joint
123 sensor
tension spring holder
tension spring
splitpinΦ3.2×16
tension spring holder
chain 08B-1-35
chain 06B-1-T6
124 navitage plug
125 indicator lamp
126 jogging switch
127 emergency switch
128 magnetic clutch
129 PC Board 130 limited switch
stator components
rotor components
inner hexagon screw
motor end housing
6203 bearing 17×40×12
1
6
1
7

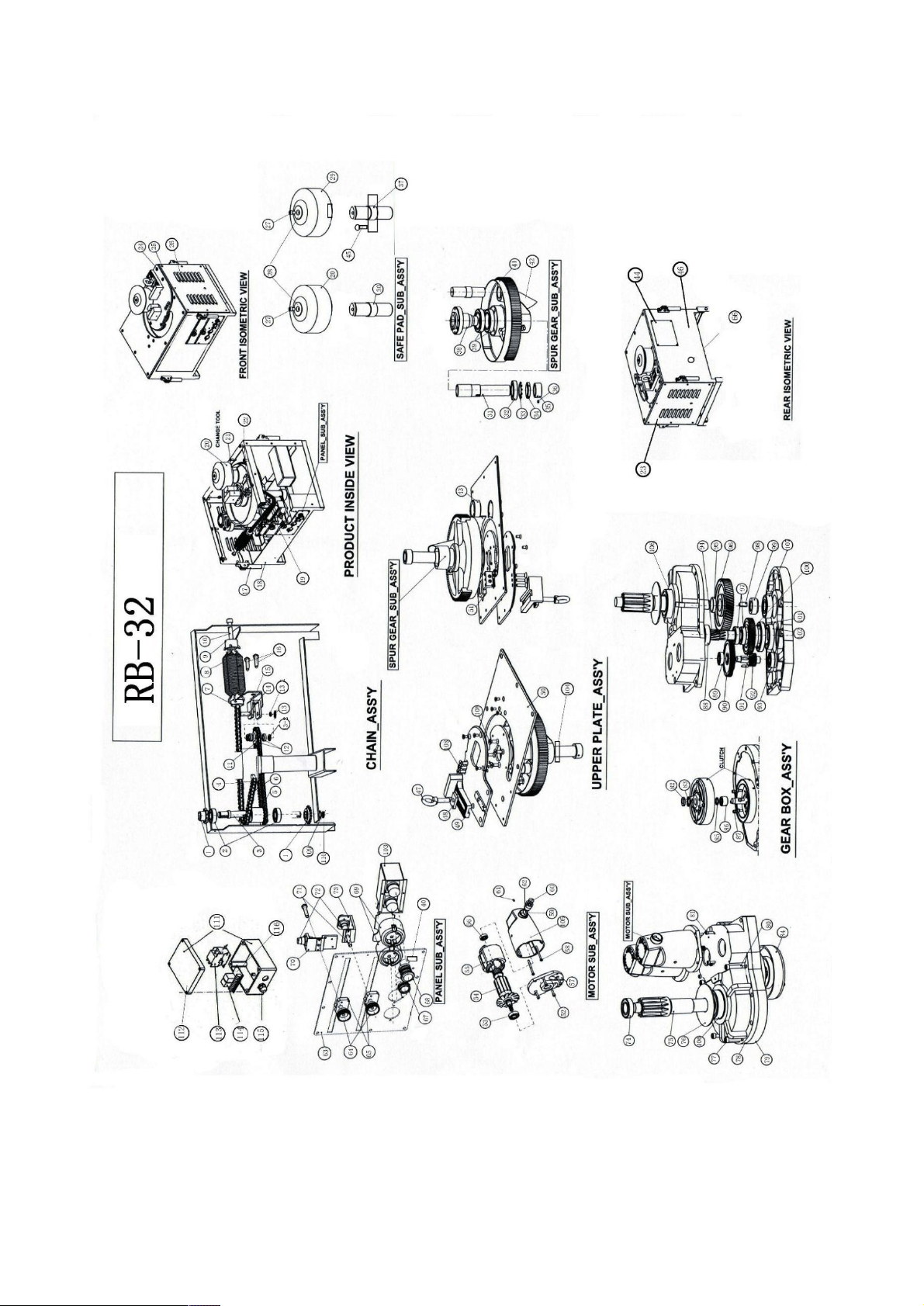

RB-32 PARTS LIST
NO PARTS NAME
NO PARTS NAME
NO PARTS NAME
1
2
3
4
5
6
connecting chain
bearing 6902 28×15×7
chain shaft
40
41
42
43
44
45
ON-OFF switch
79
80
81
82
83
84
gear case (down case)
big gear component
leakage terminal pipe
bearing housing
hexagon socket set
inner hexagon M6×25
nut
chain connector
chain 3
small air door plate
inner hexagon M12×12
gasket
chain 4
magnetic clutch
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
tension spring holder
tension spring
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
foot stand sets
Ring Screw M18×55
fixed gasket
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
gasket
needle bearing
inner hexagon
6305 bearing
6203 bearing 40×17×12
gear
tension spring holder
outer hexagon M10×40
chain wheel
adjust block
work table
6002bearing32×15×9
nut M12
stock block
hexagon socket set
6203 bearing 40×17×12
rotor components
stator components
bearing 6200 30×10×9
motor end housing
inner hexagon M5×70
carbon brush
pin
chain pin
bearing shaft
6204bearing
gear shaft
chain wheel foot stand
hexagon socket set
handle sets
stop washer
￠
20
gear
housing
round pin
￠
10×40
idler wheel
6006bearing 65×30×13
pin
module
brush holder cap
hexagon socket set
brush holder
gasket
buffer block
100 connecting gear
101 6913 bearing 90×65×13
102 6306bearing 72×30×19
103 electric housing
104 limited switch
left shutter
hexagon chamfer screw
cup head screw M5×8
right shutter
panel
hand wheel
cord holder
inner hexagon M12×15
gasket
back emergency switch
Micro switch
105 motor housing
106 6308bearing 90×40×23
107 6009bearing 75×45×16
108 hexagon chamfer screw
109 spring washer
locating sleeve
idler wheel shaft
connecting sleeve
bearing6011 90×55×18
stop washer￠20
emergency switch
Aviation plug
up sensor holder
screw
110 M12
sensor
111 electric box
3
3
3
3
3
3
4
5
6
7
8
9
round nut M55×2
locating ring
73
74
75
76
77
78
down sensor holder
bearing 6206 62×30×16
main gear shaft
112 electrical housing
113 contactor
114 relay
hexagon socket set
locating shaft
gear box cover
115 water joint
116 PC board
locating sleeve
bearing6014
inner hexagon M10*40
gear case(up case)
1
8
1
9

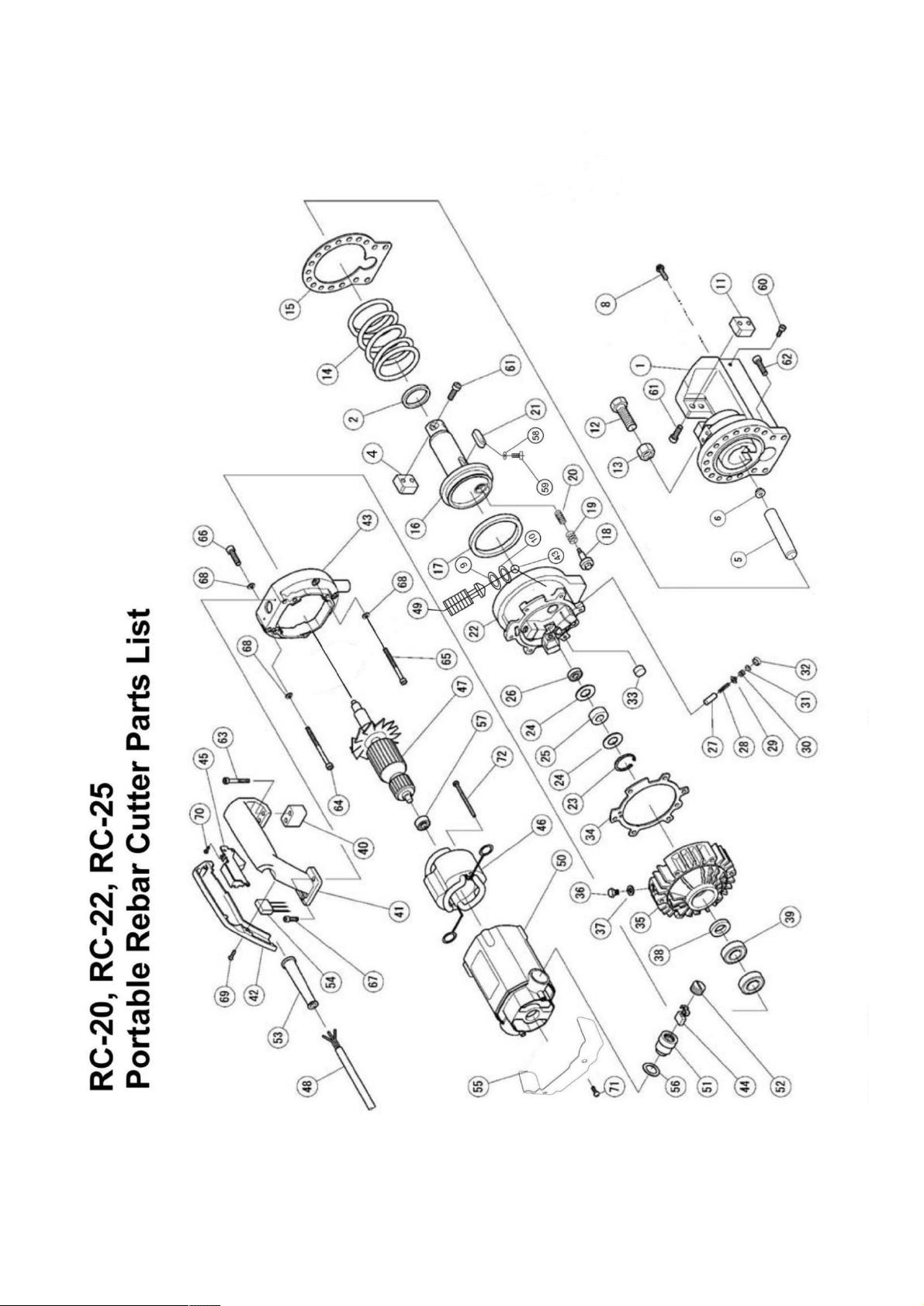

RC-25 PARTS LIST
NO. PARTS NAME
NO. PARTS NAME
CONNECTING BLOCK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CUTTER HEAD
GASKET RING 40×50×6
**
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
HANDLE
HANDLE COVER
PHOTOSPHERE
Ф
4.763
CARBON BRUSH
SWITCH
CUTTER BLOCK / BLADE
AIR BAG
NUT
**
STATOR COIL
ARMATURE
SCREW
O RING
ELECTRICAL CORD
BOLT
O RING
CUTTER BLOCK / BLADE
HEXAGONAL SCREW
NUT
MOTOR HOUSING
CARBON BRUSH HOLDER
CARBON BRUSH CAP
CABLE ARMOR
**
BIG SPRING
GASKET
CUTTER ROD
GASKET RING 80
×
95
×
9
RETURN SHAFT
SPRING
**
GUM WASHER
BEARING 6200
WAVE WASHER
BOLT M4*8
SPRING
PIN 12×40
CYLINDER
BOLT M8*25
BOLT M8*30
SNAP RING
BOLT M8*30
MANGANESE STEEL GASKET
BOLT M6*20
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
NEEDLE BEARING 14
×
30
×
12
BEARING 609
PISTON
64
65
66
67
68
69
70
71
72
73
BOLT M6*20
BOLT M6*25
BOLT M6*50
BOLT M6*20
WASHER
SPRING
OIL VALVE
SPRING
BOLT M4*12
BOLT M4*8
**
SPRING GUIDE
OIL SEAL
FILTER MAGNET
GASKET
BOLT M5*75
CONNECTING PLATE
PUMP CASE
HEXAGONAL SCREW M10
×
16
COMPOUND GASKET
Ф
10
OIL SEAL 20
×
35
×
8
BEARING 104
2
0
2
1

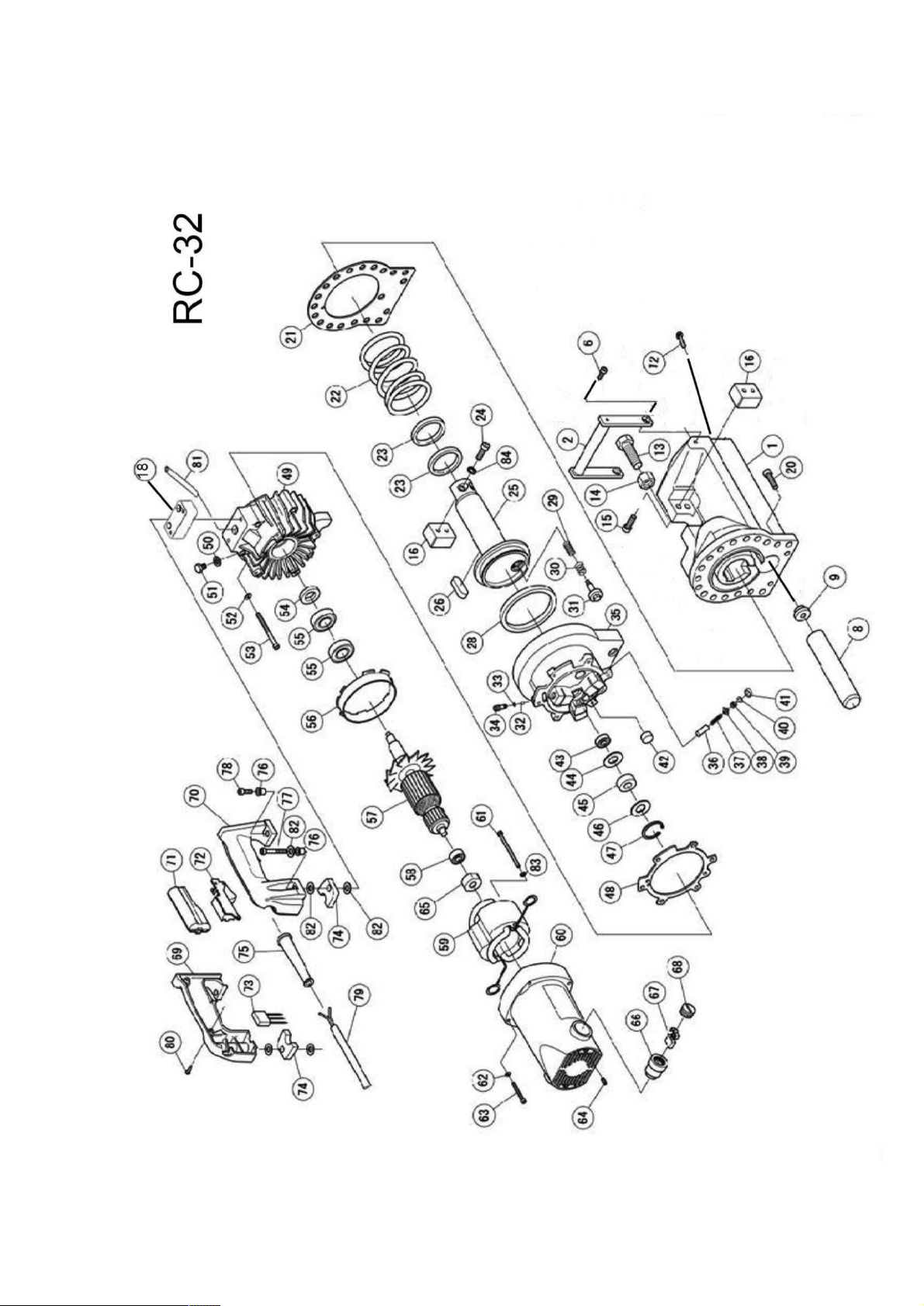

RC-32 PARTS LIST
NO. PARTS NAME
NO. PARTS NAME
NO. PARTS NAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
HOUSING
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
SEAL 85X100X9
RETURN SPRING UP
RETURN SPRING
RETURN VALVE
STEEL BALL
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
BEARING 6004
FAN COVER
SUB HANDLE
COLLAR
ARMATURE
P. WASHER
S .WASHER
CAP BOLT M8X16
SEAL 26X32X4
AIR BAG
BEARING 6200
STATOR COIL
MOTOR HOUSING
TAPPING SCREW
P.WASHER M6
CAP BOLT M6X25
CAP BOLT M5X16
**
O RING
RELEASE VALVE
CYLINDER
TIGHT SCREW
**
PISTON
SPRING
**
DELIVERY VALVE
SPRING
SCREW
BRUSH HOLDER
CARBON BRUSH
BRUSH CAP
BOLT M16X40
NUT M16
SPRING GUIDE
PUMP HEAD SEAL
MAGNET FILTER
BEARING 609
CAP BOLT M8X30
CUTTER BLOCK
CAP BOLT
HANDLE COVER
HANDLE
BEARING GUID
NEEDLE BEARING
BEARING GUIDE
SNAP RING
SWITCH SUPPORT
SWITCH
**
CAP BOLT M6X20
CAP BOLT M10X40
CYLINDER PACKING
RETURN SPRING
SEAL 45X55X6
CAP BOLT M8X25
CUTTER ROD
PIN 12X40
CONDENSER
HANDLE STAY
CORD ARMOR
P.WASHER M6
CAP BOLT M6X35
CAP BOLT M6X35
CORD
PUMP CASE PACKING
PUMP CASE
SEAL WASHER
CAP BOLT M10X16
SEAL WASHER
CAP BOLTM6X50
OIL SEAL 20X35X8
TAPPING SCREW
**
81 TAPPING SCREW 82 WASHER
2
2
