ELECTRIC CORDED LAWNMOWER
HYM3800E
Instruction Manual
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve
the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this
product.
Important!
This manual has been produced by Hyundai Power Products and should be kept with the
product. Please read and understand these instructions before you use your product. Failure to
do this may result in personal injury or damage to the product.
The safety precautions and warnings are to ensure your safety and protect you from harm or
damage to the product.
The information contained in this manual was accurate at the time of production, however
HYUNDAI Power Products may make modifications to the product without notification.
WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE
USING THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
2
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Contents
3
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information.....................4-15
Understand Your Machine...............................4
Personal Safety................................................5
Inspect Your Machine......................................6
Work Area........................................................7
During Use....................................................8-9
Batteries.........................................................10
Electrical Safety..............................................11
Vibrations........................................................12
Noise..............................................................12
Personal Protective Equipment......................13
Intended Use..................................................14
Symbols On The Machine..............................15
Features....................................16-17
Unboxing........................................18
Assembly..................................19-22
Assembly Safety.............................................19
Lower Handle Assembly................................20
Upper Handle Assembly................................21
Assembling Grass Collector...........................22
Cable Hook....................................................22
Operation..................................23-26
Useful Information........................48
Our YouTube Channel....................................48
Warranty.........................................................48
Manual Updates.............................................48
Returning Your Product..................................48
Leaving A Review...........................................48
Ordering Spare Parts......................................48
Contact Us.....................................51
Technical Data..............................34
Spare Parts...............................35-43
Notes.........................................44-45
Recycling And Disposal...............46

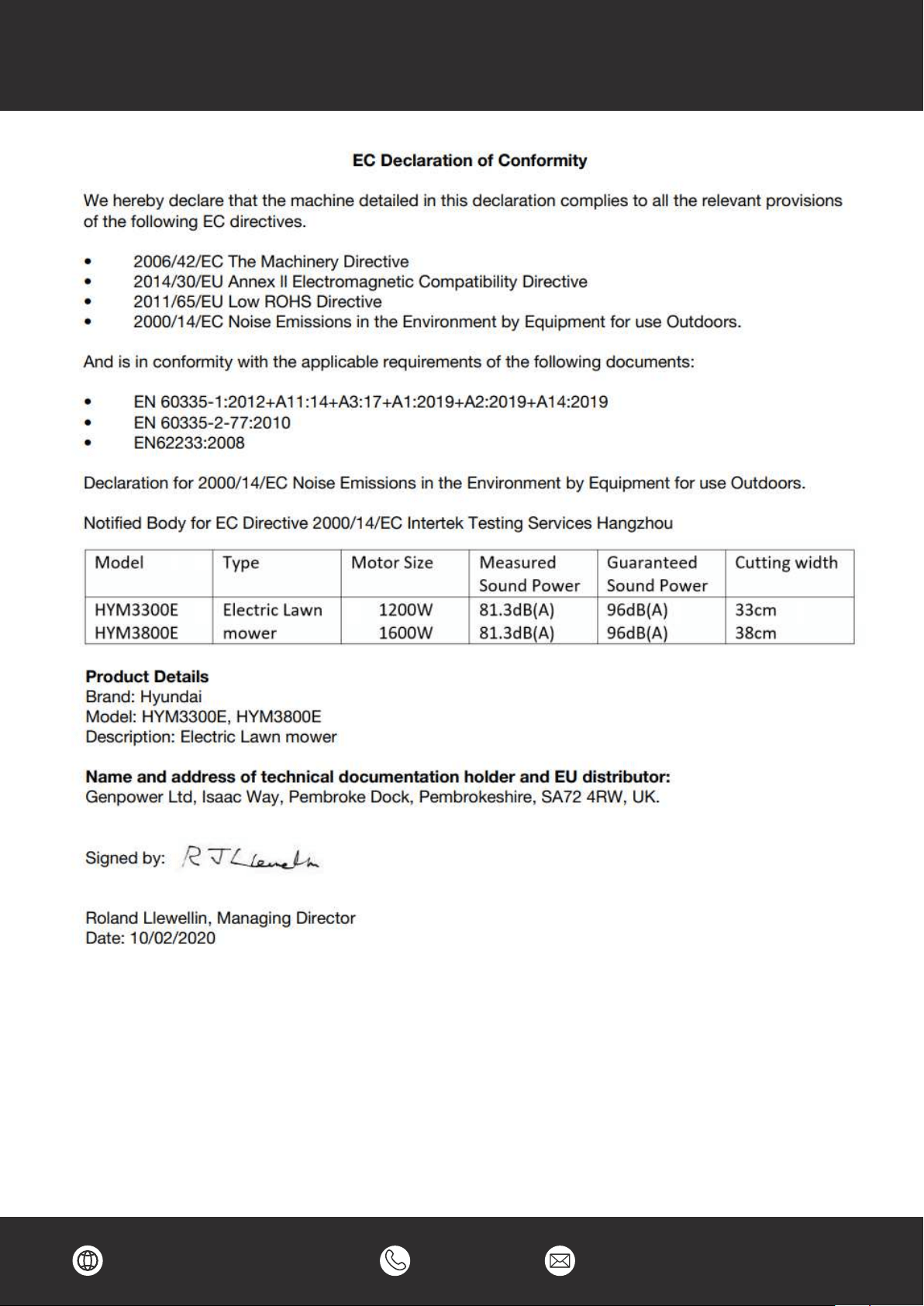

Declaration Of Conformity...........47
Grass Collection.............................................23
Mulching.........................................................24
Cutting Height Adjustment.............................25
Rear Roller......................................................25
Starting / Stopping........................27
Maintenance.............................28-33
Maintenance Safety........................................28
Checking Your Machine.................................28
Cleaning..........................................................29
Transportation................................................30
Storage...........................................................31
Blade Maintenance........................................32
Wheels............................................................33
Troubleshooting.............................................33
Our Product Range.......................49
Product Information......................50
Safety Information
4
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Understand Your Machine
• WARNING! You must read these instructions carefully before operating the machine. Make
sure that you are familiar with the controls and properly operate the machine. You must learn how
to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire
and/or serious injury. Make sure to save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations and potential
hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to stop the
machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be loaned, rented, or
sold, always provide this manual and any needed safety training before operation. The user can
prevent and is responsible for accidents or injuries that may occur to themselves, to other
people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your application.
• Know how to stop the machine quickly in case of emergency. Understand the use of all
controls.
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
• When using this machine for the first time and before actual work, you MUST learn how to
handle the machine from an experienced or skilled person.
!
Safety
No list of safety guidelines can be complete. Every environment is different. Always consider
safety first, as it applies to your individual working conditions. Use this and other machinery with
caution and respect. Failure to do so could result in serious injury, damage to equipment, or poor
work results.
Some or all of the following - warning signs and symbols may appear throughout this
manual. You MUST adhere to their warnings. Failure to do so may result in personal injury to
yourself or those around you.
DANGER
Indicates a hazard, which, if not avoided, could result in serious injury or death.
WARNING
Indicates a hazard, which, if not avoided, could result in serious injury.
CAUTION
Indicates a hazard which, if not avoided, might result in minor or moderate injury.
!
Safety Information
5
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Personal Safety
!
• WARNING! Never allow children or people unfamiliar with these instructions to use the
product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work area (at least
15m). Be alert and shut off the unit if anyone enters work area. Keep children under the watchful
care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating the machine.
Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or
any substances which may slow your reflexes and compromise judgment. A moment of
inattention while operating the machine may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating
or repairing the machine. Always wear anti-slip and resistant work footwear and long trousers
while using the machine. Do not use the machine when barefoot, wearing sandals or similar
lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging
ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or
long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be
thrown from the unit. Always wear safety goggles or safety glasses with side shields when
operating.
• Always keep hands and feet away from all moving parts during operation. Moving parts can cut
or crush body parts. Always keep hands and feet away from all pinch points.
• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to
maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of
the machine in unexpected situations. Extending your body too far can result in a loss of balance
and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement should occur
during assembly, installation, and operation, maintenance, repairing or moving.
• Start the machine carefully according to instructions and with feet away from the moving parts.
• Do not place your hands or feet near or under rotating parts. Keep away from any discharge
openings.
• Keep in mind that the operator or user is responsible for accidents, hazards or unexpected
events involving the machine that occur to other people or their property. It is the responsibility of
the user to assess the potential risk of the area where work is being carried out. The operator or
user must take all necessary precautions to ensure their own safety and that of others, especially
on slopes or rough, slippery and unstable ground.
Safety Information
6
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working order. Make
sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical condition.
Replace damaged, missing, or failed parts before using it. Keep the machine in safe working con-
dition.
• Do not use the machine if the switch does not turn off the machine when running.
• Regularly check to see that keys and adjusting wrenches are removed from the machine area
before starting it. A wrench or a key that is left attached to a rotating part of the machine may
result in personal injury.
• If the machine should start to vibrate abnormally, stop the machine and check immediately for
the cause. Vibration is generally a warning sign of trouble.
• Avoid accidental starting. Be sure the machine’s switch is off before transporting the machine
or performing any maintenance or service on the unit. Transporting or performing maintenance or
service on a machine with its switch on invites accidents.
• Do not tamper with or disable safety systems.
• Only use manufacturer-recommended attachments.
• Before using, always visually inspect to see that the tools are not worn out or damaged.
Replace worn out or damaged elements and bolts in set to preserve balance.
• Keep the machine in good operating condition. Operating the machine in poor or questionable
condition could result in serious injury.
• Be sure all safety devices are in working order and warning labels are in place. These items are
installed for your safety.
!
Safety Information
7
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Work Area
• Make sure you thoroughly inspect the entire work area and remove all objects and anything that
could be thrown by the machine or could damage the machine (branches, stones, wire, toys, etc).
Attempting to clear the work area whilst using the machine will reduce your concentration and
creates a trip hazard. Any liquid spilled on the floor may result in you slipping.
• You must only work in daylight or with good artificial light in good visibility conditions. Do not
work at night, at times of heavy fog, or at any other times when your field of vision might be
limited and it would be difficult to gain a clear view of the area.
• Keep people, children and animals away from the working area.
• Operate on flat, level ground.
• DO NOT work on wet ground. If there has been heavy rain on the working site, wait until the
ground has dried up.
• You must pay special attention when approaching obstacles that could compromise visibility.
• Exercise extreme caution when changing direction on slopes. When changing direction, you
need to be careful that the wheels do not hit any obstacles (such as roots, branches, stones, etc)
that can cause the machine to slide sideways or make you lose control of it. Avoid driving on
slopes steeper than 15%. Make sure on slopes you have a steady foothold.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles, water valves,
bases for washing lines etc. Make sure that you check for hidden electrical cables or similar on
the surface of the lawn. ALWAYS run the machine around these objects. NEVER intentionally run
the machine over foreign objects.
• Never park the machine in a place with unstable ground which could give way.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic.
• Pay the utmost attention when working on frozen ground as the machine may tend to skid.
• Do not work in the rain, when there is a thunderstorm or lightning risk, at times of strong or gale
force winds, or at any other times when the weather conditions might make it unsafe to use this
product. If there is bad weather conditions, do not use the machine.
!
Safety Information
8
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
During Use
• Always hold the unit with both hands when operating. Keep a firm grip on the handlebars.
Be aware that the machine may unexpectedly bounce upward or jump forward if the machine
should strike buried obstacles such as large rocks or roots.
• Do not operate the machine in confined areas where there may be a risk of crushing the
operator between the machine and another object.
• Walk, never run with the machine. Be very careful when pulling the machine toward you. You
must look behind you to make sure there are no obstacles before and during operations in
reverse gear (if applicable). Do not allow the machine to pull you along.
• WARNING! If something breaks or an accident happens whilst working, you must turn off the
machine immediately and move the machine away to prevent further damage. If an accident
happens with injuries or third parties are injured, carry out the first aid measures most suitable
for the situation immediately and contact the medical authorities for any necessary health care.
Carefully remove any debris that might cause damage or harm persons or animals should it not
be seen.
• Use extreme caution when reversing or pulling the machine backwards.
• Do not carry passengers.
• Never operate the machine at a fast pace.
• The excessive speed of movement or the absence of maintenance have a significant influence
on noise emissions and vibrations. It is necessary to take preventive steps to eliminate possible
damage due to high levels of noise and stress from vibration. You must maintain the machine
well, wear ear protection and take breaks from working.
• After striking a foreign object, stop the machine immediately and inspect the machine
thoroughly for damage. Repair the damage before continuing.
• Never attempt to make any adjustments, while the machine is running.
• Never attempt to move the machine in any way other than intended for normal use while the
machine is running.
• Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed
or exposed.
!
Safety Information
9
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
• You must disengage the blade, switch off the machine and disconnect from the power supply
(making sure that all moving parts are stationary):
- Before adjusting the cutting height.
- After striking a foreign object, you must inspect the machine for damage and make repairs
before using it again.
- Before checking or working on the machine.
- Before clearing blockages.
- When transporting the machine.
- Whenever you leave the machine unattended.
- When crossing surfaces other than grass.
- Before emptying the grass collector.
- Before changing the cutting height.
During Use (Continued)
!
Safety Information
10
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Batteries (Where Present)
Batteries present a risk if they become damaged by the possible leaking of electrolyte. This
electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on
or near them. NOTE the electrolyte may be in a liquid or gel form.
Should you come in to contact with electrolyte you should;
• Remove all clothing contaminated with
electrolyte. If you cannot remove then saturate them in water.
• Get medical assistance as soon as possible.
You must advise the medical staff of the type of acid.
• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide alkali electrolyte.
• Use fresh running water to wash off excess electrolyte, continue this until medical assistance
arrives. Make sure that you do not wash the electrolyte to another part of your body or face.
• If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately washed
away with large amounts of water. Make sure that you do not wash the electrolyte to another part
of your face or body.
• Gasses from charging batteries are highly flammable and great care should be taken to charge
in well ventilated areas.
!
• There is an explosion risk if the battery terminals are short circuited, when
connecting/disconnecting ALWAYS exercise great care so that the terminals or battery
leads are NOT allowed to touch and cause a spark. ALWAYS use suitable insulated tools.
Safety Information
11
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Electrical Safety
!
ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT.
DANGER!
• Prior to carrying out any maintenance work you MUST identify electrical isolation methods and
isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs
and connectors for the following;
- Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts
and loose wiring.
- If there are any signs of damage, the damaged item MUST be taken out of service until the
damage has been repaired by an electrically competent person.
- All trailing cables should be routed so as not to cause any kind of trip hazard.
- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
• Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
• DO NOT expose this power tool to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock. DO NOT abuse the power cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil and sharp edges
or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating
a power tool, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
• IMPORTANT: Make sure that the electric circuit is fused, and that the power, voltage and
frequency of the motor is supported by your mains supply. Also, make sure that your power
supply is earthed. Connect your lawnmower to earth. Never open the ON/OFF switchbox.
However, if it should become necessary to do so, contact a qualified electrician. Make sure that
you will never touch live contacts, specifically when you plug or unplug your lawnmower.
This machine and its power cord must never get into contact with water.
• Never use its power cord to move/shift your lawnmower. Always unplug the power cord before
handling your lawnmower. Do not pull the plug out of the wall socket by the cable and protect the
latter against heat sources, oil and objects which can damage it.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Safety Information
12
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
• Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from
vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel
syndrome. This condition reduces the ability of the hand to feel and regulate temperature,
causing numbness and heat sensations and may cause nerve damage and circulatory tissue
death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking and other
diseases that affect blood vessels and blood circulation as well as large and long-lasting impact
of shocks are considered factors in the formation of white finger. Note the following to reduce the
risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule out
the carpal tunnel syndrome. Long-term and regular users are therefore recommended to observe
the condition of your hands and fingers. Seek medical attention immediately if any of the above
symptoms should occur.
Vibrations (Where Applicable)
!
• The operating noise of the machine can damage your hearing. When wearing protection such
as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to
have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection
because your ability to hear alarm warnings will be reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and
for certain periods. Limit the working time to a minimum. For your personal protection and
protection of people working nearby it is also advisable for them to wear hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of conformity.
Noise (Where Applicable)
!
Safety Information
13
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Personal Protective Equipment
!
HAND PROTECTION MUST BE WORN
Protective electrically non-conductive gloves are highly recommended when working.
HEARING PROTECTION MUST BE WORN
Suitable safety hearing protection is recommended.
EYE PROTECTION MUST BE WORN
Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have
only impact resistant lenses; they are not safety glasses/goggles.
FOOT PROTECTION MUST BE WORN
Non-skid heavy duty footwear are highly recommended when working.
PROTECTIVE CLOTHING MUST BE WORN
Do not wear loose clothing, gloves, scarfs, neckties or jewellery
(rings, wrist watches), which can be caught in moving parts.
HEAD PROTECTION MUST BE WORN
Wear a safety helmet with a safety visor.
FACE SHIELD MUST BE WORN
Wear a face shield to protect your face.
RESPIRATOR MUST BE WORN
Wear a respirator.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If
more than one item of PPE is worn at the same time, make sure they can be used together, e.g.
wearing safety glasses may disturb the seal of a respirator, causing air leaks.
Safety Information
14
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Intended Use
The HYM3800E is an electric lawnmower from Hyundai. The HYM3800E has a cutting width of
380mm and is powered by a 1600W Hyundai motor.
This machine is a garden tool and precisely a pedestrian controlled lawnmower. The operator is
able to operate the machine and use the main controls, always staying behind the handle at a
safe distance from the rotating blade.
The machine is manufactured according to the latest safety requirements. Every precaution is
only effective when it is followed exactly.
Intended Use
This machine was designed and manufactured for cutting (and collecting) grass is gardens and
grassy areas, in areas in proportion to its cutting capacity, controlled by a pedestrian operator.
User Types
This machine is intended for use by consumers, i.e. non professional operators. The machine is
intended for “DIY” and domestic use only.
Improper Use
Any other usage not in keeping with the above mentioned ones may be hazardous and harm
persons and/or damage things. Examples of improper use may include, but are not limited to:
- transporting people, children or animals on the lawnmower
- letting yourself be transported by the lawnmower
- using the machine to tow or push loads
- using the machine for leaf or debris collection
- using the machine to trim hedges, or cutting anything other than grass
- use of the machine by more than one person
- using the blade on surfaces other than grass
15
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Symbols On The Machine
We have provided safety messages in this manual and on the machine. This information alerts
you to potential hazards that could hurt you or others. Please read these messages carefully.
However, we may not have listed all of the possible hazards, you must also use your own
judgment.
IMPORTANT
Please read this instruction
manual carefully, especially the
safety warnings marked with the
symbol.
INSTRUCTION MANUAL
Read and understand operator’s
manual before using the
machine. Failure to follow
instructions could result in
death or serious injury.
SAFETY DISTANCE
Do not put hands or feet near or
under rotating parts. Keep a 15
metre safety distance.
BYSTANDERS
Never allow any bystanders in
front of the unit. Keep a 15
metre safety distance.
UNPLUG FROM MAINS
Always switch the machine off
and unplug from the mains
when the unit is left unattended
and when carrying out
maintenance.
CE SYMBOL
This product complies with the
applicable European directives
and an evaluation method of
conformity for these directives
was done.
DANGER!
Keep hands and feet away
from cutting parts.
PROTECTION CLASS II
Equipped with enhanced or
double insulation.
WEEE SYMBOL
Waste electrical products should
not be disposed of with
household waste. Please recycle
where facilities exist. Check with
your local authority or local store
for recycling advice.
DANGER!
Do not mow over the cable.
DANGER!
Risk of electric shock.
IMPORTANT
Acoustic power level.
Features
1
Main Handle
Hold onto with both hands this whilst using the machine.
2
Operator Presence Control (OPC) Lever
This is a safety feature. The machine will stop if you let go of this lever.
3
4
5
6
Quick Release Handle
7
Mulching Plug
HYM3800E Features
17
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
On / Off Button
Grass Collector
Wheel
Unboxing
• HYM3800E Lawnmower
• User Manual
• 40L Grass Collector
• Mulching Plug
• Cable Clips
• 2 x Quick Release Handle Bolts With Washers And Thumbscrew Nuts
Box Contents
WARNING! Unboxing and assembling the machine should be done on a flat, stable surface
with enough room. Disposal of the packaging should be done in accordance with the local
regulations in force.
WARNING! Some of the packaging material may be harmful to children. Keep out of reach of
children.
Unboxing Safety
!
Carefully remove the product from the packaging and examine it for any sign of damage caused
during shipping. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the
packaging material in case the machine needs to be returned or repaired.
Ensure that you have all the accessories and tools you need for assembly and operation
including the suitable personal protective equipment.
18
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Assembly
CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI
machine. We always advise reading the manual in full before operation.
NOTE - Images may vary depending on model.
NOTE - The machine may be supplied with some parts already assembled. Prior to assembly,
check all items have been received. The mulching plug may already be installed for transport.
Assembly Safety
!
We recommend that you fill out the information on page 50. If you need to contact an
authorised dealer or customer service for information on servicing, you may need to
provide this information.
19
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Assembly
Step 1 : Setting The Position Of The Lower Handles
Unboxing & Assembly Video:
YOU MUST read and understand the instruction manual first.
Go to youtube.com and type in Hyundai HYM3800E assembly.
20
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Unfold the grey arm of the lower handle.
1
Image 1 Image 2
Line up the arrow with one of three lines to set user height of handle.
2
Fold black quick release clamp over to lock the handle position.
3
If the handle is too loose, unfold the quick release clamp and turn clockwise a couple of
turns. Fold clamp in again to check tightness.
4
If the clamp is too tight, unfold and unscrew anticlockwise a couple of turns.
5
Assembly
21
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Step 2 : Fixing Upper Handle
Take the upper quick release clamps from the bag and remove the thumbscrew nut and
washer. Make sure Upper Handle is the correct way up with red Start Button on top.
1
Pass the clamp bolt through the upper handle hole from the outside. Then pass through the
lower handle hole. Fit the washer and nut on the inside of the handle.
2
With the clamp closed, tighten the thumbscrew to lock the handle. You can then use the
quick release clamp to loosen upper handle and fold over handle for storage.
3
Fit the two cable clips to retain black cable from the handle to the motor.
4
Assembly
22
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Step 3 : Assembling Grass Collector
You will need to clip the edge of the bag around the frame of the collector.
1
Loop the orange cable into the retaining hook. Leaving enough slack between the hook and
the switch unit.
1
Step 4 : Cable Hook
Operation
23
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
To fit the grass collector to the mower, lift the rear flap and attach onto the hooks.
Grass Collection
1
2
Only remove the grass collector with the mower switched off.
3
There is an indicator on the rear of the grass collector which shows you when the grass bag
is full. The flap will blow open during use and then close when the collector is full of grass.
Operation
24
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
To remove the plug, lift the rear flap on the mower and pull out the mulching plug.
Mulching
1
2
To install the plug, lift the rear flap and clip into the two bottom catches. Close the rear flap.
This can be used to prevent the grass clippings from entering the collector box. The
clippings will be mulched up, leaving the nutrients to be absorbed back into the lawn.
What Is Mulching?
Mulching is the intelligent way to keep your lawn healthy. This is when the grass clippings are
cut into fine pieces which then fall back into the soil. These fine pieces are rich in nutrients and
act as a natural fertiliser. This will keep your lawn healthy.
This is the
mulching plug.
You must turn motor off before removing or installing the mulching plug.
Operation
25
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Cutting Height Adjustment
Position 1 is the lowest and 5 is the highest. If your grass is quite long, set the height to a
high position first and take an initial cut.
1
You can adjust the height to 5 positions.
This is the lowest height setting.
This is the highest height setting.
5
1
Rear Roller
The rear roller will enable the mower to
provide attractive stripes to the lawn. It is
spring loaded so it self adjusts to the required
height.
Operation
26
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Before Each Use
Always ensure that the machine is in a safe working condition. Inspect and check safety
devices and guards and check all nuts, bolts and screws are secure.
1
2
Make sure you know how to stop the machine and ensure you are familiar with emergency
stop.
3
Start the machine following the instructions and stay clear of the machine’s moving parts.
YOU MUST read and understand the full safety instruction manual before starting the
machine.
!
General Mowing Tips
Maintain a constant cutting height of 3-5cm. Do not shorten the grass to less than half its
original height.
1
2
Under certain conditions, such as very tall grass, it may be necessary to raise the height of
cut to reduce pushing effort, prevent overloading of the motor and leaving clumps of grass
clippings.
3
It may also be necessary to reduce ground speed and/or push the lawnmower over the area
a second time. For extremely heavy cutting, reduce the width of cut by overlapping the pre-
viously cut path and mow slowly.
Method Of Cutting Grass
Make sure you keep the cable away from the cutting blade.
1
2
Coil up the cable close to the power source and work away from this area.
3
If the grass is long, use a high cutting height first. Then take a lower second cut.
Recommended Mowing Schedule
Spring (March, April & May)
Mow once a week on a high to medium height setting.
Summer (June, July & August)
Mow twice a week under good growing conditions on a low setting. In dry conditions, mow once
a week on a medium to high height setting.
Autumn (September, October & November)
Mow once a week on a medium height setting.
Winter (December, January & February)
Mow as required on a high height setting.
Starting / Stopping
27
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Starting
Before starting the motor, make sure the mower is not sitting on long grass.
1
3
4
Push and hold in the red button on the handle.
Now pull one of the Operator Presence Control (OPC) levers in.
2
Make sure the cable is well away from the cutting blade.
Stopping
To stop the motor, release the OPC lever.
1
PRESS RED
BUTTON
PULL IN
OPC LEVER
Maintenance
28
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance Safety
!
IMPORTANT - Routine and accurate maintenance is essential for maintaining original
machine safety and performance levels.
WARNING - Before cleaning or doing maintenance work, you need to stop the machine and
read the relevant instructions. You need to wear proper clothing and protective gloves whenever
your hands are at risk.
If there are worn or damaged parts, never use the machine. Faulty or worn-out parts must be
replaced and not repaired. You must only use original spare parts. The use of non-original and/or
incorrectly fitted parts will jeopardize the safety of the machine. This may also cause accidents or
personal injuries for which the manufacturer is under no circumstance liable or responsible.
Any maintenance operations or adjustments not explained in this manual must be carried out
by your Dealer or a specialised Service Centre with the necessary knowledge and equipment to
ensure that the work is done correctly maintaining the machine’s original safety level. Any
operations performed in unauthorised centres or by unqualified persons will invalidate the
Warranty and all obligations and responsibilities of the Manufacturer.
Be very careful during adjustment of the machine to prevent entrapment of the fingers
between moving parts and fixed parts of the machine.
!
!
!
!
!
Checking Your Machine
When checking your machine, we recommend you:
• Check for worn or damaged parts.
• Make sure all nuts, screws and bolts are tight.
• Make sure all warning stickers are in place and not damaged.
• Frequently check the lawnmower and ensure that all grass deposits are removed from beneath
the deck.
• Check the blade for damage.
Maintenance
29
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
CAUTION - DO NOT use a hose pipe or pressure washer to clean the machine.
NOTE Machine must be switched off and disconnected from the power supply.
!
!
After Each Use
• You must remove grass and mud from the machine to prevent it from drying. This will cause
problems the next time the machine is used.
• Wipe the machine down with a cloth.
• For larger build ups of debris, use a scraper or similar product.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use.
Cleaning
Make sure the power has been disconnected to the lawnmower
1
Clean the cooling vents to the motor to prevent overheating. There are vents on the top of the
mower and under the deck of the mower.
2
Tip the mower on its side and wear gloves to protect yourself from the blade.
3
Clean the old grass clippings away using a stiff brush.
4
Clean the old grass from around the roller and wheels.
5
Do not use a water jet or pressure washer to clean the machine. This will damage the electric
motor.
6
Use a damp cloth with mild detergent to clean the top casing.
7
COOLING
VENTS
COOLING AIR VENTS
30
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance
Whenever the machine is to be handled, lifted, transported or tilted, you must:
Transportation
Wear sturdy work gloves.
1
Hold the machine at the points that offer a safe grip, taking into account the weight and
relative distribution of the same.
2
Use an appropriate number of people for the weight of the machine and the characteristics of
the vehicle or the place where it must be placed or collected.
3
You must make sure that machine movements to not cause petrol leaks, damage or injuries.
4
During transport, make sure to fasten the machine securely with cables or straps.
5
The machine must be transported on a flat surface.
6
31
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance
How To Store
After use, please follow the below steps before storing your machine.
Storage
Allow the machine to fully cool down.
1
Clean the machine. See the ‘Cleaning’ section.
2
Where To Store
!
Store in a cool, dry place away from sources of ignition and varying changes in temperature.
Store on a flat and level surface with all wheels on the ground.
DO NOT stack other items on top of the machine when in storage.
Store the machine in a safe place, out of the reach of children or anyone who is not familiar
with operation.
DO NOT store a machine that has not been given time to fully cool down.
!
!
!
!
Undo the top handle nuts and carefully fold over the top handle. Make sure you do not trap
the cable in the handle joints.
3
Cover in a soft dry cloth.
4
Maintenance
32
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
The Blade
WARNING
• Never touch a rotating blade.
• Check the blade in order to get a good cut. The blade should always be sharp and well
balanced. At regular intervals, check the tightness of all nuts, bolts and screws.
• If the blade hits an obstacle, check for damage and if the machine vibrates badly, stop the
lawnmower and take it to a service dealer.
• It is best if all interventions on the blade are done at a specialised centre that has the special
tools and equipment.
!
First disconnect the power to the mower.
1
You MUST wear gloves to protect your hands from being cut when working with the blade.
Inspect the blade for chips or a blunt cutting edge.
2
To sharpen the blade you will have to remove it.
3
Using a suitable ring spanner or socket wrench, undo the central bolt by turning anticlockwise.
It will be very tight.
4
You can take the blade for sharpening to a local repair workshop or you can do it yourself
using suitable metal grinding equipment. Please use Eye and Ear protection.
5
If you do it yourself, make sure the blade is balanced by placing a nail through the central hole
and seeing if the blade sits evenly.
6
Check the plastic blade boss/adapter for damage. If your blade has hit a foreign object, the
two lugs which locate the blade may have sheared off. This can be purchased by contacting
Hyundai Power Products Parts Team.
7
Replace the blade and tighten the central bolt very tightly. Only original blades must be used
on this machine.
8
Troubleshooting
Maintenance
33
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
For faults not listed in this table, or which you cannot resolve by yourself, please
contact our aftersales team. Where necessary, all corrective actions should be carried
out by suitably qualified persons.
!
Motor won’t start • Check the fuse in the plug.
• Check the cable for damage.
• Make sure you are holding in the RED button while pulling the
OPC lever.
• If the motor is hot, leave to cool down and try again.
• Check underneath for excessive build-up of grass clippings
which may be jamming the blade.
Mower not collecting grass • Make sure mulching plug is removed.
• Clean under the deck of the mower and the exit chute into the
grass collector.
Mower does not cut grass
cleanly.
• Check if the blade is blunt. Sharpen or replace if needed.
• Check that the cutting height suits the grass length.
Wheels
The wheels can be removed for greasing with a general purpose grease before each grass
cutting season.
1
Pull the wheel trim off and remove the R Clip. Slide the wheel off and apply some grease to
the axle.
2
34
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Technical Data
Specifications
Model HYM3800E
Voltage 230V - 50Hz
Motor Power Rating 1600W
No Load Speed 3600rpm
Cutting Height 20-70mm (5 Positions)
Cutting Width 380mm / 38cm
Grass Collector Capacity 40L
Measured Sound Level 81.3dB, K=3m/s2
Guaranteed Sound Level 96dB
Vibration Value 2.7m/s2, K=0.5m/s2
Net Weight 12.5kg
35
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Spare Parts
Ordering Spare Parts
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will
jeopardise the safety of the machine, may cause accidents or injuries for which the manufacturer
is under no circumstance liable or responsible.
1
2
Find the part you are looking for in the drawings.
Information about the parts can be found in the tables below or visit power-spares.co.uk
3
Use this information to order the part.
4
Contact us if you need help finding the correct part.
Drawing A
Drawing Number Spare Part Name Part Number
HYM3800E-A1 Motor 1132001
HYM3800E-A2 Ball Bearing 1292024
HYM3800E-A3 Central Bracket 1292025
HYM3800E-A4 Brake Pan 1292026
HYM3800E-A5 Screw 1001033
HYM3800E-A6 Small Pulley 1132006
HYM3800E-A7 Ball Bearing 1292029
HYM3800E-A8 Big Pulley 1292030
HYM3800E-A8-1 Pulley Shaft 1292031
HYM3800E-A9 Brake Rubber 1292032
HYM3800E-A10 Brake Metal 1292037
HYM3800E-A11 Brake Spring 1292033
HYM3800E-A12 Brake Insert Part 1292034
HYM3800E-A13 V-belt 1132014
HYM3800E-A14 Ball Bearing 1102220
Drawing Number Spare Part Name Part Number
HYM3800E-B1 Switch Button 1292001
HYM3800E-B2 Spring 1292002
HYM3800E-B3 Upper Box of Switch Box 1292004
HYM3800E-B4 Washer 1292003
HYM3800E-B5 Cable Sheath 1292008
HYM3800E-B6 BS plug+10 Meter Cable 1292009
HYM3800E-B7 Switch Handle, Left 1292010
HYM3800E-B8 Switch Handle, Right 1292011
HYM3800E-B9 Pressed Plate for Cable 1292006
HYM3800E-B10 Trigger 1292005
HYM3800E-B11 AC Cable 1292007
HYM3800E-B12 Lower Cover of Switch Box 1292013
HYM3800E-B13 Cable Hook 1292014
HYM3800E-B14 Screw 1290030
HYM3800E-B15 Screw 1189053
40
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Spare Parts
Drawing A
Drawing B
Drawing Number Spare Part Name Part Number
HYM3800E-C1 Front Wheel 1286025
HYM3800E-C2 Pin 1286026
HYM3800E-C3 Front Wheel Cover 1286027
HYM3800E-C4 Front Wheel Shaft 1286028
HYM3800E-C5 Pressed Plate 1 1286029
HYM3800E-C6 Rear Wheel Shaft 1286030
HYM3800E-C7 Big Washer 1286031
HYM3800E-C8 Rear Wheel 1286032
HYM3800E-C9 Rear Wheel Cover 1286033
HYM3800E-C10 Spring 1286034
HYM3800E-C11 Front Pulling Pole 1286035
HYM3800E-C12 Pin Shaft, B Type 1286036
HYM3800E-C13 Height Adjusting Bracket 1286037
HYM3800E-C14 Rear Pulling Pole 1286038
HYM3800E-C15 Height Adjusting Handle 1286039
HYM3800E-C16 Cover of Height Adjusting
Handle
1286040
HYM3800E-C17 Screw 1286041
HYM3800E-C18 Height Adjusting Pulling Pole 1286042
HYM3800E-C19 Spring 4 1286043
HYM3800E-C20 Pressed Plate 2 1286044
HYM3800E-C21 Bracket for Right Roller Wheel 1286045
HYM3800E-C22 Open Ring 1286046
HYM3800E-C23 Roller Wheel 1286047
HYM3800E-C24 Shaft of Rear Wheel 1286048
HYM3800E-C25 Bracket for Left Roller Wheel 1286049
HYM3800E-C26 Spring 2 1286050
HYM3800E-C27 Spring 3 1286051
HYM3800E-C28 Screw 1132058
41
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Spare Parts
Drawing C
42
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Spare Parts
Drawing D
Drawing Number Spare Part Name Part Number
HYM3800E-D1 Handle 1132059
HYM3800E-D2 Screw 1132060
HYM3800E-D3 Upper Deck Cover 1132061
HYM3800E-D4 Rear Cover 1286023
HYM3800E-D5 Spring for Rear Cover 1286021
HYM3800E-D6 Pressed Board of Rear Cover 1286022
Drawing Number Spare Part Name Part Number
HYM3800E-E1 Handle of Grass Box 1286088
HYM3800E-E2 Window Cover 1286089
HYM3800E-E3 Cover of Grass Box 1286090
HYM3800E-E4 Washer 1290121
HYM3800E-E5 Steel Bracket for Grass Box 1286092
HYM3800E-E6 Grass Bag 1286093
HYM3800E-E7 Screw 1132071
HYM3800E-E8 Mulching Plug 1286095
Drawing E
43
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Spare Parts
Drawing Number Spare Part Name Part Number
HYM3800E-G1 Right Fan Window Part 1132073
HYM3800E-G2 Left Fan Window Part 1132074
HYM3800E-G3 Screw 1286019
HYM3800E-G4 Height Adjusting Board 1286059
HYM3800E-G5 Upper Handle 1132077
HYM3800E-G6 Cable Clamp 1286061
HYM3800E-G7 Lower Handle 1286062
HYM3800E-G8 Quick Release Handle 1286063
HYM3800E-G9 Pin 1286064
HYM3800E-G10 Pin for Quick Release Handle 1286065
HYM3800E-G11 Limit Base for Quick Release
Handle
1286066
HYM3800E-G12 Washer 1290007
HYM3800E-G13 Knob 1290008
HYM3800E-G14 Washer 1286069
HYM3800E-G15
Right Buckle for Lower Handle
1286070
HYM3800E-G16 Right Buckle 1286071
HYM3800E-G17 Pressed Board 1290028
HYM3800E-G18 Nut 1286073
HYM3800E-G19 Screw 1286074
HYM3800E-G20 Left Buckle 1286075
HYM3800E-G21 Left Buckle for Lower Handle 1286076
HYM3800E-G22 Lower Deck 1286077
HYM3800E-G23 Side Cover 1286078
HYM3800E-G24 Plastic Blade Adaptor 1286079
HYM3800E-G25 Blade 1286080
HYM3800E-G26 Washer 1288042
HYM3800E-G27 Bolt 1286082
HYM3800E-G28 Washer 1286083
HYM3800E-G29 Pressed Cap for Cable 1292067
HYM3800E-G30 Foam of Handle 1286084
HYM3800E-G31 ST Screw 1286055
HYM3800E-G32 Clip Buckle for Lower Cover 1286086
HYM3800E-G33 Capacitance 1292068
HYM3800E-G34 ST Screw 1189034
HYM3800E-G35 Nylon Belt 1286054
HYM3800E-G36 ST Screw 1132108
Drawing G
46
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Recycling And Disposal
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or
Batteries is passed onto you by us.
So when it becomes necessary to dispose of your machine you must take it to your
local Civic Amenity Site. For further information please contact your local Authority
for disposal advice.
You MUST make sure that all unused oil and fuel is disposed of correctly either beforehand
or at your local Civic Amenity Site.
• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling centre.
• Certain products contain batteries which should not be disposed of in your domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling centre.
• Unwanted packaging and materials should be stored and taken to a recycling centre so it can
be disposed of in a manner which is compatible with the environment.
We are a Member of the VALPAK National Compliance Scheme and our registration number is
RM08660. For further information about disposal please contact your Local Authority.
You can also get more advice and guidance about recycling at the following website
http://www.recycle-more.co.uk
Should you pass this product on to another user either sold or loaned, you MUST pass on this
user manual. This will make sure that all other users can use and maintain this machine safely.
1. Environmental protection should be a priority of considerable importance when using the
machine, for the benefit of both social coexistence and the environment in which we live. Try not
to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of packaging, oils,
petrol, filters, damaged parts or any elements which have a strong impact on the environment.
This waste must not be disposed of as normal waste. It needs to be separated and taken to
specified waste disposal centres where the material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after mowing.
4. When disposing, do not pollute the environment with the machine, but hand it over to a
disposal centre, in accordance with the local laws in force.
Recycling And Disposal
Environmental Protection
48
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube.
Warranty
Proof of purchase will be required before you make a warranty claim.
Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an error, omission or
something unclear, please contact us for assistance.
We reserve the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online.
All our manuals can be downloaded at: www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve the
issue. We would be delighted if you left us positive feedback!
To leave a review, please go to: uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
You can find the spare part you are looking for in the ‘Spare Parts’ section of this manual or visit
power-spares.co.uk
Generators
Leisure Inverter, Petrol, Diesel And Built-In
Motorhome Generators
Pressure Washers
Petrol, Diesel And Electric Pressure Washers
Water Pumps
Submersible, Clean And Dirty Water And
Professional Chemical Water Pumps
Lawnmowers
Petrol, Cordless, Electric, Roller, Self Propelled,
Electric Start And Robotic Lawnmowers
Grass Trimmers And Brush Cutters
Petrol, Cordless, Electric And Wheeled Grass
Trimmers And Brush Cutters
Chainsaws
Petrol, Cordless And Electric Chainsaws
Hedge Trimmers
Petrol And Cordless Hedge Trimmers
Leaf Blowers
Petrol, Electric, Cordless, Backpack And 3 -in-1
Leaf Blowers
Log Splitters
Horizontal, Vertical, Petrol And Electric Log
Splitters
Wood Chippers
Petrol And Electric Start Wood Chippers
Tillers
Petrol Garden Tiller And Cultivator
Earth Augers And Trenchers
Petrol Earth Augers And Heavy Duty Trenchers
Compactor Plates
Petrol Compactor Plates
Cement Mixers
Portable Electric Cement Mixers
If you would like more information on any of
these products, please contact our sales team
on 01646 687880 or visit our website
www.hyundaipowerproducts.co.uk
Mini Dumpers
4-Wheel Drive Mini Dumpers And Tracked
Dumpers
Yard Sweeper
Self Propelled Yard Sweeper Power Brush
Scarifiers
Petrol Lawn Scarifier And Aerator
Stump Grinders
Petrol 4-Stroke Stump Grinders
Welders And Plasma Cutters
MIG, TIG, MMA, ARC Welders And Plasma Cutters
Power Tools And Tool Chests
Electric And Cordless Power Tools And Filled Tool
Chests
Vacuum Cleaners
Wet And Dry Vacuum Cleaners
Engines
Petrol And Electric Start Engines
Battery Chargers / Starters
6V, 12V, 24V Battery Chargers, Jump Starters And
Hydraulic Floor Jack
Air Compressors
Home, Domestic, DIY And Professional Use Air
Compressors
Lighting Towers
Mobile Lighting Towers With Diesel Generators
Portable Power Stations
Camping Power Packs And Solar Chargers
And More
We Are Constantly Expanding Our Range With
New Products
Our Product Range
49
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
50
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Product Information
Date Of Purchase: ........................................................................................................................
Dealer Name:.................................................................................................................................
Dealer Phone:................................................................................................................................
Model Number:.............................................................................................................................
Serial Number:..............................................................................................................................
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
The model number and serial number can be found on the grey specification sticker on
your machine.
Information
Need Help? Talk To Our Experts
Contact Us
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687880, open Monday-Friday 8.30am-5pm.
Email
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Live chat is open Monday-Friday from 8.30am-5pm.
Post
Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
51
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Importer:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198
www.hyundaipowerproducts.co.uk
Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland
Licensed by Hyundai Corporation, Korea
