IMMERSIVE
with Mntegrated Sound
MODELS
ND LED
Projector
LCD
HDTV
WE 'S GU!
This manuam provides basic connection, setup, and operating instructions. Pmease visit our website at
wwwo Mitsubishi-tvocom to view or downmoad a detaimed owner's guide that fully describes the features
of this TVo Follow the Support minkto the Product Documents page.
o For questions:
Visit our website at www.mitsubishFtv.com.
Call Consumer ReHations at 800-332-2119 for operationaH or connection assistance.
For information on System Reset, pHeasesee the back cover.
To order repHacement or additionaH remote controHs, visit our website at www.mitsuparts.com or call
800-553-7278.
265 Series, IR emitter cabHes for NetCommand home=theater controH are avaiHabHefor purchase from
Mitsubishi. Call 800-553-7278 and request either part number 242D483020 (two=ended cable) or part
number 299P254020 (four=ended cable).
HmGH-DEFmNmTmON MULTHMEDHA mNTERFACE
PROCESSOR

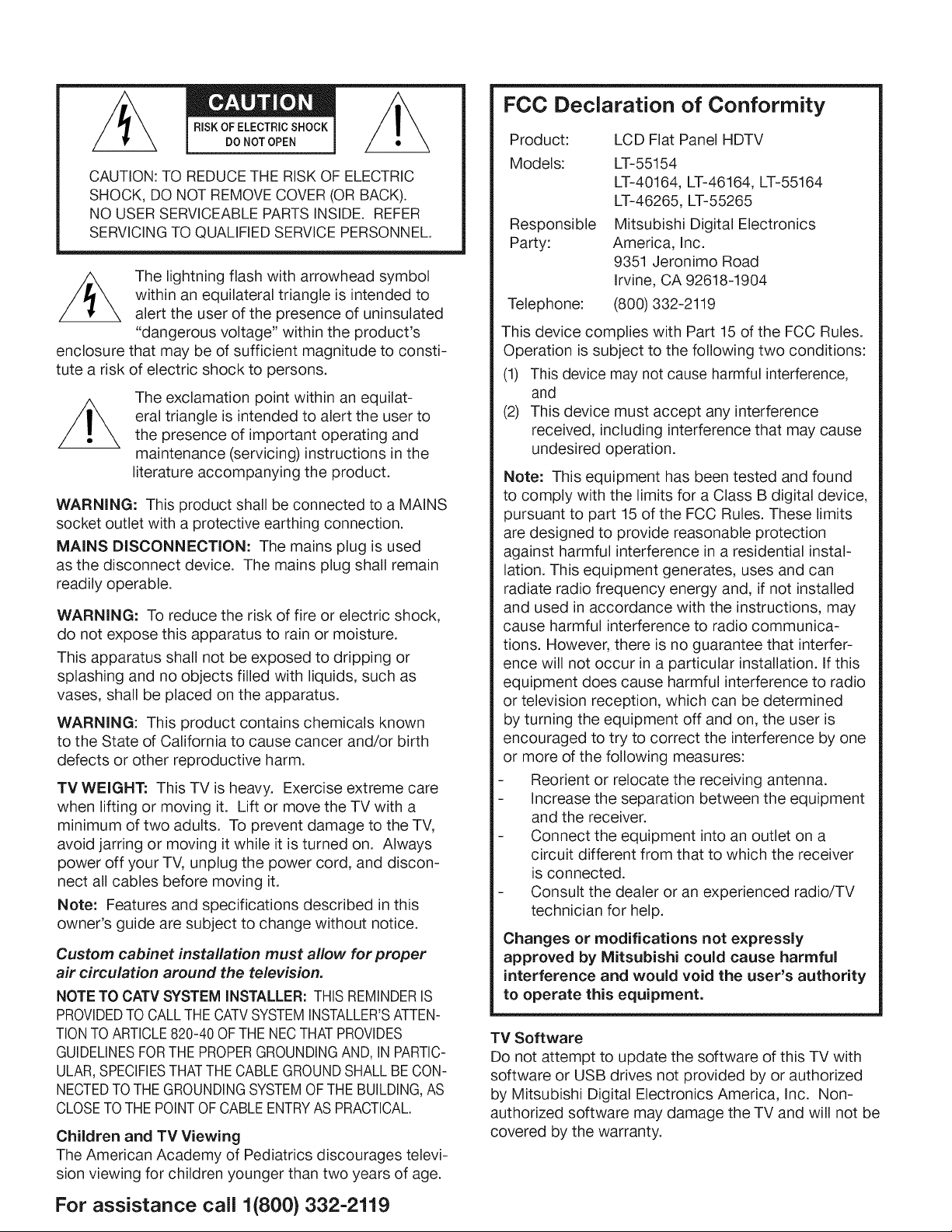

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
/_ The lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user of the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
The exclamation point within an equilat-
eral triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
WARNING: This product shall be connected to a MAINS
socket outlet with a protective earthing connection.
MAINS DISCONNECTION: The mains plug is used
as the disconnect device. The mains plug shall remain
readily operable.
WARNING: To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or moisture.
This apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
WARNING: This product contains chemicals known
to the State of California to cause cancer and/or birth
defects or other reproductive harm.
TV WEIGHT: This TV is heavy. Exercise extreme care
when lifting or moving it. Lift or move the TV with a
minimum of two adults. To prevent damage to the TV,
avoid jarring or moving it while it is turned on. Always
power off your TV, unplug the power cord, and discon-
nect all cables before moving it.
Note: Features and specifications described in this
owner's guide are subject to change without notice.
Custom cabinet installation must allow for proper
air circulation around the television.
NOTE TO CATV SYSTEM INSTALLER: THiS REMINDERiS
PROVIDEDTO CALLTHE CATVSYSTEMiNSTALLER'SATTEN-
TIONTO ARTICLE820-40 OFTHE NECTHATPROVIDES
GUIDELINESFORTHEPROPERGROUNDINGAND, IN PARTIC-
ULAR, SPECIFIESTHATTHECABLEGROUNDSHALL BE CON-
NECTEDTOTHE GROUNDINGSYSTEMOF THE BUILDING,AS
CLOSETO THEPOINTOF CABLEENTRYAS PRACTICAL.
Children and TV Viewing
The American Academy of Pediatrics discourages televi-
sion viewing for children younger than two years of age.
For assistance call 1(800} 332-2119
FCC Declaration of Conformity
Product:
Models:
Responsible
Party:
LCD Flat Panel HDTV
Telephone:
LT-55154
LT-40164, LT-46164, LT-55164
LT-46265, LT-55265
Mitsubishi Digital Electronics
America, Inc.
9351 Jeronimo Road
Irvine, CA 92618-1904
(800) 332-2119
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential instal-
lation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communica-
tions. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and the receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly
approved by Mitsubishi could cause harmful
interference and would void the user's authority
to operate this equipment.
TV Software
Do not attempt to update the software of this TV with
software or USB drives not provided by or authorized
by Mitsubishi Digital Electronics America, Inc. Non-
authorized software may damage the TV and will not be
covered by the warranty.

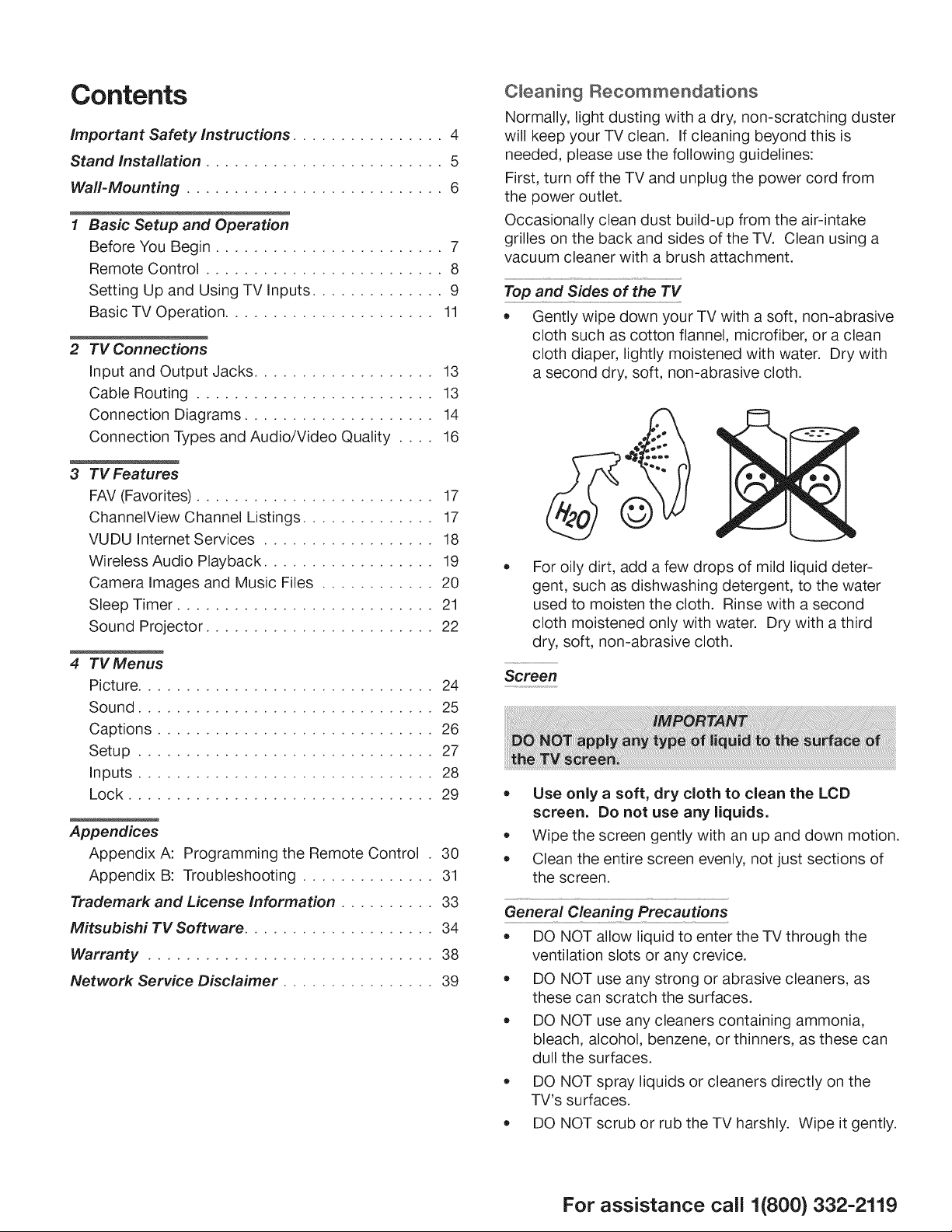

Contents
Important Safety Instructions ................ 4
Stand Installation ......................... 5
Waft-Mounting ........................... 6

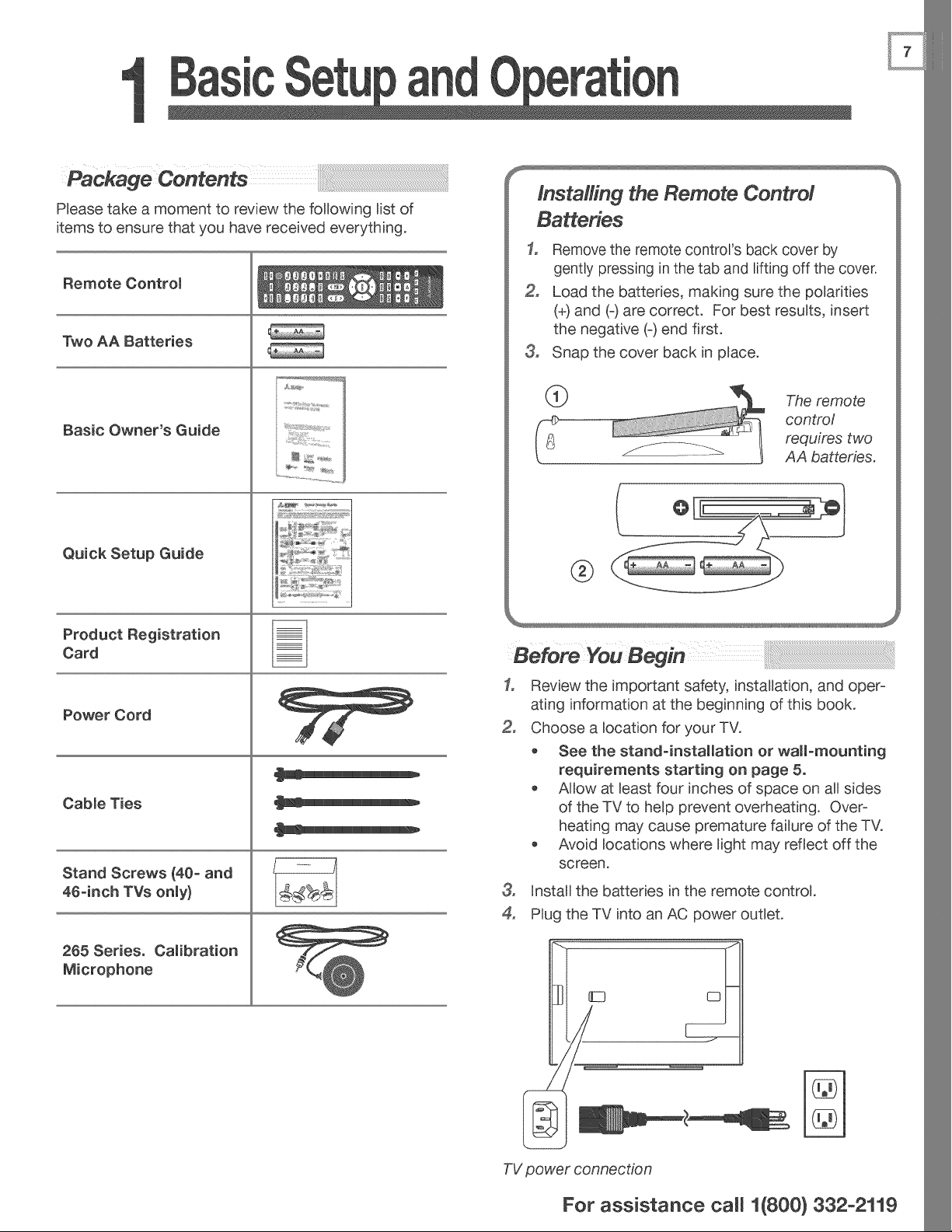

Basic Setup and Operation
Before You Begin ........................ 7

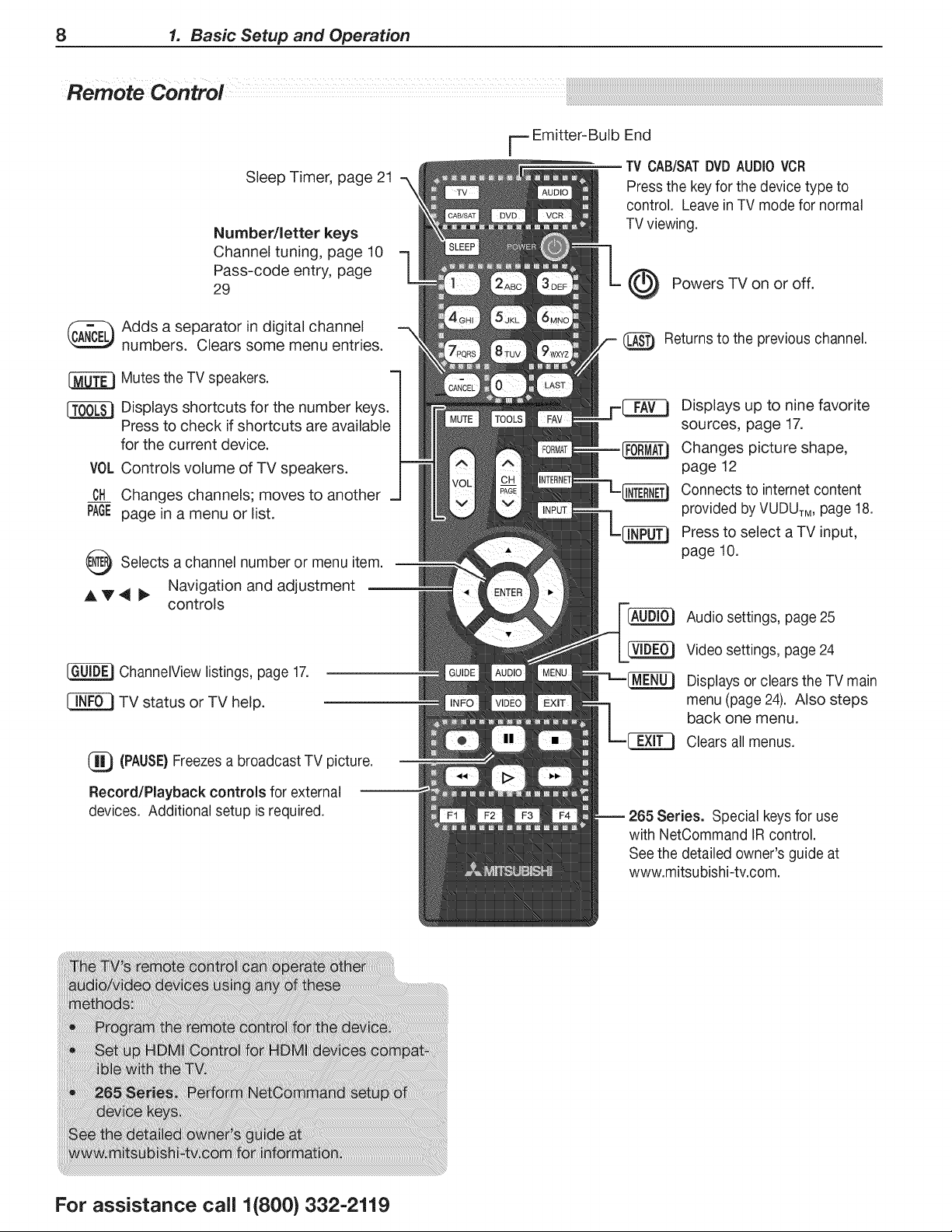

Remote Control ......................... 8

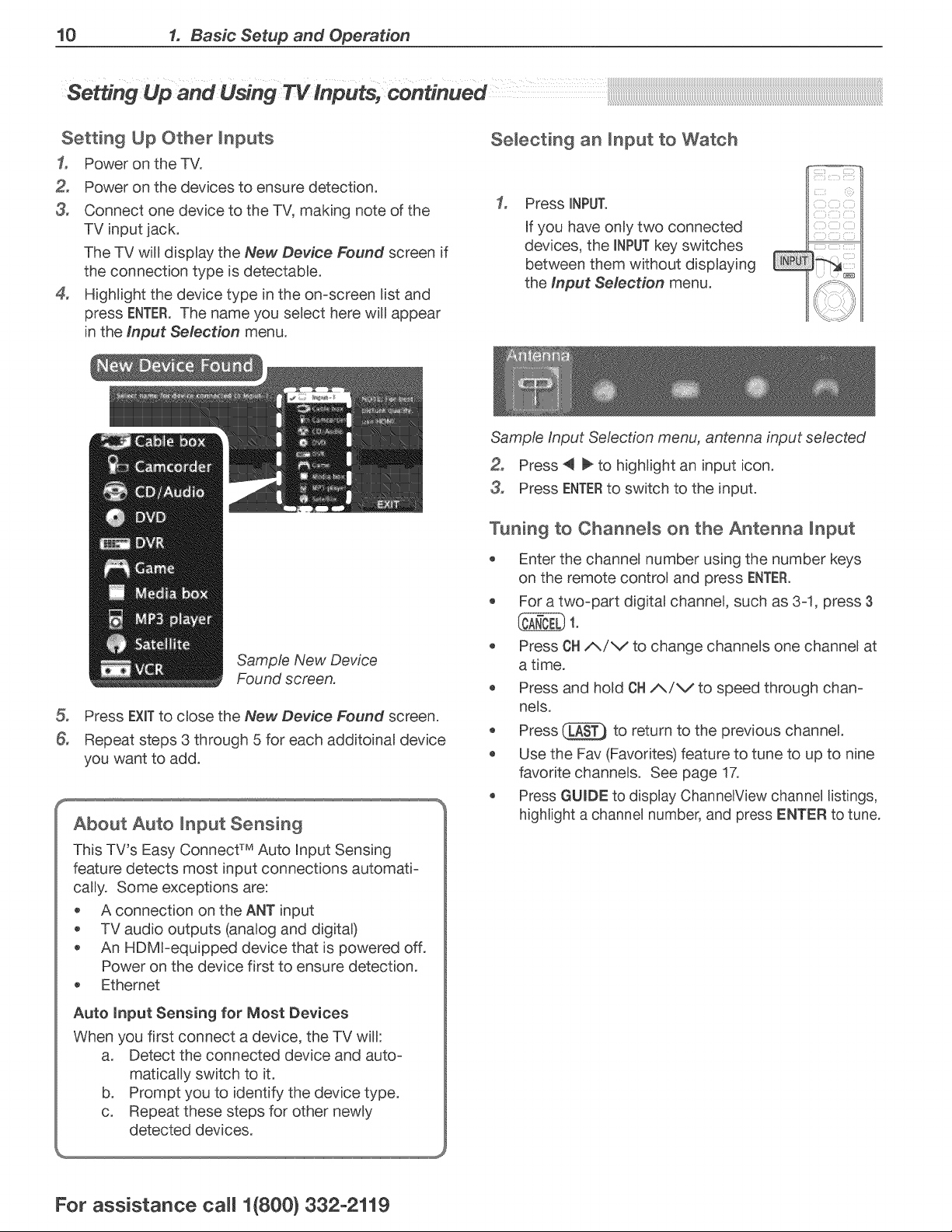

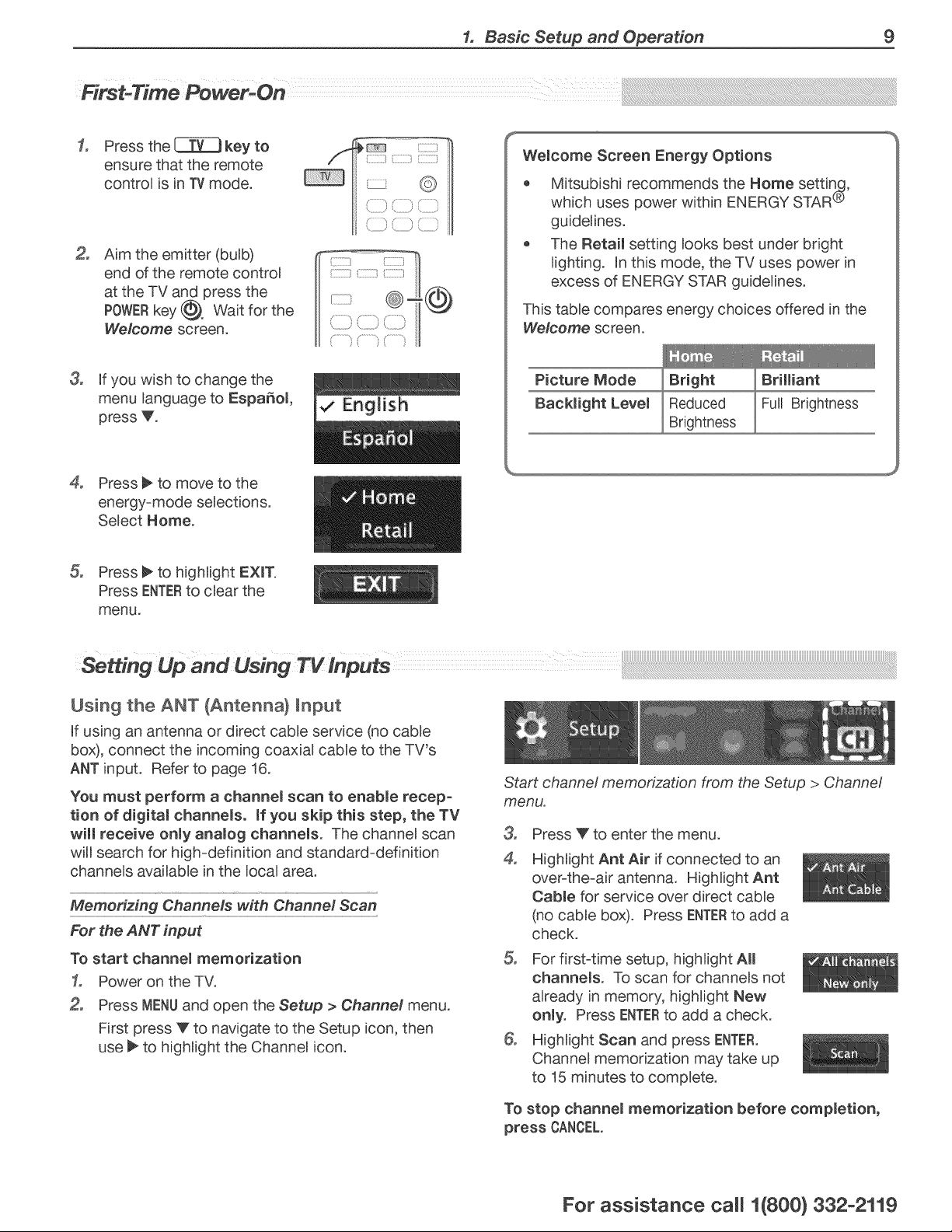

Setting Up and Using TV Inputs .............. 9

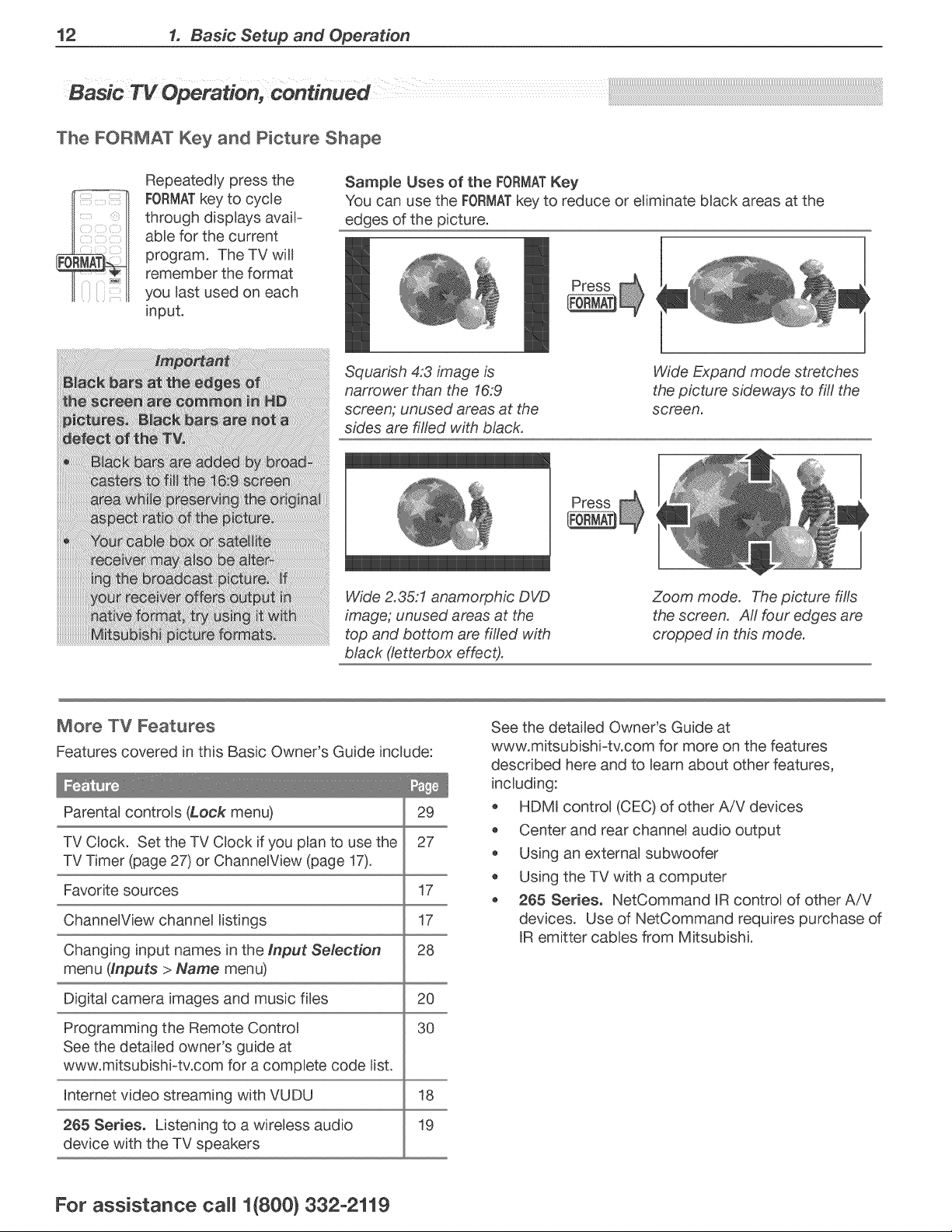

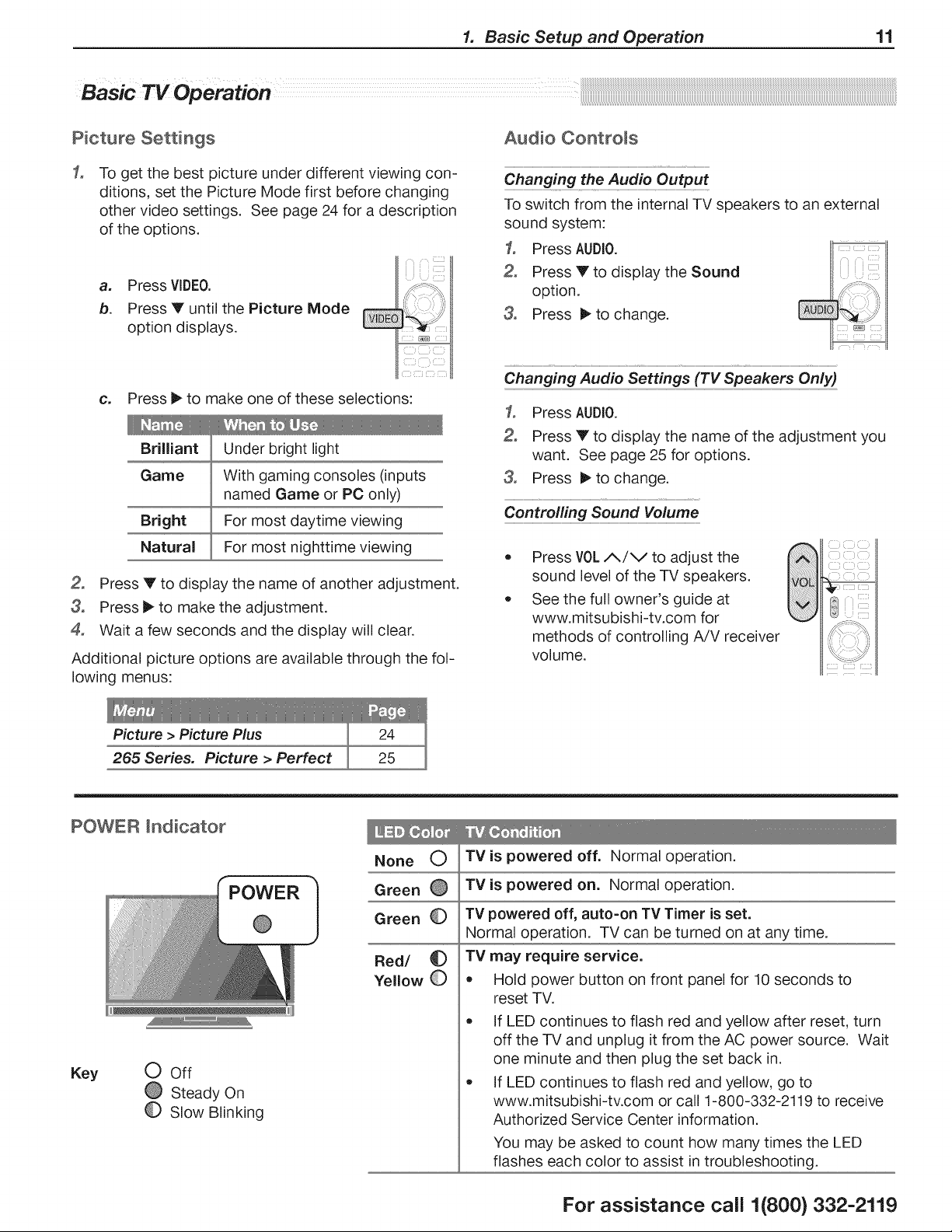

Basic TV Operation ...................... 11
2 TV Connections

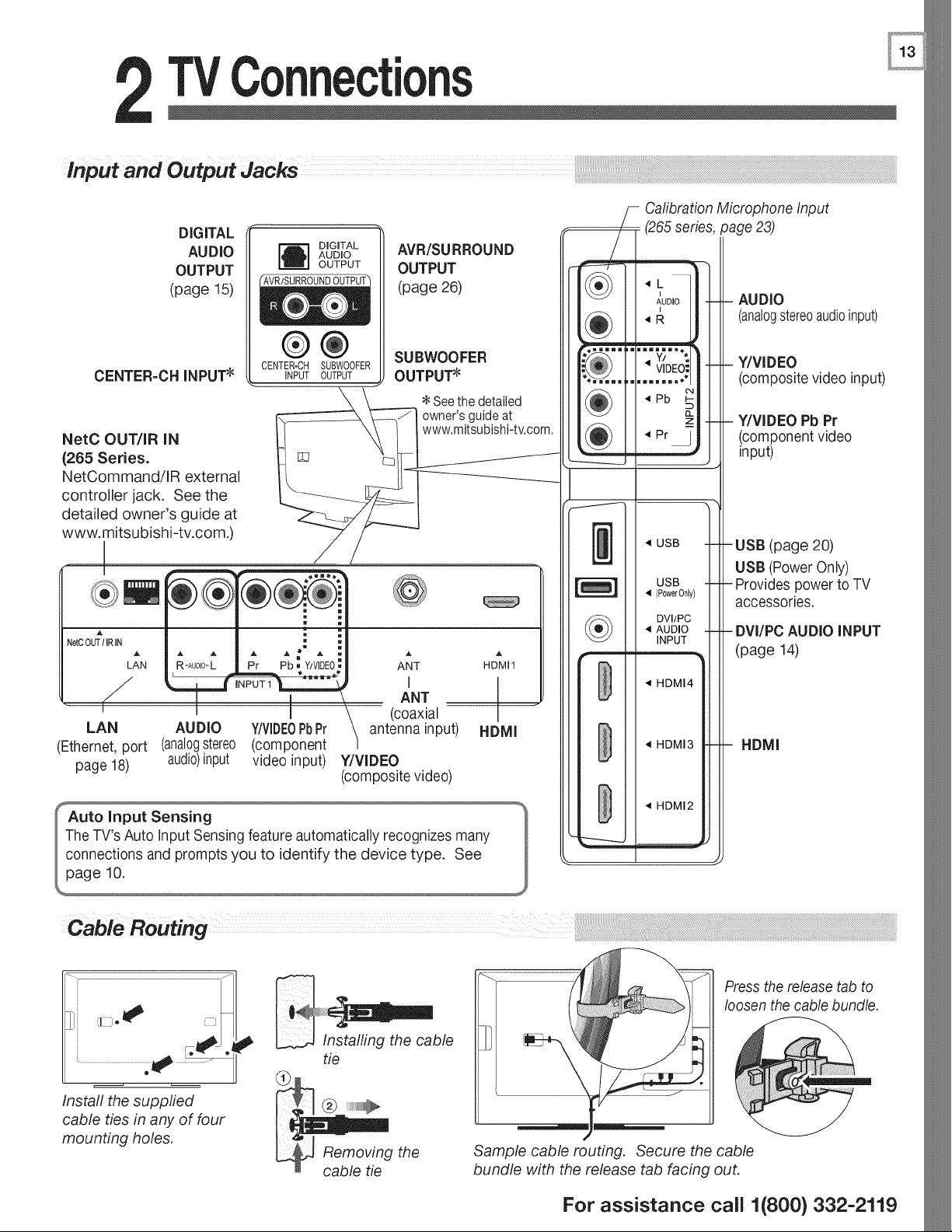

Input and Output Jacks ................... 13
Cable Routing ......................... 13

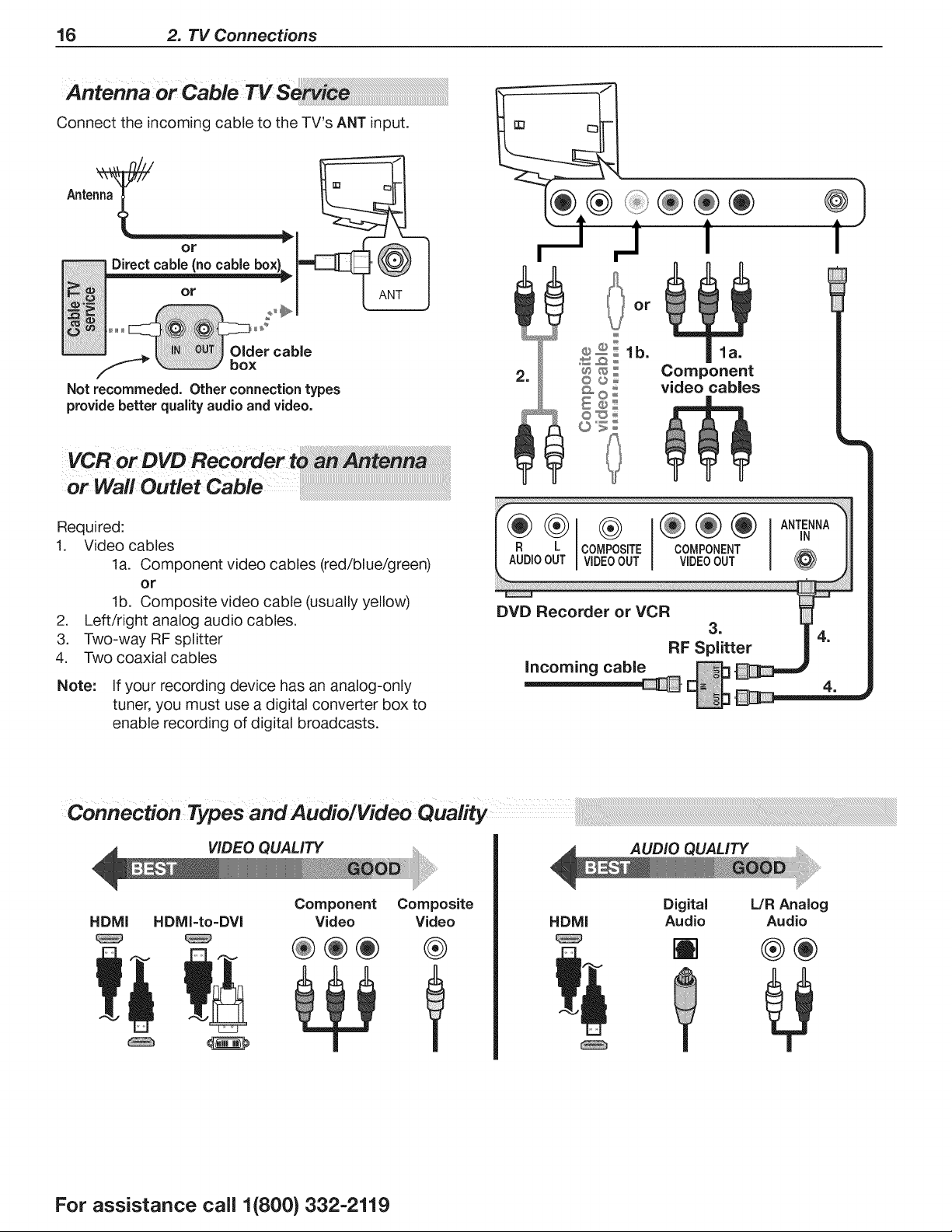

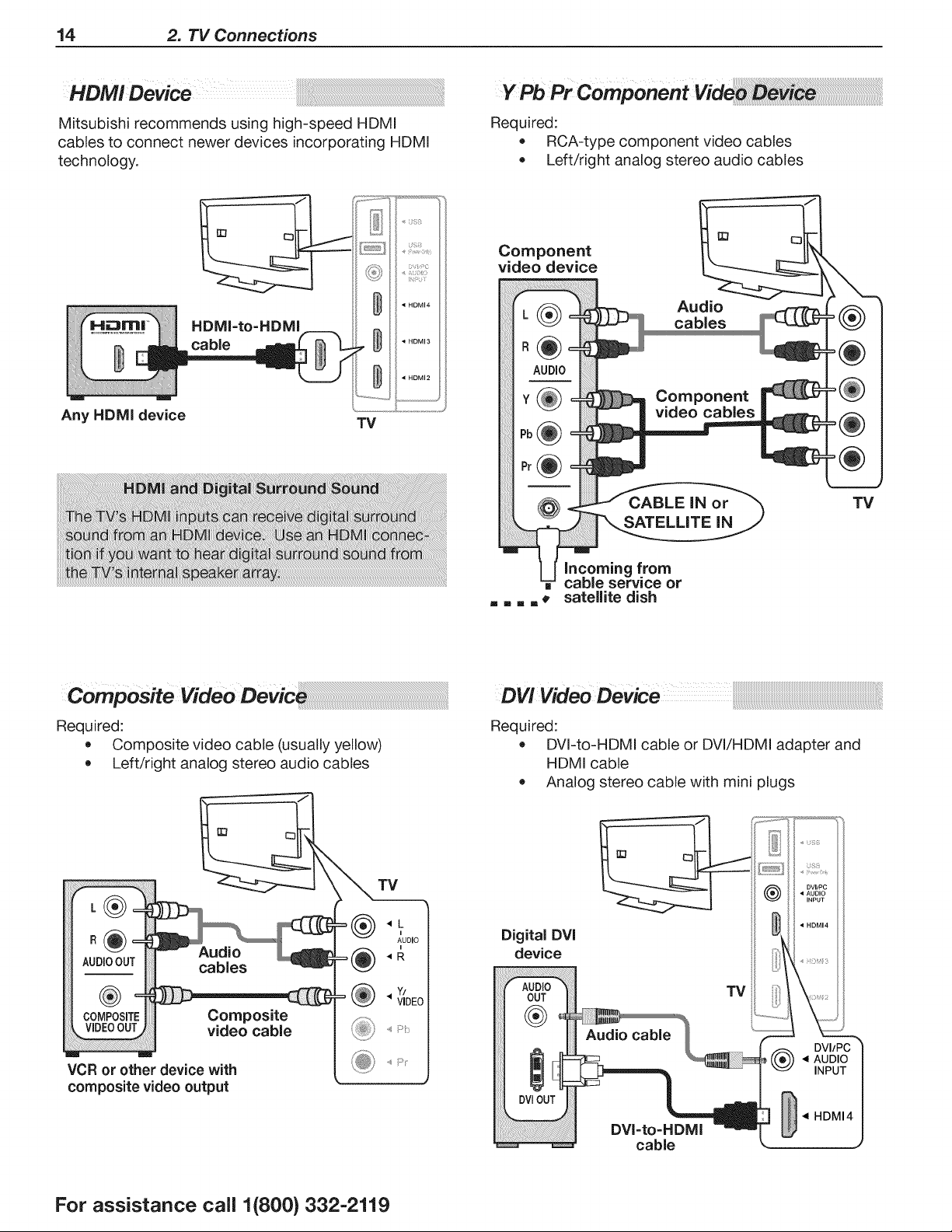

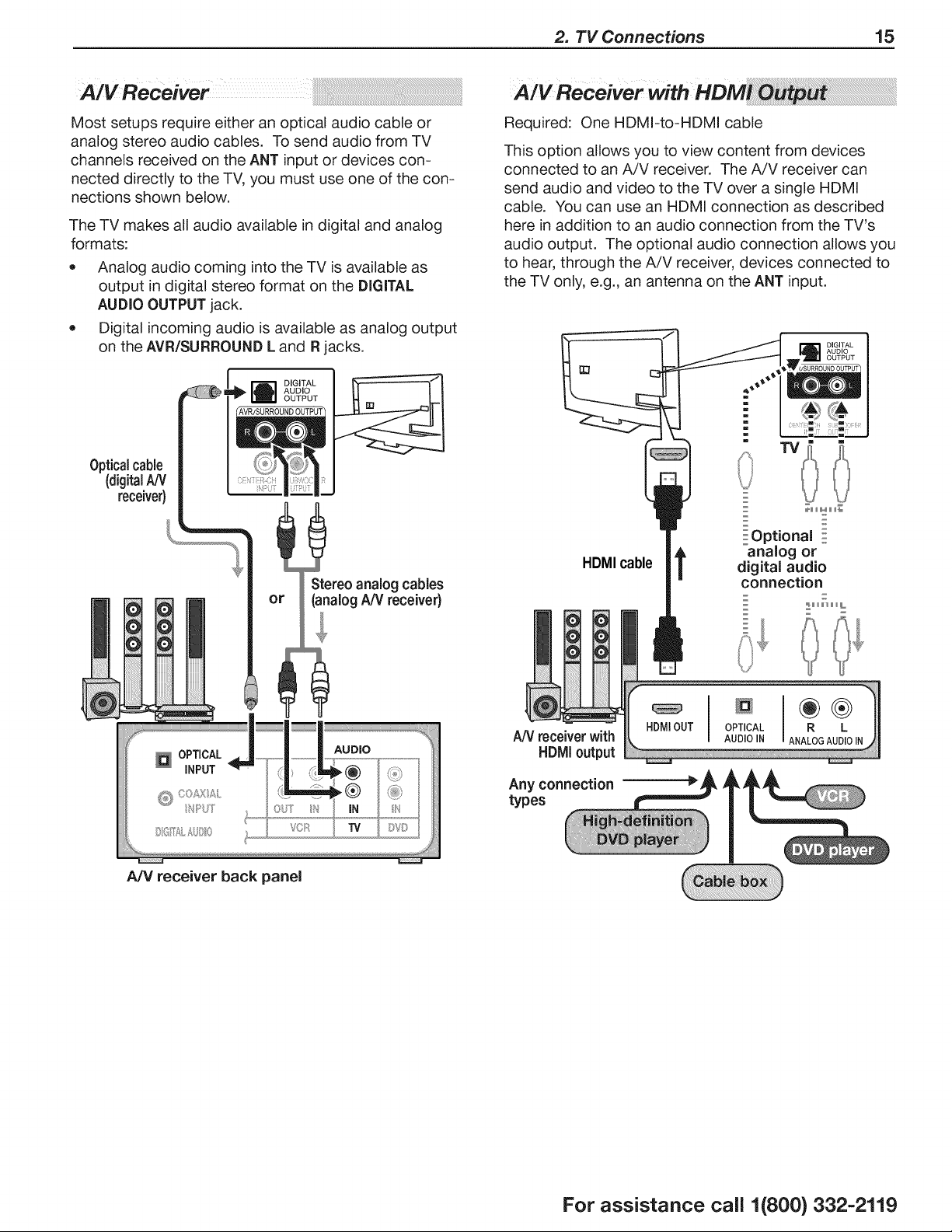

Connection Diagrams .................... 14
Connection Types and Audio/Video Quality .... 16
3 TVFeatures

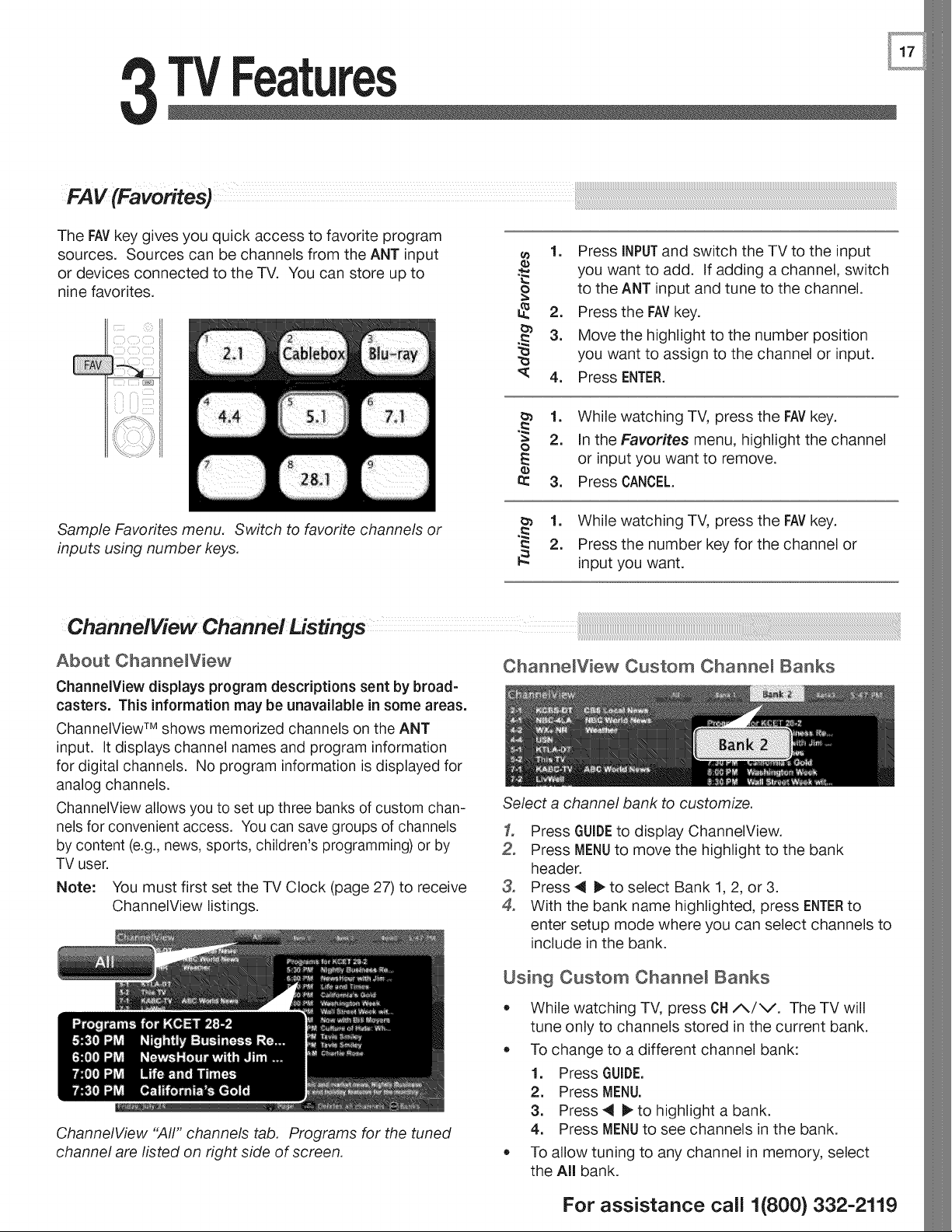

FAV (Favorites) ......................... 17
ChannelView Channel Listings .............. 17

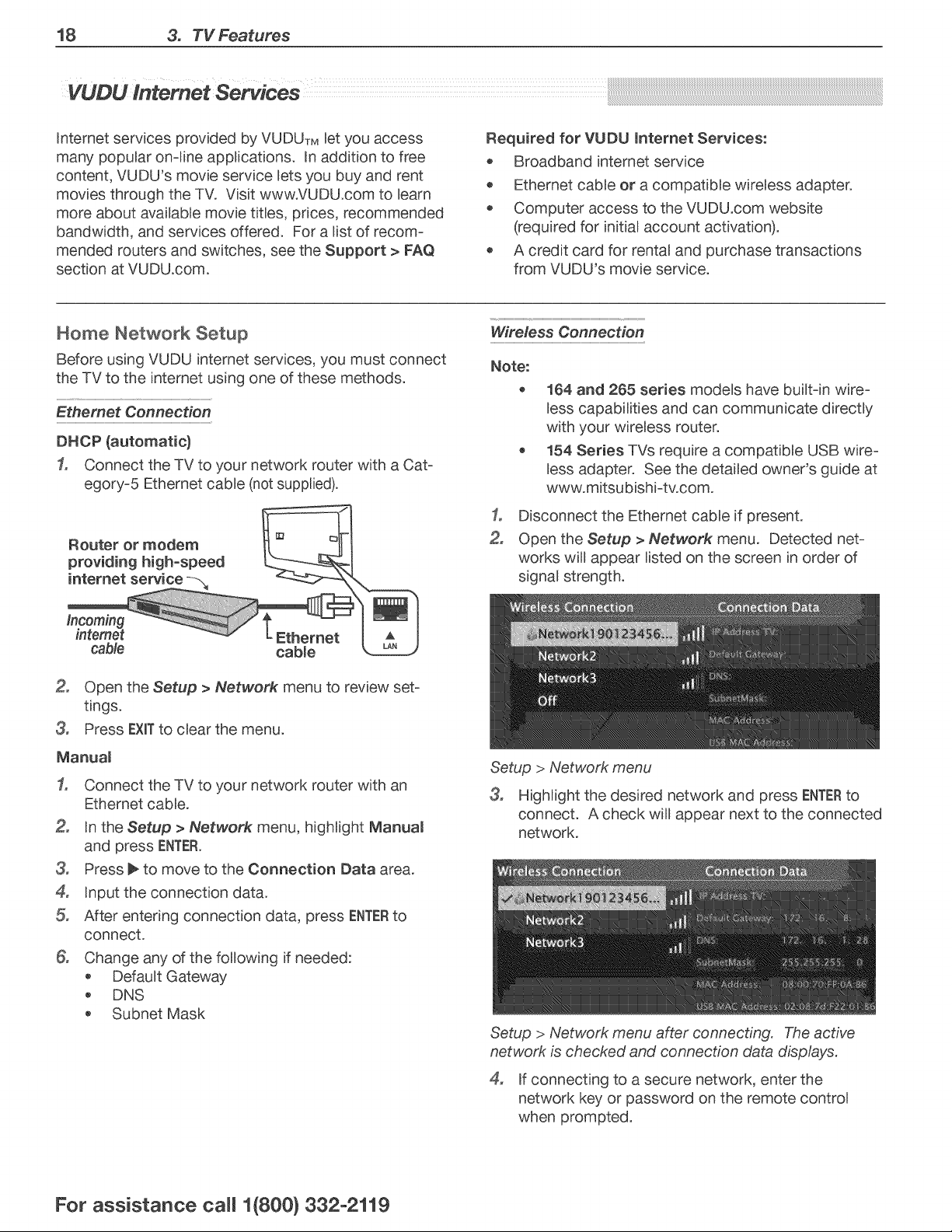

VUDU Internet Services .................. 18
Wireless Audio Playback .................. 19

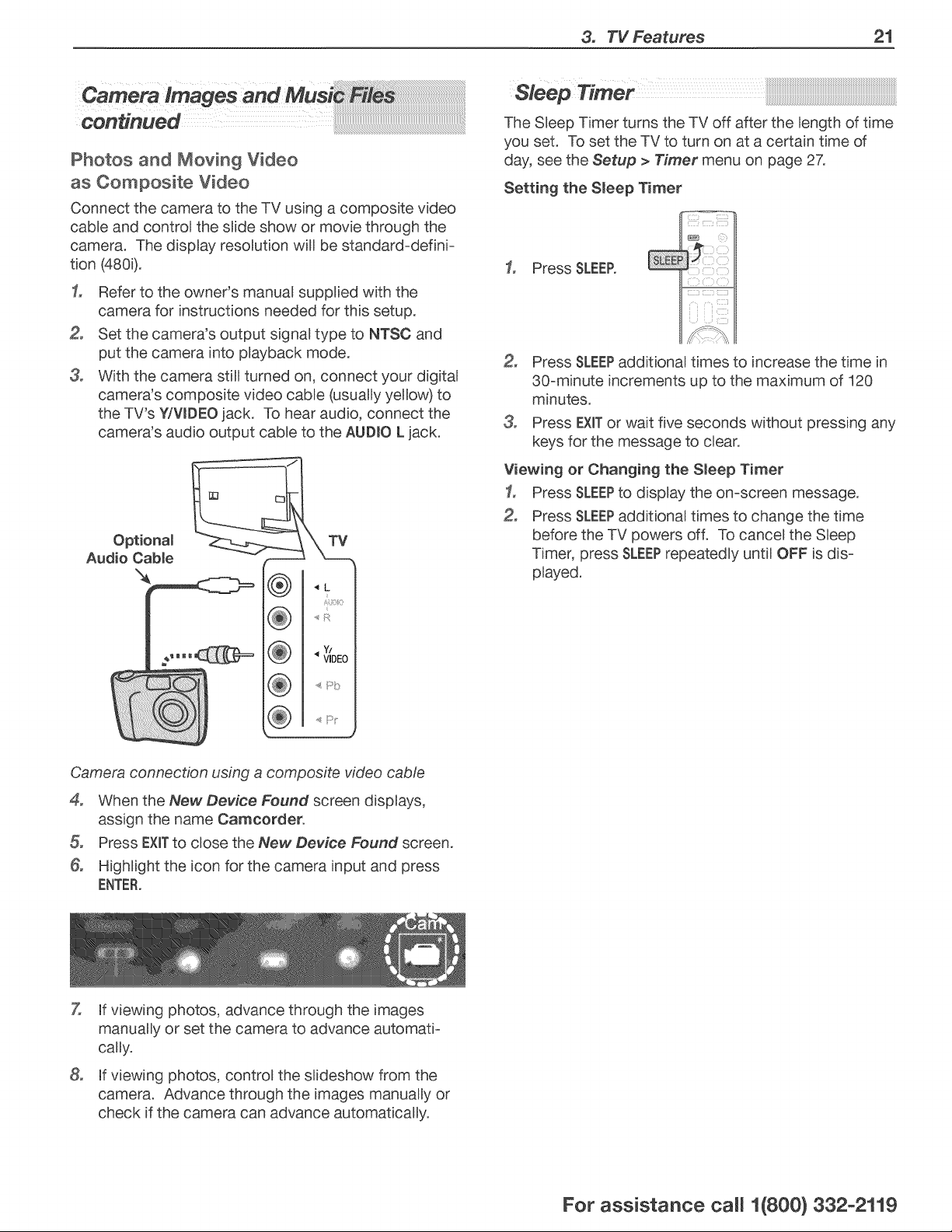

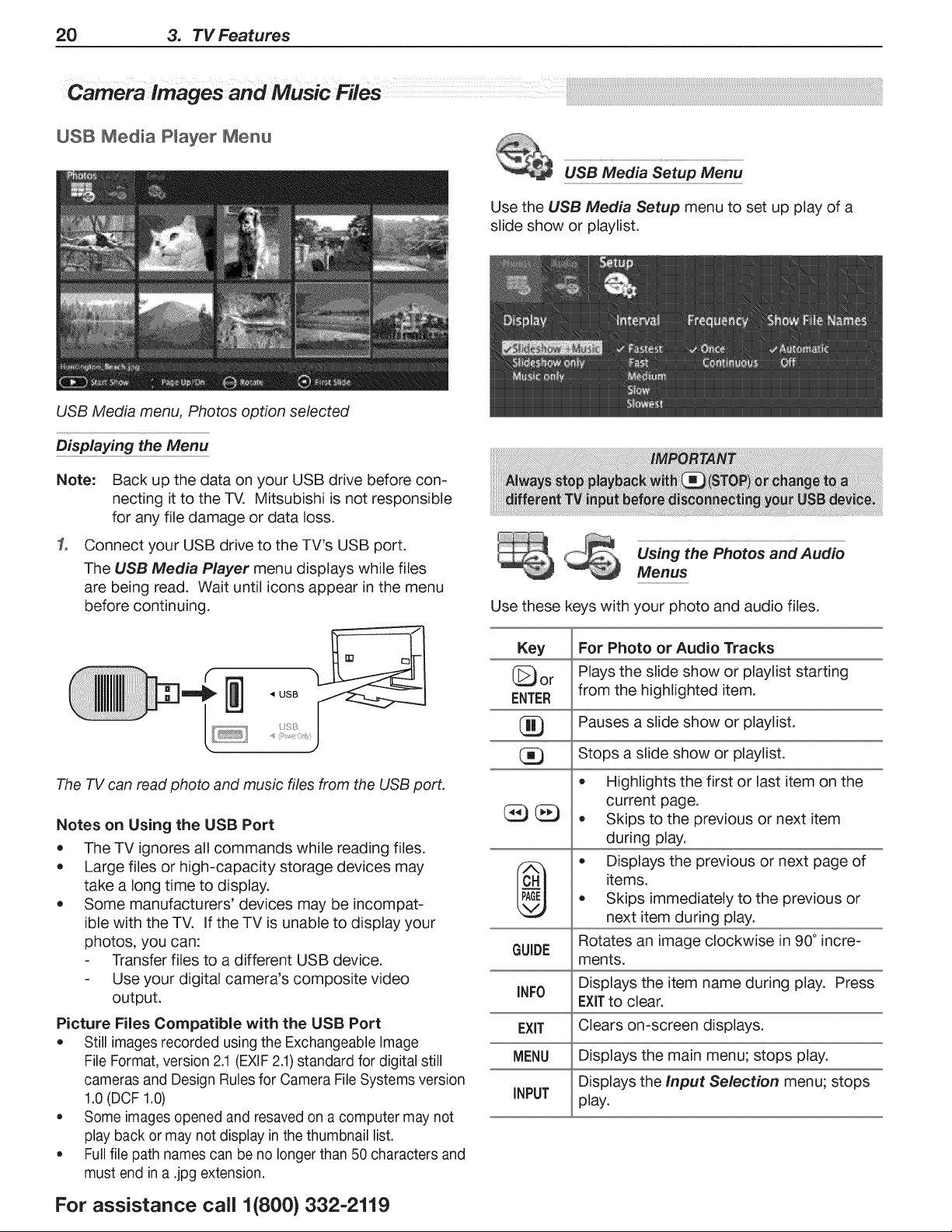

Camera Images and Music Files ............ 20
Sleep Timer ........................... 21

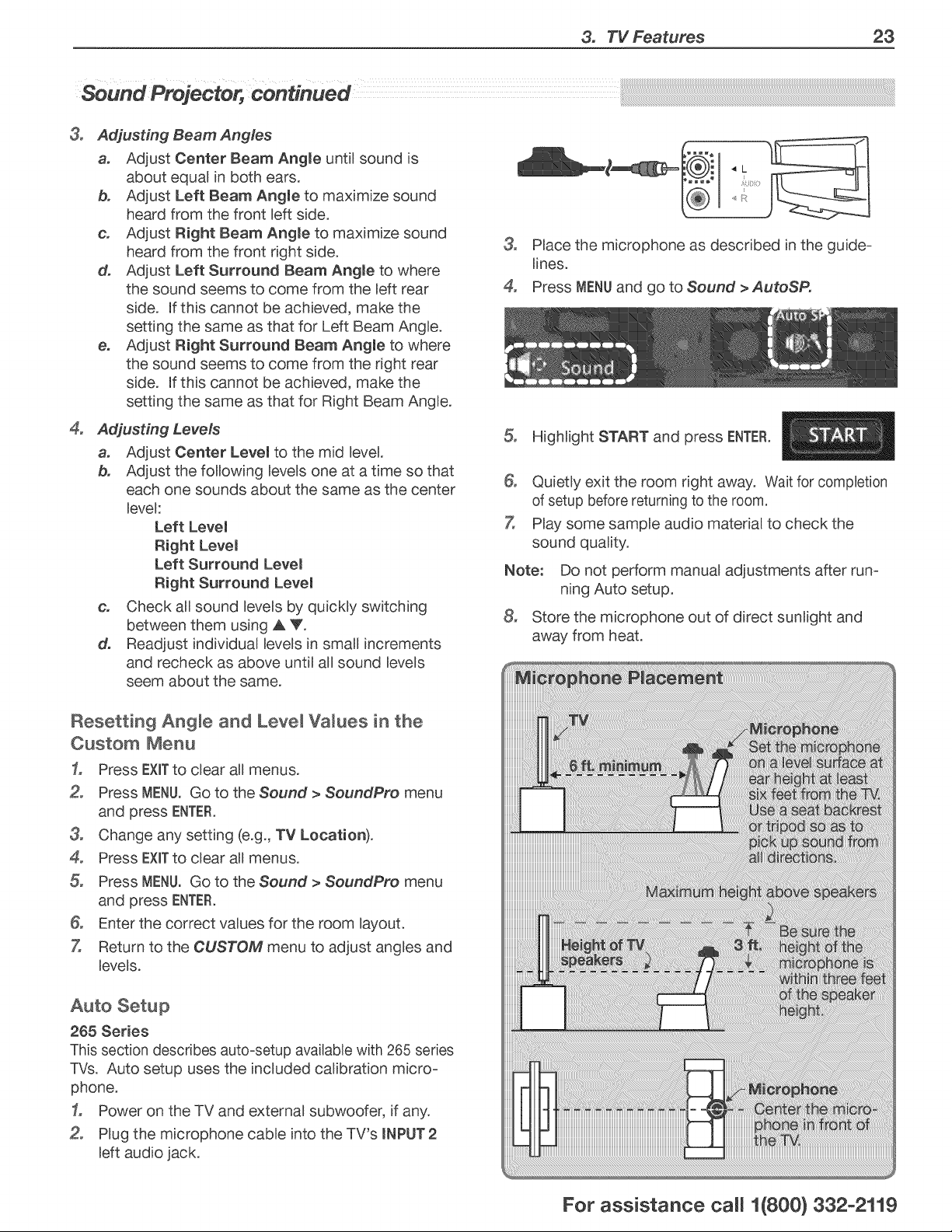

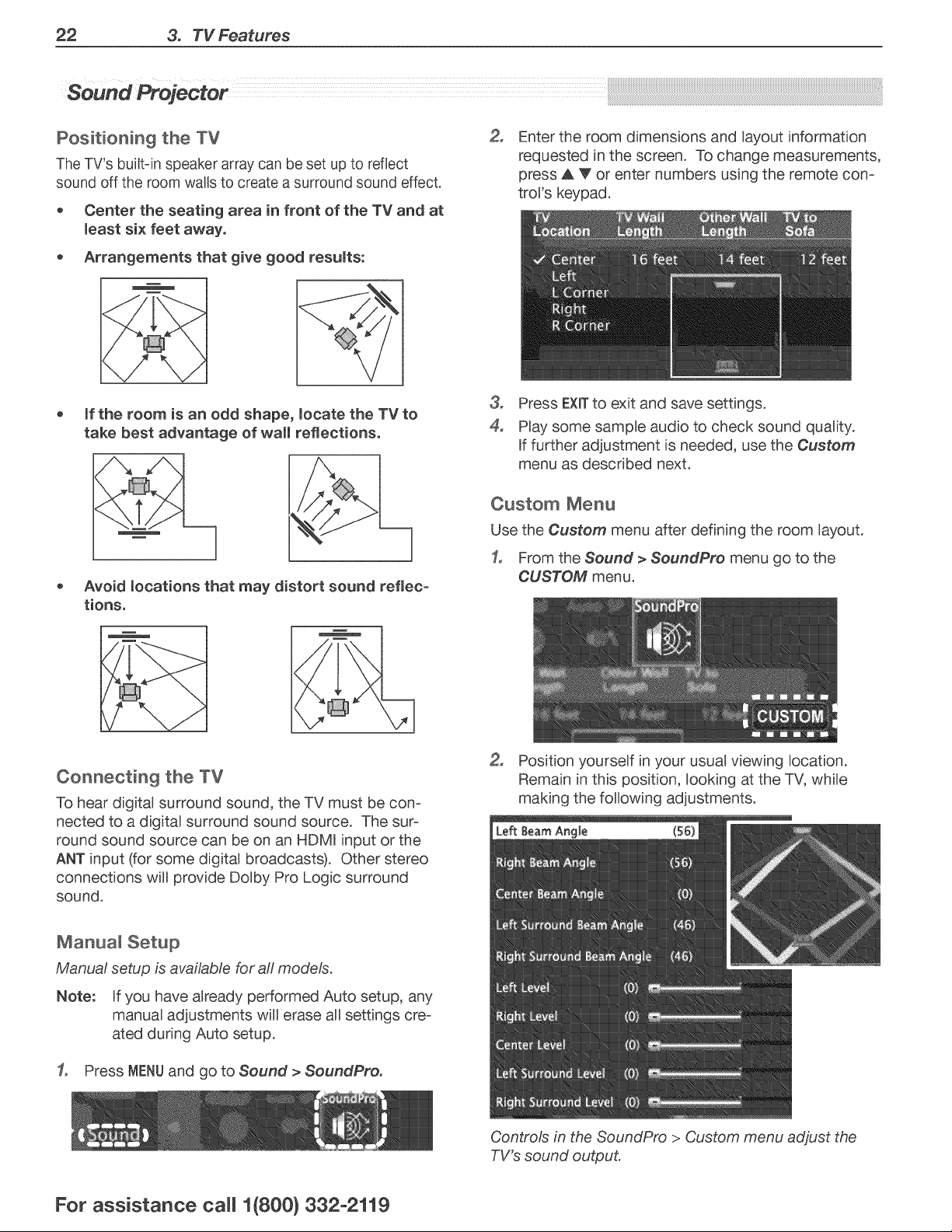

Sound Projector ........................ 22
4 TV Menus

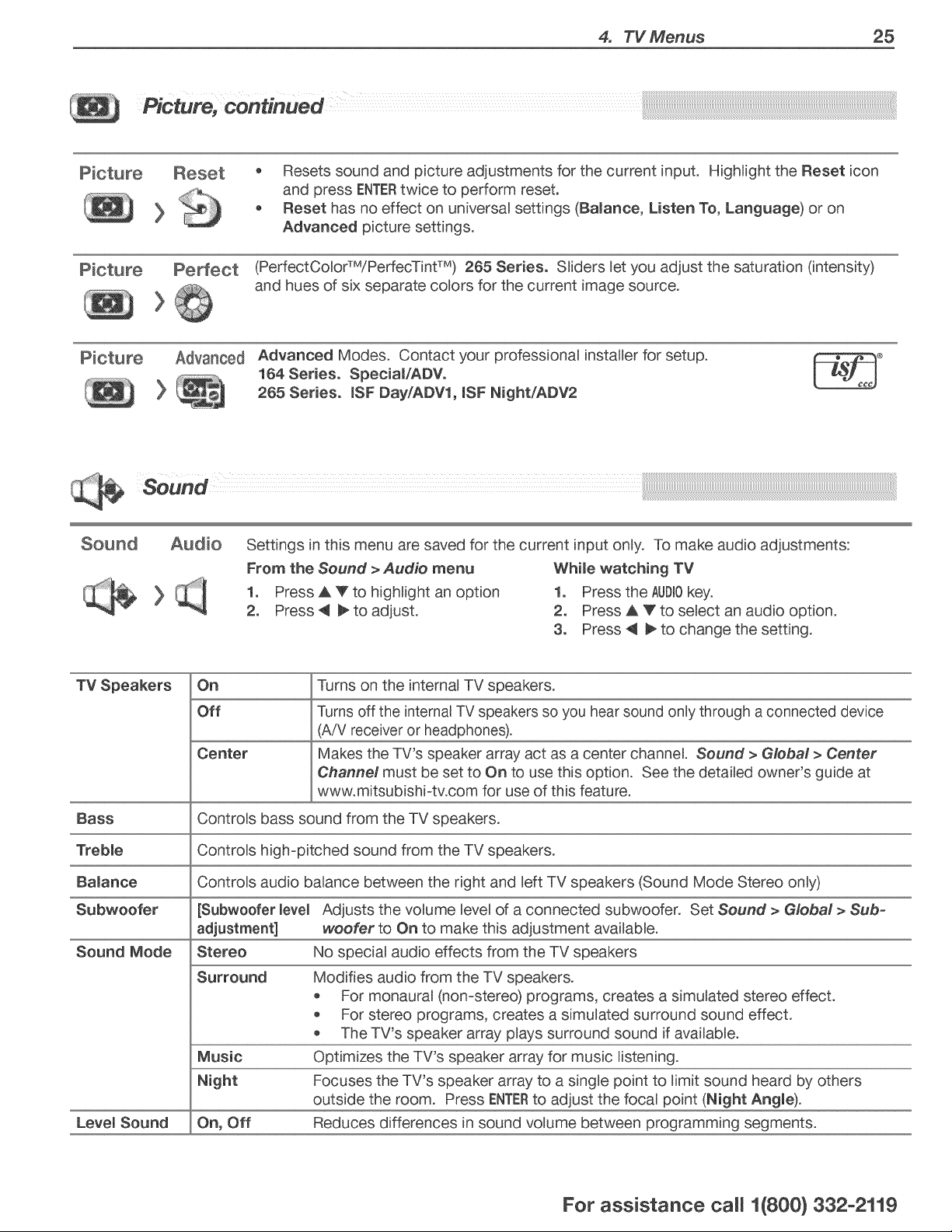

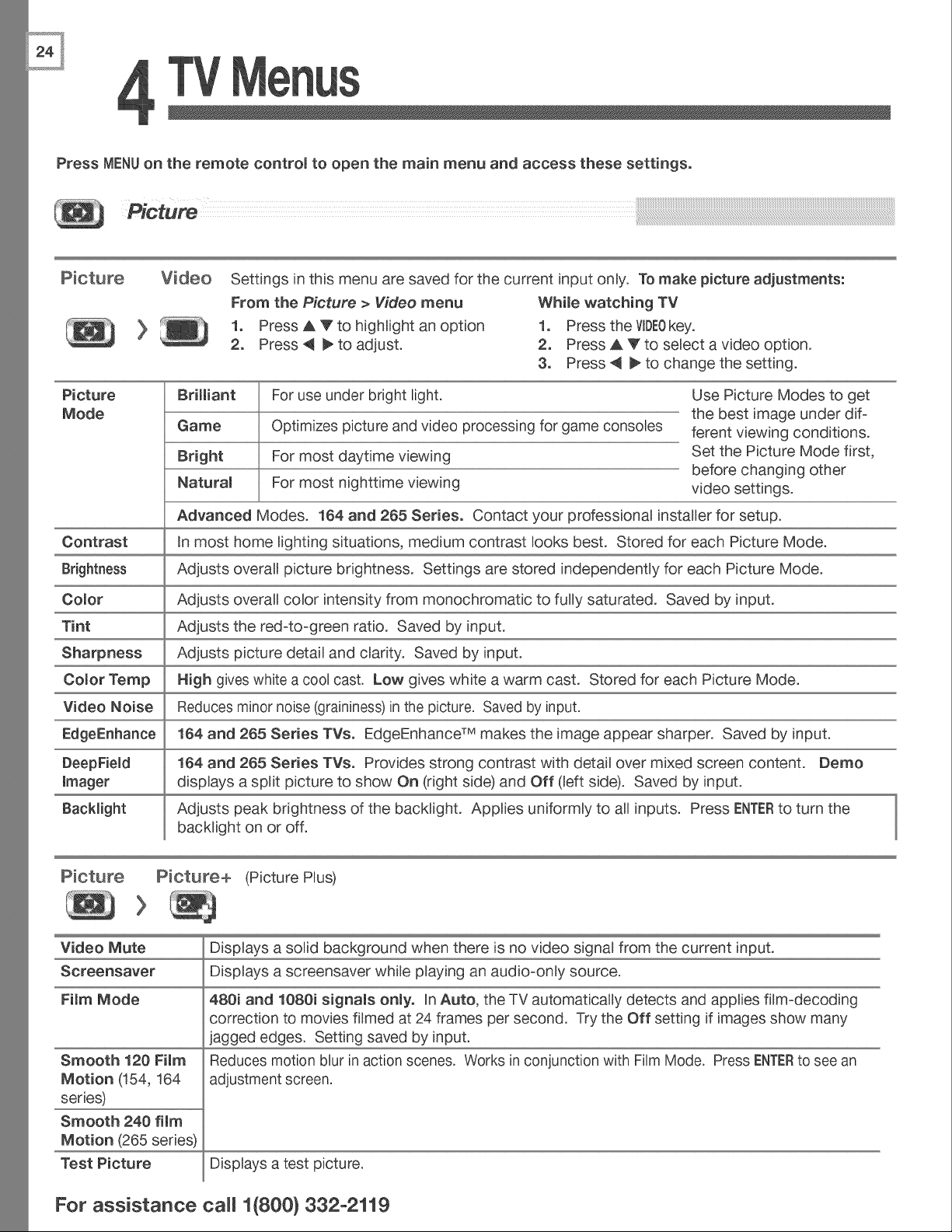

Picture ............................... 24

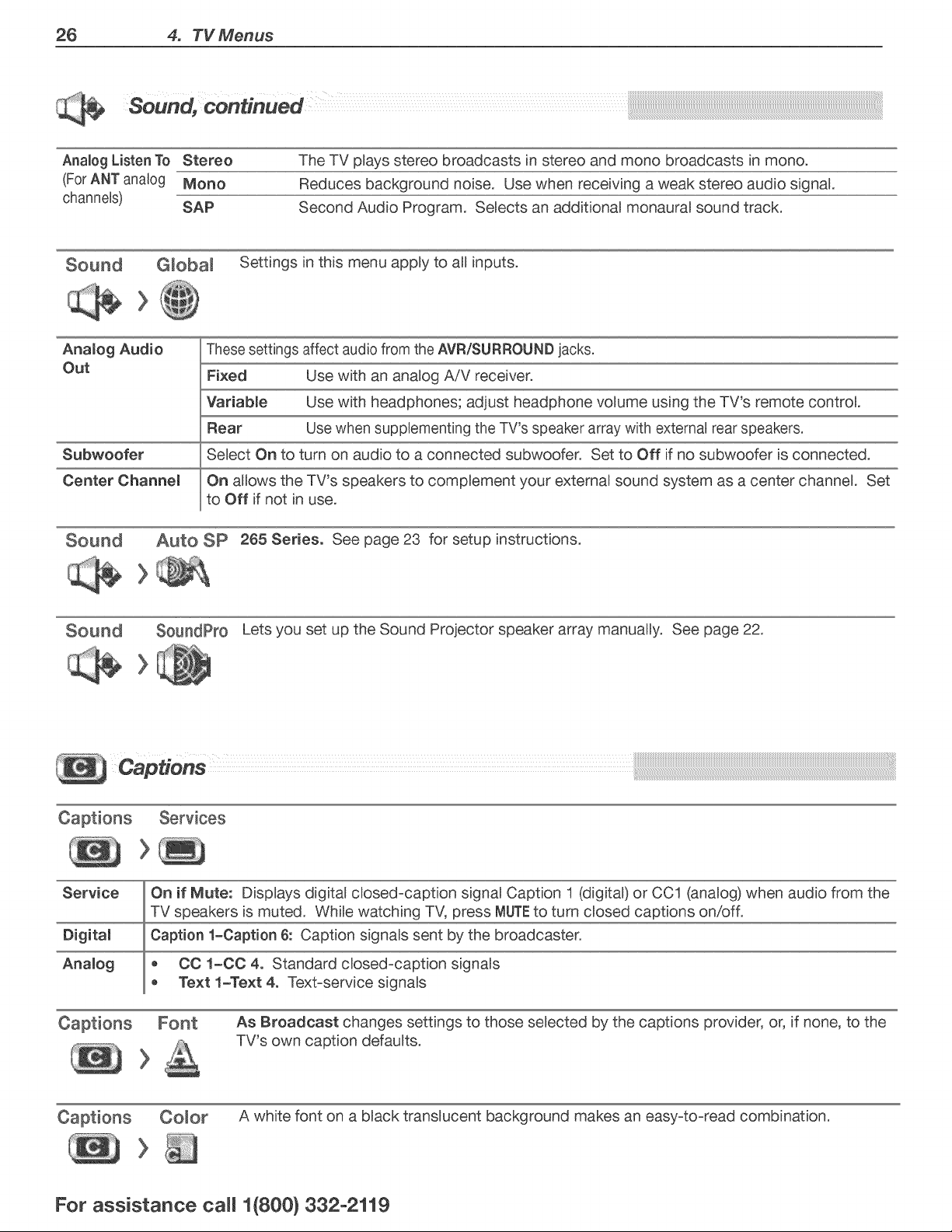

Sound ............................... 25
Captions ............................. 26

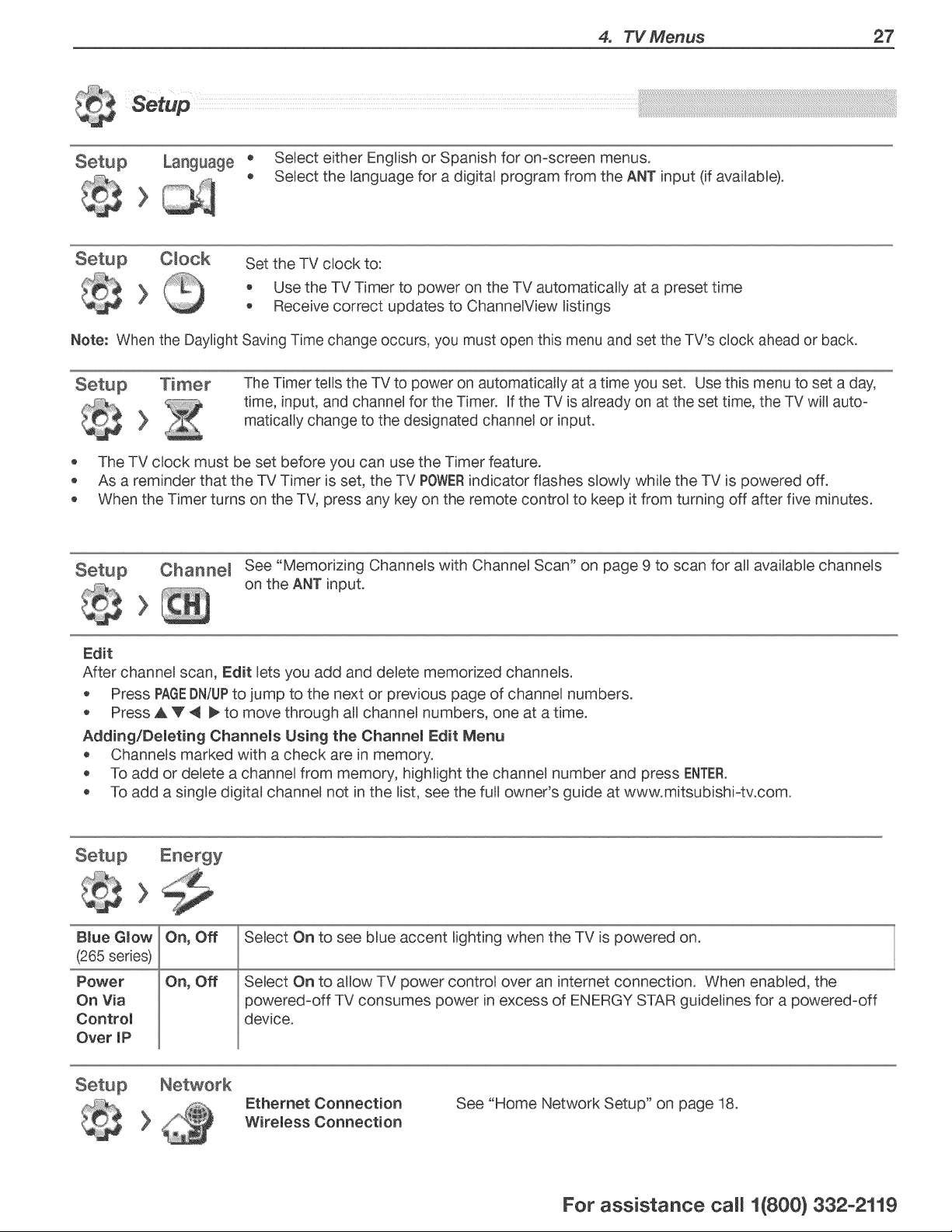

Setup ............................... 27

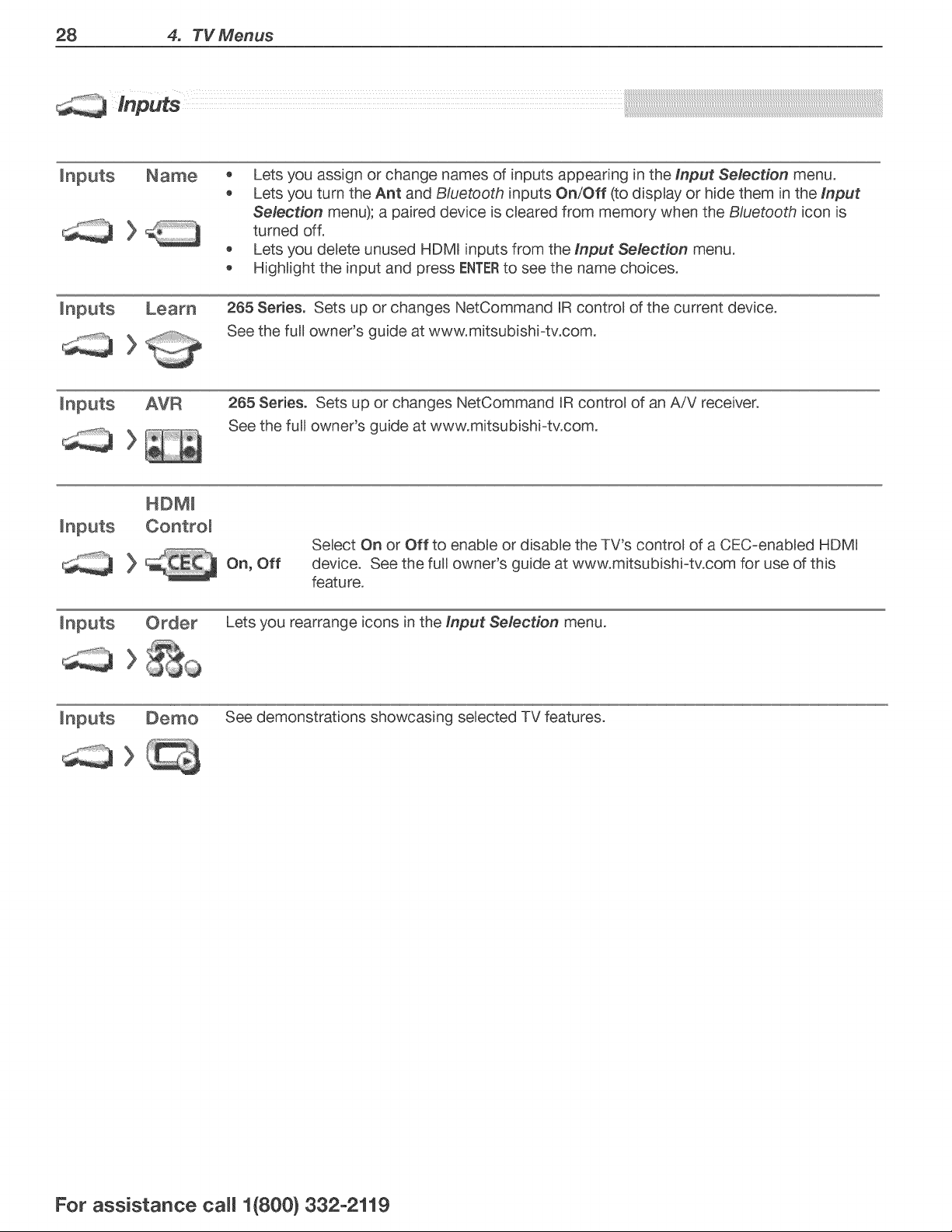

Inputs ............................... 28

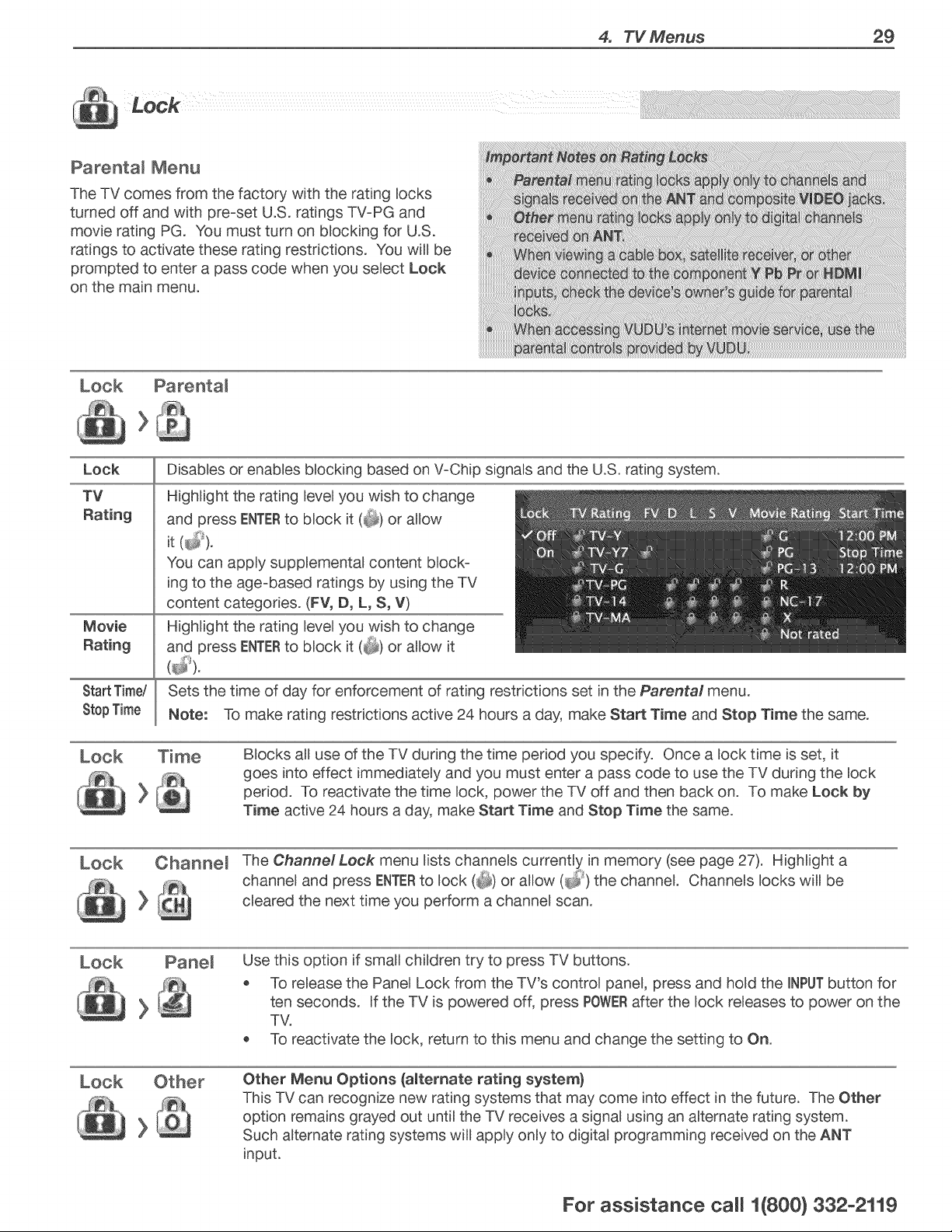

Lock ................................ 29
Appendices

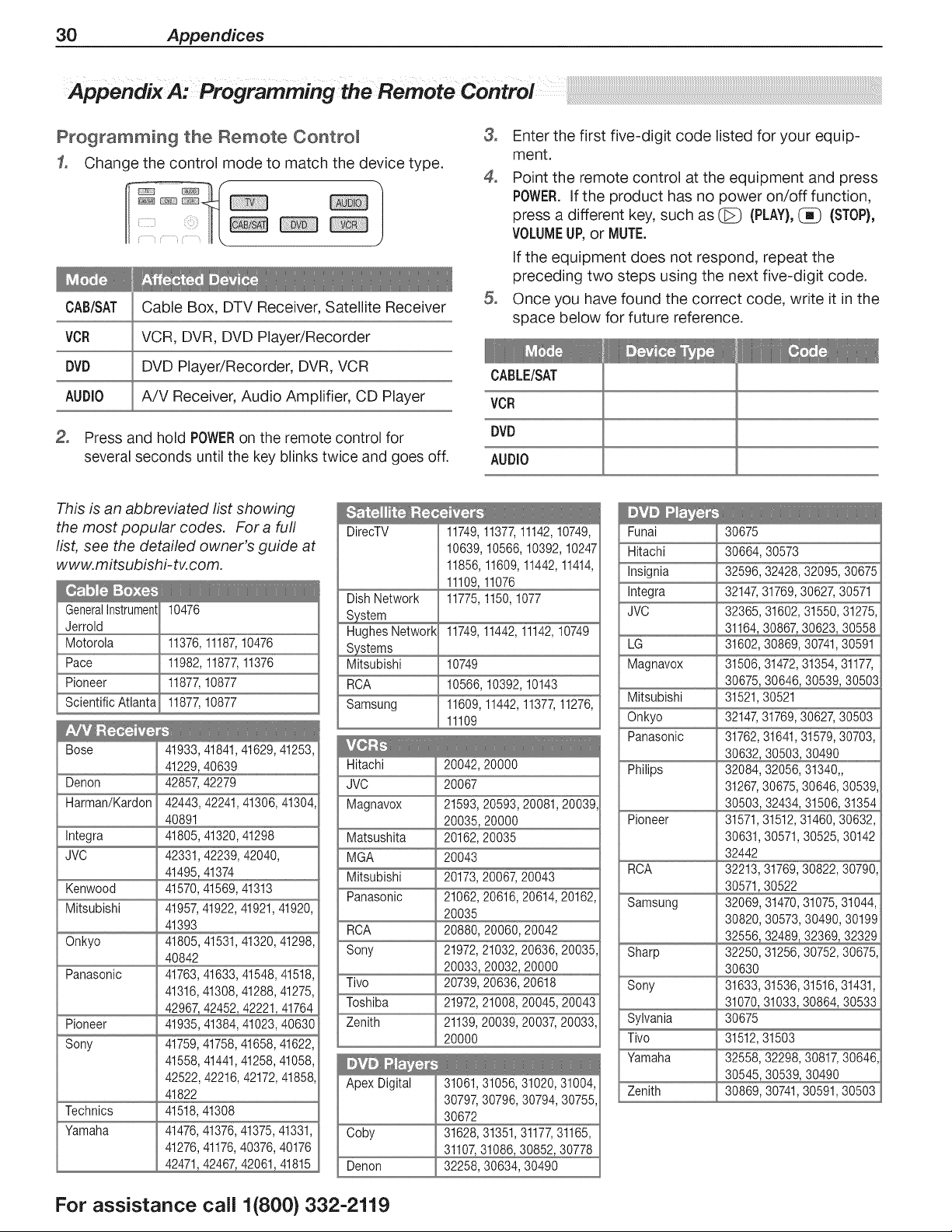

Appendix A: Programming the Remote Control . 30

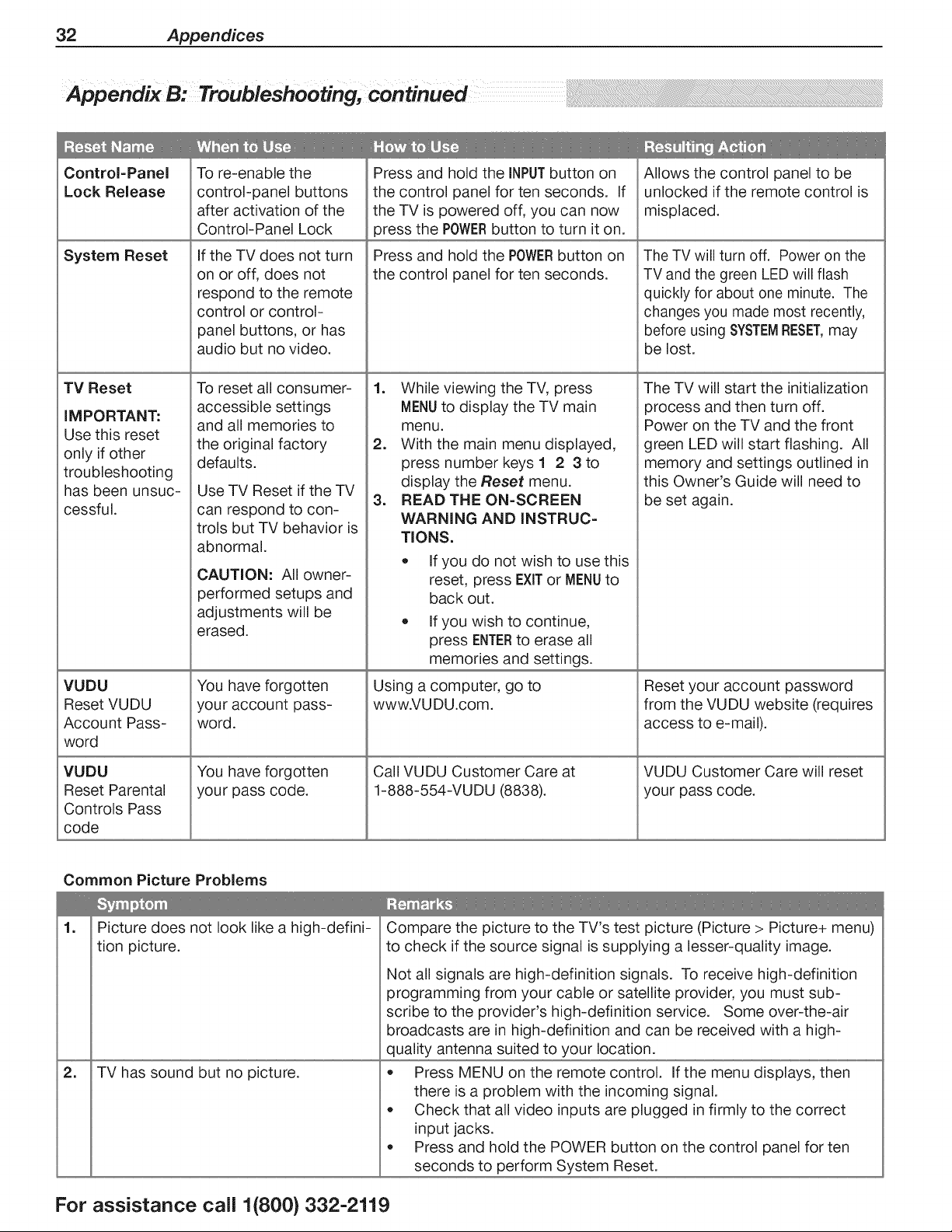

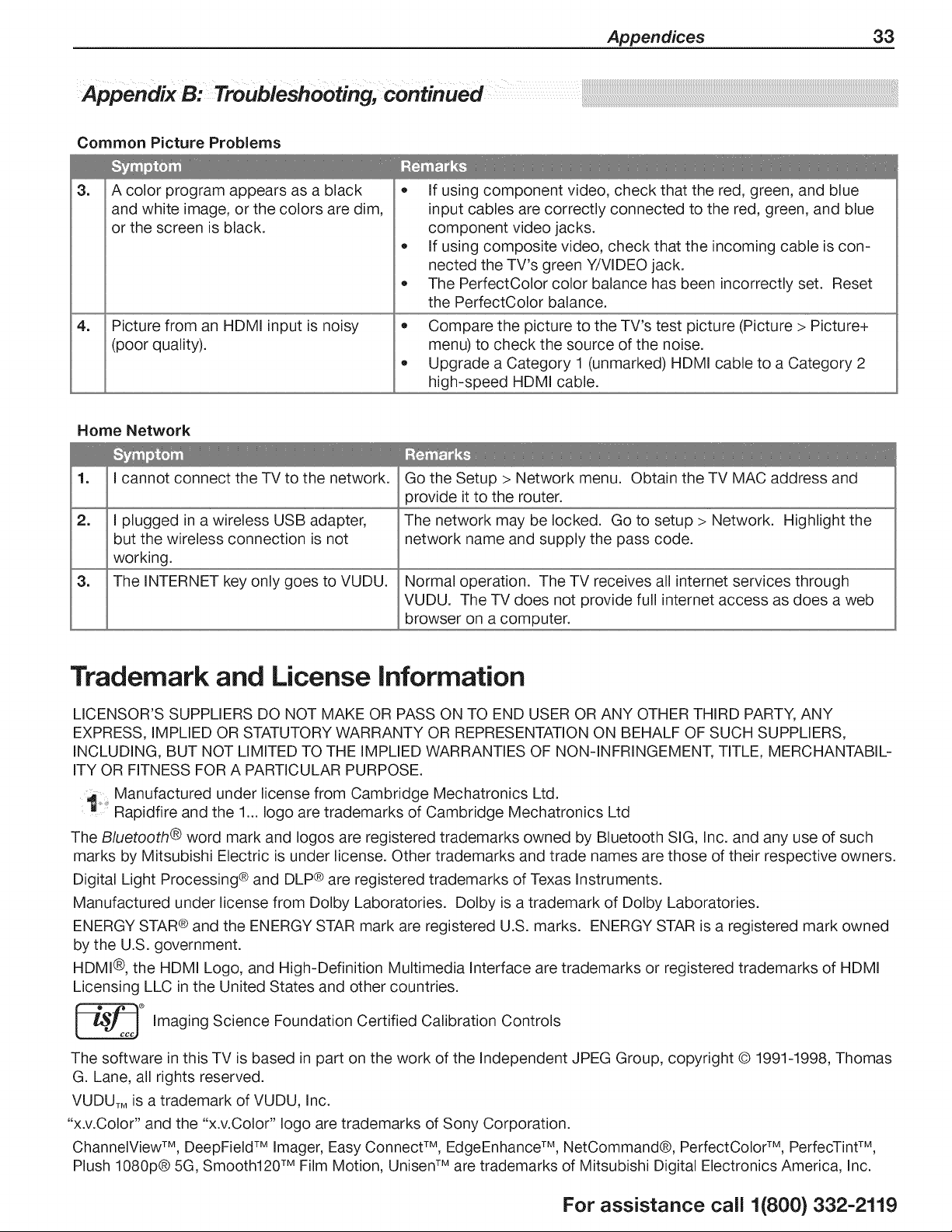

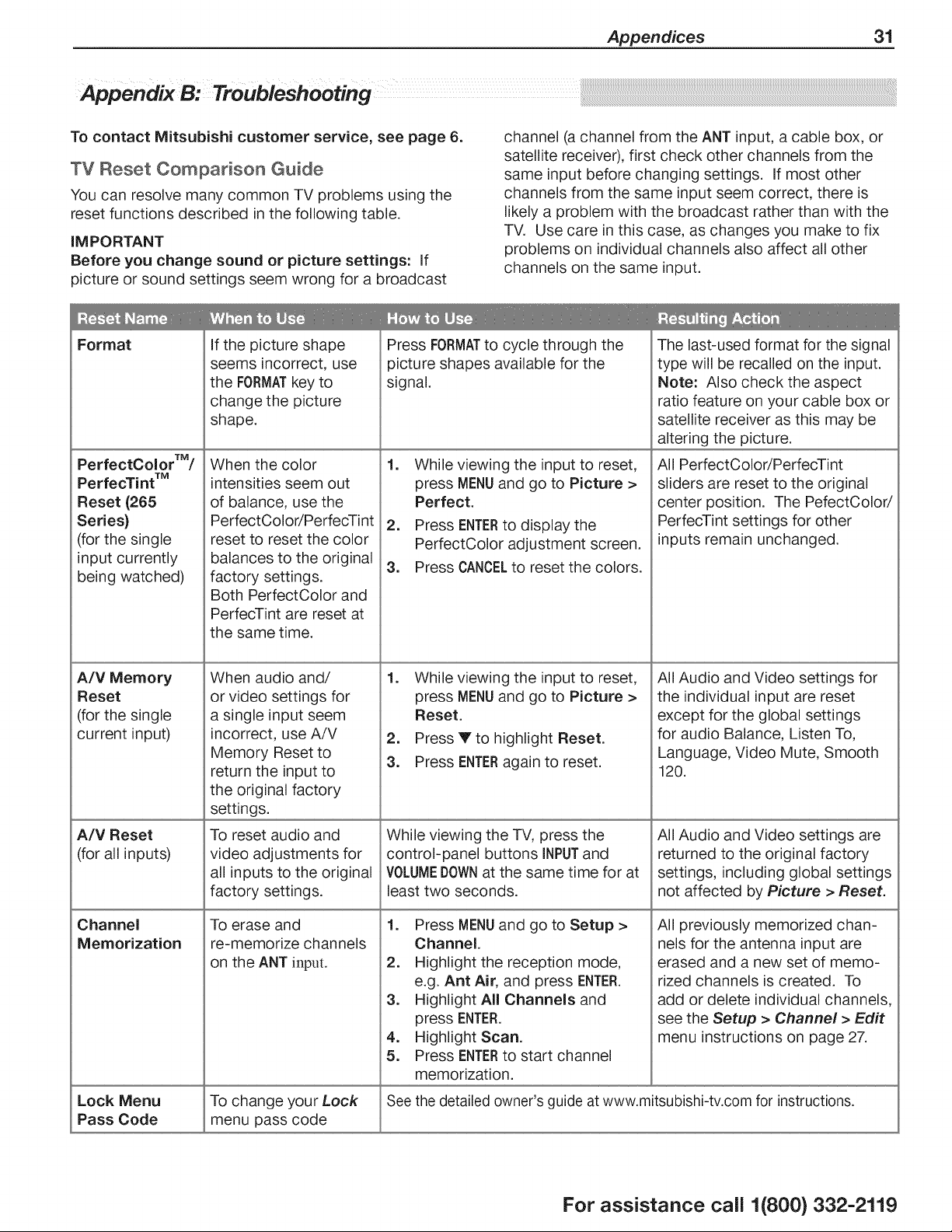

Appendix B: Troubleshooting .............. 31

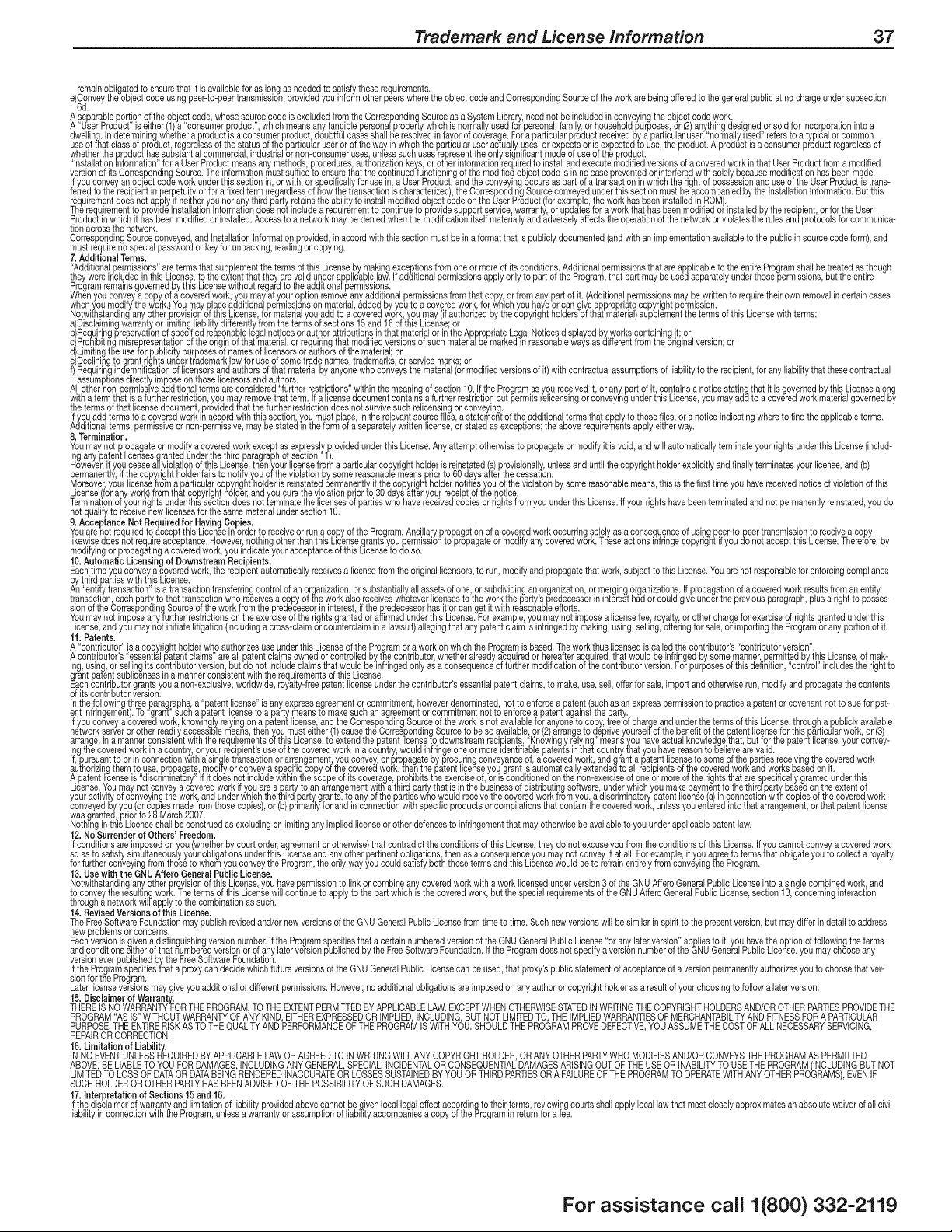

Trademark and License Information .......... 33

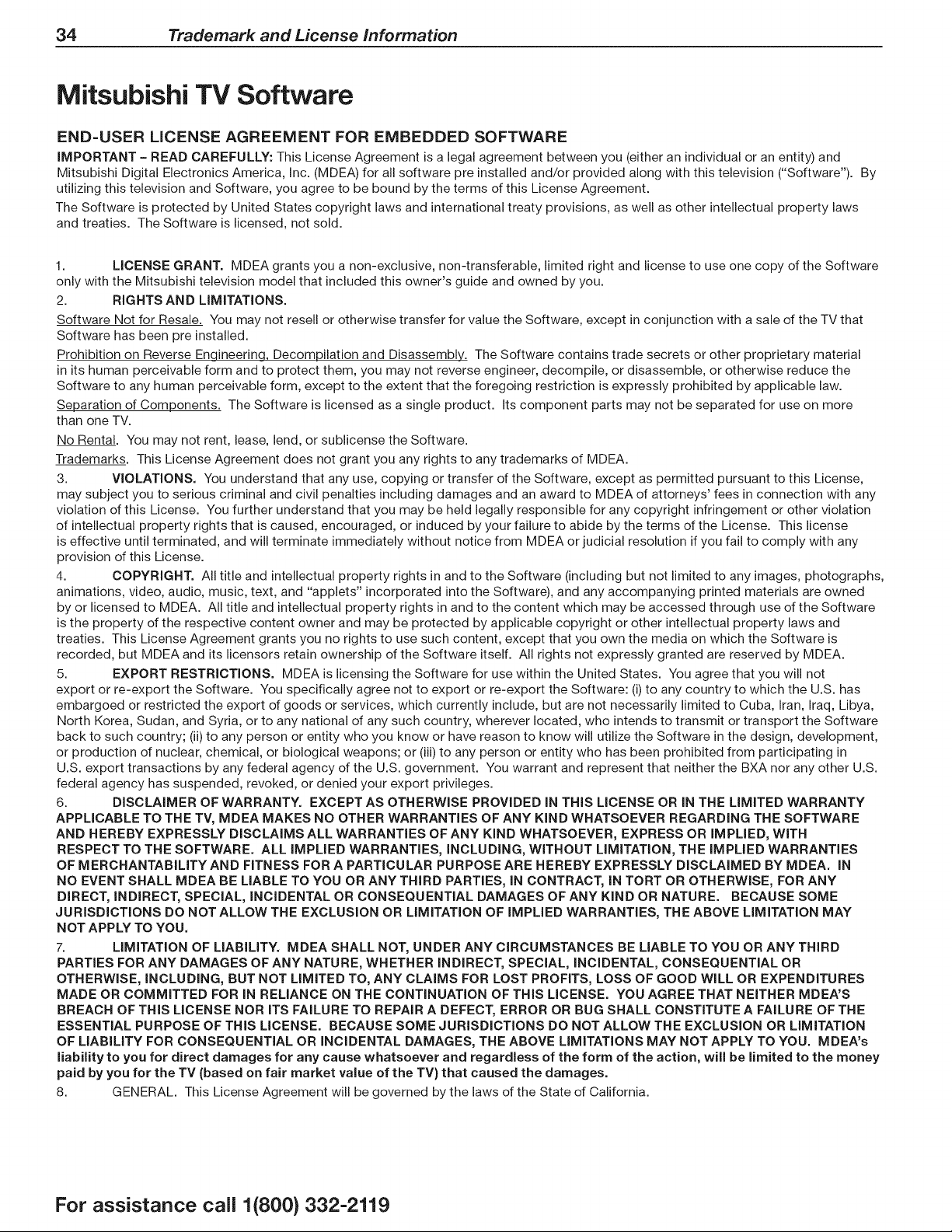

Mitsubishi TV Software .................... 34

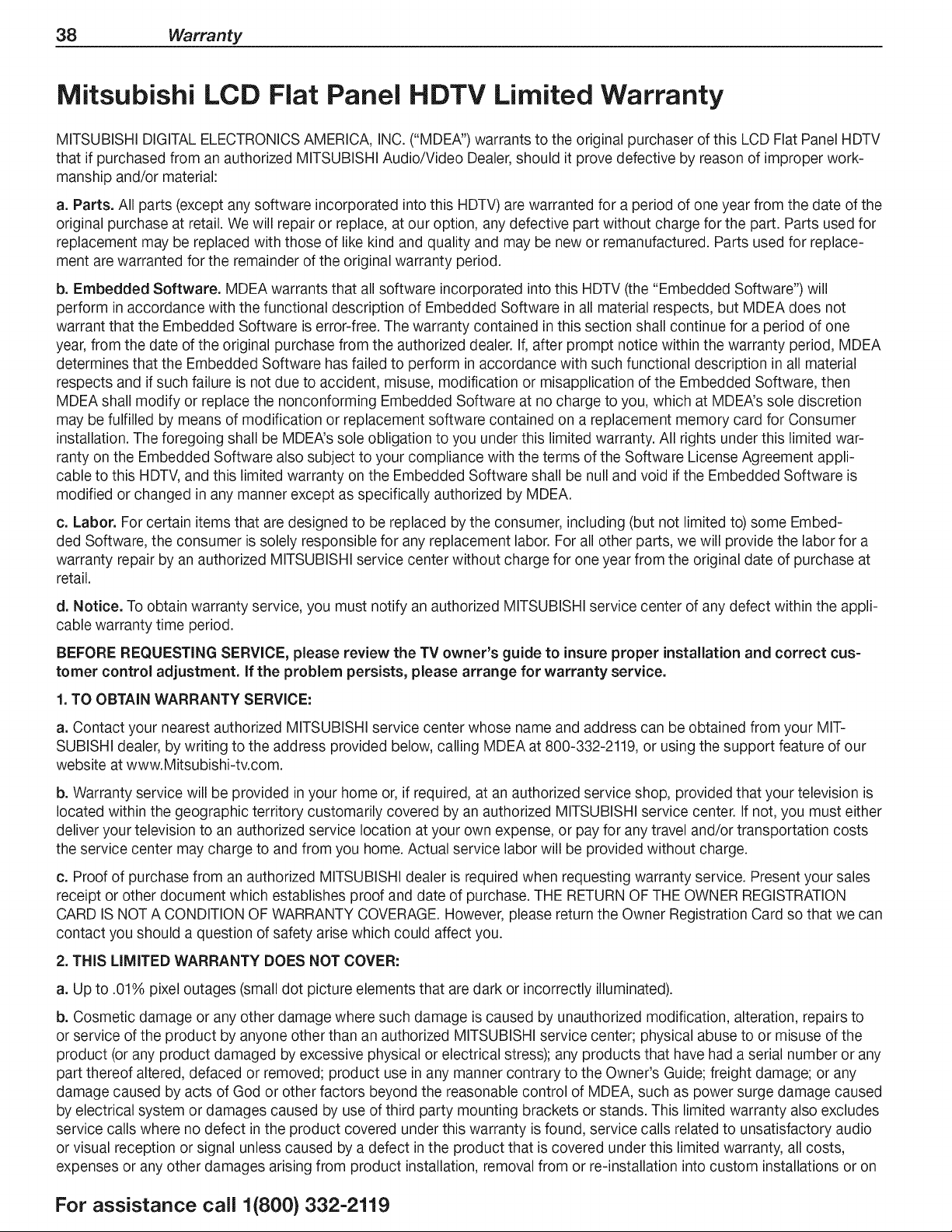

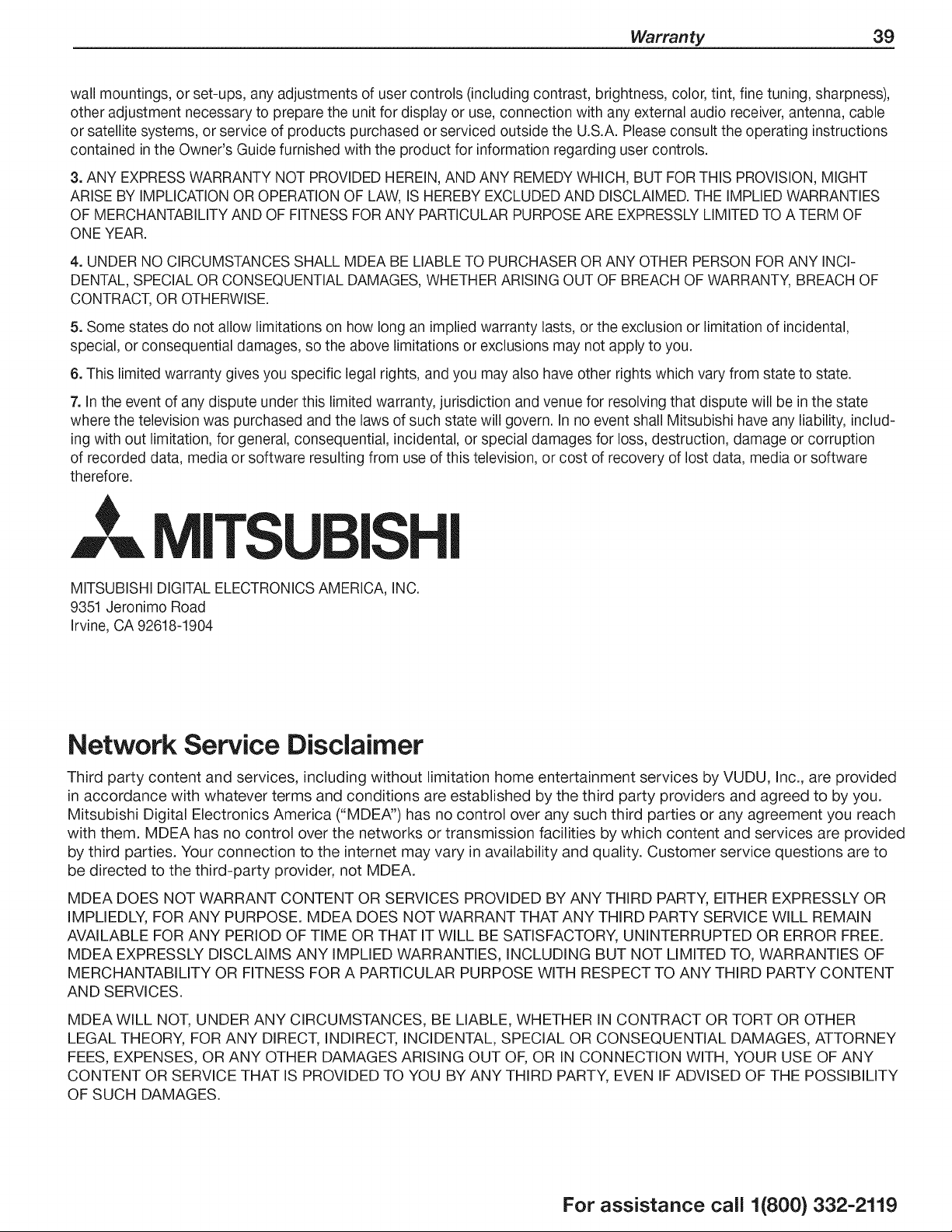

Warranty .............................. 38
Network Service Disclaimer ................ 39
Cleaning Recommendations
Normally, light dusting with a dry, non-scratching duster
wH[ keep your TV clean. If cleaning beyond this is
needed, please use the following guidelines:
First, turn off the TV and unplug the power cord from
the power outlet.
Occasionally clean dust build-up from the air-intake
gdl[es on the back and sides of the TV. Clean using a
vacuum cleaner with a brush attachment.
Top and Sides of the TV
• Gently wipe down your TV with a soft, non-abrasive
cloth such as cotton flannel, microfiber, or a clean
cloth diaper, lightly moistened with water. Dry with
a second dry, soft, non-abrasive cloth.
For oily dirt, add a few drops of mild liquid deter-
gent, such as dishwashing detergent, to the water
used to moisten the cloth. Rinse with a second
cloth moistened only with water. Dry with a third
dry, soft, non-abrasive cloth.
Screen
• Use only a soft, dry cloth to dean the LCD
screen. Do not use any liquids.
= Wipe the screen gently with an up and down motion.
Clean the entire screen evenly, not just sections of
the screen.
General Cleaning Precautions
• DO NOT allow liquid to enter the TV through the
ventilation slots or any crevice.
DO NOT use any strong or abrasive cleaners, as
these can scratch the surfaces.
DO NOT use any cleaners containing ammonia,
bleach, alcohol, benzene, or thinners, as these can
dull the surfaces.
DO NOT spray liquids or cleaners directly on the
TV's surfaces.
DO NOT scrub or rub the TV harshly. Wipe it gently.
For assistance call 1(800) 332-2119
4

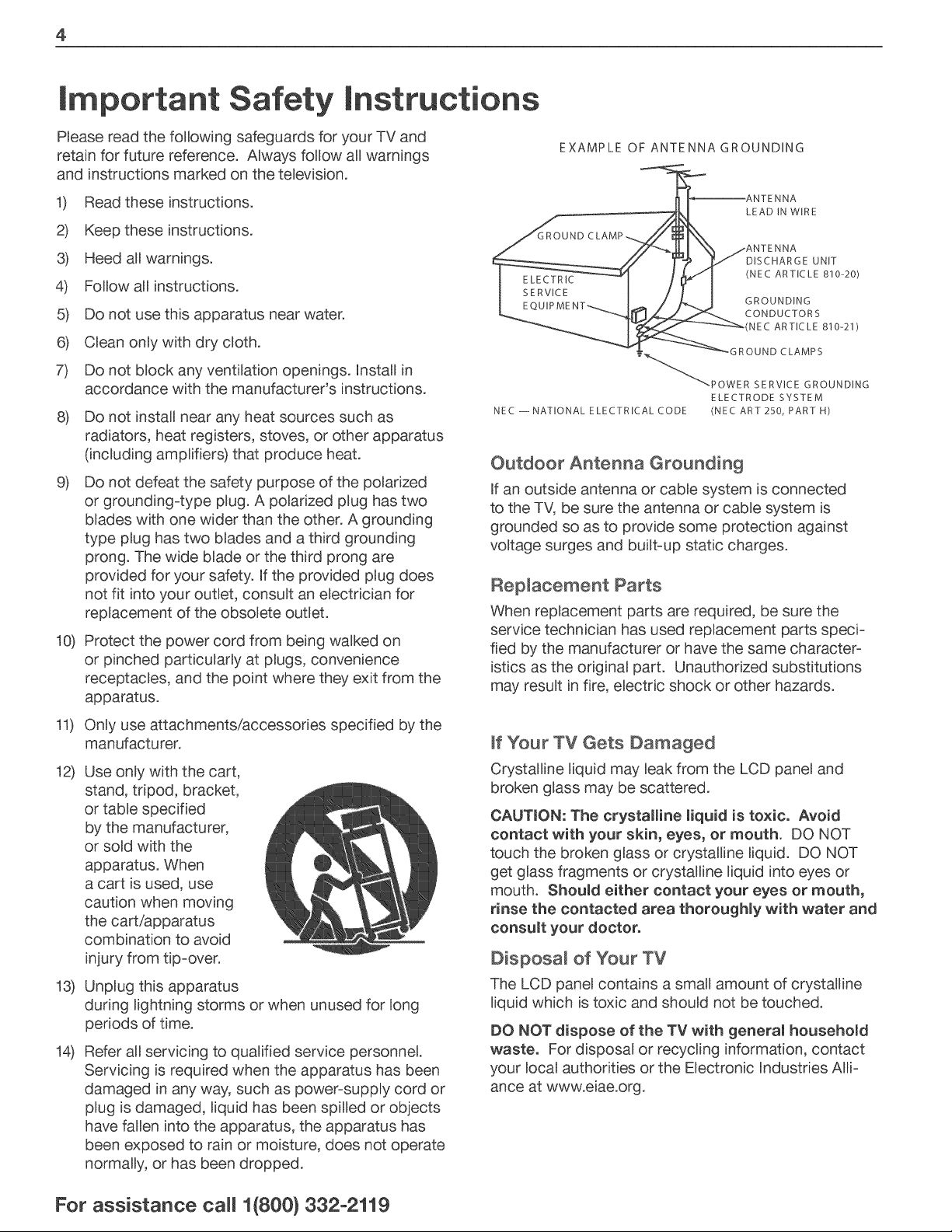

important Safety instructions
Please read the following safeguards for your TV and
retain for future reference. Always follow all warnings
and instructions marked on the television.
EXAMPLE OF ANTENNA GROUNDING
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
0ncluding amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart,
stand, tripod, bracket,
or table specified
by the manufacturer,
or sold with the
apparatus. When
a cart is used, use
caution when moving
the cart!apparatus
combination to avoid
injury from tip-over.
Unplug this apparatus
during lightning storms or when unused for long
periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way', such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
LEADIN WIRE
ELECTRIC
SERVICE
DISCHARGE UNIT
(NEC ARTICLE 810-20)
GROUNDING
CONDUCTORS
(NEC ARTICLE 810-21)
ELECTRODE SYSTEM
NEC NATIONAL ELECTRICAL CODE (NEC ART 250, PARTH)
Outdoor Antenna Grounding
If an outside antenna or cable system is connected
to the TV, be sure the antenna or cable system is
grounded so as to provide some protection against
voltage surges and built-up static charges.
Replacement Parts
When replacement parts are required, be sure the
service technician has used replacement parts speci-
fied by the manufacturer or have the same character-
istics as the original part. Unauthorized substitutions
may result in fire, electric shock or other hazards.
If Your TV Gets Damaged
Crystalline liquid may leak from the LCD panel and
broken glass may be scattered.
OAUTmON: The crystaJJine Jiquid is toxic. Avoid
contact with your skin, eyes, or mouth. DO NOT
touch the broken glass or crystalline liquid. DO NOT
get glass fragments or crystalline liquid into eyes or
mouth. Shoumd either contact your eyes or mouth,
rinse the contacted area thoroughmy with water and
consuJt your doctor.
Disposal of Your TV
The LCD panel contains a small amount of crystalline
liquid which is toxic and should not be touched.
DO NOT dispose of the TV with general household
waste. For disposal or recycling information, contact
your local authorities or the Electronic Industries Alli-
ance at www.eiae.org.
For assistance caJJ 1(800) 332-2119
5
Stand installation
Note
• 40= or 46=inch TV: If planning to wall-mount the TV, there is no need to install the stand.
55=inch TV: The TV comes from the factory with the stand pre-installed.
Required: Phillips Screwdriver ('--_---']
Extension pieces
on back of stand
[]
[]
[]
[]
BACK
DO support the TV
under the corners.
DON'T place your hand where it can
get caught under the TV.
Two adults are required to lift the TV.
TV in protective
wrapping
Repacking the Stand
CAUTION. Place the
stand in the foam insert
with the extension pieces
facing away from the TV.
Otherwise, the TV will be
damaged in transit.
Protect the TV and
stand with the original
packing material.
Extension pieces on stand
must face out, away from TV.
For assistance call 1(800} 332-2119
6
Wall=iVlounting
To order a wall-mount kit, please contact Peer-
less Industries, Inc. at (800) 473-3753 or visit
www.peerlessmounts.com. Order wall-mount kit model
ST650.
Stand Remova_ Prior to WaHoMounting
To order a wall-mount kit from Mitsubishi Digital Elec-
tronics America, Inc., please visit www.mitsuparts.com
or call (800) 553-7278.
Complete installation instructions are included with the kit.
Note
• 55=inch TV: Remove the factory-installed stand prior to wall-mounting.
40= or 46=inch TV: If you installed the stand for table-top use, follow these instructions to remove it prior
to wall-mounting the TV.
1, Disconnect the TV's AC power cord from the AC
power outlet.
Spread the protective sheet that was wrapped
around the TV on a flat, even surface, such as a
sturdy table. The protective sheet will help prevent
damage to the display.
iMPORTANT: To avoid damaging the screen,
make sure there are no foreign objects under or
on top of the protective sheet.
3, Position one person on each side of the TV (left and
right sides). Have each person firmly grasp their side
of the TV and gently place it face down on the pro-
tective sheet with the display stand hanging over the
edge of the table. See the illustration to the right.
4, Use a magnetic philips screwdriver to remove the
stand screws from the recessed holes (see illustra-
tion to right). Note: A regular screwdriver can be
used with a separate magnetic pick-up tool.
While one person holds the TV with both hands,
have the other person grasp the stand (see illustra-
tion to the right) and remove the stand by pulling it
away from the TV inthe direction of the large arrow
shown in both illustrations.
Protective
sheet
TV
\
Stand __
Table
f
55-inch TVs
(6screws)
Protective
Sheet
40- and 46-inch TVs_
(4screws)
J
Pull stand
to remove.
For assistance call 1(800) 332-2119
PBeasetake a moment to review the foUowing Ust of
items to ensure that you have received everything.
Remote Controm
Two AA Batteries
Basic Owner's Guide
Quick Setup Guide
Product Registration
Card
Power Cord
CabmeTies
Stand Screws (40- and
46-inch TVs onmy}
265 Series. Calibration
Microphone
Review the important safety, instaUation, and oper-
ating information at the beginning of this book.
Choose a )ocation for your TV.
o See the stand-installation or wall-mounting
requirements starting on page 5,
AUow at Beastfour inches of space on aUsides
of the TV to heBpprevent overheating. Over-
heating may' cause premature faUure of the TV.
Avoid locations where light may reflect off the
screen.
3, Install the batteries in the remote control.
4, Plug the TV into an AC power outlet.
TV power connection
For assistance ca(( 1(800} 332-2119
8 1. Basic Setup and Operation
Remote Control ....
Sleep Timer, page 21
Number/letter keys
Channel tuning, page 10
Pass-code entry, page
29
r- Emitter-Bulb End
TV CAB/SATOrB AUDIOVCR
Press the keyfor the device type to
control. Leave in TV mode for normal
TV viewing.
(_ Powers TV on or off.
Adds a separator in digital channel
numbers. Clears some menu entries.
Returns to the previous channel.
VOL
CH
PAGE
Mutes the TV speakers.
Displays shortcuts for the number keys.
Press to check if shortcuts are available
for the current device.
Controls volume of TV speakers.
__ Changes channels; moves to another
page in a menu or list.
O Selects a or menu
channel number item.
A V 4 I1_ Navigation and adjustment
controls
ChannelView listings, page 17.
TV status or TV help.
1_ (PAUSE)Freezes a broadcast TV picture.
Record/Playback controls for external
devices. Additional setup is required.
Displays up to nine favorite
sources, page 17.
Changes picture shape,
page 12
Connects to internet content
provided by VUDUTM,page 18.
Press to select a TV input,
page 10.
Audio settings, page 25
Video settings, page 24
Displays or clears the TV main
menu (page 24). Also steps
back one menu.
Clears all menus.
Series. Special keysfor use
with NetCommand IR control.
See the detailed owner's guide at
www.mitsubishi-tv.com.
For assistance call 1(800) 332-2119
1. Basic Setup and Operation 9
3,
3,
Press the _ key to
ensure that the remote
control is in TV mode.
Aim the emitter (bulb)
end of the remote control
at the TV and press the
POWERkey (_, Wait for the
Welcome screen.
If you wish to change the
menu language to Espa_oL
press V.
i i C]]]]] i]]]]I]Q
Cil )
i ?
(
Eng(ish
Welcome Screen Energy Optons
o Mitsubishi recommends the Home setti%,
which uses power within ENERGY STAR _
guidelnes.
The Retal setting looks best under bNght
lghting. In this mode, the TV uses power in
excess of ENERGY STAR guidelnes.
This table compares energy choices offered in the
Welcome screen,
Picture Mode Bright Brllant
Backlght Level Reduced Full Brightness
Brightness
4,
Press _ to move to the
energy-mode seleclons.
Select Home.
Press _ to highlght EXIT.
Press ENTERto clear the
menu.
Using the ANT (Antenna} Input
If using an antenna or direct cable service (no cable
box), connect the incoming coaxial cable to the TV's
ANT input. Refer to page 16.
You must perform a channel scan to enable recep-
tion of digital channels, If you skip this step, the TV
will receive only analog channels. The channel scan
wi/search for high-definition and standard-definition
channels avalable in the local area.
Memorizing Channels with Channe/ Sca n
For the ANT input
To start channel memorization
3, Power on the TV.
Press MENUand open the Setup > Channel menu.
First press V to navigate to the Setup icon, then
use _ to highlight the Channel icon.
Start channel memorization from the Setup > Channel
menu.
3,
4,
Press V to enter the menu.
Highlght Ant Air if connected to an
over-the-air antenna. Highlght Ant
Cable for service over direct cable
(no cable box). Press ENTERto add a
check.
For first-time setup, highlght All
channels. To scan for channels not
already in memory, highlight New
only. Press ENTERto add a check.
Highlight Scan and press ENTER.
Channel memorization may take up
to 15 minutes to complete.
To stop channel memorization before completion,
press CANCEL.
For assistance ca((1(800} 332-2119
10 1. Basic Setup and Operation
Setting Up Other inputs
1, Power on the TV.
Power on the devices to ensure detection.
3, Connect one device to the TV, making note of the
TV input jack.
The TV will display the New Device Found screen if
the connection type is detectable.
4, Highlight the device type in the omscreen list and
press ENTER.The name you select here will appear
in the Input Selection menu.
Selecting an input to Watch
3o Press INPUT,
Rfyou have only two connected
devices, the INPUTkey switches
between them without displaying
the Input Selection menu.
Sample New Device
Found screen.
Press EXITto close the New Device Found screen.
Repeat steps 3 through 5 for each additoinal device
you want to add.
About Auto Input Sensing
This TV's Easy Connect TM Auto Input Sensing
feature detects most input connections automati-
cally. Some exceptions are:
o A connection on the ANT input
* TV audio outputs (analog and digital)
An HDMI-equipped device that is powered off.
Power on the device first to ensure detection.
Ethernet
Auto Input Sensing for Most Devices
When you first connect a device, the TV will:
a. Detect the connected device and auto-
matically switch to it.
b. Prompt you to identify the device type.
c. Repeat these steps for other newly
detected devices.
Sample Input Selection menu, antenna input selected
Press 4 _ to highlight an input icon.
3, Press ENTERto switch to the input.
Tuning to ChanneJs on the Antenna Input
* Enter the channel number using the number keys
on the remote control and press ENTER.
For a two-part digital channel, such as 3-1, press 3
1.
* Press OHA/V to change channels one channel at
a time.
Press and hold OHA/V to speed through chan-
nels.
* Press _ to return to the previous channel.
Use the Fav (Favorites) feature to tune to up to nine
favorite channels. See page 17,
Press GUIDE to display ChannelView channel listings,
highlight a channel number, and press ENTER to tune.
For assistance caJJ 1(800} 332-2119
1. Basic Setup and Operation 11
Picture Settings
1,
To get the best picture under different viewing con-
ditions, set the Picture Mode first before changing
other video settings. See page 24 for a description
of the options.
a. Press VIDEO.
b. Press Y until the Picture Mode
option displays.
Audio Controls
Changing the Audio Outpu t
To switch from the internal TV speakers to an external
sound system:
1, Press AUDIO.
Press Y to display the Sound
option.
3, Press _ to change.
c. Press I_ to make one of these selections:
Brilliant Under bright light
Game With gaming consoles (inputs
named Game or PC only)
Bright For most daytime viewing
Natural For most nighttime viewing
Press Y to display the name of another adjustment.
3, Press _ to make the adjustment.
4, Wait a few seconds and the display will clear.
Additional picture options are available through the fol-
lowing menus:
Changing Audio Settings (TV Speakers Only)
1, Press AUDIO.
Press V to display the name of the adjustment you
want. See page 25 for options.
3, Press _ to change.
Controlling Sound Volume
Press V0L A/V to adjust the
sound level of the TV speakers.
See the full owner's guide at
www.mitsubishi-tv.com for
methods of controlling A/V receiver
volume.
Picture > Picture Plus 24
265 Series. Picture > Perfect 25
POWER indicator
Key
O Off
O Steady On
Q Slow Blinking
None O TVis powered off. Normal operation.
Green O TVis powered on. Normal operation.
Green
Red/
Yellow
TV powered off, auto-on TV Timer is set.
Normal operation. TV can be turned on at any time.
TV may require service.
• Hold power button on front panel for 10 seconds to
reset TV.
• If LED continues to flash red and yellow after reset, turn
off the TV and unplug it from the AC power source. Wait
one minute and then plug the set back in.
If LED continues to flash red and yellow, go to
www.mitsubishi-tv.com or call 1-800-332-2119 to receive
Authorized Service Center information.
You may be asked to count how many times the LED
flashes each color to assist in troubleshooting.
For assistance call 1(800) 332-2119
12 1. Basic Setup and Operation
The FORMAT Key and Picture Shape
RepeatedBy press the
FORMATkey to cycBe
through displays avail=
abBefor the current
program. The TV wifl
remember the format
you Bastused on each
input.
Sampme Uses of the FORMATKey
You can use the FORMATkey to reduce or efiminate bBack areas at the
edges of the 9icture.
Squarish 4:3 image is
narrower than the 16:9
screen; unused areas at the
sides are tiffed with black.
Wide Expand mode stretches
the picture sideways to fifl the
screen.
Wide 2.35:1 anamorphic DVD
image; unused areas at the
top and bottom are fifled with
black (letterbox effect).
Zoom mode. The picture tiffs
the screen. All four edges are
cropped in this mode.
More TV Features
Features covered in this Basic Owner's Guide incBude:
ParentaB controBs (Lock menu) 29
TV CBock. Set the TV CBock if you pBanto use the 27
TV Timer (page 27) or ChanneBView (page 17).
Favorite sources 17
ChanneBView channeB fistings 17
Changing input names in the Input Selection 28
menu (Inputs > Name menu)
Digital camera images and music files 20
Programming the Remote Control 30
See the detailed owner's guide at
www.mitsubishi-tv.com for a complete code list.
Internet video streaming with VUDU 18
265 Series. Listening to a wireless audio 19
device with the TV speakers
See the detailed Owner's Guide at
www.mitsubishi-tv.com for more on the features
described here and to learn about other features,
including:
o HDMI control (CEC) of other A/V devices
Center and rear channel audio output
Using an external subwoofer
Using the TV with a computer
265 Series. NetCommand IR control of other A/V
devices. Use of NetCommand requires purchase of
IR emitter cables from Mitsubishi.
For assistance ca(( 1(800} 332-2119
TVConnections
DiGiTAL
AUDIO
OUTPUT
(page 15)
CENTER=CH INPUT_
NetC OUT/IR iN
(265 Series.
NetCommand/IR external
controller jack. See the
detailed owner's guide at
www. m itsu bishi-tv.com.)
!
:®®
A
NetCOUT / IRIN
A
LAN
/
LAN
(Ethernet, port
page 18)
_] IGITAL
AUDIO
OUTPUT
®®
CENTER-CH SUBWOOFER
INPUT OUTPUT
=
=
=
1,w ,&
A & ,ik A ii
R-AUDIO-L Pr Pb = Y/VIDEO
(analogstereo (component /
audio)input video input) Y/VIDEO
(composite video)
AVR/SURROUND
OUTPUT
(page 26)
SUBWOOFER
OUTPUT$
See the detailed
owner's guide at
www.mitsubishi-tv.com.
A
ANT
I
ANT
(coaxial
antenna input) HDMI
_ (265 secalibrati°n
__des
I!_ I _,_o,o
_===ml = ==mama=_,
I
_ <Pr
< USB
USB
< (PowerOnly)
DVl/PC
( ( 0 )) 41AUDIO
INPUT
HDMI4
< HDMI3
< HDMI2
Microphone Input
page 23)
- AUDIO
(analogstereoaudioinput)
- Y/VIDEO
(composite video input)
- Y/VIDEO Pb Pr
(component video
input)
- USB (page 20)
USB (Power Only)
- Provides power to TV
accessories.
- DVI/PC AUDIO INPUT
(page 14)
- HDMI
Cable - -'_n-T,nn
r_
Install the supplied
cable ties in any of four
mounting holes.
P
Removing the
cable tie
Press the release tab to
loosen the cable bundle.
Sample cable muting. Secure the cable
bundle with the release tab facing out.
For assistance call 1(800) 332-2119
14 2. TV Connections
Mitsubishi recommends using high-speed HDMI
cables to connect newer devices incorporating HDMI
technology.
Required:
• RCA-type component video cables
Left/right analog stereo audio cables
Component
video device
Any HDMI device
TV
TV
incoming from
= cable service or
.... . satellite dish
Required:
Composite video cable (usually yellow)
Left/right analog stereo audio cables
TV
L®
•,L
AUDIO
R(_)
Audio • R
AUDIOOUT cables
®
COMPOSITE Composite
VIDEOOUT video cable
VCR or other device with
composite video output
Required:
DVl-to-HDMI cable or DVl/HDMI adapter and
HDMI cable
Analog stereo cable with mini plugs
Digital DVl
device
TV
DVl=to=HDIVll
cable
For assistance call 1(800) 332-2119
2. TV Connections 15
Most setups require either an optical audio cable or
analog stereo audio cables. To send audio from TV
channels received on the ANT input or devices con-
nected directly to the TV, you must use one of the con-
nections shown below.
The TV makes all audio available in digital and analog
formats:
• Analog audio coming into the TV is available as
output in digital stereo format on the DIGITAL
AUDIO OUTPUT jack.
Digital incoming audio is available as analog output
on the AVR/SURROUND L and R jacks.
0pticamcable
(digitalAN
receiver)
DIGITAL
I_1 AUDIO
I _ OUTPUT
f:2:
I
Stereoanalog cables
{analogAN receiver)
Required: One HDMI-to-HDMI cable
This option allows you to view content from devices
connected to an A/V receiver. The A/V receiver can
send audio and video to the TV over a single HDMI
cable. You can use an HDMI connection as described
here in addition to an audio connection from the TV's
audio output. The optional audio connection allows you
to hear, through the A/V receiver, devices connected to
the TV only, e.g., an antenna on the ANT input.
HDMIcable
t
DIGITAL
AUDIO
OUTPUT
AN receiverwith
HDiVlloutput
Any connection
types
HDMIOUT OPTICAL
AUDIO IN
R L
ANALOGAUDIOIN
A/V receiver back panel
For assistance call 1(800) 332-2119
16 2. TV Connections
AntennaorCableTV S
Connect the incoming cable to the TV's ANT input.
Older cable
box
Not recommeded. Other connection types
provide better quality audio and video.
Required:
1. Video cables
la. Component video cables (red/blue/green)
or
lb. Composite video cable (usually yellow)
2. Left/right analog audio cables.
3. Two-way RF splitter
4. Two coaxial cables
Note: If your recording device has an analog-only
tuner, you must use a digital converter box to
enable recording of digital broadcasts.
Or
la.
Component
video cables
R L
AUDIOOUT
®
COMPOSITE
VIDEOOUT
_ _ _ I ANTENNAIN
COMPONENT
VIDEOOUT @
m
DVD Recorder or VCR
3.
RF Splitter
Incoming cable
=
Connection Types and Audio/Video Quality
VIDEO QUALITY
Component
HDMI HDMi-to-DVI Video
®@@
Composite
Video
®
HDMi
Digital L/R Analog
Audio Audio
For assistance call 1(800) 332-2119
TVFeatures
The FAVkey gives you quick access to favorite program
sources. Sources can be channels from the ANT input
or devices connected to the TV. You can store up to
nine favorites.
1. Press iNPUTand switch the TV to the input
you want to add. If adding a channel, switch
o to the ANT input and tune to the channel.
_, 2. Press theFAV key.
._ 3. Movethe highlight tothe number position
you want to assign to the channel or input.
_: 4. Press ENTER.
1. While watching TV, press the FAVkey.
'_ 2. In the Favorites menu, highlight the channel
o
E or input you want to remove.
Q: 3. Press CANCEL.
Sample Favorites menu. Switch to favorite channels or
inputs using number keys.
=: 2.
While watching TV, press the FAVkey.
Press the number key for the channel or
_nput you want.
About Channe_View
ChanneIView displays program descriptions sent by broad-
casters. This information may be unavailable in some areas.
ChanneIView TM shows memorized channels on the ANT
input. It displays channel names and program information
for digital channels. No program information is displayed for
analog channels.
ChannelView allows you to set up three banks of custom chan-
nels for convenient access. You can save groups of channels
by content (e.g., news, sports, children's programming) or by
TV user.
Note: You must first set the TV Clock (page 27) to receive
ChannelView listings.
ChannelView ",All" channels tab. Programs for the tuned
channel are listed on right side of screen.
ChanneIView Custom ChanneJ Banks
Select a channel bank to customize.
f, Press GUIDEto display ChannelView.
Press MENUto move the highlight to the bank
header.
3o Press 4 _ to select Bank 1, 2, or 3.
4, With the bank name highlighted, press ENTERto
enter setup mode where you can select channels to
include in the bank.
Using Custom Channel Banks
o While watching TV, press ONA/V. The TV will
tune only to channels stored in the current bank.
To change to a different channel bank:
1. Press GUIDE.
2. Press MENU.
3. Press 4 b to highlight a bank.
4. Press MENUto see channels in the bank.
To allow tuning to any channel in memory, select
the All bank.
For assistance call 1(800} 332-2119
18 3. TV Features
hternet services provided by VUDUTM let you access
many popular on-line applications. Rnaddition to free
content, VUDU's movie service lets you buy and rent
movies through the TV. Visit www.VUDU.com to learn
more about available movie titles, prices, recommended
bandwidth, and services offered. For a list of recom-
mended touters and switches, see the Support > FAQ
section at VUDU.com.
Required for VUDU mnternet Services:
o Broadband internet service
Ethemet cable or a compatible wireless adapter.
Computer access to the VUDU.com website
(required for initial account activation).
A credit card for rental and purchase transactions
from VUDU's movie service.
Home Network Setup
Before using VUDU internet services, you must connect
the TV to the internet using one of these methods.
Ethemet Connection
DHCP (automatic}
1, Connect the TV to your network router with a Cat-
egory-5 Ethemet cable (not supplied).
Wireless Connection
164 and 265 series models have built-in wire-
less capabilities and can communicate directly
with your wireless router.
154 Series TVs require a compatible USB wire-
less adapter. See the detailed owner's guide at
www.mitsubishi-tv.com.
3o
Disconnect the Ethernet cable if present.
Open the Setup > Network menu. Detected net-
works will appear listed on the screen in order of
signal strength.
cable
Open the Setup > Network menu to review set-
tings.
3, Press EXITto clear the menu.
Manuam
3, Connect the TV to your network router with an
Ethernet cable.
In the Setup > Network menu, highlight Manuam
and press ENTER.
Press _ to move to the Connection Data area.
4, Input the connection data.
5, After entering connection data, press ENTERto
connect.
Change any of the following if needed:
Default Gateway
o DNS
Subnet Mask
Setup > Network menu
3, Highlight the desired network and press ENTERto
connect. A check will appear next to the connected
network.
Setup > Network menu after connecting. The active
network is checked and connection data displays.
4, If connecting to a secure network, enter the
network key or password on the remote control
when prompted.
For assistance ca(( 1(800} 332-2119
3. TV Features 19
Using VUDU )ntemet Services
After estabUshing internet connectivity,
press the INTERNETkey to display offer-
ings from VUDU. Press ENTERto launch
the des)red appUcat)on.
Getting Started with VUDU
1, After estabUshing internet connect)v-
ity, press INTERNETto display services from VUDU.
Select the VUDU movie service.
3, Browse the VUDU movie catalog and offerings.
4, When you are ready to rent or buy a movie, you
will be prompted to act)vate your VUDU account.
FoUow the on-screen instructions and use a com-
puter to go to www,VUDUocom/activation, A
credit card iS required for activation.
Once your account is activated, you can rent and buy
movies using only the TV and the TV's remote control.
Remote Oontro( Keys for VUOU
INTERNET Displays/clears the VUDU internet menu.
GUIDE VUDU HOMEkey
INFO VUDU MOREkey
LAST VUDU BACKkey (goes to previous menu)
{STOP} Stops playback
if You Are Unable to Connect to VUDU
o
o
Check all power and data connections.
If you can reach the internet with a computer or
other device on the same internet service used by
the TV, consult the router or modem owner's guide
for reset instructions.
If you cannot reach the internet, contact your
service provider. You may be asked for network
information such as the TV's IP address. Go to the
Setup > Network menu to see connection data.
For Further Assistance
o If you are having trouble connecting your TV or
accessing internet applications, contact Mitsubishi
Customer Care at 1-800-332-2119.
If you are having difficulty with your VUDU
account, contact VUDU Customer Care at
www.VU DU.comisu pport.
See more troubleshooting tips on page 32 in
Appendix B.
164 and 265 Series. The TV's built-in speaker array
can play audio from a handhe)d device using Bluetooth®
A2DP (stereo audio) wireless technology.
Pairing the TV with an Audio Device
1, Turn on the wireless device you wish to use for play-
back. Turn off all other wireless devices in the area
as the TV can pair with only one device at a time.
Press INPUTto display the input Se/ection menu.
Bluetooth® icon in Input Selection Menu
°
4°
Highlight the B(uetooth icon and press ENTER.
Pair your device with the TV and then connect. Some
devices pair and connect automatically, while others
require you to enter the TV pass code displayed.
Use keys on the TV's remote control to control play-
back. Not all keys work for all devices.
Skip a track
(PAUSE}
(STOP}
_'_ _ (REVERSE}
(PLAY}
(FORWARD}
Resetting B/ueteeth Pairing or Connection
Perform this reset if the audio device does not connect
properly to the TV.
1, If the audio device has been previously paired with
the TV, delete the TV from the device's paired list.
Go to the TV's inputs > Name menu and highlight
the Bluetooth icon. Press ENTERto select Off.
3, Press EXIT.
4, Go to the inputs > Name menu and highlight the
Bluetooth icon. Press ENTERto select On.
Press EXIT.
Tips for Wire(ess P(ayback
Selecting the Bluetooth icon at a later time will
reconnect the TV to the paired device.
If the paired device is not availab)e, the TV will
accept pairing from a different device.
Once connection is lost, the TV wiU power off after
five minutes without receiving a signal.
To clear a paired device, turn off the B(uetooth icon
(inputs > Name menu) or pair the TV with a different
device.
For assistance ca((1(800)332-2119
20 3. TV Features
USB Media P_ayer Menu
USB Media Setup Menu
Use the USB Media Setup menu to set up play of a
slide show or playlist.
USB Media menu, Photos option selected
Displaying the Menu
Note: Back up the data on your USB drive before con-
necting it to the -IV. Mitsubishi is not responsible
for any file damage or data loss.
Connect your USB drive to the TV's USB port.
The USB Media Player menu displays while files
are being read. Wait until icons appear in the menu
before continuing.
• USB
The TV can read photo and music files from the USB port.
Notes on Using the USB Port
• The TV ignores all commands while reading flies.
Large files or high-capacity storage devices may
take a long time to display.
Some manufacturers' devices may be incompat-
ible with the TV. If the TV is unable to display your
photos, you can:
Transfer files to a different USB device.
Use your digital camera's composite video
output.
Picture Files Compatible with the USB Port
• Still images recorded using the Exchangeable image
File Format, version 2.1 (EXIF2.1)standard for digital still
cameras and Design Rules for Camera File Systems version
1.0 (DCF 1.0)
• Some images opened and resaved on a computer may not
play back or may not display in the thumbnail list.
• Full file path names can be no longer than 50 characters and
must end in a .jpg extension.
For assistance call 1(800) 332-2119
Using the Photos and Audio
Menus
Use these keys with your photo and audio files.
Key For Photo or Audio Tracks
(_or Plays the slide show or playlist starting
from the highlighted item.
ENTER
(_ Pauses a slide show or playlist.
(_ Stops a slide show or playlist.
• Highlights the first or last item on the
current page.
_ • Skips to the previous or next item
during play.
• Displays the previous or next page of
items.
• Skips immediately to the previous or
next item during play.
Rotates an image clockwise in 90° incre-
GUIDE
ments.
INF0 Displays the item name during play. Press
EXITto clear.
EXIT Clears on-screen displays.
MENU Displays the main menu; stops play.
Displays the Input Selection menu; stops
INPUT play.
3. TV Features 21
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Photos and Moving Video
as Composite Video
Connect the camera to the TV using a composite video
cable and control the slide show or movie through the
camera. The display resolution will be standard-defini-
tion (480i).
1, Refer to the owner's manual supplied with the
camera for instructions needed for this setup.
Set the camera's output signal type to NTSC and
put the camera into playback mode.
3, With the camera still turned on, connect your digital
camera's composite video cable (usually yellow) to
the TV's YiVmDEOjack. To hear audio, connect the
camera's audio output cable to the AUDmOL jack.
The Sleep Timer turns the TV off after the length of time
you set. To set the TV to turn on at a certain time of
day, see the Setup > Timer menu on page 27,
Setting the Smeep Timer
1, Press SLEER
°
Press SLEEPadditional times to increase the time in
30-minute increments up to the maximum of 120
minutes.
Press EXITor wait five seconds without pressing any
keys for the message to clear,
Viewing or Changing the Smeep Timer
1, Press SLEEPto display the on-screen message.
Press SLEEPadditional times to change the time
before the TV powers off. To cancel the Sleep
Timer, press SLEEPrepeatedly until OFF is dis-
played.
Camera connection using a composite video came
4, When the New Device Found screen displays,
assign the name Camcorder.
Press EXITto close the New Device Found screen.
Highlight the icon for the camera input and press
ENTER.
8_
If viewing photos, advance through the images
manually or set the camera to advance automati-
cally.
If viewing photos, control the slideshow from the
camera. Advance through the images manually or
check if the camera can advance automatically.
For assistance ca((1(800) 332-2119
22 3. TV Features
Positioning the TV
The TV's built=in speaker array can be set up to reflect
sound off the room walls to create a surround sound effect.
Center the seating area in front of the TV and at
meast six feet away,
Arrangements that give good resumts:
Enter the room dimensions and layout information
requested in the screen. To change measurements,
press A Y or enter numbers using the remote con-
trol's keypad.
mfthe room is an odd shape, mocate the TV to
take best advantage of wall reflections°
Avoid mocations that may distort sound reflec-
tionso
3, Press EXiTto exit and save settings.
4, Play some sampBe audio to check sound quality.
Rffurther adjustment is needed, use the Custom
menu as described next.
Custom Menu
use the Custom menu after defining the room layout.
1, From the Sound > SoundPro menu go to the
CUSTOM menu.
Connecting the TV
To hear digital surround sound, the TV must be con-
nected to a digitaB surround sound source. The sur=
round sound source can be on an HDMR input or the
ANT input (for some digitaB broadcasts). Other stereo
connections will provide DoBbyPro Logic surround
sound.
Position yourself in your usual viewing location.
Remain in this position, looking at the TV, while
making the following adjustments.
Manual Setup
Manual setup is available for aft models.
Note: If you have already performed Auto setup, any
manual adjustments will erase all settings cre=
ated during Auto setup.
1, Press MENUand go to Sound > SoundPro.
For assistance ca((1(800) 332-2119
Controls in the SoundPro > Custom menu adjust the
TV's sound output,
3. TVFeatures 23
So.ndProjector,contin.ea
3,
4,
Adjusting
a.
b.
C.
d.
e_
Beam Angles
Adjust Center Beam Angle until sound is
about equal in both ears.
Adjust Left Beam Angme to maximize sound
heard from the front left side.
Adjust Right Beam Angme to maximize sound
heard from the front right side.
Adjust Left Surround Beam Angme to where
the sound seems to come from the left rear
side. Rfthis cannot be achieved, make the
setting the same as that for Left Beam Angle.
Adjust Right Surround Beam Angme to where
the sound seems to come from the right rear
side. Rfthis cannot be achieved, make the
setting the same as that for Right Beam Angle.
Adjusting Levels
a, Adjust Center Levemto the mid level.
b, Adjust the following levels one at a time so that
each one sounds about the same as the center
level:
Left Levem
Right Levem
Left Surround Levem
Right Surround Levem
c, Check all sound levels by quickly switching
between them using A V.
d, Readjust individual levels in smaU increments
and recheck as above until all sound levels
seem about the same.
3, Place the microphone as described in the guide-
lines.
4, Press MENUand go to Sound > AutoSP,
Highlight START and press ENTER.
6, Quietly exit the room right away. Wait for completion
of setup before returning to the room.
7, Play some sample audio material to check the
sound quality.
Note: Do not perform manual adjustments after run-
ning Auto setup.
8, Store the microphone out of direct sunlight and
away from heat.
Resetting AngJe and LeveJ Values in the
Custom Menu
1, Press EXITto clear all menus.
Press MENU. Go to the Sound > SoundPro menu
and press ENTER.
3, Change any setting (e.g., TV Location).
4, Press EXITto clear all menus.
Press MENU. Go to the Sound > SoundPro menu
and press ENTER.
6, Enter the correct values for the room layout.
7, Return to the CUSTOM menu to adjust angles and
levels.
Auto Setup
265 Series
This section describes auto-setup available with 265 series
TVs. Auto setup uses the included calibration micro-
phone.
1, Power on the TV and external subwoofer, if any.
Plug the microphone cable into the TV's mNPUT2
left audio jack.
For assistance ca((1(800} 332-2119
Press MENUon the remote control to open the main menu and access these settings.
Settings in this menu are saved for the current input only. To make picture adjustments:
From the Picture > Video menu
1. Press _ _ to highlight an option
2, Press 4 _ to adjust.
Brilliant
Game
Bright
Natural
Advanced Modes.
Whime watching TV
1. Press the VDE0key.
2, Press A _' to select a video option.
3o Press 4 _ to change the setting.
For use under bright light.
Optimizes picture and video processing for game consoles
For most daytime viewing
For most nighttime viewing
164 and 265 Series.
Use Picture Modes to get
the best image under dif-
ferent viewing conditions.
Set the Picture Mode first,
before changing other
video settings.
Contact your professional installer for setup.
Contrast In most home lighting situations, medium contrast looks best. Stored for each Picture Mode.
Brightness Adjusts overaU picture brightness. Settings are stored independently for each Picture Mode.
Comor Adjusts overall color intensity from monochromatic to fully saturated. Saved by input.
Tint Adjusts the red-to-green ratio. Saved by input.
Sharpness Adjusts picture detail and clarity. Saved by input.
Comor Temp High gives white a cool cast. Low gives white a warm cast. Stored for each Picture Mode.
Video Noise Reduces minor noise (graininess)in the picture. Saved by input.
164 and 265 Series TVso EdgeEnhance TM makes the image appear sharper. Saved by input.
164 and 265 Series TVs, Provides strong contrast with detail over mixed screen content. Demo
displays a split picture to show On (right side) and Off (left side). Saved by input.
Adjusts peak brightness of the backUght. Applies uniformly to all inputs. Press ENTERto turn the
backUght on or off.
(Picture Plus)
Video Mute Displays a solid background when there is no video signal from the current input.
Screensaver Displays a screensaver while playing an audio-only source.
FimmMode
Smooth 120 Film
Motion (154, 164
series)
Smooth 240 fimm
Motion (265 series)
Test Picture
480i and 1080i signals only, In Auto, the TV automatically detects and applies film-decoding
correction to movies filmed at 24 frames per second. Try the Off setting if images show many
jagged edges. Setting saved by input.
Reduces motion blur in action scenes. Works in conjunction with Film Mode. Press ENTERto see an
adjustment screen.
Displays a test picture.
For assistance ca((1(800} 332-2119
4. TV Menus 25
Pict.re,contin.ed
o Resets sound and picture adjustments for the current input. Highlight the Reset icon
and press ENTERtwice to perform reset,
Reset has no effect on universal settings (Balance, Listen To, Language) or on
Advanced picture settings.
(PerfectColorTM/PerfecTintTM) 265 Series. Sliders let you adjust the saturation (intensity)
and hues of six separate colors for the current image source.
Advanced Modes. Contact your professional installer for setup.
164 Series, Special/ADV,
265 Series. mSFDayiADVl, mSFNight/ADV2
Settings in this menu are saved for the current input only. To make audio adjustments:
From the Sound > Audio menu While watching TV
[_ 1o Press _, V to highlight an option 1o Press the AUDI0key.
2. Press _ _ to adjust. 2. Press A V to select an audio option.
3o Press _ _ to change the setting.
TV Speakers On Turns on the internal TV speakers.
Off Turns off the internal TV speakers so you hear sound only through a connected device
(A/V receiver or headphones).
Center Makes the TV's speaker array act as a center channel. Sound >G/oba/ > Center
Channel must be set to On to use this option. See the detailed owner's guide at
www.mitsubishi-tv.com for use of this feature.
Bass Controls bass sound from the TV speakers.
Trebme Controls high-pitched sound from the TV speakers.
Bamance Controls audio balance between the right and left TV speakers (Sound Mode Stereo only)
Subwoofer [Subwoofer level Adjusts the volume level of a connected subwoofer. Set Sound > Global > Sub-
adjustment] woofer to On to make this adjustment available.
Sound Mode Stereo No special audio effects from the TV speakers
Surround Modifies audio from the TV speakers.
For monaural (non-stereo) programs, creates a simulated stereo effect.
For stereo programs, creates a simulated surround sound effect.
The TV's speaker array play's surround sound if available.
Music Optimizes the TV's speaker array for music listening.
Night Focuses the TV's speaker array to a single point to limit sound heard by others
outside the room. Press ENTERto adjust the focal point (Night Angme).
LevemSound On, Off Reduces differences in sound volume between programming segments.
For assistance ca((1(800} 332-2119
26 4. TV Menus
So.rid,continued ....
Analog ListenTo Stereo The TV plays stereo broadcasts in stereo and mono broadcasts in mono.
(For ANT analog Mono Reduces background noise. Use when receiving a weak stereo audio signal.
channels) SAP Second Audio Program. Selects an additional monaural sound track.
Settings in this menu apply to all inputs.
Anamog Audio These settings affect audio from the AVR/SURROUND jacks.
Out Fixed Use with an analog A/V receiver.
Variabme Use with headphones; adjust headphone volume using the TV's remote control.
Rear Use when supplementing the TV's speaker array with external rear speakers.
Subwoofer Select On to turn on audio to a connected subwoofer. Set to Off if no subwoofer is connected.
Center Channem On allows the TV's speakers to complement your external sound system as a center channel. Set
to Off if not in use.
Auto SP 265 Series. See page 23 for setup instructions.
Lets you set up the Sound Projector speaker array manually. See page 22.
Service On if Mute: Displays digital closed-caption signal Caption 1 (digital) or CC1 (analog) when audio from the
TV speakers is muted. While watching TV, press MUTEto turn closed captions on!off.
Digitam Caption 1-Caption 6: Caption signals sent by the broadcaster.
Analog o CO 1-CO 4. Standard closed-caption signals
Text 1-Text 4o Text-service signals
As Broadcast changes settings to those selected by the captions provider, or, if none, to the
TV's own caption defaults.
A white font on a black translucent background makes an easy-to-read combination.
For assistance ca((1(800} 332-2119
4. TV Menus 27
Language * SeBect either EngUsh or Spanish for on-screen menus.
o SeBect the )anguage for a digita) program from the ANT input (if avaUabBe).
Note:
Set the TV c)ock to:
Use the TV Timer to power on the TV automaticaUy at a preset time
Receive correct updates to ChanneBView Ustings
When the Daylight Saving Time change occurs, you must open this menu and set the TV's clock ahead or back.
The Timer tells the TV to power on automatically at a time you set. Use this menu to set a day,
time, input, and channel for the Timer. If the TV is already on at the set time, the TV will auto-
maticaUy change to the designated channel or input.
The TV c)ock must be set before you can use the Timer feature.
As a reminder that the TV Timer is set, the TV POWERindicator flashes slowly while the TV is powered off.
When the Timer turns on the TV, press any key on the remote control to keep it from turning off after five minutes.
See "Memorizing Channels with Channel Scan" on page 9 to scan for all available channels
on the ANT input.
Edit
After channel scan, Edit lets you add and delete memorized channels.
Press PAGEDN/UPto jump to the next or previous page of channel numbers.
Press A V 4 _ to move through all channel numbers, one at a time.
Adding/Demeting Channems Using the Channem Edit Menu
* Channels marked with a check are in memory.
* To add or delete a channel from memory, highlight the channel number and press ENTER.
To add a single digital channel not in the list, see the full owner's guide at www.mitsubishi-tv.com.
BmueGmow
(265 series)
Power
On Via
Controm
Over IP
On, Off Select On to see blue accent lighting when the TV is powered on.
On, Off
Select On to allow TV power control over an internet connection. When enabled, the
powered-off TV consumes power in excess of ENERGY STAR guidelines for a powered-off
device.
Ethernet Connection
Wiremess Connection
See "Home Network Setup" on page 18.
For assistance ca((1(800} 332-2119
28 4. TV Menus
i.p.t .........................................................................................................
o Lets you assign or change names of inputs appearing in the Input Selection menu.
Lets you turn the Ant and Bluetooth inputs On/Off (to dispBay or hide them in the Input
Se/ecdon menu); a paired device is cBeared from memory when the Bluetooth icon is
turned off.
Lets you deBete unused HDMR inputs from the Input Selection menu.
HighUght the input and press ENTERto see the name choices.
265 Series. Sets up or changes NetCommand RRcontro) of the current device.
See the fuU owner's guide at www.mitsubishi-tv.com.
265 Series. Sets up or changes NetCommand RRcontro) of an A/V receiver.
See the fuU owner's guide at www.mitsubishi-tv.com.
} On, Off
SeBect On or Off to enabBe or disabBe the TV's contro) of a CEC-enabBed HDMR
device. See the fuU owner's guide at www.mitsubishi-tv.com for use of this
feature.
Lets you rearrange icons in the Input Selecdon menu.
See demonstrations showcasing selected TV features.
For assistance ca((1(800} 332-2119
4. TV Menus 29
Parenta_ Menu
The TV comes from the factory with the rating Bocks
turned off and with pre-set U.S. ratings TV-PG and
movie rating PG. You must turn on bBocking for U.S.
ratings to activate these rating restrictions. You will be
prompted to enter a pass code when you seBect Lock
on the main menu.
Lock
TV
Rating
StartTime/
StopTime
DisabBes or enabBes bBocking based on V-Chip signaBs and the U.S. rating system.
HighBight the rating BeveByou wish to change
and press ENTERto bBock it (_) or allow
it (__).
You can appBy suppBementaB content bBock-
ing to the age-based ratings by using the TV
content categories. (FV, D, L, S, V)
HigHight the rating level you wish to change
and press ENTERto block it (_) or allow it
Sets the time of day for enforcement of rating restrictions set in the Parental menu.
Note: To make rating restrictions active 24 hours a day, make Start Time and Stop Time the same.
Blocks all use of the TV during the time period you specify. Once a lock time is set, it
goes into effect immediately and you must enter a pass code to use the TV during the lock
period. To reactivate the time lock, power the TV off and then back on. To make Lock by
Time active 24 hours a day, make Start Time and Stop Time the same.
cleared the next time you perform a channel scan.
Use this option if small children try to press TV buttons.
o To release the Panel Lock from the TV's control panel, press and hold the INPUTbutton for
ten seconds. If the TV is powered off, press POWERafter the lock releases to power on the
TV.
To reactivate the lock, return to this menu and change the setting to On.
Other Menu Options (alternate rating system}
This TV can recognize new rating systems that may come into effect in the future. The Other
option remains grayed out until the TV receives a signal using an alternate rating system.
Such alternate rating systems will apply only to digital programming received on the ANT
input.
For assistance ca(( 1(800} 332-2119
30 Appendices
AppendixA:ProgrammingtheRemotecontro
Programming the Remote Contro_
f° Change the control mode to match the device type.
CAB/SAT Cable Box, DTV Receiver, Satellite Receiver
VCR VCR, DVR, DVD Player/Recorder
DVD DVD Player/Recorder, DVR, VCR
AUDIO A/V Receiver, Audio Amplifier, CD Player
Press and hold POWERon the remote control for
several seconds until the key blinks twice and goes off.
3,
4,
Enter the first five-digit code listed for your equip-
ment.
Point the remote control at the equipment and press
POWER.If the product has no power on/off function,
press a different key, such as @ (PLAY),1_ (STOP),
VOLUMEUP,or MUTE.
If the equipment does not respond, repeat the
preceding two steps using the next five-digit code.
Once you have found the correct code, write it in the
space below for future reference.
CABLE/SAT
VCR
DVD
AUDIO
This is an abbreviated list showing
the most popular codes. For a full
list, see the detailed owner's guide at
www.mitsubishi-tv.com.
GeneralInstrument
Jerrold
Motorola
Pace
Pioneer
Scientific Atlanta
10476
11376,11187,10476
11982,1187_ 11376
1187_ 10877
1187_ 10877
Bose 41933,41841,41629,41253,
41229,40639
Denon 4285_ 42279
Harman/Kardon 42443,42241,41306,41304,
40891
Integra 41805,41320,41298
JVC 42331,42239,42040,
41495,41374
Kenwood 41570,41569,41313
Mitsubishi 41957,41922,41921,41920,
41393
Onkyo 41805,41531,41320,41298,
40842
Panasonic 41763,41633,41548,41518,
41316,41308,41288,41275,
41935,41384,41023,40630
41759,41758,41658,41622,
41558,41441,41258,41058,
42522,42216, 42172,41858,
41822
41518,41308
41476,41376,41375,41331,
41276,41176,40376,40176
Pioneer
Sony
Technics
Yamaha
DirecTV 11749,1137_11142,10749,
10639,10566,10392,10247
11856,11609,11442,11414,
11109,11076
11775,1150,1077Dish Network
Hughes Network 11749,11442,11142,10749
Mitsubishi 10749
RCA 10566, 10392,10143
Samsung 11609,11442,1137_ 11276,
11109
Hitachi 20042,20000
JVC 20067
Magnavox 21593,20593,20081,20039,
20035,20000
M_sushita 20162,20035
MGA 20043
Mitsubishi 20173,2006_ 20043
Panasonic 21062,20616,20614,20162,
20035
RCA 20880,20060,20042
Sony 21972,21032,20636,20035,
20033,20032,20000
Tivo 20739,20636,20618
Toshiba 21972,21008,20045, 20043
Zenith 21139,20039,2003_ 20033,
20000
Apex Digital 31061,31056,31020,31004,
3079_ 30796,30794,30755,
30672
Coby 31628,31351,3117_ 31165,
3110_31086,30852,30778
Denon 32258,30634,30490
Funai
Hitachi
Insignia
Integra
JVC
LG
Magnavox
Mitsubishi
Onkyo
Panasonic
Philips
Pioneer
ROA
Samsung
Sharp
Sony
Sylvania
Tivo
Yamaha
Zenith
30675
30664,30573
32596,32428,32095,30675
3214_ 31769,3062_ 30571
32365,31602,31550,31275,
31602,30869,30741,30591
31506,31472,31354,3117_
30675,30646,30539,30503
31521,30521
3214_ 31769,3062_ 30503
31762,31641,31579,30703,
30632,30503,30490
32084,32056,31340,,
31267,30675,30646,30539,
30503,32434,31506,31354
31571,31512,31460,30632,
30631,30571,30525,30142
32442
32213,31769,30822,30790,
30571,30522
32069,31470,31075,31044,
30820,30573,30490,30199
32250,31256,30752,30675,
30630
31633,31536,31516,31431,
30675
31512,31503
32558,32298,30817,30646,
30545,30539,30490
30869,30741,30591,30503
For assistance call 1(800) 332-2119
Appendices 31
To contact Mitsubishi customer service, see page 6.
TV Reset Comparison Guide
You can resolve many common TV problems using the
reset functions described in the following table.
iMPORTANT
Before you change sound or picture settings: If
picture or sound settings seem wrong for a broadcast
channel (a channel from the ANT input, a cable box, or
satellite receiver), first check other channels from the
same input before changing settings. If most other
channels from the same input seem correct, there is
likely a problem with the broadcast rather than with the
TV. Use care in this case, as changes you make to fix
problems on individual channels also affect all other
channels on the same input.
Format
PerfectColorTM/
PerfecTint TM
Reset (265
Series)
(for the single
input currently
being watched)
A/V Memory
Reset
(for the single
current input)
A/V Reset
(for all inputs)
Channel
Memorization
If the picture shape
seems incorrect, use
the FORMATkey to
change the picture
shape.
When the color
intensities seem out
of balance, use the
PerfectColor/PerfecTint
reset to reset the color
balances to the original
factory settings.
Both PerfectColor and
PerfecTint are reset at
the same time.
When audio and/
or video settings for
a single input seem
incorrect, use A/V
Memory Reset to
return the input to
the original factory
settings.
To reset audio and
video adjustments for
all inputs to the original
factory settings.
To erase and
re-memorize channels
on the ANT input.
Press FORMATto cycle through the
picture shapes available for the
signal.
1. While viewing the input to reset,
press MENUand go to Picture >
Perfect.
2. Press ENTERto display the
PerfectColor adjustment screen.
3. Press CANCELto reset the colors.
While viewing the input to reset,
press MENUand go to Picture >
Reset.
=
2. Press _'to highlight Reset.
3. Press ENTERagain to reset.
The last-used format for the signal
type will be recalled on the input.
Note: Also check the aspect
ratio feature on your cable box or
satellite receiver as this may be
altering the picture.
All PerfectColor/PerfecTint
sliders are reset to the original
center position. The PefectColor/
PerfecTint settings for other
inputs remain unchanged.
All Audio and Video settings for
the individual input are reset
except for the global settings
for audio Balance, Listen To,
Language, Video Mute, Smooth
120.
All Audio and Video settings are
returned to the original factory
settings, including global settings
not affected by Picture > Reset.
While viewing the TV, press the
control-panel buttons INPUTand
VOLUMEDOWNat the same time for at
least two seconds.
1. Press MENUand go to Setup >
Channel.
2. Highlight the reception mode,
e.g. Ant Air, and press ENTER.
3. Highlight All Channels and
pressENTER.
4. Highlight Scan.
5. Press ENTERto start channel
memorization.
All previously memorized chan-
nels for the antenna input are
erased and a new set of memo-
rized channels is created. To
add or delete individual channels,
see the Setup > Channel > Edit
menu instructions on page 27.
Lock Menu To change your Lock See the detailed owner's guide at www.mitsubishi-tv.com for instructions.
Pass Code menu pass code
For assistance call 1(800) 332-2119
32 Appendices
Control-Panel
Lock Release
System Reset
TV Reset
IMPORTANT:
Use this reset
only if other
troubleshooting
has been unsuc-
cessful.
VUDU
Reset VUDU
Account Pass-
word
VUDU
Reset Parental
Controls Pass
code
To re-enable the
control-panel buttons
after activation of the
Control-Panel Lock
If the TV does not turn
on or off, does not
respond to the remote
control or control-
panel buttons, or has
audio but no video.
To reset all consumer-
accessible settings
and all memories to
the original factory
defaults.
Use TV Reset if the TV
can respond to con-
trols but TV behavior is
abnormal.
CAUTION: All owner-
performed setups and
adjustments will be
erased.
You have forgotten
your account pass-
word.
You have forgotten
your pass code.
Press and hold the INPUTbutton on
the control panel for ten seconds. If
the TV is powered off, you can now
press the POWERbutton to turn it on.
Press and hold the POWERbutton on
the control panel for ten seconds.
1. While viewing the TV, press
MENUto display the TV main
menu.
2. With the main menu displayed,
press number keys 1 2 3 to
display the Reset menu.
3. READ THE ON-SCREEN
WARNING AND INSTRUC-
TIONS.
• If you do not wish to use this
reset, press EXITor MENUto
back out.
If you wish to continue,
press ENTERto erase all
memories and settings.
Using a computer, go to
www.VU DU.com.
Call VUDU Customer Care at
1-888-554-VUDU (8838).
Allows the control panel to be
unlocked if the remote control is
misplaced.
The TV will turn off. Power on the
TV and the green LED will flash
quickly for about one minute. The
changes you made most recently,
before using SYSTEMRESET,may
be lost.
The TV will start the initialization
process and then turn off.
Power on the TV and the front
green LED will start flashing. All
memory and settings outlined in
this Owner's Guide will need to
be set again.
Reset your account password
from the VUDU website (requires
access to e-mail).
VUDU Customer Care will reset
your pass code.
Common Picture Problems
=
2.
Picture does not look like a high-defini-
tion picture.
TV has sound but no picture.
Compare the picture to the TV's test picture (Picture > Picture+ menu)
to check if the source signal is supplying a lesser-quality image.
Not all signals are high-definition signals. To receive high-definition
programming from your cable or satellite provider, you must sub-
scribe to the provider's high-definition service. Some over-the-air
broadcasts are in high-definition and can be received with a high-
quality antenna suited to your location.
Press MENU on the remote control. If the menu displays, then
there is a problem with the incoming signal.
Check that all video inputs are plugged in firmly to the correct
input jacks.
Press and hold the POWER button on the control panel for ten
seconds to perform System Reset.
For assistance call 1(800) 332-2119
Appendices 33
Common Picture Problems
A color program appears as a black
and white image, or the colors are dim,
or the screen is black.
Picture from an HDMI input is noisy
(poor quality).
• If using component video, check that the red, green, and blue
input cables are correctly connected to the red, green, and blue
component video jacks.
If using composite video, check that the incoming cable is con-
nected the TV's green Y/VIDEO jack.
The PerfectColor color balance has been incorrectly set. Reset
the PerfectColor balance.
Compare the picture to the TV's test picture (Picture > Picture+
menu) to check the source of the noise.
Upgrade a Category 1 (unmarked) HDMI cable to a Category 2
high-speed HDMI cable.
Home Network
.
2.
3.
I cannot connect the TV to the network.
I plugged in a wireless USB adapter,
but the wireless connection is not
working.
The INTERNET key only goes to VUDU.
Go the Setup > Network menu. Obtain the TV MAC address and
provide it to the router.
The network may be locked. Go to setup > Network. Highlight the
network name and supply the pass code.
Normal operation. The TV receives all internet services through
VUDU. The TV does not provide full internet access as does a web
browser on a computer.
Trademark and License Information
LICENSOR'S SUPPLIERS DO NOT MAKE OR PASS ON TO END USER OR ANY OTHER THIRD PARTY, ANY
EXPRESS, IMPLIED OR STATUTORY WARRANTY OR REPRESENTATION ON BEHALF OF SUCH SUPPLIERS,
INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, TITLE, MERCHANTABIL-
ITY OR FITNESS FOR A PARTICULAR PURPOSE.
Manufactured under license from Cambridge Mechatronics Ltd.
Rapidfire and the 1... logo are trademarks of Cambridge Mechatronics Ltd
The Bluetooth® word mark and Iogos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Mitsubishi Electric is under license. Other trademarks and trade names are those of their respective owners.
Digital Light Processing® and DLP® are registered trademarks of Texas Instruments.
Manufactured under license from Dolby Laboratories. Dolby is a trademark of Dolby Laboratories.
ENERGY STAR® and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned
by the U.S. government.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
® Science Foundation Certified Calibration Controls
Imaging
The software in this TV is based in part on the work of the Independent JPEG Group, copyright © 1991-1998, Thomas
G. Lane, all rights reserved.
VUDUTMis a trademark of VUDU, Inc.
"x.v.Color" and the "x.v.Color" logo are trademarks of Sony Corporation.
ChannelView TM, DeepField TM Imager, Easy Connect TM, EdgeEnhance TM, NetCommand®, PerfectColor TM, PerfecTint TM,
Plush 1080p® 5G, Smooth120 TM Film Motion, Unisen TM are trademarks of Mitsubishi Digital Electronics America, Inc.
For assistance call 1(800} 332-2119
34 Trademark and License information
Mitsubishi TV Software
END=USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE
IMPORTANT - READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity) and
Mitsubishi Digital Electronics America, Inc. (MDEA) for all software pre installed and/or provided along with this television ("Software"). By
utilizing this television and Software, you agree to be bound by the terms of this License Agreement.
The Software is protected by United States copyright laws and international treaty provisions, as well as other intellectual property laws
and treaties. The Software is licensed, not sold.
1. LICENSE GRANT. MDEA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the Software
only with the Mitsubishi television model that included this owner's guide and owned by you.
2. RIGHTS AND LIMITATIONS.
Software Not for Resale. You may not resell or otherwise transfer for value the Software, except in conjunction with a sale of the TV that
Software has been pre installed.
Prohibition on Reverse Engineering, Decompilation and Disassembly. The Software contains trade secrets or other proprietary material
in its human perceivable form and to protect them, you may not reverse engineer, decompile, or disassemble, or otherwise reduce the
Software to any human perceivable form, except to the extent that the foregoing restriction is expressly prohibited by applicable law.
Separation of Components. The Software is licensed as a single product. Its component parts may not be separated for use on more
than one TV.
No Rental. You may not rent, lease, lend, or sublicense the Software.
Trademarks. This License Agreement does not grant you any rights to any trademarks of MDEA.
3. VIOLATIONS. You understand that any use, copying or transfer of the Software, except as permitted pursuant to this License,
may subject you to serious criminal and civil penalties including damages and an award to MDEA of attorneys' fees in connection with any
violation of this License. You further understand that you may be held legally responsible for any copyright infringement or other violation
of intellectual property rights that is caused, encouraged, or induced by your failure to abide by the terms of the License. This license
is effective until terminated, and will terminate immediately without notice from MDEA or judicial resolution if you fail to comply with any
provision of this License.
4. COPYRIGHT. All title and intellectual property rights in and to the Software (including but not limited to any images, photographs,
animations, video, audio, music, text, and "applets" incorporated into the Software), and any accompanying printed materials are owned
by or licensed to MDEA. All title and intellectual property rights in and to the content which may be accessed through use of the Software
is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and
treaties. This License Agreement grants you no rights to use such content, except that you own the media on which the Software is
recorded, but MDEA and its licensors retain ownership of the Software itself. All rights not expressly granted are reserved by MDEA.
5. EXPORT RESTRICTIONS, MDEA is licensing the Software for use within the United States. You agree that you will not
export or re-export the Software. You specifically agree not to export or re-export the Software: (i) to any country to which the U.S. has
embargoed or restricted the export of goods or services, which currently include, but are not necessarily limited to Cuba, Iran, Iraq, Libya,
North Korea, Sudan, and Syria, or to any national of any such country, wherever located, who intends to transmit or transport the Software
back to such country; (ii) to any person or entity who you know or have reason to know will utilize the Software in the design, development,
or production of nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been prohibited from participating in
U.S. export transactions by any federal agency of the U.S. government. You warrant and represent that neither the BXA nor any other U.S.
federal agency has suspended, revoked, or denied your export privileges.
6. DISCLAIMER OF WARRANTY. EXCEPT AS OTHERWISE PROVIDED IN THIS LICENSE OR IN THE LIMITED WARRANTY
APPLICABLE TO THE TV, MDEA MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SOFTWARE
AND HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH
RESPECT TO THE SOFTWARE. ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED BY MDEA. IN
NO EVENT SHALL MDEA BE LIABLE TO YOU OR ANY THIRD PARTIES, IN CONTRACT, IN TORT OR OTHERWISE, FOR ANY
DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE. BECAUSE SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES, THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
7. LIMITATION OF LIABILITY. MDEA SHALL NOT, UNDER ANY CIRCUMSTANCES BE LIABLE TO YOU OR ANY THIRD
PARTIES FOR ANY DAMAGES OF ANY NATURE, WHETHER INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR
OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOST PROFITS, LOSS OF GOOD WILL OR EXPENDITURES
MADE OR COMMITTED FOR IN RELIANCE ON THE CONTINUATION OF THIS LICENSE. YOU AGREE THAT NEITHER MDEA'S
BREACH OF THIS LICENSE NOR ITS FAILURE TO REPAIR A DEFECT, ERROR OR BUG SHALL CONSTITUTE A FAILURE OF THE
ESSENTIAL PURPOSE OF THIS LICENSE. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. MDEA's
liability to you for direct damages for any cause whatsoever and regardless of the form of the action, will be limited to the money
paid by you for the TV (based on fair market value of the TV) that caused the damages.
8. GENERAL. This License Agreement will be governed by the laws of the State of California.
For assistance call 1(800) 332-2119
Trademark and License information 35
GNU General Public License
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
675 Mass Ave, Cambridge, MA 02139, USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and changeit. By contrast, the GNUGeneral Public Licenseis intended to guarantee your freedom to share and
changefree software--to make surethe software is free for all its users. ThisGeneral Public Licenseapplies to most of theFree Software Foundation's software and to any other programwhose authors
committo using it. (Someother FreeSoftware Foundationsoftware is coveredby the GNU Library GeneralPublic Licenseinstead.) Youcan apply it to your programs, too.
When we speak of free software we are referring to freedom, not price. Our GeneralPublic Licensesare designedto makesure that you have thefreedom to distribute copies of freesoftware (andcharge for
ths eerv ce f you w sh, that you rece vesource code or canget t f you want it, that you canchange the software or use pieces of it in new freeprograms; and that you know you can do thesethings.
To protect your rights, we needto makerestrictions that forbid anyone to deny you these rights orto ask you to surrenderthe rights. Theserestrictions translateto certain responsibilitiesfor you if you
distributecopies of the software, or if you modify it.
Forexample if you distribute copies of such aprogram, whether gratis orfor afee, you must give the recipients all the rights that you have. Youmust makesurethat they, too, receive or can getthe source
code. And you must show them theseterms sothey know the r r ghte.
We protect your rights with two steps: (1)copyright the software,and (2) offer you this licensewhich gives you legal permissionto copy, distribute and/or modify the software.
Also for each author's protection and ours we want to makecertain that everyoneunderstands that there is no warranty for this freesoftware. Ifthe software is modified bysomeone else and passed on, we
want ts rec pents to know that what they have s not theor g na, so that anyprob eros ntroduced byothers w not ref ect on the org na authors reputat one.
Finally anyf_e programis threatenedconstan!ly bysoftware patents. We wish to avoidthe dangerthat redistributors of a,free program will individuallyobtain patent licenses,in effect makingthe program
propnetary, toprevent th s,we nave maae t ctear that any patent must be t censedfor everyonee Treeuse or not ceneeoat a.
The preciseterms and conditions for copying, distribution and modificationfellow.
GNU GENERALPUBLICLICENSE
TERMS AND CONDiTiONS FORCOPYING,DISTRIBUTION AND MODIFICATION
O.This Licenseapplies to any programor otherwork which contains a notice placed by the copyright holder saying it maybe distributed underthe terms of thisGeneral Public License. The "Program",
below refers to anysuch program orwork, and a "work basedon the Program"means eithertee Program orany derivativework undercopyright law:that is to ear, awork containing the Programor a portion
of t, e therverbat m or w th rood f cat onsand/or traneated nto another anguage. Herenafter, translat on s nc uded wthout m tat on n fhe term rood f cat on. Each censee s addressed as you.
Activities otherthan copying distribution and modification are not coveredbythis License; they areoutside its scope. Theact of running the Program isnot restricted, and the output from the Program is
coveredon y f ts contents const tute a work basedon the Program ndependentof hayng been made by runn ng the Program. Whetherthat efrue depends on what the Programdoes.
1. You may copy and distribute verbatim copiesof the Program'ssource code as you receive it in anymedium provided that you conspicuouslyand appropriately publish on each copy anappropriate
copyright notice and disclaimer of warranty keep intact all the notices that referto this License and to the absence ofany warranty and give anyotherrecipients ofthe Program a copy of this Licensealong
with the Program.
Youmaychargea fee for the physicalact of transferring acopy, and you may at your optionoffer warranty protection in exchangefor a fee.
2. You may modify your copy or copiesof the Programor any portion of it thus forming a work basedon the Program and copy and distribute such modifications orwork underthe terms of Section 1above,
provided that you also meetall of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the dateof anychange.
b) You must cause any work that you distribute or publish,that in wholeor in part contains or isderived from the Program or anypart thereof,to be licensed asa whole at no charge to all third parties
underthe terms ofthis License.
c) If the modified program normally reads commands interactivelywhen run you must cause it when started running for such interactiveuse in the most ordinary way to print ordisplay an
announcementincluding anappropriate copyright notice and a notice that there is no warranty (orelse, sayingthat you provide awarranty) and that usersmay redistnbutethe program underthese
conditions; and telling tee userhow to view a copy ofthis License. (Exception: if the Program itself is interactivebut does not normally print such anannouncement your work based onthe Program
s not requ=redto pr nt an announcement.
These requirementsapply to the modified work as awhole. If identifiable sections of that work are notderived from the Program and can be reasonablyconsidered independent and separate works in them-
selves then this License, and its terms, do not apply to those sections when you distribute them as separateworks. But whenyou distribute thesame sections as part of a whole whichis awork basedon
the Program,the d str but on of the who e must be on the terms of th s Lcense, whose permes one for other ceneeesextend to the ent re who e, and thus to each and every part regard ees of who wrote t.
Thus, it is not the intent of this section to claim rightsor contest your rights to work written entirelyby you; rather, the intent is to exercisethe right to control the distribution of derivativeor collective works
basedon the Program.
In addition mereaggregation of anotherwork not based on the Programwith the Program (or with a work based on the Program)on avolumeof a storage or distribution mediumdoes not bring theother
work under the scope of th eL cense.
3. You may copy and distribute the Program (ora work based on it, underSection 2) in object code or executable form under theterms of Sections 1 and 2 aboveprovided that you also do oneofthe follow-
ing:
a) Accompany it with the completecorresponding machine-readablesource code which must be distributed underthe terms of Sections 1 and 2 above on amedium customarilyused for software
interchange;or,
b) Accompany it with awritten offer, validfor at least three years, to give anythird party, for a charge no more thanyour cost of physicallyperferming source distribution, a complete machine-readable
copy of the corresponding source code to be distributed underthe terms of Sections land 2 above on a medium customarily used for software interchange or,
c) Accompanyit with the dormation you received asto the offer to distribute correspndingseurce code. (Thisalternativeis allowedonlyfor noncommercialdistribution and only if you receivedthe
programin objectcode or executable form with such an offer, inaccord with Subsection b above.)
The source code for awork means the preferred form of the work for making modifications to it. For an executablework complete source code means all the source code for all modules it contains plus any
associatedinterface definition files plus thescripts used to control compilation and installation of the executable.However asa special exception the source code distributed neednot include anythingthat
isnormally distributed (in either source or binary form) with the major components (compiler kernel and so on)of theoperating system on which the executableruns unlessthat component itself accompa-
nes the executabe.
Ifdistribution of executable or object code is made byoffering accessto copy from a designatedplace then offering equivalentaccess to copy the source code from the same placecounts as distribution of
the source code, even thoughthird parties are not compe ed to copy thesource a eng w th the ob ect code.
4. You may not copy modify sublicense or distribute the Programexcept as expressly provided under this License. Any attempt otherwiseto copy modify sublicenseor distribute the Program isvoid and
will automatically terminate your rights underthis License.However parties who have receivedcopies or rights from you underthis License will nethave tEeirlicensesterminatedso long assuch parties
rernan n fu comp ance.
5. You arenot required to accept this License,since_ou havenot signed it. However,nothing else grants you permissionto modifX or distribute the Program or its derivative works. These actions are
prohibited by law if you do not accept this License. tnerefore,by modifying or distributing the Program (or anywork based on the t-'rogram),you indicateyour acceptance of this License to do so, and all its
terms and conditions for copying,distributing or modifying the Programor works basedon it.
6. Eachtimeyou redistribute the Program (oranywork based on theProgram) the recipientautomatically receivesa license from the originallicensor to copy, distributeor modify the Program subject to
these terms and cond tons. You maynot repose any further restr ct ons on the recp ents exercse of the r ghts grantedhere n. Youare not respons b efor enforc ng comp ance by th rd part es to ths
License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason(notlimited to patent issues),conditions areimposed on you (whetherbycourt order, agreementor
otherwise)that contradict the conditions of this License, they do not excuseyou from the conditions of this License. If you cannot distribute so asto satisfy simultaneously,your obligations underthis License
and anyother pertinent obligations thenas aconsequence you maynot distribute the Program at all. For example, if a patent licensewould not permit royalty-free redistnbution of t]_eProgram byall those
who rece ve cop es d rect y or nd rect y throughyou, then theon y way you cou d sat sfy both t and ths L censewou d beto refra n ent rey from dstr buttonof the Program.
Ifany portion of this section isheld invalid or unenforceableunderany particular circumstance, the balance of thesection is intended to apply and the section as a whole is intended to apply in other circum-
stances.
It isnot thepurpose of this section to induceyou to infringeany patents or other property right claims or to contest validityof anysuch claims; this section has the sole purposeof protecting theintegrity of
the free software distribution system whichis implemented by public license practices. Many people have made generouscontributions to the wide rangeof software distributed through that system in reli-
ance on consstent app cat on of that system; t s up to the author/donor to dec de f heor she s w ng to d str bu_esoftware through any othersystem and a censee cannot repose that cho ce.
This section is intended to makethoroughly clear what is believed to bea consequenceof the rest of this License.
8. If the distribution and/or useof the Programis restricted in certain countries either by patents or by copyrighted interfaces,theoriginal copyright holder who placesthe Program underthis License may
add an explicit geographicaldistribution limitationexcluding thosecountries sothat distribution ispermitted only in or among countnes not tlius excluded. In such case this Eicenseincorporates the limita-
tion as if written in t]_ebody of thisLicense.
9. The FreeSoftware Foundation maypublish revised and/or new versions of the General Public Licensefrom time to time. Such new versionswill be similarin spirit to the presentversion, but may differ in
detailto address new problems or concerns.
Eachversionis givena distinguishing versionnumber. If the Programspecifies aversion number of this License whichapplies to it and "any later version",you have theoption of following the terms and con-
ditionseither ofihat version orof any laterversion publishedby t_neFreeSoftware Foundation. If the Program does not specify a version numberof this License, you maychooseany versionever published
bythe Free Software Foundation.
if you are interested in obtaining open source code for this product, please contact Mitsubishi at
(800) 332-2119. A nominal handling and mailing charge may apply.
For assistance call 1(800} 332-2119
36 Trademark and License information
10. Ifyou wishtoincorporatepartsoftheProgramintootherfree programswhose distribution conditions aredifferent, write to theauthor to ask for permission. For software which is copyrighted bythe
FreeSoftware Foundation write to the Free Software Foundation;we sometimes makeexceptions for this. Our decision will be guided bythe two goals of preserving the free status of all derivativesof our
freesoftware and of promot ng theshar ng and reuse of software genera y.
NOWARRANTY
11. BECAUSETHEPROGRAMIS LICENSEDFREEOF CHARGE,THEREISNO WARRANTYFORTHEPROGRAM,TOTHE EXTENTPERMITTEDBY APPLICABLELAW. EXCEPTWHEN OTHERWISE
STATEDIN WRITINGTHE COPYRIGHTHOLDERSAND/OROTHERPARTIESPROVIDETHE PROGRAM"AS IS" WITHOUTWARRANTYOF ANY KIND, EITHEREXPRESSEDOR IMPLIED,INCLUDING.BUT
NOTLIMITEDTO THE IMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORA PARTICULARPURPOSE.THE ENTIRERISK ASTO THEQUALITYANDPERFORMANCEOFTHEPROGRAM
S W TH YOU. SHOULDTHEPROGRAMPROVEDEFECTVE, YOUASSUMETHE COSTOF ALLNECESSARYSERVC NG,REPAR ORCORRECTON.
12. IN NO EVENTUNLESSREQUIREDBYAPPLICABLELAW ORAGREEDTO IN WRITINGWILL ANY COPYRIGHTHOLDER,OR ANYOTHERPARTYWHO MAYMODIFY AND/ORREDISTRIBUTETHE
PROGRAMAS PERMITTEDABOVE,BE LIABLETOYOU FORDAMAGES,INCLUDINGANYGENERAL,SPECIAL INCIDENTALOR CONSEQUENTIALDAMAGESARISINGOUTOFTHE USEOR INABILITY
TOUSETHE PROGRAM(INCLUDINGBUT NOTLIMITEDTOLOSS OF DATAOR DATABEINGRENDEREDINACCURATEOR LOSSESSUSTAINEDBY YOUOR THIRDPARTIESOR A FAILUREOF THE
PROGRAMTO OPERATEWITHANYOTHERPROGRAMS),EVENIF SUCHHOLDEROR OTHERPARTYHAS BEENADVISEDOFTHE POSSIBILITYOF SUCH DAMAGES.
GNU GENERAL PUBLIC LICENSE
Version3,29June2007
Copyright© 2007FreeSoftwareFoundationInc.<http://fsf,org/>
Everyonespermtted to copyand d strbuteverbatm copesot th s censedocument,but changng t s nota owed,
Preamble
TheGNUGeneralPublicLicenseis afree,copyleftlicensefor softwareandotherkindsof works,
Thelicensesfor mostsoftwareandotherpracticalworksaredesignedto takeawayyourfreedomto shareandchangethe works,By contrast,the GNUGeneralPublicLicenseisintendedto Guaranteeyourfreedomto share
andchangeallversionsof a proGram-4omakesureit remainsfreesoftwarefor all its users,We the FreeSoftwareFoundationusefheGNUGeneralPublicLicensefor mostof oursoftware if appliesalsoto anyotherwork
releasedt_iswaybyits authors,_/oucanapply k to yourprograms,too,
Whenwe speakof freesoftware,wearerefernngto freedom,notprice,OurGeneralPublicLicensesaredesignedto makesurethatyouhavethefreedomto distrbutecopiesof freesoftware(andchargefor themif youwish),
thatyoureceivesourcecodeorcangetit if youwant it,that youcanchangethesoftwareorusepiecesof it in newfreeprograms,and thatyouknowyoucando thesethings.
To£rotectyourrightswe needto preventofhersfromdenyingyouthesenghtsor askingyouto surrendertherights.Thereforeyou havecertainresponsibilitiesif youdistributecopiesof thesoftwareor if youmodifyit: respon-
sibilitiesto respectthe freedomof others.
Forexample,if youdistributecopiesof suchaprogram,whethergratisorfor a fee,youmust passonto the recipientsthesamefreedomsthat youreceived.Youmustmakesurethatthey,too,receiveor cangetthesource
code.Andyoumustshowthemthesetermsso theyknowtheirrights.
Developersthat usetheGNUGPLprotectyourrightswithtwosteps:(1)assertcopyrightonthesoftware,and(2)offeryouthis Licensegivingyoulegalpermissionto copy,distributeand/ormodifyit.
Forthedevelopers'andauthors'protection,theGPLclearlyexplainsthat thereis nowarrantyfor thisfreesoftware.Forbothusers'and authors'sake,the GPLrequiresthat modifiedversionsbemarkedaschanged,sothat
theirproblemswill notbeattributederroneouslyto authorsof previousversions.
Somedevicesaredesignedto denyusersaccessto installor runmodifiedversionsofthesoftwareinsidethem,althoughthe manufacturercando so,This isfundamentallyincompatiblewiththeaimof protectingusers'free-
domto changethesoffware,The systematicpatternof suchabuseoccursinthe areaof productsfor individualsto use,whichispreciselywhereit ismost unacceptable.Therefore.wehavedesignedths versionof theGPLto
prohibitthe practicefor thoseproducts.If suchproblemsarisesubstantiallyin otherdomains,westandreadyto extendthis prowsionto thosedomainsinfutureversionsofthe GPL,as neededto protectthe freedomof users.
Finally,everyprogramisthreatenedconstantlyby softwarepatents.Statesshouldnot allowpatentsto restrictdevelopmentand useof softwareon general-purposecomputers,butinthosethatdo, we wishto avoidthe special
dangerthat patentsappliedto afree programcouldmakeit effectivelyproprietary,Topreventthis the GPLassuresthat patentscannotbeusedto renderthe programnomfree,
Theprecsetermsan8 condtons for copyng,dstrbutonand modf cat onfo ow.
TERMSAND CONDITIONS
O,Definitions,
'ThisLicense"refersto version3of theGNUGeneralPublicLicense.
"Copyright"alsomeanscopyrightdikelawsthat applyto otherkindsof works suchas semiconductormasks,
"TheProgram"refersto anycopyrightableworklicensedunderthis License.Eachlicenseeis addressedas "you"."Licensees"and 'recipients"maybeindividualsororganizations.
To'modify"a workmeansfo copyTromor adaptall orpart of the workina fashionrequiringcopyrightpermissionotherthanthemakingof anexactcopy.The resultingworkis calleda"modifiedversion"of theearlierworkor a
work basedon the ear er work.
A "coveredwork"meanseitherthe unmodifiedProgramor a workbasedon theProgram,
To"propagate"a workmeansto doanythingwithit that withoutpermissionwouldmakeyoudirectlyor secondarilyliablefor infringementunderapplicablecopyrightlaw exceptexecutingit onacomputeror modifyinga
privatecope/.Propagationincludescopying,distribution(withor withoutmodification),makingavailableto thepublic,andin somecountriesotheractivitiesaswell
To'convey a work meansanykindof 15ropagationthat enablesotherpartiesto makeor receivecopies.Mereinteractionwitha userthrougha computernetwork,with notransferof a copy,isnot conveying.
Aninteractiveuserinterfacedisplays"AppropriateLegalNotices"to theextentthat it includesaconvenientand prominentlyvisiblefeaturethat (1)displaysanappropriatecopyrightnotice,and (2)tellsthe userthatthereisno
warrantyfor the work(exceptto theextentthatwarrantiesareprovided)that licenseesmayconveythe workunderthis Licenseandhowto view a copyof this License.If theinterfacepresentsa listof usercommandsor op-
tons, suchasa menu,apromnenttom n the st meetsth s crter on.
f, SourceCode.
The"sourcecode" for a workmeansthepreferredform of the workfor makingmodificationsto it."Objectcode" meansanynon-sourceform of awork.
A "StandardInterface"meansaninterfacethateitherisan officialstandarddefinedby arecognizedstandardsbody,or, inthecaseof interfacesspecifiedfor a particularprogramminglanguage,onethat is widelyusedamong
developersworkinginthat language,
The"SystemLibraries"of anexecutableworkinclude , otherthantheworkasawhol_ includedinthenormalformof _nd(b)
seryesonlyto enableuseoftheworkwiththat Ma )lement
it,
those
activities, _otpart ofthework, For
specificallydesignedto
2. BasicPermissions.
that userscan Source.
AllrightsgrantedunderthisLicensearegrantedforthetermof copyrightonthe Program,and areirrevocableprovidedthe statedconditionsaremet.ThisLicenseexplicitlyaffirmsyourunlimitedpermissionto runtheunmodi-
fiedProGram.Theoutputfromrunningacoveredwork is coveredby thisLicenseonlyif theoutput givenits content constitutesacoveredwork.ThisLicenseacknowledgesyournghtsof fairuseorotherequivalentas
pr_rovidedby copyrightlaw.
Youmaymake,runandpropagatecoveredworksthatyoudo notconvey,withoutconditionsso longasyourlicenseotherwiseremainsin force,Youmayconveycoveredworksto othersfor thesolepurposeof havingthem
makemodificationsexclusivel_for you,or provideyouwithfacilitiesfor runningthoseworks,providedthat youcomplywiththetermsof thisLicenseinconveyingallmaterMfor whichyoudo not controicopyright,T_osethus
makingor runningthe coveredworksfor youmustdo soexclusivelyonyourbehalf,underyourdirectionandcontrol,ontermsthat prohibitthemfrom makinganycopiesof yourcopyrightedmaterialoutsidetheirrelationship
withyou.
Conveyingunderanyothercircumstancesis permittedsolelyundertheconditionsstatedbelow.Sublicensingis notallowed;section10makesit unnecessary.
3. ProtectingUsers' LegalRights FromAnti-CircumventionLaw,
Nocoveredworkshallbedeemedpart of aneffectivetechnologicalmeasureunderanyapplicablelawfulfillingobligationsunderarticle11of the WlPOcopyrighttreatyadoptedon 20December1996,orsimilarlawsprohibiting
orrestrictingcircumventionof suchmeasures,
Whenyou conveya coveredwork youwaiveanylegalpowerto forbid circumventionof technologicalmeasuresto theextentsuchcircumventionis effectedby exercisingrightsunderthis Licensewithrespectto the covered
work,andyoud scam any ntentonto m t operaton ormodf cat onof the workasameansof enforcng,agenst theworks users,yourorth rdpartes ega r ghtsto forb8 c mumventonof technoogca measures.
4. ConveyingVerbatimCopies.
Youmayconveyverbatimcopiesof theProgram'ssourcecodeasyoureceiveit in anymedium providedthat youconspicuouslyandappropriatelypublishoneachcopyan appropriatecopyrightnotice keepintactall notices
statingthatthis Licenseandanynon-permissivetermsaddedinaccordwithsectionTapplyto thecode;keepintactall noticesoftheabsenceof anywarranty;andgiveall recipientsacopyof:IbisLicensealongwiththe
r_.__(ougr_.charge anypriceornopricefor eachcopythatyou convey,andyoumay offersupportor warrantyprotectionfore fee,
5. ConveyingModifiedSourceVersions.
orthe modificationsto )reduceit fromtheProgramin theformof sourcecode underthetermsof section4 providedthatyoualsomeetall of theseconditions:
a reeventdate.
uirementin section4 to "keepintact allnotices",
7additionalterms,to thewholeofthe
receivedit.
Ifthe workhas
is[o terma largerprogram inoron avolume
ora storageor ols_nou_lonn copyrightarenotusedto limittheaccessdr legalr ghtsof thecomp atons usersbeyondwhatthe ndv due workspermt, nc u_
sionof a coveredworkin an oftheaggregate.
6. ConveyingNon-SourceForms.
Youmayconveyacoveredworkin objectcodeformunderthetermsof sections4and5 12rovidedthat youalsoconveythemachine-readableCorrespondingSourceunderthetermsof thisLicense.inone oftheseways:
a)Oonveytheobjectcode in,or embodiedin,a physicalproduct(includingaphysicaldistnbutionmedium),accompaniedby the CorrespondingSourcefixedon adurablephysicalmediumcustomarilyusedfor softwareinter-
change.
b)Oonveytheobjectcode in,or embodiedin,a physicalproduct(includingaphysicaldistributionmedium),accompaniedby a writtenoffer,validfor at leastthreeyearsandvalidfor as long asyouofferspareparts orcustomer
supportforthat productmodel,to giveanyonewhopossessesthe objectcodeeither(1)acopyof the CorrespondingSourcefor allthe softwareinthe productfhat is coveredby thisLicense,on a durablephysicalmedium
customarilyusedfor softwareinterchange,for a pricenomorethanyourreasonablecost of physicallyperformingthisconveyingof source,or(2) accessto copytheCorrespondingSourcefroma networkserverat nocharge.
c)Conveyindividualcopiesof theobjectcodewitha copyof thewrittenofferto providethe CorrespondingSource.Thisalternativeisallowedonlyoccasionallyand noncommerciallyandonly ifyou receivedthe objectcode
withsuchanoffer,in accordwithsubsection6b,
d)Conveythe objectcode by offeringaccessfromadesignatedplace(gratisorfor acharge)and offerequivalentaccessto theCorrespondingSourceinthesamewaythroughthesameplaceat nofurthercharge,Youneed
notrequirerecipientsto copytheCorrespondingSourcealongwithteeobjectcode,Iftheplaceto copytheobjectcode isa networkserver,theCorrespondingSourcemaybeona differentserver(2peratedb_youora third
party)thatsupportsequivalentcopyingfacilities,providedyoumaintaincleardirectionsnextto theobjectcode sayingwhereto findtheCorrespondingSource.Regardlessof whatserverhoststhe L,orrespondingSource,you
For assistance call 1(800} 332-2119
Trademark and License information 37
remainobligatedto ensurethat it isavailablefor as longas neededto satisfytheserequirements,
e)Oonveytheobjectcode usingpeer-to-peertransmission,providedyouinformotherpeerswherethe objectcode andCorrespondingSourceof theworkarebeingofferedto thegeneralpublicat nochargeundersubsection
6d.
Aseparableportionof theobjectcode,whosesourcecodeisexcludedfromtheCorrespondingSourceasa SystemLibrary,neednot beincludedinconveyingtheobjectcode work.
A 'User Product"is either(1)a "consumerproduct",which meansanytangiblepersona(properlywhich isnormallyusedfor personal,family,orhouseholdpurposes,or (2)anythingdesignedor soldfor incorporationintoa
dwelling.In determiningwhethera productis aconsumerproduct,doubtfulcasesshallbe resolvedinfavorof coverage.Fora particularproductreceivedby a particularuser."normallyused"refersto atypicalor common
useof that classof product,regardlessof thestatusof the particularuseror of the wayin whichtheparticularuseractuallyuses,or expectsor is expectedto use,the product.A productis a consumerproductregardlessof
whetherthe producthassubstantialcommercial,industrialor non-consumeruses,unlesssuchusesrepresentthe onlysignificantmodeof useof the product.
"InstallationInformation"for aUserProductmeansanymethodsproceduresauthorizationkeys or otherinformationrequiredto installandexecutemodifiedversionsof a coveredworkin that UserProductfroma modified
versionof its CorrespondingSource.Theinformationmustsufficeto ensurethat the continuedfunctioningof themodifiedobjectcodeisin nocasepreventedorinterferedwithsolelybecausemodificationhasbeenmade.
Ifyouconveyanobject codeworkunderthissectionin, orwith, or specificallyfor usein,a UserProduct,andthe conveyingoccursas part of a transactioninwhich the rightof possessionanduseofthe UserProductistrans-
ferredto therecipientin perpetuityorfor afixedterm(regardlessof howthetransactionischaracterized)theCorrespondingSourceconveyedunderthissectionmustbeaccompaniedby theInstallationInformation,Butthis
requirementdoesnotapply if neitheryounoranythirdpartyretainsthe abilityto installmodifiedobjectcodeontheUserProduct(forexample,the workhasbeeninstalledin RUM),
Therequirementto provideInstallationInformationdoes notincludea requirementto continueto providesupportservice,warranty orupdatesfor a workthat hasbeenmodifiedorinstalledby the recipient,or forthe User
Productnwhch t hasbeenmudfed or nsta ed,Accessto a networkmaybedened whenthemudf cat on tsef matera y and adversey affectstheoperatonof thenetworkor v o atestherues andprotocos for communca-
tionacrossthenetwork.
CorrespondingSourceconveyedandInstallationInformationprovided inaccordwiththis sectionmustbe ina formatthat is publiclydocumented(andwith animplementationavailableto the publicin sourcecodeform),and
mustrequrenospeca passwordor keyfor unpackng,readngor copyng,
7.AdditionalTerms.
'Additionalpermissions'aretermsthat supplementthe termsof thisLicenseby makingexceptionsfromoneor moreof its conditions,Additionalpermissionsthatareapplicableto theentireProgramshallbetreatedasthough
theywereincludedin this License,to theextentthattheyarevalid underapplicablehw,If additionalpermissionsapplyonlyto partof theProgram,that partmaybeusedseparatelyunderthosepermissions,but theentire
Programremainsgovernedbythis Licensewithoutregardto theadditionalpermissions.
Whenyouconveya copyof a coveredwork,you mayat youroptionremoveanyadditionalpermissionsfromthat copy,orfrom anypartof it,(Additionalpermissionsmay bewrittento requiretheirown removalin certaincases
whenyou modifythework,)Youmayplace additionalpermissionsonmaterial,addedbyyouto acoveredwork,for Whichyou haveor can giveappropriatecopyrightpermission.
Notwithstandinganyotherprovisionof thisLicense,formaterialyouadd to a coveredwork,youmay (ifauthorizedbythe copyrightholdersofthat material)supplementthe termsof thisLicensewithterms:
a)Disclaimingwarrantyor limitingliabilitydifferentlyfromthe termsof sections15and16 ofthis License;or
b)Requiringpreservabonofspecifiedreasonablelegalnoticesor authorattributionsinthat materialor intheAppropriateLegalNoticesdisplayedbyworkscontainingit; or
c)Proflibitingmisrepresentationof theoriginof thatmaterial,orrequiringthat modifiedversionsof suchmaterialbemarkedmreasonablewaysas differentfrom the originalversion;or
d)Limitingtheusefor publicitypurposesof namesof licensorsorauthorsof thematerial;or
e)Decliningtogrant rightsundertrademarklawfor useof sometradenames,trademarks,or servicemarks;or
f)Requiringindemnificationof licensorsandauthorsof that materialbyanyonewho conveysthe material(ormodifiedversionsof it) withcontractualassumptionsof liabilityto the recipient,for anyliabilitythatthesecontractual
assumpbonsdirectlyimposeonthoselicensorsandauthors,
Allothernon-permissaveadditionaltermsareconsidered"furtherrestrictions"withinthemeaningof section10.If the Programas youreceivedit or anypartof it containsanoticestatingthat it isgovernedby this Licensealong
withatermthat is a furtherrestriction,youmayremovethat term,Ifa licensedocumentcontainsafurtherrestrictionbutpermitsrelicensingor conveyingunderthisLicense,you mayadsto a coveredworkmaterialgovernedby
thetermsof that licensedocumentprovidedthat the furtherrestrictiondoesnot survivesuchreiicensingorconveying,
Ifyou addtermsto a coveredworkin accordwiththissection,youmust place,inthe relevantsourcefiles,a statementof the additionaltermsthat applyto thosefiles, ora noticeindicatingwhereto findtheapplicableterms,
Additionalterms,permissiveornon-permissive,maybe statedintheformof a separatelywrittenlicense,or statedas exceptions;the aboverequirementsapplyeitherway.
8.Termination,
Youmaynot propagateor modifyacoveredworkexceptasexpresslyprovidedunderthis License.Anyattemptotherwiseto propagateor modifyit isvoid andwill automaticallyterminateyourrightsunderthisLicense(includ-
inganypatentlicensesgrantedunderthethird paragraphof section1I).
Howeverif youceaseall violationof this Licensethenyour licensefrom aparticularcopyrightholderisreinstated(a)provisionallyunlessanduntil thecopyrightholderexplicitlyandfinallyterminatesyourlicenseand (b)
permanently,ifthe copyrightholderrahsto notiryyouotthe vioaationoysomereasonablemeanspriorto 60daysafterthecessation,
Moreover.yourlicensefromaparticularcopyrightholderisreinstatedpermanentlyif the copyrightholdernotifiesyouof the violationby somereasonablemeans,thisis thefirsttimeyou havereceivednoticeof violationof this
License(foranywork)fromthat copyrightholder,andyoucurethe viohtionpriorto 30daysafteryourreceiptof the notice,
Terminabonof yourrightsunderthissectiondoesnot terminatethe licensesof partieswho havereceivedcopiesorrightsfromyou underthis License,If yourrightshavebeenterminatedand notpermanentlyreinstatedyou do
notqua fyto recevenew censesfor the samematera undersect on10,
9.AcceptanceNotRequiredfor HavingCopies.
Youarenotrequiredto acceptthisLicenseinorderto receiveor runa copyofthe Program.Ancillarypropagationof a coveredworkoccurringsolelyasaconsequenceof usingpeer_to-peertransmissionto receivea copy
likewisedoesnot requireacceptance,HowevernothingotherthanthisLicensegrantsyoupermissionto propagateormodifyanycoveredwork.Theseactionsinfringecopyrig_tifyoudo not acceptthisLicense.Therefore,by
mudfy ngor propagatngacoveredwork,you ndcateyouracceptanceof th s Eicenseto do so,
10.Automatic Licensingof DownstreamRecipients.
Eachtimeyouconveya coveredwork, the recipientautomaticallyreceivesalicensefromthe originallicensors,to run,modifyandpropagatethatwork,subjectto thisLicense,Youarenot responsiblefor enforcingcompliance
bythirdpartieswiththisLicense.
An"enti!ytransaction"is a transactiontransferringcontrolof anorganizationorsubstantiallyallassetsof one orsubdividinganorganizationor mergingorganizations,If propagationof acoveredworkresultsfrom anentity
transactioneachpartyto thattransactionwho receivesa copyof the workalsoreceiveswhateverlicensesto theworkthe party'spredecessorin interesthadorcould giveunderthe previousparagraphplusa rightto posses-
sionof the CorrespondingSourceof theworkfromthepredecessorininterest,ifthe predecessorhasit orcan getit withreasonableefforts.
Youmaynot imposeanyfurfherrestrictionsontheexerciseof therightsgrantedor affirmedunderthisLicense,Forexampleyoumaynotimposealicensefee,royalty,orotherchargefor exerciseof rightsgrantedunderthis
Lcense,andyoumaynot ntate tgaton ncudnga cross-cam orcounterca m n a awsut a egngthatanypatentc a m is nfr ngedby makng,usng,se ng,offerngfor sa e, or mportngthe Programor anyportonof t.
11.Patents.
A 'contributor"is a copyrightholderwhoauthorizesuseunderthisLicenseof the Programora workonwhichtheProgramisbased,Theworkthuslicensediscalledthe contributor's'contributorversion",
A contributor's'essentialpatentclaims"areall patentclaimsownedorcontrolledby thecontributor,whetheralreadyacquiredorhereafteracquiredthat wouldbeinfringedbysomemannerpermittedbythis Licenseof mak-
ing,using,or sellingits contributorversion,butdo notincludeclaimsthat wouldbeinfringedonlyasa consequenceof furthermodificationofthecontributorversion,For purposesof this definition,"control"includestherightto
grantpatentsublicensesina mannerconsistentwiththe requirementsofthis License,
Eachcontributorgrantsyoua non-exclusiveworldwide,royalty-freepatentlicenseunderthecontributor'sessentialpatentclaims,to make,use,sell,offerfor sale,importand otherwiserun,modifyandpropagatethe contents
of ts contrbututverson,
Inthefollowingthreeparagraphs,a"patentlicense"is anyexpressagreementor commitment,howeverdenominated,notto enforcea patent(suchasanexpresspermissionto practiceapatentorcovenantnotto suefor pat-
entinfringement).To"granl"sucha patentlicenseto a partymeansto makesuchan agreementor commitmentnotto enforcea patentagainsttheparty,
Ifyouconveyacoveredwork,knowanglyrelyingon a patentlicense,and the CorrespondingSourceof the workisnotavailablefor anyoneto copy,fleeof chargeandunderthe termsofthis License,throughapubliclyavailable
networkserverorotherreadilyaccess]h;lemeans,thenyoumusteither(1)causetheCorrespondinaSourceto besoavailable,or(2)arrangeto depriveyourselfof thebenefitof thepatentlicensefor thisparticularwork,or (3)
arrangeina mannerconsistentwiththerequirementsof thisLicenseto extendthepatentIicense'_odownstreamrecipients,_Knowinglyrelying"meansyou haveactualknowledgethat but for the patentlicenseyourconvey-
ingthecoveredwork inacountry oryourrecipient'suseofthecoveredworkinacountry wouldinfringeoneor moreidentifiablepatentsinthal countrythat youhavereasonto Believearevalid.
If,pursuantto or in connectionwithasingletransactionor arrangement,you convey,or propagateby procuringconveyanceof, acoveredwork, andgrant apatentlicenseto someofthepartiesreceivingthe coveredwork
authorizingthemto use,propagate,mod#yorconveya specificcopy ofthecoveredwork,thenthe patentlicenseyougrantis automaticallyextendedto all recipientsof thecoveredworkandworksbasedonit,
A patentlicenseis "discnminatory"if it doesnotincludewithinthe scopeof its coverage,prohibitstheexerciseof, orisconditionedonthe non-exerciseof one ormoreof the rightsthatarespecificallygrantedunderthis
License.Youmaynot conveyacoveredworkif youarea partyto anarrangementwith a thirdpartythat is inthebusinessof distributingsoftware underwhichyoumakepaymentto the thirdpartybasedontheextentof
youractivityof conveyingthe work.andunderwhichthethirdpart)!grants,to anyofthepartieswhowouldreceivethecoveredworkfromyou,adiscriminatorypatentlicense(a)inconnectionwit]_copiesof thecoveredwork
conveyedByyou(or copiesmadefrom thosecopies)or (b) pnmarflyfor aridin connectionwithspecificproductsor compilationsthatcontainthecoveredwork unlessyouenteredintothat arrangementorthat patentlicense
wasgranted,priorto 28March 2007.
NothinginthisLicenseshallbeconstruedas excludingor limitinganyimpliedlicenseor otherdefensesto infringementthat mayotherwisebeavailableto youunderapplicablepatentlaw.
12.NoSurrenderof Others' Freedom.
Ifconditionsareimposedonyou(whetherbycourtorder,agreementorotherwise)that contradicttheconditionsof this Licensetheydo notexcuseyou fromthe conditionsof thisLicense.Ifyoucannotconveyacoveredwork
soas to satisfysimultaneouslyyourobligationsunderthisl:mcenseandanyotherpertinentobligationsthenasa consequenceyoumaynot conveyitat all.Forexample,if youagreeto termsthat obligateyoufo collecta royalty
forfurtherconveyng fromthoseto whomyouconveythe Program,theony wayyou coud sabsfyboththosetermsandth s L cerisewou dbeto refranent rey fromconveyngthe Program,
13.UsewiththeGNUAfferoGeneralPublic License.
Notwithstandinganyotherprovisionof thisLicense,youhavepermissionto linkorcombineanycoveredworkwitha work licensedunderversion3of theGNUAfferoGeneralPublicLicenseintoasinglecombinedwork,and
to conveytheresultingwork,Thetermsof this Licensewillcontinueto applyto thepart whichis the coveredwork, butthe specialrequirementsof the GNUAfferoGeneralPublicLicense,section13,concerninginteraction
througha networkwilrapplyto thecombinationassuch.
f 4. RevisedVersionsof this License.
TheFreeSoftwareFoundationmay publishrevisedand/ornewversionsof theGNUGeneralPublicLicensefromtimeto time,Suchnewversionswillbesimilarin spiritto thepresentversion,but maydifferin detailto address
newproblemsor concerns.
Eachversionisgivena distinguishingversionnumber.Ifthe Programspecifiesthat a certainnumberedversionof theGNUGeneralPublicLicense"oranylaterversion"appliesto it,you havetheoptionof followingtheterms
andconditionseitherofthat numberedversionor of anylaterversionpublishedby the FreeSoftwareFoundation,IftheProgramdoesnotspecifyaversionnumberof the GNUGeneralPublicLicenseyoumaychooseany
versioneverpublishedbytheFreeSoftwareFoundation,
Ifthe Programspecifiesthata proxycandecidewhichfutureversionsof theGNUGeneralPublicLicensecanbeused that proxy'spublicstatementof acceptanceof aversionpermanentlyauthorizesyouto choosethatver-
sionfor theProgram,
Laterlicenseversionsmaygiveyouadditionalordifferentpermissions.However,noadditionalobligationsareimposedon anyauthoror copyrightholderas a resultof yourchoosingto follow alaterversion,
fS, Disclaimerof Warranty,
THEREISNOWARRANTY-FORTHEPROGRAM,TOTHEEXTENTPERMITTEDBYAPPLICABLELAW,EXCEPTWHENOTHERWISESTATEDINWRmNGTHECOPYRIGHTHOLDERSAND/OROTHERPARTIESPROVIDETHE
PROGRAM"ASIS"WITHOUTWARRANTYOFANYKIND,EITHEREXPRESSEDOR IMPLIEDINCLUDINGBUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORA PARTICULAR
PURPOSE,THEENTIRERISKASTOTHEQUALITYANDPERFORMANCEOFTHEPROGRA_ISWITHY_U, SHOULDTHEPROGRAMPROVEDEFECTIVE,YOUASSUMETHECOSTOFALLNECESSARYSERVICING,
REPAIRORCORRECTION,
16,Limitationof Liability.
IN NOEVENTUNLESSREQUIREDBY APPLICABLELAWORAGREEDTOIN WRITINGWILLANYCOPYRIGHTHOLDER,ORANYOTHERPARTYWHOMODIFIESAND/ORCONVEYSTHEPROGRAMAS PERMITTED
ABOVE,BELIABLETO YOUFORDAMAGES,iNCLUDINGANYGENERAL,SPECIALINCIDENTALORCONSEQUENTIALDAMAGESARISINGOUTOFTHEUSEOR iNABILiTYTO USETHEPROGRAM(INCLUDINGBUTNOT
LiMiTEDTOLOSSOFDATAORDATABEINGRENDEREDINACCURATEOR LOSSE_SUSTAINEDBY YOUORTHIRDPARTIESORA FAILUREOFTHEPROGRAMTOOPERATEWITHANYOTHERPROGRAMS),EVENIF
SUCHHOLDEROROTHERPARTYHASBEENADVISEDOF THEPOSSIBILITYOFSUCHDAMAGES,
17.Interpretationof Sections15and 16,
if the disclaimerof warrantyand limitationof liabilityprovidedabovecannotbeqiven locallegaleffectaccordingto theirterms reviewingcourts shallapplylocallawthat mostcloselyapproximatesanabsolutewaiverof allcivil
liabilityin connectionwiththeProgram,unlessa warrantyor assumptionof iiab_ityaccompaniesa copyoftheProgramin returnfor afee,
For assistance call 1(800} 332-2119
38 Warranty
Mitsubishi LCD Fiat Panel HDTV Limited Warranty
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. ("MDEA") warrants to the original purchaser of this LCD Flat Panel HDTV
that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper work-
manship and/or material:
a. Parts. All parts (except any software incorporated into this HDTV) are warranted for a period of one year from the date of the
original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for
replacement may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for replace-
ment are warranted for the remainder of the original warranty period.
b. Embedded Software. MDEA warrants that all software incorporated into this HDTV (the "Embedded Software") will
perform in accordance with the functional description of Embedded Software in all material respects, but MDEA does not
warrant that the Embedded Software is error-free. The warranty contained in this section shall continue for a period of one
year, from the date of the original purchase from the authorized dealer. If, after prompt notice within the warranty period, MDEA
determines that the Embedded Software has failed to perform in accordance with such functional description in all material
respects and if such failure is not due to accident, misuse, modification or misapplication of the Embedded Software, then
MDEA shall modify or replace the nonconforming Embedded Software at no charge to you, which at MDEA's sole discretion
may be fulfilled by means of modification or replacement software contained on a replacement memory card for Consumer
installation. The foregoing shall be MDEA's sole obligation to you under this limited warranty. All rights under this limited war-
ranty on the Embedded Software also subject to your compliance with the terms of the Software License Agreement appli-
cable to this HDTV, and this limited warranty on the Embedded Software shall be null and void if the Embedded Software is
modified or changed in any manner except as specifically authorized by MDEA.
c. Labor. For certain items that are designed to be replaced by the consumer, including (but not limited to) some Embed-
ded Software, the consumer is solely responsible for any replacement labor. For all other parts, we will provide the labor for a
warranty repair by an authorized MITSUBISHI service center without charge for one year from the original date of purchase at
retail.
d. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the appli-
cable warranty time period.
BEFORE REQUESTING SERVICE, please review the TV owner's guide to insure proper installation and correct cus-
tomer control adjustment. If the problem persists, please arrange for warranty service.
1. TO OBTAIN WARRANTY SERVICE:
a. Contact your nearest authorized MITSUBISHI service center whose name and address can be obtained from your MIT-
SUBISHI dealer, by writing to the address provided below, calling MDEA at 800-332-2119, or using the support feature of our
website at www.Mitsubishi-tv.com.
b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your television is
located within the geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you must either
deliver your television to an authorized service location at your own expense, or pay for any travel and/or transportation costs
the service center may charge to and from you home. Actual service labor will be provided without charge.
c. Proof of purchase from an authorized MITSUBISHI dealer is required when requesting warranty service. Present your sales
receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION
CARD IS NOTA CONDITION OF WARRANTY COVERAGE. However, please return the Owner Registration Card so that we can
contact you should a question of safety arise which could affect you.
2. THIS LIMITED WARRANTY DOES NOT COVER:
a. Up to .01% pixel outages (small dot picture elements that are dark or incorrectly illuminated).
b. Cosmetic damage or any other damage where such damage is caused by unauthorized modification, alteration, repairs to
or service of the product by anyone other than an authorized MITSUBISHI service center; physical abuse to or misuse of the
product (or any product damaged by excessive physical or electrical stress); any products that have had a serial number or any
part thereof altered, defaced or removed; product use in any manner contrary to the Owner's Guide; freight damage; or any
damage caused by acts of God or other factors beyond the reasonable control of MDEA, such as power surge damage caused
by electrical system or damages caused by use of third party mounting brackets or stands. This limited warranty also excludes
service calls where no defect in the product covered under this warranty is found, service calls related to unsatisfactory audio
or visual reception or signal unless caused by a defect in the product that is covered under this limited warranty, all costs,
expenses or any other damages arising from product installation, removal from or re-installation into custom installations or on
For assistance call 1(800} 332-2119
Warranty 39
wall mountings, or set-ups, any adjustments of user controls (including contrast, brightness, color, tint, fine tuning, sharpness),
other adjustment necessary to prepare the unit for display or use, connection with any external audio receiver, antenna, cable
or satellite systems, or service of products purchased or serviced outside the U.S.A. Please consult the operating instructions
contained in the Owner's Guide furnished with the product for information regarding user controls.
3. ANY EXPRESSWARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT
ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDEDAND DISCLAIMED. THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSEARE EXPRESSLY LIMITED TO A TERM OF
ONE YEAR.
4. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCI-
DENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF
CONTRACT, OR OTHERWISE.
5. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental,
special, or consequential damages, so the above limitations or exclusions may not apply to you.
6. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
7. In the event of any dispute under this limited warranty, jurisdiction and venue for resolving that dispute will be in the state
where the television was purchased and the laws of such state will govern. In no event shall Mitsubishi have any liability, includ-
ing with out limitation, for general, consequential, incidental, or special damages for loss, destruction, damage or corruption
of recorded data, media or software resulting from use of this television, or cost of recovery of lost data, media or software
therefore.
• MITSUBISHI
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351 Jeronimo Road
Irvine, CA 92618-1904
Network Service Disclaimer
Third party content and services, including without limitation home entertainment services by VUDU, Inc., are provided
in accordance with whatever terms and conditions are established by the third party providers and agreed to by you.
Mitsubishi Digital Electronics America ("MDEA') has no control over any such third parties or any agreement you reach
with them. MDEA has no control over the networks or transmission facilities by which content and services are provided
by third parties. Your connection to the internet may vary in availability and quality. Customer service questions are to
be directed to the third-party provider, not MDEA.
MDEA DOES NOT WARRANT CONTENT OR SERVICES PROVIDED BY ANY THIRD PARTY, EITHER EXPRESSLY OR
IMPLIEDLY, FOR ANY PURPOSE. MDEA DOES NOT WARRANT THAT ANY THIRD PARTY SERVICE WILL REMAIN
AVAILABLE FOR ANY PERIOD OF TIME OR THAT IT WILL BE SATISFACTORY, UNINTERRUPTED OR ERROR FREE.
MDEA EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO ANY THIRD PARTY CONTENT
AND SERVICES.
MDEA WILL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE, WHETHER IN CONTRACT OR TORT OR OTHER
LEGAL THEORY, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY
FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, YOUR USE OF ANY
CONTENT OR SERVICE THAT IS PROVIDED TO YOU BY ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
For assistance call 1(800} 332-2119
_ ITSUBiSHI
ELECTRIC
Website:
www.rnitsubishi=tv.corn
E-mail:
Call Consumer Relations for operational or connection assistance at
800-332-2119
To order replacement or additional
remote controls or NetCommand IR emitters,
Visit our website www.mitsuparts,com
or call
800-553-7278
SYSTEM RESET
If the TV does not respond to the remote control,
control-panel buttons, or will not power on/off,
press and hold the POWERbutton on the control
panel for ten seconds.
The TV will turn off. Power on the TV and the green
LED will flash quickly for about one minute. Recent
settings changes may be lost.
For Your Records
Record the model number, serial number, and
purchase date of your TV. The model and serial
numbers are on the back of the TV. Refer to this
page when requesting assistance with the TV.
MODEL NUMBER
SERIAL NUMBER
PURCHASE DATE
RETAILER NAME
LOCATION
VLP43/+/++
© 2010 Mitsubishi Digital Electronics America, Inc. 853B710A60
