Roper FES356RD3 Electric Freestanding Range

Use and Care Guide

For FES356RD3.

PDF File Manual, 20 pages, Read Online | Download pdf file

FES356RD3 photo
background
ELECTRICRANGE
For questions about features, operation/performance,
parts, accessories or service, call: 1-800-253-1301
or visit our brand websites at...
www.whirlpool.com
www.estatea pplian ces.com
www.magicchef.com
www.roperappliances.com
Table of Contents ................................................. 2
W10120510A
To the installer: Please leave this
instruction book with the unit.
To the consumer: Please read and
keep this book for future reference.
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...

Other documents for Roper FES356RD3

The following documents are available:
User Manual Installation Instruction
  • Installation Instruction - (English) Download
Photos

Specifications

Use and Care Guide - Transcript

  • Page 1 - English - : W10120510A ELECTRIC RANGE jG poe ot. We eh parts. accessories or service. call: 1-800-253-1301 or visit our brand websites at... www.whirlpool.com www.magicchef.com Table of Contents .......0.... SELL ILLBELM APOLLO LLB ORLA LLORAS RSS ELLEESELEEELRRE wena wee eneeeeee To the installer: Please leave this instruction book with the unit. To the consumer: Please read and keep this book for future reference.
  • Page 2 - English - : TABLE OF CONTENTS UU EMER ea tients Slow Toelinesn ihe chit ene i Sd 8 TRE ni ect feceeonentntnentenin neers tensed tte 9 OVE SE cece 10 OPIN I sittin itd tii i i cell ction i 12 Self-Cleaning Cycle (on some models)....... ce eecceeeeeeeeeenens 14

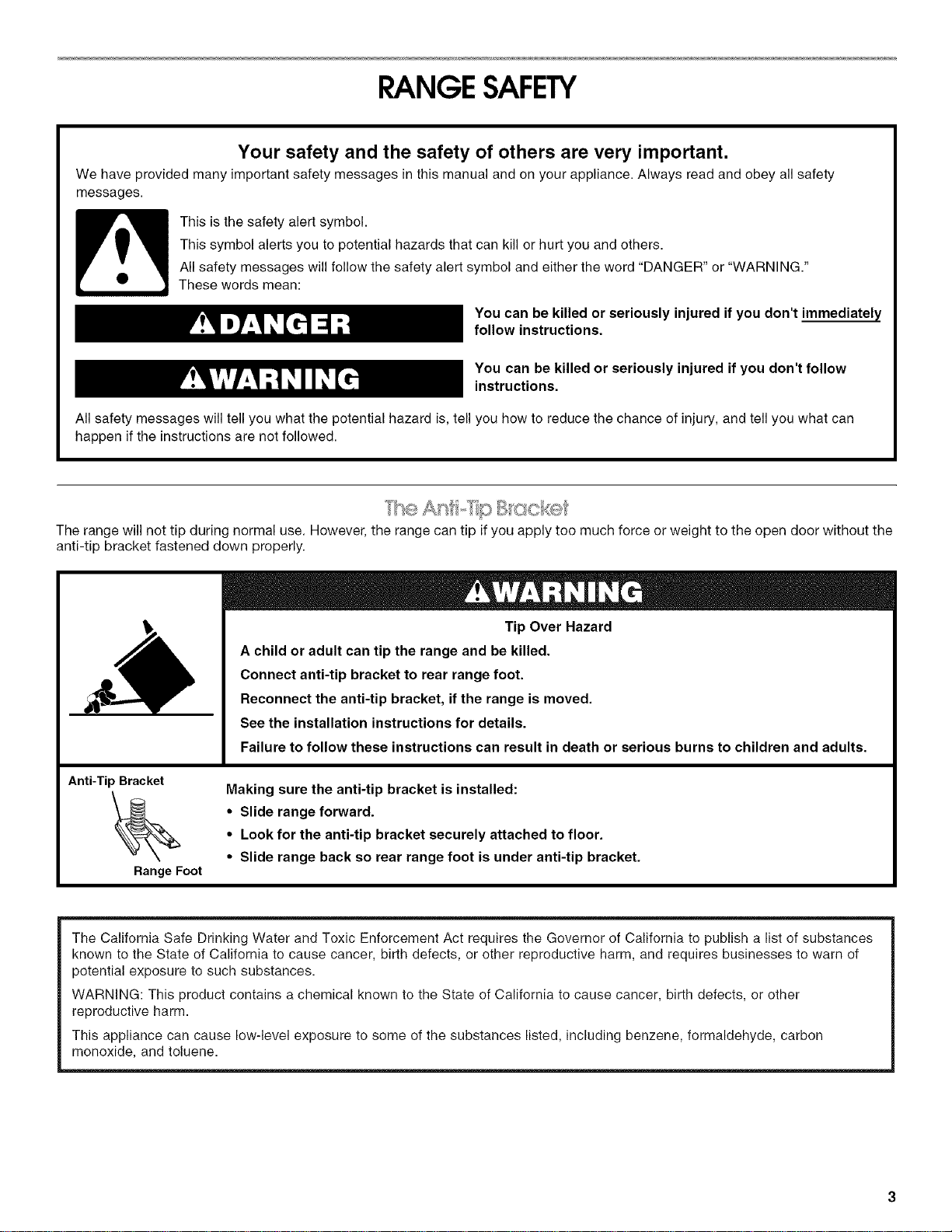

  • Page 3 - English - : RANGE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER?” or “WARNING.” These words mean: You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow y'\ WAR N 7 A G instructions. All safety messages will tell you what the potential hazard is. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed. The Anii-Tip Bracke’ aU NOS p ah EU" a tad Gb S Coke 4 The range will not tip during normal use. However. the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly. Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket. if the range is moved. See the installation instructions for details. Failure to follow these instructions can result in death or serious burns to children and adults. Anti-Tip Bracket Making sure the anti-tip bracket is installed: ¢ Slide range forward. ¢ Look for the anti-tip bracket securely attached to floor. ¢ Slide range back so rear range foot is under anti-tip bracket. Range Foot The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of California to cause cancer. birth defects. or other reproductive harm. and requires businesses to warn of potential exposure to such substances. WARNING: This product contains a chemical known to the State of California to cause cancer. birth defects. or other reproductive harm. This appliance can cause low-level exposure to some of the substances listed. including benzene. formaldehyde. carbon monoxide. and toluene.
  • Page 4 - English - : IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire. electrical shock. injury to persons. or damage when using the range. follow basic precautions. including the following: # WARNING: TO REDUCE THE RISK OF TIPPING OF @ Protective Liners — Do not use aluminum foil to line surface unit drip bowls or oven bottoms. except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock. or fire. THE RANGE. THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY. SLIDE RANGE FORWARD. LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR. AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP CAUTION: Do not store items of interest to children in cabinets above a range or on the backguard of a range — children climbing on the range to reach items could be seriously injured. Proper Installation — Be sure the range is properly installed and grounded by a qualified technician. Never Use the Range for Warming or Heating the Room. Do Not Leave Children Alone — Children should not be left alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range. Wear Proper Apparel — Loose-fitting or hanging garments should never be worn while using the range. User Servicing — Do not repair or replace any part of the range unless specifically recommended in the manual. All other servicing should be referred to a qualified technician. Storage in or on the Range — Flammable materials should not be stored in an oven or near surface units. Do Not Use Water on Grease Fires — Smother fire or flame or use dry chemical or foam-type extinguisher. Use Only Dry Potholders — Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS — Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use. do not touch. or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among those areas are the cooktop and surfaces facing the cooktop. Use Proper Pan Size — The range is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency. Never Leave Surface Units Unattended at High Heat Settings — Boilover causes smoking and greasy spillovers that may ignite. Make Sure Reflector Pans or Drip Bowls Are in Place — Absence of these pans or bowls during cooking may subject wiring or components underneath to damage. Glazed Cooking Utensils — Only certain types of glass. glass/ceramic. ceramic. earthenware. or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature. Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units — To reduce the risk of burns. ignition of flammable materials. and spillage due to unintentional contact with the utensil. the handle of a utensil should be positioned so that it is turned inward. and does not extend over adjacent surface units. Do Not Soak Removable Heating Elements — Heating elements should never be immersed in water. Do Not Cook on Broken Cooktop — If cooktop should break. cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately. Clean Cooktop With Caution — If a wet sponge or cloth is used to wipe spills on a hot cooking area. be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface. Use Care When Opening Door — Let hot air or steam escape before removing or replacing food. Do Not Heat Unopened Food Containers — Build-up of pressure may cause container to burst and result in injury. Keep Oven Vent Ducts Unobstructed. Placement of Oven Racks — Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot. do not let potholder contact hot heating element in oven. DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN - Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use. do not touch. or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns — among these surfaces are oven vent openings and surfaces near these openings. oven doors. and windows of oven doors. For self-cleaning ranges — # Do Not Clean Door Gasket — The door gasket is essential for a good seal. Care should be taken not to rub. damage. or move the gasket. # Do Not Use Oven Cleaners — No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. @ Clean Only Parts Listed in Manual. w Before Self-Cleaning the Oven — Remove broiler pan and other utensils. For units with ventilating hood — w Clean Ventilating Hoods Frequently — Grease should not be allowed to accumulate on hood or filter. w When flambeing foods under the hood. turn the fan on. SAVE THESE INSTRUCTIONS
  • Page 5 - English - : PARTS AND FEATURES This manual covers several different models. The range you have purchased may have some or all of the parts and features listed. The location and appearance of the features shown here may not match those of your model. Control Panel : fxn Grol Clear Ge a bwcah -_ +. Visor Hee v iv Delay Dscr = Car Kod cher TEM loustom]} staar |} cook wt LL PUSH TO TURN i i i A. Left front contro! knob D. Electronic oven control F. Lo power indicator (on some models) B. Left rear contro! knob E. Right rear control knob G. Right front contro! knob C. Surface cooking locator indicator SUELO DVRS POPULAR AEA AALALAL Cel mmnemnnnnmmnone pf A. Surface cooking area or element G. Hot surface indicator light Parts and Features not shown B. Anti-tip bracket (on ceramic glass models) (on some models) C. Door stop clip H. Automatic oven light switch D. Model and serial number plate (ba some models) Coil elements (behind left side of storage drawer) |. Gasket Oven door window E. Storage drawer J. Broil element (not shown) Oven light F. Control panel K. Bake element Manual oven light switch L. Self-clean latch (on some models)
  • Page 6 - English - : COOKTOP USE 6 pm B plagm ws fe fi yl ately. % at. "a oD Kor od tad WIOS Fire Hazard Turn off all controls when done cooking. Failure to do so can result in death or fire. The control knobs can be set to anywhere between HI and LO. Push in and turn to setting. On some models. the surface cooking area locator shows which element is turned on. Use the following chart as a guide when setting heat levels. VBPBBLEDLLDELEL EAP LPP PLEA LEAL LLIB LSLSLESS LR ELLAS SEEDED ELI ELIELLIIELDLELELA: SETTING RECOMMENDED USE HI m Start food cooking. gm Bring liquid to a boil. Medium High m Hold a rapid boil. 8 Quickly brown or sear food. Medium Maintain a slow boil. 2 Fry or sauté foods. Cook soups. sauces and gravies. Medium Low Stew or steam food. at Simmer. LO m Keep food warm. gm Melt chocolate or butter. REMEMBER: When range is in use or (on some models) during the Self-Cleaning cycle. the entire cooktop area may become hot. NOTE: On self-cleaning models. the cooktop will not operate when the range is in a self-cleaning mode. ga. sige £4 ic ai Ceramic Giass (on some models) The surface cooking area will glow red when an element is on. It will cycle on and off. at all settings. to maintain the selected heat It is normal for the surface of white or biscuit ceramic glass to appear to change color when surface cooking areas are hot. As the glass cools. it will return to its original color. Wiping off the cooktop before and after each use will help keep it free from stains and provide the most even heating. On cooktops with white or biscuit ceramic glass. soils and stains may be more visible. and may require more cleaning and care. For more information. see “General Cleaning” section. m Donot store jars or cans above the cooktop. Dropping a heavy or hard object onto the cooktop could crack the m Do not leave a hot lid on the cooktop. As the cooktop cools. air can become trapped between the lid and the cooktop. and the ceramic glass could break when the lid is removed. m For foods containing sugar in any form. clean up all spills and soils as soon as possible. Allow the cooktop to cool down slightly. Then. while wearing oven mitts. remove the spills while the surface is still warm. If sugary spills are allowed to cool down. they can adhere to the cooktop and can cause pitting and permanent marks. m Donot slide cookware or bakeware across the cooktop. Aluminum or copper bottoms and rough finishes on cookware or bakeware could leave scratches or marks on the m Donot cook popcorn in prepackaged aluminum containers on the cooktop. They could leave aluminum marks that cannot be removed completely. gm Donot allow objects that could melt. such as plastic or aluminum foil. to touch any part of the entire cooktop. Do not use the cooktop as a cutting board. Use cookware about the same size as the surface cooking area. Cookware should not extend more than 2" (1.3 cm) outside the area. A. Surface cooking area B. Cookware/canner C. ve" (1.3 cm) maximum overhang
  • Page 7 - English - : gm Use flat-bottomed cookware for best heat conduction and energy efficiency. Cookware with rounded. warped. ribbed or dented bottoms could cause uneven heating and poor cooking results. m Determine flatness by placing the straight edge of a ruler across the bottom of the cookware. While you rotate the ruler. no space or light should be visible between it and the m Cookware designed with slightly indented bottoms or small expansion channels can be used. m Make sure the bottoms of pots and pans are clean and dry before using them. Residue and water can leave deposits when heated. m Do not cook foods directly on the cooktop. Hot Surface Indicator Light (under ceramic glass) The hot surface indicator light will glow as long as any surface cooking area is too hot to touch. even after the surface cooking area(s) is turned off. Coil elements should be level for optimal cooking results. Burner bowls. when clean. reflect heat back to the cookware. They also help catch spills. Cookware should not extend more than ¥%" (1.3 cm) over the coil element. If cookware is uneven or too large. it can produce excess heat. causing the burner bowl to change color. For more information. see the “General Cleaning” section. NOTE: Before removing or replacing coil elements and burner bowls. make sure they are cool and the control knobs are in the Off position. To Remove: 1. Push in the edge of coil element toward the receptacle. Then lift it enough to clear the burner bowl. 3. Lift out the burner bowl. To Replace: 1. Line up openings in the burner bowl with the coil element receptacle. 2. Holding the coil element as level as possible. slowly push the coil element terminal into the receptacle. 3. When the terminal is pushed into the receptacle as far as it will go. push down the edge of the coil element opposite the receptacle. EE og gate. fo yin. gm. | pti gong Lift-up Cooktop The lift-up cooktop provides easy access for cleaning beneath. Do not drop the cooktop. Damage could occur to the finish and the cooktop frame. For more information. see the “General Cleaning” section. Lift the cooktop by both front corners until the supports lock into To Replace: 1. Lift the cooktop from both sides while pressing the support rods back to unlock them. 2. Slowly lower the cooktop into place. EB pre. ernsitn. iy grr pay hy gate y iy. sivas Home Canning When canning for long periods. alternate the use of surface cooking areas. elements or surface burners between batches. This allows time for the most recently used areas to cool. m Center the canner on the grate or largest surface cooking area or element. On electric cooktops. canners should not extend more than 2" (1.3 cm) beyond the surface cooking area or element. m Donot place canner on 2 surface cooking areas. elements or surface burners at the same time. m Onceramic glass models. use only flat-bottomed canners. gm Oncoil element models. the installation of a Canning Unit Kit is recommended. If a kit is not installed. the life of the coil element will be shortened. See “Assistance or Service” for instructions on how to order. m For more information. contact your local agricultural department. Companies that manufacture home canning products can also offer assistance.
  • Page 8 - English - : C OO 6 W Che IMPORTANT: Do not leave empty cookware on a hot surface cooking area. element or surface burner. Ideal cookware should have a flat bottom. straight sides and a well-fitting lid. and the material should be of medium-to-heavy thickness. Rough finishes may scratch the cooktop or grates. Aluminum and copper may be used as a core or base in cookware. However. when used as a base they can leave permanent marks on the cooktop or grates. Cookware material is a factor in how quickly and evenly heat is transferred. which affects cooking results. A nonstick finish has the same characteristics as its base material. For example. aluminum cookware with a nonstick finish will take on the properties of aluminum. Cookware with nonstick surfaces should not be used under the Use the following chart as a guide for cookware material characteristics. VBE VARLPLILALLARPLALIDL LIAS SL LLL DILL IED LEIDER ELD DOROOS LLORES PLEO LLELLLLLI COOKWARE CHARACTERISTICS Aluminum m Heats quickly and evenly. m Suitable for all types of cooking. m Medium or heavy thickness is best for most cooking tasks. Cast iron Heats slowly and evenly. Good for browning and frying. Maintains heat for slow cooking. Ceramic or Follow manufacturer’s instructions. Ceramic glass Heats slowly. but unevenly. Ideal results on low to medium heat Copper m Heats very quickly and evenly. Earthenware Follow manufacturer’s instructions. Use on low heat settings. Porcelain m See stainless steel or cast iron. enamel-onsteel or cast Stainless steel Heats quickly. but unevenly. A core or base of aluminum or copper on stainless steel provides even ELECTRONIC OVEN CONTROL cook faa Ee ENTER BR oe Delay Door Controls Locked Locked ance |e" Fd sae ance zee Fd sae SELF-CLEANING OVEN A. Oven display G. Temperature/time B. Clock H. Cook time C. Timer/cancel i. Start time D. Start/enter (control lock) J. Custom broil E. Auto clean K. Bake F. Off/cancel Oven Indicator Lights The indicator ights are located along all 4 sides of the display. The indicator lights light up or flash when the oven is in one of the following modes: Bake. Broil. Clean (on some models). On. Start?. Controls Locked. Door Locked (on some models). Delay. Timer. Temp. Cook Time. or Start Time. When power is first peed to the range. “PF” or a flashing time will appear on the display. Press OFF/CANCEL to clear. If “PF” or a flashing time appears at any other time. a power failure has occurred. Press OFF/CANCEL and reset the clock if When the oven is in use. the display shows preheat time or oven temperature setting. When the oven is not in use. the display shows the time of day. When using Start Time/Cook Time. the display will show either hours and minutes. or minutes and seconds. If Start/Enter is not pressed after setting a function. the “Start?” oven indicator light will begin flashing after 5 seconds. Siori/enter The Start/Enter pad bauins any oven function. If the Start/Enter pad is not pressed within 5 seconds after pressing a function pad. the “Start?” indicator light will flash as a reminder. If Start/Enter is not pressed within 1 minute after pressing a function pad. the oven display will return to the time of day mode and the programmed function will be canceled.
  • Page 9 - English - : On/Ca mcel The Off/Cancel pad stops any function except the Clock. Timer and Control Lock. The cooling fan may continue to operate after an oven function has been canceled. depending on oven temperature. Wr Cloc ci i 4. This is a 12-hour clock and does not show a.m. or p.m. Before setting. make sure the oven and Timer are off. 1. Press CLOCK. 2. Press the TEMP/TIME “up” or “down” arrow pad to set the time of day. 3. Press START/ENTER or CLOCK. Tones are audible signals. indicating the following: m Valid pad press m Oven is preheated (long tone) m Function has been entered Reminder. repeating each minute after the end-of-cycle tones Three tones gm Invalid pad press Four tones m Endof cycle woncd Celsius ua Wd ug le ee The temperature is preset at Fahrenheit. but can be changed to Celsius on some models. To Change: Press and hold CUSTOM BROIL for 5 seconds. A tone will sound. and “°C” will appear on the display. Repeat to change back to Fahrenheit. To exit mode. press OFF/CANCEL. The Timer can be set in hours ¢ or -mirates up to 12 hours and 59 minutes and counts down the set time. NOTE: The Timer does not start or stop the oven. 1. Press TIMER CANCEL*. The timer oven indicator light will light up. If no action is taken after 1 minute. the display will return to the time of day mode. 2. Press the TEMP/TIME “up” or “down” arrow pad to set the length of time. 3. Press START/ENTER. When the set time ends. four 1-second tones will sound. 4. Press TIMER CANCEL* anytime to cancel the timer and/or stop reminder tones. To cancel the timer during the countdown. press TIMER CANCEL* twice. The time can be reset during the countdown by repeating the above steps. To display the time of day when the timer is counting down. press CLOCK. Cor ANIC pale a a The Control Lock shuts down the control panel pads to avoid unintended use of the oven. When the control is locked. only the Clock and Timer pads will To Lock/Unlock Control: Before locking. make sure the oven and Timer are off. Touch and hold START/ENTER for 5 seconds. A single tone will sound. and “LOC” and “LOCK’D” (on some models) will appear on the display. “LOC” will also appear whenever any command pad is pressed while the control is Repeat to unlock. “LOC” and “LOCK’D” (on some models) will disappear from the display. Oven lemperaiure Control IMPORTANT: Do vot use a thermometer to measure oven temperature because opening the oven door and element or burner cycling may give incorrect readings. The oven provides accurate temperatures; however. it may cook faster or slower than your previous oven. so the temperature calibration can be adjusted. A minus sign means the oven will be cooler by the displayed amount. The absence of a minus sign means the oven will be warmer by the displayed amount. Use the following chart as a ADJUSTMENT °F COOKS FOOD 20°F (10°C) ...moderately more 30°F (15°C) ..much more 10°F (-5°C) ...a little less 20°F (-10°C) ... moderately less 30°F (-15°C) ...much less To Adjust Oven Temperature Calibration: 1. Press and hold BAKE for 5 seconds until the oven display shows the current calibration. for example “00.” 2. Press the TEMP/TIME “up” or “down” arrow pad to increase or to decrease the temperature in 10°F (5°C) amounts. The adjustment can be set between 30°F (15°C) and 30°F (-15°C). NOTE: All temperature adjustments will be displayed in Fahrenheit. 3. Press START/ENTER.
  • Page 10 - English - : To Adjust Oven Temperature Calibration (on models with manual oven control): 1. Make sure the oven temperature control knob is in the Off position. Pull oven temperature control knob straight off and turn it over. 2. Loosen the locking screws inside the oven temperature control knob. A. Locking screws B. Notches 3. Adjust temperature. To lower the temperature. hold the knob handle firmly and turn skirt counterclockwise to move the tooth a notch to the To raise the temperature. hold the knob handle firmly and turn the skirt clockwise to move the tooth a notch to the right. Each notch equals about 5°F (38°C). A. Notches 4. Tighten the locking screws and replace knob. VOLLEBIBUELDBELDBI DLL LD ELELDE LDPE IE LI LDPE L DEDEDE LILLE DELI LDL LIEDER SA SELLER Odors and smoke are normal when the oven is used the first few times. or when it is heavily soiled. IMPORTANT: The health of some birds is extremely sensitive to the fumes given off. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and wellventilated room. IMPORTANT: To avoid permanent damage to the oven bottom finish. do not line the oven bottom with any type of foil. liners or m= Donot cover entire rack with foil because air must be able to move freely for best cooking results. m Tocatch spills. place foil on rack below dish. Make sure foil is at least 2" (1.3 cm) larger than the dish and that it is turned up at the edges. by iy tae ha. Sed bey y Hh prions sito. a Oe gay wy A Lo alee ili. sage ih Positioning Racks and Bakeware IMPORTANT: To avoid permanent damage to the porcelain finish. do not place food or bakeware directly on the oven door or m Position racks before turning on the oven. m= Donot move racks with bakeware on them. m Make sure racks are level. To move a rack. pull it out to the stop position. raise the front edge. then lift out. Use the following illustration and chart as a
  • Page 11 - English - : FOOD RACK POSITION(S)* Large roasts. turkeys. angel food. 1or2 bundt cakes. quick breads. pies Yeast breads. casseroles. meatand 2 Cookies. biscuits. muffins. cakes 2or3 VPARP ALLELES ESERIES Hot air must be able to circulate around food to cook evenly. so allow 2" (5 cm) of space around bakeware and oven walls. Use the following chart as a guide. NUMBER OF POSITION ON RACK 1 Center of rack. 2 Side by side or slightly staggered. 3 or 4 Opposite corners on each rack. Make sure that no bakeware piece is directly over Me " Bee prey BY pity. webity. HE tng atte. & Sol Oven Rock Pig 34. ling yl. thn. Yadagite. shy ied ire. U gr Ke Split-Rack with Removable Insert The split-rack with removable insert is a space maximizer. When the two are attached. they make a full rack. The insert can also be removed to provide room for large items such as a turkey and casseroles. Do not place more than 25 Ibs (11.3 kg) on the splitrack. The insert can also be used on the counter as a cooling rack. A. Split-rack B. Removable insert If you would like to purchase a split-oven rack. one may be ordered. See “Assistance or Service” section to order. Ask for Part Number 4396927. To Use Racks: 1. Place a full rack on position 1 or 2. and the split-rack on position 3 or 4. 2. Place large items on the right side of the full rack. 3. Place deeper. covered dishes on the left side of the full rack. 4. Place shallow dishes on the split-rack. VOBEBE BELLO ISSA Light colored gw Light golden crusts mw Even browning Dark aluminum and other bakeware with dark. dull and/or nonstick finish g Brown. crisp Insulated cookie sheets or baking a Little or no bottom Stainless steel gm Light. golden gm Uneven browning Stoneware/Baking m Crisp crusts glassware. ceramic glass or ceramic g Brown. crisp 5. When finished cooking. slowly remove items. A. Rear rack section B. Front rack section ¥ Ce Poe aN The bakeware material affects cooking results. Follow manufacturer’s recommendations and use the bakeware size recommended in the recipe. Use the following chart as a guide. RECOMMENDATIONS mw Use temperature and time recommended in recipe. m May need to reduce baking temperatures 25°F (15°C). Use suggested baking time. For pies. breads and casseroles. use temperature recommended in gm Place rack in center of oven. Place in the bottom third of oven. May need to increase baking time. gm May need to increase baking time. a Follow manufacturer’s instructions. m May need to reduce baking temperatures 25°F (15°C).
  • Page 12 - English - : On models without a temperature probe. use a meat thermometer to determine doneness of meat. poultry and fish. The internal temperature. not appearance. should be used to determine doneness. A meat thermometer is not supplied with this range. m Insert the thermometer into the center of the thickest portion of the meat or inner thigh or breast of poultry. The tip of the thermometer should not touch fat. bone or gristle. m After reading the thermometer once. push it into the meat Ya" (1.3 cm) more and read again. If the temperature drops. cook the meat or poultry longer. m Check all meat. poultry and fish in 2 or 3 different places. A. Oven vent (coil element model) A. Oven vent (ceramic glass model) The oven vent releases hot air and moisture from the oven. and should not be blocked or covered. Blocking or covering the vent will cause poor air circulation. affecting cooking and cleaning results. Do not set plastics. paper or other items that could melt or burn near the oven vent. On coil element models. the element can be used when the oven is in use as long as the cookware does not extend more than Ya" (1.3 cm) over the element. sciking and Roasting Before baking and roasting. position racks according to the “Positioning Racks and Bakeware” section. When roasting. it is not necessary to wait for the oven preheat conditioning time to end before putting food in unless recommended in the recipe. To Bake or Roast: 1. Press BAKE. The bake oven indicator light will light up. 2. Set the temperature (optional). Press TEMP/TIME “up” or “down” arrow pad to set a temperature other than 350°F (177°C) in 5°F (3°C) amounts. The bake range can be set between 170°F (77°C) and 500°F (260°C). When the oven temperature is greater than 170°F (77°C). no preheat conditioning time will be shown in the display. The preheat conditioning time will not change if the temperature is reset before the countdown time ends. If baking and roasting while the minute timer is counting down. the set temperature can be seen for 5 seconds by pressing BAKE. 3. Press START/ENTER. The oven control automatically sets preheating times based on the oven temperature selected. The temperature can be changed after this step. START/ ENTER does not need to be pressed again. After the oven is preheated and the countdown time is finished. a 1-second tone will sound. the ON indicator light will go off and the set temperature will appear on the display. 4. Press OFF/CANCEL when finished. Preheating After START/ENTER is pressed. the oven will enter a timed preheat conditioning. “PrE” and the time countdown will appear on the display. When the preheat conditioning time ends. a tone will sound and the selected temperature will appear on the Preheat temperatures are affected by varying factors such as room temperature and peak energy usage times. It is normal for the temperature showing on the display and the actual oven temperature to differ. Waiting an additional 10 minutes after the preheat conditioning time ends to put food in the oven is suggested when baking foods with leavening ingredients. such as yeast. baking powder. baking soda and eggs. Broiling and Cusiom Brolling Broiling uses direct radiant heat to cook food. Changing the temperature when Custom Broiling allows more precise control when cooking. The lower the temperature. the slower the cooking. Thicker cuts and unevenly shaped pieces of meat. fish and poultry may cook better at lower broiling temperatures. m For best results. use a broiler pan and grid. They are designed to drain juices and help avoid spatter and smoke. If you would like to purchase a broiler pan. one may be ordered. See “Assistance or Service” section to order. Ask for Part Number 4396923. m For proper draining. do not cover the grid with foil. The bottom of the pan may be lined with aluminum foil for easier m Trim excess fat to reduce spattering. Slit the remaining fat on the edges to avoid curling. mw Pull out oven rack to stop position before turning or removing food. Use tongs to turn food to avoid the loss of juices. Very thin cuts of fish. poultry or meat may not need to be turned. m After broiling. remove the pan from the oven when removing the food. Drippings will bake on the pan if left in the heated oven. making cleaning more difficult. Before broiling. position rack according to the Broiling Chart. It is not necessary to preheat the oven before putting food in unless recommended in the recipe. Position food on grid in the broiler pan. then place it in the center of the oven rack. Close the door to the broil stop position to ensure proper broiling temperature.
  • Page 13 - English - : 1. Press CUSTOM BROIL. The broil oven indicator light will light 2. Press START/ENTER. The On and Heat oven indicator lights will light up. The temperature setting can be changed any time before or after pressing START/ENTER. See “Custom Broiling” section. lf broiling while the time is counting down. the set broiling temperature can be seen for 5 seconds by pressing CUSTOM 3. Press OFF/CANCEL when finished. Custom Broiling If foods are cooking too fast. press the TEMP/TIME “up” or “down” arrow pad until 325°F (163°C) shows on the display. 1. Press CUSTOM BROIL to broil foods slower from the start of 2. Press the TEMP/TIME “up” or “down” arrow pad to enter a temperature between 300°F and 500°F (149°C and 260°C). 3. Press START/ENTER. 4. Press OFF/CANCEL when finished. BROILING CHART For best results. place food 3" (7 cm) or more from the broil element. Times are guidelines only and may need to be adjusted for individual foods and tastes. Recommended rack positions are numbered from the bottom (1) to the top (5). For diagram. see the “Positioning Racks and Bakeware” section. FOOD RACK COOK TIME POSITION (in minutes) Side 1 Side 2 1" (2.5 cm) thick medium rare 4 14-15 7-8 medium 4 15-16 8-9 well-done 4 18-19 9-10 Ground meat patties* ¥4" (2 cm) thick well-done 4 13-14 7-8 Pork chops 1" (2.5 cm) thick 4 20-22 10-11 Ham slice. precooked Ya" (1.25 cm) thick 4 8-10 4-5 Frankfurters 4 5-7 3-4 Lamb chops 1" (2.5 cm) thick 4 14-17 8-9 bone-in pieces S 17-20 17-20 boneless breasts 4 11-16 11-16 Fish Fillets Va-Vo" (0.6-1.25 cm) thick 4 8-10 4-5 Fish Steaks 1" (2.5 cm) thick 4 16-18 8-9 VRE ADBBDOEL SALLI BDL LIL DPDL IASI LISI LAE IESS ELL LBBBSS LDS SSSI SLL PSPSPS PES BEILILLILIDEILLLELE “Place up to 9 patties. equally spaced. on broiler grid. Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Timed Cooking allows the oven to be set to cook in 2 different ways. The oven can be set to start cooking immediately and shut off automatically at the end of the cooking time. Or. the oven can be set to start at a later time. cook for a specified length of time and shut off automatically at the end of the cooking time. Foods that require a preheated oven should not be cooked using a delayed function. To Set a Cook Time: 1. Press BAKE. The bake oven indicator light will light up. 2. Set the temperature (optional). Press the TEMP/TIME “up” or “down” arrow pads to enter a temperature other than the one displayed. 3. Press COOK TIME. The cook time oven indicator light will 4. Press TEMP/TIME “up” or “down” arrow pads to enter the length of time to cook. 5. Press START/ENTER. The display will count down the time. When the time ends. the oven will shut off automatically and “End” will appear on the display. 6. Press OFF/CANCEL or open the oven door to clear the To Set a Delayed Cook Time: Before setting. make sure the clock is set to the correct time of day. See “Clock” section. 1. Press BAKE. 2. Set the temperature (optional). Press the TEMP/TIME “up” or “down” arrow pads to enter a temperature other than the one displayed. 3. Press COOK TIME. The cook time oven indicator light will light up. 4. Press the TEMP/TIME “up” or “down” arrow pads to enter the length of time to cook. 5. Press START TIME. The start time/delay oven indicator light will light up. 6. Press the TEMP/TIME “up” or “down” arrow pads to enter the time of day to start. 7. Press START/ENTER. When the start time is reached. the oven will automatically The temperature and/or time settings can be changed anytime after pressing START/ENTER by repeating steps 2-7. When the set cook time ends. the oven will shut off automatically and “End” will appear on the display. 8. Press OFF/CANCEL or open the oven door to clear the
  • Page 14 - English - : RANGE CARE Ge vo. f ny ae —— fm. Selr-Cleaning Cyc Burn Hazard Do not touch the oven during the Self-Cleaning cycle. Keep children away from oven during Self-Cleaning cycle. Failure to follow these instructions can result in burns. IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well-ventilated room. Self-clean the oven before it becomes heavily soiled. Heavy soil results in longer cleaning and more smoke. Keep the kitchen well-ventilated during the Self-Cleaning cycle to help get rid of heat. odors. and smoke. Do not block the oven vent(s) during the Self-Cleaning cycle. Air must be able to move freely. Depending on your model. see “Oven Vent” or “Oven Vents” section. Do not clean. rub. damage or move the oven door gasket. The door gasket is essential for a good seal. Prepare Oven: m Remove the broiler pan. grid. cookware and bakeware and. on some models. the temperature probe from the oven. m Remove any foil from the oven because it may burn or melt. damaging the oven. m Remove oven racks to keep them shiny and easy to slide. See “General Cleaning” section for more information. m Hand clean inside door edge and the 1%" (3.8 cm) area around the inside oven cavity frame. being certain not to move or bend the gasket. This area does not get hot enough during self-cleaning to remove soil. Do not let water. cleaner. etc. enter slots on door frame. Use a damp cloth to clean this m Wipe out any loose soil to reduce smoke and avoid damage. At high temperatures. foods react with porcelain. Staining. etching. pitting or faint white spots can result. This will not affect cooking performance. ZS ais. Bilin. hie (Pin OAM iin. Bigsle. 29s. ede yn Yan. 1 (on sorne models) Prepare Cooktop and Storage Drawer: m Remove plastic items from the cooktop because they may m Remove all items from the storage drawer. How the Cycle Works IMPORTANT: The heating and cooling of porcelain on steel in the oven may result in discoloring. loss of gloss. hairline cracks and popping sounds. The Self-Cleaning cycle uses very high temperatures. burning soil to a powdery ash. The oven is preset for a 3 hour 30 minute clean cycle. but the time can be changed. Suggested clean times are 2 hours 30 minutes for light soil and between 3 hours 30 minutes and 4 hours 30 minutes for average to heavy soil. Once the oven has completely cooled. remove ash with a damp cloth. Do not wipe down any of the inside surfaces until the oven has completely cooled down. Applying a cool. damp cloth to the inner door glass before it has cooled completely could result in the glass breaking. The oven light will not work during the Self-Cleaning cycle. To Self-Clean: Before self-cleaning. make sure the door is closed completely or it will not lock and the cycle will not begin. 1. Press AUTO CLEAN. 2. Press the TEMP/TIME “up” or “down” arrow pad to set a clean time other than 3 hours 30 minutes. The clean time can be set between 2 hours 30 minutes and 4 hours 30 minutes. 3. Press START/ENTER. The oven door will automatically lock. The ON and DOOR LOCKED oven indicator lights will light up. The door will not unlock until the oven cools. When the cycle is complete and the oven cools. “End” will appear on the oven display and the oven indicator lights will 4. Press OFF/CANCEL to clear the oven display. To Stop Self-Clean anytime: Press OFF/CANCEL. If the oven temperature is too high. the door will remain locked. It will not unlock until the oven cools.
  • Page 15 - English - : IMPORTANT: Before cleaning. make sure all controls are off and the oven and cooktop are cool. Always follow label instructions on cleaning products. Soap. water and a soft cloth or sponge are suggested first unless otherwise noted. LLBRBALARLLL LLL ILL ILL RL EL LIEESSSLPLLLLESSESL IS LLIB AISLEELEE SLT LARILLLLELLSNSSEOIS DES ELLIEELLIDISCLIIE EXTERIOR PORCELAIN ENAMEL SURFACES (on some ONS NNSA NNN SSDNA INNIS SASS ASDIIO Food spills containing acids. such as vinegar and tomato. should be cleaned as soon as the entire range is cool. These spills may affect the finish. Cleaning Method: m Glass cleaner. mild liquid cleaner or nonabrasive scrubbing Gently clean around the model and serial number plate because scrubbing may remove numbers. mg All-Purpose Appliance Cleaner Part Number 31662 (not included): See “Assistance or Service” section to order. VPLEELEL SPL IISLDA LLL LSS SAIS ELLER SILELLBEDALN SLSR ELDERS LIA LLB DPELDLDEEEIL ELLIE ELDERS STAINLESS STEEL (on some models) VLESELNIGLELL LLL LOLI DILISS LLL LLL LLL LDL LILLIE LILLIE LILLIE LILLIE LILLIE LILLE LLL LLL LLL LLL ILE LILLIE LELIIDIDBE. Cleaning Method: Rub in direction of grain to avoid damaging. m Stainless Steel Cleaner and Polish Part Number 31462 (not included): See “Assistance or Service” section to order. m Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft. lint-free cloth. mw Vinegar for hard water spots To avoid damage to stainless steel. do not use soap-filled scouring pads. abrasive cleaners. Cooktop Polishing Creme. steel-wool pads. gritty washcloths or some paper towels. METALLIC PAINT (on some models) Do not use abrasive cleaners. cleaners with bleach. rust removers. ammonia or sodium hydroxide (lye) because paint surface may stain. CERAMIC GLASS (on some models) Cleaning Method: Always wipe with a clean. wet cloth or sponge and dry thoroughly to avoid streaking and staining. Cooktop Cleaner Part Number 31464 is recommended regularly to help avoid scratches. pitting and abrasions and to condition the cooktop. and can be ordered as an accessory. See “Assistance or Service” section to order. Cooktop Scraper Part Number 3183488 is also recommended for stubborn soils. and can be ordered as an accessory. See “Assistance or Service” section to order. The Cooktop Scraper uses razor blades. Store razor blades out of the reach of Light to moderate soil m Paper towels or clean damp sponge: Clean while the cooktop is still warm. You may want to wear oven mitts while cleaning the cooktop. Sugary spills (jellies. candy. syrup) m Cooktop Scraper: Clean while the cooktop is still warm. You may want to wear oven mitts while cleaning the cooktop. m Cooktop Polishing Creme and clean damp paper towel: Clean as soon as cooktop has cooled down. Rub creme into surface with a damp paper towel or soft cloth. Continue rubbing until white film disappears. Heavy soil. dark streaks. specks and discoloration m Cooktop Polishing Creme or nonabrasive cleanser: Rub product into soil with a damp paper towel or soft cloth. Continue rubbing until white film disappears. Burned-on soil m Cooktop Cleaner and Cooktop Scraper: Rub creme into soil with damp paper towel. Hold scraper as flat as possible on surface and scrape. Repeat for stubborn spots. Polish entire cooktop with creme and paper towel. Metal marks from aluminum and copper m Cooktop Cleaner: Clean as soon as cooktop has cooled down. Rub creme into surface with a damp paper towel or soft cloth. Continue rubbing until white film disappears. The marks will not totally disappear. but after many cleanings they will become less noticeable. Tiny scratches and abrasions m Cooktop Cleaner: Rub creme into surface with a damp paper towel or soft cloth. Continue rubbing until white film disappears. Scratches and abrasions do not affect cooking performance. and after many cleanings they will become less noticeable. Do not use steel wool. abrasive powder cleansers. chlorine bleach. rust remover or ammonia because damage may occur. COOKTOP CONTROLS SASS LLL ITD Cleaning Method: When replacing knobs. make sure knobs are in the Off position. On some models. do not remove seals under knobs. m Soap and water or dishwasher: Pull knobs straight away from control panel to remove. Do not use steel wool. abrasive cleansers or oven cleaner. Do not soak knobs. LBLBELRDPIBE LESLIE ALLAN SLI ELLE LPL BP PLLA RLRBR LLAMAS LEELA LLLP LLEL ELIS CONTROL PANEL VOR ELBE ISDS SLEEPS LL LLLL LDL LIL DEL LIL LLELDDI LLIB IDE DELI LIEELDELI LIED LLL LEBEL LDPE DELI LIE DELILE DELI LILLE DI LDORED Cleaning Method: m Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge. not directly on panel. m All-Purpose Appliance Cleaner Part Number 31662 (not included): See “Assistance or Service” section to order. Do not use abrasive cleaners. steel-wool pads. gritty washcloths or some paper towels. Damage may occur.
  • Page 16 - English - : COIL ELEMENTS (on some models) Cleaning Method: m Damp cloth: Make sure control knobs are off and elements Do not clean or immerse in water. Soil will burn off when hot. For more information. see “Coil Elements and Burner Bowls.” BURNER BOWLS (on some models) Cleaning Method: Chrome only mB Solution of % cup (125 mL) ammonia to 1 gal. (3.75 L) water: Soak for 20 minutes. then scrub with stainless steel-wool m Oven cleaner: Follow product label instructions. m Mildly abrasive cleanser: Scrub with wet scouring pad. Porcelain enamel only m Dishwasher m Gas Grate and Drip Pan Cleaner Part Number 31617 (not included): See “Assistance or Service” section to order. SURFACE UNDER COOKTOP (on some models) For more information. see “Lift-up Cooktop” section. Cleaning Method: m Steel-wool pad Do not remove the cooktop to avoid product damage. OVEN DOOR EXTERIOR VORB SESAME ISS SLLPELLLEARI DISSIDIA ILE ILI ILLEDL IDLE DEIL OED LIL IED DIELD EDDIE EIDE BED IDLE DEEL ELBE LIL DELI DELELD EL DEDLLDEDDA Cleaning Method: m Glass cleaner and a soft cloth or sponge: Apply glass cleaner to soft cloth or sponge. not directly on mg All-Purpose Appliance Cleaner Part Number 31662 (not included): See “Assistance or Service” section to order. OVEN CAVITY VORLBIVS SELLA LLL LLL LILLARD LILOL RDI LAL LADD LILLE LL LLELELELEELELILEEE Food spills should be cleaned when oven cools. At high temperatures. foods react with porcelain and staining. etching. pitting or faint white spots can result. Cleaning Method: m Self-Cleaning cycle: See “Self-Cleaning Cycle’ first. Do not use oven cleaners. VOQBPEEPE DDO ILS BELL LDS LIEBE DLL PSLRA OVEN RACKS AND ROASTING RACKS LIELLESLLDEP DLE LL LLL ISLE LILIA SSDI DIDIER LLLP LILLIA LISDIILIILIE. Cleaning Method: m Self-Cleaning cycle: See “Self-Cleaning Cycle” first. Remove racks or they will discolor and become harder to slide. If this happens. a light coating of vegetable oil applied to the rack guides will help them slide. m Steel-wool pad VBEPPBLLAL LLL ILLES IED ILLES LDS LOLI LRMLELIDP RSL LAE IEILDEEESSSLBILI ESSELTE RELESSS SLEDS BESIVLESTSLLALILA LDL DLDA LAD SISID: BROILER PAN AND GRID (on selected models) Cleaning Method: Chrome only m Mildly abrasive cleanser: Scrub with wet scouring pad. m Solution of Ye cup (125 mL) ammonia to 1 gal. (3.75 L) water: Soak for 20 minutes. then scrub with scouring or steel-wool m Oven cleaner: Follow product label instructions. Porcelain enamel only m Dishwasher Do not clean in the Self-Cleaning cycle. STORAGE DRAWER (on some models) LAGAN DLN SN DES SSST SONNE ISS EDDSRSIAN DAD Make sure drawer is cool and empty before cleaning. For more information. see “Storage Drawer” section. Cleaning Method: mw Mild detergent Drawer Liner (on some models) Remove all stored items from drawer and lift out drawer liner. m Clean with mild detergent. mg All-Purpose Appliance Cleaner Part Number 31662 (not included): See “Assistance or Service” section to order. WARMING DRAWER and TRAY (on some models) Make sure drawer is cool and remove tray. Cleaning Method: mw Mild detergent (for both) m All-Purpose Appliance Cleaner Part Number 31662 (not included): See “Assistance or Service” section to order. Oven Light (on sorne models) The oven light is a standard 40-watt appliance bulb. It will come on when the oven door is open. The oven light will not work during the Self-Cleaning cycle. On some models. when the oven door is closed. press the manual oven light switch on the backguard to turn on and off. Before replacing. make sure the oven and cooktop are cool and the control knobs are in the off position. To Replace: 1. Unplug range or disconnect power. 2. Turn the glass bulb cover in the back of the oven counterclockwise to remove. 3. Turn bulb counterclockwise to remove from socket. 4. Replace bulb. then bulb cover by turning clockwise. 5. Plug in range or reconnect power.
  • Page 17 - English - : For normal range use. it is not suggested to remove the oven door. However. if removal is necessary. make sure the oven is off and cool. Then. follow these instructions. The oven door is heavy. To Remove: 1. Open oven door all the way. 2. Flip up the hinge latch on each side. 3. Close the oven door as far as it will shut. 4. Lift the oven door while holding both sides. Continue to push the oven door closed and pull it away from the oven door frame. To Replace: 1. Insert both hanger arms into the door. 2. Open the oven door. You should hear a “click” as the door is set into place. 3. Move the hinge levers back to the locked position. Check that the door is free to open and close. If it is not. repeat the removal and installation procedures. a4 ip. Bh things lbs. itn o%. sh rigs Be $8 pitea. Veet sOTICe VICGWeT The storage drawer can be removed. Before removing. make sure drawer is cool and empty. To Remove: 1. Pull the storage drawer straight back past the drawer stop notch and the end of the side rails. A. Drawer stop notch B. End of side rail 2. Lift up the back of the drawer and pull the drawer out. To Replace: 1. Lift up the back of the drawer and place it inside the range in its fully forward position. 2. Lift up the front of the drawer to a level position. 3. Slowly push the drawer into the range until the drawer side rails engage with the gap in the drawer glides. A. Engage drawer glide. 4. Once the drawer is fully engaged on both sides. slide the drawer back into the closed position. NOTE: When you are removing and replacing the storage drawer. a slight push may be needed to move the drawer stop notch past the drawer glides.
  • Page 18 - English - : TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Nothing will operate m Is the power supply cord unplugged? Plug into a grounded outlet. m Has a household fuse blown. or has a circuit breaker Replace the fuse or reset the circuit breaker. If the problem continues. call an electrician. Cooktop will not operate m Is the control knob set correctly? Push in knob before turning to a setting. m Onceramic glass models. is the oven control lockout set? See “Oven Control Lockout” section. Excessive heat around cookware on cooktop m Is the cookware the proper size? Use cookware about the same size as the surface cooking area. element or surface burner. Cookware should not extend more than ¥2" (1.3 cm) outside the cooking area. Hot Surface indicator light stays on = Does the Hot Surface indicator light stay on after control knob(s) have been turned off? See “Cooktop Controls” section. VOBBEEBIED SALA REI LDPRES RELAIS DSLLEEESSS EEL LER LID ILES RE LDEVSLLBIIL LILLIES LEIS: Cooktop cooking results not what expected m Is the proper cookware being used? See “Cookware” section. gm Is the control Knob set to the proper heat level? See “Cooktop Controls” section. m Is the range level? Level the range. See the Installation Instructions. VLLLEBLLSLLOLRO LIAS LILLIA SES SERIES ALESIS ALS SSSR Oven will not operate DOOLBELRLDPALBDISS SLID ISLIIS ESSE LEELISSNLI EEE mw Is the electronic oven control set correctly? See “Electronic Oven Control” section. m Has adelay start been set? See “Timed Cooking” section. = Onsome models. is the oven control lockout set? See “Oven Control Lockout” section. VBLBPBALLBELIERE LEER ILL ISSA DI LIDESS EES DISASTERS LEEDS LLL SLSLL SLIDELL Oven temperature too high or too low = Does the oven temperature calibration need adjustment? See “Oven Temperature Control” section. m= On some models. does the cooling fan run during BAKE. BROIL or CLEAN? It is normal for the fan to automatically run when the oven is in use. This helps cool the electronic control. Oven indicator lights flash m Do the oven indicator lights flash? See the “Display” and/or the “Oven Indicator Lights” section. If the indicator light(s) keeps flashing. call for service. See “Assistance or Service” section. Display shows messages SOAS SNA SSSI mg Is the display showing a flashing time? There has been a power failure. Clear the display. See “Display(s)” section. On some models. reset the clock. if needed. See “Clock” section. gm Is the display showing a letter followed by a number? Depending on your model. press OFF/CANCEL. OFF or CANCEL/OFF to clear the display. See “Display(s)” section. If it reappears. call for service. See “Assistance or Service” Self-Cleaning cycle will not operate m Is the oven door open? Close the oven door all the way. m Has the function been entered? See “Self-Cleaning Cycle” section. m On some models. has a delay start Self-Clean cycle been See “Self-Cleaning Cycle” section. m Has a delay start been set? See “Timed Cooking” section. BLEEP EILEEN SSI SLL LSS DSSS VLE SESS LL SINISE ISIS IIS SEN BE SSE LISS SSDI IDI ID DDD IDEAL DIDI Oven cooking results not what expected m Is the range level? Level the range. See the Installation Instructions. mw Is the proper temperature set? Double-check the recipe in a reliable cookbook. m Is the proper oven temperature calibration set? See “Oven Temperature Control” section.
  • Page 19 - English - : m Was the oven preheated? See “Baking and Roasting” section. m Is the proper bakeware being used? See “Bakeware” section. m Are the racks positioned properly? See “Positioning Racks and Bakeware” section. m Is there proper air circulation around bakeware? See “Positioning Racks and Bakeware” section. m Is the batter evenly distributed in the pan? Check that batter is level in the pan. mw Is the proper length of time being used? Adjust cooking time. m Has the oven door been opened while cooking? Oven peeking releases oven heat and can result in longer cooking times. m Are baked items too brown on the bottom? Move rack to higher position in the oven. m Are pie crust edges browning early? Use aluminum foil to cover the edge of the crust and/or reduce baking temperature. ASSISTANCE OR SERVICE Before calling for assistance or service. please check “Troubleshooting.” It may save you the cost of a service call. If you still need help. follow the instructions below. When calling. please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts. we recommend that you use only factory-authorized replacement parts. These replacement parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory-authorized replacement parts in your area. call us or your nearest designated service center. Call the Customer eXperience Center toll free: 1-800-253-1301. Our consultants provide assistance with: m Features and specifications on our full line of appliances. Installation information. Use and maintenance procedures. Accessory and repair parts sales. Specialized customer assistance (Spanish speaking. hearing impaired. limited vision. etc.). m Referrals to local dealers. repair parts distributors. and service companies. Our service technicians are trained to fulfill the product warranty and provide after-warranty service. anywhere in the United States. To locate the authorized service company in your area. you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance. you can write with any questions or concerns at: Customer eXperience Center 553 Benson Road Benton Harbor. MI 49022-2692 Please include a daytime phone number in your correspondence. PG GP 6% fa. Pager Accessories U.S.A. To order accessories. call the Whirlpool Customer eXperience Center toll free at 1-800-442-9991 and follow the menu prompts. Or visit our website at www.whirlpool.com and click on “Parts & Accessories.” Canning Unit Kit (coil element models) Order Part Number 242905 Cooktop Cleaner (ceramic glass models) Order Part Number 31464 Cooktop Protectant Order Part Number 31463 Cooktop Care Kit (includes cleaner. protectant. and applicator pads) Order Part Number 31605 Cooktop Scraper (ceramic glass models) Order Part Number 3183488 Stainless Steel Cleaner and Polish (stainless steel models) Order Part Number 31462 All-Purpose Appliance Cleaner Order Part Number 31662
  • Page 20 - English - : WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY ONE YEAR LIMITED WARRANTY For one year from the date of purchase. when this major appliance is operated and maintained according to instructions attached to or furnished with the product. Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty applies only when the major appliance is used in the country in which it was purchased. ITEMS WHIRLPOOL WILL NOT PAY FOR 1. Service calls to correct the installation of your major appliance. to instruct you how to use your major appliance. to replace or repair house fuses or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs. air filters or water filters. Those consumable parts are excluded from warranty 3. Repairs when your major appliance is used for other than normal. single-family household use. 4. Damage resulting from accident. alteration. misuse. abuse. fire. flood. acts of God. improper installation. installation not in accordance with electrical or plumbing codes. or use of products not approved by Whirlpool. 5. Any food loss due to refrigerator or freezer product failures. 6. Replacement parts or repair labor costs for units operated outside the United States or Canada. 7. Pickup and delivery. This major appliance is designed to be repaired in the home. 8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance. 9. Expenses for travel and transportation for product service in remote locations. 10. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. 11. Replacement parts or repair labor costs when the major appliance is used in a country other than the country in which it was purchased. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES. INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS. WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Outside the 50 United States and Canada. this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service. first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting. additional help can be found by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A. call 1-800-253-1301. In Canada. call 1-800-807-6777. Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product. W10120510A All rights reserved. Dealer name Phone number Model number Serial number Purchase date Printed in U.S.A.
