USER'S OPERATION MANUAL
Thank you for choosing . We are sure you will find your new refrigerator a
pleasure to use. However, before you use the appliance, we recommend that you
carefully read the instructions, which provide details about installing and using the
product. Please keep this manual for future reference.
our appliance
Thank you for choosing Hisense. We are sure you will find your new refrigerator a
pleasure to use. However, before you use the appliance, we recommend that you
carefully read the instructions, which provide details about installing and using the
product. Please keep this manual for future reference.
2
REFRIGERATOR SAFETY............................................................................................ 3
PARTS AND FEATURES............................................................................................. 5
INSTALLATION REQUIREMENTS................................................................................. 6
Location Requirements............................................................................................ 6
Electrical Requirements........................................................................................... 6
INSTALLATION INSTRUCTIONS.................................................................................. 7
Unpack the Refrigerator........................................................................................... 7
Installation Positioning............................................................................................. 7
Door Removal.......................................................................................................... 7
Move Near Water Supply.......................................................................................... 8
Connect the Water Supply....................................................................................... 9
Complete the Installation........................................................................................ 10
Level Refrigerator..................................................................................................... 10
Align Doors.............................................................................................................. 10
REFRIGERATOR USE................................................................................................. 11
Opening and Closing Doors.................................................................................... 11

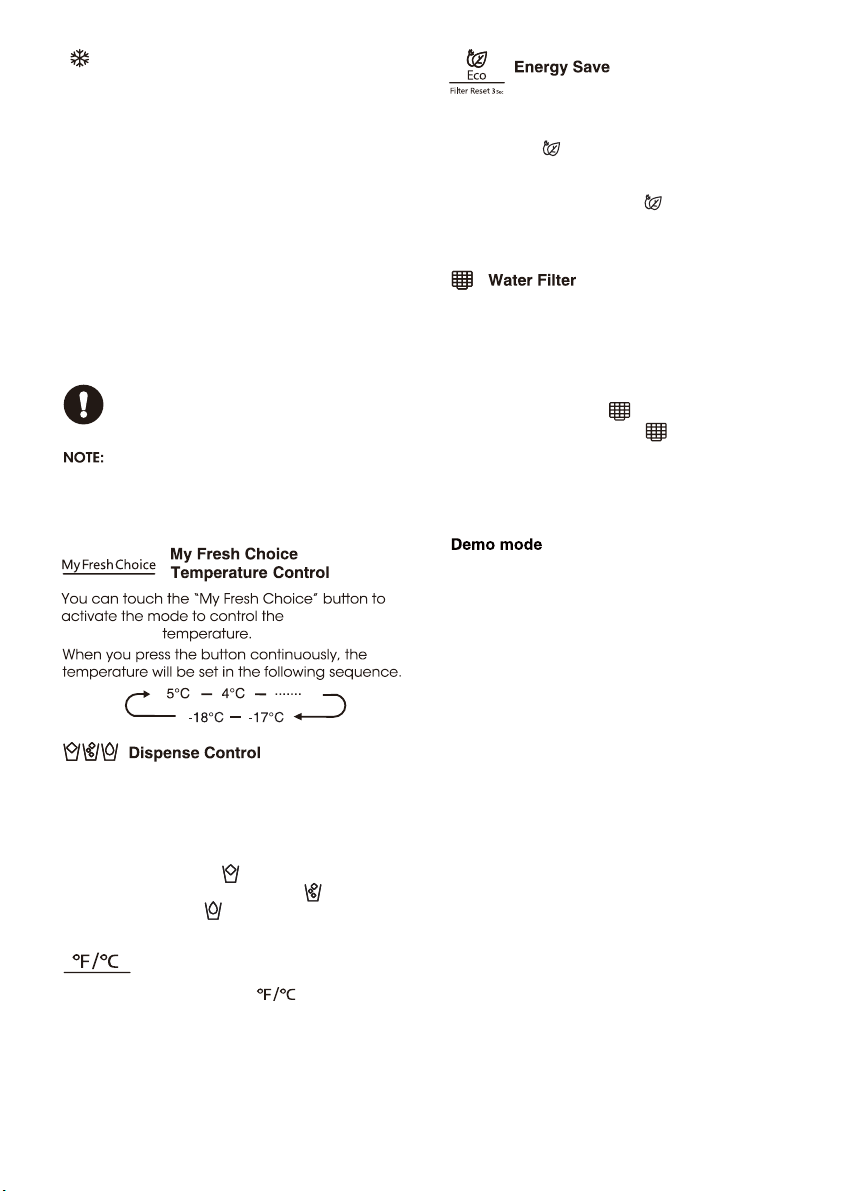

Using the Controls.................................................................................................... 12
Features................................................................................................................... 14
General Use Information.......................................................................................... 17
REFRIGERATOR CARE.............................................................................................. 19
Cleaning.................................................................................................................. 19
Lights....................................................................................................................... 19
Vacation and Moving Care..................................................................................... 20
Reinstalling/Using Refrigerator Again...................................................................... 20
TROUBLESHOOTING................................................................................................ 21
Y
3
Important Safety Instrutions
WARNING:To reduce the risk of fire,electrical shock,
injury to persons,or damage when using the refrigerator,
follow basic precautions,including the following:
· Ensure everyone using this
appliance is familiar with
its operations and safety
features.
· This appliance is not
intended for use by persons
(including children) with
reduced physical,sensory
or mental capabilities,
unless supervised or
properly instructed.
· Children should be
supervised to ensure that
they do not play with the
appliance.
· Plug into a grounded 3
prong outlet.
· Do not remove ground
prong.
· Do not use an adapter.
· Do not use an extension
cord.
· Do not damage the
refrigerant circuit.
· When positioning the
appliance,ensure the
supply cord is not trapped
or damaged.
· Do not locate multiple
portable socket-outlets or
portable power supplies at
the rear of the appliance.
· If the power supply cord is
4
damaged,it must be
replaced by the manufaturer,
its service agent or a
similarly qualified person
to avoid a hazard.
· Disconnect power before
servicing.
· Do not use electrical
appliances inside the food
storage compartments of
the refrigerator,unless they
are of the type
recommended by the
manufacturer.
· Replace all parts and
panels before operating.
·
CAUTION:Risk of fire
or flammable materials
· Flammable refrigerant
used.To be repaired only
by trained service
personnel.Do not puncture
refrigerant tubing.
· Flammable refrigerant
used.Dispose of properly
in accordance with federal
or local regulations.
· Flammable refrigerant used.
Follow handling instructions
carefully.Risk of fire or
explosion due to puncture
of refrigerant tubing.
· It is hazardous for anyone
other than an Authorized
Service Person to service
this appliance.In Queensland
the Authorized Service
Persion MUST hold a Gas
Work Authorization for
hydrocarbon refrigerants
to carry out servicing or
repairs which involve
removal of covers.
· Use nonflammable cleaner.
· Do not use mechanical
devices or other means to
accelerate the defrosting
process,other than those
recommended by the
manufacturer.
· Keep flammable materials
and vapors,such as gasoline,
away from refrigerator.
· CAUTION:Do not store
products which contain
flammable propellants(e.g.
spray cans) or explosive
substances in the refrigerator.
· Keep ventilation openings in
the appliance enclosure or in
the built-in structure clear of
obstruction.
· Connect to potable water
supply only.
· Use two or more people to
move and install refrigerator.
· To avoid the risk of children
becoming trapped and
suffocating,do not allow
them to play or hide inside
the refrigerator.
Read and Save These Instructions
Your model may look different from this and other images in this manual,depending on
your model’s features.
Parts and Features
Proper Disposal of Your Old Refrigerator
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
Suffocation Hazard
IMPORTANT: Child entrapment and suffocation are
not problems of the past. Junked or abandoned
refrigerators are still dangerous– even if they will sit
for “just a few days.” If you are getting rid of your old
refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or
Freezer:
Take off the doors.
Leave the shelves in place so that children may
not easily climb inside.
Important information to know about disposal
of refrigerants:
Dispose of refrigerator in accordance with
Federal and Local regulations. Refrigerants
must be evacuated by a licensed, EPA certified
refrigerant technician in accordance with
established procedures.
5
NOTE:
To get the best energy efficiency of this product, please place all shelves, drawers on their
original position as the illustration above.
A
G
I
L
M
Refrigerator LED Light
B
C
D
E
N
O
J
K
H
F
NOTE:
P
Q
A
Water Filter
B
C
D
E
F
Refrigerator Door Bin
Ice-Maker
Rotary Separator
Glass Shelf
G
Refrigerator Side Light
Storage Drawer
Middle Storage Drawer
My Fresh Choice Drawer
Freezer Drawer
Down Freezer Drawer
H
I
J
K
L
M
Fridge Door Left
N
O
P
Q
Fridge Door Right
My Fresh Choice Door
Freezer Door
Leveling Leg

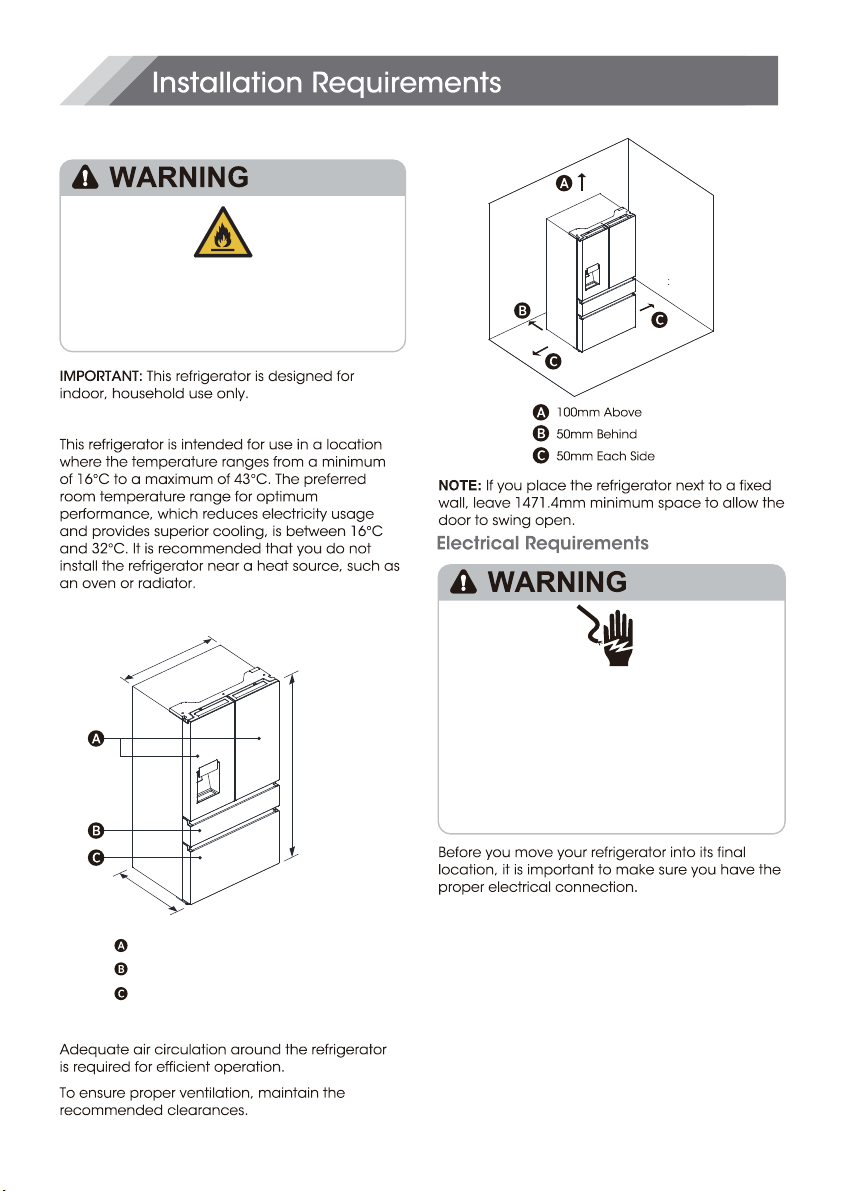

Location Requirements
6
Risk of fire/ flammable materials
Keep flammable materials and vapors,such as
gasoline,away from appliance.
Failure to do so can result in death,explosion or fire.
Electrical Shock Hazard
Plug into a grounder 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death,fire or
electrical shock.
Recommender Clearances
Temperature
Exterior and Dimensions
Ventilation
Recommender Grounding Method
914mm
725mm
mm5871
Refrigerator doors
My fresh chioce door
Freezer door
AC 220-240 volt, 50 Hz, AC only 15- or 20-amp fused,
grounded electrical supply is required. It is
recommended that a separate circuit serving only
your refrigerator is provided. Use an outlet that
cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Befor performing any type of installation or
cleaning, disconnect the refrigerator from the
electrical source. When you have finished, reconnect
the refrigerator to the electrical source and reset
the temperature controls to the desired setting.
Unpack the Refrigerator

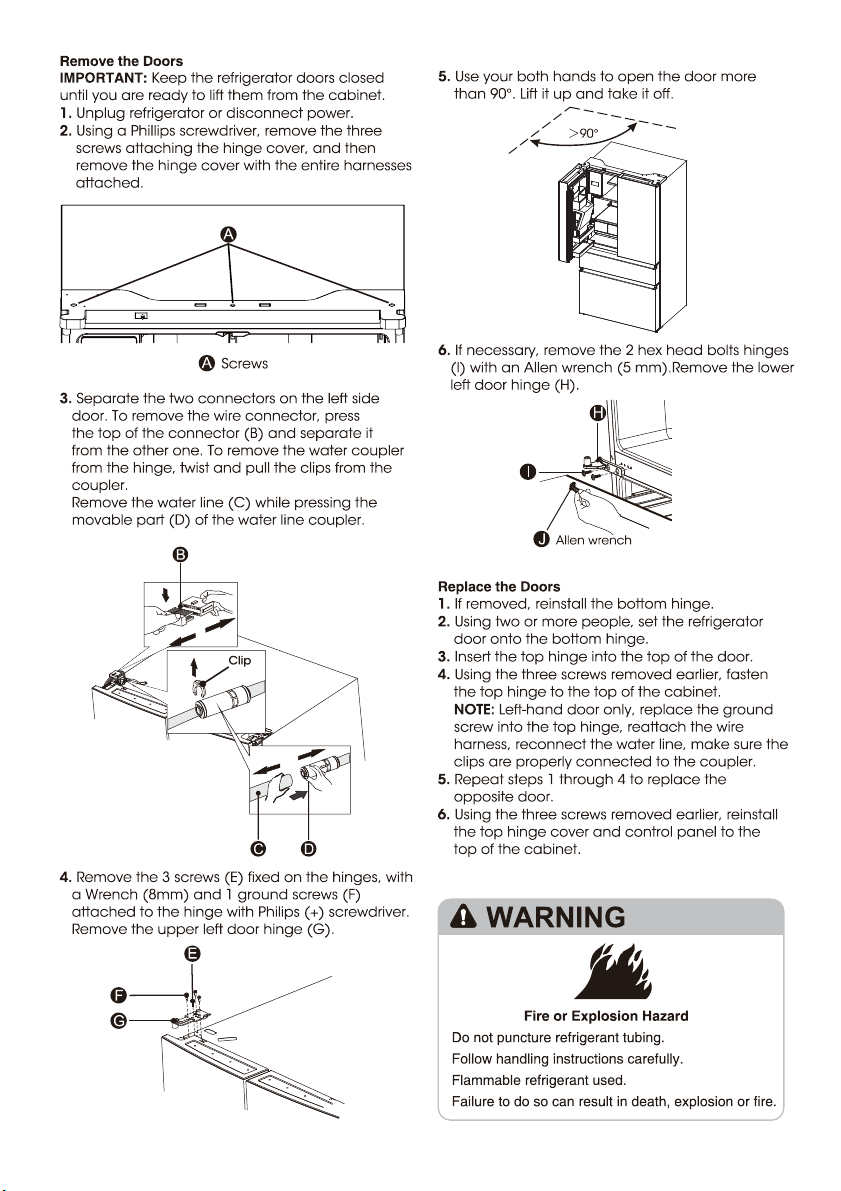

Door Removal
(only if needed)
7
,
Move Near Water Supply
8
Connect the Water Supply
9
can be filled in about 10 seconds.
leaking. Insert the 2 clips in the installation pack
as shown in the diagram, and then confirm that
10
10mm to 15mm
A
C
B
A
C
B
Adjustable foot
Roller
Roller
big gasket 2 pcs
small gasket 2 pcs
Level Refrigerator if needed
coming out from the appliance when you
The gaskets are used to align doors, you can find
11

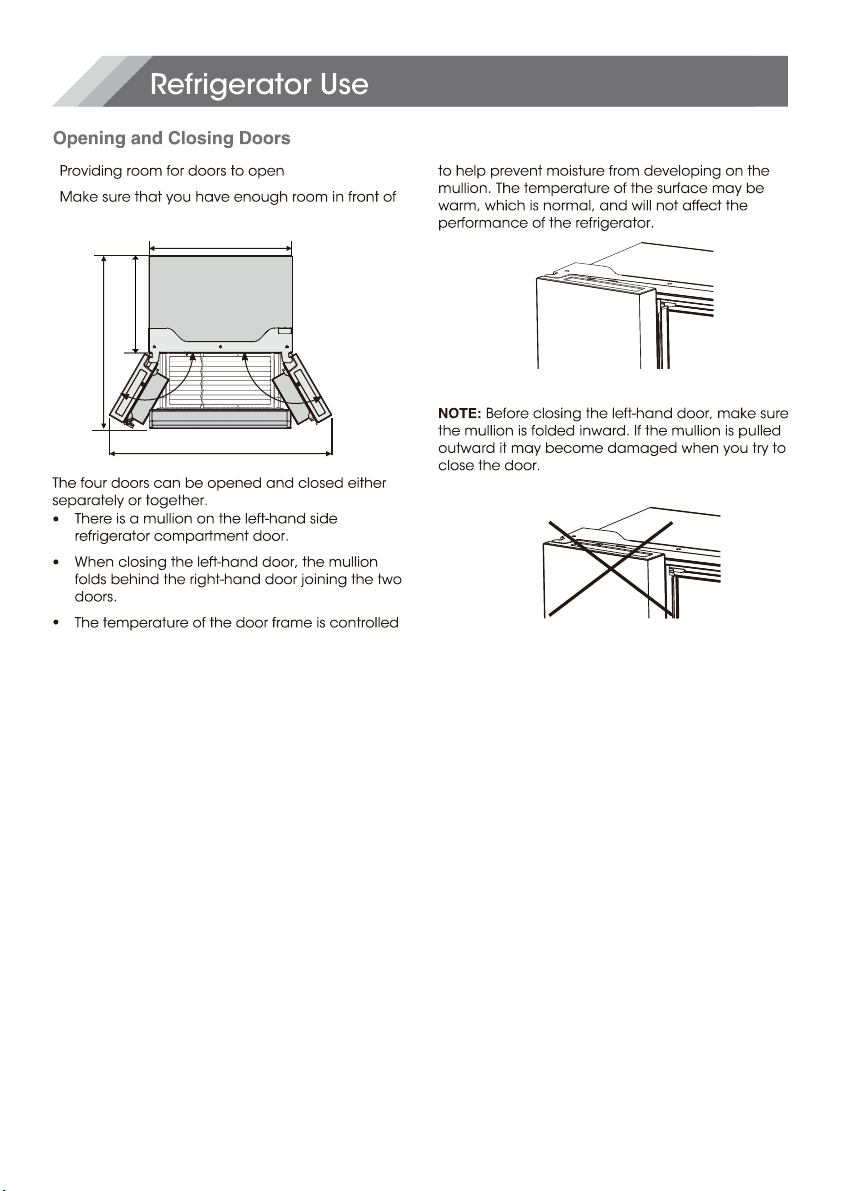

125°
125°
908mm
1471.4mm
1115mm
610mm
your refrigerator to swing the doors open.
12
turn
Leaving any door open for over 2 minutes will
activate door alarm. The “ ” icon will flicker, the
control panel will display “dr” , and you will hear a
buzzer sound. The buzzer will sound 3 times per
minute and will stop after 8 minutes. In case of
alarm, you can touch the Alarm button to cancel
door alarm, then the “ ” icon stops flickering and
keeps on, the buzzer sound will stop at the same
time. Also door alarm can be stopped by closing
all the doors.
To save energy, please avoid keeping doors open
for a long time when using refrigerator.
You can touch the “Freezer” button to activate the
mode to control the freezer temperature. When you
press the button continuously, the temperature will
be set in the following sequence.
Press and hold the button for 3 seconds, the icon
On the Super Cool Function, when you touch the
“Eco” button, Eco function will be activated, and
“Super Cool” mode will be off.
The control panel is shown in the diagram below.
Press and hold "Alarm" for 3 seconds to lock the
whole Control Panel including dispenser function
If Control panel is locked, the icon “ ” will be on,
and none of the buttons on the Control panel
work. To unlock the Control panel, please press
and hold “Alarm” for 3 seconds again.
You can touch “Ice Off” button to control the ice
maker. When the Child Lock is off, you can touch
the “Ice Off” icon to lock the ice maker, and the
icon “ ” will be illuminated. If you want to unlock
the ice maker, please touch the “Ice Off” icon
again, and the icon “ ” will be off.
NOTE: When the “Ice Off” is on, it only locks the ice
maker not the dispenser.
be illuminated, the fridge temperature setting will
items in the Fridge, please touch and hold this
13
In the unlocked state, press button to switch
between Celsius and Fahrenheit units. The default
state is Celsius display.
convertible
compartment
When the Child Lock is on,the dispenser will not
work.When the Child Lock is off,you can press the
“Cubed”or “Crushed” option to choose the type of
ice to be dispensed,and press the “Water” button
will activate the water mode.If you choose the
function of Cubed,the “ ” icon will be illuminated,
choose the fuction of Crushed the “ ” icon will be
illuminated,and the “ ” icon will be illuminated
when Water function is chosen.
You can touch this button to turn Energy Save
mode on and off. When you turn Energy Save on,
the Eco icon “ ” lights.
The temperature of the fridge is automatically
switched to 6°C and the freezer to -17°C.
If Energy Save is off, the icon“ ” will go off and the
temperature setting will revert back to the previous
setting.
On the Super Freezer Function, when you touch
the “Eco” button, Eco function will be activated,
and “Super Freezer” mode will be off.
Demo mode is for store display,and it prevents
the refrigerator from generating cool air. In this
Cooling off Mode, the refrigerator may seem
like it is working but it will not make cool air.
The indicators on the control panel will show
“OFF”. To cancel this mode, press and hold
“Alarm” and “°F/°C” keys at the same time for
3 seconds and the buzzer will make a long
sound.
The state of the water filter is calculated by the
main control board and transmitted to the
display panel.The first time the power is switched
on and the water enters the filter, the filter state
is calculated at 99%. When the water filter state
drops to 15%, the icon “ ” is lit. When the filter
state reaches 10%, the icon “ ” will flash, The
user needs to replace the filter and long press
the Energy Save Button for 3 seconds to reset
the water filter state.The filter state will then be
re-calculated to 99%.
“ ” will be illuminated, the freezer temperature
setting will display -24°C.
Super Freeze can quickly lower the temperature
and freeze your food faster than usual. This can
retain more of the vitamins and nutrition in fresh
food and keep your food longer.
Super Freeze automatically switches off after 52
hours, and the freezer temperature setting will
revert back to the previous setting.
When the Super Freeze function is on, you can
touch “Freezer” to switch off the Super Freeze
function.
The Super Freeze is used to perform pre-freezing
and fast freezing in sequence of Freezer
compartment. This function accelerates the
freezing of fresh food and,at the same time,
protects foodstuffs already stored from
undesirable warming.
To freeze fresh food activate
the Super Freeze function at
least 24 hours before placing
the food to complete pre-freezing
14
NOTE: Unscrew the drawer before taking it out.
1. Pull out drawer to maximum extension.
2. Lift up to remove the drawer.
3. Reverse steps 1 and 2 to replace the drawer.
3. Removing/Replacing freezer drawer
passes the rail support.

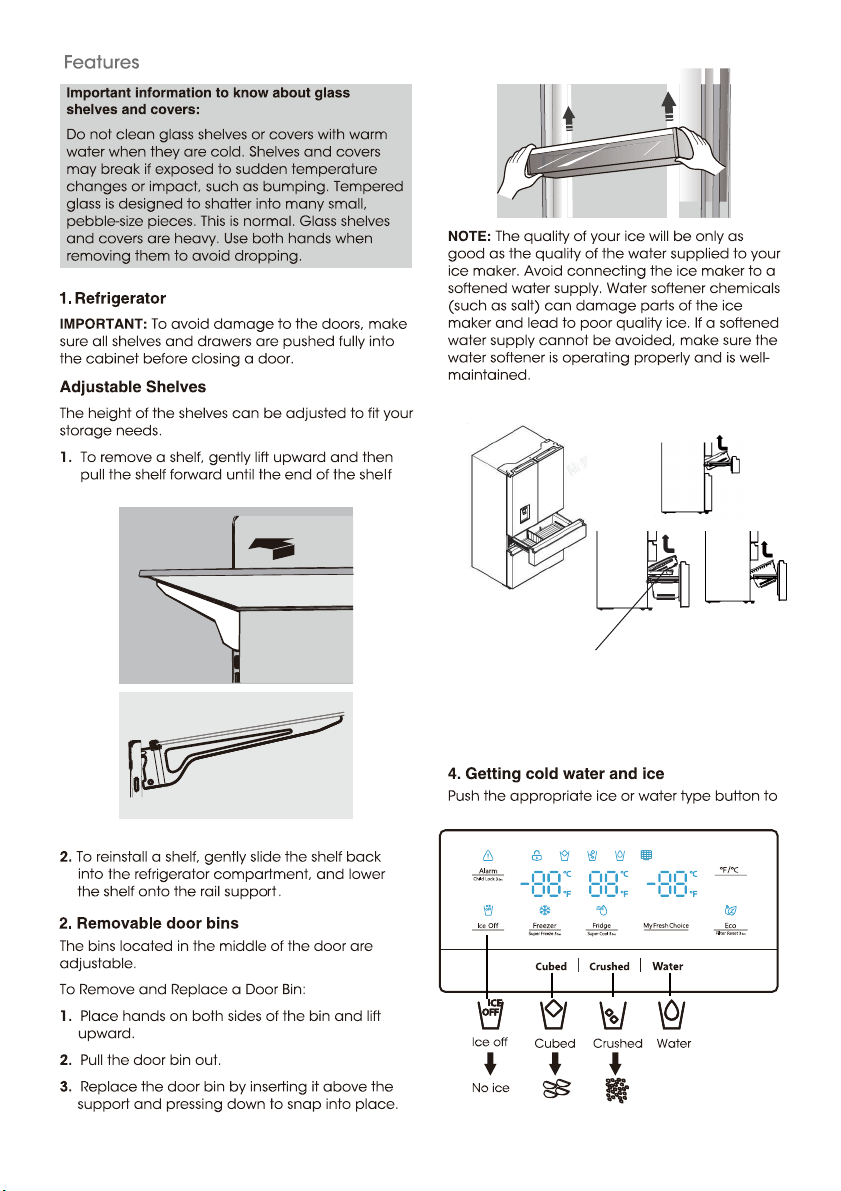

select what you want to dispense.
(1)
(2)
First, open the door at the maximum Angle.
125
15

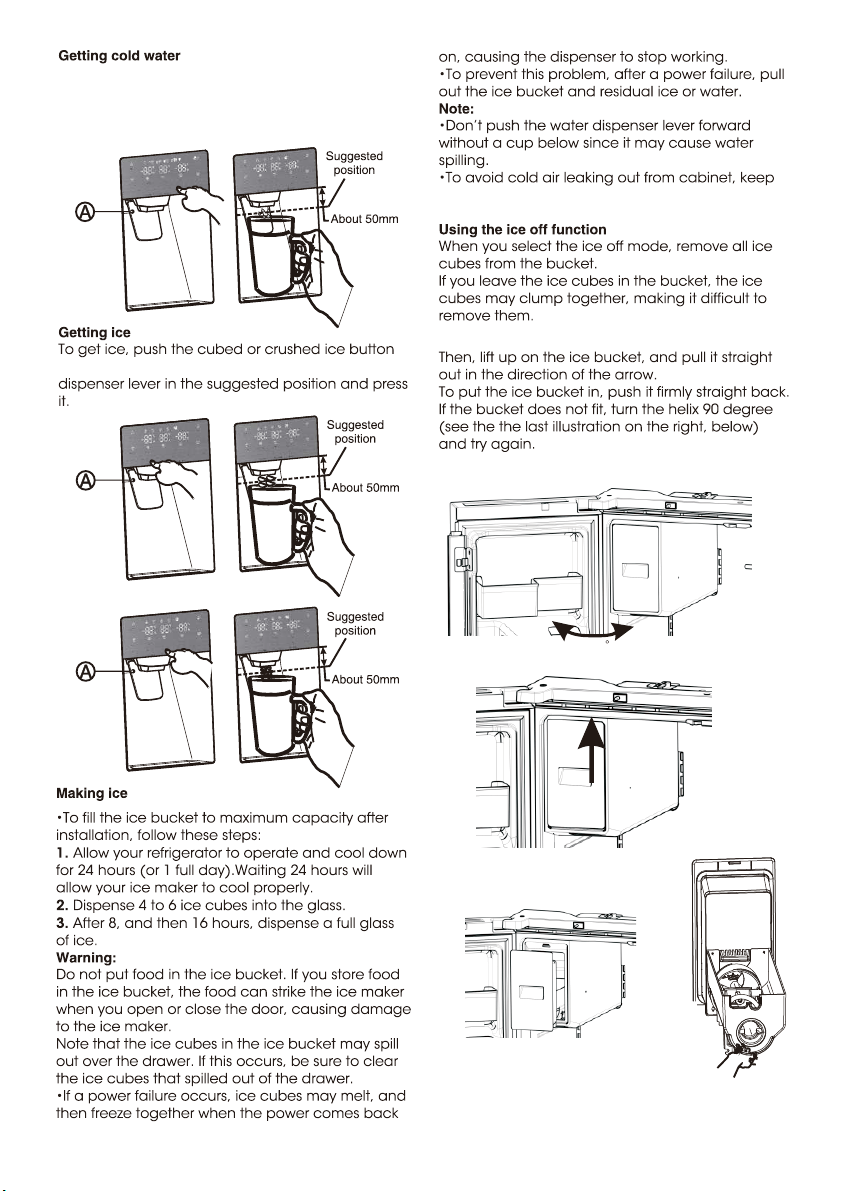

The water dispenser is located in the fridge door.
To get water, push the water button. Then move
your glass down to the dispenser lever (A) in the
suggested position and press it.
as required. Then move your glass down to the
the water dispenser still installed even if the
dispenser is not in use.
16
When the user disconnects from the refrigerator,
the ice from the ice box needs to be removed.
Caution
Please refer to the owner’s manual for proper
maintenance and operation. If this device is not
maintained and operated as specified in the owner’s
manual, there is a risk of exposure to contaminants.

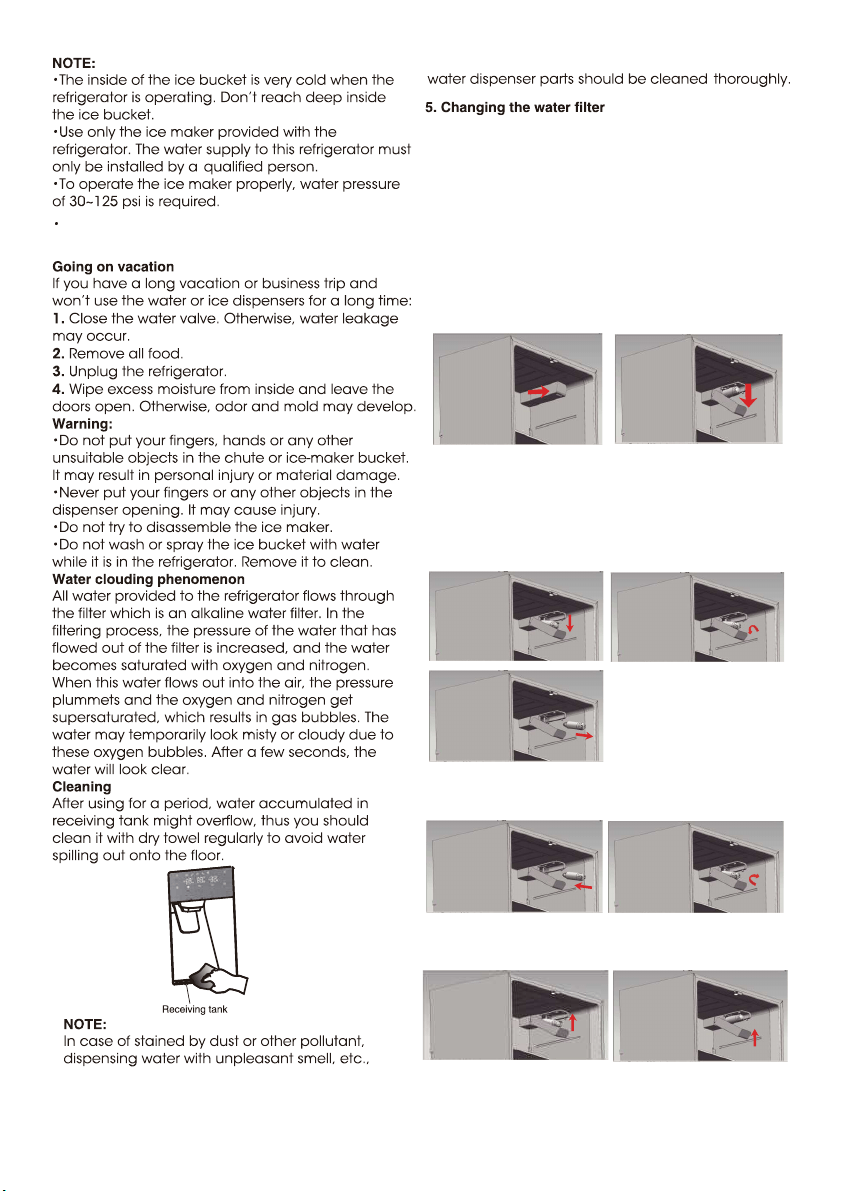

2. Pull the water filter down wards and turn it about 90°
counter-clockwise to take it out. When the filter is
disassembled, pay attention to keep the filter head
upward tilted to avoid water leaking from the front
filter part And the dropped water in the cover should
be cleaned immediately.
3. Insert the new water filter into the hole, and at the
same time turn it about 90° clockwise until it stops.
4. Push the water filter up, and move the cover up to
horizontal and push it until it locks.
To drink the freshest and cleanest water from your
refrigerator, change the filter on time.
To change the water filter, follow these steps:
1. Shut off the water supply. Then pull the handle under
the cover outwards to open the cover.
17
5 . Turn the water supply back on.
NOTE: After turning on the water supply, you should
check the leaks. If leaks occur, repeat the above
operation steps 1-5. If leaks persisit,please stop using
it and call your supporting dealers.
6 . Flush filter for 5 minutes before use.
2. Let the water flow through the dispenser until it
becomes clear (after approx.6 to 7 minutes). This
will clean the water supply system and remove
the air from the lines.
reduce the water pressure when used in
conjunction with a reverse osmosis system. Remove
the water filter.
To relocate the door baskets (A), slide them in above
the desired location and push down until them stop.
To relocate the door baskets (B), slide them into the
original location and push down until them sticks.
To remove the glass shelves, tilt up the front of the
shelf shown in Page14 (1) and lift it up vertically
shown in Page14 (2). Then pull the shelf out.
18

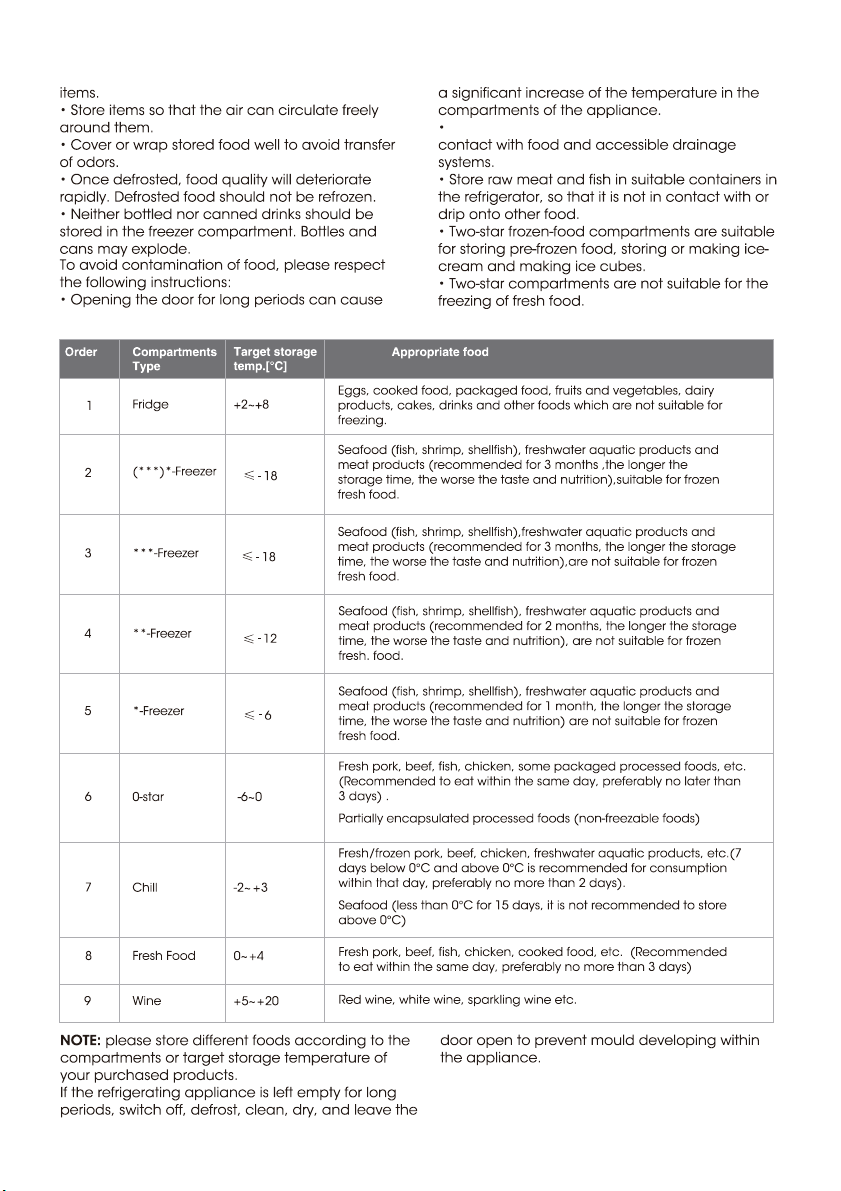

Clean regularly the surfaces that can come in
Make sure the compliance is checked by regular
inspections.
19
When cleaning the shelf parts, remove the lower
shelf parts and place them horizontally. Either
front or back, to prevent the shelf support from
falling off.
If the shelf parts are placed at an angle,their
sides will touch the ground.When the force
applied for cleaning is not proper,the shelf
bracket will easily fall off.
20

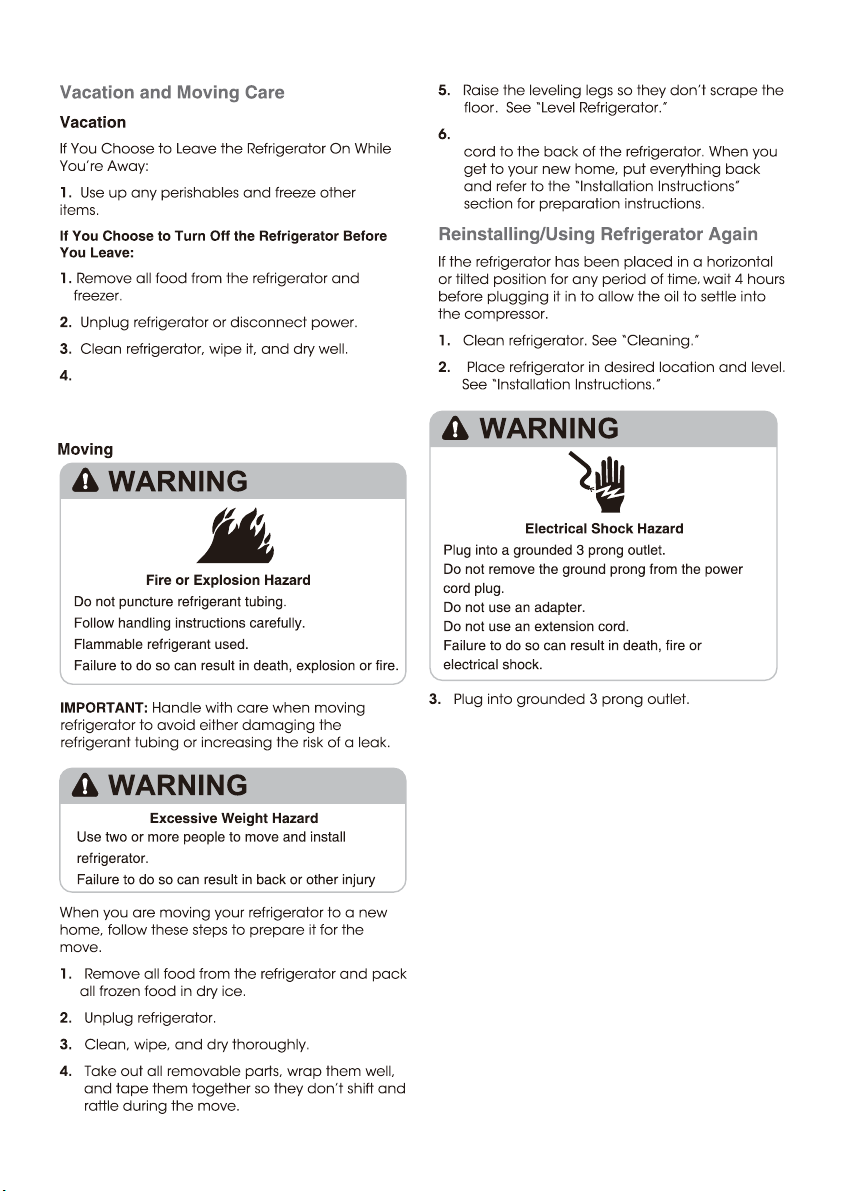

Tape rubber or wooden blocks to the tops of
the two doors, and let them open a sufficient
distance to let air in. This stops odor and mold
from building up.
Seal the doors with tape and tape the power
21
Refrigerator operation
22
