GLM 50 Professional
de Originalbetriebsanleitung
en Original instructions
fr Notice originale
es Manual original
pt Manual original
it Istruzioni originali
nl Oorspronkelijke
gebruiksaanwijzing
da Original brugsanvisning
sv Bruksanvisning i original
no Original driftsinstruks
fi Alkuperäiset ohjeet
el Ðñùôüôõðï ïäçãéþí ÷ñÞóçò
tr Orijinal işletme talimat
pl Instrukcja oryginalna
cs Původní návod k používání
sk Pôvodný návod na použitie
hu Eredeti használati utasítás
ru Îðèãèíàëüíîå ðóêîâîäñòâî ïî
ýêñïëóàòàöèè
uk Îðèã³íàëüíà ³íñòðóêö³ÿ ç
åêñïëóàòàö³¿
ro Instrucţiuni originale
bg Îðèãèíàëíà èíñòðóêöèÿ
sr Originalno uputstvo za rad
sl Izvirna navodila
hr Originalne upute za rad
et Algupärane kasutusjuhend
lv Instrukcijas oriģinālvalodā
lt Originali instrukcija
cn
正本使用说明书
tw
正本使用說明書
ko
사용
설명서
원본
ar
fa
2 609 140 773 | (19.10.11) Bosch Power Tools
2 |
Deutsch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Seite 6
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Página 25
Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Página 31
Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pagina 37
Nederlands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pagina 43
Dansk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Side 49
Svenska . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sida 54
Norsk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Side 59
Suomi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sivu 64
ÅëëçíéêÜ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Óåëßäá 69
Türkçe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sayfa
75
Polski . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Strona
80
Česky . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Strana
86
Slovensky . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Strana
92
Magyar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Oldal
97
Ðóññêèé . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ñòðàíèöà 103
Óêðà¿íñüêà . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ñòîð³íêà 110
Română. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pagina
116
Áúëãàðñêè. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ñòðàíèöà 121
Srpski . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Strana
128
Slovensko . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stran
133
Hrvatski. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stranica
138
Eesti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lehekülg
144
Latviešu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lappuse
149
Lietuviškai. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Puslapis
155
中文
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
页
160
中文
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
頁
165
한국어 ..................................... 면
170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
vÝ—U
3 |
2 609 140 773 | (19.10.11) Bosch Power Tools
1 608 M00 05B
20
2 607 001 391
19
BS 150
0 601 096 974
18
2 609 140 773 | (19.10.11) Bosch Power Tools
4 |
17
8
9
1
2
3
4
5
6
7
1112
14
13
15
16
10
a
b
e f
c
d
c
g
h
GLM 50
Professional
5 |
2 609 140 773 | (19.10.11) Bosch Power Tools
FE
0
,5
m
2
,
4
5
m
DC
B
A
2
3
1
2
1
1
2
1
X
English | 11
Bosch Power Tools 2 609 140 773 | (19.10.11)
Wartung und Service
Wartung und Reinigung
Lagern und transportieren Sie das Messwerkzeug nur in der
mitgelieferten Schutztasche.
Halten Sie das Messwerkzeug stets sauber.
Tauchen Sie das Messwerkzeug nicht ins Wasser oder andere
Flüssigkeiten.
Wischen Sie Verschmutzungen mit einem feuchten, weichen
Tuch ab. Verwenden Sie keine Reinigungs- oder Lösemittel.
Pflegen Sie insbesondere die Empfangslinse 12 mit der glei-
chen Sorgfalt, mit der Brille oder Linse eines Fotoapparats
behandelt werden müssen.
Sollte das Messwerkzeug trotz sorgfältiger Herstellungs- und
Prüfverfahren einmal ausfallen, ist die Reparatur von einer au-
torisierten Kundendienststelle für Bosch-Elektrowerkzeuge
ausführen zu lassen. Öffnen Sie das Messwerkzeug nicht
selbst.
Geben Sie bei allen Rückfragen und Ersatzteilbestellungen
bitte unbedingt die 10-stellige Sachnummer laut Typenschild
des Messwerkzeugs an.
Senden Sie im Reparaturfall das Messwerkzeug in der Schutz-
tasche 17 ein.
Kundendienst und Kundenberatung
Der Kundendienst beantwortet Ihre Fragen zu Reparatur und
Wartung Ihres Produkts sowie zu Ersatzteilen. Explosions-
zeichnungen und Informationen zu Ersatzteilen finden Sie
auch unter:
www.bosch-pt.com
Das Bosch-Kundenberater-Team hilft Ihnen gerne bei Fragen
zu Kauf, Anwendung und Einstellung von Produkten und Zu-
behören.
www.powertool-portal.de, das Internetportal für Handwer-
ker und Heimwerker.
www.ewbc.de, der Informations-Pool für Handwerk und Aus-
bildung.
Deutschland
Robert Bosch GmbH
Servicezentrum Elektrowerkzeuge
Zur Luhne 2
37589 Kalefeld – Willershausen
Tel. Kundendienst: +49 (1805) 70 74 10*
Fax: +49 (1805) 70 74 11*
(*Festnetzpreis 14 ct/min, höchstens 42 ct/min aus Mobil-
funknetzen)
E-Mail: Servicezentrum.Elektrow[email protected]h.com
Tel. Kundenberatung: +49 (1803) 33 57 99
(Festnetzpreis 9 ct/min, höchstens 42 ct/min aus Mobilfunk-
netzen)
Fax: +49 (711) 7 58 19 30
E-Mail: kundenberatung.ew@de.bosch.com
Österreich
Tel.: +43 (01) 7 97 22 20 10
Fax: +43 (01) 7 97 22 20 11
E-Mail: service.elektrowerkzeuge@at.bosch.com
Schweiz
Tel.: +41 (044) 8 47 15 11
Fax: +41 (044) 8 47 15 51
Luxemburg
Tel.: +32 2 588 0589
Fax: +32 2 588 0595
E-Mail: outillage.gereedschap@be.bosch.com
Entsorgung
Messwerkzeuge, Zubehör und Verpackungen sollen einer um-
weltgerechten Wiederverwertung zugeführt werden.
Werfen Sie Messwerkzeuge und Akkus/Batterien nicht in den
Hausmüll!
Nur für EU-Länder:
Gemäß der europäischen Richtlinie
2002/96/EG müssen nicht mehr ge-
brauchsfähige Messwerkzeuge und gemäß
der europäischen Richtlinie 2006/66/EG
müssen defekte oder verbrauchte Ak-
kus/Batterien getrennt gesammelt und ei-
ner umweltgerechten Wiederverwendung zugeführt werden.
Nicht mehr gebrauchsfähige Akkuzellen/Batterien können di-
rekt abgegeben werden bei:
Deutschland
Recyclingzentrum Elektrowerkzeuge
Osteroder Landstraße 337589 Kalefeld
Schweiz
Batrec AG
3752 Wimmis BE
Änderungen vorbehalten.
English
Safety Notes
Working safely with the measuring tool is
possible only when the operating and safe-
ty information are read completely and the
instructions contained therein are strictly
followed. Never make warning labels on
the measuring tool unrecognisable. SAVE
THESE INSTRUCTIONS.
Caution – The use of other operating or adjusting
equipment or the application of other processing meth-
ods than those mentioned here, can lead to dangerous
radiation exposure.
12 | English
2 609 140 773 | (19.10.11) Bosch Power Tools
The measuring tool is delivered with a warning label in
English language (marked with the number 15 in the
representation of the measuring tool on the graphic
page).
Do not direct the laser beam at persons or animals and
do not stare into the laser beam yourself. This measur-
ing tool produces laser class 2 laser radiation according to
IEC 60825-1. This can lead to persons being blinded.
Do not use the laser viewing glasses as safety goggles.
The laser viewing glasses are used for improved visualisa-
tion of the laser beam, but they do not protect against laser
radiation.
Do not use the laser viewing glasses as sun glasses or in
traffic. The laser viewing glasses do not afford complete
UV protection and reduce colour perception.
Have the measuring tool repaired only through quali-
fied specialists using original spare parts. This ensures
that the safety of the measuring tool is maintained.
Do not allow children to use the laser measuring tool
without supervision. They could unintentionally blind
other persons or themselves.
Do not operate the measuring tool in explosive environ-
ments, such as in the presence of flammable liquids,
gases or dusts. Sparks can be created in the measuring
tool which may ignite the dust or fumes.
Product Description and Specifica-
tions
Please unfold the fold-out page with the representation of the
measuring tool and leave it unfolded while reading the operat-
ing instructions.
Intended Use

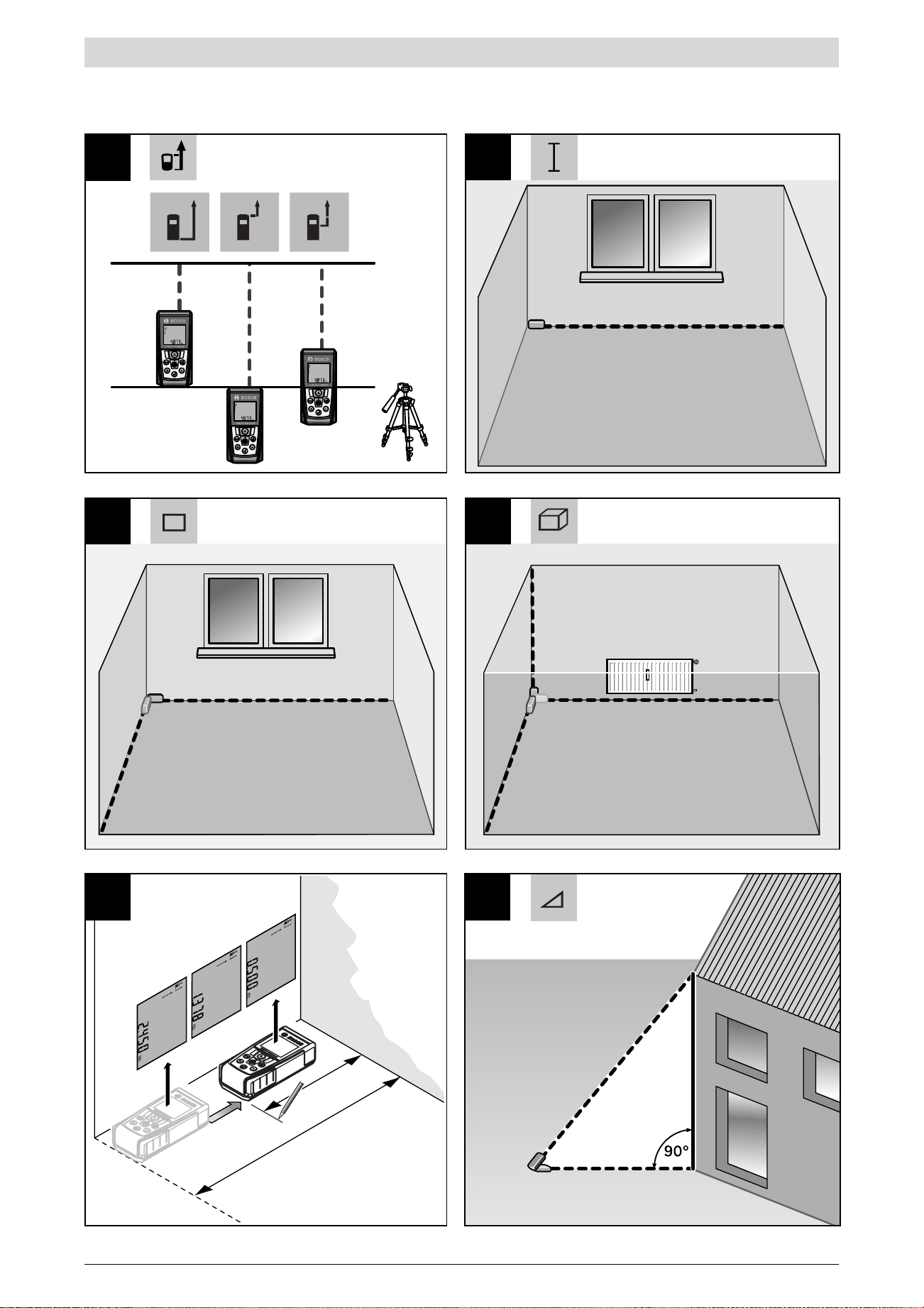

The measuring tool is intended for measuring distances,
lengths, heights, clearances, and for the calculation of areas
and volumes. The measuring tool is suitable for measuring in-
doors and outdoors.
Technical Data
Digital Laser Rangefinder GLM 50
Professional
Article number 3 601 K72 2..
Measuring range 0.05–50 m
A)
Measuring accuracy (typically) ±1.5 mm
B)
Lowest indication unit 1 mm
Operating temperature –10 °C...+50 °C
C)
Storage temperature –20 °C...+70 °C
Relative air humidity, max. 90 %
Laser class 2
Laser type 635 nm, <1 mW
Laser beam diameter (at 25 °C) approx.
– at 10 m distance
– at 50 m distance
6 mm
35 mm
Automatic switch-off after approx.
– Laser
– Measuring tool (without measurement)
20 s
5 min
Batteries
Rechargeable batteries
2 x 1.2 V LR03 (AAA)
2 x 1.2 V HR03 (AAA)
Battery live, approximately
– Individual measurements
– Continuous measurement
10000
D)
2.5 h
D)
Weight according to EPTA-Procedure 01/2003 0.14 kg
Dimensions 53 x 114 x 30 mm
Degree of protection IP 54 (dust and splash water protected)
English | 13
Bosch Power Tools 2 609 140 773 | (19.10.11)
Product Features

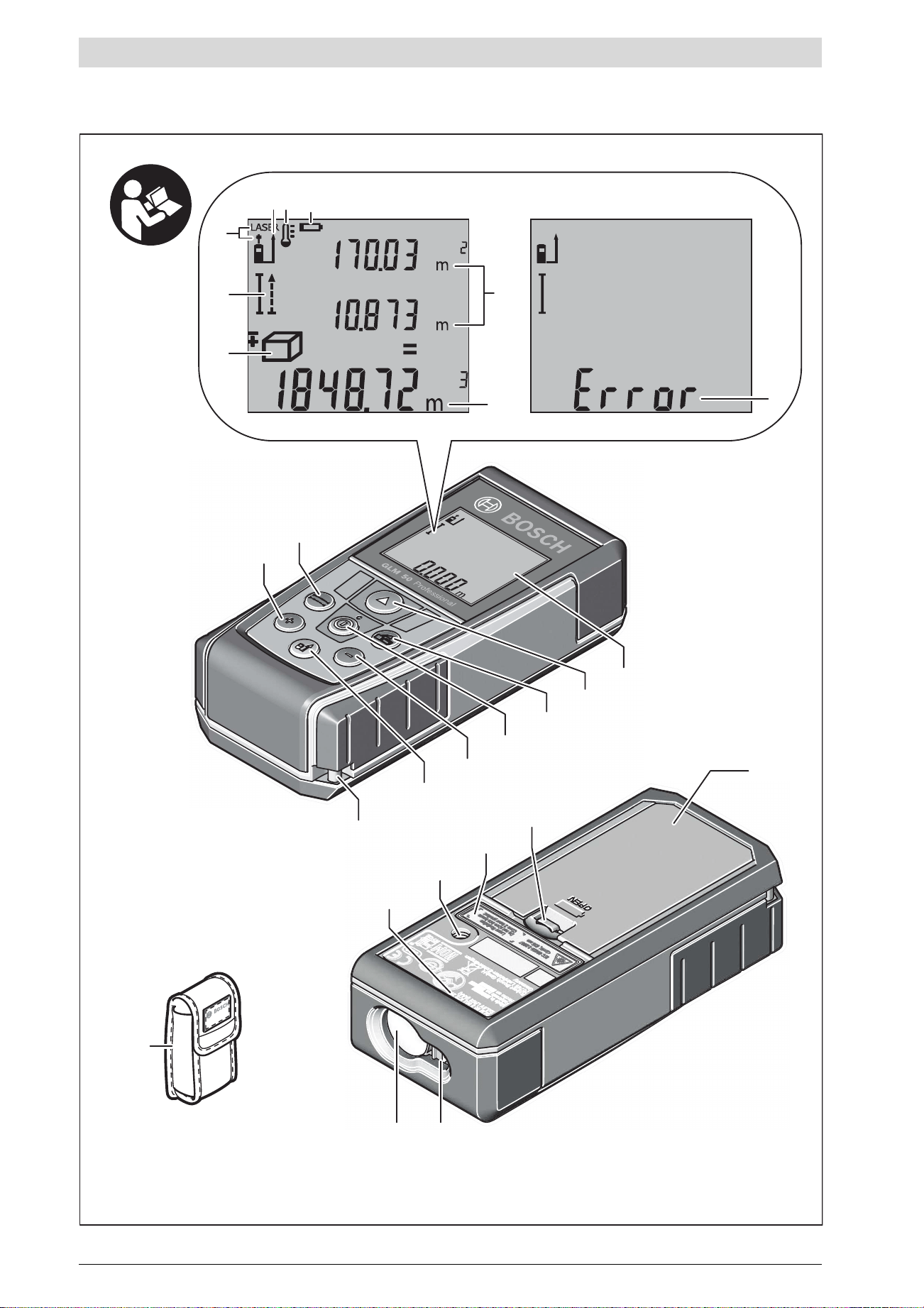

The numbering of the product features shown refers to the il-
lustration of the measuring tool on the graphic page.
1 Display
2 Measuring button
3 Button for area/surface, volume and indirect height
measurement (Pythagoras)
4 Delete / On/Off button **
5 Minus button
6 Button for selection of the reference level
7 Fixture for carrying strap
8 Plus button
9 Length and continuous measurement button
10 Battery lid
11 Laser beam outlet
12 Reception lens
13 Serial number
14 1/4" thread
15 Laser warning label
16 Latch of battery lid
17 Protective pouch

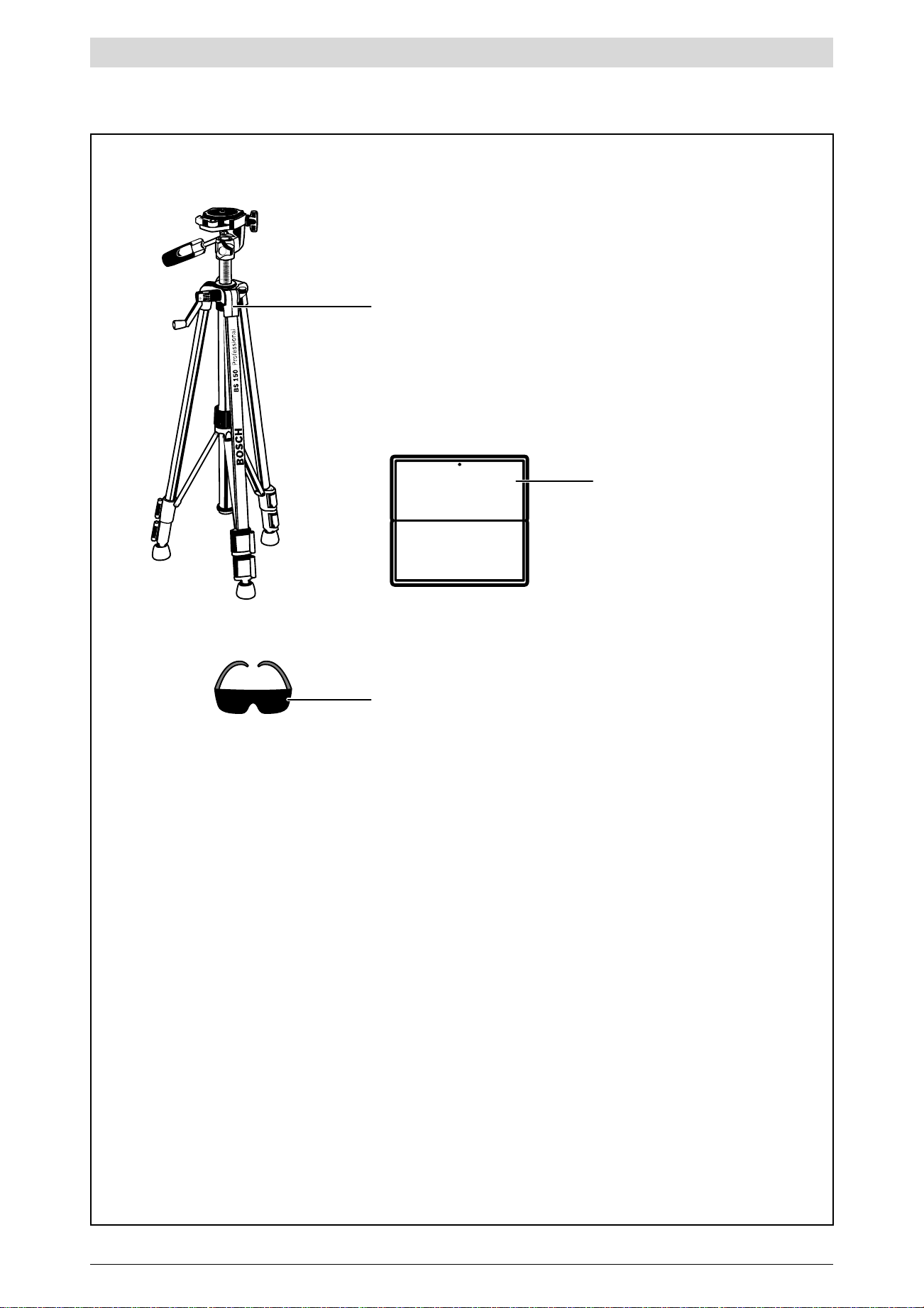

18 Tripod*
19 Laser viewing glasses*
20 Laser target plate*
* The accessories illustrated or described are not included as
standard delivery.
** Keep button pressed to call up the extended functions.
Display Elements
a Measured-value lines
b Result line
c Measuring functions
d Laser, switched on
e Measurement reference level
f Temperature warning
g Battery low indicator
h “ERROR” indication
Assembly
Inserting/Replacing the Battery
Using alkali-manganese or rechargeable batteries is recom-
mended for operation of the measuring tool.
Less measurements are possible when using 1.2 V recharge-
able batteries than with 1.5 V batteries.
To open the battery lid 10, press the latch 16 and remove the
battery lid. Insert the batteries/rechargeable batteries. When
inserting, pay attention to the correct polarity according to
the representation on the inside of the battery compartment.
When inserting the batteries/rechargeable batteries, pay at-
tention to the correct polarity according to the representation
on the inside of the battery compartment.
When the battery symbol appears for the first time on the
display, at least 100 individual measurements are still possi-
ble. The continuous measurement mode is deactivated.
When the battery symbol flashes, the batteries/recharge-
able batteries must be replaced. Measurements are no longer
possible.
Always replace all batteries/rechargeable batteries at the
same time. Do not use different brands or types of batter-
ies/rechargeable batteries together.
Remove the batteries/rechargeable batteries from the
measuring tool when not using it for longer periods.
When storing for longer periods, the batteries/rechargea-
ble batteries can corrode and discharge themselves.
Operation
Initial Operation
Do not leave the switched on measuring tool unattend-
ed and switch the measuring tool off after use. Other
persons could be blinded by the laser beam.
Protect the measuring tool against moisture and direct
sun light.
Do not subject the measuring tool to extreme tempera-
tures or variations in temperature. As an example, do
not leave it in vehicles for longer periods. In case of large
variations in temperature, allow the measuring tool to ad-
just to the ambient temperature before putting it into oper-
A) The working range increases depending on how well the laser light is reflected from the surface of the target (scattered, not reflective) and with in-
creased brightness of the laser point to the ambient light intensity (interior spaces, twilight). In unfavourable conditions (e.g. when measuring out-
doors at intense sunlight), it may be necessary to use the target plate.
B) For measurements from the rear measuring-tool edge. In unfavourable conditions (e. g. at intense sunlight or an insufficiently reflecting surface),
the maximum deviation is
±
10 mm per 50 m. In favourable conditions, a deviation influence of ± 0.05 mm/m must be taken into account.
C) In the continuous measurement function, the maximum operating temperature is +40 °C.
D) Less measurements are possible when using 1.2 V rechargeable batteries than with 1.5 V batteries. The battery life listed refers to measurements
without display illumination.
Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary.
The measuring tool can be clearly identified with the serial number 13 on the type plate.
Length measurement
Continuous measurement
Area/surface measurement
Volume measurement
Simple Pythagoras Measurement
14 | English
2 609 140 773 | (19.10.11) Bosch Power Tools
ation. In case of extreme temperatures or variations in
temperature, the accuracy of the measuring tool can be im-
paired.
Avoid heavy impact to or falling down of the measuring
tool. After severe exterior effects to the measuring tool, it
is recommended to carry out an accuracy check (see “Ac-
curacy Check of the Distance Measurement”, page 16)
each time before continuing to work.
Switching On and Off
For switching on the measuring tool, the following possibili-
ties are given:
– Pressing the On/Off button 4: The measuring tool is
switched on and is in length measurement mode. The laser
is not activated.
– Pressing the measuring button 2: Measuring tool and laser
are switched on. The measuring tool is in length measure-
ment mode.
Do not point the laser beam at persons or animals and
do not look into the laser beam yourself, not even from
a large distance.
To switch off the measuring tool, press the On/Off button 4
for a few seconds.
When no button on the measuring tool is pressed for approx.
5 minutes, the measuring tool automatically switches off to
save the batteries.
Measuring Procedure
After switching on by pressing the measuring button 2, the
measuring tool is always in length measurement mode. Other
measuring modes can be switched to by pressing the respec-
tive function/mode button (see “Measuring Functions”,
page 14).
After switching on, the rear edge of the measuring tool is pre-
set as the reference level for the measurement. By pressing
the reference level button 6, the reference level can be
changed (see “Selecting the Reference Level”, page 14).
Place the measuring tool with the selected reference plane
against the desired starting point of the measurement (e.g. a
wall).
Briefly press the measuring button 2 to switch on the laser
beam.
Do not point the laser beam at persons or animals and
do not look into the laser beam yourself, not even from
a large distance.
Aim the laser beam at the target surface. Briefly press the
measuring button 2 again to initate the measurement.
In the continuous measurement mode, the measurement be-
gins immediately upon switching on the function.
Typically, the measured value appears after 0.5 seconds and
latest after 4 seconds. The duration of the measurement de-
pends on the distance, the light conditions and the reflection
properties of the target surface. The laser beam is switched
off automatically upon completion of the measurement.
When no measurement has taken place approx. 20 seconds
after sighting, the laser beam is switched off automatically to
save the batteries.
Selecting the Reference Level (see figure A)
For the measurement, you can select between three different
reference planes:
– The rear measuring-tool edge (e.g. when measuring on-
ward from a wall),
– The front measuring-tool edge (e.g. when measuring on-
ward from a table edge),
– The centre of thread 14 (e.g. for tripod measurements).
To select the reference level, press button 6 until the request-
ed reference level is indicated on the display. Each time after
switching on the measuring tool, the rear end of the measur-
ing tool is preset as the reference level.
Display Illumination
The display illumination is automatically activated, depending
on the ambient brightness. When no button is pressed after
the display illumination switches on, it is dimmed to save the
batteries.
Measuring Functions

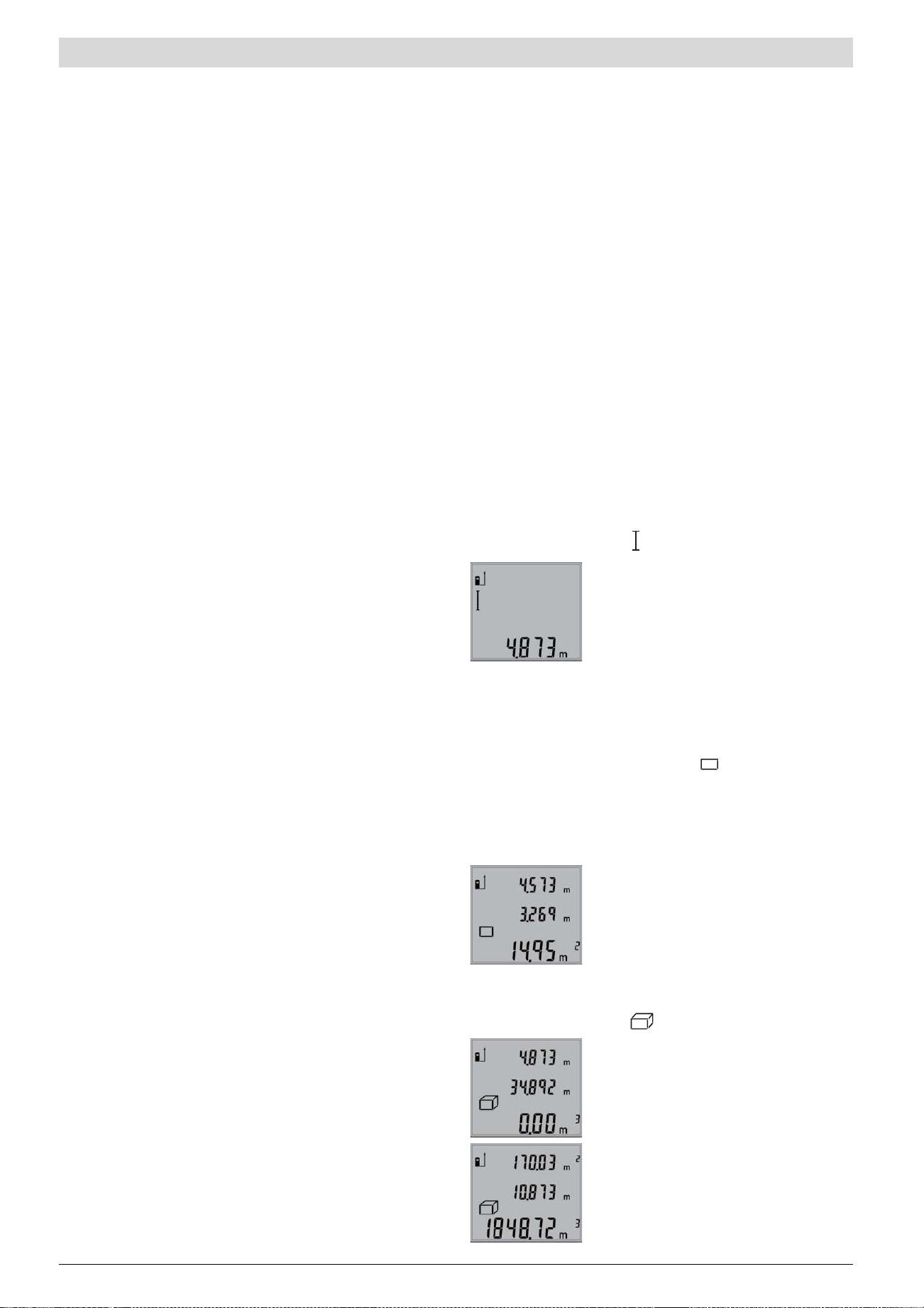

Simple Length Measurement (see figure B)
For length measurements, press button 9 until the “length
measurement” indication appears on the display.
To switch the laser on and for measuring,
briefly press the measuring button 2 once
each time.
The measured value is displayed in the re-
sult line b.
For several subsequent length measurements, the last meas-
ured results are displayed in the measured-value lines a.
Area Measurement (see figure C)
For area/surface measurements, press button 3 until the indi-
cator for area/surface measurement appears on the dis-
play.
Afterwards, measure the length and the width, one after an-
other, in the same manner as a length measurement. The laser
beam remains switched on between both measurements.
Upon completion of the second measure-
ment, the surface is automatically calcu-
lated and displayed in the result line b.
The individual measured values are dis-
played in the measured-value lines a.
Volume Measurement (see figure D)
For volume measurements, press button 3 until the indicator
for volume measurement appears on the display.
Afterwards, measure the length, width
and the height, one after another, in the
same manner as for a length measure-
ment. The laser beam remains switched
on between all three measurements.
Upon completion of the third measure-
ment, the volume is automatically calcu-
lated and displayed in the result line b.
The individual measured values are dis-
played in the measured-value lines a.
English | 15
Bosch Power Tools 2 609 140 773 | (19.10.11)
Values above 999999 m
3
cannot be indicated; “ERROR” ap-
pears on the display. Divide the volume to be measured into
individual measurements; their values can then be calculated
separately and then summarized.

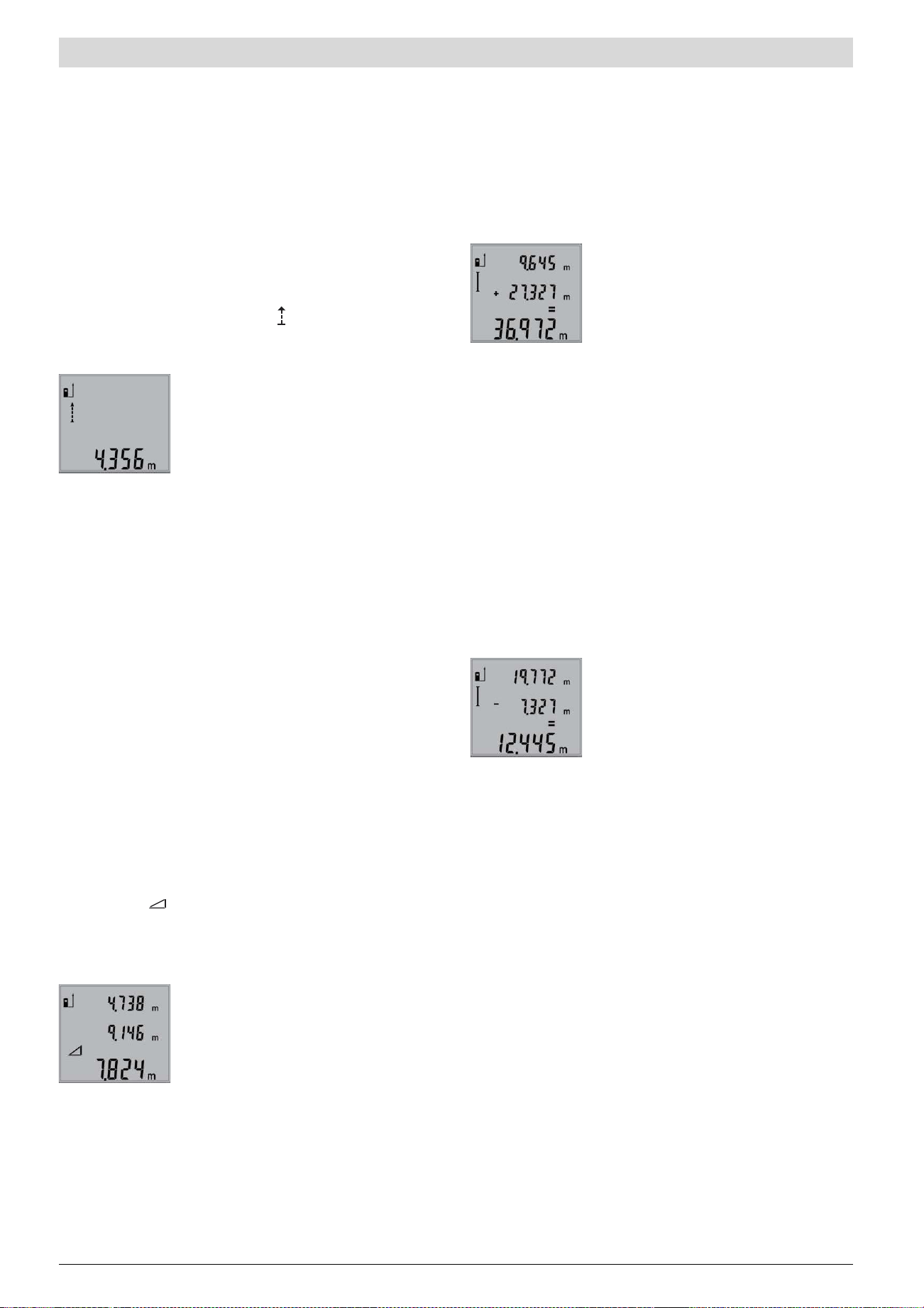

Continuous Measurement (Tracking) (see figure E)
For continuous measurements, the measuring tool can be
moved relative to the target, whereby the measuring value is
updated approx. every 0.5 seconds. In this manner, as an ex-
ample, you can move a certain distance away from a wall,
while the actual distance can always be read.
For continuous measurements, press button 9 until the indi-
cator for continuous measurement appears on the display.
To start the continuous measurement, press the measuring
button 2.
The current measured value is displayed
in the result line b.
Pressing the measuring button 2 ends the
continuous measurement. The last meas-
ured value is displayed in the result line b.
Pressing the measuring button 2 again re-
starts a continuous measuring run.
Continuous measurement automatically switches off after
5 min. The last measured value remains indicated in the result
line b.
Indirect height measurement / Simple Pythagoras Meas-
urement (see figure F)
The indirect height measurement is used to measure distanc-
es that cannot be measured directly because an obstacle
would obstruct the laser beam or no target surface is available
as a reflector. Correct results are achieved only when the right
angles required for the respective measurement are exactly
adhered to (Pythagorean Theorem).
Pay attention that the reference plane of the measurement
(e.g. the rear edge of the measuring tool) remains exactly at
the same location for all individual measurements within a
measuring sequence.
The laser beam remains switched on between the individual
measurements.
Press button 3 until the indication for simple Pythagoras
measurement appears on the display.
Measure distances “1” and “2” in this sequence as for a
length measurement. Pay attention that a right angle exists
between distance “1” and the sought distance “X”.
Upon completion of the last measure-
ment, the result for the sought distance
“X” is displayed in the result line b. The in-
dividual measured values are displayed in
the measured-value lines a.
Deleting Measured Values
Briefly pressing button 4 deletes the last individual measuring
value determined in all measuring functions. Briefly pressing
the button repeatedly deletes the individual measured values
in reverse order.
Adding Measured Values
To add measuring values, firstly carry out a measurement.
Then press the plus button 8. For confirmation, “+” appears
on the display.
To add volumes or areas/surfaces, press the plus button 8 af-
ter the first completed measuring process. For confirmation,
“+” appears on the display left of the volume/area symbol.
Then carry out a second measurement.
To call up the sum of both measurements,
press the plus button 8 again. The calcula-
tion is indicated in the measured-value
lines a, and the sum in the result line b.
After calculation of the sum, further
measured values can be added to this re-
sult when pressing the plus button 8 prior to each measure-
ment.
Notes on the addition:
– Mixed length, area/surface and volume values cannot be
added together. For example, when a length and area val-
ue are added, “ERROR” briefly appears on the display af-
ter pressing the plus button 8. Afterwards, the measuring
tool switches back to the last active measuring mode.
– For each calculation, the result of one measurement is
added (e.g. the volume value); for continuous measure-
ments, this would be the displayed measured value in re-
sult line b. The addition of individual measured values from
the measured-value lines a is not possible.
Subtracting Measured Values
To subtract measuring values, press mi-
nus button 5; For confirmation, “–” is in-
dicated on the display. The further proce-
dure is analog to “Adding Measured
Values”.
Working Advice
General Information
The reception lens 12 and the laser beam outlet 11 must not
be covered when taking a measurement.
The measuring tool must not be moved while taking a meas-
urement (with the exception of the continuous measurement
function). Therefore, place the measuring tool, as far as this is
possible, against or on a firm stop or supporting surface.
Influence Effects on the Measuring Range
The measuring range depends upon the light conditions and
the reflection properties of the target surface. For improved
visibility of the laser beam when working outdoors and when
the sunlight is intense, use the laser viewing glasses 19 (ac-
cessory) and the laser target plate 20 (accessory), or shade
off the target surface.
Influence Effects on the Measuring Result
Due to physical effects, faulty measurements cannot be ex-
cluded when measuring on different surfaces. Included here
are:
– Transparent surfaces (e.g., glass, water),
– Reflecting surfaces (e.g., polished metal, glass),
– Porous surfaces (e.g. insulation materials),
16 | English
2 609 140 773 | (19.10.11) Bosch Power Tools
– Structured surfaces (e.g., roughcast, natural stone).
If required, use the laser target plate 20 (accessory) on these
surfaces.
Furthermore, faulty measurements are also possible when
sighting inclined target surfaces.
Also, air layers with varying temperatures or indirectly re-
ceived reflections can affect the measured value.
Accuracy Check of the Distance Measurement
The accuracy of the distance measurement can be checked as
follows:
– Select a permanently unchangeable measuring section
with a length of approx. 1 to 10 metres; its length must be
precisely known (e.g. the width of a room or a door open-
ing). The measuring distance must be indoors; the target
surface for the measurement must be smooth and reflect
well.
– Measure the distance 10 times after another.
The deviation of the individual measurements from the mean
value must not exceed ± 2 mm (max.). Log the measure-
ments, so that you can compare their accuracy at a later point
of time.
Working with the Tripod (Accessory)
The use of a tripod is particularly necessary for larger distanc-
es. Position the measuring tool with the 1/4" thread 14 onto
the quick-change plate of the tripod 18 or a commercially
available camera tripod. Tighten the measuring tool with the
locking screw of the quick-change plate.
Set the corresponding reference level for measurement with
a tripod by pushing button 6 (the reference level is the
thread).
Troubleshooting
–
Causes and Corrective Meas-
ures
The measuring tool monitors the correct
function for each measurement. When a de-
fect is determined, only the symbol shown
aside flashes in the display. In this case, or
when the above mentioned corrective
measures cannot correct an error, have the
measuring tool checked by an after-sales service agent for
Bosch power tools.
Maintenance and Service
Maintenance and Cleaning
Store and transport the measuring tool only in the supplied
protective pouch.
Keep the measuring tool clean at all times.
Do not immerse the measuring tool in water or other fluids.
Wipe off debris using a moist and soft cloth. Do not use any
cleaning agents or solvents.
Maintain the reception lens 12 in particular, with the same
care as required for eye glasses or the lens of a camera.
If the measuring tool should fail despite the care taken in man-
ufacturing and testing procedures, repair should be carried
out by an authorised after-sales service centre for Bosch pow-
er tools. Do not open the measuring tool yourself.
In all correspondence and spare parts orders, please always
include the 10-digit article number given on the type plate of
the measuring tool.
In case of repairs, send in the measuring tool packed in its
protective pouch 17.
Cause Corrective Measure
Temperature warning indicator (f) flashing; measure-
ment not possible
The measuring tool is outside the
operating temperature range from
– 10 °C to + 50 °C (in the function
continuous measurement up to
+40 °C).
Wait until the measuring
tool has reached the op-
erating temperature
“ERROR” indication in the display
Addition/Subtraction of measured
values with different units of meas-
ure
Only add/subtract
measured values with
the same units of meas-
ure
The angle between the laser beam
and the target is too acute.
Enlarge the angle be-
tween the laser beam
and the target
The target surface reflects too in-
tensely (e.g. a mirror) or insuffi-
ciently (e.g. black fabric), or the
ambient light is too bright.
Work with the laser tar-
get plate 20 (accessory)
The laser beam outlet 11 or the re-
ception lens 12 are misted up
(e.g. due to a rapid temperature
change).
Wipe the laser beam out-
let 11 and/or the recep-
tion lens 12 dry using a
soft cloth
Calculated value is greater than
999999 m/m
2
/m
3
.
Divide calculation into
intermediate steps
Measuring result not plausible
The target surface does not reflect
correctly (e.g. water, glass).
Cover off the target sur-
face
The laser beam outlet 11 or the re-
ception lens 12 are covered.
Make sure that the laser
beam outlet 11 or the re-
ception lens 12 are un-
obstructed
Wrong reference level set Select reference level
that corresponds to
measurement
Obstruction in path of laser beam Laser point must be
completely on target
surface.
The indication remains unchanged or the measuring tool
reacts unexpected after pressing a button
Software error Remove the batteries
and start the measuring
tool again after reinsert-
ing them.
Cause Corrective Measure
English | 17
Bosch Power Tools 2 609 140 773 | (19.10.11)
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Our customer service representatives can answer your ques-
tions concerning possible applications and adjustment of
products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecen[email protected]
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: bsctools@icon.co.za
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: bsc.dur@za.bosch.com
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: [email protected]
Bosch Headquarters
Midrand, Gauteng
Tel.: +27 (011) 6 51 96 00
Fax: +27 (011) 6 51 98 80
E-Mail: rbsa-hq[email protected].com
People’s Republic of China
China Mainland
Bosch Power Tools (China) Co., Ltd.
567, Bin Kang Road
Bin Jiang District 310052
Hangzhou, P.R.China
Service Hotline: 400 826 8484
Fax: +86 571 8777 4502
E-Mail: contact.ptcn@cn.bosch.com
www.bosch-pt.com.cn
HK and Macau Special Administrative Regions
Robert Bosch Hong Kong Co. Ltd.
21st Floor, 625 King’s Road
North Point, Hong Kong
Customer Service Hotline: +852 2101 0235
Fax: +852 2590 9762
E-Mail: [email protected]
www.bosch-pt.com.hk
Indonesia
PT. Multi Mayaka
Kawasan Industri Pulogadung
Jalan Rawa Gelam III No. 2
Jakarta 13930
Indonesia
Tel.: +62 (21) 46 83 25 22
Fax: +62 (21) 46 82 86 45/68 23
E-Mail: sales@multimayaka.co.id
www.bosch-pt.co.id
Philippines
Robert Bosch, Inc.
28th Floor Fort Legend Towers,
3rd Avenue corner 31st Street,
Fort Bonifacio Global City,
1634 Taguig City, Philippines
Tel.: +63 (2) 870 3871
Fax: +63 (2) 870 3870
www.bosch-pt.com.ph
Robert Bosch GmbH
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
www.bosch-pt.com
2 609 140 773 (2011.08) O / 190 XXX
