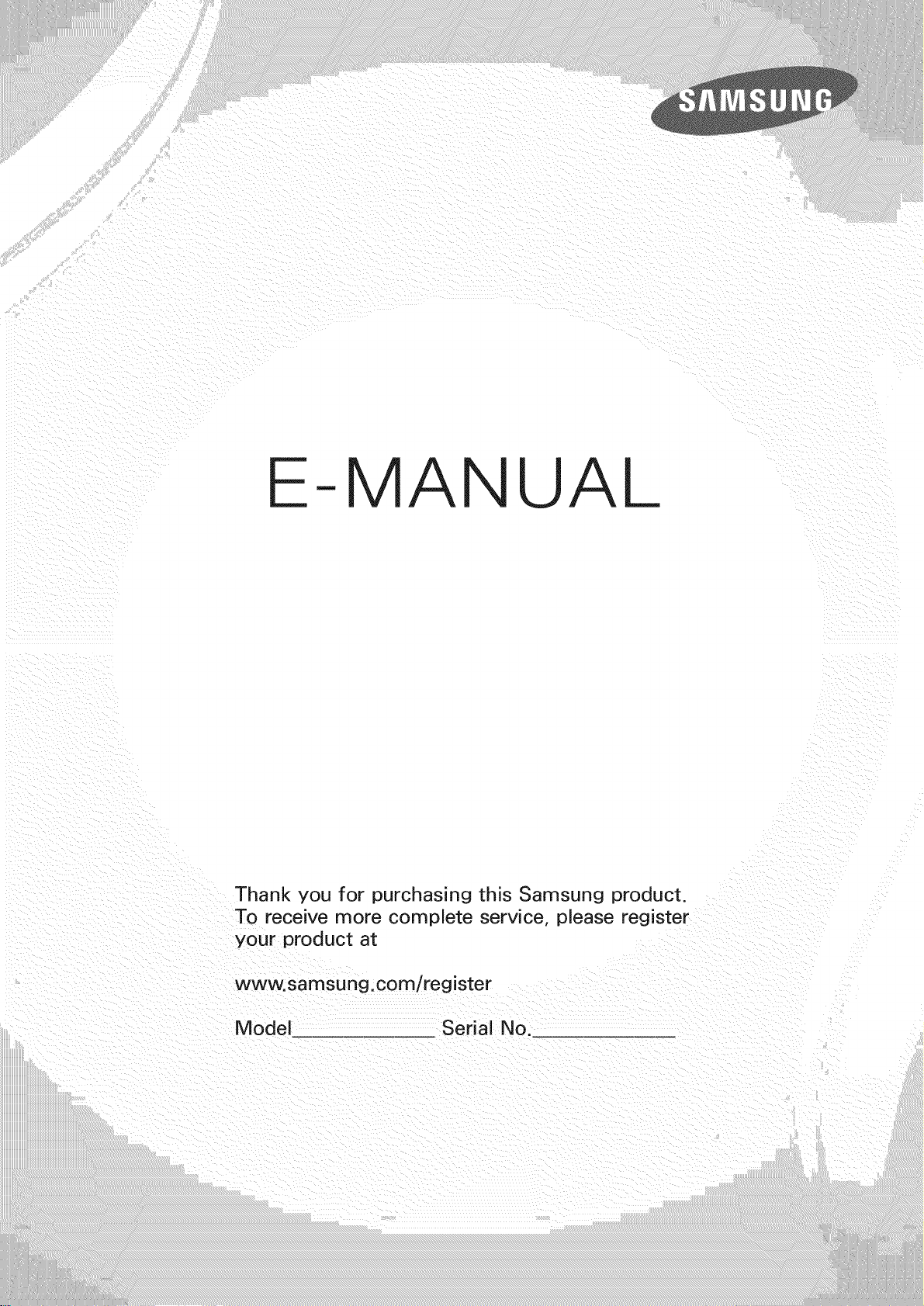

E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model
Serial No.
e-Manual Guide
Viewing the e-Manual
1 Scrolling a Page
1 Using the Top Icons
1 Ret_rning to the Home Page
2 Searching the Index
2 Searching Pages
2 Closi _g the e-Manual
2 Jumping to a Menu item
2 Updating the e-Manual
Getting Started
Antenna Connection
3 For the LED 7450/7500, 8000 and PDP 8500 series
models
3 For the LED 9000 and UHD $9 series models
Video Device Connections
HDMI Connection
5 For the LED 7450/7500, 8000 and PDP 8500 series
models
6 For the LED 9000 and UHD $9 series models
Component Connection
7 For the LED 7450/7500 series models
8 For the LED 8000 and PDP 8500 series models
9 For the LED 9000 and UHD $9 series models
AV Connection
10 For the LED 7450/7500 series models
11 For the LED 8000 and PDP 8500 series models
12 For the LED 9000 and UHD $9 series models
Audio Device Connections
Digital Audio (Optical Connection
14 For the LED 7450/7500, 8000 and PDP 8500 series
models
14 For the LED 9000 and UHD $9 series models
Audio Output Connection
15 For the LED 7450/7500, 8000 series models
15 For the LED 9000 and UHD $9 series models

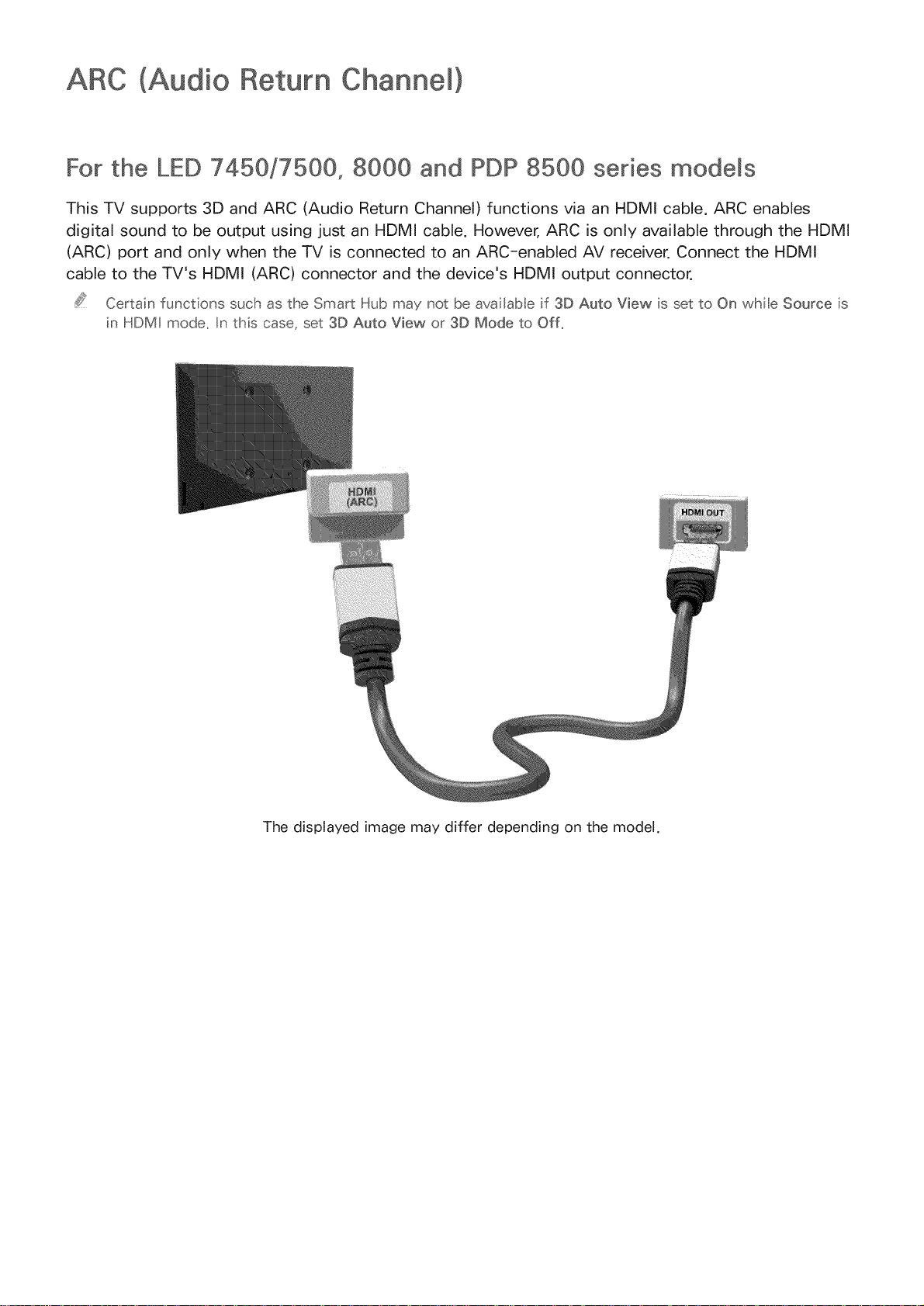

ARC (Audio Return Channel)
16 For the LED 7450/7500, 8000 and PDP 8500 series
models
17 For the LED 9000 and UHD $9 series models
Computer Connection
18 HDMI Connection
18 For the LED 7450/7500, 8000 and PDP 8500 seres modes
19 For the LED 9000 and UND $9 series models
20 HDMI-to-DVI Connection
20 For the LED 7450/7500, 8000 and PDP 8500 seres modes
21 For the LED 9000 and UND $9 series models
Smartphone Connection
22 For the LED 7450/7500, 8000 and PDP 8500 series
models
23 For the LED 9000 and UHD $9 series models
Switching Between Video Sources
Programming
25 Auto Program
25 Remove Scrambled Channels
29
Restore Removed Channels
Channel Management
26 Remove Channels
27
27 Program Rating Lock
27 B ock ng Programs Usng the TV Rating
28 B ock ng based on Movie Ratng (MPAA)
28 Bockqg Based on Canadian Er_gsh Rating
29 B ock ng Based on Canadian French Rating
29 B ock ng Based on DownJoadab e U,S, Rati[_g
29 Watching Bocked / Restr cted Programs
Rename Analog Channels
Favorite Channels
30 Add Favorite Channels
30 Remove Favorite Channels
31 Rearrange the Favorite Channels List
31 Rename a Favorite Channel List
31 Copy a Favorite Channels List
Network Configuration
32 Wired Network
32 For the LED 7450/7500, 8000 and PDP 8500 seres modes
33 For the LED 9000 and UND $9 series models
34 Wireless Network
34 Wire ess Network Precautions
34 Network Secur ty Protocols
WiredNetworkSetup
35 AutomaticWiredNetworkSetup
35 ManualWiredNetworkSetup
37 FailedWiredConnection
Wireless Network Setup
38 Automatic Wireless Network Setup
39 Manual Wireless Network Setup
40 Using the WPS Button
41 Failed Wireless Connection

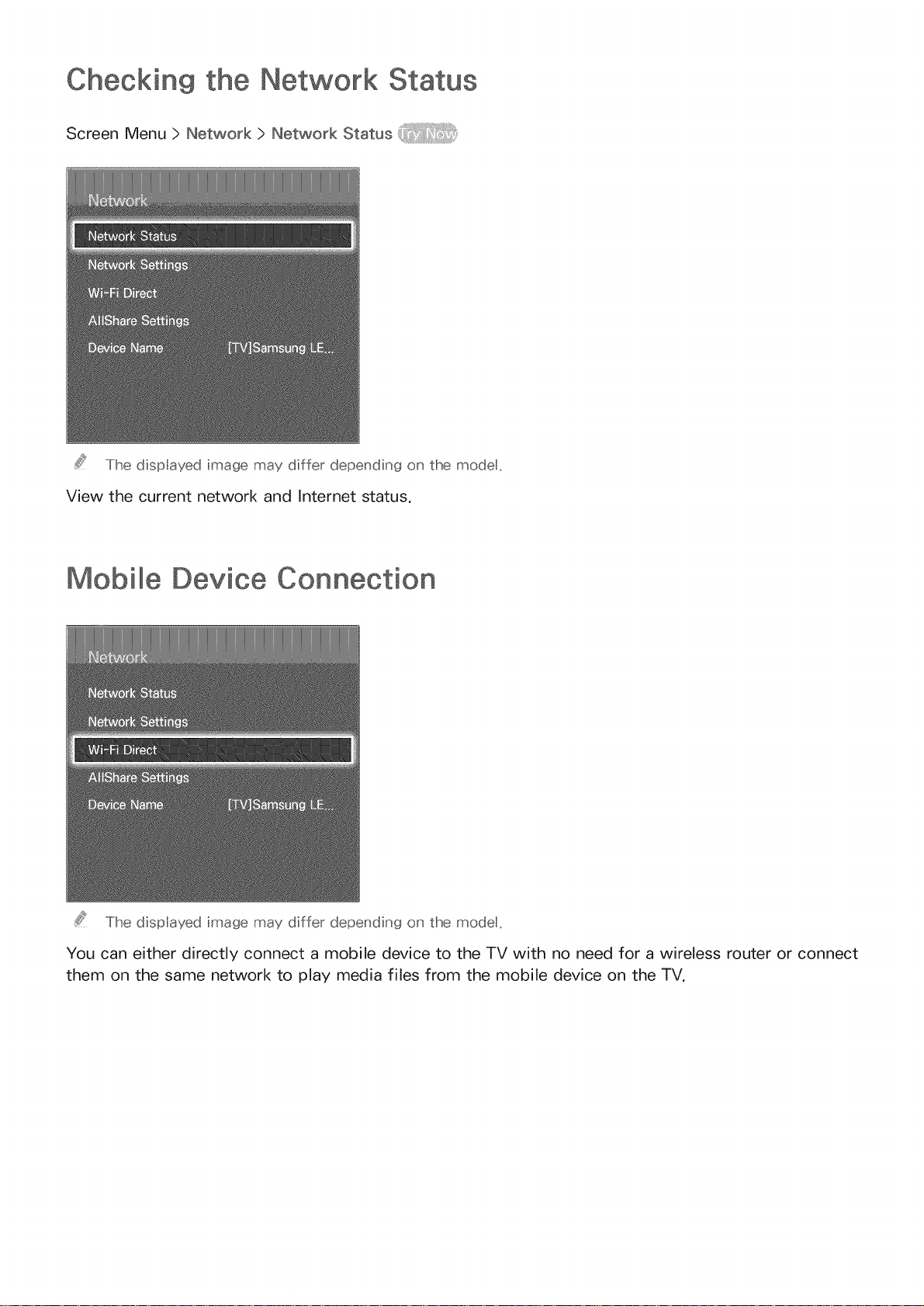

Checking the Network Status
Mobile Device Connection
44 Wi-Fi Direct
44 AIIShare Settings
44 Rename the TV
Controlling the TV
Smart Touch Control
45 Inserting the Batteries (AAA X 2)
45 Connecting to the TV
46 Reconnecting the Smart Teuch Corttro
46 Battery Low Alarm
47 Buttons and Descriptions
49 Special Functions
Using the touch pad
50 Dragging
50 Pressing
51 Flicking
51 Pressing and Holding
52 Pressing and Dragging
52 Scrolling Up/Down
52 Scrolling Left/Right
53 Changing Channels by Entering Numbers
53 Numerca nputGuide
53 Adjusting the Touch pad
54 Show Status and Notification Banner
54 Recommended
54 History
54 Delet J_gHistory Data
54 Searching
Virtual Remote Control
55 Changing the Virtual Remote Control Panel
55 Change a position of the Virtual Remote Panel
55 Using the Number Panel
55 Using the Playback Control Panel
55 Using the Quick Access Panel
55 Adjusting the virtual remote panel
Universal Remote Setup
56 Connecting the IR Extender
56 For the LED 7450/7500, 8000 and PDP 8500 seres modes
57 For the LED 9000 and UHD $9 series modeJs
57 Add the External Device
57 Using the Universal Remote Control
57 Registered External Device Management
Entering Text using the Onscreen Keypad
58 Entering Text using the QWERTY Keypad
58 Addit ona Features
SMART Interaction
59 Precautions

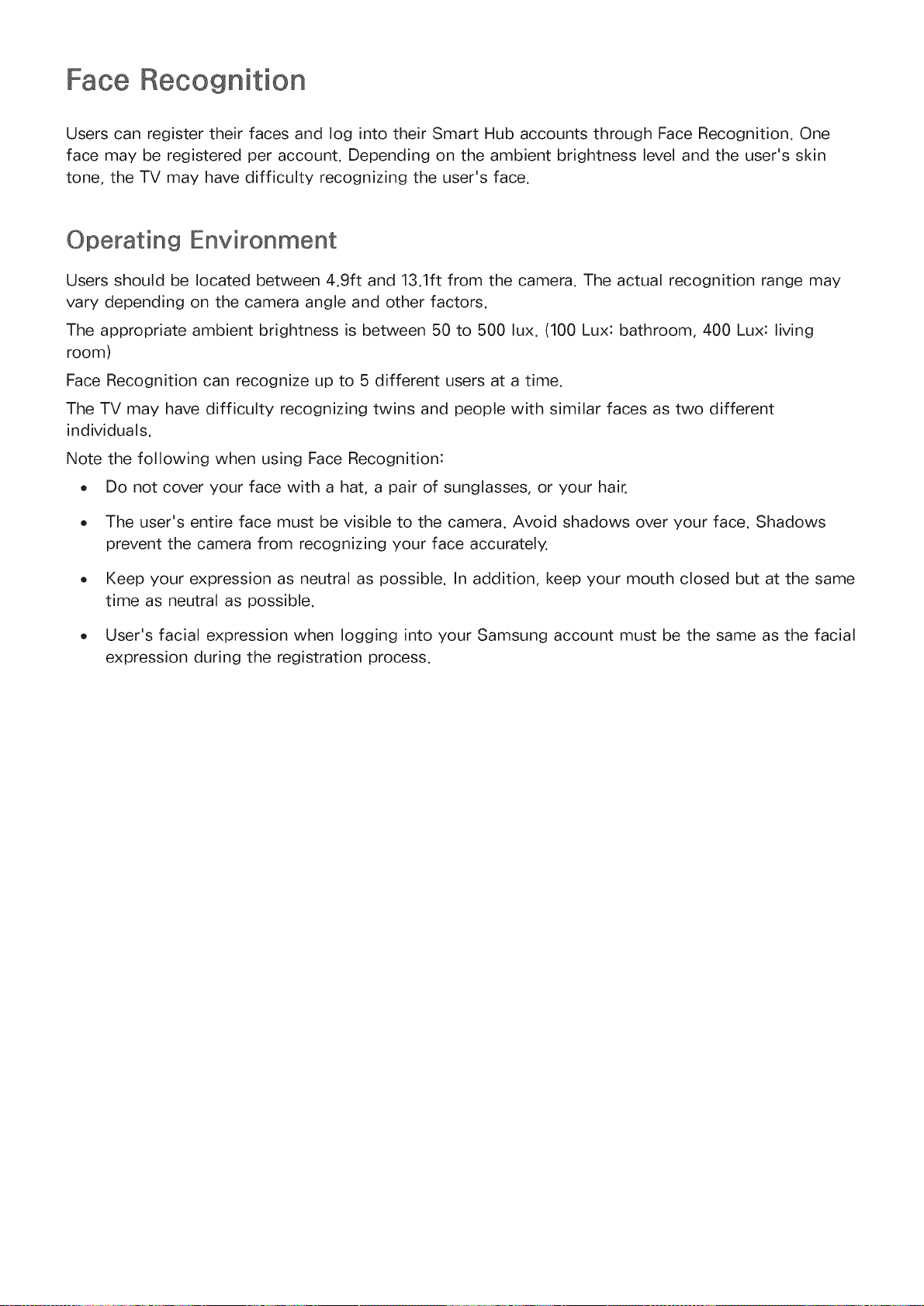

59 Face Recognition
59 TV Camera Use

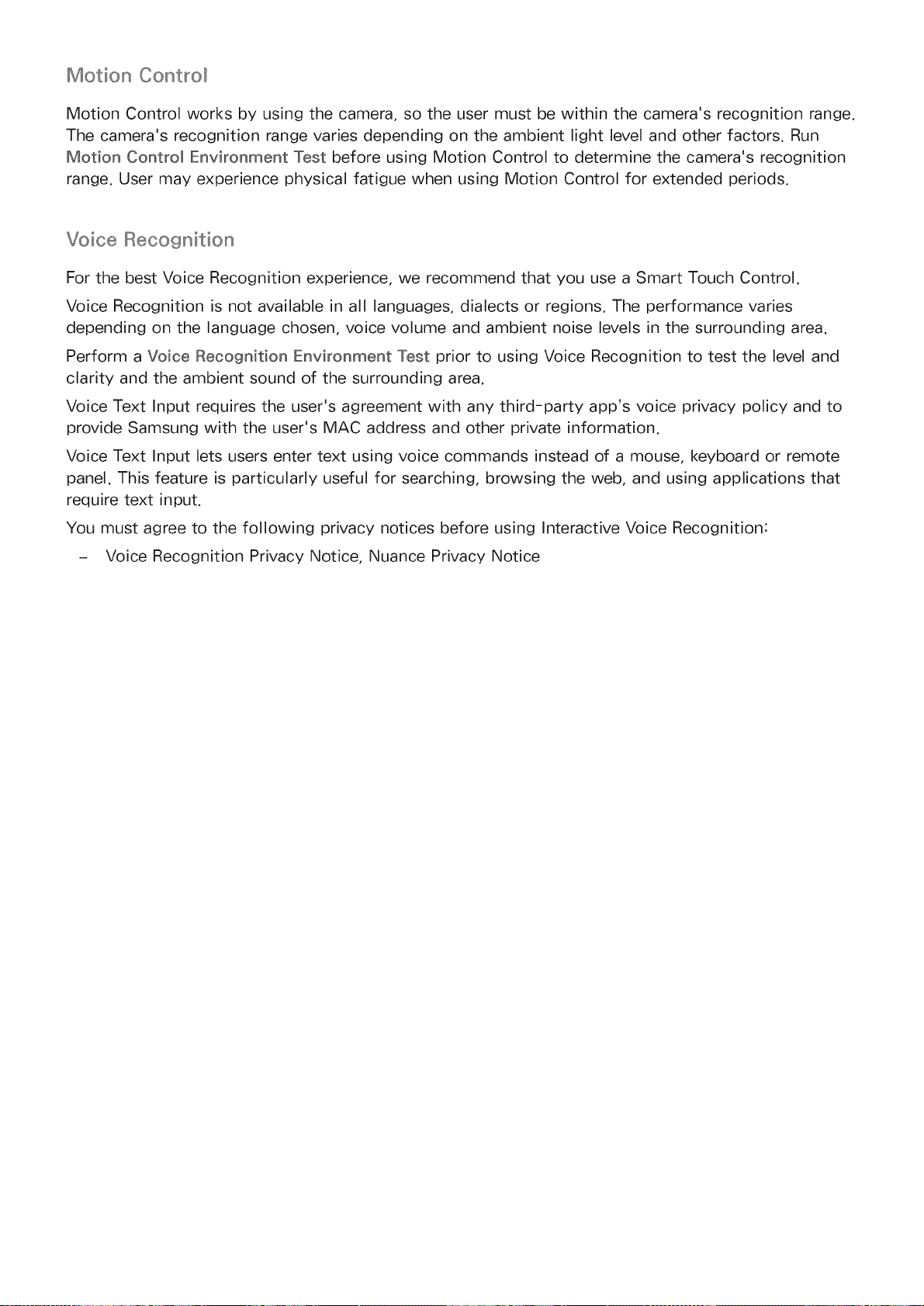

60 Motion Control
60 Voice Recognit on
Voice Recognition
61 Operating Environment
62 Voice Recognition Environment Test
62 Enabling Voice Recognition
62 Voice Recognition Tutorial
63 Basic Voice Recognition Use
63 Voice Recognition Settings
64 Interactive Voice Recognition Commands
64 Quick Changes using Channel Names
64 Deactivating Voice Recognition
Motion Control
65 Operating Environment
66 Motion Control Environment Test
66 Motion Control Tutorial
66 Motion Control Activation
67 Using the Basic Motion Controls
67 Motion Control Options
68 Motion Control Screen
68 The Screen Composition whiJe V[ewir_g TV
69 [he Smart Hub Screen Composition
Face Recognition 3D TV
71 Operating Environment 81 Precautions
72 Face Registration 82 Restdcto_s
82 Tips
72 Face AegistratioJ_ from the Smart Hub account nformat on
screen 83 Activating 3D Mode
73 Face Registrar on for the Smart Hub account using face
re(ognition 84 Setting 3D Effects
73 Face Recognition Login PIP
Using Peripheral Devices
74 Keyboard Connection
74 Keyboard Use
75 Mouse Connection
75 Mouse Use
Analog Screen Calibration
86 Fine Tune
Broadcast Audio Options
87 Digital Broadcast Audio Options
87 Analog Broadcast Audio Options
TV Viewing
Sports Mode
78
Change the Broadcast Signal
TV Viewing
76 Program Info
76
77 Guide
77 Change C_anneJs
77 Change Category
77 Quick Navigatior
77 Schedu e View}ng
77 Checking the Program nfo
Channel List
78 Change Channels
78 Genre
78 Change the Broadcast SignaJ
78 Change the Channe Lst
Schedule Viewing
79 Digital Channel Schedule Viewing
80 Gide
80 Program nfo
80 Analog Channel Schedule Viewing
80 Cancel a Schedule Viewing
80 Edit Schedule List
Subtitles
88 Show Subtitles
89 Subtitle Options
89 Subtitle Display Options
TV Settings
Basic Picture Settings
90 Changing the Picture Mode
91 Picture Quality
91 AppIyi _gthe Current Picture Quality Setti _g to/t_4_ot_er
nput
92 Picture Size
93 Screen Position
93 Picture Off
93 Reset Image Settings
Advanced Settings
Picture Options
Basic Sound Settings
98 Changing the Sound Mode
99 Adjusting the Sound Settings
99 Auto Volume
99 TV Installation Type
99 Resetting the Sound
Sound Customizer
100 Creating a Custom Sound
100 Modifying Sound Profiles
100 Managing Custom Sounds
3D Audio
Speaker Settings
102 Speaker Select
102 Digital Audio Output
102 Samsung Audio Device Connection
Clock and Timer
103 Setting the Time
104 A_to
104 Man_al
104 Sleep Timer
105 On Timer
105 Off Timer
Screen Protection and Maintenance
106 Eco Solution
107 Screen Burn Protection
107 Pixel Shift
107 A to Protection Tree
108 Scrolling
108 Side (}ray
108 Auto Protection Time
Password
109 Change Password
Additional Features
110 Changing the Menu Language
110 Game Mode
110 Precautons and Restrictions
111 BD Wise
111 Menu Transparency
111 Sound Feedback
111 Panel Locking
112 Booting Logo
112 Light Effect
112 DivX(R_ Video On Demand
SMART TV Features
Smart Hub
113 Agreements Required to Use Smart Hub
114
Samsung Account
114 Creatng a SamsLng Acco nt
114 Terms aJ_d CoJ_d}tions Privacy Polcy
115 Logging In
115 Lirfl<ing a Sams_ng Account to Ot_er Accounts
115 Managing AccoLnts
116 Resetting Smart Hub
Searching
116 Keyword Search
116 Setting Search Scope
Status and Notification
117 Show Status and Notification Banner
117 Voice Recognit}on & Motion Contro Config_Jation
117 Samsur_g Account Config_Jation
117 Network Confi%_ration
117 Check Not f cations
Social
118 Social Settings
118 Checking the _\pp caton
118 Connecting a Service to a Samsung Accouter
119 Watching Videos
119 Friend Profile
119 Select a friend to call
119 Filters
Apps
121 Precautions
122 Installing Standard Applications
122 Launching an Application
122 Samsung Apps
123
122
122
Apps
123
124
124
124
124
124
Sea ching for/\pps
nsta ing/\pp icat ons
Management
Ed}t My Apps
Deletng App icat ons
Manag ng App icat}on Folders
Applicatior_ Lock/Unlock
Application Update
Settir_g up the App cation Auto Update
125 Fitness
125 CreatJ_gaProf e
125 Kids
126 WebBrowser
126 Social Networks
126 Linking Servce Accounts
127 Apps Settings
127 Auto Ticker
127 Push Notfcation Settings
127 Channel-Bound Apps
127 Properties
On TV
129 On TV Settings
129 On T-VSetup
129 Recommendation Notce
129 Auto Start
129 Recommendation Method
129 Adut Contents Bock
130 Watching an On-Air Recommended Program
130 Scheduled Recommended Program Info
130 Activating the Guide
130 Program Recommendations by Time
Movies & TV Shows
132 Buying Movies
132 Playing Movies
132 Parental Control
Photos, Videos & Music
133 Restrictions
134 Supported File Formats
134 USB Device Connection
134 USB Device Removal
135 Playing all the Content on a Storage Device
135 Clearing the Recent Playlist
135 Using Networked External Storage Devices
136 Allowing DLNA Device Connections
136 AIIShare
136 Exporting Contents
Videos
137 Changing the view mode
137 Playlist Creation
137 Opening a Different File
137 Video Scanning
138 Show Subtitles
138 Additional Video Playback Settings
Music
139 Changing the view mode
139 Playlist Creation
139 Music Scanning
139 Opening a Different File
139 Additional Music Playback Settings
Photos
140 Changing the view mode
140 Slide Show
140 Slide Show Settings
140 Playlist Creation
141 Opening a Different File
141 Background Music
141 Mini Player
141 Additional Photo Playback Settings
Anynet+ (HDMI-CEC)
142 Precautions
143 Anynet+ (HDMI-CEC) Setup
143 Using the Anynet+ (HDMI-CEC)
143 Switching between/\J_ynet_ Devces
144 AJ_ynet+ (HDM-CEC) Device Menu
144 ARC
Sharing Mobile Device Screens on the TV
145 MHL
145 MHL USE
146 Screen Mirroring
146 Moble Device Connecton
Other Information
Support
147 Remote Management
148 What }s Remote S_pport?
148 How Does it Work?
149 e-Manual
149 Self Diagnosis
149 Pcture ]-est
150 Sound'r_st
150 Voice & Motion Control Envronment Check
150 Signa Informaton
150 Reset
151 Updating the Software
151 Update now
151 Manual Update
151 Auto Update
152 Usage Mode
152 Support Info
Kensington Security Lock
Display Resolution
153 IBM
153 MAC
154 VESA DMT
Picture Size and Input Signal
Supported 3D Resolutions
156 HDMI
156 3D Format L/R, T/B
156 3D Format Frame Packing
157 Component
157 Digital Channel
157 Videos/Photos
157 Computer via HDMI
Subtitle and Media Contents file formats, and Codec
158 Subtitle
158 Extema
158 Internal
159 Supported image resolutions
159 Supported music file formats
160 Video Codec
160 Other Restrctions
161 Video Decoders
161 Audio Decoders
3D Precautions
162 Viewing guidelines
163 CAUTION!
164 SAFETY PRECAUTIONS
S-Recommendation Disclaimer
165 S Recommendation with Voice Interaction
165 S Recommendation
Licenses
Troubleshooting
Screen
Sound
3D TV
Antenna (Air/Cable) Connection
PC Connection
Networking
Miscellaneous
Anynet+ (HDMI-CEC)
Apps
Photos, Videos & Music
Reset the Personal Info and TV settings
Web Browser
Viewing the e-Manua
The embedded e-Manual contains information about your TV's key features.
This TV has a built-in user guide. To read it, use one of the following methods:
o Open the Support menu and choose e-Manual (Troubleshooting).
o Press the IMORIE button on the Smart Touch Control to display control buttons on the screen.
Flick the Touch Pad until e-Manual appears and select it.
Words in blue refer to screen menu options and words in light blue refer to remote pane buttons_
A pdntab e version of this guide is also avaitab e at www.samsung.com/supporL
Scrolling a Page
To scroll a page, use of one of the following methods:
o Press the or button on the scroll bar at the right edge of the screen.
o Drag or flick up or down the line on either the left or right edge of the touch pad.
o Place the focus on the ,_ or button at the right edge of the screen, drag or flick up or down
on the touch pad.
Using the Top Icons
Use the Back, Forward, and Opened pages icons on the top left of the screen to navigate through
pages. These icons are available when two or more pages are passed.
Retunsin9 to the Home Page
To return to the home page, select the B button on the virtual remote panel or select _ on the top
right of the screen.
To seect a letter button (1_1 D, 8_, D), press the MORE button on the Smart Touch Contro to disp ay to
display the virtua remote panel on the TV screen. Fick the Touch Pad until the Playbac< Contro Pane
appears, seect the _1 button, and then press the Touch Pad.
Searching the _ndex
Select the D button on the virtual remote panel or select on the top right of the screen to display
the index. Select a term to display the page containing the term.
Searching Pages
Select the [_;Sbutton on the virtual remote panel or select Q on the top right of the screen, and enter
search criteria. Select a page from the list of search results to display it.
C_osing the e-Ma,rsua_
To close the e-Manual, press and hold the RIETURINbutton or select X at the upper-right corner of the
screen.
Jumping to a Menu totem
To directly jump to the menu item that is described in the current section, select It is possible
to jump from a menu item directly to the related section in the e-Manual. On the screen menu, press
the IMORIE button on the Smart Touch Control and then select eHManuall on the virtual remote panel
that appears on the screen.
This feature may not be avai able, depending on the menu_
Updating the e,-Manual
Press the _ button and select Apps, and then select More Apps. The e-manual can be updated in the
same way with an application update.
On the More Apps screen, select Update Apps, and then select e-Manual from the list. The e-Manual
starts updating to the latest version. However, Update Apps appears on the screen only when the
update is required.
Antenna Connection
Refer to the diagram and connect the antenna cable to the antenna input connector. Make sure that you
do not bend the cable. The number of connectors and their names and locations may vary depending
on the model.
Connect the correct antenna cable for your viewing environment (over-the-air or cable broadcasting).
However, an antenna connection is not necessary if you are using a cable box or satellite receiver.
For the LED 7450/7500, 8000 and PDP 8500 series models
The displayed image may differ depending on the model.
For the LED 9000 and UHD S9 series models
The displayed image may differ depending on the model.
Video Device Connections
This TV has a wide range of connectors for video input from video devices such as Blu-ray players,
DVD players, camcorders and gaming consoles. Below is a list of featured connectors shown in
descending order of picture quality.
o HDMI
Component
o AV
Connect the video device to the TV via an HDMI connector for the best picture quality. If the device
does not have an HDMI connector, try a component connector to get the next best possible oicture
quality.
The number of connectors and their names and locations may vary depending on the model
When connecting an external device, refer to the device's operating manual. The number of external
device connectors and their names and locations may vary depending on the manufacturer.
HDMi Connection
For the LED 7450/7500, 8000 and PDP 8500 series models
Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the
TV's HDMI input connector. One of the following HDMI cable types is recommended:
o High-Speed HDMI Cable
o High-Speed HDMI Cable with Ethernet
Use an HDMI cable with a thickness of 14 mm or less. Using a non-certified HDMI cable may result in
a blank screen or a connection error.
Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications,
This TV does not support the HDMI Ethernet Channe,
The displayed image may differ depending on the model.
For the LED 9000 and UHD 89 series models
Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the
One Connect HDMI input connector. One of the following HDMI cable types is recommended:
o High-Speed HDMI Cable
o High-Speed HDMI Cable with Ethernet
Use an HDMI cable with a thickness of 14 mm or less. Using a non-certified HDMI cable may result in
a blank screen or a connection error.
Some HDMI cables and devices may not be compatible with the TV due to different HDM[ specifications_
This TV does not support the HDMI Ethernet Channe,
The displayed image may differ depending on the model.
Component Connection
For the LED 7450/7500 series models
Refer to the diagram and connect the TV's component video and audio input connectors to the
external device's component video and audio output connectors using a component cable, so that the
connectors of the same color connect to each other, as shown in the figure.
The displayed image may differ depending on the model.
For the LED 8000 and PDP 8500 series models
Refer to the diagram and connect the connect a component cable to the provided two jack to-RCA
extension cables, so that the connectors of the same color connect to each other. Plug the two jacks
into the TV's component video and audio input connectors, and plug the five connectors on the other
end into the external device's component video and audio output connectors, as shown in the figure.
The displayed image may differ depending on the model.
For the LED 9000 and UHD 89 series models
Refer to the diagram and connect the component video and audio cables to the component adapter
(accessory) and to the One Connect component input connectors. Make sure the cable colors match
the connector colors.
The displayed image may differ depending on the model.
AV Connection
For the LED 7450/7500 series models
Refer to the diagram and connect the AV cable to the TV's external input connectors and the device's
AV output connectors.
If you are using the TV's external input 1 connectors, connect the video cable to the Y connector.
The displayed image may differ depending on the model.
If the TV's external input 2 connectors are being used, use the enclosed AV connection adapter.
The displayed image may differ depending on the model.
For the LED 8000 and PDP 8500 series models
Connect a composite cable to the provided jack-to-RCA extension cable, so that the connectors of
the same color connect to each other. Plug the jack into the TV's composite video and audio input
connector, and plug the three connectors on the other end into the external device's composite video
and audio output connectors, as shown in the figure.
The displayed image may differ depending on the model.
AV IN 2 is supported in LED 8000 Series only.
The displayed image may differ depending on the model.
For the LED 9000 and UHD 89 series models
Refer to the diagram and connect the video and audio cables to the A/V adapter (included) and the
adapter to One Connect's external input 1 or 2 connector.
The displayed image may differ depending on the model.
Audio Device Connections
This TV has a wide range of connectors for audio input from devices such as amplifiers, Blu-ray
players and DVD players. For better audio quality, it is a good idea to use an AV receiver.
o Digital Audio (Optical)
Audio
ARC (Audio Return Channel)
The number of connectors and their names and locations may vary depending on the model.
When connecting an external device, refer to the device's operating manual. The number of external
device connectors and their names and locations may vary depending on the manufacturer.
Digitam Audio (Optical) Connection
Connecting the device using an optical cable does not automatically turn off the TV speakers. To turn
off the TV speakers, open the Speaker Semect (Sound) Speaker Settings ) Speaker Select) menu,
then set External Speaker.
Adjust the audio device's volume using its remote panel.
An unusual noise coming from the audio device while it is being used may indicate a problem with the
audio device itself. If this is the case, ask for assistance from the audio device manufacturer.
5.1-channel audio for digital channels is only available with broadcasts that support 5.1-channel audio.
For the LED 7450/7500, 8000 and PDP 8500 series models
Refer to the diagram and connect the optical cable to the TV's digital audio output connector and the
device's digital audio input connector.
The displayed image may differ depending on the model.
For the LED 9000 and UHD S9 series models
Refer to the diagram and connect the optical cable to the One Connect digital audio output connector
and the device's digital audio input connector.
J
The displayed image may differ depending on the model.
Audio Output Connection
For the LED 7450/7500, 8000 series models
Refer to the diagram and connect the audio cable to the TV's audio output connector and the device's
audio input connector.
The displayed image may differ depending on the model.
For the LED 9000 and UHD S9 series models
Refer to the diagram and connect the audio cable to the One Connect audio output connector and the
device's audio input connector.
The displayed image may differ depending on the model.
ARC (Audio Return Channel)
For the LED 7450/7500, 8000 and PDP 8500 series models
This TV supports 3D and ARC (Audio Return Channel) functions via an HDMI cable. ARC enables
digital sound to be output using just an HDMI cable. However, ARC is only available through the HDMI
(ARC) port and only when the TV is connected to an ARC-enabled AV receiver. Connect the HDMI
cable to the TV's HDMI (ARC) connector and the device's HDMI output connector.
Certain functions such as the Smart Hub may not be avai abe if 3D Auto View is set to On whie Source is
in HDMI mode, In this case, set 3D Auto View or 3D Mode to Ofยฃ
The displayed image may differ depending on the model.
For the LED 9000 and UHD 89 series models
This TV supports 3D and ARC (Audio Return Channel) functions via an HDMI cable. ARC enables
digital sound to be output using just an HDMI cable. However, ARC is only available through the HDMI
(ARC) port and only when the One Connect is connected to an ARC-enabled AV receiver. Connect the
HDMI cable to the One Connect HDMI (ARC) connector and the device's HDMI output connector.
Certain functions such as the Smart Hub may not be avai able if 3D Auto View is set to On while Source is
in HDMI mode, in this case, set 3D Auto View or 3D Mode to Ofยฃ
The displayed image may differ depending on the model.
Computer Connection
This TV supports the HDMI/DVI port for connect the computer. Not all computers are HDMI-enabled.
In this case, use an HDMI-to-DVl cable to connect the computer to the TV. Refer to the "Display
Resolution" for information on the resolution settings supported to the TV.
HDM[ Connection
For the LEID 7450/7500_ 8000 and PDP 8500 series mode_s
Refer to the diagram and connect the HDMI cable to the TV's HDMI input port and the computer's
HDMI output port.
The displayed image may differ depending on the model.
For the LED 9000 and U_,,,,,,,,ID$9 series models
Refer to the diagram and connect the HDMI cable to the One Connect HDMI input port and the
computer's HDMI output port,
The displayed image may differ depending on the model.
HDM -to-DVm Connection
For the LEI[i} 7450/7500_ 8000 and PDP 8500 sedes mode_s
Refer to the diagram and connect the HDMI-to-DVI cable to the TV's HDMI (DVI) port and the
computer's DVl output port. The HDMI-to-DVl connection is available through the HDMI (DVl) port
only.
DVl cannot carry audio. To listen to the computer sound, connect the external speaker to the
computer's audio output connector.
The displayed image may differ depending on the model.
For the LED 9000 and UI,,,,,,,,ID$9 sedes models
Refer to the diagram and connect the HDMI-to-DVI cable to the One Connect HDMI (DVI) port and
the computer's DVl output port. The HDMI-to-DVl connection is available through the HDMI (DVl) port
only.
DVI cannot carry audio. To listen to the computer sound, connect the external speaker to the
computer's audio output connector.
The displayed image may differ depending on the model.
Smartphone Connection
This TV supports MHL (Mobile High-definition Link) via an MHL cable. MHL makes it possible to enjoy
video, image, and audio files from mobile devices on your TV. However, MHL is only available through
the TV's HDMI (MHL) port and only when used in conjunction with an MHL-enabled mobile device.
For information on configuring MHL on your mobile device, refer to the device's User Manual.
Connecting the MHL-to-HDM[ cable automatical y switches Picture Size to Screen Fit, This setting will not
change automatical y if you are using an HDMI adapter_ In this case_ change the setting manua y in the
menu_
If you are using an HDMI adapte_ the TV recognizes the signal as an HDMI signal and may respond
different y than it would to an MHL-to-HDMI cable connection_
For the LED 7450/7500_ 8000 and PDP 8500 series models
Refer to the diagram and connect the MHL cable to the TV's HDMI (MHL) connector and the mobile
device's USB port.
The displayed image may differ depending on the model.
For the LED 9000 and UHD 89 series models
Refer to the diagram and connect the MHL cable to One Connect's HDMI (MHL) connector and the
mobile device's USB port.
The displayed image may differ depending on the model.
Switching Between Video
Press the SOURCE button to switch between devices connected to the TV.
For example, to switch to a game console connected to the second HDMI connector, press the
SOURCE button. From the Source list, select HDM_2. The connector names may vary depending on the
product.
Select Tools at the upper-right corner of the Source screen to access the following functions.
o Edit Narae: You can rename devices connected to the TV to more easily identify external sources.
With a computer connected to the TV's HDMI (DVI) port via an HDMI cable, for example, you can
change Edit Name to PC.
With a computer connected to the TV's HDMI (DVI) port via an HDMI-to-DVI cable, for example,
you can change Edit Name to DW PC.
With an AV device connected to the TV's HDMI (DVl) port via an HDMI-to-DVI cable, for
example, you can change Edit Name to DW Devices.
information: View detailed information about the connected devices.
Refresh: Select this if a connected device does not appear in the list. If the list does not show the
device after selecting Refresh, check the status of the TV-to-device connection.
Remove USB: Remove the USB device from the list safely. This function is only available when
the USB device selected.
To add a new external device to control it with the Smart Touch Control, press the SOURCE button
and select Universal Remote Setup on the top right of the screen. Using the universal remote control,
users can control external devices connected to the TV, such as a set-top box, Blu-ray player, and AV
receiver. For details, see "Universal Remote Setup".
Programming
Scan and index available channels.
The dispIayed image may differ depending on the modet,
You can also remove channels from the index, restore removed channels and designate favorite
channels for a more convenient TV viewing experience. Programming is not necessary if you are
connected to a cable or satellite receiver.
Auto Program
Screen Menu > Broadcasting > Auto Program
Automatically scans and indexes all channels received through the TV's antenna input connector.
To start, navigate to Broadcasting and select Auto Program.
2. Select Start when prompted with a message. This initiates the Auto Program function. The
process can take up to 30 minutes to complete. If starting the Auto Program function when there
is an existing index of channels overwrites the previous index.
Remove Scrambled Channels
Screen Menu > Broadcasting > Channel Settings > Clear Scrambled Channel
Remove scrambled channels (ex: pay-per-view channels) from channel list. To remove scrambled
channels, run this function. This function is enabled only for cable TVs when at least one digital
channel is available.
Channel
Screen Menu > Broadcasting > Edit: Channel
The dispIayed image may differ depending on the modet.
Remove channels from the index, restore removed channels, and rename analog channels. The Edit
Channel screen icons indicate the following:
o _, " An analog channel
@_" A favorite channel
e A locked channel
From the Edit Channel screen, select the virtual remote panel's TOOLS button to access the following
options:
o Antenna: Choose between Cable and Air.
o Category: The TV's channel index is divided into different categories such as All, Added Cho,
Recently Viewed and Mostly Viewed. Choose a category.
o Edit Favorites: You can designate frequently watched channels as favorites. For details, see
"Favorite Channels".
o information: View detailed information about the current program.
Remove Channels
Remove registered channels from the index. Removing channels appearing in the Recently Viewed or
Mostly Viewed list clears the channels from the list only and does not remove them from the index.
From the screen, select the channels you wish to remove. Unselect channels by choosing them
again.
2, Select the Sa button on the virtual remote panel. The selected channel(s) will be deleted.
Restore Removed Channels
Restore removed channels. Removed channels are displayed in gray on the ANI list. In addition, the Add
option is only available for removed channels.
Select the virtual remote panel's TOOLS button to display the list. Select Category and then
select ANI.
2, From the All list, select the channels you wish to restore. Unselect channels by choosing them
again.
3, Select the #3 button on the virtual remote panel. The selected channel(s) will be added.
Program Rating Lock
Screen Menu > Broadcasting > Program Rating Lock
The Program Rating Lock blocks programs with ratings higher than those desired. This is useful for
controlling what children watch on TV. This will not function for programs originating from external
sources, such as DVD players or USB files.
This PIN is required to watch a blocked program.
The Program Rating Lock is available only in TV mode.
Blockin9 Programs Usin9 the IV Ratin9
To block content, select a rating entry to lock. All programs at that level and higher are blocked and
require the PIN to watch. To unblock a category, select the lock icon. To unblock all the categories in a
row, select the lock under ALL.
Categories on the left:
o TWY: Young children
TWY7: Children 7 and over
TWG: General audience
TWPG: Parental guidance
TW14: Viewers 14 and over
TWMA: Mature audience
Categories on the top:
ALL: Lock all TV ratings.
FV: Fantasy violence
V: Violence
S: Sexual situations
L: Adult Language
D: Sexually Suggestive Dialog
Blocking based on Movie Bating (MPAA)
Block movies based on their MPAA rating. This applies to all material with supplied ratings in the USA.
From the MPAA:
"The Motion Picture Association of America (MPAA) has implemented a rating system that provides
parents or guardians with advanced information on which films are appropriate for children."
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
o G: General audience (no restrictions).
PG: Parental guidance suggested.
PGm13: Parents strongly cautioned.
R: Restricted. Children under 17 should be accompanied by an adult.
NC-17: No children under age 17.
X: Adults only.
NR: Not rated.
Blocking Based on Canadian English Bating
Block material based on its English Canadian rating. This applies to all rated material viewed on
English-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
6: Programming intended for children under age 8
68+: Programming generally considered acceptable for children 8 years and over to watch on
their own
G: General programming, suitable for all audiences.
PG: Parental Guidance
14+: Programming containing themes or content which may not be suitable for viewers under the
age of 14
18+: Adult programming
Blocking Based on Canadian French Ratin9
Block material based on its French Canadian rating. This applies to all rated material viewed on
French-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
G: General
8 ans+: Programming acceptable for children 8 years and over to watch on their own
13 ans+: Programming that may not be suitable for children under the age of 13
16 ans+: Programming not suitable for children under the age of 16
18 ans+: Programming restricted to adults
Blocking Based on Downloadablle US Rating
Block material based on its Downloadable U,S, Rating. This rating system only applies to material
originating from US DTV channels.
Parental restriction information is automatically downloaded while watching DTV channels. This
download may take several seconds. If the information is unavailable from the broadcasting station,
the Downloadable UยฐSยฐ Rating menu is deactivated.
Parental restriction levels differ depending on the broadcasting station, and the default menu name
and the Downloadable U.S. Rating name changes depending on the downloaded information.
Even when the on-screen display is set to another language, the Downloadable U.S. Rating menu
appears only in English.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
Watching Blocked / Restricted Programs
To watch a blocked program, enter the PIN when requested.
When initially showing a restricted program or movie, the screen is blank because the Program Rating
Lock blocks it. Enter the PIN to unblock the program when a message appears requesting the code.
Rename Analog Channels
Select an analog channel from the Edit Channel screen and then select the virtual remote panel's
TOOLS button to display a list of options. Select Rename Channel from the list.
You can now rename the selected channel. The new name can be up to 5 characters long.
Favorite Channels
Screen Menu > Broadcasting > Edit Favorites
The displayed image may differ depending on the model,
You can designate frequently watched channels as favorites. The channels assigned as a favorite are
displayed with the _ symbol on the Edit Channel and channel list screens. You can create up to 5
favorite channel lists. You can also rename and edit favorite channel lists.
From the Edit Favorites screen, select the virtual remote panel's TOOLS button to access the following
options:
o Antenna: Choose between Cable and Air.
o Edit Channel" You can manage the channels saved on the TV. For details, see "Channel
Management".
o information: View detailed information about the current program.
Add Favorite Channels
Add a channel to a favorite channels list.
Select the _1 button on the virtual remote panel to bring up the channel list containing the
channels you wish to add and then select the channels. However, the Q button is available only
when the Recently Viewed or Mostly Viewed channel list has one or more channel entries.
2, Select the I[',iSbutton on the virtual remote panel to bring up a favorite channels list and then
select the _ button to add the selected channels.
Remove Favorite Channels
Remove channels from a favorite channels list.
Select the lOSbutton on the virtual remote panel to bring up a favorite channels list and then
select the channels you wish to remove.
2, Select the _ button on the virtual remote panel, to remove the channels from the list.
Rearrange the Favorite Channels List
Rearrange the order of the channels in a Favorite Channels List.
Select the [_ button on the virtual remote panel to bring up the favorite channels list and select
the channel you wish to move.
2. Select the [] button on the virtual remote panel to rearrange the order of the selected channel.
Press the touch pad to finish.
Rename a Favorite Channel List
Rename an existing favorite channels list.
Select the virtual remote panel's TOOLS button to display the list. Select Rename Favorites from
the list.
2. Rename the list in the popup window. The new name can be up to 20 characters long.
Copy a Favorite Channels List
Copy channels from one favorite channels list to another.
Select the [_ button on the virtual remote panel to bring up a Favorite Channels List and select
the channels you wish to copy.
2. Select the virtual remote panel's TOOLS button to display the list. Select Copy to Favorites from
the list, and then select the Favorite Channels List(s) you wish to copy to. This copies over the
channels to the selected Favorite Channels List(s).
Network Configuration
Connecting the TV to a network gives you access to online services such as the Smart Hub as well as
software updates.
Wired Network
For the LED 7450/7500_ 8000 and PDP 8500 series mode_s
There are three ways to connect the TV to a Local Area Network (LAN).
o External Modem
o @ IP Router + @ External Modem
o Wall-mounted LAN Outlet
For the LED 9000 and U_,,,,,,,,ID$9 series models
There are three ways to connect the TV to a Local Area Network (LAN).
o External Modem
o (_ IP Router + @ External Modem
ยฎ
o Wall-mounted LAN Outlet
Wireless Network
Connect the TV to the Internet using a standard router or modem.
Wireless Network P_ecautions
o This TV supports the IEEE 802.11a/b/g/n communication protocols. Samsung recommends using
IEEE 802.11n. Otherwise when you play video over a network connection, the video may not play
smoothly.
To use a wireless network, the TV must be connected to a wireless router or modem. If the
wireless router supports DHCP, the TV can use a DHCP or static IP address to connect to the
wireless network.
o Select a channel that is not currently in use for the wireless router. If the channel set for the
wireless router is currently being used by another device, the result is usually interference and/or
a communications failure.
o Most wireless networks have an optional security system. To enable a wireless network's security
system, you need to create a security key using characters and numbers. This security key is then
needed to connect to the wireless network.
Network Secudty P_otoco_s
The TV only supports the following wireless network security protocols and is unable to connect to
non-certified wireless touters:
Authentication Modes: WEE WPAPSK, WPA2PSK
Encryption Types: WEE TKIP, AES
If the wireless router has been set to Pure High-throughput (Greenfield) 802.11n mode and the
Encryption Type to WEP or TKIE Samsung TVs will not support the connection in compliance with the
new Wi-Fi certification specifications.
If the wireless router supports WPS (Wi-Fi Protected Setup), it is possible to connect to the network
using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically
configures the SSID and WPA key settings.
Network Setup
Screen Menu > Network > Network Settings
The dispIayed image may differ depending on the modet,
Automatic Wired Network Setup
The TV's wired network connection is automatically configured when it is connected to a network that
supports DHCP.
Set Network type to Wired and then select Connect.
o
The TV attempts to connect to the network. A confirmation message is then shown once a
connection is established. Select OK to proceed. If the attempt fails, try again or connect
manually.
Manual Wired Network Setup
If the network requires a static IP address, enter the IP address, subnet mask, gateway and DNS values
to connect to the network manually. To get the IP address, subnet mask, gateway and DNS values,
contact your Internet Service Provider (ISP). Refer to the "Dynamic versus Static IP Addresses" for
more information.
1, Set Network type to Wired and then select Connect.
2, Select Stop when the TV attempts to connect to the network. Once the network connection has
been interrupted, select JP Settings.
3, From the JP Settings screen, set JP Setting to Enter manually, enter JPAddress, Subnet Mask,
Gateway, and the DNS Server values, and then select OK.
,
The TV attempts to connect to the network again using the specified settings. A confirmation
message is then shown once a connection is established. Select OK to proceed.
Fai ed Wired Connection
Ho netwo rk ca hie fo u nd
Make sure the network cable is plugged in. If it is connected, make sure the router is turned on. If it is
on, try turning it off and on again.
_P auto settin g fai_ed
Perform the following or set the IP address manually from JP Settings.
Ensure that the DHCP server is enabled on the router and reset the router.
2, If this does not work, contact your Internet Service Provider for more information.
Unab_e to co nnect t o t he netwo rk
Check the following:
Check the JP Settings settings.
2, Ensure that the DHCP server is enabled on the router and unplug and then plug the router back in.
3, if this does not work, contact your Internet Service Provider for more information.
Connected to a Ioca_ network_ but not to the _nternet
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2, Check the DNS settings under JP Settings.
3, If the problem persists, contact your Internet Service Provider.
Hetwork setup comp_ete_ but unable to connect to the _nternet
if the problem persists, contact your Internet Service Provider.
Wireless Network
Screen Menu > Network > Network Settings
The dispIayed image may differ depending on the modet,
Automatic Wireless Network Setup
Connect the TV to the Internet via a wireless router. Check the wireless router's SSID and security
key settings before attempting to connect. The security key can be found on the wireless router's
configuration screen.
Setting Network type to Wireless automatically displays a list of available wireless networks.
o
o
o
Select the network (SSID) you wish to connect to. If the desired wireless router doesn't appear in
the list, select Add Network and enter the network's SSID manually.
Enter the security key and select Done. If the selected network is not security-enabled, the TV will
attempt a connection right away.
The TV attempts to connect to the network. A confirmation message is then shown once a
connection is established. Select OK to proceed. If the attempt fails, try again or connect
manually.
Manua Wireless Network Setup
If the network requires a static IP address, enter the IP address, subnet mask, gateway and DNS values
to connect to the network manually. To get the IP address, subnet mask, gateway and DNS values,
contact your Internet Service Provider (ISP). Refer to the "Dynamic versus Static IP Addresses" for
more information.
Setting Network type to Wireless automatically displays a list of available wireless networks.
2_
3_
4_
Select the network (SSID) you wish to connect to. If the desired wireless router doesn't appear in
the list, select Add Network and enter the network's SSID manually.
Enter the security key and select Done. If the selected network is not security-enabled, the TV will
attempt a connection right away.
Select Stop when the TV attempts to connect to the network. Once the network connection has
been interrupted, select JP Settings.
Fromthe JPSettingsscreen,setJPSettingto Entermanually,enterJPAddress,SubnetMask,
Gateway,andthe DNSServervalues,andthen selectOK.
TheTV attemptsto connectto the networkagainusingthe specifiedsettings.A confirmation
messageisthenshownoncea connectionisestablished.SelectOKto proceed.
Using the WPS Button
If the router has a WPS push button, you can use it to connect the TV to the router automatically. WPS
automatically configures the SSID and WPA key settings.
Setting Network type to Wireless automatically displays a list of available wireless networks.
2. Select WPS(PBC) and then press the router's WPS button within two minutes.
The TV automatically acquires the SSID and security key settings and connects to the network. A
confirmation message is then shown once a connection is established. Select OK to proceed.
Fai ed Wireless Connection
Wkeb ss netwo rk co n nectio n fai_ ed_ o_" no wkeb ss rout er sebct ed,
Go to Network Settings and select the correct router.
Unabb to connect to a wkebss _'outer
Check the following:
Check that the router is turned on, and if it is, turn it off and on again,
2, Enter the correct security key if required,
_P auto settin9 faibd _
Perform the following or set the IP address manually from mPSettings.
Make sure that the DHCP server is enabled on the router and unplug and plug the router back in.
2, Enter the correct security key if required.
3, if this does not work, contact your Internet Service Provider for more information.
Una bb to co nnect to t he network :{}_
Check the following:
Check the JP Settings settings.
2, Enter the correct security key if required.
3, if this does not work, contact your Internet Service Provider for more information.
Connected to a Ioca_ network_ but not to the _nternet
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2, Check the DNS settings under JP Settings.
3, If the problem persists, contact your Internet Service Provider.
Network setup comp_ete_ but unable to connect to the _nternet
If the problem persists, contact your Internet Service Provider.
Dynamic versus Static _P Addresses
If the network requires a dynamic IP address, use an ADSL modem or router that supports the
Dynamic Host Configuration Protocol (DHCP). Modems and touters that support DHCP automatically
provide the IP address, subnet mask, gateway and DNS values the TV needs to access the Internet, so
they do not have to be entered manually. Most home networks use a dynamic IP address.
If the network requires a static IP address, enter the IP address, subnet mask, gateway, and DNS values
manually when setting up the network connection. To get the IP address, subnet mask, gateway and
DNS values, contact your Internet Service Provider (ISP).
If the network requires a static IP address, use an ADSL modem that supports DHCP. ADSL modems
that support DHCP also allow static IP addresses.
Checking the Network Status
Screen Menu > Network > Network Status
The dispIayed image may differ depending on the modet,
View the current network and Internet status,
Mobile Device Connection
The dispIayed image may differ depending on the modet_
You can either directly connect a mobile device to the TV with no need for a wireless router or connect
them on the same network to play media files from the mobile device on the TV,
Wi-Fi Direct
Screen Menu > Network > Wi-Fi Direct
Connect a mobile device that supports Wi-Fi Direct to the TV without using a wireless router.
Enable Wi-Fi Direct on the mobile device and then launch Wi-Fi Direct. The TV automatically
scans for and displays a list of available devices. The TV's name also appears on the mobile
device.
2, Select the device from the list to initiate a connection. If a connection request is made by the
TV, a permission message appears on the mobile device and vice versa. Accept the request to
connect the mobile device to the TV.
AlIShare Settings
Screen Menu > Network > AIIShare Settings
This TV can play media files from computers or other DLNA-enabled devices connected to the TV via
a network. For details, see "Using Networked External Storage Devices".
In addition, this TV can be used as a display for mobile devices, including smartphones and tablets.
For details, see "Screen Mirroring".
Rename the
Screen Menu > Network > Device Name
Assign a unique name for your TV. The assigned name appears on the external devices connected to
the TV via the network.
Smart Touch Control
The Smart Touch Control makes it easier and more convenient to use the TV. For example, you can
use the remote panel's built-in touch pad to move the focus and make selections as you would on a
computer using a mouse. In addition, you can use the virtual remote panel displayed on the screen to
change channels, play media files, and access favorites.
mnserdng the Batteries (AAA X 2}
o
Slightly lift the battery cover by pulling the strap or using a plastic card. Next, pull on the cover's
notch with a fingernail to remove the cover completely.
Check the ocation of the battery cover groove, The grooves ocatio_' may vary depeu'diu'g o_' the type
of Smart To_JchCo_'tro is provided witlh the product..
Insert 2 AAA batteries, making sure to align the positive and negative ends correctly.
Align the battery cover with the back of the remote panel and press down along the edges until it
is cleanly attached to the remote panel.
Connecting to the TV
In order to operate the TV using a Smart Touch Control, you must first pair it to the TV via Bluetooth.
However, the Smart Touch Control is only available for the paired Samsung TV.
To turn on the TV, point the Smart Touch Control at the remote panel receiver of the TV and
press the TV button. The remote panel receiver's location may vary depending on the model.
2, A Bluetooth icon will appear at the bottom left of the screen as shown below. The TV will then
attempt to connect to the Smart Touch Control automatically.
<Attempting to connect and completion icons>
Reconnectin9 the Smart Touch Contro_
If you need to reestablish the connection between the TV and the Smart Touch Control, press the
pairing button at the back of the Smart Touch Control.
<The Smart Touch Control's pairing button>
The pairing button can be accessed by removing the Smart Touch Control's battery cover. Pressing the
pairing button automatically reestablishes the connection between the control and the TV.
Battery Low Amarm
If the battery becomes low while using the Smart Touch Control, the following alarm window blinks
and appears at the bottom of the left screen. If the alarm window pops up, replace the batteries of the
Smart Touch Control. Use alkaline batteries for longer usage.
<Low battery alarm window>
Buttons and Descriptions
<For U.S.A. and Canada>
<For the other countries>
!
TV Turns the TV on/off,
SOURCE Changes the source.
Turn on and off the satellite or cable set-top box connected to the TV. For this, the
STIB Smart Touch Control must be configured as a universal remote control. Refer to
"Universal Remote Setup" for more information.
VOL Adjusts the volume.
Run Voice Recognition. To speak a voice command, press and hold the VOICE
VOICE button and say a voice command. Refer to "Voice Recognition" for more
information.
MUTE Turns the TV sound on/off.
CH Changes the channel.
Displays the virtual remote panel on the screen. The virtual remote panel consists of
MORE a number panel, a playback remote panel, and a quick access panel. Use the touch
pad to select numbers and buttons. Refer to "Virtual Remote Control" for more
information.
:: Drag your finger on the touch pad as you would on the touch pad of a laptop to
Touch pad move the focus displayed on the screen. To select item, press the touch pad. Refer
to "Using the touch pad" for more information.
RETURN / EXIT Returns to the previous menu.
Launch Smart Hub. While an application is running, pressing the SMART HUB button
SMART IHUB
terminates the application. Refer to "Smart Hub" for more information.
i
Check the digital channel broadcasting schedule. Refer to "Guide" for more
GUDE information
(for U.S.A. and Canada) Turn on the backlight for the buttons. The backlight lasts
for only a few seconds. Turns the remote panel light on or off. When on, the buttons
L_GHT
become illuminated for a moment when pressed. (Using the remote panel with this
button set to On wit! reduce the battery usage time,)
(for U.S.A. and Canada) This button is only available when the Smart Touch Control
IDVR is configured to function as a universal remote control to control a set-top box. Run
DVR (Digital Video Recording) in set-top box.
MEINU Opens the OSD,
3D Turns the 3D image on or off. Refer to "3D TV" for more information.
(for the other countries) Enable Sports Mode for the optimal sports viewing
experience.
IIINFO (for the other countries) Displays information on the TV screen.
Special Functions
Press and hold the following Smart Touch Control buttons to access various special functions.
Press and hold the touch pad while watching TV to display OH List on the
screen. In addition, you can press and hold the touch pad for 2 seconds or more
Touch pad while an application is running to access the application's hidden features. (Not
available with al! applications.)
RETURN Press and hold this button to quit the current process or app.
Press and hold the touch pad to select a desired function (e.g. e-ManuaL
MORE
TOOLS, INFO, etc.) easily.
Using the touch
Use the touch pad to perform various commands. Navigate to Tutorial (System > Device Manager
> Smart Touch Control Settings > Tutorial) to view an on-screen guide to using the Smart Touch
Control.
Drag on the touch pad in the desired direction. Move the focus or the pointer in the direction the
finger is dragging,
<The button's name may vary, depending on the country.>
Pressing
Press the touch pad. This selects the focused item.
<The button's name may vary, depending on the country.>
Flicking
Flick on the touch pad in the desired direction. This moves the focus or scrolls the screen based on
the direction and speed of the flick.
(The button's name may vary, depending on the country.>
Pressing and Holding
Press and hold the touch pad while watching TV to display CH List on the screen. In addition, you
can press and hold the touch pad for 2 seconds or more while an application is running to access the
application's hidden features. (Not available with all applications.)
<The button's name may vary, depending on the country.>
Pressing and Dragging
Press on the touch pad, drag and release. This moves the selected web item in a webpage or your
current location on a map.
<The button's name may vary, depending on the country.>
Scrolling Up/Down
Scroll up/down the line on either the left or right edge of the touch pad. This scrolls a webpage or a
list up/down. This scrolling feature easily accommodates both right-handed and left-handed users.
<The button's name may vary, depending on the country.>
Scrolling Left/Right
Move your finger horizontally on the projected line at the top of the touch pad. You can horizontally
scroll a horizontal list or the Smart Hub panel.
<The button's name may vary, depending on the country.>
Changing Channels by Entering Numbers
While watching TV, tap on the protruding line on the left or right edge of the touch pad to bring up the
numerical input window on the screen. Use your finger to enter the number for the channel you want
to watch. The recognized number is displayed on the screen and the TV switches to the corresponding
channel. However, the number you have entered may not be recognized properly by the TV. Refer to
the guide below to ensure that your numerical entries are recognized accurately.
<The button's name may vary, depending on the country.>
Numedca_ _nput Guide
Refer to the diagrams below when entering numerical values. The TV may not recognize your entries if
you do not follow the sequences shown below.
Adjusting the Touch pad
Screen Menu > System > Device Manager > Smart Touch Control Settings ) Touch Sensitivity
Users can adjust the sensitivity of the Smart Touch Control's touch pad. Set Touch Sensitivity to
adjust sensitivity and make it more convenient to use.
Show Status and Notification Banner
Press the MORE button on the Smart Touch Control and then select STATUS on the virtual remote
panel to display the status and notification banner at the top of the screen. Refer to the "Status and
Notification" for more information.
This functions is only available on U.S.A. and Canada.
Press the IRECOMMo / SEARCH and then select Recommended from the list displayed at the bottom of
the screen. This shows the current/scheduled program and application recommendations.
Select a program that is currently airing to jump to the corresponding channel or a program that is
scheduled to air to set up a Schedule Viewing setting. Refer to the "Scheduled Recommended Program
Info" for more information.
Select an application to launch. Samsung Apps will launch if the selected application is not installed
on the TV. Refer to the "Samsung Apps" for more information.
For U.S.A. and Canada
Press the RECOMM, / SEAIRCH and then select History from the list displayed at the bottom of the
screen. This displays an interactive list of recently accessed channels, media content and applications.
For the other countries
Press the HISTORY / SEAIRCH and then select History from the list displayed at the bottom of the
screen. This displays an interactive list of recently accessed channels, media content and applications.
Deleting History Data
Screen Menu > Smart Features > Remove viewing history > History
You can delete the history information about recently viewed channels, content and applications.
For U.S.A. and Canada
Press the RECOMMo / SEARCH button on the Smart Touch Control. The list appears at the bottom of
the screen. Press the RECOMM_ / SEARCH button again. The keypad will appear on the screen. Enter
search criteria to search not only many apps and their contents on the TV but also the Web. For more
information, refer to "Searching".
For the other countries
Press the H_STORY / SEAIRCH button. The list appears at the bottom of the screen. Press the HISTORY
/ SEAIRCH button again. The keypad will appear on the screen. Enter search criteria to search not only
many apps and their contents on the TV but also the Web. For more information, refer to "Searching".
Virtua Remote Controm
Press the MORE button to display the virtual remote panel on the screen. The virtual remote panel
consists of a number panel, a playback remote panel, and a quick access panel. Use the touch pad to
select numbers and buttons. Press and hold this button. A quick access panel of virtual remote panel
appears. You can select screen buttons easily.
Changing the Virtua_ Remote Control Panel
Choose the number panel, playback control panel, or quick access panel as the panel to be shown on
the screen.
Use the touch pad to keep moving the focus left or right. The panel changes when the focus is moved
beyond the leftmost or rightmost edge.
Use left/right scroll function on the touch pad to change the panel easily.
Change a position of the Virtua_ Remote Panel
Press the MORE button on the Smart Touch Control. The virtual remote panel appears on the screen.
press and hold the touch pad for one second. Users can change a position of the virtual remote panel
of the screen.
Using the Number Panel
Use the number panel to enter numbers on a keypad screen or webpage or to change the channel
while watching TV. Changing the channel using the number pad leaves a record, allowing you to easily
return to previous channels.
Using the Playback Control Pane_
Use the playback control panel to pause, rewind, fast forward, skip to the next file, and much more
while enjoying media content.
Using the Quick Access Panel
Quickly access the JNFO, TOOLS and e-Manual buttons. However, the availability of buttons may vary
depending on the operating mode of the Smart Touch Control (with the TV only, as a universal remote,
etc.).
Adjusting the virtuam remote pane_
Screen Menu > System > Device Manager > Smart Touch Control Settings > Onscreen Remote Size
You can resize the virtual remote panel. If the virtual remote panel buttons are too small, enlarge the
remote panel window before using the virtual remote panel.
Remote Setup
Screen Menu > System > Device Manager > Universal Remote Setup
The dispIayed image may differ depending on the modet,
This TV has a universal remote control feature that lets you control cable boxes, Blu-ray players, home
theaters, and other third-party external devices connected to the TV using the TV's remote panel. You
can also use the Anynet+ (HDMI-CEC) function to operate Samsung external devices with your TV's
remote panel without any additional setup. For more information, refer to "Anynet+ (HDMI-CEC)".
Some or new models of the external device connected to the TV, may not be supported the Universal
Remote Setup_
Connecting the mRExtender
For the LED 7450/7500, 8000 and PDP 8500 series mode_s
Plug the cable into the TV IR connector and then point the transmitter at the other end of the cable
towards the external device's remote panel receiver. However, there can' be any obstacles between
the IR extension cable and the external device. The presence of an obstacle will interfere with the
transmission of the remote panel signal.
The coot and design of the IR Extender may vary depending on the modet,
For the LED 9000 and Uk,,ID $9 sedes models
Plug the cable into the One Connect IR connector and then point the transmitter at the other end of
the cable towards the external device's remote panel receiver. However, there can' be any obstacles
between the IR extension cable and the external device. The presence of an obstacle will interfere with
the transmission of the remote panel signal.
The coot and design of the IR Extender may vary depending on the modet,
Add the External Device
o
o
Turn on the external device you wish to set up universal remote function for and then press the
SOURCE button to bring up the Source screen.
Select Universal Remote Setup from the top of the screen. This initiates the universal remote
setup process.
Follow the on-screen instruction and set up the universal remote control. If it does not work, set
up the remote control by entering the model number manually.
Using the Universal Remote Control
By configuring the universal remote control feature for a connector to which an external device is
already connected, you can use the Smart Touch Control as a universal remote control simply by
sending the input signals to the corresponding connector.
Registered External Device Management
Universal Remote Setup screen, select a registered external device.
o Source Setup: Change the TV's input connector that the external device is connected to.
o Synced Power off: Configure the external device to turn off when the TV is turned off.
o Rename: Rename the registered external device (up to 15 characters long).
o Delete: Remove the registered external device.
Entering Text using the Onscreen
An onscreen keypad appears when you need to enter text (entering the network password, logging
into your Samsung account, etc.), allowing you to enter text using your remote panel.
Entering Text using the QWERTY Keypad
Use the QWERTY keypad as you would a normal keyboard. Simply select the letters you want to enter
them.
Ad{_itiona_ Features
Select the _ icon from the keypad to access the following features:
o Language: Select a language from the list.
Recommended text: Enable/disable the Recommended Text feature. Enabling the Recommended
Text feature displays word recommendations based on the entered characters. To enter the word
"lnternet", for example, all you have to do is enter "In" and select the word "lnternet" from the list
of recommended words.
Predict Next Letter: Enable/disable the Text Prediction feature. Enabling the Text Prediction
feature eliminates the need to find and select individual character keys. However, this feature is
limited to words that have previously been added to the dictionary. To enter the word "lnternet",
for example, select "1". A predicted word will then appear next to the I key. Simply select the
predicted word to enter "lnternet".
SMART Interaction
This TV features SMART Interaction, which recognizes a user's voice, actions, and face to enable
TV operations without the use of a remote panel. SMART Interaction makes it possible to configure
settings and access features with ease. It takes approximately 15 seconds for voice and motion
recognition to come online after turning on the TV.
Face Recognition
This product saves thumbnail images of users' faces for use during the Face Login. Logging into the
Smart Hub via face recognition may be less secure than logging in using an ID and password.
TV Camera Use
Under some circumstances and under certain legal conditions, the use/misuse of the TV camera may
result in legal liability. There may be obligations under local privacy laws regarding the protection of
individuals concerning personal data and on the free movement of such data, and possibly other laws
including criminal laws, regulating camera surveillance both in the workplace and elsewhere.
By using the TV camera, users agree that it will not be used (i) in locations where cameras are
generally prohibited (such as bathrooms, locker rooms or changing rooms), (ii) in any manner that will
result in an invasion of a person's privacy or (iii) in violation of any applicable laws, regulations or
statutes.
If you are using a camera, first check the back for a sticker.
Remove the sticker cover before adjusting the TV camera angle.
When you are no longer using the camera, rotate the lens downward and secure it in place. This
prevents any inadvertent or unintentional camera operation.
Motion Cont_o_
Motion Control works by using the camera, so the user must be within the camera's recognition range.
The camera's recognition range varies depending on the ambient light level and other factors. Run
Motion ControN Environment Test before using Motion Control to determine the camera's recognition
range. User may experience physical fatigue when using Motion Control for extended periods.
Voice Recognition
For the best Voice Recognition experience, we recommend that you use a Smart Touch Control.
Voice Recognition is not available in all languages, dialects or regions. The performance varies
depending on the language chosen, voice volume and ambient noise levels in the surrounding area.
Perform a Voice Recognition Environment Test prior to using Voice Recognition to test the level and
clarity and the ambient sound of the surrounding area.
Voice Text Input requires the user's agreement with any third-party app's voice privacy policy and to
provide Samsung with the user's MAC address and other private information.
Voice Text Input lets users enter text using voice commands instead of a mouse, keyboard or remote
panel. This feature is particularly useful for searching, browsing the web, and using applications that
require text input.
You must agree to the following privacy notices before using Interactive Voice Recognition:
- Voice Recognition Privacy Notice, Nuance Privacy Notice
Voice Recognition
Screen Menu > Smart Features > Voice Recognition
The displayed image may differ depending on the model,
Voice Recognition lets you access and remote specific functions of the TV using voice commands. For
the accurate recognition of voice commands, pronounce words and phrases clearly in the language
selected in Language. The TV's clock has to be set before you use Voice Recognition. Set the Clock
(System > Time > Clock).
Voice Recognition can be used in the following ways:
o Using the TV's built-in microphone (from a distance)
o Using the VOmCIE:button (up close)
Ambient noise can interfere with voice recognition. If this is the case, press the VOICE button and
then say the command word/phrase 0.3ft to 0.4ft away from the microphone on the Smart Touch
Control. Commands may not be recognized if you speak too softly or loudly. The optimal volume is
approximately 75~80dB.
Operating Environment
Voice Recognition and the Turn TV On voice command should be used within 13.1ft of the TV.
Perform a "Voice Recognition Environment Test prior to using Voice Recognition to test the level and
clarity and the ambient sound of the surrounding area. Ambient noise can cause Voice Recognition
to malfunction. (Suitable Ambient Noise Level: Less than 40 dB, _40 dB - the sound at library or
residential area in the daytime.) Visit the Samsung website for a list of standard voice commands.
The voice recognition rate varies depending on the volume/tone, pronunciation, and ambient
environment (TV sound and ambient noise).
Voice Recognition Environment Test
Screen Menu > Smart Features > Voice Recognition > Voice Recognition Environment Test
This test determines how well Voice Recognition will work in the TV's current environment. This test
must be performed before using Voice Recognition to make sure it functions properly,
Run the Voice Recognition Environment Test and stand within 13.1ft of the TV.
2_
3_
4_
Select Start to measure the ambient noise. If the ambient noise level is suitable, the test will
proceed to the next step. If this part of the test fails, remain quiet and try again.
This part of the test measures the volume and clarity of the user's voice. A command will appear
on the TV's screen. Say the command loud and clear within 30 seconds. If the TV successfully
recognizes the user's voice, the test proceeds to the next step. If this part of the test fails, try
again.
To measure the level of echo in the surrounding area. If the echo level is suitable, the Voice
Recognition Environment Test will end.
Enabling Voice Recognition
Press the VOICE button to run Voice Recognition. Say a command. You can use Voice Recognition to
operate the TV.
If Voice Recognition is not working, check to see if Voice Recognition (Smart Features > Voice
Recognition) has been enabled. To use Voice Recognition, Voice Recognition must be set to On.
Wh eVoceRecognton sactvated, the TV can turn on automat ca[ly due to an environmenta npuL
Voice Recognition Tutorial
Screen Menu > Smart Features > Voice Recognition > Voice Recognition Tutorial
This lets you familiarize yourself with the basics of using Voice Recognition. Run Voice Recognition
Tutorial or activate Voice Recognition and then say "Guide me".
Basic Voice Recognition Use
You can use the following commands anytime while Voice Recognition is active:
o Moving the Focus: Say "Focus Left", "Focus Right", "Focus Up", or "Focus Down" to move the
focus. However, these commands can only be used in situations when the focus can be moved.
Select Item: Say "Select".
Available Voice Commands: Say "Guide me". A list of basic voice commands available in the
current state is shown.
All Voice Commands: Say "Guide me" and then "Show ANI" to display a complete list of voice
commands by category, Say the name of a category.
Only preset voice commands are recognized. Available voice commands may vary, depending on the
software version.
Voice Recognition Settings
Screen Menu > Smart Features > Voice Recognition
Language: Select a language for Voice Recognition.
o
o
Trigger Word: Designate certain commands as trigger words. Saying a trigger word activates
Voice Recognition. To turn on the TV using a voice command, say "Trigger Word + Power ON".
(Example: "Hi TV, Power ON")
TV Voice: Enable/disable the TV's voice responses to your Voice Recognition commands and
choose between a male and female voice. This function is not supported depending on the
region.
mnteracdve Voice Recognition Commands
Interactive Voice Recognition allows you to set up a Schedule Viewing access VODs, search and
launch applications, and execute various other commands without having to remember specific
commands or keywords. Saying "Turn off the TV in 30 minutes," for example, instructs the TV to turn
off after 30 minutes (Sleep Timer).
Activate Interactive Voice Recognition and say a command. See the examples below:
o When you don't know which channel a specific program is on:
"Play <program title>."
When you need information about a specific genre:
"Which _(genre name) shows are on today?"
When you want to watch a program featuring a specific actor or directed by a specific director:
"Please look up programs featuring _(cast member). / Find me works directed by _(director
name)."
When you want to find out more information about the program you are watching:
"Who are the cast members in this program? / "What's the title of this program?"
When you want program recommendations:
"Please recommend something to watch this evening." / "Are there any shows worth watching
today?"
When you want to operate the TV:
"Adjust the volume to ten." / "Change to channel _-_-"
Quick Changes using Channel Names
You can change the channel using the Voice Recognition by simply saying the name of the channel.
For more information on the channel names supported by Voice Recognition, refer to the "http://
www.samsung.com".
Channe names may not be supported or may dffer depend ng on your regon or country,
Deactivating Voice Recognition
To deactivate Voice Recognition, say "Close Voice Recognition".
Motion
Screen Menu > Smart: Features > Motion Control
The dispIayed image may differ depending on the modet,
Use Motion Control to change the channel, adjust the volume, move the pointer, and control other TV
functions.
Some applications may not support Motion Control.
Operating Environment
Make sure that the TV camera is extended before using motion controls.
Users should be located between 4.9ft and 13.1ft from the camera. The actual recognition range may
vary depending on the camera angle and other factors.
Motion Control relies on the TV camera and therefore will not function if the camera is pointed up or
down. Adjust the camera angle using the wheel on the back of the camera. Do not point the camera
directly at the sun or any other light source or obstruct its view.
In order for the camera to recognize movement, the user has to stand out from the background.
The appropriate ambient brightness is between 50 to 500 lux. (ex: 100 Lux: bathroom, 400 Lux: living
room)
Avoid direct sunlight when using Motion Control.
Run Motion Control Environment Test to assess the camera's recognition range before using Motion
Control.
Motion Control Environment Test
Screen Menu > Smart Features > Motion Control > Motion Control Environment Test
Run this test before using Motion Control to ensure proper functionality.
Run Motion Control Environment Test and select Start within 4.9ft and 13.1ft of the TV. If light
reflects on the TV screen, user can be difficult to use Motion Control.
2, Adjust the camera angle so that you appear inside the square displayed on the screen. Once
you have finished adjusting the camera angle, wave one hand slowly from left to right. Spread
your hand out with the palm facing the TV. An arrow cursor appears on the screen when the TV
recognizes the action. If recognition fails, try again.
Motion Control Tutoda
Screen Menu > Smart Features > Motion Control > Motion Control Tutorial
Run Motion Control and follow the instructions. This lets you familiarize yourself with the basics of
using Motion Control.
Motion Controm Activation
Screen Menu > Smart Features > Motion Control > Motion Control
Raise your hand with the palm facing the TV. Hold it for a moment and slowly wave your hand from
side to side three or four times. When your hand is successfully recognized, the Motion Control is
activated and a pointer is displayed on the screen.
Dropping your hand out of the range of the TV camera deact vates Moton Contro _Rase your hand withn 3
seconds to reactvate t_
Using the Basic Motion ControMs
Available motion commands may vary, depending on what the TV is currently doing.
The following basic motion control commands are available:
o Pointing Navigation: This action moves the cursor to the desired position.
Run / Select: Make a fist to select an option or execute a command. Keeping your fist clenched is
like holding down a remote panel button.
Return: Make a circle with your hand in the counterclockwise direction to return to the previous
menu.
Turning over screens: Hold one palm vertical, and swing to the left or right to change the Smart
Hub screens.
Zoom in / Zoom out: Clench two fists, and make the gap between them wider or narrower. Use
these actions with webpages, maps, or photos.
Rotate: Clench two fists, and rotate them clockwise or anticlockwise as if turning a steering
wheel. Use these actions with photos.
Like: Without activating the Motion Control, raise and hold your thumb for 2 seconds. This
automatically adds Facebook's "Like" option. However, This motion is available only on the
Facebook.
Pan: While zoomed into the photo, make a fist and then move it left/right/up/down to pan.
Scrolling a web page: While viewing a web page, make a fist and then move it up/down to scroll
the page up/down.
Motion Control Options
Screen Menu > Smart Features > Motion Control
Animated Motion Guide: Displays an animated guide when user motion is detected.
Pointer Speed: Set the speed of the pointer used in Motion Control.
Motion Control Screen
The Screen Composition while Viewing "[V
Launching Motion Control while watching TV displays the following icons on the screen:
The Smart Hub Screen Composition
Launching Motion Control while using Smart Hub displays the following icons on the screen:
/ Adjust the volume. This function is only available on the On TV.
Turns the TV sound on/off. This function is only available on the On _#.
/ Changes the channel. This function is only available on the On TV.
Returns to the previous menu.
H
Check the recommended program information and air times. Select a program
from the list to view detailed information about that program. For more
information, refer to "Scheduled Recommended Program Info".
Displays the virtual remote panel on screen. Refer to the "Virtual Remote Control"
for more information.
Change the source.
Turn off the TV.
RetHevin9 Icons on the Screen
When using Motion Control with Smart Hub, the icons will disappear automatically after two seconds
of inactivity. To retrieve the icons, move the pointer to one of the three edges shown below (marked in
blue) and then hold it there for 1 second. The icons will reappear on the screen.
@ / / / /
@ / /
@ /
Face Recognition
Users can register their faces and log into their Smart Hub accounts through Face Recognition, One
face may be registered per account, Depending on the ambient brightness level and the user's skin
tone, the TV may have difficulty recognizing the user's face,
Operating Environment
Users should be located between 4,9ft and 13,1ft from the camera, The actual recognition range may
vary depending on the camera angle and other factors,
The appropriate ambient brightness is between 50 to 500 lux, (100 Lux: bathroom, 400 Lux: living
room)
Face Recognition can recognize up to 5 different users at a time,
The TV may have difficulty recognizing twins and people with similar faces as two different
individuals,
Note the following when using Face Recognition:
o Do not cover your face with a hat, a pair of sunglasses, or your hair,
The user's entire face must be visible to the camera, Avoid shadows over your face, Shadows
prevent the camera from recognizing your face accurately,
Keep your expression as neutral as aossible, In addition, keep your mouth closed but at the same
time as neutral as possible,
User's facial expression when logging into your Samsung account must be the same as the facial
expression during the registration process,
Face Registration
Users can register their faces to the Smart Hub accounts, Create a new account if you do not already
have one, Refer to the "Creating a Samsung Account" section for details,
Face Registration from the Smart Hub account information screen
2.
3.
Log nto Smart Hub first.
Open the Smart Features > Samsun9 Account > Edit Profile menu, and select Register Face.
Read the instruction, select OK, and then enter the password for the Samsung account.
Select Take Picture, and the user's face appears on the screen. Keep the face to be completely
in the red dotted frame. The face is successfully registered when the frame turns green. If it fails,
select Retry.
.....Iihe _ser s entire face must be vsbe to the camera,, Avod shadows over yo_r face,, Shadows prevent
the camera from recogrfiz ng yo_r face acc_ rate _
Keep yOLr express on as _e_tra as possib e,, Iin addition, keep your nsoutli_ closed but at the same time
as _e_ยฃra as possibe,,
lit s better to select the checkbox besde I want to enter password as well for increased security for
higher securi_x Wth the checkbox seected, the _ser m_st enter the password when ofi_gin(t_ n _sin(t_
face recogr_ tion,,
4. Select Save to finish.
Face Registration for the Sma_t Hub account using face r_ecognition
From the Smart Hub Iogin window, select Face recognition, and then select Start. The TV
automatically recognizes the user's face.
2_ Select a face to register from the list, and then select Register Face in the popup window.
3_ Read the instruction from the popup window, select OK, and then select the account from the list.
However, a user account appears in the list if the TV has a record of the user's account and the
user is logged in.
4_ Enter the password for the Samsung account. To make face recognition more accurate, scan the
user's face again.
Select Take Picture. The user's face appears on the screen. Keep the face completely within the
red round. The face is successfully registered when the round turns green. Select OK to proceed.
The user's entire face must be vsble to the camera, Avoid shadows over your face, Shadows prevent the
camera from recogn z ng your face accurately_
Keep your expression as neutral as possib e, In addition, keep your mouth closed but at the same tree as
neutra as possible,
It is better to select the checkbox beside _want to enter password as welJ for increased security for
hgher security_ With the checkbox seected, the user must enter the password when logg ng n usng face
recognit on_
Face Recognition Login
Select Face recognition, and then select Start from the Iogin window. The TV automatically recognizes
a user's face. If recognition fails, try again. If the password entry option has been enabled under Edit
Profile, you need to enter your password as well in order to log into the Smart Hub.
The user's entire face must be vsble to the camera. Avod shadows over your face. Shadows prevent the
camera from recognizing your face accurately_
Keep your expression as neutral as possib e. In add t on, keep your mouth cosed but at the same tree as
neutraI as poss ble.
Once recognition succeeds, the TV logs into the Smart Hub automat caIly, If the TV recognizes two or more
registered faces, a list of corresponding accounts appears_ Seect the appropriate account_ Recogn t on of an
unreg stered face prompts a warn ng_
Using Peripheral
The displayed image may differ depending on the modet,
This TV can be controlled with a keyboard and a mouse instead of a remote panel.
These peripheral devices make it easier and more convenient to use the TV.
Certain models do not support USB HID class keyboards and mice.
Keyboard Connection
Screen Menu > System > Device Manager > Keyboard Settings
Connect a keyboard to the TV for easier text entry, To use a USB keyboard, plug the keyboard cable
into the TV's USB port. With a Bluetooth keyboard, pair it using the TV's Bluetooth function.
o Select Keyboard: Designate which keyboard to use. Only one keyboard can be used at a time. !;:_:
Add Bluetooth Keyboard: View a list of Bluetooth keyboards within range. Select the keyboard
you wish to use.
Keyboard Options: Configure the language, type and other basic keyboard settings.
Keyboard Use
Use the following keyboard keys to remote the iV.
, Arrows key (Moves the focus), Windows (_), Menu (TOOLS), Enter (Selects and activates), ESC
(RIETURIN), Numbers (Numbers)
o F1 (B), F2 (D), F3 (), F4 (@), F5 ( t_ ), F6 (SOURCE button), F7 (CIH LIST button), F8 (MUTE
button), Fg/F10 (Vollume Remote), F11/F12 (Change Channel)
o Page Up / Down: Scroll a webpage up or down.
Mouse Connection
Screen Menu > System > Device Manager > Mouse Settings
Connect a mouse to the TV and right-click on the mouse to bring up the Go To screen. You can
then use the screen menu, Smart Hub, and other TV functions using the mouse as you would on a
computer.
To use a USB mouse, plug the mouse cord into the TV's USB port. To use a Bluetooth mouse, pair it
using the TV's Bluetooth function.
Select Mouse: Designate which mouse to use. Only one mouse may be used at a time. _! ::!:1!i:!:
o
o
Add Bluetooth Mouse: View a list of Bluetooth mice within range. Select the mouse you wish to
use.
Mouse Options: Configure button assignments, pointer speed and other basic mouse settings.
Mouse Use
o Left Button: Selects and activates.
Right Button: Brings up the Go To screen, which includes options such as Power Off, Screen
Menu, Smart Hub, and Tools.
Mouse wheel: Scroll a webpage up or down.
TV Viewing
The displayed image may differ depending on the modet,
Use this feature to view the program guide and program information more easily. However, these
features are not available when viewing TV using a cable box or satellite receiver.
Program mnfo
Select the virtual remote panel's IINIFObutton while watching TV to view information about the current
program.
However, Program Info is only available with digital channels. In order to use the Program Info,
you must first set the TV's clock. To set the clock, navigate to Clock (System > Time > Clock). The
Program Info may vary depending on the type of incoming signal and may not be available at all for
certain programs.
Drag left/right on the touch pad to check out other programs or press the touch pad to set up a
Schedule Viewing setting for the selected program.
Refer to the "Schedule Viewing" section for more information about Schedule Viewing settings.
Change the Broadcast Signal
Screen Menu > Broadcasting > Antenna
Choose an antenna to receive digital broadcast signals from.
ScreenMenu>Broadcasting>Guide
Vieweachdigital channel'sprogrammingschedule.Checktheprogrammingschedulesandevensetup
a ScheduEeViewing.PresstheGUDEbuttonto launchthe guide.
Thsfuncton sonlyava abefordgta channes.
Change Channels
Select a channel from Guide to jump to that channel right away,
Change Category
Select the @ button on the virtual remote panel to change the desired category,
Quick Navigation
Select the [] button on the virtual remote panel. A popup window will open. Dragging left or right
on the touch pad moves the focus two hours back or forward, enabling faster browsing of the
programming schedule. However, the focus cannot be on a time prior to the current time.
Schedule Viewing
Select a program that hasn't aired yet and then the virtual remote panel's I_/IFO button to display the
detailed information screen. Select Schedule Viewing from the detailed information screen to set up a
Schedule Viewing. Schedule Viewing is only available for programs that haven't aired yet. Select the
_3 button on the virtual remote panel and navigate to the Schedule Manager screen to view a list of
reserved programs.
Checking the Program _nfo
Highlight a program and select the INIFO button on the virtual remote panel. This displays detailed
information about the highlighted program. The Program Info may vary depending on the type of
incoming signal and may not be available at all for certain programs.
Channel List
Screen Menu > Broadcasting > Channel List
Launch OH List while watching TV to change channels or to check what's on other channels. Press and
hold the touch pad. This launches OH List.
The Channel List screen icons indicate the following:
- An analog channel
_ .
o _ A favorite channel
@: A Schedule Viewing reserved channel
_ : A locked channel
Change Channels
Select a channel to jump to it right away. To quickly scroll through the list, use the channel up/down
buttons. The focus moves up and down the list in one page.
Drag left on the touch pad and then select Genre. Select a desired TV channel genre.
On the Added Oh, list, it is possible to filter channels by genre, if the channels contain proper genre
information.
Change the Broadcast Siglna_
Drag right on the touch pad and then select Air or Cable. This will change the signal source
immediately.
Change the Channel List
Drag right on the touch pad and then switch to the Added Cho or Favorites list. However, the Favorites
list can only be selected if it contains at least one favorite channel. If no favorite channel was
previously added, select Edit Favorites and add channels from the Edit Favorites screen.
Schedule Viewing
Screen Menu > Broadcasting > Schedule Manager
The displayed image may differ depending on the model,
Configure the TV to show a specific channel or program at a specific time and date. Before scheduling
TV watching, make sure that the date and time is set properly under the System > Time > Clock menu.
The _ icon appears next to programs that have been configured for a Schedule Viewing.
Digital Channel Schedule Viewing
Schedule Viewing for programs on digital channels can be set up through the following two options:
o Guide
o Program Info
FromGuide,selecta programyouwish to view.
P_"ogram _nfo
Select the virtual remote panel's INFO button to display information about the current program. From
the program information screen, drag left/right on the touch pad or press left/right button on the
remote panel to select a program that has not yet aired and set up a Schedule Viewing for it.
Analog Channe_ Schedume Viewing
The Schedule Viewing function for programs on analog channels can be set up by specifying the time
and date.
Run Schedule Manager and then select Schedule.
2, Specify that program's Antenna, Channel, Repeat, and Start Time and then select, OK to finish.
Cancel a Schedume Viewing
To cancel a Schedule Viewing for a specific program, select the program from the Schedule Manager
screen. A popup menu wJ[[ appear. Select Demete to cancel.
Edit Schedule List
Select an entry from the Schedule Manager screen and then select Edit from the popup menu. Edit the
settings of the selected entry.
3D TV
Screen Menu > Picture > 3D
The dispIayed image may differ depending on the modet,
This TV is 3D-enabled. For the best 3D viewing experience, users must wear Samsung's 3D Active
Glasses.
The ideal viewing distance is three times or more the height of the screen. We also recommend sitting
with your eyes level with the screen.
Carefully read the health and safety information concerning 3D viewing before viewing the TV in 3D.
Refer to the "3D Precautions", for more information.
Thereareseveralrestrictionswhenusing3DTV:
o Runningthe SmartHubautomaticallydeactivates3Dviewing.
P_Pcannotbeused.
CertainPictureoptionsaredisabled.
IRTypeSamsung3DActiveGlassesandthird-party 3Dglassesarenotsupported.
Theleft andright 3D imagesmayinitially overlapwhentheTV isturnedon. It takesa moment
for the displayto optimizeandthe overlappingto goaway.
The3DActiveGlassesmaynotwork properlyif thereisanother3Dproductor electronicdevice
turnedon neartheglassesorTV. Ifthere isaproblem,keepotherelectronicdevicesasfar away
aspossiblefromthe 3DActiveGlasses.
Whetheror not3Dvideoisdisplayedin trueHDisusuallydeterminedbythe qualityof the
content.
Activating 3D Mode
Screen Menu > Picture > 3D > 3D Mode
Choose a 3D mode according to the input signal. Available 3D modes may vary depending on the
input signal. Some 3D contents may differ prefered 3D mode. In this case, change the desired 3D
mode for watching. Select a 3D mode from the available 3D modes depending on the input signal.
Available 3D modes may vary depending on the input signal.
o _ Off: Deactivates 3D viewing.
o _ Normal: Converts normal images to 3D images. Some formats do not support this mode.
o _ L/R: Splits a single image into left and right overlapping images to create the 3D effect.
o _ T/B: Splits a single image into top and bottom overlapping images to create the 3D effect.
o _ Horizontal Line: Switches between left and right images one horizontal line at a time. This
mode is not supported on the LED 9000 and UHD $9 series models.
o _ Vertical Line: Switches between left and right images one vertical line at a time. This mode is
not supported on the LED 9000 and UHD $9 series models.
o _ Pixel: Switches between left and right images one pixel at a time. This mode is not supported
on the LED 9000 and UHD $9 series models.
o _ Frame: Switches between left and right images one frame at a time. This mode is not
supported on the LED 9000 and UHD $9 series models.
(Horizontal Line), _ (Vertical Line), and _ (Pixel) can only be seected when the computer's reso ution
is set to 1920x1080 or the computer is connected to the TV via an HDMI-DVl cable,
D (Frame} can only be seected when the computer's reso ution is set to 1920x1080 and the frequency to
60Hz,
Resolutions supported by the TV may vary, depending on the 3D mode. For details, see "Supported 3D
Resolutions".
Setting 3D Effects
There are several adjustments that can be made to make 3D content more enjoyable.
3D Perspective: Adjusts the 3D perspective.
O
O
O
O
Depth: Adjusts the 3D depth. This option cannot be used if 3D mode is set to _ (L/R) or
<T/B).
L/R Change: Swaps the left and right pictures.
3D _2D: Converts 3D images to normal images. This function is not available if 3D mode is set
to _ (Normal) or _ (Off).
3D Auto View: Setting 3D Auto View to On switches the TV to 3D automatically. Setting 3D Auto
View to Message Notice brings up a message screen when the TV receives a 3D signal. If some
applications are running, The TV can not switch 3D. In this case, close the application and then
watch the 3D. This function is available for LED 745017500, 8000 series models only.
o 3D Light control: Adjust the brightness of 3D images. If the screen is too dark, select High. This
function is available for LED 745017500, 8000 series models only.
Screen Menu > Picture > P_P
The dispIayed image may differ depending on the modet,
Display video from an external device on the main screen and the TV as a picture-in-picture. For
example, you can display a Blu-ray movie on the main screen and simultaneously watch TV as a
picture-in-picture. PIP is not available while the Smart Hub or 3D TV is active. Turning off the TV while
PIP is active automatically deactivates PIP.
o PP: Activates/deactivates PIP.
o Antenna: Select either Air or Cable as the input source for the sub-picture screen.
o Channel: Selects the PIP sub-picture channel.
o Size: Selects the PIP sub-picture size.
o Position: Selects the PIP sub-picture position.
o Sound Select: Selects the audio source.
Playing a game or using the karaoke feature on the main screen can result in a lower PIP picture qualit'ยข_
To enjoy PIP, the main screen's source must be Component or HDMI and the input reso ution must be less
than FHD, The subscreen supports digital channe s onbz
Analog Screen Calibration
The dispIayed image may differ depending on the modet,
Analog pictures can become shaky and full of noise, If this happens, you can fine tune the signal
and/or reduce noise to clear up the picture,
Fine Tune
Screen Menu ) Broadcasting ) Channel Settings ) Fine Tune
Clear up shaky pictures. Fine tune the pictures until they are clear and then select Save or Close.
Select Reset to reset the Fine Tune operation. This option is only available for analog broadcasts.
Broadcast Audio
Screen Menu > Broadcasting > Audio Options
The displayed image may differ depending on the model,
Configure the program's audio language. Using this option is different for analog and digital channels.
Digital Broadcast Audio Options
Preferred Language: Digital broadcasts are embedded with audio signals in multiple languages
which users can choose from. You do not need to manually configure digital broadcasts that
support the designated language. If the designated language is not supported, the default audio
language chosen by the TV station will be heard.
o Visual _mpaired: Activate the audio guide for the visually impaired. This is only available with
broadcasts that provide this service.
Analog Broadcast Audio Options
Mumti-Traok Sound: Configure the audio for the current broadcast. You can select a sound you
want to listen from among the ones being broadcasted. Multi-Track Sound may differ depending
on the program being broadcast or broadcast signal. Although user set this option to stereo,
if the broadcast signal or program is not supported a stereo, this option will be set to mono
automatically, i_!: !i!_ /_
Setect the virtual remote panel's INFO button to view the current broadcast's audio signal information.
Select the virtua remote panel's TOOLS button whie watching TV to access and configure the Multi-Track
Sound setting,
Screen Menu > Smart Features > Sports Mode
This functions is not available on U.S.A. and Canada.
Enable Sports Mode for the optimal sports viewing experience. However, enabling Sports Mode
disables the Picture, Sound and Broadcasting menu options. Disabling Sports Mode restores the
previous Picture and Sound settings.
Subtitles
Screen Menu > Broadcasting > Caption
The displayed image may differ depending on the model,
View subtitles along with subtitle-enabled digital and analog broadcasts.
Show Subtitles
Screen Menu > Broadcasting > Caption > Caption
Show subtitles. Subtitles will be displayed when you choose a broadcast that supports subtitles.
DVD Subtitles are only available when connected to an external input connector:
SubtitMe Options
Screen Menu > Broadcasting > Caption > Caption Mode :_
Select a subtitle mode. The list of modes may vary depending on the broadcast.
o Default / 001 ~ 004 / Text1 ~ Text4: (analog channels only) The analog caption function
operates in either analog TV channel mode or when a signal is supplied from an external device
to the TV. (Depending on the broadcasting signal, the analog caption function may or may not
work with digital channels.)
DefauNt / Service1 ~ Service6 / COl ~ 004 / Text1 ~ Text4: (Digital channels only) The digital
caption function works with digital channels. Service1 - Service6 may not be available in digital
caption mode depending on the broadcast.
SubtitMe DispMay Options
Screen Menu > Broadcasting > Caption > Digital Caption Options
Specify the foreground and background settings. This option is available for digital channels.
Size: Choose the subtitle size from the list.
Font Styme: Choose the foreground style from the list.
Font Color: Choose a foreground color from the list.
Background Color: Choose a background color from the list.
Font Opacity: Choose a foreground opacity level from the list.
Background Opacity: Choose a background opacity level from the list.
Return to Default: Restores all subtitle display options to the DefauNt settings. Default applies
settings chosen by the TV station.
The foreground and background color and opac ty sett ngs cannot be the same_
