Portable
LFP Battery Charger
Quick Guide
SKU: RBC10A2P
VERSION A1
01
Important Safety Instructions
Indicates a potentially dangerous condition. Use
extreme caution when performing this task.
Indicates a critical procedure for the safe and proper
installation and operation of the battery.
Indicates a procedure or function that is important to
the safe and proper operation of the battery.
NOTE
CAUTION
WARNING
General Safety Information
DO NOT open, dismantle, or modify the battery.
DO NOT touch any terminals or connectors.
Disclaimer
The manufacturer accepts no liability for any damage caused by:
Force majeure including fire, typhoon, flood, earthquake, war, and
terrorism.
Intentional or accidental misuse, abuse, neglect or improper
maintenance, and use under abnormal conditions.
Improper installation, improper operation, and malfunction of a
peripheral device.
Contamination with hazardous substances, diseases, vermin, or
radiation.
Alterations to the product without expressed written consent
from the manufacturer.
Please keep the battery away from water, heat sources, sparks,
and hazardous chemicals.
DO NOT puncture, drop, crush, burn, penetrate, shake, or strike
the battery.
02
Do not disassemble charger.
Do not expose charger to rain or snow.
DO NOT touch the exposed electrolyte or powder if the battery
casing is damaged.
Please make sure any battery charger(s) or charge controller(s)
are disconnected when working on the battery.
Use of an attachment not recommended or sold by the battery
charger manufacturer may result in a risk of fire, electric shock,
or injury to persons.
To reduce risk of electric shock, unplug charger from outlet
before attempting any maintenance or cleaning. Turning off
controls will not reduce this risk.
The charger outputs 10A and is intended for the use of charging
25.6V Lithium-iron phosphate (LFP, LiFePO4) batteries that can
handle the charge current.
Ensure that the LiFePO4 batteries include a PCM/BMS when
using this charger.
To reduce risk of damage to electric plug and cord, pull by plug
rather than cord when disconnecting charger.
Do not operate charger with damaged cord or plug – replace the
cord or plug immediately.
Do not operate charger if it has received a sharp blow, been
dropped, or otherwise damaged in any way.
Any uncovered battery material, such as electrolyte or powder,
that has contacted skin or the eyes must be flushed out with
plenty of clean water immediately. Seek medical attention
afterwards. Spills on clothing should be rinsed out with water.
DO NOT connect or disconnect terminals to/from the battery
without first disconnecting loads.
03
General Information
Product Overview

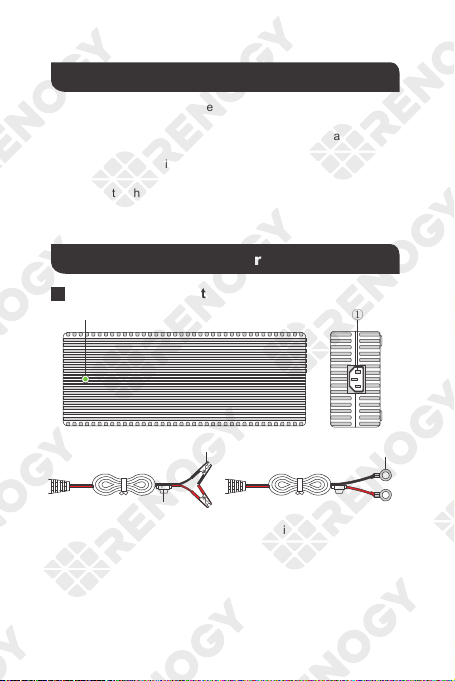

Identification of Parts
1. AC Port
2. LED Status Indicator
4. Ring terminal
3. Alligator Clips
5. Blade Fuse (15A)
Renogy 10A AC to DC Charger (RBC10A2P) is an automatic and
portable charger intended for 24V LFP batteries. This charger
includes 14AWG alligator clips and outputs power based on the
power, voltage, and current condition of the battery. The charger
has an LED status indicator for providing a visual means to
determine the operating mode and condition of the battery
connected to the charger. The AC-DC portable charger will
automatically monitor and maintain the battery at full charge.
15A
①
③
⑤
④
15A
②
04

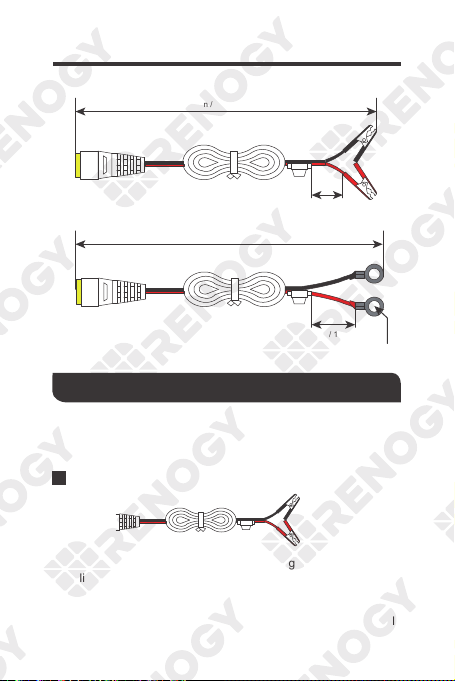

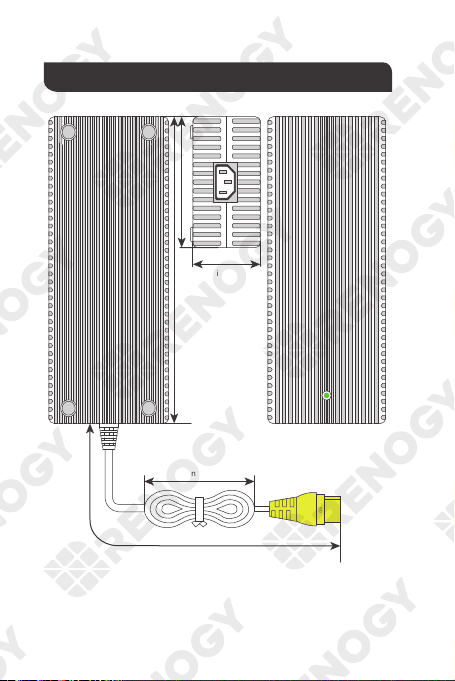

Dimensions
9.17in / 233mm
2.52in / 64mm
4.25in / 108mm
23.32in / 600mm 14AWG
5.91in / 150mm
XT90H
05
Operation
There are two ways to make the charger work normally.
1. The black alligator clip represents the negative pole, and the
red clip represents the positive pole.
2. Connect the negative alligator clip to the negative terminal on
the LFP battery, and then do the same for the positive terminal.
Alligator Clips
23.32in / 600mm 14AWG
5.12in / 130mm
15A
15A
23.32in / 600mm 14AWG
5.12in / 130mm
0.33in / 8.4mm
15A
06

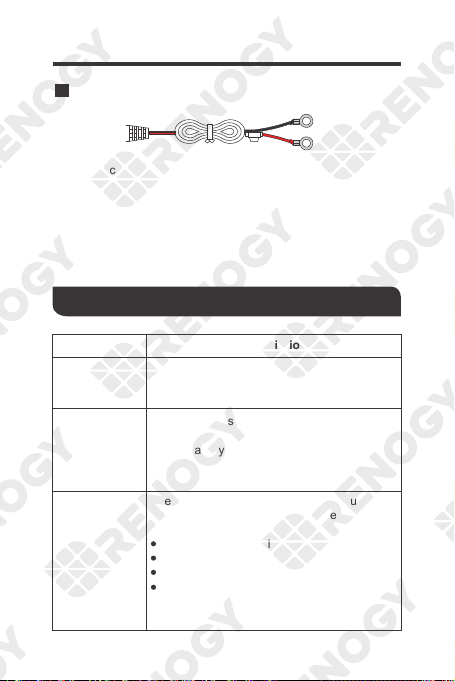

1. The black ring terminal represents the negative pole, and the
red ring terminal represents the positive pole.
2. Connect the negative ring terminal to the negative terminal
on the LFP battery, and then do the same for the positive
terminal.
Ring Terminal
LED Status
LED Status Description
Solid Red
Green
OFF
Indicates that the 24V LFP battery is being
charged with a charging current range
between 1A and 10A.
There are two statuses:
1. The charger is not connected to the battery.
2. The battery is fully charged.
The specific status is subject to actual
conditions.
The LED indicator immediately goes out when
the charger triggers one of the following
protection mechanisms:
Over-current protection
Over-voltage protection
Under-voltage protection
Short-circuit protection
In this case, please follow the steps in
Troubleshooting below.
15A
07
Troubleshooting
Over-temperature
Protection
Undervoltage
Protection
Short Circuit
Protection
Condition Steps to Take
1. When there is a short circuit between
the two poles of the ring terminals in the
battery charger, the Short Circuit
Protection will be triggered. The charger
stops working immediately, and the LED
indicator goes out.
1. When the internal temperature of the
AC charger is greater than 85(±5)℃, the
charger's Over-temperature Protection
will be triggered.
1. When the battery voltage is between
13V and 15V, the Undervoltage
Protection of the charger will be triggered.
2. The 24V battery has almost reached its
end of lifespan when its voltage drops to
a range of 13V to 15V. Please contact the
battery manufacturer for further support.
2. After the Over-temperature Protection
is triggered, the indicator light of the
charger will go out and the charging
current of the charger will immediately
drop below 6A.
2. Disconnect the connecting wire of the
AC terminal immediately. When the short
circuit between the live wire and the
neutral wire is resolved, wait for 10
seconds, and then reconnect the AC
terminal wire, and the charger will restart.
08
Overvoltage
Protection
Reverse
Connection
Protection
Condition Steps to Take
1. When the voltage at the output terminal
of the charger is greater than 32V, the
Overvoltage Protection will be triggered.
At this time, the indicator light will go out
and the charger will stop working.
1. When the charger triggers the Reverse
Connection Protection, the external fuse
on the connection line will blow, the
charger will not work normally.
2. Replace the fuse on the connection
line immediately. The specification of the
fuse is 250V 15A.
2. Disconnect the battery immediately
and check the charger.
09
Technical Specifications
Input Voltage 100V to 240V AC, 50 Hz/60 Hz
Input Amps 5A Max
Output Voltage 28.8 (±0.2)V DC
Output Amps
10 (±0.5)A
Minimum Battery Voltage
13V to 15V DC
Efficiency
110VAC 90% Min
230VAC 92% Min
Room Operating Temperature -29℃ to 45.5℃ / -20℉ to 113.9℉
Storage Temperature
-40℃ to 75℃ / -40℉ to 167℉
Self-Consumption 50mA Max
Current Protection
Dimensions
Weight
Cable Length
250V 10A Fuse built in
9.17 x 4.25 x 2.52 in / 233 x 108 x 64 mm
3.8 lbs / 1.7 kg
approx. 47.2 in / 1200 mm
Model
RBC10A2P
**LFP batteries should not be charged below 0℃/32℉. Otherwise,
the BMS cuts off the charging.
10

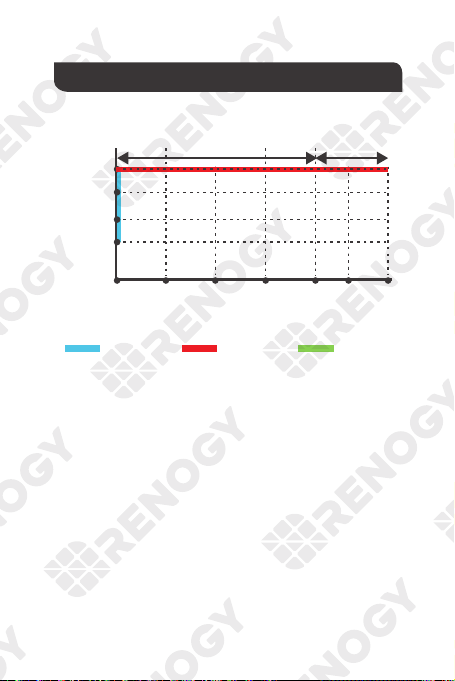

Charge Curve
10A
28.8V
28V
25V
15V
8A 5A 3A
Current
CC
MODE
Voltage
1A 0.1A 0A
RED
STATUS
LED
GREEN
CV
MODE
FULL
CHARGE
