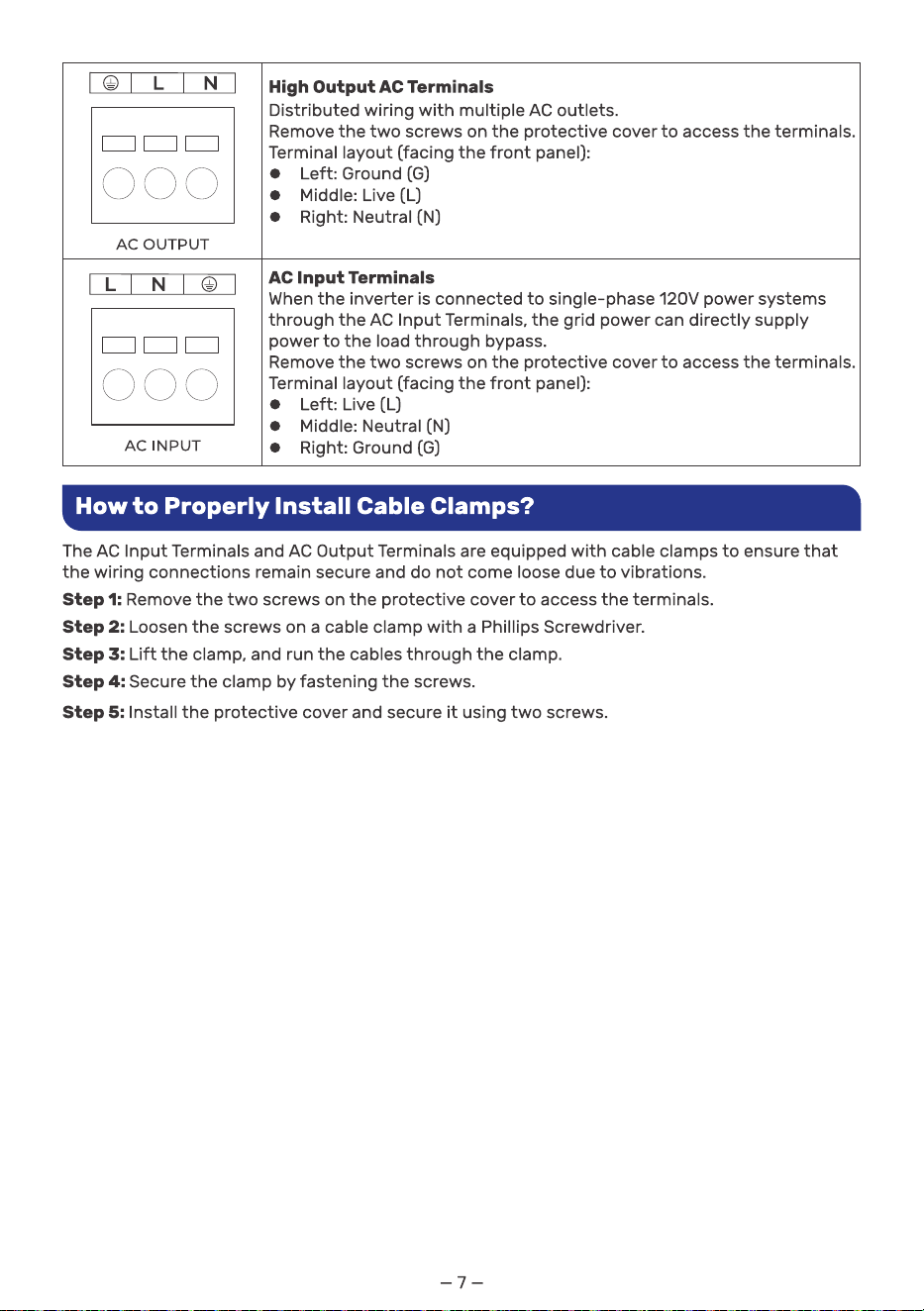

How to Properly Install Cable Clamps?
The AC Output Port with cable clamps to ensure that the wiring connections
remain secure and do not come loose due to vibrations.
Step 1: Loosen the screws on a cable clamp with a Phillips Screwdriver.
Step 2: Lift the clamp, and run the cables through the clamp.
（You will need 1 x 3 prong (10 AWG recommended Black, White, Green) ac cables not
provided with this product. Measure the required length for your particular application.
for ac output of the inverter.SJT0 and SJT,SJ0 are recommended wire）
Step 3: Secure the clamp by fastening the screws.
Do not use the bare wires if there is any visible damage.
Do not use SP-3, SPT-3 type wire
The screw torque of a cable clamp is 14.16 in·lbs (1.6 N·m).
Do not over tighten the screws to prevent damage
14.16in-lbs
(1.6N-m)
14.16in-lbs
(1.6N-m)
14.16in-lbs
(1.6N-m)
