Technical Support
If you need technical support with your Boss Audio product or have
quesons about its use, please contact us:
805.751.4853 (M-F, 8a-5p PST)
www.BossAudio.com
*Due to ongoing product development, specicaons are subject to change without noce.
© 0115
Congratulaons on your purchase of the Boss Audio Chaos Subwoofer.
Boss Audio takes great pride in producing products that sound great and
stand up to the daily rigors applied by audio enthusiasts.

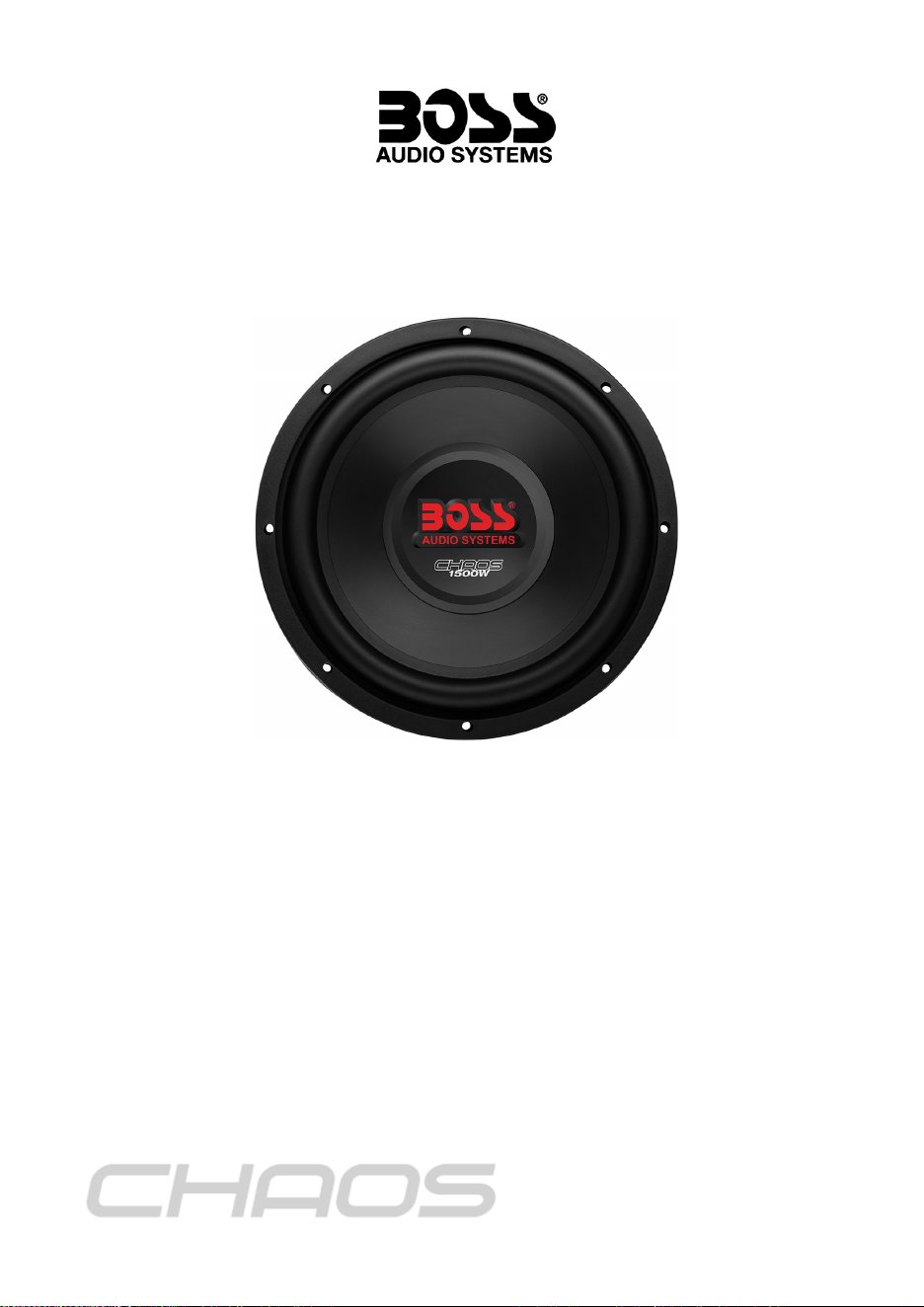

CH12DVC 12” Subwoofer
Dual 4 Ω Voice Coils
1800 W Peak Power Handling
Polypropylene Cone
Butyl Rubber Surround
Enclosure
The CH12DVC will work in a sealed or ported enclosure.
Since the woofer has pole-vent, it needs a minimum clearance from
the rear wall of the enclosure of 0.75” (19 mm).
Below you will nd the dimensions to make the enclosure to suit the
subwoofers needs, it has been designed for maximum output while
retaining great sound quality.
The dimensions have already accounted for the volume displacement
of the subwoofer, and using 3/4” (19mm) MDF. All dimensions are
external.
Sealed
Length (L) : 23” (584 mm)
Width (W) : 9-1/2” (241 mm)
Height (H) : 14” (356 mm)
Cutout Diameter: 11” (280 mm)
Int. Volume: 1.2 ³ (34 liters)

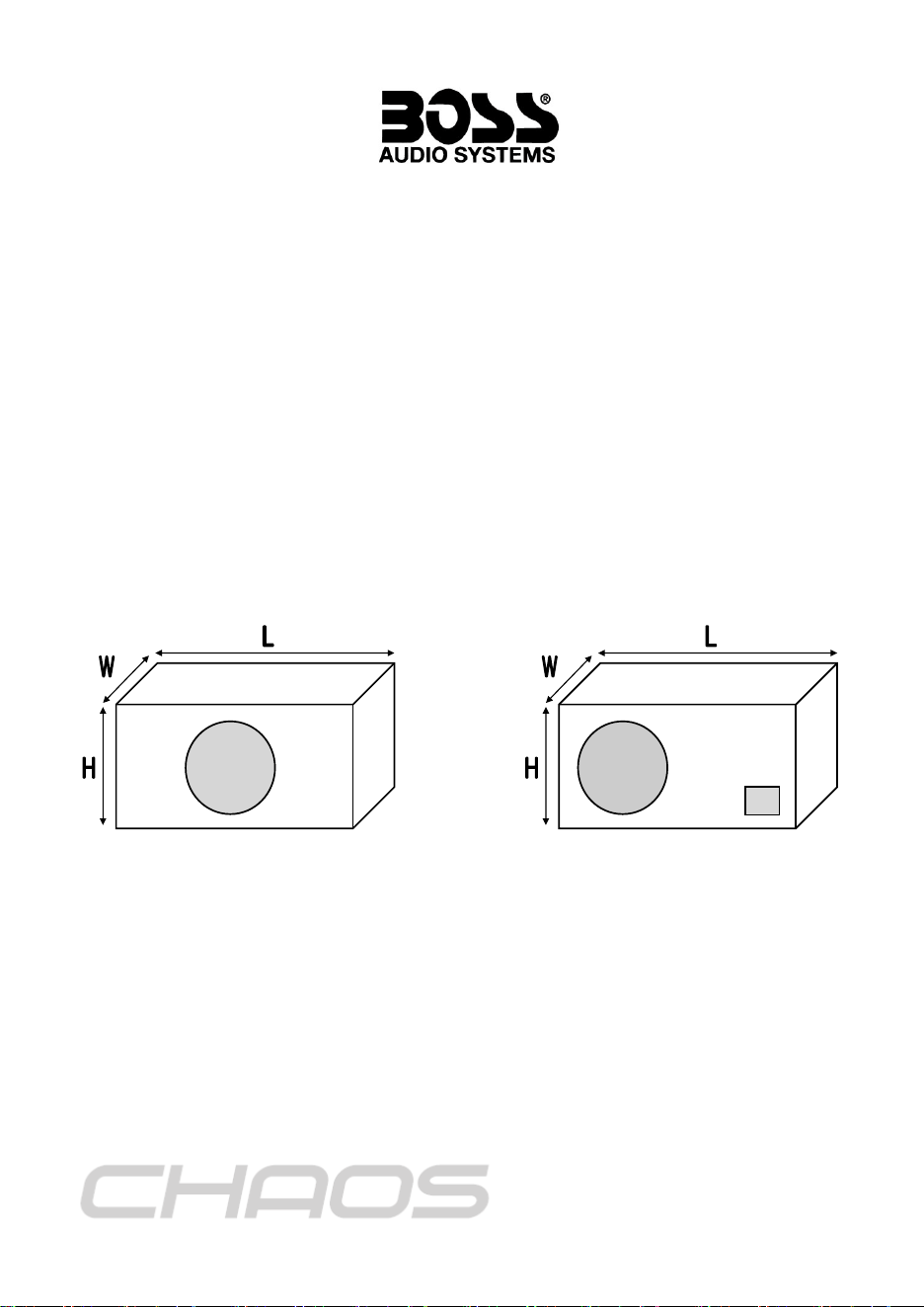

External Enclosure Dimensions
Ported
Length (L) : 28” (711 mm)
Width (W) : 16” (330 mm)
Height (H) : 14” (432mm)
Cutout Diameter: 11” (280 mm)
Internal Port Dimensions:
5-1/2” Square x 38” Length
(140 mm x 965 mm)
Tuning Freq: 30Hz
Int. Volume: 1.7 ³ (48.1 liters)
CH12DVC 12” Subwoofer
Dual 4 Ω Voice Coils
1800 W Peak Power Handling
Polypropylene Cone
Butyl Rubber Surround
Enclosure
The CH12DVC will work in a sealed or ported enclosure.
Since the woofer has pole-vent, it needs a minimum clearance from
the rear wall of the enclosure of 0.75” (19 mm).
Below you will nd the dimensions to make the enclosure to suit the
subwoofers needs, it has been designed for maximum output while
retaining great sound quality.
The dimensions have already accounted for the volume displacement
of the subwoofer, and using 3/4” (19mm) MDF. All dimensions are
external.
Sealed
Length (L) : 23” (584 mm)
Width (W) : 9-1/2” (241 mm)
Height (H) : 14” (356 mm)
Cutout Diameter: 11” (280 mm)
Int. Volume: 1.2 ³ (34 liters)
External Enclosure Dimensions
Ported
Length (L) : 28” (711 mm)
Width (W) : 16” (330 mm)
Height (H) : 14” (432mm)
Cutout Diameter: 11” (280 mm)
Internal Port Dimensions:
5-1/2” Square x 38” Length
(140 mm x 965 mm)
Tuning Freq: 30Hz
Int. Volume: 1.7 ³ (48.1 liters)
Series
4 Ω
Parallel
1 Ω
8 Ω 2 Ω
Wiring Opons
Parallel Series
Mulple Subwoofers
Parameters
Impedance Dual 4 Ω
Resonant Frequency 36 Hz
Qts 0.61
Qms 3.40
Qes 0.74
Vas 1.42 ³ (96 liters)
Xmax (One-Way) 16 mm
Sensivity (1 W/ 1 m) 86 dB
Peak Power Handling 1800 W
Mounng Depth 5-5/16” (135 mm)
Cutout Diameter 11” (278 mm)
Series
4 Ω
Parallel
1 Ω
8 Ω 2 Ω
Wiring Opons
Parallel Series
Mulple Subwoofers
Parameters
Impedance Dual 4 Ω
Resonant Frequency 36 Hz
Qts 0.61
Qms 3.40
Qes 0.74
Vas 1.42 ³ (96 liters)
Xmax (One-Way) 16 mm
Sensivity (1 W/ 1 m) 86 dB
Peak Power Handling 1800 W
Mounng Depth 5-5/16” (135 mm)
Cutout Diameter 11” (278 mm)
