IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER
–To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING –
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use,
and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to a service center for
examination and repair.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto or
off of a moving belt. Read Instruction Manual Before Using.

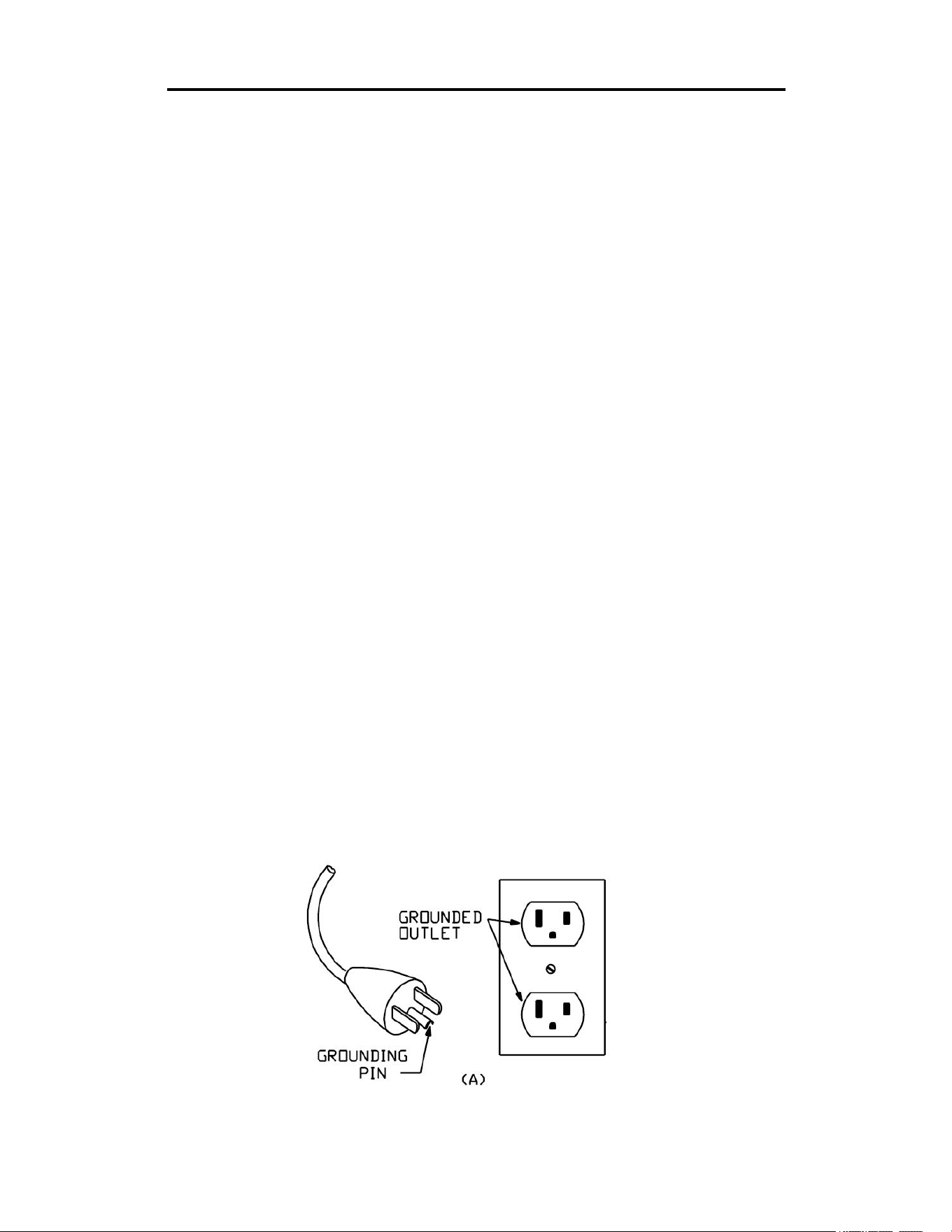

13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE,
AND STORE OUT OF REACH OF CHILDREN.
SAVE THESE INSTRUCTIONS
2
CAUTION:
To avoid Injury, use extreme caution when stepping onto or off the running belt. Read the instruction
manual before using.
IC CAUTION: This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
IC Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240CM) of free space behind it and 2 feet
(60CM) on each side. Do not place the treadmill on any surface that blocks air openings. To protect
the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
3
6
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (136 kgs).
10.This equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use!
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the side
rails while it starts up, then step onto the belt once it’s in motion.
6. Always hold the handrail when making changes in the settings.
7. A safety key is provided for emergency use. The machine will function only if the safety key is
inserted into the computer console. In case of emergency, remove the safety key to immediately
stop the belt and shut off the treadmill. The display screen will reset once the safety key is
reinserted.

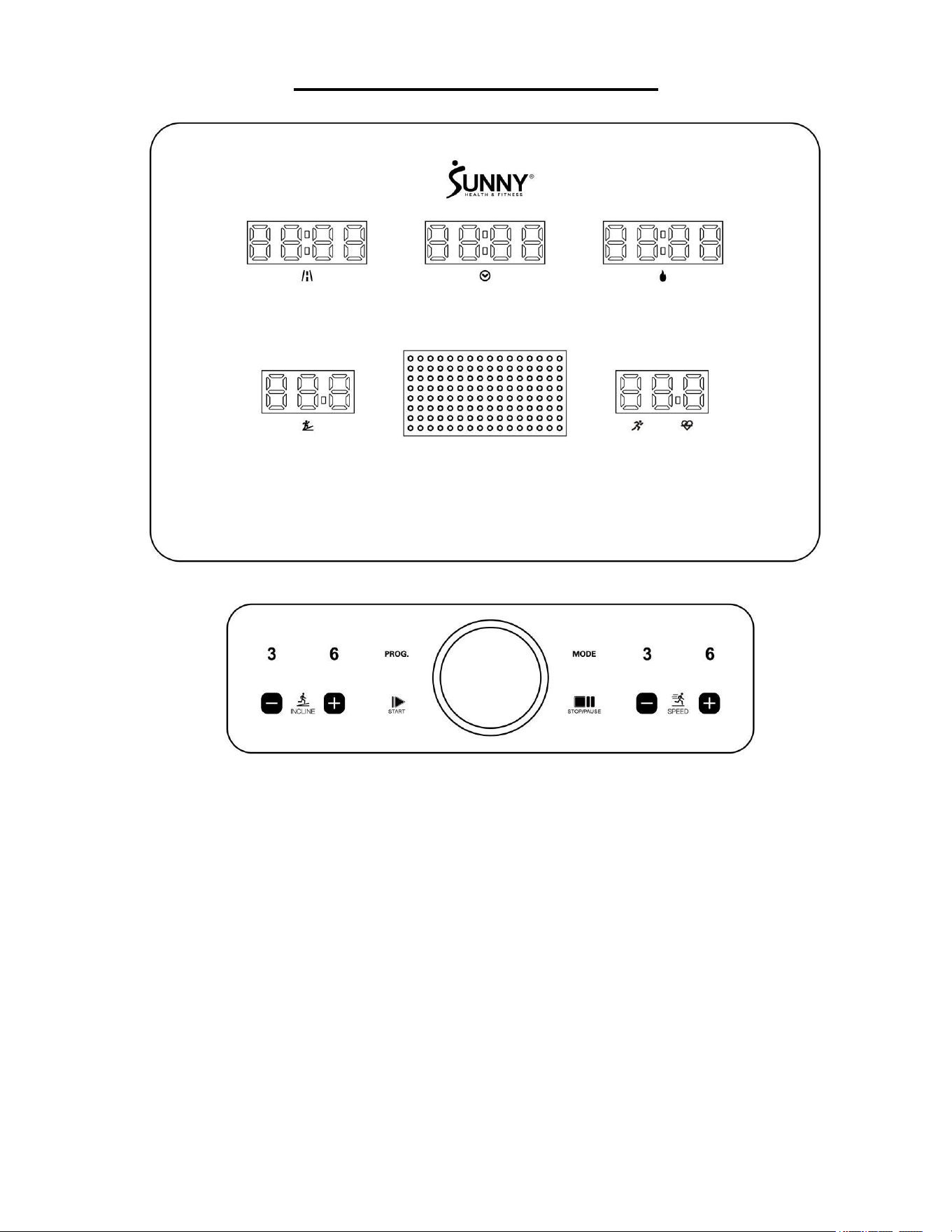

8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This equipment is designed for adult use only! Children should not be allowed to use or play near
this equipment. When present, children should always be supervised by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 9 for instructions on how to
properly apply lubricant.
4
PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
No.
Description
Spec.
Qty.
A
Main Frame
1
C05
Left Upright Tube Cover
1
C06
Right Upright Tube Cover
1
E12
Safety Key
1
E18
Power Wire
1
T01
Lubricant Oil
1
B
Manual
1
C
Thank You Card
1
D
Hardware Package
1
5

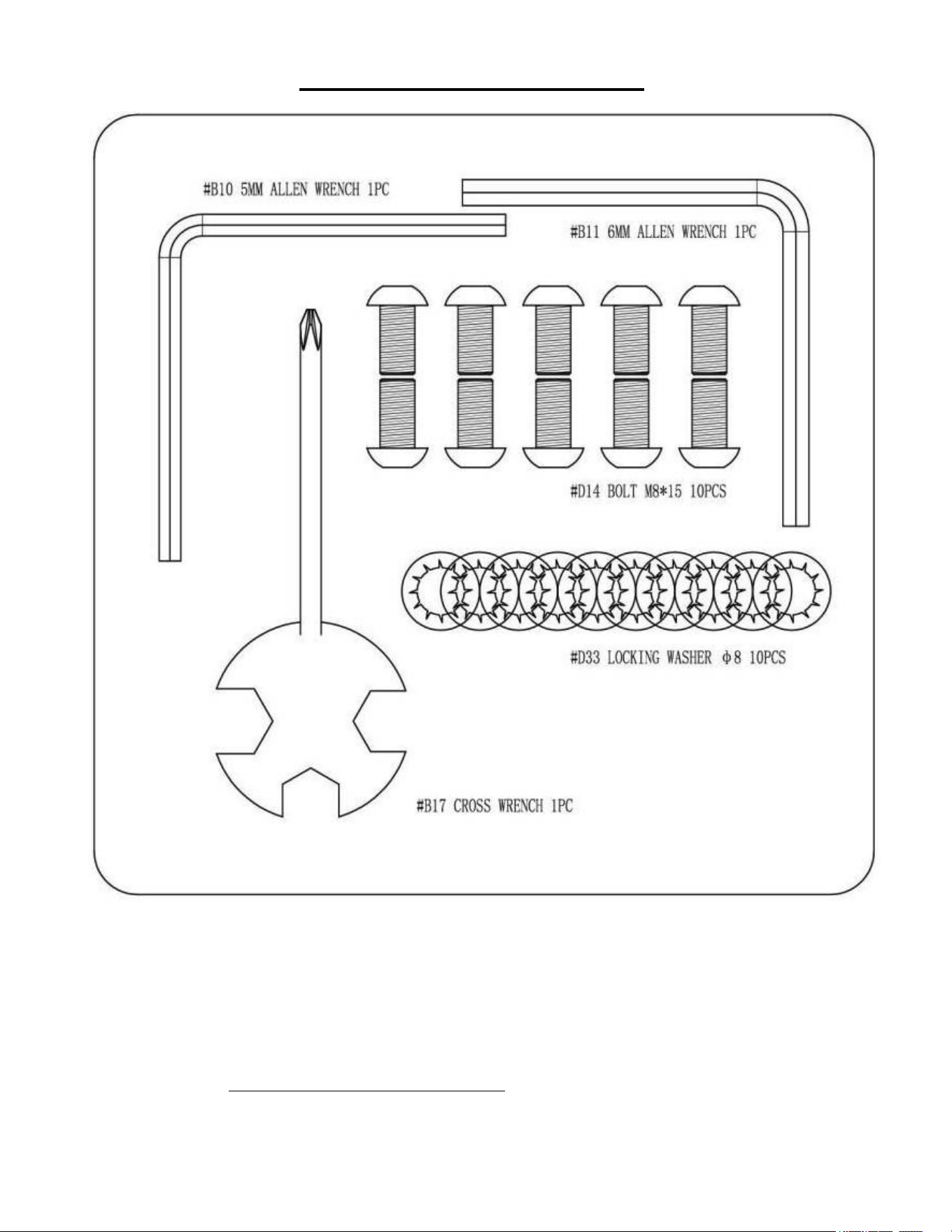

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

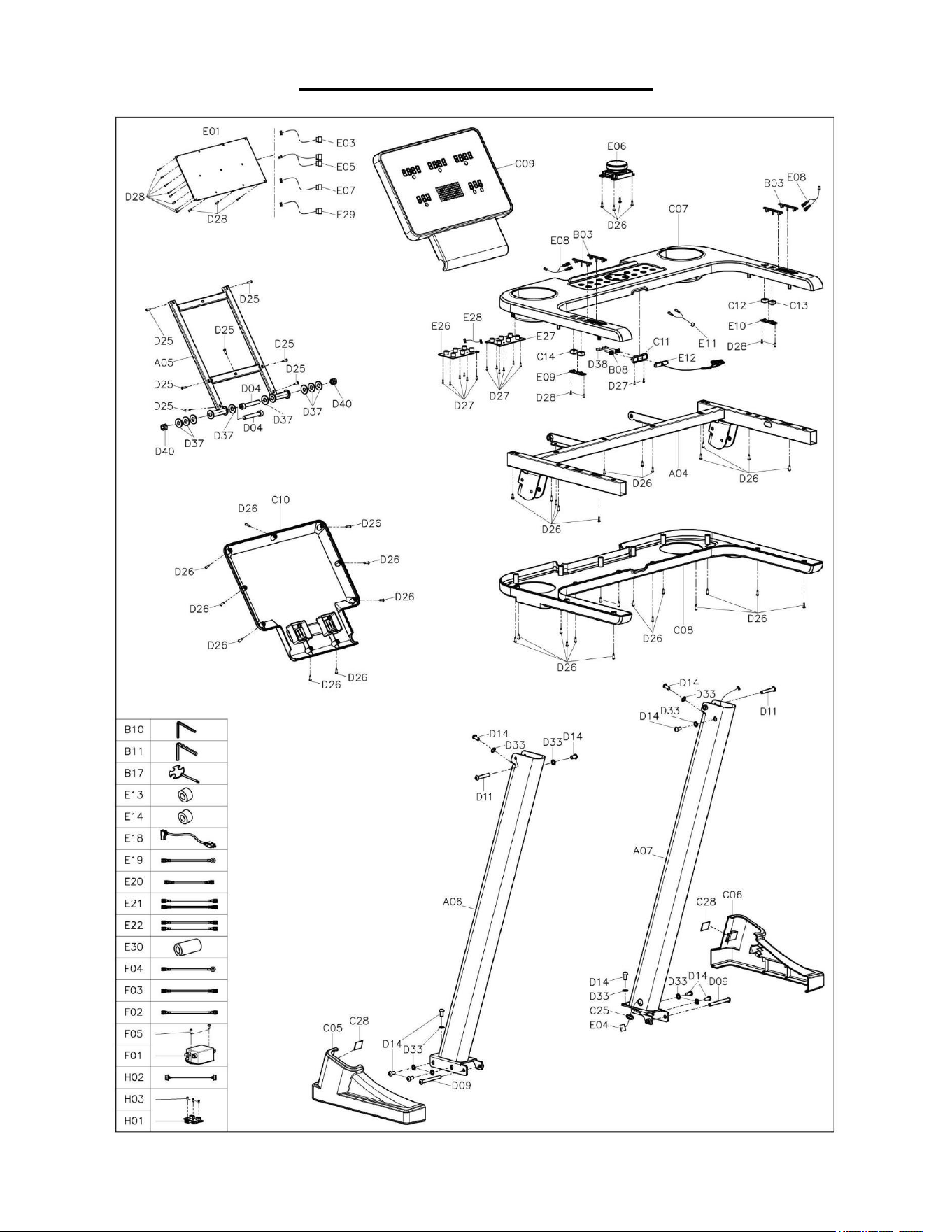

The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the end of
the manual)
6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

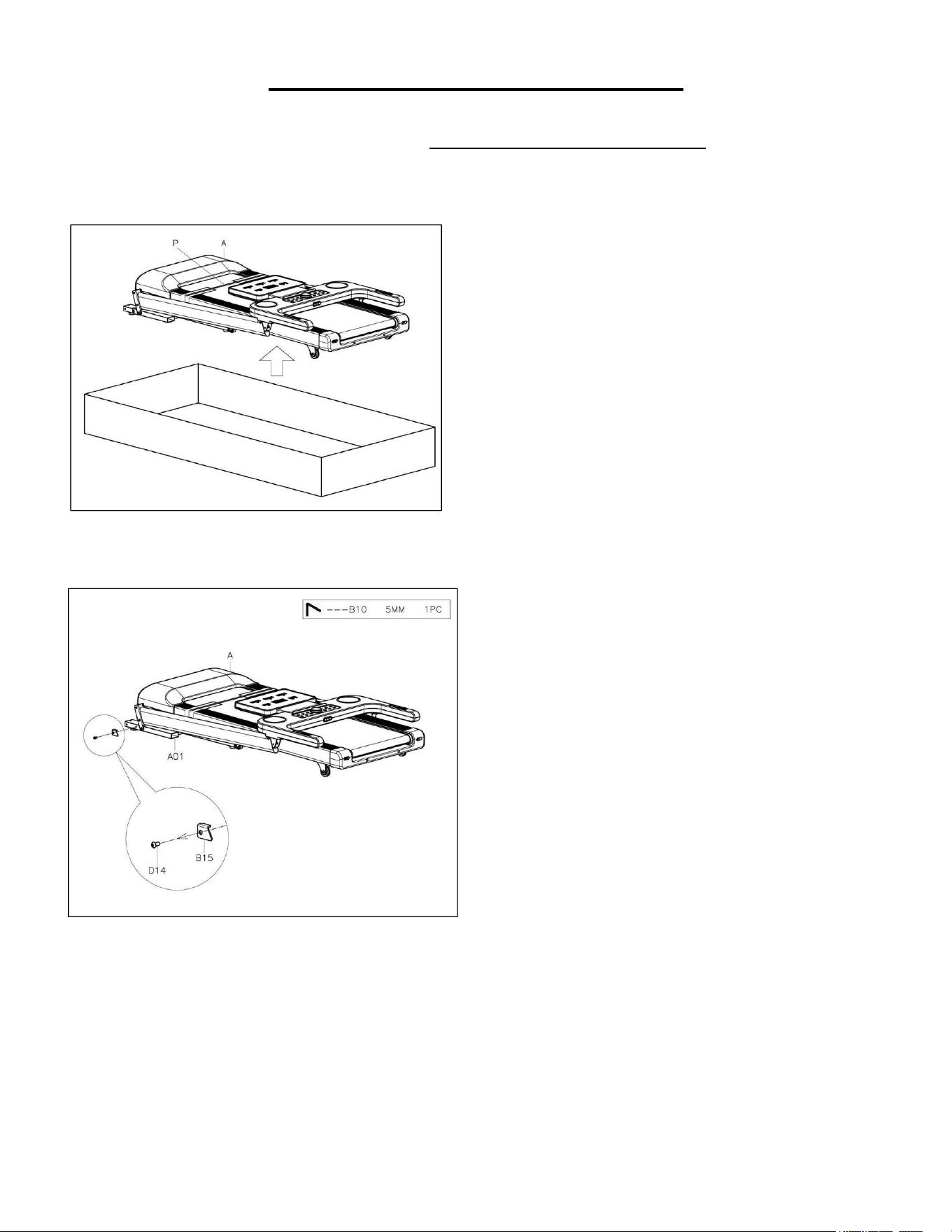

STEP 1:
Open the carton and remove contents.
Place the Main Frame (No. A) on level
ground, ensure that you have a work area
that is clean and has adequate space.
Do not cut the Packing Belt (No. P) until
the assembly is complete!
STEP 2:
Loosen the Bolt (No. D14) on the Base
Frame (No. A01) by using Allen Wrench
(No. B10) and remove the Safety Block
(No. B15).
You don’t need to keep Bolt (No. D14) for
future operation. And you can throw it away.
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

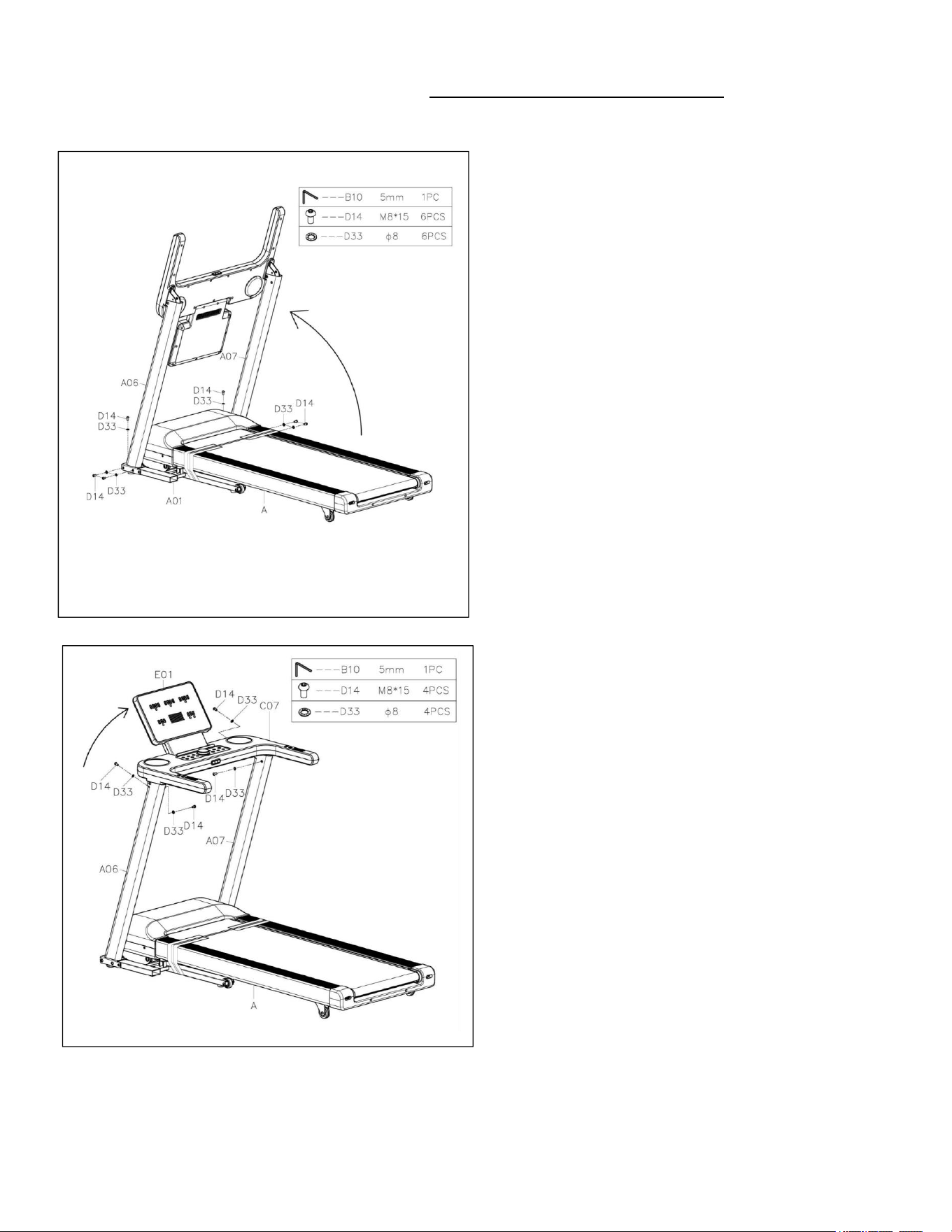

STEP 3:
Lift the Left & Right Upright Tubes (No.
A06 & No. A07) upward (in the direction
specified by the arrows on the diagram to
the left).
Support the Left & Right Upright Tubes
(No. A06 & No. A07) with your hands to
prevent them from falling.
Tighten the Left & Right Upright Tubes
(No. A06 & No. A07) to the Base Frame
(No. A01) by using 6 Bolts (No. D14) and 6
Locking Washers (No. D33). Secure by
using Allen Wrench (No. B10).
STEP 4:
Lift the Console Top Cover (No. C07) (in
the direction specified by the arrows on the
diagram to the left).
NOTE: When lifting, avoid puncturing the
wires inside the Left & Right Upright Tubes
(No. A06 & No. A07) as this will cause
damage.
Attach the Console Top Cover (No. C07) to
the Left & Right Upright Tubes (No. A06 &
No. A07) by using 4 Bolts (No. D14) and 4
Locking Washers (No. D33). Secure by
using Allen Wrench (No. B10).
8
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 9.
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

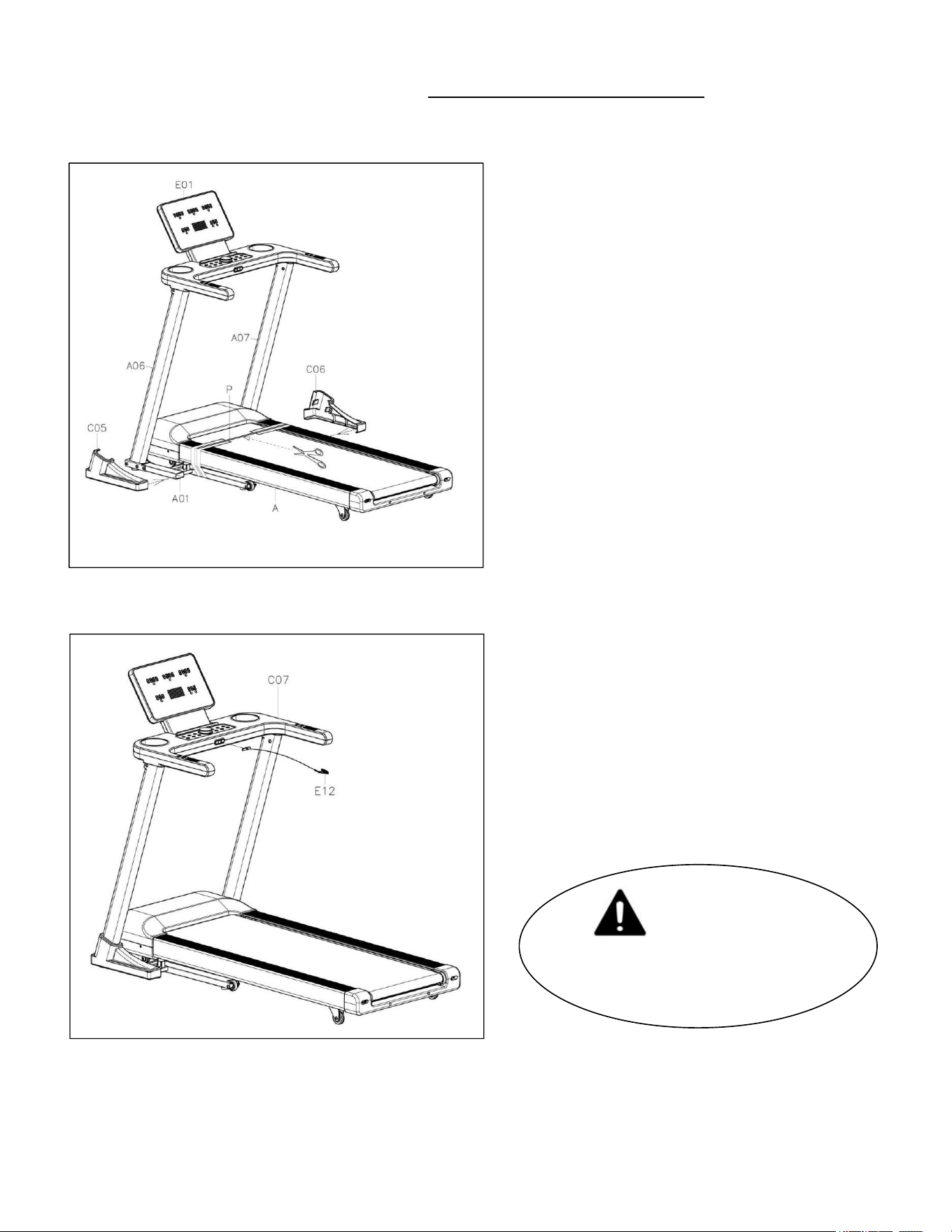

STEP 6:
Insert the pin end of Safety Key (No. E12)
into the holes on the Console Top Cover
(No. C07).
The assembly is complete!
STEP 5:
Adjust the Console (No. E01) to the angle
you feel comfortable.
Attach the Left & Right Upright Tube
Covers (No. C05 & No. C06) to the Left &
Right Upright Tubes (No. A06 & No. A07).
You may now cut the Packing Belt (No. P).
9

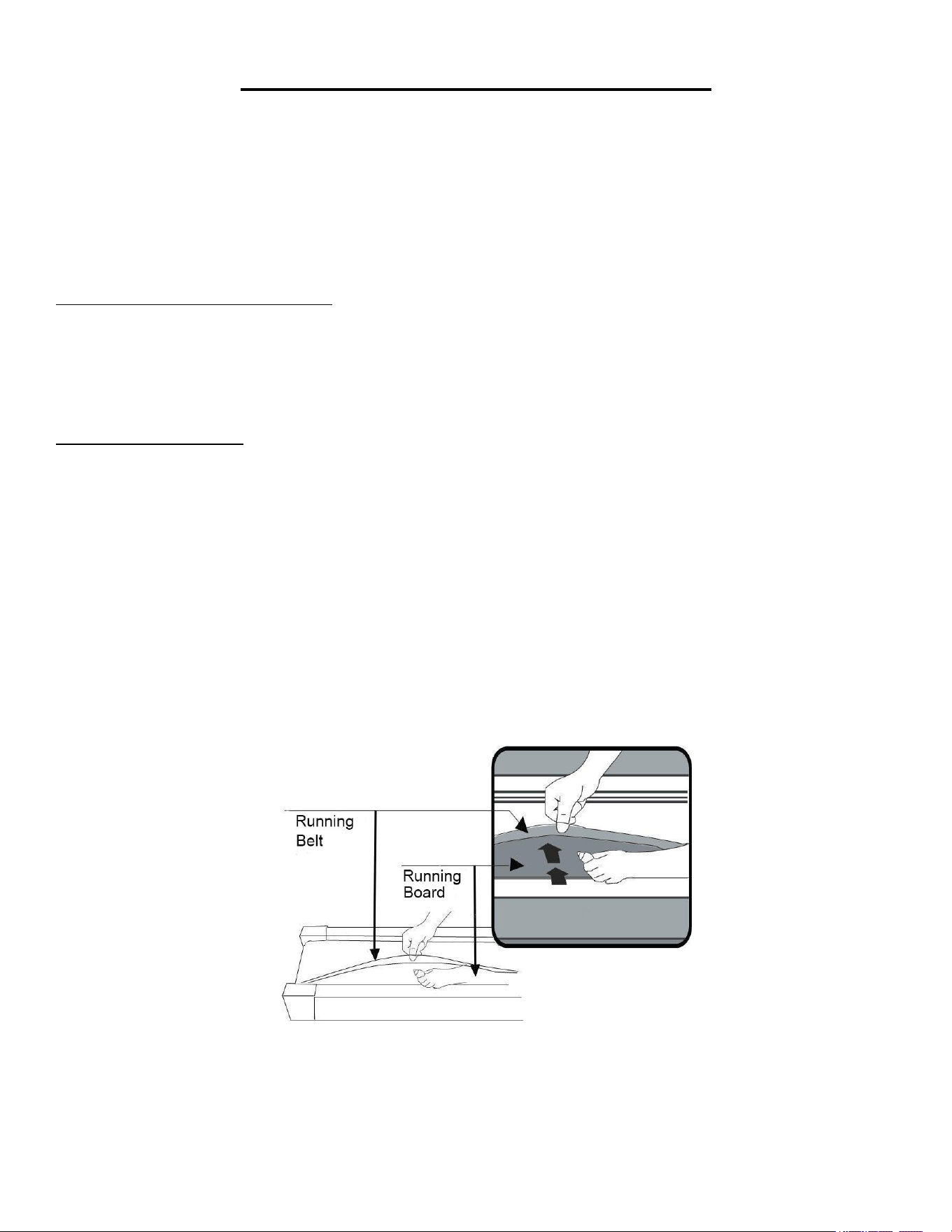

LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. E23) and Running Belt (No. C24) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Belt (No. C24) and Running
Board (No. E23) regularly. If you find any wear on the Running Board (No. E23), please contact us at:
WARNING:
Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.
HOW TO LUBRICATE:
1. To apply lubricant, lift one side of the Running Belt (No. C24) and apply oil to the middle of the
Running Board (No. E23). Next, start the treadmill and place it at the lowest speed setting and
allow the oil to spread over the Running Board (No. E23). Repeat this process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.

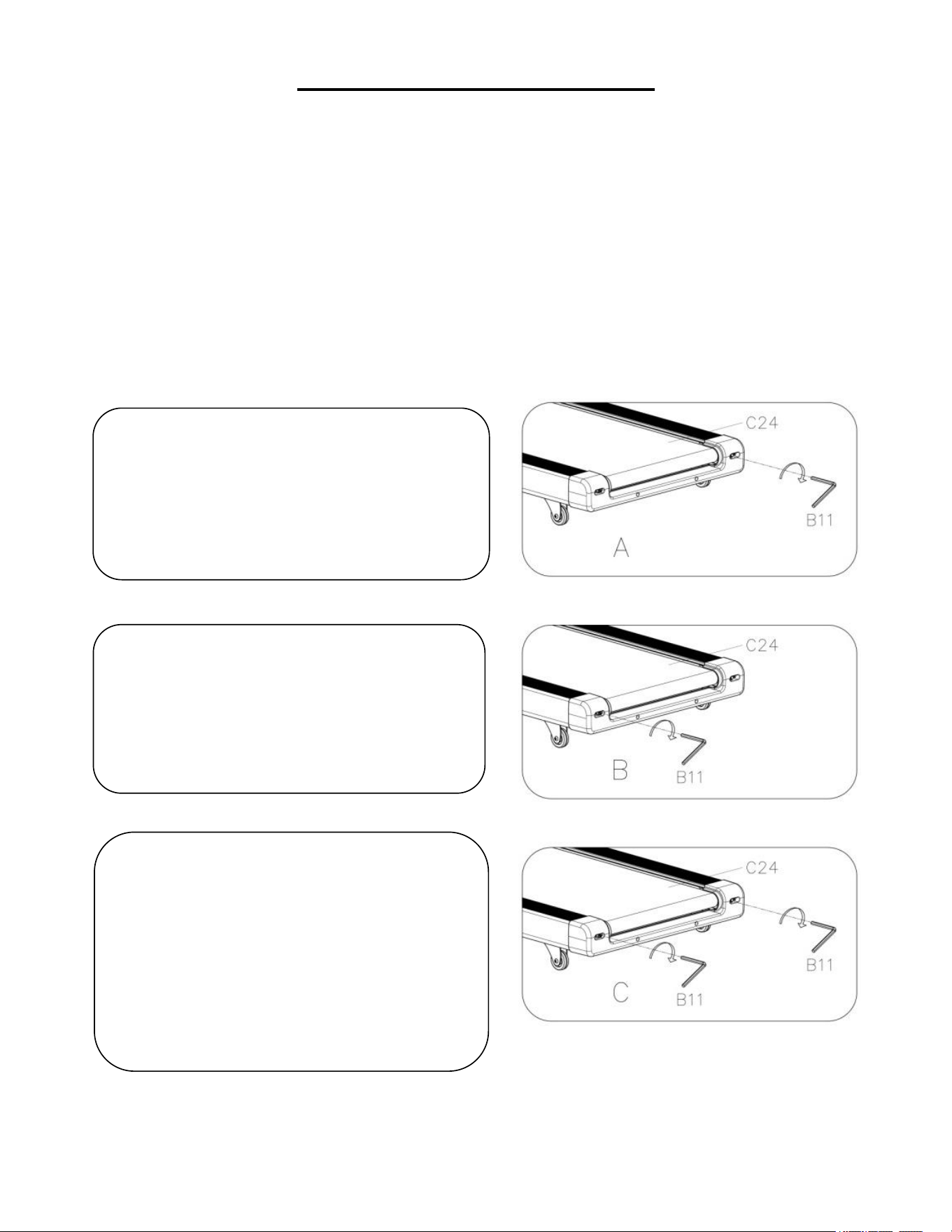

4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. C24) will result in the runner sliding off during use, while
too tight of a Running Belt (No. C24) will negatively affect the motor’s performance and create
more friction between the roller and Running Belt (No. C24). The most suitable tightness for the
Running Belt (No. C24) is when it is pulled out 50-75mm from the Running Board (No. E23).
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
10

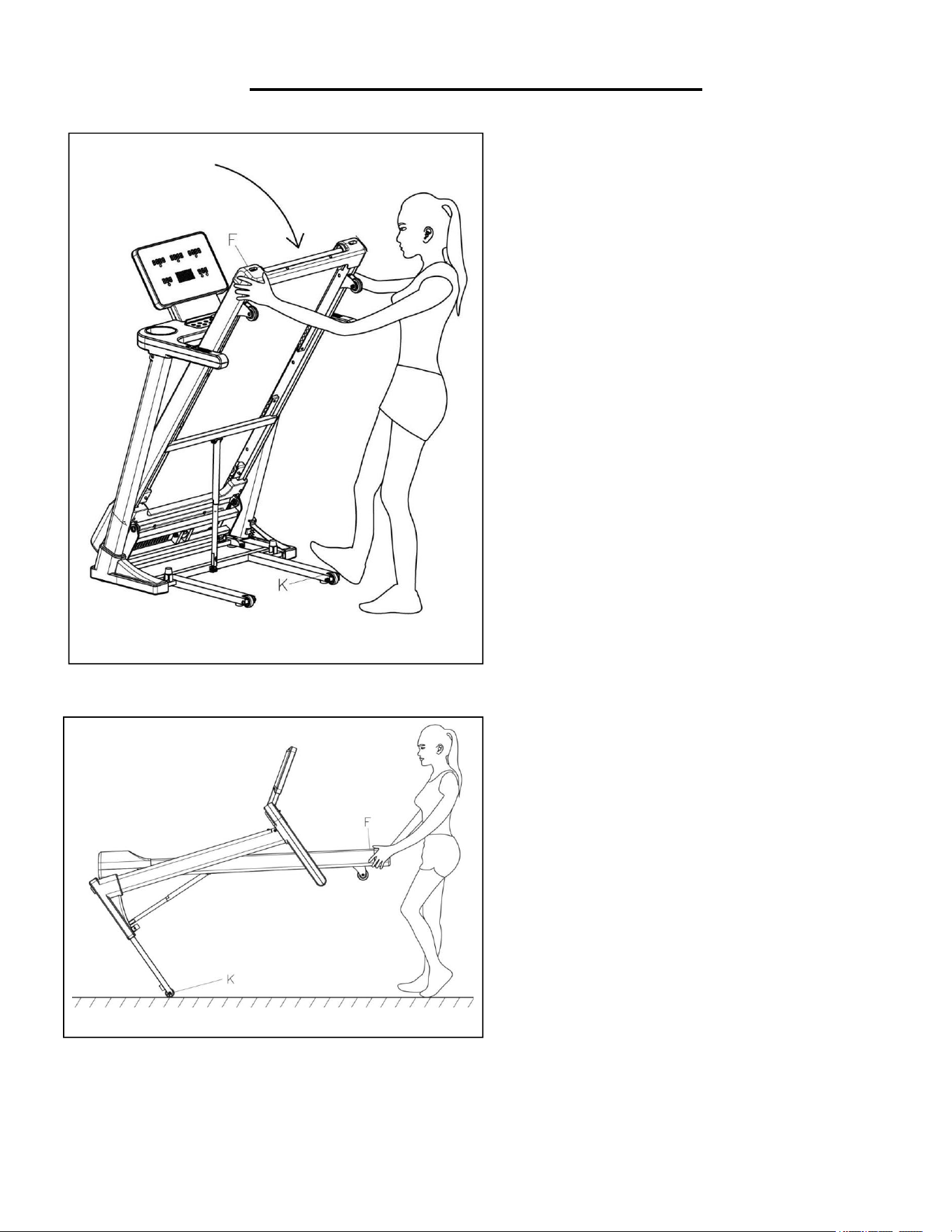

HOW TO FOLD THE MACHINE
FOLDING:
UNFOLDING:
NOTE: Please make sure the
incline is at ZERO when folding
and unfolding.
Place your hand at position “F” and
lift up the Main Frame (No. A02)
until the Air Cylinder (No. B06)
“G” locks into the tube.
When the Air Cylinder (No. B06)
successfully locks into the tube,
you will hear a clicking sound.
Before lowering the Main Frame
(No. A02), ensure that the space
directly underneath it is clear of any
objects.
Hold the Main Frame (No. A02) at
position “F” with one hand. Next,
using your foot, firmly push against
the Air Cylinder (No. B06) “G” and
press down on the Main Frame
(No. A02). Once the Main Frame
(No. A02) has been pushed down,
it will automatically continue to
steadily lower itself until it reaches
level ground.
(Please keep people and pets
away from the treadmill when
unfolding.)
11
HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, make sure that it has
been properly folded. Unplug the
power cord.
To tilt, start by placing one hand
at position “F” to support the top
end of the treadmill. Next, place
one foot at position “K” to hold
the bottom end of the treadmill
steady. With your foot at “K”,
slowly tilt the top of the treadmill
downward towards the ground.
Once the treadmill reaches a low
enough point, the transportation
wheels of the treadmill touch the
ground.
To transport, hold the treadmill at
position “F” and tilt until the
transportation wheels “K” are
able to move on the ground.
12
MAINTENANCE & CARE
General cleaning will help prolong the life and improve performance of your treadmill. Keep the unit
clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of
the Running Belt (No. C24) will prevent dust from accumulating underneath. Keep your running
shoes clean so that dirt from your shoes does not wear out the Running Board (No. E23) and
Running Belt (No. C24). Clean the surface of the Running Belt (No. C24) with a clean damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off for
10 minutes every 2 hours and fully powered off whenever not in use.
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5MPH to check if the Running Belt (No. C24) drifts
from the center.
If the Running Belt (No. C24) moves to
the right, turn the right adjusting bolt ¼ turn
clockwise, then turn the left adjusting bolt
¼ turn counter-clockwise. If the Running
Belt (No. C24) does not move, repeat this
step until it centers. Refer to Figure A.
If the Running Belt (No. C24) moves to
the left, turn the left adjusting bolt ¼ turn
clockwise, then turn the right adjusting bolt
¼ turn counter-clockwise. If the Running
Belt (No. C24) does not move, repeat this
step until it centers. Refer to Figure B.
Over time, the Running Belt (No. C24)
will loosen. To tighten the Running Belt
(No. C24), turn the left & right adjusting
bolts one full turn clockwise, check the
tension of the Running Belt (No. C24).
Continue this process until Running Belt
(No. C24) is at the correct tension. Make
sure to adjust both sides equally to ensure
correct belt alignment. Refer to Figure C.
13
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before plugging in the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides a path of the least resistance for electrical current
to reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. Ensure that the product is
connected to an outlet which contains the same configuration as the plug. Do not use an adapter for
this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A.
DANGER:
Improper connection of the equipment can result in a risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do not
modify the plug provided with this product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill, including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on the treadmill without first disconnecting power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any high humidity environment.
GROUNDING METHOD
14
THE DISPLAY CONSOLE
QUICK START:
1. Insert the pin end of the Safety Key (No. E12) into the holes on the Console Top Cover (No. C07).
2. Press the START button or Switch Knob (No. E06), and the system will automatically display a 3
seconds countdown. Once the countdown reaches zero, the Running Belt (No. C24) will start at
the initial default speed of 0.6 MPH.
3. To adjust the speed, you can use the SPEED +/- buttons on the Panel Top Cover (No. C09) or on
handrails, the QUICK SPEED buttons 3, 6 MPH, or Switch Knob (No. E06).
4. To adjust the incline, you can use the INCLINE +/- buttons on the Panel Top Cover (No. C09) or on
handrails, the QUICK INCLINE buttons 3, 6, or Switch Knob (No. E06).
NOTE: The maximum speed on this treadmill is 12.0MPH.
WINDOW DISPLAY:
DISTANCE: Displays the distance traveled (0.0-99.9 MILES). When the distance reaches 99.9 MILES,
it will reset to 0.00 and begin counting again from 0.0. When in Countdown Mode, it will count down
from the set distance to 0.00. When it reaches 0.00, the treadmill will stop smoothly and display “End”
and automatically reset to the initial setting after 5 seconds.
15
When setting PROGRAMS, Distance window will display P1-P2-…-P24-U1-U2-U3-FAT.
NOTE: The distance and calories will not count when no people walk or run on the treadmill.
TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill will stop
smoothly and display “End” then automatically reset to 0:00 after 5 seconds.
When in Countdown Mode, it will count down from the set time to 0:00. When the clock reaches 0:00,
the treadmill will stop smoothly and display “End” then automatically reset itself after 5 seconds.
Maximum Countdown time is 99:00 minutes:seconds.
CALORIES: Displays the number of calories burned from 0 to 999 KCAL. When the count reaches
999 KCAL, it will reset and start back from 0. When in Countdown Mode, it will count down from the
desired setting to 0. Once it reaches 0, the treadmill will stop smoothly and display “End”, then
automatically reset to the initial setting after 5 seconds.
INCLINE: Displays the incline from 0-15 level.
MATRIX: The matrix window will display a 0.25 MILE running track. Once you finish running the lap,
the machine will beep and show the number of laps you’ve completed. When in Countdown Mode, this
window will display "T", "D", "C".
SPEED / PULSE: The speed range is 0.6-12 MPH. 0.6MPH is the default running speed.
When the runner holds both hands on the pulse sensors (located on the handles), the system will
calculate the runner’s heart beat and display it in this window. The pulse range is 50-200 beats/min.
NOTE: This data is just for reference and cannot be used for medical purposes.
CONSOLE FUNCTION KEYS:
PROGRAM: Press the PROGRAM button to set your desired interval setting. Programs are displayed
as P1-P2---P24-U1-U2-U3 and FAT and the various intervals are shown on the face of the treadmill.
P1-P24 are preset programs. U1, U2, U3 are 3 user self-define programs.
MODE: When stopped, press this button to select a Countdown mode.
15:00 MINS is the set Countdown for TIME.
1.0 Mile is the set Countdown for DISTANCE.
50 KCAL is the set Countdown for CALORIES.
When setting each Countdown Mode, you can press the SPEED +/– buttons or INCLINE +/– buttons
or Switch Knob (No. E06) to increase or decrease from the set data. Press START to start the
treadmill.
START: To start the treadmill, insert the pin end of the Safety Key (No. E12) into the holes on the
Console Top Cover (No. C07) and then press the START button. This treadmill requires the Safety
Key (No. E12) in order to start. 0.6 MPH is the default start speed.
STOP/PAUSE: This button has functions of PAUSE and STOP. When in use, press this button once to
PAUSE your workout and the current workout data will still be shown. Press STOP/PAUSE again to
terminate your workout session completely and all data will be deleted and reset to the initial setting.
SPEED +/–: Press the +/- buttons to increase or decrease the speed in increments of 0.1 MPH.
Pressing and holding either of these buttons for a duration of over ½ of a second will increase or
decrease the speed continually.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME (MIN:SECOND)
0:00
15:00
5:00-99:00
0:00－99:59
INCLINE
0
0
0-15
0-15
SPEED (MPH)
0.6
0.6
0.6-12.0
0.6-12.0
DISTANCE (MILE)
0.00
1.00
0.50-99.9
0.00-99.9
PULSE (BPM)
P
N/A
N/A
50-200
CALORIE (KCAL)
0.0
50
10-999
0.0－999
16
3, 6 (QUICK SPEED): These buttons are preset to 3, 6 MPH speeds for convenience.
INCLINE +/–: Press these buttons to adjust incline level. When the treadmill is running, press the +/-
buttons to increase or decrease the incline level. Pressing and holding either of these buttons for
duration of over ½ a second will increase or decrease the incline level continually.
The incline levels range from 0-15.
3, 6 (QUICK INCLINE): These buttons are preset to 3, 6 inclines for convenience.
SWITCH KNOB: When on Standby Mode, press this knob once to start the treadmill. You can switch
incline and speed mode by pressing this knob during running. Once selected, rotate this button to
adjust workout parameters of incline or speed. The corresponding function will be prompted in the
window of Switch Knob (No. E06).
SWITCH KNOB FUNCTION KEYS:
SPEED +/–: Turning this knob to increase or decrease the speed in increments of 0.1 MPH. Clockwise
is increasing and counter-clockwise is decreasing.
INCLINE +/–: Turning this knob to adjust incline level. When the treadmill is running, turning this knob
to increase or decrease the incline level. Clockwise is increasing and counter-clockwise is decreasing.
The incline levels range from 0-15.
HANDRAIL FUNCTION KEYS:
SPEED +/– (ON RIGHT HANDRAIL): Press the +/- buttons to increase or decrease the speed in
increments of 0.1 MPH. Pressing and holding either of these buttons for a duration of over ½ of a
second will increase or decrease the speed continually.
INCILINE ∧/∨ (ON LEFT HANDRAIL): Press the ∧/∨ buttons to increase or decrease the incline in
increments of 1. Pressing and holding either of these buttons for a duration of over ½ of a second will
increase or decrease the incline continually.
LUBRICATION REMINDER:
Your treadmill needs lubrication maintenance every 188 Miles. The system will release a beeping
sound every 10 seconds and display an “OIL” icon on your display to remind you when it’s time.
Please read the LUBRICATING THE TREADMILL on Page 9 to learn the proper steps to lubricate your
treadmill. Apply the lubricant to the middle of the Running Board (No. E23) on both sides. After
application, press and hold the STOP button for 3 seconds to clear the “OIL” reminder.
INTERVAL PROGRAMS (P1-P24):
Press the PROGRAM button to select an interval setting. Programs are displayed as P1-P24. Select
the desired program, and the console will display a countdown starting from 10:00 MINS, press
INCLINE +/- UP/DOWN buttons or SPEED +/- UP/DOWN buttons or Switch Knob (No. E06) or
SPEED +/– buttons or INCILINE ∧ / ∨ buttons (AT RIGHT HANDRAIL) if you wish to increase or
decrease the exercise time. Press the START button to start the interval program. The interval
program is divided into 10 sections. Each exercise time equals the setting time divided by 10. When
the speed enters the next interval, the treadmill will beep, and the speed will be changed according to
the set interval. Press INCLINE +/- UP/DOWN buttons or SPEED +/- UP/DOWN buttons or Switch
Knob (No. E06) or SPEED +/– buttons or INCILINE ∧/∨ buttons (AT RIGHT HANDRAIL) to change
the INCLINE and. After finishing one program, the system will beep and display “End”. The machine
will gradually come to a stop, then automatically reset to the initial setting after 5 seconds.
17
TIME
PROG.
TIME INTERVAL= setting time/10
1
2
3
4
5
6
7
8
9
10
P1
SPEED
1.2
2.5
1.8
2.5
1.8
3.1
2.5
1.2
3.1
1.8
INCLINE
1
2
3
3
1
2
2
3
2
2
P2
SPEED
1.2
3.7
4.3
5
1.8
3.7
5
4.3
3.1
1.2
INCLINE
1
2
3
3
2
2
3
4
2
2
P3
SPEED
1.8
5
1.8
5
3.1
5.6
3.1
5.6
7.5
3.7
INCLINE
1
3
5
7
9
10
8
6
5
2
P4
SPEED
5
6.2
6.8
7.5
7.5
6.8
6.2
6.2
5.6
5
INCLINE
1
2
2
3
1
2
2
2
2
1
P5
SPEED
3.7
6.2
7.5
5.6
6.8
5
7.5
4.3
5.6
1.8
INCLINE
1
2
4
3
2
2
4
5
2
1
P6
SPEED
1.2
5
3.7
6.2
6.2
5.6
6.8
5
3.1
1.8
INCLINE
2
2
3
2
3
4
5
6
5
3
P7
SPEED
1.2
3.7
4.3
5.6
4.3
5.6
3.7
3.1
2.5
1.2
INCLINE
4
5
6
6
9
9
10
12
6
3
P8
SPEED
1.2
2.5
3.7
5
4.3
5
5.6
3.7
2.5
1.2
INCLINE
3
5
4
4
3
4
4
3
3
2
P9
SPEED
1.2
2.5
3.1
4.3
3.7
3.1
5
3.7
1.8
1.2
INCLINE
3
5
3
4
2
3
4
2
3
2
P10
SPEED
1.2
1.8
3.1
1.8
1.8
3.1
1.8
3.7
1.8
1.8
INCLINE
4
4
3
6
7
8
8
6
3
3
P11
SPEED
1.2
3.1
5
6.2
3.7
5.6
3.1
1.8
1.2
1.2
INCLINE
1
3
5
8
10
7
6
3
2
3
P12
SPEED
1.2
3.1
3.1
2.5
2.5
3.7
2.5
1.2
1.8
2.5
INCLINE
3
5
6
7
12
9
11
11
6
3
P13
SPEED
1.2
4.3
2.5
4.3
5
5.6
2.5
3.1
1.8
1.2
INCLINE
5
6
6
4
6
5
8
9
4
2
P14
SPEED
1.2
3.7
3.1
2.5
5
3.7
3.1
1.2
1.8
1.8
INCLINE
5
6
5
8
4
5
5
10
6
3
P15
SPEED
1.2
3.7
3.1
2.5
5
4.3
3.1
1.8
1.8
1.2
INCLINE
3
4
5
6
3
5
5
6
4
3
P16
SPEED
1.2
3.1
4.3
3.1
5
3.7
3.1
1.2
2.5
1.2
INCLINE
1
5
6
8
12
9
10
9
5
3
P17
SPEED
1.2
3.1
3.7
4.3
5
5.6
5
3.1
1.8
2.5
INCLINE
3
5
6
8
6
5
8
7
5
3
P18
SPEED
1.2
1.8
3.1
3.7
5
3.7
5.6
3.7
3.1
1.2
INCLINE
5
7
5
8
6
5
9
10
6
2
P19
SPEED
1.8
4.3
3.7
3.1
5.6
4.3
3.7
1.8
3.1
1.2
INCLINE
3
5
6
8
5
6
5
12
8
3
P20
SPEED
1.8
4.3
5.6
6.2
6.8
7.5
6.2
5
3.1
1.2
INCLINE
2
5
6
7
6
5
8
6
3
2
P21
SPEED
1.8
3.7
5
4.3
5.6
6.2
3.1
5
1.8
1.2
INCLINE
3
6
8
9
9
6
8
10
6
3
P22
SPEED
1.8
3.1
5
3.7
5.6
6.2
5
7.5
3.7
1.8
INCLINE
2
6
8
10
12
10
12
8
5
2
P23
SPEED
1.8
3.1
5.6
6.8
7.5
5
3.7
3.1
1.8
1.2
INCLINE
2
6
8
10
9
7
8
10
6
3
18
P24
SPEED
1.8
5
6.2
6.8
7.5
6.2
6.2
5
3.1
1.8
INCLINE
3
6
8
9
10
12
9
6
3
2
SELF-DEFINE PROGRAM
Besides 24 inner installed programs, there are 3 user self-define programs: U1, U2, U3.
1.User self-define program setting:
In the initial situation, press “PROG” continually till U1, U2, U3, and the “TIME” window glitter, show the
time 10:00, press “speed+”, “speed-” to set the running time; press “MODE” to set program data, set
the first interval time, press “speed+”, “speed-” or press speed shortcut button or Switch Knob (No.
E06) or SPEED +/– buttons (AT RIGHT HANDRAIL) to set the speed, press INCLINE “+/-” or press
incline shortcut button or Switch Knob (No. E06) or INCILINE ∧/∨ buttons (AT RIGHT HANDRAIL)
to set the incline; then press “MODE” button to finish the first interval time and enter into the second
interval time, until finish 10 interval time. The data will be kept until the next setting. the data will not be
lost when powered off.
2. User self-define program starting:
When the machine is waiting for operation, press the “PROG” button continuely till U1, U2, U3, set the
running time then press “START” button to start the machine.
3. User self-define program instruction:
Each program will be divided into 10 time sections, set the speed in each interval time, then press
“START” button to run the machine.
BODY MASS INDEX:
Press the PROGRAM button until the window displays FAT to access Body Mass Index. Press MODE
to enter F-1, F-2, F-3, F-4, F-5.
F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 is Body Mass Index
Press SPEED +/- buttons to set F1-F4 (refer to the chart below). Once you have finished setting F1-F4,
press MODE. This will enter you into the set up for F-5 (Body Mass Index). To set F-5, grasp the Pulse
Sensors located on the handles with both hands and hold them for 3 seconds. The window will display
your body mass index. The Body Mass Index is used to test the relation between your height and
weight. It is only for reference not suitable for the medical use. The Body Mass Index is suitable for
both male and female.
NOTE: General Body Mass Index score is 20-25%
Underweight Below 19.0
Normal 19.0 – 25.0
Overweight 26.0 – 29.0
Obesity 30.0 – and above
BODY MASS INDEX (BMI) CHART:
F-1
Sex
01 Male
02 Female
F-2
Age
10---99
F-3
Height
40---80 INCHES
F-4
Weight
44---330 LBS
F-5
BMI
≤19
Underweight
BMI
=(20---25)
Normal Weight
BMI
=(26---29)
Overweight
BMI
≥30
Obesity
19
TREADMILL FUNCTIONS
SAFETY LOCK FUNCTION:
Removing the Safety Key (No. E12) from the Console Top Cover (No. C07) while the treadmill is
running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of
the console will show “- - -” and the speaker will beep 3 times. To start the treadmill again, insert the pin
end of the Safety Key (No. E12) into the Console Top Cover (No. C07) and press the START button.
POWER SAVE FUNCTION:
When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode. While the
treadmill is in this mode, the window display of the Console Top Cover (No. C07) will be turned off. To
turn it back on, press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at anytime. This includes during exercise.
SAFETY NOTE:
We recommend that you maintain a slow speed at the beginning of a session and hold the Console
Top Cover (No. C07) handrails until you have become familiar with the treadmill.
Insert the pin end of the Safety Key (No. E12) into the holes on the Console Top Cover (No. C07)
and attach the opposite end (containing the safety clip on it) to your clothing before starting your
workout. To end your workout, press the STOP button or remove the Safety Key (No. E12) and the
treadmill will stop immediately.
20
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising immediately if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Once you get on, you can stand with your feet on the Side Rails (No. C04) and stabilize yourself by
holding onto the handrails.
2. Next, attach the clip end of the Safety Key (No. E12) to your clothes and insert the pin end of the
key into the holes on the Console Top Cover (No. C07).
3. Press the START button to start the treadmill.
4. The treadmill will start at the system default setting speed of 0.6MPH. When you feel comfortable,
you may slowly increase this speed.
5. When you are finished with your exercise, press the STOP button to stop the treadmill or you can
remove the pin end of the Safety Key (No. E12) to stop the treadmill.
USB CHARGING: You can charge your device by the USB port.
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free
SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen prompts to
search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session, and
recorded in your account profile!
21
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SUGGESTED ACTION
Treadmill will not start
Not plugged in.
Plug cord into outlet.
Safety Key is not inserted.
Insert Safety Key.
Running belt not centered
Running belt tension is not
correct on the left or right sides
of the running board.
Tighten the left and right
adjusting bolts of the rear roller.
Computer not working
Wires from the console and
bottom control board are not
properly connected.
Check wire from the console to
the control board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E01/E15: Message failure
Wires from the console and
bottom control board are not
properly connected.
Check wire connections from the
console to the control board. If
the wire has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the control board.
E03: No hall signal
Hall signal cannot be received by
the motor.
Check if the motor hall sensor
plug is not inserted properly, or
the sensor wire of control board
is broken or damaged; If the
sensor signal circuit on the
control board is abnormal,
replace the control board;
Replace the motor if the Hall
signal inside the motor fails or is
damaged.
E04: Incline failure
The incline motor is damaged or
the wire for the incline motor is
not connected properly or has
become damaged
Re-connect or replace the wire
for the incline motor. Replace the
incline motor with a new one if
damaged. Check the control
board, replace if damaged.Press
incline self-inspection button of
the control board once replace a
new control board or a new
motor.
22
NOTE:
1. If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide
or scan the QR code below:
E06: Current overload
protection (Self Protecting
System)
The incoming voltage is too low
or too high. The control board is
damaged.
Restart the treadmill. Check the
incoming voltage to ensure it’s
correct. Check the control board,
replace if damaged.
A moving part of the treadmill is
stuck and therefore, the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly. Check the
motor, listen for strange noise
and check for a burning smell.
Replace the motor if necessary.
E08: Overheat protection
The treadmill is overloaded,
make the current is too high, the
control board is damaged.
Wait the temperature of control
board drop; Check whether the
fan rotates and replace the fan.
Add the lubricating oil; Replace
the control board if necessary.
23
EXPLODED DIAGRAM 1
24
EXPLODED DIAGRAM 2
25
PARTS LIST
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
A01
Base Frame
1
C20
Tapered Cushion
2
A02
Main Frame
1
C21
Foot Pad
2
A03
Incline Frame
1
C22
Adjustable Foot pad
2
A04
Console Base Bracket
1
C23
Motor Belt
1
A05
Panel Fixed Bracket
1
C24
Running Belt
1
A06
Left Upright Tube
1
C25
Ring Protection Wire
2
A07
Right Upright Tube
1
C26
EVA Pad
2
B01
Front Roller
1
C27
Plastic Gasket
Φ30*3
2
B02
Rear Roller
1
C28
EVA Pad
30*30*1
2
B03
Hand Pulse Sheet
4
D01
Nut
M10
6
B04
Motor Mount Aluminum L
1
D02
Nut
M8
9
B05
Motor Mount Aluminum R
1
D03
Nut
M6
2
B06
Air Cylinder
1
D04
Bolt
M10*95 L25
2
B07
Incline Frame Bushing
4
D05
Bolt
M10*90 L20
1
B08
Spring
2
D06
Bolt
M10*55 L15
2
B09
Turning Bushing
2
D07
Bolt
M10*45 L15
1
B10
Allen Wrench
5mm
1
D08
Bolt
M10*30 L15
2
B11
Allen Wrench
6mm
1
D09
Bolt
M8*80 L15
2
B12
Motor Fixed Board
2
D10
Bolt
M8*70 L20
2
B13
Side Rail Pressing Plate
6
D11
Bolt
M8*50 L15
2
B14
Front Side Rail Pressing Plate
4
D12
Bolt
M8*40 L20
2
B15
Safety Block
1
D13
Bolt
M8*30 L15
1
B16
Ground Plate
1
D14
Bolt
M8*15
11
B17
Cross Wrench
1
D15
Bolt
M8*60
1
B18
Guide Hook
2
D16
Bolt
M8*55
2
C01
Motor Top Cover
1
D17
Bolt
M6*60
1
C02
Motor Bottom Cover
1
D18
Bolt
M6*20
2
C03
Rear Cover
1
D19
Bolt
M6*12
7
C04
Side Rail
2
D20
Bolt
M6*38
6
C05
Left Upright Tube Cover
1
D21
Bolt
M8*25
2
C06
Right Upright Tube Cover
1
D22
Bolt
M6*32
2
C07
Console Top Cover
1
D23
Bolt
M5*12
2
C08
Console Bottom Cover
1
D24
Bolt
M5*12 (head with pad)
10
C09
Panel Top Cover
1
D25
Screw
ST4.2*20
7
C10
Panel Bottom Cover
1
D26
Pan Head Tapping Screw
ST4.2*12
50
C11
Safety Key Socket
1
D27
Pan Head Tapping Screw
ST2.9*8
14
C12
Button +
1
D28
Screw
ST2.9*6
15
C13
Button -
1
D29
Screw
ST4.2*12 (head with pad)
12
C14
Button1
2
D30
Countersunk Head Screw
ST4.2*12
5
C15
Transportation Wheel
2
D31
Countersunk Head Screw
ST2.9*8
2
C16
Adjustable Wheel
2
D32
Locking Washer
Φ10
4
C17
Cushion
2
D33
Locking Washer
Φ8
21
C18
Middle Cushion
4
D34
Locking Washer
Φ5
2
C19
Rubber Cushion
2
D35
Spring Washer
Φ5
2
26
Version 2.1
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
D36
Flat Washer
Φ6
6
E17
Power Socket
1
D37
Big Washer
Φ10
8
E18
Power Wire
1
D38
Screw
ST2.0*6
4
E19
Grounding Wire
1
D39
Bolt
M8*42 L20
1
E20
AC Single Line
Brown 200
1
D40
Nut
M10
2
E21
AC Single Line
Brown 350
2
D41
Big Washer
Φ10
4
E22
AC Single Line
Blue 350
2
E01
Console
1
E23
Running Board
1
E02
Control Board
1
E24
Brushless Motor
1
E03
Upper Signal Wire
1
E25
Incline Motor
1
E04
Lower Signal Wire
1
E26
Left Button Board
1
E05
Handpulse Top Signal Wire
1
E27
Right Button Board
1
E06
Switch Knob
1
E28
Button Board Wire
1
E07
Button Board Top Signal Wire
1
E29
Knob Connecting Wire
1
E08
Handpulse Bottom Signal Wire
2
E30
Magnetic Ring 3
1
E09
Quick Incline Board
1
F01
Filter
1
E10
Quick Speed Board
1
F02
AC Single Line
Brown
1
E11
Safety Key Connecting Wire
1
F03
AC Single Line
Blue
1
E12
Safety Key
1
F04
Grounding Wire
1
E13
Magnetic Ring
1
F05
Pan Head Self-Drilling
Tapping Screw
ST4.2*12
2
E14
Magnetic Core
1
H01
USB Module
1
E15
Square Switch
1
H02
USB Connecting Wire
1
E16
Overload Protector
1
H03
Screw
ST2.9*8
3
