ELITE INTERACTIVE SERIES
EXERCISE RECUMBENT BIKE
SF-RBE420049
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained,
and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
2

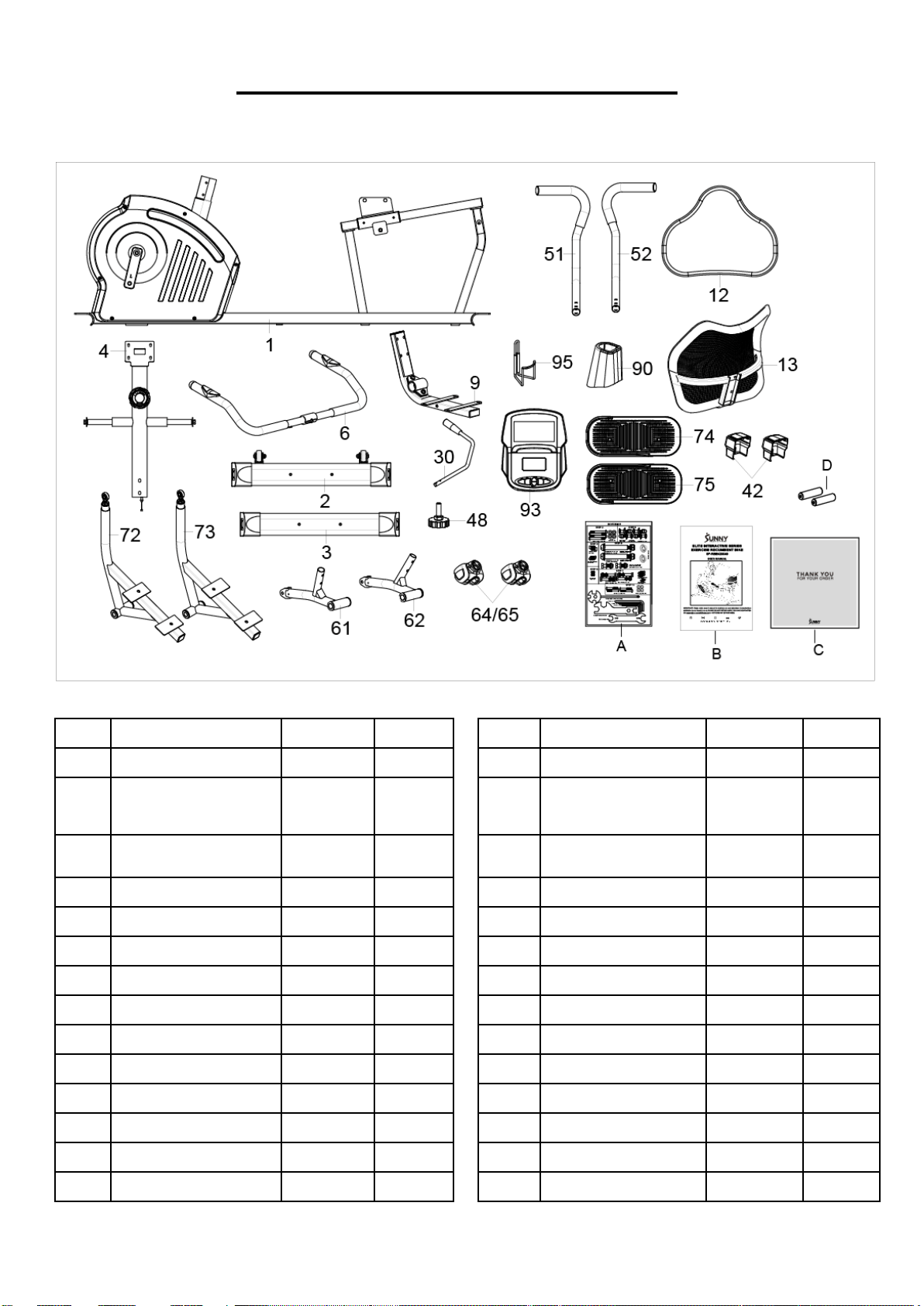

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included
No. Description Spec. Qty.
No. Description Spec. Qty.
1 Main Frame 1 62 Right Handrail Arm 1
2 Front Stabilizer 1 64/65
Left/Right Foot Bar
Cover
1SETS
3 Rear Stabilizer 1 72 Left Foot Bar 1
4 Front Post 1 73 Right Foot Bar 1
6 Rear Handlebar 1 74 Left Pedal 1
9 Seat Support Bracket 1 75 Right Pedal 1
12 Seat 1 90 Decorative Cover 1
13 Backrest Cushion 1 93 Computer 1
30 Brake Handle 1 95 Bottle Holder 1
42 Sliding Rail Cover 2 A Hardware Package 1
48 Adjusting Foot Pad M8*30 1 B Manual 1
51 Left Handlebar 1 C Thank You Card 1
52 Right Handlebar 1 D Battery 1
61 Left Handrail Arm 1
3
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 1:
Unscrew 4 Screws (No. 11) from Main
Frame (No. 1) with Allen Wrench (No.
142). Remove 4 Plastic Washers (No.
139) and 2 Shipping Tubes (No. 140)
from Main Frame (No. 1).
You may save these parts 4 Screws (No.
11), 4 Plastic Washers (No. 139), 2
Shipping Tubes (No. 140) in case you
would like to repackage and transport this
equipment in the future.
STEP 2:
Attach the Front Stabilizer (No. 2) and
Rear Stabilizer (No. 3) to the Main
Frame (No. 1) with 4 Bolts (No. 45) and
4 Washers (No. 10). Tighten and secure
with Allen Wrench (No. 142).
Attach the Adjusting Foot Pad (No. 48)
to the Main Frame (No. 1) by hand.
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 3:
Attach the Brake Handle (No. 30) to the
Connecting Axle (No. 26) with 2 Screws
(No. 28). Tighten and secure with Allen
Wrench (No. 141).
Remove 4 Washers (No. 19), 4 Spring
Washers (No. 18) and 4 Screws (No. 17)
from the Seat Support Bracket (No. 9)
with Allen Wrench (No. 142).
Attach the Seat Support Bracket (No. 9)
to the Seat Adjusting Tube (No. 8) with 4
Washers (No. 19), 4 Spring Washers
(No. 18) and 4 Screws (No. 17) that were
removed. Tighten and secure with Allen
Wrench (No. 142).
Attach the 2 Sliding Rail Covers (No. 42)
to the Main Frame (No. 1) with 2 Screws
(No. 41). Tighten and secure with Spanner
(No. 145).
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

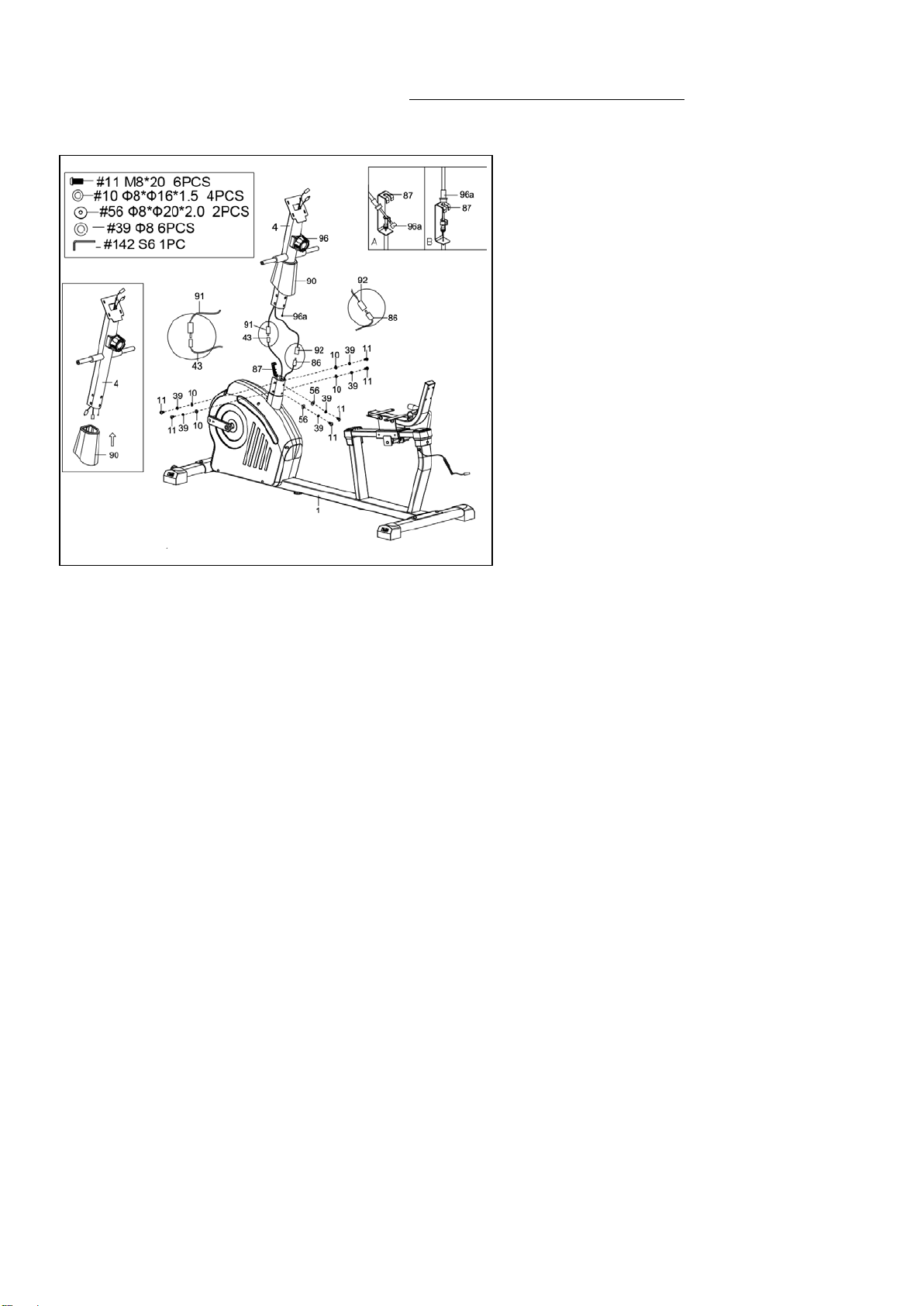

STEP 4:
Remove 6 Screws (No. 11), 4 Washers
(No. 10), 2 Big Arc Washers (No. 56) and
6 Spring Washers (No. 39) from the Main
Frame (No. 1) with Allen Wrench (No.
142).
Attach the Decorative Cover (No. 90) into
the Front Post (No. 4)
CAUTION: Please make sure the Tension
Control Knob (No. 96)
is at the lowest
resistance level (level 1, all the way to the
left) before you connect any wires together.
Attach the Tension Control Wire (No.
96a) into the metal bracket of Tension
Wire (No. 87) as shown in drawing A.
Then, pull Tension Control Wire (No.
96a) upward and insert it into the slot of
metal bracket of Tension Wire (No. 87) as
shown in drawing B. Make sure the metal
fitting on Tension Control Wire (No. 96a)
is secured in the metal bracket.
Connect the Extension Sensor Wire II
(No. 91) with Flexible Wire (No. 43); and
connect Sensor Wire (No. 86) with the
Extension Sensor Wire I (No. 92). Insert
the connecting wires into Front Post (No.
4).
Attach the Front Post (No. 4) to the Main
Frame (No. 1) with 6 Screws (No. 11), 4
Washers (No. 10), 2
Big Arc Washers
(No. 56) and 6 Spring Washers (No. 39)
that were removed. Tighten and secure
with Allen Wrench (No. 142).
Lower the Decorative Cover (No. 90) to fit
in the Main Frame (No. 1).
NOTE: Be careful not to pinch any wires
when attaching Front Post (No. 4) to Main
Frame (No. 1).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 5:
Attach Bottle Holder (No. 95) to the
Front Post (No. 4) with 2 Screws (No.
94). Tighten and secure with Spanner
(No. 145)
.
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

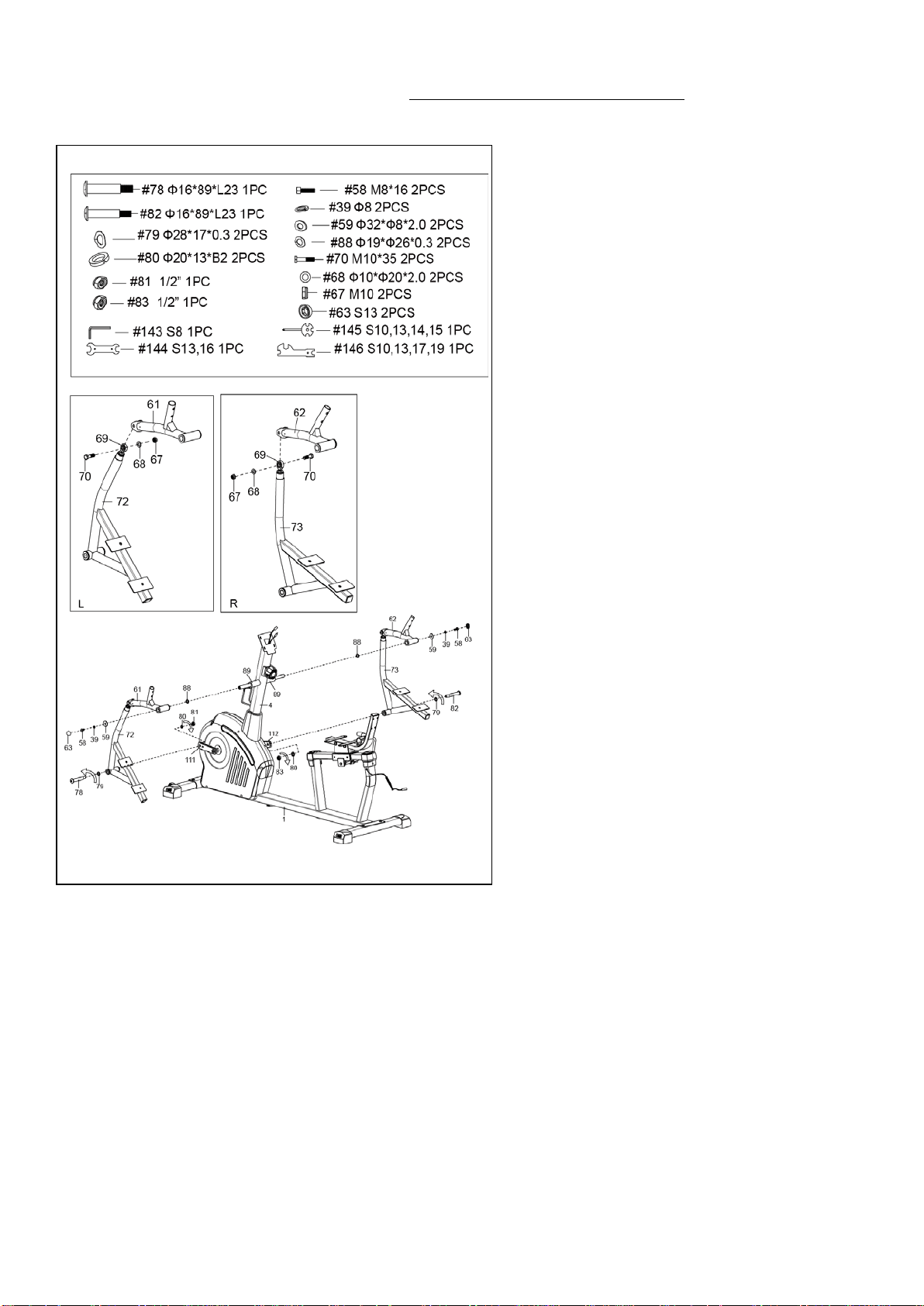

STEP 6:
Attach the Left & Right Handrail Arms
(No. 61 & No. 62) onto the Bearing (No.
69) that located on the Left/ Right Foot
Bar (No. 72&73) with 2 Bolts (No. 70), 2
Washers (No. 68) and 2 Nuts (No. 67).
Tighten and secure with Spanner (No.
144) and Spanner (No. 146).
Remove 2 Screws (No. 58), 2 Big
Washers (No. 59), 2 Spring Washers
(No. 39) and 2 Wave Washers (No. 88)
from the Front Post (No. 4) with Spanner
(No. 145).
Attach the Left & Right Handrail Arms
(No. 61 & No. 62) to the Front Post (No.
4) with 2 Screws (No. 58), 2 Big Washers
(No. 59), 2 Spring Washers (No. 39) and
2 Wave Washers (No. 88)
that were
removed. Tighten and secure with
Spanner (No. 145). Install 2 Caps (No.
63) onto the 2 Screws (No. 58).
Attach the Left Foot Bar (No. 72) to the
Left Crank (No. 111) with 1 Left Pedal
Bolt (No. 78), 1 Wave Washer (No. 79).
Turn the Left Pedal Bolt (No. 78)
counter-clockwise as tightly as you can
with your hand. Secure by tightening 1
Spring Washer (No. 80) and 1 black color
Left Nylon Nut (No. 81), clockwise. The
Then use Allen Wrench (No. 143) and
Spanner (No. 146) to tighten securely.
Attach the Right Foot Bar (No. 73) to the
Right Crank (No. 112) with 1 Right Pedal
Bolt (No. 82), 1 Wave Washer (No. 79).
Turn the Right Pedal Bolt (No. 82)
clockwise as tightly as you can with your
hand. Secure by tightening 1 Spring
Washer (No. 80) and 1 white color Right
Nylon Nut (No. 83), counter-clockwise.
Then use Allen Wrench (No. 143) and
Spanner (No. 146) to tighten securely.
9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

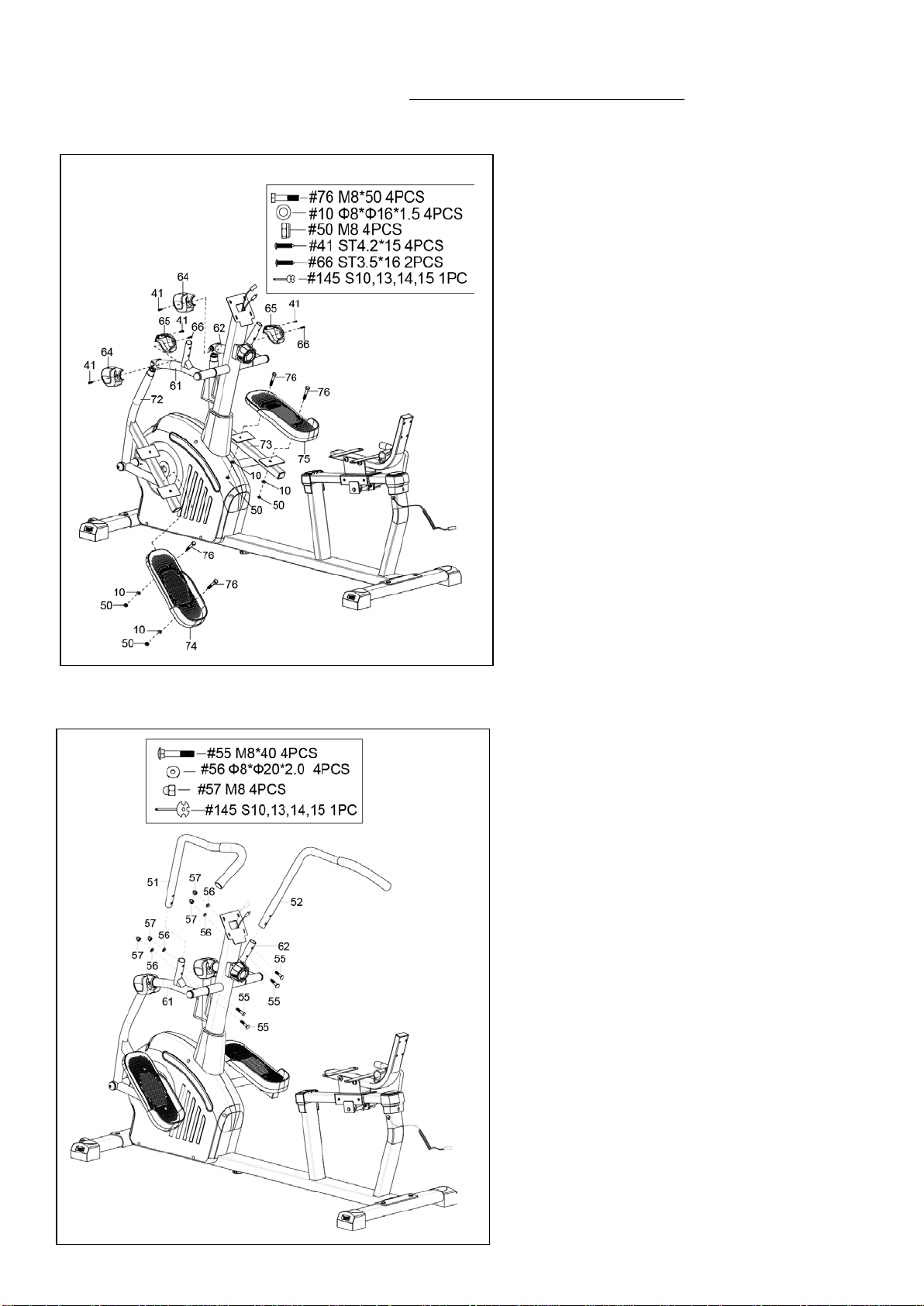

STEP 7:
Attach the Left Pedal (No. 74) to the Left
Foot Bar (No. 72) with 2 Bolts (No. 76), 2
Washers (No. 10) and 2 Nuts (No. 50).
Tighten and secure with Spanner (No.
145).
Attach the Right Pedal (No. 75) to the
Right Foot Bar (No. 73) with 2 Bolts (No.
76), 2 Washers (No. 10) and 2 Nuts (No.
50). Tighten and secure with Spanner
(No. 145).
Attach the Left Foot Bar Cover (No. 64)
and Right Foot Bar Cove (No. 65) to the
Left & Right Handrail Arm (No. 61 &
No.62) with 4 Screws (No. 41) 2 Screws
(No. 66). Tighten and secure with Spanner
(No. 145).
STEP 8:
Attach the Left Handlebar (No. 51) to the
Left Handrail Arm (No. 61) with 2 Bolts
(No. 55), 2 Big Arc Washers (No. 56) and
2 Cap Nuts (No. 57). Tighten and secure
with Spanner (No. 145).
Attach the Right Handlebar (No. 52) to the
Right Handrail Arm (No. 62) with 2 Bolts
(No. 55), 2 Big Arc Washers (No. 56) and
2 Cap Nuts (No. 57). Tighten and secure
with Spanner (No. 145).
10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 10:
Remove 4 Screws (No. 11) and 4
Washers (No. 10) from the Seat (No. 12)
with Allen Wrench (No. 142).
Attach the Seat (No. 12) to the Seat
Support Bracket (No. 9) with 4 Screws
(No. 11) and 4 Washers (No. 10) that
were removed. Tighten and secure with
Allen Wrench (No. 142).
STEP 9:
Remove 2 Screws (No. 20), 2 Washers
(No. 10) and 1 Handlebar Cover (No. 5)
from the Seat Support Bracket (No. 9)
with Allen Wrench (No. 142).
Attach the Rear Handlebar (No. 6) to the
Seat Support Bracket (No. 9) with 2
Screws (No. 20), 2 Washers (No. 10) and
1 Handlebar Cover (No. 5)
that were
removed. Tighten and secure with Allen
Wrench (No. 142).
Connect the Flexible Wire (No. 43) with
the Handle Pulse Wire (No. 32a).
11
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 11:
Attach the Backrest Cushion (No. 13) to
the Seat Support Bracket (No. 9) with 4
Bolts (No. 14) and 4 Washers (No. 15).
Tighten and secure with Spanner (No.
145).

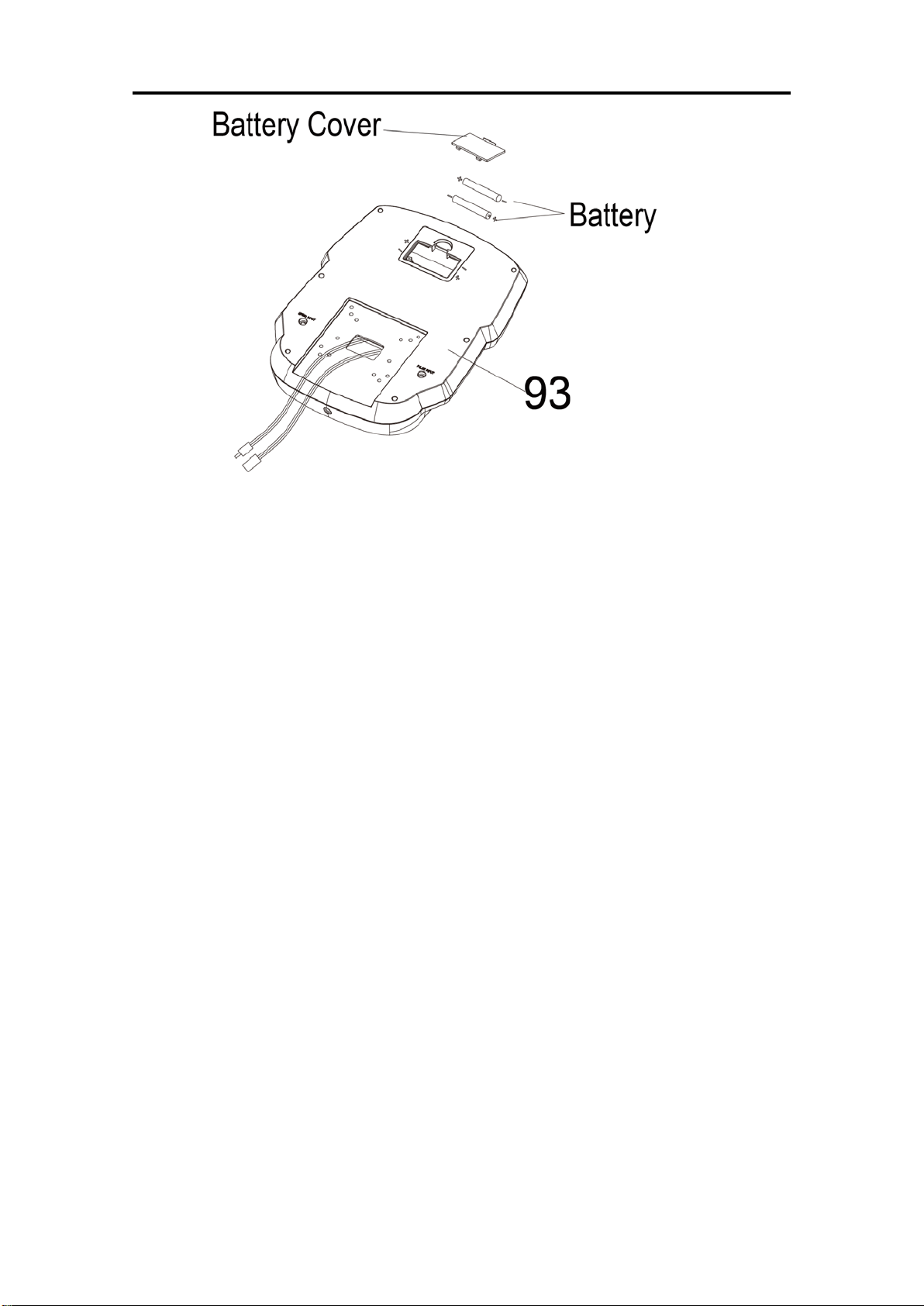

STEP 12:
Remove 4 Screws (No. 94) from the back
of the Computer (No. 93) with the
Spanner (No. 145).
Connect the Extension Sensor Wire I (No.
92) with Computer Wire A (No. 93a). And
connect the Extension Sensor Wire II
(No. 91) with Computer Wire B (No. 93b).
Then insert them into the Front Post (No.
4).
Attach Computer (No. 93) to the top end of
the Front Post (No. 4) with 4 Screws (No.
94) that were removed. Tighten and secure
with Spanner (No. 145).
The assembly is complete!
12
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AA batteries from computer box.
2. Press the buckle of battery cover on the Computer (No. 93), then remove battery cover.
3. Install 2 AA batteries into the battery case on the back of the Computer (No. 93). Pay attention
to the battery + and – poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 93).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Computer (No. 93), then remove battery
cover.
2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the battery
case on the back of the Computer (No. 93). Pay attention to the battery + and – poles before
installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 93).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some batteries
may be recycled. When disposing or recycling, do not mix battery types.
13
ADJUSTMENTS GUIDE
MOVING THE RECUMBENT BIKE
Lift the Rear Stabilizer (No. 3) and
tilt the
recumbent bike until the Transportation Wheels
(No. 49)
touch the ground. Now you can transport
the recumbent bike to the desired location with
ease.
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you
must ensure that the recumbent bike
is stabled and
secured. If you notice that the recumbent bike is
unbalanced during use, you should adjust the 4
Adjustable End Caps (No. 44) located on the Front
and Rear stabilizers (No. 2&3)
until the recumbent
bike becomes levelled with the floor surface.
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension Control
Knob (No. 96) clockwise
to increase the level of
resistance. Rotate the Tension Control Knob (No.
96) counter-clockwise
to decrease the level of
resistance.
Tension levels are set at Leve
l 1 being the lowest
and Level 12 being the highest.
ADJUSTING THE SEAT
To adjust the
seat forward or backward, press
down Brake Handle (No. 30), then slide the seat to
the desired position, lift the Brake Handle (No. 30)
to tighten.
CLEANING
The recumbent bike can be cleaned with a soft, clean,
damp cloth. Do not use abrasives or
solvents on plastic parts. Please wipe your perspiration off the recumbent bike after each use. Be
careful not to get excessive moisture on the computer display panel as this might cause electrical
hazard or electronics to fail.
Please keep the recumbent bike, especially the computer, out of direct
sunlight to prevent screen damage.
Please inspect all assembly bolts and pedals on the recumbent
bike for proper tightness every week.
STORAGE
Store the recumbent bike in a clean and dry environment, away from children.
14
EXERCISE COMPUTER
FUNCTION BUTTONS
MODE
1. Press the button to select hour, minute, year, month and date for setting.
2. Press the button to select TIME, DISTANCE, CALORIES and PULSE to preset.
3. Press the button for selection function display on main LCD, or enter after setting.
4. Press the button to confirm setting value of gender, age, height and weight.
5. Press the button and hold for 2 seconds to reset all value to zero.
(When the user replace batteries, all the values will reset to ZERO automatically.)
SET
1. To set up the hour, minute, year, month and date.
2. To set up the target value of Time, Distance, Calories and Pulse. You can hold the button to
increase the value fast. (The computer has to be in stop condition.)
3. To set up the personal data of gender, age, height and weight for Body fat test.
RESET
Press the button to reset function value when setting.
(When the user replace batteries, all the values will reset to ZERO automatically.)
BODY FAT
Press this button to enter Body Fat measure function, then press MODE key to enter the setting
Mode of your personal data of Gender, Age, Height and Weight. After finished setting, press it
again to measure your Body fat ration (FAT%) and BMI.
RECOVERY
To act the heart rate recovery function after pulse signal in. Press any button to return to the main
display.
FUNCTIONS
SCAN
Automatically scan through each mode in sequence every 6 seconds. The display loop is RPM
Speed – Time – Distance – Calorie - Pulse on the main screen.
TIME
Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing SET
&MODE button. Each increase is 1 minute.
RPM
Displays the Rotation per Minute (RPM). The RPM and SPEED will switch to another display in
every 6 seconds after exercise starts.
SPEED
Displays current training speed. Maximum speed is 99.9 km/h or mile/h.
DISTANCE
Accumulates total distance from 0.00 up to 99.99 km or mile. The user may preset target
Distance data by pressing SET & MODE button. Each increase setting is 0.5 km or mile.
15
CALORIES
Accumulates calories consumption during training from 0 to max. 999 calories. The user may
also preset the target calorie before training by press SET & MODE button. Each setting increase
is10 cal.
Note : This data is a rough guide for comparison of different exercise sessions which can
not be used in medical treatment.
PULSE
The monitor will display the user's heart rate in beats per minute during training. You may set the
target heart rate by press the SET & MODE button.
CALENDAR
The monitor will display date, month, and year when the monitor is in sleep mode.
CLOCK
The monitor will display current clock time when the monitor is in sleep mode.
TEMPERATURE
Displays current room temperature from 10℃ to 60℃when the monitor is in sleep mode.
OPERATION ORDER:
1. Power on – Installs 2 pieces of 1.5V UM-3 or AA batteries. The monitor start to segment test
with a long beep sound. (Whenever batteries are removed, all the functions values will be reset
to zero or default value.)
2. Set current data – Press the SET and MODE buttons to set up current clock time, year, month,
and date. After the first setting till batteries be replaced next time, those preset data will be
updated automatically.
3. Select and preset target value – Get access to the setting function of Time, Distance, Calories
and Target Pulse. When you are in each setting mode. For instance the Time setting, when
the time value is glitter, you can press the SET button to adjust the value. Press the MODE
button for confirmation and skip to next setting. The setting of Distance & Calories is the same
as Time setting.
4. After entering speed signal, each function of SPEED-RPMTIME-DISTANCE-CALORIES-
PULSE will skip to display in every 6 seconds.
5. You can also press the MODE button to select single function display on the main screen
except RPM & SPEED. The RPM & SPEED function will switch display in 6 seconds.
6. If you have preset any function target before, the function starts to count down from the target
when the training starts. Once the target is achieved, the monitor will beep and the function will
count up from zero automatically if the training is still going.
7. Pulse measurement – After you hold on two handgrip sensors in a few seconds, the monitor
will show up your current heart rate in beats per minute. To ensure the heart rate readout
precisely, please do not hold one hand only. You may preset target pulse before training starts.
Once your current heart rate is achieved to the target, the value of pulse will beep to remind
you.
16
8. Recovery –When the PULSE is working, you can press “RECOVERY” button to start the
recovery test function. The monitor will count down from 0:60 second to 0:00 and the heart beat
symbol will be glitter till counting down to “0:00”. During 60 seconds counting period, please
keep heart rate sensor is attached. Then the screen will display “F1 to F6” to show your
recovery status. F1 is the best, and the F6 is the worst. You may keep exercising to improve
your heart rate recovery status, and check it by using Recovery function.
9. Body Fat -
a) Press BODY FAT key to enter body fat measurement.
b) Press MODE and SET buttons to input your personal data. Each personal data
available setting area is described as the following:
c) AGE: 10 ~ 99 years HEIGHT: 100 ~ 250 cm (or 3’03” ~ 8’02“)
WEIGHT: 10 ~ 200 kg (or 22 ~ 440 lb)
d) After all personal data have been input, you can press BODY FAT button and hold
on grip conductors to start the body fat testing.
e) It takes few seconds to test the body fat. If you did not hold on the conductor during
the testing procedure, the LCD will show the error sign Err after 10 seconds period.
f) After the testing is finished, you will see fat advice in percentage and BMI figure (body
mass Index) display on the main LCD in sequence by scan mode.
g) BODY FAT % : Calculate from your personal data to show the value from 5%~50%.
h) BMI : Calculate from your personal data to show the value from 1.0~99.99.
i) Press any key to return to the main display.
Note
1. Stop training for 4 minutes, the screen will show up room temperature, clock, and calendar
display automatically.
2. If the computer displays abnormally, please re-install the battery and try again.
3. Battery Spec: 1.5V UM-3 or AA (2PCS).
17
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list,
check the EXERCISE COMPUTER on your equipment to ensure that it is not in
sleep mode and your phone's Bluetooth function is on, then tap "Retry" to search
again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipment is now ready to display, track, and record your equipment’s workout
stats on the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contact SunnyFit support at support@sunnyfit.com, or use the in-app “Contact Us”
form to request support (“Me” tab -> “Contact Us”).
18
EXPLODED DIAGRAM 1
19
EXPLODED DIAGRAM 2
20
TROUBLESHOOTING
PROBLEM SOLUTION
There is no display on the computer.
1. Remove the computer and verify that the
wire from the computer is properly
connected to the wire that comes from the
front post.
2. Check if the batteries are correctly
positioned and battery springs are in proper
contact with batteries.
3.
The batteries in the computer may be
unresponsive. Change to new batteries.
The recumbent bike wobbles when in use.
Turn the adjustable end caps on the
front and
rear stabilizers
as needed to level the
recumbent bike.
The recumbent bike makes squeaking noise
when in use.
Some bolts on the recumbent bike might have
become loose. Please inspect all the bolts and
tighten any loosened bolts.
21
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
1 Main Frame
1
36 Foam Grip Ф24*Ф30*520 2
2 Front Stabilizer
1
37 Handlebar Teleflex
1
3 Rear Stabilizer
1
38 Bolt M8*40 6
4 Front Post
1
39 Spring Washer Ф8 12
5 Handlebar Cover
1
40 Square End Cap 60*30 2
6 Rear Handlebar
1
41 Screw ST4.2*15 6
7 Sliding Rail
1
42 Sliding Rail Cover
2
8 Seat Adjusting Tube
1
43 Flexible Wire L=2500mm 1
9 Seat Support Bracket
1
44 Adjustable End Cap 80*40 4
10 Washer Ф8*Ф16*1.5 25
45 Bolt M8*55 4
11 Screw M8*20 15
46 Screw ST4.2*20 9
12 Seat
1
47 Nut M8 1
13 Backrest Cushion
1
48 Adjusting Foot Pad M8*30 1
14 Bolt M6*40 4 49 Transportation Wheel 2
15 Washer Ф6*Ф12*1.0 11
50 Nut M8 8
16 Square End Cap 50*25*2.0 2
51 Left Handlebar
1
17 Screw M10*20 4
52 Right Handlebar
1
18 Spring Washer Ф10 4
53 End Cap
2
19 Washer Ф18*Ф10*1.5 4
54 Foam Grip Ф27*Ф33*274 2
20 Screw M8*15 2
55 Bolt M8*40 4
21 Screw ST4.2*6 4
56 Big Arc Washer Ф8*Ф20*2.0 6
22 Brake Fixing Plate
1
57 Cap Nut M8 4
23 Shaft Snap Ring
3
58 Screw M8*16 2
24 Limited Block
1
59 Big Washer Ф32*Ф8*2.0 2
25 Shaft
1
60 Shaft Sleeve
4
26 Connecting Axle
1
61 Left Handrail Arm
1
27 Screw M8*12 1
62 Right Handrail Arm
1
28 Screw M6*15 2
63 Cap S13 2
29 Screw M6*15 2
64 Left Foot Bar Cover
2
30 Brake Handle
1
65 Right Foot Bar Cover
2
31 Bushing 80*40 2
66 Screw ST3.5*16 2
32 Handle Pulse L=750mm 2
67 Nut M10 2
32a Handle Pulse Wire
1
68 Washer Ф10*Ф20*2.0 2
33 Plug Ф12.1 2
69 Bearing M10*62 2
34 Screw ST4.2*20 2
70 Bolt M10*35 2
35
End Cap for
Handlebar
Φ25 2 71 Nut M10 2
22
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
72 Left Foot Bar
1
103 Belt PJ375 1
73 Right Foot Bar
1
104 Nut M6 4
74 Left Pedal
1
105 Spring Washer Ф6 4
75 Right Pedal
1
106 Bolt M6*15 4
76 Bolt M8*50 4
107 Belt Pulley Φ260 1
77 End Cap 30*30 2
108 Left Belt Cover
1
78 Left Pedal Bolt Ф16*89*L23 1
109 Right Belt Cover
1
79 Wave Washer Ф28*Ф17*0.3 2
110 Crank Cover
2
80 Spring Washer Ф20*Ф13*B2 2
111 Left Crank 6.5" 1
81 Left Nylon Nut 1/2” 1
112 Right Crank 6.5" 1
82 Right Pedal Bolt Ф16*89*L23 1
113 Nut M10*1.25 2
83 Right Nylon Nut 1/2” 1
114 Crank Cap
2
84 Plastic Bushing Ф32*20 4
115 Screw ST4.2*25 8
85 Shaft Sleeve
4
116 Bolt M6*15 2
86 Sensor Wire L=750MM 1
117 Washer Ф6*Ф16*1.2 4
87 Tension Wire L=1000mm 1
118 Magnetic Plate Axle
1
88 Wave Washer Ф19*Ф26*0.3 2
119 Magnetic Bracket
1
89 Shaft Sleeve
2
120 Magnet Seat
1
90 Decorative Cover
1
121 Magnet 40*25*10 4
91
Extension Sensor
Wire II
L=800mm 1
122 Screw ST2.9*9 5
92
Extension Sensor
Wire I
L=800mm 1
123 Spring
1
93 Computer
1
124 Bolt M6*45 1
93a Computer Wire A
1
125 Nut M6 2
93b Computer Wire B
1
126 Screw M6*12 5
94 Screw M5*10 6
127 Bearing End Cover
2
95 Bottle Holder
1
128 Bearing Seat
2
96 Tension Control Knob
1
129 Screw M6*10 2
96a Tension Control Wire L=420mm 1
130 Screw M6*12 2
97 Big Arc Washer Ф5*Ф18*1.0 1
131 Bearing 6001ZZ 2
98 Bolt M5*55 1
132 Flywheel Ф240 1
99 Cover Limit Column
2
133 Idler Wheel Shaft
1
100 C-clip Φ17*1 2
134 PC Pad
1
101 Bearing 6203ZZ 2
135 Screw M8 1
102 Wave Washer Φ17*Φ21*0.3 1
136 Idler Wheel 6000ZZ 1
23
137 Bolt M8*85 1
142 Allen Wrench S6 1
138 Square End Cap 80*40 1
143 Allen Wrench S8 1
139 Plastic Washer Ф8*Ф20*2.0 4
144 Spanner S13,16 1
140 Shipping Tube
2
145 Spanner S10,13,14,15 1
141 Allen Wrench S5 1
146 Spanner S10,13,17,19 1
Version 1.0
24
