Owner’s Manual
Model No. 240-3731
9” BAND SAW
21-1018
QUESTION...
1•847•780•6120
You will need this manual for safety instructions, operating procedures, and warranty.
Put it and the original sales invoice in a safe, dry place for future reference.
Maximum cutting width/throat . . . . . . . . . . . . . 9”
Maximum depth of cut at 90° . . . . . . . . . . .3-5⁄8”
Maximum depth of cut at 45° . . . . . . . . . . . . . 2”
Table size . . . . . . . . . . . . . . . . . . . . 11¾ x 11¾”
Table tilt . . . . . . . . . . . . . . . . . . . . . . . . 0° to 45°
Wheel diameter . . . . . . . . . . . . . . . . . . . 9-7/16”
Blade included . . . . . . . 62” x 1/4” x 0.014” 6 TPI
Blade length . . . . . . . . . . . . . . . . . . . . . . . . . .62”
Blade width . . . . . . . . . . . . . . . . . . . . . .1⁄8 - 3/8”
Blade speed . . . . . . . . . . . . . . . . . . . . 2460 FPM
Overall dimensions . . . . . . . . . . . 20" x 13
" x 29"
TABLE OF CONTENTS
PRODUCT
SPECIFICATIONS
SAFETY RULES 1
Work Preparation
Work Area Preparation
Tool Maintenance
Tool Operation
ASSEMBLY 2
Unpacking
Install Table Assembly
Mount Band Saw
Power Source
Grounding Instructions
Extension Cords
Motor
OPERATION 4
Description
Safety Precautions
ON/OFF Switch
Replace Band Saw Blade
Adjust Blade Tracking Mechanism
Adjust Blade Tension
Adjust Blade Guides
Miter Gauge
Blade Width
Blade Pitch
Contour Sawing
Bevel Cutting
MAINTENANCE 7
Cleaning
Lubrication
Keep Tool in Repair
TROUBLESHOOTING 8

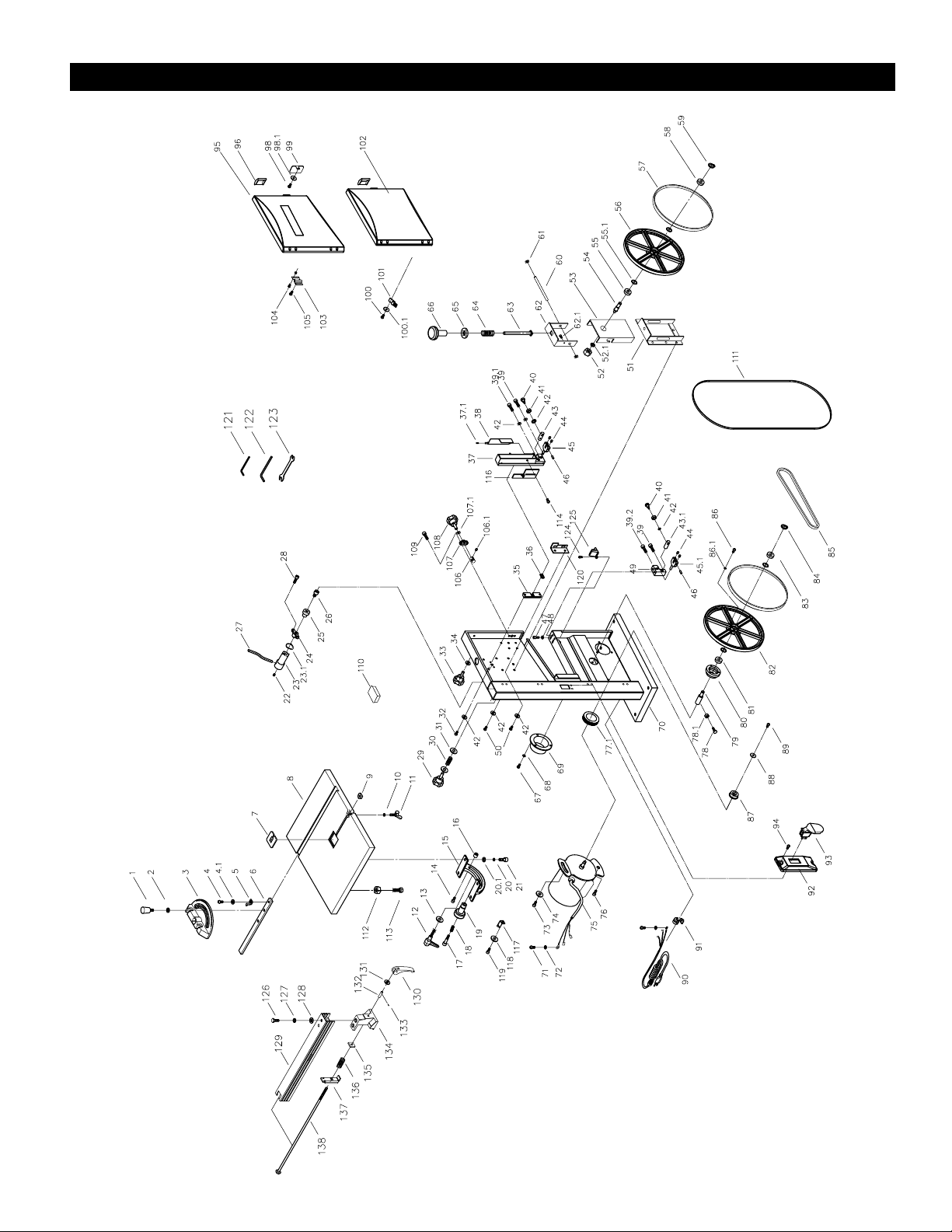

PARTS ILLUSTRATION & 9
LIST
WARRANTY
12
SECTION PAGE
For your own safety, read and understand all warnings
and operating instructions before using any tool or
equipment.
Some dust created by operation of power tool contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
To reduce your exposure to these chemicals: work in a
well ventilated area and work with approved safety
equipment. Always wear OSHA/NIOSH approved,
properly tting face mask or respirator when using such
tools.
Failure to follow these rules may result in serious personal
injury. Remember that being careless for even a fraction
of a second can result in severe personal injury.
WORK PREPARATION
• Wear proper apparel. Do not wear loose clothing,
gloves, neckties, rings, bracelets or other jewelry which
may get caught in moving parts of the tool.
• Nonslip protective footwear is recommended.
• Wear protective hair covering to contain long hair.
• Wear eye and hearing protection. Always use safety
glasses. Eye protection equipment should comply with
ANSI Z87.1 standards. Hearing equipment should
comply with ANSI S3.19 standards.
• Wear face mask or dust mask if operation is dusty.
• Be alert and think clearly. Never operate power tools
when tired, intoxicated or when taking medications that
cause drowsiness.
WORK AREA PREPARATION
• Keep work area clean. Cluttered work areas and
benches invite accidents.
• Work area should be properly lighted.
• Do not use the machine in a dangerous environment.
The use of power tools in damp or wet locations or in
rain can cause shock or electrocution.
• Three-prong plug should be plugged directly into
properly grounded, three-prong receptacle.
• Use the proper extension cord. Make sure your
extension cord is in good condition and should have a
grounding prong and the three wires of
extension cord should be of the correct gauge.
• Keep children and visitors away. Your shop is a poten-
tially dangerous environment. Children and visitors can
be injured.
• Make your workshop childproof with padlocks, master
switches or remove switch keys to prevent any uninten-
tional use of power tools.
TOOL MAINTENANCE
• Turn the machine "OFF", and disconnect the machine
from the power source prior to inspection.
• Maintain all tools and machines in peak condition. Keep
tools sharp and clean for best and safest performance.
• Follow instructions for lubricating and changing
accessories.
• Check for damaged parts. Check for alignment of
moving parts, binding, breakage, mounting and any
other condition that may affect tool's operation.
• Poorly maintained tools and machines can further
damage the tool or machine and/or cause injury.
• A guard or any other part that is damaged should be
repaired or replaced. Do not perform makeshift repairs.
TOOL OPERATION
• Avoid accidental start-up. Make sure that the tool is in
the “OFF” position before plugging in.
• Use the right tool for your job. Do not force your
tool or attachment to do a job for which it was not
designed.
• Disconnect tool when changing parts.
• Don't force the workpiece on the machine. Damage to
the machine and/or injury may result.
• Never leave tool running unattended. Turn the power off
and do not leave tool until it comes to a complete stop.
• Do not overreach. Loss of balance can make you fall
into a working machine, causing injury.
• Never stand on tool. Injury could occur if the tool tips, or
if you accidentally contact the cutting tool.
• Know your tool. Learn the tool’s operation, application
and specic limitations before using it.
• Use recommended accessories. Use of improper
accessories may cause damage to the machine or injury
to the user.
• Handle workpiece correctly. Keep hands away from
moving parts.
• Turn tool off if it jams.
CAUTION: Think safety! Safety is a combination of opera-
tor common sense and alertness at all times when tool is
being used.
Do not attempt to operate tool until it is completely
assembled according to the instructions.
WARNING
WARNING
WARNING
WARNING
SAFETY RULES
1
IA
IA
IA
IA
UNPACKING

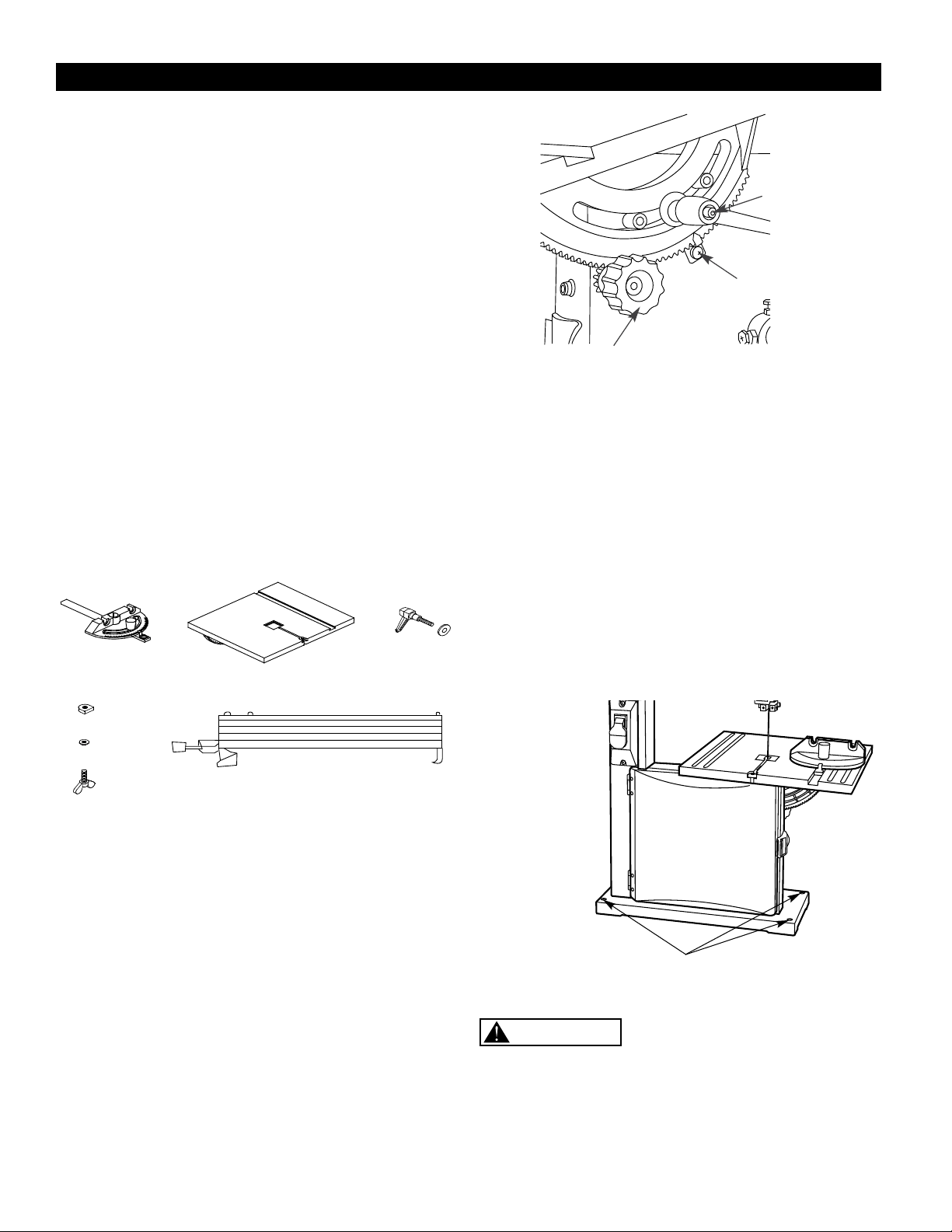

Refer to Figure 1.
• Check for freight damage before opening the package. If
freight damage is noticed, le claim with the carrier
immediately.
• Check to ensure all parts are present. Contact Customer
Service Center at 1-847
-780-6120 immediately for
missing parts.
• This band saw comes mostly assembled. It requires
some additional assembling, installation, and adjustment
before use.
• Locate the following parts before assembling:
A
Miter Gauge Assembly
B Table Assembly
C
Lock Screw Handle with Washer
D Table Locking Insert Assembly
E Rip Fence
CAUTION: Do not attempt assembly if parts are missing.
Use operator’s manual to order replacement parts.
INSTALL TABLE ASSEMBLY
Refer to Figure 1 and 2
• Locate and remove the trunnion knob.
• Place the table assembly onto the saw frame.
• Replace and secure the trunnion knob.
• Use the provided lock screw handle with washer to
secure the table assembly to the saw frame.
• The table tilt angle is adjustable. Use a combination
square to calibrate the table tilt position. Set the table
perpendicular to the saw blade and zero the pointer of
table tilt scale.
• Install table locking insert assembly.
MOUNT BAND SAW
Refer to Figure 3
• The band saw must be installed in a well-lit area with
correct power supply.
• Four mounting holes are on the base of band saw. If
pre-drilled holes do not exist on the bench surface, drill
four holes.
• Band saw can be installed on either a workbench or a
tool stand by using bolts, lock washers, and hex nuts
(mounting hardware not included).
• The band saw must be fastened to a rm and level
surface.
• There must be enough clearance for the moving work
piece during operation. There must be enough room for
safe operation of the machine.
POWER SOURCE
Do not connect to the power source until the machine is
completely assembled.
The machine is wired for 120 volts, 60 HZ alternating
current. Before connecting the machine to the power
source, make sure the switch is in the "OFF" position.
Running the unit on voltages which are not within range
Figure 1 (not in scale)
ASSEMBLY
2
Figure 3
Figure 2
Trunnion Knob
Lock Screw Handle
with washer
Pointer
Mounting Holes
B C
D
E
A
WARNING
Jr
@
~o
]
®
b
may cause overheating and motor burn-out. Heavy loads
require that voltage at motor terminals be no less than the
voltage specied on nameplate.
• Power supply to the motor is controlled by a locking
rocker switch. Remove the key to prevent unauthorized
use.
GROUNDING INSTRUCTIONS
Improper connection of equipment grounding conductor
can result in the risk of electrical shock.
• The machine should be grounded while in use to protect
operator from electrical shock.
• In the event of an electrical short circuit, grounding
reduces the risk of electrical shock by providing an
escape wire for the electric current.
• This machine is equipped with an approved
3-conductor cord rated at 150V and a 3-prong
grounding type plug (Figure 4) for your protection
against shock hazards.
• Grounding plug should be plugged directly into a
properly installed and grounded 3-prong grounding-type
receptacle, as shown (Figure 4)
• The plug must be plugged into an outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
• Check with a qualied electrician or service personnel if
these instructions are not completely understood or if in
doubt as to whether the tool is properly grounded.
• Do not modify plug provided. If it will not t in outlet,
have proper outlet installed by a qualied electrician.
Use only 3-wire extension cords, that have 3-prong
grounding type plugs and matching 3-conductor
receptacles that accept the machine's plug, as shown
in
Figure 4
Do not permit ngers to touch the terminals of plug when
installing or removing from outlet.
• Inspect tool cords periodically, and if damaged, have
repaired by an authorized service facility.
• The conductor with insulation having an outer surface
that is green with or without yellow stripes is the
equipment-grounding conductor. If repair or replacement
of the electric cord or plug is necessary, do not connect
the green (or green and yellow) wire to a live terminal.

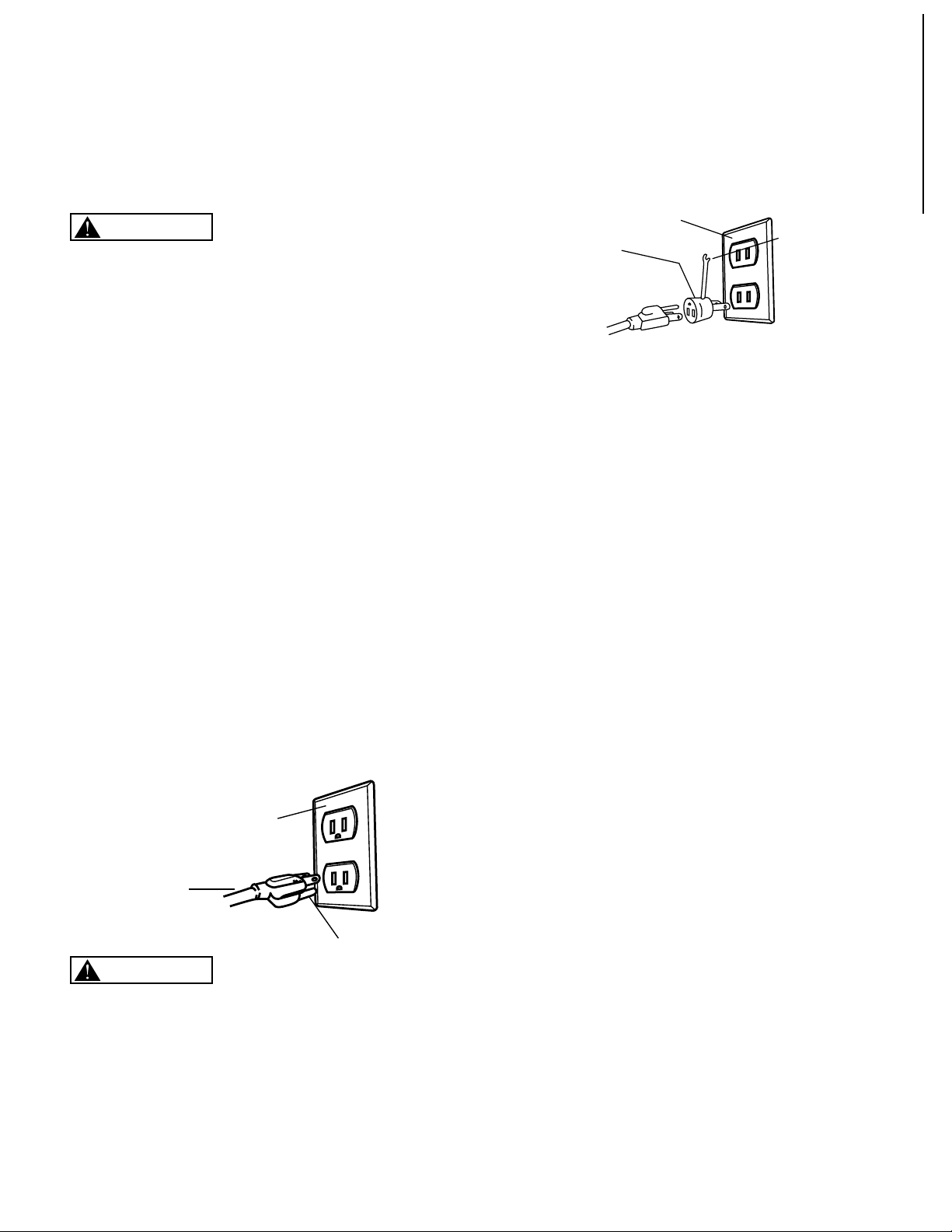

A temporary 3-prong to 2-prong grounding adapter (see
Figure 5) may be used to connect this plug to a matching
2-conductor receptacle as shown in gure 5. The tempo-
rary adapter should be used only until a properly ground-
ed outlet can be installed by a qualied electrician.
In Canada, the use of temporary adapter is not permitted
by the Canadian Electric Code. Where permitted, the rigid
green tab or terminal on the side of the adapter must be
securely connected to a permanent electrical ground such
as a properly grounded water pipe, a properly grounded
outlet box or a properly grounded wire system.
• Many cover plate screws, water pipes and outlet boxes
are not properly grounded. To ensure proper ground,
grounding means must be tested by a qualied
electrician.
EXTENSION CORDS
Use proper extension cords. Make sure the extension
cord is in good condition. Use only 3-wire extension cords
that have 3-prong grounding type plugs and 3-pole
receptacles which accept the tool plug. When using an
extension cord, make sure to use one heavy enough to
carry the current of the machine. An undersized cord will
cause a drop in the voltage, resulting in loss of power and
overheating. Use the table to determine the minimum wire
size (A.W.G.) extension cord.
Extension Cord Length
Wire Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A.W.G.
Up to 25 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
25 to 50 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
NOTE: Using extension cords over 50 ft. long is not
recommended.
MOTOR
The 120 Volt AC motor has the following specications:
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/3
Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Amps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Phase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1725
3
ASSEMBLY
Figure 5 - 2-Prong Receptacle
Figure 4 - 3-Prong Receptacle
Grounded outlet Box
3 - Prong Plug
Grounding Prong
Grounding
Means
Grounded outlet Box
Adapter
WARNING
WARNING
IA
__
I
IA
--=----I
DESCRIPTION
• This 9” band saw has welded steel frame and cast iron
table. It is designed to cut wood, plastics, and
nonferrous metals. The solid durable structure will
withstand continuous heavy-duty workloads for many
years to come.
• This band saw is equipped with miter gauge for various
precision operations.
• The versatile adjustable table can be easily tilted to any
angle between 0 and 45 degrees.
• Simple and quick saw blade tension adjustment.
• Convenient and comprehensive saw blade tracking
mechanism adjustment with view window for easy
operation.
• Dust collection port makes healthy working environment
possible.
• Powerful and durable Induction motor provides smooth
and quiet operation.
• This 9” saw blade features many versatile functions,
convenient operation, easy maintenance, durable
structure, and aesthetic design. It should provide reliable
service and please the professionals and hobbyists
alike.
For your own safety, read the entire operating manual and
safety instructions before using this tool.
SAFETY PRECAUTIONS
• Be aware of general power tool safety. Make sure all the
safety rules are understood.
• Disconnect the machine from power source whenever
adjusting or replacing any parts.
• Do not plug in unless switch is in “OFF” position.
• Keep hands away from all moving parts.
• Wear eye protection or face shield during operation.
• Make sure all mobile parts move freely and are free
from interference.
• Never turn the machine “ON” with the workpiece
contacting the blade.
• Do not force cut. Slowing or stalling will overheat motor.
• Blade guard and thrust bearings should be positioned
and adjusted correctly to prevent sideways and
rearward movement of the blade.
• Properly adjust the blade tension, tracking, blade
guides, and blade support bearings.
• Use proper saw blade according to type of workpiece.
• Allow the blade to reach full speed before cutting.
• Do not attempt to remove jammed objects from saw
blade until the switch is turned OFF and the blade has
completely stopped.
• Feed the workpiece through saw blade in a stable, slow,
and constant manner.
• Hold the workpiece steadily on the table during
operation.
• Turn switch off and disconnect power whenever the
band saw is not in use.
• Keep band saw maintained following maintenance
instructions.
• Lower blade guide to adjust above the intended
workpiece before cutting.
• The saw blade must be properly tension and tracking
adjusted before use.
ON/OFF SWITCH
Refer to gure 6
The ON/OFF switch is located on front of band saw. To
turn the machine ON, pull the switch to the up position. To
turn the machine OFF, push the switch to the down
position.
NOTE: When the machine is not in use, the machine
should be locked in the “OFF” position to prevent
unauthorized use.
• To lock the machine, turn the switch to “OFF” position.
Pull the key out. The switch cannot be turned on without
the key.
• If the key is removed when the switch is at the “ON”
position, the switch can be turned off but cannot be
turned on again.
• To unlock, place the key into the slot on switch unit until
it snaps.
REPLACE BAND SAW BLADE
Refer to Figure 7 and 8
Turn the switch to the “OFF” position and disconnect the
machine from power source. Do wear leather gloves when
servicing band saw blade. Do not wear any gloves when
operating the band saw
• Turn blade tension knob counterclockwise to release
blade tension.
• Unlock door latches and open both the upper and lower
doors.
OPERATION
4
WARNING
Figure 6
WARNING
IA
Switch Key
IA
• Turn the blade guide knob, located below the upper
door latch, to lower the Upper blade guide completely.
• Carefully unsnap and remove the blade guard panel.
• Release the table insert from the cast iron table.
• Unscrew and remove table locking insert assembly at
the end of table slot.
• Carefully release the used blade and remove it through
the slot on the cast iron table.
• Replace with a new blade only. Inspect the new blade
rst. The teeth of blade should point down when
installed. If not, turn the blade inside out.
• Place the new blade through the cast iron table slot.
• Slide the blade onto the upper and lower blade wheels.
• Position the blade between the upper blade guide.
• Turn the blade tension lever clockwise until it stops.
• Close both upper and lower doors. The doors need to
have appropriate seal for the dust collection system to
function. Check to see the doors are in good alignment
with the doorframes. Secure the door latches.
• Replace the table insert onto the cast iron table.
• Replace the table locking insert assembly.
• Snap the blade guard panel into position.
• Adjust blade tracking mechanism.
• Check blade tension. Adjust it if necessary.
ADJUST BLADE TRACKING MECHANISM
Refer to Figure 7
Watch for sharp blade edges when turning the wheels.
Turn the switch to the OFF position and disconnect the
machine from power source before adjusting blade
tracking mechanism.
• Unlock door latches and open the doors.
• Manually rotate the drive wheel clockwise. The saw
blade should travel downward at the table insert.
Observe the blade movement from the viewing window
on the side of upper door.
• If the saw blade stays centered on both wheels, No
further adjustment is necessary.
• If the saw blade keeps tilting toward one side and is not
in the center of idler wheel, the saw blade needs to be
adjusted.
• Loosen the lock nut of the tracking control knob on the
right upper side panel to release the tracking control
knob.
• Carefully and slowly turn the idler wheel clockwise with
the left hand and adjust the tracking control knob with
the right hand until the blade is centered.
• Turn tracking knob counterclockwise when blade rides
away from the upper door. Turn tracking knob clockwise
when blade rides toward the upper door.
• Tighten the lock nut of tracking control knob when the
blade is centered.
• Close the upper door.
• During the machine operation, the blade tracking can be
observed from the viewing window.
ADJUST BLADE TENSION
Refer to Figure 7
• The blade tension is adjusted automatically by a
spring-loaded blade tensioning mechanism and should
require no frequent adjustment. However, there is blade
tension knob on top of machine for ne tuning of the
blade tension.
• Over tensioned blade is prone to excessive wear and
breakage. Under tensioned blade is prone to uttering
and movement during operation.
• To adjust the blade tension, the blade cannot have any
contact with the upper and lower blade guides. Raise
the upper blade guide to the top. Move the blade guides
away from the blade.
• Turn the machine on.
• Release the blade tension knob very slowly, ¼ turn at a
time, until the blade starts to utter.
• Now tighten the blade tension knob very slowly until the
blade stop uttering.
• Further tighten the blade tension knob for another ¼
turn.
• Turn the machine off.
• Properly adjust upper and lower blade guides before
use.
Figure 7
Figure 8
5
OPERATION
Blade Tension
Lever
Blade Guide
Lock Knob
Upper
Guide
Adjusting
Door Latch
Knob
Tension Knob
Tracking
Knob
Tracking
Window
Tracking
lock nut
WARNING
Blade Guard
Panel
IA
0
0
0
/ltl)/
0
ADJUST BLADE GUIDES
Refer to Figure 9 to 11
• Blade guides should not be in contact with the blade
when not in operation.
• Adjust the blade guides after the blade tracking and
blade tension have been properly adjusted.
• The blade guide supports the blade with bearings on the
real and guide pins on both sides. They all should be
adjusted to be 0.016” inches away from the blade. Use
feeler gauge for accurate measurement. For a quick
gauge, fold a dollar bill in half twice and place it between
the blade and the guide pins or the bearings. The
thickness of 4x dollar bill is approximately 0.016”.
• To adjust the guide pin position, loosen the screw on
each guide pin block. Secure the screws after
adjustment. Do the same for upper and lower blade
guides.
• Adjust the upper blade guide bearings position by
loosening the socket head bolt behind the bearings and
reposition the blade guide shaft. Tighten the bolt after
adjustment.
• Adjust the lower blade guide bearings position by
loosening the socket head bolt behind the bearings and
reposition the blade guide bracket. Tighten the bolt after
adjustment.
MITER GAUGE
Do not use miter gauge and rip fence at the same time.
Operator could be injured or/and the workpiece could be
damaged because the blade might bind in the workpiece.
• To adjust miter gauge, use a square with one
edge against the miter gauge face and the
other against the blade face.
• Loosen the lock knob on the miter gauge and
adjust to the right position.
• Tighten the lock knob and loosen the pointer
screw and adjust the pointer to 0° and tighten
the screw on the pointer.
BLADE WIDTH
• Blade width is the distance from tip of a tooth to back of
blade. The band saw blade width ranges from 1/8” to
3/8”. Curve cutting of 1/8” radius needs the blade width
of 1/8”. Use blade width of ¼” for cutting radius of 5/8”.
Use blade width of 3/8” for 1-1/4” cutting radius.
BLADE PITCH
• Pitch is the number of teeth per inch (TPI) or tooth size.
• More teeth per inch will cut slower but produce
smoother cutting surface; while fewer teeth per inch will
cut rougher but faster.
• For soft wood, the proper blade has between 6 to 8
teeth per inch.
• For hard wood, use a blade with 8 to 12 teeth per inch.
• Blade shocking occurs when pitch is too large and blade
tooth encounters too much material. This can trip teeth
from blade.
Figure 10
Figure 11
6
OPERATION
WARNING
Socket Head
Bolt
Bearing
Screw
Bearing
Guide Pin
Socket
Head Bolt

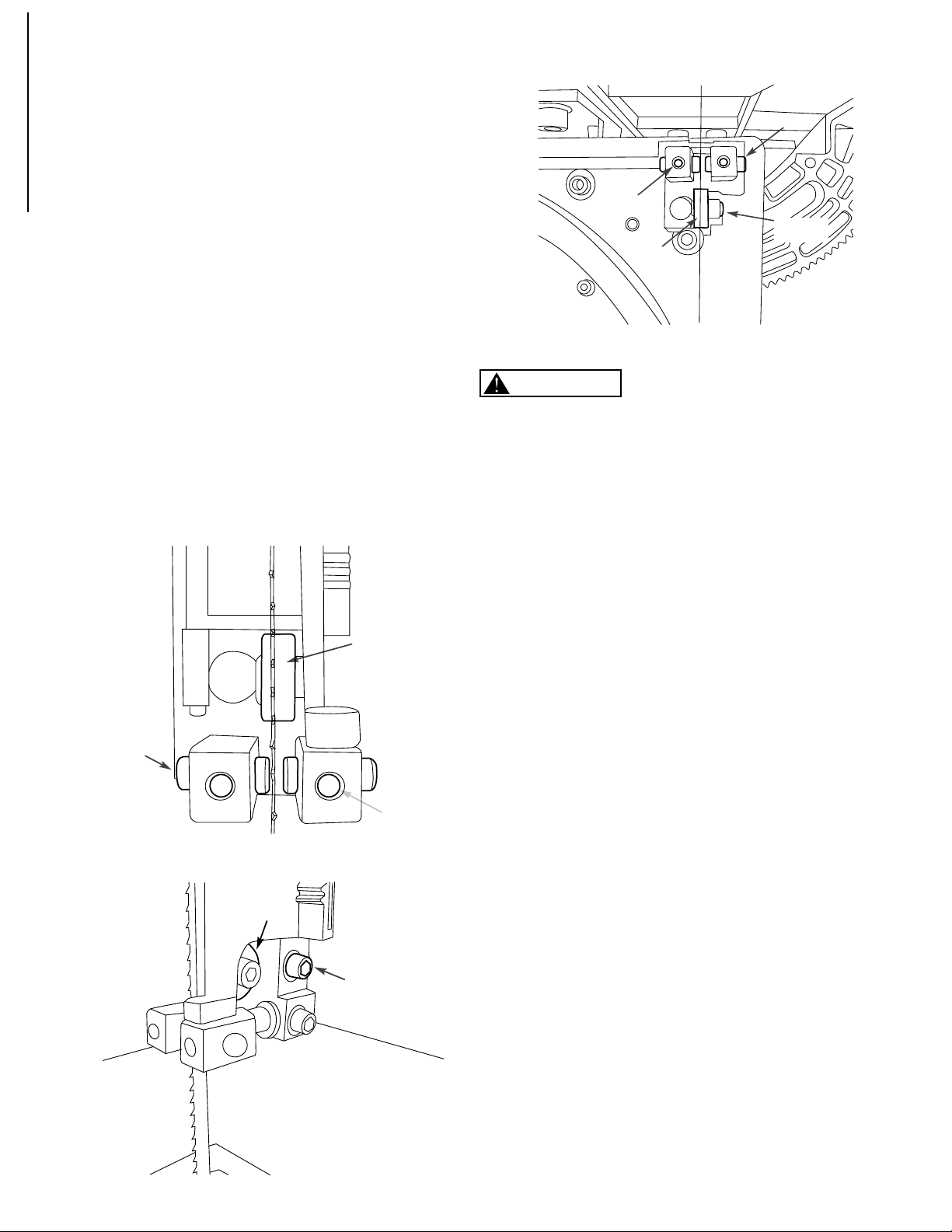

Figure 9
Bearing
Screw
Guide Pin
IA
_....:.....__
I
CONTOUR SAWING
• Contour cutting is guiding workpiece free-handed to
produce curved shapes.
• Turn the workpiece carefully so the blade follows
without twisting.
• Use a narrower blade to cut abrupt curves or make relief
cuts.
BEVEL CUTTING
• Beveled cutting is to tilt saw table for the desired
degree.
• Loosen locking handle to unlock table.
• Rotate knob to tilt table to desired position.
• Lock table by tightening locking handle.
Turn the switch to the “OFF” position and disconnect the
machine from power source before servicing or
disassembling any components.
CLEANING
• Keep machine and workplace clean. Avoid
accumulation of sawdust on the tool.
• Be certain motor is kept clean and free of dust.
• Use soap and water to clean painted parts, rubber parts
and plastic guards.
• Keep wheels clean. Debris on wheels will cause poor
tracking and blade slippage.
• Make sure blade brush is in contact with blade to
properly remove foreign particles from drive wheel.
LUBRICATION
• The shielded ball bearings are permanently lubricated
and require no further lubrication.
• Small amount of oil can be applied to belt tension
assembly and thread or sliding surfaces.
KEEP TOOL IN REPAIR
• If power cord is worn, cut or damaged in any way, do
not operate the machine.
• Replace any worn, damaged, or missing parts. Use
parts listed to order parts.
• Any attempt to repair motor may create a hazard unless
repair is done by a qualied service technician.
• Call the customer line at 1-847-780-6120.
7
OPERATION
MAINTENANCE
7
WARNING
IA
SYMPTON POSSIBLE CAUSE(S) SOLUTIONS
Motor will not start 1. Low voltage
2. Short circuit in line cord or plug
3. Short circuit in motor
4. Open circuit or loose connection in
motor
5. Incorrect fuses or circuit breakers
6. Defective switch
7. Defective capacitor
1. Check power supply for proper voltage
2. Inspect line cord and plug for faulty insulation
or shorted connection
3. Inspect connection on motor.
4. Inspect connection on motor
5. Replace with correct fuses or circuit breakers
6. Replace switch
7. Replace capacitor
Motor stalls or fails to
reach full speed
1. Power overload
2. Low voltage from power supply
3. Undersized line cord
4. Motor overload
5. Short circuit or loose connection in
motor
6. Incorrect fuses or circuit breakers
1. Reduce workload on the power supply
2. Check power supply for proper voltage
3. Use line cord of adequate size or reduce length
of wiring
4. Reduce load on motor
5. Inspect the connection in motor for loose or
shorted connection
6. Replace with correct fuses or circuit breakers
Motor overheats Motor overloaded Reduce load on motor. Turn off the machine until
motor cools down
Machine slows down
while operating
Applying too much pressure during
operation
Ease up on pressure
Excessive vibration 1. Band saw not mounted securely to
stand
2. Uneven stand surface
3. Worn belt
4. Pulley not aligned
5. Loose or damage blade
1. Tighten band saw to stand
2. Level stand
3. Replace belt
4. Adjust pulley
5. Tighten or replace blade
Rough cuts 1. Too much feed
2. Coarse blade
1. Reduce feed
2. Replace with ne blade
Crooked cuts 1. Feed too fast
2. Blade is dull
3. Loose blade guide assembly or
blade thrust bearing
4. Upper blade guide too far from
workpiece
5. Workpiece not in square position
1. Reduce feed rate
2. Replace blade
3. Tighten blade thrust bearing with in 0.016” be
hind blade back
4. Adjust blade guide to a proper position
5. Use miter gauge or tilt table to 90 °
Excessive blade
breakage
1. Bad weld on blade
2. Force wide blade for small radius
3. Dull blade
4. Upper blade guide too high
5. Blade not tensioned properly
6. Improper blade wheel tracking
1. Replace blade
2. Replace to a narrow blade
3. Replace blade
4. Adjust blade guide
5. Tighten blade tension
6. Adjust blade tracking
TROUBLESHOOTING
8
9” BAND SAW PARTS ILLUSTRATION
9
,.,.,-126
,.,.,-127
,.,.,-128
132,31
I;
134/
,.,.,../'--~
133
/~
130
/1
/2
/ 3
::::::
/5
'/6
/ 7
·------9
i------------10
------------
11
29
c:/~3132
✓
110
16
~<'<
/"'
67
/
4
5
68
6g"'
~·,.,.,.
~
~·
.6~
/
91/~~
.
s.i.___
//78:.
~
8081
87./
~
82
BB
/
94
89
92
10~
........._/121
...........
/122
,/123
/37.1
/38
42
391
I
__,_,-;;-
3~
--0
~
..................
40
.-
.........
4241
I
-........
43
45
44
,.,.,-111
~·------~
83
/
84
/
85
~9:6
104
~
Q'
.
105~
~
.......-::J
~~~~-
1
/ V .,,.-99
103
/100
~101
100.1 -
~
v66
&"'
/65
/64
/63
'------61
'---....
60
53
54
55
/ / 55.1
/~
.,.56
57
/
•
58
/
59
-11//
1 BS900001 HANDLE 1
2 BS900002 FLAT WASHER Ø6.3×Ø16×1.5t 1
3 BS900003 MITER GAUGE SCALE 1
4 BS900004 PAN HEAD SCREW M4×6 1
4.1 BS900005 FLAT WASHER Ø4 1
5 BS900006 INDICATOR 1
6 BS900007 MITER GAUGE BAR 1
7 BS900008 TABLE INSERT 1
8 BS900009 TABLE 1
9 BS900010 NUT 1
10 BS900011 SPRING WASHER Ø6 1
11 BS900012 WING SCREW M6×P1.0×15L 1
12 BS900013 LOCK SCREW M8*25L 1
13 BS900014 FLAT WASHER Ø8.4×Ø24x2L 1
14 BS900015 HEX SOC HD SCR M6×14L(16L) 2
15 BS900016 TRUNNION 1
16 BS900017 BUSHING 2
17 BS900018 ROTATE BOLT 1
18 BS900019 SPRING 1
19 BS900020 HANDLE 1
20 BS900021 SPRING WASHER Ø8 4
20.1 BS900023 FLAT WASHER Ø9 4
21 BS900022 HEX SOC HD SCR M8×14L(16L) 4
22 BS900024 SET SCREW M5*P0.8*6L 1
23 BS900025 HANDLE 1
23.1 BS900026 WASHER Ø16×Ø21x0.3T 1
24 BS900027 SLEEVE 1
25 BS900028 ECCENTRIC 1
26 BS900029 HEX SOC HD SCR M6*16L 1
27 BS900030 ECCENTRIC SHAFT 1
28 BS900031 HEX SOC HD SCR M5×P0.8×10L 2
29 BS900032 HANDLE 1
30 BS900033 SPRING 1
31 BS900034 FLAT WASHER Ø8 2
32 BS900035 PAN HEAD SCREW M5*12L 2
33 BS900036 HANDLE 1
34 BS900037 FLAT WASHER Ø8 1
35 BS900038 FIXING PLATE 1
36 BS900039 SQUARE NUT 1
37 BS900040 GUIDE BAR 1
37.1 BS900041 SPRING 1
38 BS900042 BLADES GUARD 1
39 BS900043 HEX SOC HD SCR M5×P0.8×10L 2
39.1 BS900044 HEX SOC HD SCR M5×P0.8×16L 1
39.2 BS900045 HEX SOC HD SCR M5×P0.8×12L 1
40 BS900046 SCREW 2
41 BS900047 BEARING 606-2RZ 2
42 BS900048 FLAT WASHER Ø5 14
43 BS900049 UPPER BEARING BRACKET 1
43.1 BS900050 LOWER BEARING BRACKET 1
44 BS900051 FLAT HD SCR M4*6L 4
45 BS900052 GUIDE BLOCK 1
45.1 BS900053 GUIDE BLOCK 1
46 BS900054 PIN Ø5×14L 4
47 BS900055 HEX SOC HD SCR M6×8L 2
48 BS900056 FLAT WASHER Ø6.4×Ø18x1.6t 2
49 BS900057 LOWER GUIDE BLOCK 1
50 BS900058 PAN HEAD SCREW M5*8L 9
51 BS900059 UPPER CABINET SUPPORT 1
52 BS900060 HEXAGONAL NUT M10 1
52.1 BS900061 SPRING WASHER Ø10 1
53 BS900062 TRACKING ADJUSTMENT BRACKET 1
54 BS900063 SHAFT 1
55 BS900064 BEARING 6000-2RZ 1
55.1 BS900065 RETAINING RING Ø26 4
56 BS900066 IDLER WHEEL 1
57 BS900067 WHEEL BAND
Ø234×Ø239.6×12W
2
58 BS900068 BEARING 6000-2RZ 1
59 BS900069 RETAINING RING STW10 1
60 BS900070 PIN Ø8×90L 1
61 BS900071 PUSH NUT Ø7.8×Ø13 2
62 BS900072 TENSION BRACKET 1
62.1 BS900073 HEX SOC HD SCR M5×6L 1
63 BS900074 SCREW BOLT M8*80L 1
64 BS900075 SPRING 1
65 BS900076 FLAT WASHER Ø8 1
66 BS900077 HANDLE 1
67 BS900078 PAN HEAD SCREW M5*10L 3
68 BS900079 FLAT WASHER Ø5 3
69 BS900080 DUST CHUTE 1
70 BS900081 CABINET 1
71 BS900082 PAN HEAD SCREW M5×8L 2
72 BS900083 EXT TOOTH WASHER ￠5.3*￠10 2
73 BS900084 HEX SOC HD SCR M8×20L 1
74 BS900085 FLAT WASHER Ø8.4×Ø24x2L 1
75 BS900086 MOTOR 1
76 BS900087 HEX SOC HD SCR M8×20L 1
77.1 BS900088 SEAL 8W×5H×120L 1
78 BS900089 HEX HEAD SCREW M6*16L 4
78.1 BS900090 HEXAGONAL NUT M6 4
79 BS900091 SHAFT 1
80 BS900092 PULLEY 1
81 BS900093 BEARING 6000-2RZ 1
82 BS900094 LOWER WHEEL 1
83 BS900095 BEARING 6000-2RZ 1
84 BS900096 RETAINING RING STW10 1
85 BS900097 BELT 130XL*10.0 1
86 BS900098 TAP SCREW M5X16 3
86.1 BS900099 SPRING WASHER Ø5 3
87 BS900100 PULLEY 1
88 BS900101 FLAT WASHER Ø5.3×Ø15x1.2L 1
89 BS900102 FLAT HD SCR M5*8L 1
90 BS900103 POWER CORD 1
91 BS900104 STRAIN RELIEF 6P-4 2
92 BS900105 SWITCH BOX 1
93 BS900106 SWITCH HY7(4) 1
94 BS900107 PAN HEAD SCREW M5*10L 2
95 BS900108 UPPER DOOR 1
96 BS900109 LATCH 2
98 BS900110 TAP SCREW ST4.2*6L 1
98.1 BS900111 FLAT WASHER Ø4 1
99 BS900112 LUCENCY WINDOW 1
100 BS900113 TAP SCREW ST4.8*10L 1
100.1 BS900114 FLAT WASHER Ø5 1
101 BS900115 BLADES BRUSH 1
102 BS900116 LOWER DOOR 1
103 BS900118 HINGE 38L*30W*1.2T 4
104 BS900119 RIVET M4×10L+M4 8
9" BAND SAW PARTS LIST
Key No. Part No. Description Specication Qty Key No. Part No. Description Specication Qty
10
9” BAND SAW PARTS LIST
105 BS900120 TAP SCREW Ø4*8L 8
106 BS900121 PINION 1
106.1 BS900122 SET SCREW M4*4L 1
107 BS900123 BRACKET 1
107.1 BS900124 WASHER Ø6 1
108 BS900125 HANDLE 1
109 BS900126 HEX SOC HD SCR M5×P0.8×10L 2
110 BS900127 PLUG 1
111 BS900128 BLADES
62’L*6mmW*0.3mmT
1
112 BS900129 HEXAGONAL NUT M6 1
113 BS900130 HEX HEAD SCREW M6*23L 1
114 BS900131 TAP SCREW M4×10L 1
116 BS900132 GUARD 1
117 BS900133 POINTER 1
118 BS900134 FLAT WASHER Ø5 1
119 BS900135 HEX SOC HD SCR M5×P0.8×8L 1
120 BS900136 RESTRAINER 1
121 BS900137 HEX WRENCH M2 × 48 × 16 1
Key No. Part No. Description Specication Qty Key No. Part No. Description Specication Qty
M4 × 70 × 25 1
10 X 12mm 1
M4×8L 2
1
M6×16L 2
Ø6 2
Ø6 2
1
1
Ø8×Ø16×1.5t 1
1
Ø3×16L 1
1
1
1
1
122 BS900138 HEX WRENCH
123 BS900139 OPEN END WRENCH
124 BS900140 PAN HEAD SCREW
125 BS900141 BLADE SAFE COVER
126 BS900142 HEX HEAD SCREW
127 BS900143 SPRING WASHER
128 BS900144 FALT WASHER
129 BS900145 FENCE
130 BS900146 HANDLE
131 BS900147 FLAT WAHSER
132 BS900148 SHEATH
133 BS900149 SPRING PIN
134 BS900150 QUIET PLA
TE
135 BS900151 PAD
136 BS900152 SPRING
137 BS900153 MOVING PLATE
138 BS900154 SHAFT 1
11
PERFORMAX®
9” BAND SAW
30-DAY MONEY BACK GUARANTEE:
This PERFORMAX
® brand power tool carries our 30-Day Money Back Guarantee. If you are not completely satised
with your PERFORMAX® brand power tool for any reason within thirty (30) days from the date of purchase, return the
tool with your original receipt to any MENARDS® retail store, and we will provide you a refund – no questions asked.
2-YEAR LIMITED WARRANTY:
This PERFORMAX®
brand power tool carries a 2-Year Limited Warranty to the original purchaser. If, during normal
use, this PERFORMAX® power tool breaks or fails due to a defect in material or workmanship within two (2) years from
the date of original purchase, simply bring this tool with the original sales receipt back to your nearest MENARDS® retail
store. At its discretion, PERFORMAX® agrees to have the tool or any defective part(s) repaired or replaced with the
same or similar PERFORMAX® product or part free of charge, within the stated warranty period, when returned by the
original purchaser with original sales receipt. Not withstanding the foregoing, this limited warranty does not cover any
damage that has resulted from abuse or misuse of the Merchandise. This warranty: (1) excludes expendable parts
including but not limited to blades, brushes, belts, bits, light bulbs, and/or batteries; (2) shall be void if this tool is used
for commercial and/or rental purposes; and (3) does not cover any losses, injuries to persons/property or costs. This
warranty does give you specic legal rights and you may have other rights, which vary from state to state. Be careful,
tools are dangerous if improperly used or maintained. Seller’s employees are not qualied to advise you on the use of
this Merchandise. Any oral representation(s) made will not be binding on seller or its employees. The rights under this
limited warranty are to the original purchaser of the Merchandise and may not be transferred to any subsequent owner.
This limited warranty is in lieu of all warranties, expressed or implied including warranties or merchantability and tness
for a particular purpose. Seller shall not be liable for any special, incidental, or consequential damages. The sole exclu-
sive remedy against the seller will be for the replacement of any defects as provided herein, as long as the seller is will-
ing or able to replace this product or is willing to refund the purchase price as provided above. For insurance purposes,
seller is not allowed to demonstrate any of these power tools for you.
For questions / comments, technical assistance or repair parts
Please Call Toll Free at: 1-847-780-6120 (M-F 9am – 5pm)
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
12
Menard, Inc.
Eau Claire, WI 54703
