Professional Desktop
Professional Installation Projectors
PX SERIES
Powerful installation projectors with
laser-phosphor light source supports new,
demanding projection applications.
NEC is committed to bringing the latest and greatest
innovation to projectors. Multi-display capabilities and
TileMatrix technologies are integrated into the new PX
series projectors. This processing is all done internally
and therefore eliminates the additional hardware
typically required to produce a beautiful 4K resolution
image.

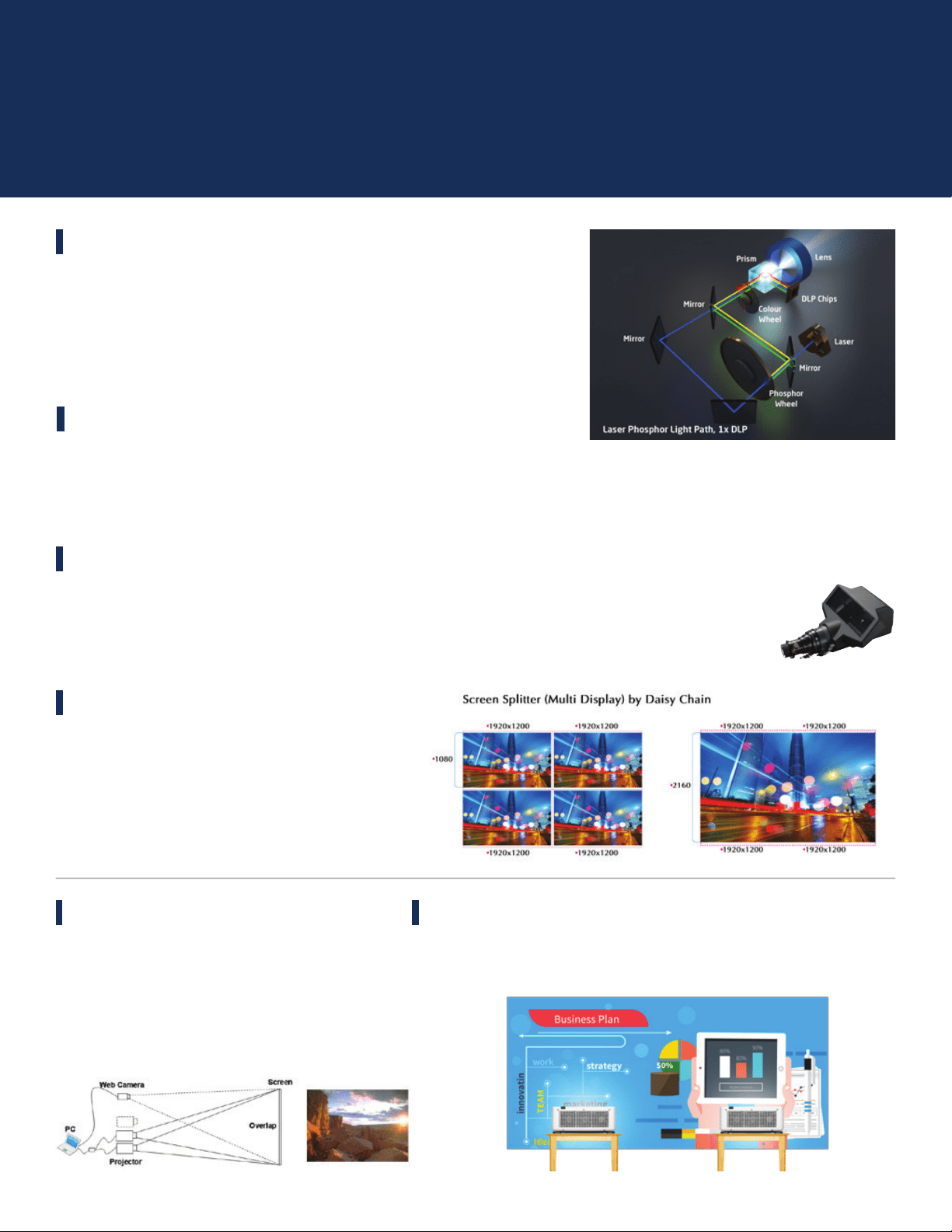

Screen Splitter
Stacking correction
The industry’s rst built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up to
40,000 lumens, which is ideal for larger-sized screens
and environments with heavy ambient light. This
feature also prevents the complete loss of an image,
which can happen when using only one projector.
Edge blending
This function seamlessly blends multiple projected images to display a single
high-resolution image.
Laser Light Module
• 20,000-plus hours of virtually maintenance-free operation
• High-brightness, lower power consumption enhances applications such as retail,
digital signage and theme parks
• Ability to control brightness creating a stable image over longer time periods
• Images appear immediately after power on due to instantaneous start up of
the laser
Flexible
• Enjoy greater installation flexibility with a complete line of powered optional bayonet style lenses (8) for quick and easy exchange.
(including the NP39ML-4K UST lens). Lens throw distances range from 2.1 to 179.8 ft
• Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
• +50%/-30% vertical lens shift and +20%/-10% horizontal lens shift capabilities make alignment easy
Integrated and Powerful
• Project uncompressed FHD video with integrated HDBaseT
• High performance video processing/scaling creates life-like images
• Integrated software applications such as DisplayNote®, Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control
• Tile Matrix enables 4Kx2K resolution

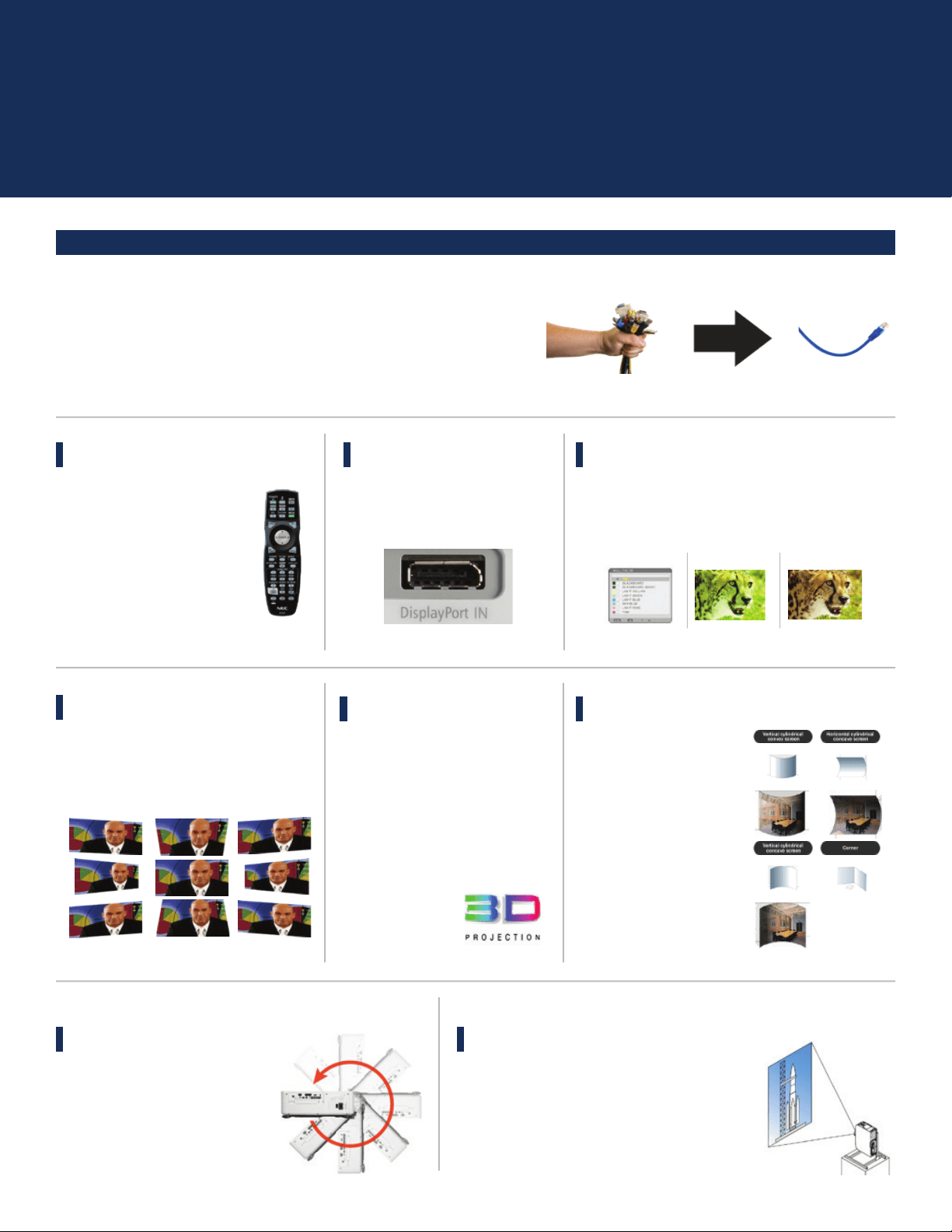

Simplify your installations with HDBaseT. Optimized for video applications and
supporting uncompressed full HD digital video, audio, ethernet, power and various
control signals. With only a single cable (up to 100m) to run, infrastructure and labor
costs are reduced, installations are signicantly easier, and there is no cable clutter
to manage. With uncompressed HD video support, images have never been more
stunning. What’s more, control signals are contained in the same cable.
Built-In HDBaseT Support
DisplayPort
This input provides PX Series
models with expanded connectivity
with advanced technology.
Cornerstone
Enhanced keystone correction allows for
horizontal, vertical and diagonal image
correction for aligned images even when the
projector is set up at an angle to the screen.
Geometric Correction
Projecting an image isn’t
conned to a standard
at screen or wall with the
NEC PX Series. Geometric
correction allows these
models to project an image
on spheres, cylinders,
corner angles and many
more non-standard
surfaces.
Wall color correction presets
These provide for adaptive color tone correction to
display properly on non-white surfaces.
On a
green wall...
BEFORE
auto wall correction
AFTER
auto wall correction
3D
When combined with active shutter
glasses and 3D emitter, the
PX Series Projectors create 3D
images from a computer or Blu-ray
player. The PX Series utilize the 3D
sync line output from the projector
to connect to the 3D emitter.
Optional 3D glasses and emitters
from XPAND are available from
NEC.
Remote control
Wired and wireless backlit
remote allows you to adjust
for complete control of the
projectors menu structure in
a well lit or dark environment.
Direct controls such as lamp
mode, aspect ratio, volume
and input selection eliminates
multiple button pushes.
Portrait mode
Allows the projector to be rotated (and screen if
necessary) to a vertical alignment so that portrait
content can be viewed without black bars on the
side when landscape mode is used.
Tilt-free
The projector can be rotated freely
(360°) to orient the image depending
on the installation requirements
NEC PX Series Projectors
UNIQUE FEATURES
3D Reform™ allows you to square the image by adjusting
horizontally, vertically or diagonally when the projector cannot
be placed parallel or perpendicular to the screen
Advanced AccuBlend™ ensures detailed images when non-
native resolution sources are connected to the projector
AutoSense™ automatically syncs with any computer signal
and features one-touch image optimization
64-step image magnication with location control
Discreet source keys for source selection
Remote diagnostics enable the user to monitor and make
adjustments to the projector remotely
Built-in HTTP page for control and monitoring over a LAN
network. Email notication of error messages or lamp end-of-
life can be sent to remote locations.
WARRANTY
Registered owners receive a ve (5) years or 20,000 hours
(whichever comes rst) parts and labor warranty including
InstaCare next business day exchange.
IN THE BOX
Remote control, batteries, power cord, user’s manual on
CD-ROM, quick start guide, product registration card.
ACCESSORIES
IPJ2000CM Ceiling mount
RMT-PJ35 Replacement remote control
NP01PW1 Power cable
RGBCBL-PJPX RGB cable
Optional Lenses NP16FL, NP17ZL, NP18ZL, NP19ZL,
NP20ZL, NP21ZL, NP31ZL, NP39ML
SB-01HC HD/SS-SDI input card
SB-04HC 3G/HD/SD-SDI input Card
XPAND X105-RF-1 3D Glasses
XPAND AD025-RF-X1 RF Emitter
N8000-8830 NEC OPS PC with Intel Core i5,
320GB Hard Drive, Windows
Embedded Standard 7
N8000-8822 NEC OPS PC with Intel Celeron,
320GB Hard Drive, Windows
Embedded Standard 7
ADVEXON1-I Extends term of InstaCare service
program to 2 years
ADVEXON2-I Extends term of InstaCare service
program to 3 years
ORDERING MODEL NUMBERS
NP-PX803UL-BK
NP-PX803UL-WH
NP-PX1004UL-BK
NP-PX1004UL-WH
* Lens does not ship with the projector.
Additional accessories are available, including screens, carts, mount accessories and
replacement cables. Visit www.necdisplay.com for details.
Specifications
HDMI, the HDMI Logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All other brand or product
names are trademarks or registered trademarks of their respective holders. Product specications subject to change.
©2020 Sharp NEC Display Solutions of America, Inc. | All rights reserved.
Cat.No. 25.NEC.80.GL.UN.245 | Rev 09.09.21
PX803UL PX1004UL
Display Technology 0.67" DMD
Light Output (lumens) 8000 normal / Eco = variable 10,000 normal / Eco = variable
Resolution
Native WUXGA 1920 x 1200
Maximum 4K 4096 x 2160
Contrast Ratio (up to) 10,000:1 with dynamic contrast
Lamp Life (up to) 20,000 hours
Screen Size (diagonal) 30 to 350 in. / 0.76 to 8.89m
Throw Ratio
NP39ML 0.38:1
NP31ZL 0.75 - 0.93:1
NP16FL 0.76:1
NP17ZL 1.25 - 1.79:1
NP18ZL 1.73 - 2.27:1
NP19ZL 2.22 - 3.67:1
NP20ZL 3.58 - 5.38:1
NP21ZL 5.31 - 8.26:1
Projection Distance 2.1 to 179.8 ft. / 0.64 to 54.8m
Projection Angle 2.1 to 19.1° tele / 3.3 to 24.0° wide
Lens
Zoom Motorized
Zoom Ratio
NP39ML -
NP31ZL 1.25:1
NP16FL -
NP17ZL 1.41:1
NP18ZL 1.3:1
NP19ZL 1.65:1
NP20ZL 1.5:1
NP21ZL 1.55:1
Focus Motorized
NP39ML
NP31ZL F=1.96 to 2.3, f=11.3 to 14.1mm
NP16FL F=1.85, f=11.6mm
NP17ZL F=1.85 to 2.5, f=18.7 to 26.5mm
NP18ZL F=1.64 to 1.86, f=25.7 to 33.7mm
NP19ZL F=1.86 to 2.48, f=32.9 to 54.2mm
NP20ZL F=1.85 to 2.4, f=52.8 to 79.1mm
NP21ZL F=1.85 to 2.48, f =78.5 to 121.9mm
Shift Motorized +50%/-30% vertical, +20%/-10% horizontal
Keystone Correction +/- 40° horizontal, +/- 40° vertical
Synchronization
Range
Horizontal Analog: 15-100kHz, Digital: 15-153kHz
Vertical Analog: 48-120Hz, Digital: 24-120Hz
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility Yes
Input/Output Terminals
RGB1 (analog) VGA 15 pin D-sub, Component video using ADP-CV1E adapter
RGB2 (analog) 5-BNC
RGB3 (digital) HDMI (V1.4) w/HDCP
RGB4 (digital) DisplayPort w/HDCP
RGB5 (digital) HDBaseT
Option Slot OPS
Monitor Out HDMI (V1.4) w/HDCP
3D Sync Line 3Pin D
External Control RS-232, IR, HDBaseT, Stereo Mini , RJ-45
Sync Compatibility Separate Sync / Composite Sync / Sync on G
Power Requirements 100 – 240V AC, 50/60Hz
Input Current 4.6A - 9.4A 5.2A - 11.6A
Power Consumption
(ECO off/ECO Mode/
Standby/Standyby-Power
Saving)
874W/695W/4.3W/0.18W 1220W/980W/4.3W/0.18W
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 19.7 x 22.8 x 8.5 in. / 500 x 583 x 216mm
Net Weight 61.7 lbs. / 28.0 kg 63.9 lbs. / 29.0 kg
Fan Noise 40 dB normal / 35 dB eco 42 dB normal / 37 dB eco
Regulations
USA: UL(UL60950-1, Laser + Lamp
(IEC60825-1 + IEC62471), FCC Part15
Class A Canada: CUL(UL60950-1, Laser
+ Lamp (IEC60825-1 + IEC62471),
ICES-003 Class A
USA: UL(UL60950-1, Laser + Lamp
(IEC60825-1 + IEC62471), FCC Part15
Class A Canada: CUL(UL60950-1, Laser
+ Lamp (IEC60825-1 + IEC62471),
ICES-003 Class A
Operating Temperature -14° – 122°F / -10° – 50°C
Humidity 20-80% non-condensing
Storage -14° – 122°F / -10° – 50°C
Sharp NEC Display Solutions of America
www.sharpnecdisplays.us
