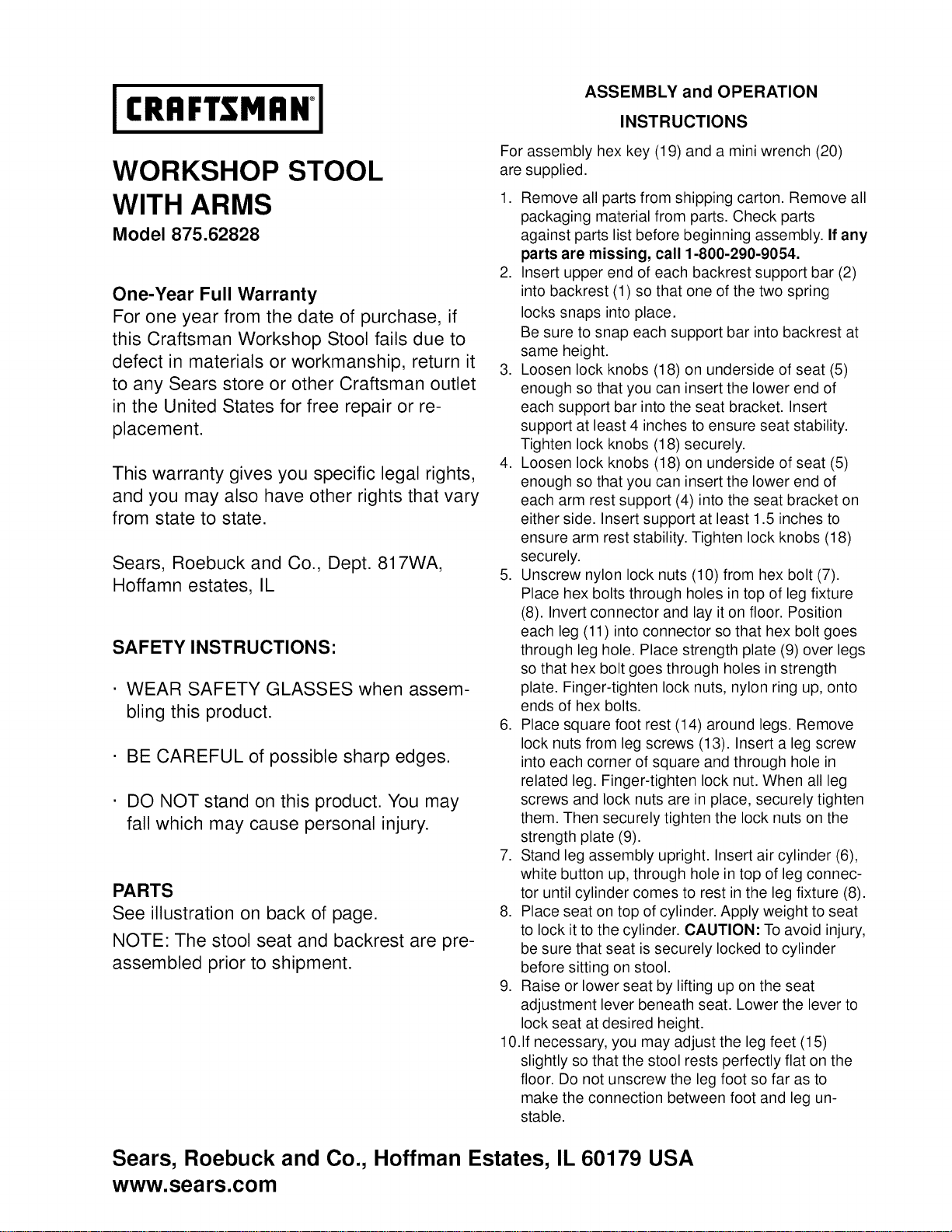

I CRAFTSMAN°I
WORKSHOP STOOL
WITH ARMS
Model 875.62828
One-Year Full Warranty
For one year from the date of purchase, if
this Craftsman Workshop Stool fails due to
defect in materials or workmanship, return it
to any Sears store or other Craftsman outlet
in the United States for free repair or re-
placement.
This warranty gives you specific legal rights,
and you may also have other rights that vary
from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffamn estates, IL
SAFETY INSTRUCTIONS:
WEAR SAFETY GLASSES when assem-
bling this product.
BE CAREFUL of possible sharp edges.
DO NOT stand on this product. You may
fall which may cause personal injury.
PARTS

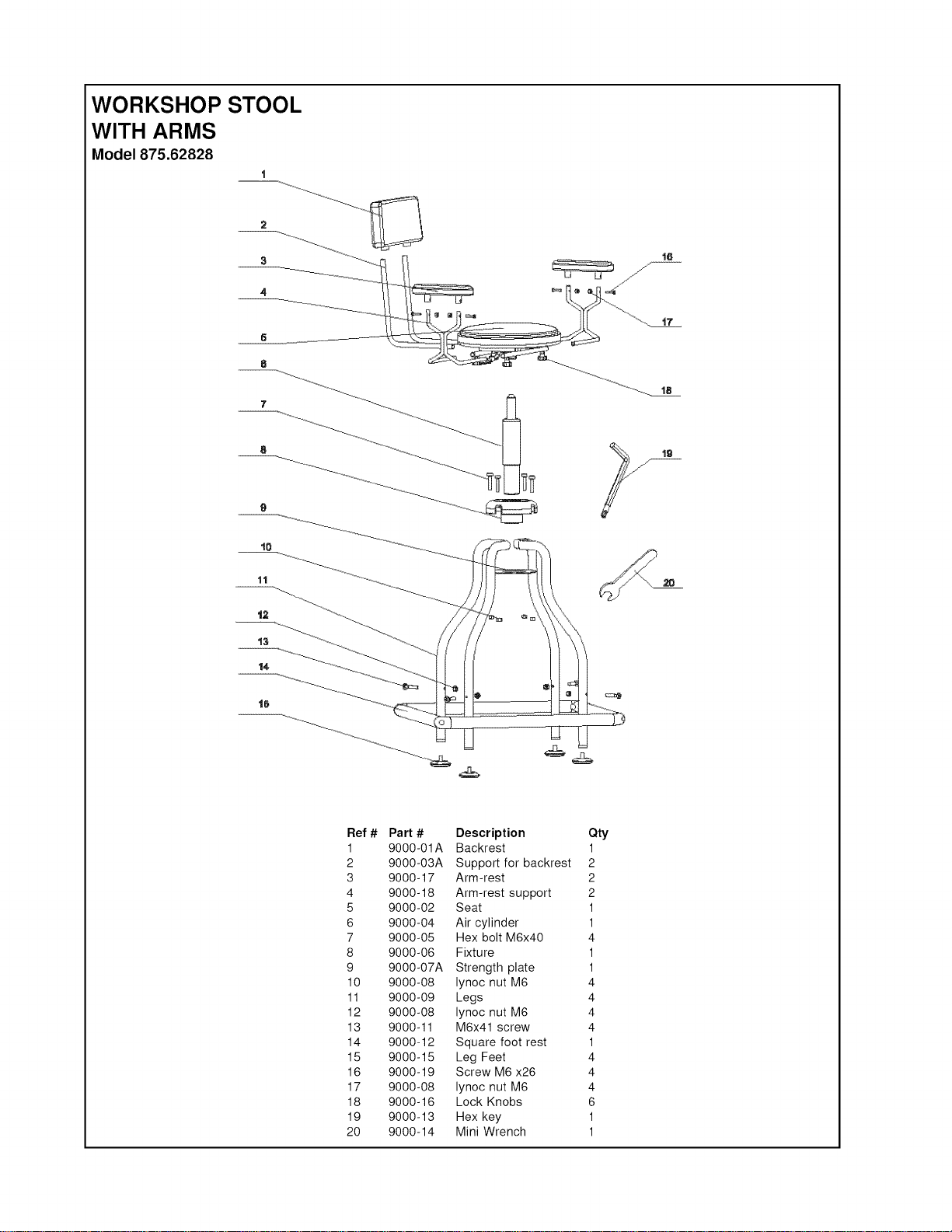

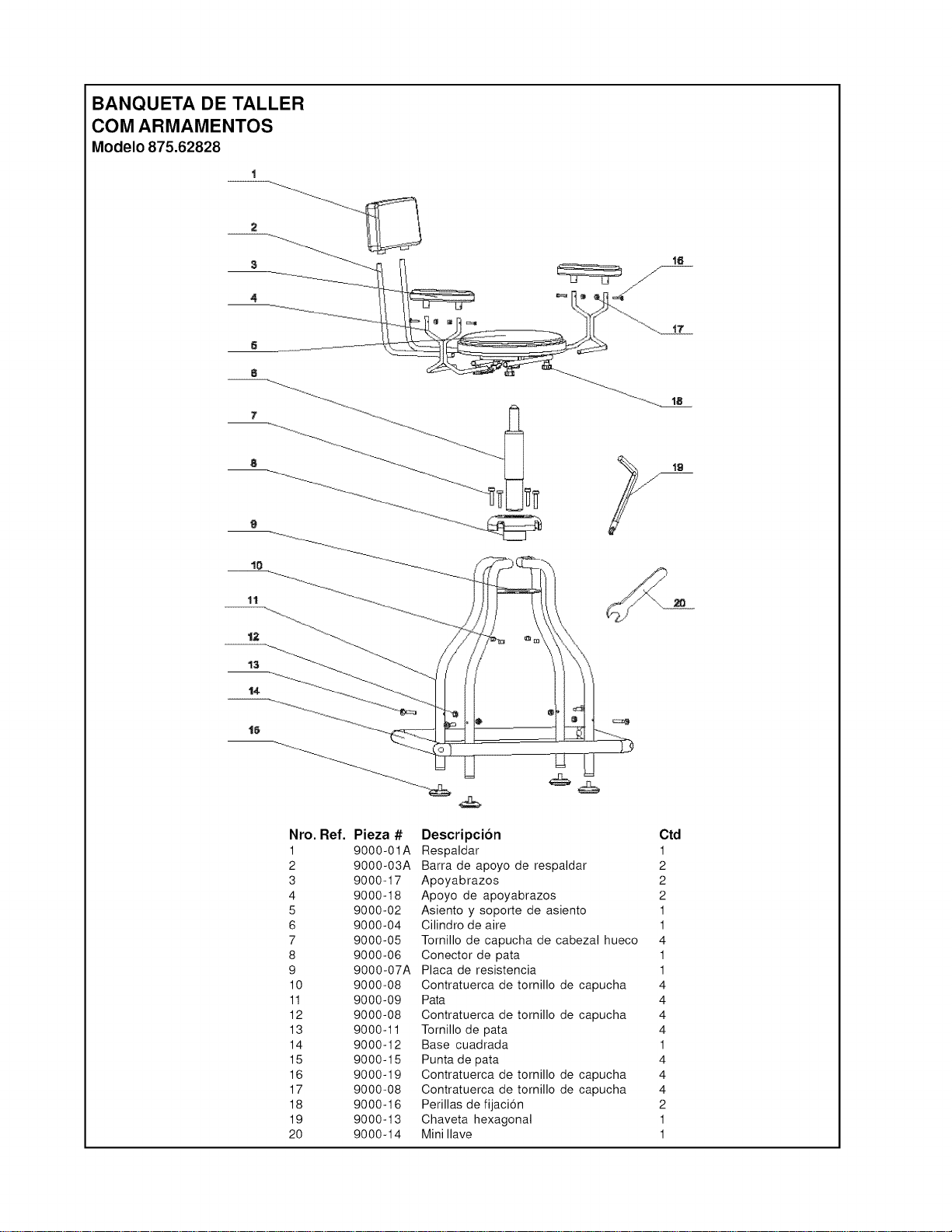

See illustration on back of page.
NOTE: The stool seat and backrest are pre-
assembled prior to shipment.
ASSEMBLY and OPERATION
INSTRUCTIONS
For assembly hex key (19) and a mini wrench (20)
are supplied.
1. Remove all parts from shipping carton. Remove all
packaging material from parts. Check parts
against parts list before beginning assembly. If any
parts are missing, call 1-800-290-9054.
2. Insert upper end of each backrest support bar (2)
into backrest (1) so that one of the two spring
locks snaps into place.
Be sure to snap each support bar into backrest at
same height.
3. Loosen lock knobs (18) on underside of seat (5)
enough so that you can insert the lower end of
each support bar into the seat bracket. Insert
support at least 4 inches to ensure seat stability.
Tighten lock knobs (18) securely.
4. Loosen lock knobs (18) on underside of seat (5)
enough so that you can insert the lower end of
each arm rest support (4) into the seat bracket on
either side. Insert support at least 1.5 inches to
ensure arm rest stability. Tighten lock knobs (18)
securely.
5. Unscrew nylon lock nuts (10) from hex bolt (7).
Place hex bolts through holes in top of leg fixture
(8). Invert connector and lay it on floor. Position
each leg (11) into connector so that hex bolt goes
through leg hole. Place strength plate (9) over legs
so that hex bolt goes through holes in strength
plate. Finger-tighten lock nuts, nylon ring up, onto
ends of hex bolts.
6. Place square foot rest (14) around legs. Remove
lock nuts from leg screws (13). Insert a leg screw
into each corner of square and through hole in
related leg. Finger-tighten lock nut. When all leg
screws and lock nuts are in place, securely tighten
them. Then securely tighten the lock nuts on the
strength plate (9).
7. Stand leg assembly upright. Insert air cylinder (6),
white button up, through hole in top of leg connec-
tor until cylinder comes to rest in the leg fixture (8).
8. Place seat on top of cylinder. Apply weight to seat
to lock it to the cylinder. CAUTION: To avoid injury,
be sure that seat is securely locked to cylinder
before sitting on stool.
9. Raise or lower seat by lifting up on the seat
adjustment lever beneath seat. Lower the lever to
lock seat at desired height.
10.If necessary, you may adjust the leg feet (15)
slightly so that the stool rests perfectly flat on the
floor. Do not unscrew the leg foot so far as to
make the connection between foot and leg un-
stable.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
www.sears.com
