MAIN FEATURES

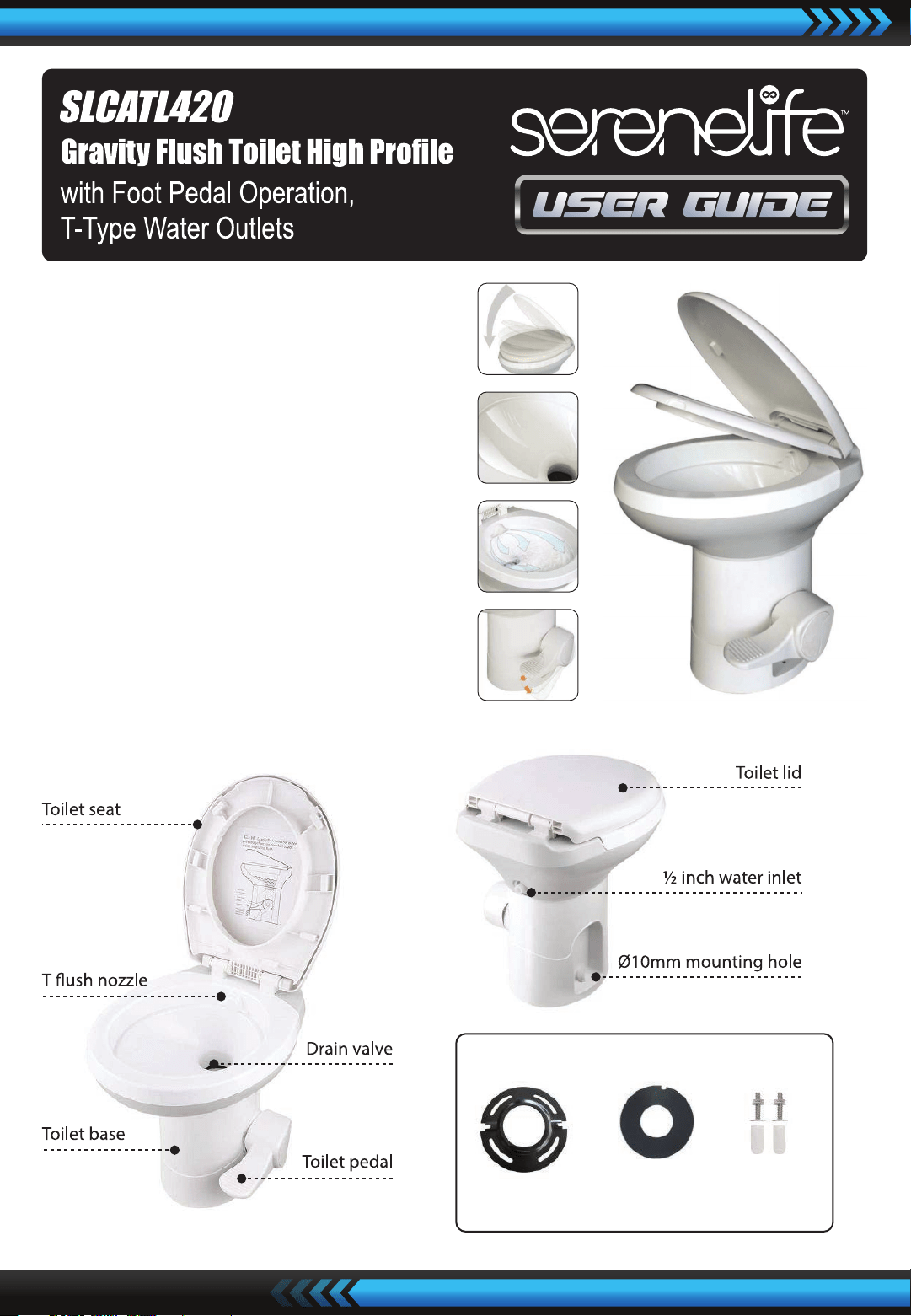

COMPONENTS
•
Premium user comfort: Full size & soft-close seat
and lid, large toilet bowl and 478mm seat height
brings greater homelike performance.
•
Easy to ush: High gloss toilet bowl with original
T type 3 way ush ow creates high-speed, full bowl
ushing.
•
Ergonomically enhanced pedal operation:
Lower pedal height for easier use.
One-direction action to open drain valve and ush.
•
Easy installation: Two bolts design ts most existing
toilet oor anges, great for new or replacement
installation. Just place on oor ange, tighten bolts,
connect water, and it’s ready.
FLOOR MOUNTING KIT
Flange plate Seal ring T-bolt and
rubber case
www.SereneLifeHome.com
PRODUCT AND MOUNTING DIMENSION
The outside diameter of the toilet drain outlet: 95mm / 3.7”;
The inner diameter of the toilet drain outlet: 87mm / 3.4”
INSTALLATION
Note:
•
Be sure foot pedal, when pressed, touches same at surface on which toilet is installed.
•
Ensure water supply pressure is no more than 0.4Mpa.
•
Hot water more than 40 degrees is forbidden.
1. To replace an older toilet, turn o water supply to toilet. Remove and drain water supply line.
Remove toilet hold-down bolts/screws. Remove toilet from oor. Remove and discard old ange seal
and hold-down bolts. Verify center of oor ange is at least 200mm/7.9” from back wall (Fig.1).
2. If installing a new oor ange, make certain that toilet mounting holes are located at the correct angle
(Fig.1). Floor ange must be secured to oor with a minimum of four screws. Insert two supplied T-bolts
into slots in oor ange (Fig.2).
3. Verify that oor ange seal is installed on base of toilet. Carefully set toilet over oor ange.
Align holes in toilet base with T-bolts as toilet is lowered onto oor ange.
4. Install oor mounting nuts onto T-bolts. When tight, base should be securely attached and at against
oor. Attach bolt covers onto nuts
5. Connect water supply line to ½ inch water inlet and turn on water supply line. (Fig.3)
Flush toilet several times and check for leaks.
A
B
C
D
E
F
G
H
I
J
www.SereneLifeHome.com
PRODUCT AND MOUNTING DIMENSION
The outside diameter of the toilet drain outlet: 95mm / 3.7”;
The inner diameter of the toilet drain outlet: 87mm / 3.4”
INSTALLATION
Note:
•
Be sure foot pedal, when pressed, touches same at surface on which toilet is installed.
•
Ensure water supply pressure is no more than 0.4Mpa.
•
Hot water more than 40 degrees is forbidden.
1. To replace an older toilet, turn o water supply to toilet. Remove and drain water supply line.
Remove toilet hold-down bolts/screws. Remove toilet from oor. Remove and discard old ange seal
and hold-down bolts. Verify center of oor ange is at least 200mm/7.9” from back wall (Fig.1).
2. If installing a new oor ange, make certain that toilet mounting holes are located at the correct angle
(Fig.1). Floor ange must be secured to oor with a minimum of four screws. Insert two supplied T-bolts
into slots in oor ange (Fig.2).
3. Verify that oor ange seal is installed on base of toilet. Carefully set toilet over oor ange.
Align holes in toilet base with T-bolts as toilet is lowered onto oor ange.
4. Install oor mounting nuts onto T-bolts. When tight, base should be securely attached and at against
oor. Attach bolt covers onto nuts
5. Connect water supply line to ½ inch water inlet and turn on water supply line. (Fig.3)
Flush toilet several times and check for leaks.
OPERATION
Back wall
left wall
right wall
G
200mm
H
200mm
I
200mm
Fig.1
Strainer
Sealing ring
Water Inlet
Pipe Connector
Fig.3
Strainer
Fig.2
Before connecting your pipe connector
(plastic one is recommended) to the ½ inch water
inlet (1/4-20 British thread), make sure there is a
sealing ring in the pipe connector.
If not, the attached sealing ring must be placed to
ensure perfect sealing.
After connecting water supply, ush the toilet
several times to check leaks.
Fig. 4
Fig. 5
1. Add water to bowl
To add water to the toilet, press the ush pedal part way down.
Water ows into the bowl while ush valve remains closed.
If the ush valve moves, let up on the pedal slightly.
Adding water to an empty bowl helps prevent holding tank odors
from entering the living space. Adding water is recommended
prior to ushing solids and toilet paper. (Fig.4)
2. Flush toilet
To ush, press pedal down until it contacts the oor.
Release pedal after complete ush. (Fig.5) When ushing liquids,
press the pedal for 1-2 seconds. When ushing solids, press pedal
until contents are rinsed from bowl.
Flushing longer than necessary will cause holding tank to ll too
quickly. A small amount of water will collect in the bowl after a
ush t create an airtight seal.
www.SereneLifeHome.com
FLUSH VALVE/SEAL CLEANING
After a period of time, mineral deposits from hard water may build up on the ush ball or seal,
resulting in a slow water leak. To prevent this, periodically clean the ush valve and seal.
1. Remove minor debris from the ush valve and seal by slowly pressing and releasing the ush pedal
several times. This will loosen and rinse debris from the surfaces.
Repeat several time for stubborn buildup (use a soft bristle brush if necessary).
2. Lubricate the ush valve and seal periodically with silicone spray or paste lubricant.
WINTERIZATION AND STORAGE
This toilet is not intended for use when exposed to temperatures below freezing.
Before storing the toilet, you need drain water from the toilet according to the following procedures.
1. Turn o water supply to toilet.
2. Remove water supply line from water inlet.
3. Place a small container under inlet to catch draining water.
4. Press ush pedal and allow water to completely drain from water inlet.
5. Leave water line disconnected until threat of freezing temperature is past.
FEATURES:
•
Ecient Foot Pedal Operation
•
Home-like Comfort: Ergonomic Toilet Seat
•
Water-Saving T-type Water Outlet for Full-bowl Flush Coverage
•
Compact Design and Comfortable to Seat
•
Easy to Install
•
High-Gloss Surface
•
Easy to Clean
•
Odorless Sealing Design
•
Made from HDPE and PP Materials
•
2 Humanized Grooves of RV Toilet Low Prole Foot Pedal to help Open and Close Easily
•
Distance from the Center of the Bolt Holes to the Back Wall is about 7.90'' -inches
WHAT'S IN THE BOX:
•
Gravity Flush Toilet
•
Toilet Flange & Seal
•
(4) Screws
TECHNICAL SPECS:
•
Construction Material: HDPE, PP
•
Water Inlet Diameter: 1/2"
•
Weight Capacity: 330lbs.
•
Sewage Outlet Outer Diameter: 3.7” -inches
•
Sewage Outlet Inner Diameter: 3.4” -inches
•
Suggested Working Water Pressure: 0.2- 0.4Mpa
•
Product Dimensions (L x W x H): 19.1'' x 15.4'' x 19.7'' -inches
