Owner’s Manual
Microwave Oven
Household Use Only
Model No.NN-ST99JS
NN-ST98JS
NN-ST96JS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT,
AND SAVE THIS MANUAL FOR FUTURE USE.
Inverser le manuel pour lire les instructions en français.
F0003BY60CP
PA0218-0
Printed in China
© Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. 2018
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
Tel: (905) 624-5010
www.panasonic.com
F0003BY60CP_En.indd 1F0003BY60CP_En.indd 12018/1/10 8:41:112018/1/10 8:41:11
2
Operation (Continued)
CONTENTS
Safety Information
IMPORTANT SAFETY INSTRUCTIONS ............................................................................................................................................... 3-5
Installation and Grounding Instructions ............................................................................................................................................ 6
Food Preparation .................................................................................................................................................................................... 7-8
Location of Controls ................................................................................................................................................................................10
Control Panel ..............................................................................................................................................................................................11
Operation
Using the Microwave for the First Time ...........................................................................................................................................12
Setting the Clock .......................................................................................................................................................................................12
Setting the Child Safety Lock ...............................................................................................................................................................12
Cooking ........................................................................................................................................................................................................13
Keep Warm ..................................................................................................................................................................................................13
Quick 30 .......................................................................................................................................................................................................13
Turbo Defrost .............................................................................................................................................................................................14
Defrosting Tips & Techniques ..............................................................................................................................................................14
Setting the Timer ......................................................................................................................................................................................15
Setting a Standing Time .........................................................................................................................................................................15
Setting a Delayed Start .................................................................................................................................................................... 15-16
Popcorn ........................................................................................................................................................................................................ 16
Coffee/Milk ..................................................................................................................................................................................................17
Frozen Food ................................................................................................................................................................................................17
Sensor Reheat ............................................................................................................................................................................................18
Sensor Cook ................................................................................................................................................................................................18
Sensor Cook Chart ....................................................................................................................................................................................19
Food Characteristics ......................................................................................................................................................................... 20-21
Maintenance
Care and Cleaning of Your Microwave Oven ..................................................................................................................................22
Shop Accessories ......................................................................................................................................................................................22
Before Requesting Service ....................................................................................................................................................................23
Warranty ......................................................................................................................................................................................................24
General Information
Cookware Guide ......................................................................................................................................................................................... 9
Specifications .............................................................................................................................................................................................25
Trim Kit Information ................................................................................................................................................................................25
User’s Record ..............................................................................................................................................................................................26
F0003BY60CP_En.indd 2F0003BY60CP_En.indd 22018/1/10 8:41:122018/1/10 8:41:12
3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
We have provided important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These
words mean:
You can be killed or seriously injured if you don’t immediately follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
You can be exposed to a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen
if the instructions are not followed.
DANGER
WARNING
CAUTION
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) DO NOT attempt to operate this oven with the door open,
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) DO NOT place any object between the oven front face and the
door, or allow soil or cleaner residue to accumulate on sealing
surfaces.
(c) DO NOT operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except
properly qualified service personnel.
Thank you for purchasing a Panasonic Microwave Oven
Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance.
When using this electric appliance, basic safety precautions should be followed, including the following:
To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
1. Read all instructions before using this appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY,” above.
3. This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 6.
4. As with any cooking appliance, DO NOT leave oven unattended while in use.
5. Install or locate this appliance only in accordance with the installation instructions found on page 6.
6. DO NOT cover or block any openings on this appliance.
7. DO NOT store this appliance outdoors. DO NOT use this product near water (for example, near a kitchen sink, in a wet basement, or
near a swimming pool or similar locations).
8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals, vapors or non-food products
in this appliance. This type of oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. The use
of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks.
WARNING
F0003BY60CP_En.indd 3F0003BY60CP_En.indd 32018/1/10 8:41:122018/1/10 8:41:12
4
9. When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive soaps or
detergents applied with a sponge or soft cloth.
10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that because a child has
mastered one cooking skill he/she can cook everything.
11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. DO NOT let cord hang over edge of a table or counter.
15. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service center for examination,
repair or adjustment.
16. Some products such as whole eggs, with or without shell, narrow neck bottles and sealed containers (for example, closed glass jars)
may explode and should not be heated in this oven.
17. To reduce the risk of fire in the oven cavity:
(a) DO NOT overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside
the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
(c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
(d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in the cavity
when not in use.
18. Superheated Liquids: Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without showing
evidence (or signs) of boiling. Visible bubbling is not always present when the container is removed from the microwave oven. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED
INTO THE LIQUID. To reduce the risk of injury to persons:
(a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING.
(b) DO NOT heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent eruption.
(c) DO NOT use straight-sided containers with narrow necks.
(d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
19. DO NOT cook directly on the glass tray. It can crack, and cause injury or damage to the oven.
SAVE THESE INSTRUCTIONS
For proper use of your oven, read remaining safety cautions and owner‘s manual..
IMPORTANT SAFETY INSTRUCTIONS (continued)
F0003BY60CP_En.indd 4F0003BY60CP_En.indd 42018/1/10 8:41:132018/1/10 8:41:13
5
IMPORTANT SAFETY INSTRUCTIONS (continued)
TO AVOID THE RISK OF SHOCK:
DO NOT remove remove top or
outer panel from oven. Repairs
must be done only by a qualified
service person.
TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY:
DO NOT tamper with, or make any adjustments or repairs to Door,
Control Panel Frame, Safety Interlock Switches, or any other part of
the oven. Microwave leakage may result.
TO AVOID THE RISK OF FIRE:
1. DO NOT operate the microwave
oven empty or use metal
containers. When using the
microwave oven without water or
food, microwave energy cannot
be absorbed and will continuously
reflect throughout the cavity. This
will cause arcing and damage the oven cavity, door or other
components, which can lead to a fire hazard.
2. DO NOT store flammable materials next to, on top of, or in the
oven.
3. DO NOT dry clothes, newspapers or other
materials in the oven, or use newspaper or
paper bags for cooking.
4. DO NOT hit or strike Control Panel.
Damage to controls may occur.
5. DO NOT use recycled paper products
unless the paper product is labeled as safe for microwave oven
use. Recycled paper products may contain impurities, which
may cause sparking.
TO AVOID THE RISK OF SCALDING:
POT HOLDERS should always be
used when removing items from
the oven. Heat is transferred from
the HOT food to the cooking
container and from the container
to the Glass Tray. The Glass
Tray can also be very HOT after
removing the cooking container from the oven.
Glass Tray
1. DO NOT operate the oven without the Roller Ring and the Glass
Tray in place.
2. DO NOT operate the oven without the Glass Tray fully engaged
on the drive hub. Improper cooking or damage to the oven
could result. Verify that the Glass Tray is properly engaged and
rotating by observing its rotation when you press Start.
Note: The Glass Tray can turn in either direction.
3. Use only the Glass Tray specifically designed for this oven.
DO NOT substitute any other Glass Tray.
4. If the Glass Tray is hot, allow to cool before cleaning or placing
in water.
5. DO NOT cook directly on the Glass Tray. Always place food in
a microwave safe dish, or on a rack set in a microwave safe dish.
6. If food or utensil on the Glass Tray touches oven walls, causing
the tray to stop moving, the tray will automatically rotate in the
opposite direction.
Roller Ring
1. The Roller Ring and oven floor should be cleaned frequently to
prevent excessive noise.
2. Always replace the Roller Ring and the Glass Tray in their proper
positions.
3. The Roller Ring must always be used for cooking along with the
Glass Tray.
For proper use of your oven, read remaining safety cautions and
Owner’s Manual.
Safety Precautions
WARNING
F0003BY60CP_En.indd 5F0003BY60CP_En.indd 52018/1/10 8:41:132018/1/10 8:41:13
6
Installation and Grounding Instructions
Examine Your Oven
Unpack oven, remove all packing material and examine the oven
for any damage such as dents, broken door latches or cracks in the
door. Notify dealer immediately if oven is damaged. DO NOT install
if oven is damaged.
Placement of Oven
1. The oven must be placed on a flat, stable surface. Place the front
surface of the door 7.6 cm (3 inches) or more from the counter
top edge to avoid accidental tipping of the microwave oven
during normal use. For proper operation, the oven must have
sufficient air flow. Allow 7.6 cm (3 inches) of space on both sides
of the oven and 5 cm (2 inches) of space on top of the oven.
(a) DO NOT block air vents. If they are blocked during operation,
the oven may overheat and be damaged.
(b) DO NOT place oven near a hot, damp surface such as a gas or
electric range, or dishwasher.
(c) DO NOT operate oven when room humidity is excessive.
2. This oven is manufactured for household use only. It is not
approved or tested for mobile vehicle, marine, or commercial
use.
Installation
1. DO NOT block air vents. If they are blocked during operation,
the oven may overheat. If the oven overheats, a thermal safety
device will turn the oven off. The oven will remain inoperable
until it has cooled.
2. If the oven is designed for installation into a wall cabinet,
only use the proper Panasonic trim kit available from a local
Panasonic dealer, or online from the Panasonic Canada eStore.
Follow all instructions packed with the trim kit.
3. Use of a non-Panasonic trim kit will void the Manufacturer’s
warranty for the Microwave oven.
WARNING: IMPROPER USE OF THE GROUNDING
PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician or service person if the grounding
instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded. If it is necessary to use
an extension cord, use only a three-wire extension cord that has a
three-prong polarized grounding plug, and a three-slot receptacle
that will accept the plug of the appliance. The marked rating of the
extension cord should be equal to or greater than the electrical
rating of the appliance.
Grounding Instructions
THIS APPLIANCE MUST BE GROUNDED.
In the event of an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire for the electric
current. This appliance is equipped with a cord having a grounding
wire with a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
• Plug into properly installed and grounded three-prong
outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
Power Supply
1. A short power-supply cord is provided to reduce the risks
resulting from becoming entangled in or tripping over a longer
cord.
2. Longer cord sets or extension cords may be used if care is
exercised in their use. DO NOT let cord hang over edge of a table
or counter.
3. If a long cord or extension cord is used,
• The marked electrical rating of the cord set or extension
cord should be at least as great as the electrical rating of the
appliance.
• The extension cord must be a grounding-type 3-wire cord.
• The longer cord should
be arranged so that
it will not drape over
the counter top or
tabletop where it
can be pulled on by
children or tripped over
accidentally.
Wiring Requirements
1. The oven must be operated on a SEPARATE CIRCUIT. No other
appliance should share the circuit with the microwave oven.
If it does, the branch circuit fuse may blow or the circuit breaker
may trip.
2. The oven must be plugged into a 15 AMP or 20 AMP, 120 VOLT,
60 Hz GROUNDED OUTLET. (Beginning in 2017, all new
construction and all renovated single family homes must
have at least a 20 A, 120 VOLT, 60 Hz GROUNDED OUTLET).
Where a standard two-prong outlet is encountered, it is the
responsibility and obligation of the consumer to have it replaced
with a properly grounded three-prong outlet.
3. The VOLTAGE used must be the same as specified on this
microwave oven (120V, 60Hz). Using a higher voltage is
dangerous and may result in a fire or oven damage. Using
a lower voltage will cause slow cooking. Panasonic is NOT
responsible for any damages resulting from the use of the oven
with any voltage other than specified.
TV / RADIO / WIRELESS EQUIPMENT INTERFERENCE
This product has been tested and found to comply with the limits
for Microwave Oven. This product can radiate radio frequency
energy, which could cause interference to such products as radio,
TV, baby monitor, cordless phone, Bluetooth, wireless router, etc.,
which can be confirmed by turning this product off and on. If
present, the user is encouraged to try to correct by taking one or
more of the following countermeasures:
(1) Increase the spacing distance between the microwave oven and
other product receiving the interference.
(2) If possible, use a properly installed receiver antenna and/or
reorient the receiving antenna of the other product receiving the
interference.
(3) Plug the microwave oven into a different outlet from the other
product receiving the interference.
(4) Clean door and sealing surfaces of the oven. (See Care and
Cleaning of Your Microwave Oven)
3-Pronged Plug
Ground Plug
3-Prong Receptacle
F0003BY60CP_En.indd 6F0003BY60CP_En.indd 62018/1/10 8:41:132018/1/10 8:41:13
7
Food Preparation
Follow these Safety Precautions when cooking in your oven.
IMPORTANT
Proper cooking depends upon the power, the time setting
and quantity of food. If you use a smaller portion than
recommended but cook at the time for the recommended
portion, fire could result.
1) HOME CANNING / STERILIZING / DRYING FOODS / SMALL
QUANTITIES OF FOODS
• DO NOT use your oven for home canning. Your oven cannot
maintain the food at the proper canning temperature. The food
may be contaminated and then spoil.
• DO NOT use the microwave oven to sterilize objects (baby
bottles, etc.). It is difficult to keep the oven at the high
temperature needed for sterilization.
• DO NOT dry meats, herbs, fruits or vegetables in your oven.
Small quantities of food or foods with low moisture content can
dry out, scorch or catch on fire if overheated.
2) POPCORN
Popcorn may be popped in a microwave oven corn popper.
Microwave popcorn that pops in its own package is also available.
Follow popcorn manufacturers’ directions and use a brand suitable
for the cooking power of your microwave oven.
CAUTION: When using pre-packaged microwave popcorn, you can
follow recommended package instructions or use the Popcorn pad
(refer to page 16). Otherwise, the popcorn may not pop adequately
or may ignite and cause a fire. Never leave the oven unattended
when popping popcorn. Allow the popcorn bag to cool before
opening, and always open the bag facing away from your face and
body to prevent steam burns.
3) DEEP FAT FRYING
• DO NOT deep fat fry in your microwave oven. Cooking oils
may burst into flames and may cause damage to the oven and
may result in burns. Microwave utensils may not withstand the
temperature of the hot oil, and can shatter or melt.
4) FOODS WITH NONPOROUS SKINS
• DO NOT COOK / REHEAT WHOLE EGGS, WITH OR WITHOUT
THE SHELL.
Steam buildup in whole
eggs may cause them to
explode, and possibly
damage the oven or
cause injury. Reheating
SLICED hard-boiled eggs
and cooking SCRAMBLED eggs is safe.
• Potatoes, apples, whole squash and sausages are examples
of foods with nonporous skins. These
types of foods must be pierced before
microwave cooking to prevent them
from exploding.
CAUTION: Cooking dry or old potatoes
can cause fire.
5) GLASS TRAY / COOKING CONTAINERS / FOIL
• Cooking containers get hot during microwaving. Heat is
transferred from the HOT food to the container and the Glass
Tray. Use pot holders when removing containers from the oven
or when removing lids or plastic wrap covers from cooking
containers, to avoid burns.
• The Glass Tray will get hot during cooking. It should be allowed
to cool before handling or before paper products, such as paper
plates or microwave popcorn bags, are placed in the oven for
microwave cooking.
• When using foil in the oven, allow at least 2.5 cm (1-inch) of
space between foil and interior oven walls or door.
• Dishes with metallic trim should not be used, as arcing
may occur.
6) PAPER TOWELS / CLOTHS
• DO NOT use paper towels or cloths that contain a synthetic fiber
woven into them. The synthetic fiber may cause the towel to
ignite. Use paper toweling under supervision.
7) BROWNING DISHES / OVEN COOKING BAGS
• Browning dishes or grills are designed for microwave cooking
only. Always follow instructions provided by the manufacturer.
DO NOT preheat browning dish more than six minutes.
• If an oven cooking bag is used for microwave cooking, prepare
according to package directions. DO NOT use a wire twist-tie to
close bag. Instead use plastic ties, cotton string or a strip cut
from the open end of the bag.
F0003BY60CP_En.indd 7F0003BY60CP_En.indd 72018/1/10 8:41:132018/1/10 8:41:13
8
Food Preparation (continued)
8) THERMOMETERS
• DO NOT use a conventional
meat thermometer in your
oven. Arcing may occur.
Microwave safe thermometers
are available for both meat and
candy.
9) BABY FORMULA / BABY FOOD
• DO NOT heat baby formula or baby
food in the microwave oven. The glass
jar or surface of the food may appear
warm while the interior can be so
hot as to burn the infant’s mouth and
esophagus.
10) REHEATING PASTRY PRODUCTS
• When reheating pastry products, check temperatures of any
fillings before eating. Some foods have fillings, which heat
faster and can be extremely hot, while the surface remains
warm to the touch (for example, jelly donuts).
11) GENERAL OVEN USAGE GUIDELINES
• DO NOT use the oven for any purpose other than the
preparation of food.
F0003BY60CP_En.indd 8F0003BY60CP_En.indd 82018/1/10 8:41:132018/1/10 8:41:13
9
Aluminum Foil
It is not recommended
to use. Arcing can occur
if foil is too close to oven
wall or door and cause
damage to your oven.
Browning Dish
Yes. Only use browning dishes that are designed
for microwave cooking. Check browning dish
information for instructions/heating chart. Do
not preheat for more than six minutes.
Brown Paper Bags
No. They may cause a fire in
the oven.
Microwave Safe
Yes. If labeled Microwave Safe, check
manufacturers’ directions for use in
microwave heating.
Some dinnerware
may state on the back
of the dish, “Oven-
Microwave Safe”.
Dinnerware
If unlabeled, use CONTAINER TEST below.
Disposable Polyester Paperboard Dishes
Yes. Some frozen foods
are packaged in these
dishes. Also can be
purchased in some
grocery stores.
Fast Food Cartons with
Metal Handle
No. Metal handle may cause
arcing.
Frozen Dinner Trays
If made for the microwave,
then yes. If it contains metal,
then no.
Glass Jars
No. Most glass jars are not
heat resistant.
Heat Resistant Oven
Glassware/Ceramic
Yes, but only ones for
microwave cooking
and browning.
(See CONTAINER
TEST below.)
Metal Bakeware
No. Metal can cause
arcing and damage to
your oven.
Metal Twist-Ties
No. May cause arcing
which could cause a fire in
the oven.
Oven Cooking Bag
Yes. Follow manufacturers’ directions. Close bag
with the nylon tie provided, a strip cut from the
end of the bag, or a piece of cotton string. Do
not close with metal twist-tie. Make six
1 cm (½-inch) slits near the closure.
Paper Plates/Cups
Yes. Use to warm cooked
foods, and to cook foods that
require short cooking time,
such as hot dogs. Do not
microwave paper cups; they
may overheat and ignite.
Towels & Napkins
Yes, only paper napkins/towels. Use
to warm rolls and sandwiches, only
if labeled safe for microwave use.
Do NOT use recycled paper towels.
Parchment Paper
Yes. Use as a cover to prevent splattering.
Plastic Cookware
Yes, with caution.
Should be labeled,
“Suitable for
Microwave Heating.”
Check Microwave Safe manufacturers’ directions
for recommended uses. Some microwave safe
plastic containers are not suitable for cooking
foods with high fat or sugar content. The heat
from hot food may cause warping.
Plastic, Melamine
No. This material absorbs microwave energy.
Dishes get HOT!
Plastic Foam Cups
Yes, with caution. Plastic foam
will melt if foods reach a high
temperature. Use short term
only to reheat foods to a low
serving temperature. Do not
microwave paper cups; they
may overheat and ignite.
Plastic Wrap
Yes. Use to cover
food during cooking
to retain moisture
and prevent
splattering.
Should be labeled “Suitable for Microwave
Heating”. Check package directions.
Straw, Wicker, Wood
Yes, short term only.
Use only for short term
reheating and to bring
food to a low serving
temperature. Wood may dry out, split or crack.
Thermometers
Only microwave safe
thermometers can be
used, NOT conventional
thermometers.
Wax Paper
Yes. Use as a cover to
prevent splattering
and to retain moisture.
Cookware Guide
CONTAINER TEST
TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it in
the microwave oven along side the empty container to be tested; heat one (1) minute at P10 (HIGH). If the container is
microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and the
water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This test
cannot be used for plastic containers.
This section answers the question, “Can I use in the Microwave?”
F0003BY60CP_En.indd 9F0003BY60CP_En.indd 92018/1/10 8:41:132018/1/10 8:41:13
10
Location of Controls
External Air Vent
Internal Air Vent
Door Safety Lock System
Exhaust Air Vent
Control Panel
Identification Plate
Glass Tray
Roller Ring
Heat/Vapor Barrier Film
(do not remove)
Waveguide Cover
(do not remove)
Door Release Button
Warning label
Menu label
Power Supply Cord
Power Supply Plug
DHHS Label
NOTE:
The illustration is for reference only.
112
613
4
212 10 14
15
9
16
3
5
11
7
8
F0003BY60CP_En.indd 10F0003BY60CP_En.indd 102018/1/10 8:41:132018/1/10 8:41:13
11

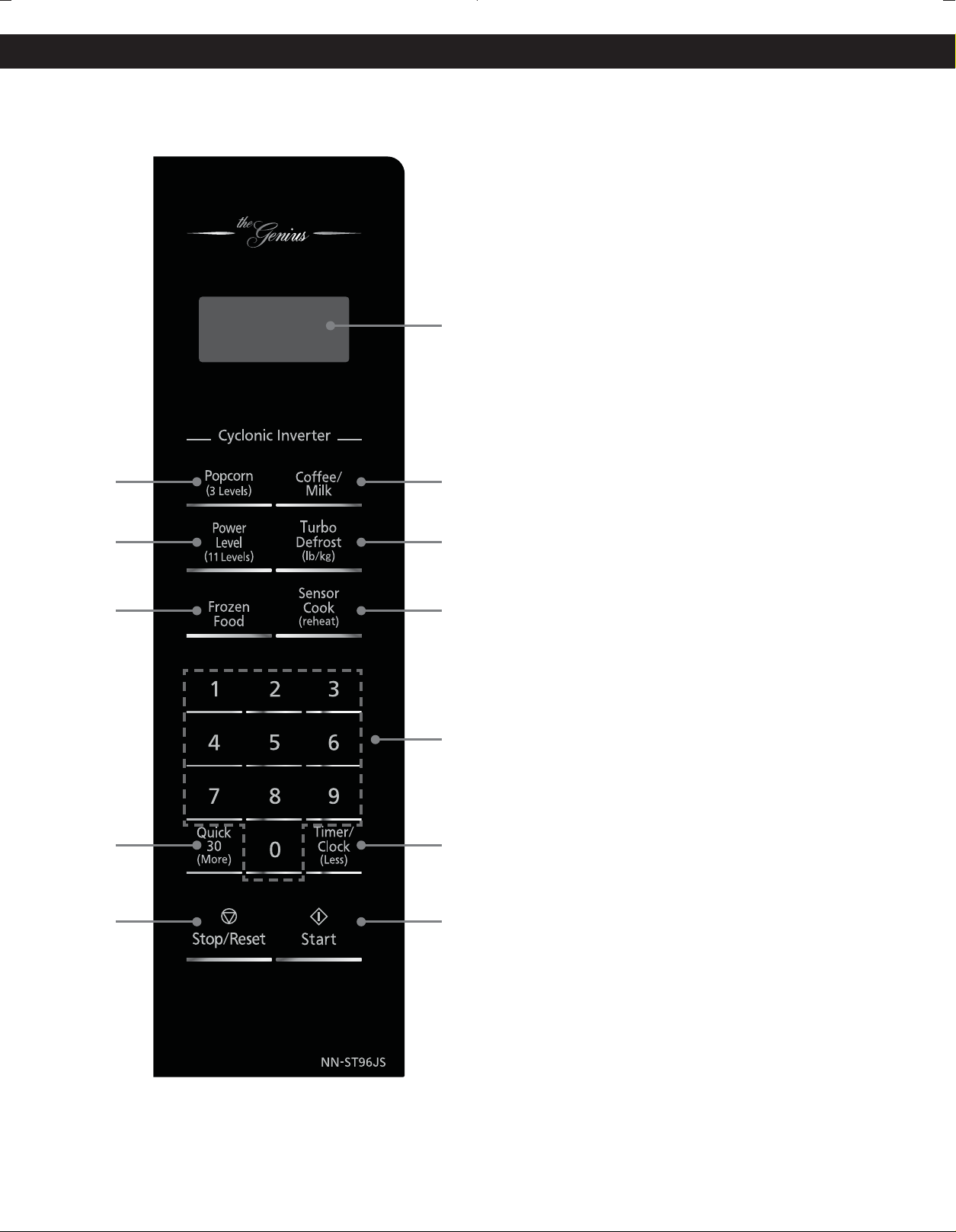

Control Panel
The control panels of NN-ST96JS/NN-ST98JS/NN-ST99JS have same key layout and function, even the
different key name.
Display Window
Popcorn Pad (See page 16)
Coffee/Milk Pad (See page 17)
Power level Pad (See page 13)
Turbo Defrost Pad (See page 14)
Frozen Food Pad (See page 17)
Sensor Cook (Reheat) Pad (See page 18)
Number Pads
Quick 30 (More) Pad (See page 13, 16-18)
Timer/Clock (Less) Pad (See page 12, 15-
18)
Stop/Reset Pad
Before cooking: One press clears all your
instructions. During cooking: one press
temporarily stops the cooking process.
Another tap cancels all your instructions,
and time of day or colon appears in the
display window.
Start Pad
After cooking program setting, one press
allows oven to begin functioning. If door is
opened or Stop/Reset Pad is pressed once
during oven operation, Start Pad must be
pressed again to restart oven.
Beep Sound:
When a pad is pressed correctly, a beep will be
heard. If a pad is pressed and no beep is heard,
the unit did not or cannot accept the instruction.
When operating, the oven will beep twice
between programmed stages. At the end of any
complete program, the oven will beep 5 times.
NOTE:
If no operation after cooking program setting,
6 minutes later, the oven will automatically
cancel the cooking program. The display will
return to clock or colon display.
NOTE:
The illustration is for reference only.
F0003BY60CP_En.indd 11F0003BY60CP_En.indd 112018/1/10 8:41:132018/1/10 8:41:13
12
Operation
Using the Microwave
for the First Time
Setting the Clock Setting the Child
Safety Lock
1
Display Window
Plug into a properly grounded
electrical outlet.
2
Press Start once, then Press
Timer/Clock (Less) to cycle
between the weight system,
Metric (g/kg) or Imperial (oz./
lb).
3
Press Start once, then Press
Timer/Clock (Less) to cycle
between the Beep on or Beep
off.
4
Press Stop/Reset to confirm;
a colon (:) will appear in the
display window.
NOTES:
These choices can be selected
only when you plug-in the
oven.
1
With the oven NOT cooking,
press Timer/Clock (Less) twice;
the colon will blink. Enter time
of day using the Number pads.
2
Press Timer/Clock (Less) to
finish setting and the colon (:)
will stop blinking.
NOTES:
1. To reset the clock, repeat
steps.
2. The clock will retain the
time of day as long as the
oven is plugged in and
electricity is supplied.
3. The clock is a 12-hour
display.
4. Oven will not operate while
colon (:) is flashing.
1
When the time of day appears
in the display, press Start three
times; “ ” will appear in the
display.
2
Press Stop/Reset three times;
the display will return to the
time of the day and Child Lock
will be cancelled.
NOTES:
1. This feature prevents the
electronic operation of the
oven until cancelled. It does
not lock the door.
2. To set or cancel child safety
lock, Start or Stop/Reset
pad must be pressed
3 times within 10 seconds.
3. You can set Child Lock
feature when the display
shows a colon or time of
day.
F0003BY60CP_En.indd 12F0003BY60CP_En.indd 122018/1/10 8:41:142018/1/10 8:41:14
13
Operation (continued)
Cooking Keep Warm
(Will keep food warm for up to
30 minutes after cooking)
Quick 30
(Set or add cooking time in
30 seconds increments)
1
If cooking at high power (10),
skip to step 2. Press Power
Level until the desired power
level appears in the display.
P10 is the highest and P1 is the
lowest. P0 is the keep warm
feature.
Press Power Level
once
twice
3 times
4 times
5 times
6 times
7 times
8 times
9 times
10 times
11 times
P10 (HIGH)
P9
P8
P7 (MED-HIGH)
P6 (MEDIUM)
P5
P4
P3 (MED-LOW)/
DEFROST
P2
P1 (LOW)
P0 (KEEP WARM)
2
Set Cooking Time using the
Number pads. P10 (HIGH) and
P0 (KEEP WARM) have max.
cooking time of 30 minutes. For
other power levels, the max.
time is 99 minutes, 99 seconds.
3
Press Start; the cooking will
start and the time will count
down in the display. At the
end of cooking, five beeps will
sound.
NOTES:
1. For reheating, use P10 (HIGH)
for liquids, P7 (MED-HIGH) for
most foods, and P6 (MEDIUM)
for dense foods.
2. For defrosting, use P3
(MED-LOW).
DO NOT OVERCOOK: This
oven requires less time to cook
than older units. Overcooking
will cause food to dry out and
may cause a fire. A microwave
oven’s cooking power tells
you the amount of microwave
power available for cooking.
Stage Cooking:
For more than one stage of
cooking, repeat steps 1 and
2 for each stage of cooking
before pressing Start. The
maximum number of stages
for cooking is three. When
operating, two beeps will
sound between each stage.
Five beeps will sound at the
end of the entire sequence.
Automatic function (such
as frozen food, sensor cook
(reheat), popcorn, coffee/milk
and turbo defrost) can not be
used with 3 stage cooking.
1
Press Power Level 11 times to
select the P0 (KEEP WARM).
2
Set warming time using
Number pads (up to
30 minutes). This example
shows two minutes.
3
Press Start; the cooking will start
and the time will count down
in the display. At the end of
cooking, five beeps will sound.
NOTES:
P0 (KEEP WARM) can be set as
the final stage after cook time
has been manually entered. It
cannot be used with Automatic
function (such as frozen food,
sensor cook (reheat), popcorn,
coffee/milk and turbo defrost).
1
Press Quick 30 (More) until the
desired cooking time (up to
5 minutes) appears in the
display. Power Level is pre-set
at P10.
2
Press Start; the cooking will
start and the time will count
down in the display. At the
end of cooking, five beeps will
sound.
NOTES:
1. If desired, you can use
other power levels. Select
desired power level before
pressing Quick 30 (More).
2. After setting the time by
Quick 30 (More) pad, you
cannot use the Number
Pads.
3. Quick 30 (More) pad can
also be used to add more
time during manual
cooking.
4. It cannot be used with
Automatic function (such
as frozen food, sensor cook
(reheat), popcorn, coffee/
milk and turbo defrost).
F0003BY60CP_En.indd 13F0003BY60CP_En.indd 132018/1/10 8:41:142018/1/10 8:41:14
14
Operation (continued)
Turbo Defrost Conversion Defrosting Tips & Techniques
1
This feature allows you to
defrost foods such as meat,
poultry and seafood, simply
by entering the weight. Press
Turbo Defrost.
2
Enter weight of the food using
the Number pads.
3
Press Start. Defrosting will
start. Larger weight foods will
cause a signal midway through
defrosting. If two beeps sound,
turn over and/or rearrange
foods.
NOTE:
The maximum weight for Turbo
Defrost is 3 kg. (6 lbs).
Follow the chart to convert
ounces or hundredths of a
pound into tenths of a pound.
To use Turbo Defrost, enter the
weight of the food in pounds
(1.0) and tenths of a pound
(0.1). If a piece of meat weighs
1.95 lbs or 1 lb 14 oz., enter
1.9 lbs.
Ounces
Hundredths
of a Pound
Tenths of
a Pound
0
1 - 2
3 - 4
5
6 - 7
8
9 - 10
11 - 12
13
14 - 15
.01 - .05
.06 - .15
.16 - .25
.26 - .35
.36 - .45
.46 - .55
.56 - .65
.66 - .75
.76 - .85
.86 - .95
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Preparation For Freezing:
1. Freeze meats, poultry, and fish in
packages with only one or two
layers of food. Place wax paper
between layers.
2. Package in heavy-duty plastic
wraps, bags (labeled “For
Freezer”), or freezer paper.
3. Remove as much air as possible.
4. Seal securely, date, and label.
To Defrost:
1. Remove wrapper. This helps
moisture to evaporate. Juices
from food can get hot and cook
the food.
2. Set food in microwave safe dish.
3. Place roasts fat-side down. Place
whole poultry breast-side down.
4. Select power and minimum
time so that items will be under-
defrosted.
5. Drain liquids during defrosting.
6. Turn over (invert) items during
defrosting.
After Defrosting:
1. Large items may be icy in the
center. Defrosting will complete
during Standing Time.
2. Let stand, covered, following
stand time directions on
page 15.
3. Rinse foods indicated in the
chart.
4. Items which have been layered
should be rinsed separately or
have a longer stand time.
FOOD
DEFROST
TIME at P3
mins (per lb)
DURING DEFROSTING
AFTER DEFROSTING
Stand Time Rinse
Fish and Seafood
Crabmeat
[up to 1.4
kg
(3 lbs.)]
6 Break apart/Rearrange
5 min. YES
Fish Steaks 4 to 6 Turn over
Fish Fillets 4 to 6 Turn over/Rearrange
Sea Scallops 4 to 6
reak apart/
Remove defrosted pieces
Whole sh 4 to 6 Turn over
Meat
Ground Meat
4 to 5
Turn over/
Remove defrosted portion
10 min.
NO
Roasts
[1.1-1.8
kg
(2½-4 lbs.)]
4 to 8 Turn over 30 min. in fridge.
Chops/Steak 6 to 8 Turn over/Rearrange
5 min.
Ribs/T-bone 6 to 8 Turn over/Rearrange
Stew Meat 4 to 8
Break apart/
Remove defrosted pieces
Liver (thinly sliced) 4 to 6
Drain liquid/Turn over/
Separate pieces
Bacon (sliced) 4 Turn over ----
Poultry
Chicken, Whole
[up to 1.4
kg
(3 lbs.)]
4 to 6 Turn over 20 min. in fridge
YES
Cutlets 4 to 6
Break apart/Turn over/
Remove defrosted Pieces
5 min.
Pieces 4 to 6 Break apart/Turn over
10 min.
Cornish hens 6 to 8 Turn over
Turkey Breast
[2.3-2.7
kg
(5-6 lbs.)]
6 Turn over 20 min. in fridge
F0003BY60CP_En.indd 14F0003BY60CP_En.indd 142018/1/10 8:41:142018/1/10 8:41:14
15
Operation (continued)
Setting the Timer Setting a Standing Time Setting a Delayed
Start
1
This feature allows you to
program the oven as a kitchen
timer. Press Timer/Clock (Less)
once.
2
Set desired amount of time
using Number pads (up to 99
minutes, 99 seconds).
3
Press Start. The timer will count
down without cooking and
beep five times when done.
Caution: If oven lamp is lit
while using the timer feature
with door closed, the oven is
NOT set properly; STOP OVEN
IMMEDIATELY and re-read
instructions.
1
Some recipes call for a standing
time after cooking. Press Power
Level until the desired power
level appears in the display.
2
Set Cooking Time using the
Number pads (see page 13 for
maximum times).
3
Press Timer/Clock (Less) once.
4
Set desired amount of stand
time using Number pads (up
to 99 minutes, 99 seconds).
5
Press Start. The timer will start
and then beep twice at the end
of cooking time (the beginning
of standing time). Five beeps
will sound when standing time
is done.
1
The start time can be delayed
to start cooking at a later time.
To do this, first press Timer/
Clock (Less).
2
Enter the desired delay time
(up to 99 minutes, 99 seconds)
using the Number pads.
3
Press Power Level until the
desired power level appears in
the display.
Continued on the
Next Page
F0003BY60CP_En.indd 15F0003BY60CP_En.indd 152018/1/10 8:41:142018/1/10 8:41:14
16
Operation (continued)
Setting a Delayed Start (continued) Popcorn
(Example: To pop 99 g (3.5 oz.) of popcorn)
4
Set Cooking Time using the
Number pads (see page 13 for
maximum times).
5
Press Start; the delay time will
count down, then cooking will
begin. At the end of cooking,
five beeps will sound.
NOTES:
1. When each stage finishes,
the oven will beep twice. At
the end of the program, the
oven will beep five times.
2. If the oven door is opened
during Stand Time, Kitchen
Timer or Delay Time, the
time on the display will
continue to count down.
3. Stand Time and Delay start
cannot be programmed
before any automatic
function (such as frozen
food, sensor cook (reheat),
popcorn, coffee/milk
and turbo defrost). This
is to prevent the starting
temperature of food from
rising.
4. When using Standing time
or Delay Start, it’s up to 2
power stages.
1
Press Popcorn until the desired
size appears in the display.
Press Menu
once
twice
3 times
99 g (3.5 oz.)
78 g (2.75 oz.)
42 g (1.5 oz.)
2
Press Start; After several
seconds, cooking time appears
in the display window and
begins to count down.
NOTES:
1. If the user desires, More/
Less adjustment can
be done. Press Quick
30 (More) once to add
10 seconds or twice to
add 20 seconds. Press
Timer/Clock (Less) once
to subtract 10 seconds
or twice to subtract 20
seconds. Press Quick 30
(More) or Timer/Clock
(Less) before pressing
Start.
2. Pop one bag at a time.
3. Place bag in oven according
to manufacturers’ directions.
4. Start with popcorn at
room temperature.
5. Allow popped corn to
sit unopened for a few
minutes.
6. Open bag carefully to
prevent burns, because
steam will escape.
7. Do not reheat unpopped
kernels or reuse bag.
8. If popcorn is of a different
weight than listed, follow
instructions on popcorn
package.
9. Never leave the oven
unattended.
10. If popping slows to 2 to
3 seconds between pops,
stop oven. Overcooking
can burn popcorn or
cause fire.
11. When popping multiple
bags one right after
the other, the cooking
time may vary slightly.
This does not affect the
popcorn results.
F0003BY60CP_En.indd 16F0003BY60CP_En.indd 162018/1/10 8:41:152018/1/10 8:41:15
17
Coffee/Milk
(Example: To reheat 2 cups coffee.)
Frozen Food
1
Press Coffee/Milk until the
desired menu appears in the
display window.
Press Menu
once
twice
3 times
4 times
1 cup coffee (1-1)
2 cups coffee (1-2)
1 cup milk (2-1)
2 cups milk (2-2)
2
Press Start. Reheat will start.
The time in the display window
will count down.
NOTES:
1. If the user desires, More/
Less adjustment can be
done. Press Quick 30
(More) to add 10% more
time than suggested.
Press Timer/Clock (Less)
to subtract 10% cooking
time. Press Quick 30
(More) or Timer/Clock
(Less) before pressing
Start.
2. Use a microwave safe cup.
3. Heated coffee/milk can
erupt if not mixed with air.
Do not heat coffee/milk
in your microwave oven
without stirring before and
halfway through heating.
4. Care must be exercised
not to overheat coffee/
milk when using the
Coffee/Milk feature. It
is programmed to give
proper result when
heating 1 cup or 2 cups
of coffee/milk, starting
from room temperature
for coffee and refrigerator
temperature for milk.
Overheating will cause an
increased risk of scalding,
or water eruption. Refer to
page 4, item 18.
5. 1 cup of milk is 200 ml
(¾ cup) to 250 ml (1 cup)
and 1 cup of coffee is
150 ml (⁄cup) to 200 ml
(¾ cup).
1
Press Frozen Food until the
number corresponding to the
desired food appears in the
display.
Press Menu
once
twice
3 times
4 times
5 times
Frozen Entrées
Frozen Pizza (single)
Frozen Vegetables
Frozen Dinners
Frozen Pocket
Sandwich
2
Press Start. Cooking is
complete when five beeps
sound.
NOTES:
If the user desires, More/Less
adjustment can be done. Press
Quick 30 (More) to add 20%
more time than suggested.
Press Timer/Clock (Less) to
subtract 20% cooking time.
Press Quick 30 (More) or
Timer/Clock (Less) before
pressing Start.
Frozen Food Chart
See the chart below for Frozen Food categories.
Recipe
Serving/
Weight
Hints
1. Frozen Entrées
220 - 800 g
(8 - 28 oz.)
Follow manufacturers' directions
for preparation. After 2 beeps,
stir or rearrange. Be careful when
removing the film cover after
cooking. Remove facing away
from you to avoid steam burns. If
additional time is needed, continue
to cook manually.
2. Frozen Pizza
(single)
220 g
(8 oz.)
Follow manufacturers’ directions
for preparation.
Add more time of cooking if
needed.
3. Frozen
Vegetables
170 - 450 g
(6 - 16 oz.)
Wash thoroughly, add 15 ml
(1 tbsp.) of water per 125 ml
(½ cup) of vegetables, and cover
with lid or vented plastic wrap. Do
not salt/butter until after cooking.
(Not suitable for vegetables in
butter or sauce.) After 2 beeps, stir.
4. Frozen Dinners
300 - 450 g
(11 - 16 oz.)
Follow manufacturers' directions
for covering or removing covers.
Do not use frozen foods packaged
in foil trays. After 2 beeps, stir or
rearrange.
5. Frozen Pocket
Sandwich
1 sandwich
128 g (4.5 oz.)
Follow manufacturer’s directions
for preparation.
Operation (continued)
F0003BY60CP_En.indd 17F0003BY60CP_En.indd 172018/1/10 8:41:152018/1/10 8:41:15
18
Operation (continued)
Sensor Reheat Sensor Cook
1
Press Sensor Cook (Reheat)
once.
2
Press Start. Reheating is
complete when five beeps
sound.
NOTES:
1. If the user desires, More/Less
adjustment can be done. Press
Quick 30 (More) to add 20%
more time than suggested.
Press Timer/Clock (Less)
to subtract 20% cooking time.
Press Quick 30 (More) or
Timer/Clock (Less) before
pressing Start.
2. After having used the Sensor
Reheat feature a few times,
you may decide you would
prefer your food cooked to a
different doneness – that is why
you would utilize the Quick 30
(More) or Timer/Clock (Less)
pads.
3. When steam is detected by the
Genius Sensor and two beeps
sound, the remaining cooking
time will appear in the display.
Casseroles: Add 45 to
60 ml (3 to 4 tablespoons) of
liquid, cover with lid or vented
plastic wrap. Stir when time
appears in the display window.
Canned foods: Empty contents
into casserole dish or serving
bowl, cover dish with lid or vented
plastic wrap. After reheating, let
stand for a few minutes.
Plate of food: Arrange food on
plate; top with butter, gravy, etc.
Cover with lid or vented plastic
wrap. After reheating, let stand for
a few minutes.
DO NOT USE SENSOR REHEAT:
1. To reheat bread and pastry
products. Use manual power
and time for these foods.
2. For raw or uncooked foods.
3. If oven cavity is warm.
4. For beverages.
5. For frozen foods.
1
Press Sensor Cook
(Reheat) until the number
corresponding to the desired
food appears in the display (see
chart on the next page).
2
Press Start. Cooking is
complete when five beeps
sound.
NOTES:
1. If the user desires, More/Less
adjustment can be done.
Press Quick 30 (More) to
add 20% more time than
suggested. Press Timer/
Clock (Less) to subtract 20%
cooking time. Press Quick
30 (More) or Timer/Clock
(Less) before pressing Start.
2. After having used the Sensor
Cook feature a few times,
you may decide you would
prefer your food cooked to
a different doneness – that
is why you would utilize the
Quick 30 (More) or Timer/
Clock (Less) pad.
3. When steam is detected by
the Genius Sensor and two
beeps sound, the remaining
cooking time will appear in
the display.
4.
Automatic features
are provided for your
convenience. If results
are not suitable to your
individual preference, or if
serving size is other than
what is listed on page 19,
please refer to manual
cooking on page 13.
For the best results with
the GENIUS SENSOR, follow
these recommendations:
BEFORE Reheating/Cooking:
1. The room temperature
surrounding the oven should
be below 35 °C (95 °F).
2. Food weight should exceed
110 g (4 oz.).
3. Be sure the glass tray, the
outside of the cooking
containers and the inside
of the microwave oven are
dry before placing food in
the oven. Residual beads of
moisture turning into steam
can mislead the sensor.
4. Cover food with lid, or
with vented plastic wrap.
Never use tightly sealed
plastic containers—they
can prevent steam from
escaping and cause food to
overcook.
DURING Reheating/Cooking:
DO NOT open the oven door
until two beeps sound and
cooking time appears in the
display. Doing so will cause
inaccurate cooking since the
steam from food is no longer
contained within the oven
cavity.
Once the cooking time begins
to count down, the oven door
may be opened to stir, turn or
rearrange foods.
AFTER Reheating/Cooking:
All foods should have a
standing time.
F0003BY60CP_En.indd 18F0003BY60CP_En.indd 182018/1/10 8:41:152018/1/10 8:41:15
19
Operation (continued)
Sensor Cook Chart
See the chart below for Sensor Cook categories.
Recipe Serving/Weight Hints
6. Sensor Reheat
110 - 450 g
(4 - 16 oz.)
All foods, such as casseroles, plated dinners, soups, stews, pasta dishes (except lasagne) and canned foods,
must be pre-cooked. Foods should be reheated from refrigerator or room temperature, do not reheat
frozen foods on this setting. Do not reheat in foil or plastic containers as unsuccessful reheating times will
result. All foods should be covered securely with vented plastic wrap or a fitting lid. Where possible after
heating, stir foods and stand covered for 3 to 5 minutes before serving.
7. Oatmeal
40 - 80 g
(½ - 1 cup)
Place oatmeal in a microwave safe serving bowl with no cover. Follow manufacturers’ directions for
preparation.
8. Potatoes
(pierce skin)
1 - 4 potatoes
(170 - 220 g)
(6 - 8 oz. each)
Pierce each potato with a fork 6 times spacing around surface. Place potato or potatoes around the edge
of paper-towel-lined glass tray, at least 2.5 cm (1 inch) apart. Do not cover. Turn over after 2 beeps. Let
stand 5 minutes to complete cooking.
9. Soup
250 - 500 ml
(1 - 2 cups)
Pour soup into a microwave safe serving bowl.
Cover with lid or vented plastic wrap. After 2 beeps, stir. Stir after cooking.
10. Breakfast
Sausage
2 - 8 links Follow manufacturers' directions for preparation of pre-cooked breakfast sausage. Place in a radial pattern.
11. Omelet
2 - 4 eggs Follow basic Omelet recipe on this page.
12. Fresh
Vegetables
110 - 450 g
(4 - 16 oz.)
All pieces should be the same size. Wash thoroughly, add 15 ml (1 tbsp.) of water per 125 ml (½ cup) of
vegetables, and cover with lid or vented plastic wrap. Do not salt/butter until after cooking. After 2 beeps,
stir.
13. Canned
Vegetables
430 g
(15 oz.)
Empty contents into microwave safe serving bowl. Do not cover.
14. White Rice
110 - 335 g
(½ - 1½ cups)
Place rice with hot tap water in a microwave safe casserole dish. Cover with lid or vented plastic wrap. Let
stand 5 to 10 minutes before serving. Add 2 parts water to 1 part rice. After 2 beeps, stir.
15. Brown Rice
110 - 335 g
(½ - 1½ cups)
(maximum)
Place rice with hot tap water in a microwave safe casserole dish. Cover with lid or vented plastic wrap. Let
stand 5 to 10 minutes before serving. Add 2 parts water to 1 part rice. For ¼ cup, triple water may need as
necessary. After 2 beeps, stir.
16. Quinoa
45 - 180 g
(¼ - 1 cups)
Place quinoa in a 3 qt microwave safe casserole dish. Add 2 parts water to 1 part quinoa. For ¼ cup, triple
water may need as necessary. Cover with lid or vented plastic wrap. After 2 beeps, stir. Let stand
14 minutes before serving.
17. Pasta
55 - 220 g
(2 - 8 oz.)
Place 55 g (2 oz.) pasta with 750 ml (3 cups) hot tap water in a 2 qt microwave safe casserole, salt and oil, if
desired, covered with lid or vented plastic wrap. For 110 g (4 oz.) pasta use 1000 ml (4 cups) hot tap water,
for 165 ml (6 oz.) pasta use 1500 ml (6 cups) hot tap water in 3 qt casserole, for 220 g (8 oz.) pasta use
1750 ml (7 cups) hot tap water. After 2 beeps, stir.
18. Stew
4 Serv.
In a 3 qt casserole dish, crumble 450 g (1 lb) lean ground beef and stir in 2 medium onions (chopped),
1 ml (¼ teaspoon) dried garlic pieces. Cover with plastic wrap and cook on P6 for 8 minutes. Stir after
cooking. Drain. Add 450 g (1 lb) pinto or red kidney beans (soak overnight), 425 g (15 oz.) stewed tomatoes
(chopped), 425 g (15 oz.) tomato sauce, 5 ml (1 teaspoon) salt and 10 to 15 ml (2 to 3 tablespoons) chili
powder. Cover with lid, using Stew selection. After 2 beeps, stir. Recover and touch Start. Stir after cooking.
Cover again and let stand 7 minutes before serving.
19. Ground Meat
450 - 900 g
(16 - 32 oz.)
Break apart in glass bowl or colander. Cover with lid or vented plastic wrap. After 2 beeps, stir. Re-cover
and touch Start. Juices should be clear. Drain.
20. Fish Fillets
110 - 450 g
(4 - 16 oz.)
Arrange in a single layer. Cover with lid or vented plastic wrap.
Recipe
Turn the plate to coat the bottom with butter. Meanwhile,
combine the remaining ingredients in a separate bowl, beat
together and pour into the pie plate. Cook, covered with vented
plastic wrap, using OMELET selection. Let stand 2 minutes. With a
spatula, loosen the edges of the omelet from the plate, fold into
thirds to serve. Always beat the eggs before making the omelet.
Yield: 1 Serving
Approx. cooking time: 4 minutes.
NOTE: Double ingredients for a 4-egg Omelet.
OMELET
Basic Omelet Recipe
15 ml (1 Tablespoon) butter or margarine
2 Eggs
30 ml (2 Tablespoons) milk
Salt and ground black pepper, if desired.
Heat butter in a microwave safe 23 cm (9-inch) pie plate,
20 seconds at P10, or until melted.
F0003BY60CP_En.indd 19F0003BY60CP_En.indd 192018/1/10 8:41:152018/1/10 8:41:15
20
Food Characteristics
Bone and Fat
Both bone and fat affect cooking. Bones may cause
irregular cooking. Meat next to the tips of bones may
overcook while meat positioned under a large bone,
such as a ham bone, may be undercooked. Large
amounts of fat absorb microwave energy and the meat
next to these areas may overcook.
Density
Porous, airy foods such as breads, cakes or rolls take
less time to cook than heavy, dense foods such as
potatoes and roasts. When reheating donuts or other
foods with different centers be very careful. Certain
foods have centers made with sugar, water, or fat
and these centers attract microwaves (for example,
jelly donuts). When a jelly donut is heated, the jelly
can become extremely hot while the exterior remains
warm to the touch. This could result in a burn if the food is not allowed to
cool properly in the center.
Quantity
Two potatoes take longer to cook than one potato. As the
quantity of the food decreases so does the cooking time.
Overcooking will cause the moisture content in the food
to decrease and a fire could result. Never leave microwave
unattended while in use.
Shape
Uniform sizes heat more evenly. The thin end of a
drumstick will cook more quickly than the meaty end.
To compensate for irregular shapes, place thin parts
toward the center of the dish and thick pieces toward
the edge.
Size
Thin pieces cook more quickly than thick pieces.
Starting Temperature
Foods that are at room temperature take less time to cook than
if they are chilled, refrigerated or frozen.
Cooking Techniques
Piercing
Foods with skins or membranes must be pierced, scored or have a strip of
skin peeled before cooking to allow steam to escape. Pierce clams, oysters,
chicken livers, whole potatoes and whole vegetables. Whole apples or new
potatoes should have a 2.5 cm (1-inch) strip of skin peeled before cooking.
Score sausages and frankfurters. Do not Cook/Reheat whole eggs, with or
without the shell. Steam buildup in whole eggs may cause them to explode,
and possibly damage the oven or cause injury. Reheating SLICED hard-boiled
eggs and cooking SCRAMBLED eggs is safe.
Browning
Foods will not have the same brown appearance as conventionally cooked foods
or those foods which are cooked utilizing a browning feature. Meats and poultry
may be coated with browning sauce, Worcestershire sauce, barbecue sauce or
shake-on browning sauce. To use, combine browning sauce with melted butter
or margarine and brush on before cooking. For quick breads or muffins, brown
sugar can be used in the recipe in place of granulated sugar, or the surface can be
sprinkled with dark spices before baking.
Spacing
Individual foods, such as baked potatoes, cupcakes and appetizers, will cook
more evenly if placed in the oven equal distances apart. When possible,
arrange foods in a circular pattern.
Covering
As with conventional cooking, moisture evaporates during microwave
cooking. Casserole lids or plastic wrap are used for a tighter seal. When using
plastic wrap, vent the plastic wrap by folding back part of the plastic wrap
from the edge of the dish to allow steam to escape. Loosen or remove plastic
wrap as recipe directs for stand time. When removing plastic wrap covers,
as well as any glass lids, be careful to remove them away from you to avoid
steam burns. Various degrees of moisture retention are also obtained by using
wax paper or paper towels.
Shielding
Thin areas of meat and poultry cook more quickly than meaty portions. To
prevent overcooking, these thin areas can be shielded with strips of aluminum
foil. Wooden toothpicks may be used to hold the foil in place.
CAUTION is to be exercised when using foil. Arcing can occur if foil is too
close to oven wall or door and damage to your oven will result.
Cooking Time
Cooking times will vary because of food shape variations, starting
temperature, and regional preferences. Always cook food for the minimum
cooking time given in a recipe and check for doneness. If the food is
undercooked, continue cooking. It is easier to add time to an undercooked
product. Once the food is overcooked, nothing can be done.
Food Characteristics
F0003BY60CP_En.indd 20F0003BY60CP_En.indd 202018/1/10 8:41:162018/1/10 8:41:16
21
Stirring
Stirring is usually necessary during microwave cooking. Always bring the
cooked outside edges toward the center and the less cooked center portions
toward the outside of the dish.
Rearranging
Rearrange small items such as chicken pieces, shrimp, hamburger patties or
pork chops. Rearrange pieces from the edge to the center and pieces from the
center to the edge of the dish.
Turning
It is not possible to stir some foods to distribute the heat evenly. At times,
microwave energy will concentrate in one area of the food. To help ensure
even cooking, these foods need to be turned. Turn over large foods, such as
roasts or turkeys, halfway through cooking.
Standing Time
Most foods will continue to cook by conduction after the microwave oven is
turned off. After cooking meat, the internal temperature will rise 3 °C to
8 °C (5 °F to 15 °F), if allowed to stand, tented with foil, for 10 to 15 minutes.
Casseroles and vegetables need a shorter amount of standing time, but this
standing time is necessary to allow foods to complete cooking to the center
without overcooking on the edges.
Test for Doneness
The same tests for doneness used in conventional cooking may be used for
microwave cooking. Meat is done when fork-tender or splits at fibers. Chicken
is done when juices are clear yellow and drumstick moves freely. Fish is done
when it flakes and is opaque. Cake is done when a toothpick or cake tester is
inserted and comes out clean.
Check foods to see that they are cooked to the United States Department of
Agriculture’s recommended temperatures.
To test for doneness, insert a meat thermometer in a thick or dense area
away from fat or bone. NEVER leave the thermometer in the food during
cooking, unless it is approved for microwave oven use.
Cook all food to these minimum internal temperatures as measured
with a food thermometer before removing food from oven. For
reasons of personal preference, you may choose to cook food at
higher temperatures.
Product
Minimum Internal
Temperature & Rest Time
Beef, Pork, Veal & Lamb
Steaks, chops, roasts
63 °C (145 °F) and allow to rest
for at least 3 minutes
Ground meats 71 °C (160 °F)
Ham, fresh or smoked
(uncooked)
63 °C (145 °F) and allow to rest
for at least 3 min.
Fully Cooked Ham
(to reheat)
Reheat cooked hams
packaged in USDA-inspected
plants to 60 °C (140 °F); all
others to 74 °C (165 °F).
All Poultry (breasts, whole
bird, legs, thighs, and wings,
ground poultry, and stuffing)
74 °C (165 °F)
Eggs 71 °C (160 °F)
Fish & Shellfish 63 °C (145 °F)
Leftovers 74 °C (165 °F)
Casseroles 74 °C (165 °F)
Food Characteristics (continued)
F0003BY60CP_En.indd 21F0003BY60CP_En.indd 212018/1/10 8:41:162018/1/10 8:41:16
22
Care and Cleaning of Your Microwave Oven
Please see below and the following
page for particular cleaning instructions
for each section of the oven.
BEFORE CLEANING: Unplug oven at wall
outlet. If outlet is inaccessible, leave oven
door open while cleaning.
AFTER CLEANING: Be sure to place the
Roller Ring and the Glass Tray in the proper
position and press Stop/Reset Pad to clear
the Display.
1. Outside oven surfaces: Clean with a
damp cloth. To prevent damage to the
operating parts inside the oven, water
should not be allowed to seep into
ventilation openings.
2. Label: Do not remove. Wipe with a
damp cloth.
3. Inside the Oven: Wipe with a damp
cloth after using. Mild detergent may
be used if needed. Do not use harsh
detergents or abrasives.
4. Oven Door: Wipe with a soft dry cloth
when steam accumulates inside or around the outside of the oven door. During cooking, especially under high humidity conditions,
steam is given off from the food. (Some steam will condense on cooler surfaces, such as the oven door. This is normal.) Inside surface
is covered with a heat and vapor barrier film. Do not remove.
5. Oven Cavity Floor: Clean the bottom surface of the oven with mild detergent, water or window cleaner, and dry.
6. Wave Guide Cover: Do not remove Wave Guide Cover. It is important to keep cover clean in the same manner as the inside of the
oven.
7. Control Panel: The Control Panel is covered with a removable protective film to prevent scratches during shipping. Small bubbles
may appear under this film, so if this is the case, remove by applying masking or clear tape to an exposed corner and pull gently. If
the Control Panel becomes wet, clean it with a soft dry cloth. Do not use harsh detergents or abrasives.
8. Glass Tray: Remove and wash in warm soapy water or in a dishwasher.
9. Roller Ring: Roller Ring may be washed in mild soapy water or dishwasher. These areas should be kept clean to avoid excessive noise.
IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY. FOOD RESIDUE AND CONDENSATION MAY CAUSE
RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE DRY ALL SURFACES,
INCLUDING VENT OPENINGS, OVEN SEAMS, AND UNDER GLASS TRAY.
NOTE:
The illustration is for reference only.
Purchase Parts, Accessories and Owner’s Manual online for all Panasonic Products by visiting our Web Site at:
shop.panasonic.ca
Parts Available to Order
Owner’s Manual (this book) ....................................................................................F0003BY60CP
Glass Tray ....................................................................................................................A06014M00AP
Roller Ring Assembly .............................................................................................. F290DBX20AP
Shop Accessories
➀
➃
➆
➇
➁
➈
➂
➄➁ ➅
F0003BY60CP_En.indd 22F0003BY60CP_En.indd 222018/1/10 8:41:162018/1/10 8:41:16
23
Before Requesting Service
See below before calling for service, as most problems can easily be remedied by following these simple solutions:
Problem Solution
The oven causes TV
interference.
Some radio, TV, Wi-Fi, cordless telephone, baby monitor, blue tooth or
other wireless equipment interference might occur when you cook with the
microwave oven. This interference is similar to the interference caused by small
appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a
problem with your oven.
Steam accumulates
on oven door and
warm air comes from
the oven vents.
During cooking, steam and warm air are given off from the food. Most of the
steam and warm air are removed from the oven by the air which circulates in the
oven cavity. However, some steam will condense on cooler surfaces such as the
oven door. This is normal. After use, the oven should be wiped dry (see page 22).
Oven will not turn on.
The oven is not plugged in securely or needs to be reset; remove plug from
outlet, wait ten seconds and re-insert.
Main circuit breaker or main fuse is tripped; reset main circuit breaker or replace
main fuse.
There is a problem with the outlet; plug another appliance into the outlet to
check if it is working.
Oven will not start
cooking.
The door is not completely closed; close the oven door securely.
Start was not pressed after programming; press Start.
Another program is already entered into the oven; press Stop/Reset to cancel
the previous program and enter new program.
The program is not correct; program again according to the owner’s manual.
Stop/Reset has been pressed accidentally; program oven again.
The Glass Tray
wobbles.
The Glass Tray is not positioned properly on the Roller Ring or there is food under
the Roller Ring; take out Glass Tray and Roller Ring. Wipe with a damp cloth and
reset Roller Ring and Glass Tray properly.
When the oven is
operating, there is
noise coming from
the Glass Tray.
The Roller Ring and oven bottom are dirty; clean these parts according to Care
and Cleaning of Your Microwave Oven (see page 22).
The word “
”
appears in the
display.
The CHILD SAFETY LOCK was activated by pressing Start three times; Deactivate
CHILD SAFETY LOCK by pressing Stop/Reset three times.
The oven stops
cooking and nothing
appears in the display
window.
If the Display Window is blank, there is a problem with the microwave generation
system; Please contact an authorised Service Center (see next page).
F0003BY60CP_En.indd 23F0003BY60CP_En.indd 232018/1/10 8:41:162018/1/10 8:41:16
24
WARRANTY
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
Panasonic PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below
from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b)
replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or
refund will be made by Panasonic Canada Inc.
Category Service type Parts Labour Magnetron
Counter top microwave oven
(except Prestige models)
Carry-in 1 Year 1 Year
Additional 4 Years
(Part only)
Counter top microwave oven – Prestige model
(Genius Prestige, Genius Prestige Plus and Genius Prestige Grill)
In-home 2 Years 2 Years
Additional 3 Years
(Part only)
Microwave Convection oven In-home 2 Years 2 Years
Additional 3 Years
(Part only)
Over The Range (OTR) microwave oven In-home 2 Years 2 Years
Additional 3 Years
(Part only)
In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above
sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was deliv-
ered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PUR-
CHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The
warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by
products not supplied by
Panasonic Canada Inc.
, or failures which result from accidents, misuse, abuse, neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, light-
ning damage, modi cation, introduction of sand, humidity or liquids, commercial use such as hotel, o ce, restaurant, or other business or rental use of
the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.
Over-The-Range cooktop light bulbs are excluded from coverage under this warranty.
In the case where the microwave oven is built-in, the warranty will be voided if using a non-Panasonic trim kit.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL Panasonic Canada Inc. BE LIABLE FOR ANY
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media
or images, data or other memory or
recorded content. This list of items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied war-
ranties, so the above limitations and exclusions may not be applicable. This warranty gives you speci c legal rights and you may have other rights which
vary depending on your province or territory.
WARRANTY SERVICE
PRODUCT OPERATION ASSISTANCE
For product information and operation assistance, please visit our Support page: www.panasonic.ca/english/support
PRODUCT REPAIRS
Please locate your nearest Authorized Servicentre: panasonic.ca/english/support/servicentrelocator
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
F0003BY60CP_En.indd 24F0003BY60CP_En.indd 242018/1/10 8:41:162018/1/10 8:41:16
25
Specifications
Trim Kit Information
Power Source ............................................................................................................................................................................................................................120 V, 60 Hz
Power Consumption ...............................................................................................................................................................................................12.3 Amps, 1,460 W
Cooking Power* ............................................................................................................................................................................................................................... 1,200 W
Operating Frequency ................................................................................................................................................................................................................ 2,450 MHz
Outside Dimensions (W x H x D) ...................................................................................................................................................... 606 mm x 356 mm x 493 mm
(23
7
⁄8” x 14” x 19
7
⁄16”)
Oven Cavity Dimensions (W x H x D) ..............................................................................................................................................449 mm x 274 mm x 470 mm
(17
11
⁄16” x 10
13
⁄16” x 18
1
⁄2”)
Net Weight .......................................................................................................................................................................................................Approx. 16.7 kg (37.0 lbs)
*IEC Test procedure Specifications subject to change without notice.
Trim Kit for 27” Cabinet
Model Number: ..........................................................................................................................................................................................................................NN-TK922S
Outside Dimensions (W x H) ...................................................................................................................................................................................684 mm x 472 mm
......................................................................................................................................................................................................................................................(27” x 18 ⁄”)
Cabinet Opening (W x H x D) ............................................................................................................................................................ 648 mm x 442 mm x 533 mm
.........................................................................................................................................................................................................................................(25 ⁄” x 17
3
⁄8” x 21”)
Trim Kit for 30” Cabinet
Model Number: ..........................................................................................................................................................................................................................NN-TK932S
Outside Dimensions (W x H) ...................................................................................................................................................................................760 mm x 472 mm
(30” x 18 ⁄”)
Cabinet Opening (W x H x D) ............................................................................................................................................................ 724 mm x 442 mm x 533 mm
.........................................................................................................................................................................................................................................(28 ⁄” x 17
3
⁄8” x 21”)
F0003BY60CP_En.indd 25F0003BY60CP_En.indd 252018/1/10 8:41:162018/1/10 8:41:16
26
The serial number of this product may be found on the back side of the oven or on the left side of the control panel.
You should note the model number and the serial number of this oven in the space provided and retain this book as
a permanent record of your purchase for future reference.
Model No. ______________________________
Serial No. ______________________________
Date of Purchase ________________________
User’s Record
F0003BY60CP_En.indd 26F0003BY60CP_En.indd 262018/1/10 8:41:162018/1/10 8:41:16
