E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model Serial No.
Quick Guides
Using Smart Hub
1 Connecting to the Internet
1 Setting up Smart Hub
1 Using Smart Hub
Improving Your Viewing Experience of Sports Events
2 Activating sports mode
Connections
Connecting an Antenna
Connecting to the Internet
4 Establishing a wired Internet connection
5 Establishing a wireless Internet connection
Troubleshooting Internet Connectivity Issues
7 Troubleshooting wired Internet connectivity issues
8 Troubleshooting wireless Internet connectivity issues
Connecting Video Devices
9 Connecting with an HDMI cable

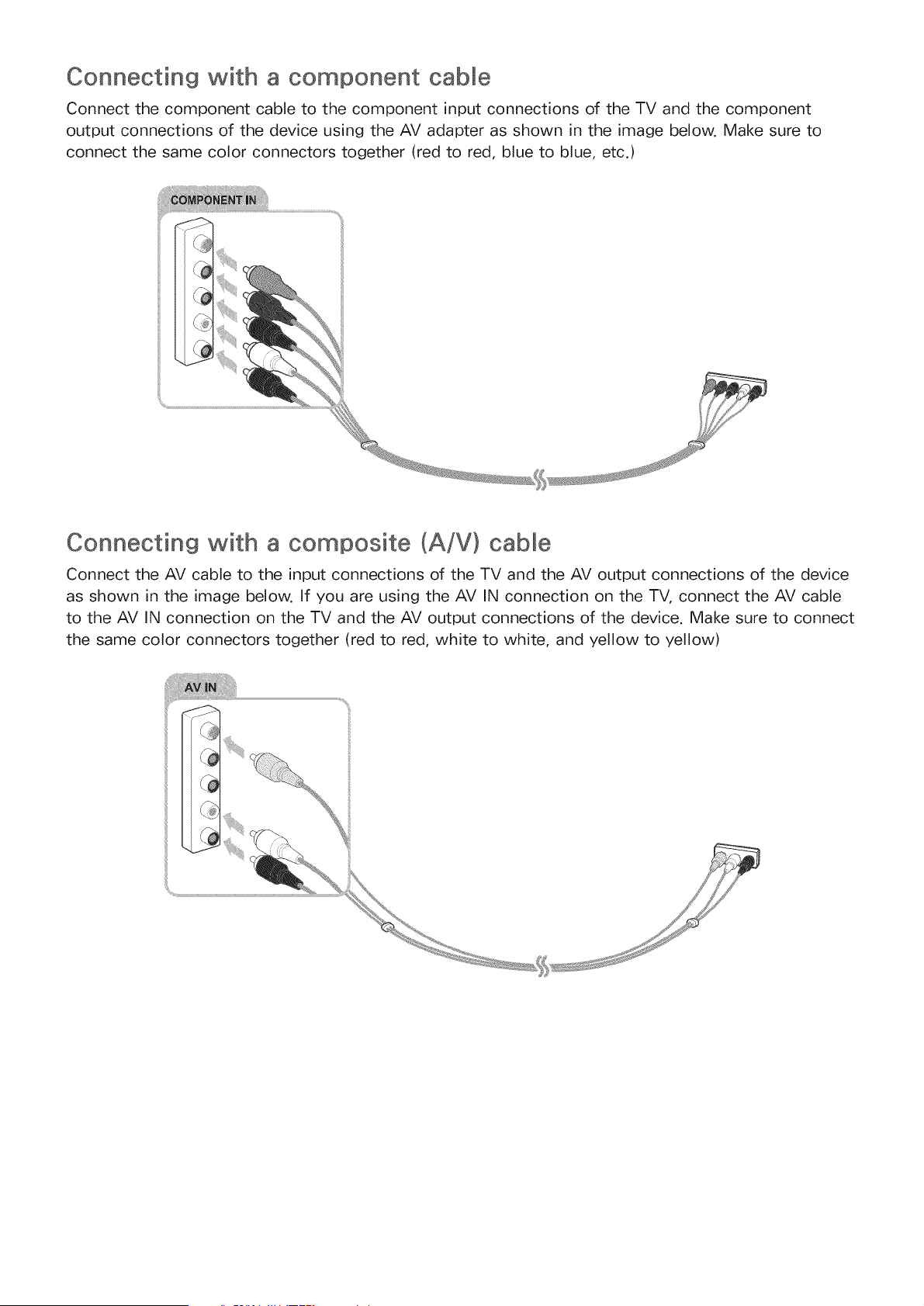

10 Connecting with a component cable
10 Connecting with a composite (A/V) cable

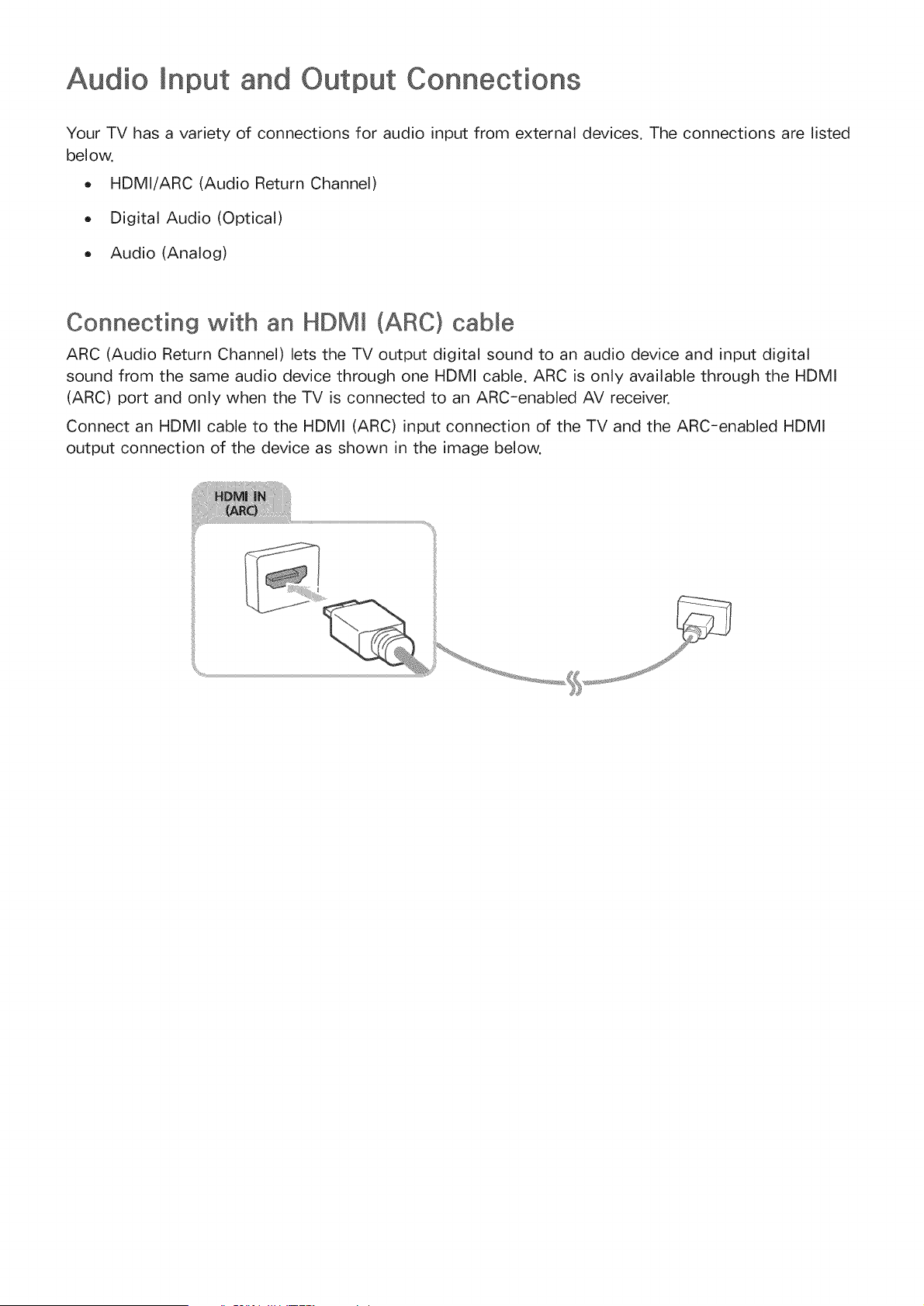

Audio Input and Output Connections
11 Connecting with an HDMI (ARC) cable
12 Connecting with a digital audio (optical) cable
12 Connecting with a stereo audio cable
Connecting a Computer
13 Connecting through the HDMI port
14 Connecting with an HDMI-to-DVI cable
14 Connecting through your home network
Connecting a Mobile Device
15 Connecting with an MHL-to-HDMI Cable
16 Using Screen Mirroring
17 Connecting mobile devices without a wireless router
(Wi-Fi Direct)
17 Connecting a mobile device via Samsung Smart View 2.0

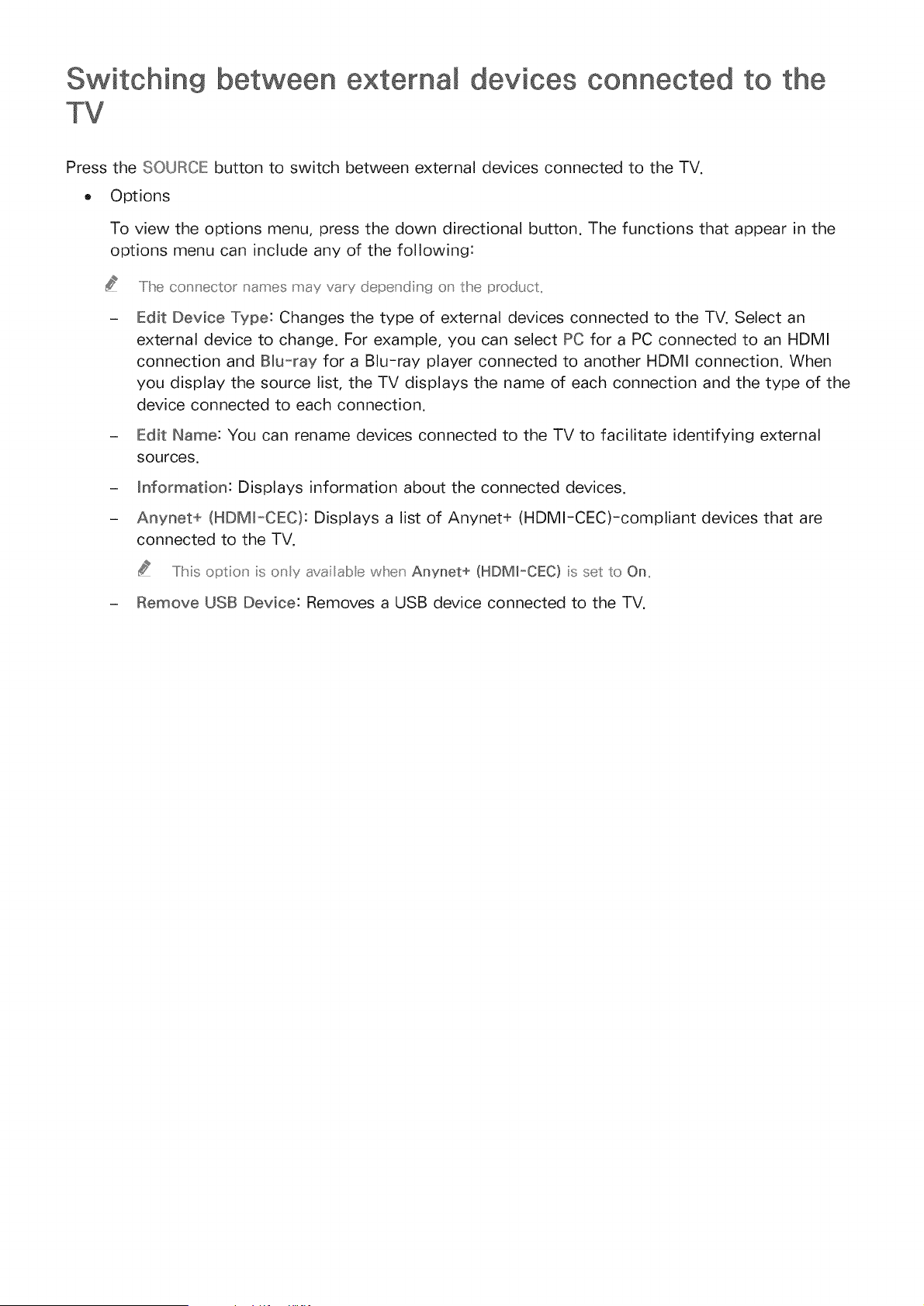

Switching between external devices connected to the
TV
Connection Notes
19 Connection notes for HDMI
20 Connection notes for audio devices
20 Connection notes for computers
20 Connection notes for mobile devices

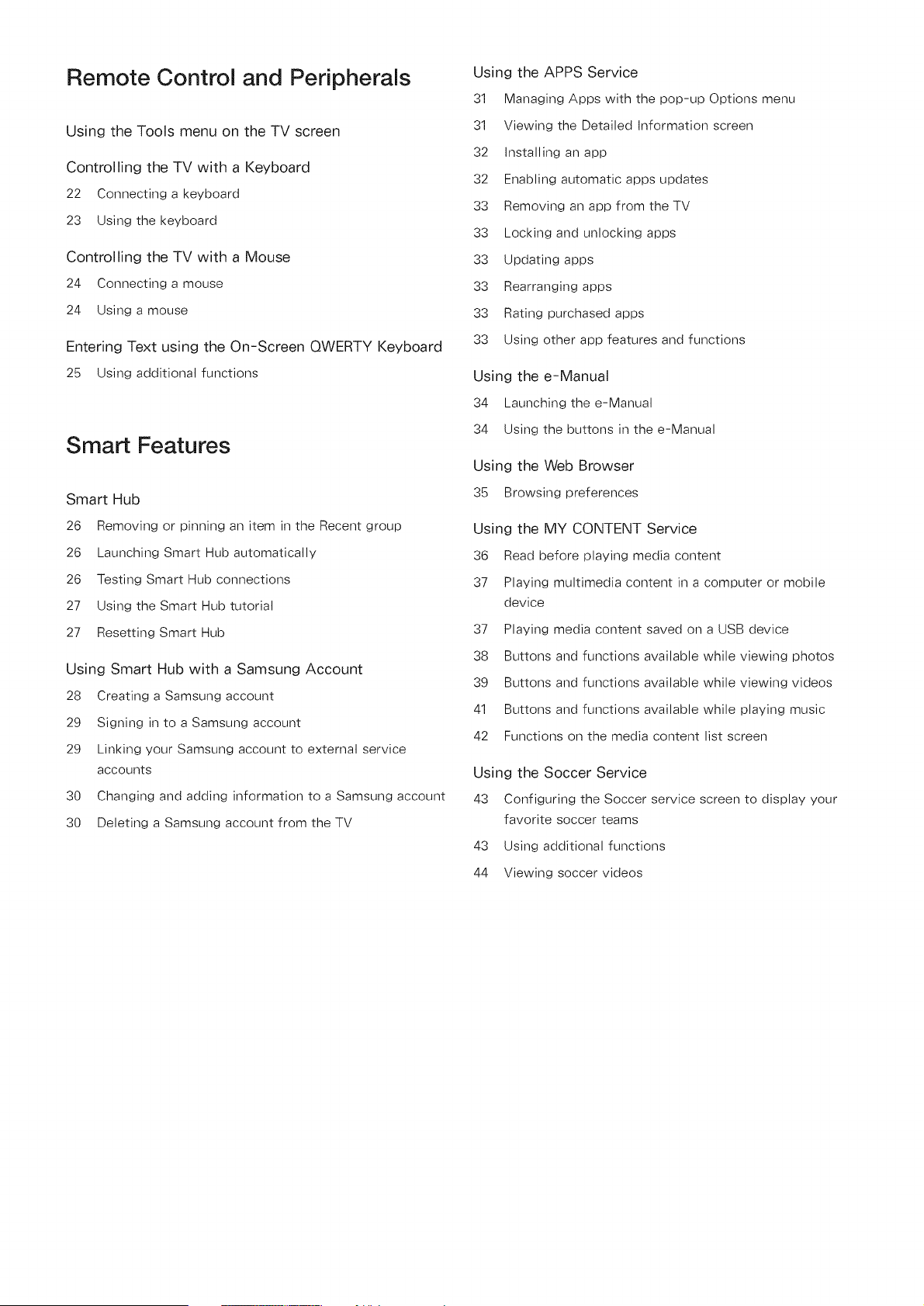

Remote Control and Peripherals

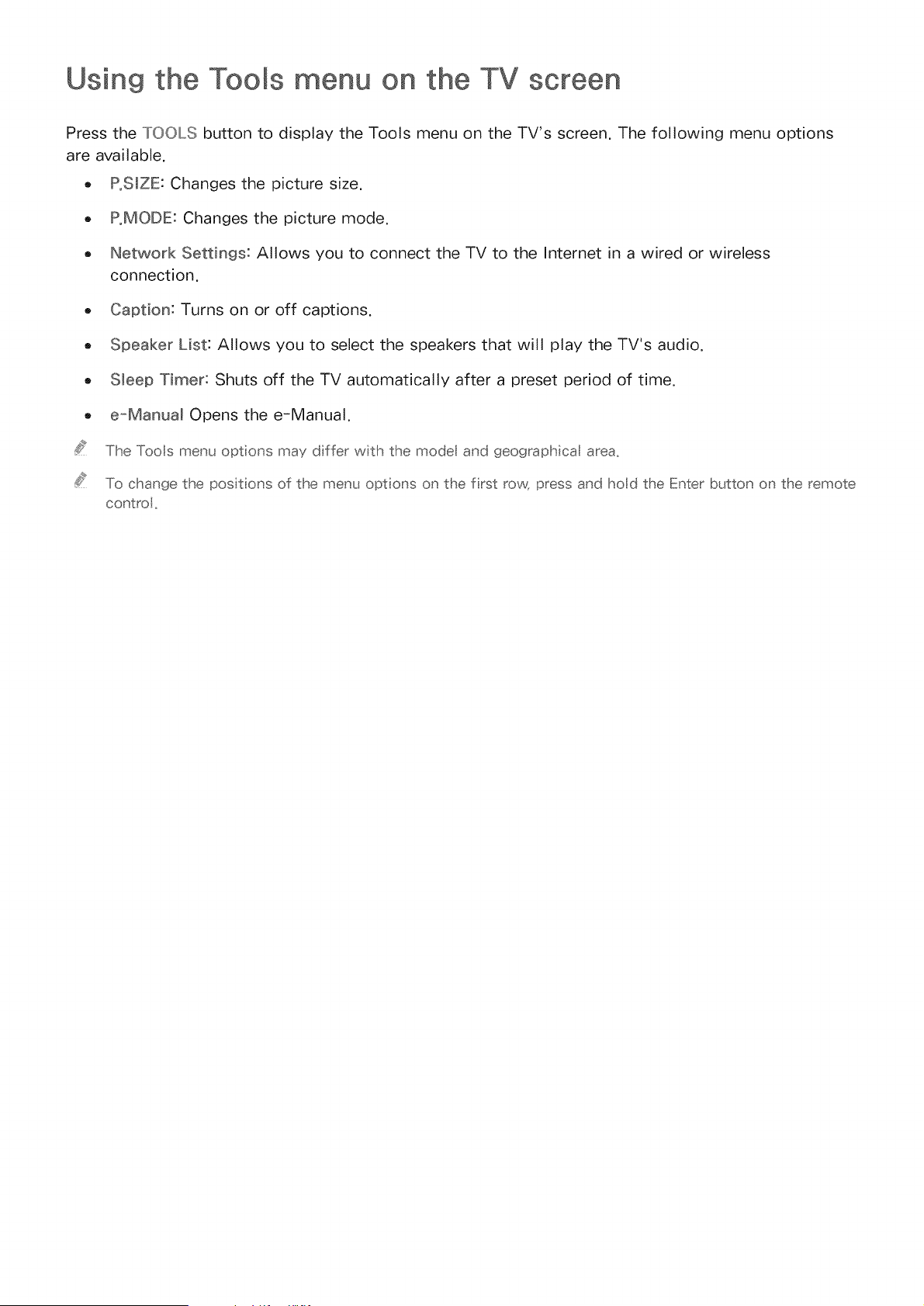

Using the Tools menu on the TV screen
Controlling the TV with a Keyboard
22 Connecting a keyboard
23 Using the keyboard
Controlling the TV with a Mouse
24 Connecting a mouse
24 Using a mouse
Entering Text using the On-Screen QWERTY Keyboard
25 Using additional functions
Smart Features
Smart Hub
26 Removing or pinning an item in the Recent group
26 Launching Smart Hub automatically
26 Testing Smart Hub connections
27 Using the Smart Hub tutorial
27 Resetting Smart Hub

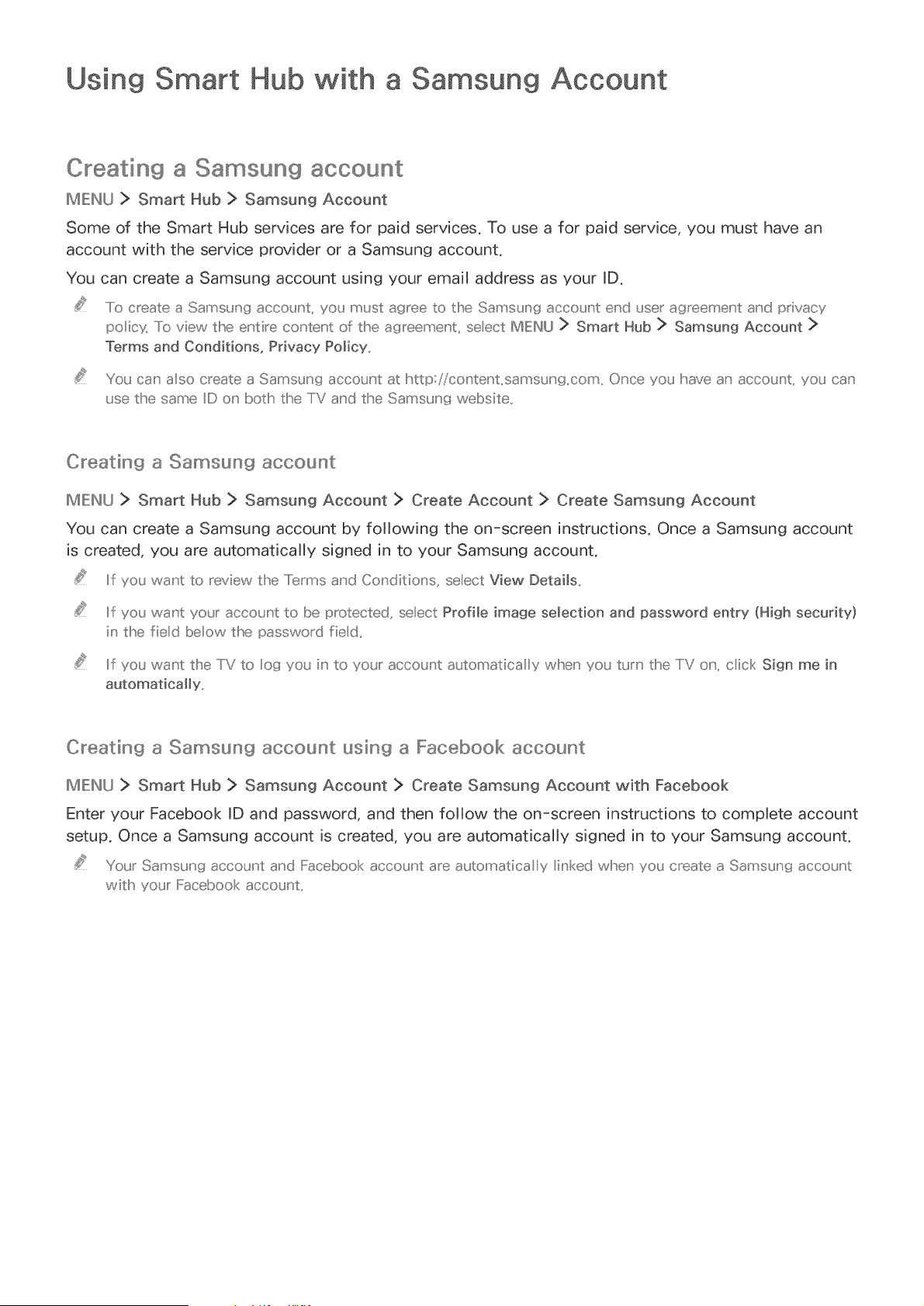

Using Smart Hub with a Samsung Account
28 Creating a Samsung account
29 Signing in to a Samsung account
29 Linking your Samsung account to external service
accounts
30 Changing and adding information to a Samsung account
30 Deleting a Samsung account from the TV
Using the APPS Service
31 Managing Apps with the pop-up Options menu
31 Viewing the Detailed Information screen
32 installing an app
32 Enabling automatic apps updates
33 Removing an app from the TV
33 Locking and unlocking apps
33 Updating apps
33 Rearranging apps
33 Rating purchased apps
33 Using other app features and functions

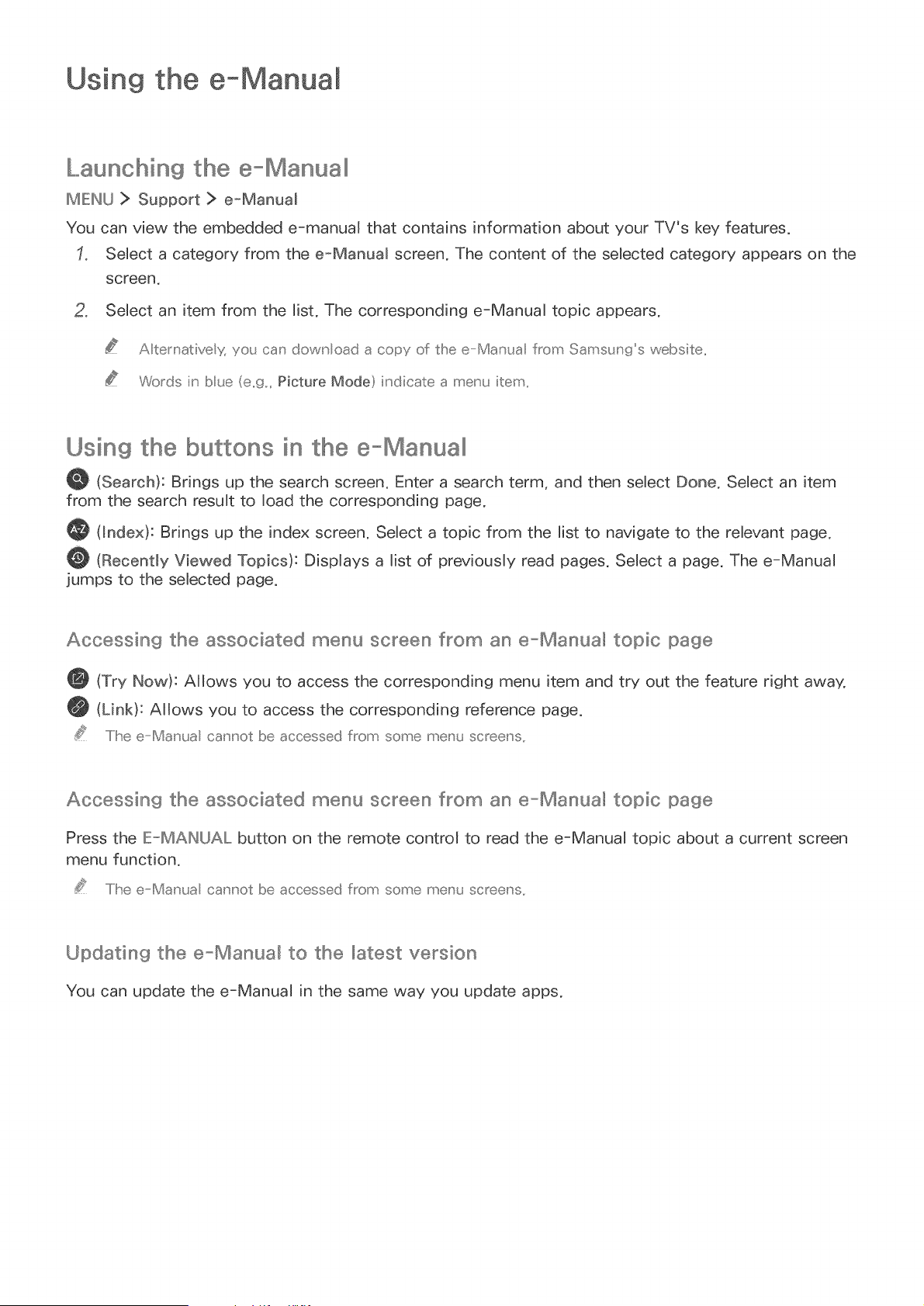

Using the e-Manual
34 Launching the e-Manual
34 Using the buttons in the e-Manual
Using the Web Browser
35 Browsing preferences

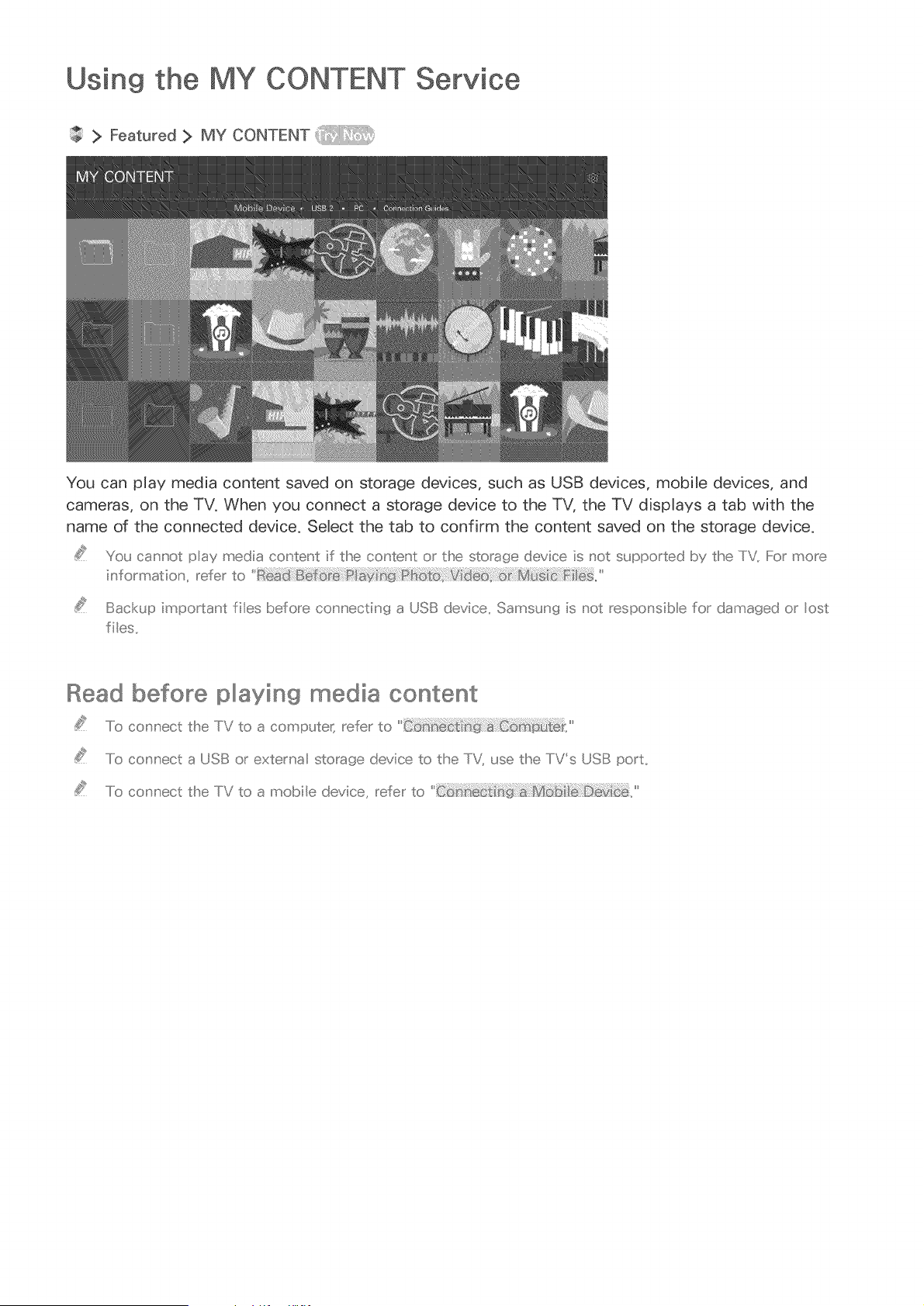

Using the MY CONTENT Service
36 Read before playing media content
37 Playing multimedia content in a computer or mobile
device
37 Playing media content saved on a USB device
38 Buttons and functions available while viewing photos

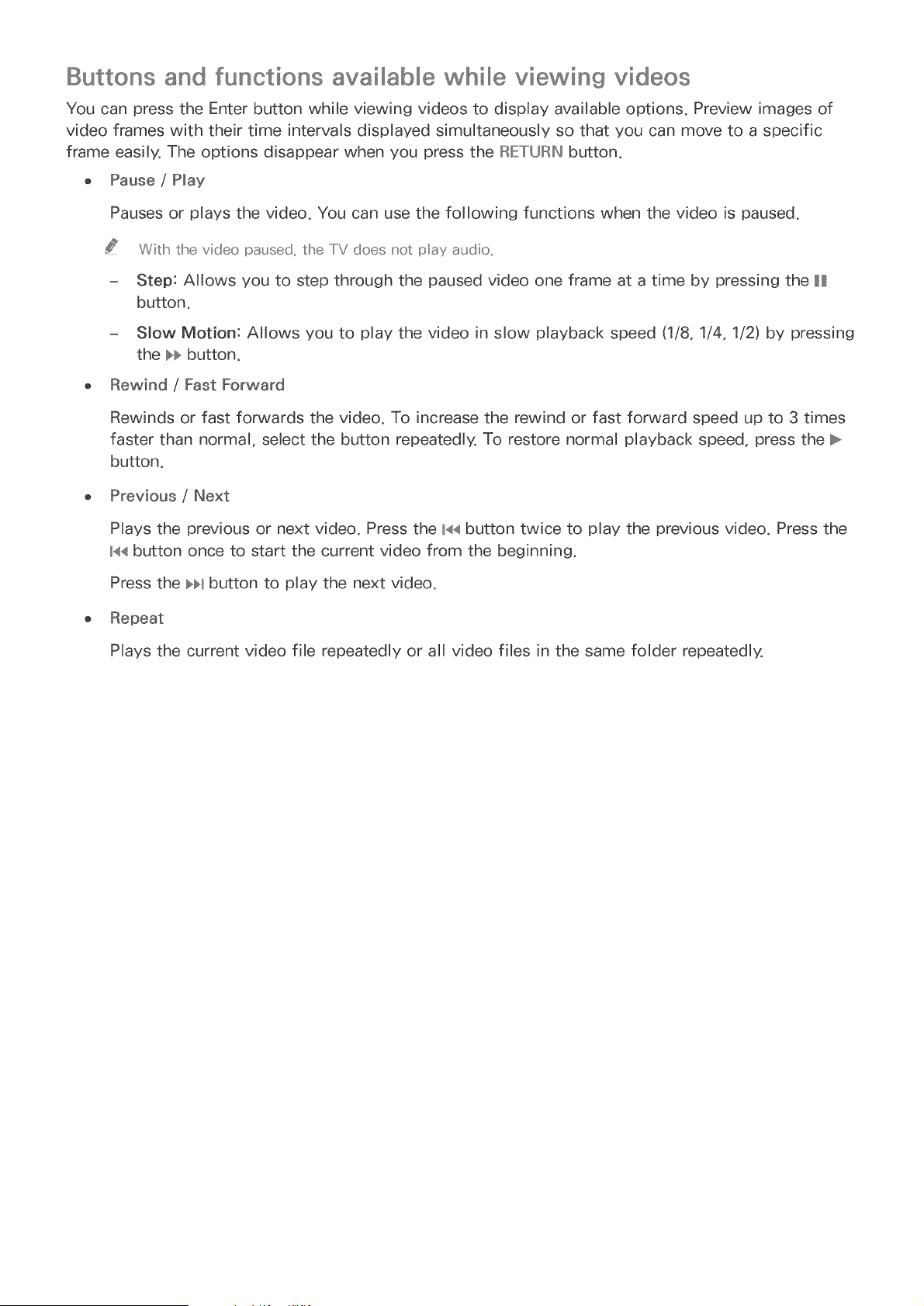

39 Buttons and functions available while viewing videos

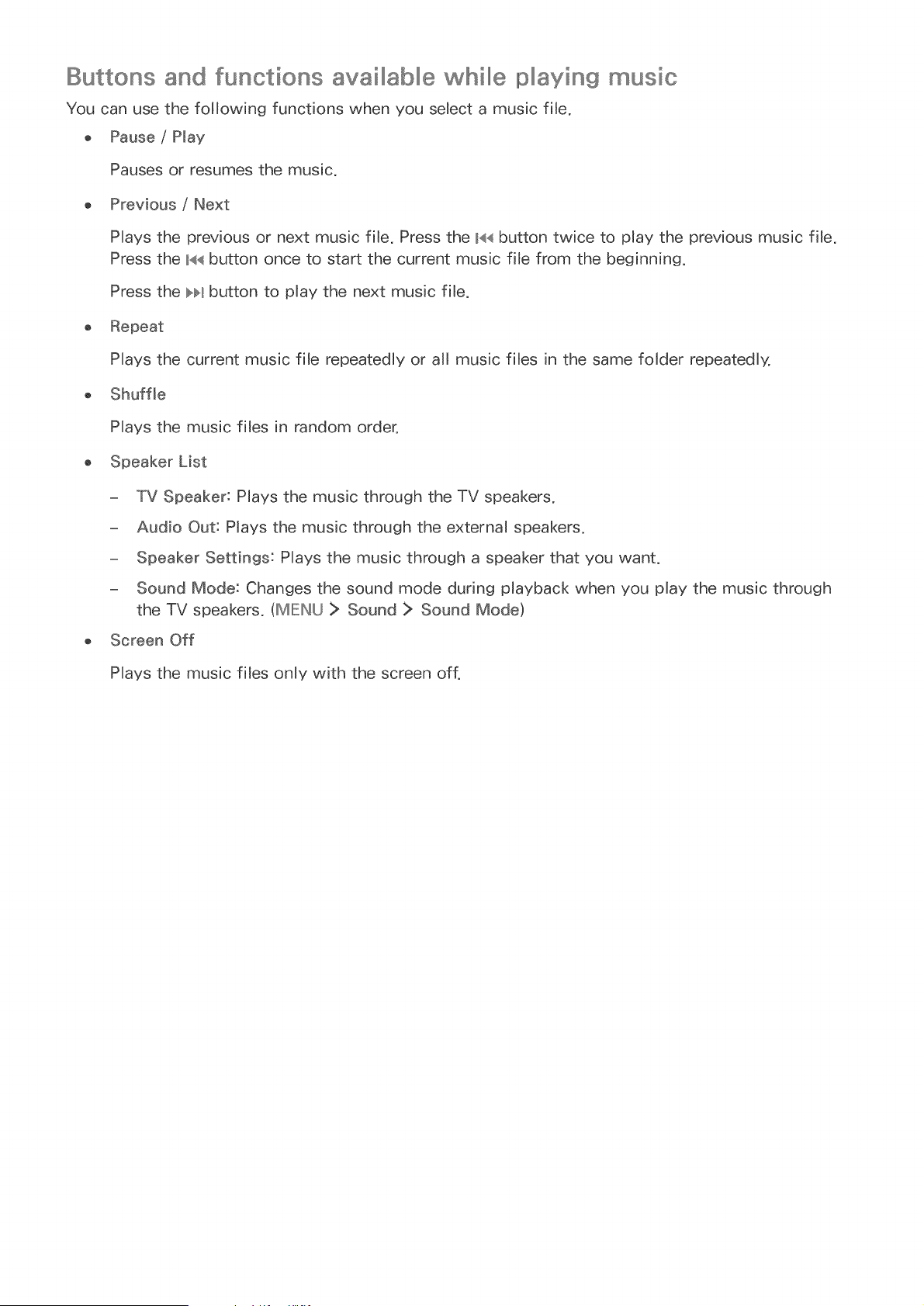

41 Buttons and functions available while playing music
42 Functions on the media content list screen
Using the Soccer Service
43 Configuring the Soccer service screen to display your
favorite soccer teams
43 Using additional functions

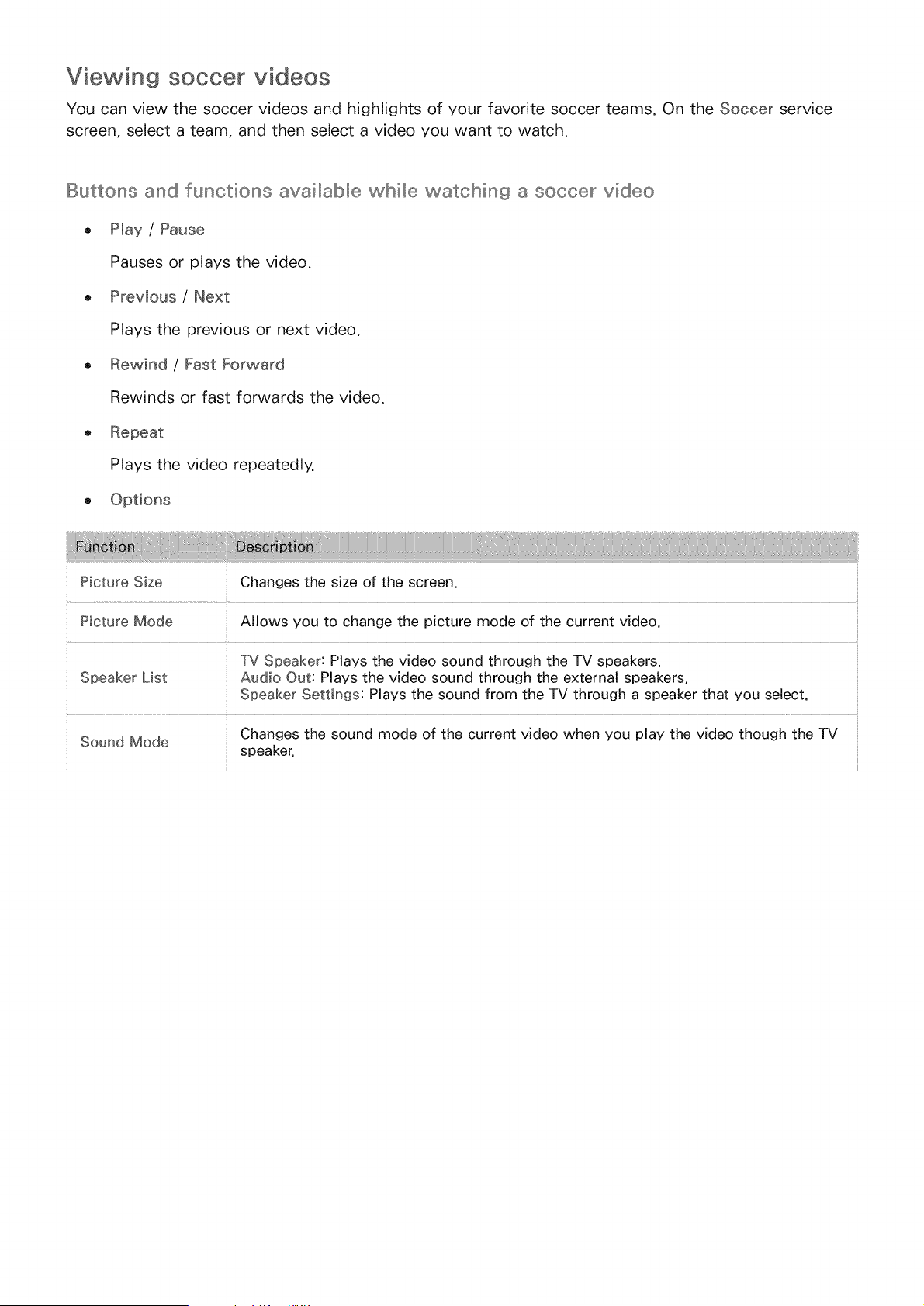

44 Viewing soccer videos
"iV Viewing

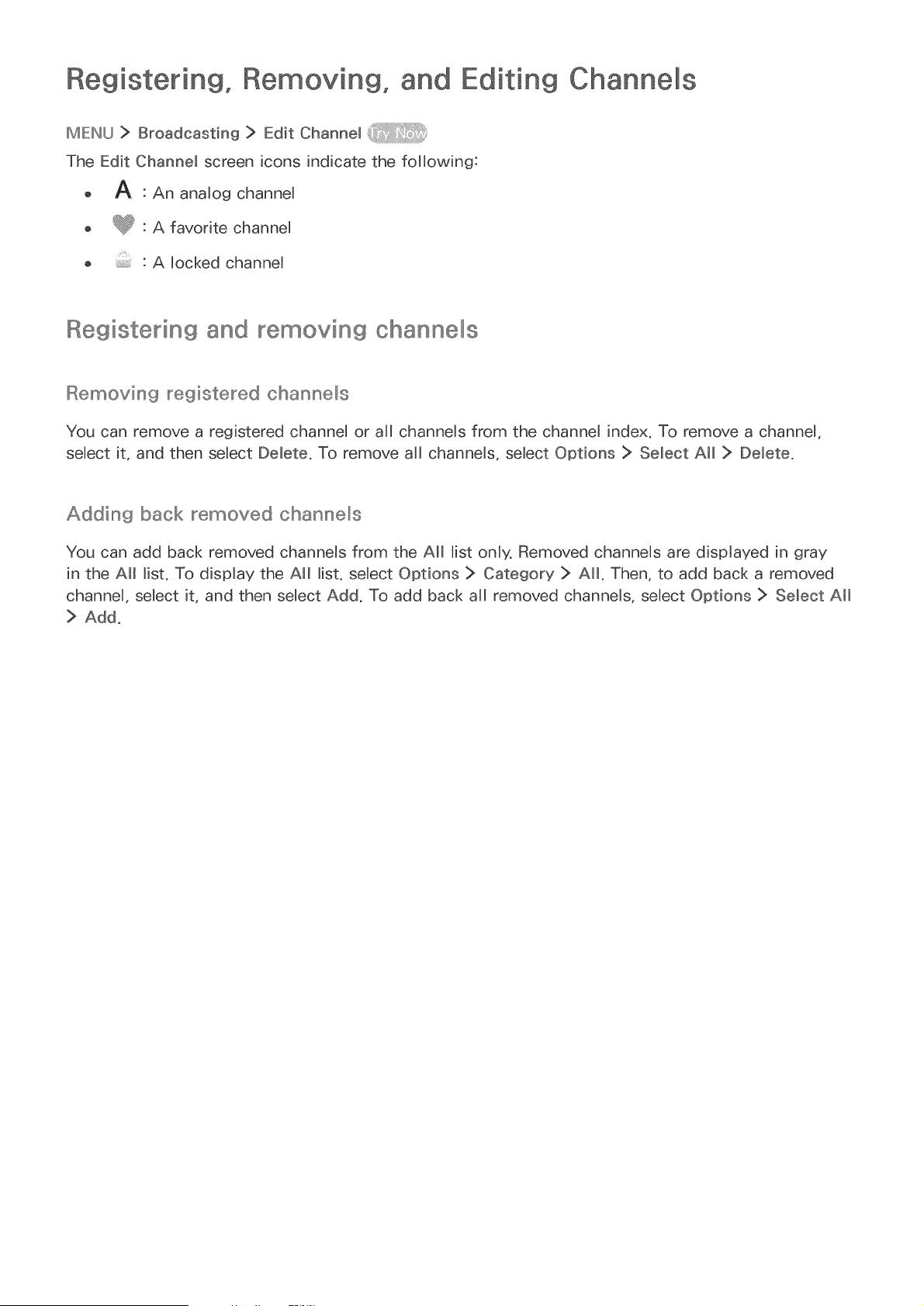

Registering, Removing, and Editing Channels
55 Registering and removing channels
Viewing Digital Broadcast Information at a Glance
45 Using the guide

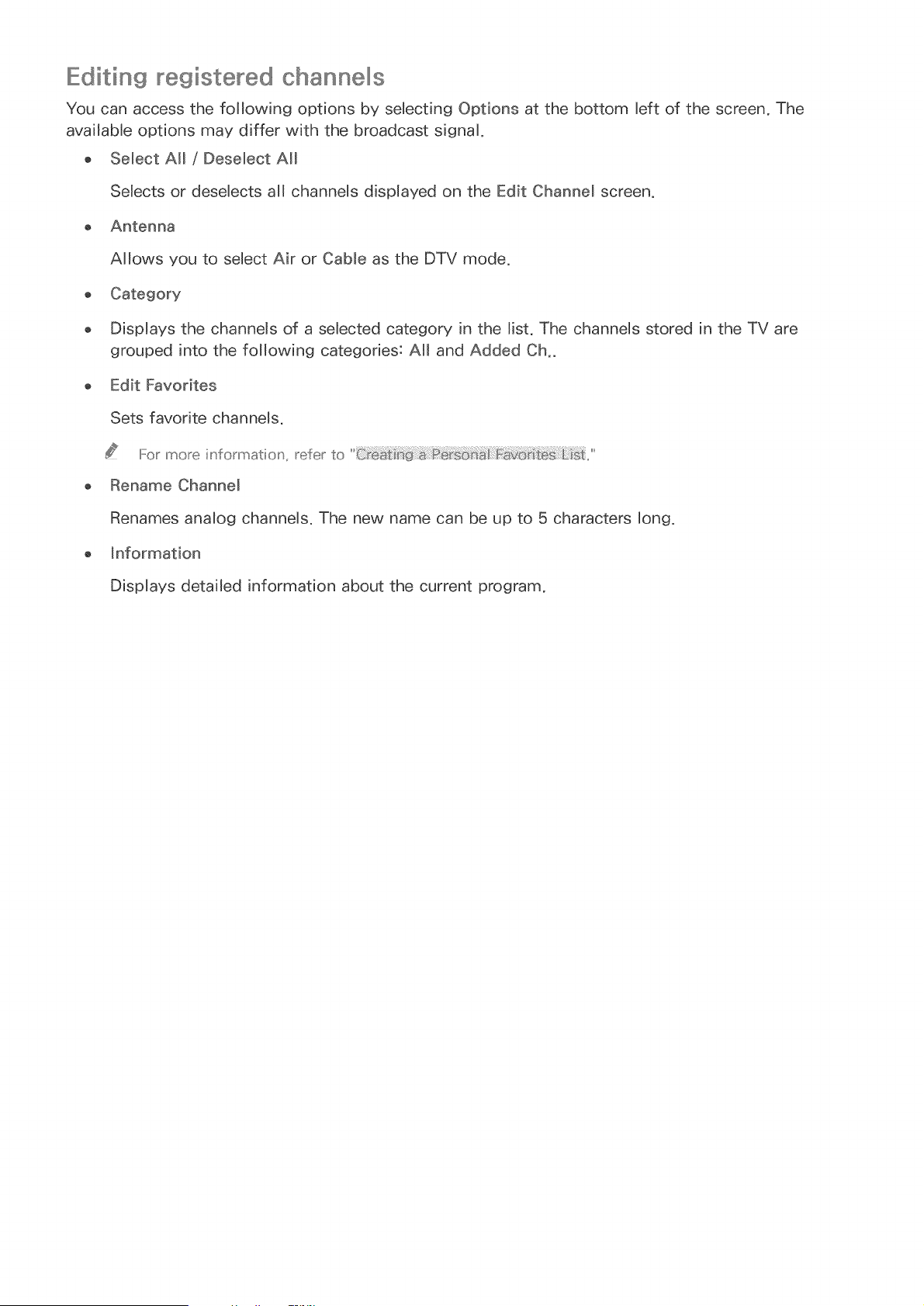

56 Editing registered channels
57 Using Program Rating Lock

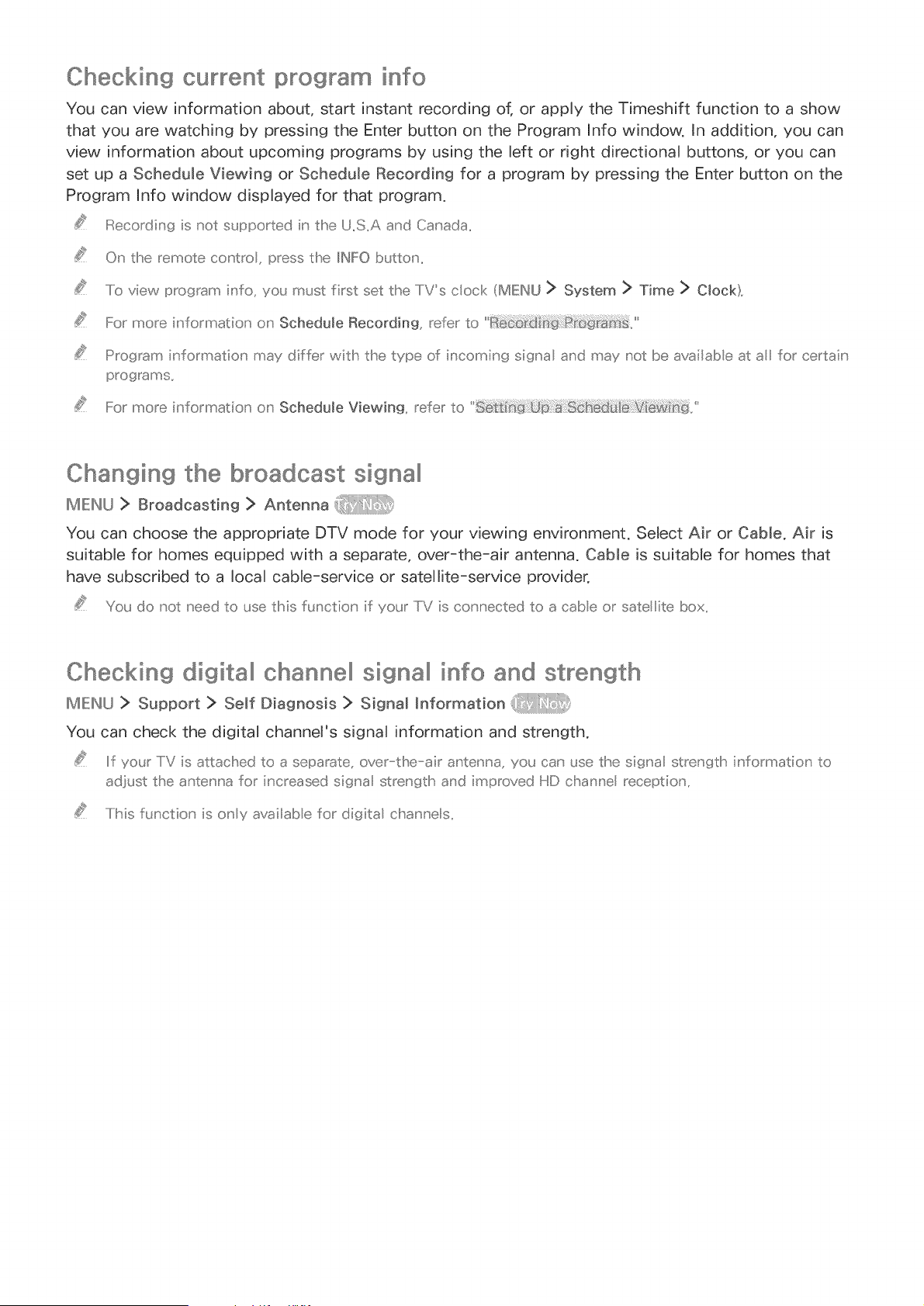

46 Checking current program info
46 Changing the broadcast signal
46 Checking digital channel signal info and strength

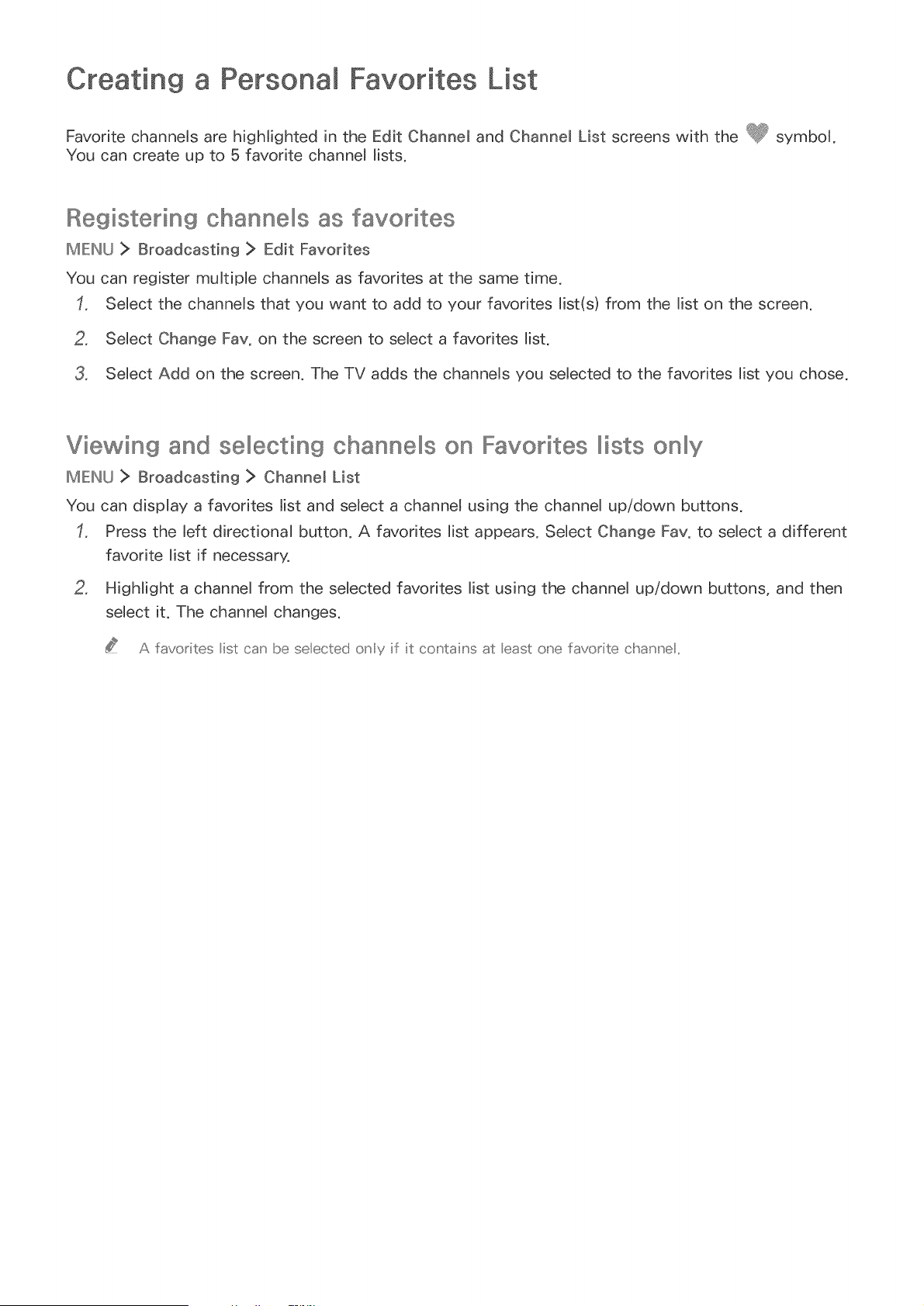

Creating a Personal Favorites List
60 Registering channels as favorites
60 Viewing and selecting channels on Favorites lists only
Recording Programs
47 Recording programs

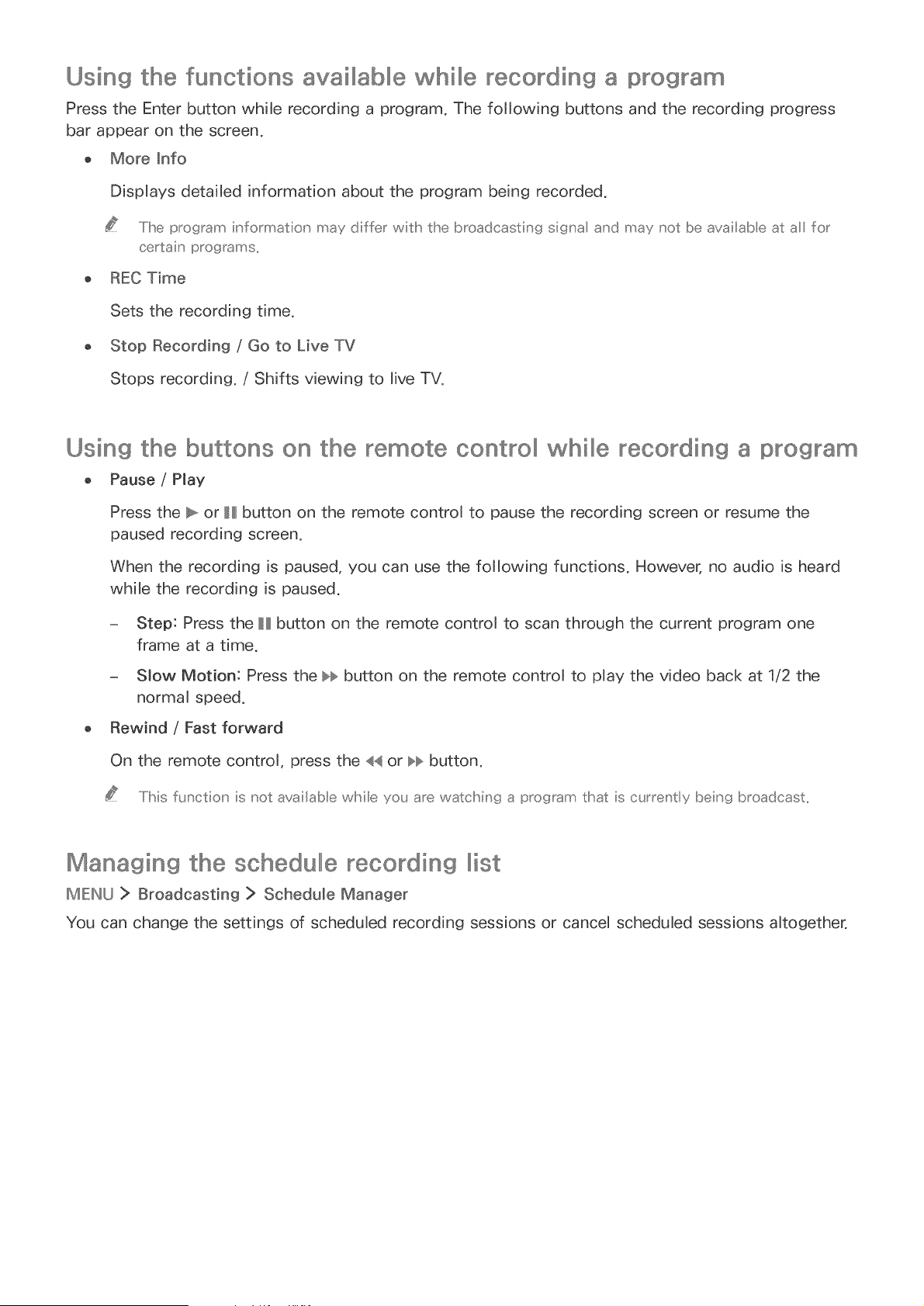

48 Using the functions available while recording a program
48 Using the buttons on the remote control while recording
a program
48 Managing the schedule recording list
49 Viewing recorded programs
51 Managing recorded files

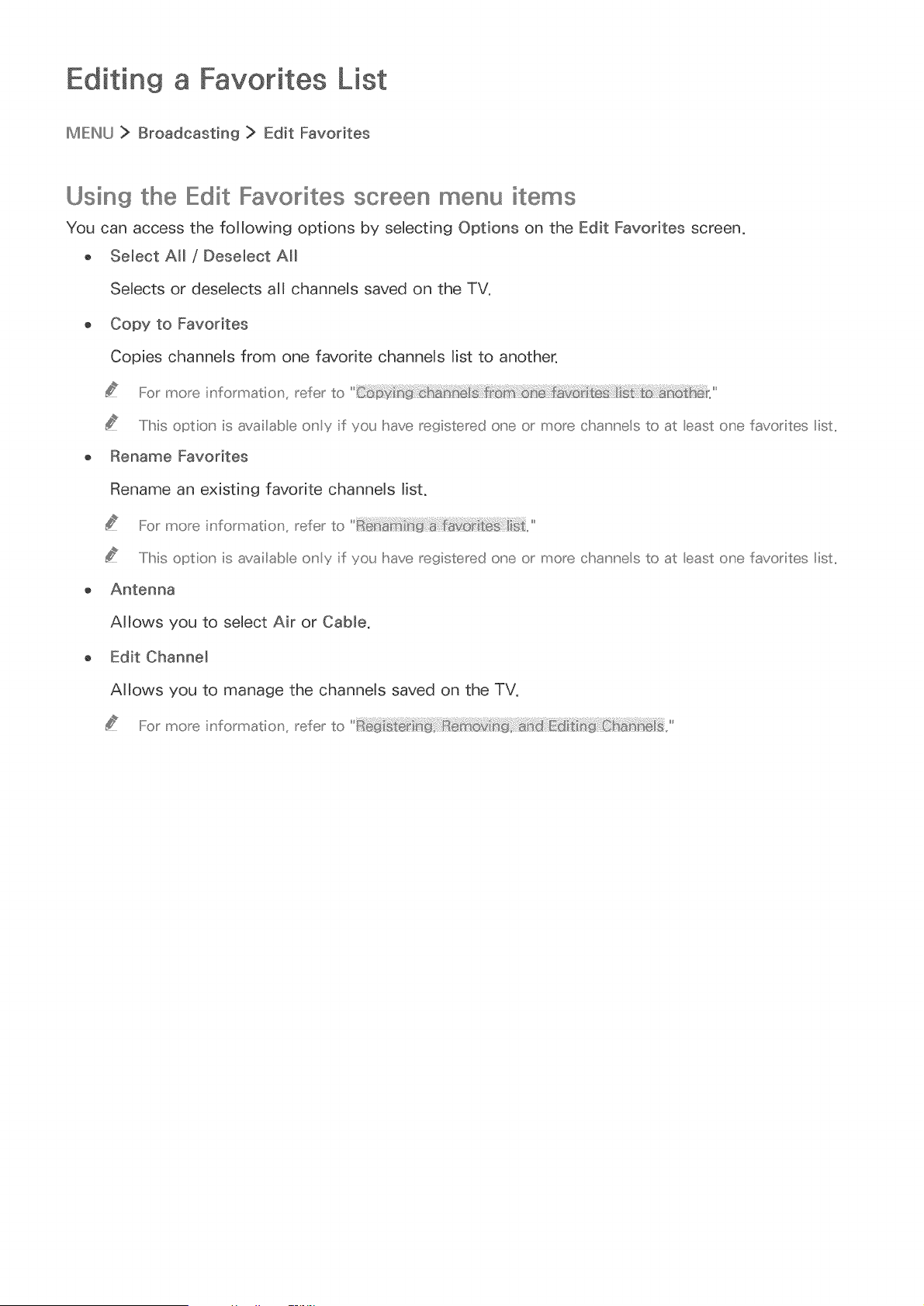

Editing a Favorites List
61 Using the Edit Favorites screen menu items
Making Sports Programs More Realistic with Sports
Mode
63 Enabling sports mode
63 Extracting highlights automatically
64 Using the functions available while watching sports in
sports mode
Setting Up a Schedule Viewing
52 Setting up a schedule viewing for a channel
52 Editing a schedule viewing
52 Canceling a schedule viewing
Using Timeshift
53 Using the buttons on the remote control while using
Timeshift
Using the Channel List
65 Using the functions available while recording sports in
sports mode
66 Viewing a game recorded in sports mode
TV-Viewing Support Functions
66 Showing captions

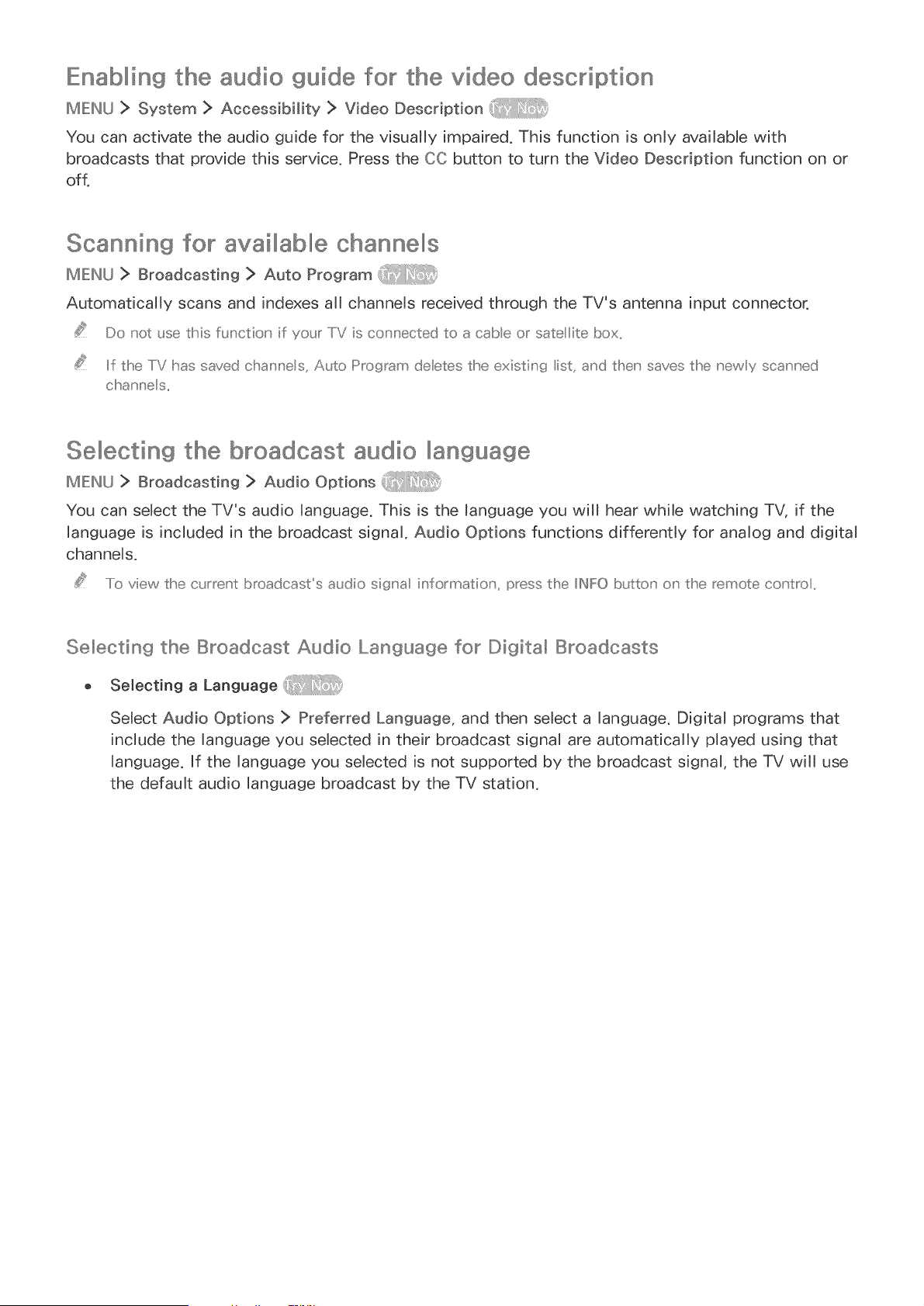

68 Enabling the audio guide for the video description
68 Scanning for available channels
68 Selecting the broadcast audio language
69 Fine-tuning analog broadcasts
69 Removing pay channels
Picture and Sound
Adjusting the Picture Quality
70 Choosing a picture mode

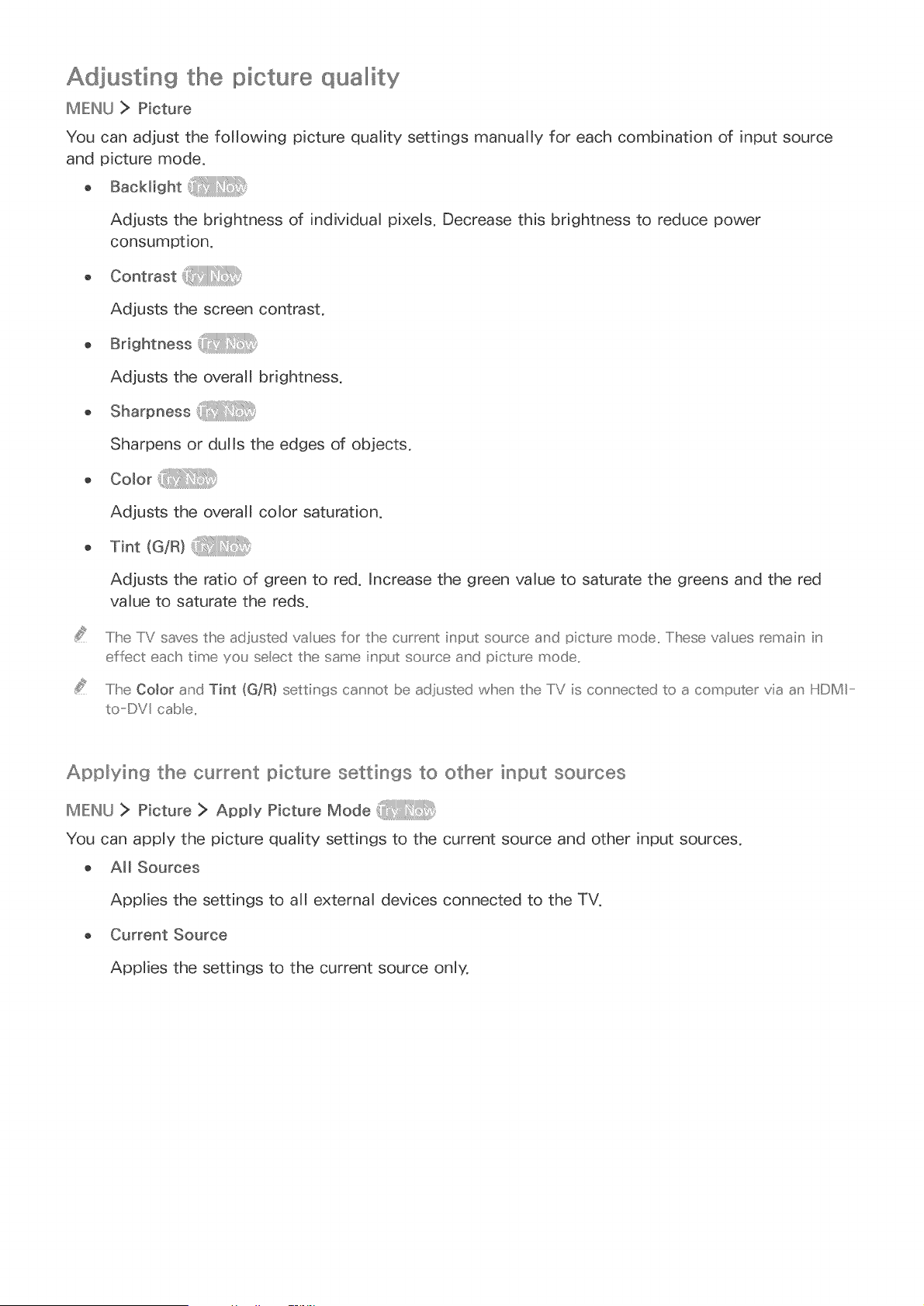

71 Adjusting the picture quality
72 Adjusting advanced settings
73 Adjusting picture options

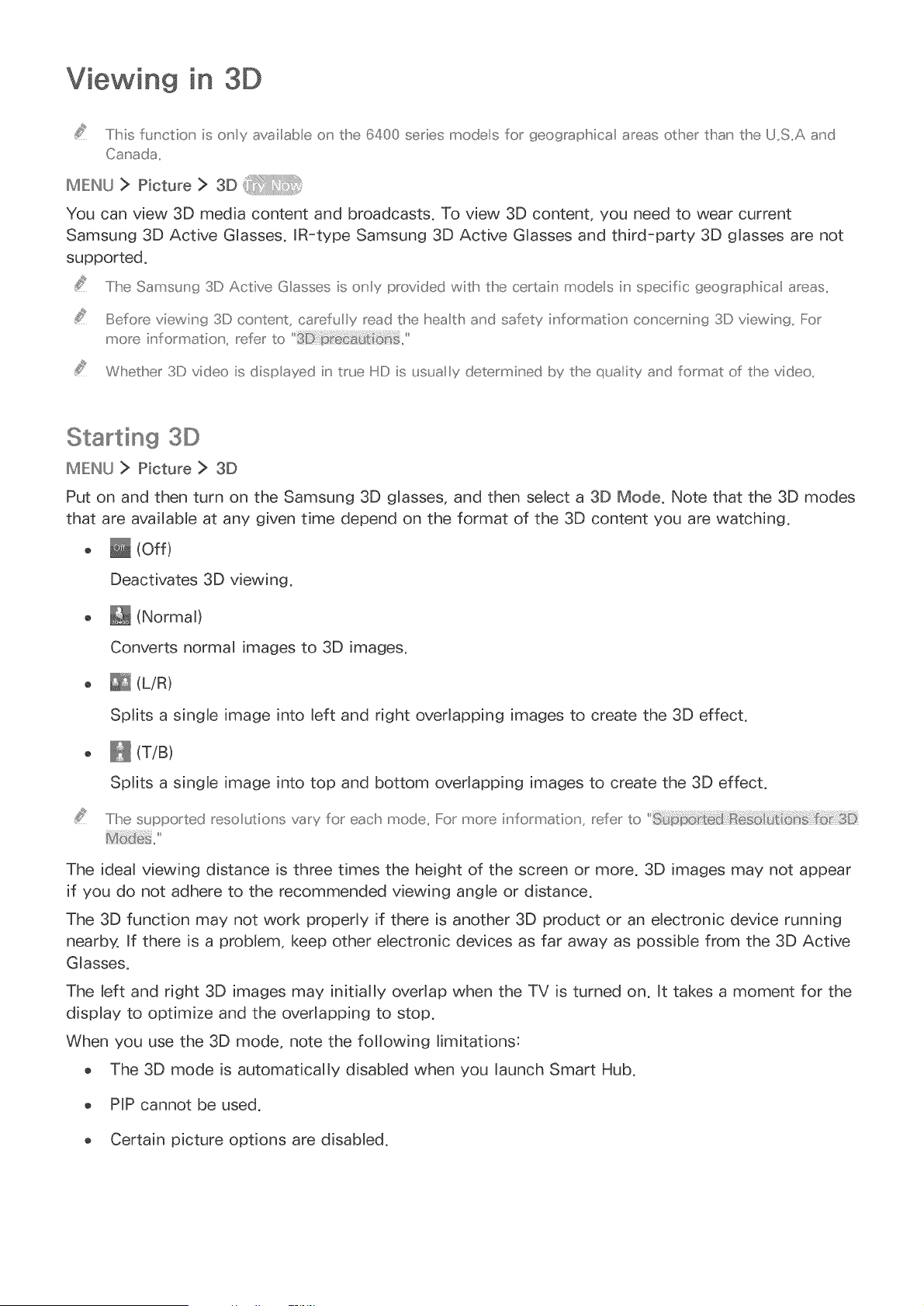

Viewing in 3D
74 Starting 3D
75 Adjusting 3D effects

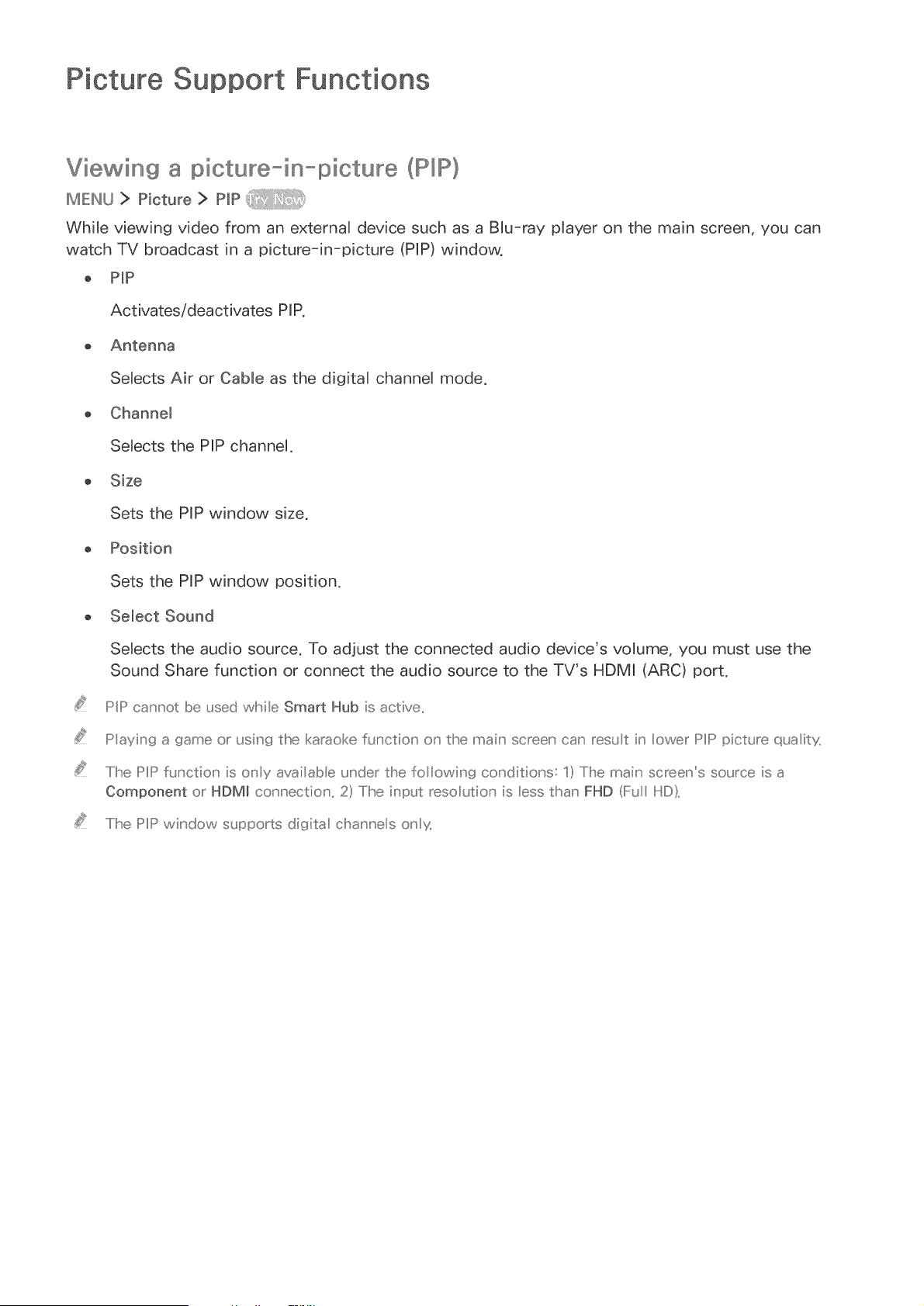

Picture Support Functions
76 Viewing a picture-in-picture (PIP)
77 Changing the picture size and position
78 Listening to audio only (Picture Off)
78 Resetting the picture mode settings
Adjusting the Sound Quality
79 Choosing a sound mode

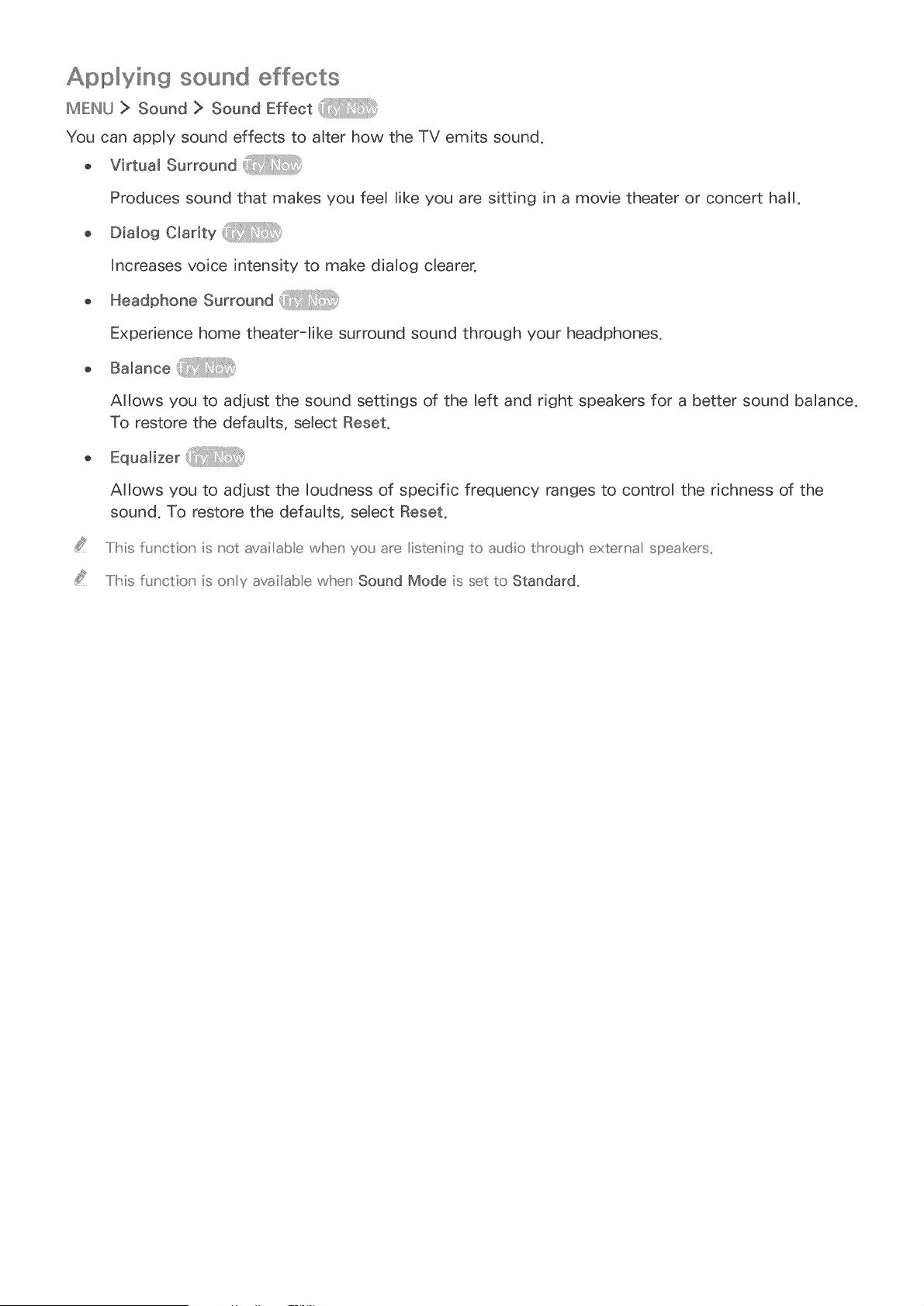

80 Applying sound effects

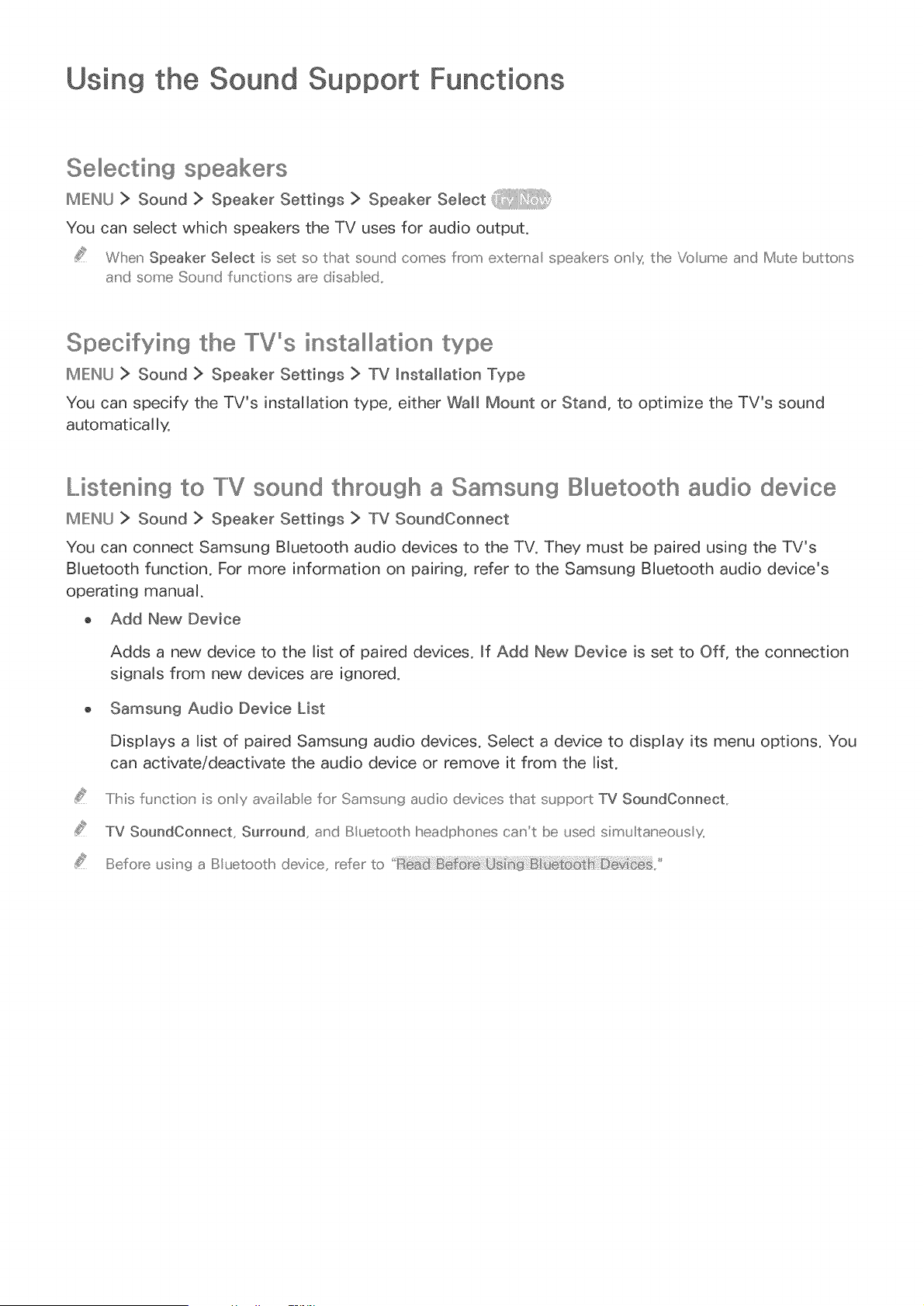

Using the Sound Support Functions
81 Selecting speakers
81 Specifying the TV's installation type
81 Listening to TV sound through a Samsung Bluetooth
audio device
82 Listening to TV sound through a Samsung Multiroom
Link compatible speaker
83 Listening to the TV through Bluetooth headphones
83 Enabling digital audio output
84 Listening to 3D audio in 3D mode
84 Resetting all sound settings
System and Support

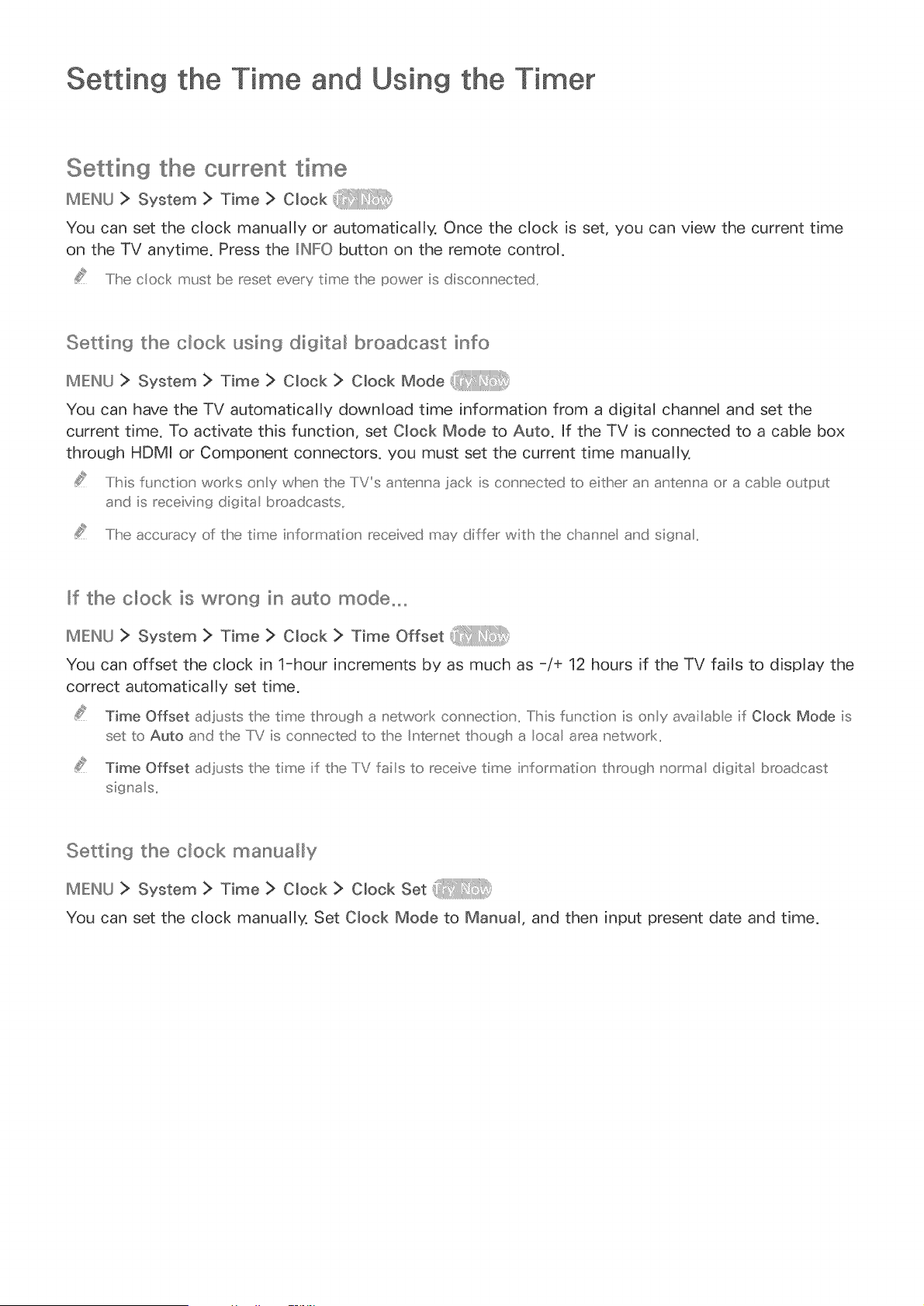

Setting the Time and Using the Timer
85 Setting the current time

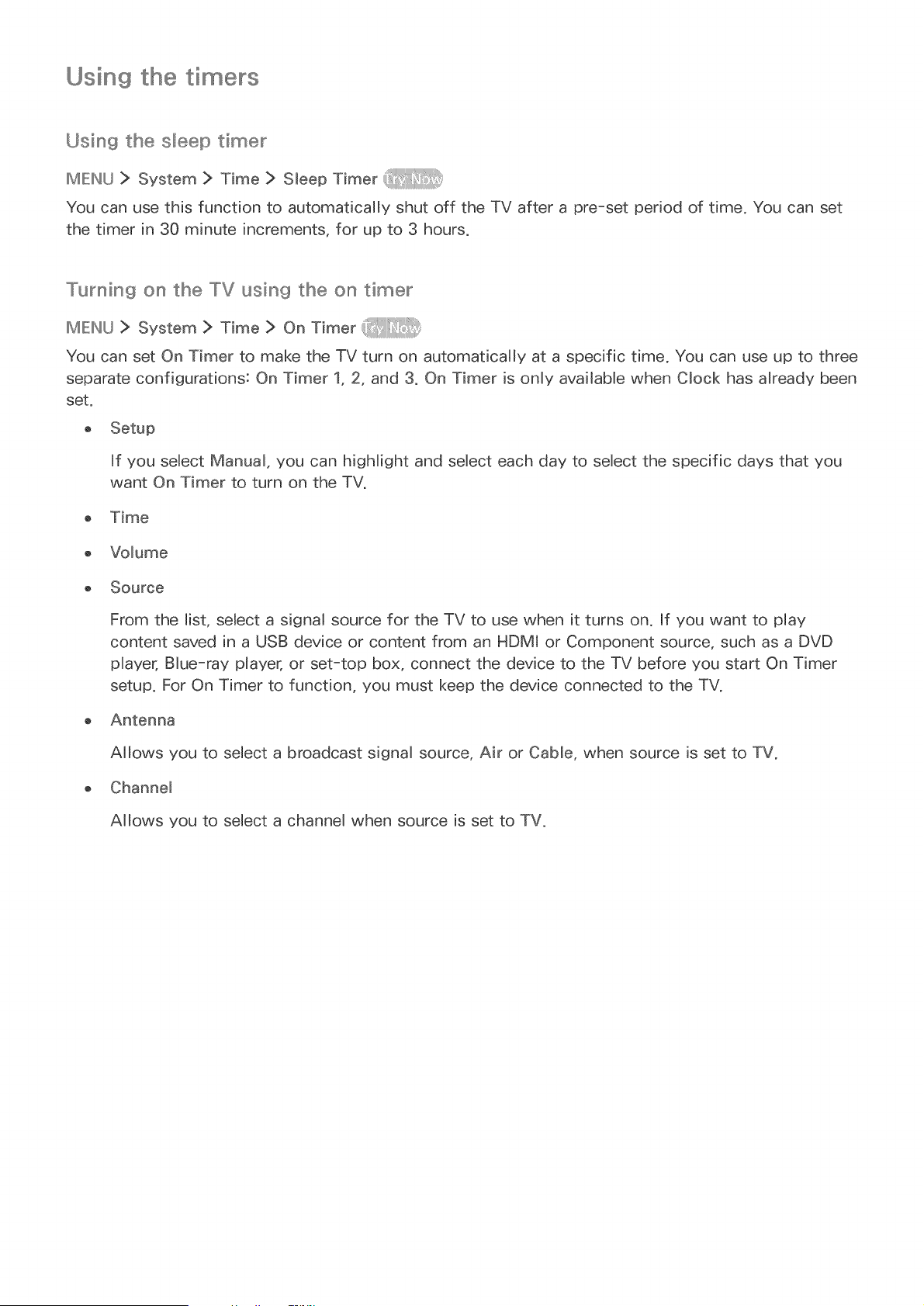

86 Using the timers
Using the Screen Burn Protection and Energy Saving
Functions
88 Preventing screen burn
88 Reducing the energy consumption of the TV

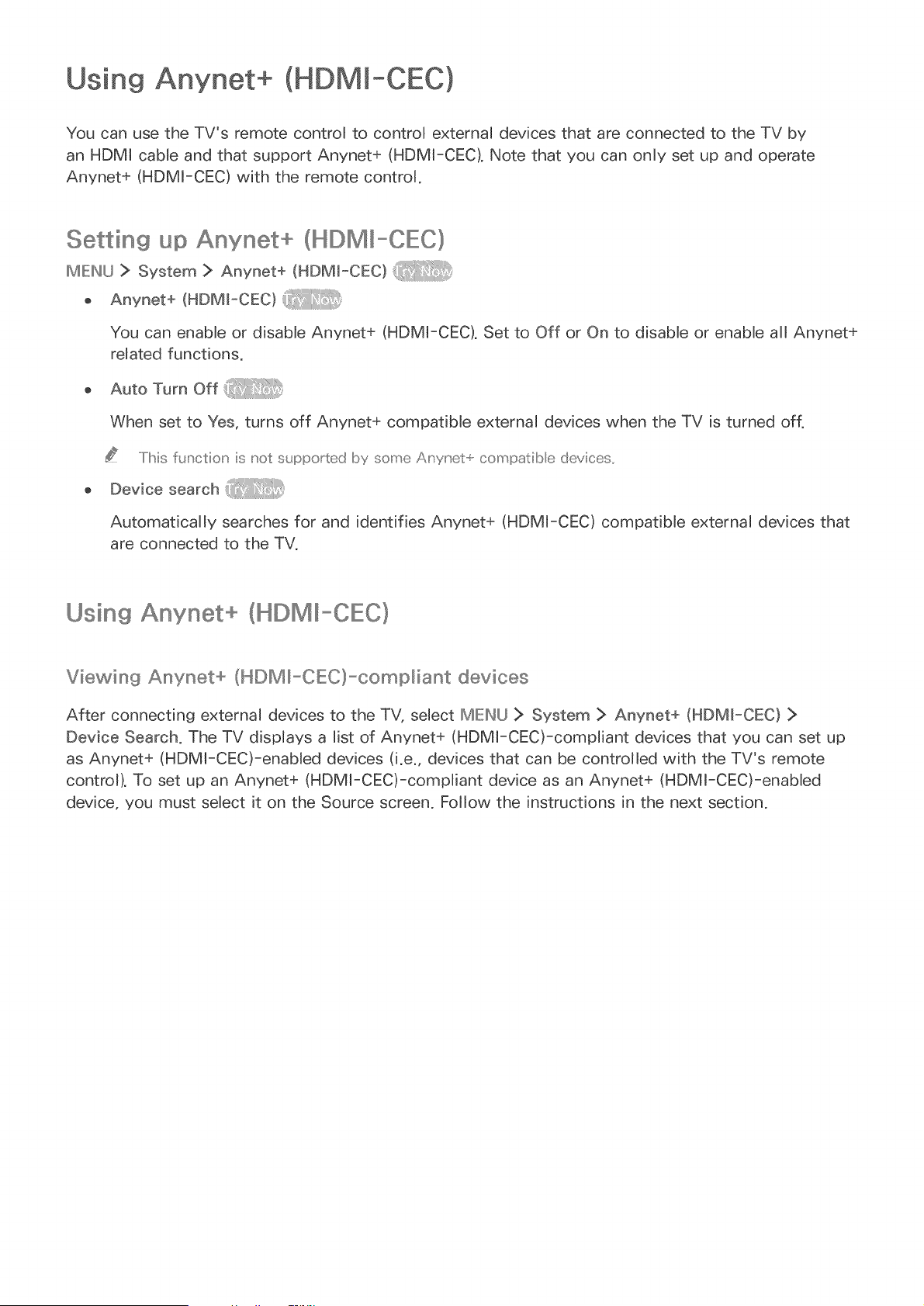

Using Anynet+ (HDMI-CEC)

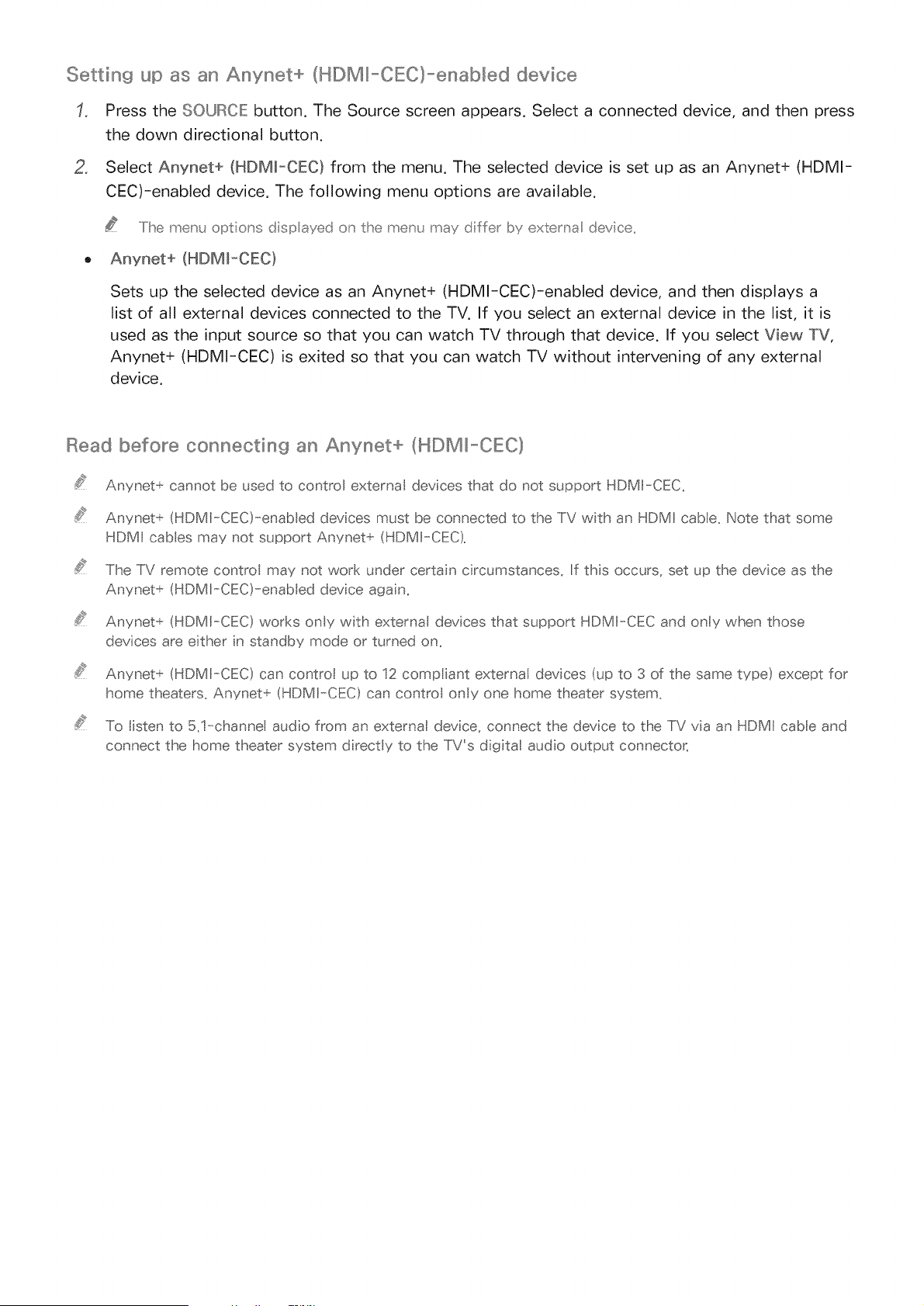

89 Setting up Anynet+ (HDMI-CEC)
89 Using Anynet+ (HDMI-CEC)

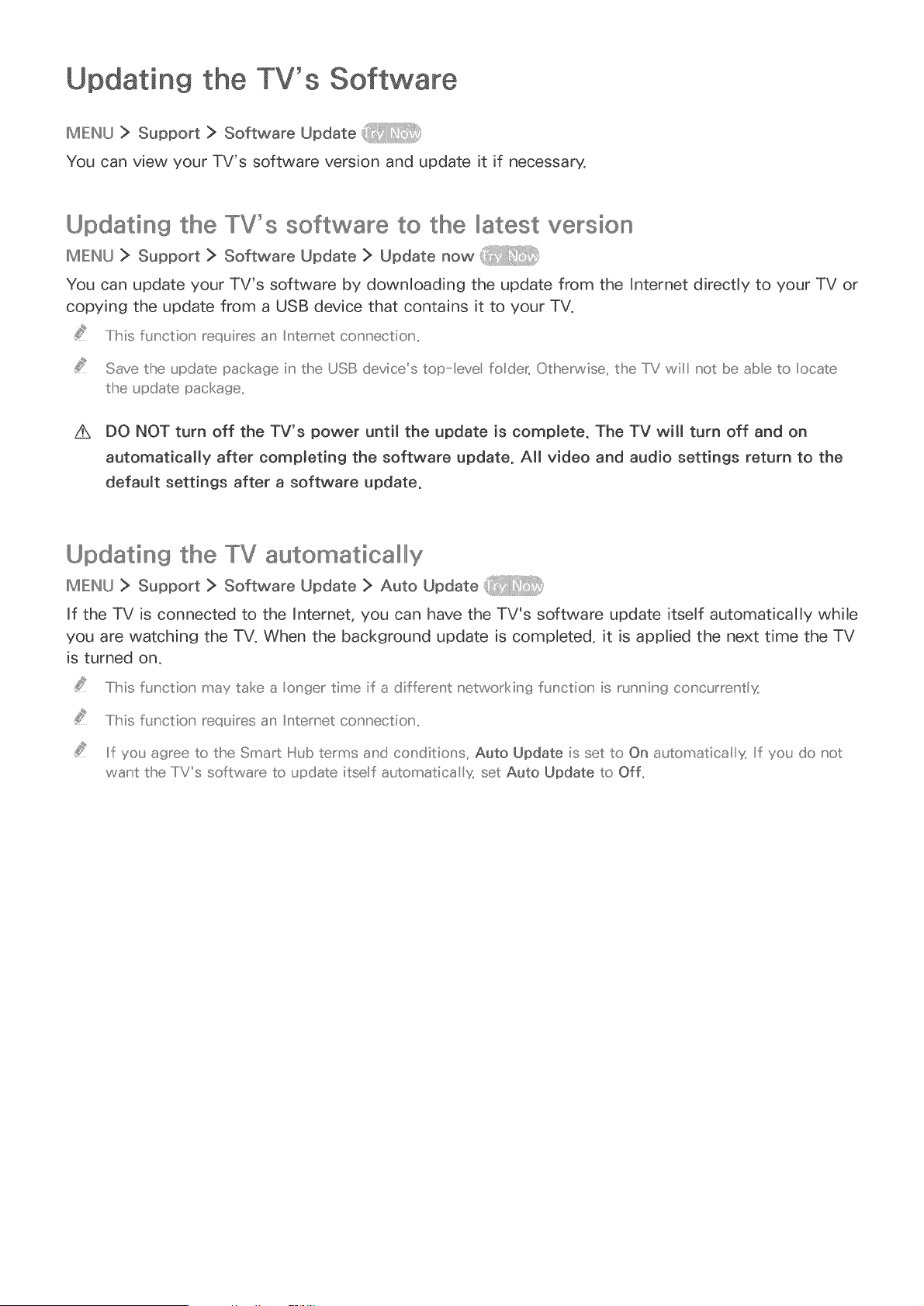

Updating the TV's Software
91 Updating the TV's software to the latest version
91 Updating the TV automatically
Protecting the TV from Hacking and Malicious Code
92 Checking the TV and connected storage for malicious
code
93 Configuring additional functions
Using Other Functions
94 Running the accessibility functions quickly
94 Enabling voice guides for the visually impaired
95 White text on black background (high contrast)
95 Adjusting the menu transparency
95 Enlarging the font (for the visually impaired)
95 Learning about the remote control (for the visually
impaired)
95 Listening to the TV through Bluetooth headphones (for
the hearing impaired)

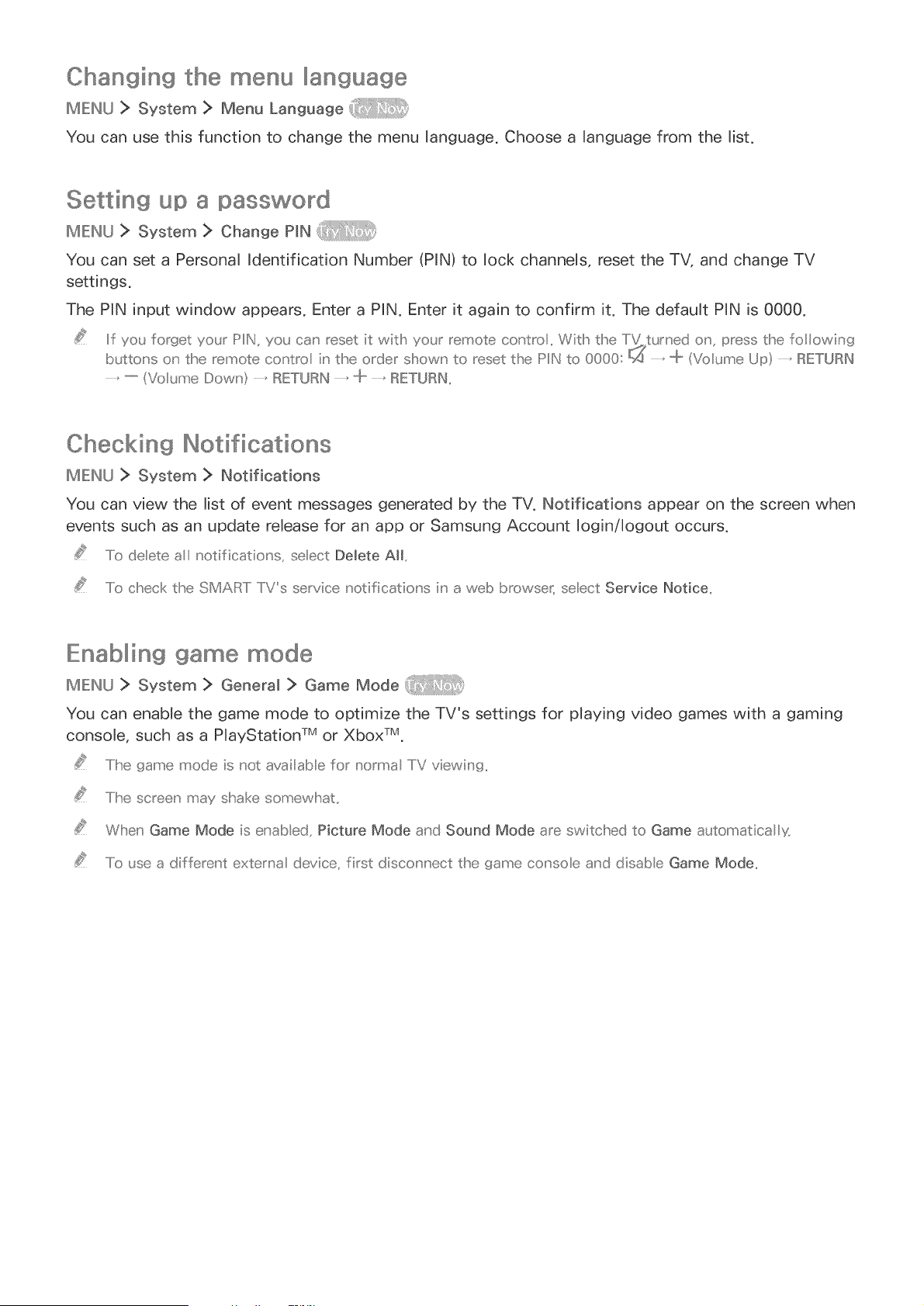

96 Changing the menu language
96 Setting up a password
96 Checking Notifications
96 Enabling game mode
97 Richer colors and superior picture quality (BD Wise)
97 Enabling/Disabling sound feedback
97 Locking/Unlocking the Control Stick
97 Showing/Hiding the Samsung logo while booting
97 Enabling the TV to boot faster
98 Registering the TV as a DivX-certified device (watching
for pay DivX movies)
98 Restoring the TV to the factory settings
98 Using the TV as a display model (for retail stores)
Troubleshooting
Getting Support
99 Getting support through Remote Management
100 Finding the contact information for service
100 Requesting service
There Is a Problem with the Picture
101 Testing the picture
I Can't Hear the Sound Clearly
103 Testing the sound
I Can't See 3D Images Clearly
104 Testing 3D picture quality
There Is a Problem with the Broadcast
My Computer Won't Connect
The TV Won't Connect to the Internet
The Schedule Recording/Timeshift Function Isn't
Working
Anynet+ (HDMI-CEC) Isn't Working

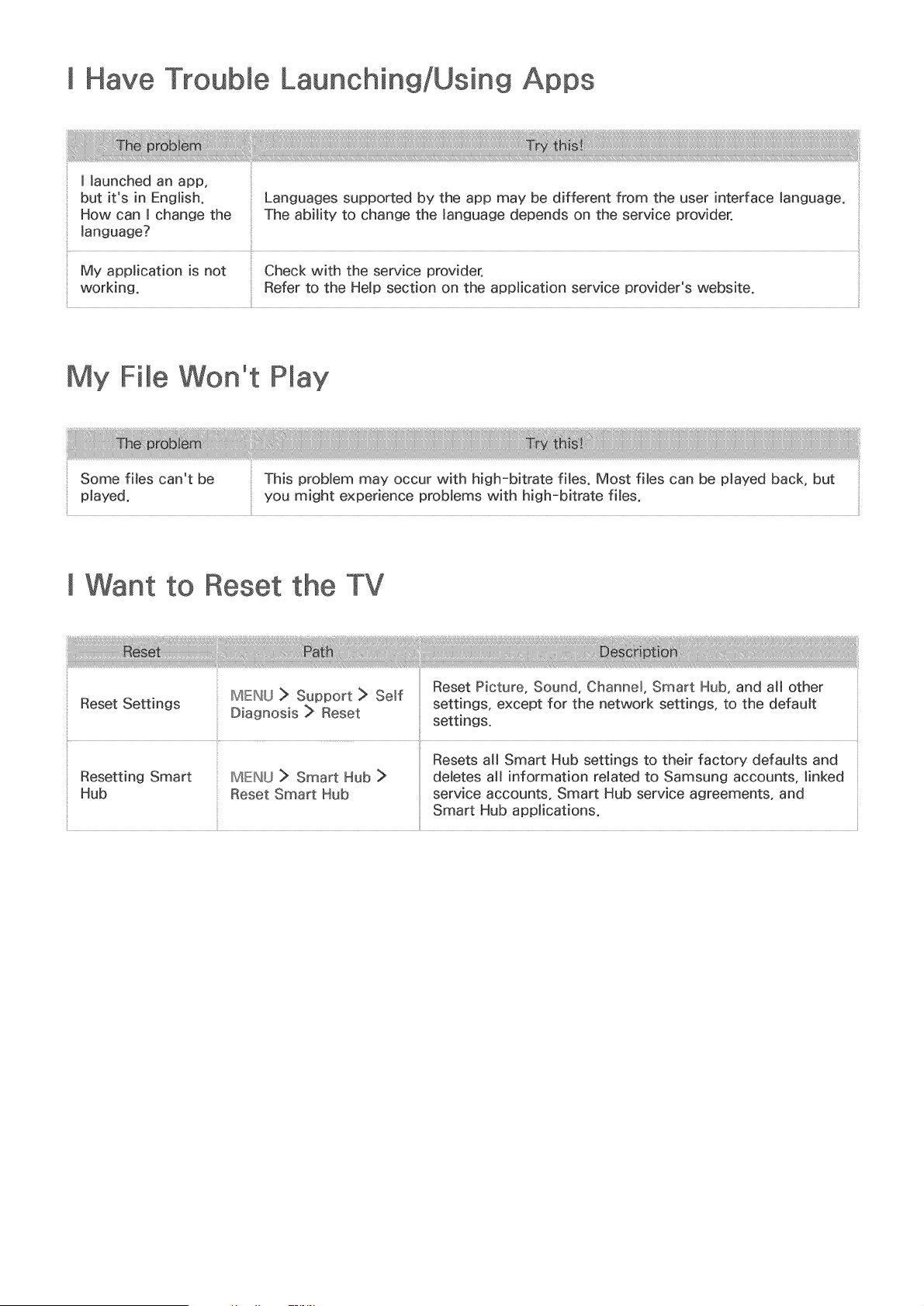

I Have Trouble Launching/Using Apps
My File Won't Play
I Want to Reset the TV

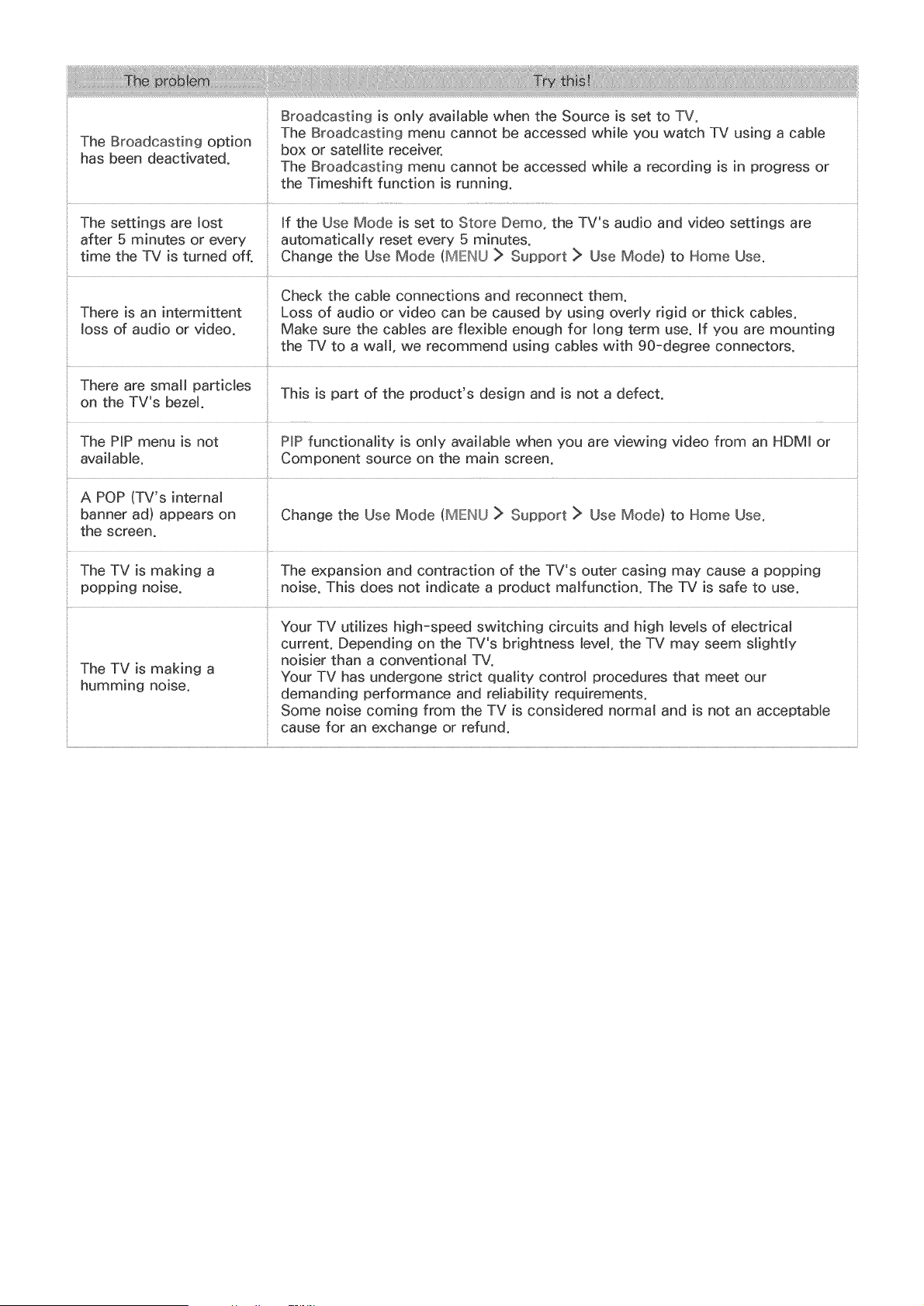

Other Issues
Precautions and Notes
Before Using the Recording and Timeshift Functions
110 Before using the recording and schedule recording
functions

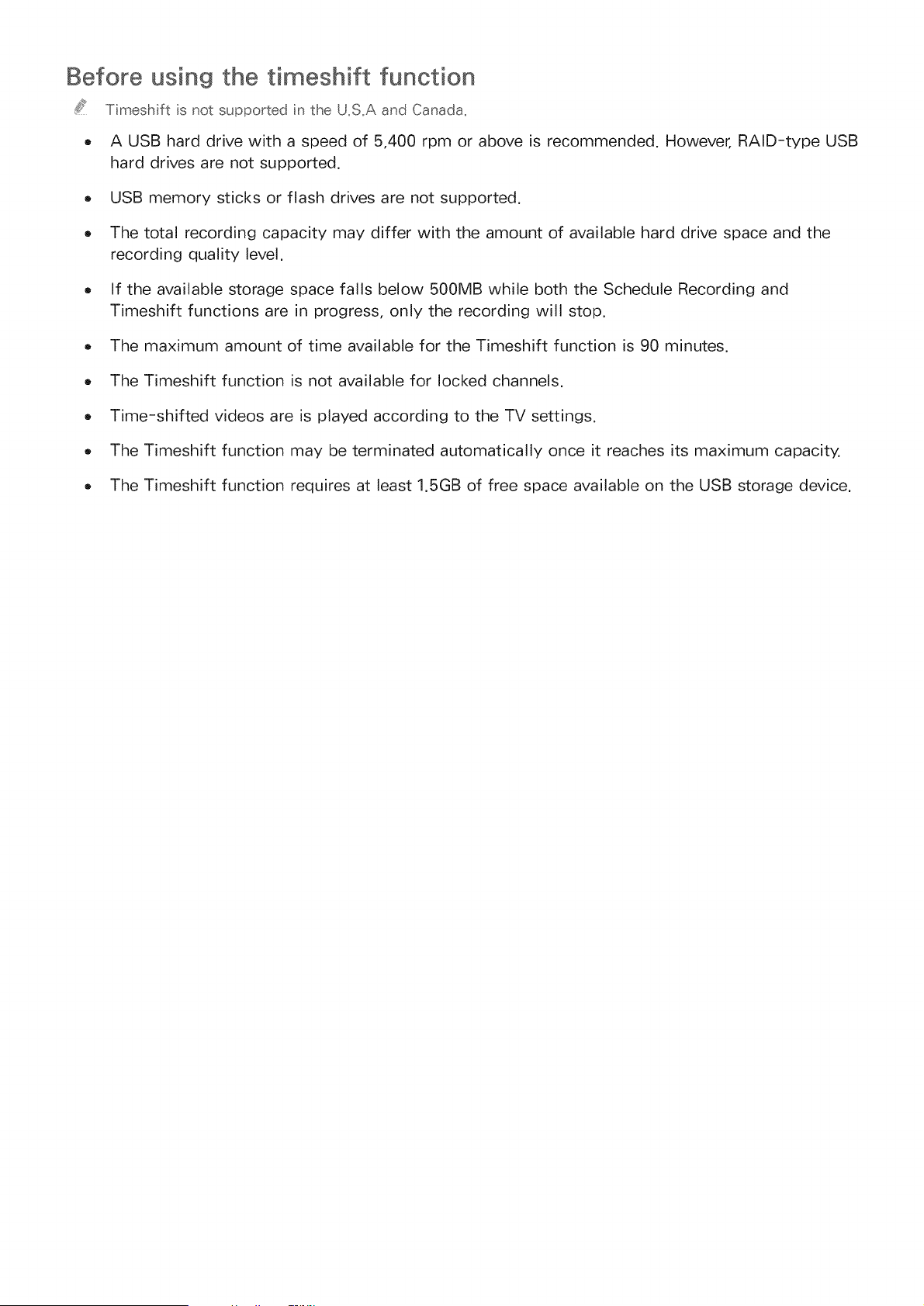

111 Before using the timeshift function

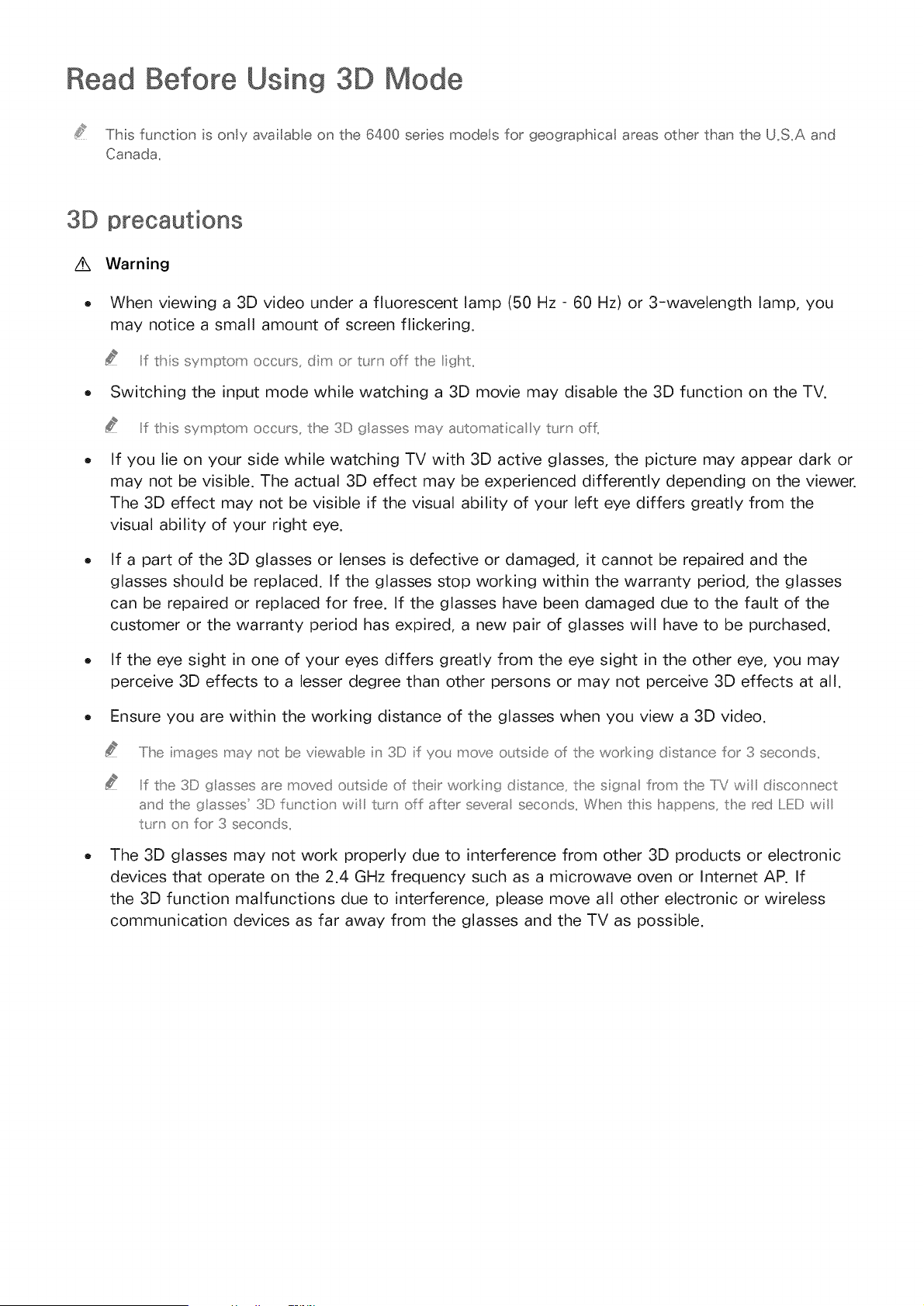

Read Before Using 3D Mode
112 3D precautions
Supported Resolutions for 3D Modes

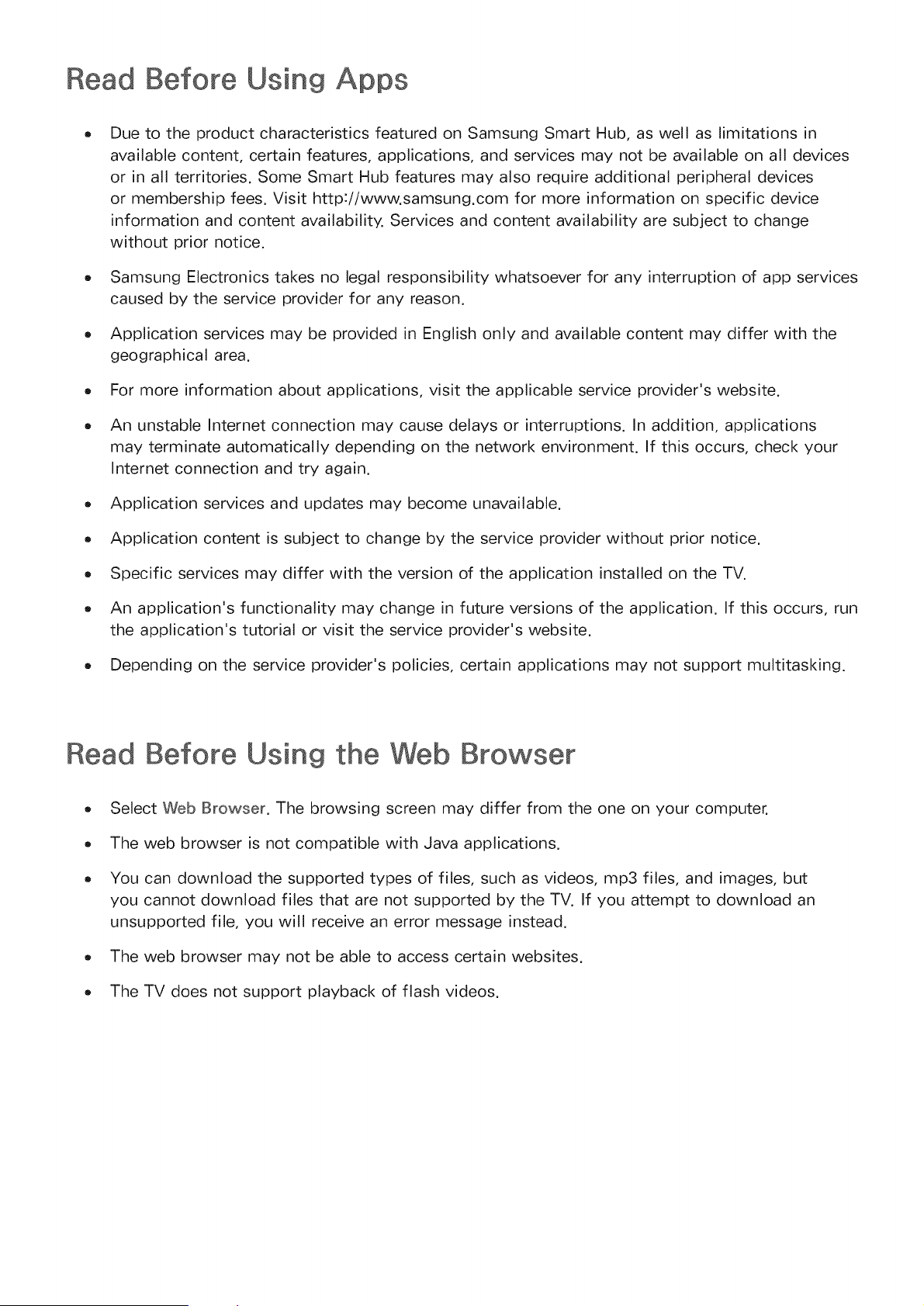

Read Before Using Apps
Read Before Using the Web Browser
Read Before Playing Photo, Video, or Music Files
118 Limitations on use of photo, video, and music files

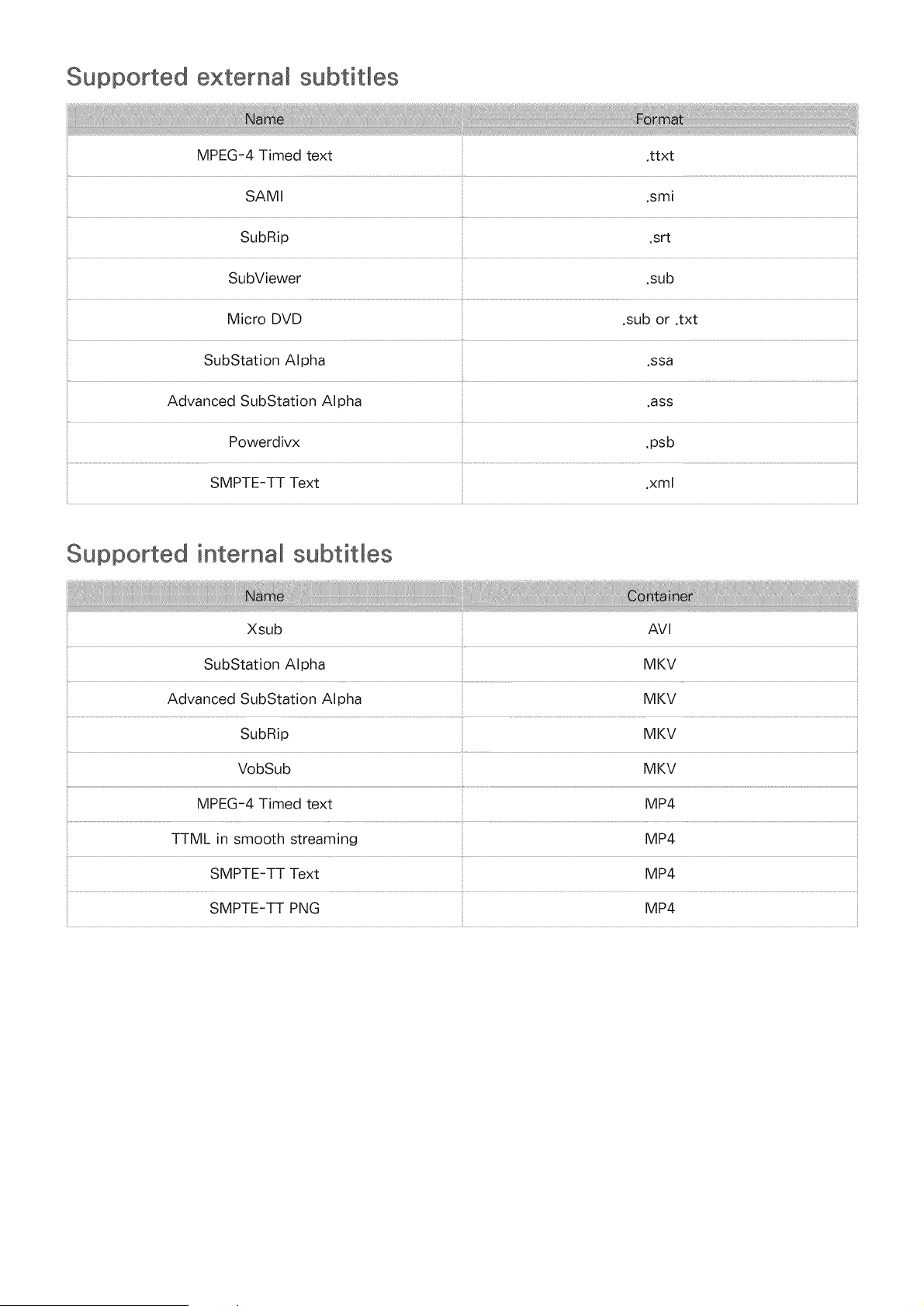

119 Supported external subtitles
119 Supported internal subtitles
120 Supported image formats and resolutions
120 Supported music formats and codecs

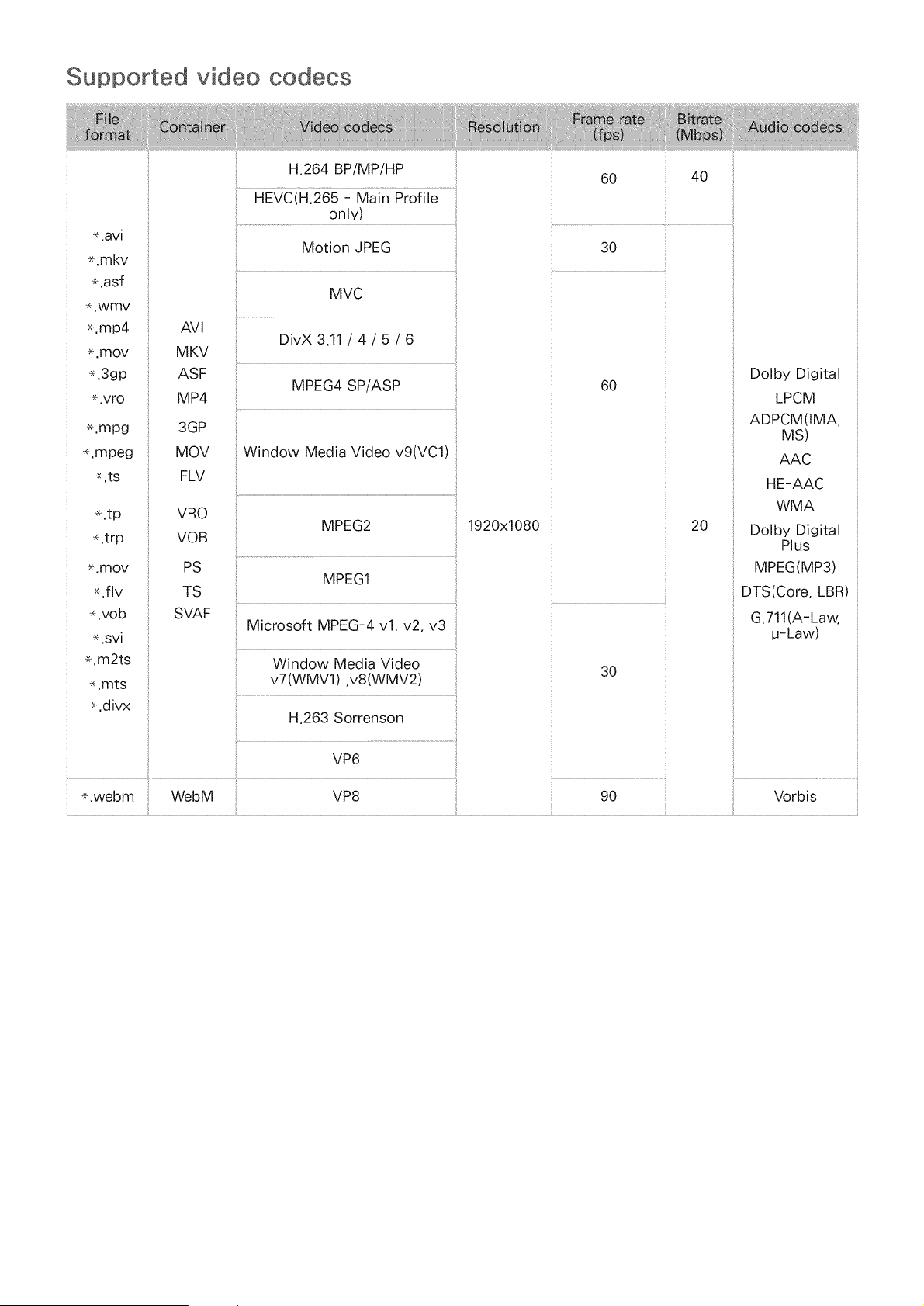

121 Supported video codecs

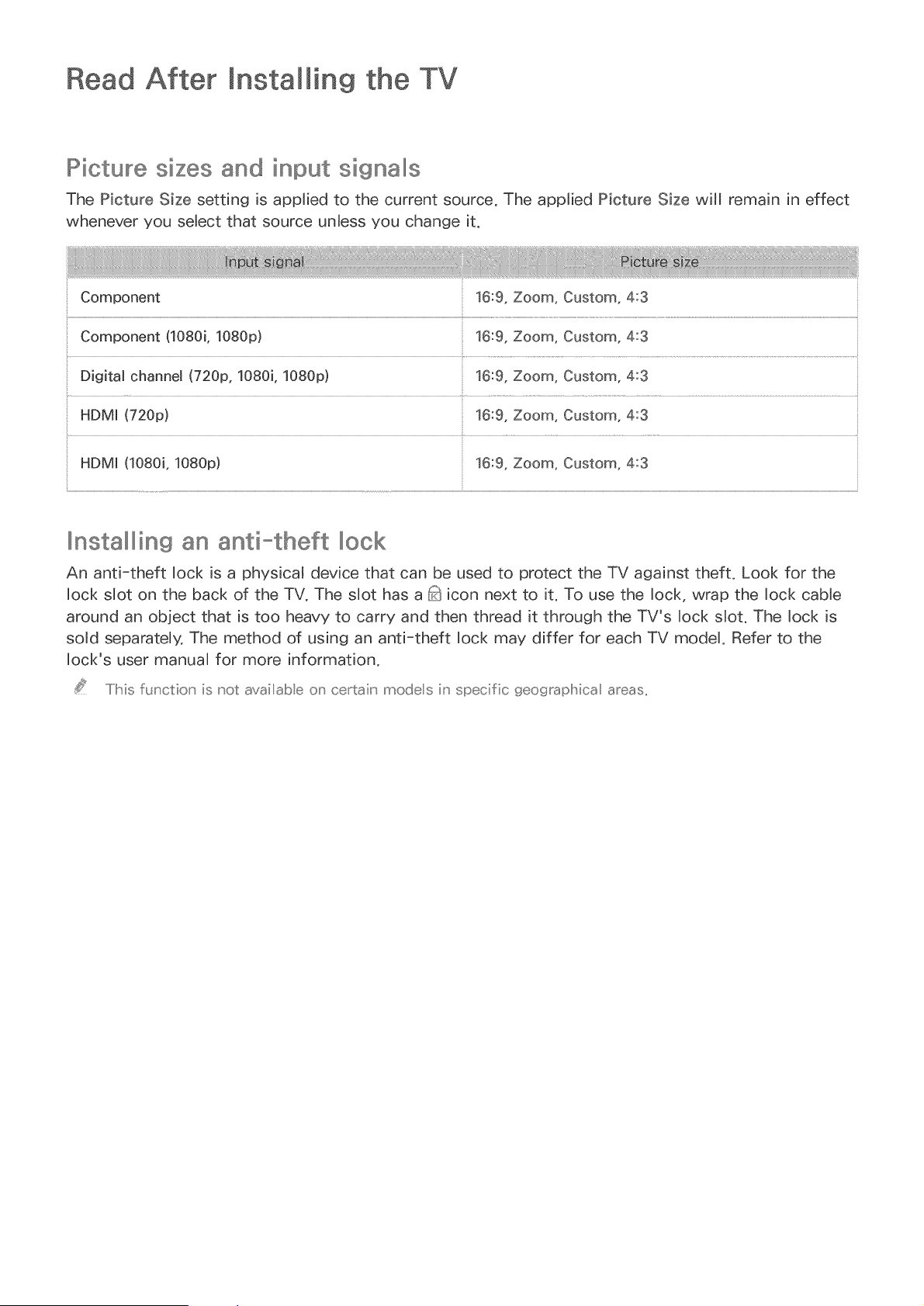

Read After Installing the TV
123 Picture sizes and input signals
123 Installing an anti-theft lock

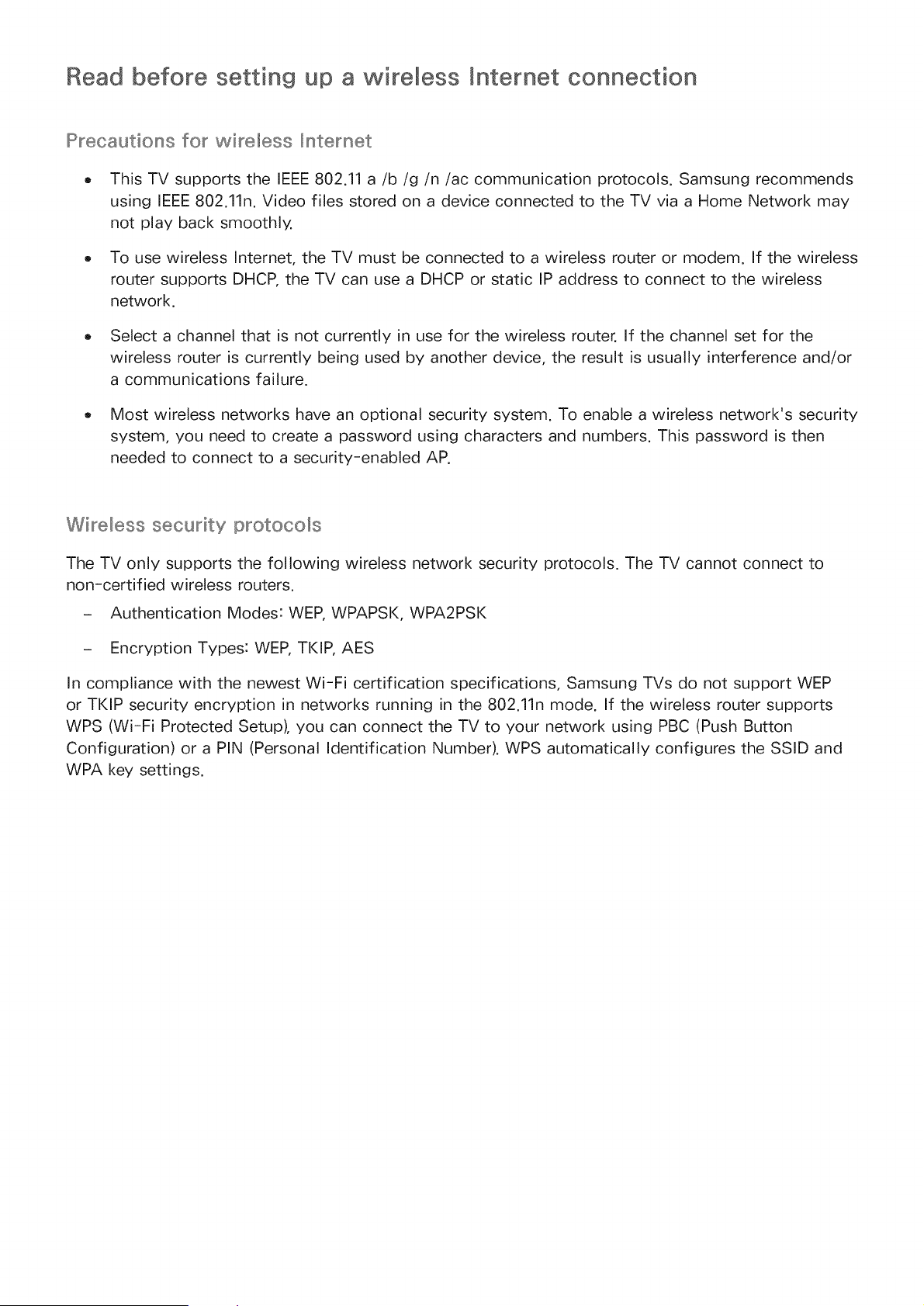

124 Read before setting up a wireless Internet connection

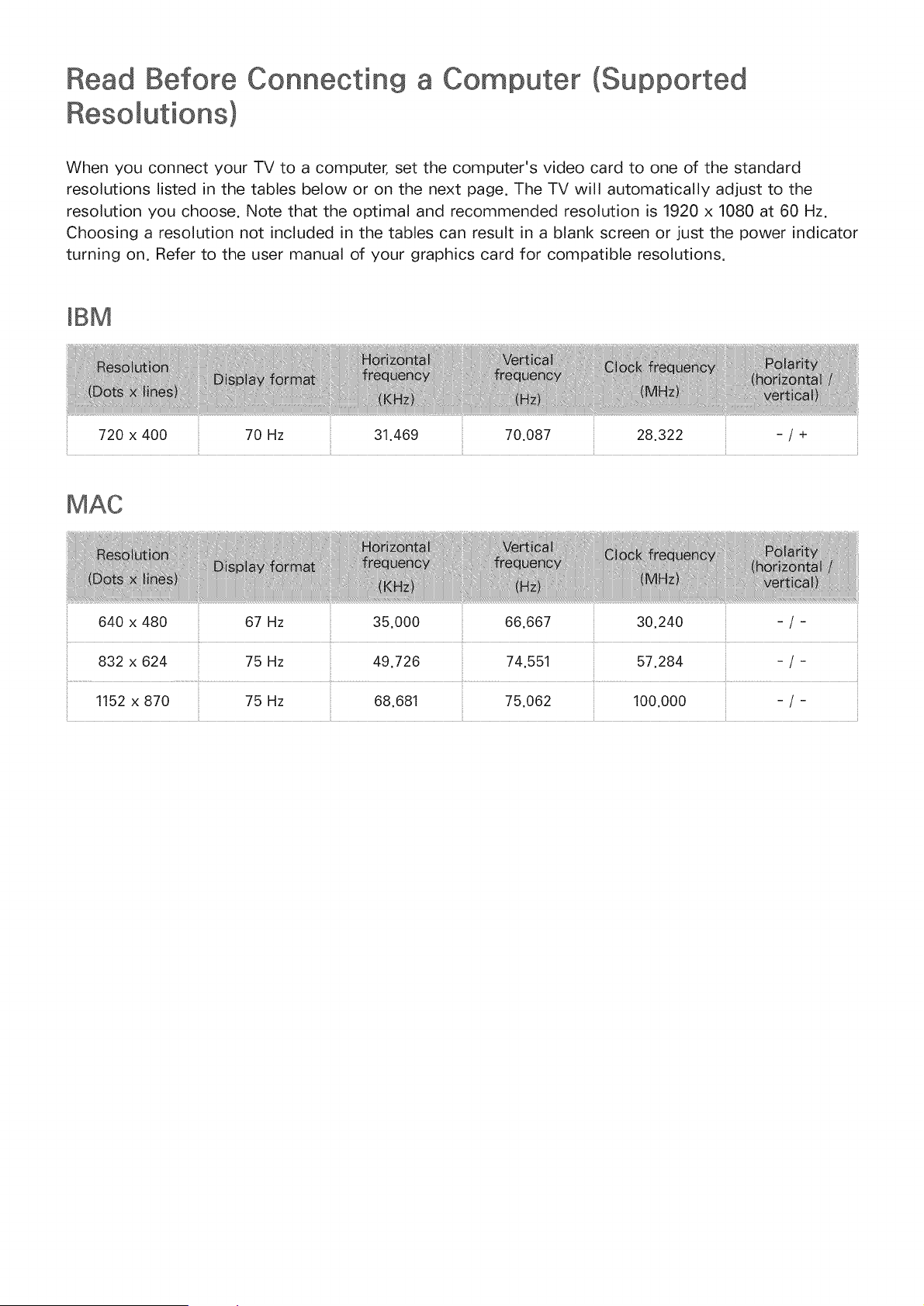

Read Before Connecting a Computer (Supported
Resolutions)
125 IBM
125 MAC

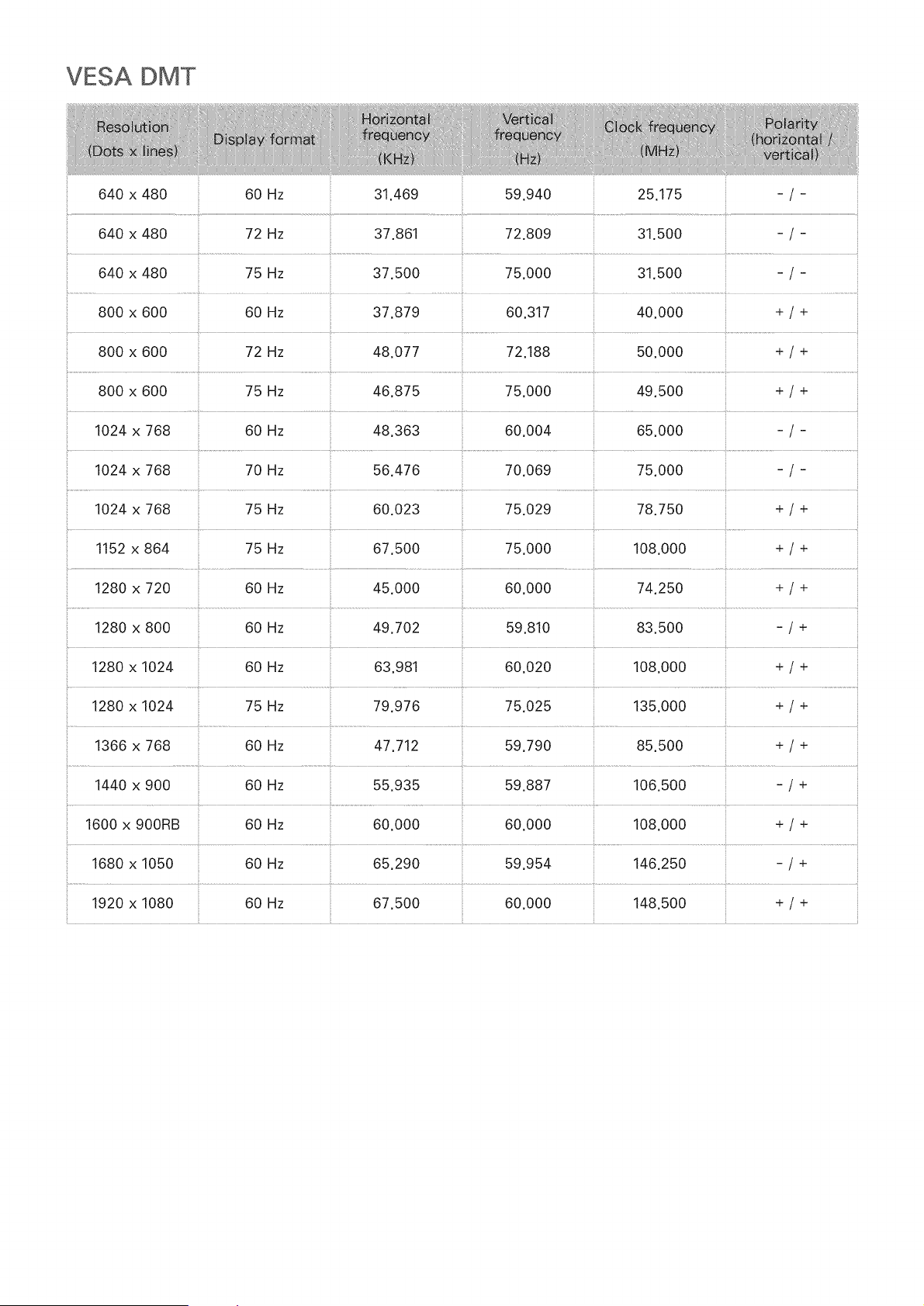

126 VESA DMT
Supported Resolutions for Video Signals
127 CEA-861
127 CEA-861 (DVl)

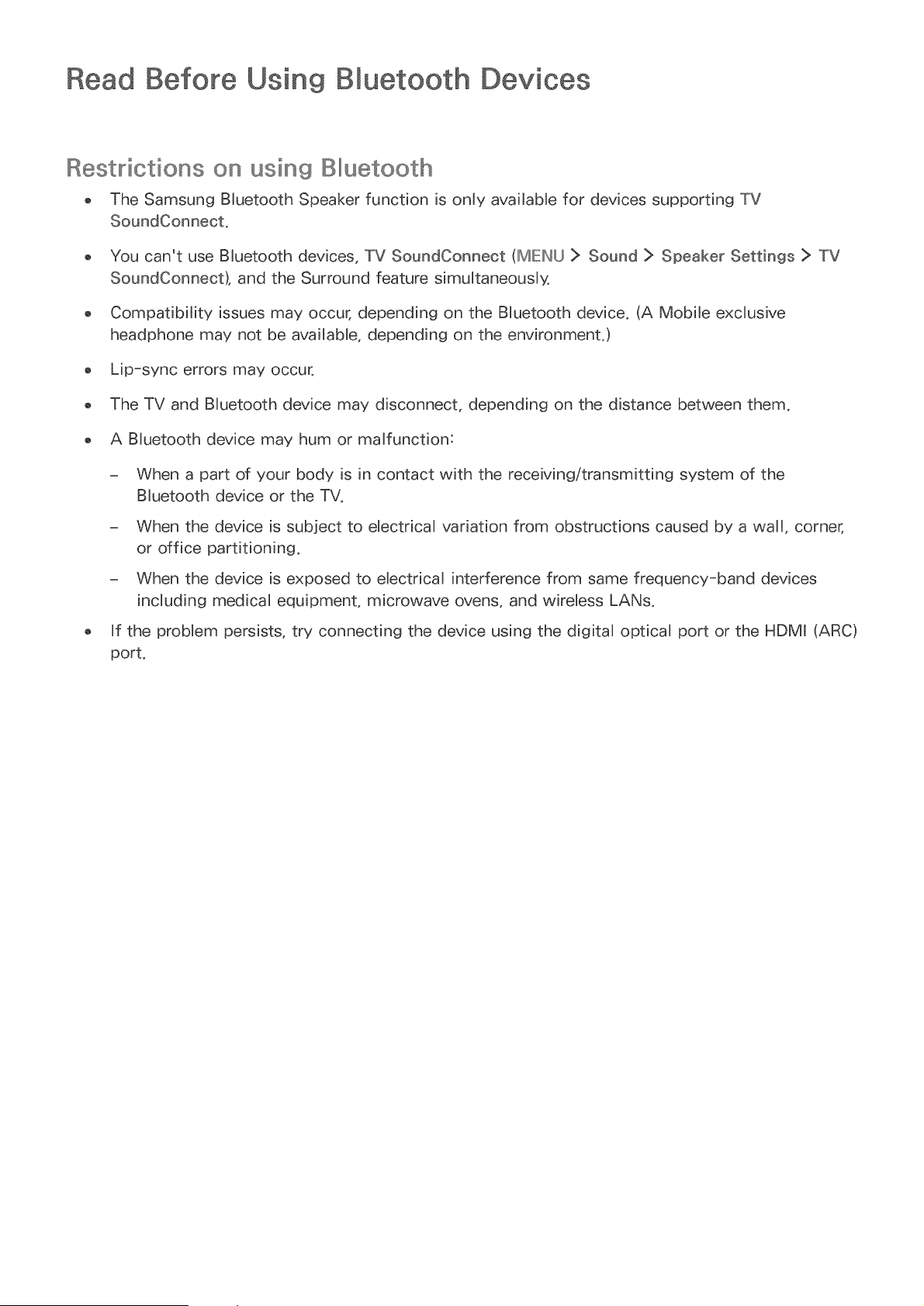

Read Before Using Bluetooth Devices
128 Restrictions on using Bluetooth
License
Glossary
Using Smart Hub
Connecting to the _ntemet
IMIEINkJ> Network > Network Settings
Connect the TV to the Internet, You can use a wired or wireless connection,
Setting up Smart Hub
Press the ,$ button on your remote controJ, When you start Smart Hub for the first time, the Set Up
Smart Hub screen appears, Follow the instructions on the screen to configure the required settings
and compbte the setup,
Using Smart Hub
Enjoy the multiple functions provided by Smart Hub simultaneousMy on a singb screen,
For more iu'formatiol' _ refer to

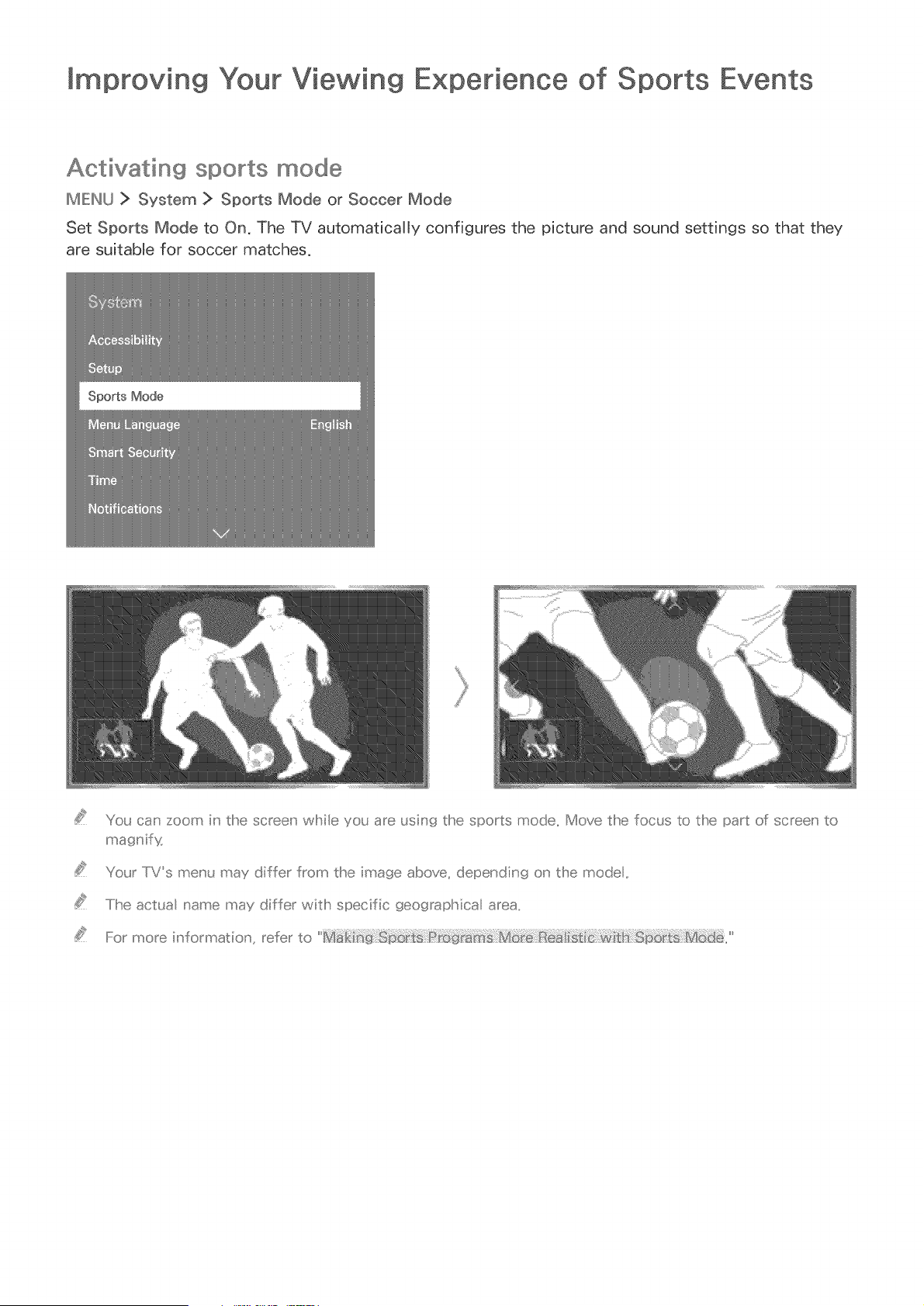

Improving Your Viewing Experience of Sports Events
Activating sports mode
MIEINkJ :> System > Sports Mode or Soccer Mode
Set Sports Mode to On. The TV automaticaMly configures the picture and sound settings so that they
are s@tabb for soccer matches.
You can zoom i,' the screeu' wl!sile you are usi,' g the sports mode,, Move the focus to the part of screeu' to
magu' if y,
Your/Vs menu may differ from the ima_e above, depending on the mode,,
..../ Ii'seactua name may differ witB specific geofsaphical area,,
For.... more _,'format,_o_', refer to '
Connecting an Antenna
Connect the TV to an antenna or a cable wall outlet to receive broadcast signals.
Connect a cable from an antenna or cable wall outlet to the ANT IN connector, as shown in the image
below to receive broadcast signals.
An antenna connect on is not necessary f you connect a cabe box or satel te recever_
iii!
Connecting to the
Establishing a "wired [nternet connection
Using LAN cabbs
There are three ways to connect the TV to your Internet access points, as shown in the following
illustrations:
o Wall-mounted LAN Outlet
External Modem
@ IP Router + @ External Modem
We recommend usn9 Cat 7 LAN Cabes to In< your TV to the [nternet Access Points_
The TV wi not be abe to connect to the [nternet f the network speed s beow 10Mbps_
Connecting to a wired _ntenset network automatically
MIENU > Network > Network Settings
AutomaticaMly connect to an availabb network.
Sebct Wired.
Once the network connection has been made, you will see a confirmation message, if the
connection fails, try again or connect manually,
Establlllishing a wi elllless ntemet connection
Connecting to a wireless _ntenset network automatically
IMIEN(J > Network > Network Settings
Make sure that you have the wireless router's SSID (name) and password settings before attempting to
connect,
Select Wireless. The TV automatically displays a list of availabb wireless networks,
Select a network, If the network you want doesn't appear in the list, the screen returns to the
Network Settings screen,
If your network is security enabled, enter the password using the displayed on-screen keyboard,
If your network is not secudty-enabbd, the TV will bypass the on-screen keyboard and attempt
to connect right away,

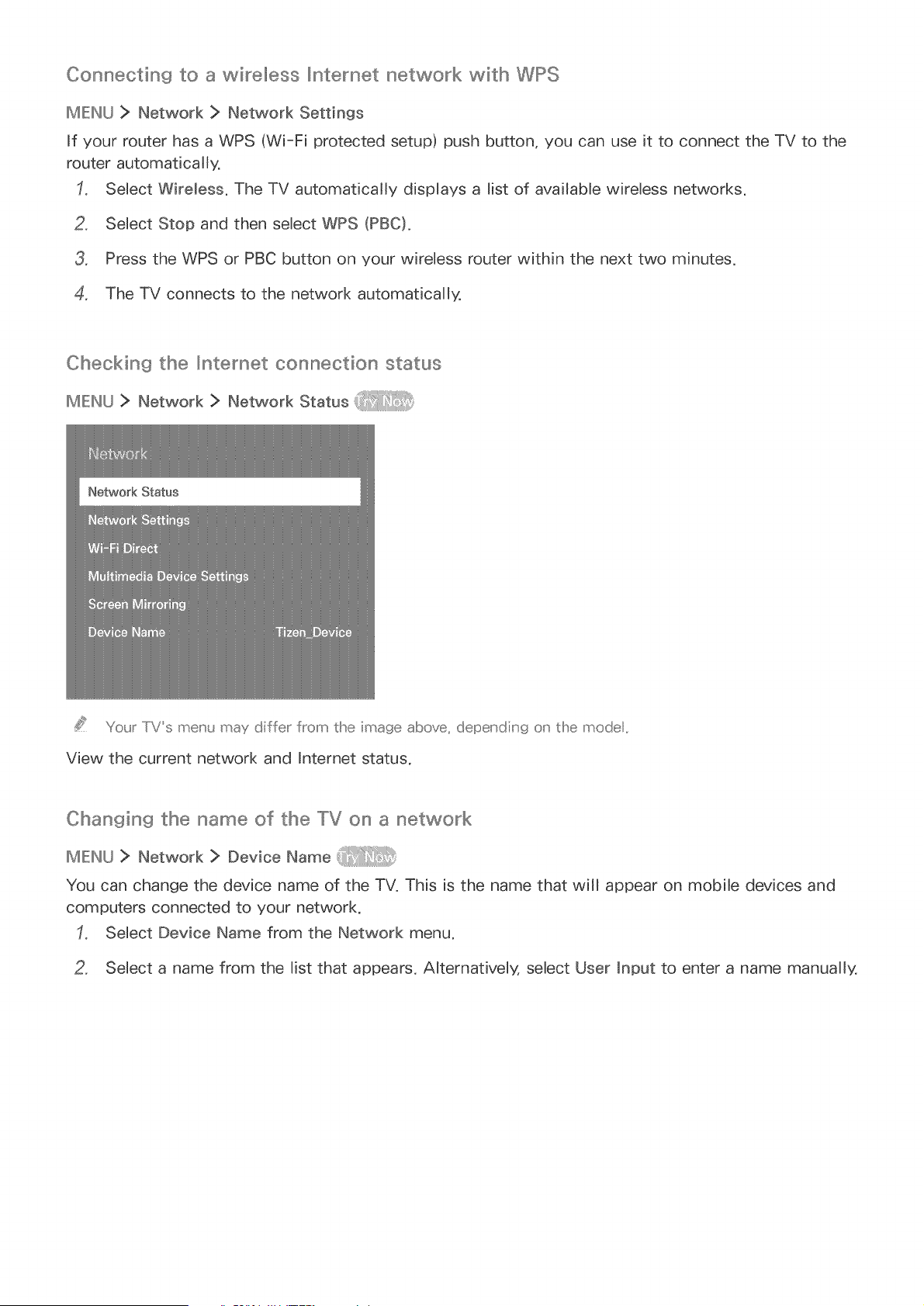

Connecting to a wir®ll®ss Internet network with WPS
IMIEINU> Network > Network Settings
If your router has a WPS (Wi-Fi protected setup) push button, you can use it to connect the TV to the
router automatically.
Select Wireless. The TV automaticalJy displays a list of availabJe wireless networks.
Select Stop and then select WPS (PBC).
Press the WPS or PBC button on your wireless router within the next two minutes.
4. The TV connects to the network automatically.
Checking the Interact connection status
IMIEINU:> Network :> Network Status
You_/Vs meru may differ from the image above, deper dir g or the mode..
View the current network and Internet status.
Changing the name of the "IV on a network
IMIEINU> Network > Device Name
You can change the device name of the TV. This is the name that will appear on mobile devices and
computers connected to your network.
Select Device Name from the Network menu.
Select a name from the list that appears. AJternatively, select User hput to enter a name manually.
Troubleshooting Internet Connectivity Issues
Tr ou b Ies hoot ing w ired [nt er net co nnect ivity iss ues
No network caUe found
Make sure that the network cable is plugged in. If it is connected, make sure that the router is turned
on. If it is on, try turning if off and on again.
[P auto setting fai_ed
Do the following or configure the lP Settings manually.
Make sure that the DHCP server is enabled on the router, and then reset the router.
2. If the problem persists, contact your Internet Service Provider.
UnaUe to connect to the network
Check all JP Settings.
2, Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back
in.
3, If this does not work, contact your Internet Service Provider.
Connected to a Ioca_ network_ but not to the _nternet
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2, Check the DNS values in JP Settings.
3, If the problem persists, contact your Internet Service Provider.
Network setup is comp_ete_ but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
Troubleshooting wireless mnternet connectivity issues
Wireless network connection fai_ed
if a selected wireless router is not found, go to Network Settings and select the correct router.
UnaUe to connect to a wireless router
Check if the router is turned on. If it is, turn it off and on again.
2, Enter the correct password if required.
_P auto setting fai_ed
Do the following or configure the _P Settings manually.
Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back
in.
2, Enter the correct password if required.
3, If the problem persists, contact your Internet Service Provider.
UnaUe to connect to the network
Check all JP Settings.
2, Enter the correct password if required.
3, If the problem persists, contact your Internet Service Provider.
Connected to a Ioca_ network_ but not to the _nternet
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2, Check the DNS values in JP Settings.
3, If the problem persists, contact your Internet Service Provider.
Network setup is comp_ete_ but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
Connecting Video Devices
Your TV has a variety of connections for video input from external devices. Below is a list of featured
connections shown in descending order of picture quality.
o HDMI
Component
Composite (A/V)
Connect a video device to the TV with an HDMI connection for the best picture quality. If the device
does not have an HDMI connection, try a component connection.
Connecting "with an HDMI cable
The following types of HDMI cables are recommended:
High-Speed HDMI Cable
High-Speed HDMI Cable with Ethernet
Connect the HDMI cable to the HDMI output connection of the video device and the HDMI input
connection of the TV as shown in the image below.
Connecting with a component cable
Connect the component cable to the component input connections of the TV and the component
output connections of the device using the AV adapter as shown in the image below. Make sure to
connect the same color connectors together (red to red, blue to blue, etc.)
Connecting with a composite (A/V) cable
Connect the AV cable to the input connections of the TV and the AV output connections of the device
as shown in the image below. If you are using the AV IN connection on the TV, connect the AV cable
to the AV IN connection on the TV and the AV output connections of the device. Make sure to connect
the same color connectors together (red to red, white to white, and yellow to yellow)
Input and Output Connections
Your TV has a variety of connections for audio input from external devices. The connections are listed
below.
o HDMI/ARC (Audio Return Channel)
Digital Audio (Optical)
Audio (Analog)
Connecting with an HDMm (ARC) cabme
ARC (Audio Return Channel) lets the TV output digital sound to an audio device and input digital
sound from the same audio device through one HDMI cable. ARC is only available through the HDMI
(ARC) port and only when the TV is connected to an ARC-enabled AV receiver.
Connect an HDMI cable to the HDMI (ARC) input connection of the TV and the ARC-enabled HDMI
output connection of the device as shown in the image below.
Connecting "with a digital audio (optical) cable
You can listen to digital audio by connecting an AV receiver to the TV via a digital audio (optical)
cable.
Connect the optical cable to the digital audio output connection of the TV and the digital audio input
connection of the receiver as shown in the image below.
Connecting with a stereo audio cable
Connect a stereo audio cable to the audio output connection of the TV and the audio input connection
of the device as shown in the image below.
Connecting a Computer
The kinds of connections you can make are listed below.
To use the TV as a computer monitor
o Connect through the HDMI port with an HDMI cable.
Connect though the HDMI (DVI) port with an HDMI-to-DVI cable.
To view or play the content saved in a computer on the TV
Connect through your home network.
Connecting through the HDMI port
For an HDMI connection, we recommend one of the following HDMI cable types:
High-Speed HDMI Cable
High-Speed HDMI Cable with Ethernet
Connect an HDMI cable to the HDMI input connection of the TV and the HDMI output connection of
the computer as shown in the image below.
Set Edit Device Type to DW PC for a computer connected with a HDMI--to-DVP cable, and PC for a
computer connected with HDMI cabe, Also, set Edit Device Type to DVl Devices for an A/V device with a
HDMI-to-DVl cabe,
Connecting with an HDM -to-DV oablllle
If the graphics adapter of your TV does not support the HDMI interface, connect the computer to the
TV with a DVI (Digital Visual Interactive)=to=HDMI cable, Note that the HDMI=to=DVI connection is
only supported by the HDMI (DVI) port and does not transmit audio, To listen to the computer sound,
connect external speakers to the audio output connection of the computer,
Connect the HDMI=to=DVI cable to the HDMI (DVI) port of the TV and the DVI output port of the
computer as shown in the image below,
JJ
Connecting through your home network
You can quickly access and play photo, video, and music files stored on a computer on the TV,
Connect the TV and the computer to the same router or AP, If you connected your TV to your
network when you set up your TV, this is already done,
On the computer, select [Control Panel] [Network and Internet] [Network and Sharing Center]
[Change advanced sharing settings], and select [Choose media streaming options...] to activate
media streaming.
On the list of available devices displayed by the computer, set the TV to [Allowed].
Connecting a Mobile Device
You can connect a mobile device such as a smartphone or tablet directly to the TV, or connect it
to your network and display the mobile device's screen or play its content on the TV. The kinds of
connections you can make are listed below.
o Connect by using an MHL-to-HDMI cable and view the mobile device's screen on the TV.
Connect by mirroring the mobile device's screen on the TV (Screen Mirroring).
Connect mobile devices without a wireless router (Wi-Fi Direct).
Connect a mobile device via Samsung Smart View 2.0.
Connecting with an MHL-to-HDMJ Cable
You can use the Mobile Iligh-definition Link (MILL) function to display a mobile device's screen on
the TV. However, MIlL is only available through the TV's IIDMI (MILL) port and only when used in
conjunction with an MilL-enabled mobile device. For information on configuring MIlL on your mobile
device, refer to the device's User Manual.
if you connect a mobte devce to the TV with an MHL-to-HDMI cable, the TV automat cal y switches the
p cture sze of each content saved on the mobte device to the orig na p cture sze of that content,
Connect the MHL-to-HDMI cable to the HDMI (MHL) input connection of the TV and the mobile
device's USB port as shown in the image below.
Using Screen Mirroring
IMIEINU> Network > Screen Mirroring
You can wirelessJy connect a mirroring-enabled mobile device to the TV and play the video and audio
flies stored on the device on the TV, Mirroring refers to the function that plays the video and audio
flies located on a mobile device on a TV and on the mobile device simultaneously,
Connecting via a mobillle device
Launch the Screen Mirroring function on your mobile device, The mobile device searches for
available devices to connect to,
Select the TV from the list, and then enter the password, The TV automatically allows the
connection and the device connects,
Select Allow to connect the mobile device,
A previous y a Iowecl mobile devices wil automatica y connect vvitll_out needing approva ,,
Iif you select Deny, the device cannot connect,, II0 chan_3e the cor"sr'sec_iionstatus of a deniie_/__:_evice_
Select MENU > Network > Multimedia Device Manager_ select d_e device_ and select Allow,,
Connecting by a_,,£omaticallliy allliowing tB÷ connection
Select Network ]> Screen Mirroring, You can also start screen mirroring by pressing the SO{JRClE
button on your remote and selecting Screen Mirroring from the list at the top of the screen,
Launch the Screen Mirroring function on your mobile device, The mobile device searches for
available devices to connect to,
Select the TV from the list, The TV automatically allows the connection and the device connects,
Iif d_e fw_obiledevice cannot connect, turn d_e IiV and fw_obiledevice off and d_en on,,
Connecting mobilllle devices without a wirelllless router (Wi-Fi Direct}
MIEI/U > Network > Wi-Fi Direct
You can connect a mobib device with the Wi=Fi Direct feature directly to the TV without using a
wirebss router or AP. By connecting a mobib device to the TV through Wi-Fi Direct, you can play
photo, video, and music fibs saved on the mobib device on the TV.
Enable Wi=Fi Direct on the mobile device, and then run Wi-Fi Direct on the TV. The TV
automatically scans for and displays a list of available devices. The TV's name also appears on
the mobile device.
Select the device from the list to initiate a connection. If a connection request is made by the TV,
a permission message appears on the mobile device and vice versa.
Allow the connection. The TV and mobile device connect.
..../o confir"m whether a moMle device aows or denies a c(::)_','ectio_', seect MENU > Network > Wi_Fi Direct
> Device Manager.
..../o connect mo_e easilx activate WilFi Di_ect on yo_r TV and mobile device, and then pace the mobile
device close Go the TV,, The connection pem_fission co_' fin'T_atio_' window appea_s o_' the bottom eft of the
..../V sc_eeu' so that you can easily co_' u'ect the device,,
Managing the connection status of p_eviouslliy connected mobile devices
Select MIEI_LJ> Network > Wi-Fi Direct > Device Manager. The TV displays a list of devices
that have previously connected to the TV or have tried to connect to the TV and been denied. The
status of the connection (Allow/Deny) is also displayed.
Select a device.
Select connection type or delete the device from the list.
..../Ms function is only availalb e if the devices Ihaveprevi(::)_s y co_'_"ected Gothe TV o_ have previous y
attempted to connect and beers de_'ied..
Connecting a m©billll@device via Samsung Smart View 2°0
When you install and then launch Samsung Smart View 2.0 on a mobile device connected to the TV,
you can play the mobile device's multimedia content, such as videos, photos, and music, on the TV.
You can also send text messages or control the TV using the mobile device.
Switching between externam devices connected to the
Press the SOUROIE button to switch between external devices connected to the TV.
o Options
To view the options menu, press the down directional button. The functions that appear in the
options menu can include any of the following:
.....Iihe connector names may va_y depending o_ the prodL ct,,
Edit Device Type: Changes the type of external devices connected to the TV. Select an
external device to change. For example, you can select PC for a PC connected to an HDMI
connection and BNu-ray for a Blu-ray player connected to another HDMI connection. When
you display the source list, the TV displays the name of each connection and the type of the
device connected to each connection.
Edit Name: You can rename devices connected to the TV to facilitate identifying external
sources.
information: Displays information about the connected devices.
Anynet+ (HDMI-CEC): Displays a list of Anynet+ (HDMl-CEC)-compliant devices that are
connected to the TV.
.....IIMs option s orsy ava abe when Anynet+ (HDM[_CEC) s set to On,,
- Remove USB Device: Removes a USB device connected to the TV.
Connection Notes
..../ Ii'senumber of co_' hectors and their names and ocatio_' s a_ay vary depeu' din9 o_' the mode,,
IRefer to the exten' a devices operatin9 a'nanua wl!seu' conrsectin9 it to the TV,, The number of extema device
connectors and tlseir names and ocations may vary depeu' diu'9 o_' the manufacturer,
Connection notes for H©M
o Use an HDMI cable with a thickness of 0,55 inches (14 mm) or less,
o Using a non-certified HDMI cable may result in a blank screen or a connection error,
Some HDMI cables and devices may not be compatible with the TV due to different HDMI
specifications,
This TV does not support HDMI Ethemet Channel, Ethemet is a Local Area Network (LAN) built
with coaxial cables standardized by the IEEE,
o Many computer graphics adaptors do not have HDMI ports, but have DVI ports instead, If your
computer graphics adaptor has a DVl port, use an HDMt-to-DVl cable to connect the computer
to the TV,
_,_3( _ (8 _(t xS_}t8¸£ _8}{_ _ _£ 8_£}_{/8 _ _ y 3_}'{ _£ s;_ _{ s8 ,_ _{8
IFor more ir_forl_}atiol'% refer to
Jf you are using an HDMt adapter to connect an MHL device, the TV recognizes the signal as an
HDMI signal and may respond differently than it would to an MHL-to-HDMI cable connection,
Connection notes for audio devices
For better audio quality, it is a good idea to use an AV receiver,
0
0
Connecting a device using an optical cable does not automaticalJy turn off the TV speakers. To
turn off the TV's speakers, set Speaker Select (MIEIN/J :> Sound > Speaker Settings > Speaker
Select) to something other than TV Speaker,
o An unusual noise coming from the audio device while you are using it may indicate a
problem with the audio device itself. If this occurs, ask for assistance from the audio device's
manufacturer.
o Digital audio is only available with 5.l-channel broadcasts.
Connection notes for computers
o For the resolutions supported by the TV, refer to
As long as file sharing is activated, unauthorized access may occur, When you do not need to
access data, disable file sharing.
Your PC and Smart TV must be connected to each other on the same network.
Connection notes for mobilllle devices
o To use the Screen Mirroring function, the mobile device must support a mirroring function
such as AIIShare Cast or Screen Mirroring. To check whether your mobile device supports the
mirroring function, please visit the mobile device manufacturer's website.
o To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. Please check if
your mobile device supports Wi-Fi Direct.
o The mobile device and your Smart TV must be connected to each other in the same network.
o The video or audio may stop intermittently, depending on network conditions.
Using the Tooms on the TV screen
Press the TOOLS button to display the Tools menu on the TV's screen. The following menu options
are available.
o PoS_ZE: Changes the picture size.
PoMODE: Changes the picture mode.
Network Settings: Allows you to connect the TV to the Internet in a wired or wireless
connection.
Caption: Turns on or off captions.
Speaker List: Allows you to select the speakers that will play the TV's audio.
S_eep Timer: Shuts off the TV automatically after a preset period of time.
e-Manual Opens the e-Manual.
The Toos menu opt ons may dffer with the mode and geograph cal area,
To change the posit ons of the menu opt ons on the frst row, press and hod the Enter button on the remote
contro,
ControlMin9 the TV with a Keyboard
MIE:I/[J > System > Device Manager > Keyboard Settings
Certain modes are not cempatib e with USB HID class keybeards,,
Connecting a keyboard
Connecting a USB keyboa_'d
Plug the keyboard cable into the TV's USB port,
Connecting a Bluetooth keyboard
Place the Bluetooth keyboard into standby status,
Select IMIEIN(J> System > Device Manager > Keyboard Settings > Add Bluetooth Keyboard.
The TV automatically scans for availabb keyboards.
Iif your keyboa_d was not detected, posiition the keyboa_d close to the IiV, and then select Refresh,, Iihe
.....IiV scans fo_ availab e keyboa_ds again,,
Select the Bluetooth keyboard from the scan list, and then select Pair and connect, A number
appears on the screen,
4. Enter the number using the Bluetooth keyboard, This pairs the Bluetooth keyboard to the TV,
Using the keyboard
You can use the following keys on a USB or BIuetooth keyboard connected to the TV to control the
following remote features.
Windows key DispJays the menu
Menu list key
Enter key SeJects or runs a focused item
ESC key Returns to the previous screen
F1 t F2 t F3 / F4 key B / D t /
F5 key Launches the button
F6 key Displays the Source screen
F7 key Launches the Channe_ List
F8 key Mutes the sound
F9 / F10 key Adjusts the voJume
Changing keyboard settings
IMIEINU> System > Device Manager > Keyboard Settings > Keyboard Options _
o Keyboard Language
Displays the languages you can use on your keyboard and Jets you seJect a Janguage,
o Keyboard Type
DispJays a list of keyboard types and Jets you seJect a type that matches the Keyboard language
you seJected,
.....Ilhe liist of keyboard types differs depending on the ang_age yo{_ selected {ruder Keyboard Language,,
o Switch Input Language
DispJays a Jist of keys you can use to toggJe between Janguages and Jets you seJect a key,
ControlMin9 the TV with a
MH_U > System > Device Manager > Mouse Settings
Certain modes are not compatib e with USB HID class mice.
Connecting a mouse
Connecting a USB mouse
Plug the mouse cable into the TV's USB port.
Connecting a Bluetooth mouse
Place the Bluetooth mouse in standby status.
MIEINU > System > Device Manager > Mouse Settings > Add Bluetooth Mouse
Select the Bluetooth mouse from the scanned list, and then select Pair and connect. This pairs
the Bluetooth mouse to the TV.
Using a mouse
You can use a pointer to control the TV in the same way you use a pointer on a computer.
o Selecting and running an item
Left-click the mouse.
o Scrolling the TV menu or screen
Scroll the mouse wheel up or down.
o Exiting the TV menu or feature
Place the pointer in any blank point on the screen, and then left-click the mouse.
Changing mouse buttons and pointer speed
MIENU :> System > Device Manager > Mouse Settings > Mouse Options
o Primary Button
Select which button (left or right) to use when selecting and running items.
o Pointer Speed
Adjust the movement speed of the pointer.
Entering Text using the Keyboard
Using a itionallll functions
Select _ on the QWERTY keyboard screen. The following options are available:
o Recommended text
Enables or disables the recommended text feature. The keyboard displays recommended words
so that you can enter the text more easily.
o Reset recommended text data
Deletes both the recommended words and the memorized words to clear the list.
o Predict Next Character (when using direction buttons)
Enables or disables the Text Prediction feature.
@
Select a language from the list.
Smart Hub
or IMIEINU > Smart Hub > Open Smart Hub
..../he image may differ with the specific mode and area,,
You can surf the web and download apps with Smart Hub. In addition, you can enjoy photo, video,
and music files stored on external storage devices.
..../o run Smart Hub wMle you are usir9 a service provided by Smart Hub, use the same path described above,,
Removing or pinning an item in the Recent group
To remove or pin an item in the Recent group, press the H button on the remote control. The
following icons are availabb.
o _: Deletes the item. Although you remove an item from the Recent group, it is not removed
from your TV.
o H: Pin the item to the first position. To unpin the item, select H again.
III,,,,,,,,,,,aunohingSmart Hub automatioalllllllly
IMIEINU> Smart Hub > Auto-Start Settings > Smart Hub
You can start Smart Hub automatically when you turn on the TV.
........[esting Smart Hub connections
IMIEINU> Support > Self Diagnosis > Smart Hub Connection Test
If Smart Hub is not working, select Smart Hub Connection Test. The Connection Test diagnoses the
problem by checking the Internet connection, your ISP, the Samsung server, and the Apps service.
Using the Smart Hub tutodallll
IMIEINLJ ]> Support ]> Smart Hub Tutorial
You can barn the basics of using Smart Hub and the Smart Hub service in detail.
Resetting Smart Hub
MEINU> Smort,ub> ResetSmort,ub
You can remove the Samsung accounts saved in the TV and everything linked to them, including apps.
Some of the Smart Hub services are for paid services.. To use a for paid service, you must have an account
with the service provider or a Samsun_ account.. For more i,' formation' _ refer to
.....Io use Smart Hub, the TV must be c(:x u'ected to the Internet..
Some Smart Hub features may not be availab e depeu' ding o_' the service provide( anguarae, or region' ..
Smart Hub service outages ca_' be caused by disrupti(:x s iu your Internet service..
.....Io use Smart Hub, you must agree to the end user agreement and privacy po ic_. Otlherwise_ you will not be
able to access the features and services associated wid_ them. You can view the e,' tire text o the Terms &
PoJicy document Dy_navigating to Smart Hub > Terms & Policy.. If you wa_'t to stop usiu' g Smart Hub, you
.....Io view the Smart Hub TutoriaJ, seect the _ buttol' ol' the Recent screel' ..
Using Smart Hub with a Samsung Account
Creating a Samsung account
IMIEINU > Smart Hub > Samsung Account
Some of the Smart Hub services are for paid services. To use a for paid service, you must have an
account with the service provider or a Samsung account.
You can create a Samsung account using your email address as your ID.
..../o create a Samsung account, you must agree to the Samsung acc(::)_£_tend user agreement and privacy
pc icy, To view the entire content of the agreemer t, seect MEINU > Smart Hub > Samsung Account >
Terms and Conditions, Privacy Policy,,
You car as(::} create a Samsung account at http://cor tent,,samsung,,con% Once you have ar account, you car
use the same ID or both the TV ard the Samsung website,,
Creating a Samsung account
IMIEINU> Smart Hub > Samsung Account > Create Account > Create Samsung Account
You can create a Samsung account by following the on-screen instructions. Once a Samsung account
is created, you are automatically signed in to your Samsung account.
If you want to review the/erms ard Cot ditior s, select View Details,,
If you wart your account to be protected, seect Profile image selection and password entry (High security)
ir the fled beow the password fled,,
If yOU want the TV to og you ir to your account automatica y when you turn the TV or, dick Sign me in
automatically,,
Creating a Samsung account using a Facebook account
IMIEINU> Smart Hub > Samsung Account > Create Samsung Account with Facebook
Enter your Facebook ID and password, and then follow the on-screen instructions to complete account
setup. Once a Samsung account is created, you are automatically signed in to your Samsung account.
Your Samsung account and IFacebook account are automatica y irked whet you create a Samsur g accour t
witlh your IFacebook account,,
Signing in to a Samsung account
IMIEINU> Smart Hub > Samsung Account > Sign In
You can automadcaMly sign in to your Samsung account and use the Smart Hub feature.
Registering an existing Samsun9 account to the TV
If you already have a Samsung account, you can register that account to the TV. Sebct + > Sign In on
the Samsung account screen, and then follow the on-screen instructions.
Signing in to a r_egistered Samsung account saved on the TV
If you register a Samsung account, it is saved on the TV. To sign in to a registered Samsung account,
just seMect it on the TV.
.....Io chancre the sic_nin method, _efe_to
Linking your Samsung account to ®xt®mallll service accounts
You can automatically log in to external service accounts when you log into your Samsung account by
linking your Samsung account to the external service accounts,
..../o use Link Service Accounts, you must first og irto your Samsur g accour t,,
LinMn9 or disconnecting a service account
IMIEINU> Smart Hub > Samsung Account > Link Service Accounts
o Linking a service account
Select an account from the list and log in to the account by following the on-screen instructions.
The service account is linked to the Samsung account.
o Disconnecting a linked account
Select an account from the list and unlink the account by following the on-screen instructions.
Changing and adding information to a Samsung account
IMIEINLJ> Smart Hub > Samsung Account > Edit Profile
You can manage your Samsung account. Enter your password with the keyboard dispJayed on the TV's
screen, and then seJect Done. You can perform the foJlowing functions on the screen.
..../o cha_'ge the account i,'formation', you must be ogged i,' to your Samsung account,,
o Change Your Profile _mage
o Register Your Face to your Samsung Account
Registered faces are used with the Login Options.
.....Iio _se this functiion_ the optiiona IiV camera m_st be connected to the dedicated USB port at the back
of the IiV..
o SeJect a Samsung Account sign-in method
o Turn auto Jogin on or off
o Enter Basic User _nformation
o Subscribe to the Samsung e-Newsletter
D®llll®ting a Samsung account from the "_V
IMIEINLJ> Smart Hub > Samsung Account > Remove Accounts from TV
You can remove a Samsung account and password information from your TV. The account information
for any externaJ accounts Jinked to the account is aJso removed from the TV.
..../o remove the accouH't i,'formation', you must be ogged k to your Samsung account..
Usin9 the APPS Service
Featured > APPS
You can enjoy a wide range of content including news, sports, weather and games by installing the
corresponding apps on your TV, You can download the apps from Smart Hub, Select an app displayed
on the screen or select a genre category such as Most Popular, What's New from the top of the
screen, and then select an app in the genre you selected, You can also manage downloaded apps in
My Apps,
.....Io use this feature, the TV must be corrected to the Intemet,,
.....Ilhe categories disp ayed or top of the screer may differ witlh the mode and geograplhica area,,
Wlher Smart Hub is aunclhed for the first time, the defaut apps are automatica y irsta ed,, Ilhe defaut apps
may differ by reoion,,
Managin9 Apps with the IlpOp_up Options menu
Move the focus to an app and then press and hold the Enter button, The option menu appears
displaying some or all of the following functions,
o Delete
o View DetaiJs
o Reinstall
.....I Ii'sepopup menu may differ witlh the app you se ected,,
Viewing the Detailllled _nformation screen
Move the focus to an App, and then press the Enter button, You can also select the View Details
function, See above,
nstallllllllingan app
QuicMy installing apps
Select a category on the APP8 screen.
Move the focus to an app, and then press and hold the Enter button. The context=sensitive menu
appears.
Select Download. The selected app is instaJbd on the TV.
You can view ir sta ed apps or the My Apps sc_eer ,,
You can aso irsta an app f_oa'xits detailed infon'T_atior screer ,,
Wlher the TVs intema memo_y is ir su ficient, you can insta an app or a USB device,,
You can _un ar app insta ed on a USB device only whet the USB device is corrected to the TV,, If the USB
device is discor r ected wl!qile an app is _unr ir g, the app is terminated,,
Youcanrot _unar appirsta edor the USB device or a PCo_arotlhe_ IV,,
Launching an app
You can launch an app by selecting the app on the APP8 screen. The icons below appear within the
selected app's icon and indicate the following:
o _:_ _ : The app is installed on a USB device.
o @ : The app has a password.
o _ : The app is installed.
Enablllling automatic apps updates
IMIEINU> Smart Hub > App Auto Update
To update apps automatically, set App Auto Update to On. Apps wilJ be updated automatically when
an update becomes availabJe.
Removing an app from the TV
Select an app to remove on the APPS screen and press and how the Enter button to confirm, If you
want to remove multipb apps, select aH the apps to delete, sebct Options on the top of the screen,
and then sebct Delete My Apps.
IE_'sure that the re ated app data is as(:} removed wl!seu' you remove a_' app,,
III,,,,,,,,,,,©okingand unllll©oking apps
Select Options > Lock/Unlock My Apps on the APPS screen, The password input screen appears,
Enter your password, and then sebct apps to lock or unlock, When done selecting, sebct Save, AII
selected apps are locked or unlocked,
Updating apps
Select Options > Update Apps on the top of the APPS screen. The TV searches the for app updates,
and then displays a list. You can update some apps or all apps.
Rearranging apps
Select Options > Sort by on the APPS screen, and then sort the apps by date, time or others by
selecting requirements.
Rating IIIDUrohased apps
You can set the star score by using the left or right directional buttons on the detailed information
screen.
Using other app features and functions
IMIEINkJ> Smart Hub > Auto-Start Settings > Channel-bound Apps & Ticker
You can configure additional app features and functions.
Using channel bound apps
A channel bound app provides information about offerings and services available on one channel. You
can receive information about TV programs and other relevant services while watching TV by using a
channel bound app that is installed on the TV and linked to a specific channel.
.....IMs function' is o_'y availab e wl!seu' a_' app supportih_ {_ Channel-bound Apps & Ticker is iu'sta ed o_' the TV,,
Using the eiManua
III,,,,,,,,,,,aunohingthe ÷-Manuallll
MIEINLJ> Support > e-Manual
You can view the embedded e-manual that contains information about your TV's key features.
Select a category from the e-Manual screen. The content of the selected category appears on the
screen.
Select an item from the list. The corresponding e-Manual topic appears.
A tematively, yo_ can down cad a copy of the e Mau'_.a flom Sams_ n_ s vvetesite,,
Won:Is in b_e (e,,f_,,_Picture Mode) indicate a men_ item,,
Using the buttons in the ®-Manuallll
¢ (Search): Brings up the search screen. Enter a search term, and then select Done. Select an item
from the search result to load the corresponding page.
¢ (_ndex): Brings up the index screen. Select a topic from the list to navigate to the relevant page.
@ (Recently Viewed Topics): Displays a list of previously read pages. Select a page. The e-Manual
jumps to the selected page.
Accessing the associated menu screen from an e_Manual topic page
(Try Now): Allows you to access the corresponding menu item and try out the feature right away.
(Link): Allows you to access the corresponding reference page.
.....Ilhe e Manua ca_'u'(:::£be accessed f_om some meu'u sc_eeu's..
Accessing the associated menu screen from an e_Manual topic page
Press the IEq_AIN(JAL button on the remote control to read the e-Manual topic about a current screen
menu function.
.....Ilhe e Manua ca_'u'(:::£be accessed f_om some meu'u sc_eeu's..
Updating the e_Manua_ to the latest version
You can update the e-Manual in the same way you update apps,
Using the Web Browser
You can surf the Internet on the TV as you would on a PC - even while watcMng a TV program using
PIP. Select Help to view the information about the Internet web browser.
For a more cot vet iert web browsir g experier ce, correct a keyboard ard mouse to the TV,,
You can scro the Web browser page with the 4 directior a hurl:or s,,
..../he Web browser page may differ from that or a IPC,,
Browsing IIID ®f® ®noes
Configure the browsing settings for your convenience or to meet you needs. Select _ > Settings.
General
Hides browser tabs or menu bars automatically after a 9eriod of inactivity. Also allows you to
reset all user settings.
Y_-,_rbookmarks and browsing histories vvil not be reset..
o Home Page
Sets the home page. When you launch the browser, it will display this page.
o Search Engine
Searches for information that you requested, and then displays a list of web pages that contain
the information.
o Privacy & Security
Prevents access to inappropriate web pages. Also allows you to select not to save your browsing
history.
o Blocked pages
Blocks or unbtocks pages. You can manage the list of pages you blocked.
o Approved pages
Limits the browser to only the pages you have approved. To use this option, you must set a
password. You can add or remove approved pages.
Gives you the option to set the encoding to Auto or select an encoding method from a list.
About
Displays the current version of Web Browser.
Using the MY CONTENT Service
> Featured > MY CONTENT
You can play media content saved on storage devices, such as USB devices, mobile devices, and
cameras, on the TV. When you connect a storage device to the TV, the TV displays a tab with the
name of the connected device. Select the tab to confirm the content saved on the storage device.
You cannot pay media content if the content or the storage device is not supported H)ythe TV,, For more
_,'format_or _refer to
Bacl<up important files H)efore correcting a USB device,, Samsun_ is not respor sib e for damaged or ost
files,,
Read before IIIDIIIlayingmedia content
.....Io correct the TV to a compute( refer to
.....Io correct a USB or extema storarae device to the TV, use the TV's USB port,,
.....Io correct the TV to a mobile device, refer to
IIPIIIlayingmultimedia content in a compute or mobilllle device
Before co_'u'ectiu' g to a computer or mobile device, co_'figure the network settir gs,,
Rlaying m[,_llitimedia content saved on a computer or mobile device
> Featured > MY CONTEHT
To play multimedia content located on a computer or mobile device on the TV, you must allow the
connection with the computer or mobile device on the TV,
Connect a computer or mobile device, The TV displays the device's name and lists the media flies
in the device,
Select a media file to play from the list, The selected media plays,
Select the @ button to stop playing or press the IRIET[JRINbutton,
A ternative X move to the media co_'teu't you want to pa_ a_'d tlhen press the _ button to pay the co_'teu't,,
b ....
.....Io col' I'ect a computer through your h_omenetwork, refer to
..../Ihe TV may not pay content ocated on a computer or mobile device depending on the encoding type and
fib format of the co_'teu't,,
.....Io connect a mobile device through Smart View 2,,0, refer to
Content may not play smooth y depot ding on the netw(:xk status,, If this occurs, transfer the co_'teu't to a
USB storage device, al'd thel' pay the col' tel' t from the device,,
IIPIIIlayingmedia content saved on a USB device
Select a USB device name on the MY CONTENT screen, The TV displays a thumbnail list of the
media content saved on the USB device,
Select the media content to play from the list, The media content plays,
Select the @ button to stop playing or press the RET[JRIN button,
A temativelx if you seect a USB device o_' the Source sc_eeu', the TV umps to the MY CONTENT sc_eeu'
automatica y,
Safely Removing a USB Device
Press the SO[JRClE button, The Source screen appears,
Move the focus to the USB device you want to remove, and then press the down directional
button,
Select Remove USB Device in the list,
Buttons and functions available while viewing photos
You can press the Enter button while viewing photos to display available options. You can also view
the thumbnails of photos saved on the TV while viewing photos. The options disappear when you
oress the IRIETURIN button.
o Pause / Hay
Start or stop a slideshow. Using slideshow, you can display all the photos in a folder one after
another, automatically.
Previous / Next
View the previous or the next photo.
S_ideshow Speed Sets the slideshow speed.
S_ideshow Effect Applies transition effects to the slide show.
Zooms in by up to a factor of 4.
Zoom & Rotate
Rotates the photo.
Plays background music while the TV displays photos.
/_ The music fibs must be saved in the same USB device as the photo files.
Background Music _'s When background music plays, the music icon appears on the screen. Using the
music icon, you can pause the current music fib or play another music fib.
Displays a list of sound modes and lets you change the mode.
Sound Mode S? This function is avai_aMe only when background music is p_aying,
Gives you a choice of which speakers to play the background music through.
TV Speaker: Plays the background music through the TV speakers.
Audio Out: Plays the background music through the external speakers.
Speaker List Speaker Settings: Plays the background music through a speaker that you want.
Sound Mode: Changes the sound mode during playback when you play the music
through the TV speakers.
Picture Mode Displays a list of Picture Modes and allows you to change the mode.
_nformation Displays detailed information about the current photo.
Buttons and functions availlllabllllewhilllle viewing videos
You can press the Enter button while viewing videos to display availabb options, Preview images of
video frames with their time intervals displayed simultaneously so that you can move to a specific
frame easily, The options disappear when you press the IRIETURN button,
o Pause / Hay
Pauses or plays the video. You can use the following functions when the video is paused.
Witlh the video paused, the liT does not pay audio,,
= Step: Allows you to step through the paused video one frame at a time by pressing the H
button.
= SJow Motion: Allows you to play the video in slow playback speed (1/8, 1/4, 1/2) by pressing
the bb button.
Rewind / Fast Forward
Rewinds or fast forwards the video. To increase the rewind or fast forward speed up to 3 times
faster than normal, select the button repeatedly. To restore normal playback speed, press the _,_
button.
Previous / Next
Plays the previous or next video, Press the I<< button twice to play the previous video, Press the
_<<button once to start the current video from the beginning,
Press the _ button to play the next video,
Plays the current video file repeatedly or all video files in the same folder repeatedly,
f
:: Picture Size Changes the size of the screen. The supported picture sizes differ with the video.
:: Controls video subtitles
:: Subtitles: Turns the subtitles on or off.
Language: Sets the caption language.
Sync: Adjusts the synchronization when the video and the subtitles are not
Subtitles synchronized.
Reset Sync: Resets the subtitle synchronization adjustment to 0.
Size: Changes the font size of the subtitles.
Encoding: Displays a list of encoding languages. Allows you to change the encoding
language when subtitles are displayed incorrectly.
Rotate Rotates the video.
Picture Mode Displays a list of Picture Modes and allows you to change the mode.
Sound Mode Displays a list of Sound Modes and allows you to change the mode.
i............................................................
TV Speaker: Plays the video sound through the TV speakers
Audio Out: Plays the video sound through the external speakers
Speaker List Speaker Settings: Plays the TV sound through a speaker that you want.
Sound Mode: Changes the video sound mode during playback when you play the
video sound through the TV speakers.
Displays a list of languages and allows you to select the audio language that will be
Audio Language used when you play videos. This function is only available if the video supports multi-
track sound.
Information Displays detailed information about the video.
Buttons and functions availlllabllll@whillll@pllllaying musio
You can use the following functions when you select a music fib,
o Pause / Play
Pauses or resumes the music,
o Previous / Next
Plays the previous or next music file. Press the _<<button twice to play the previous music fib.
Press the I<< button once to start the current music file from the beginning.
Press the _ button to play the next music file.
Plays the current music fib repeatedly or all music files in the same folder repeatedly,
o Shuffle
Plays the music files in random order,
o Speaker List
- TV Speaker: Plays the music through the TV speakers,
- Audio Out: Plays the music through the external speakers,
- Speaker Settings: Plays the music through a speaker that you want,
- Sound Mode: Changes the sound mode during playback when you play the music through
the TV speakers. (MIENU > Sound > Sound Mode)
o Screen Off
Plays the music files only with the screen off.
Listening to music in HD quality
You can enjoy HD music in HD native quality. Set HD Audio (MIEINU ]> Sound ]> Additional Settings >
HD Audio) to On. Then, move to the MY CONTENT service screen, and sebct an HD music fib to pJay
in HD quaJity.
Standard audio sigu' a s are samp ed at 48 klilz wMle HD audio si%' a s are samp ed at 96 kli Iz..
Some S/I!:::>DNFreceivers may ,'ot be compatib e.. For iu'compatib e receivers, deactivate HD Audio and use
norma audio mode instead..
Someexterna audio payersc(:xu'ectedvia HDMI, Buetooth, orWi IFinetworksarenotabetopayHD
audio sigu' a s..
If a music fib supports the HD audio format, the HD ico,' appears in the ist..
Seect a music file, and then select b" to pay it..
Wl!se,' you set HD Audio to Off durir g p ayback, the next music ile is payed i,' the standard audio format..
Functions on the media content IIIlistscreen
You can use the following functions on the media content list screen of a storage device.
o Filter By
FiJters the media content to display the type of media you want,
o Sort By
Sorts the content list, The sorting methods change depending on the type of content you have
selected,
.....Ilhis function is not availab e when Filter By is set to AiI,,
o Delete
Deletes the recorded media content from the media content list,
.....Iihis function is not availab e in the U,,S,,A,, and Canada,,
.....I!Ibis function is ony availab e when the storage device has the recorded media content,,
o Play Selected
PJays the selected media content from the media content list,
.....Iihis function is not availab e when Filter By is set to A_l,,
Using the Soccer Service
> Featured > Soccer
You can get a wide range of information about world soccer matches, including videos, news,
matchups, and ratings. You can also easily access information about your favorite team by adding it to
the Favonte list.
.....IMs function' is not available in the U,,S,,A,, and Ca_'ada,,
Befo_e you use the Soccer service, check if the TV is co_' ,' ected to the Intemet,,
Configuring the Soccer service screen to displlllay your favorite
sooo@r t@sms
You can configure the Soccer service screen to display only your favorite soccer teams. To add a
team to the favorite soccer team list located at the top of the screen, select + next to the list, and then
select a team. After adding teams, if you select a team in the favorite soccer team list, its ranking in
the league, game results, game videos, and schedules are displayed in the content area of the Soccer
service screen.
You can add up to 6 teams to the favorite soccer team ist,,
Using a itionallll functions
Select O at the top of the Soccer service screen, The following functions are available:
Add Teams
Displays the league selection screen to allow you to add teams to the favorite soccer team list.
o Move Teams
Allows you to rearrange the order of the selected teams.
o Remove Teams
Removes teams you select from the favorite soccer team list.
o Replace Teams
Allows you to change your favorite team to another. Select an existing team, and then select a
new team on the league selection screen. The existing team is replaced with the new team. The
new team's name is displayed at the top of the screen.
Viewing soccer videos
You can view the soccer videos and highlights of your favorite soccer teams. On the Soccer service
screen, select a team, and then select a video you want to watch.
Buttons and functions available while watchin9 a soccer video
e Play / Pause
Pauses or plays the video.
o Previous / Next
Plays the previous or next video.
Rewind / Fast Forward
Rewinds or fast forwards the video.
o
Plays the video repeatedly.
Picture Size
Picture Mode
Changes the size of the screen.
Allows you to change the picture mode of the current video.
TV Speaker: Plays the video sound through the TV speakers
:: Speaker List Audio Out: Plays the video sound through the external speakers.
Speaker Settings: Plays the sound from the TV through a speaker that you select.
Sound Mode Changes the sound mode of the current video when you play the video though the TV
speaker.
Viewing Digita Information at a G ance
Using tBe guide
IMIEINU> Broadcasting > Guide
You can check the program schedubs and set up a Schedule Viewing from the Guide.
You can move through the Guide in 2 hour jumps in either direction by pressing the 44 or b_ button.
You can only view programs schedubd after the current time.
..../Ihe i,' formation in the Guide is for digita cha_','e s o_'y. Anaog chan_r_elsare not supported..
..../o view the Guide, you must first set the TVs clock (MENU > System > Time > C_ock)..
To access the Guide functions after launching the Guide, press and hold the Enter button on the
remote control. A pop=up window listing the following functions appears.
o ChanneJ FiJter
Filters the channels displayed in the Guide by the following categories: All, and Favorites 1 -
Favorites 5.
o Schedule Manager
Displays the Schedule Manager.
For ilhformatior_ 8ho_t the Sched_ e Manage_; refer to
Edit Favorite ChanneJs
Allows you to set a channel that you select in the Guide as a favorite.
o View detaiJs
Displays detailed information about a selected program. The program information may differ
with the broadcast signal and may not be availabb at all for certain programs.
- Select a current program on another channel, and then select View Details to Watch or
Record the program.
- Select an upcoming program, and then select View Details to set up a Schedule Viewing or
Schedub Recording.
Recording is not supported in the U,,S,A and Canada,
On the remote contro, press the IINFOb_t_on,
IFormore informatior_ abo{t watching or Schedule Viewing, refer to _ c
You can onY view programs scheduled after the current time..
IFormore information on Sched@e Recording, refer to
Record
Starts instant recording of the selected program.
Checking current Ilpr©gram info
You can view information about, start instant recording of, or apply the Timeshift function to a show
that you are watching by pressing the Enter button on the Program Info window. In addition, you can
view information about upcoming programs by using the bft or right directional buttons, or you can
set up a Schedule Viewing or Schedule Recording for a program by pressing the Enter button on the
Program Info window displayed for that program.
Recording is not supported ir the U.S,,A and Ca_'ada,,
On the remote co_' tro, press the IINFO button' ,,
.....Io view program info, you asust first set tlhe TV's cock (MENU > System > Time > Clock},,
For more i,' formation o_' Schedule Recording, refer to
IProgram information' may differ with the type of ir coming sigrsa and may not be availab e at a for certaiu'
programs,,
_ts.} ictt <s .} t :::£s.,_£s xsA: .<t t: ¸tic¸¸¸¸ _#. f_,:s.3
IFormore informatior_ Ol' Schedule Viewing, refer to
Changing the broadcast signallll
IMIEINU> Broadcasting > Antenna
You can choose the appropriate DTV mode for your viewing environment. Select Air or Cable. Air is
suitable for homes equipped with a separate, over-the-air antenna. Cable is suitable for homes that
have subscribed to a local cabb-service or satelfite-service provider.
You do not need to use this function' if your IV is c(:x u'ected to a cabe or sate ire box,,
Checking digitallll ohannellll 8ignallll info and strength
IMIEINU> Support > Self Diagnosis > Signal Information
You can check the digital channel's signal information and strength.
If your TV is attaclhed to a separate_ over the air antenna, you can use the signa streu'gth i,' formation' to
adjust the a_'teu'u'a for iu'creased sirau'a streu'gth a_'d improved HD cha_'u'e reception' ..
.....Ill'sis function' is o_'y availab e for di{_ita cha_' u'es,,
Recording Programs
The @ appears next to programs and channels for which a Schedule Recording has been set.
.....Ilhis function is not availab eir the U,,S,,A,,a_'d Ca_'ada,,
5
Read all precautions bef(:xe usinfj the recording feature,, Refer to
_-_s68®ss for more infom_ation,,
Recording IIP Og ams
You can record current and upcoming programs.
_nstant recording
To begin recording the current program right away, press the € button.
Using the instant and schedule recording options from the guide
To start instant recording of a current program, select that program from the Guide, and then select
Record. To start a schedule recording of a program that wil! air in the future, select that program from
the Guide, press and hold the Enter button, select View Details, and then select Schedule Recording.
Using the instant and schedule recording options from program info window
To start instant recording or a schedule recording of a program, press the Enter or HW=Obutton. The
Program Info window appears.
To start instant recording of a current program, select €
To start a schedule recording of a program that will air in the future, press the left or right directional
button to move to that program, press the Enter button, and then select _.
Using schedub recording to record on a specified date and time
IMEIN(J > Broadcasting > Schedule Manager > Schedule.
Select Schedule Recording.
Specify the Source, Channel, Repeat, Start Time, and End Time options for the program you
want to record, and then select OK to finish.
Using the functions availlllabllll@whillll@recording a program
Press the Enter button while recording a program. The foJJowing buttons and the recording progress
bar appear on the screen.
o More Info
DispJays detaiJed information about the program being recorded.
.....Iihe p_'ogrsm information may differ with the b_oadcasting signa and may not be availabe at a for
ce_tain prog_ams,,
o REC Time
Sets the recording time.
o Stop Recording / Go to Live TV
Stops recording. / Shifts viewing to Jive TV.
Using the buttons on the remote oontrollll whillll@recording a program
o Pause / Hay
Press the _ or H button on the remote controJ to pause the recording screen or resume the
paused recording screen.
When the recording is paused, you can use the foJJowing functions. However, no audio is heard
while the recording is paused.
- Step: Press the H button on the remote controJ to scan through the current program one
frame at a time.
- SJow Motion: Press the b_ button on the remote controJ to pJay the video back at 1/2 the
normaJ speed.
Rewind / Fast forward
On the remote controJ, press the << or _b button.
.....IIIhis function is not availab e wMle you are watcMng a prog_ar_ that is cu__ently being b_oadcast,,
Managing the soh@dullll@recording IIIlist
MIEINU > Broadcasting > Schedule Manager
You can change the settings of scheduJed recording sessions or canceJ scheduJed sessions aJtogether.
Viewing eco ded IIP ©g ams
> Featured > MY CONTENT
Select a USB recording device. The CONTENTS folder appears.
SeJect a recorded program file from the CONTENTS foJder to pJay the seJected file.
Using the functions availaUe whi_e playing a _"_ecording
Press the Enter button. The following buttons appear, To hide the buttons, press the IRIETURN button.
But_orss that appear are differer t deper dir g or the fib being payed..
o Pause / Play
Pauses the recorded program file or resumes playing the file if paused.
When the video is paused, you can use the following functions. However, while the video is
paused, there is no audio output.
= Step: Select the H button to scan through a video one frame at a time.
= Stow Motion: Select the bb button to play the video back at 1/2 the normal speed.
o Rewind / Fast forward
Speeds up rewind/fast forward. To restore normal playback speed, press the _, button.
o Previous / Next
To restart the current video from the beginning, select the _44button once.
To play the next recorded program file, select the b_ button.
Plays the current file repeatedly or all files in the same folder repeatedly.
Highlight Player
Displayshighlightsof the currentrecording.
.....Iihisfunctionisonlyavailableif youhavesavedI"_iglifiiglntsof :_programwhichwas_eco_dedinSports
Mode,,
Picture Size Changes the size of the screen. The supported picture sizes differ by video.
Turns the subtitles on or off.
.............................................................. I.......
Picture Mode Displays a list of Picture modes and lets you change the mode.
Sound Mode Displays a list of Sound modes and lets you change the mode.
Speaker List Gives you a choice of speakers to play the audio through.
Displays a list of languages and lets you select the audio language that will be used
Multi-Track Sound when you play videos.
This function is only available with files that support multi-track sound.
Information Displays detailed information about the current file.
Managing eco ded filllle8
> Featured > MY CONTENT
Select a USB device containing recordings. A list of recordings appears.
Using the functions on the r_ecorded flies screen
Filter
Displays only files that match the selected filter.
o Sort By
Sorts files according to the selected viewing mode.
.....Ilhis function is unavailab e if Filter is set to AH..
o Delete
Deletes selected files, except for locked files.
.....I!Ibisfunction is {mavailab e if Filter is set to AH..
o Play Selected
Plays selected files. Select files from the file list and then select Play.
If the viewing mode is set to Folder view, you can only select fibs in the same folder. To add
files contained in other folders to the playlist, change the viewing mode.
.....IiIbis function is unavailab e if Filter is set to AH..
Setting Up a ScheduEe Viewing
The @ appears next to programs that have been configured for a schedule viewing.
.....Io set up a schedu e viewing, you must irst set the TVs clock (MENU > System > Time > Clock),,
Setting up a schedule viewing for a ohann®llll
Setting up a schedule viewing for a digital channel
You can set up a schedule viewing for a digital channel on the Guide or Information screen.
o The Guide screen
On the Guide screen, press the left or right directional button to move to a program you would
like to view, and then press the Enter button. You can select Schedule Viewing on the pop-up
menu that appears. The program is scheduled for viewing.
The Program Info window
Press the Enter or IINFO button while you are watching the TV. The Program Info window
appears. Press the left or right directional button to move to a program you would like to view,
and then press the Enter button. Select | that appears on the Program Info window. The
program is scheduled for viewing.
Setting up a schedule viewing an analog channel
MIEINU > Broadcasting > Schedule Manager
You can set up a schedule viewing for an analog channel. Select Schedule > Schedule Viewing.
Specify the Source, Channel, Repeat, and Start Time options for the program you want to watch, and
then select OK to finish.
Editing a schedule viewing
IMIEINLJ> Broadcasting > Schedule Manager
On the Scheduled screen, select a schedule viewing. A pop=up menu appears. Select Edit. Change the
time, days, or channel. Select OK when done.
Oano@llllinga soh®dullll@viewing
MIEINLJ> Broadcasting > Schedule Manager
On the Scheduled screen, select a schedule viewing. A pop=up menu appears. Select Delete. Select
OK in the pop=up menu. The schedule viewing is removed.
You can set up a maximum tota of 30 Schedule Viewing ard Schedule Recording er tdes..
Using Timeshift
You can pause and rewind live TV as you would a DVD by using Tirneshift.
Activating this function disables the Broadcasting function.
..../his f_nction is not available in the U..S..A..and Canada..
Read a l precautions before using tlhe /imeshift f_nctio_' .. Igor more iu'formation', refer to
To activate the Timeshift function while watching TV, press the Enter button, and then select _ on
the Program Info window, The TV displays a progress bar and the following buttons at the top of the
screen:
o Information
Displays detailed information about the current program.
.....Iihe program informatiion r_ay differ vvitlh the type of incoming signa and r_ay not be availab e at a
for certain programs,,
.....Ilhis butU:onis ony availab e when you are vvatchin_ a ive prof_ram,,
o Record
Starts instant recording of the current program.
o Go to Live TV / Stop Timeshift
Shifts to live TV or exits Timeshift.
Using the buttons on the remote oont ollll whilllle using eshift
o Pause / Hay
Press the _ or H button on the remote control to pause or resume watching the current program
while using the Timeshift function. The following functions are available while the current
program is paused. However, while the current program is paused, there is no audio output.
- Step: Press the H button on the remote control to scan through the current program one
frame at a time.
- Slow Playback: Press the bb button to play the video back at 1/2 the normal speed.
Rewind / Fast forward
Press the 44 or bb button.
.....Iihe fast forward is not availab e while you are vvatchir g a prograr_ that is currently l:)eing l:)roadcast,,
Using the Channel List
I_lEI/U > Broadcasting > Channel List
By using the Channel List, you can change the channel or check programs on other digital channels
while watching TV, To display the Channel List, press the ClH LIST button on the remote control,
The Channel List screen contains the following icons:
- " An analog channel
- _ " A favorite channel
- 1_ " A locked channel
Press the left directional button, The following functions are available:
O
Displays a list of channels that you viewed recently,
Add a New List
Allows you to create a new channel list by adding channels from a favorites list,
.....I!hiis optiien is availab e ony if yo{ have registered one or more channels to at east one favorites ist,,
Added Oh,
Displays the selected channel list.
Antenna
cable-service or satellite-service provider. You do not need to use this function if your TV
is connected to a cable or satellite box.
Edit Channel Allows you to rearrange the order of channels in the channel Hst or remove channels from
Lists the channel list.
Edit Channel
AHows you to remove channels from the channel index, restore removed channels, and
rename analog channels,
Sets favorite channels.
Edit Favorites :#_ For more information, refer to
Registering, Removing, and Editing Channels
IMEINU > Broadcasting > Edit Channel
The Edit Channel screen icons indicate the following:
o A " An analog channel
o _ " A favorite channel
" A locked channel
Registering and removing ohann®lllls
Removing _"_egistered channeB
You can remove a registered channel or all channels from the channel index. To remove a channel,
select it, and then sebct Delete. To remove all channels, sebct Options > Select All > Delete.
Adding back _"q'ssoved channeB
You can add back removed channels from the All list only. Removed channels are displayed in gray
in the All list. To display the All list. select Options > Category > All. Then, to add back a removed
channel, select it, and then select Add. To add back all removed channels, select Options > Select All
> Add.
Editing egiste ed ohannelllls
You can access the following options by selecting Options at the bottom left of the screen, The
available options may differ with the broadcast signal,
o Select All / Desebct All
Selects or deselects all channels displayed on the Edit Channel screen,
O
O
Antenna
Allows you to select Air or Cable as the DTV mode,
Displays the channels of a selected category in the list, The channels stored in the TV are
grouped into the following categones: All and Added Oh,,
o Edit Favorites
Sets favonte channels,
I1::::::o_morn ilrffom"_atiion, refer to
o Rename Channel
Renames analog channels, The new name can be up to 5 characters long,
o Information
Displays detailed information about the current program,
Using IIP ©g am Rating IL,,,©ok
IMIEINU> Broadcasting > Program Rating Lock
You can block programs based on their ratings by using Program Rating Lock. This function is useful
for controlfing what children watch on TV. Program Rating Lock does not block programs originating
from external sources, such as Blu-ray players, DVD players, or USB fibs.
Every time you access Program Rating Lock, you must enter the security PIN. You must also enter this
PIN to watch a blocked program. The default PIN is 0000. To change the PIN, go to System > Change
PIN.
..../Ih8 Program Rating Lock may not supported depeu' di,' g o_' the i,' put sig,' a you are usi,' g,,
Blocking programs based on thei_ " TV Rating
You can block TV programs based on their rating. To block content, select a rating category to lock.
All programs at that level and higher are blocked and require the PIN to watch. To unblock a category,
select the lock icon. To unblock all the categories in a row, select the lock under ALL.
Categories on the left:
o TV-Y: Young children
TWY7: Children 7 and over
TWG: General audience
o TV-PG: Parental guidance
TW14: Viewers 14 and over
o TV-MA: Mature audience
Categories on the top:
o ALL: Lock all TV ratings.
o FV: Fantasy violence
o V: Violence
o S: Sexual situations
o L: Adult Language
o D: Sexually Suggestive Dialog
Bleckiln_j movies base on their Movie Ratiln_j (MRAA}
You can block movies based on their MPAA rating, This rating system applies to all material with
supplied ratings in the U,S,A,
From the MPAA:
"The Motion Picture Association of America (MPAA) has implemented a rating system that provides
parents or guardians with advanced information on which films are appropriate for children,"
Select a lock beside one of the rating categories to block that category and all higher categories, To
unblock a category, select the lock icon,
o G: General audience (no restrictions),
PG: Parental guidance suggested,
PG-13: Parents strongly cautioned,
R: Restricted, Children under 17 should be accompanied by an adult,
N0-17: No children under age 17,
X: Adults only,
NR: Not rated,
Blockiln_j programs based on thei_ " Canadian English Rati_s_j
You can block programs based on their Canadian English Rating, This rating system applies to all rated
material viewed on English-Canadian TV channels,
Select a lock beside one of the rating categories to block that category and all higher categories, To
unblock a category, select the lock icon,
0: Programming intended for children under age 8
08+: Programming generally considered acceptable for children 8 years and over to watch on
their own
G: General programming, suitable for all audiences,
PG: Parental Guidance
14+: Programming containing themes or content which may not be suitable for viewers under the
age of 14
18+: Adult programming
Blockiln_j programs based on thei_ " Canadian French Rati_s9
You can block programs based on their Canadian French Rating. This rating system applies to all rated
material viewed on French-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
G: General
8 ans+: Programming acceptable for children 8 years and over to watch on their own
13 ans+: Programming that may not be suitable for children under the age of 13
16 ans+: Programming not suitable for children under the age of 16
18 ans+: Programming restricted to adults
Blockiln_j Programs Based on their II[XX}ownloadab_e US Ratios9
You can block programs based on their Downloadable UoSo Rating. This rating system only applies to
material originating from US DTV channels.
Parental restriction information is automatically downloaded while you watch DTV channels. This
download may take several seconds. If the information is unavailable from the broadcasting station,
the Downloadable UoSo Rating menu is deactivated.
Parental restriction levels differ with the broadcasting station. The default menu name and the
Downmoadable UoSo Rating name changes depending on the downloaded information.
Even when the on-screen display is set to another language, the Downmoadable UoSo Rating menu
appears only in English.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
Watchiln_j Uocked / _'estdcted programs
To watch a blocked program, enter the PIN when requested.
When initially showing a restricted program or movie, the screen is blank because the Program Rating
Lock blocks it. Enter the PIN to unblock the program when a message appears requesting the code.
Creating a Personal Favorites List
Favorite channels are highlighted in the Edit Channel and Channel List screens with the _ symbol.
You can create up to 5 favorite channel lists.
Registering ohann®lllls as favorites
IMIEINkJ> Broadcasting > Edit Favorites
You can register multiple channels as favorites at the same time.
Select the channels that you want to add to your favontes list(s) from the list on the screen.
Select Change Fay. on the screen to select a favontes list.
Select Add on the screen. The TV adds the channels you selected to the favontes list you chose.
Viewing and s÷llll®oting ohann÷lllls on Favorites IIIlistsonlllly
IMIEIN(J> Broadcasting > Channel List
You can display a favorites list and select a channel using the channel up/down buttons.
Press the left directional button. A favorites list appears. Select Change Fay. to select a different
favorite list if necessary.
Highlight a channel from the selected favorites list using the channel up/down buttons, and then
select it. The channel changes.
A tavodtes ist can be selected ony if it contains at east one tavodte channel
Editing a Favorites List
IMIEINU> Broadcasting > Edit Favorites
Using the Edit Favorites screen menu items
You can access the following options by selecting Options on the Edit Favorites screen,
o Select All / Desebct All
Selects or desebcts all channels saved on the TV,
o Copy to Favorites
Copies channels from one favonte channels list to another.
Fo_"more h_ffom_at_on__efer to "
.....IIhiis option is availab e onY if you have _egistered one or mo_e channels to at east one favontes ist,,
o Rename Favorites
Rename an existing favorite channels list.
Fo_"mom infom_atiion_ mfer to
.....IIhiis option is availab e onY if yo{_ have registered one or more channels to at east one favorites ist,,
o Antenna
Allows you to select Air or Cable,
o Edit Channel
Allows you to manage the channels saved on the TV.
FO_" Ii_ho_'eil'_fO_TT_atiol'% _efer to
Removing channelFis from a favorites list
Sebct Edit Favorites, Sebct Change Fay, to move to the favorites list that has the chann@s you want
to remove, Sebct the chann@s, and then sebct Delete,
Read'ranging a favorites list
Sebct Edit Favorites. Sebct Change Fay. to move to the favorites list that has the channels you want
to rearrange. Select the channels, and then sebct Change Order. The Change Order highlight appears.
Press the up!down arrow buttons to indicate the new location for the channels. Press the Enter button
to set the channeMs into their new location.
Renaming a favorites Illist
Select Options > Rename Favorites. Select the favorites list you want to rename. Enter a new name
using the on-screen keyboard that appears, and then select Done. Select OK.
Copying channels from one favorites list to another
Select Edit Favorites. Select Change Fay° to move to the source favorites list, and then select the
channels to copy. Select Options > Copy to Favorites. Select the destination favorites list, and then
select OK. Select OK again.
Copy to Favorites is o_'y availab e if there are cha_' u'e s ih" at east o_'e favorites ist,,
Making Sports Programs More Realistic with
MENU > System > Sports Mode or Soccer Mode
You can use Sports Mode to get optimaJ picture and sound settings for soccer events, making them
appear and sound as if you are there. In addition, if a recording device is connected to the TV when
you are using Sports Mode, you can view highlights extracted from the recorded sporting event
automatically or manually.
.....Ihe actua name may differ wtitlh specific geograpMca area,,
Enablllling sports mode
MENU > System > Sports Mode or Soccer Mode > Sports Mode or Soccer Mode
You can set Sports Mode to On to optimize the picture and sound modes of the TV automatically for
soccer events.
IEnabin9 Sports Mode changes Picture Mode to Stadium a_'d Sound Mode to Stadium, and disab es some
Picture and Sound menus,,
Extracting higMights automaticallll y
MIENU > System > Soccer Mode > Auto Highlights
You can set Auto Highlights to On to configure the TV to extract highlights of a sporting event
automatically.
However, Auto Highlights is not availabb:
= When you are switching the input signal using the SOURCE button.
- When Audio Description is on
- When you are viewing the content in MY CONTENT
- When the Screen Mirroring function is running
..../Ms function' is not available in tlhe U,,S,,A,, and Canada,,
..../he performance of Auto HigMights depeu' ds o_' the clharactedstics of the tra_' smitted sigu' a ,,
It is advisab e to _se Auto Highlights ony while watcMng a soccer _ame,, If you use tMs full' crick' for other
sportih_ g eveu' ts, it may disp ay irre eva_' t picture frames,,
Using the functions availlll III1@whillll@ watching sports in sports mode
You can use the foJlowing functions when you press the Enter button in sports mode.
..../Ibis function' is not availabe ir the U,,S,,A,, and Ca_' ada,,
Pauses the current screen and zooms in any part of the screen by using 4 directional buttons,
On the remote cont_'o _ press the _ button,,
.....Ilhis functiion is not availab e when P_P or MY CONTENT is actiive,,
Instantly records the game that you are currently watching on the TV.
.....IIhiis function is ony availab e if the IiV s_ppo_ts the _eco_ding function,,
More hfo
Displays detailed information about the current program.
.....Iihis function is Ony availab e while you a_e watching a ive prog_am,,
Using the functions availlll lillewhilllle recording sports in sports
You can use the following functions when you press the Enter button in sports mode.
o Manual Highlight
Saves a video from 10 seconds before you press the button to 10 seconds after,
On the remote contro _ press the D button..
You can set the IIV to automatiica y save II_iighliigll_tswitlhout user interventiion.. Select MEHU > System
> Sports Mode. and then set Auto Highlights to On..
o Recording Time
Sets the recording time.
o Stop Recording / Go to Live TV
- Stops a recording when you are watching a live program.
- Switches to a live program when you are watching a recorded program.
o Rewind / Fast Forward
Press the IMIEIHU/123 button on the Samsung Smart Control, and then select _ or _ button to
speed up rewind or fast forward.
On the standard remote contro _press the <_ or }_ button..
o Pause / Hay
Pauses or resumes the video,
o Highlights Player
Displays the Highlights Player screen and plays the highlights saved in the recorded fib
automatically or manually. Highlights Player is not availabb when:
= You are switching the input signal with the SO(JRClE button.
= When Video Description is on
o Watch Live TV at the same time
Allows you to watch a current program in a PIP window while watching a recorded program. To
exit PIP mode, press the button again. Watch Live TV at the same time is not availabb when:
= You are switching the input signal using the SO(JRClE button.
= When Video Description is on
.....IiIiis function is onY availab e vvl%ileyo_ are watching a recorded program..
Viewing a game _eco_ded in sports mode
You can view a recorded game on the MY CONTENT screen.
.....Ilhis functior is not availabe or certain models ir_ specific geograplhica areas,,
For more ir formatior _refer to
TV-Viewing Support Functions
Showing captions
MEINU> System> Access bU ty> Capt oo
You can watch TV broadcasts with captions. Press the CC button to turn the Caption function on or
off.
.....IMs fur ctior is not availabe or certain modes ir specific geograpMca areas,,
Captior s are not disp ayed I)y programs that do not support captior s,,
Enabling captions
Select System > Accessibility > Caption > Caption
.....IIneTVcanrotcortro or modifyDVDorBu ray subtitles,, To contro DVDorBu raysubdtles_ use the sub
title feature of the DVD or Bu ray payer ard the payers remote cortro,,
Selecting the caption Illanguage
MIEINU > System > Accessibility > Caption > Caption Mode
Default / CCl ~ 0C4 / Text1 ~ Text4
(Analog channels only) Operates in either analog TV channel mode or when a signal is supplied
from an external device to the TV. (Depending on the broadcast signal, the analog caption
function may or may not work with digital channels.)
Default / Service1 ~ Service6 / CCl ~ CC4 / Text1 ~ Text4
(Digital channels only) Works with digital channels. Service1 - Service6 may not be availabJe in
digital caption mode depending on the broadcast.
Changing the font co_or_ caption size_ and font opacity
You can change the font color, background color, and size settings.
IMEIN(J > System > Accessibility > Caption > Digital Caption Options
Size
Changes the font size, Size is not supported by analog channels,
o Font Style
Changes the font styb for the subtitbs,
o Font Color
Changes the font coloc
o Background Color
Changes the caption's background coloc
Window Color
Selects the color of the digital caption window.
o Font Opacity
Changes the caption's opacity.
o Background Opacity
Changes the background's opacity.
o Window Opacity
Adjusts the transparency level of the digital caption window.
o Edge Type
Selects the outline type for the digital captions,
o Edge Color
Selects the color outline for the digital captions,
o Return to Default
Restores all caption display options to the Default setting, The Default setting applies the TV
station's transmitted settings to the captions,
....lib÷ fore_round a_'d backf_round coot a_'d opacity settings canu'ot be the same,,
Enablllling the audio guide for the video description
IMIEINU> System > Accessibility > Video Description
You can activate the audio guide for the visually impaired. This function is only available with
broadcasts that provide this service. Press the CC button to turn the Video Description function on or
off.
Scanning for availlllablllleohann®lllls
IMIEINU> Broadcasting > Auto Program
Automatically scans and indexes all channels received through the TV's antenna input connecto£
Do not use thisfunctior if your IV is corrected to a cab e or sate itebox,,
If the TV has saved channe s_ Auto II:::Srogramdeetes the existin{; ist_ and ther saves the newy scant ed
clhanne s.
8®llll®oting the broadcast audio IIIlanguag®
IMIEINU> Broadcasting > Audio Options
You can select the TV's audio language. This is the language you will hear while watching TV, if the
language is included in the broadcast signal. Audio Options functions differently for analog and digital
channels.
.....Io view the currer t broadcast s audio sigra ir formatior, press the IINFObuttor or the remote cot tro ,,
Selecting the B_oadcast Audio Language for Di@ta_ B_oadcasts
Selecting a Language
Select Audio Options > Preferred Language, and then select a language. Digital programs that
include the language you selected in their broadcast signal are automatically played using that
language. If the language you selected is not supported by the broadcast signal, the TV will use
the default audio language broadcast by the TV station.
Selecting the B_oadcast Audio Language and Othe_ Options for Analog B_oadcasts
Listening to MukFTrack Sound
Select Audio Options > Multi-Track Sound. Configure the audio for the current broadcast. Mu_ti-
Track Sound can be set to mono or stereo, depending on the broadcast signal or program. This
option is automatically set to mono if the broadcast signal or program does not support stereo.
Select Program to see if the program you are watcMng is being transmitted with a track
containing a simultaneous translation into a language you want. If it is, sebct the track to listen
to the translation.
Fine-tuning anallllog broadcasts
IMIEINU> Broadcasting > Channel Settings > Fine Tune
When analog pictures become shaky and full of noise, fine-tune the signal to clear up the picture.
.....Ilhis functior is ory available for anaog broadcasts..
Removing pay ohann@lllls
IMIEINU> Broadcasting > Channel Settings > Clear Scrambled Channel
Auto Program scans and indexes all channels, both free and pay respectively. You can remove all
scrambled pay channels from the channel list with Clear Scrambled Channel.
Adjusting the Quality
Choosing a ipioture mode
ME,NU> P cture> P ctureMode
You can setect the picture mode that provides the best viewing experience.
Makes the picture clearer when the ambient lighting is so bright that it makes the picture difficult
to see.
o Standard
Is the default mode s@tabb for most environments.
o Natural
Reduces eye strain.
o Movie
Darkens the screen, reduces gJare, and relieves eye fatigue. Use this mode whib viewing the TV
in a darkened room or watching a movie.
o Entertain
Sharpens images for a more dynamic viewing experience.
Wlheu'the Input sou_ce is set to IPC,Standard and Entertain modes are o_'y availab e,,
When a IPCis c(:x u'ected to the TV, but the Entertain mode is not availab e, set Edit Device Type to DW PC
or PC,,
o Stadium
When you set Sports Mode (MIEII_U > System > Sports Mode or Soccer Mode > Sports Mode
or Soccer Mode) to On, both Picture Mode and Sound Mode are automatically set to Stadium.
The TV changes the picture and sound settings so that they are suitable for soccer events.
Adiusting the ilpiOtu_e quallllity
IMIEINLJ> Picture
You can adjust the following picture quality settings manually for each combination of input source
and picture mode.
o
Adjusts the bnghtness of individual pixels. Decrease tMs brightness to reduce power
consumption.
, Contrast
Adjusts the screen contrast.
o
Adjusts the overall brightness.
o
Sharpens or dulls the edges of objects.
o comor
Adjusts the overall color saturation.
o Tint (G/R)
Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red
value to saturate the reds.
.....Ilhe TV saves the adiusted vaues for the curreu' t ih"put source and picture mode,, I Ihese vaues remain ih"
effect each time you seect the same ih"put source a_'d picture mode,,
.....Ilhe Co,or and Tint (G!R) settin{_s canu' ot be adiusted wl!seu' the TV is c(:x u'ected to a computer via a_' HDMI
to DVI cabe,,
Applllyin9 the current picture settin(3s to other input sources
I E:l U> P cture> Appm ,P ctureMode
You can apply the picture quality settings to the current source and other input sources.
o All Sources
Applies the settings to all external devices connected to the TV,
o Current Source
Applies the settings to the current source only.
Adjusting advanced settings
IMIEINU> Picture > Advanced Settings
You can fine-tune how images are displayed on the TV screen for the Standard and Movie picture
modes.
Advanced Settings is onY available wlher Picture Mode is set to Standard or Movie,,
Wl!senthe SV is conr"_ected to a computer via an HDMI to DVI cabe, cry White Balance and Gamma are
available,,
- Dynamic Contrast
Automatically adjusts the screen contrast for an optimal contrast setting.
, Black Tone
Adjusts the Mack color depth.
o HeshTone
Darkens or tightens skin tones.
o RGSOnmyMode
Adjusts the red, green, and blue levels individually.
o comorSpoce
Adjusts the range of colors that can be displayed on the screen.
- Auto: Automatically adjusts the color space to match the input signal.
- Native: Applies a range of colors that is wider than the input signal.
- Custom: Allows you to adjust the color space manually. Select Color, and then change its
Red, Green, and Blue saturations. Reset allows you to restore the default values for Color
You can configure the Color fcnctiion ony wl!_en Color Space is set to Custom..
White Balance
Adjusts the color temperature of the picture to make white objects look white and the overall
picture appear natural.
2 Point: Allows you to adjust red, green, and blue luminosity with the offset menu and
brightness with the gain menu. Reset allows you to restore the default values.
10 Point: Divides red, green, and blue into 10 sections each, and allows you to modify the
white balance by adjusting the brightness of each section. Level allows you to select the
section to adjust.
YoL can Lse the 10 Point functior_ ony wl!_enPicture Mode is set to Movie.. Iihis fLr_ction may not be
supported by some externa devices..
Gommo
Adjusts the primary color intensity.
Adiusting ilPiOture options
MEINU> P cture> P ctureOpt oos
You can adjust the picture options to optimize your viewing experience, Sebct a picture mode, and
then adjust the picture options,
o comorTone
Adjusts the color tone, The color tone you sebct is stored in the TV's memory, When you change
the current picture mode, the stored color tone is applied to the new picture mode automatically,
Coo_ and Standard are ony availab e vvl!_enPicture Mode is set to Dynamic,,
Color Tone is ony avaiilable vvl!_enthe IiV is connected to a computer via an HDMII to DVIIcab e,,
Digital Clean View
Reduces static and ghosting caused by a weak signal. When you select Auto Visualization, the
TV displays the signal strength on the bottom of the screen. Green indicates the best possible
signal.
.....Iihiis f_._nction is availaMe for anao9 channels ony,
o MPEe Noise Filter
Reduces MPEG noise and improves video quality.
o HDMI Black Level
Compensates for effects caused by a low black level, such as low contrasts and dull colors.
.....IiIbis functiion is ony availah e wll_en the inpct signa, connected to the liT via an HDMII connector: is set
to RGB444,,
F,mMode
Optimizes the picture quality for movies.
.....Iihis fLnction is only availab e when the inpLt signa is IiV_ AV_Component (480i_ 1080i, or HDMII
(s080_),,
Auto Motion Plus
Removes blurring and judder from scenes with rapid movement. If you select Custom, you can
configure Blur Reduction and Judder Reduction manually and set LED Clear Motion to On for a
sharper LED image. To return to the default settings, select Reset.
Wl!_enLED C_ear Motion is set to On, the screen appears darker than wl!_en it is Off,,
.....I!hiis function is not availab e on certain models in specific geographica areas,,
LED Clear Motion
Controls LED bacMight duty to move picture more cleady.
.....lihis fLr_ction is not availah e on certain models in specific _eographica areas,,
in 3D
TMs function is o_'y available on the 6400 series modes for geogra©lhica areas other thau' the U,,S,,A a_'d
Canada,,
MIENU > Picture > 3D
You can view 3D media content and broadcasts. To view 3D content, you need to wear current
Samsung 3D Active Glasses. IR-type Samsung 3D Active Glasses and tMrd=party 3D glasses are not
supported.
.....I Ii'seSamsun9 3D Active G asses is olsy provided with the certaiu' modes in specific 9eograpMca areas,,
Before viewing 3D content, carefu ly read the heath and safety iu'formation' c(::)_'cerrfiu' g 3D viewiu' g,, For
more ir formation', refer to
Whether 3D video is disp ayed ir true HD is usuay determiu' ed I)y the qua ity a_'d format of the video,,
Starting 3D
MIEINU > Picture > 3D
Put on and then turn on the Samsung 3D glasses, and then select a 3D Mode, Note that the 3D modes
that are available at any given time depend on the format of the 3D content you are watching,
_ (Off)
Deactivates 3D viewing,
o _ (Normal)
Converts normal images to 3D images.
, _ (L/R)
Splits a single image into left and right overlapping images to create the 3D effect.
, _ (T!B)
Splits a single image into top and bottom overlapping images to create the 3D effect.
i
..... supported reso utio_'s vary for each mode.. For more iu'formation', refer to
The ideal viewing distance is three times the height of the screen or more. 3D images may not appear
if you do not adhere to the recommended viewing angle or distance.
The 3D function may not work properly if there is another 3D product or an electronic device running
nearby, If there is a problem, keep other electronic devices as far away as possible from the 3D Active
Glasses.
The left and right 3D images may initially overlap when the TV is turned on. It takes a moment for the
display to optimize and the overlapping to stop.
When you use the 3D mode, note the following limitations:
o The 3D mode is automatically disabled when you launch Smart Hub.
PIP cannot be used,
o Certain picture options are disabled.
Adiusting 3© effects
IMIEINkJ > Picture > 3D
Configures the viewpoint, depth, and other 3D settings for a custom viewing experience.
A 3D effects with the exception' of 3D Auto View ca_' o_'y be used wMle watcMu' g 3D co_' teu' t..
o 3D Perspective
Adjusts overall 3D perspective for images on the screen.
o 3D Depth
Adjusts overall 3D depth for images on the screen.
.....I' hiis funcdon cannot be {sed if 3D Mode is set to _ (L/I!::::0or H (Y/B),,
, L/RChooge
Switches the left image to the right image and vice versa.
, SD
Converts 3D images to 2D images.
.....I!hiis function is not availab e if 3D Mode is se_:to _ (INorma } or _ (Off),,
o 3D Auto View
Activates 3D Mode automatically whenever it detects 3D content or a 3D broadcast.
.....IIhiis function is not availab e on certain models in specific geographica areas,,
, SDOptimize
Allows you to optimize 3D pictures with an adjustment bar.
You migll_t not be abe to view the IiV in 3D mode vvl!_ile some app ications are Rlr_rfing,, Iio view the IiV
in 3D mode_ exiit those app ications,,
Picture Support Functions
Viewing a IIIDiotur®-in-IIIDiotu_e(IIP_IIP}
MEI_U> P_oture> PP
While viewing video from an external device such as a Blu=ray player on the main screen, you can
watch TV broadcast in a picture=in=picture (PIP) window,
PIP
Activates/deactivates PIP,
o Antenna
Selects Air or Cable as the digital channel mode.
o Channel
Selects the PIP channel.
Size
Sets the PIP window size.
o Position
Sets the PIP window position.
Sebot Sound
Selects the audio source. To adjust the connected audio device's volume, you must use the
Sound Share function or connect the audio source to the TV's HDMt (ARC) port.
PIP cannot be used wMle Smart Hub is active..
Paying a game or usi_ g the karaoke fuu'ctio_' o_' the mair screen can resut in ower PIP picture qua iW.
..../he I1:::>111:::>function is ony availab e under the fo owir9 conditions: 1} The maiu' screens source is a
Component or HDM_ c(:x u'ectio_'.. 2}/Ihe input reso utio_' is ess tha_' FHD (ll::::::uHD}..
..../Ihe PIP wiu'd<:::>wsupports digita cha_'u'e s Ol' y,
Changing the ilPiOtu_e size and position
Changin9 the picture size
MEINU> P cture> P ctureS ze>P ctureS ze
You can change the size of the picture displayed on the TV screen,
16:9
Sets the picture size to the 16:9 wide screen format.
® Zoom
Magnifies 16:9 pictures vertically. A magnified picture can be moved up and down.
o Custom
Magnifies or shnnks 16:9 pictures vertically and/or horizontally. A magnified or shrunk picture
can be moved left, right, up, and down.
4:3
Sets the picture size to the basic 4:3 mode.
z_ Do not watch your TV in 4:3 mode for extended periods of time. This action can cause the
black bars, which appear at the top, bottom, left, and right sides of the screen in 4:3 mode, to
suffer "screen burn-in" and appear as temporary or permanent after images on the screen. This
damage to the screen is not covered by your Warranty.
Supported picture sizes differ with the input sigr a ,, For more ir formatior about supported picture sizes,
refer to ..... _ # <',
Fitting the picture to the screen
IMIEINU> Picture > Picture Size > Fit to screen
You can configure the TV so that the full picture fits the screen without any cutoff in the size you have
chosen,
..../Ms function' is not availab e wlheu'you set the Picture Size to the 4:3 mode,,
Adjusting the picture position
IMIEINU> Picture > Picture Size > Zoom/Position
You can adjust the picture position,
..../his function is o_'y available when Picture Size is set to Zoom (:x Custom,, Howeve¢ you cann'ot cha_'ge the
pictu_e position when the TV is tuned to a digita clhanne and Picture Size is set to Custom,,
IIL,,isteningto audio onlllly (llPictu e Off}
IMIEINU> Picture > Picture Off
You can turn off the screen and play only audio through the speakers. To turn the screen back on,
press any button other than the Power and Volume buttons.
Resetting the ilpiOture mode settings
II%F:II_U> Picture > Reset Picture
You can reset the current picture mode to its factory defaults. This action does not affect the settings
of other picture modes.
Adjusting the Sound Quality
Choosing a sound mode
ME:I_U> Sound> SoundMode
You can select a sound mode to optimize your listening experience,
o Standard
Is the default mode suitable for most environments,
Music
Emphasizes music instead of voices,
o Movie
Provides the best sound for movies,
o Clear Voice
Emphasizes voices,
Increases the overall intensity of high-frequency sound to help headng-impaked listeners,
Stadium
When you set Sports Mode (MIEINL_> System > Sports Mode or Soccer Mode) to On, Sound
Mode is set to Stadium automatically so that the picture and sound settings are fixed at settings
most suitable for soccer events,
Sppllllying sound effects
MEINU> Soood> SooodEffect
You can apply sound effects to alter how the TV emits sound.
o wrtoomSorroooa
Produces sound that makes you feel like you are sitting in a movie theater or concert hall.
o Dialog Clarity
Increases voice intensity to make dialog cbarer.
o ,eodphooeSorroood
Experience home theater=like surround sound through your headphones.
o
Allows you to adjust the sound settings of the bft and right speakers for a better sound balance.
To restore the defaults, sebct Reset.
o Eqoom_zer
Allows you to adjust the loudness of specific frequency ranges to control the richness of the
sound. To restore the defaults, sebct Reset.
..../Ms functior is not avaiB_be wlher you am istening to audio through extema speakers,,
..../Ms functior is cry availab e wlher Sound Mode is set to Standard,,
Using the Sound Support Functions
Selllleoting speakers
IMIEINU> Sound > Speaker Settings > Speaker Select
You can select which speakers the TV uses for audio output.
When Speaker Select is set so that sound comes from extema speakers ors{ the Voume ard Mute but_x:::x's
and some Sound f_nctions are disab ed..
Specifying the "_V°s installllllllation type
IMIEINU> Sound > Speaker Settings > TV Installation Type
You can specify the TV's installation type, either Wall Mount or Stand, to optimize the TV's sound
automaticall,/.
III,,,,,,,,,,,isteningto "_V sound through a Samsun9 BIIIluetooth audio device
IMIEINU> Sound > Speaker Settings > TV SoundConnect
You can connect Samsung Bluetooth audio devices to the TV. They must be paired using the TV's
Bluetooth function. For more information on pairing, refer to the Samsung Bluetooth audio device's
operating manual.
o Add New Device
Adds a new device to the list of paired devices. If Add New Device is set to Off, the connection
signals from new devices are ignored.
Samsun9 Audio Device List
Displays a list of paired Samsung audio devices. Select a device to display its menu options. You
can activate!deactivate the audio device or remove it from the list.
.....IMs function is only availab e for Samsur {_ audio devices that suppo_t TV SoundConnect,,
TV SoundConnect, Surround, and B uetooth headphones can't be used simu tar_eous y,
Before usirg a B uetooth device, refer to
L,istening to TV sound through a Samsung Mu tiroom IlL,ink
corn patiblllle speaker
IMIEINU> Sound > Speaker Settings > Multiroom Link
You can connect a Samsung Multiroom Link compatible speaker to the TV to enjoy a richer sound.
Sets the Samsung Muldroom Link compatible speaker(s) to one of the following options.
- Surround
Select this option when you want to enjoy a surround system using multiple Samsung
Multiroom Link compatible speakers in a single space or room.
- SoundBar+Surround
Select this option when you want to enjoy a surround sound system by connecting a
soundbar and two speakers to the TV in one space or room.
Volume Level
Adjusts the volume of the speaker you have selected in the list of speakers,
Speaker Test
Sends a test sound to each speaker to make sure that your Multiroom Link system works
properly.
Edit Name
Allows you to give a name to each speaker.
..../he Multiroom Link function is o,'y availab e wlhe,' at east o,'e Samsun9 M_ tiroom Li,'k compatib e
speaker is connected to the TV..
..../he sound quaiW may be affected by the co,' ditio,' of your wire ess networ<..
..../he Multiroom Link fu,' ctio,' is deactivated when you activate Screen Mirroring..
..../he networked speakers may disco,' ,'ect on their own. depe,' di,' g o,' your network e,'viro,' me,' t..
IFormore ir ormation, refer to the Mu tiroom Link manua o,' the Samsu,' g web site.. (www.samsung..com >
OWNEIRS& SUPPORT > Manua s & Down oads)
..../Ihe audio from the secondary device(s) may ag belhi,'d the audio a,'d video of the mai,' device which is
p ayir g the source co,' te,' t..
Listening to th® TV through BIIIluetooth headphones
IMIEINU> Sound > Speaker Settings > Bluetooth Headphones
You can connect Bluetooth headphones to the TV+ They must be paired using the TV+s Bluetooth
function+ For more information on paidng, refer to the Bluetooth headphone's operating manual.
+ Bluetooth Headphone List
Displays a list of Bluetooth headphones that can be paired with the TV. Select a Bluetooth
headphone to display its menu options. From tMs menu, you can activate/deactivate (i.e., pair/
unpair) the Bluetooth headphone or remove it from the list.
+ Mu_ti-Output Audio
Allows you to listen to audio through the TV°s speakers and the connected headphones
simultaneously+
If the TV fails to find a Iheadpho,' e, pace the Iheadpho,' e closer to the TV, and theu' seect Refresh..
Wlhe,' you turn ol3 a pab+edB+uetooth headphone_ the TV detects it automatica g and the,' disp ays a pop
up window. Use this popup wit dow to activate/deactivate the BIuetooth headplhone..
Befo+e usinfs a Bh_etootlh device_ refer to
Enablllling digitallll audio output
IMIEINU> Sound > Additional Settings
Since this Smart TV is Sony!Phitips Digital Interface Format (S!PDIF)=enabled, you can set the TV to
provide digital audio output to various digital audio devices, such as speakers, A/V receivers, and home
theaters, by adjusting the following settings.
+ HDM_ Audio Format
Sets the format of the audio input signal so that it is suitable for the external device connected
to one of the TV's HDMI ports.
+ Audio Format
Selects the digital audio output (S/PDIF) format. The available formats depend on the input
source,
+ Audio Delay _:!/:_
Helps correct timing mismatches between the audio and video tracks when you are watching TV
and listening to audio through a digital audio device. You can adjust the delay by up to 250 ms.
Dolby Digital Comp
Sets the Dolby Digital compression mode.
HD Audio
Provides the TV sound resamp[ed at HD audio quality.
khlz
Standarda_diosignasaresampedat48 ' vvllileHDa_diosignasaresampedat96kliIz..
Some SiI!:::>DIIFreceivers may not be compatib e.. For incompatib e receivers_ deactiivate tMs mode and
_se norma a_dio mode instead..
.....Iihe HD audio signa s availab e on the liT are not availab e on externa aLdio payers connected via
HDMII, Bk etooth, or WiN ne_:works,,
Auto Volume
Automatically adjusts the TV's voIume level when you change channels, video sources, or
content so that the volume bvel remains the same for all sources. Auto Volume can modify the
volume up to 12 db to equalize the sound. Normal applies a normal level of volume adjustment,
and Night applies a sIighdy lower volume bvel. This option is ideal for late-night TV viewing.
Iif you want to _.-,e,"the voLme contro of a connected soLrce device to contro the so_.nd, deactiivate
Auto Volume,, Wl!_en yo_ _se_Auto Volume with a so{ rce device_ the device% votme contro may not
1unction proper _,
IIL,,isteningto 3D audio in 3D mode
I%E:l_U> Souod> SDAudio
You can adjust audio depth so that the TV provides immersive sound that matches the pop-up effect
of the 3D video that you are viewing.
.....Ilhis functior is ory availab e or the 6400 series modes for geograpl!ica areas other that the U..S..A ard
Car ada,,
.....Ilhis functior is ony availab e in 3D mode,,
Resetting allll_sound settings
I%El_U> Souod> ResetSouod
Resets all sound settings to the factory defaults.
Setting the Time and Using the Timer
Setting the current time
MIEI/U > System > Time > Clock
You can set the clock manually or automatically. Once the clock is set, you can view the current time
on the TV anytime. Press the IINFO button on the remote control.
.....I Ii'seclock must be reset every time the power is disco_' u'ected..
Setting the c_ock using digita_ broadcast info
MIEINU > System > Time > Clock > Clock Mode
You can have the TV automatically download time information from a digital channel and set the
current time. To activate this function, set Clock Mode to Auto. If the TV is connected to a cable box
through HDMI or Component connectors, you must set the current time manually.
.....IMs function works onY when the TV_s a_'teu' u'a ack is co_' u'ected to either an a_'teu' u'a or a cabe output
and is receiviu' g digita broadcasts,,
.....I Ii'seaccuracy of the time ir formation' received may differ witlh the cha_' u'e a_'d sic_u'a ,,
_f the olliook is wrong in auto mode_
MIEINU > System > Time > Clock > Time Offset
You can offset the clock in 1=hour increments by as much as =/+ 12 hours if the TV fails to display the
correct automatically set time.
Time Offset adiusts the time through a network connection,, I Ii'sisfun' ction is ony avaiU:} e if Clock Mode is
set to Auto and the TV is corm' ected to the Intemet though a oca area network,,
Time Offset adiusts the time if the TV fails to receive time ir formation' throu{_h norma digi_a broadcast
sigl' a s,,
Settin9 the c_ock manua!_y
MIEI_U > System > Time > Clock > Clock Set
You can set the clock manually. Set Clock Mode to Manual, and then input present date and time.
Using the timers
Using the sl[ieep timer
IMIEINU> System > Time > Sleep Timer
You can use this function to automaticaMly shut off the TV after a pre-set period of time. You can set
the timer in 30 minute increments, for up to 3 hours.
Tuminfs on the TV using the on timer
IMIEINu> System> T me>On
You can set On Timer to make the TV turn on automatically at a specific time. You can use up to three
separate configurations: On Timer 1, 2, and 3. On Timer is only availabb when Clock has already been
set.
If you select Manual, you can highlight and select each day to select the specific days that you
want On Timer to turn on the TV.
o Time
o Volume
® Source
From the list, select a signal source for the TV to use when it turns on. if you want to play
content saved in a USB device or content from an HDMI or Component source, such as a DVD
player, Blue=ray player, or set=top box, connect the device to the TV before you start On Timer
setup. For On Timer to function, you must keep the device connected to the TV.
e Antenna
Allows you to select a broadcast signal source, Air or Cable, when source is set to TV.
o Channel
Allows you to select a channel when source is set to TV.
Music / Photo
Allows you to specify a USB device folder containing music flies in the music field and/or a
folder containing photos in the photo field when source is set to USB, If you select both a folder
that contains music fibs and a folder that contains photo files, the TV plays the music files and
displays the photos at the same time,
Ilf the foder that yo{_ choose Ihas sub foders_ you can select a s_b foder in the same fashion,,
.....Ii Ihiisfunction does not vvo_k prope_y if the sebcted USB device does not contain media flies o_ a foder
has not been specified,,
No slideshow sta_ts if there is ony one image fib on the USB device,,
IFoders vvitlh on9 names cannot be selected,,
Make s_e to use different foder names fo_ m{_ tiple USB devices,,
Use a USB memory stick or m{_ ti card reader, On Timer may not work witlh ce_'tain hattery powered
USB devices_ MP3 p ayers_ o_ PMI!:::)sbecause the IIV may take too on_ to _ecognize the device,,
Turning off the TV usin9 the off timer
IMIEIN/J> System > Time > Off Timer
You can set Off Timer to turn off the TV automatically at a specified time. You can set up three
separate configurations: Off Timer 1, 2 and 3. Off Timer is only availabb when Clock has already been
set.
Sets days of the week that the TV is turned off automatically, If you select Manual, you can
select each specific day,
Time
Sets the time for the TV to turn off automatically,
Using the Screen Burn Protection and Energy Saving
Functions
Preventing screen burn
ISEl_U> System> AutoProtect_ooT_me
You can use the Screen Burn Protection function to protect the screen. Still images can leave burned-
in afterqmages if left on the screen for a long pedod of time. SeMect a time setting from the list. If a
still image is shown on the screen for longer than the time that you selected, the TV automatically
activates the Screen Burn Protection function.
Reducing the energy consumption of the "[V
ISEl_U> System> EcoSolution_
You can adjust the brightness level of the TV and prevent overheating to reduce overall power
consumption.
° EnergySov_ng
Allows you to select a brightness setting from the list to reduce the TV°s power consumption.
o ECO Sensor
Automatically adjusts the brightness level of the TV, according to the ambient light level, to
reduce power consumption. If the Eco Sensor has adjusted the screen's brightness level, you
can select the Min, BacMight or Min, Cell Light (in applicable models) to manually adjust the
minimum screen brightness.
- No Signal Power Off _:!::_
Allows you to select a length of time from the list. If no signal has been received for the length
of time you selected, the TV automatically cuts off the power to reduce power consumption.
Auto Power Off _!::_
Automatically turns off the TV to prevent overheating when the TV remains on for the specified
period of time without any user input.
o Motion Lighting
Adjusts the brightness in response to on=screen movements to reduce power consumption.
.....Ilhis featu_e is ony availab e when the Picture Mode is se_:to Standard,,
.....Iihis function is deactiivated when yo_ adi_st a pict_e q_a i_y setdr % such as Contrast and Brightness,,
Using Anynet+ (HDMI-CEC)
You can use the TV°s remote control to control external devices that are connected to the TV by
an HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate
Anynet+ (HDMI-CEC) with the remote control.
Setting up Anynet+ (HDM_CEC)
IMIEINU> System > Anynet+ (HDM_-CEC) _
- Anynet+ (HDM_-CEC)_:!/:_
You can enable or disable Anynet+ (HDMI=CEC). Set to Off or On to disable or enable all Anynet+
related functions.
o AotoTornOff_
When set to Yes, turns off Anynet+ compatible external devices when the TV is turned off.
.....IIhiis funcdon iis not supported by so['_e Any,' eb_ocompatib e devices..
o Devicesearch_S:_
Automatically searches for and identifies Anynet+ (HDMI=CEC) compatible external devices that
are connected to the TV.
Usin9 Anynet+ (HDM_CEC}
Viewing Anynet+ (HDMl_CEC)_compliant devices
After connecting external devices to the TV, select IMIEHU > System > Anynet+ (HDM_-CEC) >
Device Search. The TV displays a list of Anynet+ (HDMI-CEC)-compfiant devices that you can set up
as Anynet+ (HDMl-CEC)-enabbd devices (i.e., devices that can be controlled with the TV°s remote
control). To set up an Anynet+ (HDMI-CEC)-compliant device as an Anynet+ (HDMt-CEC)-enabbd
device, you must select it on the Source screen. Follow the instructions in the next section.
Setting up as an Anynet+ (_,,,,,,,_DMI-CEC}-enab_ed device
Press the SOURCE: button, The Source screen appears, Select a connected device, and then press
the down directional button,
2, Select Anynet+ (HDMm-CEC} from the menu, The selected device is set up as an Anynet+ (HDMI-
CEC)-enabled device, The following menu options are available,
.....Ilhe menu options disp ayed o_ the men_ may differ Hay externa device,,
Anynet+ (HDMm-CEC}
Sets up the selected device as an Anynet+ (HDMl-CEC)-enabled device, and then displays a
list of all external devices connected to the TV. If you select an external device in the list, it is
used as the input source so that you can watch TV through that device. If you select View TV,
Anynet+ (HDMI-CEC) is exited so that you can watch TV without intervening of any external
device.
Read before connect[n9 an Anynet+ (HDMI-CEC}
Anynet+ cannot be used to control external devices that do not support HDMI-CEC,
Anynet+ (HDMI-CEC}-enabled devices must be connected to the TV with an HDMI cabe, Note that some
HDMI cabes may not support Anynet+ (HDMI-CEC}.
The TV remote control may not work under certa n c rcumstances, If this occurs, set up the device as the
Anynet+ (HDMI-CEC)-enabled devce again,
Anynet+ (HDMI-CEC} works ony with external devices that support HDMI-CEC and only when those
devices are ether n standby mode or turned on,
Anynet+ (HDMI-CEC} can contro up to 12 comp iant external devices (up to 3 of the same type} except for
home theaters, Anynet+ (HDMI-CEC} can contro only one home theater system,
To listen to 5.1-channel audio from an external dev ce, connect the device to the TV via an HDMI cabe and
connect the home theater system d rectty to the TV's dgta audo output connector_
Updatin9 the TV's Software
IMIEINU> Support > Software Update
You can view your TV's software version and update it if necessary.
Updating the "_V_s software to the IIIlat®stversion
IMIEINU> Support > Software Update > Update now
You can update your TV's software by downloading the update from the [nternet directly to your TV or
copying the update from a USB device that contains it to your TV.
.....aMs functior requires ar Intemet cot rectior..
Save the update package ir the USB devices top eve fode_, Otherwise, the TV wil not be abe to ocate
the update packable,,
z_ DO NOT turn off the TV's power until the update is complete. The TV winm turn off and on
automatica[ly after eompmeting the software update. A[m video and audio settings return to the
default settings after a software update.
Updating the "[V automaticallll lilly
IMIEINU> Support > Software Update > Auto Update
If the TV is connected to the Internet, you can have the TV's software update itself automatically while
you are watching the TV. When the background update is completed, it is applied the next time the TV
is turned on.
.....IMs functior may take a orger time if a differer t networkir {_ tur crier is rut r ing cot currer tly,
.....Ilhis functior requires ar [nternet connection,,
If you agree to the Smart Hub terms and conditions_ Auto Update is set to On automatica y, If you do not
wart the TVs software to update itsef automatica x set Auto Update to Off,,
Protecting the TV from Hacking and Malicious Code
IMIEINU> System > Smart Security
You can use Smart Security to protect the TV from hacking and malicious code when it is connected
to the Internet.
Checking the TV and connected storage for mallllicious code
IMIEINU> System > Smart Security > Scan
You can scan the TV and connected media to detect the presence of malicious code. If there is no
malicious code detected, a notification window appears on the screen.
_f malicious code is detected...
If malicious code is found, the results of the scan will appear on the screen. This result window
displays all malicious code found. You can either quarantine (isolate) the code or block it from
executing.
Select all the malicious code to either quarantine or block.
Select isolate or Block. These options relocate the selected malicious code to the Isolated List or
Blocked List.
.....Iilhe _so_ated List displays a qua_antiined ma icious codes,,
.....Iilhe Blocked List disp ays a bocked ma icious codes,, You can aso qua_antiir e or aow codes flom
this ist,,
Configuring additionallll functions
IMIEINU> System > Smart Security > Settings
o Antivirus
Monitors the TV in real-time to prevent viruses from infecting the TV.
o Network Security
Protects the TV from hacking to minimize a leaks of private information.
o Camera
Permits the cameras connected to the TV to be used,
Permits the microphones connected to the TV to be used.
Auto Scan
Makes the TV automatically scan itself and any connected storage media when it is turned on.
Auto Isolate
Adds malicious codes found during the scanning process to the Isolated List automatically.
Using Other Functions
Running the aooessibillllity functions quioklllly
You can use the Accessibility Shortcuts menu to quickly run the accessibility functions for the
impaired. Press the CC button on the remote control. The Accessibility Shortcuts menu lists the Voice
Guide, Video Description, Caption, Menu Transparency, High Contrast, Enlarge, Learn Remote Control
and Multi-Output Audio menu options.
With Accessibility sllsortcuts menu_ some functior s are not availabb ir specific cour_tries,,
IEven if Voice Guide is set to Off or the M_£e mode is activated, you can run the Voice Guide functior from
the Accessibility Sho_'tcuts menu,,
Enablllling voio® guides for the visuallllllllyimpaired
MENU > System > Accessibility > Voice Guide
You can activate voice guides that describe the menu options aloud to aid the visually impaired. To
activate this function, set Voice Guide to On. With Voice Guide on, the TV provides voice guides for
channel change, volume change, information on current and upcoming programs, schedule viewing,
other TV functions, and various content on Web Browser, in Search, or in MY CONTENT.
.....Ilqe Voice Guide is provided in the language that is specified or the Menu Language screen,, However_ some
anguages are not supported by Voice Guide ever though they are isted i,' the Menu Language screer ,,
English is aways supported,,
Changing the vo_ume_ speed_ and pitch of the voice guide
You can configure the volume, speed, pitch, and level of the Voice Guide.
o Volume
Changes the Voice Guide's volume level.
Changes the Voice Guide's tempo.
Pitch
Tunes the pitch of the Voice Guide.
White text on bllllaok background (high contrast}
MIEINU ]> System ]> Accessibility > High Contrast
You can change major service screens to white text on a black background or change the transparent
TV menus to opaque so that text can be more easily read, To activate this function, set High Contrast
to On,
Adjusting the menu transparency
MIEINU > System > Accessibility > Menu Transparency
You can adjust the menu's transparency.
Settin9 High Contrast (MENU > System > Accessibility ]> High Contrast/to On automatica y switches the
menu display mode to opaque,, You cannot manua y change the Menu Transparency settiu'f_s,,
Enllllarging the font (for the visuallll_y impaired}
MIEINU > System > Accessibility > Enlarge
You can enlarge the size of the font on the screen. To activate, set Enlarge to On.
IIL,,eamingabout the remote oontrollll (for the visuallllllllyimpaired}
MIEINU > System > Accessibility > Learn Remote Control
This function helps individuals with a visual impairment to learn the positions of the buttons on the
remote control. When this function is activated, you can press a button on the remote control and the
TV will tell you its name. To return to the previous screen, press the IRIETURINbutton twice. To exit,
press the IEXIT button twice.
.....IMs functiol' is ol'ly available in the U,,S,,A,, and Canada,,
IIL,,isteningto the "[V through BIIIluetooth headphones (for the hearing
IMEINU > Sound > Speaker Settings > Bluetooth Headphones > Mu_ti-Output Audio
You can turn on both the TV speaker and Bluetooth headphones at the same time. When this function
is active, you can set the volume of the Bluetooth headphones to be louder than that of the TV
speaker.
When you connect the Bluetooth headphones to the TV, Multi-Output Audio menu is activated° F::ormore
irfformation about cot}netting B uetootlh headplho,' es to the TV, refer to
a
B ,@_©@_ he®,,
Changing the menu IIIlanguage
MENU > System > Menu Language
You can use this function to change the menu language. Choose a language from the list.
Setting up a ilpasswo d
IMIENU > System > Change PiN
You can set a Personal identification Number (PIN) to lock channels, reset the TV, and change TV
settings.
The PIN input window appears. Enter a PIN. Enter it again to confirm it. The defa@t PIN is 0000.
If you foFaet your II:::)IN_yo_s can' r'eset it w4tlh your remote conbo ,,With the TV,,tumed or, press the fo Iowip_g
buttons or the remote contro ;llhthe or'der" sllqowll'_to reset the PIN to 0000: _ _@ (Vo ume Up} _ RETURN
(Volume Down} RETURN '+' _RETURN,,
Checking Notifications
MIEINU ]> System ]> Notifications
You can view the list of event messages generated by the TV. Notifications appear on the screen when
events such as an update release for an app or Samsung Account Iogin/Iogout occurs.
..../o deete a notificatior s, seect Delete AH,,
..../o clheck the SMART/Vs service notificatior s ira web browsec seect Service Notice,,
Enablllling game mode
IMIEINU> System > General > Game Mode
You can enable the game mode to optimize the TV's settings for playing video games with a gaming
console, such as a PlayStation TM or Xbox TM.
..../Ihe game mode is not ava[lab e for n(:xma TV viewing
....]lhe sc_een may shake somewl!qat,,
Wlher Game Mode is er ab ed, Picture Mode ard Sound Mode are switched to Game automatica y,
....]o use a differer t extema device, first discor r ect the game cot so e ard disab e Game Mode,,
Richer collllors and superior picture quallllity (BD Wise)
IMIEINU> System > General > BD Wise
You can enhance colors and picture quality if you connect a Samsung DVD player, Blu=ray player, or
home theater system that supports BD Wise. When BD Wise is enabled, it automaticaMly optimizes the
TV's resoJution.
.....Ill'sis function is ony availab e when the exten'_a device is co_' u'ected via an HDMI cab e,,
Enabllllingi©isablllling sound feedback
IMIEINU> System > General > Sound Feedback
You can use Sound Feedback to get audio cues as you navigate through menus and select menu
options, You can set it to Low, Medium, High, or Off,
III,,,,,,,,,,,ockingiUnllllockingthe Oontrollll Stick
IMIEINU> System > General > Panel Lock
You can lock and unlock the front panel buttons (menu, channel, and volume) of the TV and the
control stick on the back of the TV.
Showing/Hiding the Samsung IIIIogowhilllle booting
IMIEINU> System > General > Boot Logo
You can enable or disable the Samsung logo display that appears when the TV starts up.
.....Ill'sisfursc_ion is n'_otavailab e when Samsun9 hstant On is se_ to On..
Enablllling the TV to boot faster
IMIEIN(J]> System > General > Samsun9 hstant On
You can set Samsun9 Instant On to On so that the TV boots up faster,
Whe,' Samsun9 hstant On is set to On, the use history of the apps that you used o_' the TV may be stored
iu' the TV..
.....I Ii'seSamsun9 _nstant On function works wl!seu' you turn o,' the TV while its power cabe is stil co_' nected
after you set Samsun9 _nstant On to On,, It yo_ disco_' u'ect, reco_' nect the power cabe, a_'d theu' t_rn o_' the
.....IV_ this function does n_(:)twor<,,
IiiEvef,'_if the Samsung instant On function is on_ the power con'_sumption wl!sile the TV is turned off meets the
standby power c(::)_'s_mptio_' specification' preseu'ted o_' the prod{_ct abe,,
Registering the-/V as a ©ivX-certified device (watching for pay
©ivX movies}
IMIEIN[J> System > DivX@ Video On Demand
You can watch DivX DRM protected movies on the TV only if it is registered as a DivX-certified device.
Digita IRigl!sts Managemeu' t (DRM) functiol' s as a technica security mechal' ism to protect the col' tel' t
providers copyright,,
You can watch recorded movies or free DivX movies widsout registration' ,,
Visit the [}ivX website (llsttp:/iwww, divx,,com) and og its to your user accoul' t before registerih" g the TV as a
DivX certified device. If you do not have an account_ create o_'e,,
Restoring t/se [V to the factory settings
IMIEINU > Support > Self Diagnosis > Reset
You can restore al! TV settings (excluding the Internet and network settings) to the factory defaults,
Select Reset, The security PIN entry window appears,
Enter the security PIN, and then select Yes. All settings are then reset, The TV turns off and on
again automatically and displays the Setup screen,
For more information on Setup, refer to the user manua that came with the IV,,
Using the "IV as a displlllay m©dellll (for retaillll stores}
ME:INU> Support> UaeMode
You can turn the TV into a display model for retail environments by setting Use Mode to Store Demo,
For a other uses, seect Home Use,,
With Store Demo, some function' s are disaMed, a_'d the TV automatica y resets itself after a preset amount
of time,,
Getting Support
Getting support through Remote Management
IMIEINU> Support > Remote Management
You can use tMs feature to let Samsung Electronics diagnose your TV remotely when you need
assistance with your TV, You will need to read and agree to the service agreement before using tMs
feature,
.....IMs function' requires an Internet co_' u'ectio_' ,,
Getting _"_emote support
You can get one-on-one support offered by a Samsung Remote Support service technician who can
do the following remotely,
o Diagnose your TV
o Adjust the TV settings for you
o Reset your TV to its factory settings
o Install recommended firmware updates
How does _"_emote support work?
You can get Samsung Remote Support easily by following these steps:
Call the Samsung Contact Center and ask for remote support.
Open the menu on your TV, and then go to the Support section.
Sebct Remote Management, and then read and agree to the service
agreements. When the PIN screen appears, provide the PIN number to the
agent.
The agent accesses your TV.
Finding the contact information for service
IMIEINk)]> Support ]> Contact Samsung
You can view the address of the Samsung website, the calJ center phone number, your TV's model
number, your TV's software version, the Smart Hub info, and other information you may need to get
service support from a Samsung call agent or the Samsung website.
..../o view the Open Source License, press the J_ but_x::x',,
Requesting service
IMIEINL)> Support > Request Support
You can request a service when you encounter a probbm with the TV. Select Request Support, and
then agree to the terms and conditions for the service request. Sebct Request Support again, select
the item matching the probbm that you encountered, and then sebct Send.
..../Ibis function' is not availabe ih, specific geograpl!sica areas..
There Is a Probmem with the
........[estin9 the ilPiOture
IMIEINU > Support > Self Diagnosis > Picture Test
Before you review the list of problems and solutions below, use Picture Test to determine if the
problem is caused by the TV. The Picture Test displays a high definition picture you can examine for
flaws or faults.
If your Samsung Tebvision is flickering or dimming sporadically, you may need to
Flickering and disaMe some of the energy efficiency features. Disable Energy Saving (MENU :>
Dimming System > Eco Solution > Energy Saving) or Eco Sensor (MENU > System > Eco
Solution > Eco Sensor).
If the color on your Samsung television screen is not correct or the Mack and white
colors are off, run Picture Test (MENU > Support > Se_f Diagnosis > Picture Test).
If the test results indicate that the problem is not caused by the TV, do the
following:
Component o Confirm that the TV's video input connectors are connected to the correct
Connections/Screen
Cotor external device video output connectors.
o Check the other connections as well. If the TV is connected to an external
device via a component came, confirm that the Pb, Pr, and Y jacks are plugged
into their proper connectors.
If the colors on your Samsung TV are correct but just a littJe too dark or bright, try
adjusting the following settings first.
Screen Brightness o Go to the Picture menu and adjust the BacMight, Contrast, Brightness,
Sharpness, Co_or, and Tint (G/R) settings.
If you notice ghosting or blurring on the screen, use the Auto Motion Plus function
Ghosting, Blurring, or (MENU > Picture > Picture Options > Auto Motion Plus) to resolve the issue.
Juddering d;_ This functio__ is not available on certain models in specific geographica_ areas
Unwanted Powering
Off
if your Samsung TV appears to turn off by itself, try disabling some of the TV's
energy efficiency functions. See if Sleep Timer (MENU > System :> Time > S_eep
Timer) has been enaMed. The Sleep Timer automatically turns the TV off after a
specified period of time. if the S_eep Timer has not been enabled, see if No Signa_
Power Off (MENU > System :> Eco Solution > No Signal Power Off) or Auto
Power Off (ME/_U > System > Eco Solution > Auto Power Off) has been enabled
and disable them.
Problems Powering On
number of things to check before calting the service department. Confirm that the
:: TV's power cord is connected correctly at both ends and that the remote control
is operating normalb: Make sure that the antenna came or cable TV came is firmly
connected. If you have a cable or satellite box, confirm that it is plugged in and
turned on.
Unabteto find a
Channel
If yourTVisnotconnectedto a cabteorsatellitebox,runSetup(MENU}>System
_>Setup)orAutoProgram(Broadcasting}>Auto Program).
TheTVimagedoes
notlookasgoodasit
didin thestore.
mfyouhaveananatogcable/settop box,upgradeto adigitalsettop box.Use
HDMIorComponentcaMesto deliverHD(highdefinition)picturequatity.
ManyHDchannelsareupscaledfromSD(StandardDefinition)content.Lookfor a
channelthatisbroadcastingtrueHDcontent.
o Cable/SatelliteSubscribers:TryHDchannelsfromthechannelJineup.
o Air/CableAntennaConnection:TryHDchannelsafterrunningtheAutoProgram
function.
Adjustthecabteor satellitebox'svideooutputresoJutionto 1080ior 720p.
Thecompressionof videocontentmaycausepicturedistortions,especiallyin fast
movingpicturesfromsportsprogramsandactionmovies.
Thepictureis A weakorbadqualitysignalcancausepicturedistortions.Thisis notanissue
distorted, with theTV.
i
Mobile phones used close to the TV (within 3.2 ft) may cause noise in analog and
The color is wrong or if you're using a Component connection, make sure that the Component cables are
connected to the correct jacks, incorrect or loose connections may cause color
missing.
proMems or a Mank screen.
Go to the Picture menu and then adjust the Picture Mode, Brightness, Sharpness,
The cotor is poor and Co_or settings.
or the picture is not See if Energy Saving (MENU _> System }> Eco Solution }> Energy Saving) has
bright enough, been enaMed.
Try resetting the picture. (Picture }> Picture Reset)
There is a dotted line
on the edge of the Change Picture Size to 16:9.
screen.
The picture is black
and white.
mfyou are using AV composite input, connect the video cable (yettow) to the TV's
green component jack.
_¢:_ It the test picture does not appear or there is noise or distortior _the TV may have a prob era,, Cot tact
Sams_r g's Ca Certer for assistance,,
If the test picture is disp ayed proper s{ there may be a prob em witlh an extema device,, Pease check the
c or r ect i or s,,
If the prob em persists, check the sigra strer gds or refer to the extema devices user mar ua ,,
I Can°t Hear the C earEy
........[esting the sound
IMIEINU> Support > Self Diagnosis > Sound Test
If the TV plays the Sound Test melody without distortion, there may be a probbm with an external
device or the broadcast signal's strength.
There is no sound or : Check the volume controt of the device (cable or satellite box, DVD, Blu-ra_/:
the sound is too low at
etc.) connected to your TV.
maximum volume.
i
Set MENU > Sound > Speaker Settings > Speaker Select to TV Speaker.
If you are using an external device, check the device's audio output option. (For
example, you may need to change your cable box's audio option to HDMm if the
box connected to your TV is using an HDMU cable.)
The picture is good but
To listen to computer sound, connect an external speaker to the computer's
there is no sound.
audio output connector.
If your TV has a headphone jack, make sure there is nothing plugged into it.
Reboot the connected device by disconnecting and then reconnecting the
device's power came.
i
Make sure that the audio cable is connected to the correct audio output
The speakers are making connector on the external device.
an odd sound. For antenna or cable connections, check the signat information. A low signal
leve_ may cause sound distortions.
Run Sound Test (MENU > Support > Self Diagnosis > Sound Test).
I Can°t See 3D Images CEearEy
.....Ibis function is ony available on' the 6400 series modes for geographica areas other thau' the U,,S,,A a_'d
Cal' ada,,
........[esting 3D picture quallllity
IMIEINU > Support > Self Diagnosis > 3D Picture Test
If the test picture does not appear or there is noise or distortion, the TV may have a probbm. Contact
Samsung's Call Center for assistance.
Make sure the glasses are powered on.
The 3D feature may not work properly if there is another 3D product or an
The 3D glasses are not
working correctly, ebctronic device running nearby.
If there is a probJem, keep other electronic devices as far away as possible from
the 3D Active GJasses.
I can't see 3D images The idea_ viewing distance is three times or more the height of the screen.
cJeady. We also recommend watching 3D content with your eyes tevel with the screen.
The batteries in the 3D Turn off the 3D gJasses when they are not in use. If you have the 3D glasses on,
gJasses are discharged, the battery Jifespan is shortened.
d_ .....Io test 3D picture qua i_ you must be weariu' _ 3D _lasses a_'d the glasses and the TV must be paired..
There is a Probmem with the
The TV is not receiving
all channels.
o Confirm that the coaxiaJ cable is securely connected to the TV.
o Run Setup (MENU > System > Setup) or Auto Program (MEI'_U >
Broadcasting > Auto Program).
o If you are using an antenna, verify it is positioned correctJy and at1 the
connections are secure.
There are no captions Go to Caption (MENU > System > Accessibility > Caption) and change the
with digital channels. Caption Mode.
Some channels may not have caption data.
The compression of the video content may cause picture distortions. This is
especialJy true with fast moving pictures from sports programs and action
The picture is distorted, movies.
A weak signal can cause picture distortions° This is not a probJem with the TVo
My Computer Won°t Connect
The "Mode Not
Supported" message Set your PC's output resolution so it matches a resolution supported by the TV.
appears.
The video is OK but If you are using an HDM[ connection, check the audio output setting on your PC.
there is no audio. If you are using an HDM[-to-DV[ cable, a separate audio cable is required.
The TV Won't Connect to the
The wireless network
connection failed.
Confirm your wireless modem/router is on and connected to the [nternet.
The software update Check the network connection status (MENU :> Network > Network Status).
over the [nternet has If the TV is not connected to a network, connect to a network.
failed. The upgrade stops if you already have the latest software version.
The Schedule Recording/Timeshift Function [sn°t
Working
Tlhis funcdon is ,'sotavailable in the U,S,A, and Canada,
(HDMI-CEC) sn°t Working
Confirm that the device is an Anynet+ device. The Anynet+ system supports
Anynet+ devices only,
Check if the power cord of the Anynet+ device is properly connected,
Check the cable connections of the Anynet+ device.
Go to Anynet+ (HDM_-CEC) (MENU > System > Anynet+ (HDM_-CEC)) and see if
Anynet+ does not Anynet+ (HDM_-CEC) has been set to On.
work. Check whether the TV remote controt is in TV mode.
Check whether the remote controt is Anynet+ compatible.
Anynet+ may not function when some other functions are active, including Channel
Search, Smart Hub, Initial Setup, etc.
mfyou have disconnected and then reconnected the HDMI cable, scan for devices
again or turn your TV off and on.
I want to start : Check if the Anynet+ device is properly connected to the TV, and then select the
Anynet+ Anynet+ (HDM_-CEC) (MENU > System :> Anynet+ (HDM_-CEC)) menu to see if
" Anynet+ (HDM_CEC) is set to On.
I want to exit Anynet+ Select View TV from the Anynet+ menu°
" Select a non-Anynet+ device from the Source tist.
The message
"Connecting to You cannot use the remote control when you are configuring Anynet+ or switching
Anynet+ dev'ce,_ ' to a viewing mode. Use the remote control after the TV has completed the Anynet+
or "Disconnecting configuration or has switched to a viewing mode,
from Anynet+ device"
appears on the screen.
Anynet+ (HDM_CEC) has been set to On.
The connected device Scan for Anynet+ devices again.
is not displayed, Anynet+ devices must be connected to the TV using an HDMm cable. Make sure the
device is connected to your TV with an HDMm cable. Some HDMm cables may not
support Anynet+,
if the connection is terminated because there has been a power failure or the HDMI
cable has been disconnected, please scan for the device again.
Connect an optical cable to the TV and the receiver,
The TV audio is not
being played through ARC enables the TV to output digital sound via the HDMm (ARC) port,
the receiver. However, ARC is onty avaiJable when the TV is connected to an audio receiver that
supports ARC.
I Have Trouble Launching/Using Apps
I launched an app,
but it's in English. Languages supported by the app may be different from the user interface language.
How can [ change the The ability to change the language depends on the service provider,
language7
My application is not Check with the service provider.
working. Refer to the HeJp section on the application service provider's website.
My FiMeWon't
Some files can't be
played.
This problem may occur with high-bitrate files. Most flies can be played back, but
you might experience problems with high-bitrate files.
I Want to Reset the TV
Reset Picture, Sound, Channel, Smart Hub, and aH other
Reset Settings MENU > Support > Serf settings, except for the network settings, to the default
Diagnosis > Reset settings.
Resets aH Smart Hub settings to their factory defautts and
Resetting Smart MENU > Smart Hub ]> deletes alJ information related to Samsung accounts, Jinked
Hub Reset Smart Hub service accounts, Smart Hub service agreements, and
Smart Hub appJications.
Other Issues
Watching TV for an extended period of time causes the panel to generate heat.
The heat from the panel is dissipated through internal vents running along the
The TV is hot. top of the TV. The bottom, however, may feel hot to the touch after extended
use. Children watching TV need constant adult supervision to prevent them from
touching the TV. This heat, however, is not a defect and does not affect the TV's
functionality.
HD channels will have black bars on either side of the screen when displaying
upscaled SD (4:3) content.
The picture won't Black bars will appear at the top and bottom of the screen when you watch
display in full screen, movies that have aspect ratios different from your TV.
Adjust the picture size options on your external device or set the TV to full
screen.
The "Mode Not The output resolution of the attached device is not supported by the TV. Check
Supported" message the TV's supported resolutions and adjust the external device's output resolution
appears, accordingly.
You cannot select the Caption menu if you have selected a source connected to
The Captions item in the
the TV via HDMI or Component. To view captions, turn on the external device's
TV menu is grayed out. caption function.
The TV smells of plastic. This smell is normal and will dissipate over time.
The Signal hformation
option under Self Verify that the current channel is a digital channel.
Diagnosis isn't activated. The Signal _nformation is only available for digital channels.
The TV is tilted to the
Remove the base stand from the TV and reassemble it.
side.
BroadcastingisonlyavailablewhentheSourceis setto TV.
TheBroadcastingmenucannotbeaccessed while you watch TV using a cable
The Broadcasting option box or satellite receiver.
has been deactivated, The Broadcasting menu cannot be accessed while a recording is in progress or
the Timeshift function is running,
The settings are lost mfthe Use Mode is set to Store Demo, the TV's audio and video settings are
after 5 minutes or every automatically reset every 5 minutes,
time the TV is turned off. Change the Use Mode (MENU _> Support _> Use Mode) to Home Use.
Check the cable connections and reconnect them,
There is an intermittent Loss of audio or video can be caused by using overly rigid or thick cables,
loss of audio or video. Make sure the cables are flexible enough for long term use. if you are mounting
the TV to a wall, we recommend using caMes with 90-degree connectors.
..... ii....
There are small particles This is part of the product's design and is not a defect.
on the TV's bezel.
The ProPmenu is not
availabJe.
P_P functionality is only avaiJable when you are viewing video from an HDMI or
Component source on the main screen.
.... ii.....................
A POP (TV's internal
banner ad) appears on Change the Use Mode (MENU :> Support :> Use Mode) to Home Use.
the screen.
The TV is making a The expansion and contraction of the TV's outer casing may cause a popping
popping noise, noise. This does not indicate a product malfunction. The TV is safe to use.
Your TV utiJizes high-speed switching circuits and high levels of electrical
current. Depending on the TV's brightness level, the TV may seem slightly
noisier than a conventional TV.
The TV is making a Your TV has undergone strict quality controJ procedures that meet our
humming noise, demanding performance and reliability requirements.
Some noise coming from the TV is considered normal and is not an acceptaMe
cause for an exchange or refund.
Before Using the Recording and Timeshift Functions
Before using the recording and schedule recording functions
IReco_di,'g is not supported in the U..S..Aa_'d Canada..
o To set up a Schedule Recording, you must first set the TV's clock. Set the Clock (MIEI_(S >
System > Time > Clock).
o You can set up a maximum total of 30 Schedub Viewing and Schedule Recording entries.
o Recordings are DRM=protected and therefore cannot be played back on a computer or on a
different TV. In addition, these flies cannot be played back on your TV if its video circuit has
been replaced.
o A USB hard drive with a speed of 5,400rpm or above is recommended. However, RAID=type USB
hard drives are not supported.
o USB memory sticks are not supported.
o The total recording capacity may differ with the amount of available hard drive space and the
recording quality level.
, Schedub Recording requires at least 100MB of free space on the USB storage device. Recording
will stop if the available storage space falls below 50MB while recording is in progress.
, If the available storage space falls below 500MB while both the Schedule Recording and
Timeshift functions are in progress, only the recording will stop.
, The maximum recording time is 720 minutes.
, Videos are is played according to the TV settings.
, If the input signal is changed while recording is in progress, the screen will go blank until the
change is made. In this case, recording will resume, but € will not be available.
, When using the Record or Schedule Recording function, the actual recording may start a second
or two later than the specified time.
, If the Schedule Recording function is operating while a recording is being made on an HDMI-
CEC external device, the priority is given to the Schedule Recording.
, Connecting a recording device to the TV automatically deletes abnormally saved recording files.
, If the Off Timer or Auto Power Off has been set, the TV will override these settings, continue to
record, and turn off after the recording has ended.
Before using the timeshift function
Timesh ft s not supported n the U_S_Aand Canada_
o A USB hard drive with a speed of 5,400 rpm or above is recommended. However, RAID-type USB
hard drives are not supported.
USB memory sticks or flash drives are not supported.
The total recording capacity may differ with the amount of available hard drive space and the
recording quality level.
If the available storage space falls below 500MB while both the Schedule Recording and
Timeshift functions are in progress, only the recording will stop.
The maximum amount of time available for the Timeshift function is 90 minutes.
The Timeshift function is not available for locked channels.
Time-shifted videos are is played according to the TV settings.
The Timeshift function may be terminated automatically once it reaches its maximum capacity.
The Timeshift function requires at least 1.5GB of free space available on the USB storage device.
Read Before Using 3D Mode
This funct on s only ava lable on the 6400 series modes for geograph cal areas other than the U,S,A and
Canada_
3D precautions
/iX Warning
o When viewing a 3D video under a fluorescent lamp (50 Hz - 60 Hz) or 3-wavelength lamp, you
may notice a small amount of screen flickering.
Iif this symptom occ_ rs, dim or t_r_ off tlhe ight
Switching the input mode while watching a 3D mowe may disable the 3D function on the TV.
Ill this symptom occurs, the 3D glasses may a_tomatica y t_rn of_,
If you lie on your side while watching TV with 3D active glasses, the picture may appear dark or
may not be visible. The actual 3D effect may be experienced differently depending on the viewer.
The 3D effect may not be visible if the visual ability of your left eye differs greatly from the
visual ability of your right eye.
If a part of the 3D glasses or lenses is defective or damaged, it cannot be repaired and the
glasses should be replaced. If the glasses stop working within the warranty period, the glasses
can be repaired or replaced for free. If the glasses have been damaged due to the fault of the
customer or the warranty period has expired, a new pair of glasses will have to be purchased.
If the eye sight in one of your eyes differs greatly from the eye sight in the other eye, you may
perceive 3D effects to a lesser degree than other persons or may not perceive 3D effects at all.
Ensure you are within the working distance of the glasses when you view a 3D video.
.....Iihe mages may _ot Hoevewabe n 3D f yo_ move o_ts de of tlhe working distance for 3 seconds,,
Iif the 3D glasses are moved o_ ts de of ther working distance, the s[gna from the IiV wl discor_nect
and the glasses 3D f_ nctio_ wl t_rn off after severa seco_ds. When this happens, the red lED wl
t_rn o_ for 3 seco_ds,,
The 3D glasses may not work properly due to interference from other 3D products or electronic
devices that operate on the 2.4 GHz frequency such as a microwave oven or Internet AP. If
the 3D function malfunctions due to interference, please move all other electronic or wireless
communication devices as far away from the glasses and the TV as possible.
Thevividnessof the imagemayappeardegradedif you view 3D video in a placethat is exposed
to direct sunlightor illumination.
The3D glassesmay malfunctionif there is an electricfield or metallicobject such as a steel
plate nearby.Keepthe glassesasfar awayas possiblefrom electricfields and metallicobjects.
With SSG-3570modelglasses,the glassesmay poweroff if you remainstationarywhile viewing
3D video for an extendedperiodof time.
With SSG-3570modelglasses,if the 3D glassesdo not function immediatelyafter you put them
on whenthe TV is in 3D mode,takethem off andthen put them back on.
/iX Caution
IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D VIEWING. READ THE FOLLOWING
CAUTIONS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.
o Adults should frequently check on children who are using the 3D function. If there are any
complaints of tired eyes, headaches, dizziness, or nausea, stop the child from viewing the 3D TV
and ensure that they rest.
Do not use the 3D glasses for other purposes such as general wear, sunglasses, protective
goggles, etc.
Some viewers may experience discomfort such as dizziness, nausea, and headaches while
viewing 3D TV. If you experience any of these symptoms, stop viewing the 3D TV, remove the
3D glasses, and rest for awhile.
Watching 3D pictures for an extended period of time may cause eye strain. If you experience any
eye strain, stop viewing the 3D TV, remove the 3D glasses, and rest for awhile.
Do not use the 3D function or 3D glasses while walking or moving around. Using the 3D function
or 3D Active Glasses while moving around may result in injury from running into objects,
tripping, and/or falling.
Do not sleep with the 3D glasses on. You can damage or break the temples.
The temples on your 3D glasses are not foldable. Forcing the temples to fold will damage the 3D
glasses.
With SSG-3570 model glasses, do not shake your 3D glasses repeatedly. Shaking the glasses
will power them on and can cause the battery to discharge faster than it would normally.
With SSG-5100GB and SSG-5150GB models glasses, there is a danger of explosion if you
replace the battery with the wrong type of battery.
With SSG-5100GB and SSG-5150GB models glasses, make sure to replace the battery with the
same type of battery.
/f_ Safety precautions
The following safety instructions are provided to ensure your personal safety and prevent property
damage. Please read the following to ensure the proper use of the product.
o Do not place the product in a location exposed to direct sunlight, heat, fire, or water. Exposure
may result in a product malfunction or fire.
Do not apply force to the lenses of the 3D glasses. Do not drop or bend the glasses. Applying
force, dropping, or bending may result in a 3D glasses malfunction.
Keep the components of the 3D glasses out of reach of children. Especially, ensure children do
not swallow any of the components. If your child swallows a component, consult your doctor
immediately.
When cleaning the glasses, do not spray water or cleaner directly onto its surface. Spraying
water or cleaner directly onto the glasses may result in fire or electric shock, damage to the
glasses's surface, or cause the indicator labels on the glasses's surface to come loose.
Do not apply chemicals containing alcohol, solvent, or surfactant such as wax, benzene, thinner,
pesticide, air freshener, lubricant, or cleaner to the glasses. These chemicals may cause the
glasses's exterior to discolor or crack, or the labels or instructions to be removed. Use only a
soft cloth such as superfine fibers or cotton flannels to clean the glasses as the surface and the
lenses easily crack. Because the glasses can be easily scratched by foreign substances, make
sure to dust off the cloth before using.
Do not disassemble, or attempt to repair or modify your 3D active glasses by yourself.
Be careful not to let the temple ends of the 3D active glasses harm your eye.
Do not sleep with the 3D glasses on. You can break the arms.
Use your hands to put on or remove the 3D glasses.
For SSG-5100 and SSG-5150 model glasses, use only the specified standard batteries. When
replacing the battery, insert the battery so that its polarity (+, -) is correct. Failing to do so may
damage the battery or result in fire, personal injury or environmental damage caused by liquid
leaking from the battery.
For SSG-5100 and SSG-5150 model glasses, keep used batteries out of the reach of children
so that they do not accidently swallow it. If your child swallows a battery, consult your doctor
immediately.
Swallowing the cylindrical (button type) battery can cause serious damage to your internal
organs. If this happens, contact a doctor immediately.
Resolutions for 3D
.....Ihese specificatiors appy to the 16:9 dispay ratio or s,,
3D Mode: _ (L/R), _ (T/B)
1920 x 1080p
!!i!_i!i!'!!!!!!_i!!!_!i_!!!_i!!!i_!_!!!_i!!!i_!_!!!_i!!!i_!_!!!_i!!!i_!_!!!_i!!!i_!_!!!_i!!!i_!_!!!_i!!!i_!_!!!_i!!!i_!___ _!_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
24 / 25 / 30 / 50 / 60
59.94 / 60
1920 x 1080i 59.94 / 60
1920 x 1080p 23.98 / 24 / 29.97 / 30 / 59.94 / 60
Digital channell
.............................................................................................................................................................1280 x 720p ..............................................................................................................59.94 / 60
1920 x 1080i 59.94/60
Computer via HDMI cable
The optimal resoJution for computers connected to the TV via an HDMI came is 1920 x 1080. If you
seJect another resolution, the TV may not dispJay 3D images correctly and may not be abJe to dispJay
the computer video in fuji screen.
Read Before Using Apps
o
o
o
o
o
o
Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in
available content, certain features, applications, and services may not be available on all devices
or in all territories. Some Smart Hub features may also require additional peripheral devices
or membership fees. Visit http://www.samsung.com for more information on specific device
information and content availability. Services and content availability are subject to change
without prior notice.
Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services
caused by the service provider for any reason.
Application services may be provided in English only and available content may differ with the
geographical area.
For more information about applications, visit the applicable service provider's website.
An unstable Internet connection may cause delays or interruptions. In addition, applications
may terminate automatically depending on the network environment. If this occurs, check your
Internet connection and try again.
Application services and updates may become unavailable.
Application content is subject to change by the service provider without prior notice.
Specific services may differ with the version of the application installed on the TV.
An application's functionality may change in future versions of the application. If this occurs, run
the application's tutorial or visit the service provider's website.
Depending on the service provider's policies, certain applications may not support multitasking.
Read Before Using the
Browser
o Select Web Browser. The browsing screen may differ from the one on your computer.
The web browser is not compatible with Java applications.
You can download the supported types of files, such as videos, mp3 files, and images, but
you cannot download files that are not supported by the TV. If you attempt to download an
unsupported file, you will receive an error message instead.
The web browser may not be able to access certain websites.
The TV does not support playback of flash videos.
o E-commercefor onlinepurchasesis not supported.
o With websitesthat havescrollablewindows, scrollinga window can result in corrupted
characters.
o ActiveX is not supported.
o Certainoptions are not accessiblein Link Browsingmode.(Switch to PointerBrowsingto
activatethose options.)
o Only a timited numberof fonts are supported.Certainsymbolsand charactersmay not be
displayedproperly.
o The responseto remotecommandsandthe resultingon-screendisplaymay be delayedwhile a
webpageis loading.
o Loadinga webpagemay be delayedor suspendedcompletelywith certainoperatingsystems.
o The copy and pasteoperationsare not supported.
o Whencomposingan emailor a simplemessage,certainfunctions suchas the font sizeand color
selectionmay not be available.
o Thereis a limit to the numberof bookmarksand the sizeof the log file that can be saved.
o The numberof windows that can be openedconcurrentlydiffers with the searchconditionsand
the TV model.
o The web browsingspeedwill differ with the networkenvironment.
o Embeddedvideos can play at the sametime the PIP(picture-in-picture)function is operating.
Theweb browsersupports.mp3 audio files only.
o If the Clock (MIEINkJ> System > Time > Clock) has not been set, the browsing history will not
be saved.
o The browsing history is saved from latest to oldest, with the oldest entries being overwritten
first.
o Depending on the types of video/audio codecs supported, it might not be possible to play
certain video and audio flies while playing Flash content.
o Video sources from PC-optimized streaming service providers may not play properly on our
proprietary web browser.
o Using the on-screen QWERTY keyboard automatically disables PIP (except when you are entering
a URL).
Read Before Pmayin9 Photo, Video, or Music Fi es
o
o
o
o
o
o
itations on use of photo, video, and music files
The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for
mass storage devices. Types of MSC devices include external hard drives, flash card readers,
and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected
directly to the TV's USB port. The TV may not be able to recognize a USB device or read the
files on the device if it is connected to the TV via a USB extension cable. Do not disconnect USB
devices while they are transferring files.
When connecting an external hard drive, use the USB (HDD) port. We recommend that you use
an external hard drive with its own power adapter.
Certain digital cameras and audio devices may not be compatible with the TV.
If there are multiple USB devices connected to the TV, the TV might not be able to recognize
some or all the devices. USB devices that use high-power input should be connect to the USB [5V,
1A] port.
The TV supports the FAT, exFAT, and NTFS file systems.
After sorting files in the Folder view mode, the TV can display up to 1000 files per folder. If the
USB device contains more than 8,000 files and folders, however, some files and folders might
not be accessible.
The PTP (pier to pier) connection mode is available only for digital cameras. If you connect a
smartphone or tablet to the TV using PTP mode, the TV will not recognize it.
Be sure to connect USB or external hard drives that support USB 3.0, to the USB 3.0 port.
Certain files, depending on how they are encoded, may not play on the TV.
o Certain files are not supported on all models.
Supported externa_ subtitles
........................................................... ii¸
SAMI ,smi
SubRip .srt
SubViewer .sub
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
Powerdivx .psb
SMPTE-TT Text ,xml
Supported internal subtitles
Xsub
SubStation AIpha
AVl
MKV
Advanced SubStation Alpha MKV
SubRip MKV
VobSub MKV
MPEG-4 Timed text MP4
TTML in smooth streaming MP4
SMPTE-TT Text MP4
SMPTE-TT PNG MP4
Supported image formats and resolutions
.jpg
JPEG 15360x8640
.jpeg
e.png PNG 4096x4096
_.bmp BMP 4096x4096
_.mpo 15360x8640
Supported music formats and codecs
_.mp3 MPEG MPEG1 Audio Layer 3
_,aac ..................................................................................................................
_.flac FLAC FLAC Supports up to 2 channels
_.ogg OGG Vorbis Supports up to 2 channels
Supports up to 10 Pro 5.1 channels.
_.wma WMA WMA WMA Iossless audio is not supported.
Supports up to the M2 profile.
_+.way way way
_.mid Supports type 0 and type 1.
midi midi Seek is not supported.
_.midi Supports USB device only,
_.ape ape ape
AIFF
_.aiff
_.m4a ALAC ALAC
Supported video codecs
*.avi
.mkv
,asf
.wmv
*.mp4
,mov
*.3gp
,vro
.mpg
*.mpeg
.ts
.tp
*.trp
.mov
.flv
*.vob
*.svi
*.m2ts
.mts
*.divx
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
TS
SVAF
H.264 BP/MP/HP
HEVCiH:265 - Main Profiie .............
only)
Motion JPEG
MVC
DivX 3.11 / 4 / 5 / 6
MPEG4 SP/ASP
Window Media Video v9(VC1)
MPEG2
MPEG1
Microsoft MPEG-4 vl, v2, v3
Window Media Video
v7 (WMV1) ,v8 (WMV2)
H.263 Sorrenson
VP6
*,webm WebM VP8
1920x1080
60 40
30
60
20
30
90
Dolby Digital
LPCM
ADPCM(IMA,
MS)
AAC
HE-AAC
WMA
Dolby Digital
Plus
MPEG(MP3)
DTS(Core, LBR)
G.711(A-Law,
u-Law)
Vorbis
Other restrictions
o Codecs may not function properly if there is a problem with the content.
Video content does not play or does not play correctly if there is an error in the content or
container.
Sound or video may not work if they have standard bit rates/frame rates above the TV's
compatibility ratings.
If the Index Table is has an error, the Seek (Jump) function will not work.
When playing video over a network connection, the video may not play smoothly because of
data transmission speeds.
Some USB/digital camera devices may not be compatible with the TV.
HEVC codec is only available in MKV / MP4 / TS containers.
Video decoders
. H.264 FHD is supported up to Level 4.1. (does not support FMO/ASO/RS)
. VC1 AP L4 is not supported.
. All video codecs excluding WMV v7, v8, MSMPEG4 v3, MVC, and VP6:
Below 1280x720:60 frame max
Above 1280x720:30 frame max
- GMC 2 or above is not supported.
. Supports SVAF Top/Bottom. Side by Side, and Left/Right view sequence type (2ES) only.
. Supports BD MVC specs only.
Audio decoders
WMA 10 Pro supports up to 5.1 channels. Supports up to the M2 profile. WMA Iossless audio is
not supported.
QCELP and AMR NB/WB are not supported.
Vorbis is supported for up to 5.1 channels.
Dolby Digital Plus is supported for up to 5.1 channels.
The DTS LBR codec is only available for MKV / MP4/TS containers.
The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ by
the codec.
Read After Installing the TV
IIPiotur@siz@s and input signalllls
The Picture Size setting is applied to the current source. The applied Picture Size will remain in effect
whenever you select that source unless you change it.
Component 16:9, Zoom, Custom, 4:3
:: Component (1080i, 1080p) 16:9, Zoom, Custom, 4:3
Digital channel (720p, 1080i, 1080p) 16:9, Zoom, Custom, 4:3
HDMI (720p) 16:9, Zoom, Custom, 4:3
HDMm(1080i, 1080p) 16:9, Zoom, Custom, 4:3
_nstallllllllingan anti-theft IIIIook
An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the
lock slot on the back of the TV. The slot has a 5_ icon next to it. To use the lock, wrap the lock cable
around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock is
sold separately. The method of using an anti-theft lock may differ for each TV model. Refer to the
lock's user manual for more information.
.....IMs functior is not availabe or certain modes ir specific geog_'apMca areas,,
Read before setting up a "wireless mnternet connection
Precautions for wireless _nternet
o This TV supports the IEEE 802.11 a/b/g/n/ac communication protocols. Samsung recommends
using IEEE 802.11n. Video files stored on a device connected to the TV via a Home Network may
not play back smoothly,
To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless
router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless
network.
Select a channel that is not currently in use for the wireless router. If the channel set for the
wireless router is currently being used by another device, the result is usually interference and/or
a communications failure.
Most wireless networks have an optional security system. To enable a wireless network's security
system, you need to create a password using characters and numbers. This password is then
needed to connect to a security-enabled AP.
Wireless security protocols
The TV only supports the following wireless network security protocols. The TV cannot connect to
non-certified wireless routers.
- Authentication Modes: WEP, WPAPSK, WPA2PSK
- Encryption Types: WEP, TKIP, AES
In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP
or TKIP security encryption in networks running in the 802.11n mode. If the wireless router supports
WPS (Wi-Fi Protected Setup), you can connect the TV to your network using PBC (Push Button
Configuration) or a PIN (Personal Identification Number). WPS automatically configures the SSID and
WPA key settings.
Before Connecting
Resomutions)
a Computer (Supported
When you connect your TV to a computer, set the computer's video card to one of the standard
resolutions listed in the tables below or on the next page. The TV will automatically adjust to the
resolution you choose. Note that the optimal and recommended resolution is 1920 x 1080 at 60 Hz.
Choosing a resolution not included in the tables can result in a blank screen or just the power indicator
turning on. Refer to the user manual of your graphics card for compatible resolutions.
mBM
720 x 400 70 Hz 31.469 70.087 28.322
-/+
640 x 480 67 Hz 35.000 66.667 30.240 -/-
1152 x 870 75 Hz
-/-
VESA DMT
640 x 480 60 Hz 31.469 59.940 25.175 - / -
640 x 480 72 Hz 37.861 72.809 31.500 - / -
640 x 480 75 Hz 37.500 75.000 31.500
800 x 600 72 Hz 48.077 72.188 50.000 + / +
800 x 600 75 Hz 46.875 75.000 49.500 + / +
1024 x 768 60 Hz 48.363 60.004 65.000 - / -
1024 x 768 70 Hz 56.476 70.069 75.000 - / -
1024 x 768 75 Hz 60.023 75.029 78.750 + / +
1152 x 864 75 Hz 67.500 75.000 108.000 + / +
1280 x 720 60 Hz 45.000 60.000 74.250 + / +
1280 x 800 60 Hz 49.702
1280 x 1024 60 Hz 63.981
1280 x 1024 75 Hz 79.976
1366 x 768 60 Hz 47.712
59.810
60.020
75.025
59.790
83.500
108.000
135.000
-/+
+/+
+/+
85.500 + / +
............................................................................................................................. _.............................................. _.....................................................
1440 x 900 60 Hz 55.935 59.887 106.500 -/+
....... t ...................................................................................................
1600 x 900RB 60 Hz 60.000 60.000 108.000 + / ÷
1680 x 1050 60 Hz 65.290 59.954 146.250 - / +
1920 x 1080 60 Hz 67.500 60.000 148.500 + / +
Resomutions for Video Signams
720(1440) x 480i
720(1440) x 576i
720 x 480
60 Hz 15.734
50 Hz 15.625
60 Hz 31.469
720 x 576
1280 x 720
1280 x 720
1920 x 1080i
1920 x 1080i
50 Hz
60 Hz
50 Hz
60 Hz
50 Hz
45.000
37.500
33.750
28.125
59.940
60.000
60.000
50.000
74.250 +/+
74.250 + / +
56.250 + / +
+/+
1920 x 1080 25 Hz 28.125 25.000 74.250 + / +
1920 x 1080 24 Hz 27.000 24.000 74.250 + / +
Before Using B uetooth Devices
Restrictions on using BIIIlu®tooth
o The Samsung Btuetooth Speaker function is only available for devices supporting TV
0
0
0
You can't use Bluetooth devices, TV SoundConnect (MENU > Sound > Speaker Settings > TV
SoundConnect), and the Surround feature simultaneousJy.
Compatibility issues may occur, depending on the BMuetooth device. (A Mobib exclusive
headphone may not be available, depending on the environment.)
Lip=sync errors may occur.
The TV and BMuetooth device may disconnect, depending on the distance between them.
A BMuetooth device may hum or malfunction:
When a part of your body is in contact with the receiving/transmitting system of the
BMuetooth device or the TV.
When the device is subject to electrical variation from obstructions caused by a wall, corner,
or office partitioning.
When the device is exposed to electrical interference from same frequency-band devices
including medical equipment, microwave ovens, and wireless LANs.
If the problem persists, try connecting the device using the digital optical port or the HDMI (ARC)
port.
License
HD
This DivX Certified@ device has passed rigorous testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX
VOD section of your device setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated Iogos are trademarks of DivX, LLC and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274.
This device supports DivX Plus Streaming® for enjoying HD movies and TV shows with advanced features
(multi-language subtitles, multiple audio tracks, chapters, smooth FF/RW, etc.) streamed to your device.
PremiumS0und 15.1
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in
combination with the Symbol, DTS Premium Soundl5.1, DTS Digital Surround, DTS Express, and DTS Neo2:5 are
registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries.
@ DTS, Inc. All Rights Reserved.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS,
the Symbol, & DTS and the Symbol together are registered trademarks, and HEADPHONE:X and the DTS
HEADPHONE:X logo are trademarks of DTS, Inc. @ DTS, Inc. All Rights Reserved.
DOLBY
DiGiTAL PLUS
Manufactured under license from Dolby Laboratories.
Dolby and the doubte-D symbol are trademarks of Dolby Laboratories.
||||
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
Open Source License Notice
Open Source used in this product can be found on the following webpage.
(http://opensource.samsung.com) Open Source License Notice is written only English.
i _°__
480i / 480p / 720p / 1080i / 1080p
Generally refers to the number of effective scanning lines that determines the screen's resolution.
There are two scanning methods: interlaced and progressive.
- Scanning
Sequential projection of pixels to form images. The higher the number of pixels, the clearer
and more vivid the images.
- Progressive
A sequential scanning method that scans every line, one after another.
- Interlaced
A staggered scanning method that scans every other line until the end of the screen and then
fills in the remaining lines.
Example) If the number of horizontal scan lines is 480i
Scans 240 lines from start to finish and then scans the remaining 240 lines for a total of 480
lines.
<- General differences between 480i and 480p are as follows:
Horizontal Frequency 15.75Khz 31.5Khz
FPs 30 Go
............. i.... _
ARC (Audio Return Channel)
ARC lets the TV output digital sound to an audio device and input digital sound from the same
audio device through one HDMI cable. However, ARC is only available through the HDMI (ARC)
port and only when the TV is connected to an ARC-enabled AV receiver.
DVI (Digital Visual Interface)
Connecting the TV's DVI connector to a computer's DVI connector via an HDMI-to-DVI cable
lets you use the TV as a computer monitor. However, HDMI-to-DVl cables deliver video signals
only. You must connect a set of speakers to the computer using a separate cable to hear the
computer's audio.
HDMI (High Definition Multimedia Interface)
HDMI is a method of transmitting both video and audio signals via a single cable.
Dynamicversus Static IPAddresses
If the networkrequiresa dynamicIP address,usean ADSLmodemor routerthat supports
the DynamicHostConfigurationProtocol(DHCP).Modemsandtoutersthat support DHCP
automaticallyprovidethe IPaddress,subnetmask,gatewayand DNSvaluesthe TV needsto
accessthe Internet,so they do not haveto be enteredmanually.Most homenetworksuse a
dynamicIPaddress.
If the networkrequiresa static IP address,enterthe IPaddress,subnetmask,gateway,and DNS
valuesmanuallywhensetting up the networkconnection.To get the IPaddress,subnetmask,
gatewayand DNSvalues,contact your InternetServiceProvider(ISP).
If the networkrequiresa static IP address,usean ADSL modemthat supportsDHCP.ADSL
modemsthat supportDHCPalso allow static IPaddresses.
Bluetooth
Bluetoothis a short-distancewirelesscommunicationprotocolallowing informationexchange
betweenconnectedBluetoothcompatiblemobile phones,laptops,earphonesand headphones.It
is mostly usedfor low-power wirelessconnectionswithin a distanceof 32.8 ft.
Ethernet
Ethernetis a LAN (LocalArea Network)that usescoaxialcablesstandardizedby the IEEE.
ComponentConnection
Componentconnectionsare mostly usedfor gameconsolesandtransmit the video signal by
splitting it into a luminancesignal (Y) andtwo color signals (Pband Pr).Theconnectoris marked
as [ComponentIN]_(Pr,Pb,Y) on the backof the TV.On somedevices,it is sometimesmarked
as Cr,Cb,Y. Cb and Crare the digital conversionsof the Pband Prsignals.
Theconnectorsare normally color-codedred (R),blue(B),and green(G)and offer the best
picturequality possiblefor an analogconnection.
