Owner’s Instructions
HL-S5087W
HL-S5687W
HL-S6187W
Register your product at www.samsung.com/global/register
BP68-00588A-03Eng(cover) 8/8/06 2:10 PM Page 3
English - 2
A Guide to Digital TV
• What is Digital Television?
Digital television (DTV) is a new way of transmitting high quality video and audio to your TV set.
Using DTV, broadcasters can transmit high definition TV (HDTV) images, Dolby digital surround
audio, and new services such as multicasting (transmitting more than one program on the same
TV channel) and datacasting. Several of these services can be combined into a single digital
broadcast.
Digital Television Services
• Digital Picture Quality
DTV programs are transmitted in two different formats. The first is Standard Definition Television
(SDTV) and the second is High Definition Television (HDTV).
• SDTV program formats include 480-line interlaced (480i) and 480-line progressive (480p) video.
480i programs are essentially a digital version of our current analog TV programs, while the 480p
format offers improved image detail over 480i. Some 480p programs are broadcast in widescreen
and are comparable to progressive-scan DVD movies in image quality.
• HDTV program formats include 1080-line interlaced (1080i) and 720-line progressive (720p).
Both HDTV formats are always broadcast in widescreen, and offer much higher picture quality than
SDTV.
• Dolby Surround Sound
With DTV, you can listen to a variety of Dolby digital audio formats from Dolby Surround 2.0 to
Dolby Digital 5.1 surround, using your home audio system. Many HDTV programs are now
broadcast with DD 5.1 soundtracks.
© 2006 Samsung Electronics Co., Ltd. All rights reserved.
BP68-00588A-03Eng(002~015) 8/22/06 5:22 PM Page 2
English - 3
Q&A
1. Is the antenna I use for existing TV reception good enough for DTV?
Over-the-air (OTA) digital TV broadcasting uses the same channels as analog TV and works well
with many existing TV antennas. However, DTV broadcast channel assignments are different than
analog channels. You should find out whether your local DTV broadcasts are on VHF (channels
2-13) or UHF (channels 14-69) to see if you need a different antenna.
If your DTV channels are on UHF and you already get good UHF reception, your present antenna
may work fine. The same holds true for VHF DTV reception. Note that in some markets, both VHF
and UHF channels are used for DTV broadcasts.
You can find out the latest DTV channel assignments for your area by browsing selected Internet
web sites such as www.titantv.com, www.10000watts.com, and www.fcc.gov.
2. How difficult is it to receive DTV signals indoors?
This depends on whether your local DTV stations are running full power or not and how close your
location is to the transmission tower. DTV receivers do not require as much signal as analog TV
receivers to produce high-quality images and sound.
Once the DTV signal level exceeds a certain threshold at the receiver, the digital video and audio
data is decoded at the same quality it was originally encoded for broadcast.
This is a big advantage for DTV over analog TV - there is no noise, ghosting, static, or scratchy
audio.
3. How can I connect an antenna in my townhouse, co-operative apartment,
condominium, or apartment?
The Federal Communications Commission’s OTARD Rule (part of the Telecommunications Act of
1996) allows residents of condominiums, townhouse, or members of neighborhood associations to
put up outside antennas for reception of broadcast TV signals as long as those antennas are not
located in common areas and are no more than 12’ in height.
Residents of rental units (apartments, etc.) are not covered by the OTARD rules and will have to use
indoor antennas to receive DTV broadcasts. It is possible that the landlord of an apartment complex
can provide broadcast DTV signals via a master TV antenna system to each apartment.
4. Can I connect my DTV set-top receiver to my cable TV service?
Cable TV systems use a different method for transmitting digital TV programs that is currently
incompatible with broadcast DTV set-top receivers. So you will still need to use an outdoor or
indoor antenna to receive OTA broadcast DTV programs.
The good news is that you won’t have to pay a monthly or per-program charge to watch OTA DTV
and HDTV programs. They’re free, unlike subscription satellite TV or premium cable TV. All you
need is an antenna and a DTV set-top receiver to enjoy clear, sharp widescreen images and
high-quality audio.
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 3
Table of Contents
English - 4
Your New Wide TV...................................................................................8
Viewing Position ......................................................................................................8
List of Features.........................................................................................................9
Accessories .............................................................................................................9

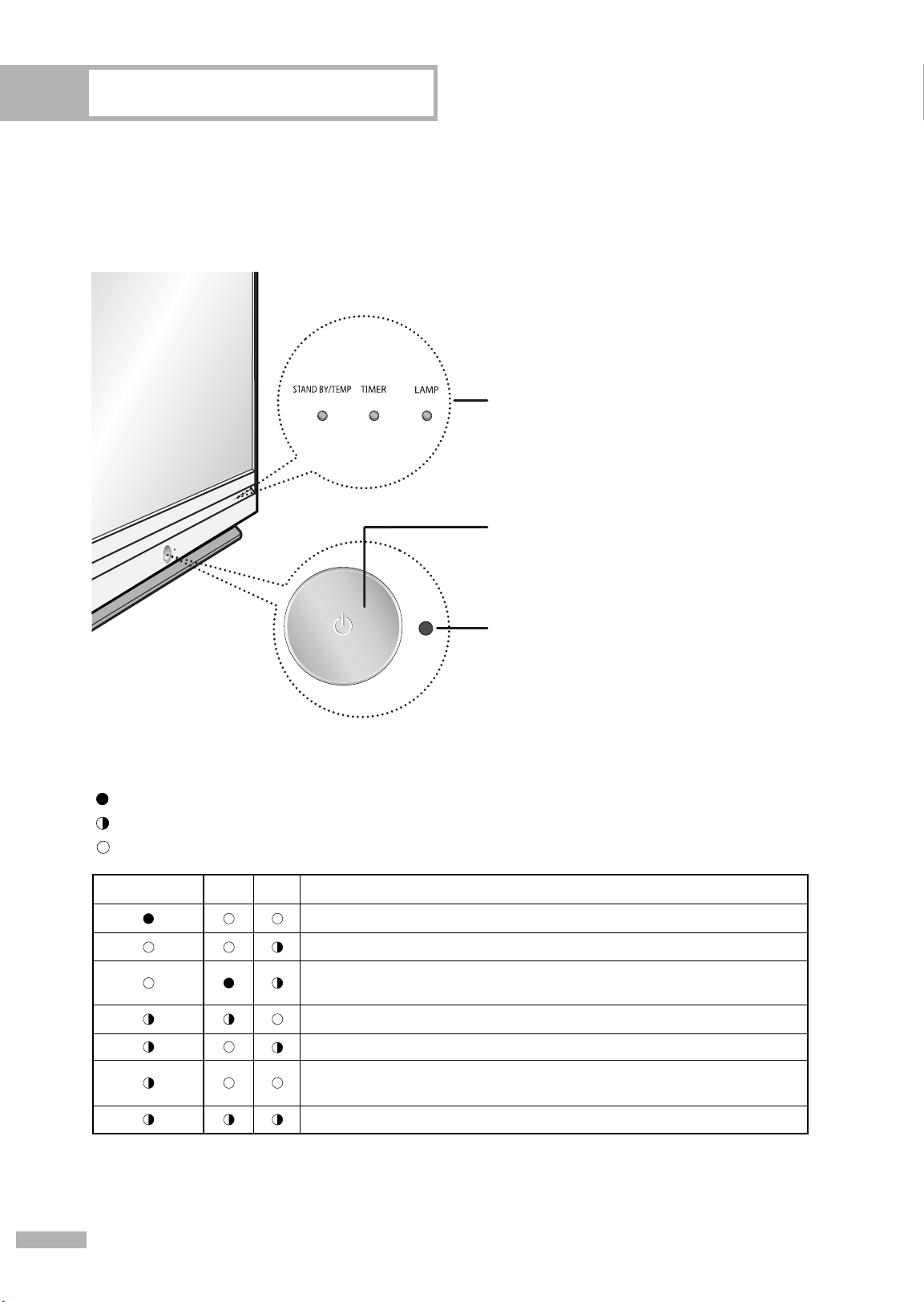

Front Panel LED Indicators.......................................................................................10
Front side buttons...................................................................................................11
Side Panel Jacks ....................................................................................................11

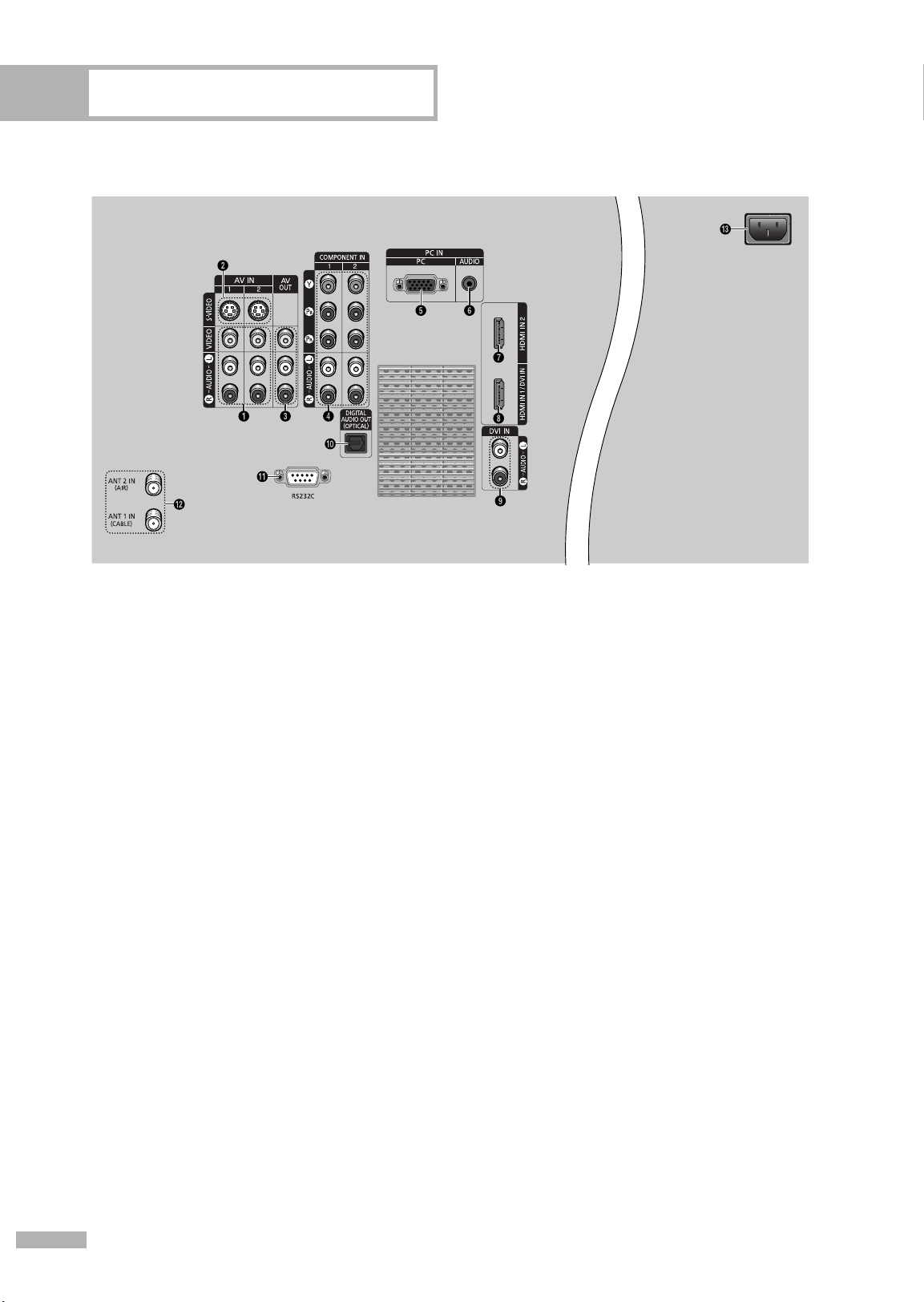

Rear Panel Jacks....................................................................................................12

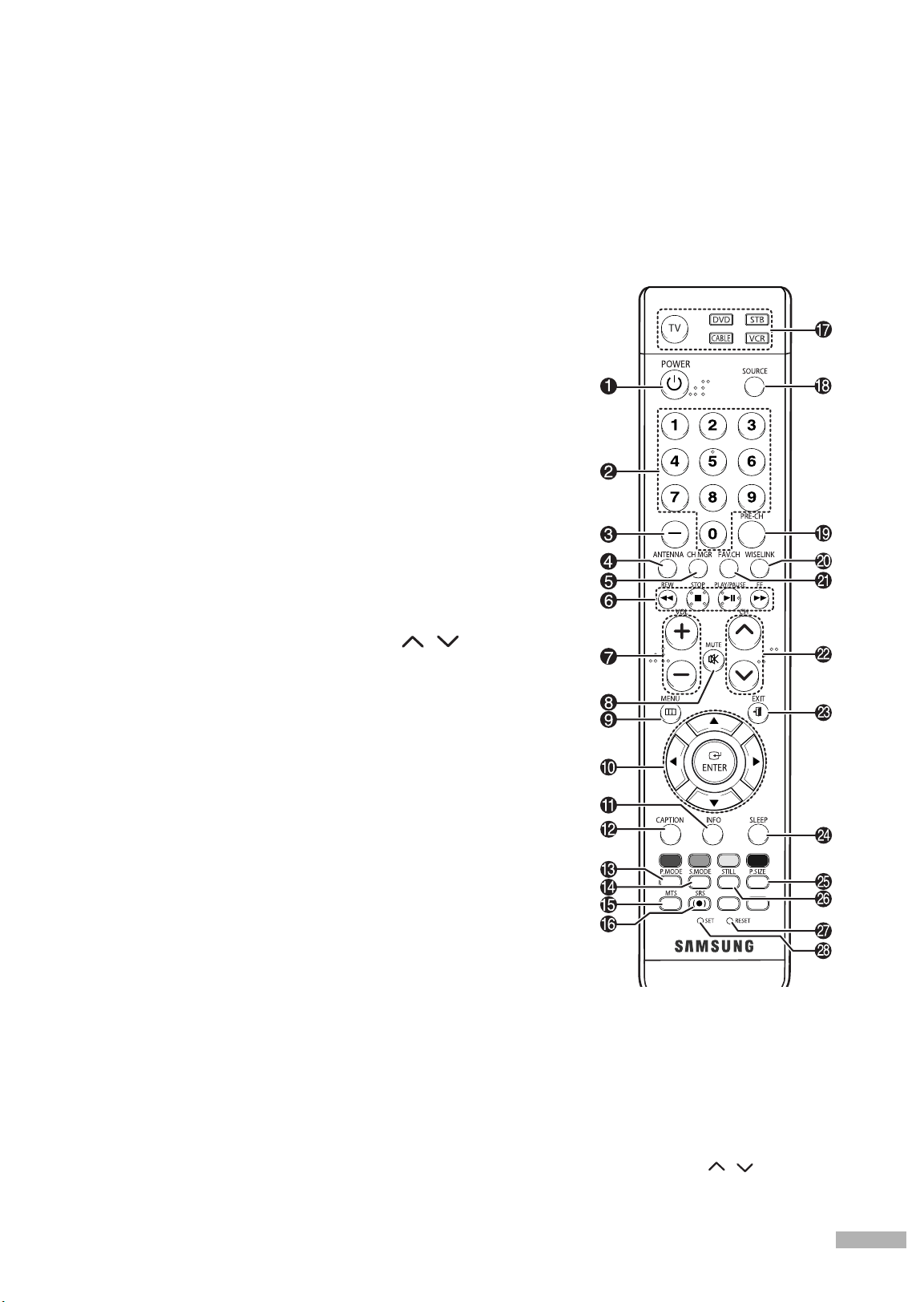

Remote Control......................................................................................................13
Connections ...........................................................................................16
Connecting VHF and UHF Antennas ........................................................................16
Antennas with 75-ohm Round Leads ..............................................................16

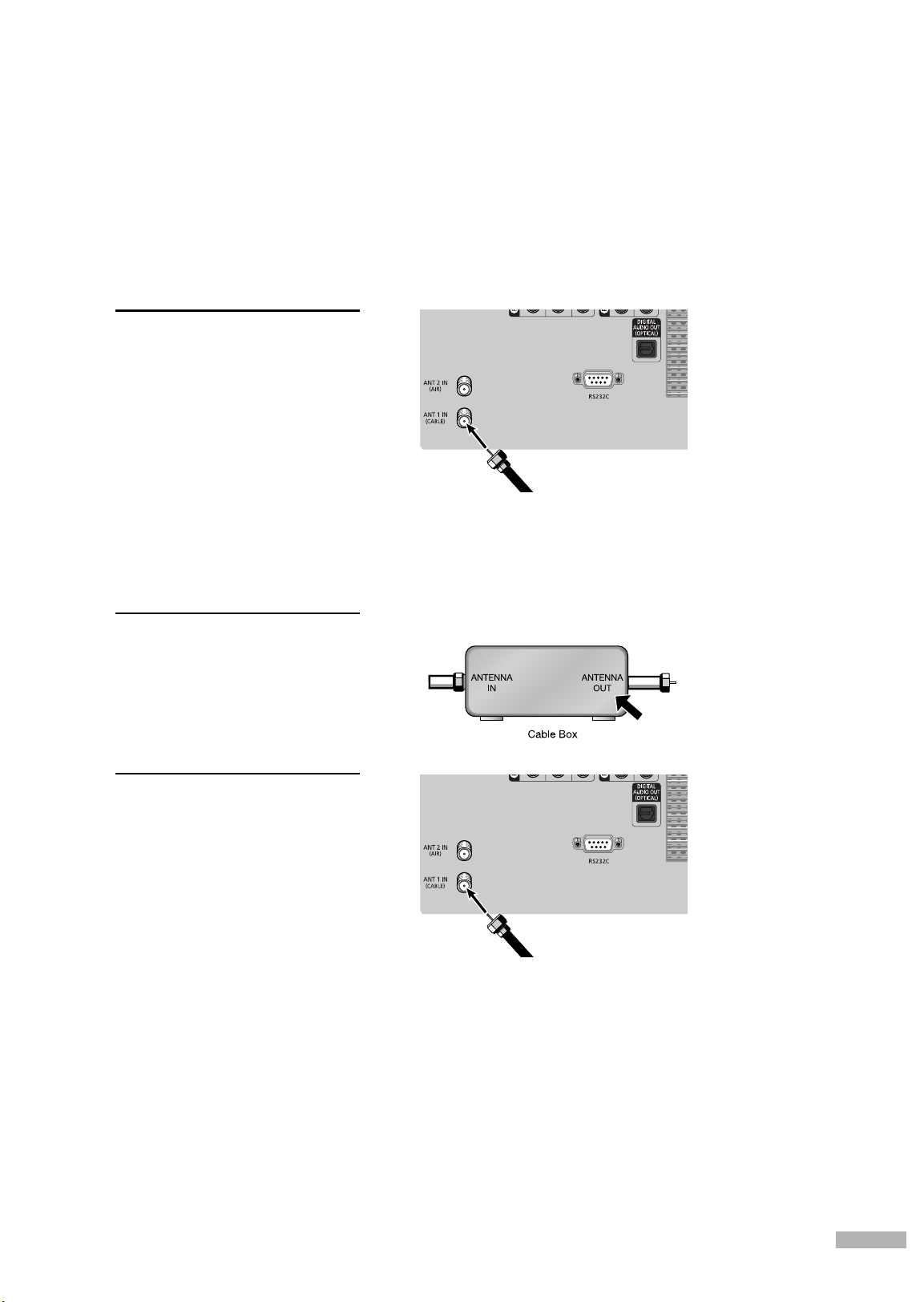

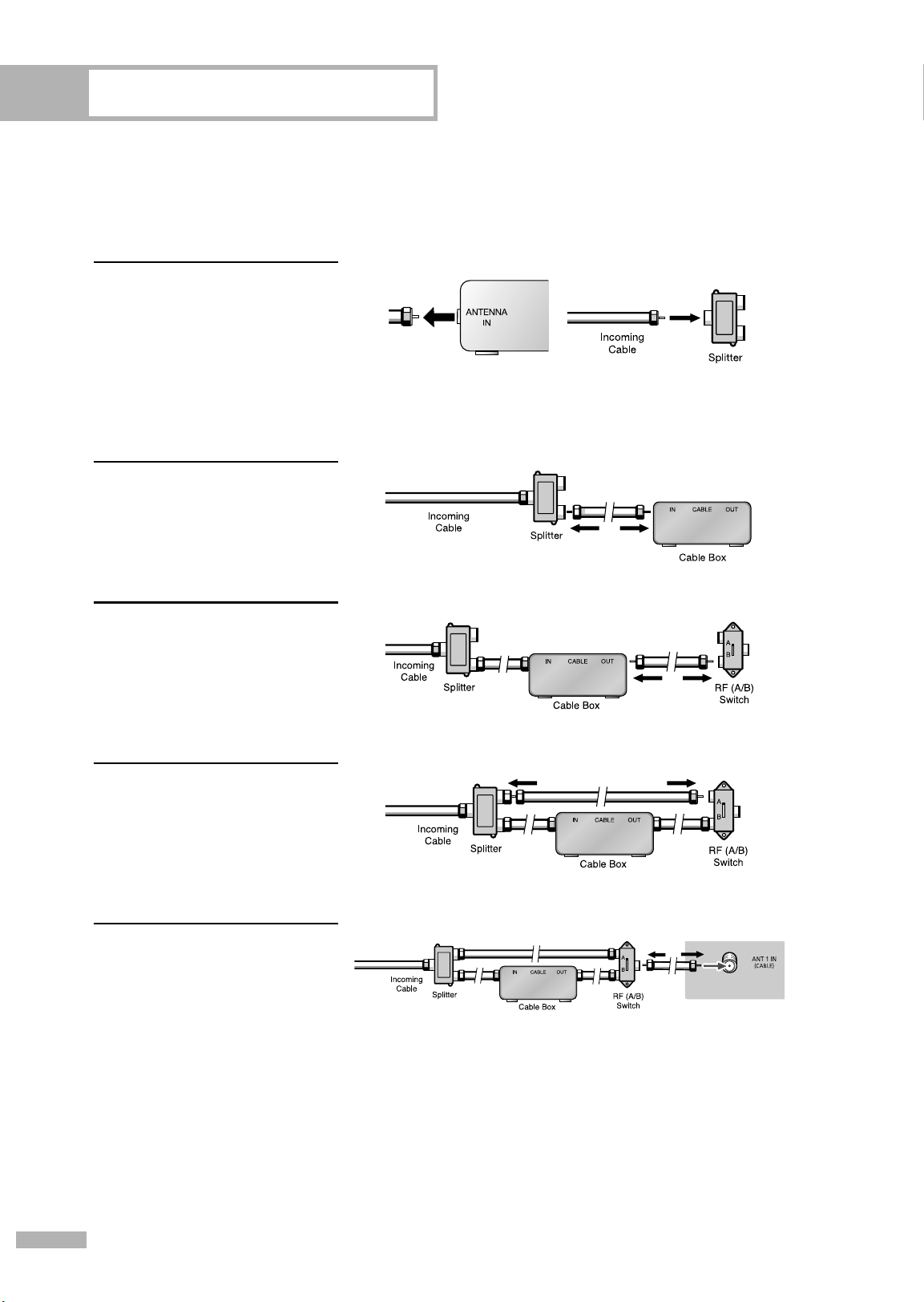

Connecting Cable TV .............................................................................................17
Cable without a Cable Box...........................................................................17
Cable with a Cable Box that Descrambles All Channels...................................17
Cable with a Cable Box that Descrambles Some (But Not All) Channels ............18
Connecting a VCR .................................................................................................19
Connecting a VCR to the Video or S-Video/Audio jack....................................19

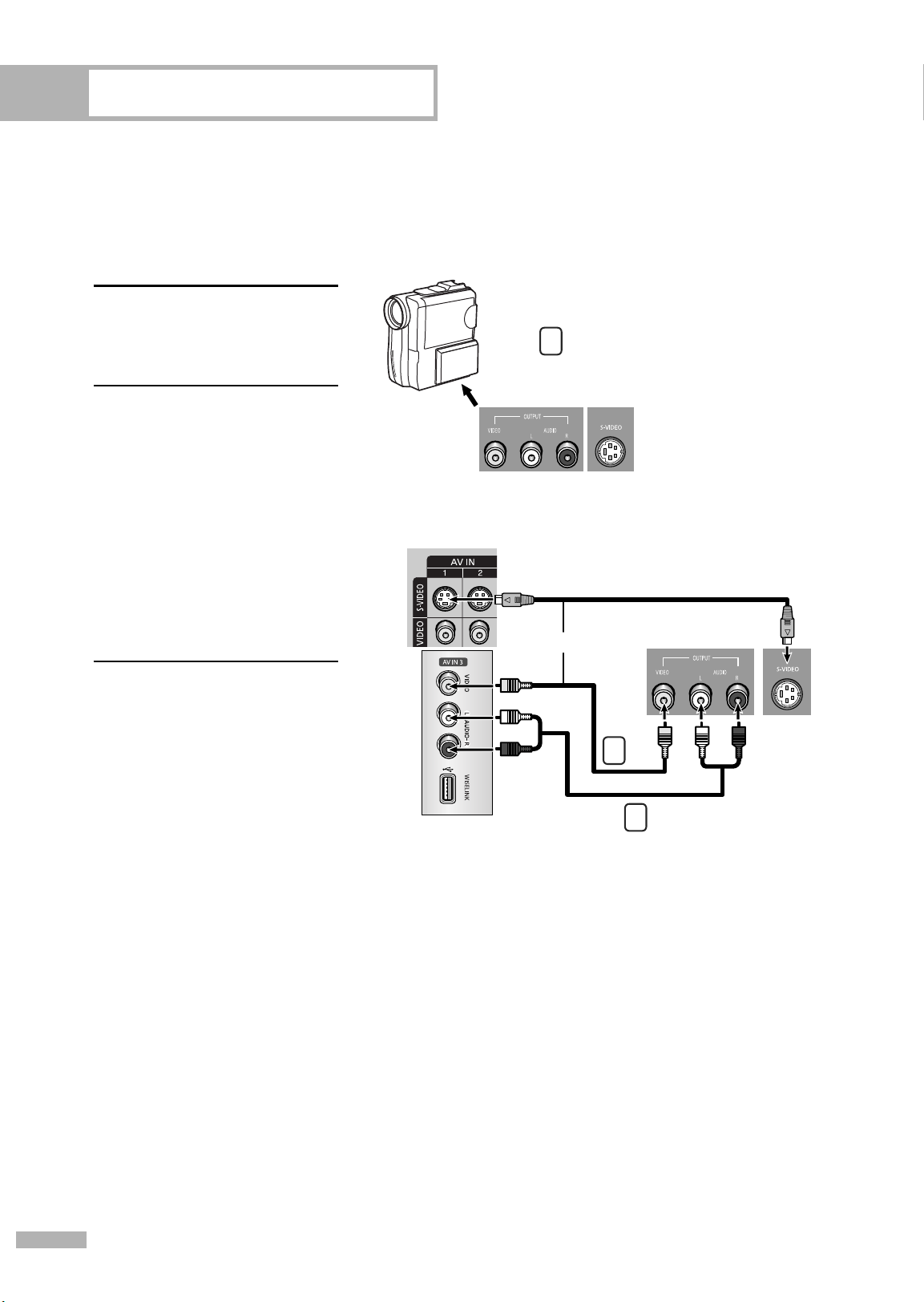

Connecting a Camcorder .......................................................................................20
Connecting a DVD Player .......................................................................................21

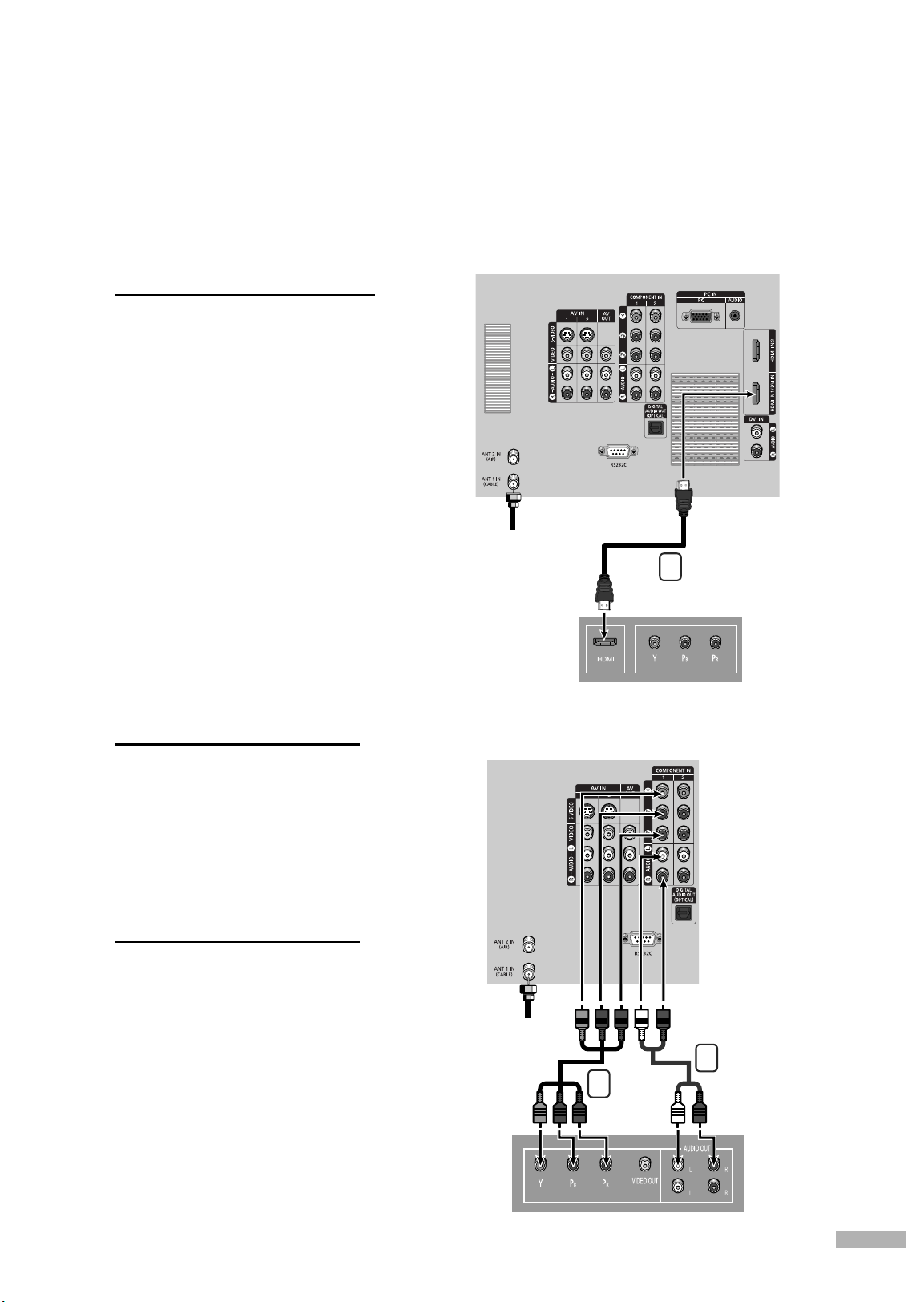

Connecting to HDMI (High Definition Multimedia Interface) ..............................21
Connecting to Y, P
B, PR.................................................................................21
Connecting to Audio and Video Jacks............................................................22

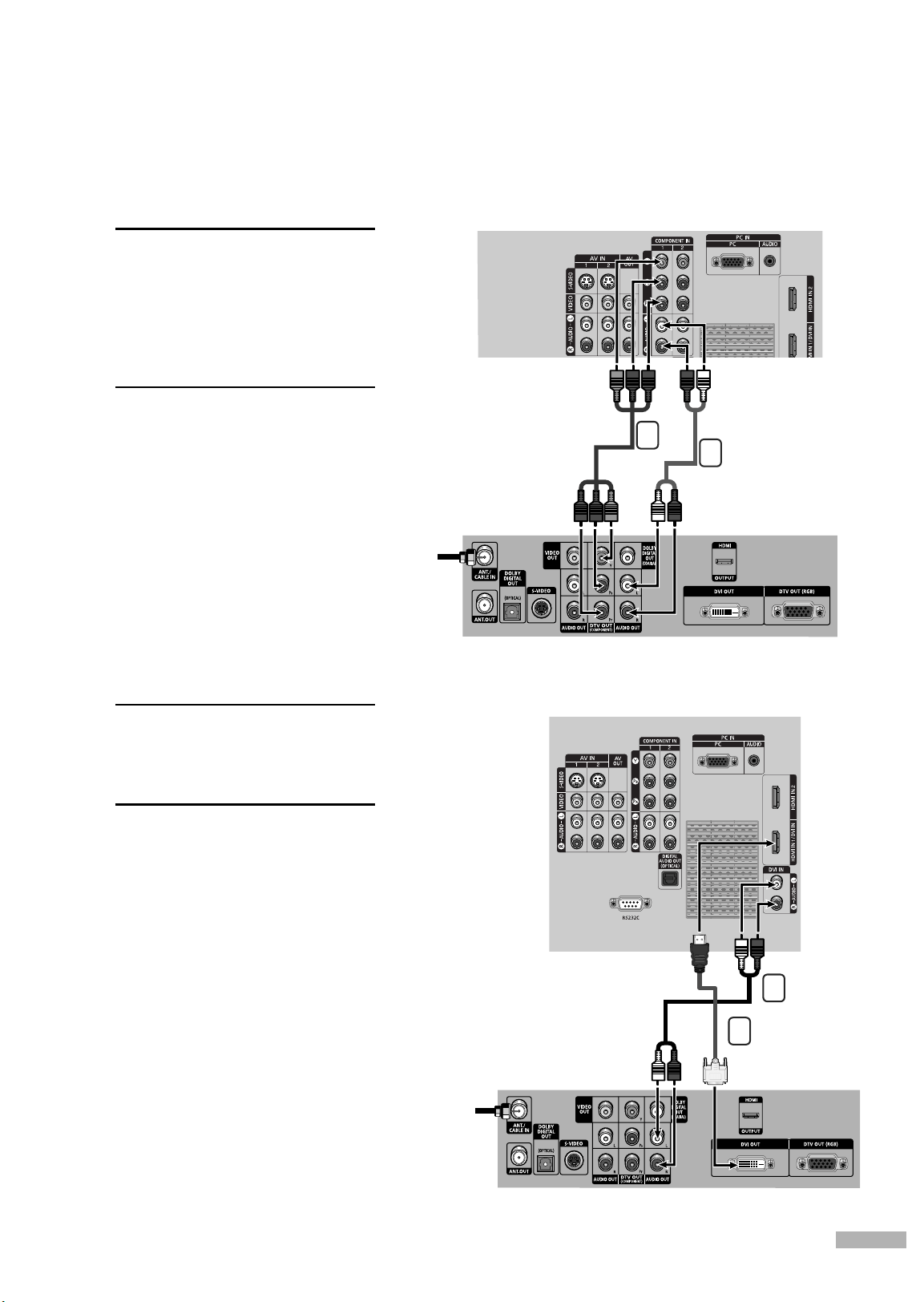

Connecting a DTV Set-Top Box ................................................................................23
Connecting to Y, P
B, PR.................................................................................23
Connecting to DVI (Digital Visual Interface) ....................................................23

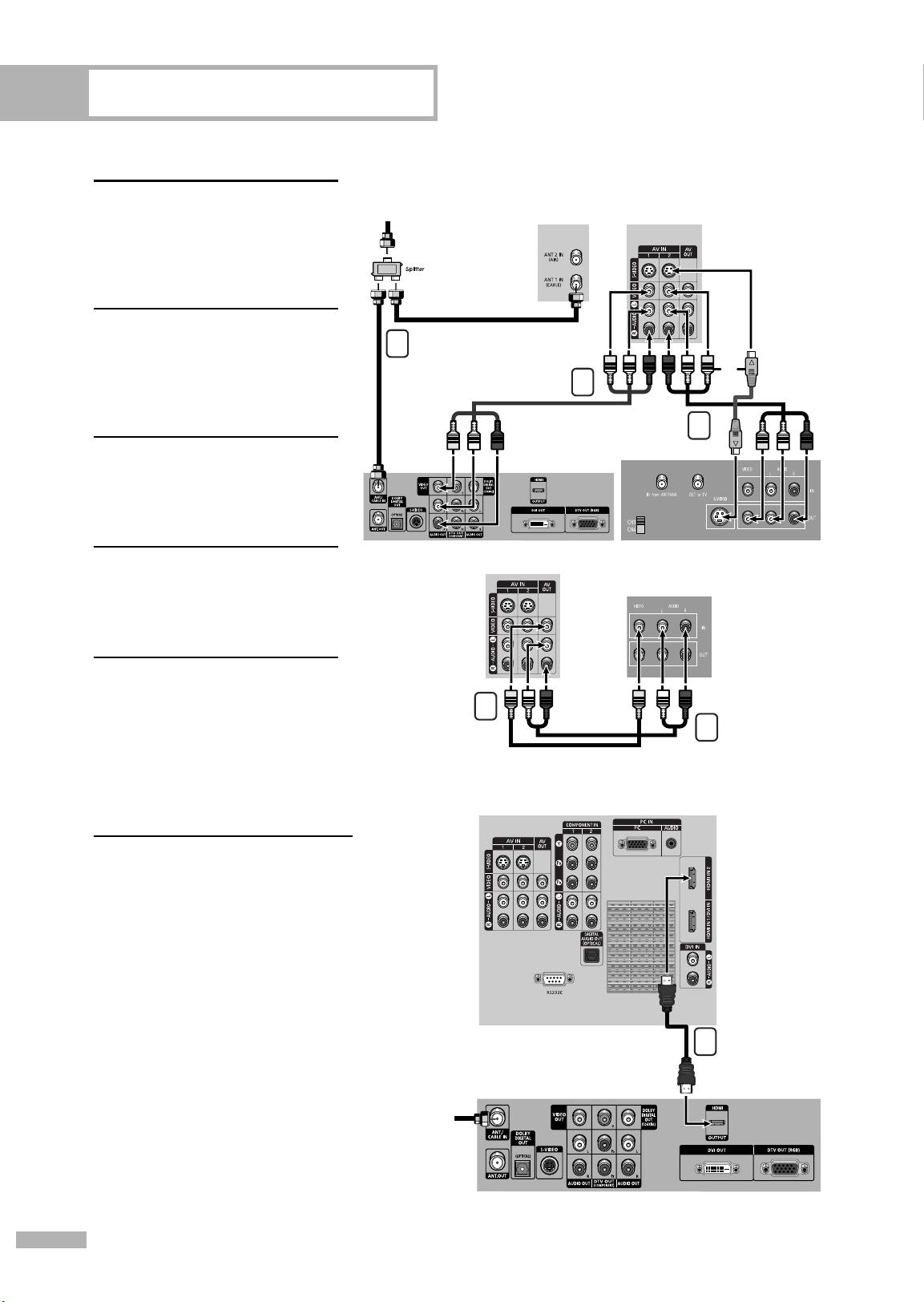

Connecting a VCR and DTV Set-Top Box ........................................................24
Connecting to HDMI (High Definition Multimedia Interface) ..............................24

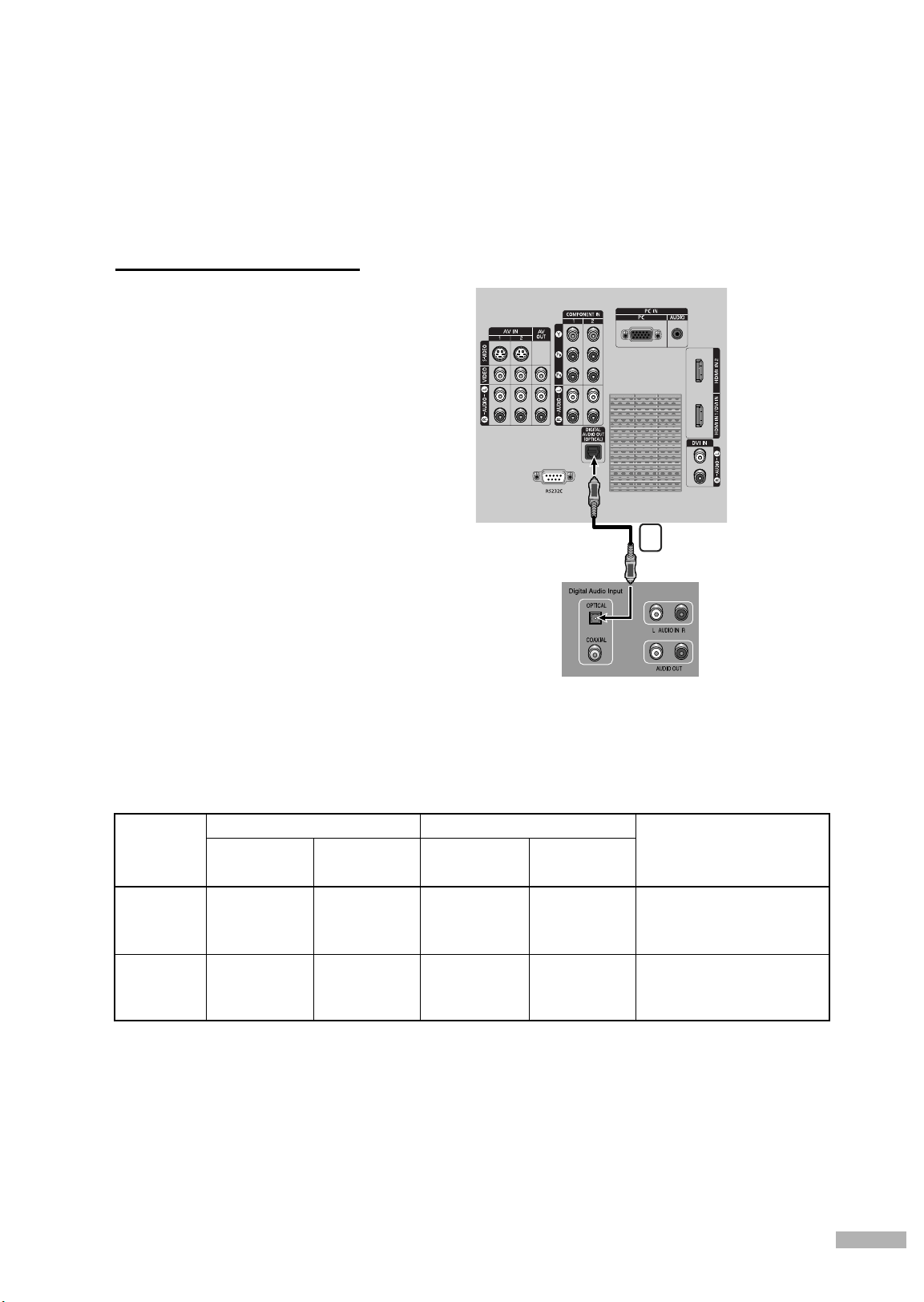

Connecting a Digital Audio System..........................................................................25

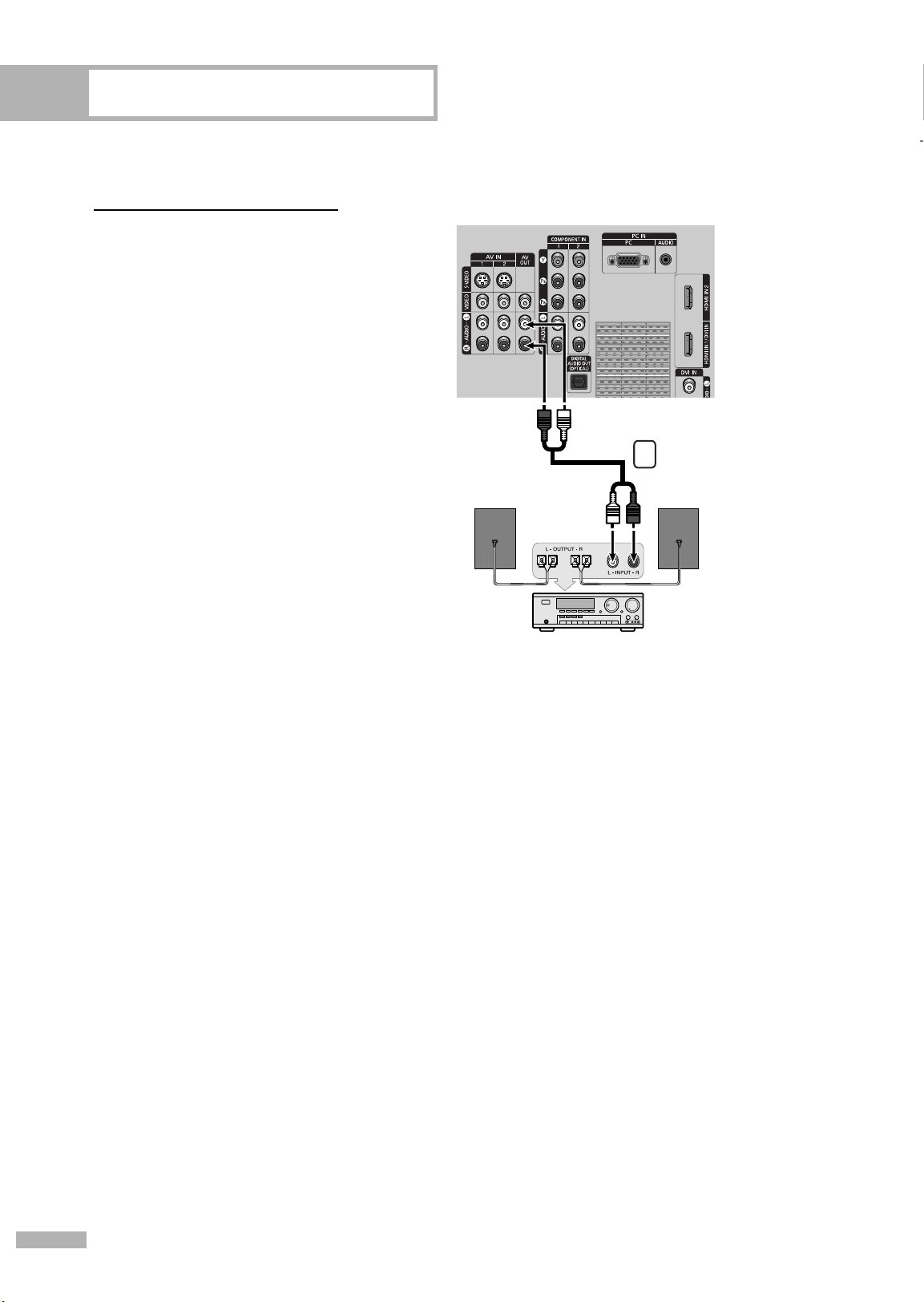

Connecting to an Analog Amplifier..........................................................................26
Operation ..............................................................................................28
Turning the TV On and Off .....................................................................................28
Dynamic Menus and On-Screen Displays .................................................................28

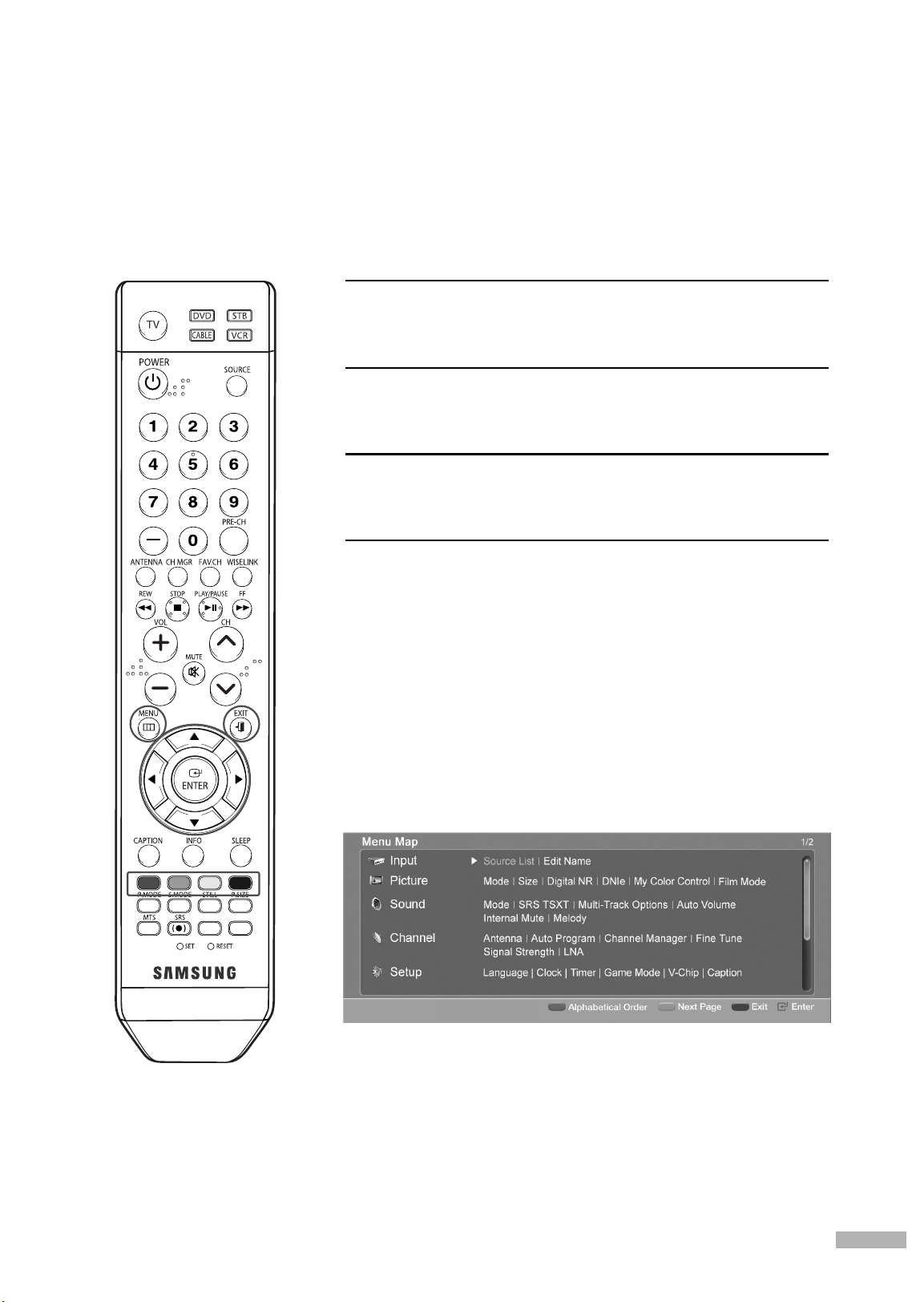

Navigating Menus by Using the Menu Map .............................................................29
Selecting a Menu Language....................................................................................30
Memorizing Channels ............................................................................................31
Changing Channels ...............................................................................................33

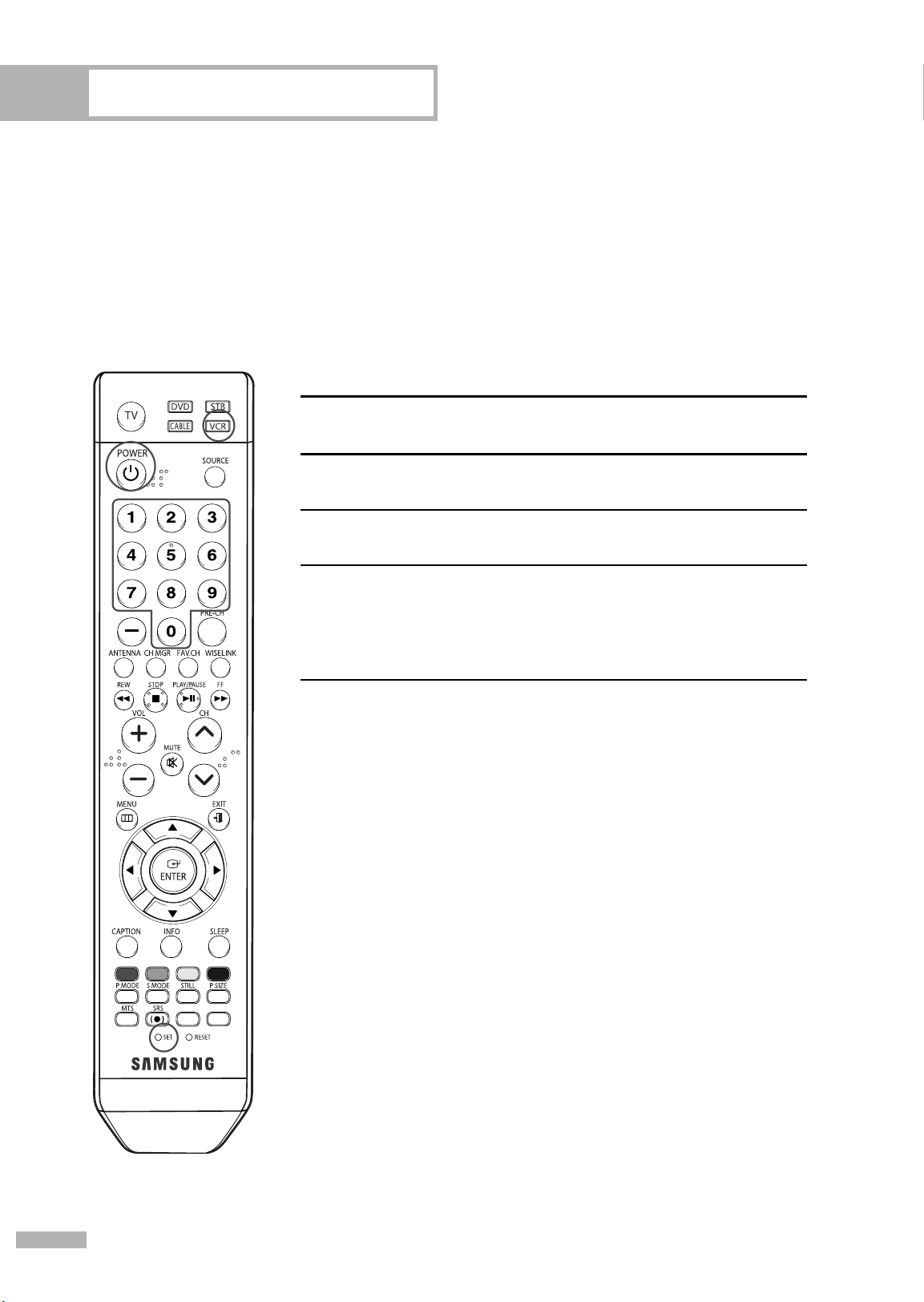

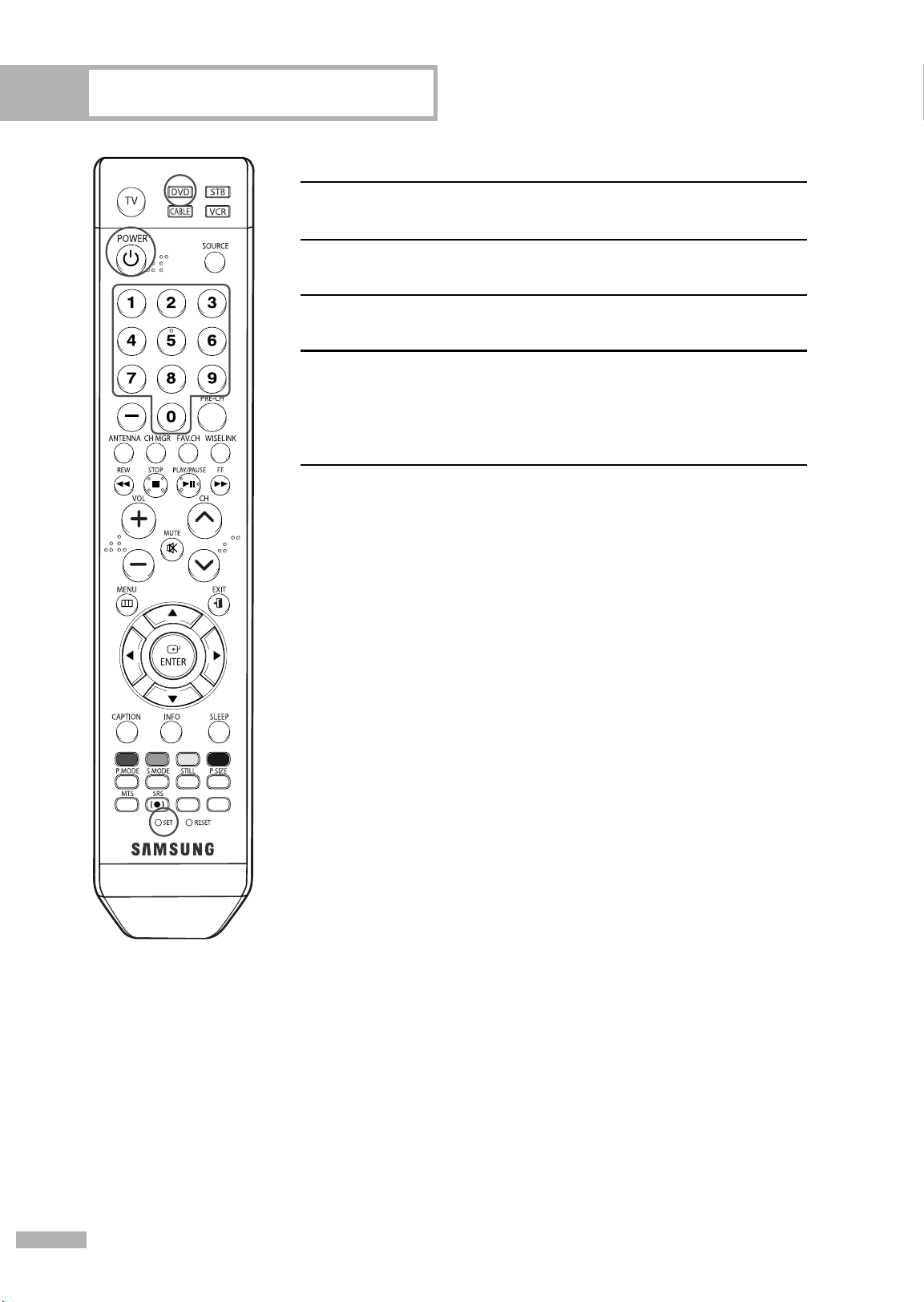

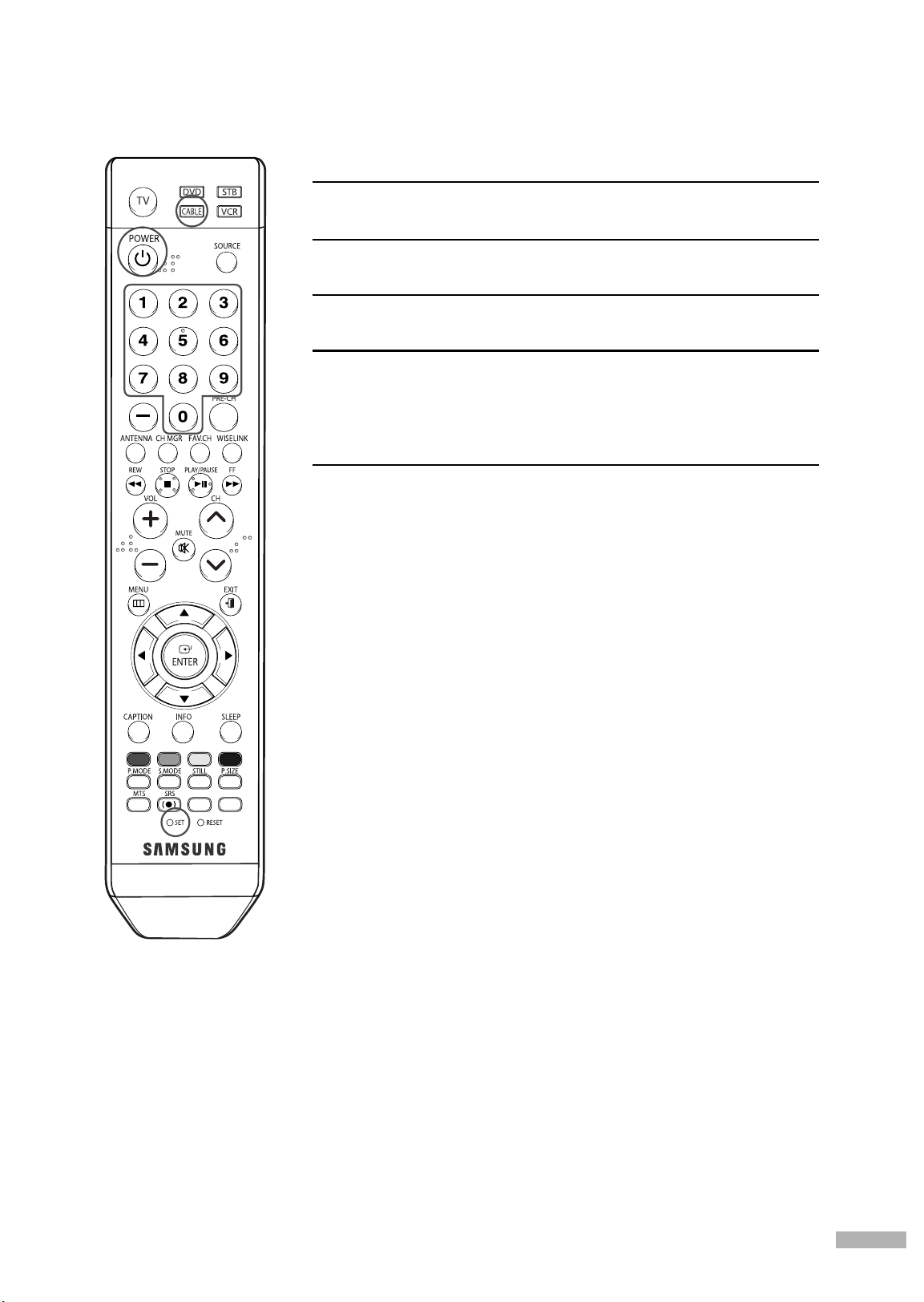

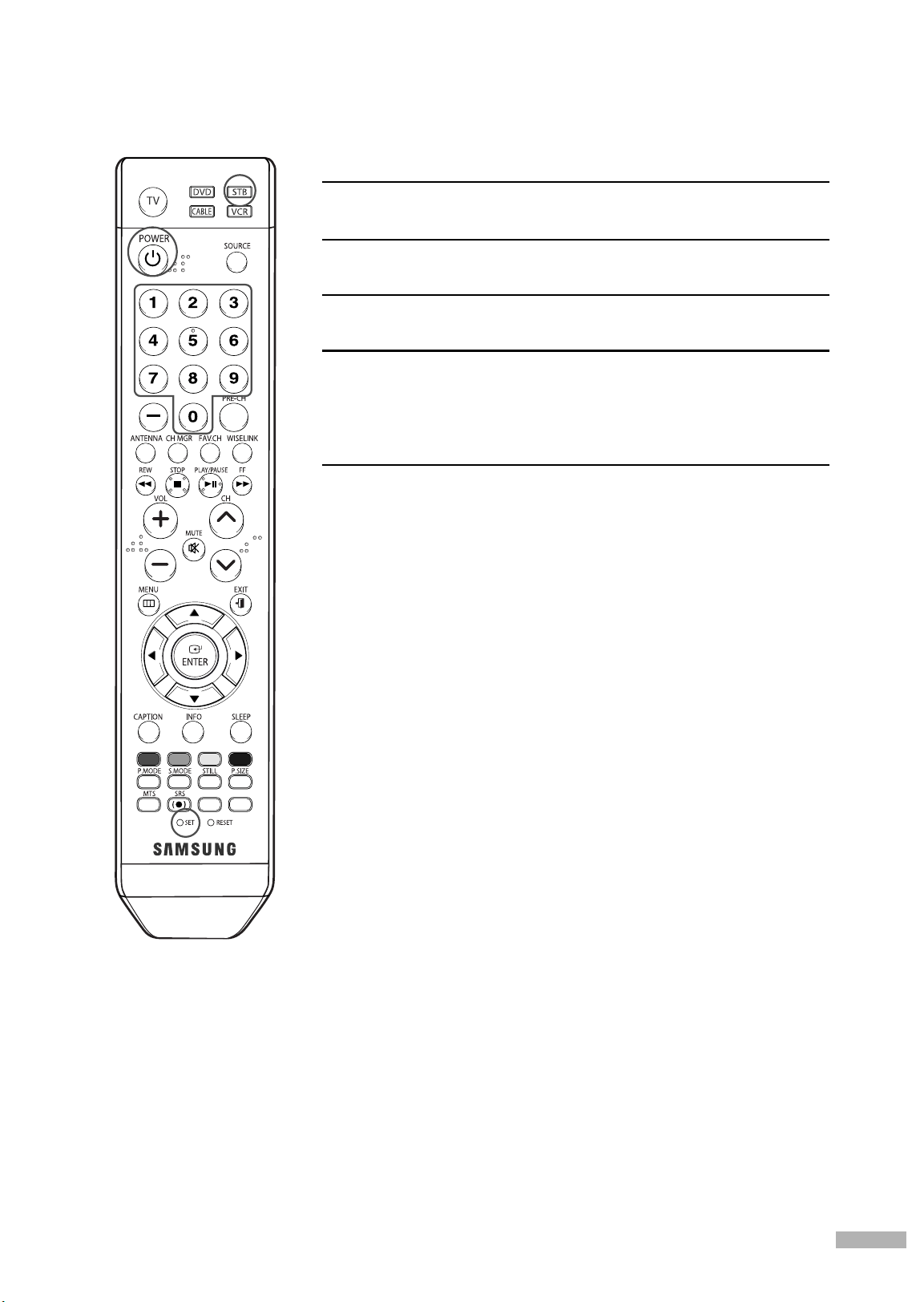

Customizing Your Remote Control ............................................................................34
Remote Control Codes............................................................................................38

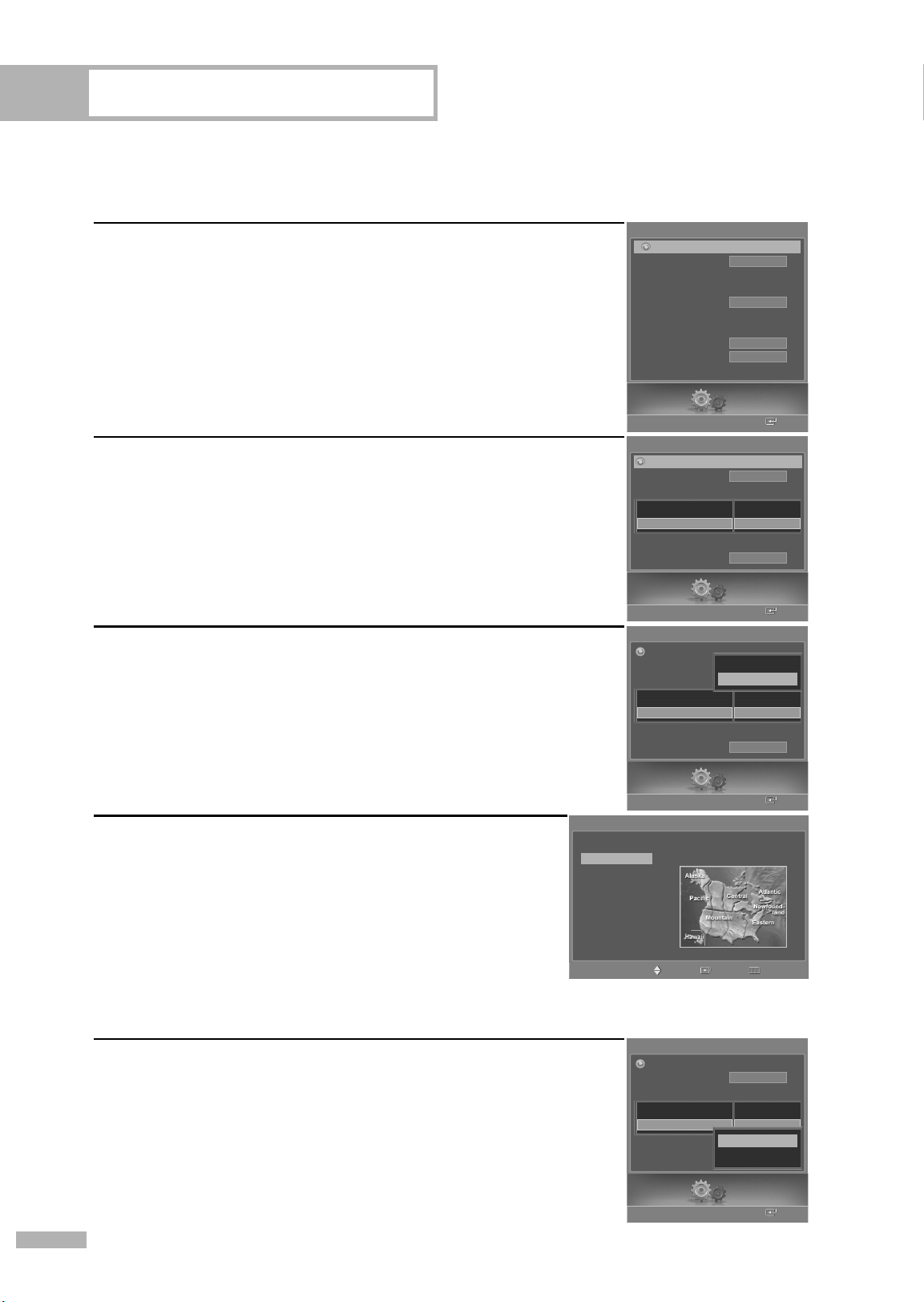

Setting the Clock....................................................................................................41
Setting the On/Off Timer........................................................................................43
Setting the Sleep Timer ...........................................................................................44
Viewing an External Signal Source ..........................................................................45
Assigning Names to External Input Mode .................................................................46
Channel Control .....................................................................................48
Selecting Your Favorite Channels .............................................................................48

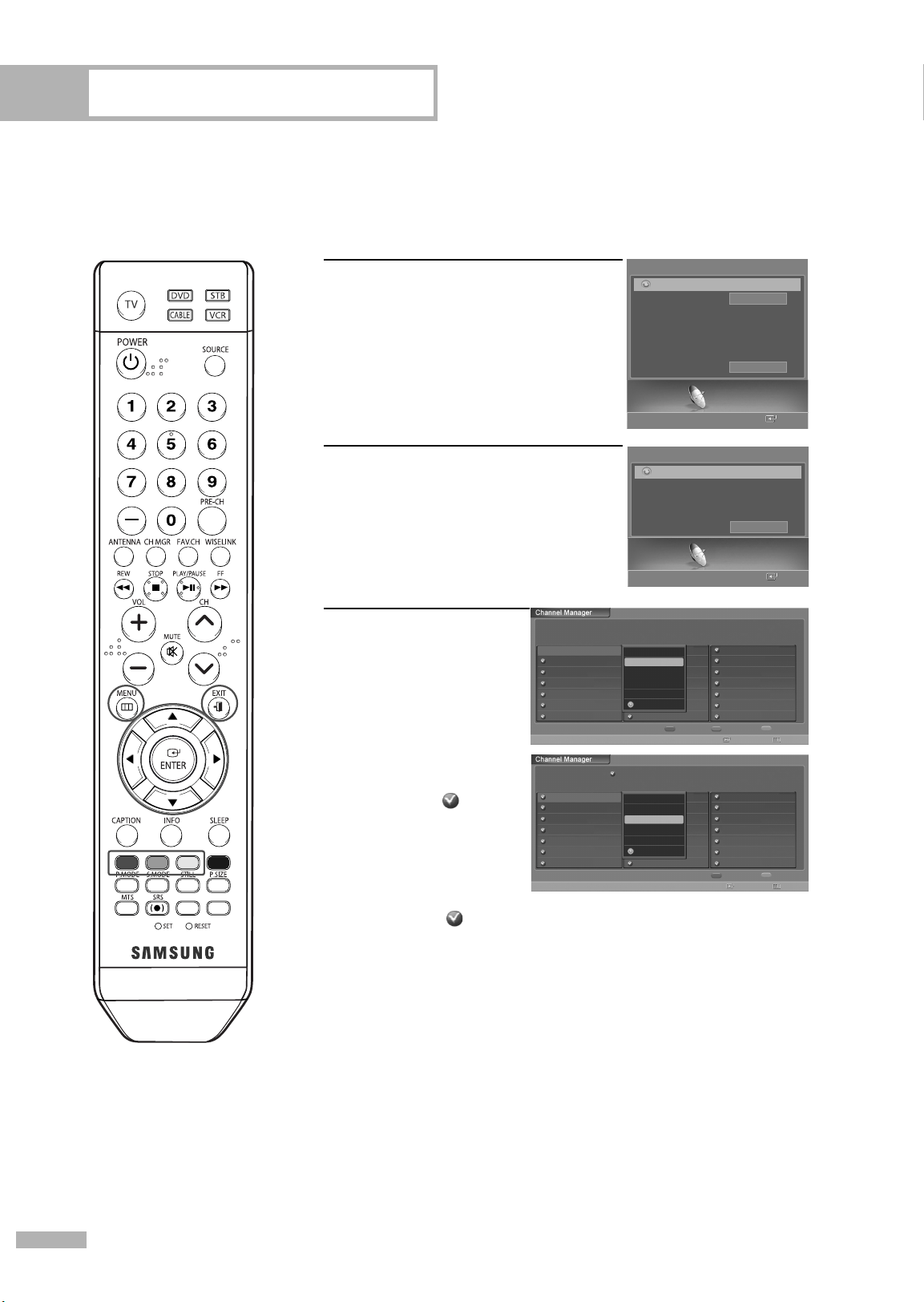

Viewing the Channel Lists .......................................................................................49
Adding and Erasing Channels.................................................................................50
Labeling the Channels ............................................................................................51
Fine Tuning Analog Channels ........................................................................52

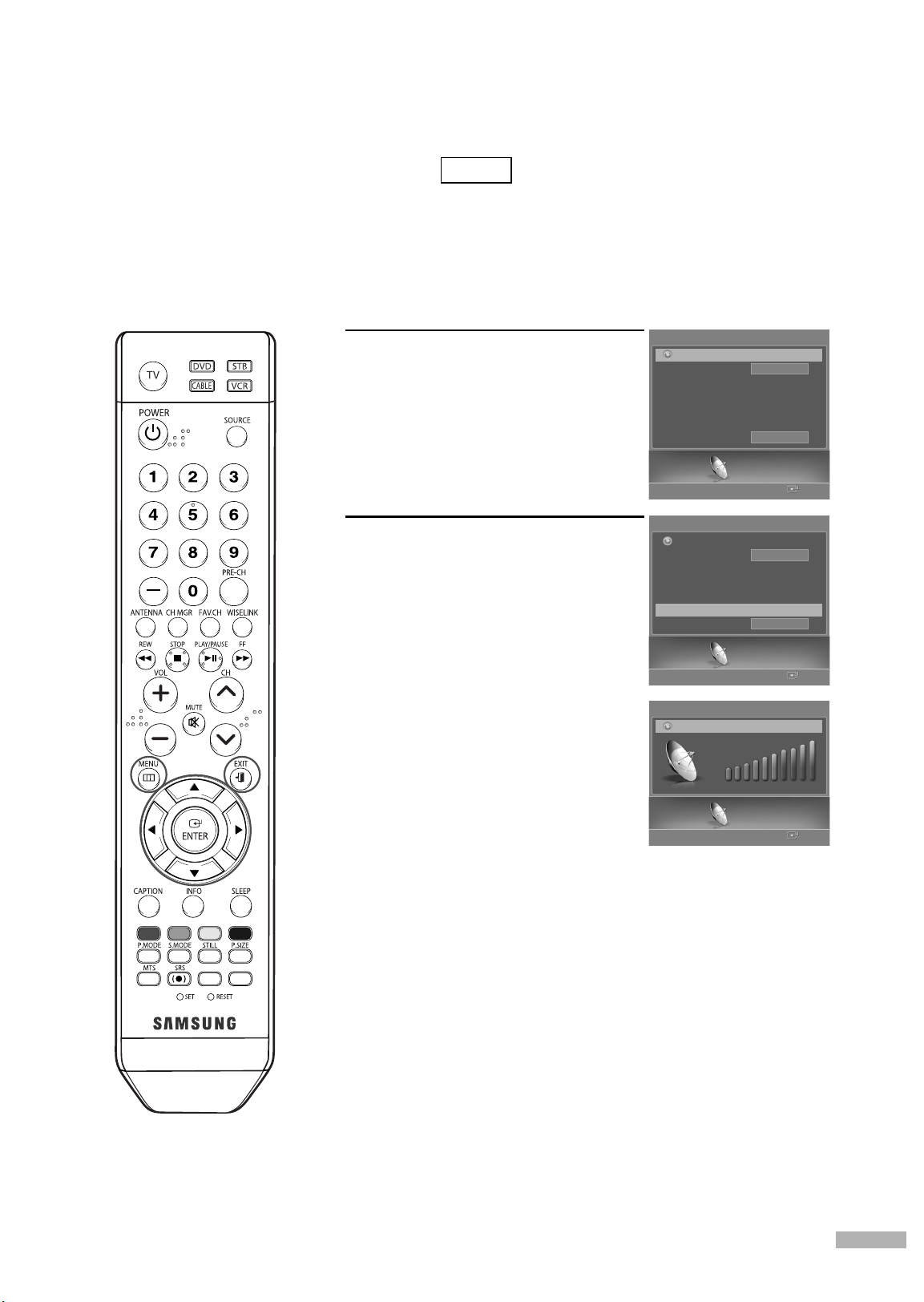

Checking the Digital-Signal Strength ..............................................................53
LNA (Low Noise Amplifier) .....................................................................................54
Digital
Analog
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 4
English - 5
Picture Control........................................................................................56
Picture Control.......................................................................................................56
Changing the Picture Size.......................................................................................59
Digital Noise Reduction..........................................................................................60
DNIe (Digital Natural Image engine)........................................................................61
Setting the My Color Control Mode .........................................................................62
Using the Color Weakness Enhancement Feature.......................................................64
Setting the Film Mode ............................................................................................65
Freezing the Picture................................................................................................66
Setting the Blue Screen Mode..................................................................................67
Sound Control ........................................................................................70
Sound Control .......................................................................................................70
Setting the SRS TSXT ..............................................................................................72
Auto Volume..........................................................................................................73
Choosing a Multi-Channel Sound (MTS) track .................................................74
Choosing a Multi-Channel Sound (MTS) track .................................................75
Selecting the Internal Mute......................................................................................76
Setting the On/Off Melody.....................................................................................77
Special Features .....................................................................................80
Setting the Function Help ........................................................................................80
Menu Transparency Level........................................................................................81
Using Game Mode ................................................................................................82

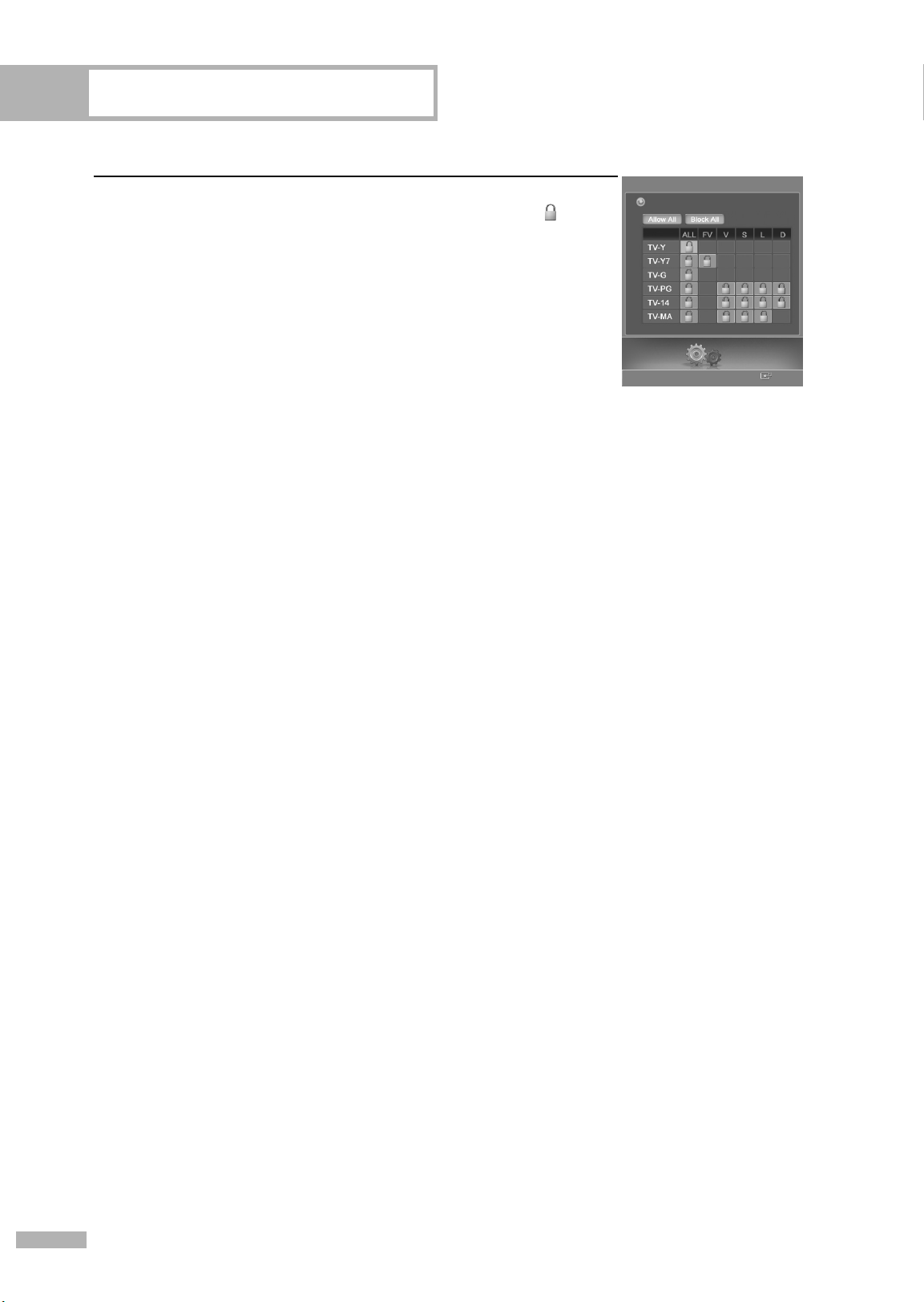

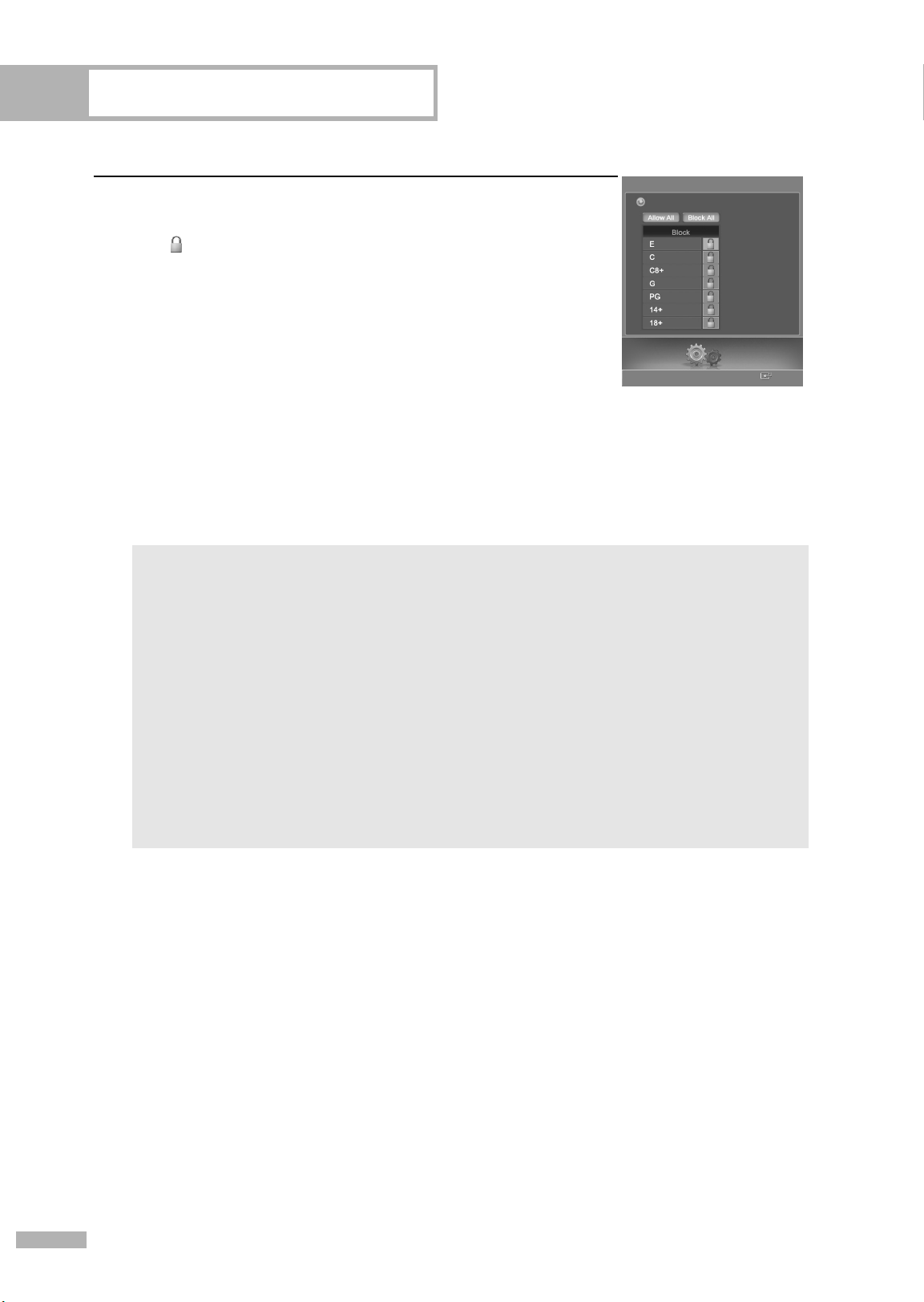

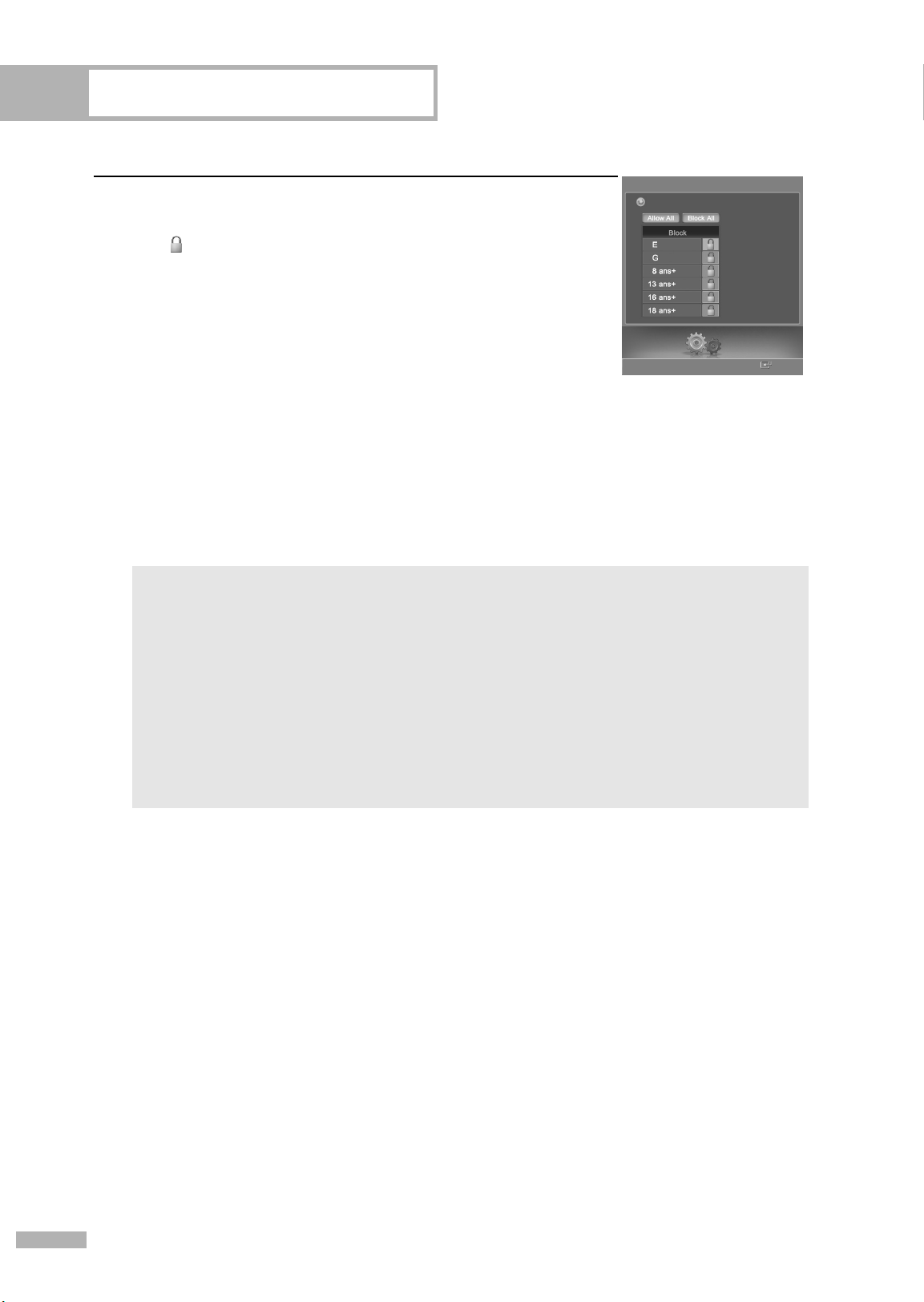

Using the V-Chip....................................................................................................83
Using the V-Chip for Digital channels .......................................................................93
Viewing Closed Captions (On-Screen Text Messages) ......................................95
Viewing Closed Captions (On-Screen Text Messages) ......................................97
PC Display ...........................................................................................100

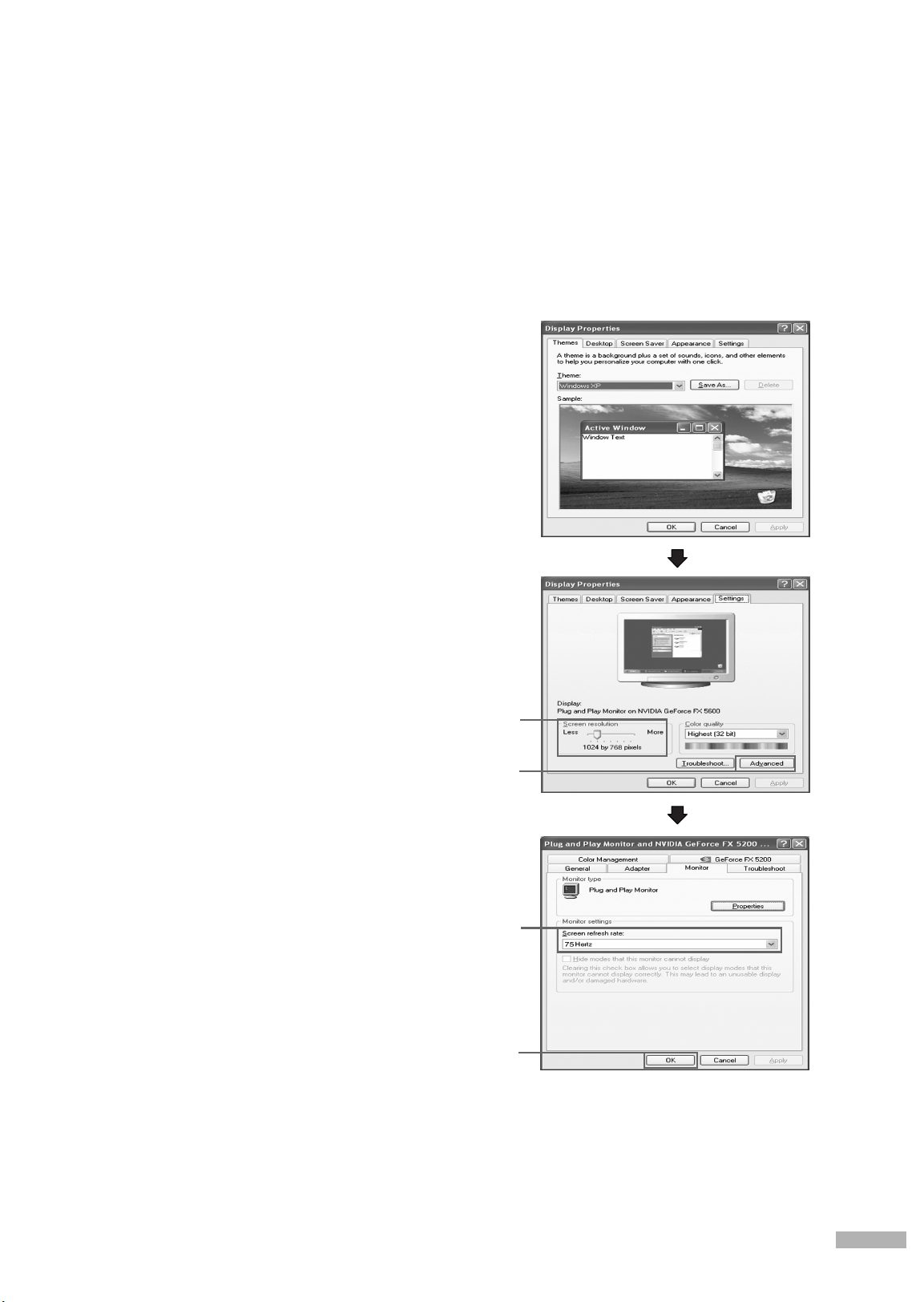

Using Your TV as a Computer (PC) Display .............................................................100
Adjusting the Picture Quality .................................................................................103
Changing the Picture Position................................................................................104
Adjusting the Picture Quality and Position Automatically...........................................105
Changing the Picture Size (PC Mode) ....................................................................106
Viewing the Current Resolution..............................................................................107
Initializing the Picture Settings ...............................................................................108

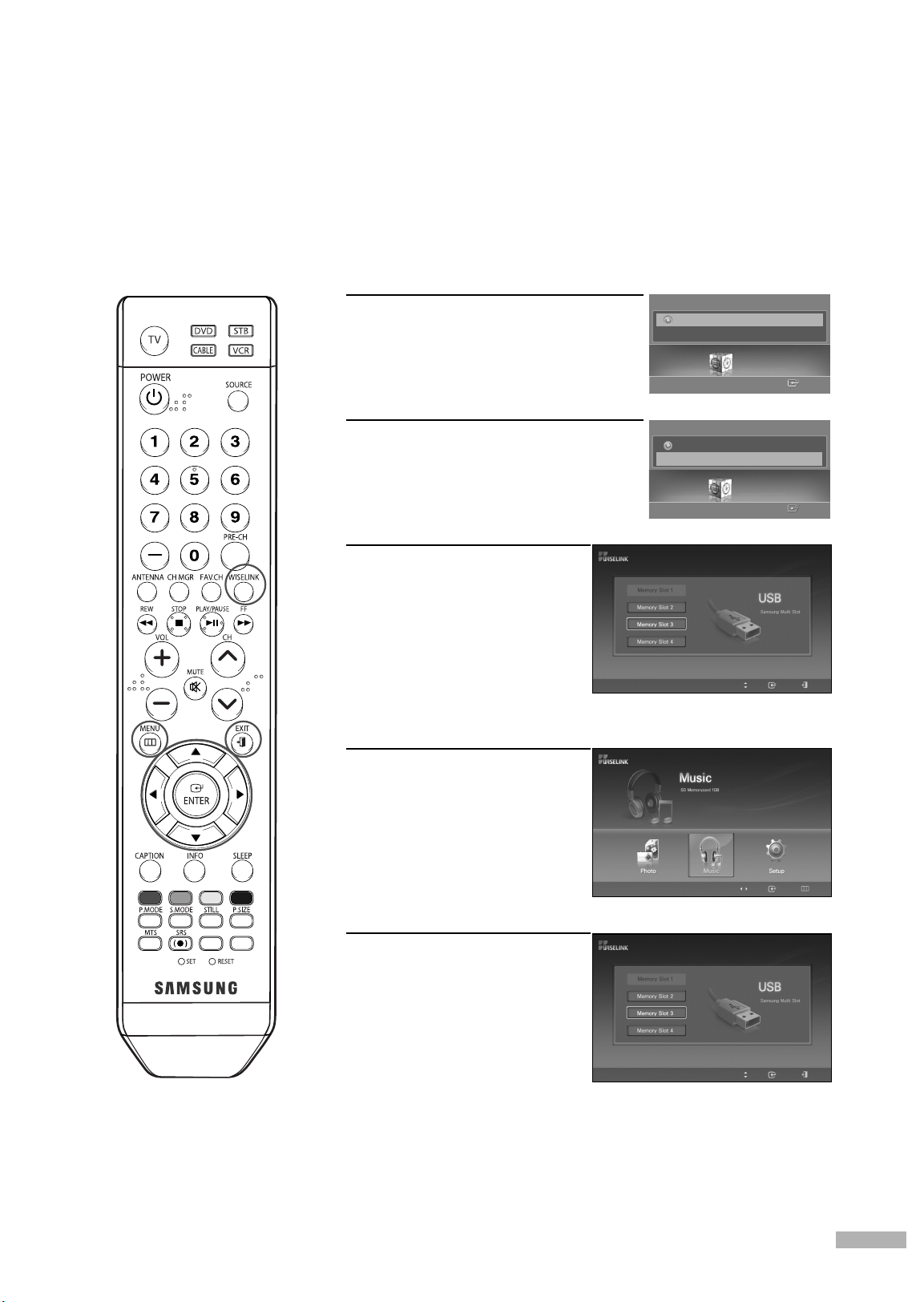

WISELINK............................................................................................110
Using the WISELINK Function................................................................................110
Using the WISELINK Menu ...................................................................................111

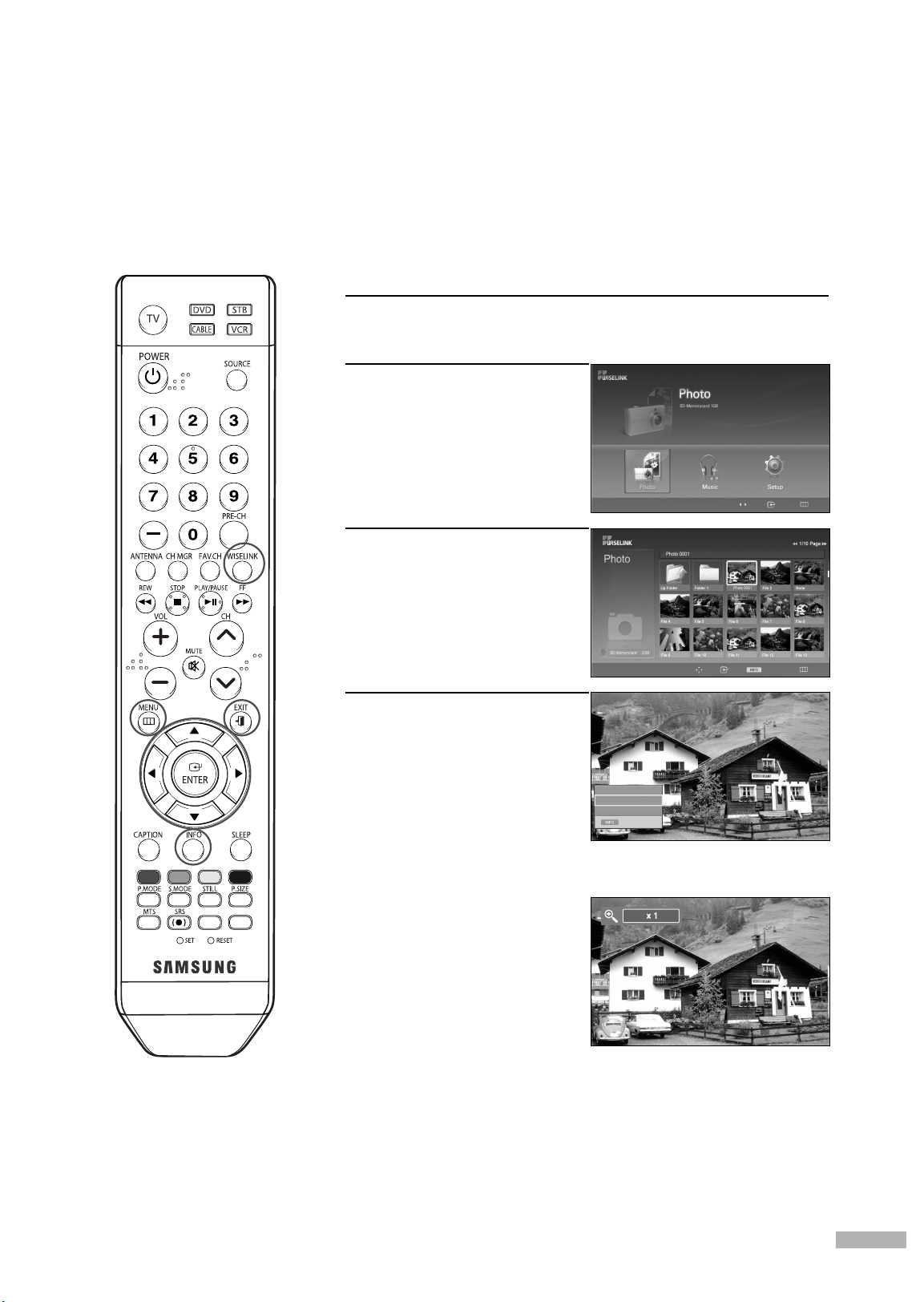

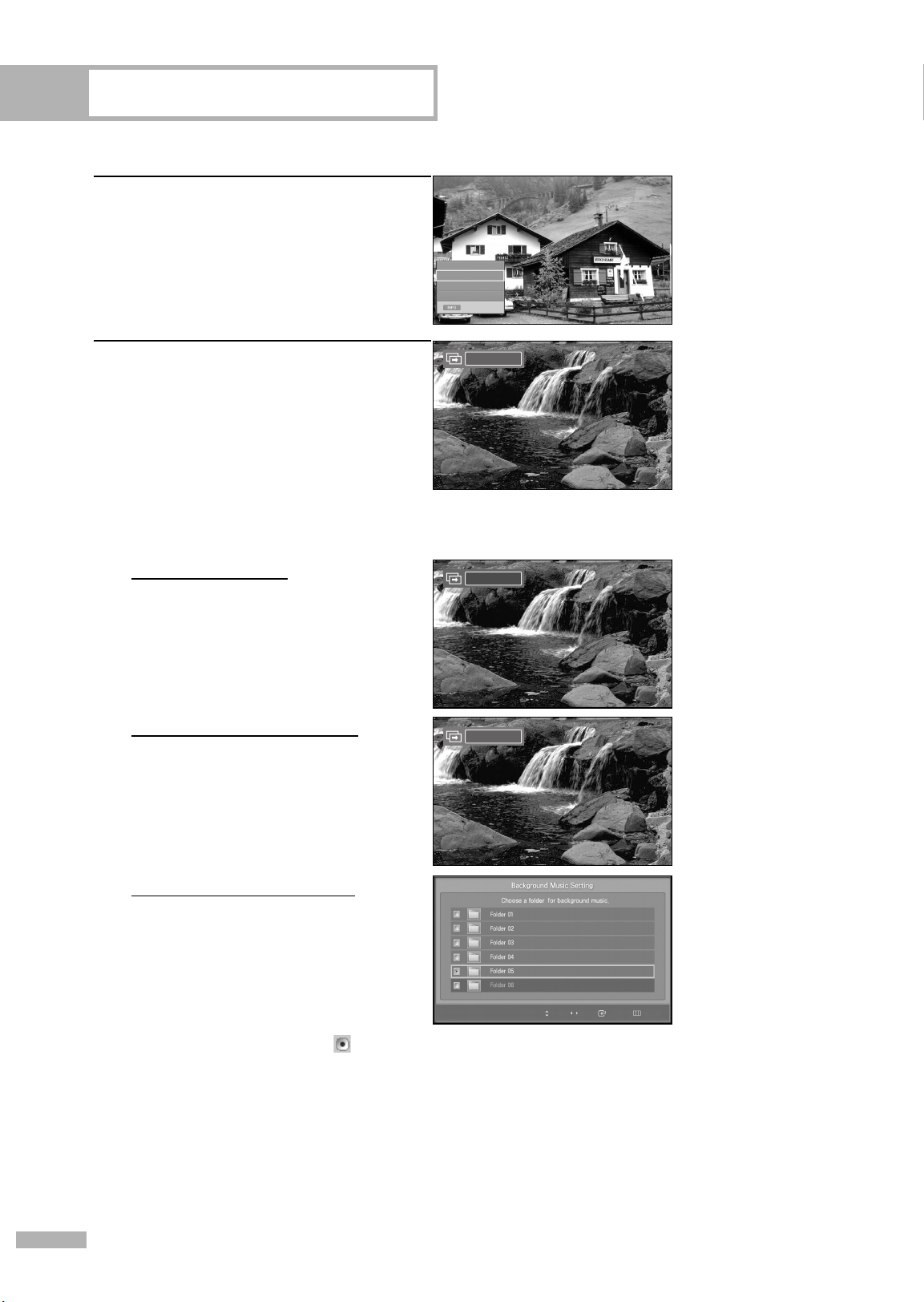

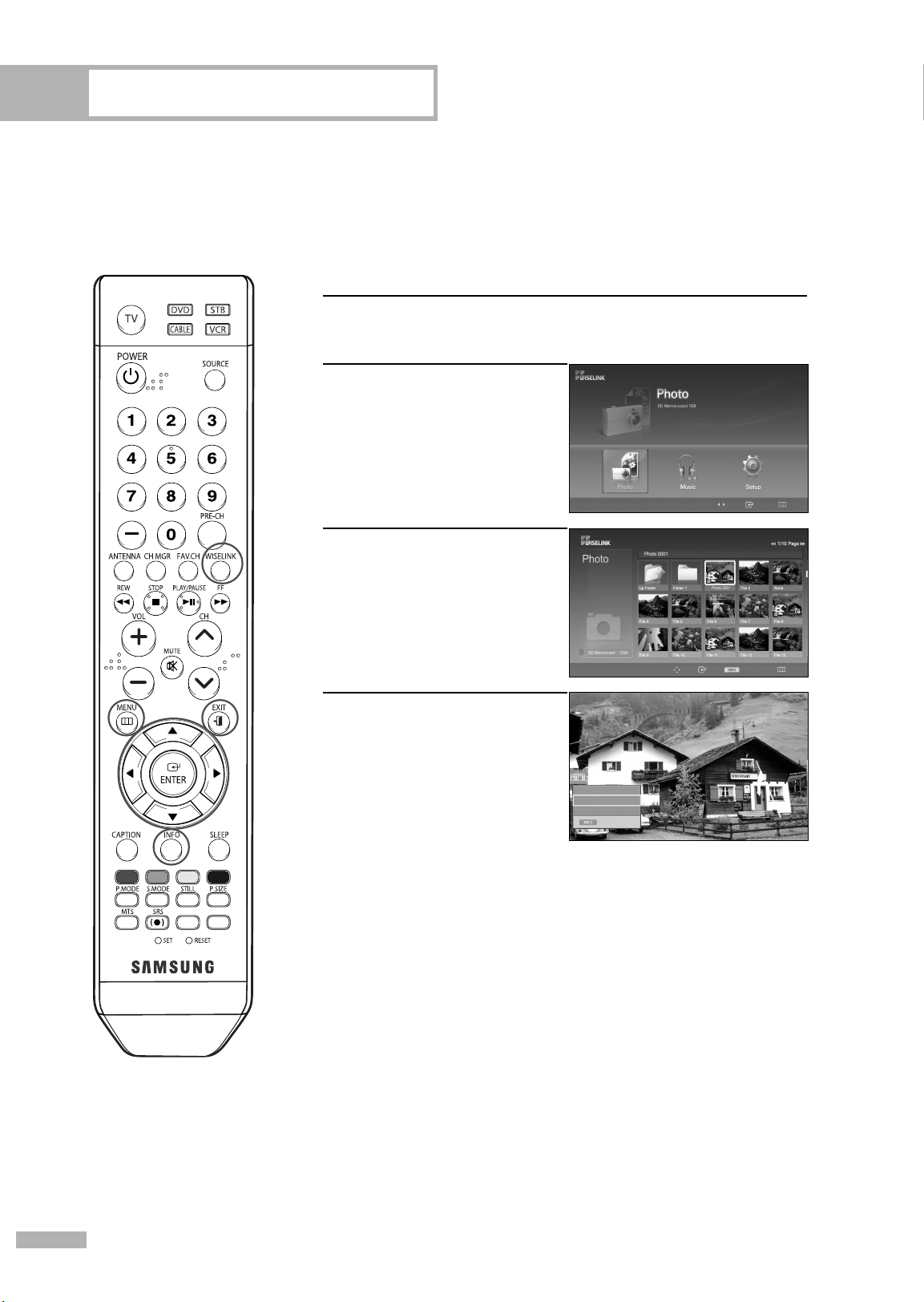

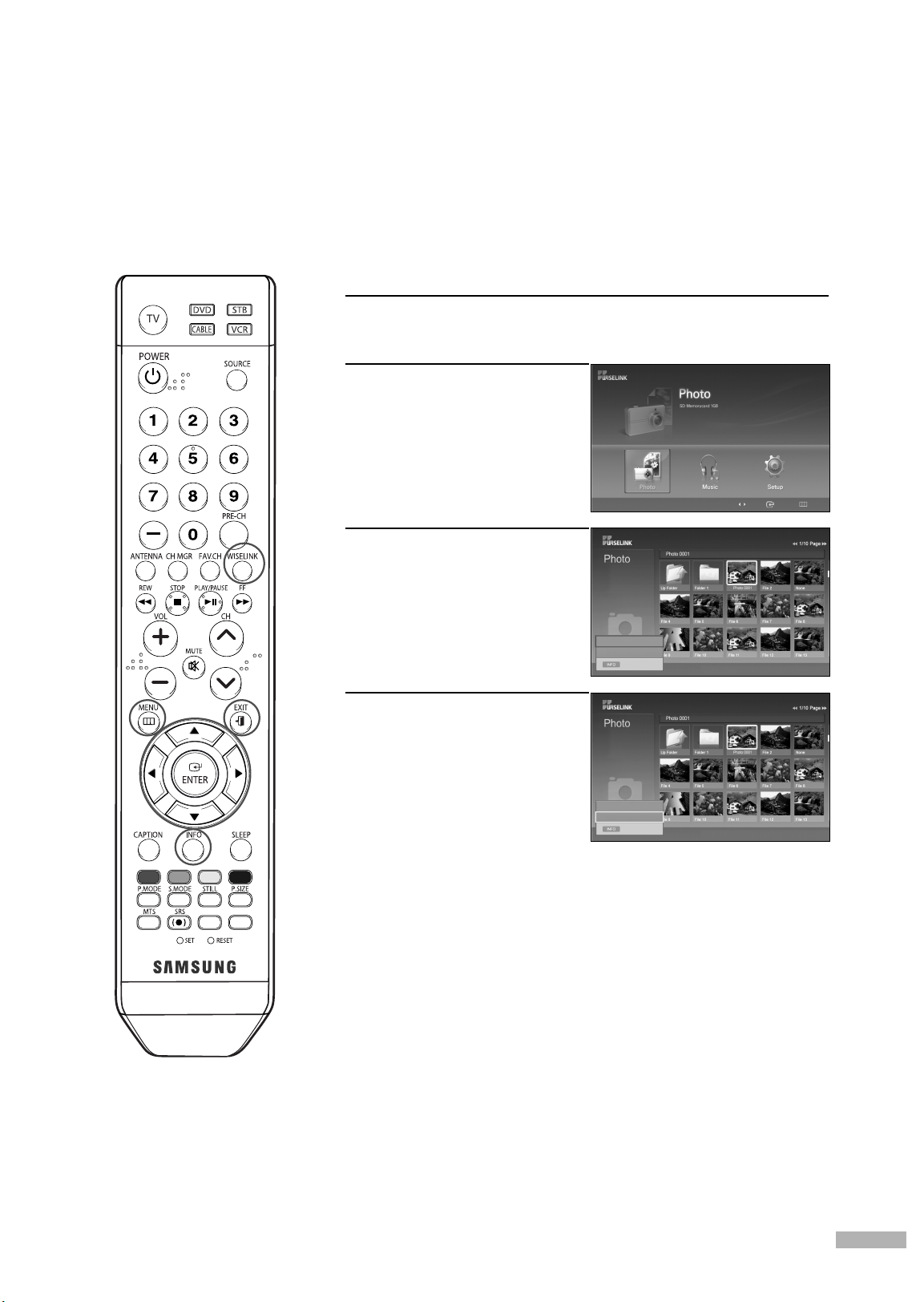

Using the PHOTO (JPEG) List.................................................................................112

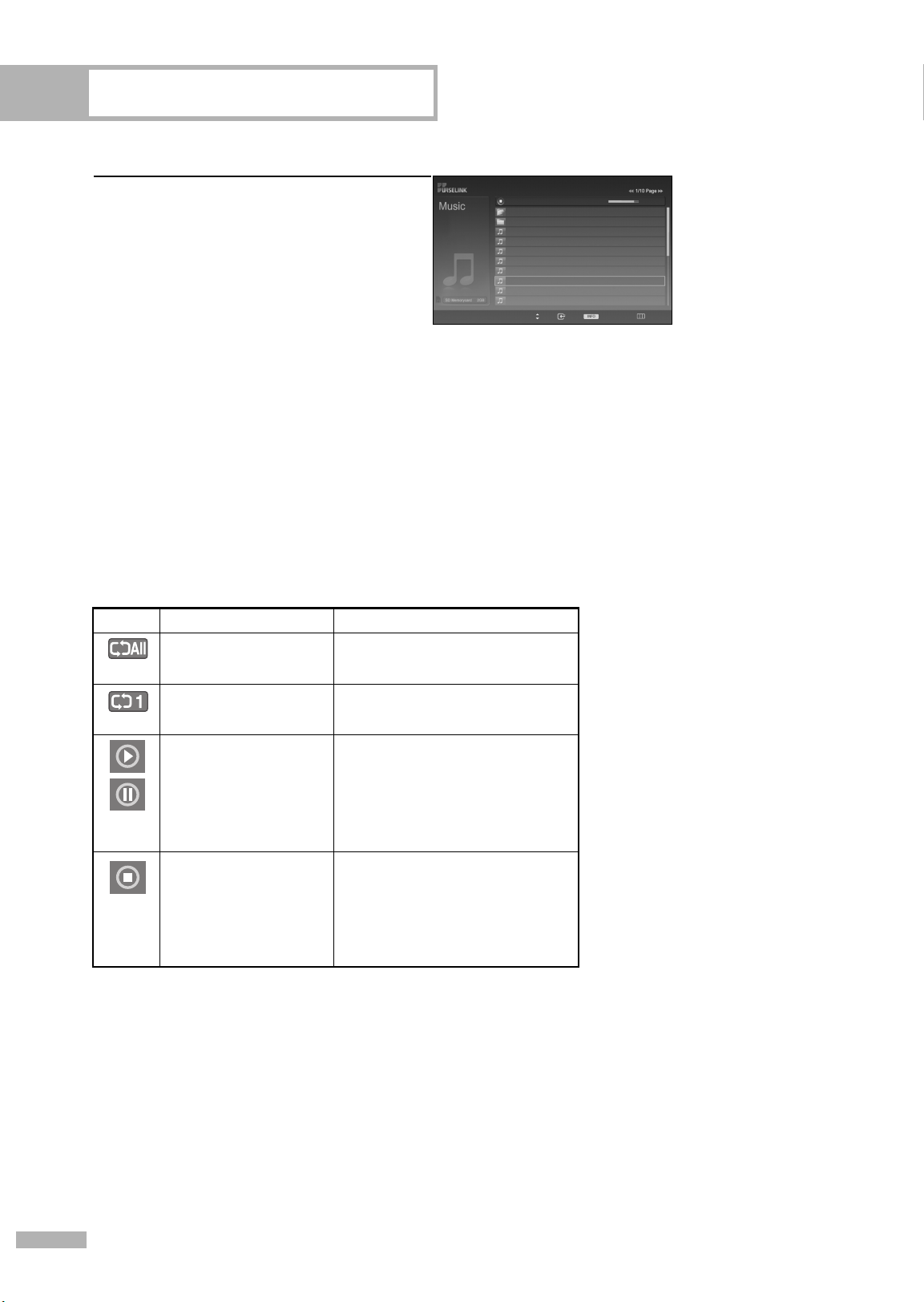

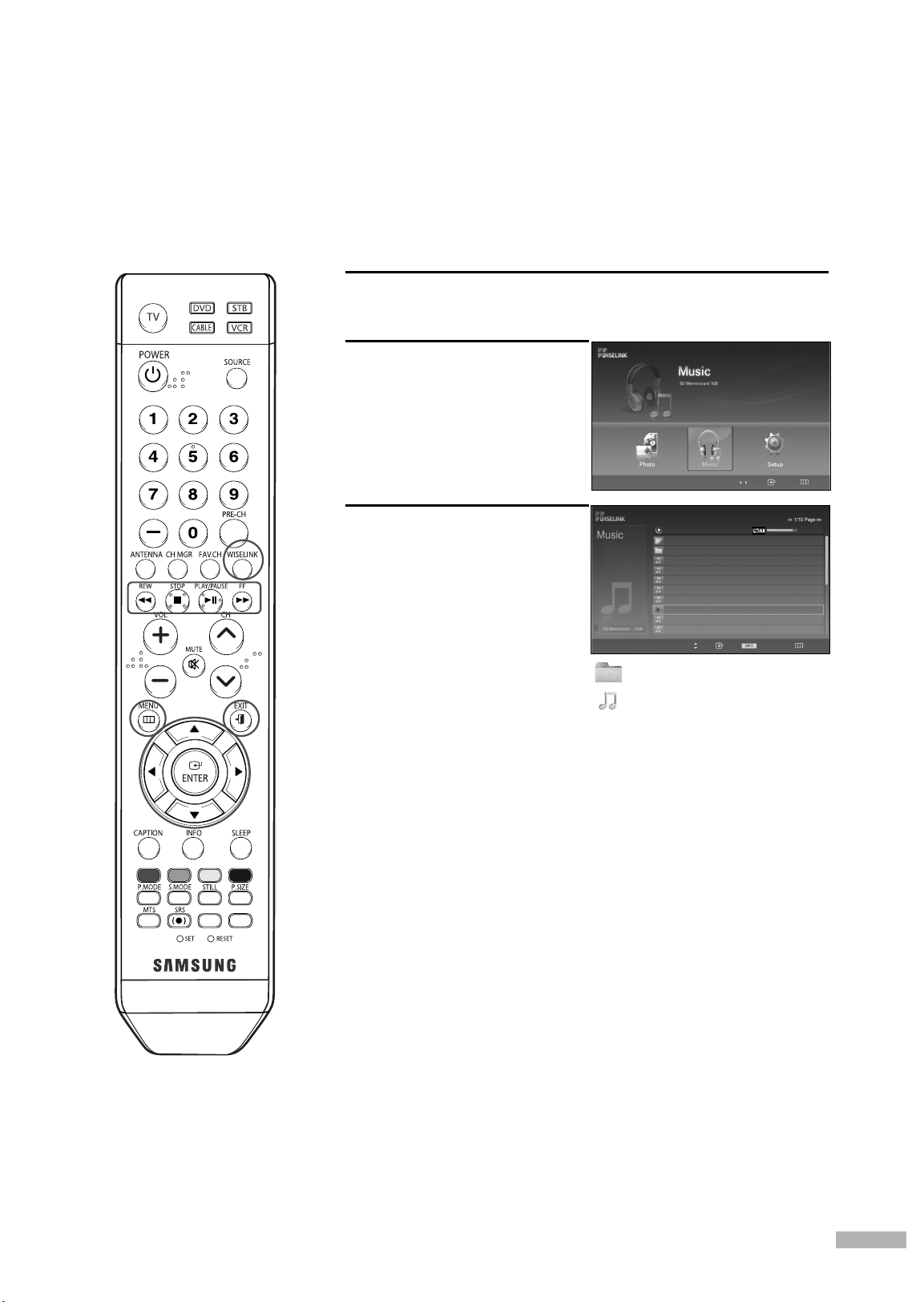

Using the MP3 List ...............................................................................................119

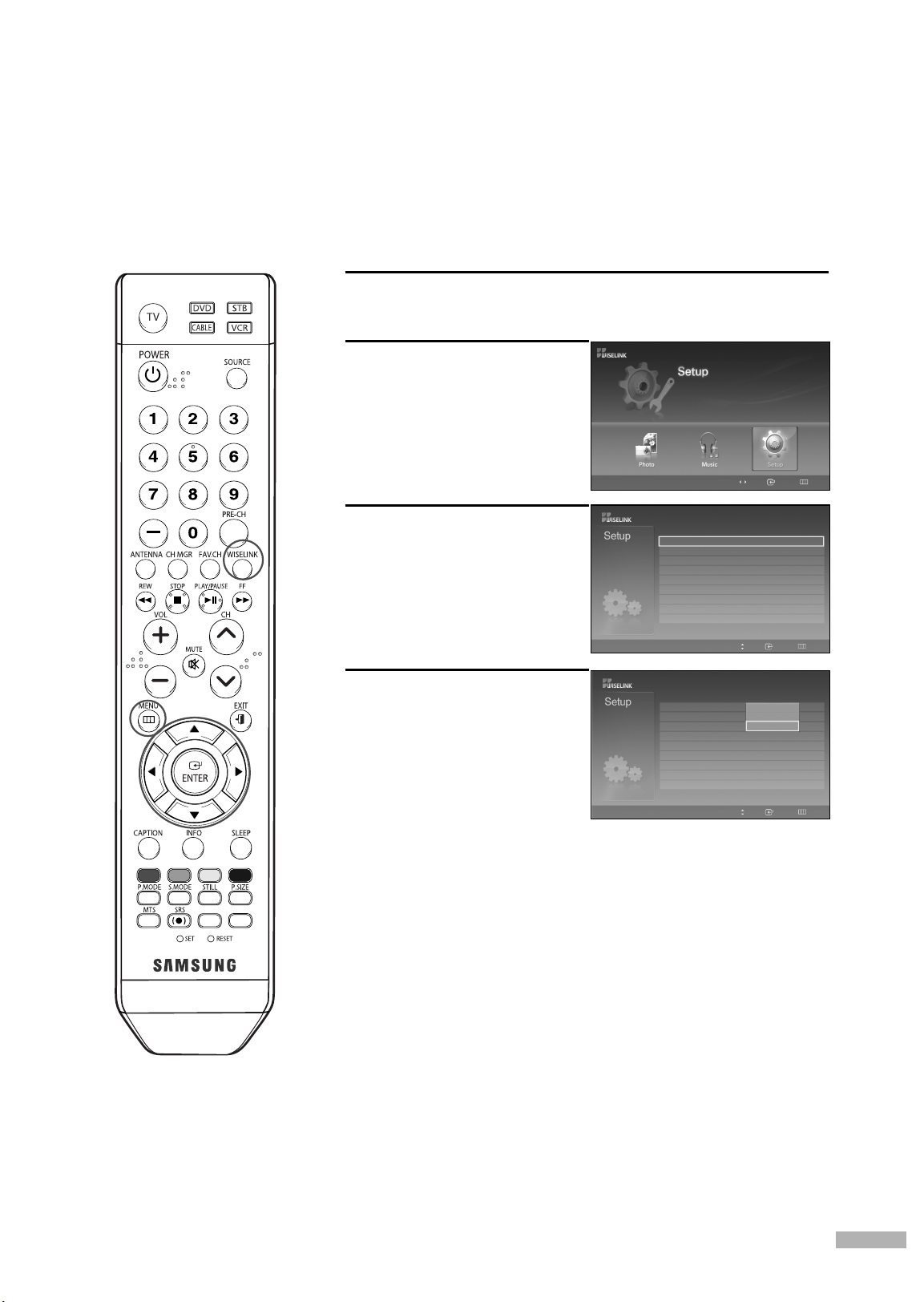

Using the Setup Menu ..........................................................................................121
Appendix.............................................................................................124

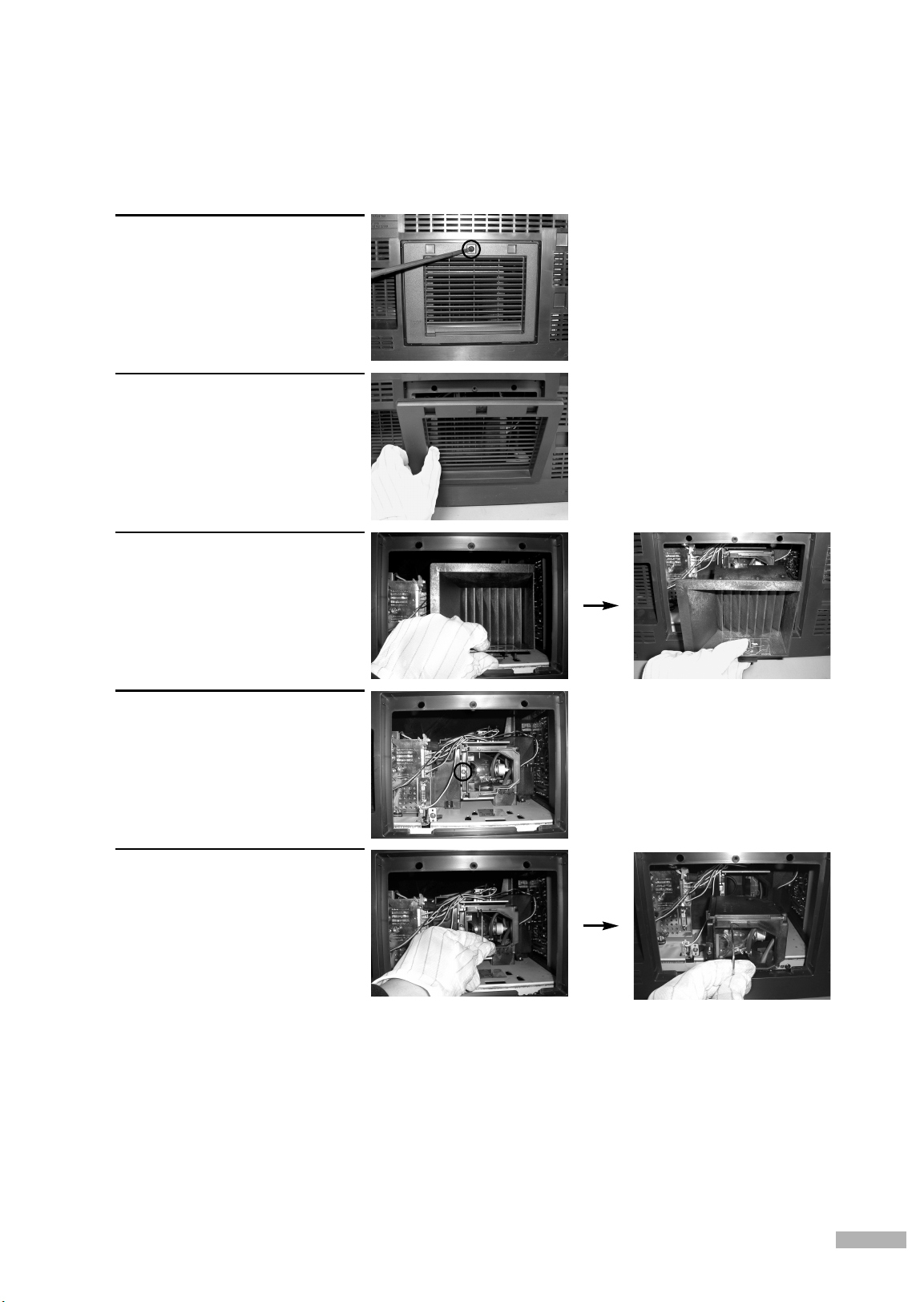

Replacing the Lamp..............................................................................................124
Troubleshooting ...................................................................................................126
Cleaning and Maintaining Your TV ........................................................................128
Using Your TV in Another Country .........................................................................128
Specifications ......................................................................................................129
Analog
Analog
Digital
Digital
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 5
SAMSUNG
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 6
Your New Wide TV
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 7

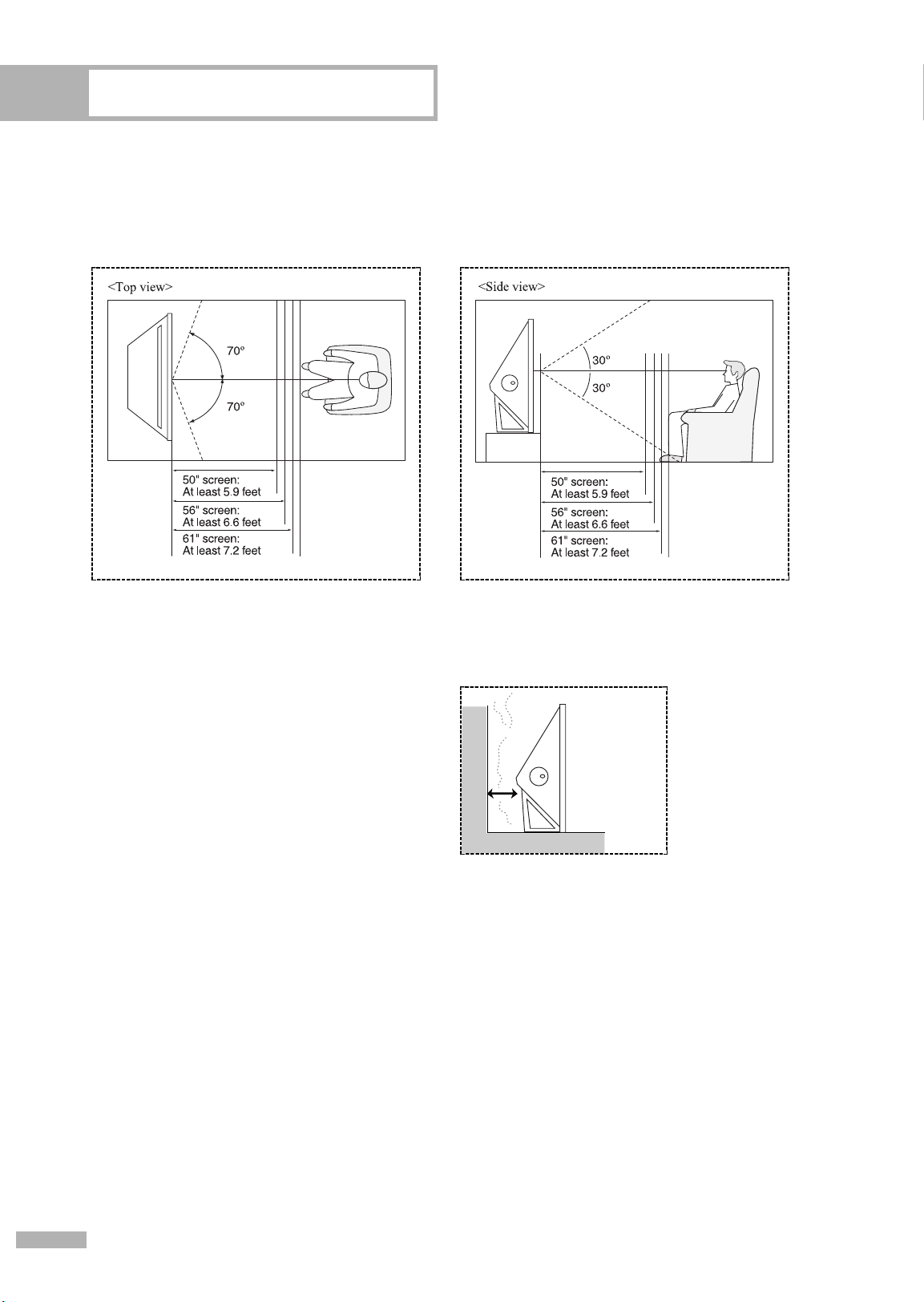

Viewing Position
To optimize your viewing comfort, please follow the guidelines below for viewing distance.
If viewing for an extended period of time, sit as far back from the screen as possible.
Your New Wide TV
English - 8
When installing the product, make sure to keep
it away from the wall (more than 10cm/4 inches)
for ventilation purposes.
• Poor ventilation may cause an increase in the
internal temperature of the product, resulting
in a shortened component life and degraded
performance.
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 8
English - 9
List of Features
Your TV is designed and engineered using the latest technology. It is a full-featured, high-performance
unit that exceeds industry standards. In addition, it has these special features:
• Easy-to-operate remote control
• Dynamic menus and Navigating menus by using the menu map
• Easy-to-use on-screen menu system you can access from the front panel or remote control
• Automatic timer to turn the TV on and off at any time you choose
• Adjustable picture and sound settings and the ability to memorize your favorite settings
• Automatic channel tuning for up to 181 channels
• A special filter to reduce or eliminate reception problems
• Fine tuning control for the sharpest picture possible
• A built-in multi-channel sound decoder for stereo and bilingual listening
• Built-in, dual channel speakers
• A special sleep timer
• Widescreen TV with adjustable image size
• Life-like clear images provided by DNle technology
• My Color Control mode to correspond with your color preference
• Color Weakness mode
• Digital Input jack
• Digital Audio Output (OPTICAL) jack
• Game mode
• Easy-to-use channel manager menu.
• WISELINK enables you to view and play photo (JPEG) and audio files (MP3) through the TV’s
WISELINK jack.
Accessories
Once you have unpacked your TV, check to make sure that you have all the parts shown here.
If any piece is missing or broken, call your dealer.
Cloth-Clean
Warranty Card/
Registration Card/
Safety Guide Manual/
Quick Guide Manual/
Remote Control
(BP59-00107A)/
AAA Batteries
Owner’s Instructions Power Cord
(3903-000144)
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 9
Your New Wide TV
English - 10
Front Panel LED Indicators
The three lights on the front panel indicate the status of your TV.
The product color and shape may vary depending on the model.
Indicator Light Key
: Light is On
: Light is Blinking
: Light is Off
Remote Control Sensor
Aim the remote control towards this spot on the TV.
POWER
Press to turn the TV on and off.
Indicator Lights
• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.
• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.
TIMER
Standby state.
The picture will automatically appear in about 15 seconds.
Auto Timer ON/OFF has been set and the set will automatically be
turned on in about 15 seconds.
A cooling fan inside the set is not operating normally.
Lamp cover on the rear of the set is not properly shut.
Check if the ventilation hole on the rear of the set is blocked, because
if the inner temperature is too high, the power will shut off.
Lamp may be defective. Please contact a certified technician.
LAMPSTAND BY/TEMP Indication
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 10
English - 11

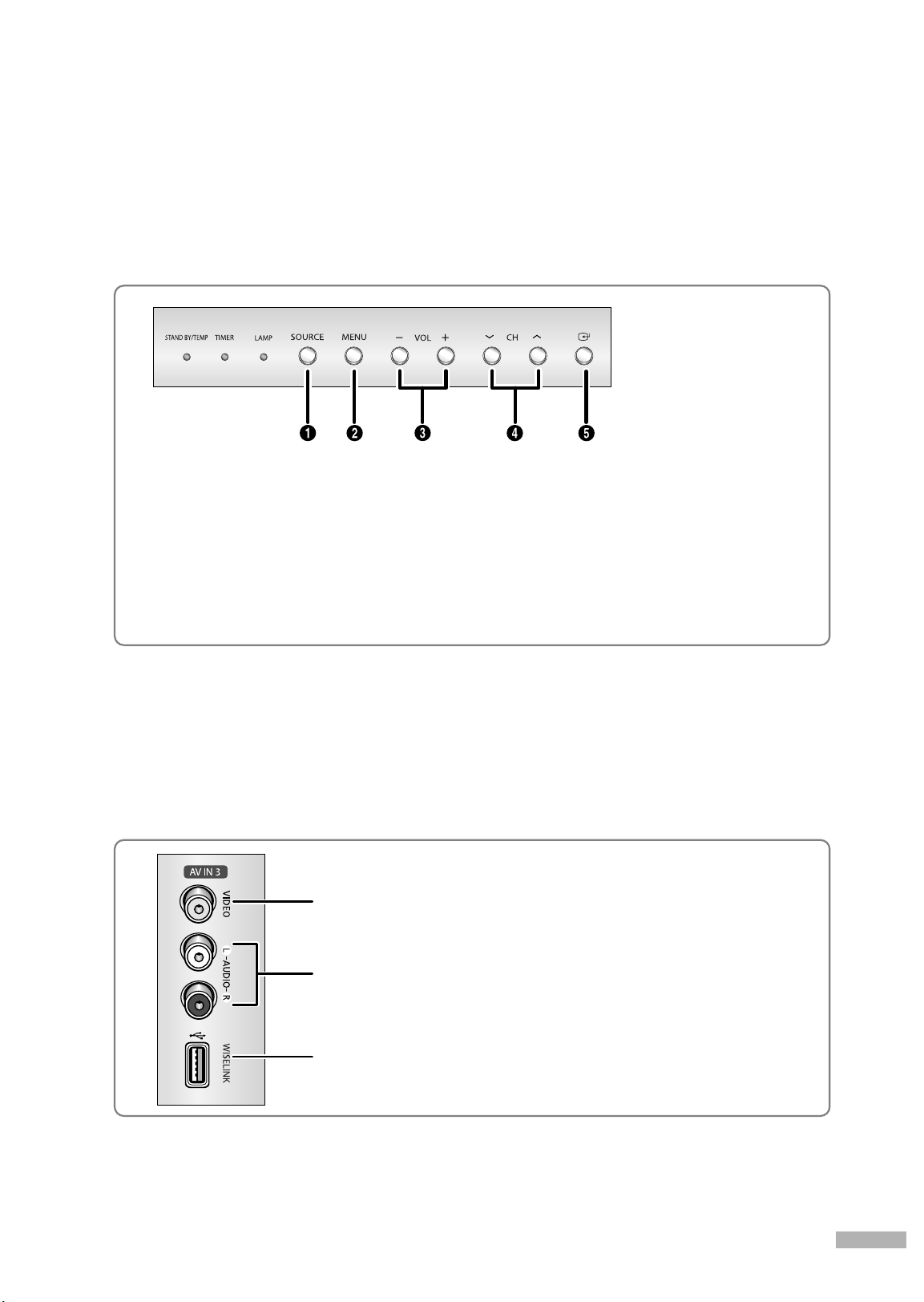

Side Panel Jacks
Use the right side panel jacks to connect a component that is used only occasionally (a camcorder or
video game, for example). The product color and shape may vary depending on the model.
Connect the video signal from a camcorder or video game.
Connect the audio signal from a camcorder or video game.

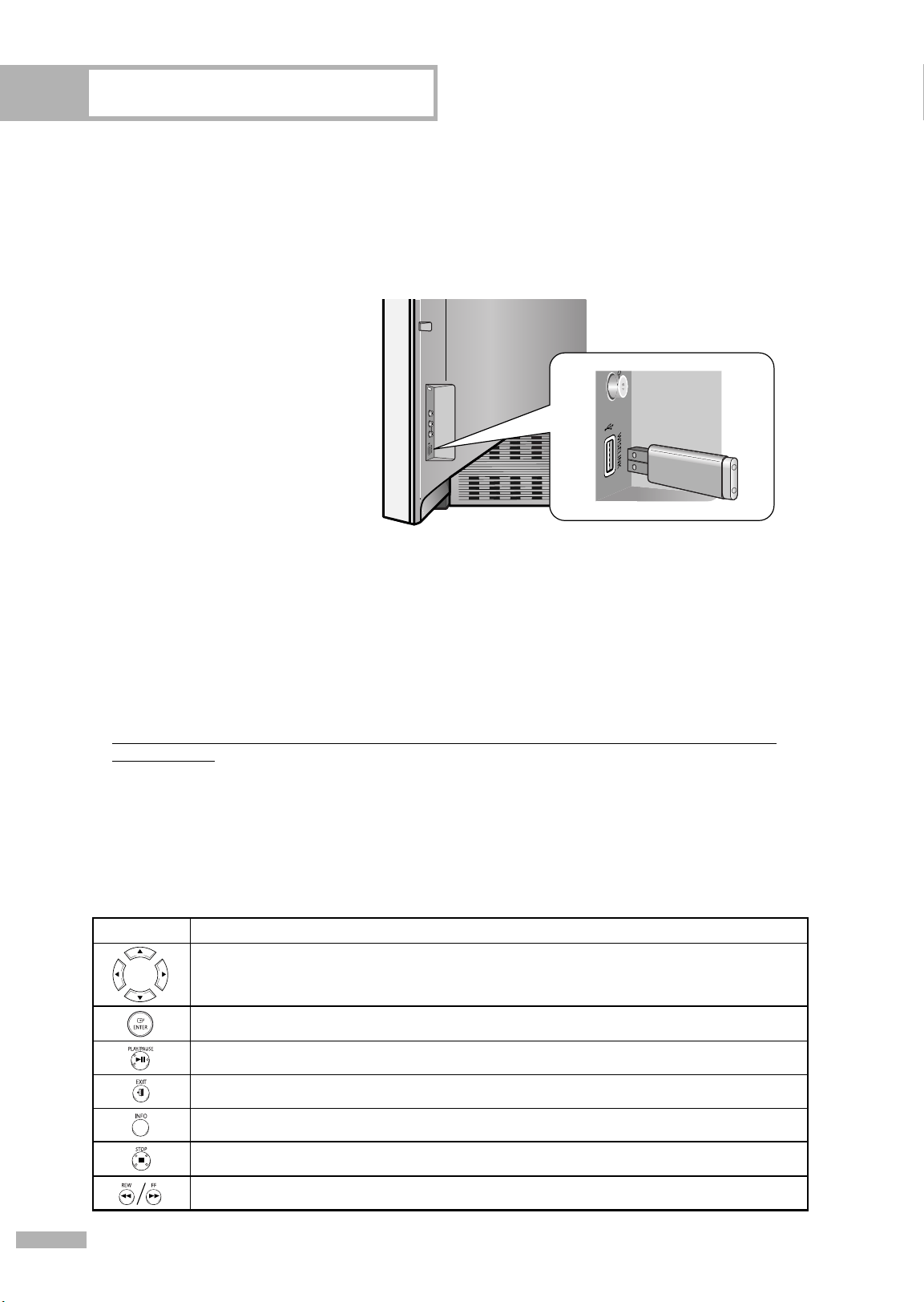

You can connect a USB mass storage device to view photo files (JPEG) and
play audio files (MP3).
Front side buttons
The buttons on the front panel control your TV’s basic features, including the on-screen menu system.
To use the more advanced features, you must use the remote control.
The product color and shape may vary depending on the model.
ΠPress to switch between viewing TV programs and signals from connected components.
´ Press to see the on-screen menu.
ˇ Press to raise or lower the volume and to select items when using the on-screen menu.
¨ Press to change channels and move between items on the on-screen menu.
ˆ Press to activate (or change) a particular item.
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 11
Your New Wide TV
English - 12
Rear Panel Jacks
Œ
VIDEO/AUDIO INPUT jacks
Connect video/audio signals from external sources, such as VCR
or DVD players. (Refer to pages 19, 20, and 24)
´
S-VIDEO INPUT jacks
Connects an S-Video signal from an S-VHS VCR or DVD player.
(Refer to pages 19, 20, and 24)
ˇ
VIDEO/AUDIO OUTPUT jacks
Sends video/audio signals from the TV to an external source,
such as a VCR. These jacks are available only in TV, Video and
S-Video modes. (Refer to page 24)
¨
COMPONENT IN 1, 2 jacks (Y, PB, PR, AUDIO L/R)
Use these jacks to connect the component video/audio signals
from a DVD player or a Set-Top Box. (Refer to pages 21 and 23)
ˆ

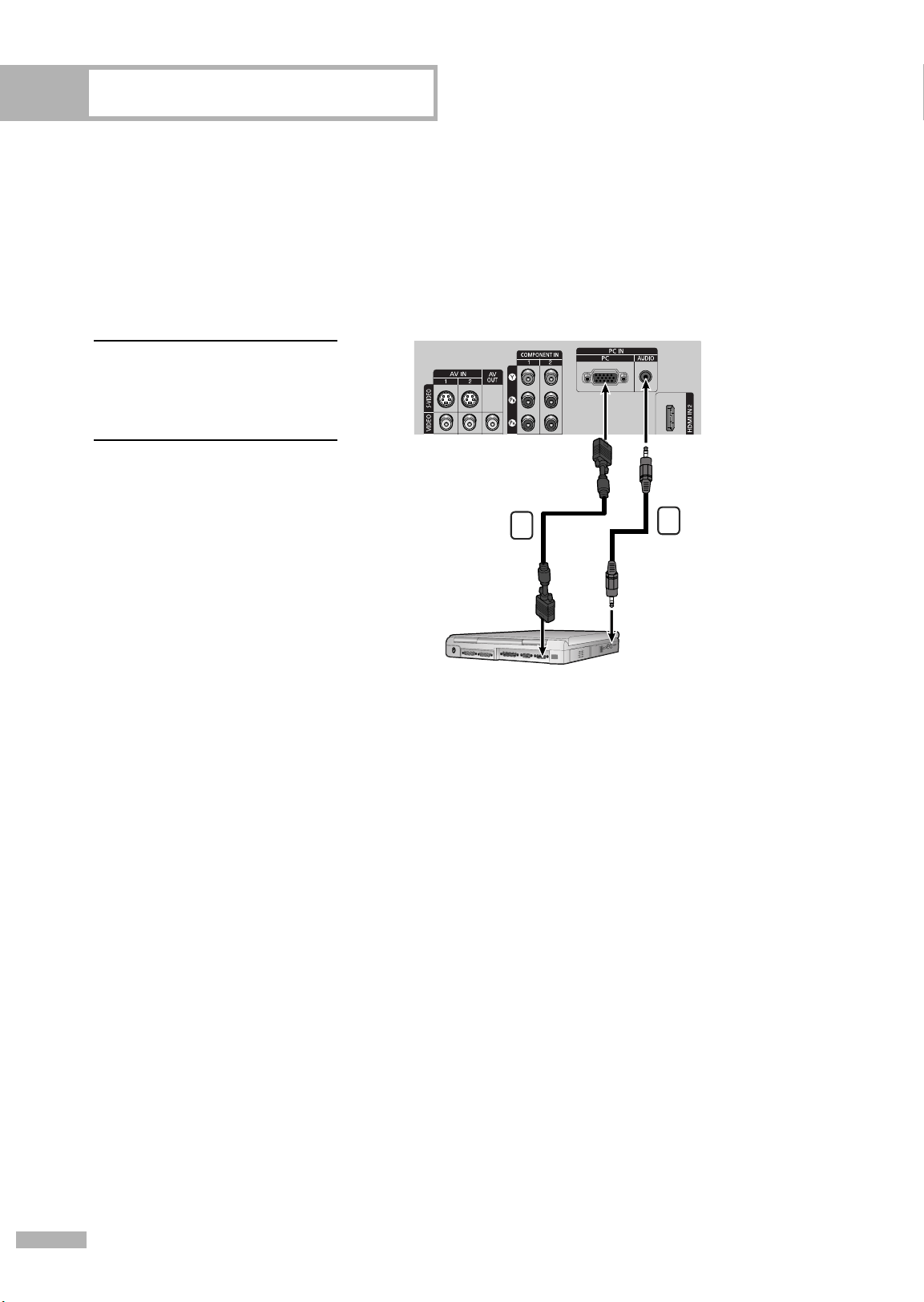

PC VIDEO INPUT jack
Connect these to the video output jack on your PC.
Ø
PC AUDIO INPUT jack
Connect these to the audio output jack on your PC.
(Refer to page 100)
∏
HDMI (High Definition Multimedia Interface)
INPUT jacks (HDMI IN 2)
Connect to the HDMI jack of a device with HDMI output.
”
HDMI (High Definition Multimedia Interface)/
DVI INPUT jack (HDMI IN 1/DVI IN)
Connect to the HDMI jack of a device with HDMI output.
This input can also be used as a DVI connection with separate
analog audio inputs. An optional HDMI/DVI cable will be
necessary to make this connection. When using the optional
HDMI/DVI adapter, the DVI analog audio inputs on your TV allow
you to receive left and right audio from your DVI device.
(Not compatible with PC) (Refer to pages 21 and 23)
’
DVI AUDIO (L/R) IN
Connect to the DVI audio output jack of an external device.
(Refer to page 23)
˝
DIGITAL AUDIO OUT (OPTICAL) jack
Connect to a Digital Audio Component. (Refer to page 25)
Ô
RS232C
For service only.
ANTENNA terminals
Two independent cables or antennas can be connected to
these terminals. Use “ANT 1 IN (CABLE)” and “ANT 2 IN (AIR)”
terminals to receive a signal from VHF/UHF antennas or your
cable system. (Refer to pages 16~17)
Ò
POWER IN
Connect the supplied power cord.
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 12
English - 13

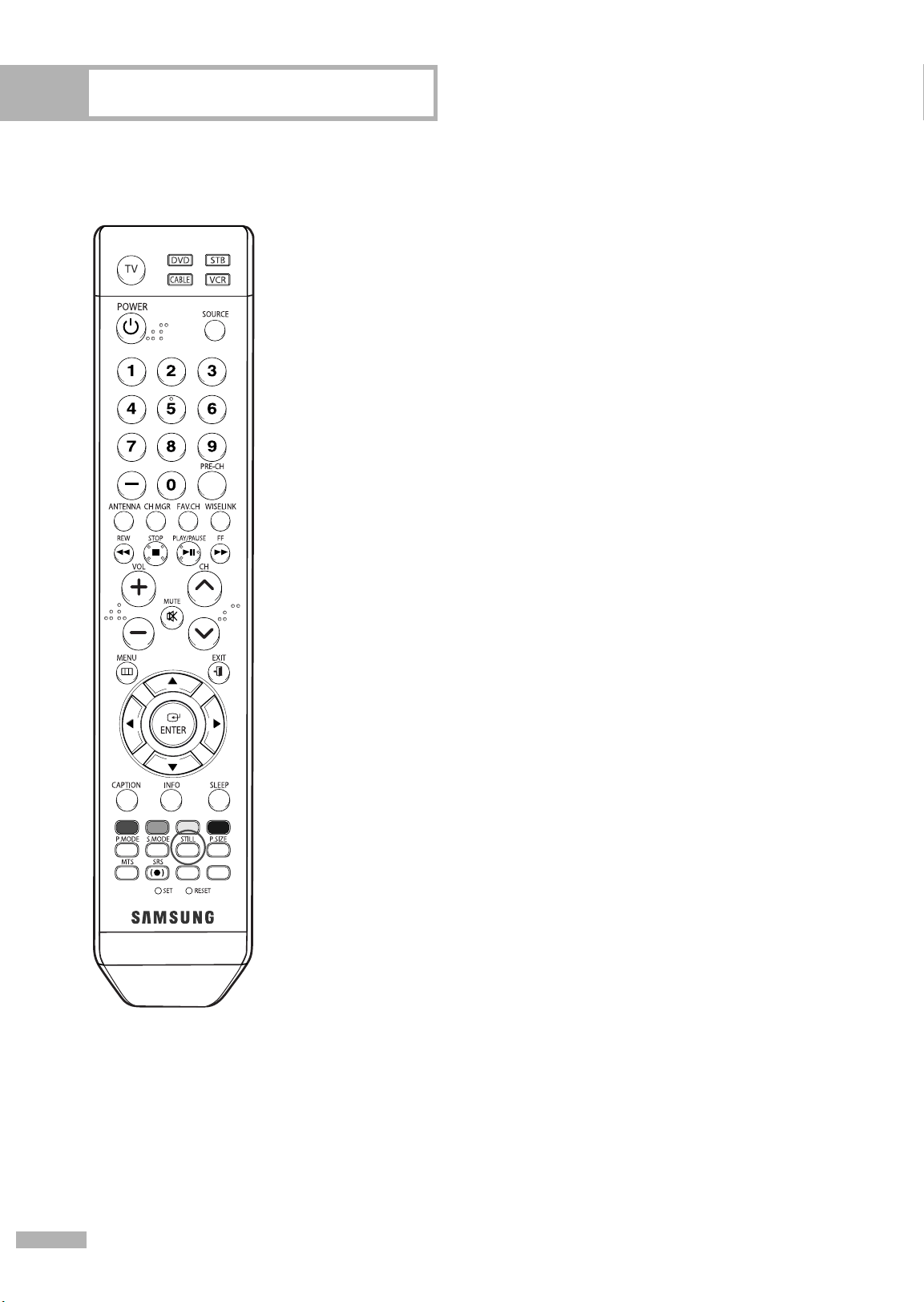

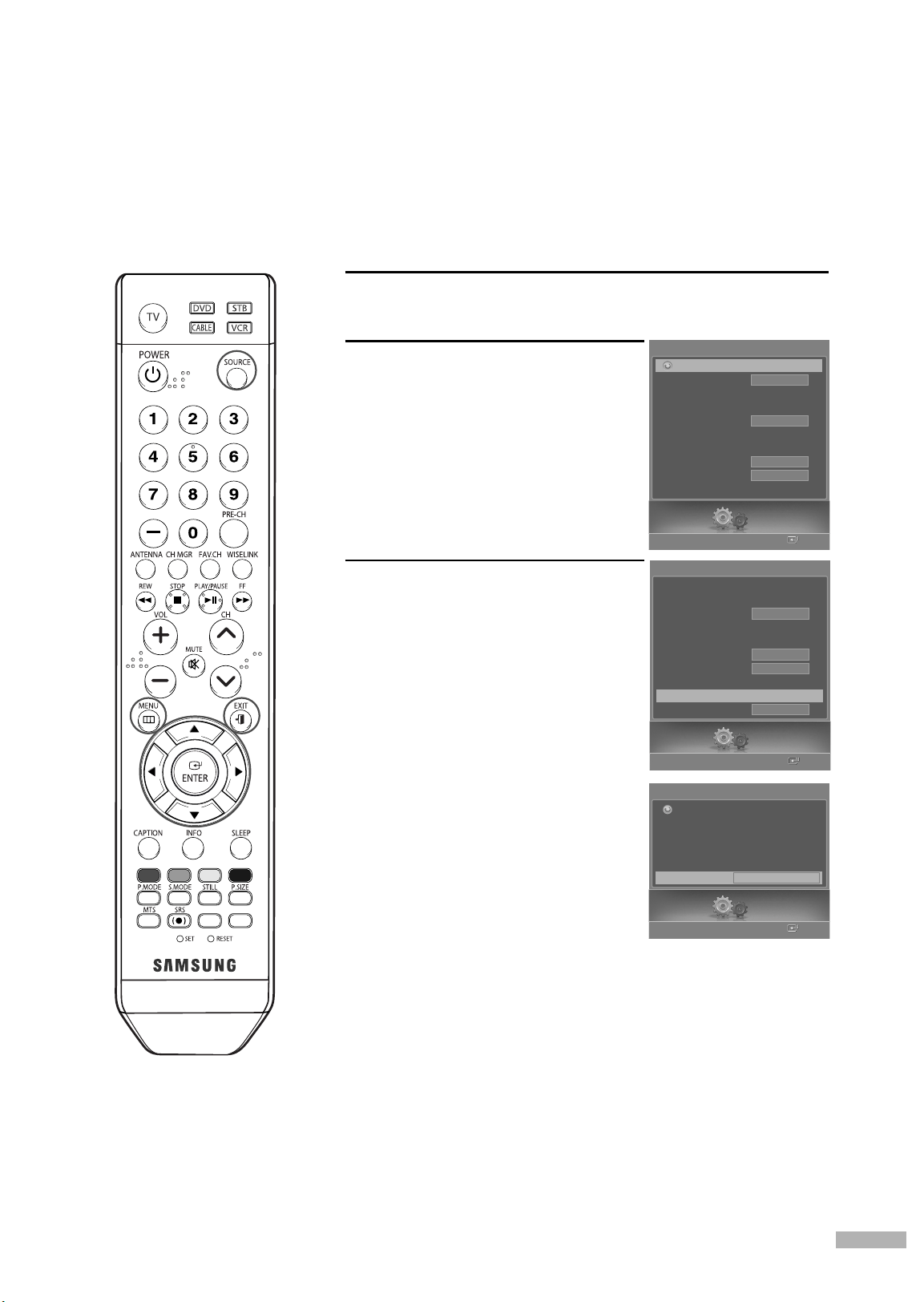

Remote Control
You can use the remote control up to about 23 feet from the TV. When using the remote control,
always point it directly at the TV. You can also use your remote control to operate your VCR,
Cable box, DVD player and Set-top box. See pages 34~40 for details.
1. POWER
Turns the TV on and off.
2. Channel Number
Press to directly tune to a particular channel.
3.
-
Press to select additional channels (digital
and analog) being broadcast by the same
station. For example, to select channel
“54-3”, press “54”, then press “
-
” and “3”.
4. ANTENNA
Press to select “AIR” or “CABLE”.
5. CH MGR
Displays Channel Lists on the screen.
6. VCR/DVD Controls
Controls VCR or DVD functions: Rewind, Stop,
Play/Pause, Fast Forward.
7. VOL
+
, VOL
-
Press to increase or decrease the volume.
8. MUTE
Press to mute the TV sound.
9. MENU
Displays the main on-screen menu.
10. ▲, ▼, œ, √, ENTER
Press to move highlight up, down, left, or
right. While using the on-screen menus,
press ENTER to activate (or change) a
particular item.
11. INFO
Press to display information on the TV
screen.
12. CAPTION
Controls the caption decoder.
13. P.MODE
Adjust the TV picture by selecting one of
the preset factory settings (or select your
personal, customized picture settings.)
(Refer to page 56)
14. S.MODE
Select Sound effect. (Refer to page 71)
15. MTS (Multichannel Television
Stereo)
Press to choose Stereo, Mono or SAP
(Secondary Audio Program).
16. SRS
Activates TruSurround. (Refer to page 72)
17. Mode
(TV/DVD/STB/CABLE/VCR)
Selects a target device to be controlled by
the Samsung remote control (i.e., TV, DVD,
STB, CABLE, or VCR).
18. SOURCE
Press to display all of the available video
sources (TV, AV1, AV2, AV3, S-Video1,
S-Video2, Component1, Component2, PC,
HDMI1, and HDMI2).
19. PRE-CH
Tunes to the previous channel.

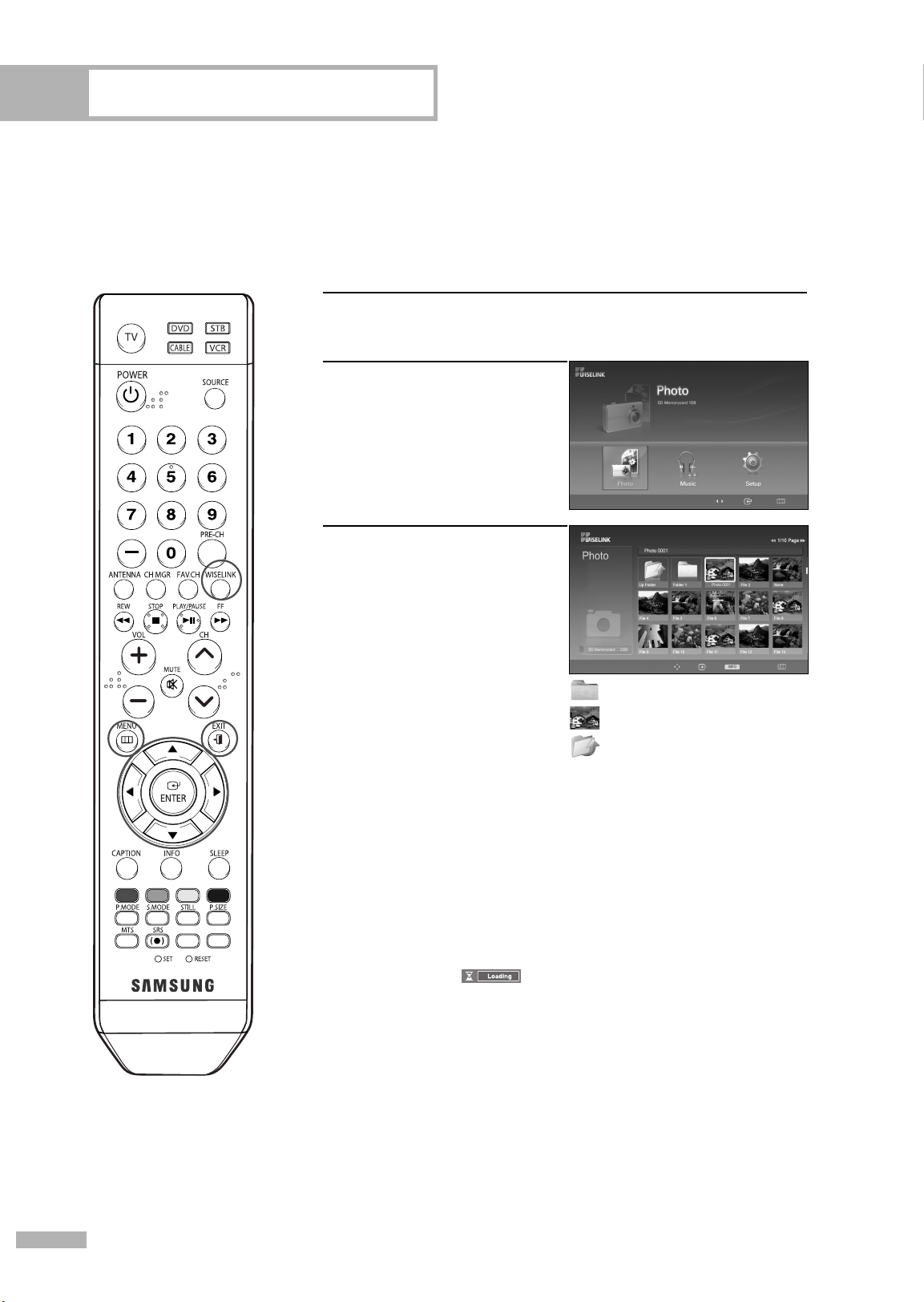

20. WISELINK
This function enables you to view and play
photo (JPEG) and audio files (MP3) from
an external device. (Refer to page 110)
21. FAV.CH (Favorite Channel)
Press to switch between your favorite
channels.
22. CH /
Press to change channels.
23. EXIT
Press to exit the menu.
24. SLEEP
Press to select a preset time interval for
automatic shut off.
(Refer to page 44)
25. P.SIZE
Press to change the screen size.
(Refer to page 59)
26. STILL
Press to pause the current screen.
(Refer to page 66)
27. RESET
If your remote control is not functioning
properly, take out the batteries and press
the reset button for about 2~3 seconds.
Re-insert the batteries and try using the
remote control again.
28. SET
Used during set up of this remote control,
so that it will work compatibly with other
devices (Set-top box, VCR, Cable box,
DVD, etc.)
NOTES
• The Color buttons are used
for the channel list fuction.
(Refer to pages 48~51)
• This is a special remote
control for the visually
impaired, and has Braille
points on the POWER, VOL +,
VOL
-
, CH / , STOP, and
PLAY/PAUSE buttons.
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 13
Your New Wide TV
English - 14

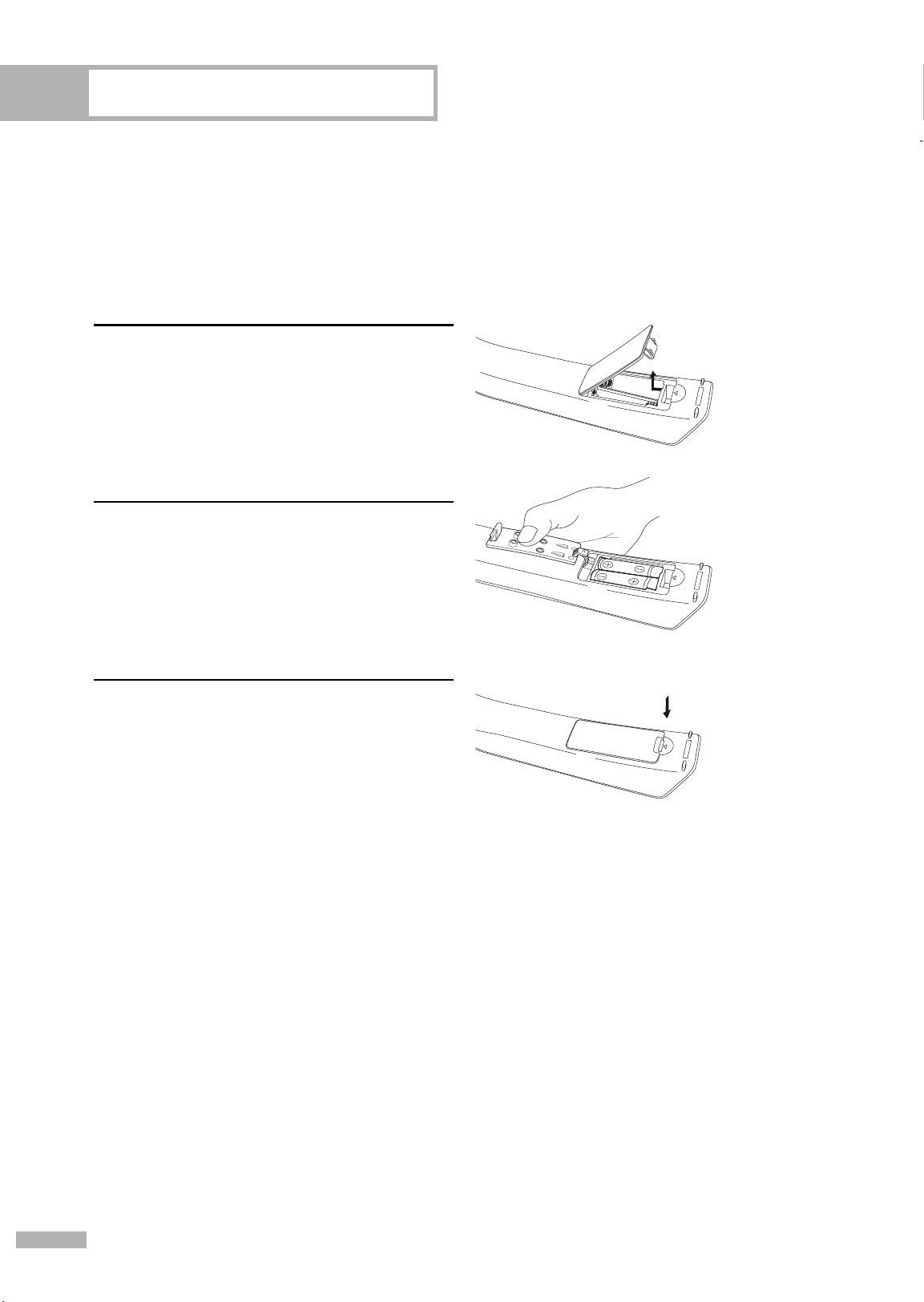

Installing Batteries in the Remote Control
With normal use, the batteries in the remote control should last about a year. If you notice a performance
degradation while using the remote, the batteries may need to be replaced. Make sure you replace both
batteries and do not mix old and new batteries in the remote control. If you won’t be using the remote
control for a long time, remove the batteries and store them in a cool, dry place.
1
Lift the cover at the back of the remote control
upward as shown in the figure.
2
Install two AAA size batteries. Make sure to
match the “+” and “–” ends of the batteries
with the diagram inside the compartment.
3
Close the cover as shown in the figure.
NOTE
• Do not mix battery types, i.e, alkaline and manganese.
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 14
Connections
BP68-00588A-03Eng(002~015) 8/22/06 5:15 PM Page 15
Connections
English - 16
Connecting VHF and UHF Antennas
If you do not have a cable system, you will need to connect an antenna to your TV.
Antennas with 75-ohm Round Leads
If your antenna looks like this: it has 75-ohm round leads.
1
Plug the antenna lead into
the ANT 2 IN (AIR) on the
rear panel of your TV.
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 16
English - 17
Connecting Cable TV
You can connect different cable systems to your TV, including cable without a Cable box,
and cable with a Cable box that descrambles some or all channels.
Cable without a Cable Box
1
Plug the incoming cable into
the ANT 1 IN (CABLE) on the
rear panel of your TV.
Cable with a Cable Box that Descrambles All Channels
1
Find the cable connected to
the ANTENNA OUT
terminal on your Cable box.
This terminal might be
labeled “ANT OUT”, “VHF
OUT” or simply “OUT”.
2
Connect the other end of the
cable to the “ANT 1 IN
(CABLE)” terminal on the rear
panel of your TV.
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 17
Connections
English - 18
Cable with a Cable Box that Descrambles Some (But Not All) Channels
To complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxial
cables (which you can buy from your Samsung dealer or any electronics store).
1
Find and disconnect the
cable that is connected to
the ANTENNA IN terminal
of your Splitter.
This terminal might be
labeled “ANT IN”, “VHF IN”
or simply, “IN”. Connect this
cable to a two-way splitter.
2
Connect a coaxial cable
between an OUT terminal
of the splitter and the IN
terminal of the Cable box.
3
Connect a coaxial cable
between the ANTENNA OUT
terminal of the Cable box
and the B-IN terminal of the
RF (A/B) switch.
4
Connect another cable
between the other OUT
terminal on the splitter and
the A–IN terminal on the
RF (A/B) switch.
5
Connect the last coaxial
cable between the OUT
terminal of the RF (A/B)
switch and the ANT 1 IN
(CABLE) on the TV.
After you’ve made this connection, set the A/B switch to the “A” position for normal viewing.
Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch
to “B”, you will need to tune your Set-Top Box to the Cable box's output channel, which is usually
channel 3 or 4.)
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 18
English - 19
Connecting a VCR
Connecting a VCR to the Video or S-Video/Audio jack
1
Connect a video cable
between the VIDEO IN (1
or 2) (or S-VIDEO IN 1 or 2)
jack on the TV and the
VIDEO (or S-VIDEO) output
jack on the VCR.
2
Connect a set of audio
cables between the AUDIO
IN (1 or 2) jacks on the TV
and the AUDIO output jacks
on the VCR.
3
Connect a video cable
between the VIDEO OUT
jack on the TV and the
VIDEO input jack on the
VCR.
4
Connect a set of audio
cables between the AUDIO
OUT jacks on the TV and
the AUDIO input jacks on
the VCR.
NOTES
• For better video, use an
S-Video cable.
• Please be sure to match the
color coded input terminals
and cable jacks.
• Connecting Video/Audio
cables from the Video and
Audio Out jacks on the TV to
the A/V In jacks on your VCR
enables you to record from
the TV onto the VCR.
TV Rear Panel
Incoming
Cable or
Antenna
Stereo VCR
3
4
2
1
or
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 19
Connections
English - 20
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a Camcorder to your TV.
You can use your camcorder to view tapes without using a VCR.
1
Locate the A/V output jacks
on the camcorder. They are
usually found on the side or
back of the camcorder.
2
Connect a video or S-Video
cable between the VIDEO IN
(or S-VIDEO IN) jack on
the TV and the VIDEO (or
S-VIDEO) output jack on the
Camcorder.
The audio-video cables shown
here are usually included with
a Camcorder. (If not, check
your local electronics store.)
If your Camcorder is stereo,
you need to connect a set of
two cables.
3
Connect a set of audio
cables between the AUDIO
IN jacks on the TV and the
AUDIO output jacks on the
camcorder. If you have a
mono Camcorder, connect
L(mono) to the Camcorder
audio out using only one
audio cable.
Camcorder
Output Jacks
1
TV Rear and right side
or
Camcorder
3
2
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 20
English - 21
Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
Connecting to HDMI (High Definition
Multimedia Interface)
1
Connect an HDMI cable
between the HDMI IN 2 (or
HDMI IN 1/DVI IN) jack on
the TV and the HDMI OUT jack
on the Set-Top Box.
Connecting to Y, PB, PR
1
To enable Component video
viewing, connect a set of
Component video cables
between the COMPONENT
(1 or 2) VIDEO (Y, P
B
, P
R
) IN
jacks on the TV and the
COMPONENT (Y/P
B
/P
R
or
Y/C
B
/C
R
) OUT jacks on the
DVD player.
2
Connect a set of audio
cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on
the TV and the AUDIO OUT
jacks on the DVD player.
DVD Player
TV Rear Panel
Incoming
Cable or
Antenna
1
DVD Player
TV Rear Panel
Incoming
Cable or
Antenna
1
2
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 21
Connections
English - 22

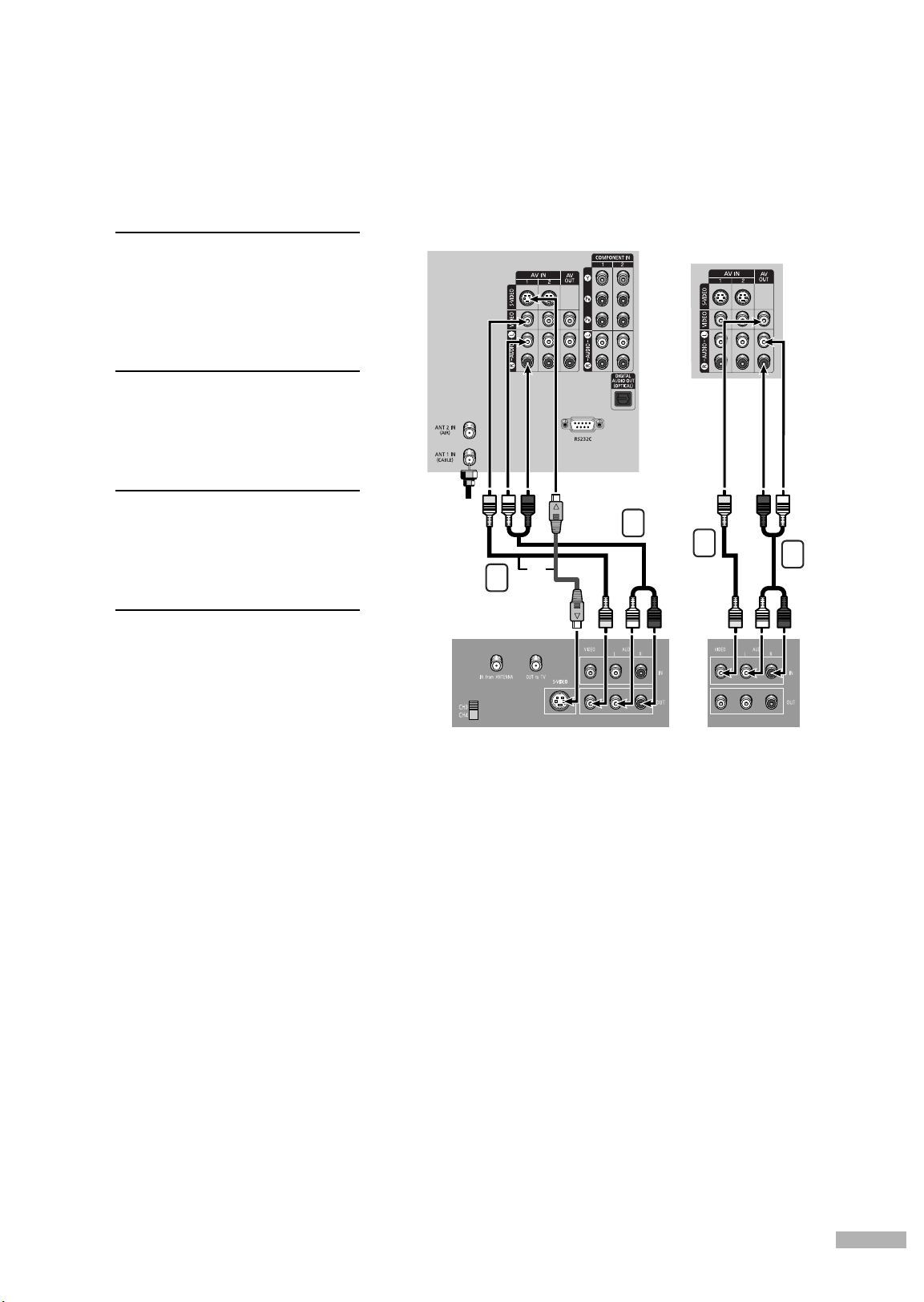

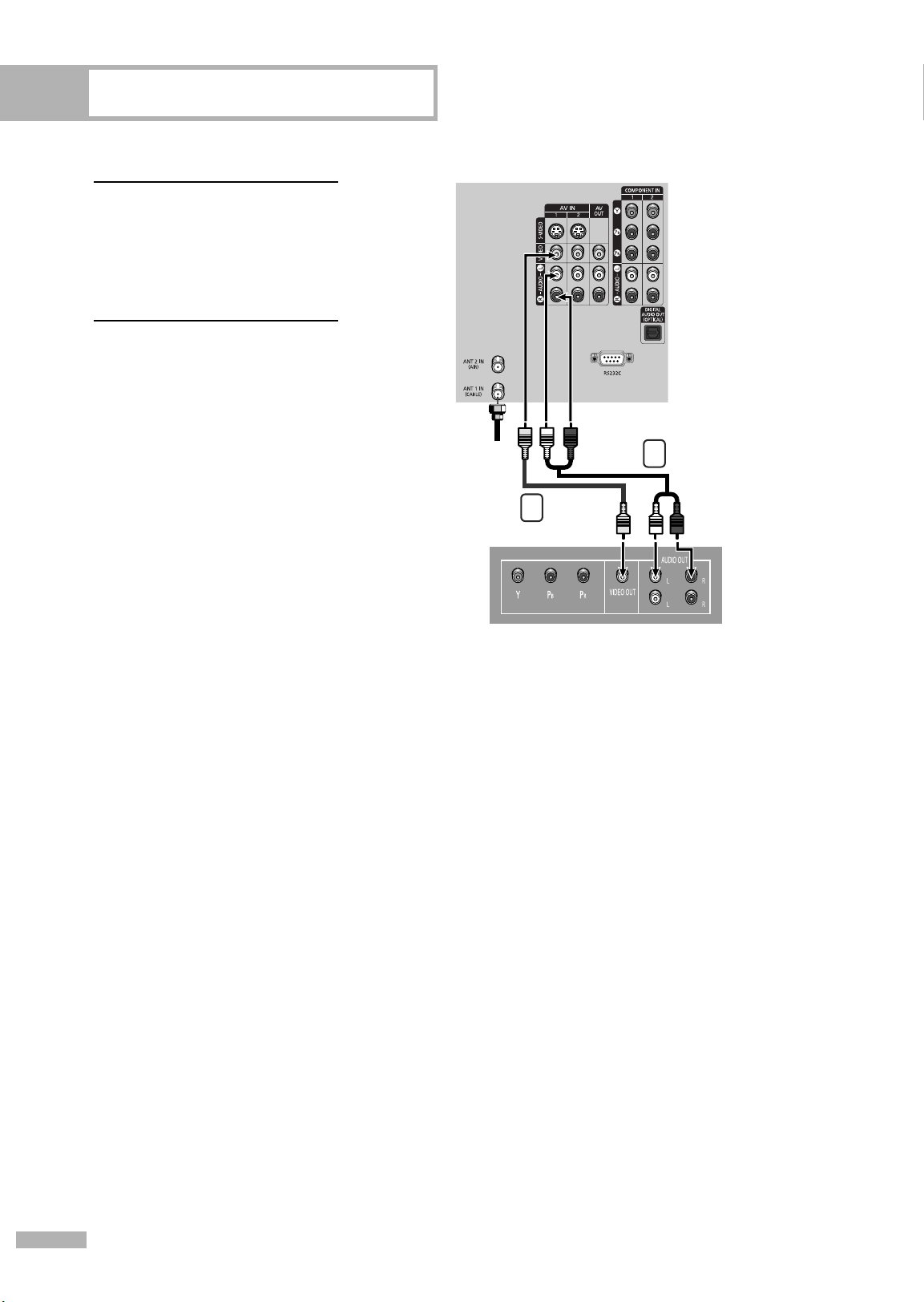

Connecting to Audio and Video Jacks
1
Connect a video cable
between the VIDEO IN (1
or 2) jack on the TV and the
VIDEO OUT jack on the
DVD player.
2
Connect a set of audio
cables between the AUDIO
IN (1 or 2) jacks on the TV
and the AUDIO OUT jacks
on the DVD player.
NOTES
• Component Video separates
the video into Y(Luminance
(Brightness)), P
B
(Blue) and P
R
(Red) for enhanced video
quality.
• Please be sure to match the
color coded input terminals
and cable jacks.
TV Rear Panel
DVD Player
Incoming
Cable or
Antenna
1
2
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 22
English - 23
Connecting a DTV Set-Top Box
Connecting to Y, PB, P
R
1
Connect a set of Component
cables between the
COMPONENT (1 or 2) VIDEO
(Y, P
B
, P
R
) IN jacks on the TV
and VIDEO (Y/P
B
/P
R
or
Y/C
B
/C
R
) OUT jacks on the
Set-Top Box.
2
Connect a set of audio cables
between the COMPONENT (1
or 2) AUDIO (L, R) IN jacks on
the TV and the AUDIO OUT
jacks on the Set-Top Box.
NOTE
• Please be sure to match the
color coded input terminals
and cable jacks.
Connecting to DVI (Digital Visual Interface)
1
Connect an HDMI/DVI cable
between the HDMI IN 1/DVI
IN jack on the TV and the DVI
OUT jack on the Set-Top Box.
2
Connect a set of audio cables
between the DVI AUDIO (L, R)
IN jacks on the TV and the
AUDIO OUT jacks on the
Set-Top Box.
NOTES
• Requires a Cable Converter.
• Make sure the HDMI/DVI source’s
power is on, or you will be unable to
select it in the TV menu's source list.
• The HDMI IN 1/DVI IN jack
is not compatible with PC.
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
1
2
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
1
2
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 23
Connections
English - 24
Connecting a VCR and DTV Set-Top Box
1
Connect the Video or S-Video/
Audio cables between the
VIDEO or S-VIDEO/AUDIO
input jacks on the TV and
VIDEO or S-VIDEO/AUDIO
output jacks on the VCR.
2
Connect the Video/Audio
cables between the VIDEO
or S-VIDEO/AUDIO input
jacks on the TV and VIDEO
or S-VIDEO/AUDIO output
jacks on the Set-Top Box.
3
Connect a video cable
between the VIDEO OUT
jack on the TV and the
VIDEO input jack on the
VCR.
4
Connect a set of audio
cables between the AUDIO
OUT jacks on the TV and
the AUDIO input jacks on
the VCR.
5
Use the coaxial cable to
connect between the splitter
and the ANT 1 IN (CABLE)
on the TV and between the
splitter and the ANT IN on
the Set-Top Box.
Connecting to HDMI (High Definition
Multimedia Interface)
1
Connect an HDMI cable
between the HDMI IN 2 (or
HDMI IN 1/DVI IN) jack on
the TV and the HDMI OUT jack
on the Set-Top Box.
TV Rear Panel
DTV Set-Top Box Stereo VCR
Incoming Cable
or Antenna
1
3
4
5
2
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
1
or
TV Rear Panel
Stereo VCR
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 24
English - 25
Connecting a Digital Audio System
There are many types of digital audio systems on the market today.
A simplified illustration of an audio system is shown below. For more information, see your audio
system owner’s manual.
1
If your audio system has an
optical digital audio input,
connect to the “DIGITAL
AUDIO OUT(OPTICAL)” jack
on the TV.
NOTE
• OPTICAL: converts the electric
signal into an optical light
signal, and transmits it through
glass fibers.
• When a Digital audio system is
connected to the Digital Audio
Out (Optical) terminal:
Decrease the gain (volume) of
the TV, and adjust the volume
level with the audio system's
volume control.
TV Rear Panel
1
Audio System
When “Internal mute” is set to “On”, Sound menus except “Multi-Track Options” cannot be adjusted.
RF
AV
S-Video
Component
PC
HDMI
Internal
Mute Off
Internal
Mute On
Internal Speakers
Internal
Mute Off
Internal
Mute On
Audio Out (Optical, L/R Out)
Video Output
Active
Active
Active
Active
Active
Active
Active
Inactive
Inactive
Inactive
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 25
Connections
English - 26
Connecting to an Analog Amplifier
1
The “AV OUT (AUDIO L/R)”
terminals cannot be used for
external speakers.
You must hook them up to an
amplifier.
When an audio amplifier is
connected to the “AV OUT
(AUDIO L/R)” terminals:
Decrease the gain (volume)
of the TV, and adjust the
volume level with the volume
control on your audio
amplifier.
NOTE
• If using the HDMI/DVI, PC, or
Component input on the TV, the
audio output signal is available
only when the TV’s Internal Mute
is set to on.
(Refer to page 76)
TV Rear Panel
Amplifier
1
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 26
Operation
BP68-00588A-01Eng(016~027) 5/8/06 4:48 PM Page 27
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the front panel.
Dynamic Menus and On-Screen Displays
The on-screen menu system allows you to control the settings of your TV. Access the on-screen menu
system by pressing the MENU button on the remote control. Once the on-screen menu appears, use the
…/†/œ/√/ENTER buttons on your remote control to select menu items and make adjustments. You can
also view the on-screen menu system and make some adjustments using the TV’s front panel buttons.
English - 28
Operation

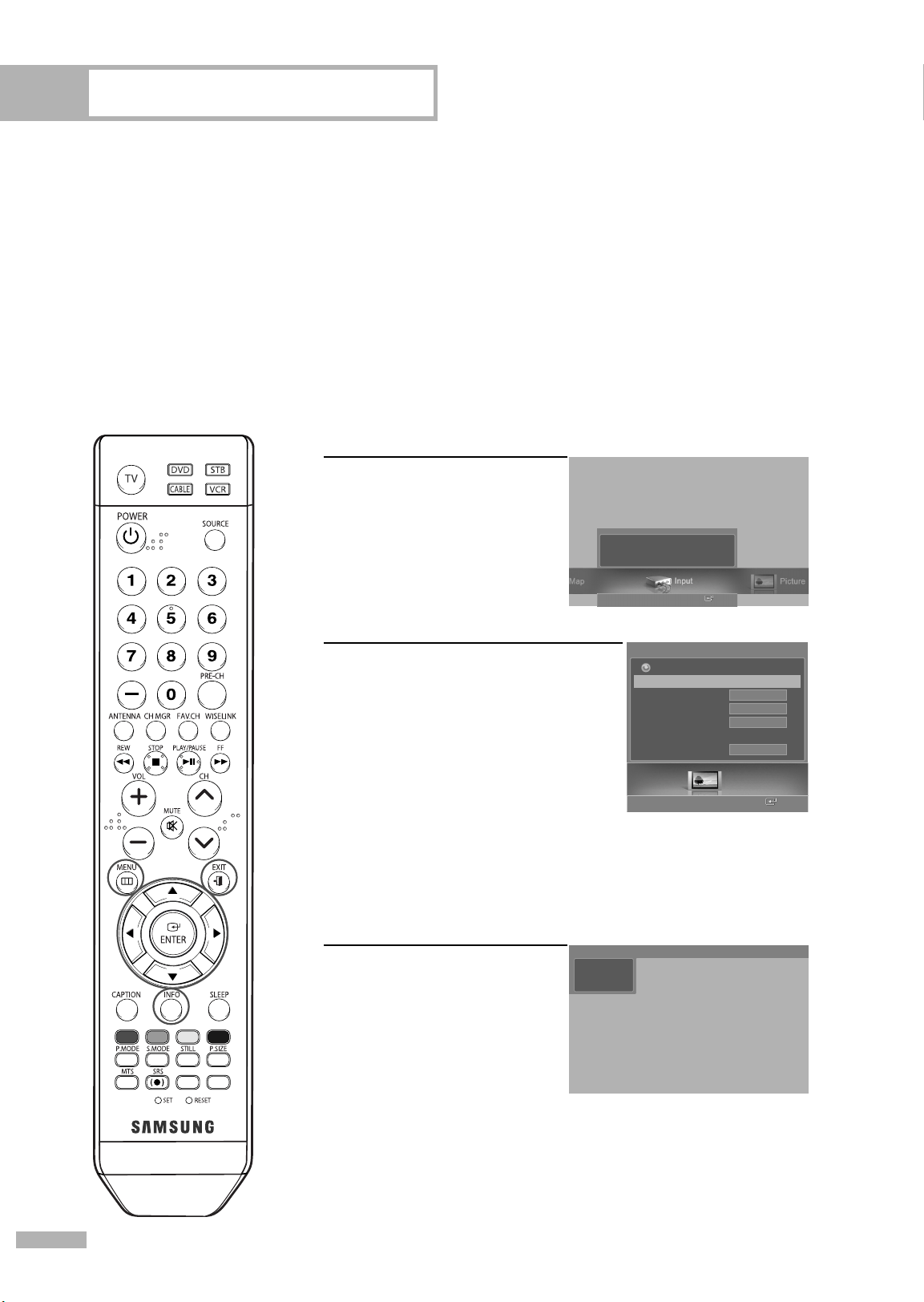

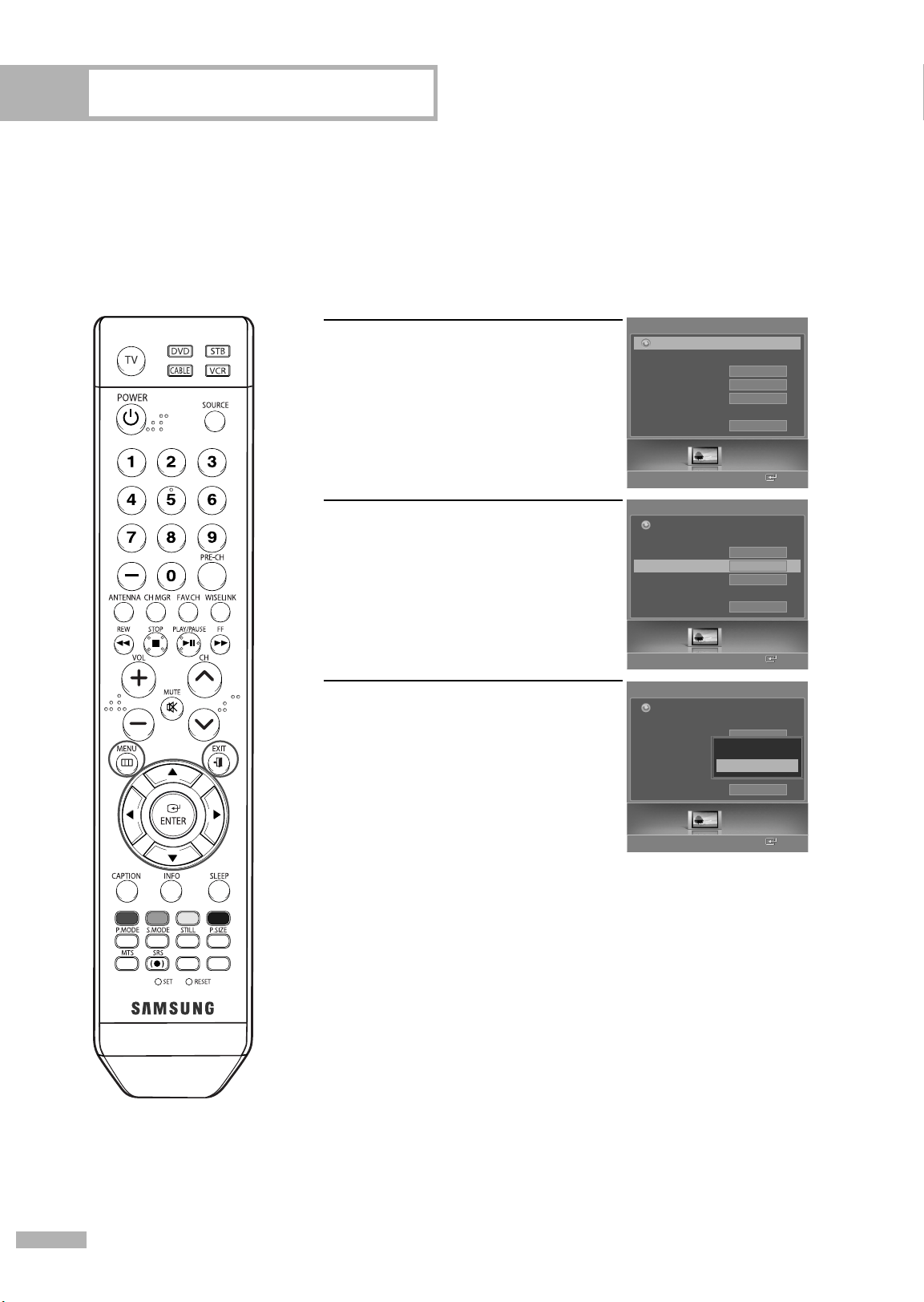

Viewing the Menus
1
Press the MENU button.
The main menu will appear
at the bottom of the screen.
There are seven menu
groups: “Input”, “Picture”,
“Sound”, “Channel”,
“Setup”, “Application”, and
“Menu Map”.
2
Press the œ or √ button, then press
the ENTER button to select an item
you want in the menu.
Press the …/†/œ/√/ENTER button
to display, change, or use the
selected items.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Viewing the Display
Press the INFO button on the
remote control.
The TV displays the current
channel, the status of certain
picture, sound settings and
the current time.
The information displayed varies
according to the selected source.
Enter
Mode
√
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Enter
Selects the input options.
No Time Information
Air
3
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 28
English - 29

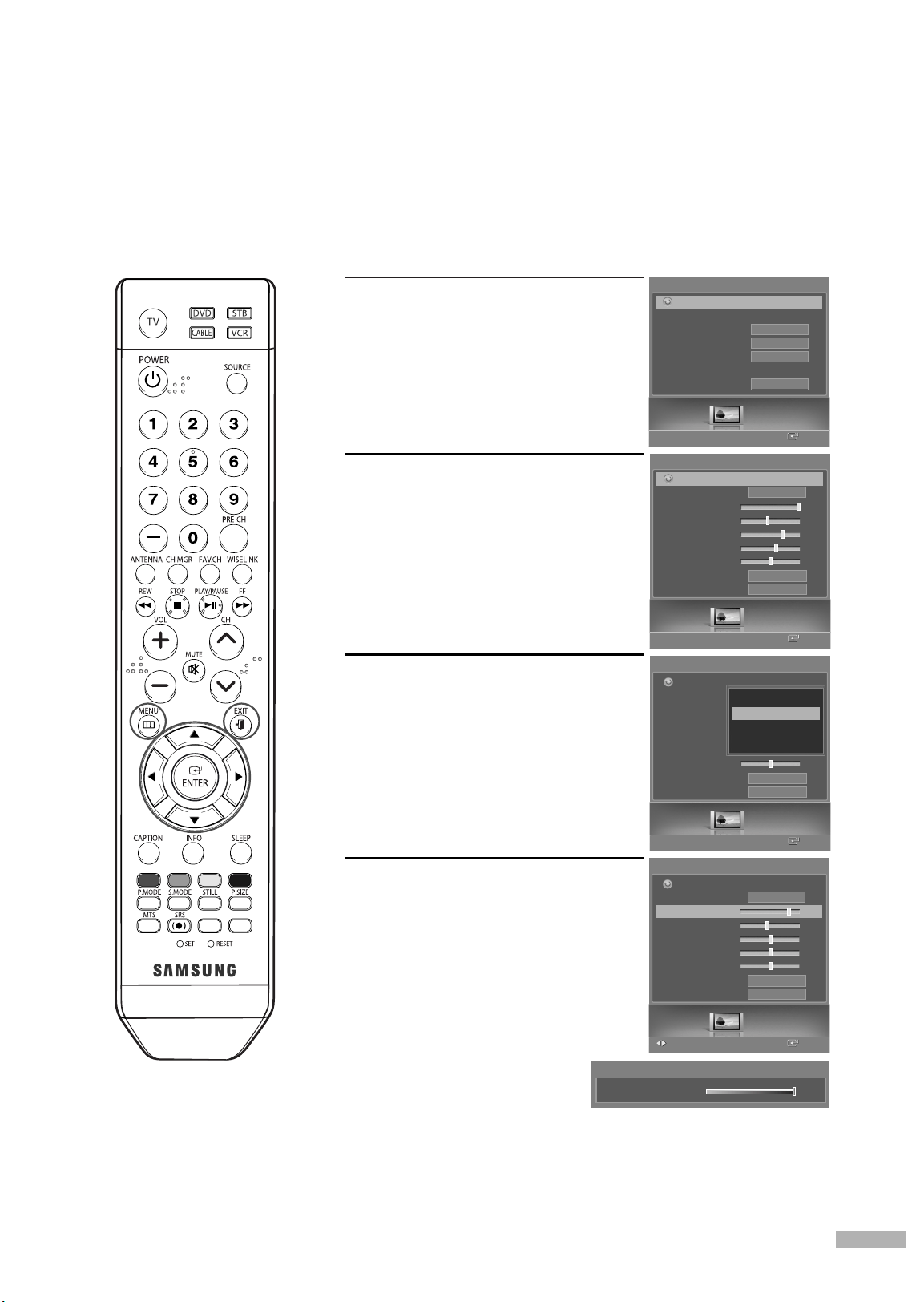

Navigating Menus by Using the Menu Map
Using the Menu Map of the main menu enables you to view all menus and select a function quickly.
You can select any menu by using the menu map.
1
Press the MENU button.
The main menu will appear at the bottom of the screen.
2
Press the œ or √ button to select “Menu Map”, then press the
ENTER button. The menu map will appear.
3
Press the … or † button to select a menu, then press the
ENTER button. The selected menu will appear.
4
Press the …/†/œ/√/ENTER buttons to display, change, or
use the selected items.
Press the EXIT button to exit.
• Red button: Displays menus in alphabetical order.
•Green button: Moves to the previous page.
•Yellow button: Moves to the next page.
• Blue button: Exits from the menu.
• ENTER button: Moves to the selected menu.
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 29
English - 30

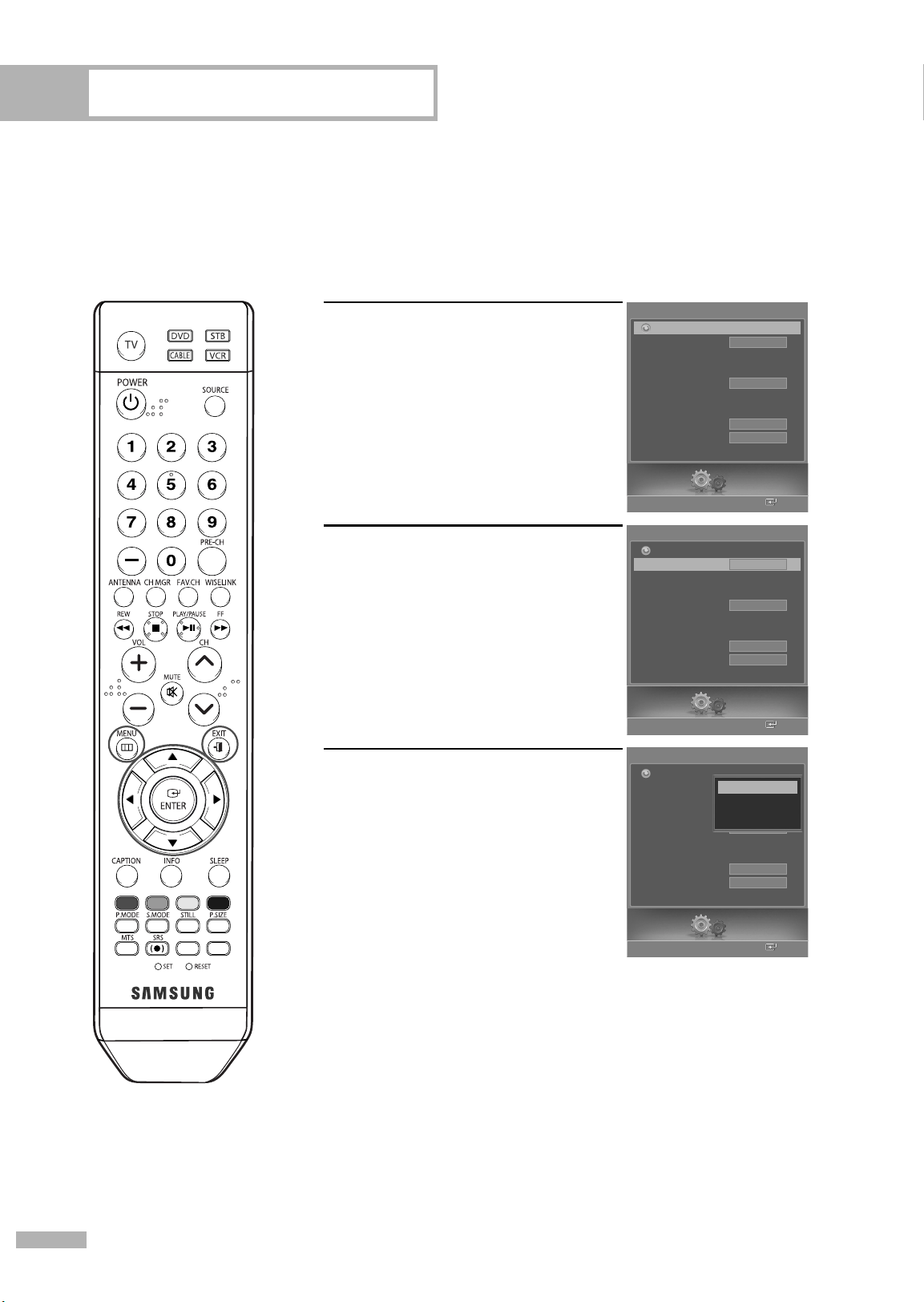

Operation

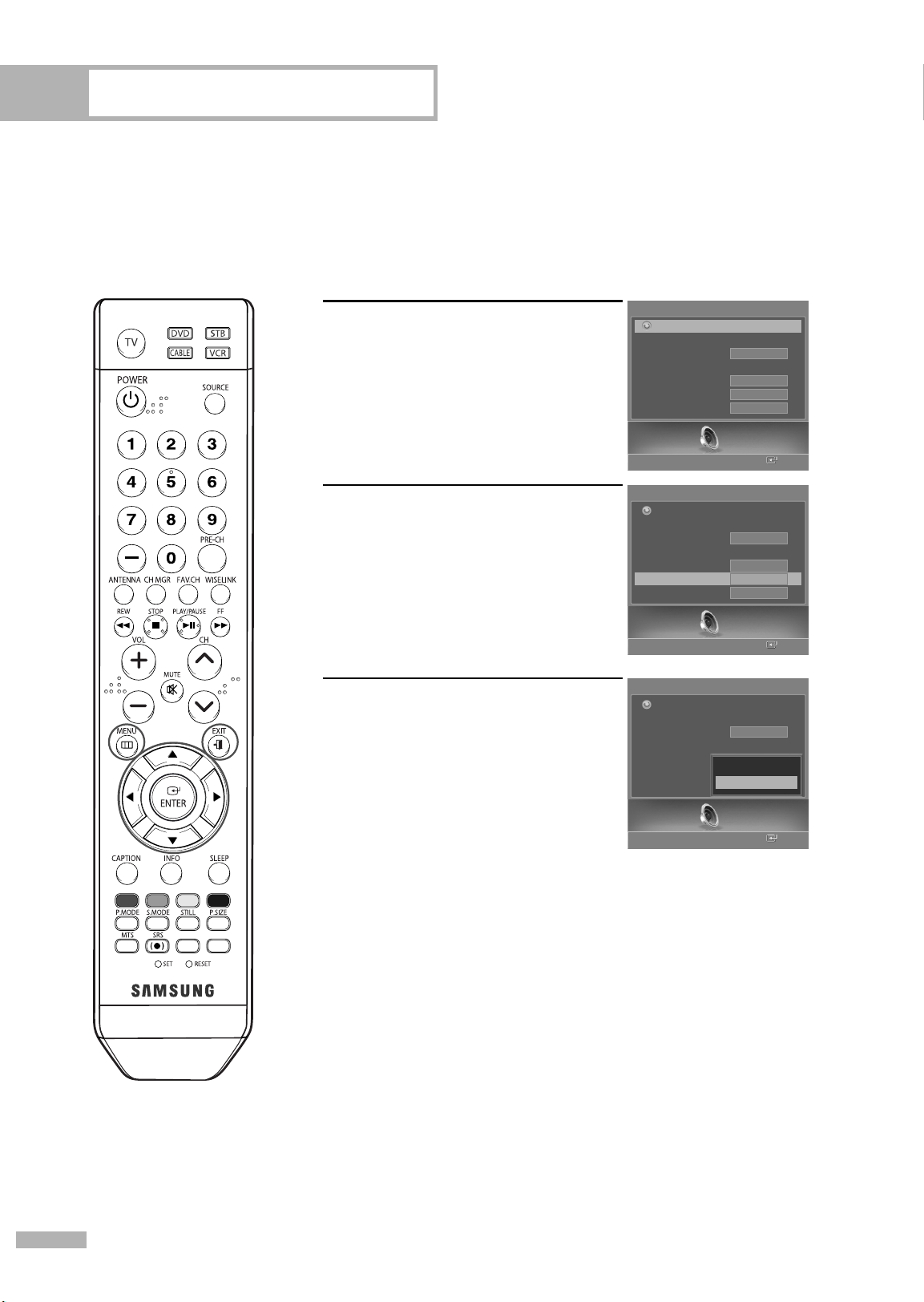

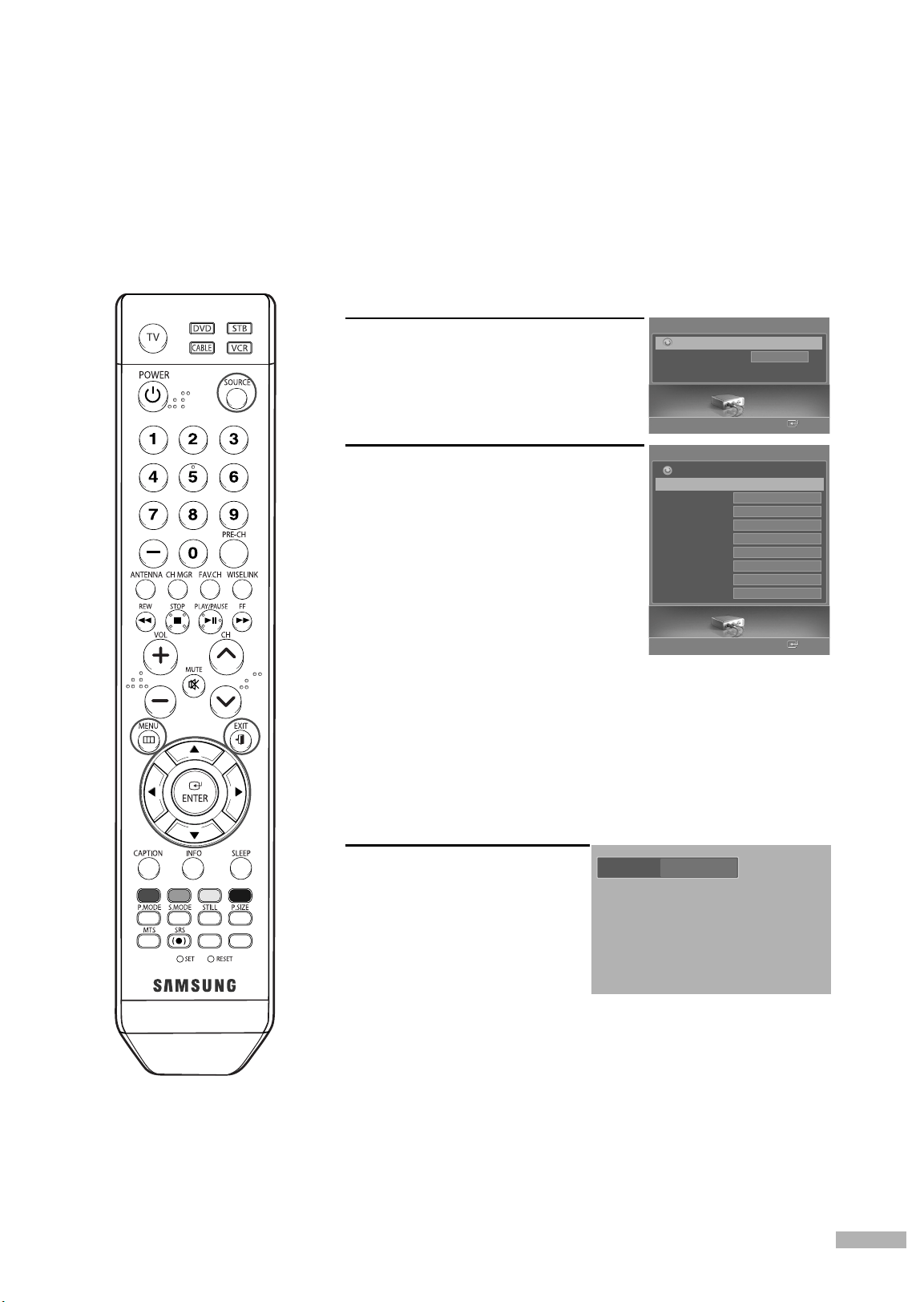

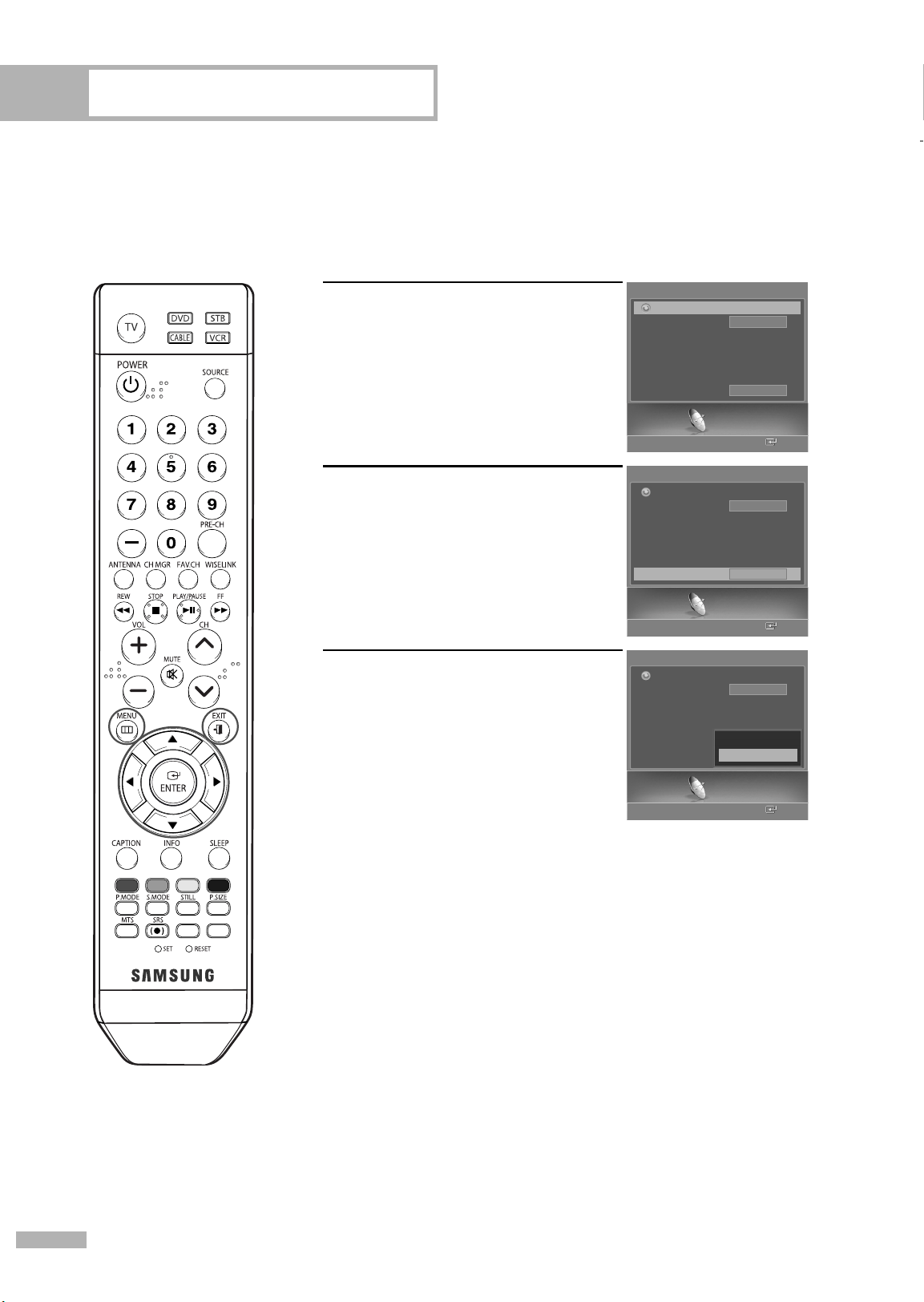

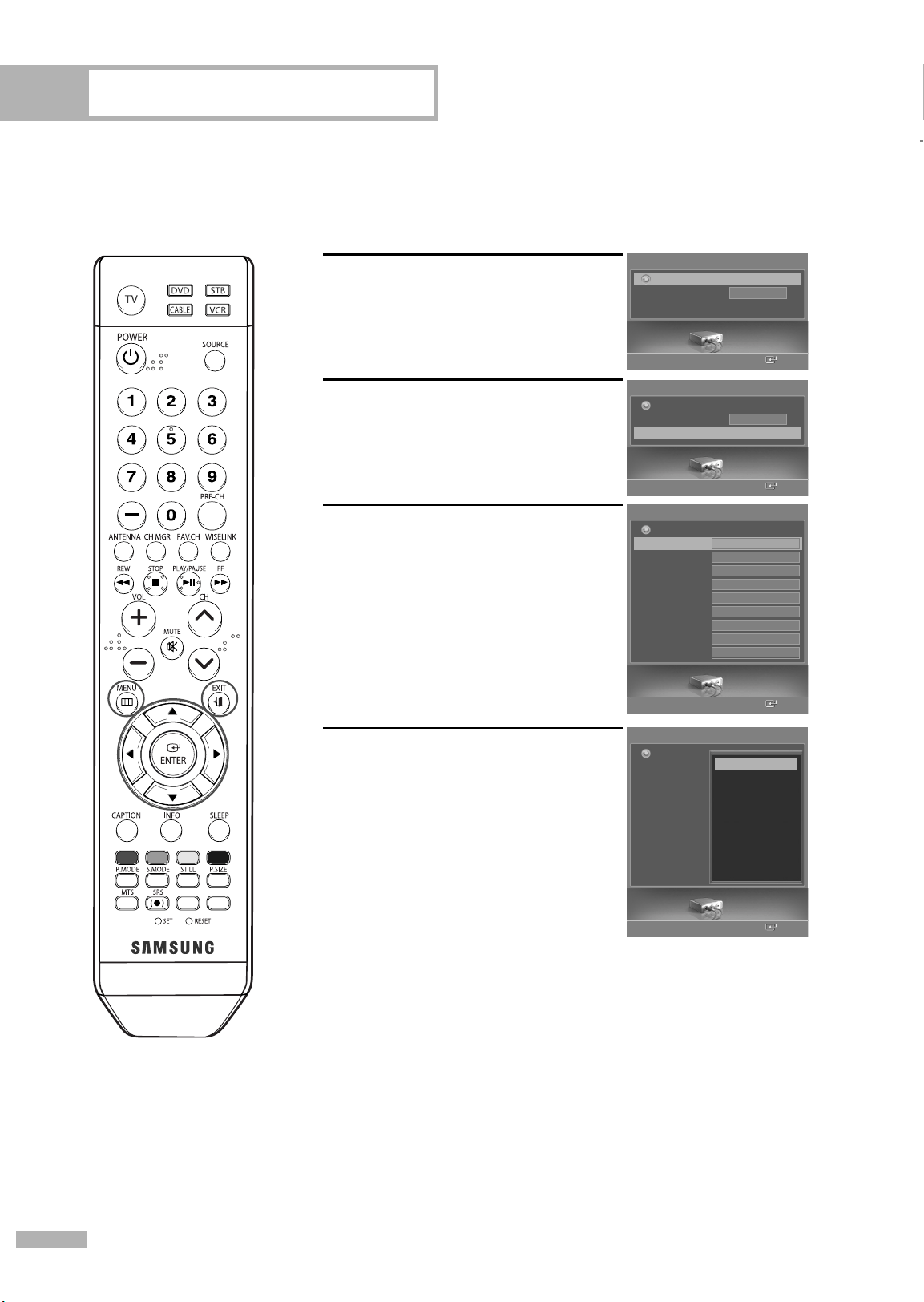

Selecting a Menu Language
When you start using your television for the first time, you must select the language which will
be used for displaying menus and indications.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Language”, then press the ENTER
button.
3
Press the … or † button to select
“English”, “Español” or “Français”,
then press the ENTER button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
Medium
Off
English
Español
Français
Return
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 30
English - 31

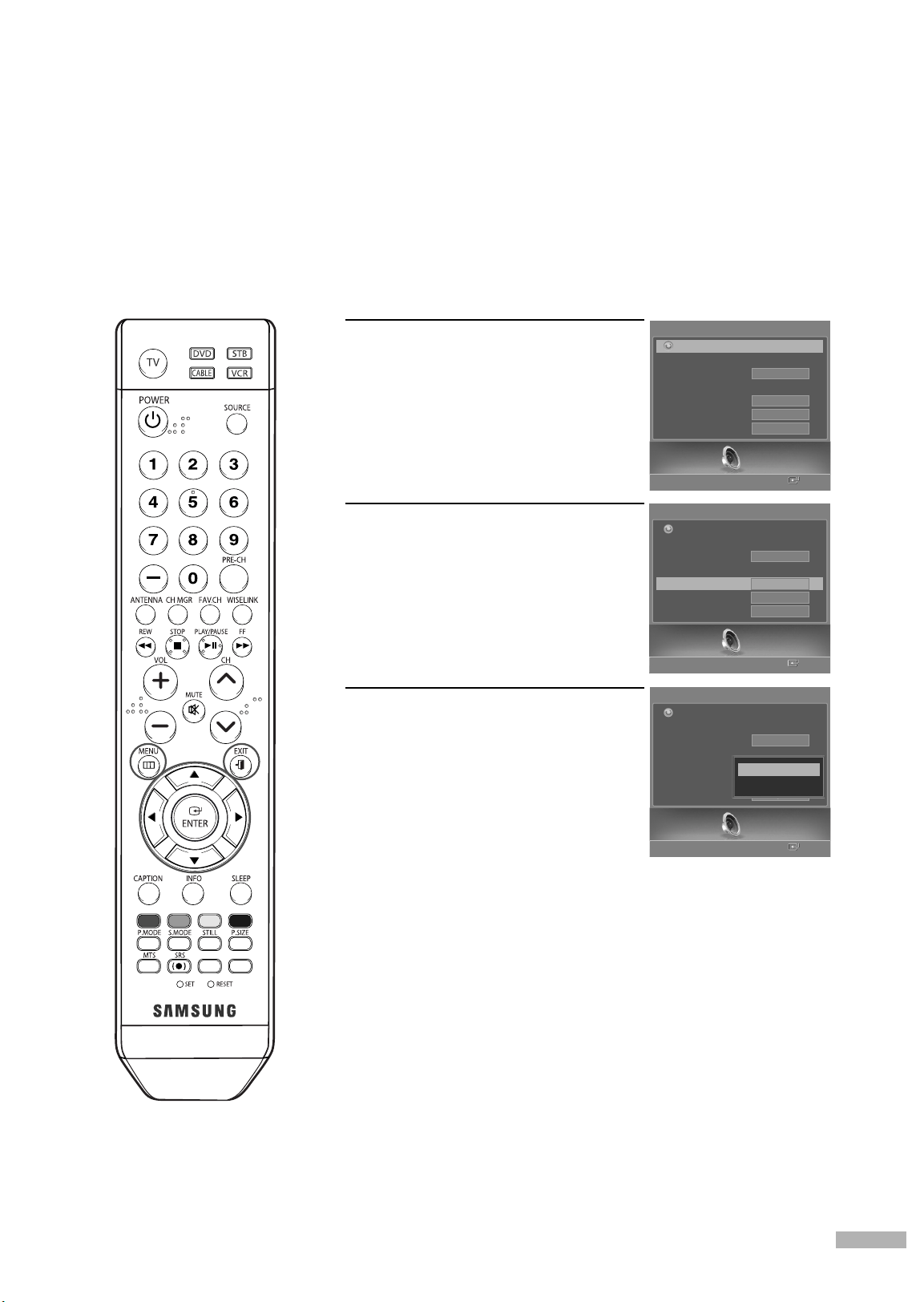

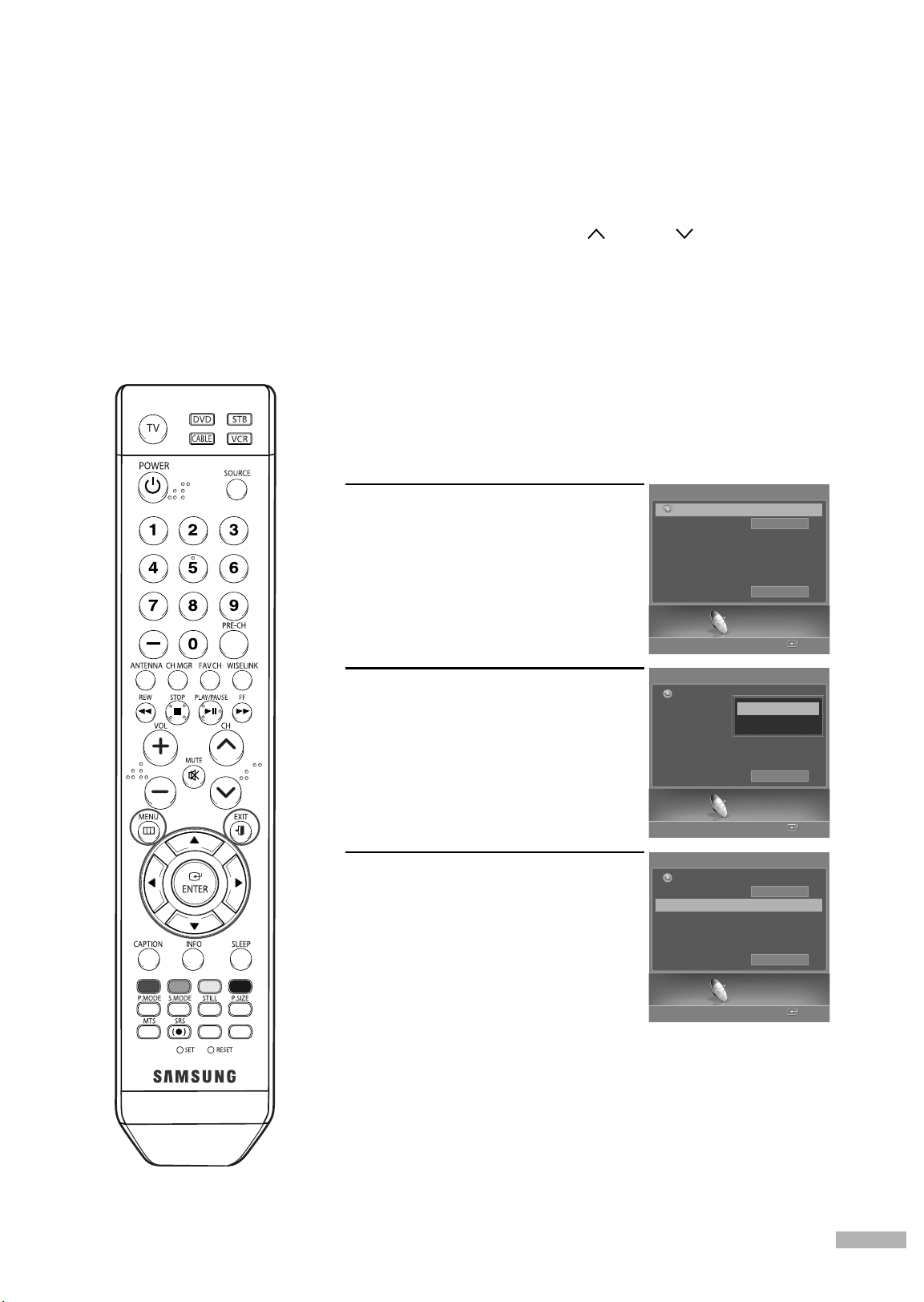

Memorizing Channels
Your TV can memorize and store all of the available channels for both “off-air” (antenna) and cable
channels. After the available channels are memorized, use the CH and CH buttons to scan
through the channels. This eliminates the need to change channels by entering the channel digits.
There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels
(automatic).
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“Antenna”, then press the ENTER
button.
Press the … or † button to select
“Air” or “Cable”, then press the
ENTER button.
3
Press the … or † button to select
“Auto Program”, then press the
ENTER button.
Continued...
Selecting the Video Signal Source
Before your television can begin memorizing the available channels,
you must specify the type of signal source that is connected to the TV
(i.e., an antenna or cable system).
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
On
Return
Channel
Enter
Channel
Antenna
Auto Program
√
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
Air
Cable
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 31

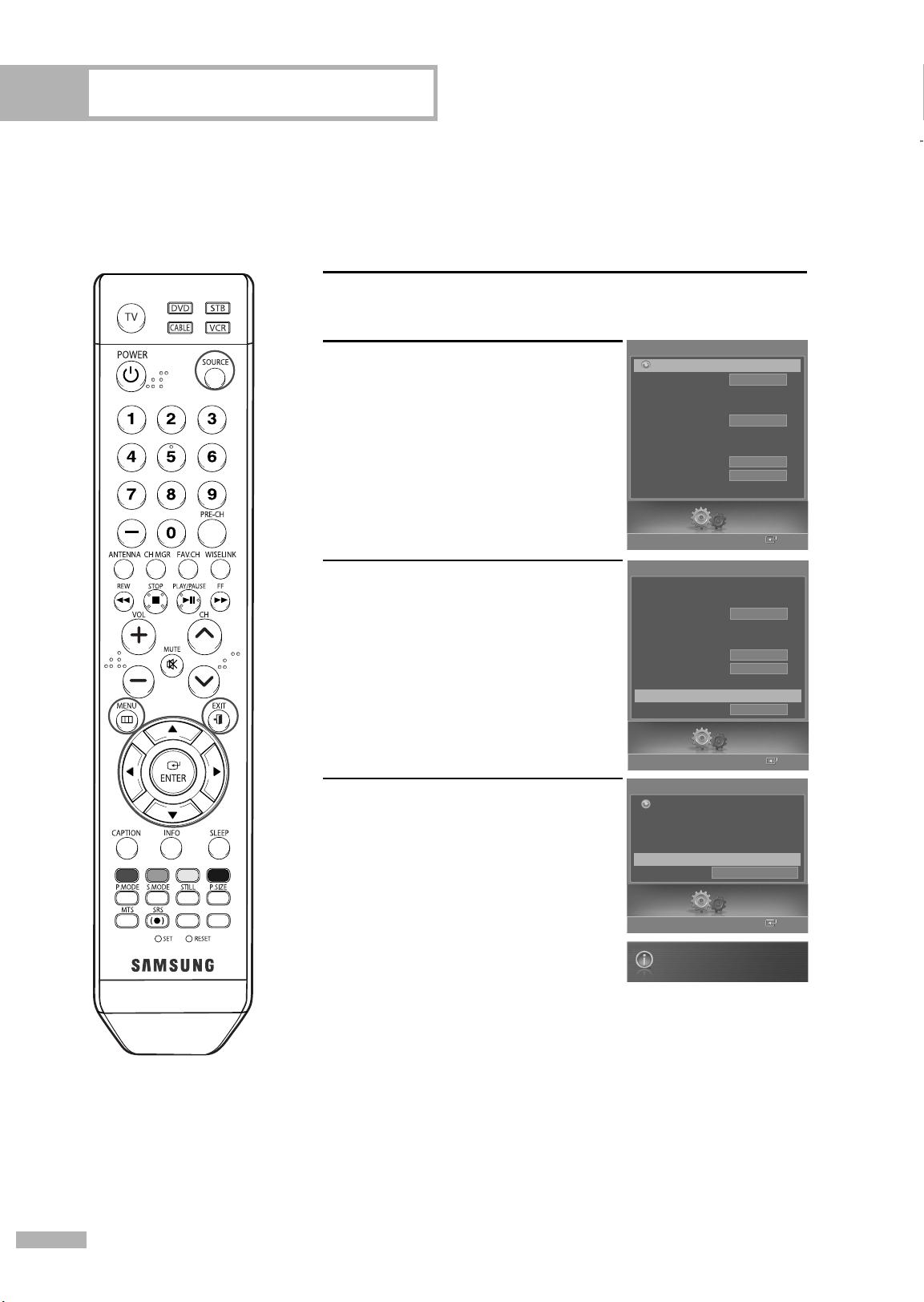

Operation
English - 32
4
Press the œ or √ button to select the Antenna connection,
then press the ENTER button.
When selecting Cable TV system:
Press the ENTER button to start the auto program.
By default, the cable TV system is set to “STD”.
If you want to select another type of cable system, press the
œ or √ button to select “STD”, “HRC” or “IRC”.
5
Press the ENTER to start the auto program.
The TV begins memorizing all available stations.
Press the ENTER button at any time to interrupt the
memorization process.
Select “Return” by pressing the … or † button, then press
the ENTER button to return to the previous menu.
Press the EXIT button to exit.
• Air : “Air” antenna signal
Cable : “Cable” antenna signal
Air+Cable : “Air” and “Cable” antenna signals
• STD, HRC and IRC identify various types of cable TV systems.
Contact your local cable company to identify the type of cable system
that exists in your particular area.
At this point the signal source has been selected.
• The TV must be connected to an antenna in order to
receive digital TV signals. Even if a particular channel
is deleted from the memory, you can always tune to that
channel directly by using the number buttons on the
remote control.
•When connecting Digital Cable to a Set-Top Box,
Channel Memorization is done on the STB.
To view the STB on your TV, select the Input jack the
STB is connected to with the SOURCE button on the
remote control. (see page 45)
NOTE
• All available DTV and analog channels are automatically stored in memory.
Auto Program
Select the antennas to memorize.
Air Cable Air+Cable
Auto Program
Select the cable system.
STD HRC IRC
Move Enter Return
Move Enter Return
Auto Program
Auto Program in progress.
Cable 3
85%
Stop
Enter Return
Auto Program
Auto Program is incompleted
8 channels were memorized.
Air : 7. Cable : 1
OK
Enter Return
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 32
English - 33

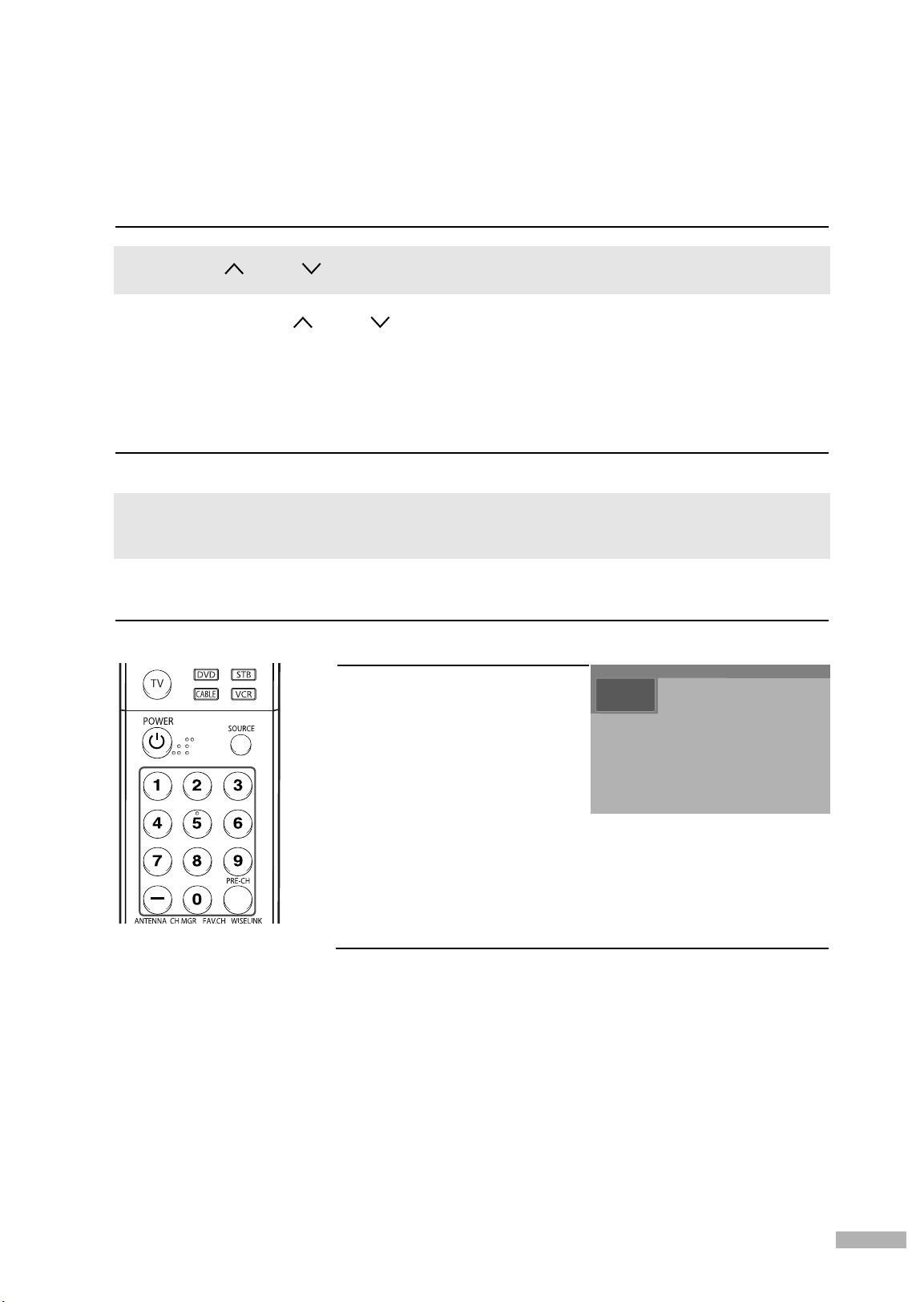

Changing Channels
Using the Channel Buttons
When you press the CH or CH button, the TV changes channels in sequence.
You will see all the channels that the TV has memorized.
(The TV must have memorized at least three channels.)
You will not see channels that were either erased or not memorized.
Using the Number Buttons
Use the number buttons to quickly switch to any channel.
Using the “
-
” Button
The “
-
” button is used to select stations that broadcast both a digital and analog signal.
For example, for channel 7-1
(digital), press “7”, then “
-
”,
then “1”.
Using the Previous Channel
Press the PRE-CH button.
The TV changes to the last channel you were watching.
Press the CH or CH button to change channels.
Press the number buttons to go directly to a channel. For example, to select channel 27, press
“2,” then “7.” The TV will change channels when you press the second number.
NOTE
• HD indicates the TV is
receiving a Digital High
Definition signal.
SD indicates the TV is
receiving a Analog
standard definition
signal.
DTV Air
7
-
1
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 33
Operation
English - 34
Customizing Your Remote Control
After it has been set up properly, your remote control can operate in five different modes: TV, VCR,
Cable, DVD, or Set-Top Box. Pressing the corresponding button on the remote control allows you to
switch between these modes, and control whichever piece of equipment you choose.
NOTE
• The remote control might not be compatible with all DVD Players, VCRs, Cable boxes,
and Set-Top Boxes.
Setting Up the Remote to Operate Your VCR
1
Turn off your VCR.
2
Press the VCR button on your TV’s remote control.
3
Press the SET button on your TV's remote control.
4
Using the number buttons on your remote control, enter three
digits of the VCR code listed on page 38 of this manual for your
brand of VCR. Make sure you enter three digits of the code, even
if the first digit is a “0”. (If more than one code is listed, try the
first one.)
5
Press the POWER button on the remote control.
Your VCR should turn on if your remote is set up correctly.
If your VCR does not turn on after set-up, repeat steps 2, 3 and 4,
but try one of the other codes listed for your brand of VCR.
If no other codes are listed, try each VCR code, 000 through 080.
Note on Using Remote Control Modes: VCR
When your remote control is in “VCR” mode, the volume buttons still
control your TV’s volume.
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 34
English - 35
Setting Up the Remote to Operate Your Cable Box
1
Turn off your cable box.
2
Press the CABLE button on your TV’s remote control.
3
Press the SET button on your TV's remote control.
4
Using the number buttons on your remote control, enter three
digits of the cable box code listed on page 39 of this manual for
your brand of cable box. Make sure you enter three digits of the
code, even if the first digit is a “0”.
(If more than one code is listed, try the first one.)
5
Press the POWER button on the remote control.
Your cable box should turn on if your remote is set up correctly.
If your cable box does not turn on after set-up, repeat steps 2, 3
and 4, but try one of the other codes listed for your brand of cable
box. If no other codes are listed, try each code, 000 through 046.
Note on Using Remote Control Modes: Cable Box
When your remote control is in “CATV” mode, the volume buttons
still control your TV’s volume.
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 35
English - 36
Operation
Setting Up the Remote to Operate Your DVD
1
Turn off your DVD.
2
Press the DVD button on your TV’s remote control.
3
Press the SET button on your TV's remote control.
4
Using the number buttons on your remote control, enter three
digits of the DVD code listed on page 40 of this manual for your
brand of DVD. Make sure you enter three digits of the code, even
if the first digit is a “0”. (If more than one code is listed, try the
first one.)
5
Press the POWER button on the remote control.
Your DVD should turn on if your remote is set up correctly.
If your DVD does not turn on after set-up, repeat steps 2, 3 and 4,
but try one of the other codes listed for your brand of DVD. If no
other codes are listed, try each code, 000 through 141.
Note on Using Remote Control Modes: DVD
When your remote control is in “DVD” mode, the volume buttons still
control your TV’s volume.
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 36
English - 37
Setting Up the Remote to Operate Your Set Top Box
1
Turn off your STB.
2
Press the STB button on your TV’s remote control.
3
Press the SET button on your TV's remote control.
4
Using the number buttons on your remote control, enter three
digits of the STB code listed on page 39 of this manual for your
brand of STB. Make sure you enter three digits of the code, even
if the first digit is a “0”. (If more than one code is listed, try the
first one.)
5
Press the POWER button on the remote control.
Your STB should turn on if your remote is set up correctly.
If your STB does not turn on after set-up, repeat steps 2, 3 and 4,
but try one of the other codes listed for your brand of STB.
If no other codes are listed, try each code, 000 through 074.
Note on Using Remote Control Modes: STB
When your remote control is in “STB” mode, the volume buttons still
control your TV’s volume
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 37
Operation
English - 38
Remote Control Codes
continued...
VCR
Brand
SAMSUNG
ADMIRAL
AIWA
AKAI
AUDIO DYNAMICS
BELL&HOWELL
BROKSONIC
CANDLE
CANON
CITIZEN
COLORTYME
CRAIG
CURTIS MATHES
DAEWOO
DB
DIMENSIA
DYNATECH
ELECTROHOME
EMERSON
FISHER
FUNAI
GENERAL ELECTRIC
GO VIDEO
LG(Goldstar)
HARMAN KARDON
HITACHI
INSTANT REPLAY
JC PENNEY
JCL
KENWOOD
KLH
LIOYD
LOGIK
LXI
JVC
MAGNAVOX
MARANTZ
MARTA
KONIA
ORION
MEI
MEMOREX
MGA
MIDLAND
MINOLTA
Code
000 001 002 003 004 005 077 078 079
020
025
004 027 032
007 026
018
022
002 003 006 008 015 055
021 056
002 003 006 008 015 055
007
002 024
002 007 008 017 021 025 056 064 066
003 010 011 012 013 014 015 016
007 026
017
025
034
001 003 006 021 022 025 030 032 034 040 047 050
052 060 063 065 066 067 069 073
018 024 028 029 048 051 061
025
002 005 017 021 056
002
006 007 008 009 010
007
019 025 041 042 074
021
002 007 018 019 021 026 037 041 054 056
007 008 018 021 026 037
007 008 018 026 037
070
025
038
025
081 082 083
021 056 059
007 008 018 021 026 037 062
006
036
073 074 075 076
021
006 021 024 025
034
005
019 041 075
Brand
MITSUBISHI
MONTGOMERY WARD
MTC
MULTITECH
NEC
OPTIMUS
PANASONIC
PENTAX
PENTEX RESEARCH+
PHILCO
PHILIPS
PIONEER
PORTLAND
PROSCAN
QUARTZ
QUASAR
RADIO SHACK/REALISTIC
RCA
SANSUI
SANYO
SCOTT
SEARS
SHARP
SHIMTOM
SIGNATURE
SONY
SYLVANIA
SYMPHONIC
TANDY
TASHIKA
TATUNG
TEAC
TECHNICS
TEKNIKA
TMK
TOSHIBA
TOTEVISION
UNITECH
VECTOR RESEARCH
VICTOR
VIDEO CONCEPTS
VIDEOSONIC
WARDS
YAMAHA
ZENITH
Code
019 034 041 046
020
002 025
002 005 025 038
007 008 018 026 037 062 064
020
021 056 071 072
019 041 075
008
021 056 059
021 080
019 026 039 053
015 049 055
017
018
021 056
006 018 020 021 024 025 029 034 048 056
002 017 019 021 035 041 043 057 068 076
026
018 024
003 047 052 067
006 018 019 024 028 029 041 048 051
020 034 045 015
027 033 038 058
025
027 033 044
021 025 056 059
025
018 025
006
037
025 037 068
021
006 021 025 031
066
003 019 029 051 052
002 006
002
007 026
026
007 026
002
002 003 006 019 020 021 024 025 034 038 041
007 008 018 026 037
023 027 033
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 38
English - 39
continued...
CABLE BOX
Brand
SAMSUNG
GI
HAMLIN
HITACHI
JERROLD
MACOM
MAGNAVOX
OAK
PANASONIC
PHILIPS
PIONEER
RCA
REGAL
Code
000 001 002 003 004 005 006 007
041
003 024 031
025 030
038 039
025 030
019 023 028
026
003 022 027 037 044
019 021 023 028
004 018 020 044
014 022 040
003
Brand
REGENCY
SA
SCIENTIFIC ATLAN
SPRUCER
STARGATE 2000
SYLVANIA
TEXSCAN
TOCOM
UNIVERSAL
VIEWSTAR
WAMER AMEX
ZENITH
Code
015 023
042 043
042 043
022
036
016
016
032
033 034
019 021 023 028
046
017 029 035 037 045
SAMSUNG SET-TOP BOX
Product
Ground wave STB
Satellite STB
CABLE STB
STB DVD COMBO
Satellite STB HDD COMBO Standard
Code
001 002
003
004
008
009
Product
Satellite STB HDD COMBO Premium
CABLE STB HDD COMBO Standard
CABLE STB HDD COMBO Premium
Ground wave STB HDD COMBO Standard
Ground wave STB HDD COMBO Premium
Code
010
011
012
013
014
SET-TOP BOX
Code
023
043
018 034
019
035
015 016 017 019 022 045 060 061 062 065 066 067
068
074
069 070
069
018 024 032
027
025 069 070 071
069
069
065
046 047 048 063 064
069
056
022
015 017
020
020
059
063
069 070
Brand
ALPHASTAR
ANAM
CHANNEL MASTER
CROSSDIGITAL
CHAPARRAL
DIRECT TV
DAEWOO
DISH NETWORK SYSTEM
DISHPRO
DRAKE
DX ANTENNA
ECHOSTAR
EXPRESSVU
GOI
GE
GENERAL INSTRUMENT
HTS
HOME CABLE
HITACHI
HUGHES NETWORK
IQ
IQ PRISM
JANEIL
JERROID
JVC
Brand
LG(Goldstar)
MAGNAVOX
MEMOREX
MOTOROLA
MACOM
MITSUBISHI
NEXT LEVEL
PHILIPS
PRIMESTAR
PANASONIC
PAYSAT
PROSCAN
RCA
RADIOSHACK
REALISTIC
STS
STAR TRAK
SKY
SKY LIFE
SHACK
STAR CHOICE
SONY
TOSHIBA
ULTIMATE TV
UNIDEN
ZENITH
Code
044 073
016 021 036 038 039 040 041 042
016
064
018
015
047 048 064
015 016 017 021 033 036 038 039 040 041 042 067
046 049 050 063
058 059 061 062
016
065 066
051 052 053 065 066
064
057
020 027
026
031
005 006 007
064
064
054 060
015 017 028 029 030 072
060 066
016 021 037 055 056 057
024 031 068
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 39
Operation
English - 40
SAMSUNG DVD
Product
DVD
DVDR
BD Record
VCR COMBO
VCR Record
DHR COMBO
Code
000 001 002
003 004
005 006
007 008 009 010 011
012
013
Product
Home Theater VCR COMBO
HDD Record COMBO
TWIN TRAY COMBO
STB DVD COMBO
DVD Receiver
AV Receiver
Code
014 015 016
017
018
019
020
021
DVD
Code
030
075
085
072
070 071 074 086 083 084 088 111 112
114
062
074
122 123
027
065 077 078 079 082
080 125
081
095
066
146
067 068
090
060
061 089 133 135
069 074
074
064 113
071
073
091 110
089
092
091
022 033 115 116
073
051 108 109
073
059 100 106 107
074 075
025 031
057
058
054
055
056
076 093
074 094
073
Brand
ANAM
AUDIOVOX
AUDIOLOGIC
ANABA
APEX DIGITAL
AIWA
BROKSONIC
BLAUPUNKT
B&K
CURTIS MATHES
CYBER HOME
CLARION
CIRRUS
CINEVISION
DAEWOO
DENON
FARENHEIT
FISHER
GPX
GO VIDEO
GE
GREENHILL
HITACHI
HITEKER
HOYO
HARMAN / KARDON
IRT
INTEGRA
JBL
JVC
JATON
KENWOOD
KISS
KONKA
KLH
LG(Goldstar)
LOEWE
LASONIC
MOBILE AUTHORITY
MEMOREX
MALATA
MAGNAVOX
MINTEK
MONYKA
Brand
NORCENT
NEXT BASE
NEC
NANTAUS
NESA
OPTOMEDIA ELECTRONICS
OPTIVIEW
ONKYO
PHILCO
PRINCETON
PROSCAN
PANASONIC
PHILIPS
ROTEL
RIO
RCA
RAITE
ROWA
SAMPO
SONY
SHERWOOD
SVA
SYLVANIA
SHARP
SANSUI
SANYO
SHINSONIC
SANYO
THOMSON
TOSHIBA
TECHNICS
TVIEW
TOKAI
TEAC
TECHWOOD
TREDEX
URBAN CONCEPTS
VENTURER
VOCOPRO
YAMAHA
YAMAKAWA
XWAVE
ZENITH
Code
048 049 050
052
053
144
074
105
072
076 092 119
044 045
046 047
023
024 034 124 134 136 137 138
036 076
117 118
120
023 035 074 075 131 132
073
038
104
026 029 126 127 128 129 130 141
039 041
042
043 093
140
062
062
094
090
145
028 062 076
139
072
073
096
097
098 099 101
076
075
102
032 063
040 073
103
076 121
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 40
English - 41

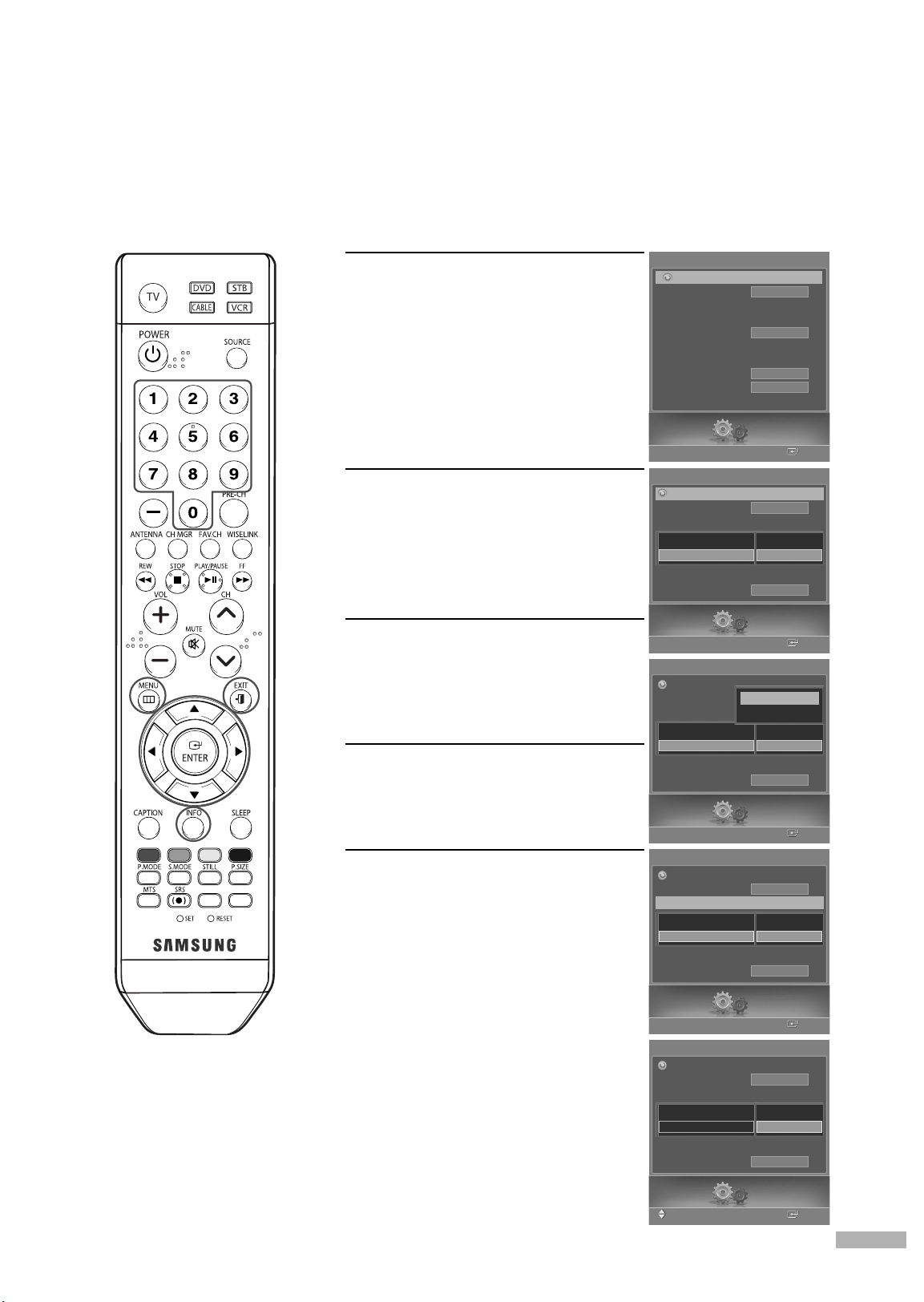

Setting the Clock
Setting the clock is necessary in order to use the various timer features of the TV.
Also, you can check the time while watching the TV. (Just press the INFO button.)
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Clock”, then press the ENTER
button.
3
Press the … or † to select “Clock
Mode”, then press the ENTER button.
Press … or † to select “Manual”,
then press the ENTER button.
4
Press the … or † button to select
“Clock Set”, then press the ENTER
button.
5
Press the œ or √ button to move to
“Month”, “Day”, “Year”, “Hour”,
“Minute”, or “am/pm”.
Set the time you want by pressing
the … or † button, then press the
ENTER button.
The time set in the Clock Set will
appear.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Option 1: Setting the Clock Manually
•You can set the month, day,
year, hour and minute directly by
pressing the number buttons on
the remote control.
Setup
Enter
Clock
Clock Mode
Clock Set
Time Zone
DST
Auto
--
:
-- --
Off
Return
Month / Day / Year
-- . -- . ----
Hour / Minute
-- : -- --
Setup
Enter
Clock
Clock Mode
Clock Set
Time Zone
DST
Manual
--
:
-- --
Off
Return
Month / Day / Year
-- . -- . ----
Hour / Minute
-- : -- --
Setup
Enter
Clock
Clock Mode
Clock Set
Time Zone
DST
Manual
Off
Return
Month / Day / Year
1
.
1
.
2006
Hour / Minute
12
:
00 am
Setup
Enter
Clock
Clock Mode
Clock Set
Time Zone
DST
--
:
-- --
Off
Return
Month / Day / Year
-- . -- . ----
Hour / Minute
-- : -- --
Manual
Auto
…
†
Adjust
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
NOTE
• The current time will
appear every time you
press the INFO button.
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 41
Operation
English - 42

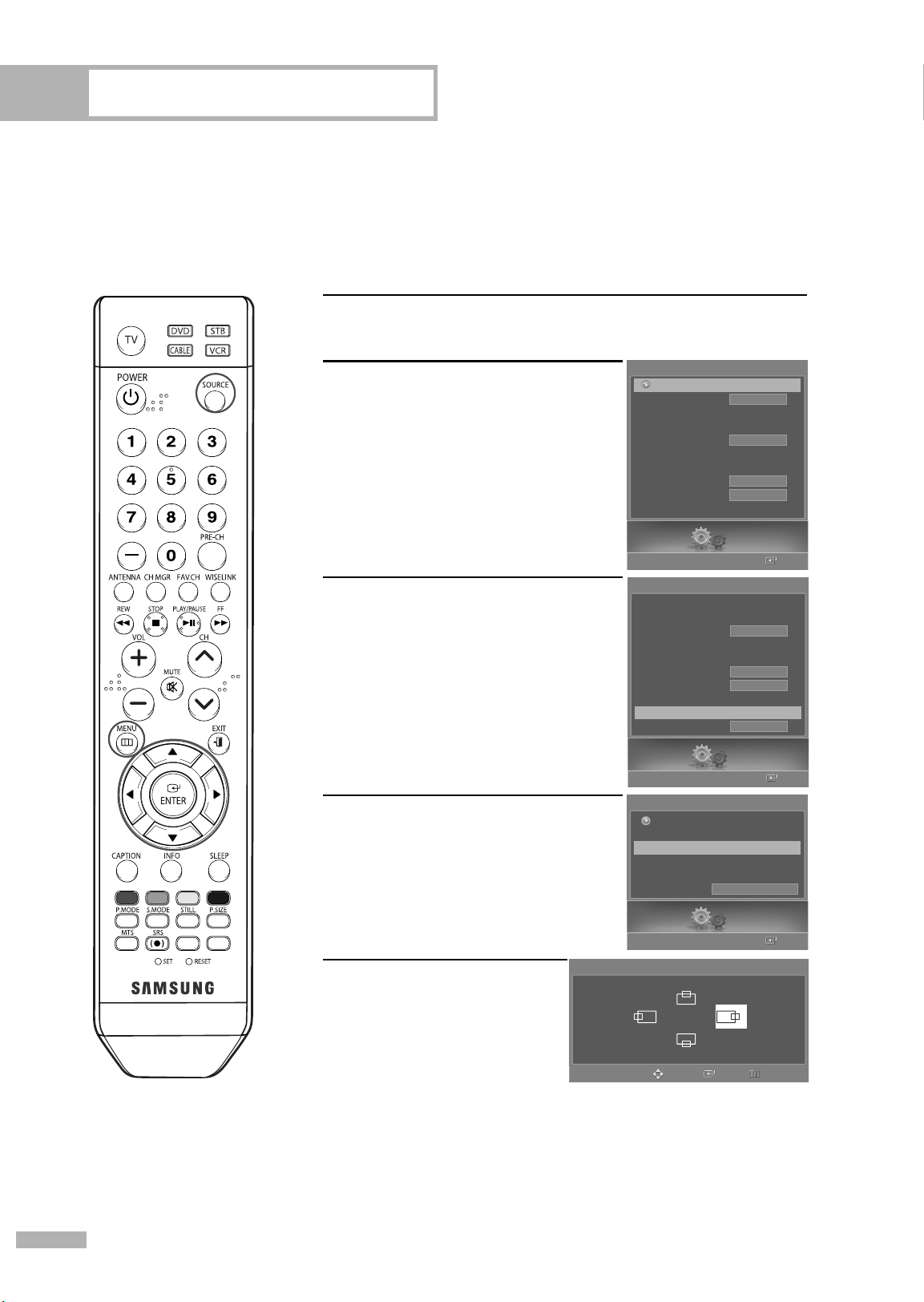

Option 2: Setting the Clock Automatically
The Clock can be set automatically if you are receiving a digital signal.
1
Press the MENU button.
Press the œ or √ button to select “Setup”, then press the ENTER
button.
2
Press the … or † button to select “Clock”, then press the ENTER
button.
3
Press the … or † button to select “Clock Mode”, then press the
ENTER button.
Press the … or † button to select “Auto”, then press the ENTER
button.
4
Press the … or † button to select “Time Zone”, then press the
ENTER button.
Press the … or † button to highlight the time zone for your
local area (and to move the highlight to the appropriate
time zone on the map of the United States), then press the
ENTER button.
5
Press the … or † button to select “DST”(Daylight Saving Time),
then press the ENTER button.
Press the … or † button to select “Off” or “On”, then press the
ENTER button.
Select “Return” by pressing the … or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
Clock
Clock Mode
Clock Set
Time Zone
DST
Manual
--
:
-- --
Off
Return
Month / Day / Year
-- . -- . ----
Hour / Minute
-- : -- --
Setup
Enter
Clock
Clock Mode
Clock Set
Time Zone
DST
--
:
-- --
Off
Return
Month / Day / Year
-- . -- . ----
Hour / Minute
-- : -- --
Manual
Auto
• When you set up Auto Time, the set time may not be
correct depending on the broadcasting station and signal.
If there is a difference between the real time and set time,
please set the time manually.
Time Zone
Select the time zone where you are located.
Newfoundland
Atlantic
Eastern
Central
Mountain
Pacific
Alaska
Hawaii
Move Enter Return
Setup
Enter
Clock
Clock Mode
Clock Set
Time Zone
DST
Auto
--
:
-- --
Return
Month / Day / Year
-- . -- . ----
Hour / Minute
-- : -- --
Off
On
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 42
English - 43

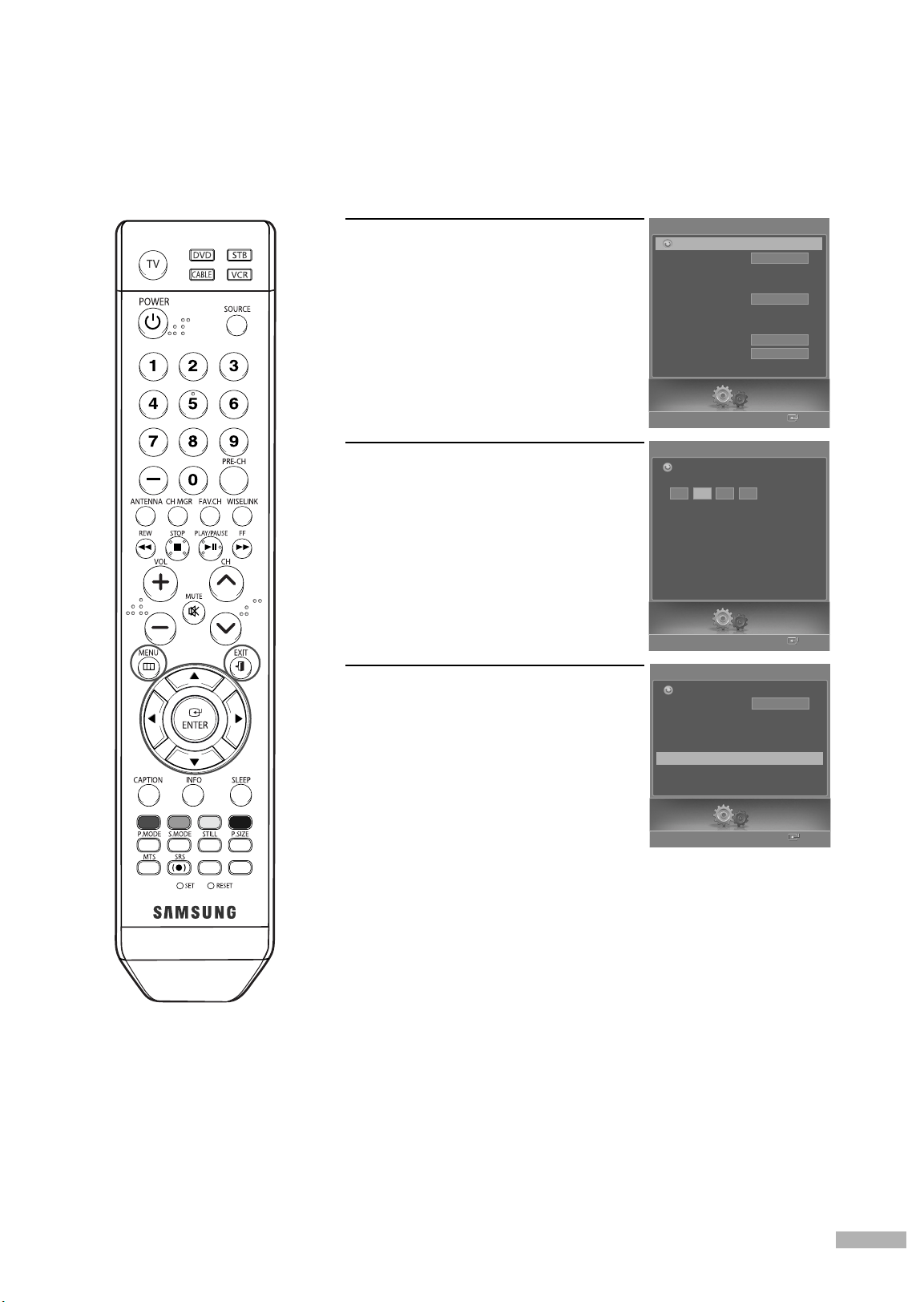

Setting the On/Off Timer
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Timer”, then press the ENTER button.
Press the … or † button to select
“On Timer”, then press the ENTER
button.
Press the … or † button to adjust
“Hour/Minute”, then press the
√ button to move to the next step.
Set other items using the same
method as above.
To activate On Timer with the setting
entered, set Options to “Once, Daily,
Mon~Fri, or Mon~Sat” by pressing
… or † button. Press the ENTER
button.
3
Press the … or † button to select
“Off Timer”, then press the ENTER
button.
Press the … or † button to adjust
“Hour/Minute”, then press the √
button to move to the next step.
Set other items using the same
method as above.
To activate Off Timer with the setting
entered, set Options to “Once, Daily,
Mon~Fri, or Mon~Sat” by pressing
… or † button. Press the ENTER button.
When finished, select “Return” by pressing … or † button and
ENTER button to return to the previous menu.
Press the EXIT button to exit.
•You can set the hour, minute,
and channel directly by pressing
the number buttons on the
remote control.
NOTE
• Auto Power Off
When you set the timer
“On”, the television will
eventually turn off, if no
controls are operated for
3 hours after the TV was
turned on by the timer.
This function is only
available in timer “On”
mode and prevents
overheating, which may
occur if a TV is on for too
long (when you are on
vacation, for example).
Setup
Enter
Timer
On Timer
off
Off Timer
off
Return
Hour / Minute
12 : 00 am
Channel
Air 3
Hour / Minute
12 : 00 am
Options
Off
---
Sleep Timer
Volume
10
Options
Off
Setup
Enter
Timer
On Timer
12 : 00 am
Off Timer
Return
Hour / Minute
12 : 00 am
Channel
Air 3
Hour / Minute
12 : 00 am
Options
Off
---
Sleep Timer
Volume
10
Options
Off
Setup
Enter
Timer
On Timer
Off Timer
12 : 00 am
Return
Hour / Minute
12 : 00 am
Channel
Air 3
Hour / Minute
12 : 00 am
Options
Off
---
Sleep Timer
Volume
10
Options
Off
…
†
…
†
Adjust
Adjust
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 43
English - 44
Operation

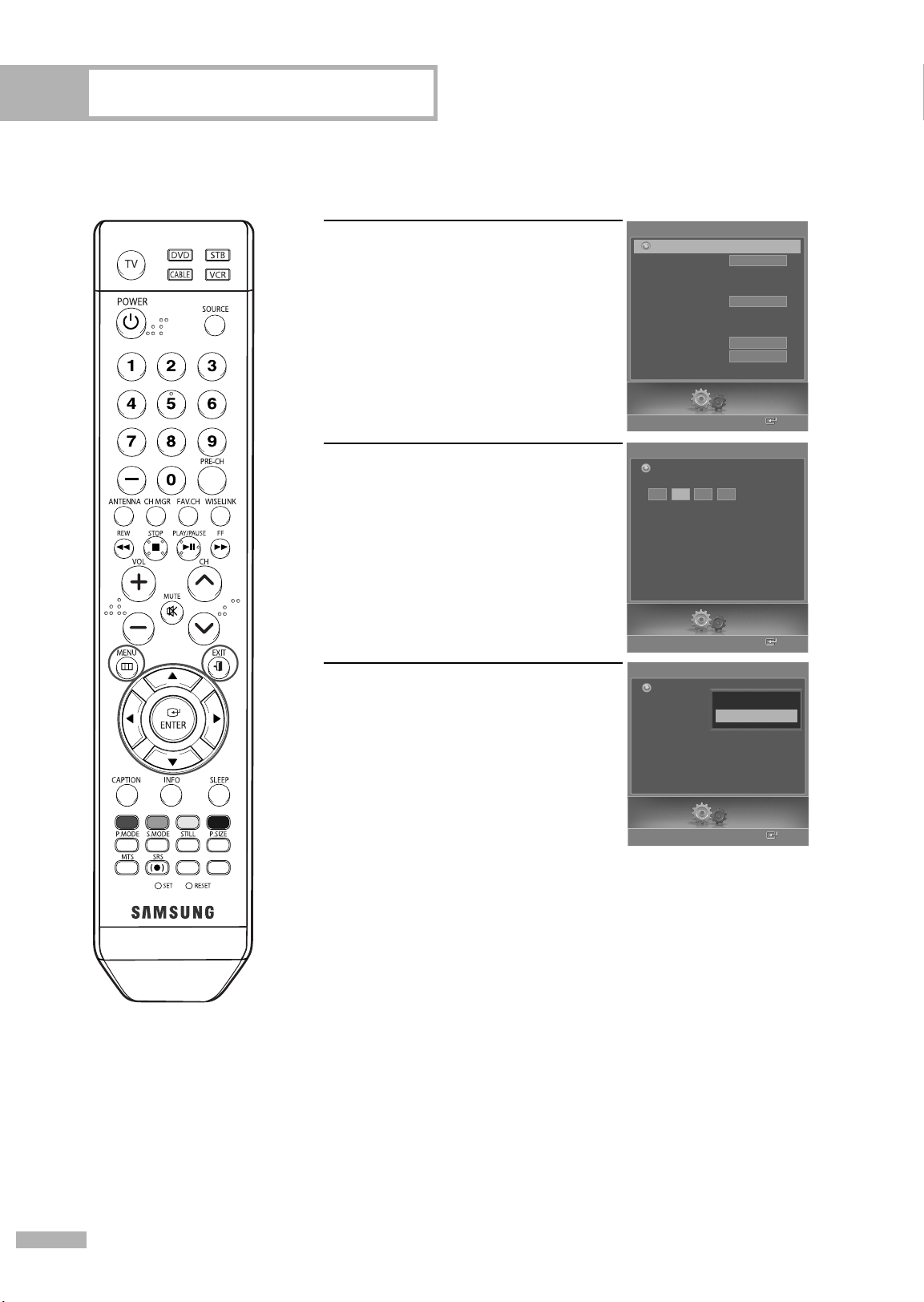

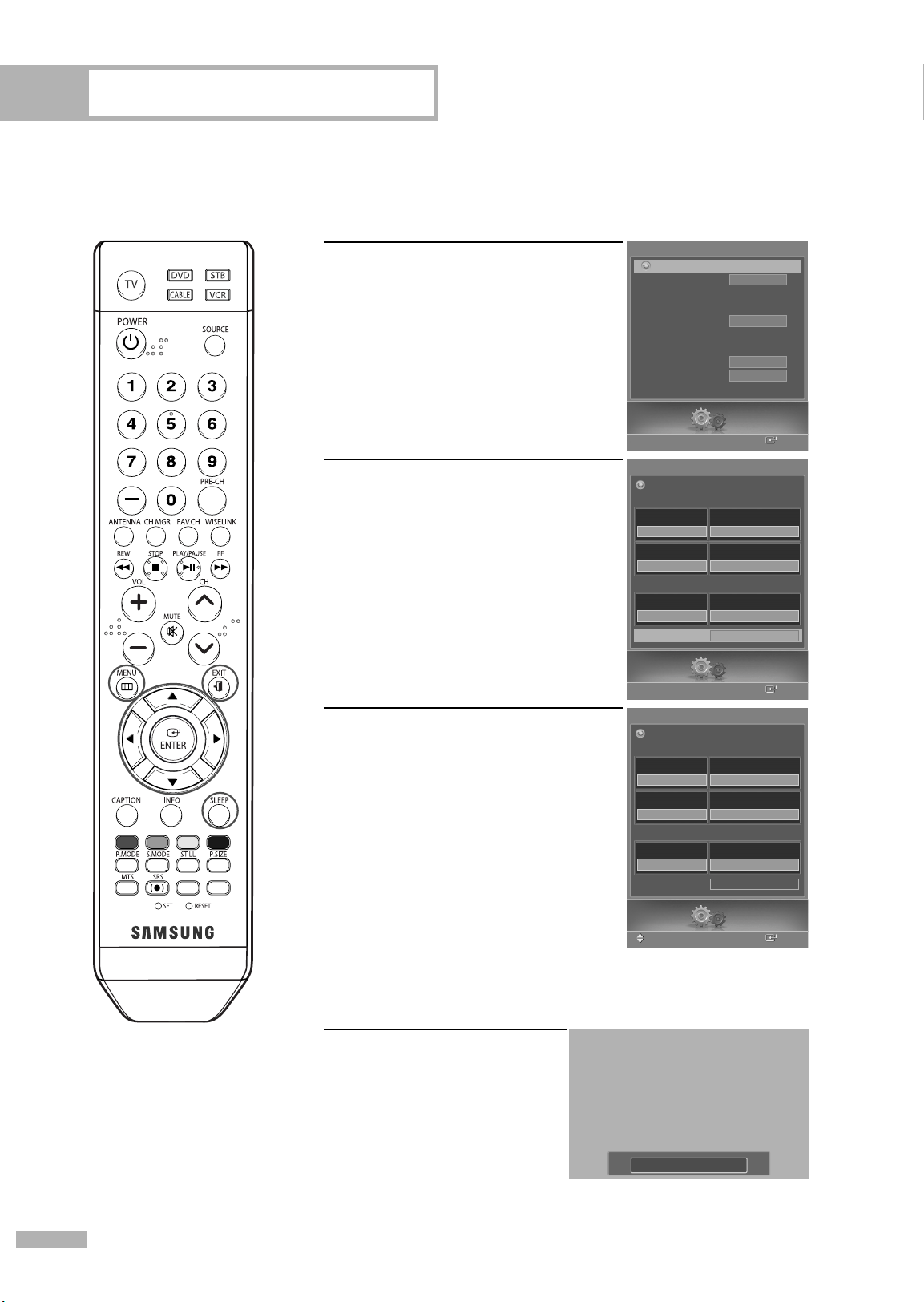

Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time (from 30 to 180 minutes).
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Timer”, then press the ENTER button.
Press the … or † button to select
“Sleep Timer”, then press the ENTER
button.
3
Press the … or † button to set sleep
timer to “
--
(off), 30 min, 60 min,
90 min, 120 min, 150 min, or
180 min”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the SLEEP button on the
remote control repeatedly until the
appropriate time interval appears
(any of the preset values from
“30 min” to “180 min”).
Setup
Enter
Timer
On Timer
12 : 00 am
Off Timer
12 : 00 am
Return
Hour / Minute
12 : 00 am
Channel
Air 3
Hour / Minute
12 : 00 am
Options
Daily
---
Sleep Timer
Volume
10
Options
Once
Setup
Enter
Timer
On Timer
12 : 00 am
Off Timer
12 : 00 am
Return
Hour / Minute
12 : 00 am
Channel
Air 3
Hour / Minute
12 : 00 am
Options
Daily
30 minSleep Timer
Volume
10
Options
Once
…
†
Adjust
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Sleep Timer : 90 min
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 44
English - 45

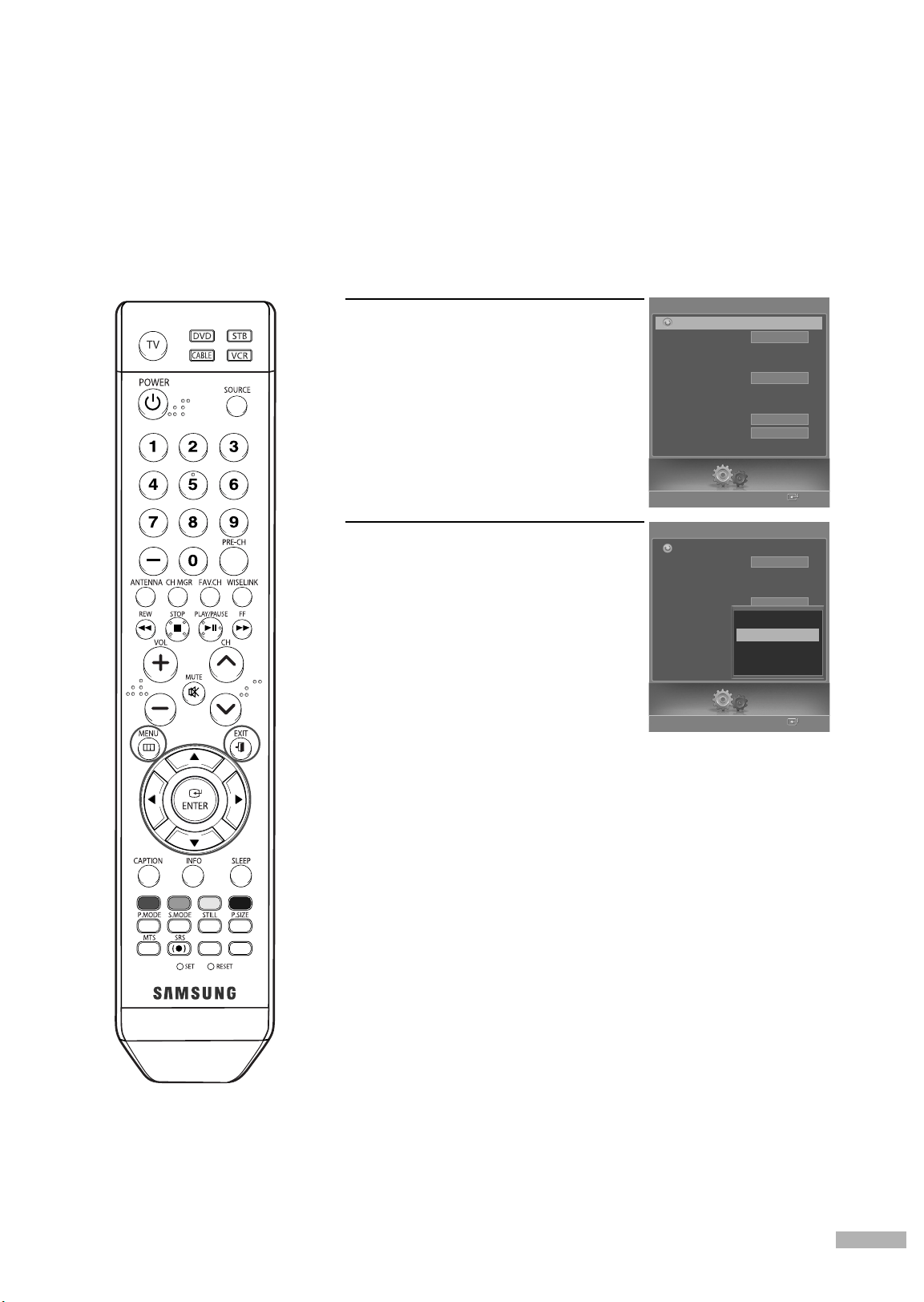

Viewing an External Signal Source
Use the remote control to switch between viewing signals from connected equipment,
such as a VCR, DVD, Set-Top Box or the TV source (broadcast or cable).
Setting the Signal Source
1
Press the MENU button.
Press the ENTER button to select
“Input”.
2
Press the … or † button to select
“Source List”, then press the ENTER
button.
Press the … or † button to select a
signal source, then press the ENTER
button.
Alternate method
Press the SOURCE button on the
remote control repeatedly to
select an external signal source.
NOTES
• Only connected devices can be selected.
• Before selecting an input source, make sure the corresponding
external device is connected first.
• HDMI input can be selected only when the external device is
turned on and connected to the TV.
• When you connect equipment to
the TV, you can choose between
the following sets of jacks:
“AV1”, “AV2”, “S-VIDEO1”,
“S-VIDEO2”, “COMPONENT1”, “COMPONENT2”, “PC”,
“HDMI1”, or “HDMI2” on the TV’s rear panel and “AV3” on
the TV’s side panel.
Input
Enter
Input
Source List
Edit Name
TV
Return
Input
Enter
Source List
TV
√
AV1
AV2
AV3
S-Video1
S-Video2
Component1
Component2
†
PC
----
----
----
----
----
----
----
----
Return
AV1
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 45
English - 46
Operation
Assigning Names to External Input Mode
This feature enables you to name the input source you have connected.
1
Press the MENU button.
Press the ENTER button to select
“Input”.
2
Press the … or † button to select
“Edit Name”, then press the ENTER
button.
3
Press the … or † button to select a
signal source to edit, then press the
ENTER button.
4
Press the … or † button to select the
external device : VCR, DVD, D-VHS,
Cable STB, HD STB, Satellite STB,
PVR STB, AV Receiver, DVD Receiver,
Game, Camcorder, DVD Combo,
DVD HDD Recorder, PC, Internet TV
Recv., Interactive TV Recv., VOD
(Video On Demand) STB, TV.
Press the ENTER button.
Set other signal sources (AV2, AV3,
S-Video1, S-Video2, Component1, Component2, PC, HDMI1,
HDMI2) using the same method as listed above.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
Input
Enter
Edit Name
AV1
AV2
AV3
S-Video1
S-Video2
Component1
Component2
PC
†
HDMI1
----
----
----
----
----
----
----
----
----
Return
Input
Enter
Edit Name
AV1
AV2
AV3
S-Video1
S-Video2
Component1
Component2
PC
†
HDMI1
Return
Input
Enter
Input
Source List
Edit Name
TV
Return
Input
Enter
Input
Source List
Edit Name
√
TV
Return
----
VCR
DVD
D-VHS
Cable STB
HD STB
Satellite STB
†
PVR STB
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 46
Channel Control
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 47
Channel Control
English - 48

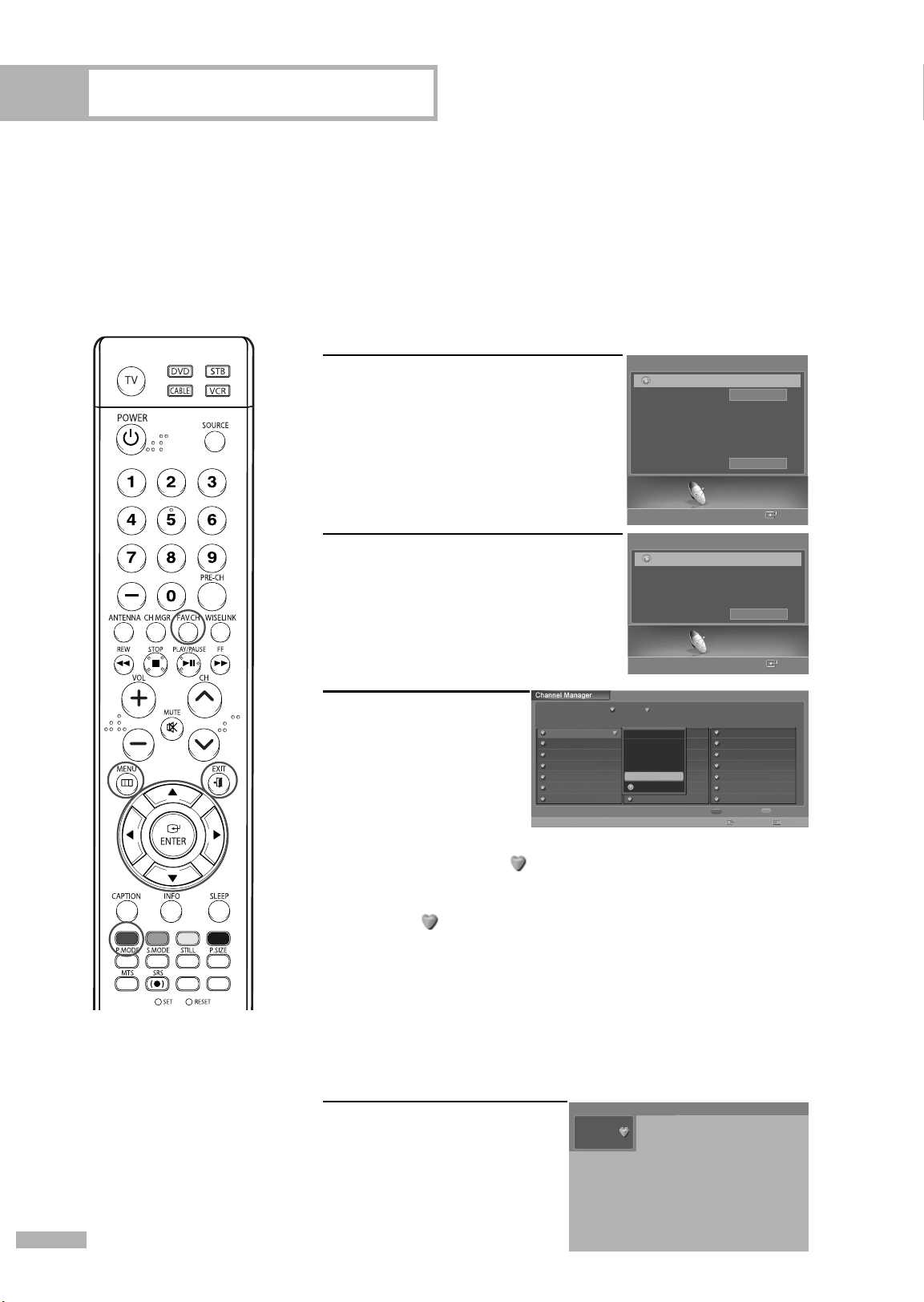

Selecting Your Favorite Channels
You can store your favorite channels for each available input source (such as TV and CATV).
This allows you to quickly and easily find frequently watched channels by pressing the FAV.CH button on
the remote control.
Preset : To use the Channel Manager function, first run Auto Program (see pages 31~32).
To Store Your Favorite Channels:
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“Channel Manager”, then press the
ENTER button.
Press the … or † button to select
“All”, then press the ENTER button.
3
Press the …/†/œ/√
button to select a
channel, then press
the ENTER button and
option window will
appear. Press the
… or † button to select
“Favorite”, then press the
ENTER button and a mark, designating the channel as a
Favorite Channel will appear.
Press the ENTER button again to deselect the selected channel
and the mark will disappear.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
To View Your Favorite Channels:
Select Channel menu ➔ Channel
Manager ➔ Favorite
Press the FAV.CH button
repeatedly to jump from one
favorite channel to another.
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
Channel
All
Added
Favorite
Default List Mode
All
Return
• Red button (List Mode) : If you press the Red button repeatedly,
the All Channel List, the Added Channel List or the Favorite
Channel List is selected sequentially.
All Channel List
Air 2 Added Favorite
List Mode Delete All
2
5
8
11
14
17
20 21
4
7
10
13
16
19
22
Return
Watch
Add
Delete
Name
Favorite
Return
Air
2
Enter
NOTE
• Only memorized
channels can be set
as Favorite channels.
Channel
Enter
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 48
English - 49

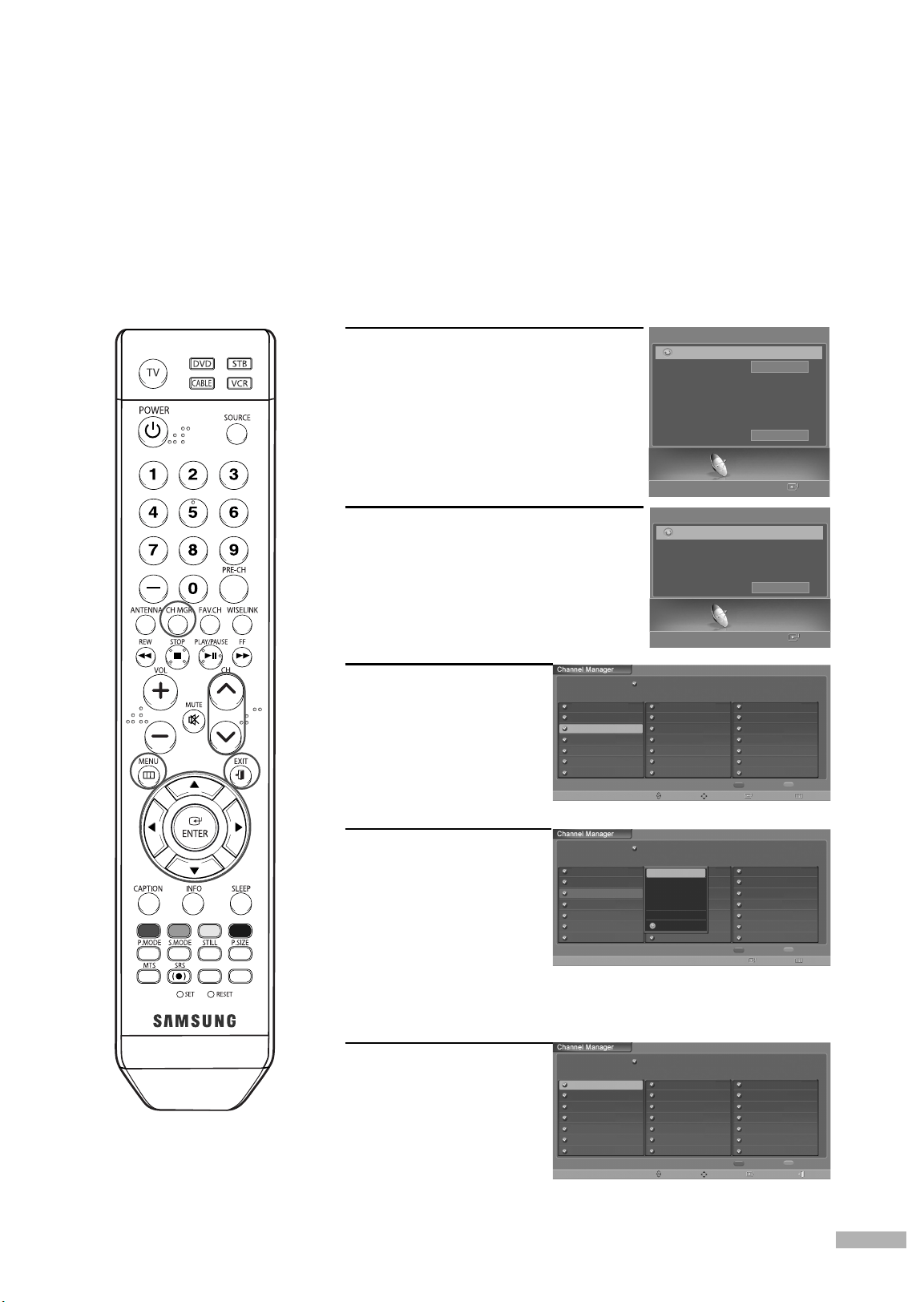

Viewing the Channel Lists
You can display a list of all channels, added channels, or your favorite channels.
Preset : To use the Channel Manager function, first run Auto Program (see pages 31~32).
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“Channel Manager”, then press
the ENTER button.
Press the … or † button to select
“All”, then press the ENTER button.
3
If you want to watch
the channel, press the
…/†/œ/√ buttons to
select a channel, then
press the ENTER button
and the option window
will appear.
4
Press the ENTER button
to select “Watch”, then
press the ENTER button
again.
The selected channel
broadcasting window
will appear.
Alternate method
Press the CH MGR button
on the remote control to
display a list of channels.
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
All Channel List
Air 2
Added
List Mode Delete All
2
5
8
11
14
17
20
3
6
9
12
15
18
21
4
7
10
13
16
19
22
All Channel List
Air 2
Added
List Mode Delete All
2
5
8
11
14
17
20
3
6
9
12
15
18
21
4
7
10
13
16
19
22
All Channel List
Air 8 Added
List Mode Delete All
2
5
8
11
14
17
20 21
4
7
10
13
16
19
22
Enter Return
Watch
Add
Delete
Name
Favorite
Return
EnterMove ExitPage
Return
EnterMovePage
Channel
All
Added
Favorite
Default List Mode
All
Return
Channel
Enter
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 49
English - 50
Adding and Erasing Channels
Preset : To use the Channel Manager function, first run Auto Program (See pages 31~32).
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“Channel Manager”, then press the
ENTER button.
Press the … or † button to select
“Added”, then press the ENTER
button.
3
Press the …/†/œ/√
button to select a
channel, then press
the ENTER button and
option window will
appear.
Press the … or †
button to select “Add”,
then press the ENTER
button; the mark
will appear and the
channel will be added.
To deselect the selected
channel, select “Delete”
by pressing the … or †
button. The mark will
disappear.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
• Red button (List Mode) : If you press the Red button repeatedly,
the All Channel List, the Added Channel List or the Favorite
Channel List is selected sequentially.
•Green button (Add All) : Press to add all channels of the
channel list.
•Yellow button (Delete All) : Press to delete all channels of the
channel list.
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
Add Channel List
Air 2
List Mode Add All Delete All
2
5
8
11
14
17
20 21
4
7
10
13
16
19
22
Enter Return
Watch
Add
Delete
Name
Favorite
Return
Add Channel List
Air 2
List Mode Delete All
2
5
8
11
14
17
20 21
4
7
10
13
16
19
22
Enter Return
Watch
Add
Delete
Name
Favorite
Return
Added
Channel Control
Channel
All
Added
Favorite
Default List Mode
All
Return
Channel
Enter
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 50
English - 51

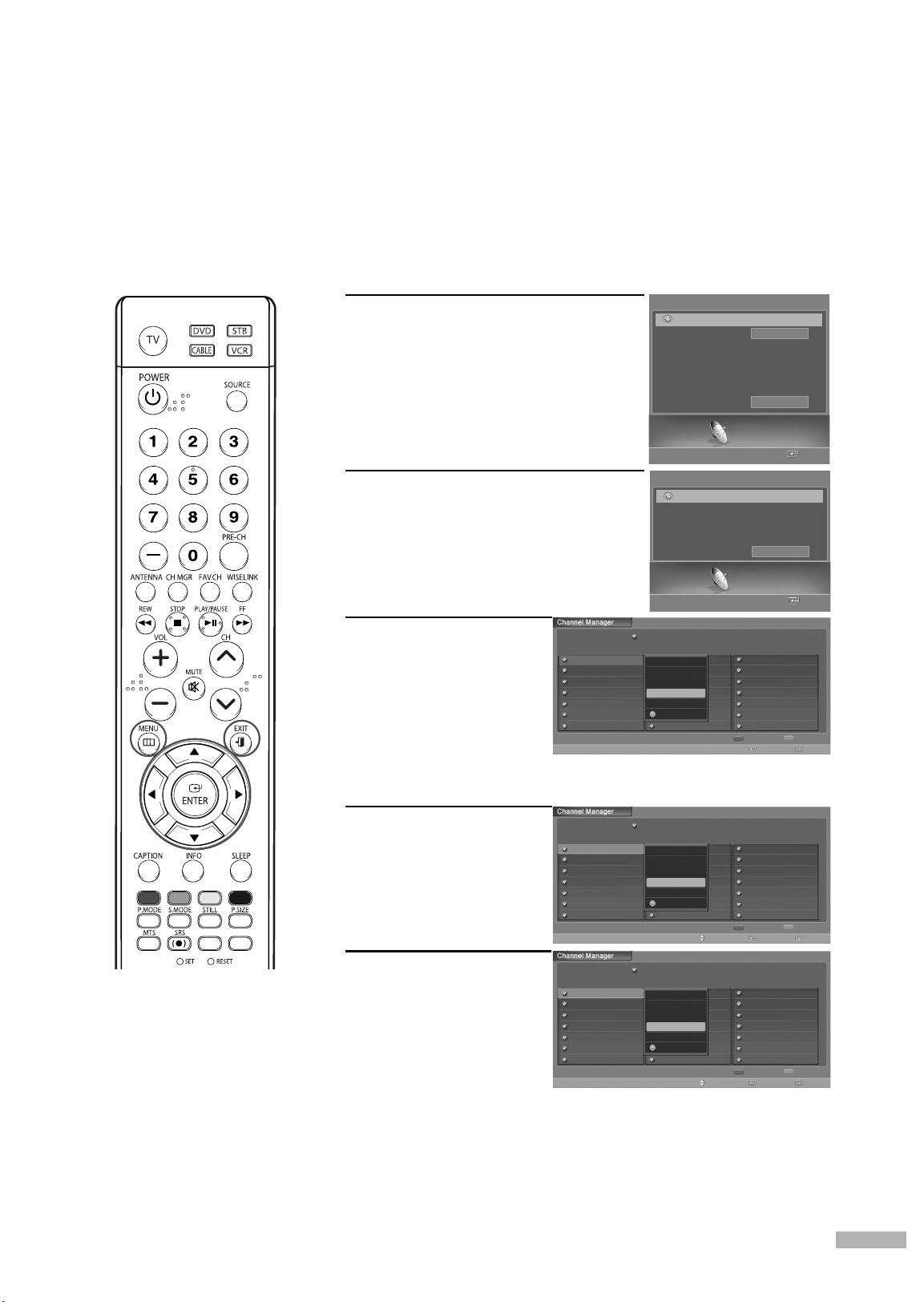

Labeling the Channels
Use this feature to assign an easy-to-remember label to analog channels (i.e., “CBS”, “ESPN”,
“PBS2”, CNN02”, etc.) A label consists of five fields, where each field is a letter, a number or a
blank. When the INFO button is pressed, the channel label will appear.
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“Channel Manager”, then press the
ENTER button.
Press the … or † button to select
“All”, then press the ENTER button.
3
Press the …/†/œ/√
button to select a
channel, then press the
ENTER button and
option window will
appear.
Press the … or † button
to select “Name”, then
press the ENTER button.
4
Press the … or † button
to select a letter, a
number or a blank.
(Results in this
sequence: A...Z, 0...9,
+,
-
, ✽, /, blank).
5
Press the œ or √ button
to switch to the next
field, which will be
selected. Select a
second letter or digit
by pressing … or †
button, as above.
Repeat the process to select the last three digits.
To erase the assigned new name, press and hold the … or †
button until a blank appears.
When you have finished, press the MENU button.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
NOTE
• If you add or delete a
TV channel, the
channel label (if set)
will also be added or
deleted.
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
All Channel List
Air 2
List Mode Delete All
2
5
8
11
14
17
20 21
4
7
10
13
16
19
22
Watch
Add
Delete
Name
Favorite
Return
Added
All Channel List
Air 2
List Mode Delete All
2
5
8
11
14
17
20
C
21
4
7
10
13
16
19
22
EnterAdjust Return
Enter Return
All Channel List
Air 2
List Mode Delete All
2
5
8
11
14
17
20
A
21
4
7
10
13
16
19
22
Watch
Add
Delete
Name
Favorite
Return
Added
▲
▼
EnterAdjust Return
Watch
Add
Delete
Name
Favorite
Return
Added
NN0 2
▲
▼
Channel
All
Added
Favorite
Default List Mode
All
Return
Channel
Enter
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 51
English - 52
Channel Control

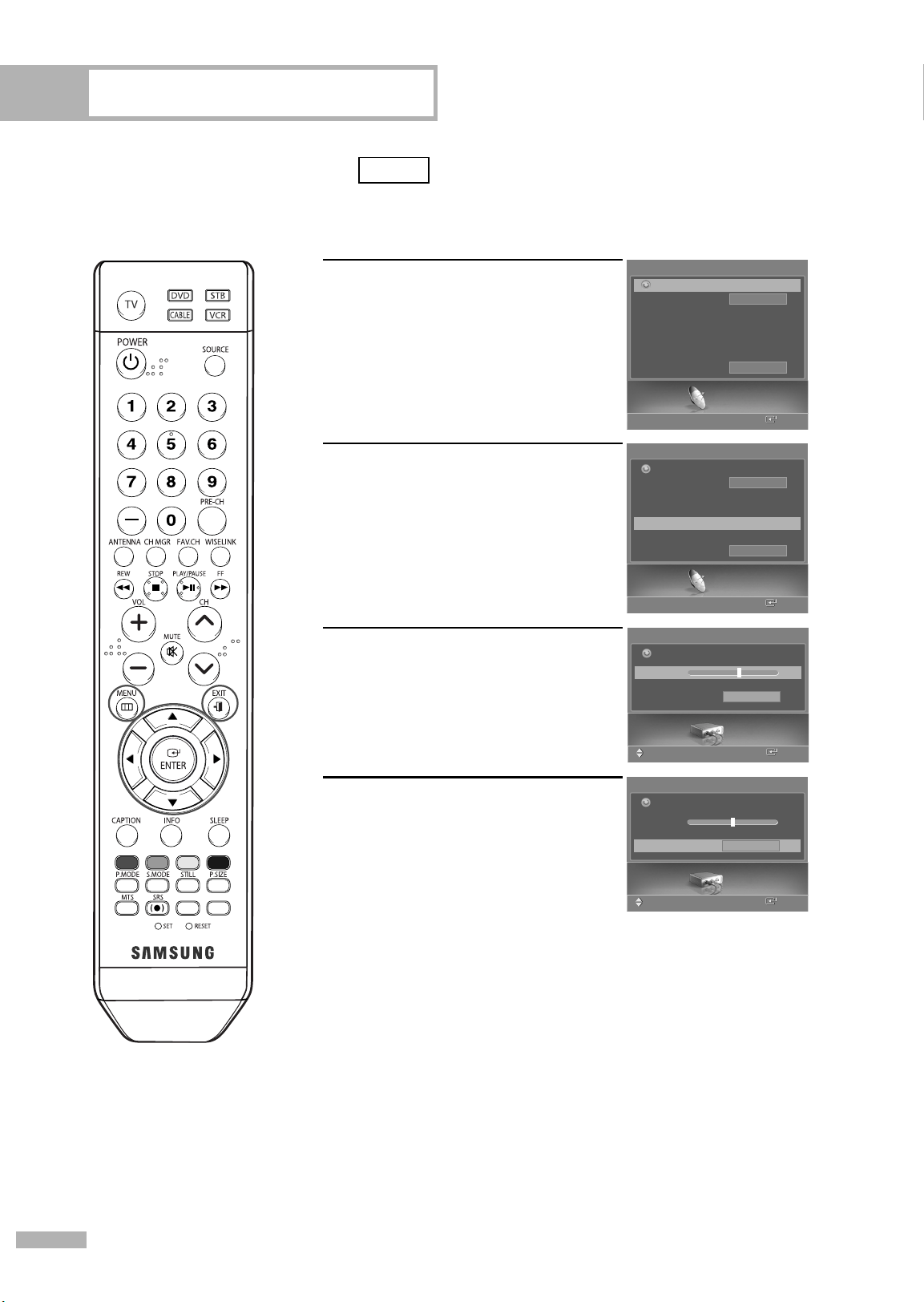

Fine Tuning Analog Channels
Use fine tuning to manually adjust a particular channel for optimal reception.
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“Fine Tune”, then press the ENTER
button.
3
Press the † button. Press the œ or √
button to adjust the fine tuning.
To store the fine tuning setting in the
TV’s memory, press the ENTER button.
4
To reset the fine tuning setting, press
the † button to select “Reset”, then
press the ENTER button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• Only analog TV channels can be fine tuned.
•“
*
” will appear next to the name of fine-tuned channels.
Analog
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
√
Signal Strength
LNA
Air
On
Return
Channel
Enter
Fine Tune
Air 7 0
Reset
OK
Return
Move
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
Channel
Enter
Fine Tune
Air 7 * +3
Reset
OK
Return
Move
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 52
English - 53
Checking the Digital-Signal Strength
Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV)
channels have either perfect reception quality or you will not receive them at all. So, unlike analog
channels, you cannot fine tune a digital channel.
You can, however, adjust your antenna to improve the reception of available digital channels.
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“Signal Strength”, then press the
ENTER button.
If the signal strength meter indicates
that the signal is weak, physically
adjust your antenna to increase the
signal strength. Continue to adjust
the antenna until you find the best
position with the strongest signal.
Select “Return” by pressing the ENTER button to return to the
previous menu. Press the EXIT button to exit.
Digital
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
√
LNA
Air
On
Return
Channel
Enter
Signal Strength
Return
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 53
English - 54
Channel Control
LNA (Low Noise Amplifier)
If the TV is operating in a weak-signal area, sometimes the LNA function can improve
the reception (a low-noise preamplifier boosts the incoming signal).
1
Press the MENU button.
Press the œ or √ button to select
“Channel”, then press the ENTER
button.
2
Press the … or † button to select
“LNA”, then press the ENTER button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• LNA functions only when antenna is set to Air.
The LNA setting must be made separately for each channel.
• If the picture is noisy with the LNA set to On, select Off.
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
Return
Off
On
Channel
Enter
Channel
Antenna
Auto Program
Channel Manager
Fine Tune
Signal Strength
LNA
Air
On
Return
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 54
Picture Control
BP68-00588A-03Eng(028~055) 8/22/06 5:14 PM Page 55
Picture Control
English - 56

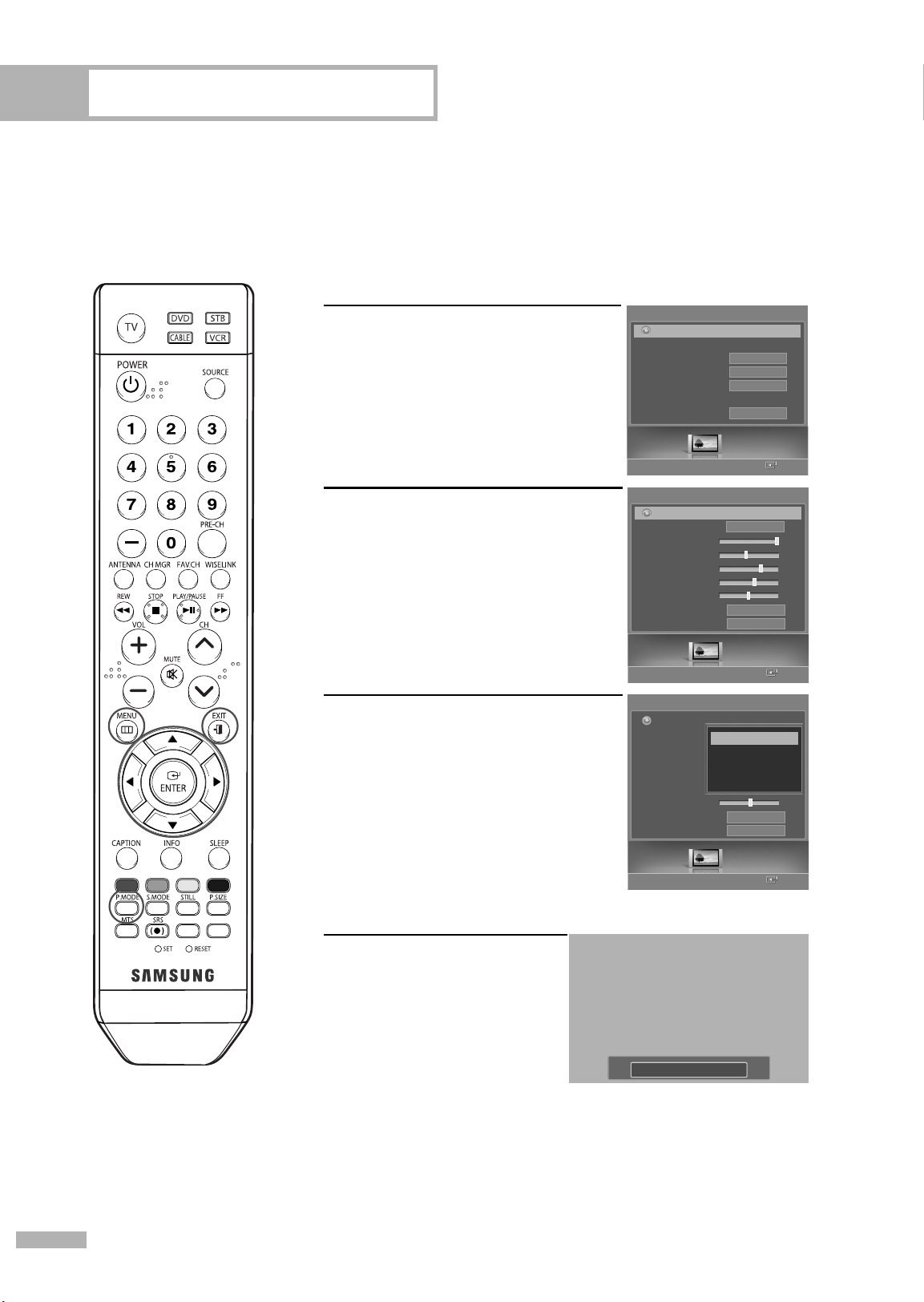

Picture Control
You can select the type of picture which best corresponds to your viewing requirements.
Changing the Picture Standard
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
2
Press the … or † button to select
“Mode”, then press the ENTER
button.
Press the … or † button again to
select “Mode”, then press the
ENTER button.
3
Press the … or † button to select the
desired picture mode (Dynamic,
Standard, Movie, or Custom), then
press the ENTER button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the P.MODE button on the
remote control repeatedly to select
the desired picture mode.
•Choose “Dynamic” for viewing the TV during the day or when
there is a bright light in the room.
• Choose “Standard” for general TV watching mode.
• Choose “Movie” when viewing the movie.
• Choose “Custom” if you want to adjust the settings according to
personal preference (see “Customizing the Picture Settings”,
page 57).
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Dynamic
Enter
Mode
Mode
Contrast
100
Brightness
45
Sharpness
75
Color
55
Tint
G50 R50
Color Tone
Reset
Return
Dynamic
Cool1
OK
Enter
Mode
Mode
Contrast
80
Brightness
50
Sharpness
50
Color
50
Tint
G50 R50
Color Tone
Reset
Return
Standard
Cool1
OK
Dynamic
Standard
Movie
Custom
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 56
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
2
Press the … or † button to select
“Mode”, then press the ENTER
button.
Press the … or † button again to
select “Mode”, then press the
ENTER button.
3
Press the … or † button to select the
desired picture mode (Dynamic,
Standard, Movie, or Custom), then
press the ENTER button.
4
Press the … or † button to select
a particular option (Contrast,
Brightness, Sharpness, Color, or
Tint), then press the ENTER button.
Press the œ or √ button to decrease
or increase the value of a particular
item.
Continued...
English - 57
Customizing the Picture Settings
You can use the on-screen menus to change the “Contrast”, “Brightness”, “Sharpness”, “Color”,
“Tint”, and “Color Tone” according to personal preference. You can select “Standard” which
automatically recalls your personalized picture settings.
• While adjusting a picture
option, you can also select
another option (Contrast,
Brightness, Sharpness,
Color, or Tint) by pressing
the … or † button.
NOTE
• In PC mode, the Contrast
and Brightness can be
selected.
▲
Contrast
▼
100
Mode
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Enter
Mode
Mode
Contrast
80
√
Brightness
40
Sharpness
50
Color
50
Tint
G50 R50
Color Tone
Reset
Return
Standard
Cool1
OK
Adjust
Enter
Mode
Mode
Contrast
80
Brightness
50
Sharpness
50
Color
50
Tint
G50 R50
Color Tone
Reset
Return
Standard
Cool1
OK
Dynamic
Standard
Movie
Custom
Enter
Mode
Mode
Contrast
100
Brightness
45
Sharpness
75
Color
55
Tint
G50 R50
Color Tone
Reset
Return
Dynamic
Cool1
OK
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 57
Picture Control

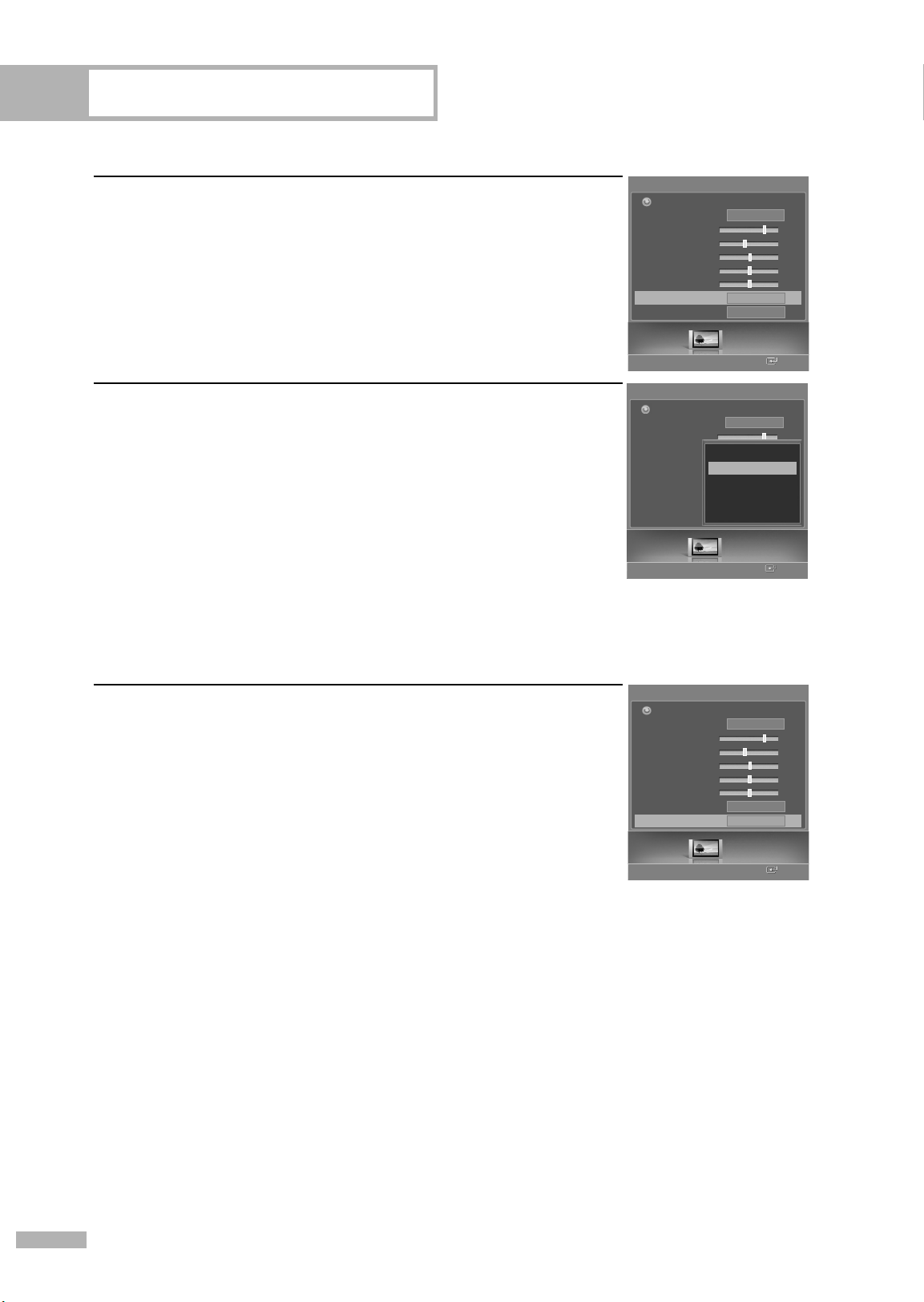

English - 58
5
Press the ENTER button to return to “Mode”.
Press the … or † button to select “Color Tone”, then press the
ENTER button.
6
Press the … or † button to select a particular item (Cool2, Cool1,
Normal, Warm1, or Warm2), then press the ENTER button.
7
To return the factory defaults, select “Reset” by pressing the … or †
button. Press the ENTER button.
Press the … or † button to select “OK” or “Cancel”, then press the
ENTER button.
Select “Return” by pressing the … or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTE
• The reset function must be set separately for each mode (Dynamic, Standard, Movie, or Custom).
• If you set “Reset” to “OK”, the previously adjusted settings will
be reset to the factory defaults.
Resetting the Picture Settings to the Factory Defaults
Enter
Mode
Mode
Contrast
80
Brightness
40
Sharpness
50
Color
50
Tint
G50 R50
Color Tone
Reset
Return
Standard
Cool1
OK
Enter
Mode
Mode
Contrast
80
Brightness
40
Sharpness
50
Color
50
Tint
G50 R50
Color Tone
Reset
Return
Standard
Cool1
OK
Enter
Mode
Mode
Contrast
80
Brightness
45
Sharpness
75
Color
55
Tint
G50 R50
Color Tone
Reset
Return
Standard
Cool1
OK
Cool2
Cool1
Normal
Warm1
Warm2
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 58
English - 59

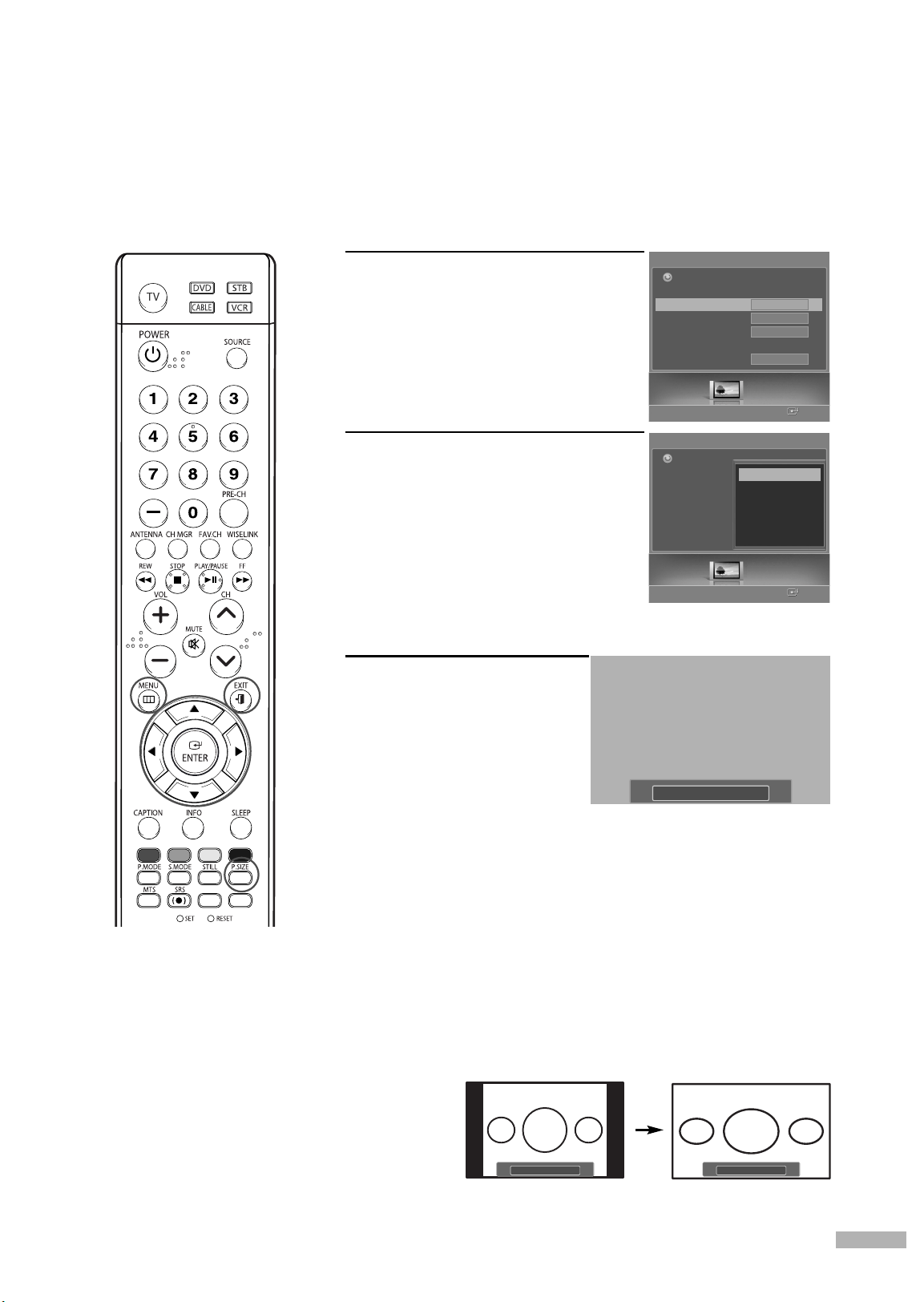

Changing the Picture Size
You can select the picture size which best corresponds to your viewing requirements.
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
Press the … or † button to select
“Size”, then press the ENTER button.
2
Press the … or † button to select the
screen format you want, then press
the ENTER button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the P.SIZE button on the
remote control repeatedly to select
one of the picture size settings.
• “16:9”: Sets the picture to
16:9 wide mode.
• “Zoom1”: Magnifies the size
of the picture on
screen. Press the … or † button to move the picture.
• “Zoom2”: Magnifies the size of the picture more than “Zoom1”.
•“Wide Fit”: Enlarges the aspect ratio of the picture to fit the
entire screen.
• “4:3”: Sets the picture to 4:3 normal mode.
NOTES
•You can select the 16:9, 4:3 and Wide Fit screen sizes in the DTV, Component (720p, 1080i)
or HDMI (720p, 1080i) mode.
•For Zoom1, Zoom2, and Wide Fit (DTV’s HD signal only), you can adjust the vertical position
using the
…
or
†
button after pressing the P.SIZE button on the remote control.
•When watching a DTV’s HD signal, you can
use Wide Fit.
Horizontal zoom(Wide Fit) sets the optical
picture format by expanding it both
horizontally and vertically.
For example, you can reset the picture in
4:3 format to 16:9.
Wide Fit does not support all external devices.
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
4:3
On
Off
Off
Return
16:9
Zoom1
Zoom2
Wide Fit
4:3
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Zoom1 Move
▲
▼
Wide Fit
4 : 3
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 59
Picture Control
English - 60
Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction
feature to help reduce any static and ghosting that may appear on the screen.
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
2
Press the … or † button to select
“Digital NR”, then press the ENTER
button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
Off
Off
Return
Off
On
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 60
English - 61
DNIe (Digital Natural Image engine)
This TV includes the DNIe function so as to provide a high visual quality.
If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to
Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration
purposes. Using this function, you can view the difference in the visual quality.
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
2
Press the … or † button to select
“DNIe”, then press the ENTER
button.
3
Press the … or † button to select
“Off”, “Demo” or “On”, then press
the ENTER button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• DNIe
TM
(Digital Natural Image engine)
This feature brings you a more detailed image with 3D noise
reduction and detail, contrast and white enhancement.
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
Off
Off
Return
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Off
Demo
On
•Off : Switches off the DNIe mode.
• Demo : The screen before
applying DNIe appears
on the left and the screen
after applying DNIe
appears on the right.
• On : Switches on the DNIe mode.
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 61
Picture Control
English - 62

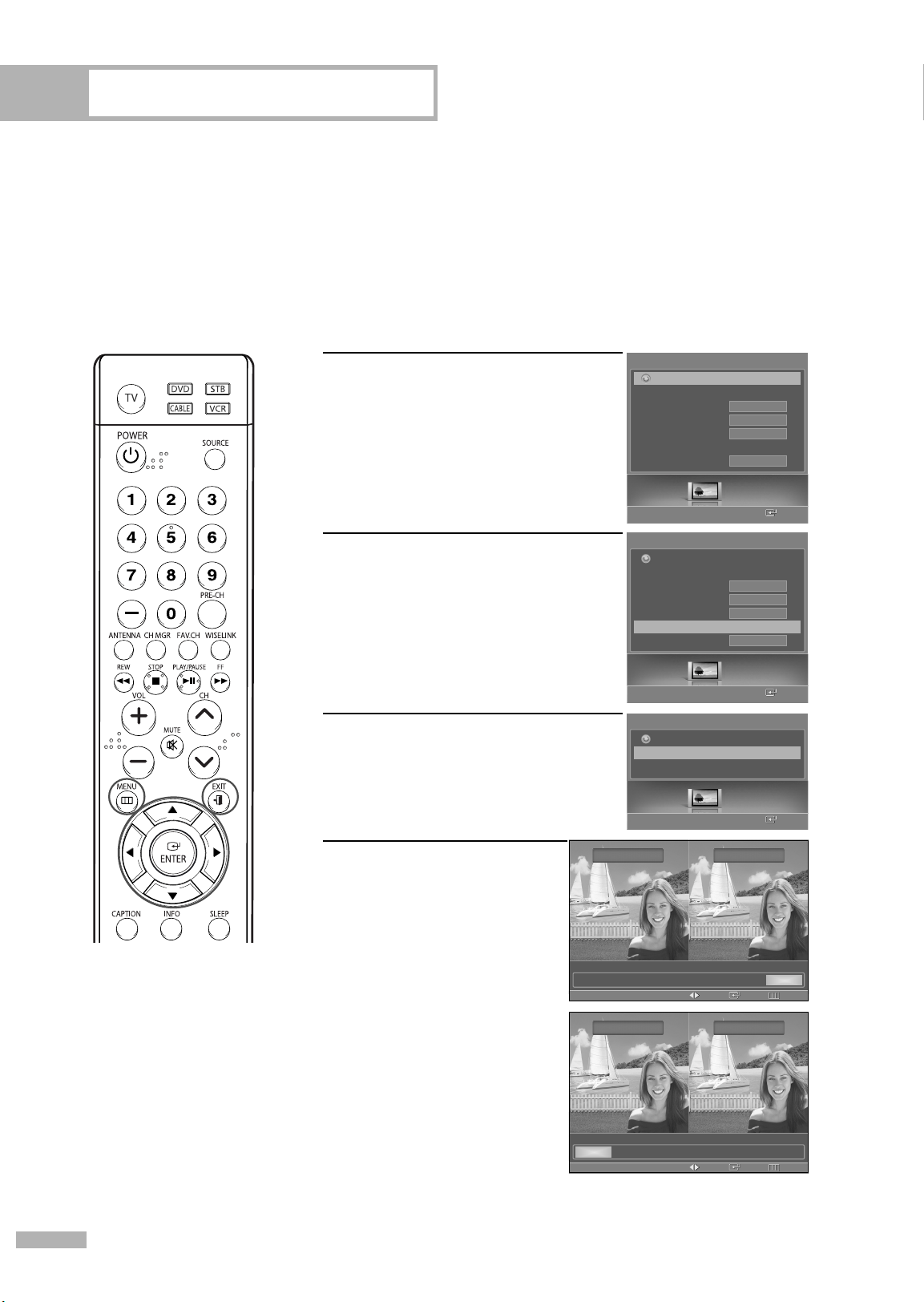

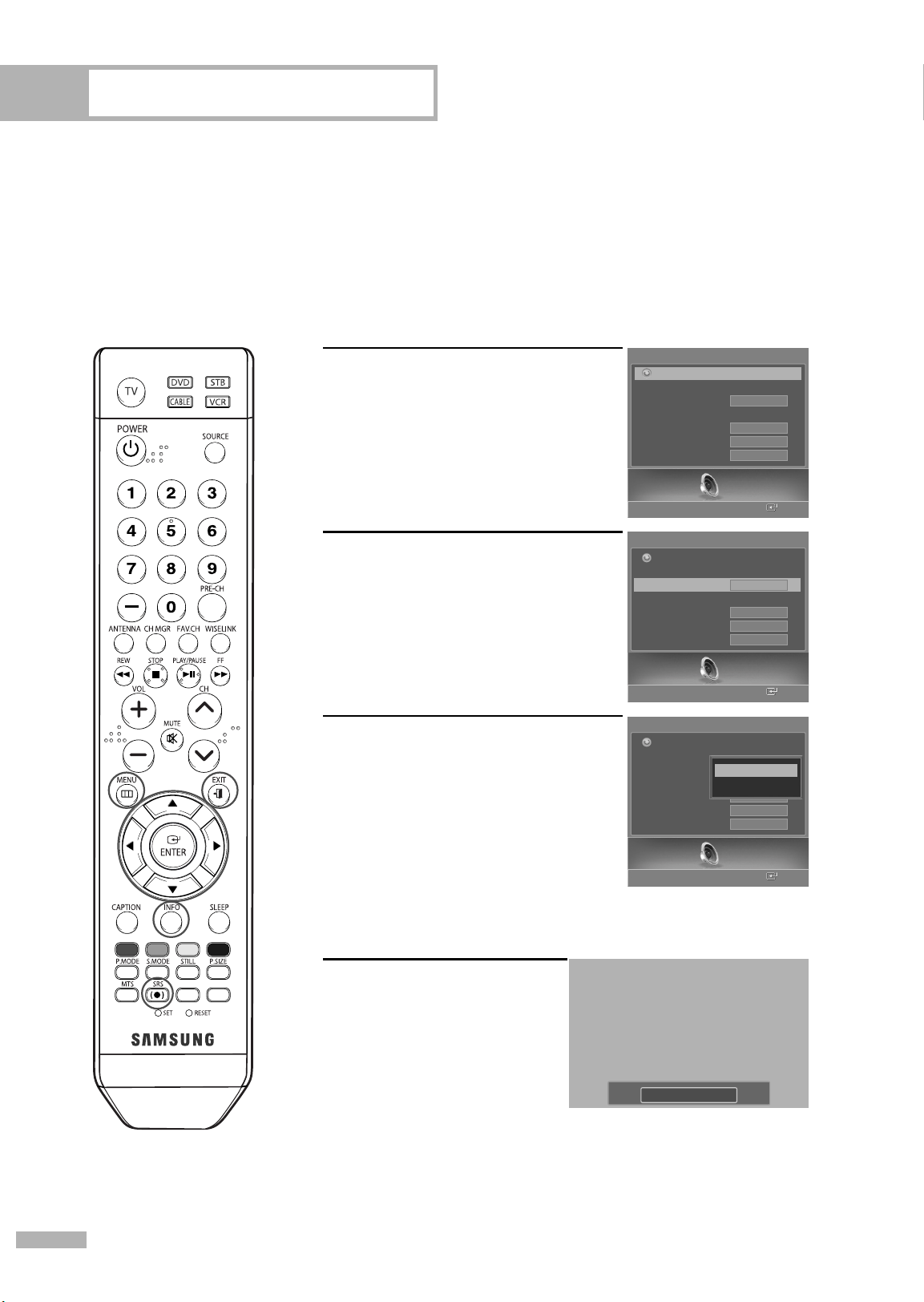

Setting the My Color Control Mode
My Color Control allows you to adjust colors according to your preference, by adjusting skin, sky,
and grass tones using the predefined settings (Red, Green, Blue, Yellow, Pink, Standard, and Custom)
without affecting other colors on the screen.
Using the My Color Control Function in the Easy Control Menu
Skin, sky and grass tones are easily adjustable to suit your preferences.
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
2
Press the … or † button to select
“My Color Control”, then press the
ENTER button.
3
Press the … or † button to select
“Easy Control”, then press the
ENTER button.
4
Press the œ or √ button to
select the setting among the
various picture settings.
The original picture (before
adjustment) is shown on the
left side, while the selected
mode is shown on the right
side.
• There are seven My
Color Control modes:
Red, Green, Blue,
Yellow, Pink, Standard,
and Custom.
Select “Return” by pressing
the … or † button, then
press the ENTER button to
return to the previous menu.
Press the EXIT button to exit.
NOTES
• Changing the settings
in the “Detail Control”
menu (see page 63)
will automatically set
the My Color Control
mode to “Custom”.
• Pressing the ENTER
button on the remote
control for 3 seconds
when there is no OSD
on the screen will dis-
play the My Color
Control menu.
Enter
Mode
Size
Digital NR
DNIe
My Color Control
√
Film Mode
16:9
On
On
Off
Return
Enter
My Color Control
Easy Control
√
Detail Control
Return
Easy Control
ReturnEnterMove
Original Custom
Red Green Blue Yellow Pink Standard Custom
Easy Control
ReturnEnterMove
Original Red
Red Green Blue Yellow Pink Standard Custom
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 62
English - 63

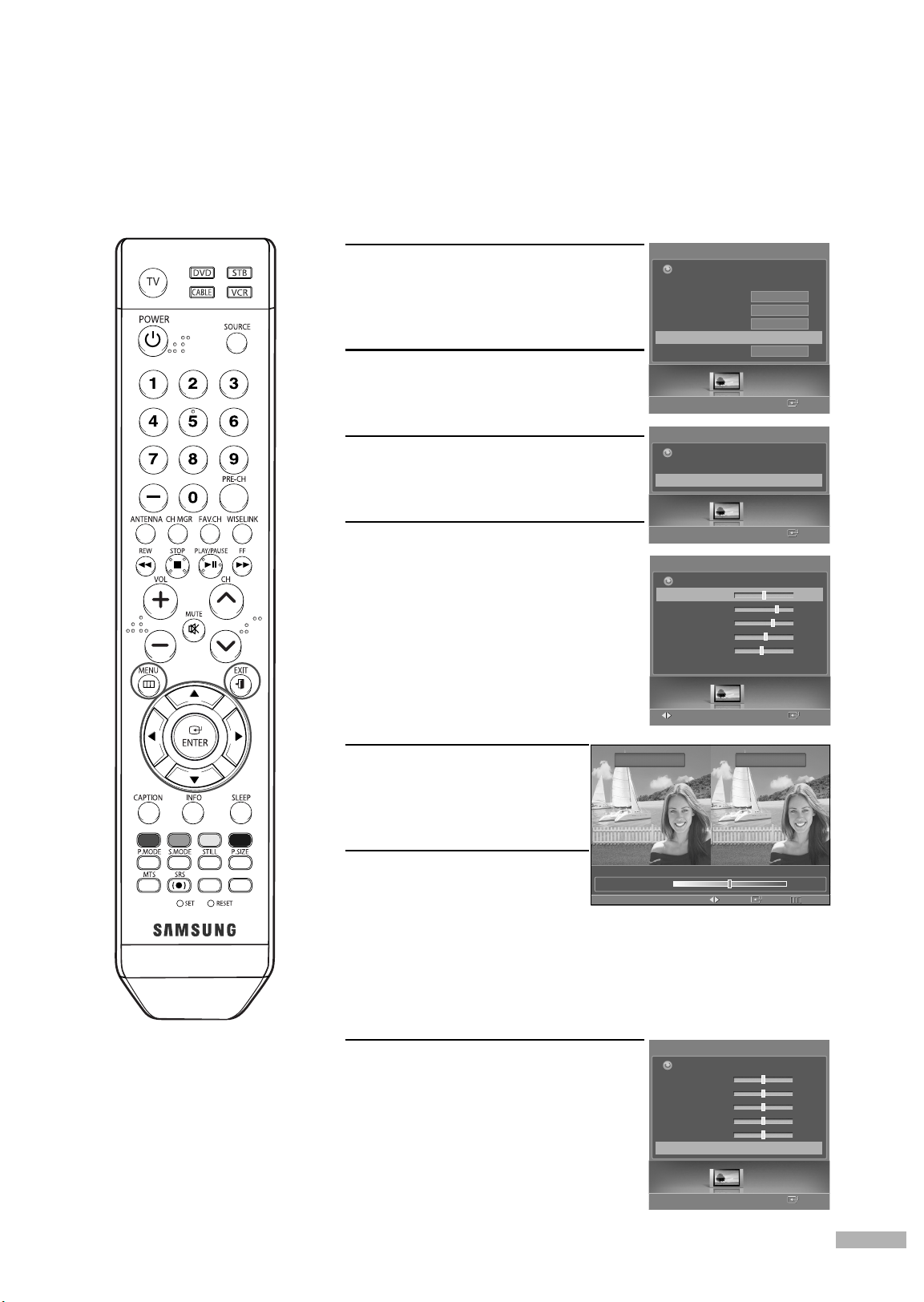

My Color Control Custom Settings
Users can adjust the 5 My Color Control colors (Red, Green, Blue, Yellow, and Pink).
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
2
Press the … or † button to select
“My Color Control”, then press the
ENTER button.
3
Press the … or † button to select
“Detail Control”, then press the
ENTER button.
4
Press the … or † button to select the
desired color and then press the
ENTER or √ button.
5
Press the œ or √ button to
adjust the settings.
Press the … or † button to
choose other colors.
6
Press the ENTER or MENU
button to confirm the
changes and return to the
previous menu.
Resetting the My Color Control Colors to the Factory Defaults
You can return to the factory default settings for My Color Control colors.
7
Press the … or † button to select
“Reset”, then press the ENTER
button.
The previously adjusted My Color
Control colors will be reset to the
factory defaults.
Select Return by pressing the … or †
button then press the ENTER button
to return to previous menu.
Press the EXIT button to exit.
• The original picture (before
adjustment) is shown on the left
side, while the picture after
adjustment is shown on the right
side, and an adjustment bar is
shown on the bottom of the
screen.
Enter
Mode
Size
Digital NR
DNIe
My Color Control
√
Film Mode
16:9
On
On
Off
Return
Enter
My Color Control
Easy Control
Detail Control
√
Return
Enter
Detail Control
Red 50
Green 50
Blue 50
Yellow 50
Pink 50
Reset
Return
Detail Control
ReturnEnterAdjust
Original Adjusted
▲
Red
▼
50
EnterAdjust
Detail Control
Red
50
√
Green
70
Blue
65
Yellow
50
Pink
45
Reset
Return
BP68-00588A-03Eng(056~069) 8/22/06 5:14 PM Page 63
Picture Control
English - 64

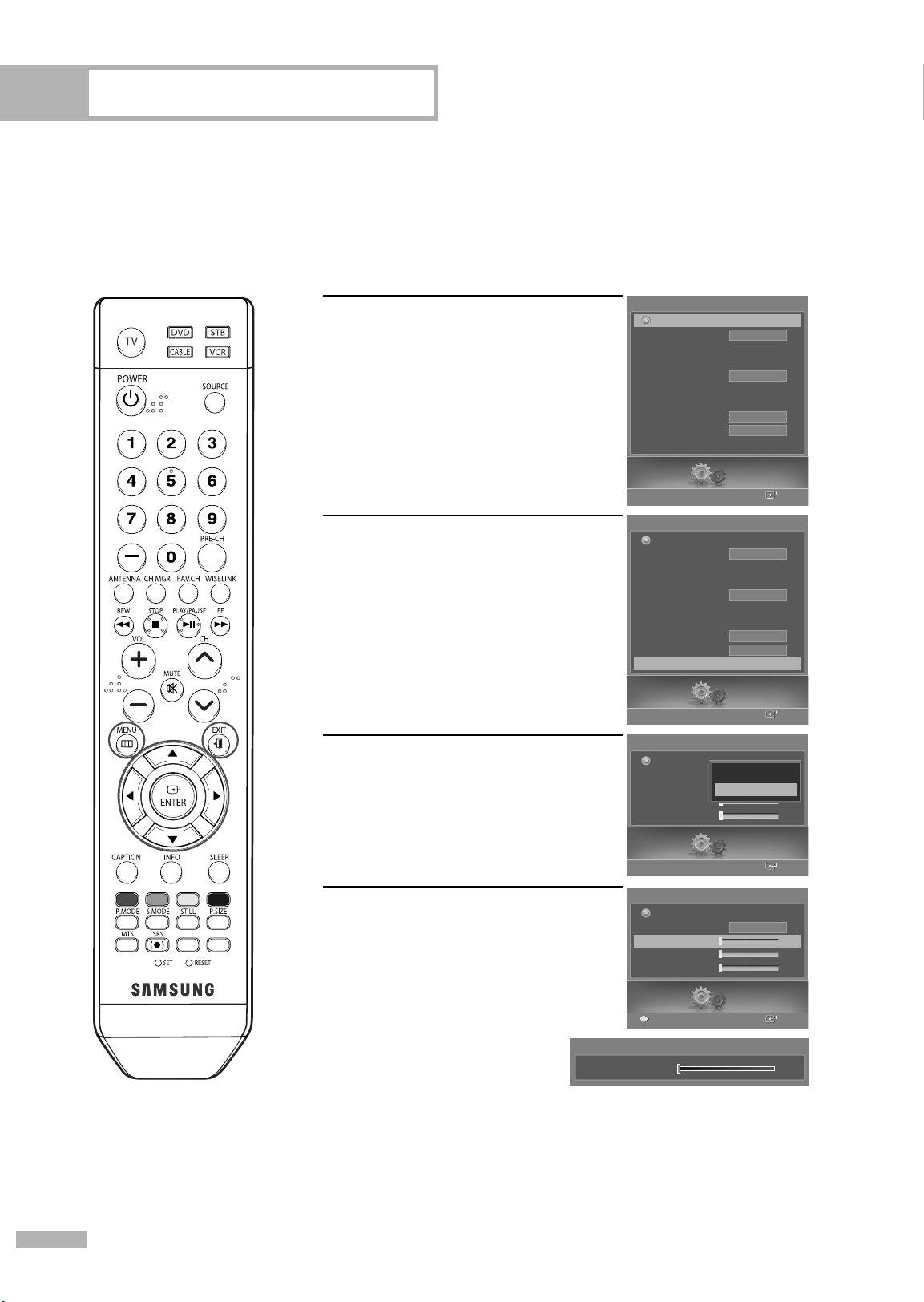

Using the Color Weakness Enhancement Feature
This feature adjusts the Red, Green or Blue color to compensate for the user’s particular color weakness.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Color Weakness”, then press the
ENTER button.
3
Press the … or † button to select
“Color Weakness”, then press the
ENTER button.
Press the … or † button to select
“On”, then press the ENTER button.
4
Press the … or † button to select a
color to be adjusted, then press the
ENTER button.
Press the œ or √ button to adjust the
value of the color selected.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
•You can also select these
options (Red, Green or
Blue) by pressing the …
or † button.
Setup
Enter
Color Weakness
Return
Color Weakness Off
Red
0
Green
0
Blue
0
Off
On
Setup
Enter
Color Weakness
Return
Color Weakness Off
Red
0
√
Green
0
Blue
0
On
Adjust
▲
Red
▼
0
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
√
English
Off
Medium
Off
Return
BP68-00588A-03Eng(056~069) 8/22/06 5:15 PM Page 64
English - 65

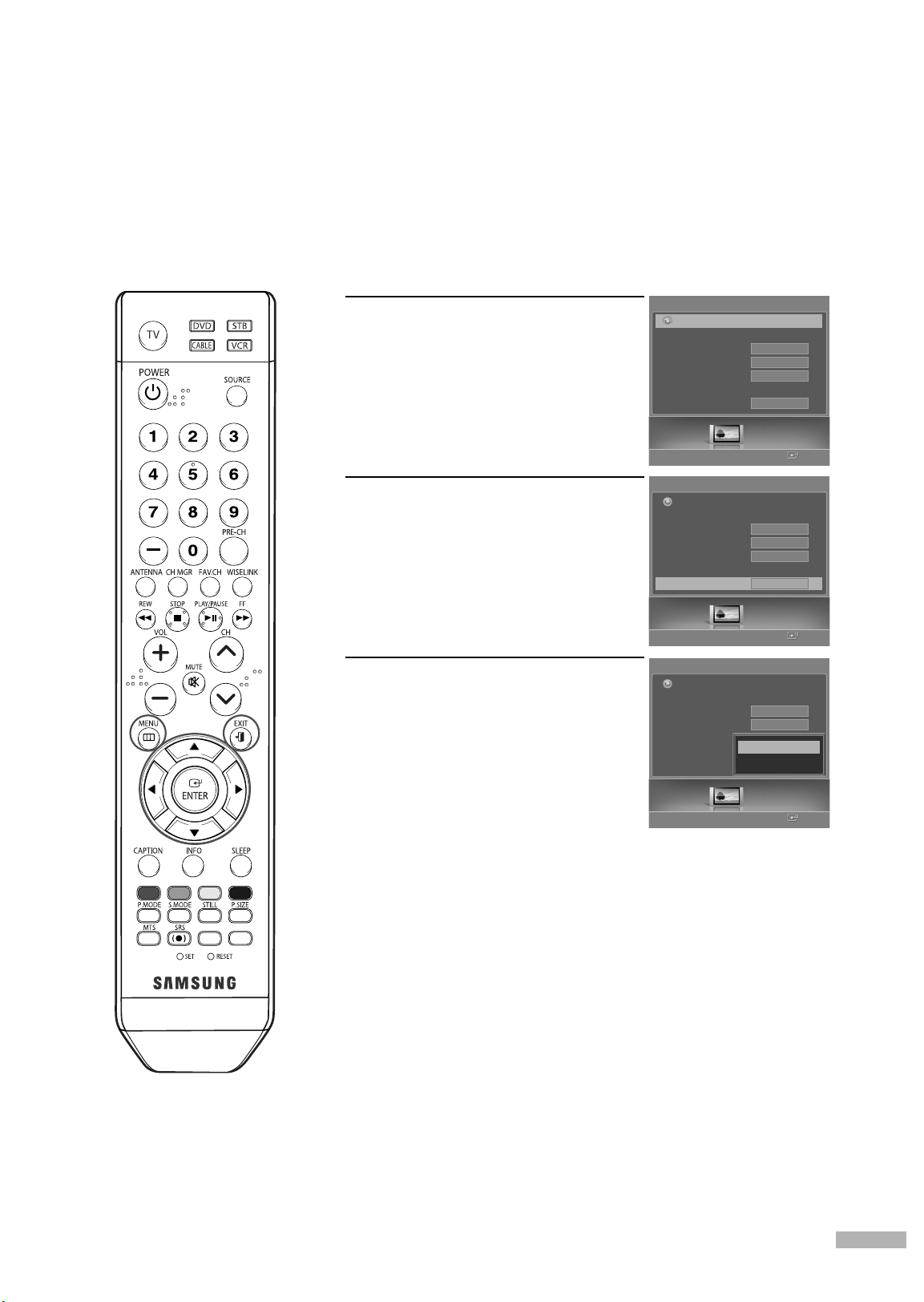

Setting the Film Mode
You can automatically sense and process film signals and adjust the picture for optimum quality.
1
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
2
Press the … or † button to select
“Film Mode”, then press the ENTER
button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTE
• The Film Mode can only be set in AV modes (AV, S-Video, or
Component) that support SD (Standard Definition) signals (480i)
in analog TV mode.
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
Off
Off
Return
Off
On
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
16:9
On
On
Off
Return
BP68-00588A-03Eng(056~069) 8/22/06 5:15 PM Page 65
Picture Control
English - 66
Freezing the Picture
Press the STILL button to freeze a moving picture. (Normal sound will
still be heard.)
To cancel this function, press the STILL button again or press any
button on the remote control.
BP68-00588A-03Eng(056~069) 8/22/06 5:15 PM Page 66
English - 67

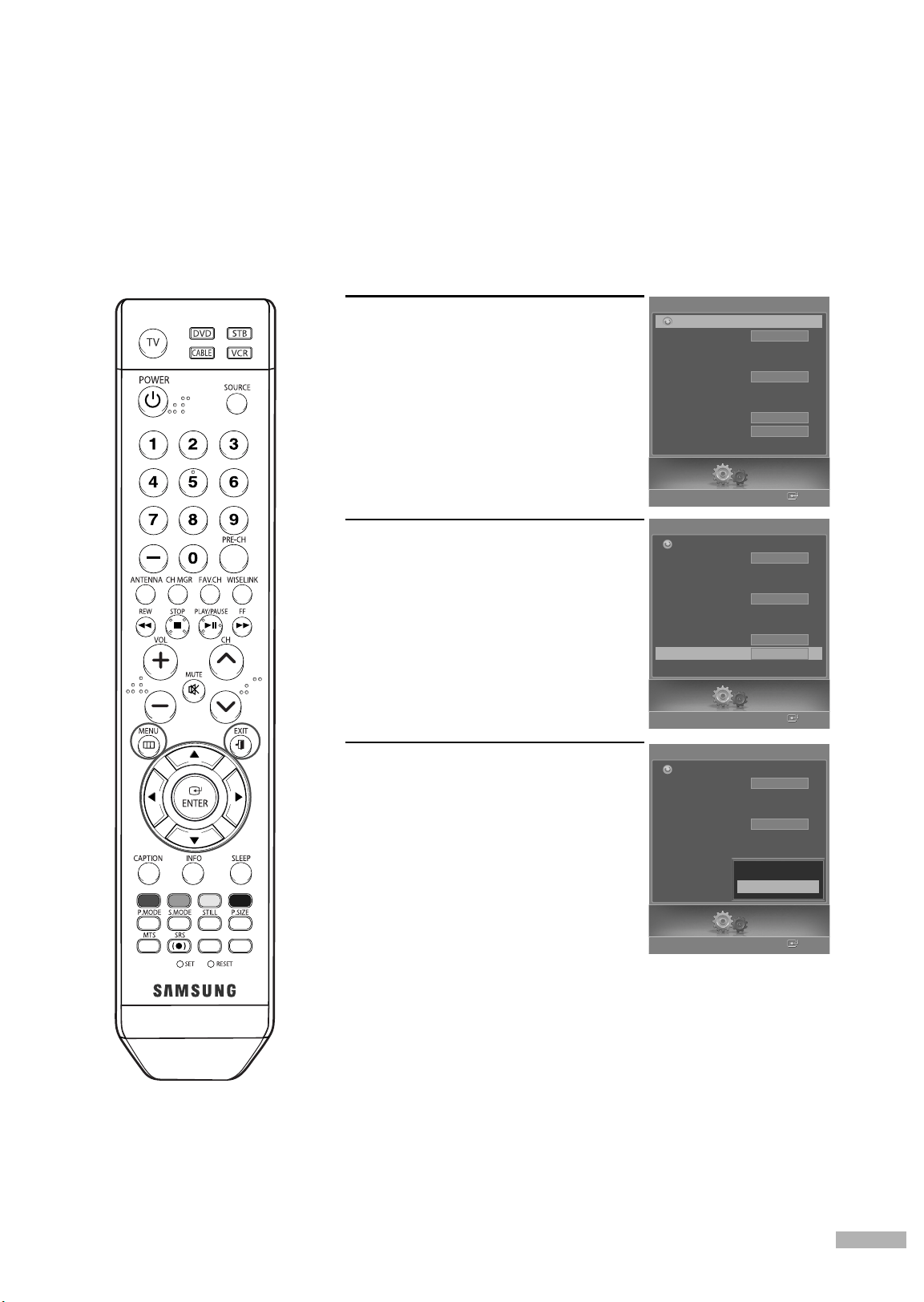

Setting the Blue Screen Mode
If no signal is being received or the signal is very weak, a blue screen automatically replaces
the noisy picture background. If you wish to continue viewing the poor picture, you must set the
“Blue Screen” mode to “Off”.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Blue Screen”, then press the ENTER
button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Off
On
BP68-00588A-03Eng(056~069) 8/22/06 5:15 PM Page 67
SAMSUNG
BP68-00588A-03Eng(056~069) 8/22/06 5:15 PM Page 68
Sound Control
BP68-00588A-03Eng(056~069) 8/22/06 5:15 PM Page 69
Sound Control
English - 70

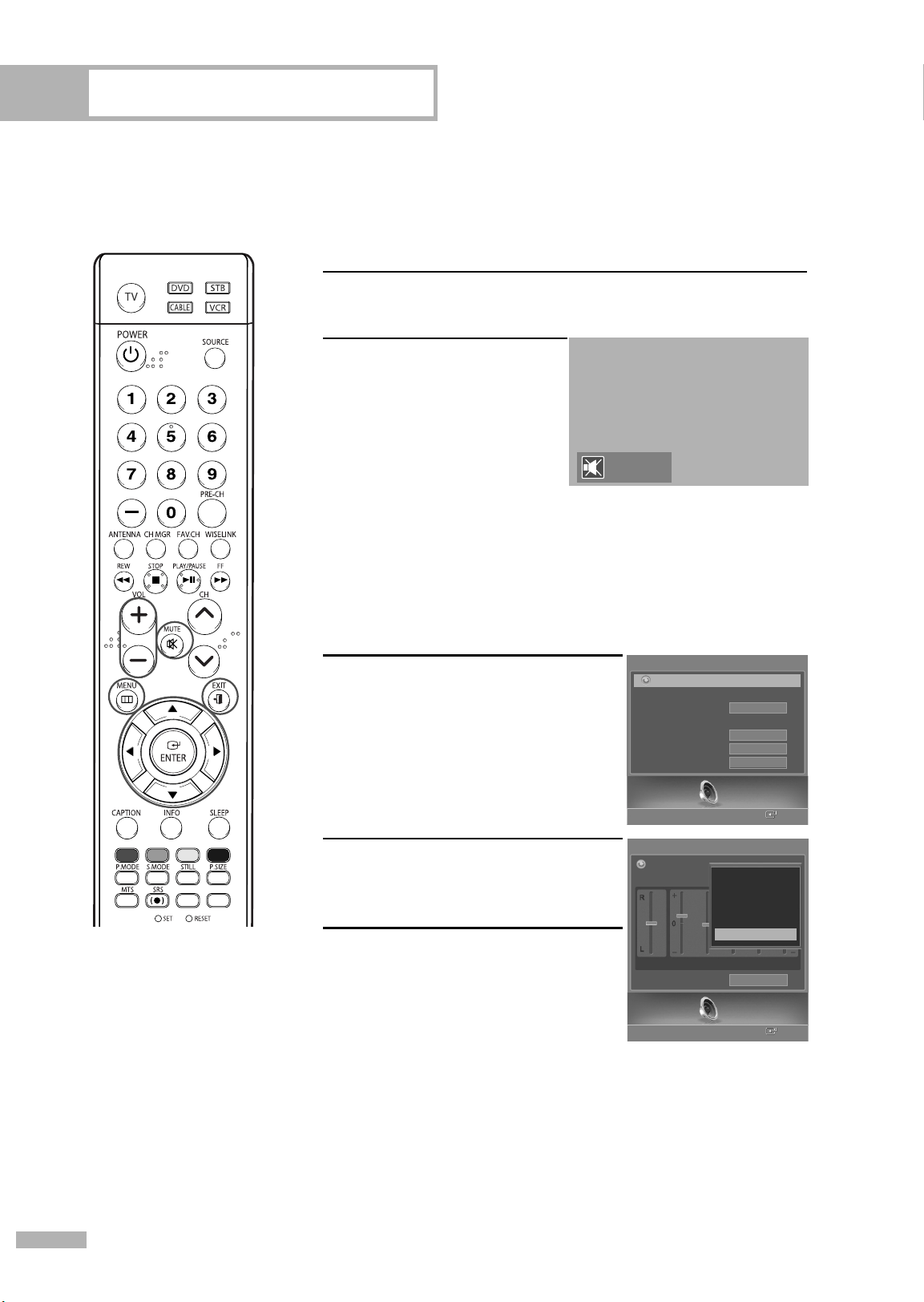

Sound Control
You can control and customize the sound levels and settings of the TV with the remote control.
Adjusting the Volume
Press the VOL+ or VOL– button to increase or decrease the volume.
Using the MUTE Button
At any time, you can temporarily
cut off the sound.
Press the MUTE button on the
remote control.
The message “Mute” is displayed
and the sound cuts off.
To turn mute off, press the
MUTE button again or press either
the VOL+ or VOL– button.
Using Automatic Sound Settings
Your TV has automatic sound settings (“Standard”, “Music”, “Movie”,
and “Speech”) that are preset at the factory. You can select “Custom”,
which automatically recalls your personalized sound settings.
1
Press the MENU button.
Press the œ or √ button to select
“Sound”, then press the ENTER
button.
2
Press the … or † button to select
“Mode”, then press the ENTER
button.
3
Press the … or † button to select a
particular item (Standard, Music,
Movie, Speech, Custom), then press
the ENTER button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
• Choose “Standard” for the standard factory settings.
•Choose “Music” when watching music videos or concerts.
• Choose “Movie” when watching movies.
• Choose “Speech” when watching a show that is mostly dialog
(i.e., news).
• Choose “Custom” to recall your personalized settings (see
“Customizing the Sound”, page 71).
Mute
NOTE
• The VOL+, VOL– and
MUTE buttons do not
operate when the Internal
Mute is set to on.
Sound
Enter
Mode
Mode
Reset
OK
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Balance 100Hz 300Hz 1kHz 3kHz 10kHz
Standard
Music
Movie
Speech
Custom
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 70
English - 71

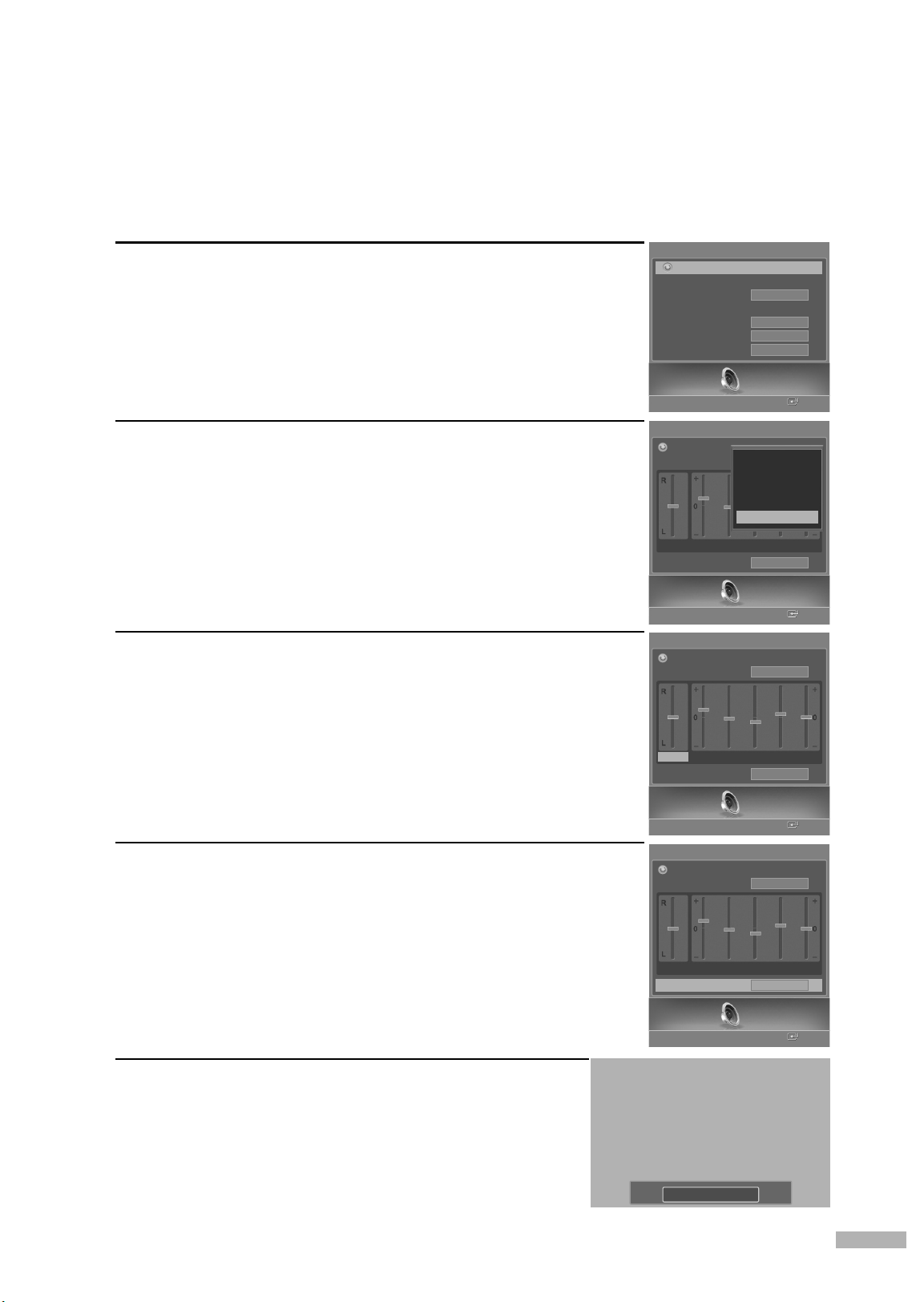

Customizing the Sound
The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one
of the automatic settings. See next page.)
1
Press the MENU button.
Press the œ or √ button to select “Sound”, then press the ENTER
button.
2
Press the … or † button to select “Mode”, then press the ENTER
button. Press the … or † button to select a particular item (Standard,
Music, Movie, Speech, Custom), then press the ENTER button.
3
Press the † button. Press the œ or √ button to select a particular item
(Balance, 100Hz, 300Hz, 1kHz, 3kHz, 10kHz) to be changed,
then press the ENTER button.
Press the … or † button to increase or decrease the selected
frequency. Press the ENTER button.
4
To return the factory defaults, select “Reset” by pressing the … or †
button. Press the ENTER button.
Press the … or † button to select “OK” or “Cancel”, then press the
ENTER button.
Select “Return” by pressing the … or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the S.MODE button on the remote control repeatedly to
select one of the standard sound settings.
NOTES
• L/R Sound Balance Adjustment
To adjust the sound balance of the L/R speakers.
• Bandwidth Adjustment (100Hz, 300Hz, 1kHz, 3kHz, 10kHz)
To adjust the level of different bandwidth frequencies.
Sound
Enter
Mode
Balance 100Hz 300Hz 1kHz 3kHz 10kHz
Return
Mode
Custom
Reset
OK
Sound
Enter
Mode
Mode
Custom
Reset
Balance 100Hz 300Hz 1kHz 3kHz 10kHz
OK
Return
• The equalizer function is set for each mode (Standard, Music,
Movie, Speech, or Custom).
Sound
Enter
Mode
Mode
Reset
OK
Return
Balance 100Hz 300Hz 1kHz 3kHz 10kHz
Standard
Music
Movie
Speech
Custom
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Standard
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 71
Sound Control
English - 72

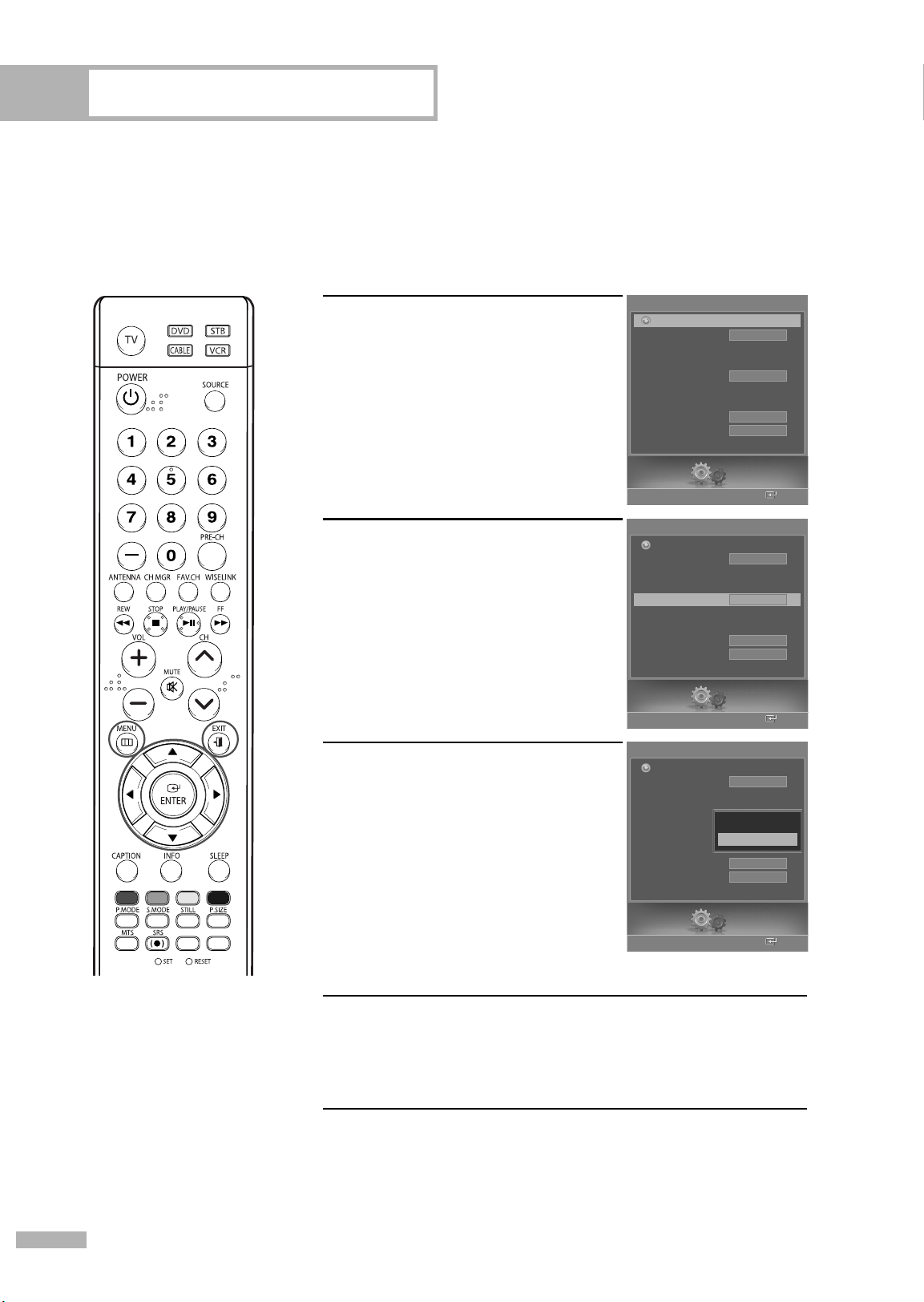

Setting the SRS TSXT
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel
content over two speakers. Trusurround delivers a compelling, virtual surround sound experience
through any two-speaker playback system, including internal television speakers. It is fully compatible
with all multichannel formats.
1
Press the MENU button.
Press the œ or √ button to select
“Sound”, then press the ENTER
button.
2
Press the … or † button to select
“SRS TSXT”, then press the ENTER
button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the SRS button on the remote
control repeatedly to select “Off”
or “On”.
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Return
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Off
On
Off
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 72
English - 73
Auto Volume
Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume
every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired
channel by lowering the sound output when the volume is high or by raising the sound output when
the volume is low.
1
Press the MENU button.
Press the œ or √ button to select
“Sound”, then press the ENTER
button.
2
Press the … or † button to select
“Auto Volume”, then press the ENTER
button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Off
On
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 73
Sound Control
English - 74

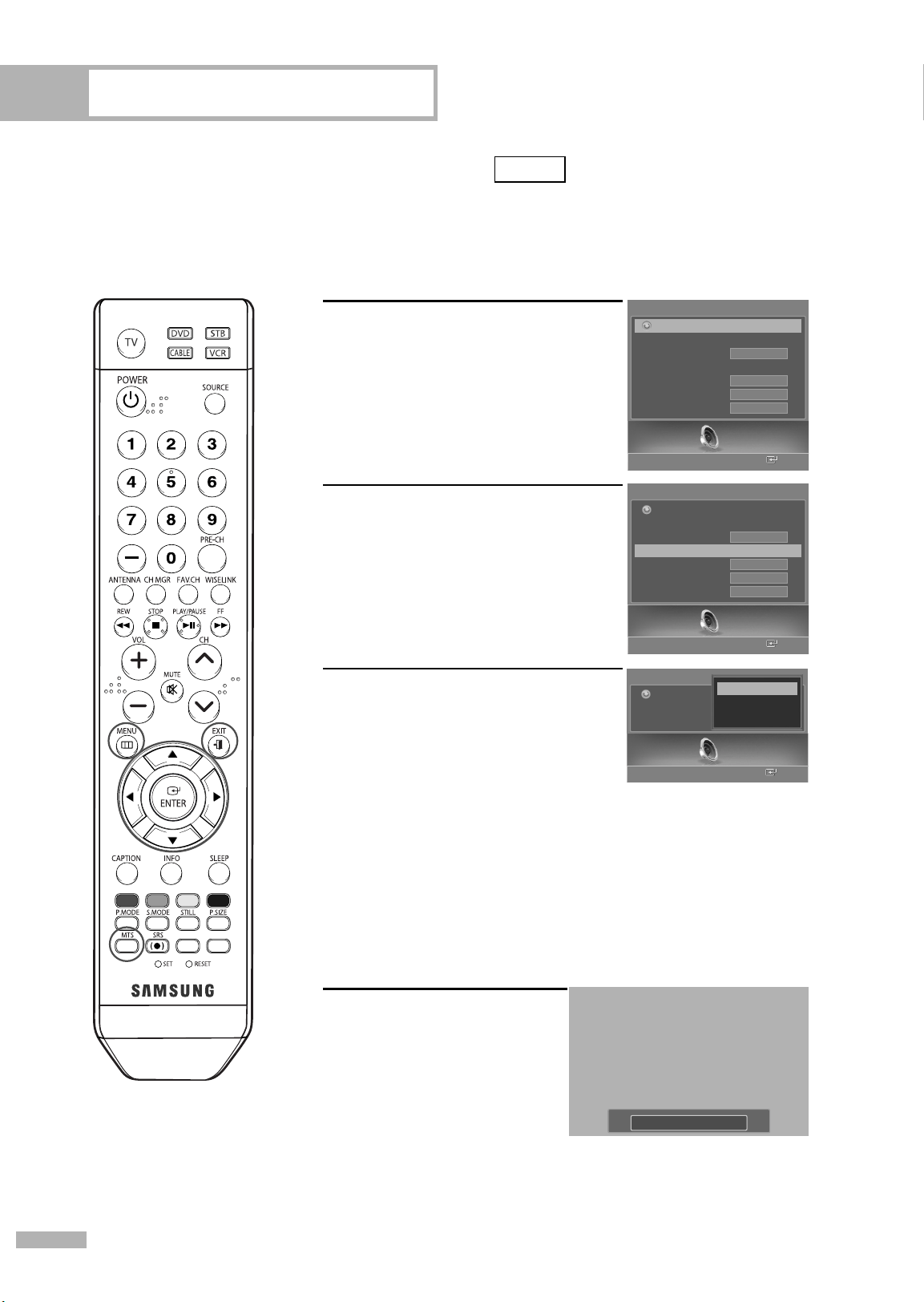

Choosing a Multi-Channel Sound (MTS) track
The digital-TV transmission system is capable of simultaneous transmission of many audio tracks
(for example, simultaneous translations of the program into foreign languages).
The availability of these additional “multitracks” depends upon the program.
1
Press the MENU button.
Press the œ or √ button to select
“Sound”, then press the ENTER
button.
2
Press the … or † button to select
“Multi-Track Options”, then press the
ENTER button.
3
Press the … or † button to select
“Preferred Language”, then press the
ENTER button.
Press the … or † button to select the
language (English, Spanish or
French) you want, then press the
ENTER button.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the MTS button on the
remote control.
You can listen in a language
other than the favorite language
by pressing the MTS button.
Digital
Sound
Enter
Multi-Track Options
Preferred Language
Multi-Track Sound
TV
TV
Return
English
Spanish
French
English
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
√
Internal Mute
Melody
Off
Off
Off
On
Return
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 74
English - 75

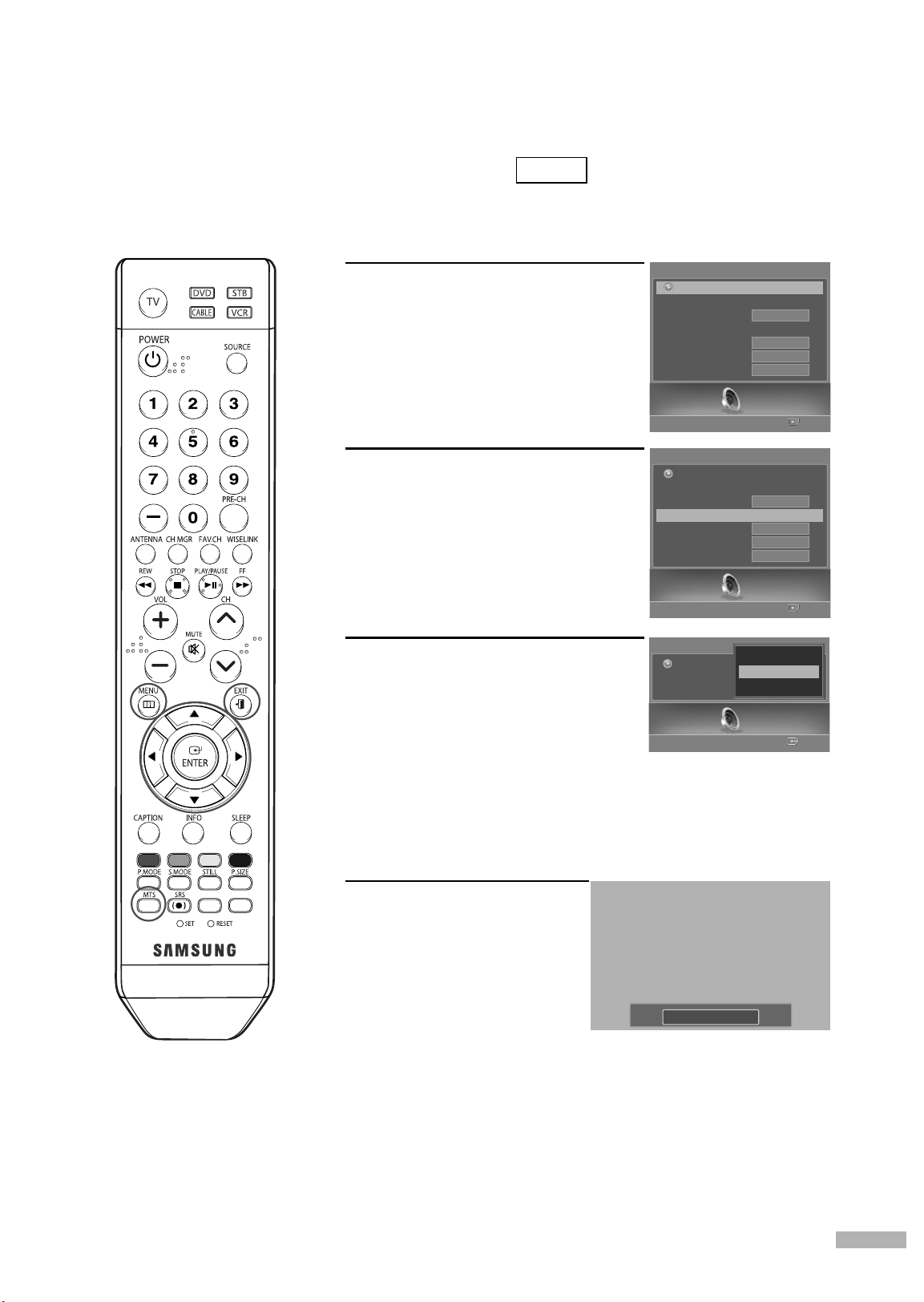

Choosing a Multi-Channel Sound (MTS) track
Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.
1
Press the MENU button.
Press the œ or √ button to select
“Sound”, then press the ENTER
button.
2
Press the … or † button to select
“Multi-Track Options”, then press the
ENTER button.
3
Press the … or † button to select
“Multi-Track Sound”, then press the
ENTER button.
Press the … or † button to select a
setting you want, then press the
ENTER button.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the MTS button on the
remote control repeatedly to select
a Multi-Channel Sound track.
NOTES
•Choose “Mono” for channels that are broadcasting in mono, or
if you are having difficulty receiving a stereo signal.
• Choose “Stereo” for channels that are broadcasting in stereo.
• Choose “SAP” to listen to the Separate Audio Program, which is
usually a foreign-language translation.
Analog
Sound
Enter
Multi-Track Options
Preferred Language
Multi-Track Sound
TV
TV
Return
Mono
Stereo
SAP
Stereo
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
√
Internal Mute
Melody
Off
Off
Off
On
Return
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 75
Sound Control
English - 76
Selecting the Internal Mute
When using a device such as a Home Theater or Amplifier with external speakers, you can set
Internal Mute to On to cut off sound from the TV's internal speakers.
1
Press the MENU button.
Press the œ or √ button to select
“Sound”, then press the ENTER
button.
2
Press the … or † button to select
“Internal Mute”, then press the
ENTER button.
3
Press the … or † button to select
“On”, then press the ENTER button.
Pressing the … or † button will
alternate between “Off” and “On”.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• The VOL +, VOL
-
and MUTE buttons do not operate when the
Internal Mute is set to On.
•When Internal Mute is on, only the Multi-Track Options menu is
available in the Sound menu.
•To watch TV with an external speaker system such as a home
theater system, set Internal Mute to On. To watch TV with the
internal speaker or to record video with a VCR through AV OUT
of the TV, set Internal Mute to Off.
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Off
On
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 76
English - 77
Setting the On/Off Melody
A melody sound can be set to come on when the TV is powered On or Off.
1
Press the MENU button.
Press the œ or √ button to select
“Sound”, then press the ENTER
button.
2
Press the … or † button to select
“Melody”, then press the ENTER
button.
Press the … or † button to select
“Off” or “On”, then press the
ENTER button.
Select “Return” by pressing the
… or † button, then press the
ENTER button to return to the
previous menu.
Press the EXIT button to exit.
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Sound
Enter
Sound
Mode
SRS TSXT
Multi-Track Options
Auto Volume
Internal Mute
Melody
Off
Off
Off
On
Return
Off
On
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 77
SAMSUNG
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 78
Special Features
BP68-00588A-01Eng(070~079) 5/8/06 4:49 PM Page 79

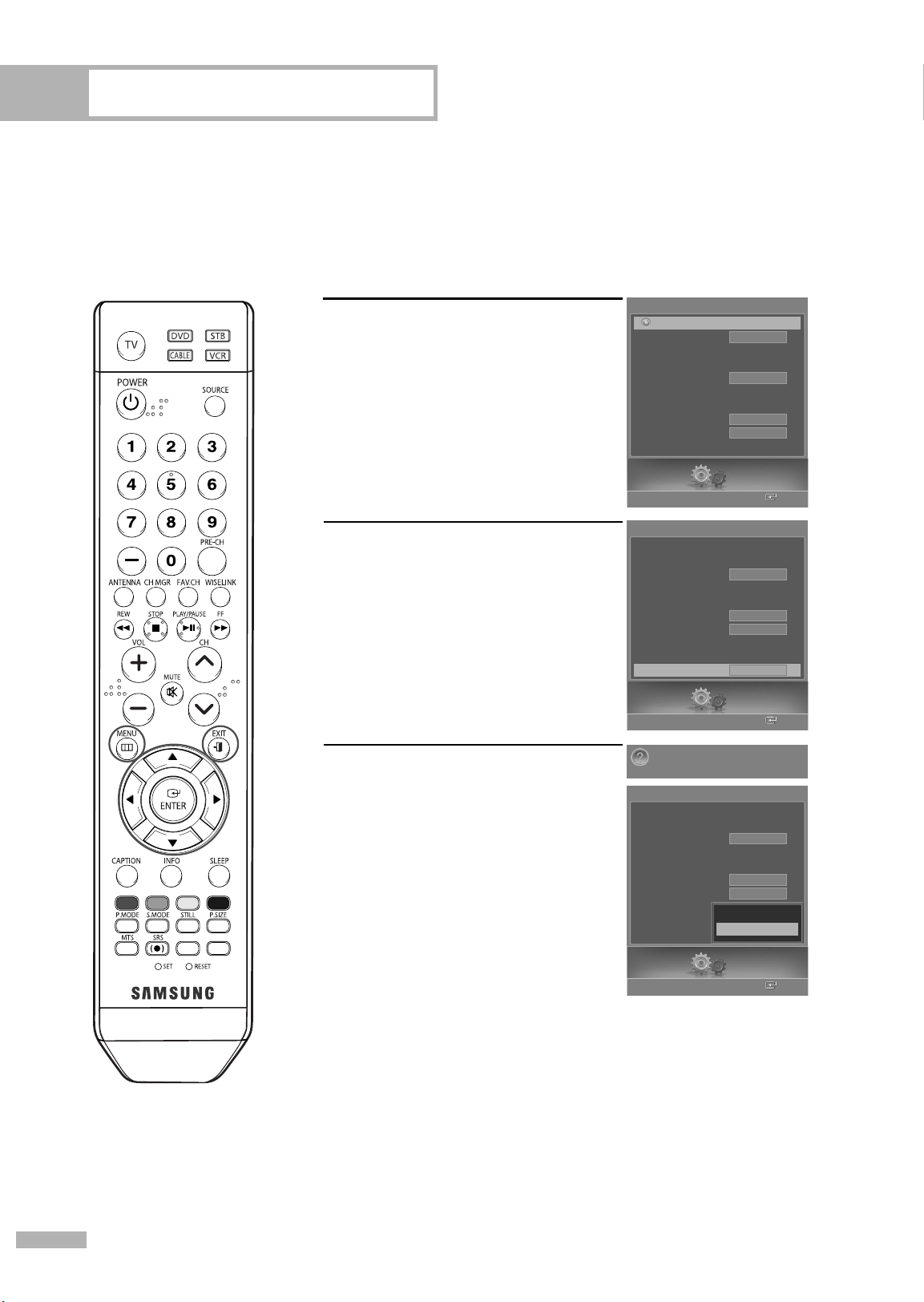

Special Features
English - 80
Setting the Function Help
Displays Help on the menu functions.
The Help appears at the top of the screen.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Function Help”, then press the
ENTER button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the
ENTER button to return to the
previous menu.
Press the EXIT button to exit.
NOTE
• The Function Help default setting is On.
Setup
Enter
Setup
…
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
Color Weakness
PC
Function Help
Off
Medium
Off
On
Setup
Enter
Setup
…
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
Color Weakness
PC
Function Help
Switches the Function Help on.
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Off
Medium
Off
Off
Off
On
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 80
English - 81
Menu Transparency Level
Adjusts the transparency of the menu screen.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Menu Transparency”, then press
the ENTER button.
Press the … or † button to select
level, then press the ENTER button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
High
Medium
Low
Opaque
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 81
Special Features
English - 82
Using Game Mode
When connecting to a game console such as PlayStation
TM
or Xbox
TM
, you can enjoy a more
realistic gaming experience by setting the game mode to on.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Game Mode”, then press the
ENTER button.
3
Press the … or † button to select
“Off” or “On”, then press the ENTER
button.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Restrictions on Game Mode (Caution)
•To disconnect the game console and connect another external
device, set Game to Off in the setup menu.
•
If you display the TV menu in Game Mode, the screen shakes slightly.
If Game Mode is On
• Picture Mode is automatically changed to Custom and users
cannot change the mode.
• Sound Mode in the Sound menu is deactivated. Adjust the sound
using the equalizer.
• The Reset Sound function is activated. Selecting the Reset function
after setting the equalizer resets the equalizer setting to the
factory defaults.
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Off
On
NOTES
•Game Mode is not
available in TV mode.
• If the picture is poor when
external device is
connected to TV, check if
Game Mode is On.
Set Game Mode to Off
and connect external
devices.
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 82

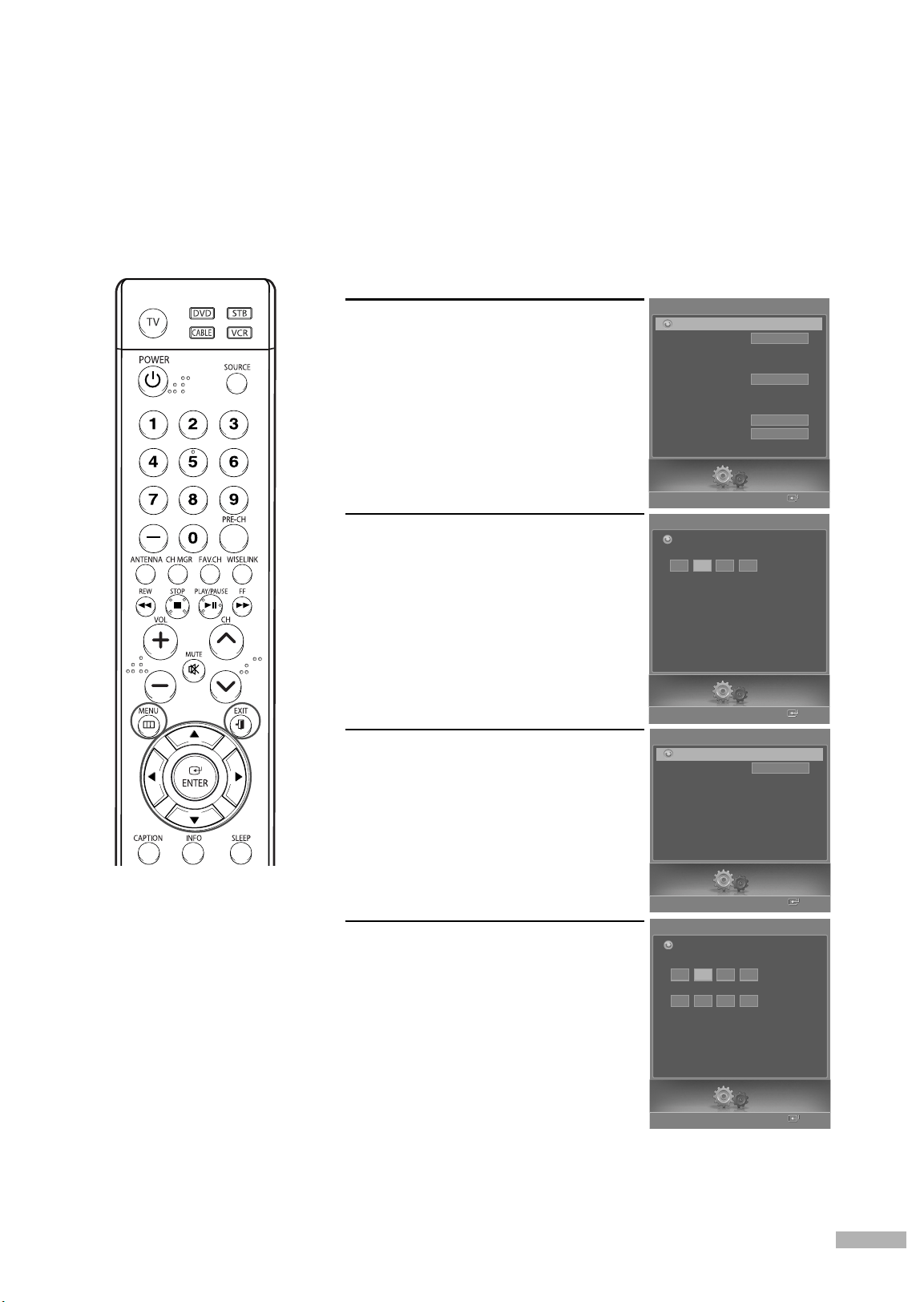

English - 83
Using the V-Chip
Access to channels and programs is controlled by a password (i.e., a 4-digit secret code that is
defined by the user). The on-screen menu will instruct you to assign a password (you can change it
later, if necessary).
How to Change Your Password
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
Press the … or † button to select
“V-Chip”, then press the ENTER
button.
2
Press the † button.
Press the number buttons to enter
your current 4-digit PIN.
(The default PIN for a new TV set is
“0000”.)
The “V-Chip” menu is displayed.
3
Press the … or † button to select
“Change PIN”, then press the ENTER
button.
4
Press the † button.
Press the number buttons to enter
your new 4-digit PIN.
Re-enter your new PIN to confirm.
The message will automatically
disappear, and return to the previous
menu after a few seconds, even if
the ENTER button is not pressed.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
V-Chip
Enter PIN
Return
Setup
Enter
Change PIN
Enter New PIN
Return
*
Confirm New PIN
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S.Rating
Change PIN
Off
Return
*
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
NOTES
• If you forget the pin
number, press the remote
control buttons in the
following sequence,
which resets the pin to
0-0-0-0: POWER (Off)
MUTE824
POWER (On).
• The V-Chip function only
works in TV, AV mode
and S-Video mode.
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 83
Special Features
English - 84
How to Enable/Disable the Rating Controls
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
Press the … or † button to select
“V-Chip”, then press the ENTER
button.
2
Press the † button.
Press the number buttons to enter
your current 4-digit PIN.
(The default PIN for a new TV set is
“0000”.)
The “V-Chip” menu is displayed.
3
The “V-Chip” screen will appear.
Press the … or † button to select
“V-Chip Lock”.
To enable the V-Chip feature, press
the ENTER button so that the
“V-Chip Lock” field is “On”.
(Pressing the … or † button will
alternate between “On” and “Off”.)
Press the ENTER button.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
V-Chip
Enter PIN
Return
*
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S.Rating
Change PIN
Off
Return
Setup
Enter
Off
On
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 84
English - 85

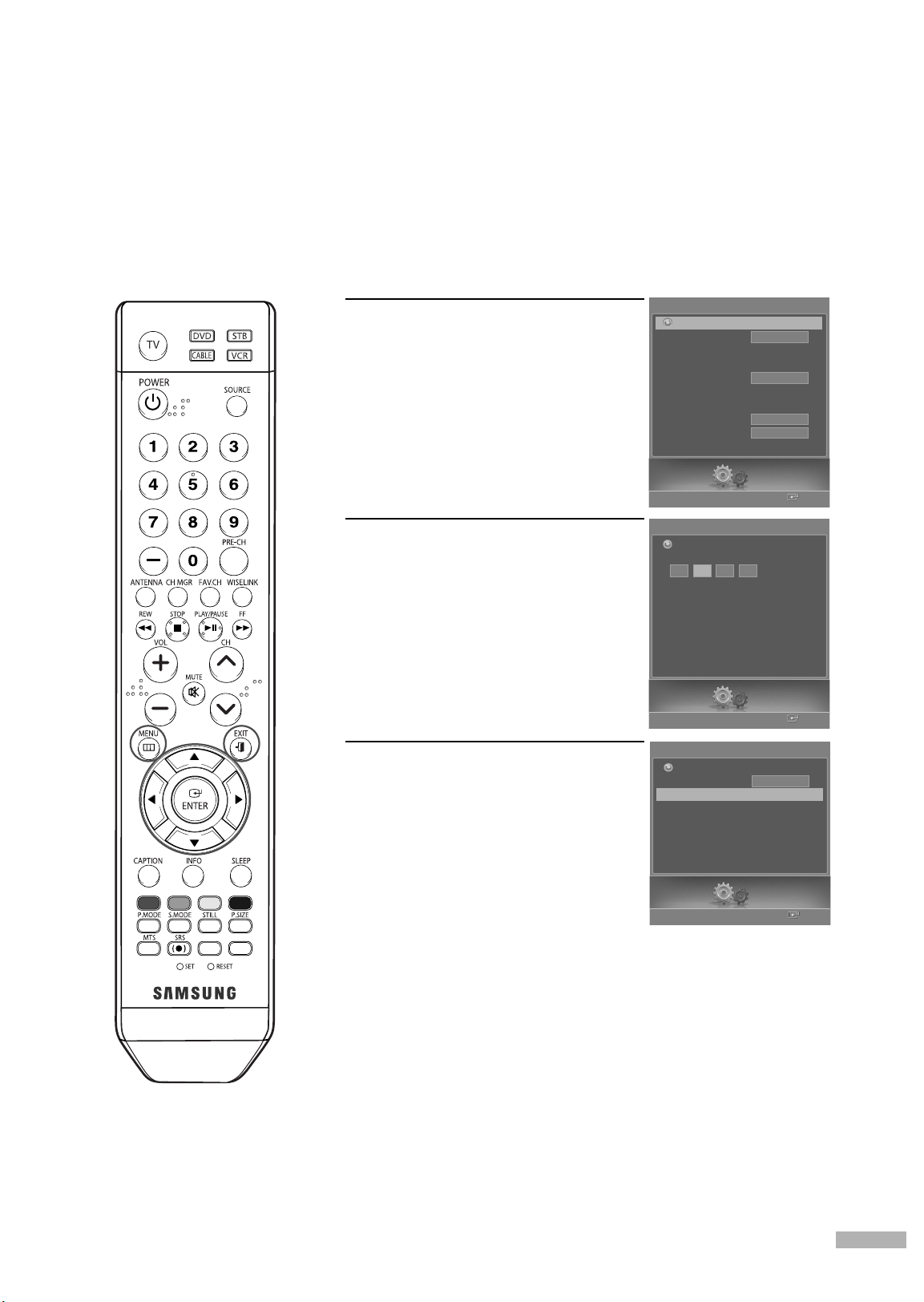

How to Set up Restrictions Using “TV Parental Guidelines”
The parental restrictions can be set up using either of two methods: The “TV Parental Guidelines” or
“MPAA Rating”.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
Press the … or † button to select
“V-Chip”, then press the ENTER
button.
2
Press the † button.
Press the number buttons to enter
your current 4-digit PIN.
(The default PIN for a new TV set is
“0000”.)
The “V-Chip” menu is displayed.
3
Press the … or † button to select
“TV Parental Guidelines”, then press
the ENTER button.
Continued...
Setup
Enter
V-Chip
Enter PIN
Return
*
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
V-Chip
V-Chip Lock
TV Parental Guidelines
√
MPAA Rating
Canadian English
Canadian French
Downloadable U.S.Rating
Change PIN
On
Return
Setup
Enter
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 85
Special Features
English - 86
4
You can independently lock the TV ratings.
The locked TV (FCC) ratings are indicated by the symbol “ ”.
Press the …/†/œ/√ buttons and the ENTER button to activate the
appropriate restrictions for TV (FCC) rating system.
To unlock items that are locked, press the Enter button again.
TV-Y : Young children
TV-Y7 : Children 7 and over
TV-G : General audience
TV-PG : Parent Guidance
TV-14 : Viewers 14 and over
TV-MA : Mature Audience
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• These categories consist of two separate groups: “TV-Y” and “TV-Y7” (young children through
age 7), and “TV-G” through “TV-MA” (everybody else).
• The restrictions for these two groups work independently: If a household includes very young
children as well as young adults, the TV parental guidelines must be set up separately for
each age group. (See page 88.)
NOTES
• Allow All : Press to unlock
all TV ratings.
• Block All : Press to lock
all TV ratings.
Setup
Enter
TV Parental Guidelines
Return
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 86
English - 87

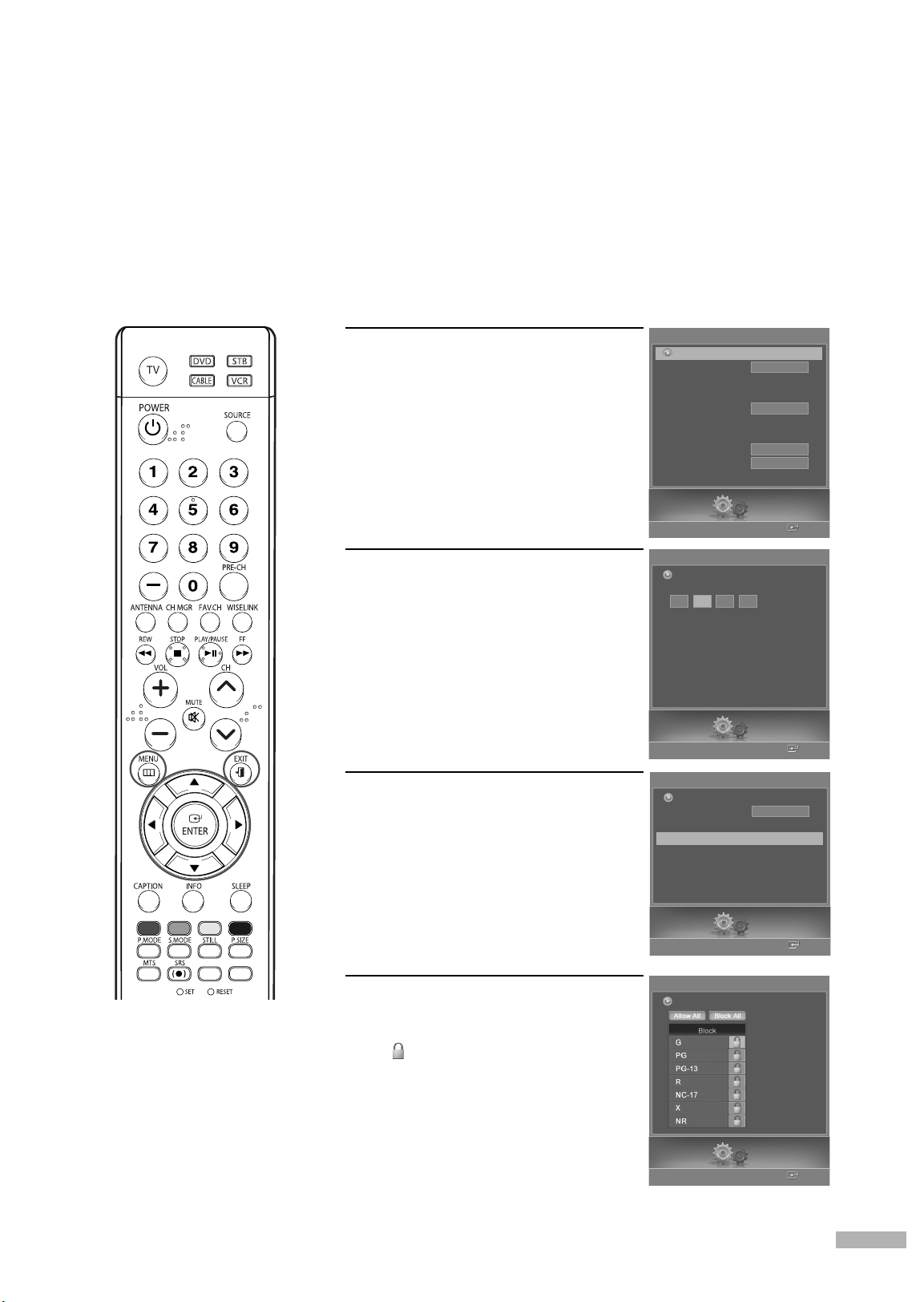

How to Set up Restrictions Using “MPAA Rating”
The Movie rating system uses the “MPAA” (Motion Picture Association of America) system, and its
main application is for movies.
When the rating control is on, the TV will automatically block any programs that are coded with
objectionable ratings (either “MPAA Rating” or “TV Parental Guidelines”).
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
Press the … or † button to select
“V-Chip”, then press the ENTER
button.
2
Press the † button.
Press the number buttons to enter
your current 4-digit PIN.
(The default PIN for a new TV set is
“0000”.)
The “V-Chip” menu is displayed.
3
Press the … or † button to select
“MPAA Rating”, then press the
ENTER button.
4
You can independently lock the
movie ratings. The locked movie
ratings are indicated by the symbol
“”.
Press the …/†/ENTER buttons to
activate the appropriate restrictions
for movie rating system.
To unlock items that are locked,
press the Enter button again.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• Allow All : Press to unlock
all movie ratings.
• Block All : Press to lock all
movie ratings.
Setup
Enter
V-Chip
Enter PIN
Return
*
Setup
Enter
MPAA Rating
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
√
Canadian English
Canadian French
Downloadable U.S.Rating
Change PIN
On
Return
Setup
Enter
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 87
Special Features
English - 88
Important Notes About Parental Locks
Explanation of the MPAA and TV (FCC) Rating Systems:
TV (FCC) Age-Based Ratings
TV-MA
Mature audiences only. This program may
contain mature themes, profane language,
graphic violence and explicit sexual content.
TV-14
Parents strongly cautioned. This program may
contain sophisticated themes, sexual content,
strong language and more intense violence.
TV-PG
Parental guidance suggested. The program
may contain infrequent coarse language,
limited violence, some suggestive sexual
dialog and situations.
TV-G
General audience. It contains little or no
violence, no strong language, and little or no
sexual dialog or situations.
TV-Y7
Directed to older children. Themes and
elements in this program may include mild
physical or comedic violence, or may frighten
children under the age of seven.
TV-Y
All children. The themes and elements in this
program are specifically designed for a very
young audience, including children from ages
two – six.
TV (FCC) Content Category
V Violence.
S Sexual content.
L Offensive language.
D Dialog sexual innuendo.
FV Fantasy or cartoon violence.
MPAA Rating System (Movies)
G General audience. No restriction.
PG Children under 13 should be accompanied
by an adult.
PG-13 Parental guidance suggested. Children
under 13 should be accompanied by an
adult.
R Restricted. Viewers should be 17 or older.
NC-17 Not classified. Viewers should be 17 or
older.
X Adults only.
NR Not rated.
• TV (FCC) ratings : The particular rating that you have selected will be locked (and indicated as
a red “L” on a blue background). Also, all of the age-based ratings will be locked within the
particular group (i.e., “group 1” or “group 2”). Suppose that the TV-G rating and all of its
contents (V, S, L, and D) are locked. In that case, more restrictive ratings (TV-PG, TV-14, and
TV-MA) and all of their contents (V, S, L, and D) are automatically locked as well.
•MPAA ratings : The particular rating that you have selected will be locked. In addition, more
restrictive ratings will be locked as well.
• Neither TV (FCC) ratings nor MPAA ratings apply to news programs.
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 88
English - 89
How to Set up Restrictions Using Canadian English
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
Press the … or † button to select
“V-Chip”, then press the ENTER
button.
2
Press the † button.
Press the number buttons to enter
your current 4-digit PIN.
(The default PIN for a new TV set is
“0000”.)
The “V-Chip” menu is displayed.
3
Press the … or † button to select
“Canadian English”, then press the
ENTER button.
Continued...
Setup
Enter
V-Chip
Enter PIN
Return
*
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
Canadian English
√
Canadian French
Downloadable U.S.Rating
Change PIN
On
Return
Setup
Enter
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 89
Special Features
English - 90
4
Press the … or † button to select a appropriate restriction.
Press the ENTER button to activate the restriction selected.
The “ ” symbol is indicated.
To unlock items that are locked, press the Enter button again.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
E Exempt programming includes...news, sports, documentaries and
other information programming, talk shows, music videos,
and variety programming.
C Programming intended for children under age 8.
C8+ Programming generally considered acceptable for children 8 years and
over to watch on their own.
G General programming, suitable for all audiences.
PG Parental Guidance.
14+ Programming contains themes or content which may not be suitable for
viewers under the age of 14.
18+ Adult programming.
NOTES
• Allow All : Press to unlock
all TV ratings.
• Block All : Press to lock
all TV ratings.
Setup
Enter
Canadian English
Return
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 90
English - 91
How to Set up Restrictions Using Canadian French
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
Press the … or † button to select
“V-Chip”, then press the ENTER
button.
2
Press the † button.
Press the number buttons to enter
your current 4-digit PIN.
(The default PIN for a new TV set is
“0000”.)
The “V-Chip” menu is displayed.
3
Press the … or † button to select
“Canadian French”, then press the
ENTER button.
Continued...
Setup
Enter
V-Chip
Enter PIN
Return
*
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
√
Downloadable U.S.Rating
Change PIN
On
Return
Setup
Enter
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 91
Special Features
English - 92
4
Press the … or † button to select a appropriate restriction.
Press the ENTER button to activate the restriction selected.
The “ ” symbol is indicated.
To unlock items that are locked, press the Enter button again.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
E Exempt programming includes...news, sports, documentaries and
other information programming, talk shows, music videos,
and variety programming.
G General.
8 ans+ Not recommended for young children.
13 ans+ Programming may not be suitable for children under the age of 13.
16 ans+ Programming is not suitable for children under the age of 16.
18 ans+ Programming restricted to adults.
NOTES
• Allow All : Press to unlock
all TV ratings.
• Block All : Press to lock
all TV ratings.
Setup
Enter
Canadian French
Return
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 92
English - 93
Using the V-Chip for Digital channels
Parental restriction information can be used while watching DTV channels.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
Press the … or † button to select
“V-Chip”, then press the ENTER
button.
2
Press the † button.
Press the number buttons to enter
your current 4-digit PIN.
(The default PIN for a new TV set is
“0000”.)
The “V-Chip” menu is displayed.
3
Press the … or † button to select
“Downloadable U.S. Rating”, then
press the ENTER button.
NOTES
• If information is not downloaded from the broadcasting station,
the Downloadable U.S. Rating menu is deactivated.
• Parental restriction information is automatically downloaded while
watching DTV channels. It may take several seconds.
• The downloadable U.S. Rating menu is available for use after
information is downloaded from the broadcasting station.
However, depending on the information from the broadcasting
station, it may not be available for use.
Continued...
Setup
Enter
V-Chip
Enter PIN
Return
*
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
√
Change PIN
On
Return
Setup
Enter
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 93
Special Features
English - 94
4
You can independently lock the TV ratings. The locked
TV ratings are indicated by the symbol “ ”.
To unlock a locked channel, press the ENTER button
again.
Press the …/†/œ/√ buttons and the ENTER button to
activate the appropriate restrictions for TV rating
system.
Select “Return” by pressing the … or † button, then
press the ENTER button to return to the previous menu.
Press the EXIT button to exit.
NOTES
•
Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.
•
Parental restriction levels differ depending on the broadcasting station.
•
The default menu name and Downloadable
U.S. Rating
changes depending on the downloaded
information.
•
Even if you set the On-screen display to your desired language, the "Downloadable U.S. Rating"
menu will appear in English only.
•
The rating will automatically block certain categories that are more restrictive.
•
The rating titles (For example : Humor Level..etc) and TV ratings (For example : DH, MH, H..etc)
may differ depending on the broadcasting station.
Setup
Enter
Downloadable U.S. Rating
Return
Humor Level
√
1 / 2
DH
MH
H
VH
EH
Rating title
The number of
current rating
title
The number of
all rating title
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 94

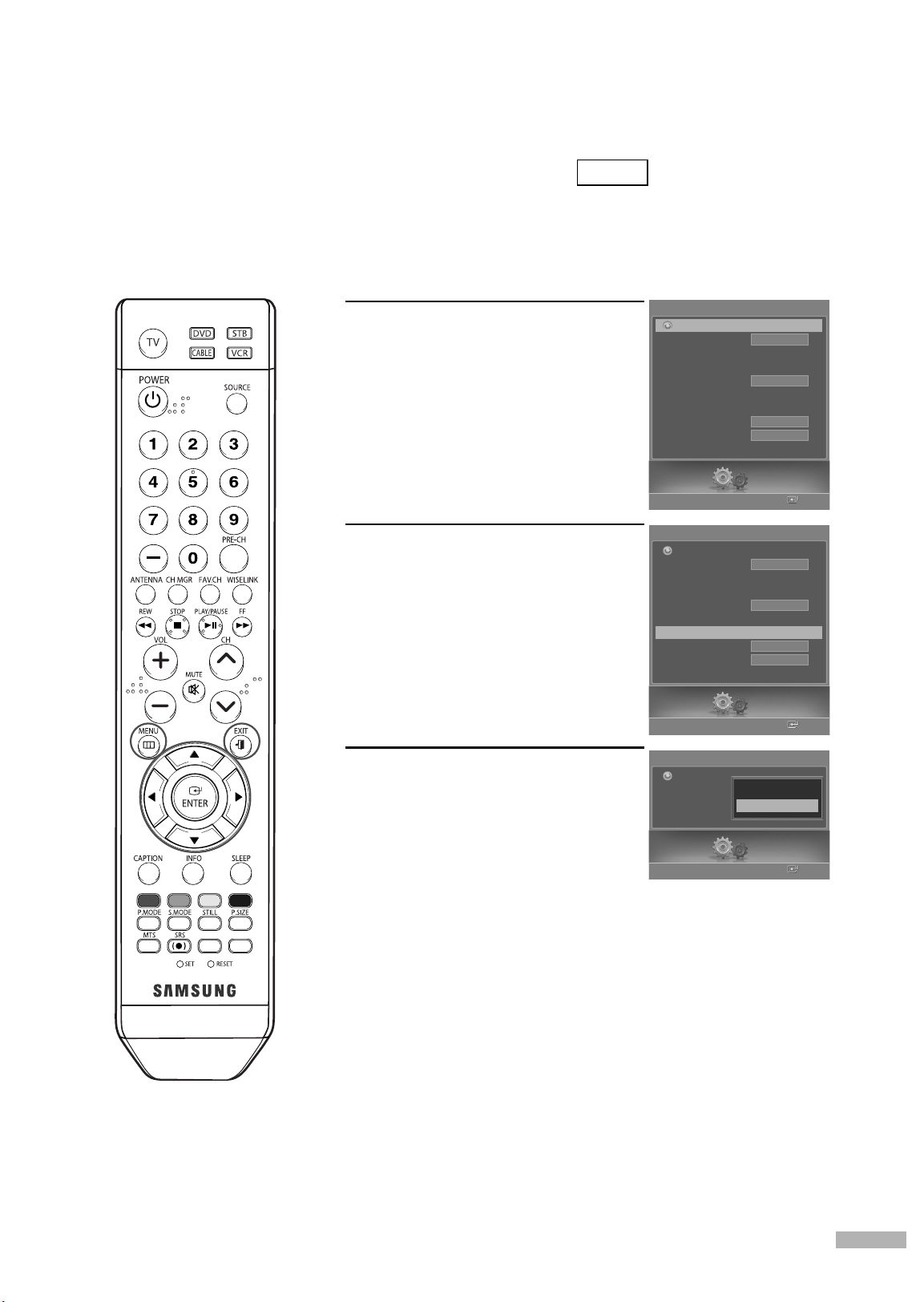

English - 95
Viewing Closed Captions (On-Screen Text Messages)
The Analog Caption function operates in either analog TV channel mode or external source mode.
(Depending on the broadcasting signal, the Analog Caption function may operate on digital
channels.)
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Caption”, then press the ENTER
button.
3
Press the … or † button to select
“Caption”, then press the ENTER
button.
Press the … or † button to select
“On”, then press the ENTER button.
Continued...
Analog
Setup
Enter
Caption
Caption
Mode
Caption Options
Return
Off
On
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
√
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 95
Special Features
English - 96
4
Press the … or † button to select “Mode”, then press the
ENTER button.
Press the … or † button to select submenu (CC1~CC4 or
Text1~Text4) you want, then press the ENTER button.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• The default is “Default”.
CC1 : The Primary Synchronous Caption Service. These are captions in the primary language
that must be in sync with the sound, preferably matched to a specific frame.
CC2 : The Special NonSynchronous Use Captions. This channel carries data that is intended
to augment information carried in the program.
CC3 : Secondary Synchronous Caption Service. Alternate program-related caption data,
typically second language captions.
CC4 : Special Non-Synchronous Use Captions. Similar to CC2.
Text1 : First Text Service. This may be various non-program related data.
Text2 : Second Text Service. Additional data, usually not program related.
Text3/Text4 : Third and Fourth Text Services. These data channels are used only if Text1 and
Text2 data bandwidths not sufficient.
• The Caption feature only works in TV, AV and S-Video mode.
• The availability of captions depends on the program being broadcast.
Setup
Enter
Caption
Caption
Mode
Caption Options
Return
Default
†
CC1
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 96
English - 97

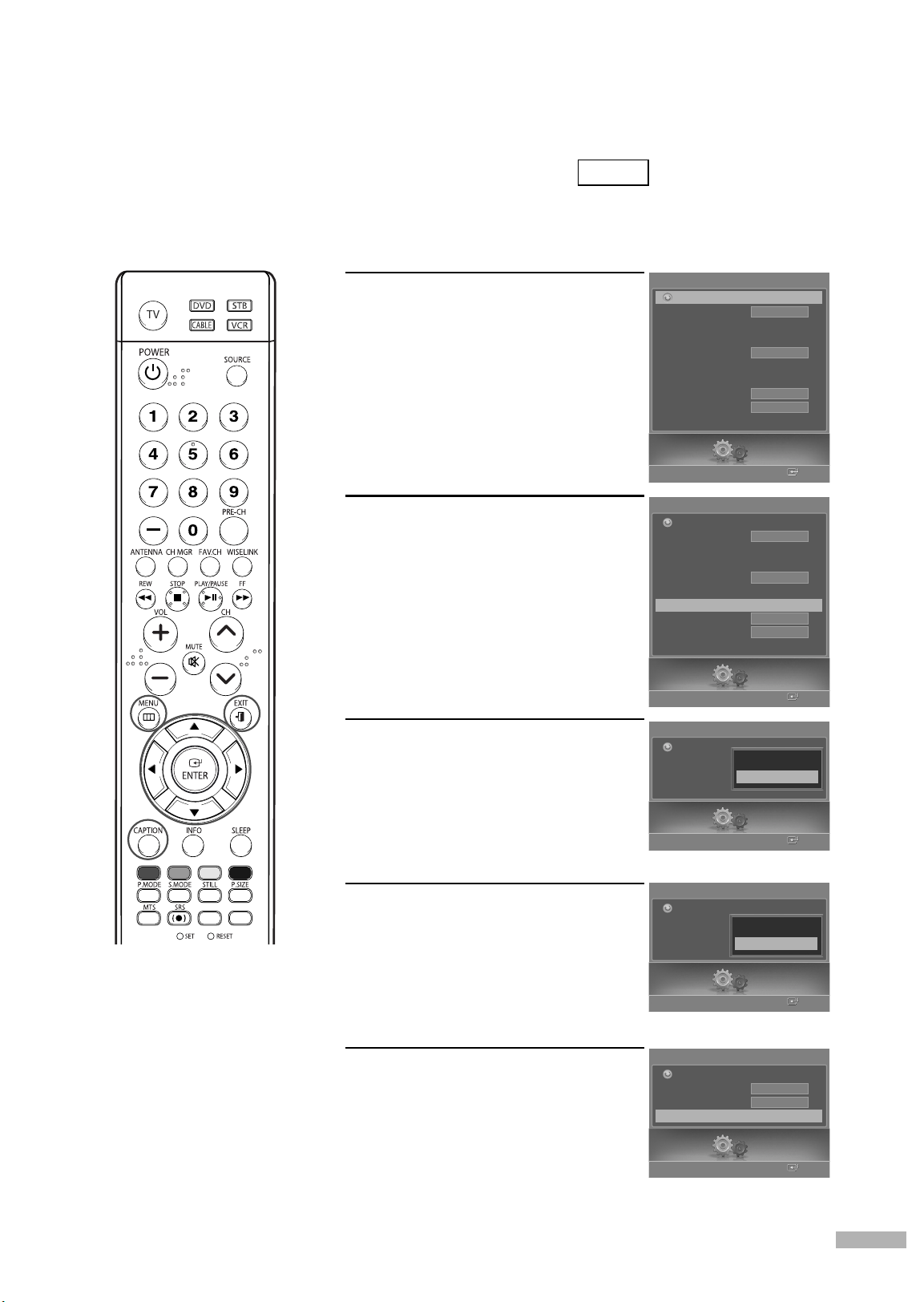

Viewing Closed Captions (On-Screen Text Messages)
The Digital Captions function operates on digital channels.
1
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
2
Press the … or † button to select
“Caption”, then press the ENTER
button.
3
Press the … or † button to select
“Caption”, then press the ENTER
button.
Press the … or † button to select
“On”, then press the ENTER button.
4
Press the … or † button to select
“Mode”, then press the ENTER
button.
Press the … or † button to select
submenu (Service 1~Service 6,
CC1~CC4 or Text1~Text4) you
want, then press the ENTER button.

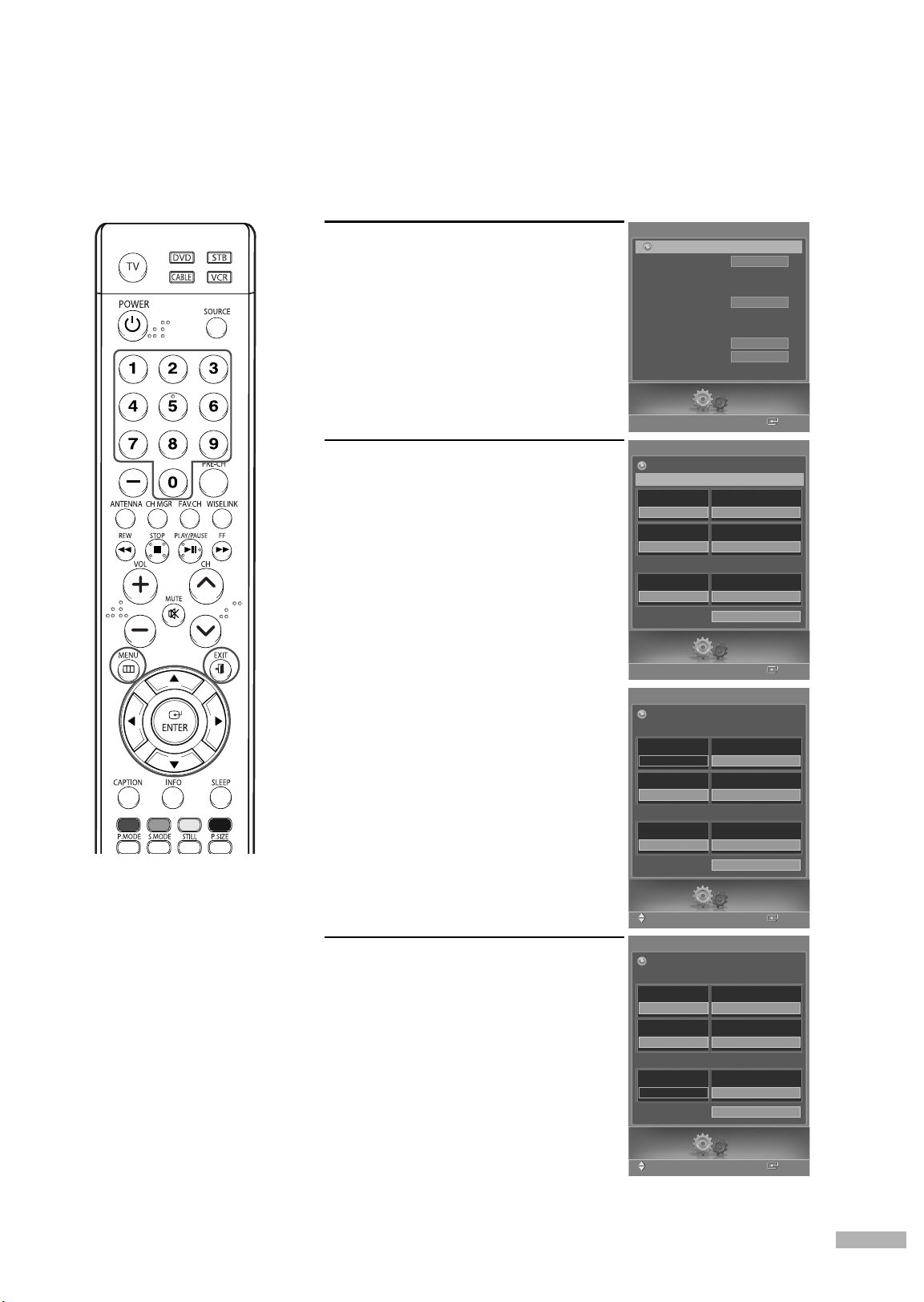

5
Press the … or † button to select
“Caption Options”, then press the
ENTER button.
Continued...
NOTE
• “Caption Options” are
available only when
“Service1~Service6” can
be selected in “Mode”.
Digital
Setup
Enter
Caption
Caption
Mode
Caption Options
Return
Off
On
Setup
Enter
Caption
Return
Setup
Enter
Caption
Caption
Mode
Caption Options
Return
…
CC1
†
CC2
Caption
Mode
Caption Options
√
On
Default
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
√
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 97
6
Press the … or † button to select “Size”, then press the
ENTER button.
Press the … or † button to select the desired item in the Size menu,
then press the ENTER button.
Set other listed options below using the same method as above.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
NOTES
• The availability of captions depends on the program being broadcast.
• “Default” means to return to the original caption options set by the broadcaster.
Alternate method
Press the CAPTION button on the remote control repeatedly to
select “On” or “Off”.
Special Features
English - 98
Size
This option consists of “Default”, “Small”, “Standard”, and “Large”.
The default is “Default”.
Font Style
This option consists of “Default”, “Style0 ~ Style 7”.
You can change the font you want. The default is “Default”.
Foreground Color
This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”, “Yellow”,
“Magenta”, and “Cyan”.
You can change the color of the letter. The default is “Default”.
Background Color
This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”, “Yellow”,
“Magenta”, and “Cyan”. You can change the background color of the caption.
The default is “Default”.
Foreground Opacity
This option consists of “Default”, “Transparent”, “Translucent”, “Solid”, and “Flashing”.
You can change the opacity of the letter. The default is “Default”.
Background Opacity
This option consists of “Default”, “Transparent”, “Translucent”, “Solid”, and “Flashing”.
You can change the background opacity of the caption. The default is “Default”.
Return to Default
This option sets each of “Size”, “Font Style”, “Foreground Color”, “Background Color”,
“Foreground Opacity”, and “Background Opacity” Color to its default.
Caption : On
Enter
Caption Options
Size
Font Style
Foreground Color
Background Color
Foreground Opacity
Background Opacity
Return to Default
Default
Default
Default
Default
Default
Default
Return
Setup
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 98
PC Display
BP68-00588A-03Eng(080~099) 8/22/06 5:13 PM Page 99
PC Display
English - 100
Using Your TV as a Computer (PC) Display
How to Connect Your PC to the TV
This figure shows the Standard Connector-jack panel. The actual configuration on your TV may be
different, depending on the model.
Connecting a PC (15p D-SUB) to the TV
1
Connect a PC cable between
the PC Output jack on the
PC and the RGB input jack
(PC IN) on the TV.
2
Connect a Audio cable
between the Audio jack on
the PC and the Audio input
jack (PC AUDIO IN) on the
TV.
NOTE
•You cannot connect this TV to a
PC via HDMI/DVI.
15Pin (D-Sub)
Cable
PC
Audio Cable
TV Rear Panel
1
2
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 100
English - 101
Setting up Your PC Software (Based on Windows XP)
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
1. Right click the mouse on the Windows Desktop,
then click on Properties. The Display Dialog-Box
will be displayed.
continued...
2 Click on Settings, then set the Display Mode with
reference to the Display Modes Table. You do not
need to change the Colors settings.
3 Click on Advanced. A new settings dialog box
will be displayed.
4 Click on the Monitor tab, then set the Screen
Refresh Rate with reference to the Display Modes
Table. Set the Vertical Frequency and Horizontal
Frequency individually if you can do so, instead
of setting the Screen Refresh Rate.
5Press the OK button, close the window, then
press the OK button on the Display Registration
Information window. Automatic re-booting may
commence at this moment.
6 Shutdown the PC, and connect it to your TV.
* The actual screens on your PC may look
different, depending on your particular version
of Windows and the type of your PC.
*When you use your TV as a PC monitor,
it supports Colors up to 32 bits.
* In this case, the display on the TV may look
different depending on your particular version
of Windows or the PC manufacturer.
*When connecting a PC, you must set it to the
display settings that are supported by the TV.
Otherwise, the message “Out of input range”
will be displayed.
2
3
4
5
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 101
PC Display
English - 102
NOTES
• The Modes Table conforms to the regulations of IBM/VESA and is prepared based on analog input
standards.
• Resolutions other than the resolutions above are not supported in PC mode.
Resolution
640 x 350
640 x 480
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 960
1280 x 1024
1600 x 1200
1920 x 1200RB
Vertical Frequency [Hz]
70.086
59.94
72.809
75
60.317
72.188
75
60.004
70.069
75.029
75
60
60.02
75.025
60
59.885
Horizontal Frequency [KHz]
31.469
31.469
37.861
37.5
37.879
48.077
46.875
48.363
56.476
60.023
67.5
60
63.981
79.976
75
74.556
Vertical Polarity
N
N
N
N
P
P
P
N
N
P
P
P
P
P
P
P
Horizontal Polarity
P
N
N
N
P
P
P
N
N
P
P
P
P
P
P
N
Mode
IBM
VESA
Checklist Before Connecting to a PC
• Adjust the PC Display Setup to the resolution and frequency values that are supported by the TV.
• Please read the user’s manual provided with the PC (Graphic Card & Sound Card).
• Do not supply power to either device until all connections are complete.
Supplying power in the middle of connecting may cause damage to the product.
• Check the terminal types for the PC’s graphic card.
Setting the Display Modes to be Compatible with Your TV
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 102

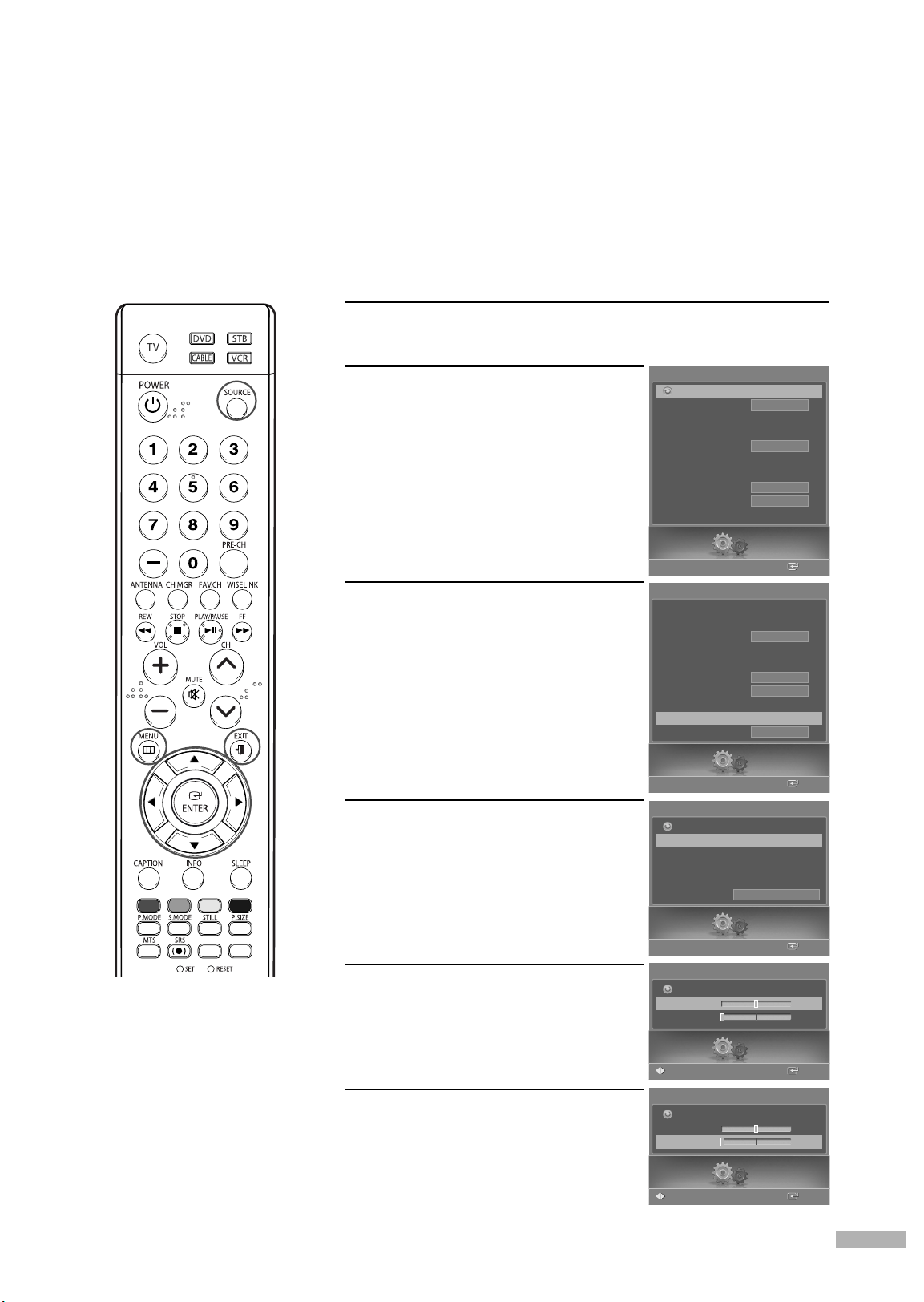

English - 103
Adjusting the Picture Quality
The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not
removed by fine tuning alone, then do the frequency adjustments to the utmost and fine tune again.
After the noise has been reduced, re-adjust the picture so that it is aligned to the center of screen.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
3
Press the … or † button to select
“PC”, then press the ENTER button.
4
Press the … or † button to select
“Image Lock”, then press the ENTER
button.
5
Press the … or † button to select
“Coarse” or “Fine”, then press the
ENTER button.
6
Press the œ or √ button to remove
the picture noise.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTE
• This feature may change
the width of the image.
If necessary, adjust the
position to center.
Setup
Enter
PC
Image Lock
√
Position
Auto Adjustment
Image Reset
Resolution
1024x768 @75Hz
Return
Setup
Enter
Image Lock
Coarse 800
Fine 0
Return
Setup
Image Lock
Coarse 800
Fine 0
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
…
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
Color Weakness
PC
√
Function Help
Off
Medium
Off
On
Adjust
Enter
Adjust
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 103
PC Display
English - 104
Changing the Picture Position
After connecting the TV to your PC, adjust the position of the picture if it is not well-aligned.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
3
Press the … or † button to select
“PC”, then press the ENTER button.
4
Press the … or † button to select
“Position”, then press the ENTER
button.
5
Adjust the position of picture
by pressing the …/†/œ/√
button.
Press the ENTER button.
Select “Return” by pressing
the … or † button, then
press the ENTER button to
return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
PC
Image Lock
Position
√
Auto Adjustment
Image Reset
Resolution
1024x768 @75Hz
Return
Position
Adjust Enter Return
▼
▼
▲
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
▼
Setup
Enter
Setup
…
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
Color Weakness
PC
√
Function Help
Off
Medium
Off
On
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 104

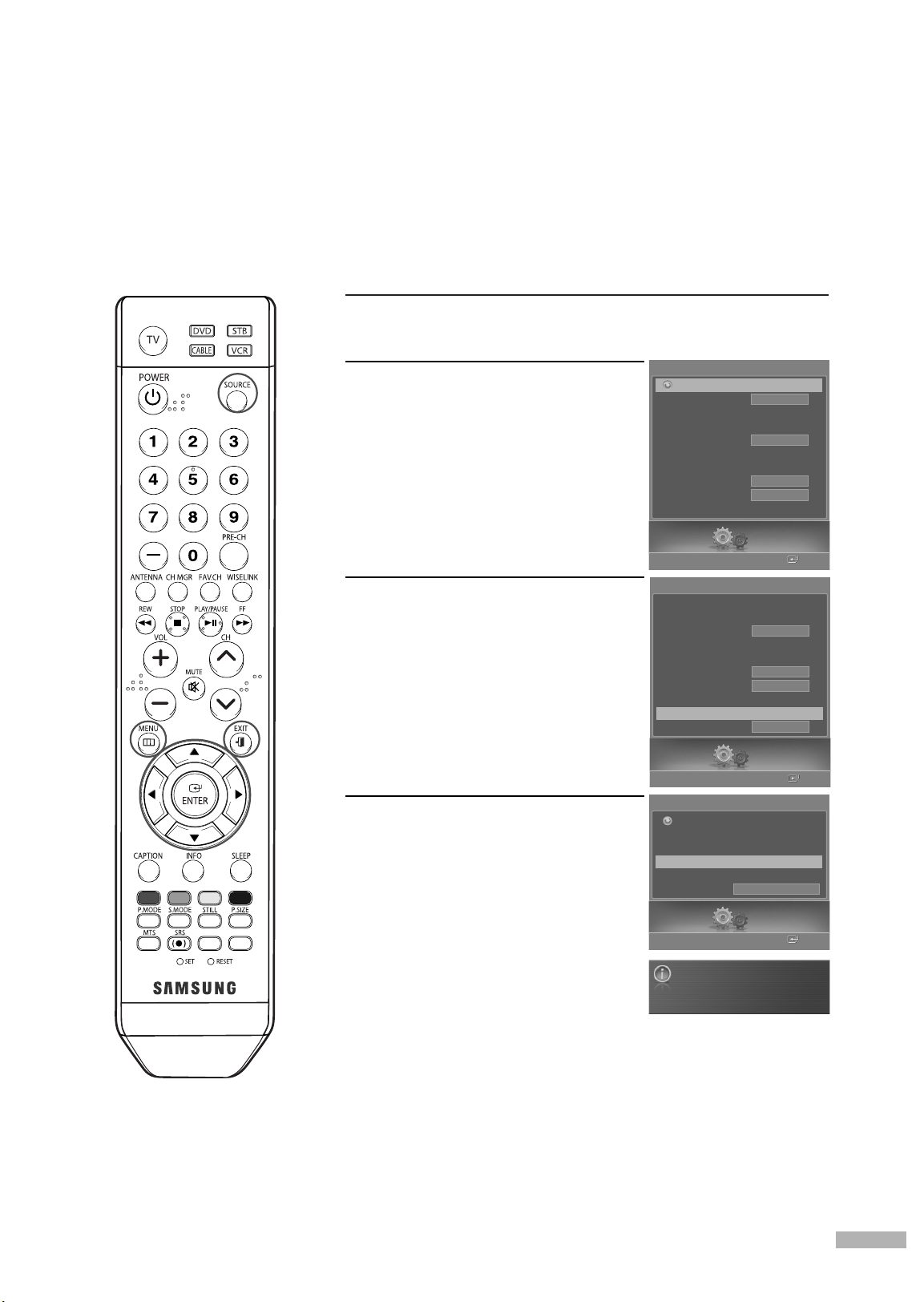

1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
3
Press the … or † button to select
“PC”, then press the ENTER button.
4
Press the … or † button to select
“Auto Adjustment”, then press the
ENTER button.
The picture quality and position are
automatically adjusted, and the
picture returns to original view
a few seconds later.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
English - 105
Adjusting the Picture Quality and Position Automatically
This feature allows the TV to self-adjust to the incoming video signal. The values of fine, coarse and
position are adjusted automatically.
Setup
Enter
PC
Image Lock
Position
Auto Adjustment
Image Reset
Resolution
1024x768 @75Hz
Return
Auto Adjustment in Progress
Please Wait.
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
…
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
Color Weakness
PC
√
Function Help
Off
Medium
Off
On
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 105
PC Display

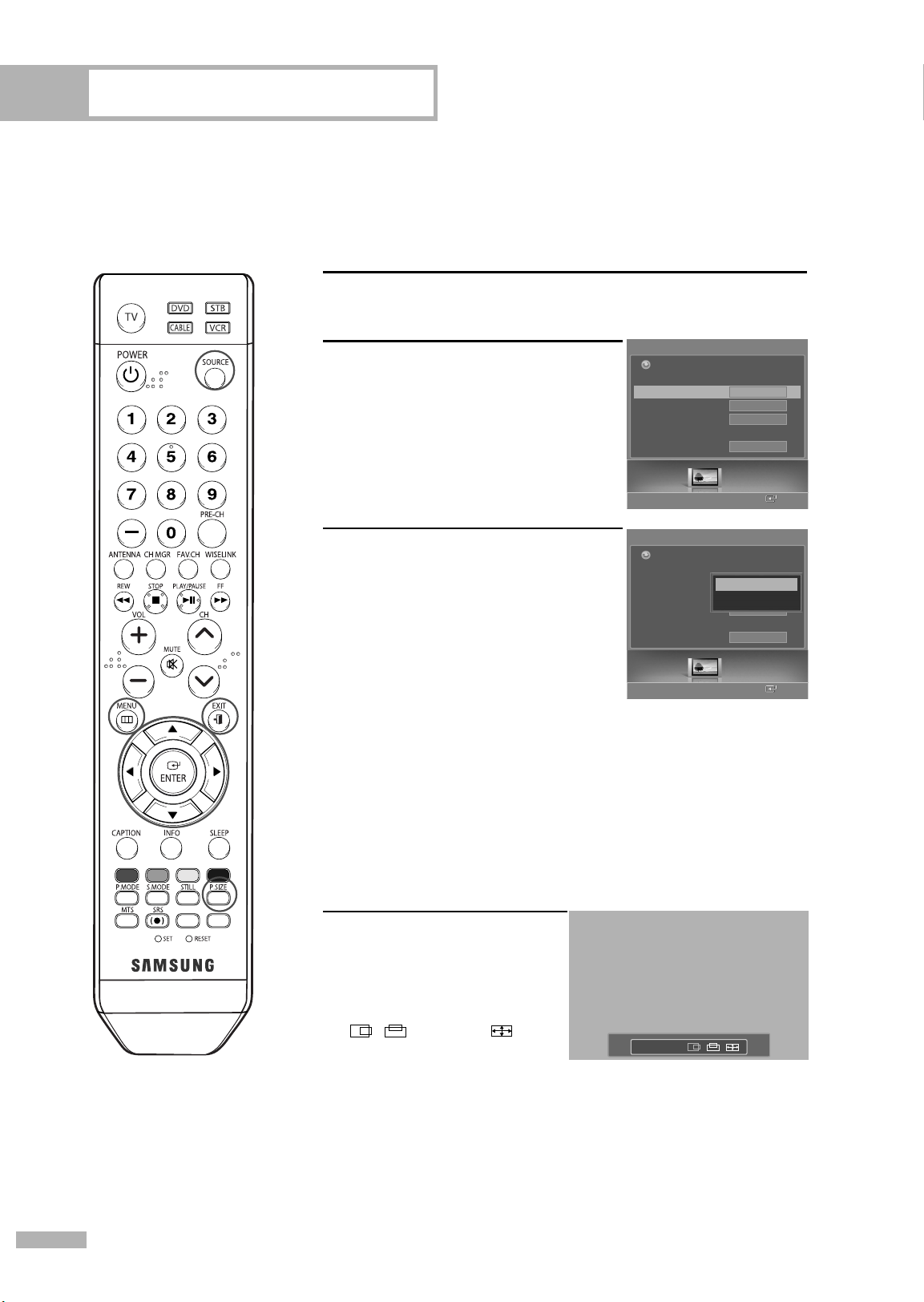

English - 106
Changing the Picture Size (PC Mode)
You can select the picture size which best corresponds to your viewing requirements.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the œ or √ button to select
“Picture”, then press the ENTER
button.
Press the … or † button to select
“Size”, then press the ENTER button.
3
Press the … or † button to select the
screen format you want, then press
the ENTER button.
Select “Return” by pressing the … or † button, then press the
ENTER button to return to the previous menu.
Press the EXIT button to exit.
Alternate method
Press the P.SIZE button on the
remote control repeatedly to
change the picture Size.
•“Wide”: The picture position
( , ) and size ( )
adjustment are available by
pressing the …/†/œ/√
button.
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
Wide
On
On
Off
Return
Enter
Mode
Size
Digital NR
DNIe
My Color Control
Film Mode
Wide
On
On
Off
Return
Wide
4:3
Wide
▲
▼
•“Wide”: Scales the picture to
92% of the TV screen, regardless
of the aspect ratio of the input
source.
• “4:3”: Displays the picture as it
is without changing the aspect
ratio of input source.
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 106
English - 107
Viewing the Current Resolution
You can get the resolution information of your PC.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
3
Press the … or † button to select
“PC”, then press the ENTER button.
The resolution information is
displayed on the screen.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
NOTE
•To change the resolution, see pages 101~102.
Setup
Enter
PC
Image Lock
Position
Auto Adjustment
Image Reset
Resolution
1024x768 @75Hz
Return
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
…
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
Color Weakness
PC
√
Function Help
Off
Medium
Off
On
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 107
PC Display
English - 108
Initializing the Picture Settings
You can replace all picture settings with the factory default values.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the œ or √ button to select
“Setup”, then press the ENTER
button.
3
Press the … or † button to select
“PC”, then press the ENTER button.
4
Press the … or † button to select
“Image Reset”, then press the ENTER
button.
The picture settings are replaced with
the factory default values.
Select “Return” by pressing the
… or † button, then press the ENTER
button to return to the previous menu.
Press the EXIT button to exit.
Setup
Enter
PC
Image Lock
Position
Auto Adjustment
Image Reset
Resolution
1024x768 @75Hz
Return
Image Reset is completed.
Setup
Enter
Setup
Language
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
†
Color Weakness
English
Off
Medium
Off
Return
Setup
Enter
Setup
…
Clock
Timer
Game Mode
V-Chip
Caption
Menu Transparency
Blue Screen
Color Weakness
PC
√
Function Help
Off
Medium
Off
On
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 108
WISELINK
BP68-00588A-03Eng(100~109) 8/22/06 5:13 PM Page 109
WISELINK
English - 110
Using the WISELINK Function
This function enables you to view and listen to photo (JPEG) and audio files (MP3)saved on a USB
Mass Storage Class (MSC) device.
Press the power button on the
remote control or front panel.
Connect a USB device containing
JPEG and/or MP3 files to the
WISELINK jack (USB jack) on the
side of the TV first.
TV Side Panel
NOTES
• If you enter the WISELINK mode with no USB device connected. “There is no device connected”
message will appear. In this case, insert the USB device, exit the screen by pressing the WISELINK
button on the remote control and enter the WISELINK screen again.
• Photo and audio files must be named in English, French, or Spanish. If not, the files can not be
played. Change the file names to English, French, or Spanish if necessary.
• Folder or file names can not exceed 128 characters. If exceeded, they won't function.
• The file system only supports the FAT16/32.
• Certain types of USB Digital camera and audio devices may not be compatible
with this TV
.
•Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class
Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers.
• Before connecting your device to the TV, please back up your files to prevent them from damage or
loss of data. SAMSUNG is not responsible to any data file damage or data loss.
Move the cursor and select an item
Select the currently selected item.
Play or pause the Slide Show or MP3 file.
Stop the current function and return to the previous high-level menu.
Run various functions from the Photo and Music menus.
Stop the current slide show or MP3 file.
Page Up or Down (file list item)
OperationsButton
Using the Remote Control Button in WISELINK Menu
Example
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 110
English - 111
1
Press the MENU button.
Press the œ or √ button to
select “Application”, then
press the ENTER button.
2
Press the … or † button to
select “WISELINK”, then
press the ENTER button.
3
Press the … or † button to
select the corresponding
MSC Memory Device, then
press the ENTER button.
A menu for selecting the
format of the files saved on
the selected MSC Memory
Device will be displayed.
4
Press the œ or √ button to
move to an icon, then press
the ENTER button.
To exit WISELINK mode,
press the WISELINK button
on the remote control.
Alternate method
Press the WISELINK button on
the remote control to display a
WISELINK menu.
Using the WISELINK Menu
Move Enter Exit
Move Enter Exit
Move Enter Return
Application
Enter
Application
WISELINK
Return
Application
Enter
Application
WISELINK
Return
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 111
WISELINK
English - 112
Using the PHOTO (JPEG) List
This menu shows JPEG files and folders saved on an MSC memory device.
1
Complete Steps 1 to 4 of Using the WISELINK Menu.
(Refer to page 111)
2
Press the œ or √ button to
move to “Photo”, then press
the ENTER button.
The saved file information is
displayed as a folder or file.
3
Press the …, †, œ and √
buttons to select a file, then
press the ENTER button.
To exit WISELINK mode,
press the WISELINK button
on the remote control.
NOTES
•
Moving to a photo may take a few seconds to load the file.
At this point, the icon will appear at the top left of the
screen.
• This menu only shows files whose file extension is jpg. Files of
other formats such as bmp or tiff will not be displayed.
• The files are displayed on a page. 15 thumbnail photos are
displayed per page.
• The thumbnails are numbered from left to right and from top to
bottom, from 1 to 15.
• Folders are displayed first and they are followed by all JPEG files
in the current folder. The folders and JPEG files are sorted in
alphabetical order.
• If the photo is displayed in full screen, you can zoom in and out
or rotate the photo on the screen. (Refer to pages 116~118)
• It takes time to show JPEG files as Thumbnail images.
•Pressing the button over
a photo icon shows the
currently selected photo
in full screen.
•Pressing the button over
a folder icon shows the
JPEG files included in
the folder.
: folder icon
: photo icon
: Move to the previous
folder stage icon
Move Enter Return
Move Enter Photo menu Return
709x531
2006-1-30
1/14
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 112
English - 113
Selecting a Photo and Slide Show
1
Complete Steps 1 to 4 of Using the WISELINK Menu.
(Refer to page 111)
2
Press the œ or √ button to
move to “Photo”, then press
the ENTER button.
The saved file information is
displayed as a folder or file.
3
Press the INFO button to
display “View” or “Slide
Show”.
4
Press the … or † button to
select “Slide Show”, then
press the ENTER button.
NOTES
• Slideshow all files in the
selected folder at a
predetermined interval.
• During the slide show, files
are displayed in order from
the currently shown file.
Press the INFO button to run Slide Show.
• MP3 files can be automatically played during the
Slide Show if the Default Background Music is set
to On. To enable this function, MP3 files and other
photo files must be located in the same folder on
the MSC Memory Device.
continued...
Move Enter Return
Exit
View
Slide Show
Exit
View
Slide Show
709x531
2006-1-30
1/14
709x531
2006-1-30
1/14
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 113
WISELINK
English - 114
5
Press the INFO button during “Slide
Show” to set the option(Slide Show
Speed, Background Music On/Off,
Background Music Setting, List).
Press the … or † button to select the
option, then press the ENTER button.
6
To change the sub option, press the INFO
button again to open the options window
and select option you want to change,
then press the ENTER button. Whenever
you do this, the sub option on the screen
is changed.
Using the Menu during a Slide Show
Slide Show Speed:
Select to control the slide show speed.
You can select Slow, Normal, or Fast.
Backgr
ound Music On/Off:
Select to choose whether you want to play
MP3 file during a slide show.
You can select Music On or Music Off.
Backgr
ound Music Setting:
The saved file information is displayed as
folder or MP3 file.
• Select the Background Music Settings
and press the ENTER button.
Select a folder for the background
music by using the … or † buttons and
press the ENTER button. The selected
folder will be highlighted .
• Press the MENU button again to return to the SlideShow screen.
The selected background music is played.
NOTE
• If you turn Off the Background Music, even if the Background Music
Settings have been set up, the background music will not be played.
continued...
Music On
Music On
Fast
Move Open Select Return
Exit
Slide Show Speed
Background Music On/Off
Background Music Setting
List
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 114

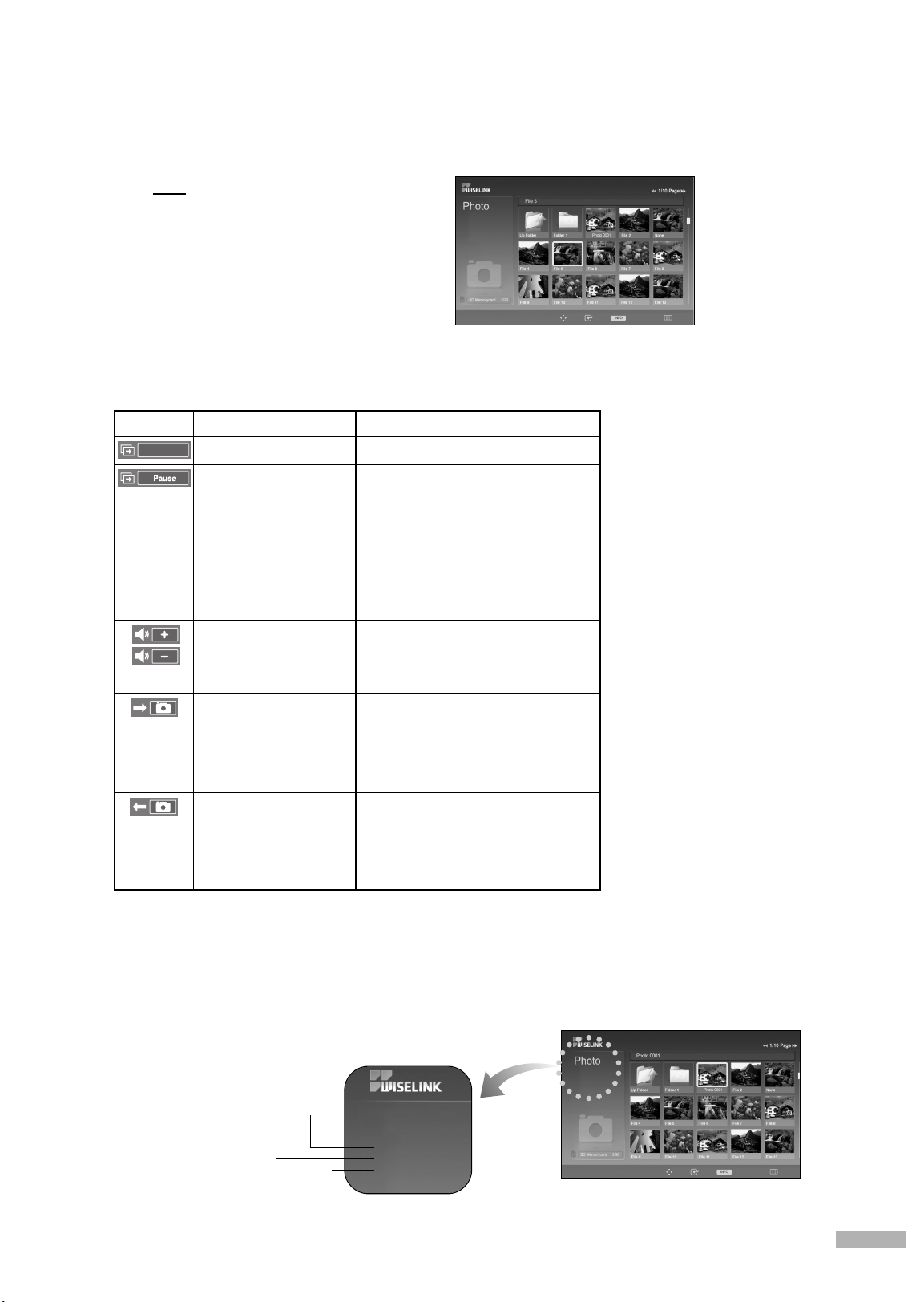

English - 115
(Photo) SlideShow
Photo SlideShow is in progress.
When the SlideShow and music
is paused by the PLAY/PAUSE
button on the remote control
during a SlideShow.
To resume the SlideShow, press
the PLAY/PAUSE button on the
remote control again.
When pressing the VOL +,
-
buttons on the remote control to
adjust the music volume.
Current OSDIcon
Play
Photo Pause
Volume Up
Volume Down
Function
When pressing the (right)
direction button on the remote
control to move to the next
photo.
Move to Next Photo
When pressing the (left)
direction button on the remote
control to move to the previous
photo.
Move to Previous Photo
Slideshow function information icon (Displayed at the top left of the screen).
NOTE
•When selecting a photo file, the photo file information is displayed on the left in the TV screen,
such as the resolution, the date modified and the order of the file in the current directory (e.g.
10th out of 15).
709x531
2006-1-30
1/14
Move Enter Photo menu Return
such as the resolution
order of the file in the
current directory
date modified
List:
The saved file information is displayed as
folder or JPEG file.
To exit WISELINK mode, press the
WISELINK button on the remote control.
Move Enter Photo menu Return
1200x748
2006-2-6
4/14
709x531
2006-1-30
1/14
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 115
WISELINK
English - 116
Rotating
1
Complete Steps 1 to 4 of Using the WISELINK Menu.
(Refer to page 111)
2
Press the œ or √ button to
move to “Photo”, then press
the ENTER button.
The saved file information is
displayed as a folder or file.
3
Press the …, †, œ and √
buttons to select a file, then
press the ENTER button.
Pressing the button over a
photo thumbnail displays the
photo in full screen.
4
Press the INFO button to
display the option(Slide
Show, Rotate, Zoom).
Press the … or † button to
select “Rotate”, then press
the ENTER button.
• The INFO button, the Rotate option and Enter must be
pressed each time you want to rotate the picture.
For example, from 90 to 180 degrees.
To rotate a photo, press the INFO button to open the options
window, select the “Rotate” option and press the ENTER
button. Whenever you do this, the photo on the screen is
rotated. (90°, 180°, 270°, 0°)
To exit WISELINK mode,
press the WISELINK button
on the remote control.
NOTES
• The rotated file is not saved.
• Zoom/Slide Show option is disabled when the Rotate option is
selected.
Move Enter Return
Exit
Slide Show
Rotate
Zoom
Move Enter Photo menu Return
709x531
2006-1-30
1/14
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 116
English - 117
Zooming-in
1
Complete Steps 1 to 4 of Using the WISELINK Menu.
(Refer to page 111)
2
Press the œ or √ button to
move to “Photo”, then press
the ENTER button.
The saved file information is
displayed as a folder or file.
3
Press the …, †, œ and √
buttons to select a file, then
press the ENTER button.
Pressing the button over a
photo thumbnail displays the
photo in full screen.
4
Press the INFO button to
display the option(Slide
Show, Rotate, Zoom).
Press the … or † button to
select “Zoom”, then press the
ENTER button.
The enlarged photo image
appears on the screen.
To enlarge a displayed
photo, press the INFO button
to open the Options window,
select the “Zoom” option and
press the ENTER button.
Whenever you do this, the
following zoom options are
applied in sequence.
• The INFO button, the Rotate option and Enter must be
pressed each time you want to Zoom the picture.
For example, from x 2 to x 4.
continued...
Move Enter Return
Exit
Slide Show
Rotate
Zoom
Move Enter Photo menu Return
709x531
2006-1-30
1/14
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 117
WISELINK
English - 118
Zoom (x 2)
Zoom-in to a photo x2.
Zoom-in to a photo x4.
Current OSDIcon
Zoom (x 4)
Restore a photo to its original
size.
Zoom (x 1)
Pan down to view the lower
part of a zoomed-in photo.
Pan Down
Function
Pan up to view the upper part
of a zoomed-in photo.
Pan Up
Pan right to view the right side
of a zoomed-in photo.
Pan Right
Pan left to view the left side of a
zoomed-in photo.
Pan Left
Pan to the bottom of a zoomed-
in photo.
Pan Down (END)
Pan to the top of a zoomed-in
photo.
Pan Up (END)
Pan to the right-most part of a
zoomed-in photo.
Pan Right (END)
Pan to the left-most part of a
zoomed-in photo.
Pan Left (END)
Zoom function information icon
(Displayed at the top left of the screen).
• Zoom(x 2): Zoom-in to the photo x2.
• Zoom(x 4): Zoom-in to the photo x4.
• Zoom(x 1): Restore the photo to its original size.
To move to pan up/down/left/right, press the
…, †, œ and √ buttons.
To exit WISELINK mode, press the WISELINK button
on the remote control.
Rotating (90°)
Current OSDIcon
Function
The Rotating function information icon
(Displayed at the top left of the screen).
To rotate a photo by 90 degrees
Rotating (180°)
To rotate a photo by 180 degrees
Rotating (270°)
To rotate a photo by 270 degrees
Rotating (
0°
) To rotate a photo by original
NOTE
• Rotate/Slide show option is disabled when the Zoom option is selected.
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 118
English - 119
Using the MP3 List
This menu shows MP3 files from among the files saved on an MSC memory device.
1
Complete Steps 1 to 4 of Using the WISELINK Menu.
(Refer to page 111)
2
Press the œ or √ button to
move to “Music”, then press
the ENTER button.
The saved file information is
displayed as a folder or file.
3
Press the … or † button to
select a file, then press the
ENTER button.
To select all files or a file,
press the INFO button to
display the Music menus.
Press the ENTER button to
select “Play All Files” or
“Play”.
To select a file on the next
page, press the REW or FF
button to move to the next
page.
continued...
•Pressing the button over
a musical note icon
immediately plays the
music file.
•Pressing the button over
a folder icon shows the
music files included in
the folder.
: folder icon
: musical note icon
Move Enter Return
Move Enter Music menu Return
Upper Folder
00:04:01
00:04:28
00:04:12
00:05:39
00:04:30
00:04:30
00:03:54
00:05:25
Folder 1
001 Swan Song feat.TBNY
002 Beatles-Yesterday
003 Fall in Love
004 Tom Waits-Time
005 Chuk Mangione-Feel So good
007 Ryuichi Sakamoto-Rain
008 Bon jovi-This ain’t a love song
006 Nat King Cole-Fly me to the moon
Nat King Cole-Fly me to the moon
00:04:00
2006-2-10
6/14
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 119
WISELINK
English - 120
4
Press the PLAY/PAUSE button while
playing an MP3 file to pause the file.
Press the STOP button to exit Play mode.
To exit WISELINK mode, press the
WISELINK button on the remote control.
NOTES
• This menu only shows files with the mp3 file extension. Files with other file
extensions are not displayed, even if they are saved on the same memory
card.
• The selected file is displayed on the top with its playing time.
•To adjust the music volume, press the VOL+ or VOL- button on the remote
control. To mute the sound, press the MUTE button on the remote control.
• FF/Rew Key does not function during the play.
(Music) All
When all music files are being
played.
When pressing the PLAY/PAUSE
button on the remote control
while music is playing. The
music stops and the ‘Play’ text
appears at the top of the
screen.
Current OSDIcon
(Music) Play/Pause
When pressing the STOP button
on the remote control when
music is stopped. The music
resumes and the ‘Stop’ text
appears at the top of the
screen.
(Music) Stop
Function
(Music) One
When a music file is being
played.
Music function information icon
(Displayed at the top left of the screen).
Move Enter Music menu Return
Upper Folder
00:04:01
00:04:28
00:04:12
00:05:39
00:04:30
00:04:30
00:03:54
00:05:25
Folder 1
001 Swan Song feat.TBNY
002 Beatles-Yesterday
003 Fall in Love
004 Tom Waits-Time
005 Chuk Mangione-Feel So good
007 Ryuichi Sakamoto-Rain
008 Bon jovi-This ain’t a love song
006 Nat King Cole-Fly me to the moon
Nat King Cole-Fly me to the moon
00:04:00
2006-2-10
6/14
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 120
English - 121
Using the Setup Menu
Setup displays the user settings of the WISELINK menu.
1
Complete Steps 1 to 4 of Using the WISELINK Menu.
(Refer to page 111)
2
Press the œ or √ button to
move to “Setup”, then press
the ENTER button.
3
Press the … or † button to
select an item you want, then
press the ENTER button.
4
Press the … or † button to
select the option, then press
the ENTER button.
continued...
Move Enter Return
Move Enter Return
Slide Show Speed : Fast
√
Slide Show Repeat : Off
√
Background Music On/Off : On
√
Music Repeat : On
√
Screen Saver : 5 min
√
Move Enter Return
Slide Show Speed : Fast
Slide Show Repeat : Off
Background Music On/Off : On
Music Repeat : On
Screen Saver : 5 min
Slow
Normal
Fast
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 121
WISELINK

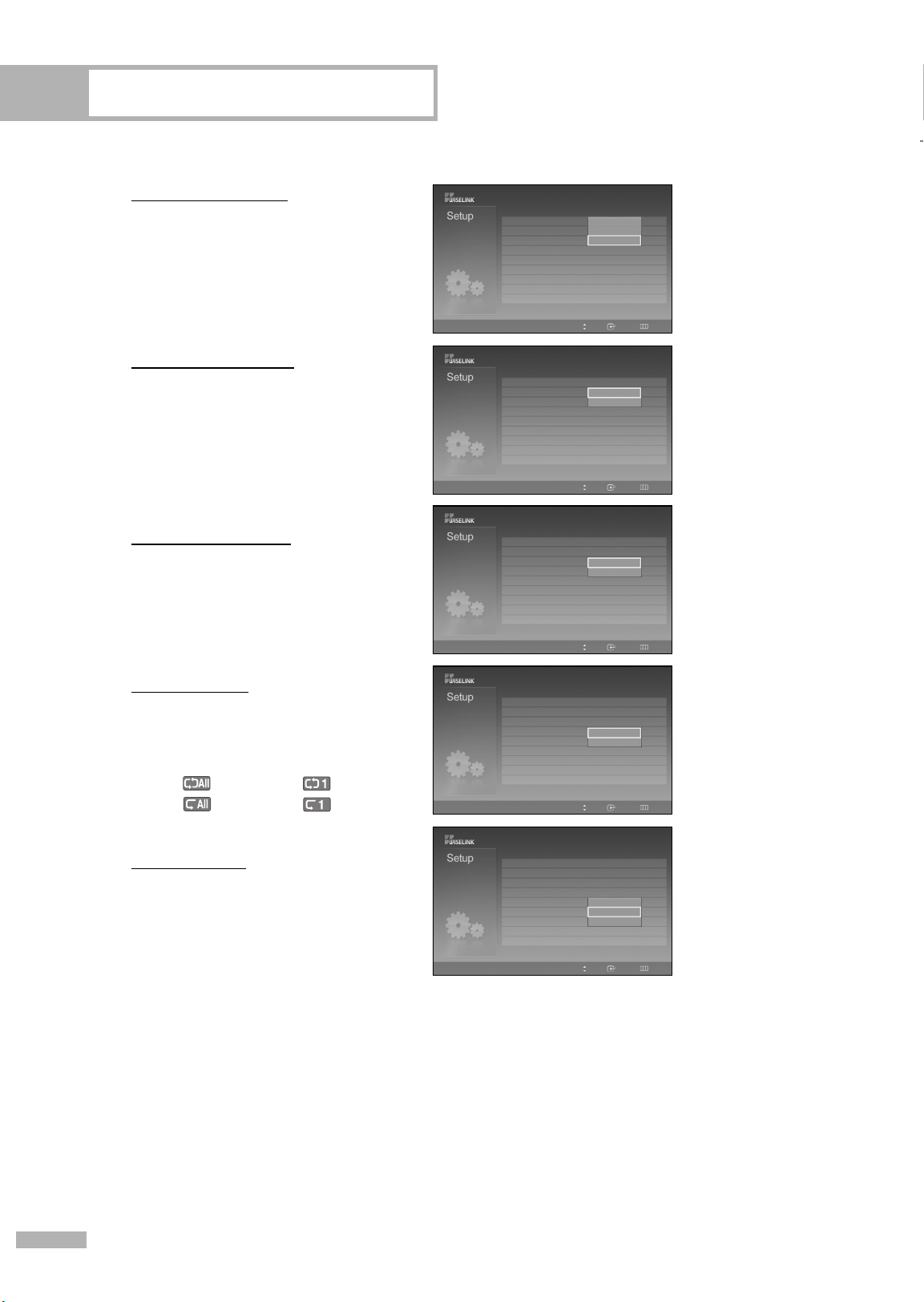

English - 122
Slide Show Speed:
Select to control the slide show speed.
You can select Slow, Normal or Fast.
Slide Show Repeat:
• On: Repeats the slide show from the
beginning when all the files in the
folder have been displayed.
• Off: Exit a slide show.
To return to the Photo menu when all the
files in the folder have been displayed.
Backgr
ound Music:
Select to determine whether to play an
MP3 file during a slide show.
You can select Music On or Music Off.
Music Repeat:
Select to determine whether to repeat
playing the music when all MP3 files in
the current folder have been played.
You can select On or Off.
• On: (Music) All, (Music) One
• Off: (Music) All, (Music) One
Scr
een Saver:
Select to set the waiting time before the
screen saver is run when no button is
pressed. You can select from Off(Do Not
Use), 5min(minute) or 10min(minute).
Move Enter Return
Slide Show Speed : Fast
Slide Show Repeat : Off
Background Music On/Off : On
Music Repeat : On
Screen Saver : 5 min
Slow
Normal
Fast
Move Enter Return
Slide Show Speed : Fast
Slide Show Repeat : Off
Background Music On/Off : On
Music Repeat : On
Screen Saver : 5 min
Off
5 min
10 min
Move Enter Return
Slide Show Speed : Fast
Slide Show Repeat : Off
Background Music On/Off : On
Music Repeat : On
Screen Saver : 5 min
Off
On
Move Enter Return
Slide Show Speed : Fast
Slide Show Repeat : Off
Background Music On/Off : On
Music Repeat : On
Screen Saver : 5 min
Off
On
Move Enter Return
Slide Show Speed : Fast
Slide Show Repeat : Off
Background Music On/Off : On
Music Repeat : On
Screen Saver : 5 min
Off
On
BP68-00588A-01Eng(110~131) 5/8/06 7:57 PM Page 122
Appendix
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 123
Appendix
English - 124
Replacing the Lamp
• Why do I need to replace the lamp?
The lamp used in a DLP TV has a limited lifespan. For the best screen quality it needs to be
replaced periodically. After replacing the lamp, the screen quality will be bright and clear as new.
• When do I need to replace it?
It should be replaced when the screen becomes darker, less clear or when all three LEDs on the
front (TIMER, LAMP, & STAND BY/TEMP) are flashing.
• Check before lamp replacement
1. The lamp must be the same code number and type.
2. The lamp type is indicated on the side of the TV. It is also indicated on the lamp case.
3. After checking the code number for the lamp, give the code number to the store where you
purchased the TV or to a Samsung Service center.
• Caution
1. Replace with the correct code numbered lamp to avoid damage to the TV.
2. Turn the power off and wait for 30 minutes before replacing the lamp as it will be hot.
3. Do not touch the glass part of the lamp with your bare hands and do not insert any foreign
object inside the cover as it may cause poor screen quality, electric shock or fire.
4. Do not place the old lamp near flammable objects or within the reach of children.
5. Be sure to connect this TV directly to an AC wall outlet. If the TV's AC plug is connected to a
cable box or other source, it will not allow for proper cool down time.
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 124
English - 125
NOTES
• Be sure the replacement Lamp is the same type.
• After replacing the lamp, align the lamp cover with the groove and secure the screws.
• The TV will not turn on if the lamp cover is not correctly closed (as this will activate the protective
circuit).
• For replacement, you will need a 5.91-Inch screwdriver and a pair of gloves.
1
Unplug TV, then use a
screwdriver to remove the
screws.
2
Remove the Lamp cover.
3
Remove the Lamp cover duct
holding the tab and pulling
it out.
4
Remove the screw securing
the Lamp by using a
screwdriver.
5
Separate the Lamp from the
engine by holding the handle
and pulling it out.
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 125
Appendix
English - 126
Troubleshooting
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these
troubleshooting tips apply, then call your nearest Samsung authorized service center.
Possible Solution
Try another channel.
Adjust the antenna.
Check all wire connections.
Try another channel.
Adjust the antenna.
Try another channel. Press the SOURCE button.
Make sure the TV is plugged in.
Check the antenna connections.
Check that the Mute feature is off.
Make sure the program is broadcast in color.
Adjust the picture settings.
Adjust the antenna.
Check all wire connections.
If you are using a VCR, check the tracking.
Unplug the TV for 30 seconds, then try operating it
again.
Press the “TV” button to put your remote control
into TV mode.
Make sure the remote has batteries.
Make sure the wall outlet is working.
Make sure the TV is plugged in.
Make sure the remote has batteries.
Please check the digital signal strength and input
antenna.
Continued...
Problem
Poor picture quality.
Poor sound quality.
No picture or sound.
No color, wrong colors or tints.
Picture rolls vertically.
The TV operates erratically.
Your remote control does not
operate your TV.
The TV won’t switch on.
Digital broadcasting screen
problem.
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 126
Possible Solution
The best visual quality is obtained with 1080p input
signal.
➔ To view TV in the best 1080p visual quality,
connect to a PC whose graphic output is
1920 x 1080.
The visual qualities of digital channels may vary
depending on the original production method (analog
or digital).
➔ If the original production method is digital: High
visual quality program.
➔ If the original production method is analog: The
digital program displayed on the screen is
originally an analog program which has been
converted. The visual quality is of an SD grade.
The HD caption that appears when switching channels
or when pressing the Information button on the remote
control means the selected channel is simply a digital
channel. If the broadcasting station converts an
analog signal into digital and transmits the signal, the
visual quality may not be perfect.
(Applied to Set Top Box built-in model only.)
• The display panel used for the DLP TV is composed of many tiny pixels.
These pixels may occasionally appear on the screen.
Problem
I want to view the clearest picture
on in 1080p resolution.
The visual qualities of digital
channels vary.
Although the TV caption shows HD,
the visual quality is not satisfactory.
English - 127
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 127
Appendix
English - 128
Cleaning and Maintaining Your TV
Please follow these guidelines to get the maximum performance from your TV.
Placement
• Do not put the TV near extremely hot, cold, humid or dusty places.
• Do not place the TV near appliances with electric motors that create magnetic fields, such as
vacuum cleaners.
• Keep the ventilation openings clear; do not place the TV on a soft surface, such as cloth or
paper.
• Place the TV in a vertical position only.
Liquids
• Do not handle liquids near or on the TV. Liquids that spill into it can cause serious damage.
Cabinet
• Never open the cabinet or touch the parts inside.
•Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.
• Do not put heavy objects on top of the cabinet.
• This DLP TV projects the image onto a large screen by applying an optical system.
If you place the TV set face down, it might cause a problem because dirt, or some other
contaminant may become attached to the inside of the TV set.
Temperature
• If your TV is suddenly moved from a cold to a warm place, unplug the power cord, and allow
at least two hours for moisture that may have formed inside the unit to dry completely.
Using Your TV in Another Country
If you plan to take your TV with you to a foreign country, please be aware of the different
television systems that are in use around the world. A TV designed for one system may not work
properly with another system due to differences in the TV channel frequencies.
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 128
English - 129
Specifications
Model
Dimensions
(W x D x H)
Weight
TV System
Channel
Component Video IN
HDMI IN
PC IN
Speaker Output
Voltage
Frequency of Operation
Power Consumption
D-sub 15-pin, analog RGB
10W(L), 10W(R)
AC110-120V
60Hz
230W In Use, Less than 1W In Standby
NTSC
ATSC (8VSB terrestrial)
Terrestrial (analog)
Terrestrial (digital)
Cable (analog)
2 (Y PB PR)
2 total
HL-S5087W HL-S5687W HL-S6187W
American TV Standard
ATSC compliant 8VSB
2-69
2-69
1-135
480i, 480p, 720p, 1080i, 1080p
Video : 480i,480p,720p,1080i,1080p
(EIA/CEA-861-B compliant)
Audio : Two channel linear PCM 32,
44.1 and 48kHz
VESA (Refer to page 102 for detail)
45.43 x 15.63 x 32.30 inches
1154 x 397 x 820.5 mm
30.3 Kg / 66.8 lbs
50.87 x 16.34 x 35.67 inches
1292 x 415 x 906 mm
33.3 Kg / 73.41 lbs
55.31 x 17.64 x 38.62 inches
1405 x 448 x 981 mm
36 Kg / 79.37 lbs
NOTES
• Design and specifications are subject to change without prior notice.
• This device is a Class B digital apparatus.
BP68-00588A-03Eng(110~131) 8/8/06 2:10 PM Page 129
This page is intentionally
left blank.
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 130
This page is intentionally
left blank.
BP68-00588A-01Eng(110~131) 5/8/06 4:51 PM Page 131
BP68-00588A-06
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
Country
CANADA
U.S.A
Customer Care Center
1-800-SAMSUNG (7267864)
1-800-SAMSUNG (7267864)
Web Site
www.samsung.com/ca
www.samsung.com
Address
Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Canada
Samsung Electronique Canada Inc., Service à la Clientèle
55 Standish Court Mississauga, Ontario L5R 4B2
Canada
Samsung Electronics America, Inc.
105 Challenger Road
Ridgefield Park, NJ 07660-0511
BP68-00588A-06Eng(cover) 8/23/06 3:32 PM Page 2
