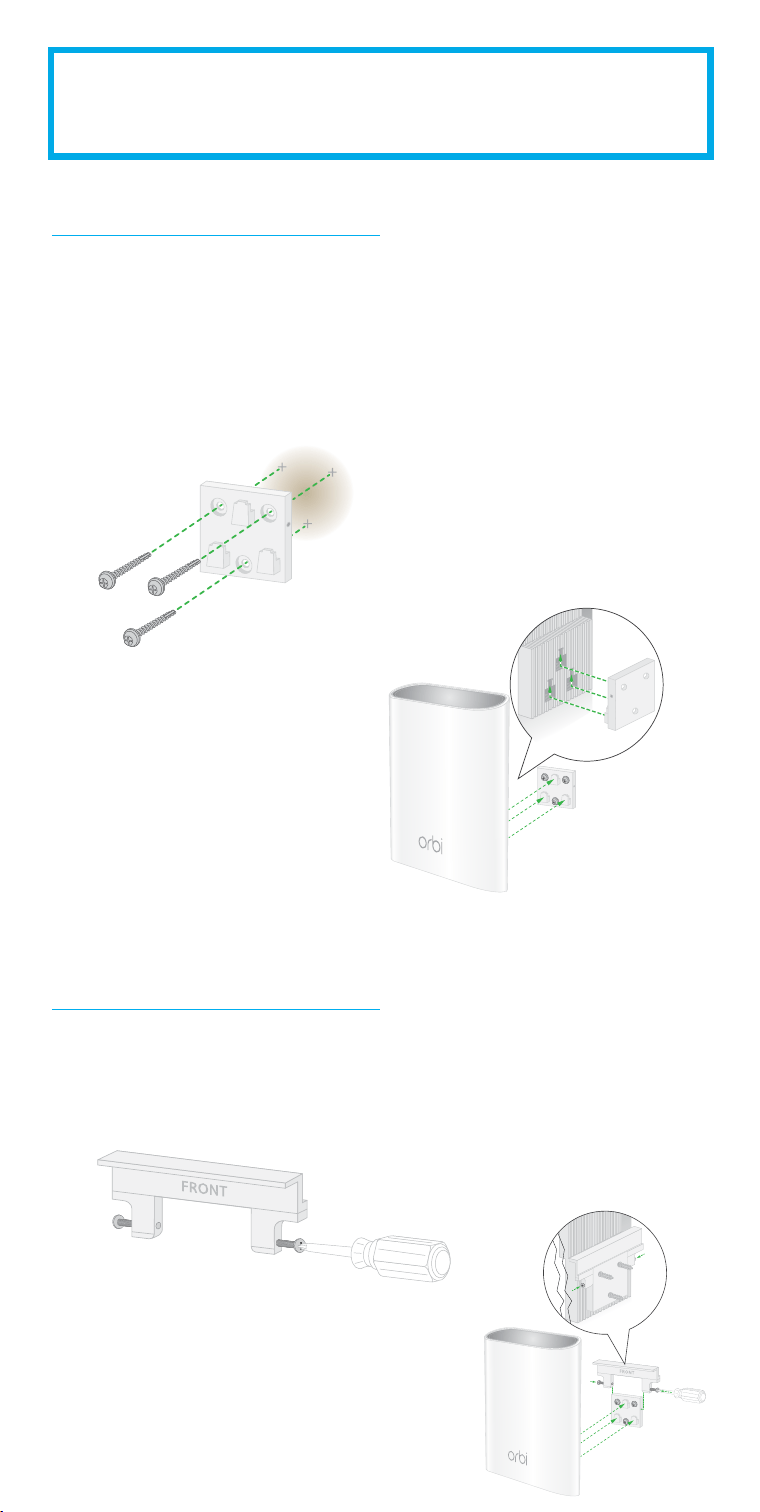

1. Use the wall-mount bracket as a template to mark three
holes on the wall.
2. Drill holes where you marked on the wall using a 5/32-inch
drill bit.
3. Place the wall-mount bracket where you drilled the holes
and secure the bracket to the wall using the stucco or
concrete screws or the wood screws.
4. Slide the Orbi satellite onto
the wall-mount bracket.
Wall-Mount the Satellite
Attach the Satellite to the Stand
1. Attach the wall-mount bracket to the stand using the
machine screws.
2. Slide the Orbi satellite onto
the wall-mount bracket.
Lock the Satellite to the
Wall-Mount Bracket
1. Follow the instructions in Wall-Mount the Satellite.
2. Insert the Phillips screws or torx screws that came with your
package into the wall-mount bracket lock.
The screws must be flush with the lock.
3. Place the lock on top of the
wall-mount bracket.
4. Tighten the screws to secure the lock
to the bracket.
Lock the Satellite to the Stand
1. Follow the instructions in Attach the Satellite to the Stand.
2. Insert the Phillips screws or torx screws that came with your
package into the wall-mount bracket lock.
The screws must be flush with the lock.
3. Place the lock on top of
the wall-mount bracket.
4. Tighten the screws to
secure the lock to the
bracket.
Package Contents
Quick Start
Model RBS50Y
Support
Thank you for purchasing this NETGEAR product. You can visit
https://www.netgear.com/support/ to register your product, get
help, access the latest downloads and user manuals, and join our
community. We recommend that you use only official NETGEAR
support resources.
Si ce produit est vendu au Canada, vous pouvez accéder à ce
document en français canadien à
https://www.netgear.com/support/download/.
(If this product is sold in Canada, you can access this document
in Canadian French at
https://www.netgear.com/support/download/.)
For regulatory compliance information including the EU
Declaration of Conformity, visit
https://www.netgear.com/about/regulatory/.
See the regulatory compliance document before connecting the
power supply.

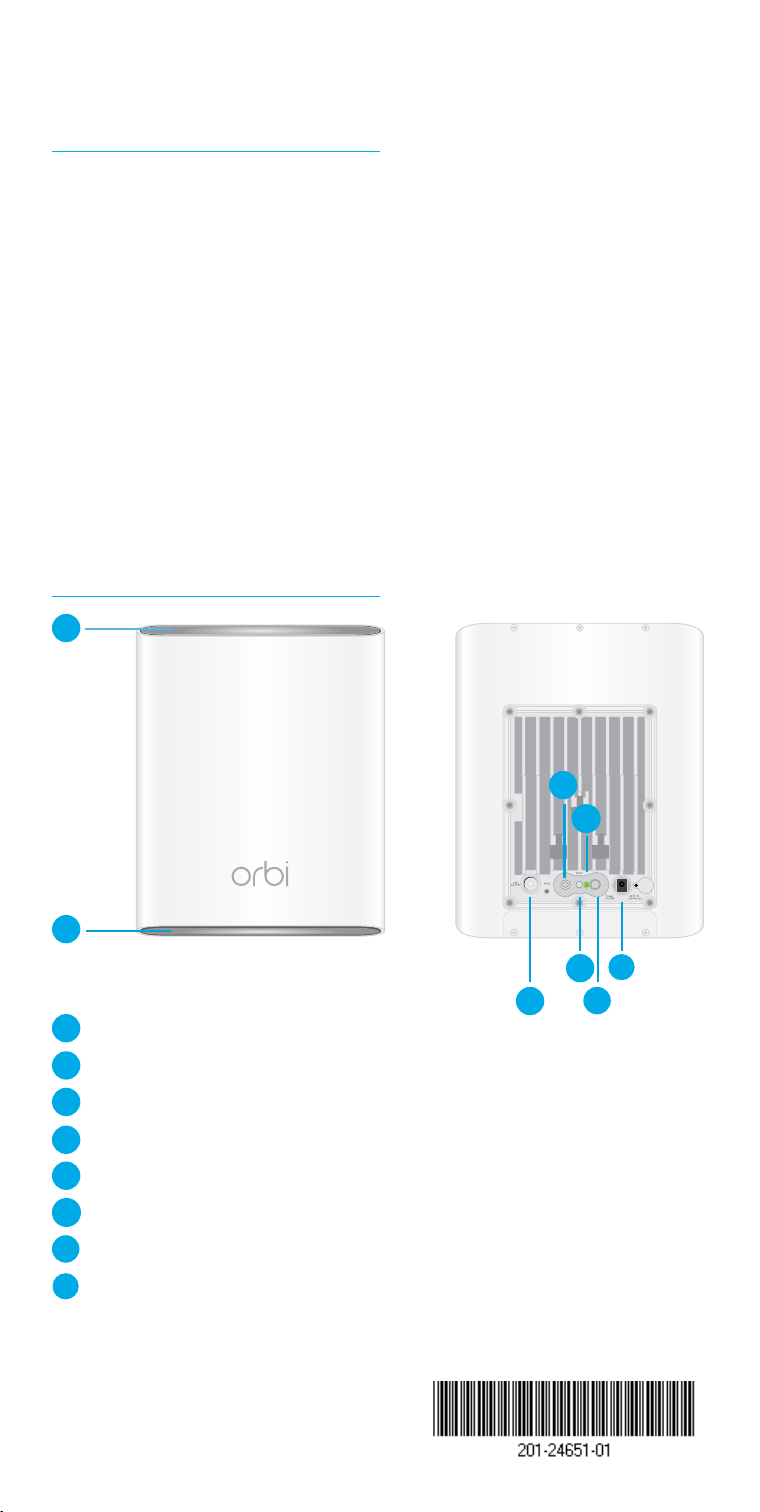

Orbi Outdoor Universal
Satellite
(Model RBS50Y)
Power adapter
(varies by region)
Machine screws
Wall-mount bracket
Stand
Wall-mount bracket lock
Stucco or concrete
screws
Wood screws
Phillips screws
Torx screws
Wall-Mount Bracket Lock Items
Wall-Mount Screws
Note: Before you wall-mount your satellite or attach it to
the stand, set up your satellite using the instructions in
Get Started on the other side of this quick start guide.
NETGEAR INTL LTD
Building 3, University Technology
Centre
Curraheen Road, Cork, Ireland
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
© NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of
NETGEAR, Inc. Any non-NETGEAR trademarks are used for reference purposes
only.
Power Adapter Lock Items
Metal bracket
and screw
Lock the Power Adapter
To prevent the power
adapter from accidentally
disconnecting from the
satellite, use the metal bracket
and screw to secure the
power adapter to the satellite.
Wall-Mount the Power Adapter
To mount the power adapter
to the wall, insert two wood
screws into the wall (make
sure to leave a portion of the
screw thread exposed) and
place the power adapter over
the screws.
