LIMITED ONE-YEAR WARRANTY
(U.S. AND CANADA ONLY)
Conair will repair or replace (at our option)
your unit free of charge for 12 months from
the date of purchase if the appliance is defec-
tive in workmanship or materials.
To obtain service under this warranty, return
the defective product to the service center
listed, together with your purchase receipt.
California residents need only provide proof of
purchase and should call 1-800-3-CONAIR
for shipping instructions. In the absence of a
purchase receipt, the warranty period shall be
12 months from the date of manufacture.
ANY IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTY
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED
IN DURATION TO THE 12-MONTH DURATION
OF THIS WRITTEN, LIMITED WARRANTY.
Some states do not allow limitations on how
long an implied warranty lasts, so the above
limitations may not apply to you.
IN NO EVENT SHALL CONAIR BE LIABLE
FOR ANY SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES FOR BREACH OF
THIS OR ANY OTHER WARRANTY, EXPRESS
OR IMPLIED, WHATSOEVER.
Some states do not allow the exclusion or
limitation of special, incidental, or consequen-
tial damages, so the above limitation may not
apply to you.
This warranty gives you specific legal rights,
and you may also have other rights, which
vary from state to state.
21PA080513
IB-13483C
OPERATING
INSTRUCTIONS
1. Fill water reservoir with distilled water.
We recommend that you use distilled water
only, as this will prevent mineral deposits in
the boiler that can reduce performance or
clog the water system.
2. Plug the unit into the electrical outlet.
3. The POWER light will light up (red).
Allow approximately 40 seconds for the
unit to warm up. The appliance is ready to
use when the READY light goes on (green).
4. Pointing the steam jets away from you,
and anyone else in the room, engage the
trigger. Steam should now be released from
the steam jets. To have continuous steam,
move switch down so you will have continu-
ous steam without having to hold the trigger.
Always have steam facing away from you
or anyone in the room.
5. When first using the device, test on an
old cloth, as there may be sediment left from
the manufacturing process or transportation.
6. On the back of the steamer there is a
sliding switch for HIGH and LOW settings.
HIGH is for heavier and badly wrinkled fabric
and provides faster, hotter, less visible
steam. LOW setting should be used for
delicate fabrics, in combination with the soft
cushion brush attachment.
7. To stop the flow of steam, release the
trigger or raise the switch.
8. Unplug the device when it is not in use.
KILLS 99.9% OF BACTERIA*
1. Position the garment steamer’s soleplate
at a minimum distance of 0.5 inch (1.3 cm)
from material to be treated.
2. Remain steaming in this position for 2
minutes, then move to the next area to be
treated and repeat.
*Bacteria reduction rate was measured after
exposing the tested samples for 2 minutes
at a ½" distance from the garment steamer’s
soleplate. Testing was performed on E. coli.
STEAMING TIPS
1. To prepare your fabric for steaming, brush
it with the soft cushion brush attachment.
This will loosen the fibers and allow better
steam penetration.
2. Hang your garment or fabric. NOTE: Avoid
using metal clothes hangers, if possible.
3. Pass the steam jets just above the fabric
where the wrinkles are. It may take a few
passes to remove the wrinkles completely.
4. After use, unplug steamer and empty any
remaining water from the tank to avoid leakage.
5. CAUTION: When hanging garment on a
door while steaming, be careful not to
damage the door with steam.
6. First test unit on an inconspicuous area of the
item to be steamed, using the HIGH setting to
ensure fabric can tolerate the effects of steam.
If there is no evidence of damage, you can pro-
ceed to use the steamer on that item.
7. When steaming, always keep the unit in
motion and about one inch from the surface
of the item being steamed to avoid potential
damage. Do not continuously hold steamer
over an area or touch steamer jets directly to
fabric, as this can cause damage, including
shrinkage, melting, or color shift on certain
types of material.
8. In the case of heavier, durable fabrics such as
wool coats or bedding, slower passes with the
steamer may be necessary to achieve desired
results. As always, start by testing on an incon-
spicuous area of the item to be steamed, using
the HIGH setting to ensure fabric can tolerate
the effects of steam, and adjust your technique
as needed to obtain the results desired..

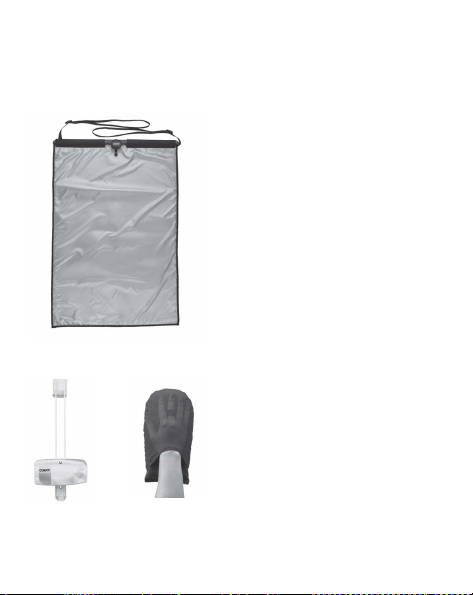

CONAIR GARMENT
STEAMING ACCESSORIES
(sold separately)
Steaming/Storage
Station
Model DH1
Steaming Mitt
Model GPP1
Door Press Pad
Model GDPP1
INSTRUCTION BOOKLET
For your safety and continued enjoyment
of this product, always read the instruction
book carefully before using.
HANDHELD
FABRIC STEAMER
MODEL GS23X
Service Center
Conair LLC
Service Department
7475 N. Glen Harbor Blvd.
Glendale, AZ 85307
For information on any Conair product, call
1-800-3-CONAIR or visit us on the web at
www.conair.com
Please register this product at
www.conair.com/registration
©2021 Conair LLC
Glendale, AZ 85307
Made in China
IMPORTANT
FOR HOUSEHOLD USE ONLY
FILLING INSTRUCTIONS
1. Make sure unit is unplugged.
2. Place the unit on its back on a flat and
stable surface.
3. While holding the water reservoir with one
hand, move the release switch up toward the
steam head nozzle.
4. Pull the reservoir out, away from the
steamer body.
5. Turn the reservoir over, revealing the
rubber inlet cover.
6. Open the inlet cover and fill the reservoir
with distilled water (which can be found in
grocery stores). We recommend that you
use distilled water only, as this will prevent
mineral deposits in the boiler that can reduce
performance or clog the water system.
7. Close the inlet cover and return the reser-
voir to its place, making sure that it is secure.
