Bluetooth Scale Body Index
1

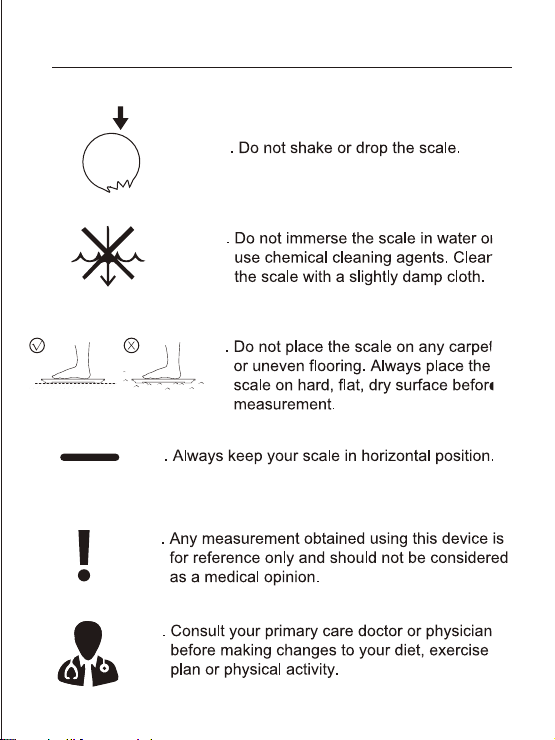

Caution
2
Specifications
Size:11.02*11.02*0.98in/280*280*25mm
Weight:3.44lb / 1.56kg
Batteries: 4*1.5 V AAA
Capacity: 11-400lb / 5~180kg
Division: 0.1lb/0.1kg
Unit: lb/kg/st
3
For body weight: Place the scale on an even surface and wait at
least 10seconds before stepping on the scale. The reading should
display 0.0 kg before stepping on.
Accuracy Range
Trouble shooting
Change battery Overload Calibrating
1.Battery volume
2.Connected
3.Weight units
4.Body Shape Index
5.Body fat rate
6.Body water rate
7.Body Heart rate
8.Body weight
9.BMI
10.Muscle rate
11.Bone mass
4
The Bluetooth Scale can connect with your mobile phone
(Android 6.0+ & IOS 8.0+) or iPad via Bluetooth 4.0. Download
the ‘Starfit’ app free from the App Store or Google Play.
Operating instructions
5
6 7
At the bottom, you will find a bar where you can select different
types of data to display. You can share your fitness data with
friends via Facebook, Instagram, or SMS by clicking the share
button [+] and Share on the Measuring page.
Under " Account " you can add user(s) " + " . To delete an
account, swipe the account to the left and select " Delete Account" .
Themes, Set goals, Weight units, Weighing done sounds,
Languages, Passwords can all be set under the Account
page. Please note that you can change the weighing unit under
Press the Unit button,then if will control the unit of App.
Add/Delete Users & Basic Settings
8
SMART
BODY FAT SCALE
FI2019LB
User Manual
Conductive Areas
Body weight
Body balance tracking BMI(Body mass index)
Body fat rate Fat-free body weight Subcutaneous fat
Heart rate
Visceral fat Body water
Skeletal muscle
Muscle mass Bone mass
Protein BMR
Body age Heart Index
Turn on Bluetooth on your smartphone.
Press [Device] and
Device Management
to enter measuring
page and find device.
Power on the scale,
press[+] to select
"Runstar-R3" to
add the device.
Come back to measure page.
Step on the scale and keep
standing for 5-10 seconds
with bare feet. The weighing
has finished after the
analysing datas come out.
Pairing the scale with your smartphone
Click " Chart " to view your progress history. Enter it into the
calendar to form a list and select a dataset or all data you want to
delete. You can also select different date datas to contrast and
share to friend via facebook,instagram, or SMS by click button
View reports, deleted data, set reference data,
share progress by recently,weekly,month and year.
1.Why doesn't the scale work? Why does the data on screen
disappear in a flash?
- Please check the batteries are installed properly, replace
batteries if necessary.
2. The scale cannot connect with App.
- Check that the phone's software is iOS 8.0 or higher or
Android6.0 or higher.
- Download and open the newest version of the Starfit App.
- Enable Bluetooth on your phone. For Android 6.0 or higher,
location needs to be enabled
3.No body fat measured when weighing.
- Step on with dry and bare feet
- Ensure Bluetooth is enabled and working
- Ensure personal data is entered.
Frequently Asked Questions&Answers
2AP3Q-FI2019LB-B
FI2019LB
9.8cm
风琴式折法
13cm
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Statement
Warning Note
Changes or modifications not expressly approved by the party
responsible for compliance could avoid the user's authority to
operate the equipment.
Runstar-R3
